Biomarkers of the L-Arginine/Dimethylarginine/Nitric Oxide Pathway in People with Chronic Airflow Obstruction and Obstructive Sleep Apnoea

by
Juliane Hannemann
1,2,†,
Elin H. Thorarinnsdottir
3,4,†,
André F. S. Amaral
5,6,
Edzard Schwedhelm
1,
Lena Schmidt-Hutten
1,
Heike Stang
1,
Bryndis Benediktsdottir
4,7,
Ingibjörg Gunnarsdóttir
8,
Thórarinn Gislason
4,7,† and
Rainer Böger
1,2,*,†
1
Institute of Clinical Pharmacology and Toxicology, University Medical Center Hamburg-Eppendorf, 20246 Hamburg, Germany
2
Institute DECIPHER, German-Chilean Institute for Research on Pulmonary Hypoxia and Its Health Sequelae, 20246 Hamburg, Germany
3
Primary Health Care of the Capital Area, 103 Reykjavik, Iceland
4
Faculty of Medicine, University of Iceland, 102 Reykjavik, Iceland
5
National Heart and Lung Institute, Imperial College London, London SW3 6LY, UK
6
NIHR Imperial Biomedical Research Centre, London W2 1NY, UK
7
Sleep Department, Landspitali University Hospital of Iceland, 105 Reykjavik, Iceland
8
Unit for Nutrition Research, Landspitali University Hospital & Faculty of Food Science and Nutrition, University of Iceland, 102 Reykjavik, Iceland
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Clin. Med. 2023, 12(16), 5230; https://doi.org/10.3390/jcm12165230
Submission received: 5 July 2023 / Revised: 3 August 2023 / Accepted: 8 August 2023 / Published: 11 August 2023
(This article belongs to the Special Issue Biomarkers and Diagnostics in Respiratory Diseases)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: Chronic obstructive pulmonary disease (COPD) and obstructive sleep apnoea (OSA) are common chronic diseases that are associated with chronic and intermittent hypoxemia, respectively. Patients affected by the overlap of COPD and OSA have a particularly unfavourable prognosis. The L-arginine/nitric oxide (NO) pathway plays an important role in regulating pulmonary vascular function. Asymmetric (ADMA) and symmetric dimethylarginine (SDMA) interfere with NO production. Methods: We analysed the serum concentrations of ADMA, SDMA, L-arginine, L-citrulline, and L-ornithine in a large sample of the Icelandic general population together with chronic airflow obstruction (CAO), a key physiological marker of COPD that was assessed by post-bronchodilator spirometry (FEV1/FVC < LLN). OSA risk was determined by the multivariable apnoea prediction (MAP) index. Results: 713 individuals were analysed, of whom 78 (10.9%) showed CAO and 215 (30%) had MAP > 0.5. SDMA was significantly higher in individuals with CAO (0.518 [0.461–0.616] vs. 0.494 [0.441–0.565] µmol/L; p = 0.005), but ADMA was not. However, ADMA was significantly associated with decreasing FEV1 percent predicted among those with CAO (p = 0.002). ADMA was 0.50 (0.44–0.56) µmol/L in MAP ≤ 0.5 versus 0.52 (0.46–0.58) µmol/L in MAP > 0.5 (p = 0.008). SDMA was 0.49 (0.44–0.56) µmol/L versus 0.51 (0.46–0.60) µmol/L, respectively (p = 0.004). The highest values for ADMA and SDMA were observed in individuals with overlap of CAO and MAP > 0.5, which was accompanied by lower L-citrulline levels. Conclusions: The plasma concentrations of ADMA and SDMA are elevated in COPD patients with concomitant intermittent hypoxaemia. This may account for impaired pulmonary NO production, enhanced pulmonary vasoconstriction, and disease progression.

1. Introduction

Chronic obstructive pulmonary disease (COPD) and obstructive sleep apnoea (OSA) are both very common chronic diseases. The prevalence of COPD is at least 10% [1] and that of OSA is even higher [2], with nearly 425 million adults aged 30–69 years worldwide being estimated to have OSA based on an apnoea-hypopnoea index (AHI) of 15 or more events per hour [3]. Severe COPD is associated with chronic hypoxia [4], and OSA is characterized by intermittent hypoxaemia [5]. Patients with overlapping COPD and OSA show a significantly more rapid decline of lung function, more systemic cardiovascular comorbidity, and a higher mortality rate [6,7].
Hypoxia is known to act on the pulmonary vasculature causing vasoconstriction, which in turn induces cardiac hypertrophy and failure, and ensuing systemic co-morbidities [8]. We and others have shown that chronic and intermittent hypoxia leads to perturbations in the pulmonary L-arginine/dimethylarginine/nitric oxide (NO) pathway that result in elevated plasma concentrations of asymmetric dimethylarginine (ADMA), a major endogenous inhibitor of endothelial NO release [9]. Figure 1 shows a graphical representation of the pathway.
ADMA directly interferes with NO synthesis by competitively displacing L-arginine from its substrate binding site, causing impaired endothelium-dependent vasodilation [10]. Both, symmetric dimethylarginine (SDMA) and ADMA inhibit cellular L-arginine uptake [11]. Besides generating NO, NO synthase (NOS) activity results in the conversion of L-arginine to L-citrulline. L-arginine is also a substrate for arginase, which converts it to L-ornithine [12]. Chronic and intermittent hypoxia leads to elevations of ADMA secondary to downregulation of its major metabolizing enzyme, dimethylarginine dimethylaminohydrolase (DDAH) [13]. Accordingly, genetic DDAH deletion leads to enhanced hypoxic vasoconstriction and pulmonary hypertension [14], whilst DDAH overexpression attenuates the sustained phase of hypoxic pulmonary vasoconstriction [15]. In humans, chronic intermittent hypoxia causes gradual elevation of ADMA over time. Individuals with high ADMA levels are at high risk of developing hypoxia-induced pulmonary arterial hypertension [16]. Common single nucleotide polymorphisms in the DDAH1 and DDAH2 genes predispose humans to high ADMA levels and hypoxia-induced pulmonary arterial hypertension [17].
Some small, cross-sectional studies have suggested that ADMA plasma concentration may be elevated in COPD and OSA. However, others have found no difference in ADMA levels between patients and controls (reviewed in detail in [9]). Very little information is available on the role of this biomolecule in people with overlapping COPD and OSA, with two small cross-sectional studies reporting inconclusive findings on ADMA plasma concentrations [18,19]. To investigate the role of ADMA in people with COPD and OSA, we measured serum concentrations of ADMA, along with SDMA, L-arginine and its metabolites, L-citrulline and L-ornithine, in a large population-based sample of Icelandic adults of the Burden of Obstructive Lung Disease (BOLD) study.

2. Materials and Methods

2.1. Study Participants

BOLD is a multinational study set up to estimate the prevalence of chronic airflow obstruction, key characteristics of COPD, and identify its risk factors in general populations of adults aged ≥40 years around the world [20]. In Iceland, additional tools were used to screen for the presence of sleep-associated symptoms and estimate the risk of OSA [21]. After written informed consent was obtained, participants completed standardized questionnaires about their health, including sleep characteristics. The BOLD study in Iceland was approved by the National Bioethics Committee and the Data Protection Authority of Iceland (04-080). The present sub-study on biomarkers of the L-arginine/dimethylarginine/NO pathway received separate approval (FS-21-059-S1).

2.2. Lung Function

Forced expiratory volume in one second (FEV1) and forced vital capacity (FVC) were measured using spirometry [20]. Pre- and post-bronchodilator testing was conducted with the participant in a sitting position wearing a nose clip and a disposable mouthpiece attached to the NDD Easy One™ spirometer (ndd Medizintechnik, Zurich, Switzerland). Chronic airflow obstruction (CAO) was defined as a post-bronchodilator FEV1/FVC ratio below the lower limit of normal (LLN), as described previously [22].

2.3. Sleep

Subjective sleep quality was assessed using the Basic Nordic Sleep Questionnaire (BNSQ) [23]. Daytime sleepiness was evaluated using the Epworth Sleepiness Scale (ESS) where >10 points were considered indicative of excessive sleepiness [24]. Additionally, as part of the BNSQ subjects responded to the statements “I feel sleepy during the day?” and “I feel rested during the day” on a 5-point scale from “never/almost never” to “every day/almost every day of the week”. Subjects were considered having significant sleepiness if they answered ≥3 times per week and not feeling rested if they answered <1 day per week, respectively. The probability of study participants suffering from obstructive sleep apnoea syndrome (OSA) was assessed by the Multivariable Apnoea Prediction (MAP) Index [25]. A cut-off value of 0.5 was used to define subjects at high risk of OSA as published before [21].

2.4. Potential Confounders

Doctor diagnoses of hypertension, cardiovascular disease and type 2 diabetes mellitus were self-reported. Smoking status was also self-reported. Current smokers were defined as those who had smoked more than 20 packs of cigarettes or more than one cigarette per day for at least one year and were smoking at the time of the interview. Those who had stopped smoking before the interview were considered former smokers. Never smokers were those who had never smoked or had smoked less than 20 packs of cigarettes in a lifetime.

2.5. Quantification of ADMA, SDMA, L-Arginine and Related Metabolites by LC-MS/MS

Blood was drawn from an antecubital vein at a similar time of the day. Samples were collected into SST serum tubes (Greiner, Kremsmuenster, Austria), allowed to stand for 20 min, and centrifuged for 10 min (3000 rpm). After separation, serum samples were stored at −20 °C until analysis.
Validated protocols for ultra-performance liquid chromatography-tandem mass spectrometry (UPLC-MS/MS) were used to quantify ADMA, SDMA, L-arginine, L-citrulline, and L-ornithine in serum. Briefly, 25 μL of serum were diluted in 100 µL methanol to which stable isotope labelled internal standards had been added. Subsequently, the compounds were converted into their butyl ester derivatives as described elsewhere [26]. Quantification of analytes was performed on a Waters UPLC-MS/MS platform (Xevo TQ-S cronos, Waters GmbH, Eschborn, Germany) applying an ACQUITY UPLC BEH C18 column (2.1 × 50 mm, 1.7 μm, Waters GmbH) for chromatographic separation. The coefficient of variation for the quality control samples was below 6% for all compounds.
Serum creatinine concentration was measured using a standard routine analysis method in the central clinical chemistry laboratory. Estimated glomerular filtration rate (eGFR) was calculated using the 2021 CKD-EPI formula [27].

2.6. Statistical Analyses

Categorical variables were summarized using frequencies and percentages and compared between groups using chi-squared tests. Continuous variables were summarized using means and standard deviations and compared between groups using Student’s t test. Biomarker levels were not normally distributed and therefore were summarized using medians and interquartile (IQR) range and compared between groups using a Kruskal–Wallis test. We assessed the association of CAO with each of the metabolites using logistic regression, first without adjustment (model 1) and then adjusting for age, sex, smoking status (model 2), body mass index (BMI) (model 3), and eGFR (model 4). Similar methods were used to explore the association between the biomarkers levels and high/low risk of OSA (MAP index). In an exploratory analysis, we assessed the association of the L-arginine-associated metabolites with CAO severity based on decreasing FEV1 percent predicted. A p-value < 0.05 was considered statistically significant. All statistics were calculated using Stata, version 16.0 (Stata Corporation, College Station, TX, USA).

3. Results

3.1. Participants’ Characteristics

A total of 758 participants had completed the study core questionnaire and had usable spirometry. Data for MAP index were missing for 16 BOLD participants, and bio-marker concentrations could not be obtained for 29 participants. Therefore, the current analyses are based on 713 participants (Figure 2).
Study participants had a mean age of 56 ± 12 years; 47% were females. Table 1 displays the characteristics of the study population. There was a high prevalence of overweight and obesity, with an overall mean BMI of 28.0 ± 4.9 kg/m2. BMI was significantly higher in men than in women. About 60% of the study participants were current or former smokers. The prevalence of concomitant cardiometabolic diseases was 25% for hypertension, 15% for cardiovascular disease, and 3% for diabetes, with no significant differences between sexes.

3.2. Prevalence of Chronic Airflow Obstruction, High OSA Risk, and Sleep-Related Symptoms

Supplementary Table S1 gives an overview of variables relating to chronic airflow obstruction and OSA. Chronic airflow obstruction was present in 78 study participants (10.9%), with a higher prevalence in women than in men. Daytime sleepiness as assessed using the Epworth Sleepiness Score (ESS) was significantly higher in men than in women (6.4 ± 3.9 vs. 5.7 ± 3.9, p = 0.017). However, the proportion with ESS > 10 was 15.8% in the whole sample, with no significant sex difference. Restless legs syndrome was more frequently reported in women than in men (25% vs. 13%, p < 0.001). The overall mean MAP index was 0.36 ± 0.23, with 215 study participants (30%) having a MAP index > 0.5 (51% of the men and 7% of the women). Among the 78 study participants with CAO, 19 individuals (2.6%) also had MAP index > 0.5 and thus an overlap of both diseases (Figure 3). These 19 individuals had a mean BMI of almost 30, the majority had doctor-diagnosed hypertension and one third had concomitant cardiovascular disease (Table 2).

3.3. L-Arginine-Related Biomarkers: Baseline Serum Concentrations and Association with Concomitant Diseases

Table 1 reports the mean biomarker concentrations in this cohort. We noted a slight, but significant sex difference in SDMA and L-ornithine with higher values in men than in women.
Except for L-arginine, all biomarkers showed increasing concentrations with age (Table S2). SDMA and L-arginine were also associated with smoking status. The association between BMI and SDMA was J-shaped with the highest values among patients with BMI below 20.0 kg/m2. These 13 were older, and 6 (46%) of them had CAO (Table S3). Study participants with hypertension had significantly higher ADMA, SDMA, and L-citrulline levels (Table S4). The presence of cardiovascular disease was associated with SDMA and L-citrulline, and diabetes mellitus was associated with L-citrulline levels.

3.4. L-Arginine-Related Biomarkers in Relation to Chronic Airflow Obstruction (CAO)

There was a highly significant difference in SDMA serum concentration between participants with and without CAO (0.518 [0.461–0.616] vs. 0.494 [0.441–0.565] µmol/L; p = 0.005), but no significant difference in ADMA concentration (0.516 [0.447–0.594] vs. 0.505 [0.447–0.557] µmol/L; p = 0.20) (Table 3 and Figure 4a). All other biomarkers showed no significant differences (Table 3).
In univariable regression analysis, we found a significantly increased odds for CAO in study participants with serum SDMA in the highest quartile (OR = 2.78, 95% CI 1.43–5.37, p = 0.002). This association remained significant after adjusting for age, sex, and smoking status, but it lost significance when further adjusted for BMI or eGFR (Table S5). No associations with CAO were observed for the other biomarkers.
In an exploratory analysis addressing the association of biomarkers with decreasing FEV1 percent predicted among people with CAO (N = 78), ADMA serum concentration showed an incremental, highly significant increase with decreasing FEV1 percent predicted, whilst there was no significant trend for SDMA (Figure 4b,c) nor for the other biomarkers (Table 3). Seven study participants did not have FEV1 below 80% predicted when using a fixed cut-off in this analysis.

3.5. L-Arginine-Related Biomarkers in Relation to Sleep-Related Symptoms

None of the biomarkers showed a significant difference between study participants with ESS scores equal to or below 10 as compared to above 10 (Table S6). ADMA was significantly higher in individuals who reported feeling sleepy more than three days per week (ADMA, 0.50 (0.44–0.55) vs. 0.53 (0.46–0.58) µmol/L; p < 0.03); for SDMA, a similar, non-significant trend was observed (0.49 (0.44–0.57) vs. 0.51 (0.46–0.59) µmol/L; p = 0.07).
There was a significant association of ADMA and SDMA with MAP index (Figure 5). ADMA was 0.50 (0.44–0.56) µmol/L in individuals with MAP ≤0.5 versus 0.52 (0.46–0.58) µmol/L in those with MAP > 0.5 (p = 0.008). SDMA was 0.49 (0.44–0.56) µmol/L versus 0.51 (0.46–0.60) µmol/L in both groups, respectively (p = 0.004). For both biomarkers, the probability of having a MAP index ≤ 0.5 increased with increasing quartiles of biomarker serum levels; this association was retained after adjustment for eGFR (Table S7). Except for L-citrulline, which showed a significantly increased odds for sleep apnoea in the highest quartile, no consistent trends over quartiles were observed for the other biomarkers.

3.6. L-Arginine-Related Biomarkers in the Overlap of Chronic Airway Obstruction with Sleep Apnoea

We observed significantly higher serum concentrations of ADMA and SDMA in the 19 patients with CAO and concomitant signs of OSA (i.e., MAP > 0.5). Both biomarkers were lowest in study participants with neither of the two health problems, slightly elevated in those with either CAO or sleep apnoea, and clearly elevated in the overlap group (Figure 6). There was also a significant trend for lower L-citrulline in the four groups, whilst none of the other biomarkers or ratios showed significant differences between the groups (Table 2).

4. Discussion

This study shows that the L-arginine/dimethylarginine/nitric oxide pathway is perturbed in chronic airflow obstruction and further so if the airway obstruction is severe. This association is strongest in the subgroup who in addition to CAO are likely to have OSA, i.e., intermittent hypoxaemia.
With a high number of participants and a population-based approach, our study provides strong evidence of the relationship between ADMA and SDMA concentrations and COPD. Previous studies haven generated inconclusive data on the potential role of L-arginine and its methylated derivatives in COPD. Ruzsics and co-workers reported significant elevations of ADMA, SDMA, and L-arginine, all measured by high performance liquid chromatography (HPLC), in a small group of 32 stable COPD patients who were diagnosed using the fixed cut-off of FEV1/FVC < LLN as compared to 30 healthy individuals [28]. In their study, all three amino acid metabolites were significantly further elevated in 12 patients with acute exacerbation of COPD versus those with stable COPD, and ADMA was inversely correlated with partial capillary oxygen pressure. Another study in 74 COPD patients revealed a positive correlation of ADMA with airway resistance assessed using FEV1/FVC < LLN [29]. In a cross-sectional comparison of 80 COPD patients diagnosed using a fixed cut-off of FEV1/FVC <0.70 with 40 healthy controls, Telo and co-workers [30] found no significant difference in ADMA plasma concentration. However, a subgroup of COPD patients with pulmonary arterial hypertension showed elevated ADMA levels. No significant difference in ADMA between COPD patients (using FEV1/FVC < LLN) and controls was reported by Costanzo and co-workers [31]. We have recently reviewed these discrepant findings from clinical studies [9]. In general, previous studies were not based on general population samples, and not in all studies was post-bronchodilator spirometry used to assess CAO. In addition, a fixed cut-off for FEV1/FVC <0.70 was used in some studies, whilst others applied a ratio of FEV1/FVC < LLN, which results in fewer cases of CAO in elderly individuals and has been recommended for screening purposes [22]. Moreover, concomitant diseases, not the least of it being sleep apnoea, have not been documented in most of the previous studies, and, finally, the quantification of ADMA often relied on HPLC rather than the analytical gold standard of LC-MS/MS that was applied in the present study.
Similarly, previous studies in sleep apnoea syndrome generated conflicting results. İn and co-workers [32] reported higher ADMA but lower L-arginine serum levels in OSA patients than in healthy controls. These differences were unrelated to traditional cardiovascular risk factors, as OSA patients with or without risk factors showed similar differences to controls. Others found discrepant results (reviewed by [9]), which may relate to factors such as concomitant cardiovascular diseases and obesity, which have been shown to affect ADMA levels [33,34]. In addition, none of the studies cited above reported co-morbidity rates of COPD and OSA.
In the present study we observed a significant association of SDMA, but not ADMA to BMI. This association was J-shaped with highest SDMA concentrations in individuals with lowest BMI. Although dimethylarginines have often been found to be elevated in obese people, malnourishment may be associated with higher protein L-arginine dimethylation and, thus, higher rates of generation of both, ADMA and SDMA [35]. This may be of importance for our present study, since malnutrition has been shown to be an independent predictor of lung function in hospitalized COPD patients [36]. In addition, we found both dimethylarginines to be associated with hypertension in the present study.
The highest ADMA and SDMA levels were present in the 19 study participants with concomitant signs of both CAO and OSA. Their high ADMA and SDMA concentrations and low L-citrulline levels may well be indicative of low NO synthase activity. Larger studies of subjects with the overlap syndrome are needed to confirm if elevated concentrations of ADMA and SDMA may account for impaired pulmonary NO production and the unfavourable disease progression seen in the overlap syndrome if untreated [7].
Both ADMA and SDMA mechanistically contribute to low NO generation in the hypoxic lungs, which in turn has been shown to contribute to inflammatory mechanisms and lung remodelling [37]. In addition, both molecules are prospective markers of mortality risk in the general population [38,39]. Therefore, whilst not being useful as disease-specific diagnostic markers, elevated ADMA and SDMA may not only point to pathophysiologically important changes of biochemical pathways but may also relate to long-term risk determination in chronic lung diseases associated with intermittent hypoxia. Indeed, using a prospective study design with six years of follow-up, Vögeli and co-workers [40] observed a significant association of ADMA with long-term mortality of patients initially included with acutely exacerbated COPD. The association of ADMA with mortality was retained in their study after multivariable adjustment of the regression, whilst SDMA was only associated with mortality in univariate models, and L-arginine showed no significant association.
The mean serum concentration of L-arginine was higher than previously published reference ranges [41]. This difference may be due to high contribution of dietary proteins to total energy intake as well as high intake of fish and seafood in the Icelandic population [42]. L arginine content in dietary protein from different sources varies from 3 to 15%. Soy protein, nuts, fish and seafood are comparatively rich in L-arginine [43]. By contrast, cereals are relatively poor sources of L-arginine, with only 3–4% of their total protein being L-arginine. All other metabolites were within published reference ranges. Based on high L-arginine levels, the L arginine/ADMA ratio was also higher than previously reported values in the healthy American population [41].
In our study the probability of OSA was assessed by calculating the MAP index, which has been reported to be a reliable estimate of OSA risk; however, definite diagnosis would require overnight polysomnographic studies which were not performed in this study. It would therefore be interesting to determine ADMA and SDMA concentrations in a large sample of people with OSA confirmed with overnight sleep studies, and to assess the effect of PAP treatment on these biomarker levels. Further, we used self-reported cardiovascular disease, hypertension, and type 2 diabetes mellitus as concomitant diagnoses, which might be strengthened by doctor-confirmed diagnoses in a future study. In addition, analysing the prospective roles of ADMA and SDMA for outcome of COPD in a large, prospective study cohort would help to better understand their roles as predictive markers of mortality and, potentially, lung function decline over time.

5. Conclusions

Our data show that the L-arginine/dimethylarginine/NO pathway is dysregulated in chronic respiratory diseases in a manner relating to the presence of intermittent hypoxaemia. Elevated concentrations of ADMA and SDMA may account for impaired pulmonary NO production, driving pulmonary vasoconstriction and disease progression. In addition, elevated systemic serum concentrations of these markers may account for systemic cardiovascular disease and, thereby, be linked to poor prognosis. Future, prospective studies will be needed to prove this hypothesis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm12165230/s1, Table S1: Chronic airflow obstruction, respiratory symptoms, and sleep-related symptoms in the study population by sex; Table S2: Distribution of biomarkers of interest by age group and smoking status; Table S3: Chronic airflow obstruction and/or obstructive sleep apnoea risk and biomarker concentrations among the study population stratified by BMI categories; Table S4: Distribution of biomarkers of interest based on the presence or absence of hypertension, cardiovascular disease and diabetes; Table S5: Association of chronic airflow obstruction with bio-markers of interest; Table S6: Distribution of biomarkers of interest based on the presence or absence of sleepiness; Table S7: Association of high obstructive sleep apnoea risk as assessed by the MAP index ≥0.5 with quartiles of biomarkers of interest.

Author Contributions

Conceptualization, J.H., T.G. and R.B.; methodology, J.H. and R.B.; formal analysis, E.H.T. and A.F.S.A.; investigation, T.G. and B.B.; data curation, J.H. and B.B.; writing—original draft preparation, J.H. and R.B.; writing—review and editing, E.H.T., A.F.S.A., E.S., L.S.-H., H.S., I.G. and T.G.; visualization, J.H. and R.B.; supervision, J.H., T.G. and R.B.; project administration, J.H. and R.B.; funding acquisition, J.H., T.G. and R.B. All authors have read and agreed to the published version of the manuscript.

Funding

J.H. and R.B. are supported by funds provided by the German Federal Office for Education and Research (BMBF; grant 01DN17046, DECIPHER). This work was also supported by an unrestricted research grant by the Georg and Jürgen Rickertsen foundation (to J.H.). The Burden of Obstructive Lung Disease (BOLD) study has been supported by grants from the Wellcome Trust (085790/Z/08/Z) and the BOLD study in Iceland was supported financially with a grant number: 185348-053 from RANNIS: The Icelandic Research Fund (IRF). None of the funding bodies was involved in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki. The BOLD study in Iceland was approved by the National Bioethics Committee and the Data Protection Authority of Iceland (04-080). The present sub-study on biomarkers of the L-arginine/dimethylarginine/NO pathway received separate approval by the same authority (FS-21-059-S1).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data generated in this study are available in this article and in the supplementary tables provided.

Acknowledgments

We gratefully thank Mariola Kastner for her excellent technical assistance. We also thank all participants and field workers/research assistants for their time and effort put into this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Patel, J.; Minelli, C.; Gnatiuc, L.; Amaral, A.F.S.; Kocabaş, A.; Cherkaski, H.H.; Gulsvik, A.; Nielsen, R.; Bateman, E.; Jithoo, A.; et al. Prevalence and Population-Attributable Risk for Chronic Airflow Obstruction in a Large Multinational Study. Am. J. Respir. Crit. Care Med. 2021, 203, 1353–1365. [Google Scholar]
  2. Franklin, K.A.; Lindberg, E. Obstructive Sleep Apnea Is a Common Disorder in the Population—A Review on the Epidemiology of Sleep Apnea. J. Thorac. Dis. 2015, 7, 1311–1322. [Google Scholar] [PubMed]
  3. Benjafield, A.V.; Ayas, N.T.; Eastwood, P.R.; Heinzer, R.; Marry, S.M.; Morrell, M.J.; Nunez, C.M.; Patel, S.R.; Penzel, T.; Pépin, J.-L.; et al. Estimation of the Global Prevalence and Burden of Obstructive Sleep Apnoea: A Literature-Based Analysis. Lancet Respir. Med. 2019, 7, 687–698. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. D’Cruz, R.F.; Murphy, P.B.; Kaltsakas, G. Sleep Disordered Breathing and Chronic Obstructive Pulmonary Disease: A Narrative Review on Classification, Pathophysiology and Clinical Outcomes. J. Thorac. Dis. 2020, 12 (Suppl. S2), S202–S216. [Google Scholar] [CrossRef]
  5. White, D.P. Sleep-Related Breathing Disorder.2. Pathophysiology of Obstructive Sleep Apnoea. Thorax 1995, 50, 797–804. [Google Scholar] [CrossRef] [Green Version]
  6. Emilsson, I.; Sundbom, F.; Ljunggren, M.; Benediktsdottir, B.; Garcia-Aymerich, J.; Bui, D.S.; Jarvis, D.; Olin, A.-C.; Franklin, K.A.; Demoly, P.; et al. Association between Lung Function Decline and Obstructive Sleep Apnoea: The ALEC Study. Sleep Breath. 2021, 25, 587–596. [Google Scholar] [CrossRef]
  7. McNicholas, W.T. Comorbid Obstructive Sleep Apnoea and Chronic Obstructive Pulmonary Disease and the Risk of Cardiovascular Disease. J Thorac. Dis. 2018, 10 (Suppl. S34), S4253–S4261. [Google Scholar] [CrossRef]
  8. Mirna, M.; Bimpong-Buta, N.-Y.; Hoffmann, F.; Abusamrah, T.; Knost, T.; Sander, O.; Hew, Y.M.; Lichtenauer, M.; Muessig, J.M.; Bruno, R.R.; et al. Exposure to Acute Normobaric Hypoxia Results in Adaptions of Both the Macro- and Microcirculatory system. Sci. Rep. 2020, 10, 20938. [Google Scholar] [CrossRef]
  9. Hannemann, J.; Böger, R. Dysregulation of the Nitric Oxide/Dimethylarginine Pathway in Hypoxic Pulmonary Vasoconstriction—Molecular Mechanisms and Clinical Significance. Front. Med. 2022, 9, 835481. [Google Scholar] [CrossRef]
  10. Böger, R.H.; Bode-Böger, S.M.; Szuba, A.; Tsao, P.S.; Chan, J.R.; Tangphao, O.; Blaschke, T.F.; Cooke, J.P. Asymmetric Dimethylarginine (Adma): A Novel Risk Factor for Endothelial Dysfunction: Its Role in Hypercholesterolemia. Circulation 1998, 98, 1842–1847. [Google Scholar] [CrossRef] [Green Version]
  11. Strobel, J.; Mieth, M.; Endreß, B.; Auge, D.; König, J.; Fromm, M.F.; Maas, R. Interaction of the Cardiovascular Risk Marker Asymmetric Dimethylarginine (ADMA) with the Human Cationic Amino Acid Transporter 1 (CAT1). J. Mol. Cell. Cardiol. 2012, 53, 392–400. [Google Scholar] [CrossRef] [PubMed]
  12. Wu, G.; Morris, S.M., Jr. Arginine Metabolism: Nitric oxide and Beyond. Biochem. J. 1998, 336, 1–17. [Google Scholar] [CrossRef] [PubMed]
  13. Hannemann, J.; Böger, R. Transcriptional and Post-Translational Regulation of the Dimethylarginines Adma and Sdma and Their Impact on the L-Arginine—Nitric Oxide Pathway. In Encyclopedia of Biological Chemistry III, 3rd ed.; Joseph, J., Ed.; Elsevier: Oxford, UK, 2021; pp. 674–687. [Google Scholar]
  14. Hannemann, J.; Glatzel, A.; Hillig, J.; Zummack, J.; Schumacher, U.; Lüneburg, N.; Harbaum, L.; Böger, R. Upregulation of DDAH2 Limits Pulmonary Hypertension and Right Ventricular Hypertrophy during Chronic Hypoxia in Ddah1 Knockout Mice. Front. Physiol. 2020, 11, 597559. [Google Scholar] [CrossRef] [PubMed]
  15. Bakr, A.; Pak, O.; Taye, A.; Hamada, F.; Hemeida, R.; Janssen, W.; Gierhardt, M.; Ghofrani, H.A.; Seeger, W.; Grimminger, F.; et al. Effects of Dimethylarginine Dimethylaminohydrolase–1 Overexpression on the Response of the Pulmonary Vasculature to Hypoxia. Am. J. Respir. Cell Mol. Biol. 2013, 49, 491–500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Siques, P.; Brito, J.; Schwedhelm, E.; Pena, E.; León-Velarde, F.; De La Cruz, J.J.; Böger, R.H.; Hannemann, J. Asymmetric Dimethylarginine at Sea Level Is a Predictive Marker of Hypoxic Pulmonary Arterial Hypertension at High Altitude. Front. Physiol. 2019, 10, 651. [Google Scholar] [CrossRef] [Green Version]
  17. Hannemann, J.; Siques, P.; Schmidt-Hutten, L.; Zummack, J.; Brito, J.; Böger, R. Association of Genes of the NO Pathway with Altitude Disease and Hypoxic Pulmonary Hypertension. J. Clin. Med. 2021, 10, 5761. [Google Scholar] [CrossRef]
  18. Nural, S.; Günay, E.; Halici, B.; Celik, S.; Ünlü, M. Inflammatory Processes and Effects of Continuous Positive Airway Pressure (Cpap) in Overlap Syndrome. Inflammation 2013, 36, 66–74. [Google Scholar] [CrossRef]
  19. Wang, Y.; Su, M.; Zhang, X. Effects of Continuous Positive Airway Pressure Treatment of Inflammatory Factors in Patients with Overlap Syndrome. Zhonghua Yi Xue Za Zhi 2014, 94, 416–419. [Google Scholar]
  20. Buist, A.S.; McBurnie, M.A.; Vollmer, W.M.; Gillespie, S.; Burney, P.; Mannino, D.M.; Menezes, A.M.; Sullivan, S.D.; Lee, T.A.; Weiss, K.B.; et al. International Variation in the Prevalence of COPD (The BOLD Study): A Population-Based Prevalence Study. Lancet 2007, 370, 741–750. [Google Scholar] [CrossRef]
  21. Thorarinsdottir, E.H.; Bjornsdottir, E.; Benediktsdottir, B.; Janson, C.; Gislason, T.; Aspelund, T.; Kuna, S.T.; Pack, A.I.; Arnardottir, E.S. Definition of Excessive Daytime Sleepiness in the General Population: Feeling Sleepy Relates Better to Sleep-Related Symptoms and Quality of Life Than the Epworth Sleepiness Scale Score. Results from an Epidemiological Study. J. Sleep Res. 2019, 28, e12852. [Google Scholar] [CrossRef]
  22. Vollmer, W.M.; Gislason, T.; Burney, P.; Enright, P.L.; Gulsvik, A.; Kocabas, A.; Buist, A.S. Comparison of Spirometry Criteria for the Diagnosis of COPD: Results from the BOLD Study. Eur. Respir. J. 2009, 34, 588–597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Partinen, M.; Gislason, T. Basic Nordic Sleep Questionnaire (BNSQ): A Quantitated Measure of Subjective Sleep Complaints. J. Sleep Res. 1995, 4, 150–155. [Google Scholar] [CrossRef]
  24. Johns, M.W. Reliability and Factor Analysis of the Epworth Sleepiness Scale. Sleep 1992, 15, 376–381. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Maislin, G.; Pack, A.I.; Kribbs, N.B.; Smith, P.L.; Schwartz, A.R.; Kline, L.R.; Schwab, R.J.; Dinges, D.F. A Survey Screen for Prediction of Apnea. Sleep 1995, 18, 158–166. [Google Scholar] [CrossRef] [PubMed]
  26. Schwedhelm, E.; Maas, R.; Tan-Andresen, J.; Schulze, F.; Riederer, U.; Böger, R.H. High-Throughput Liquid Chromatographic-tandem Mass Spectrometric Determination of Arginine and Dimethylated Arginine Derivatives in Human and Mouse Plasma. J. Chromatogr. B 2007, 851, 211–219. [Google Scholar] [CrossRef]
  27. Inker, L.A.; Eneanya, N.D.; Coresh, J.; Tighiouart, H.; Wang, D.; Sang, Y.; Crews, D.C.; Doria, A.; Estrella, M.M.; Froissart, M.; et al. New Creatinine- and Cystatin C–Based Equations to Estimate GFR without Race. N. Engl. J. Med. 2021, 385, 1737–1749. [Google Scholar] [CrossRef]
  28. Ruzsics, I.; Nagy, L.; Keki, S.; Sarosi, V.; Illes, B.; Illes, Z.; Horvath, I.; Bogar, L.; Molnar, T. L-Arginine Pathway in COPD Patients with Acute Exacerbation: A New Potential Biomarker. COPD J. Chronic Obstr. Pulm. Dis. 2015, 13, 139–145. [Google Scholar] [CrossRef]
  29. Tajti, G.; Gesztelyi, R.; Pak, K.; Papp, C.; Keki, S.; Szilasi, M.E.; Mikaczo, A.; Fodor, A.; Szilasi, M.; Zsuga, J. Positive Correlation of Airway Resistance and Serum Asymmetric Dimethylarginine Level in COPD Patients with Systemic Markers of Low-Grade Inflammation. Int. J. Chronic Obstr. Pulm. Dis. 2017, 12, 873–884. [Google Scholar] [CrossRef] [Green Version]
  30. Telo, S.; Kırkıl, G.; Kuluöztürk, M.; Balin, M.; Deveci, F. Can Adma Play a Role in Determining Pulmonary Hypertension Related to Chronic Obstructive Pulmonary Disease? Clin. Respir. J. 2018, 12, 1433–1438. [Google Scholar] [CrossRef]
  31. Costanzo, L.; Pedone, C.; Battistoni, F.; Chiurco, D.; Santangelo, S.; Antonelli-Incalzi, R. Relationship between FEV1 and Arterial Stiffness in Elderly People with Chronic Obstructive Pulmonary Disease. Aging Clin. Exp. Res. 2016, 29, 157–164. [Google Scholar] [CrossRef]
  32. İn, E.; Özdemir, C.; Kaman, D.; Sökücü, S.N. Heat Shock Proteins, l-Arginine, and Asymmetric Dimethylarginine Levels in Patients with Obstructive Sleep Apnea Syndrome. Arch. Bronconeumol. 2015, 51, 544–550. [Google Scholar] [CrossRef] [PubMed]
  33. Böger, R.H. Asymmetric Dimethylarginine (ADMA): A Novel Risk Marker in Cardiovascular Medicine and Beyond. Ann. Med. 2006, 38, 126–136. [Google Scholar] [CrossRef] [PubMed]
  34. Siervo, M.; Bluck, L.J. In Vivo Nitric Oxide Synthesis, Insulin Sensitivity, and Asymmetric Dimethylarginine in Obese Subjects without and with Metabolic Syndrome. Metabolism 2012, 61, 680–688. [Google Scholar] [CrossRef] [PubMed]
  35. Brinkmann, F.; Hanusch, B.; Ballmann, M.; Mayorandan, S.; Bollenbach, A.; Chobanyan-Jürgens, K.; Jansen, K.; Schmidt-Choudhury, A.; Derichs, N.; Tsikas, D.; et al. Activated L-Arginine/Nitric Oxide Pathway in Pediatric Cystic Fibrosis and Its Association with Pancreatic Insufficiency, Liver Involvement and Nourishment: An Overview and New Results. J. Clin. Med. 2020, 9, 2012. [Google Scholar] [CrossRef] [PubMed]
  36. Ingadottir, A.R.; Beck, A.M.; Baldwin, C.; Weekes, C.E.; Geirsdottir, O.G.; Ramel, A.; Gislason, T.; Gunnarsdottir, I. Two Components of the New ESPEN Diagnostic Criteria for Malnutrition Are Independent Predictors of Lung Function in Hospitalized Patients with Chronic Obstructive Pulmonary Disease (COPD). Clin. Nutr. 2018, 37, 1323–1331. [Google Scholar] [CrossRef] [Green Version]
  37. Csoma, B.; Bikov, A.; Nagy, L.; Tóth, B.; Tábi, T.; Szűcs, G.; Komlósi, Z.I.; Müller, V.; Losonczy, G.; Lázár, Z. Dysregulation of the Endothelial Nitric Oxide Pathway Is Associated with Airway Inflammation in COPD. Respir. Res. 2019, 20, 156. [Google Scholar] [CrossRef]
  38. Böger, R.H.; Sullivan, L.M.; Schwedhelm, E.; Wang, T.J.; Maas, R.; Benjamin, E.J.; Schulze, F.; Xanthakis, V.; Benndorf, R.A.; Vasan, R.S. Plasma Asymmetric Dimethylarginine and Incidence of Cardiovascular Disease and Death in the Community. Circulation 2009, 119, 1592–1600. [Google Scholar] [CrossRef]
  39. Gore, M.O.; Lüneburg, N.; Schwedhelm, E.; Ayers, C.R.; Anderssohn, M.; Khera, A.; Atzler, D.; de Lemos, J.A.; Grant, P.J.; McGuire, D.K.; et al. Symmetrical Dimethylarginine Predicts Mortality in the General Population: Observations from the Dallas Heart Study. Arterioscler. Thromb. Vasc. Biol. 2013, 33, 2682–2688. [Google Scholar] [CrossRef] [Green Version]
  40. Vögeli, A.; Ottiger, M.; Meier, M.A.; Steuer, C.; Bernasconi, L.; Huber, A.; Christ-Crain, M.; Henzen, C.; Hoess, C.; Thomann, R.; et al. Asymmetric Dimethylarginine Predicts Long-Term Outcome in Patients with Acute Exacerbation of Chronic Obstructive Pulmonary Disease. Lung 2017, 195, 717–727. [Google Scholar] [CrossRef]
  41. Lüneburg, N.; Xanthakis, V.; Schwedhelm, E.; Sullivan, L.M.; Maas, R.; Anderssohn, M.; Riederer, U.; Glazer, N.L.; Vasan, R.S.; Böger, R.H. Reference Intervals for Plasma L-Arginine and the L-Arginine:Asymmetric Dimethylarginine Ratio in the Framingham Offspring Cohort. J. Nutr. 2011, 141, 2186–2190. [Google Scholar] [CrossRef] [Green Version]
  42. Steingrimsdottir, L.; Valgeirsdottir, H.; Halldorsson, T.I.; Gunnarsdottir, I.; Gisladottir, E.; Thorgeirsdottir, H.; Thorsdottir, I. National Nutrition Surveys and Dietary Changes in Iceland. Economic Differences in Healthy Eating. Laeknabladid 2014, 100, 659–664. [Google Scholar] [PubMed]
  43. Taylor, M.L.; Kozlowski, B.W.; Baer, M.T. Energy and Nutrient Values from Different Computerized Data Bases. J. Am. Diet. Assoc. 1985, 85, 1136–1138. [Google Scholar] [CrossRef] [PubMed]
Jcm 12 05230 g001

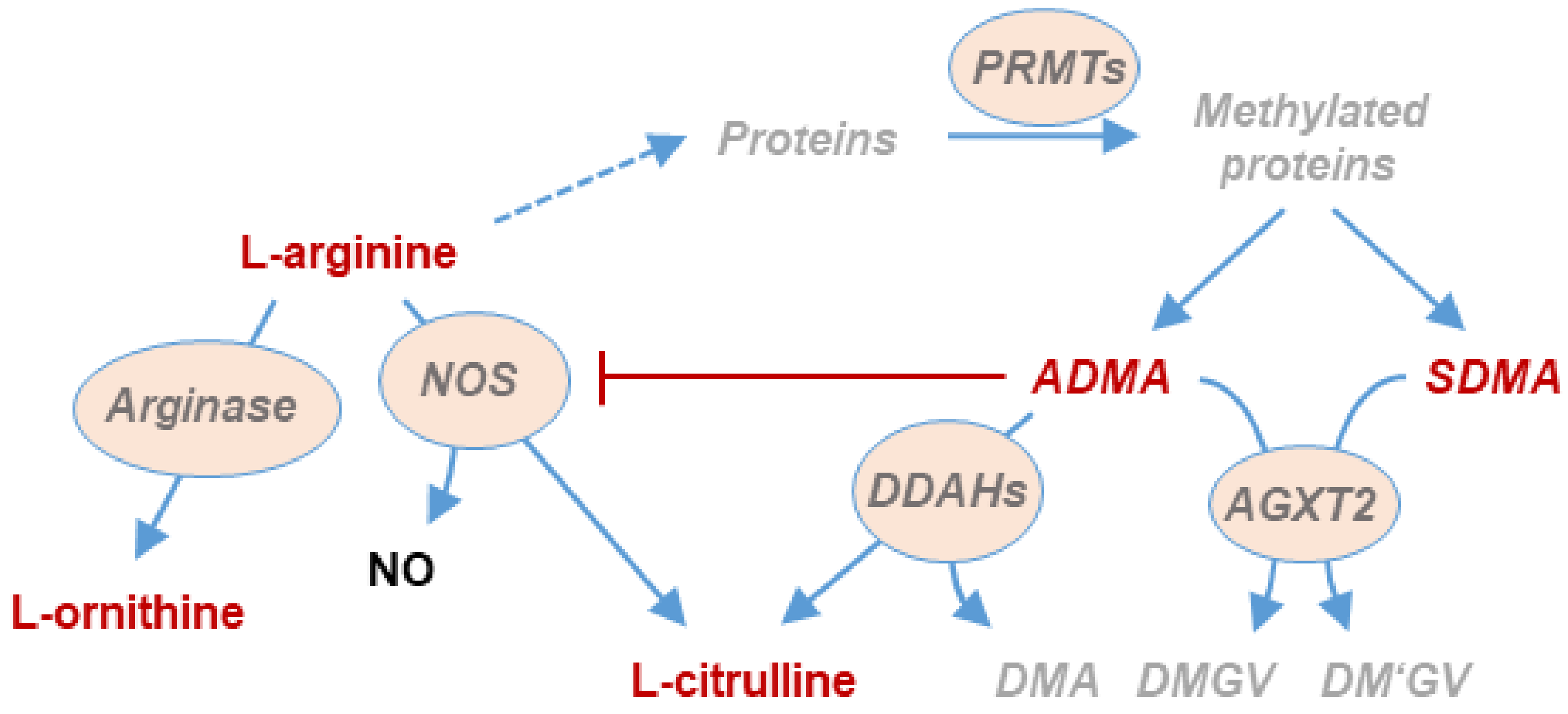

Figure 1. Schematic representation of the L-arginine/dimethylarginine/nitric oxide pathway. L-arginine is metabolized to nitric oxide (NO) and L-citrulline by NO synthases (NOS) or to L-ornithine and urea by arginases. In addition, L-arginine residues within specific proteins are subject to methylation by protein arginine N-methyltransferases (PRMT’s). When dimethylated proteins are degraded, asymmetric (ADMA) and symmetric dimethylarginine (SDMA) are released. ADMA is a competitive inhibitor of nitric oxide synthases (NOS). ADMA, but not SDMA, is degraded by dimethylarginine dimethylaminohydrolases (DDAH) to L-citrulline and dimethylamine (DMA). Both dimethylarginines may also be cleaved by alanine glyoxylate aminotransferase 2 (AGXT2), resulting in the formation of symmetric or asymmetric dimethylguanidinovaleric acid (DMGV and DM’GV).
Figure 1. Schematic representation of the L-arginine/dimethylarginine/nitric oxide pathway. L-arginine is metabolized to nitric oxide (NO) and L-citrulline by NO synthases (NOS) or to L-ornithine and urea by arginases. In addition, L-arginine residues within specific proteins are subject to methylation by protein arginine N-methyltransferases (PRMT’s). When dimethylated proteins are degraded, asymmetric (ADMA) and symmetric dimethylarginine (SDMA) are released. ADMA is a competitive inhibitor of nitric oxide synthases (NOS). ADMA, but not SDMA, is degraded by dimethylarginine dimethylaminohydrolases (DDAH) to L-citrulline and dimethylamine (DMA). Both dimethylarginines may also be cleaved by alanine glyoxylate aminotransferase 2 (AGXT2), resulting in the formation of symmetric or asymmetric dimethylguanidinovaleric acid (DMGV and DM’GV).
Jcm 12 05230 g001
Jcm 12 05230 g002

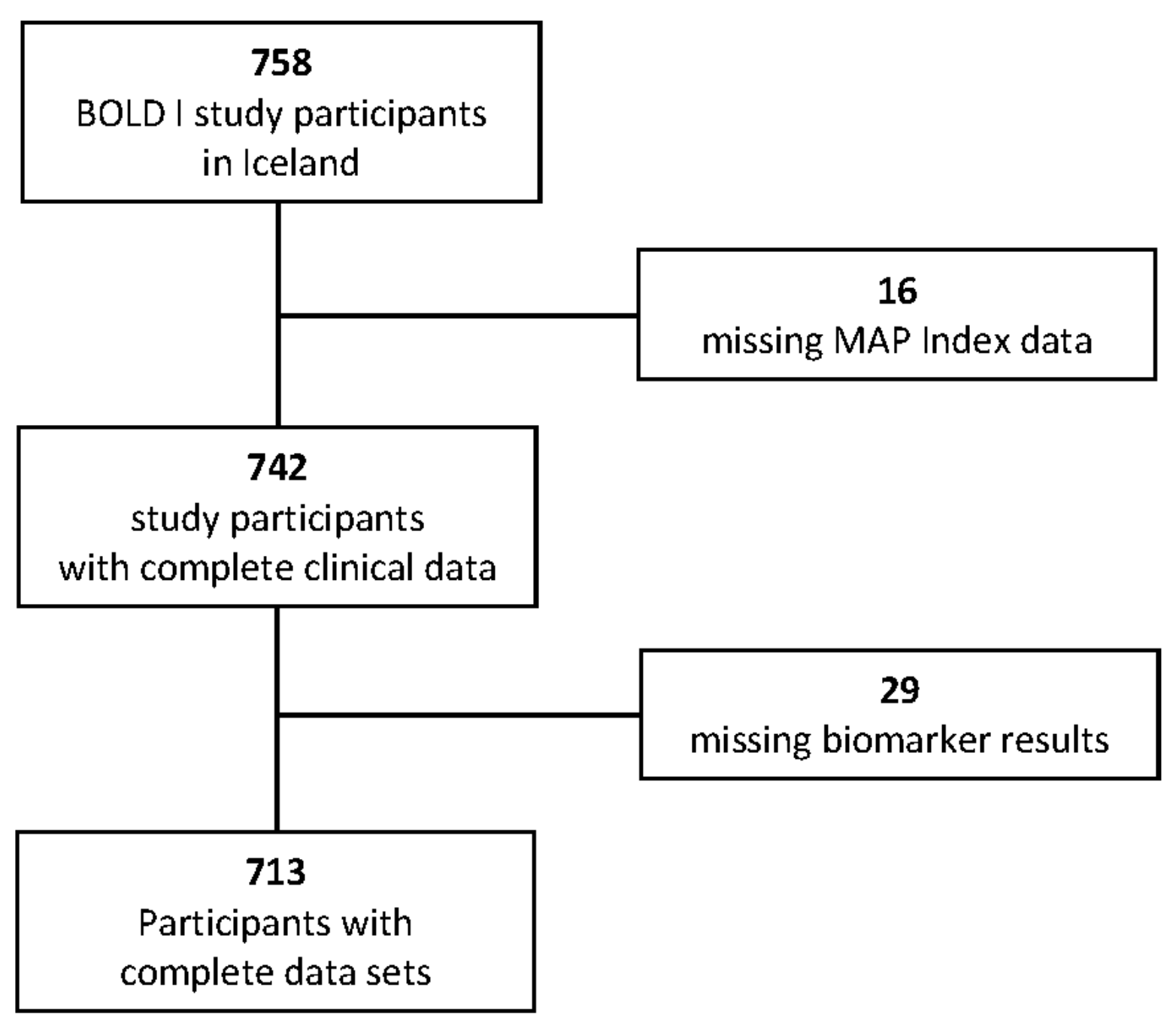

Figure 2. CONSORT diagram depicting the study flow.
Figure 2. CONSORT diagram depicting the study flow.
Jcm 12 05230 g002
Jcm 12 05230 g003

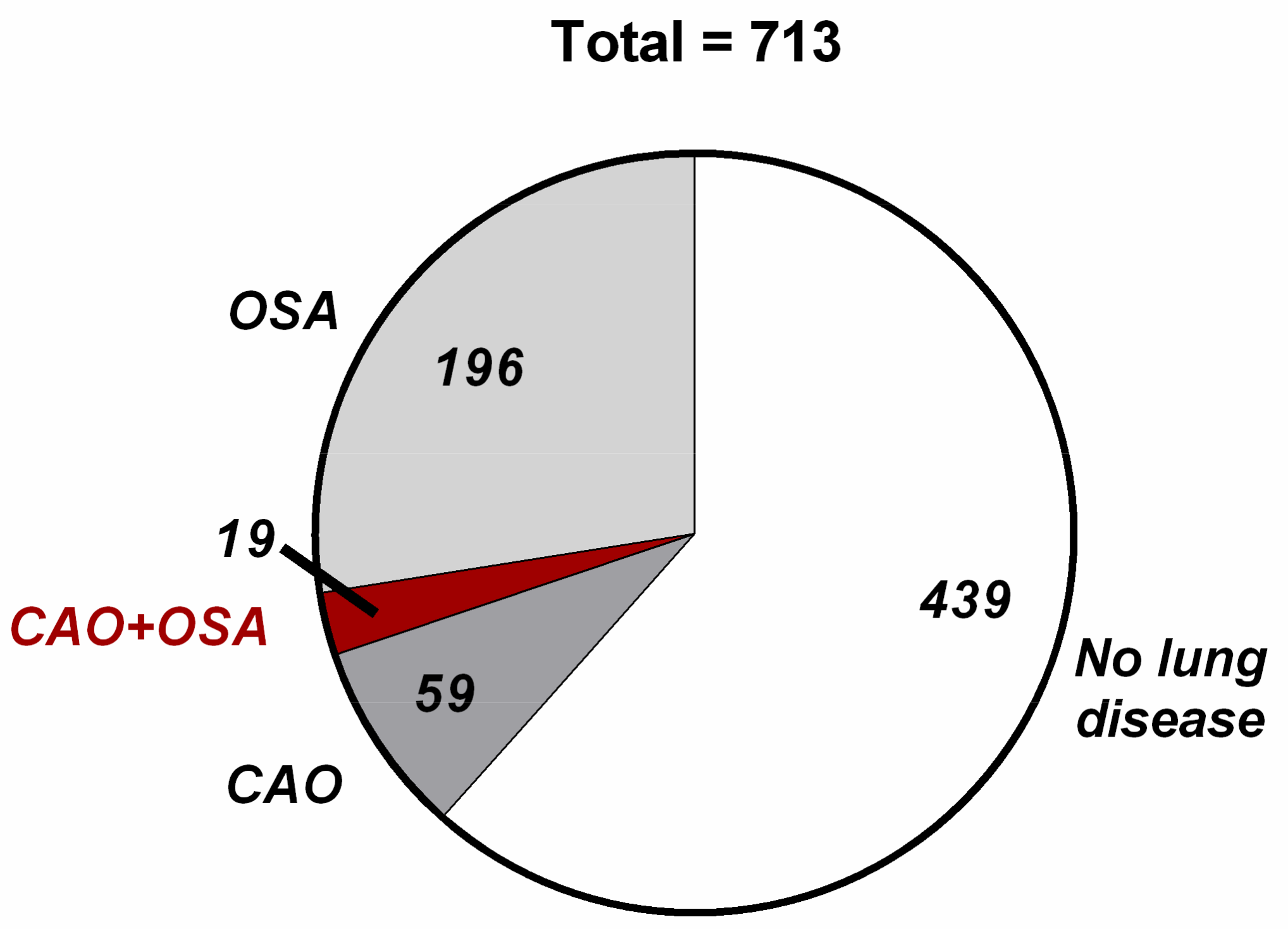

Figure 3. Proportions of study participants with chronic airway obstruction (CAO), symptoms of obstructive sleep apnoea (OSA), or both (CAO + OSA), or no lung disease. Numbers are absolute numbers of study participants in each category.
Figure 3. Proportions of study participants with chronic airway obstruction (CAO), symptoms of obstructive sleep apnoea (OSA), or both (CAO + OSA), or no lung disease. Numbers are absolute numbers of study participants in each category.
Jcm 12 05230 g003
Jcm 12 05230 g004

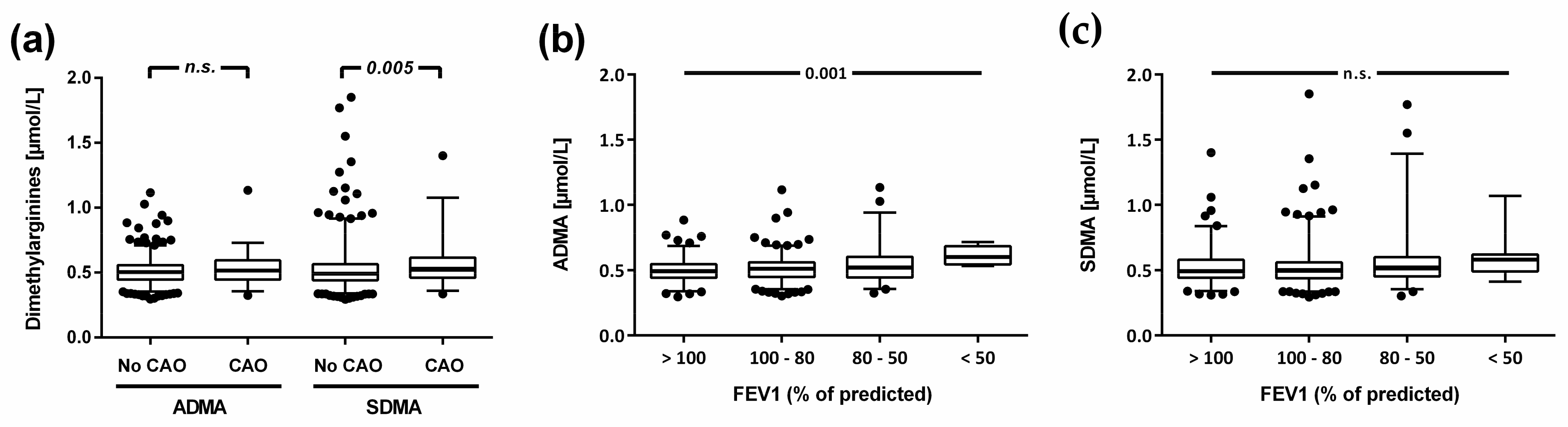

Figure 4. Serum concentrations of ADMA and SDMA in study participants with and without chronic airway obstruction (CAO), respectively (a), and in subgroups of people with CAO in relation to levels of FEV1 percent predicted (b,c). Data show median and interquartile range, with vertical whiskers indicating the 2.5th and 97.5th percentiles. Extreme values are plotted individually.
Figure 4. Serum concentrations of ADMA and SDMA in study participants with and without chronic airway obstruction (CAO), respectively (a), and in subgroups of people with CAO in relation to levels of FEV1 percent predicted (b,c). Data show median and interquartile range, with vertical whiskers indicating the 2.5th and 97.5th percentiles. Extreme values are plotted individually.
Jcm 12 05230 g004
Jcm 12 05230 g005

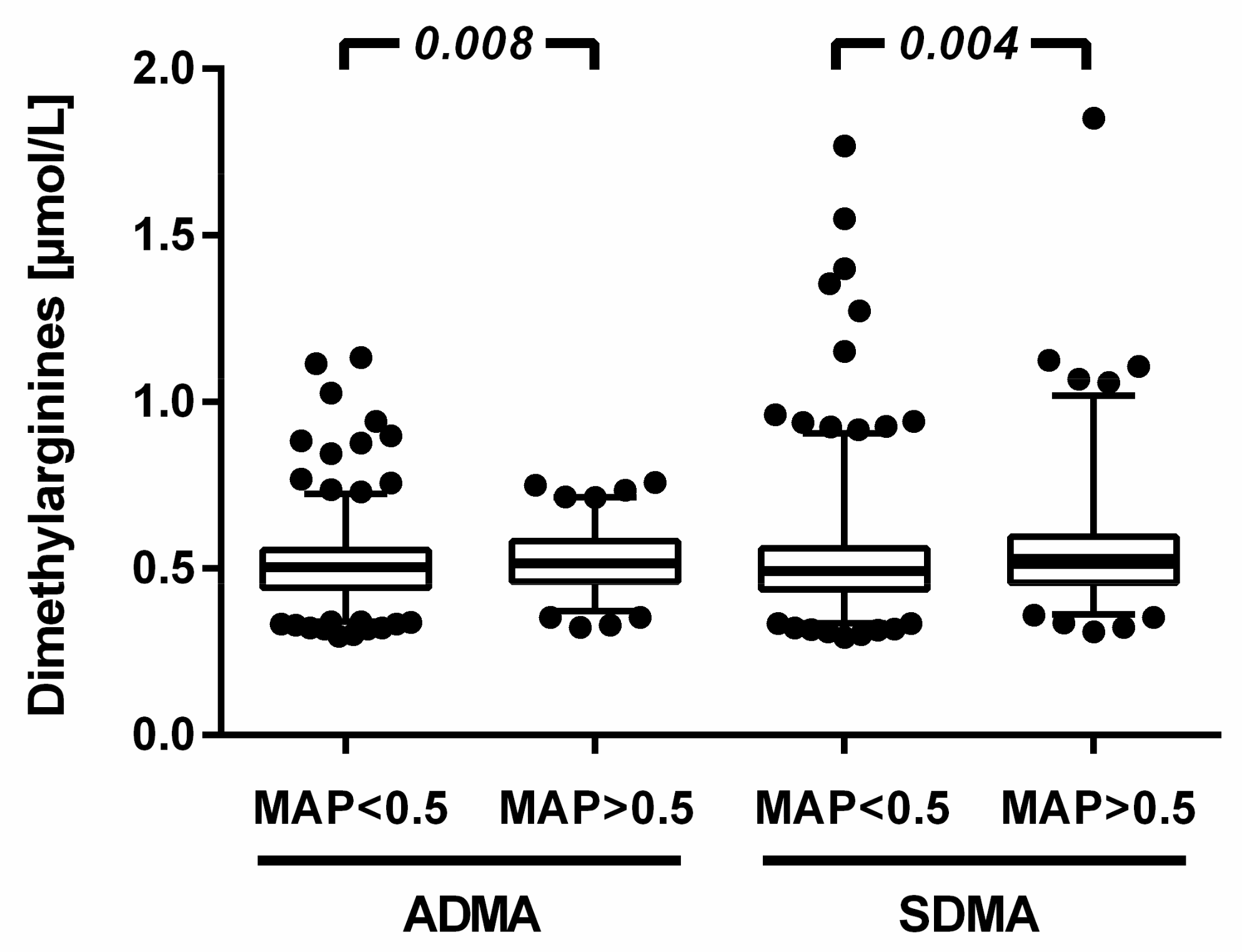

Figure 5. Serum concentrations of ADMA and SDMA in study participants with MAP ≤ 0.5 and >0.5, respectively. Data show median and interquartile range, with vertical whiskers indicating the 2.5th and 97.5th percentiles. Extreme values are plotted individually.
Figure 5. Serum concentrations of ADMA and SDMA in study participants with MAP ≤ 0.5 and >0.5, respectively. Data show median and interquartile range, with vertical whiskers indicating the 2.5th and 97.5th percentiles. Extreme values are plotted individually.
Jcm 12 05230 g005
Jcm 12 05230 g006

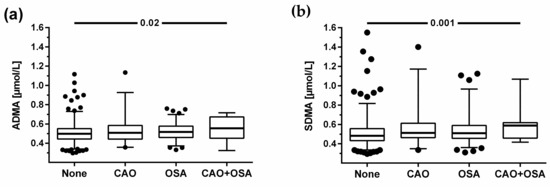

Figure 6. Serum concentrations of ADMA (a) and SDMA (b) in study participants with chronic airflow obstruction (CAO), obstructive sleep apnoea (OSA), or both (CAO + OSA), or without lung disease. Data show median and interquartile range, with vertical whiskers indicating the 2.5th and 97.5th percentiles. Extreme values are plotted individually.
Figure 6. Serum concentrations of ADMA (a) and SDMA (b) in study participants with chronic airflow obstruction (CAO), obstructive sleep apnoea (OSA), or both (CAO + OSA), or without lung disease. Data show median and interquartile range, with vertical whiskers indicating the 2.5th and 97.5th percentiles. Extreme values are plotted individually.
Jcm 12 05230 g006
Table 1. Characteristics of the study population by sex.
Table 1. Characteristics of the study population by sex.
VariableTotalFemaleMalep *
N (%)713 (100)336 (47.1)377 (52.9)n.a.
Demographic parameters
Age (years)56 ± 1257 ± 1256 ± 120.36
BMI (kg/m2)28.0 ± 4.927.6 ± 5.428.3 ± 4.40.04
BMI <25 kg/m2201 (28.2)122 (36.3)79 (20.9)<0.001
BMI 25–29.9 kg/m2312 (43.8)124 (36.9)188 (49.9)
BMI ≥30 kg/m2200 (28.0)90 (26.8)110 (29.2)
Smoking status
Never278 (39.1)132 (39.3)146 (38.9)0.100
Former302 (42.5)132 (39.3)170 (45.3)
Current131 (18.4)72 (21.4)59 (15.7)
Pack-years, current smokers26.0 ± 16.722.4 ± 13.430.3 ± 19.10.006
Pack-years, ever smokers9.9 ± 26.16.6 ± 11.412.7 ± 33.60.005
Concomitant cardiometabolic diseases
Hypertension177 (25.3)95 (28.6)82 (22.2)0.052
CVD106 (14.9)48 (14.3)58 (15.4)0.670
Diabetes20 (2.8)10 (3.0)10 (2.7)0.970
Biomarker levels
ADMA (µmol/L)0.51 [0.45, 0.56]0.51 [0.45, 0.55]0.51 [0.44, 0.56]0.920
SDMA (µmol/L)0.50 [0.44, 0.57]0.48 [0.42, 0.56]0.51 [0.45, 0.58]0.001
L-Arginine (µmol/L)144.0 [126.9, 163.2]142.8 [125.8, 162.5]145.0 [128.9, 163.6]0.870
L-Citrulline (µmol/L)39.5 [33.1, 47.3]39.0 [32.4, 47.6]39.8 [33.7, 47.3]0.460
L-Ornithine (µmol/L)80.4 [67.0, 95.3]77.4 [65.1, 94.5]82.2 [68.3, 95.5]0.040
Arg/ADMA Ratio288.7 [251.2, 330.1]288.2 [253.2, 327.2]289.7 [249.5, 333.4]0.880
Cit/Arg Ratio0.27 [0.23, 0.33]0.27 [0.23, 0.33]0.28 [0.23, 0.33]0.450
Orn/Arg Ratio0.55 [0.46, 0.67]0.54 [0.45, 0.65]0.56 [0.47, 0.68]0.027
Data are presented as mean ± standard deviation and median with interquartile ranges in square brackets for continuous variables as appropriate. Categorical variables are presented as number of observations (N) with the percent value given in brackets. * p values from Student’s t test for means, Kruskal–Wallis test for medians (continuous), and chi-squared test (categorical) comparing males with females. Abbreviations: ADMA, asymmetric dimethylarginine; Arg, L-arginine; BMI, body mass index; Cit, L-citrulline; CVD, cardiovascular disease; Orn, L-ornithine; SDMA, symmetric dimethylarginine.
Table 2. General characteristics, smoking status, health, and biomarker concentrations in study participants with or without chronic airflow obstruction (CAO), high obstructive sleep apnoea risk (MAP), or both.
Table 2. General characteristics, smoking status, health, and biomarker concentrations in study participants with or without chronic airflow obstruction (CAO), high obstructive sleep apnoea risk (MAP), or both.
−MAP
−CAO		−MAP
+CAO		+MAP
−CAO		+MAP
+CAO		p *
Demographics and anthropometrics
N (% males)439 (39.2)59 (23.7)196 (88.3)19 (94.7)-
Age (years)54 ± 11.062.3 ± 12.760.0 ± 11.765.9 ± 10.5<0.001
BMI (kg/m2)26.6 ± 3.724.8 ± 4.031.7 ± 5.429.7 ± 4.3<0.001
BMI < 25 kg/m2154 (35.1)34 (57.6)11 (5.6)2 (10.5)<0.001
BMI 25–29.9 kg/m2213 (48.5)19 (32.2)70 (35.7)10 (52.6)
BMI ≥ 30 kg/m272 (16.4)6 (10.2)115 (58.7)7 (36.8)
Smoking status
Never186 (42.4)16 (27.1)69 (35.6)7 (36.8)0.112
Former174 (39.6)26 (44.0)93 (47.9)9 (47.4)
Current79 (18.0)17 (28.8)32 (16.5)3 (15.8)
Pack-years, current smokers22.0 ± 15.633.6 ± 11.430.6 ± 19.436.0 ± 11.40.008
Pack-years, ever smokers14.2 ± 21.926.1 ± 18.524.0 ± 50.343.9 ± 31.30.008
Concomitant cardiovascular and metabolic diseases
Hypertension (%)92 (21.3)19 (32.2)56 (29.2)10 (55.6)0.001
Cardiovascular disease (%)45 (10.3)15 (25.4)40 (20.5)6 (31.6)<0.001
Diabetes (%)8 (1.8)2 (3.4)9 (4.6)1 (5.6)0.226
Biomarkers
ADMA0.5 (0.44, 0.55)0.50 (0.44, 0.58)0.52 (0.46, 0.58)0.55 (0.45, 0.67)0.019
SDMA0.48 (0.43, 0.56)0.51 (0.46, 0.61)0.51 (0.46, 0.59)0.58 (0.46, 0.62)0.0007
L-Arginine142.5 (126.4, 161.6)146.1 (125.1, 172.9)148.5 (129.4, 165.1)138.1 (130.2, 164.0)0.34
L-Citrulline38.2 (32.4, 46.3)41.4 (33.5, 52.5)40.9 (33.9, 49.5)37.8 (32.7, 50.2)0.028
L-Ornithine78.7 (66.0, 93.5)79.4 (62.8, 101.2)84.5 (70.3, 96.0)81.4 (69.2, 104.5)0.07
Arg/ADMA Ratio287.8 (253.8, 327.4)289.7 (247.0, 342.7)294.1 (247.3, 335.0)259.8 (212.1, 323.6)0.40
Cit/Arg Ratio0.27 (0.23, 0.33)0.28 (0.24, 0.35)0.28 (0.22, 0.34)0.27 (0.21, 0.32)0.50
Orn/Arg Ratio0.55 (0.45, 0.67)0.54 (0.47, 0.65)0.56 (0.47, 0.66)0.57 (0.50, 0.72)0.39
* p-values derived from Kruskal Wallis test.
Table 3. Biomarker concentrations in the 78 study participants with chronic airflow obstruction (CAO) based on LLN compared to those without CAO and further divided based on % FEV1 predicted.
Table 3. Biomarker concentrations in the 78 study participants with chronic airflow obstruction (CAO) based on LLN compared to those without CAO and further divided based on % FEV1 predicted.
Biomarker/
Ratio		Chronic Airflow Obstruction (CAO)Predicted FEV1 (% Based on NHANES III Reference Values) among the 78 Participants with Chronic Airflow Obstruction
YesNop *>10080–10050–80<50p *
N78635n.a.7253313n.a.
ADMA0.52
(0.45–0.59)		0.51
(0.45–0.56)		0.190.52
(0.45, 0.58)		0.48
(0.43, 0.52)		0.51
(0.43, 0.60)		0.60
(0.55, 0.67)		0.001
SDMA0.52
(0.46–0.62)		0.49
(0.44–0.56)		0.0050.62
(0.50, 0.81)		0.50
(0.45, 0.60)		0.52
(0.46, 0.60)		0.58
(0.50, 0.62)		0.204
L-Arginine145.3
(125.7–167.1)		143.8
(127.4–163.1)		0.77130.9
(116.2, 146.1)		138.1
(121.4, 159.7)		147.8
(126.3, 172.9)		158.0
(138.6, 178.2)		0.305
L-Citrulline41.0
(33.5–50.2)		39.3
(32.9–47.2)		0.1852.5
(46.4, 66.1)		40.1
(37.4, 46.3)		40.2
(32.2, 47.7)		42.0
(32.9, 51.2)		0.102
L-Ornithine79.7
(65.3–101.2)		80.4
(67.1–95.1)		0.7588.0
(66.8, 89.9)		79.1
(61.7, 93.6)		80.8
(65.7, 106.7)		79.4
(75.0, 93.4)		0.870
Arg/ADMA Ratio283.9
(244.2–337.1)		289.0
(252.6–329.6)		0.49287.1
(203.1, 314.3)		314.6
(258.0, 342.7)		295.9
(247.0, 339.4)		255.6
(222.2, 273.7)		0.222
Cit/Arg Ratio0.28
(0.24–0.35)		0.27
(0.23–0.33)		0.320.44
(0.36, 0.54)		0.28
(0.24, 0.32)		0.28
(0.24, 0.32)		0.26
(0.21, 0.32)		0.016
Orn/Arg Ratio0.57
(0.48–0.66)		0.55
(0.46–0.67)		0.740.56
(0.51, 0.68)		0.56
(0.49, 0.64)		0.57
(0.47, 0.67)		0.51
(0.43, 0.63)		0.570
Data are presented as median with interquartile range in brackets. Biomarker concentrations are in µmol/L. * p-values are from Kruskal–Wallis test. Abbreviations: ADMA, asymmetric dimethylarginine; SDMA, symmetric dimethylarginine; Arg/ADMA ratio, ratio of serum L-arginine over ADMA concentrations; Cit/Arg ratio, ratio of serum L-citrulline over L-arginine concentrations; NHANES, National Health and Nutrition Examination Survey; Orn/Arg ratio, ratio of serum L-ornithine over L-arginine concentrations; MAP, multivariable apnoea prediction index; CAO, chronic airflow obstruction as defined by FEV1/FVC < LLN.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hannemann, J.; Thorarinnsdottir, E.H.; Amaral, A.F.S.; Schwedhelm, E.; Schmidt-Hutten, L.; Stang, H.; Benediktsdottir, B.; Gunnarsdóttir, I.; Gislason, T.; Böger, R. Biomarkers of the L-Arginine/Dimethylarginine/Nitric Oxide Pathway in People with Chronic Airflow Obstruction and Obstructive Sleep Apnoea. J. Clin. Med. 2023, 12, 5230. https://doi.org/10.3390/jcm12165230

AMA Style

Hannemann J, Thorarinnsdottir EH, Amaral AFS, Schwedhelm E, Schmidt-Hutten L, Stang H, Benediktsdottir B, Gunnarsdóttir I, Gislason T, Böger R. Biomarkers of the L-Arginine/Dimethylarginine/Nitric Oxide Pathway in People with Chronic Airflow Obstruction and Obstructive Sleep Apnoea. Journal of Clinical Medicine. 2023; 12(16):5230. https://doi.org/10.3390/jcm12165230

Chicago/Turabian Style

Hannemann, Juliane, Elin H. Thorarinnsdottir, André F. S. Amaral, Edzard Schwedhelm, Lena Schmidt-Hutten, Heike Stang, Bryndis Benediktsdottir, Ingibjörg Gunnarsdóttir, Thórarinn Gislason, and Rainer Böger. 2023. "Biomarkers of the L-Arginine/Dimethylarginine/Nitric Oxide Pathway in People with Chronic Airflow Obstruction and Obstructive Sleep Apnoea" Journal of Clinical Medicine 12, no. 16: 5230. https://doi.org/10.3390/jcm12165230

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
