Efficacy and Safety of Transcranial Direct Current Stimulation on Post-Stroke Dysphagia: A Systematic Review and Meta-Analysis

by
Kelin He
1,2,
Lei Wu
1,
Yi Huang
2,
Qinqin Chen
2,
Bei Qiu
2,
Kang Liang
1 and
Ruijie Ma
1,2,*
1
The Third Affiliated Hospital of Zhejiang Chinese Medical University (Zhongshan Hospital of Zhejiang Province), Hangzhou 310005, China
2
The Third School of Clinical Medicine (School of Rehabilitation Medicine), Zhejiang Chinese Medical University, Hangzhou 310053, China
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(9), 2297; https://doi.org/10.3390/jcm11092297
Submission received: 11 January 2022 / Revised: 14 March 2022 / Accepted: 14 April 2022 / Published: 20 April 2022
(This article belongs to the Section Intensive Care)
Browse Figures
Review Reports Versions Notes

Abstract

:
Dysphagia is one of the most common symptoms in patients after stroke onset, which has multiple unfavorable effects on quality of life and functional recovery. Transcranial direct current stimulation (tDCS) is a non-invasive brain stimulation that is widely used to improve deglutition function. Recently, some studies have confirmed that tDCS enhances deglutition function after stroke. However, the number of evaluation indexes used in those studies was small, and the number of trials included was limited. Most importantly, the optimal stimulation protocol is still uncertain and the safety of tDCS has not been reviewed. Therefore, we conducted a systematic review and meta-analysis to address these shortcomings. Methods: Seven databases were searched entirely, including Pubmed, Cochrane Library, Web of Science, China National Knowledge Infrastructure (CNKI), Chinese Biomedical Literature Service System (SinoMed), Wan-fang database, and the Chinese Scientific Journals Database (VIP) from inception to 31 December 2021. Two reviewers independently evaluated the eligibility of retrieved data according to the selection criteria and assessed the methodological quality of the studies using the Cochrane risk of bias tool. Outcomes, measures, and indicators used in this study included the dysphagia outcome and severity scale (DOSS), modified Mann assessment of swallowing ability (MMASA), functional oral intake scale (FOIS), functional dysphagia scale (FDS), and Kubota’s water-drinking test (KWDT). Sensitivity and subgroup analyses were performed to evaluate the intervention effect more specifically. Results: Fifteen trials with a total of 787 participants (394 subjects in the tDCS groups were treated with true tDCS, and 393 subjects in the control groups were wait-listed or treated with sham tDCS) involving tDCS for dysphagia after stroke and were included in the meta-analysis. Results of this meta-analysis confirmed that tDCS had a positive effect on post-stroke dysphagia. Subgroup analyses revealed that bilateral and high-intensity stimulation with tDCS had a more significant impact on post-stroke dysphagia. Furthermore, no adverse events occurred during the application of tDCS for post-stroke dysphagia. Conclusion: tDCS can promote the recovery of deglutition function in patients with dysphagia after stroke. In addition, bilateral stimulation and high-intensity stimulation may have better effects. However, the safety evidence for tDCS and post-stroke dysphagia is insufficient.

1. Introduction

Dysphagia is one of the most common problems following a stroke, with a high incidence of 80% [1]. Although the prevalence of dysphagia gradually decreases over time, 50% of patients still have symptoms of dysphagia at six months after stroke onset [2]. Dysphagia increases the incidence of undernutrition, dehydration, aspiration pneumonia, prolonged hospital stay, and high medical expenses or even death [1,3,4]. Conventional rehabilitation methods include dietary changes, pronunciation training, posture training, oral ice stimulation, swallowing training, and pulse electrotherapy, which are widely used to enhance the recovery of deglutition function. However, conventional rehabilitation may need frequent treatment over many weeks before obtaining a good clinical response, leading to poor patient compliance and, eventually, poor clinical outcomes [5]. In some clinical studies, botulinum toxin injections are also recommended for treating dysphagia [6]. However, this is a treatment option for only few patients suffering from post-stroke dysphagia. Therefore, novel, effective treatment methods are desperately needed to improve swallowing dysfunction after stroke.
To date, there have been several important non-invasive neuromodulations developed to manage neuropsychiatric disease. To be specific, the repetitive transcranial magnetic stimulation (rTMS), theta burst stimulation (TBS, a variant of rTMS), non-invasive vagal nerve stimulation, pharyngeal electrical stimulation (PES), neuromuscular electrical stimulation (NMES), transcranial direct current stimulation (tDCS), and transcranial random noise stimulation (tRNS, a variant of tDCS). Further, there have been several important studies addressing the efficacy and safety of these non-invasive neuromodulations in neuropsychiatric disease, such as dementia and minimal cognitive impairment [7], cognition in brain disorder [8], Alzheimer’s disease [9], and Parkinson’s disease with mild cognitive impairment [10]. Moreover, these methods are also recommended for the treatment of post-stroke dysphagia [11,12,13,14]. Among them, tDCS is a promising adjunct therapy to improve deglutitive function.
As a new non-invasive brain stimulation for managing post-stroke dysphagia, tDCS can trigger and regulate modulating brain activity [15], and has recently drawn widespread attention and is increasingly applied in clinical practice and scientific research. As is well known, tDCS is applied by two surface electrodes (anode and cathode) and works by applying a tiny electrical current (usually 1–2 mA) to a targeted area of the brain. Recently, some reviews have claimed that tDCS improves swallowing dysfunction after stroke [16,17]. However, the number of evaluation indexes used in those reviews was small, and the number of trials included was limited. Most importantly, the safety of the tDCS has not been reviewed for this particular patient cohort [18]. Therefore, we conducted a new systematic review and meta-analysis to further address these problems and shortcomings.

2. Materials and Methods

The present study followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [19], and the study protocol has been registered with PROSPERO (Registration number: CRD42021297331).

2.1. Search Strategy

We systematically searched the following seven electronic databases from inception to 31 December 2021: Pubmed, Cochrane Library, Web of Science, CNKI, SinoMed, Wan-fang database, and VIP, to identify all trials of tDCS for treating dysphagia after stroke. The following terms were used as subject words, keywords, free-text terms, and MeSH terms: stroke, cerebral hemorrhage, cerebral infarction, cerebrovascular accident, brain vascular accident, deglutition, dysphagia, swallowing disorder, and transcranial direct current stimulation. Apart from the above, there were no language, region, or countries restrictions.

2.2. Eligibility Criteria

This study included all available randomized controlled trials (RCTs) of tDCS for post-stroke dysphagia. Any other types of literature, such as systematic reviews, letters, case reports, editorials, animal studies, commentary, and non-RCTs were excluded.

2.3. Participants

A study was included if the adult participants (>18 years of age) were diagnosed with swallowing dysfunction after stroke and the stroke type was either cerebral hemorrhage or cerebral infarction. A study was excluded if dysphagia was caused by traumatic brain injury, oropharyngeal disease, esophageal disease, or mental disorders. In addition, dysphagia associated with neuromuscular disorders was also excluded.

2.4. Interventions

The intervention in the experiment group included tDCS alone or in combination with conventional therapy, and the control group included conventional treatment and/or sham tDCS.

2.5. Outcomes

The primary outcome indicator for this study was the dysphagia outcome and severity scale, and the secondary outcome indicators included the modified Mann assessment of swallowing ability, functional oral intake scale, functional dysphagia scale, and Kubota’s water-drinking test.

2.6. Literature Selection and Data Extraction

One reviewer performed literature searches according to the specified search strategies and downloaded the related citations. All of the selected literature was imported into Endnote X9 (Clarivate, Philadelphia, PA, USA) and duplicate citations were removed using electronic/manual checking. Subsequently, two independent reviewers screened and identified the titles and abstracts of the remaining literature and then independently retrieved the literature that fulfilled the inclusion criteria. Discussion with the corresponding author resolved any inconsistent results between the reviewers. After the initial screenings, two reviewers independently extracted the relevant data from the identified studies. The following information was extracted from each study: general information (authors, publication year), demographic data (sample size, age, gender, stroke onset, stroke type, and stroke location), intervention (tDCS group, control group), tDCS protocol (site of stimulation, intensity of stimulation, duration of stimulation, treatment period), outcome measure (dysphagia outcome and severity scale, modified Mann assessment of swallowing ability, functional oral intake scale, functional dysphagia scale, and Kubota’s water-drinking test), and adverse effects.

2.7. Data Analysis

2.7.1. Assessment of Risk of Bias in Included Studies

Two independent reviewers evaluated the risk of bias in each study by using the Cochrane risk of the bias assessment tool [20]. This assessment tool mainly includes seven domains: random sequence generation, allocation concealment, blinding of participants and personnel, blinding of outcome assessment, incomplete outcome data, selective reporting, and other sources of bias. Each domain of the individual study was classified as having a high, low, or unclear risk. Any discordance that occurred between the two reviewers was resolved by discussions with the corresponding author.

2.7.2. Statistical Analysis

All data analyses in this study were conducted with R software (available at: http://www.r-project.org/ (accessed on 10 January 2022), version 3.6.3). Continuous data were calculated as mean differences (MD) with 95% confidence intervals (CI). The I2 statistic was used to evaluate the heterogeneity of the studies (with I2 statistic > 50% indicating statistically significant heterogeneity). Fixed effects or random-effects models were used according to the heterogeneity (I2 statistic > 50%, random effects models; I2 statistic < 50%, fixed effects model). In addition, sensitivity analyses and subgroup analyses were carried out to dissect the heterogeneity. A forest plot was used to detect publication bias.

3. Results

3.1. Literature Selection

A total of 255 published studies were identified (42 references from CNKI, 44 references from Wan-fang, 25 references from VIP, 26 references from SinoMed, 22 references from Pubmed, 44 references from Cochrane Library, 52 references from Web of Science) and imported into Endnote X9. After eliminating duplicates,101 articles remained. We then excluded reviews, case reports, and animal experiments, and 67 studies remained. Mixed interventions, and outcome indicators that did not include dysphagia outcome and severity scale, functional oral intake scale, modified Mann assessment of swallowing ability, functional dysphagia scale, or Kubota’s water-drinking test were also excluded. Finally, 15 trials were considered after reading the full text. A detailed flowchart for the screening process is shown in Figure 1.

3.2. Characteristics of Included Studies

A total of 15 articles were included, consisting of 787 patients (393 patients in the control group and 394 patients in the tDCS group) with dysphagia after stroke. The interventions in the control group included CT only (n = 7), CT + sham tDCS (n = 8), and the intervention in the tDCS group was CT + tDCS. Of these, two studies did not report the course of stroke. The maximum current intensity for tDCS was 2 mA, and the minimum was 1 mA. The shortest treatment period for the intervention was five days, and the longest was two months. For outcome measure, five trials used the dysphagia outcome and severity scale, four trials used the modified Mann assessment of swallowing ability, four trials used the functional oral intake scale, three trials used the functional dysphagia scale, and two trials used the Kubota’s water-drinking test. For adverse effects, six studies reported no adverse events, including skin redness, skin break, epilepsy, seizures, headaches, visual disturbances, skin irritation, or visual disturbance, and the remaining studies provided no information on adverse effects. The detailed characteristics of the included studies are shown in Table 1.

3.3. Risk of Bias Assessment

Figure 2 summarizes the risk of bias in the included studies. Six trials reported a method of random sequence generation and were assessed as low risk of bias [21,22,23,24,25,26]; two trials used the wrong randomization method and were evaluated as high risk of bias [27,28]; one trial described the methods of allocation concealment and was regarded as low risk of bias [23]; four trials mentioned the method for blinding the participants and personnel and were considered as low risk of bias [21,29,30,31]; four trials mentioned the method of blinding the outcome assessment and were assessed as low risk of bias [30,31,32,33]; four trials had complete outcome data and were considered as low risk of bias [23,26,29,32]; one trial had incomplete outcome data and was regarded as high risk of bias [31]; one trial did not involve selective reporting and was assessed as low risk of bias [26]. In addition, all trials were not clear about other sources of bias.

3.4. Results of the Meta-Analysis

3.4.1. The Meta-Analysis Results for the Dysphagia Outcome and Severity Scale

Five RCTs involved the dysphagia outcome and severity scale [26,27,29,32,33]. After carefully reading the full text of the corresponding studies, the intervention protocols in the included five trials were different. Hence, a subgroup analysis was performed according to the intervention protocol. Since the I2 statistic > 50%, a random-effects model was used to perform the meta-analysis. Treatment with tDCS compared with no tDCS showed a significant difference (MD = 1.26, 95% CI = 0.68; 1.84) and the corresponding result is shown in Figure 3A. A subgroup analysis showed that a high stimulation intensity (1.6–2 mA) had a larger positive effect on post-stroke dysphagia than a low stimulation intensity (1–1.5 mA). The corresponding results are shown in Figure 3B. In addition, a sensitivity analysis showed that the results of this meta-analysis were stable.

3.4.2. The Meta-Analysis Results for the Modified Mann Assessment of Swallowing Ability

A total of six studies used the modified Mann assessment of swallowing ability [21,22,24,25,27,28]. Since the I2 statistic > 50%, a random-effects model was used to perform the meta-analysis. The results of this meta-analysis showed that when tDCS was compared with no tDCS, there was a significant difference (MD = 7.57, 95% CI = 4.53; 10.62). The corresponding results are shown in Figure 4A. A subgroup analysis showed that bilateral brain stimulation had a larger positive effect (MD = 6.19, 95% CI = 4.65; 7.74) than undamaged brain stimulation (MD = 5.87, 95% CI = 2.40; 9.35). The corresponding results are presented in Figure 4B. In addition, a sensitivity analysis showed that the results of this meta-analysis were stable.

3.4.3. The Meta-Analysis Results for the Functional Oral Intake Scale

Four trials employed the functional oral intake scale [22,23,25,30]. The I2 statistic = 31% for this group; thus, a fixed-effects model was used to perform the meta-analysis. This meta-analysis showed a significant difference when tDCS was compared with no tDCS (MD = 0.64, 95% CI = 0.52; 0.77) and the corresponding results are presented in Figure 5A. A subgroup analysis result showed that stimulation of the bilateral brain had a positive effect (MD = 0.86, 95% CI = 0.26; 1.46). Stimulation of the undamaged brain had a moderate positive effect (MD = 0.48, 95% CI = 0.21; 0.75). The corresponding results are shown in Figure 5B. In addition, sensitivity analysis showed that the results of this meta-analysis were credible.

3.4.4. The Meta-Analysis Results of the Functional Dysphagia Scale

Three studies used the functional dysphagia scale [23,26,31]. Since the I2 statistic = 0%, a fixed model was used to perform the meta-analysis. The results revealed that when tDCS was compared with no tDCS, there was a significant difference (MD = −8.15, 95% CI = -13.03; –3.27) and the corresponding results are shown in Figure 6. In addition, sensitivity analysis showed that the trial by Wang (2020) was a major source of heterogeneity. After removing this study, the MD for the functional dysphagia scale was −6.30 [95% CI: −12.74; 0.14, p = 0.0553].

3.4.5. The Meta-Analysis Results for Kubota’s Water-Drinking Test

Two trials involved Kubota’s water-drinking test [24,34]. Since the I2 statistic = 95%, a random-effects model was used to perform a meta-analysis. When tDCS was compared with no tDCS, there was a significant difference (MD = 0.93, 95% CI = 0.25; 1.61) and the corresponding results are shown in Figure 7. In addition, sensitivity analysis showed that the results of this meta-analysis were credible.

3.4.6. The Safety of tDCS

Six studies specified that no skin redness, skin breaks, epilepsy, seizures, headaches, visual disturbances, skin irritation, visual disturbances, or serious adverse events (severe or medically significant but not immediately life-threatening events, include the requirement for inpatient hospitalization or prolongation of hospitalization) occurred [22,26,29,30,31,32]. The one trial that used the highest intensity stimulation (2 mA) claimed no adverse effects occurred [29]. The other trials did not mention any adverse events.

3.4.7. Publication Bias

Publication bias is a potential concern when interpreting the meta-analysis results. In this study, funnel plots were used to assess publication bias. A publication bias is indicated by an asymmetrical funnel around the pooled effect size. The selected studies did not lie symmetrically around the pooled effect size, as shown in Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12.

4. Discussion

Overall, our analysis based on primary outcome measures demonstrated that anodal tDCS has a beneficial effect on post-stroke dysphagia, and this result was consistent with previously published studies [16,17]. Moreover, a high intensity, bilateral stimulation tDCS protocol may have a better effect. In contrast to previous studies, our study contains all published trials up to 31 December 2021, except for those for which we could not obtain critical and essential outcomes, or the use of electroacupuncture in the control group did not meet our inclusion criteria [35,36]. Many kinds of swallowing function rating scales are used in clinics, such as the dysphagia outcome and severity scale, modified Mann assessment of swallowing ability, functional oral intake scale, functional dysphagia scale, and Kubota’s water-drinking test. In this study, we used the dysphagia outcome and severity scale as the primary outcome indicator because it has high reliability [37]. To some extent, our study is valuable because we have included new studies, and our results have updated the stimulation protocol for tDCS. Our most critical finding is that we have used different swallow-related scales to evaluate the effect size of tDCS. In addition, we also reviewed the adverse effects of tDCS on post-stroke dysphagia.
It is currently believed that different polarity, current, or target brain regions for tDCS management would contribute to a wide variety of effects. It has been proposed that tDCS induces neuroplastic changes in motor cortical excitability, i.e., anodal tDCS induces sustained elevations in neural cell membrane potentials, and cathodal tDCS induces sustained decreases in neural cell membrane potentials [38]. In addition, the effect of tDCS may vary according to target brain regions, i.e., the same anodal stimulation may depolarize or hyperpolarize depending on whether the target is in the gyri or sulci, which may explain the large inter-individual variability in tDCS responses [39]. However, recently a new hypothesis has addressed the different effects of polarity, current, and target brain regions on tDCS management that is referred to as the neural noise hypothesis [40,41]. To be specific, the after-effect of tDCS might depend on the overall glutamatergic, GABAergic, dopaminergic, and serotoninergic synaptic activity. Therefore, analysis of the intervention plan of tDCS on post-stroke dysphagia is quite necessary. Thus, we analyzed the effect of stimulation site, stimulus intensity, and other aspects of tDCS on post-stroke dysphagia. The specific details are listed below.

4.1. Effect of Stimulation Site of tDCS on Post-Stroke Dysphagia

Subgroup analyses of the modified Mann assessment of swallowing ability and the functional oral intake scale demonstrated that anodal tDCS of the damaged hemisphere and bilateral hemispheres could significantly affect deglutition function in stroke patients. When tDCS is used in different brain areas, it can give rise to various manifestations, for instance, changes in brain networks, cognitive performance, and brain metabolite and neurotransmitter levels [42,43,44]. Since swallowing has bilateral hemispheric representation, the reorganization of the damaged cerebral hemisphere may also play an essential role in recovering deglutition function after stroke [45,46]. For the meta-analysis results of the modified Mann assessment of swallowing ability, the weighted effect size for the bilateral hemisphere was large at 6.19 compared to a medium effect size of 5.87 for the undamaged hemisphere. For the meta-analysis results of the functional oral intake scale, the weighted effect size for the bilateral hemisphere was large at 0.86 compared to the medium effect size of 0.48 for the undamaged hemisphere. These results suggests that anodal tDCS of the bilateral hemisphere is superior to the undamaged hemispheres for improving deglutition function after stroke. Our results are consistent with previous studies showing that the application of tDCS to the bilateral hemisphere may have some inherent advantages over applying it to the undamaged hemisphere. Bilateral tDCS can affect neuronal activity and connectivity within and across the sensorimotor cortical network in the brain [47]. Of course, this result requires further RCT confirmation.

4.2. Effect of Intense Stimulation of tDCS on Post-Stroke Dysphagia

The subgroup analysis of the dysphagia outcome and severity scale demonstrated that both low and high-intensity stimulation with anodal tDCS can significantly affect deglutition function in stroke patients. Notably, high-intensity stimulation with anodal tDCS has more advantages than low-intensity stimulation for improving deglutition function after stroke. It is generally known that tDCS is a non-invasive technique that uses a constant, low-intensity direct current (1~2 mA) to regulate neuronal activity in the cerebral cortex. Previous studies had identified that high-intensity (2 mA) stimulation with tDCS had a greater effect on neural plasticity than low-intensity (1 mA) stimulation [48,49]. Here, we divided stimulation with tDCS into high intensity (1.6–2 mA) or low intensity (1–1.5 mA) according to the included studies’ characteristics. The results showed that high-intensity stimulation has a better effect size than low-intensity stimulation. As described in previous studies [50], high-intensity stimulation resulted in a significant increase of motor-evoked potentials amplitudes, whereas low-intensity stimulation is also associated with less variability in corticospinal excitability. Moreover, higher cortical excitability is associated with better swallowing function recovery [51].

4.3. Duration Stimulation of tDCS

Apart from the intensity of stimulation by tDCS, the duration of stimulation is also an element that can have an impact on the efficacy of tDCS [52]. It has been shown in human studies that tDCS duration varied from 3 to 40 min [53]. In our research, we found that the longest duration of stimulation was 40 min. However, too few durations exist for tDCS for post-stroke dysphagia and it was hard to apply subgroup analyses. Therefore, we were not able to investigate the optimal duration of stimulation.

4.4. Treatment Period of tDCS

In this study, the treatment period for tDCS differed between studies. In a previous study, multiple stimulation with tDCS per week may produce a cumulative effect on brain activity and increase its impact on behavioral outcomes [54]. It is generally thought that the short-term and long-term effects of tDCS are different, one of which is resting membrane potential depolarization through non-synaptic mechanisms [55], and the other is N-methyl-D-aspartate-dependent mechanisms [56].

4.5. Adverse Effects of tDCS on Post-Stroke Dysphagia

We should recognize that for any stimulation protocol there exists a certain degree of risk that could cause problems in particular cases. Many questions remain open until extensive research or clinical experience is gained. In general, low intensity (1–2 mA) tDCS is considered safe [18]. However, this evidence was collected mainly from healthy subjects and neurological and psychiatric patients. In our research, some studies expressly affirmed that there were no adverse effects reported for post-stroke dysphagia. It should be noted explicitly that one study that used the highest intensity (2 mA) for tDCS declared no adverse events occurred [29]. However, a large sample study of tDCS of healthy subjects and other diseases has reported some negative effects, such as pain, fatigue, itching, etc. [57]. Thus, small sample sizes may explain why the studies included in this review did not report adverse effects.

4.6. Limitation

Firstly, this study’s data on adverse events was relatively small. As a result, we could not create a quantitative analysis based on the available data; therefore, we could only conduct a narrative review for this study. Secondly, some aspects of the stimulation protocol were different, such as the duration of stimulation and the course of stimulation. Therefore, meta-regression may be needed to adjust these variables. However, the small sample size for those studies limited our ability to do so.

5. Conclusions

The application of tDCS can promote the recovery of deglutition function in patients with dysphagia after stroke, and bilateral stimulation and high-intensity stimulation may have better effects. However, the safety evidence of tDCS for post-stroke dysphagia is insufficient. In addition, all studies are single-center and lack a unified evaluation scale. Therefore, future research should take steps in this direction to solve these deficiencies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm11092297/s1, PRISMA 2020 Checklist [19]; Table S1 Search strategy in PubMed; Table S2 Search strategy in others database; Table S3. Search strategy in others database.

Author Contributions

K.H. conceived the study and drafted the protocol. L.W. and Y.H. developed and executed the search strategies. B.Q., K.L. and Q.C. participated in literature selection and data extraction. R.M. conceived the study design, writing, acquiring, analyzing, and interpreting data. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Chinese Medicine Research Program of Zhejiang Province (No: 2020ZX011, 2022ZQ047, 2022ZB198, and 2018ZQ027), and the Zhejiang Chinese Medical University Research Fund (No: 2018ZY17).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data relevant to the study are included in the article or uploaded as Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barer, D.H. The natural history and functional consequences of dysphagia after hemispheric stroke. J. Neurol. Neurosurg. Psychiatry 1989, 52, 236–241. [Google Scholar] [CrossRef] [PubMed]
  2. Mann, G.; Hankey, G.J.; Cameron, D. Swallowing function after stroke: Prognosis and prognostic factors at 6 months. Stroke 1999, 30, 744–748. [Google Scholar] [CrossRef] [PubMed]
  3. Blanař, V.; Hödl, M.; Lohrmann, C.; Amir, Y.; Eglseer, D. Dysphagia and factors associated with malnutrition risk: A 5-year multicentre study. J. Adv. Nurs. 2019, 75, 3566–3576. [Google Scholar] [CrossRef] [PubMed]
  4. Bonilha, H.S.; Simpson, A.N.; Ellis, C.; Mauldin, P.; Martin-Harris, B.; Simpson, K. The one-year attributable cost of post-stroke dysphagia. Dysphagia 2014, 29, 545–552. [Google Scholar] [CrossRef] [PubMed]
  5. Burkhead, L.M.; Sapienza, C.M.; Rosenbek, J.C. Strength-training exercise in dysphagia rehabilitation: Principles, procedures, and directions for future research. Dysphagia 2007, 22, 251–265. [Google Scholar] [CrossRef]
  6. Terré, R.; Panadés, A.; Mearin, F. Botulinum toxin treatment for oropharyngeal dysphagia in patients with stroke. Neurogastroenterol. Motil. Off. J. Eur. Gastrointest. Motil. Soc. 2013, 25, 896-e702. [Google Scholar] [CrossRef]
  7. Inagawa, T.; Narita, Z.; Sugawara, N.; Maruo, K.; Stickley, A.; Yokoi, Y.; Sumiyoshi, T. A Meta-Analysis of the Effect of Multisession Transcranial Direct Current Stimulation on Cognition in Dementia and Mild Cognitive Impairment. Clin. EEG Neurosci. 2019, 50, 273–282. [Google Scholar] [CrossRef]
  8. Begemann, M.J.; Brand, B.A.; Ćurčić-Blake, B.; Aleman, A.; Sommer, I.E. Efficacy of non-invasive brain stimulation on cognitive functioning in brain disorders: A meta-analysis. Psychol. Med. 2020, 50, 2465–2486. [Google Scholar] [CrossRef]
  9. Chu, C.S.; Li, C.T.; Brunoni, A.R.; Yang, F.C.; Tseng, P.T.; Tu, Y.K.; Stubbs, B.; Carvalho, A.F.; Thompson, T.; Rajji, T.K.; et al. Cognitive effects and acceptability of non-invasive brain stimulation on Alzheimer’s disease and mild cognitive impairment: A component network meta-analysis. J. Neurol. Neurosurg. Psychiatry 2021, 92, 195–203. [Google Scholar] [CrossRef]
  10. Lang, S.; Gan, L.S.; Yoon, E.J.; Hanganu, A.; Kibreab, M.; Cheetham, J.; Hammer, T.; Kathol, I.; Sarna, J.; Martino, D.; et al. Theta-Burst Stimulation for Cognitive Enhancement in Parkinson’s Disease with Mild Cognitive Impairment: A Randomized, Double-Blind, Sham-Controlled Trial. Front. Neurol. 2020, 11, 584374. [Google Scholar] [CrossRef]
  11. Dziewas, R.; Stellato, R.; van der Tweel, I.; Walther, E.; Werner, C.J.; Braun, T.; Citerio, G.; Jandl, M.; Friedrichs, M.; Nötzel, K.; et al. Pharyngeal electrical stimulation for early decannulation in tracheotomised patients with neurogenic dysphagia after stroke (PHAST-TRAC): A prospective, single-blinded, randomised trial. Lancet Neurol. 2018, 17, 849–859. [Google Scholar] [CrossRef]
  12. Zhang, M.; Tao, T.; Zhang, Z.B.; Zhu, X.; Fan, W.G.; Pu, L.J.; Chu, L.; Yue, S.W. Effectiveness of Neuromuscular Electrical Stimulation on Patients with Dysphagia with Medullary Infarction. Arch. Phys. Med. Rehabil. 2016, 97, 355–362. [Google Scholar] [CrossRef] [PubMed]
  13. Park, E.; Kim, M.S.; Chang, W.H.; Oh, S.M.; Kim, Y.K.; Lee, A.; Kim, Y.H. Effects of Bilateral Repetitive Transcranial Magnetic Stimulation on Post-Stroke Dysphagia. Brain Stimul. 2017, 10, 75–82. [Google Scholar] [CrossRef]
  14. Momosaki, R.; Kinoshita, S.; Kakuda, W.; Yamada, N.; Abo, M. Noninvasive brain stimulation for dysphagia after acquired brain injury: A systematic review. J. Med. Investig. JMI 2016, 63, 153–158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Pisegna, J.M.; Kaneoka, A.; Pearson, W.G., Jr.; Kumar, S.; Langmore, S.E. Effects of non-invasive brain stimulation on post-stroke dysphagia: A systematic review and meta-analysis of randomized controlled trials. Clin. Neurophysiol. 2016, 127, 956–968. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Lin, Q.; Lin, S.-F.; Ke, X.-H.; Jia, X.-F.; Huang, D.-B. A systematic review and meta-analysis on the effectiveness of transcranial direct current stimulation (tDCS) on swallowing function of post-stroke patients. Am. J. Phys. Med. Rehabil. 2021; publish ahead of print paper. [Google Scholar] [CrossRef]
  17. Marchina, S.; Pisegna, J.M.; Massaro, J.M.; Langmore, S.E.; McVey, C.; Wang, J.; Kumar, S. Transcranial direct current stimulation for post-stroke dysphagia: A systematic review and meta-analysis of randomized controlled trials. J. Neurol. 2021, 268, 293–304. [Google Scholar] [CrossRef] [PubMed]
  18. Antal, A.; Alekseichuk, I.; Bikson, M.; Brockmöller, J.; Brunoni, A.R.; Chen, R.; Cohen, L.G.; Dowthwaite, G.; Ellrich, J.; Flöel, A.; et al. Low intensity transcranial electric stimulation: Safety, ethical, legal regulatory and application guidelines. Clin. Neurophysiol. Off. J. Int. Fed. Clin. Neurophysiol. 2017, 128, 1774–1809. [Google Scholar] [CrossRef] [Green Version]
  19. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ (Clin. Res. Ed.) 2021, 372, n71. [Google Scholar] [CrossRef]
  20. Higgins, J.P.; Altman, D.G.; Gøtzsche, P.C.; Jüni, P.; Moher, D.; Oxman, A.D.; Savovic, J.; Schulz, K.F.; Weeks, L.; Sterne, J.A. The Cochrane Collaboration’s tool for assessing risk of bias in randomised trials. BMJ (Clin. Res. Ed.) 2011, 343, d5928. [Google Scholar] [CrossRef] [Green Version]
  21. Yuan, Y.; Wang, J.; Wu, D. Effects of transcranial direct current stimulation on ataxic dysphagia after stroke. Chin. J. Rehabil. Med. 2015, 30, 765–770. [Google Scholar]
  22. Wang, S.; Sheng, X.Y.; Mo., D.; Xu, J.Q.; Tian, J.Y.; Sun, L. Clinical observation of transcranial direct current stimulation combined with swallowing training on swallowing dysfunction after stroke. Neural Inj. Funct. Reconstr. 2019, 14, 209–211. [Google Scholar] [CrossRef]
  23. Wang, Z.Y.; Chen, J.M.; Lin, Z.K.; Ni, G.X. Transcranial direct current stimulation improves the swallowing function in patients with cricopharyngeal muscle dysfunction following a brainstem stroke. Neurol. Sci. Off. J. Ital. Neurol. Soc. Ital. Soc. Clin. Neurophysiol. 2020, 41, 569–574. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, Y. Effect of Transcranial Direct Current Stimulation on Patients with Swallowing Dysfunction after Stroke. Doctor 2019, 14, 54–55. [Google Scholar]
  25. Hua, H.L.; Zhang, B.X.; Liu, J.; Tang, N.Z.; Wang, X.L.; Chen, N.H. Clinical observation of direct feeding instruction combined with transcranial direct current stimulation in the treatment of dysphagia after stroke and its influence on the degree of aspiration. China Modern Med. 2020, 27, 60–63. [Google Scholar]
  26. Mao, H.W.; Li, Y.; Xiao, Z.G.; Ni, J.W.; Gan, L. Clinical study on swallowing function of brainstem stroke by tDCS. Chin. J. Phys. Med. Rehabil. 2020, 42, 29–31. [Google Scholar] [CrossRef]
  27. Ruan, S.Y.; Wang, X. Application of transcranial direct current stimulation combined with oral muscle biofeedback training in patients with dysphagia after stroke. Chin. J. Conval. Med. 2021, 30, 713–715. [Google Scholar]
  28. Lu, F.Q.; Liu, T.J. Application analysis of transcranial direct current stimulation in the rehabilitation of dysphagia after acute cerebral infarction. J. Med. Theor. Prac. 2020, 33, 159–161. [Google Scholar]
  29. Kumar, S.; Wagner, C.W.; Frayne, C.; Zhu, L.; Selim, M.; Feng, W.; Schlaug, G. Noninvasive Brain Stimulation May Improve Stroke-Related Dysphagia A Pilot Study. Stroke 2011, 42, 1035–1040. [Google Scholar] [CrossRef] [Green Version]
  30. Suntrup-Krueger, S.; Ringmaier, C.; Muhle, P.; Wollbrink, A.; Kemmling, A.; Hanning, U.; Claus, I.; Warnecke, T.; Teismann, I.; Pantev, C.; et al. Randomized trial of transcranial direct current stimulation for poststroke dysphagia. Ann. Neurol. 2018, 83, 328–340. [Google Scholar] [CrossRef]
  31. Yang, E.J.; Baek, S.R.; Shin, J.; Lim, J.Y.; Jang, H.J.; Kim, Y.K.; Paik, N.J. Effects of transcranial direct current stimulation (tDCS) on post-stroke dysphagia. Restor. Neurol. Neurosci. 2012, 30, 303–311. [Google Scholar] [CrossRef]
  32. Ahn, Y.H.; Sohn, H.J.; Park, J.S.; Ahn, T.G.; Shin, Y.B.; Park, M.; Ko, S.H.; Shin, Y.I. Effect of bihemispheric anodal transcranial direct current stimulation for dysphagia in chronic stroke patients: A randomized clinical trial. J. Rehabil. Med. 2017, 49, 30–35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Shigematsu, T.; Fujishima, I.; Ohno, K. Transcranial Direct Current Stimulation Improves Swallowing Function in Stroke Patients. Neurorehabilit. Neural Repair 2013, 27, 363–369. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, J.; Wang, X.L.; Hua, H.L. Therapeutic Effect of Dysphagia After stroke. China Health Stand. Manag. 2020, 11, 49–51. [Google Scholar]
  35. Lai, R.Y. Effects of Electric Acupuncture with Transcranial Direct Current Stimulation on Dysphagia after Stroke; Guangzhou University of Traditional Chinese Medicine: Guangzhou, China, 2017. [Google Scholar]
  36. Pingue, V.; Priori, A.; Malovini, A.; Pistarini, C. Dual Transcranial Direct Current Stimulation for Poststroke Dysphagia: A Randomized Controlled Trial. Neurorehabilit. Neural Repair 2018, 32, 635–644. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. O’Neil, K.H.; Purdy, M.; Falk, J.; Gallo, L. The Dysphagia Outcome and Severity Scale. Dysphagia 1999, 14, 139–145. [Google Scholar] [CrossRef]
  38. Nitsche, M.A.; Boggio, P.S.; Fregni, F.; Pascual-Leone, A. Treatment of depression with transcranial direct current stimulation (tDCS): A review. Exp. Neurol. 2009, 219, 14–19. [Google Scholar] [CrossRef]
  39. Rahman, A.; Reato, D.; Arlotti, M.; Gasca, F.; Datta, A.; Parra, L.C.; Bikson, M. Cellular effects of acute direct current stimulation: Somatic and synaptic terminal effects. J. Physiol. 2013, 591, 2563–2578. [Google Scholar] [CrossRef]
  40. McDonnell, M.D.; Ward, L.M. The benefits of noise in neural systems: Bridging theory and experiment. Nat. Rev. Neurosci. 2011, 12, 415–426. [Google Scholar] [CrossRef]
  41. Beheshti, I.; Ko, J.H. Modulating brain networks associated with cognitive deficits in Parkinson’s disease. Mol. Med. (Camb. Mass.) 2021, 27, 24. [Google Scholar] [CrossRef]
  42. Antonenko, D.; Schubert, F.; Bohm, F.; Ittermann, B.; Aydin, S.; Hayek, D.; Grittner, U.; Flöel, A. tDCS-Induced Modulation of GABA Levels and Resting-State Functional Connectivity in Older Adults. J. Neurosci. Off. J. Soc. Neurosci. 2017, 37, 4065–4073. [Google Scholar] [CrossRef]
  43. Stagg, C.J.; Johansen-Berg, H. Studying the effects of transcranial direct-current stimulation in stroke recovery using magnetic resonance imaging. Front. Hum. Neurosci. 2013, 7, 857. [Google Scholar] [CrossRef] [PubMed]
  44. Park, C.H.; Chang, W.H.; Park, J.Y.; Shin, Y.I.; Kim, S.T.; Kim, Y.H. Transcranial direct current stimulation increases resting state interhemispheric connectivity. Neurosci. Lett. 2013, 539, 7–10. [Google Scholar] [CrossRef] [PubMed]
  45. Takeuchi, N.; Izumi, S. Noninvasive brain stimulation for motor recovery after stroke: Mechanisms and future views. Stroke Res. Treat. 2012, 2012, 584727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Bastani, A.; Jaberzadeh, S. Does anodal transcranial direct current stimulation enhance excitability of the motor cortex and motor function in healthy individuals and subjects with stroke: A systematic review and meta-analysis. Clin. Neurophysiol. Off. J. Int. Fed. Clin. Neurophysiol. 2012, 123, 644–657. [Google Scholar] [CrossRef]
  47. Boonzaier, J.; Straathof, M.; Ardesch, D.J.; van der Toorn, A.; van Vliet, G.; van Heijningen, C.L.; Otte, W.M.; Dijkhuizen, R.M. Activation response and functional connectivity change in rat cortex after bilateral transcranial direct current stimulation—An exploratory study. J. Neurosci. Res. 2021, 99, 1377–1389. [Google Scholar] [CrossRef]
  48. Turner, C.; Jackson, C.; Learmonth, G. Is the “end-of-study guess” a valid measure of sham blinding during transcranial direct current stimulation? Eur. J. Neurosci. 2021, 53, 1592–1604. [Google Scholar] [CrossRef]
  49. Shekhawat, G.S.; Sundram, F.; Bikson, M.; Truong, D.; De Ridder, D.; Stinear, C.M.; Welch, D.; Searchfield, G.D. Intensity, Duration, and Location of High-Definition Transcranial Direct Current Stimulation for Tinnitus Relief. Neurorehabil. Neural. Repair 2016, 30, 349–359. [Google Scholar] [CrossRef]
  50. Batsikadze, G.; Moliadze, V.; Paulus, W.; Kuo, M.F.; Nitsche, M.A. Partially non-linear stimulation intensity-dependent effects of direct current stimulation on motor cortex excitability in humans. J. Physiol. 2013, 591, 1987–2000. [Google Scholar] [CrossRef]
  51. Zhang, C.; Zheng, X.; Lu, R.; Yun, W.; Yun, H.; Zhou, X. Repetitive transcranial magnetic stimulation in combination with neuromuscular electrical stimulation for treatment of post-stroke dysphagia. J. Int. Med. Res. 2019, 47, 662–672. [Google Scholar] [CrossRef]
  52. Mostafavi, S.A.; Khaleghi, A.; Mohammadi, M.R.; Akhondzadeh, S. Is transcranial direct current stimulation an effective modality in reducing food craving? A systematic review and meta-analysis. Nutr. Neurosci. 2020, 23, 55–67. [Google Scholar] [CrossRef]
  53. Nitsche, M.A.; Cohen, L.G.; Wassermann, E.M.; Priori, A.; Lang, N.; Antal, A.; Paulus, W.; Hummel, F.; Boggio, P.S.; Fregni, F.; et al. Transcranial direct current stimulation: State of the art 2008. Brain Stimul. 2008, 1, 206–223. [Google Scholar] [CrossRef]
  54. Boggio, P.S.; Nunes, A.; Rigonatti, S.P.; Nitsche, M.A.; Pascual-Leone, A.; Fregni, F. Repeated sessions of noninvasive brain DC stimulation is associated with motor function improvement in stroke patients. Restor. Neurol. Neurosci. 2007, 25, 123–129. [Google Scholar] [PubMed]
  55. Nitsche, M.A.; Liebetanz, D.; Antal, A.; Lang, N.; Tergau, F.; Paulus, W. Modulation of cortical excitability by weak direct current stimulation--technical, safety and functional aspects. Suppl. Clin. Neurophysiol. 2003, 56, 255–276. [Google Scholar] [CrossRef] [PubMed]
  56. Liebetanz, D.; Nitsche, M.A.; Tergau, F.; Paulus, W. Pharmacological approach to the mechanisms of transcranial DC-stimulation-induced after-effects of human motor cortex excitability. Brain J. Neurol. 2002, 125, 2238–2247. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Poreisz, C.; Boros, K.; Antal, A.; Paulus, W. Safety aspects of transcranial direct current stimulation concerning healthy subjects and patients. Brain Res. Bull. 2007, 72, 208–214. [Google Scholar] [CrossRef] [PubMed]
Jcm 11 02297 g001 550

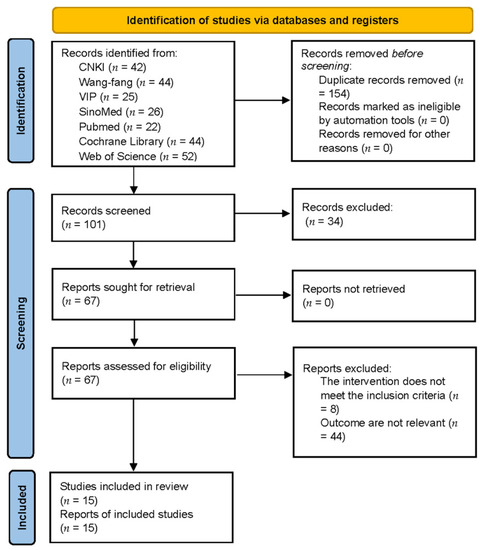

Figure 1. Detailed flowchart of the screening process. CNKI, China National Knowledge Infrastructure; VIP, the Chinese Scientific Journals Database; SinoMed, Chinese Biomedical Literature Service System; n, number of publications.
Figure 1. Detailed flowchart of the screening process. CNKI, China National Knowledge Infrastructure; VIP, the Chinese Scientific Journals Database; SinoMed, Chinese Biomedical Literature Service System; n, number of publications.
Jcm 11 02297 g001
Jcm 11 02297 g002 550

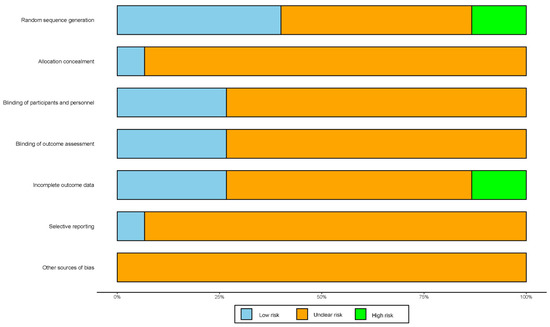

Figure 2. Quality evaluation of the risk of bias in the included literature.
Figure 2. Quality evaluation of the risk of bias in the included literature.
Jcm 11 02297 g002
Jcm 11 02297 g003 550

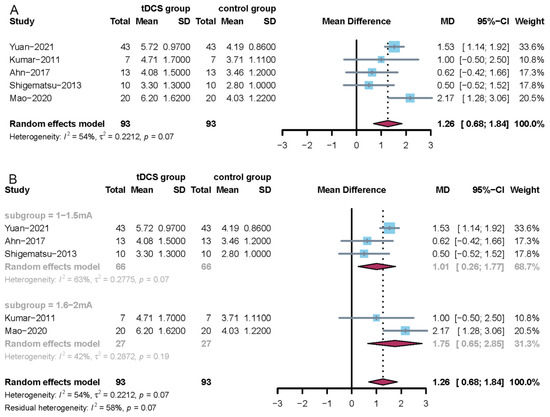

Figure 3. Forest plots of the dysphagia outcome and severity scale. (A) Overall analysis of the five included trials; (B) subgroup analysis based on the stimulation intensity (1–1.5 mA vs. 1.6–2 mA).
Figure 3. Forest plots of the dysphagia outcome and severity scale. (A) Overall analysis of the five included trials; (B) subgroup analysis based on the stimulation intensity (1–1.5 mA vs. 1.6–2 mA).
Jcm 11 02297 g003
Jcm 11 02297 g004 550

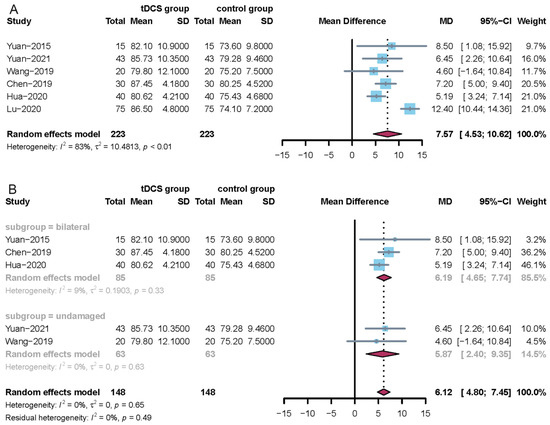

Figure 4. Forest plots of the modified Mann assessment of swallowing ability. (A) Overall analysis of the six included trials; (B) subgroup analysis using tDCS on the bilateral or undamaged brain.
Figure 4. Forest plots of the modified Mann assessment of swallowing ability. (A) Overall analysis of the six included trials; (B) subgroup analysis using tDCS on the bilateral or undamaged brain.
Jcm 11 02297 g004
Jcm 11 02297 g005 550

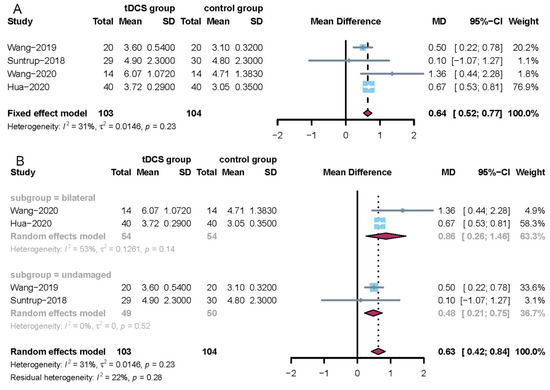

Figure 5. Forest plots for the functional oral intake scale. (A) Overall analysis of four included trials; (B) subgroup analysis using tDCS on the bilateral or undamaged brain.
Figure 5. Forest plots for the functional oral intake scale. (A) Overall analysis of four included trials; (B) subgroup analysis using tDCS on the bilateral or undamaged brain.
Jcm 11 02297 g005
Jcm 11 02297 g006 550

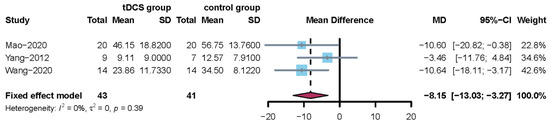

Figure 6. Forest plot for the functional dysphagia scale (overall analysis of three included trials).
Figure 6. Forest plot for the functional dysphagia scale (overall analysis of three included trials).
Jcm 11 02297 g006
Jcm 11 02297 g007 550

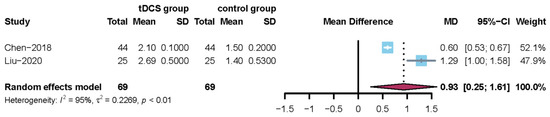

Figure 7. Forest plot for the Kubota’s water-drinking test (overall analysis of two included trials).
Figure 7. Forest plot for the Kubota’s water-drinking test (overall analysis of two included trials).
Jcm 11 02297 g007
Jcm 11 02297 g008 550

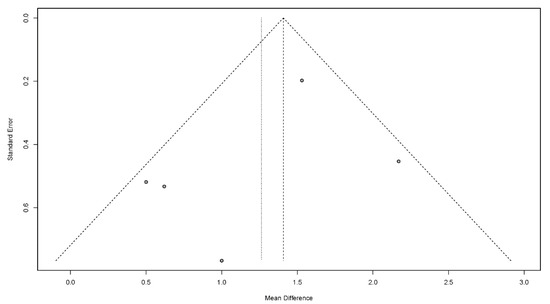

Figure 8. Funnel plots for the dysphagia outcome and severity scale.
Figure 8. Funnel plots for the dysphagia outcome and severity scale.
Jcm 11 02297 g008
Jcm 11 02297 g009 550

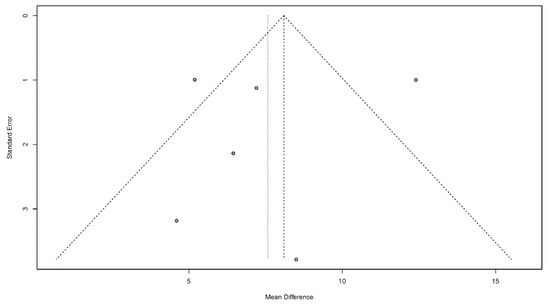

Figure 9. Funnel plots for the modified Mann assessment of swallowing ability.
Figure 9. Funnel plots for the modified Mann assessment of swallowing ability.
Jcm 11 02297 g009
Jcm 11 02297 g010 550

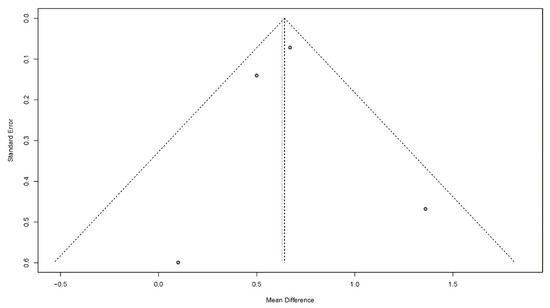

Figure 10. Funnel plots for the functional oral intake scale.
Figure 10. Funnel plots for the functional oral intake scale.
Jcm 11 02297 g010
Jcm 11 02297 g011 550

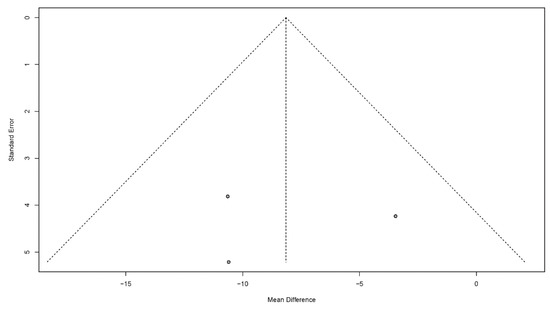

Figure 11. Funnel plots for the functional dysphagia scale.
Figure 11. Funnel plots for the functional dysphagia scale.
Jcm 11 02297 g011
Jcm 11 02297 g012 550

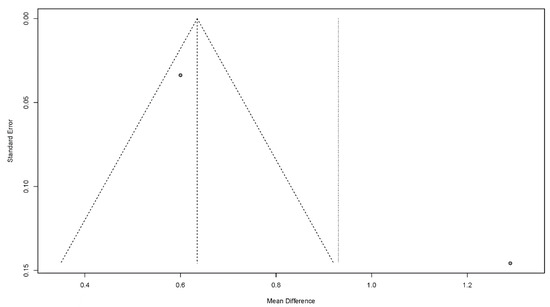

Figure 12. Funnel plots for the Kubota’s water-drinking test.
Figure 12. Funnel plots for the Kubota’s water-drinking test.
Jcm 11 02297 g012
Table
Table 1. Characteristics of included studies.
Table 1. Characteristics of included studies.
StudyPublish YearSampleAge (Years)Gender (M/F)Stroke OnsetStroke TypeStroke LocationInterventiontDCS ProtocolOutcome MeasureAdverse Effect
Control GrouptDCS Group Control GrouptDCS Group Control GrouptDCS Group Control GrouptDCS Group Control GrouptDCS Group Site of StimulationIntensity of StimulationDuration of StimulationTreatment Period
Yuan2015151557.4 ± 7.260.7 ± 11.513/214/1(58.5 ± 28.5) d(57.7 ± 25.8) dCH + CICerebellumCT + sham tDCSCT + tDCSBilateral cerebellar hemisphere1 mA20 minOnce a day for 20 daysMMASAUnclear
Yuan2021434362.95 ± 5.7461.72 ±
5.29		27/1625/18(1.79 ± 0.57) m(1.64 ± 0.49) mCIUnclearCTCT + tDCSUndamaged pharyngeal motor cortex1.5 mA20 minFive times per week for four weeksMMASA, DOSSUnclear
Wang2019202060.8 ± 11.264.8 ± 7.215/513/7(47.9 ± 21.6) d(51.2 + 28.9) dCH + CIBasal gangliaCT + sham tDCS CT + tDCSUndamaged pharyngeal motor cortex1.5 mA20 minFive times per week for two weeksMMASA, FOISNo
Kumar20117770 ± 11.9679.71 ± 10.214/33/4(96.71 ± 45.93) h (80.29 ± 42.31) h CIUnilateral hemisphereCT + sham tDCSCT + tDCSUndamaged hemisphere2 mA30 minOnce a day for five daysDOSSNo
Ahn2017131366.38 ± 10.6761.62 ±10.286/79/4(11.62 ± 4.56) m(12.27 ± 4.92) mCIUnilateral cortical or subcorticalCT + sham tDCSCT + tDCSBilaterally pharyngeal motor cortex1 mA20 minFive times per week for two weeksDOSSNo
Mao2020202061.25 ± 8.0259.80 ±
7.27		8/1211/9(3.60 ± 2.49) m(3.25 ± 2.24) mCH + CIBrain stemCTCT + tDCSUndamaged pharyngeal motor cortex1.6 mA20 minSix times per week for eight weeksDOSS, FDSNo
Shigematsu2013101064.7 ± 8.966.9 ± 6.3 7/37/3at least 1 monthCH + CIUnclearCT + sham tDCSCT + tDCSAffected pharyngeal motor cortex1 mA20 min10 daysDOSSUnclear
Suntrup2018302967.2 ± 14.568.9 ± 11.517/1317/12(116.8 ± 64.9) h(116.3 ± 98.9) hCISupratentorial; infratentorialCT + sham tDCSCT + tDCSUnaffected pharyngeal motor cortex 1 mA20 minOnce a day for four daysFOIS, FEDSSNo
Wang2020141462.00 ± 10.4661.43 ± 11.2410/411/3(67.50 ± 47.62) d(66.79 ± 38.62) dCH + CIBrainstemCT + sham tDCSCT + tDCSBilateral oesophageal coritical area1 mA40 minFive times per week for four weeksFOIS, FDSUnclear
Yang20127970.57 ± 8.4670.44 ± 12.593/46/3(26.9 ± 7.8) d(25.2 ± 11.5) dCIUnilateral hemisphereCT + sham tDCSCT + tDCSAffected pharyngeal motor cortex1 mA20 minFive times per week for two weeksFDSNo
Chen2018444467.8 ± 1.868.6 ± 1.524/2023/21not mentionedCH + CIUnclearCTCT + tDCSDamaged hemisphere of the oropharyngeal cortex1.2 mA20 minFive times per week for two weeksKWDTUnclear
Chen2019303062.93 ± 4.1261.27 ±
4.52		19/1117/13(1.92 ± 0.24) m(1.89 ± 0.17) mCH + CIUnclearCTCT + tDCSBilateral pharyngeal sensory-motor cortex1.4 mA20 minFive times per week for two weeksMMASAUnclear
Hua2020404061.28 ± 10.1560.29 ±
9.48		29/1131/9(48.16 ± 9.97) d(47.39 ± 10.83) dCH + CIBasal gangliaCTCT + tDCSBilateral pharyngeal sensory-motor cortex1 mA20 minTwice a day, ten times per week for four weeksMMASA, FIOSUnclear
Liu2020252554.92 ± 3.8255.82 ±
3.74		15/1014/11(14~90) dCH + CIUnclearCTCT + tDCSDamaged pharyngeal cortex1.2 mA20 minFive times per week for two weeksKWDTUnclear
Lu2020757557.3 ± 2.257.5 ± 2.136/3935/40(48.3 ± 2.5) d(48.5 ± 2.4) dCIUnclearCTCT + tDCSDamaged oropharyngeal cortex1.2 mA20 minFive times per week for two weeksMMASAUnclear
Abbreviation: d, day; h, hour; m, month; CI, cerebral infarction; CH, cerebral hemorrhage; CT, conventional treatment; DOSS, dysphagia outcome and severity scale; MMASA, modified Mann assessment of swallowing ability; FOIS, functional oral intake scale; FDS, functional dysphagia scale; KWDT, Kubota’s water-drinking test; FEDSS, fiberoptic endoscopic dysphagia severity scale. Adverse effects: skin redness, skin break, epilepsy, seizures, headaches, visual disturbances, skin irritation, or visual disturbance.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

He, K.; Wu, L.; Huang, Y.; Chen, Q.; Qiu, B.; Liang, K.; Ma, R. Efficacy and Safety of Transcranial Direct Current Stimulation on Post-Stroke Dysphagia: A Systematic Review and Meta-Analysis. J. Clin. Med. 2022, 11, 2297. https://doi.org/10.3390/jcm11092297

AMA Style

He K, Wu L, Huang Y, Chen Q, Qiu B, Liang K, Ma R. Efficacy and Safety of Transcranial Direct Current Stimulation on Post-Stroke Dysphagia: A Systematic Review and Meta-Analysis. Journal of Clinical Medicine. 2022; 11(9):2297. https://doi.org/10.3390/jcm11092297

Chicago/Turabian Style

He, Kelin, Lei Wu, Yi Huang, Qinqin Chen, Bei Qiu, Kang Liang, and Ruijie Ma. 2022. "Efficacy and Safety of Transcranial Direct Current Stimulation on Post-Stroke Dysphagia: A Systematic Review and Meta-Analysis" Journal of Clinical Medicine 11, no. 9: 2297. https://doi.org/10.3390/jcm11092297

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
