What Are the Expectations for Cardiac Resynchronization Therapy? A Validation of Two Response Definitions
by
Toshiko Nakai
*,
Yukitoshi Ikeya
,
Rikitake Kogawa
,
Naoto Otsuka
,
Yuji Wakamatsu
,
Sayaka Kurokawa
,
Kimie Ohkubo
,
Koichi Nagashima
and
Yasuo Okumura
Division of Cardiology, Department of Medicine, Nihon University School of Medicine, 30-1 Oyaguchi Kamicho, Itabashi-ku, Tokyo 173-8610, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2021, 10(3), 514; https://doi.org/10.3390/jcm10030514
Submission received: 18 December 2020
/
Revised: 27 January 2021
/
Accepted: 27 January 2021
/
Published: 1 February 2021
(This article belongs to the Special Issue Latest Advances in Delivery and Outcomes of Cardiac Resynchronization Therapy)
Abstract
:Background: The definition of response to cardiac resynchronization therapy (CRT) varies across clinical trials. There are two main definitions, i.e., echocardiographic response and functional response. We assessed which definition was more reasonable. Methods: In this study of 260 patients who had undergone CRT, an echocardiographic response was defined as a reduction in a left ventricular end-systolic volume of greater than or equal to 15% or an improvement in left ventricular ejection fraction of greater than or equal to 5%. A functional response was defined as an improvement of at least one class category in the New York Heart Association functional classification. We assessed the response to CRT at 6 months after device implantation, based on each definition, and investigated the relationship between response and clinical outcomes. Results: The echocardiographic response rate was 74.2%. The functional response rate was 86.9%. Non-responder status, based on both definitions, was associated with higher all-cause mortality. Cardiac death was only associated with functional non-responder status (hazard ratio (HR) 2.65, 95% confidence interval (CI) 1.19–5.46, p = 0.0186) and heart failure hospitalization (HR 2.78, 95% CI, 1.29–5.26, p = 0.0111). Conclusion: After CRT implantation, the functional response definition of CRT response is associated with a higher response rate and better clinical outcomes than that of the echocardiographic response definition, and therefore it is reasonable to use the functional definition to assess CRT response.
1. Introduction
Cardiac resynchronization therapy (CRT) has become the standard treatment for patients with mild to moderate or severe heart failure (HF) [1,2,3,4]. Clinical studies have reported a low CRT response rate of 70%, which may be one explanation for the underutilization of CRT in Japan, as well as all over the world [1,2,3,4,5]. However, we believe that patients in actual clinical practice have a better response than that reported in the literature. There are various definitions of CRT response, and the response rate varies significantly according to the definition [6,7,8]. In general, two definitions have been used in most clinical trials, i.e., echocardiographic response and functional response. An echocardiographic response is defined as a reduction in the left ventricular end-systolic volume (LVESV) of greater than or equal to 15% or an improvement in the left ventricular ejection fraction (LVEF) of greater than or equal to 5%. A functional response is defined as an improvement in the functional status of at least one class category based on the New York Heart Association (NYHA) functional classification, assessed at 6 months after CRT implantation [9]. Generally, an echocardiographic response is used to assess the effect of CRT, but often patients can improve from a status of NYHA class II or III to a NYHA class I status after CRT implantation, even though they are considered to be non-responders based on an echocardiographic assessment. We believe that there is a gap between the echocardiographic and functional response definitions. Thus, in this study, we investigate whether these two commonly used definitions are associated with clinical outcomes and we assess which definition is more reasonable for assessing CRT response.
2. Materials and Methods
In this retrospective observational study, we studied 284 consecutive patients who underwent CRT implantation at the Nihon University Hospital between March 2004 and March 2020. The CRT implantation was performed in patients with a QRS duration > 120 milliseconds (ms) and a LVEF ≤ 35%, which correspond to class I, IIa, and IIb indications according to the Japanese Circulation Society guidelines [10]. Twenty-four patients were excluded from the analysis because of loss to follow-up.
2.1. Study Design
We classified each patient as a responder or a non-responder using both response definitions based on their clinical functional status and echocardiographic criteria at the 6-month follow-up visit after CRT implantation. Then, we investigated the associations between each type of response and long-term clinical outcomes, including hospitalization due to HF and cardiac death. This study was approved by the Clinical Research Judging Committee of the Nihon University Itabashi Hospital.
2.2. Echocardiographic Measurement
End-systolic and end-diastolic left ventricular (LV) volumes were derived from conventional apical 2-chamber and 4-chamber images. LVEF was calculated using the biplane Simpson method [11].
2.3. Cardiac Resynchronization Therapy (CRT) Programming
Atrioventricular (AV) delay was optimized using automatic optimization, which was incorporated into each device, in order to achieve a narrower QRS, as compared with the baseline QRS complex. However, if the QRS did not narrow sufficiently with the automatic optimization algorithm, the AV and VV delays were optimized manually while looking at the QRS width on the electrocardiogram. Notably, in patients with atrial fibrillation (AF), the CRT was occasionally reprogrammed at a clinic visit to maintain a higher pacing rate (over 85%).
2.4. Statistical Analysis
Continuous variables are presented as means ± SD. Categorical variables are expressed as numbers and percentages. Differences between groups were assessed using Student’s t-test for normally distributed continuous variables and the Mann–Whitney U test for non-normally distributed continuous variables. Fisher’s exact test or a chi-squared test was used for categorical variables. Cox regression was used to predict clinical outcomes, including all-cause mortality, HF hospitalization, and cardiac death, in a univariate analysis followed by a multivariate analysis. Survival analysis using the Kaplan–Meier method with the log-rank test was used to analyze cumulative events during the follow-up period. A p-value < 0.05 was considered to be significant.
3. Results
Patients who underwent CRT implantation, at the 6-month follow-up visit, were classified as responders or non-responders based on the two definitions of response. There were 163 patients classified as echocardiographic responders and 226 patients classified as functional responders. We compared the characteristics of responders and non-responders and investigated the relationships between responder status and the clinical outcomes of all-cause mortality, HF hospitalization, and cardiac death for a mean follow-up duration of 48 ± 45 months.
3.1. Patient Characteristics
A total of 260 patients (73% male) with a mean age of 67 years were analyzed. The mean follow-up duration was 48 ± 45 months. One hundred and eighty-six (70%) patients were classified as having NYHA class III. Patients with NYHA class IV had the shortest QRS duration and a higher proportion had ischemic etiology as compared with patients in other groups. Patient characteristics at baseline are shown in Table 1.
3.2. CRT Optimization
In sixty-four patients (48%), an automatic optimization algorithm was used and in 196 patients (75%) a manual optimization was performed. The QRS duration was shortened from 152.7 ± 32 to 145.4 ± 25 ms by CRT optimization.
3.3. Response Rate
The responder rates based on the criteria of both response definitions and the baseline NYHA functional class are shown in Figure 1. The proportion of echocardiographic and functional responders was 74.2% and 86.9%, respectively (p < 0.0001). Among the patients with mild to moderate HF, the response rate was higher for functional responders than echocardiographic responders. However, the response rate in patients with NYHA functional class IV was only about 50% for both types of responders, which was significantly lower than that in patients with NYHA functional class II or III.
The characteristics of responders and non-responders for each response definition are shown in Table 2. Echocardiographic non-responders included more patients with severe HF (NYHA class IV) (p = 0.0026) and ischemic etiology as compared with echocardiographic responders (p = 0.0266). Similar results were seen with functional responders and non-responders. However, the NYHA class IV classification seemed to have the most influence on the response to CRT.
Response discrepancy between two criteria was detected in 39 (15%) patients (Table 3). There was a higher percentage of chronic obstructive pulmonary disease (COPD) in patients with response discrepancy (p = 0.0409). Other variables were not significantly different between the patients with and without response discrepancy. Considering the breakdown of response discrepancy type, thirty-three patients (85%) were classified as functional responders and echocardiographic non-responders, and six patients (15%) were classified as echocardiographic responders and functional non-responders. There was a significant difference in the percentage of severe HF patients (NYHA IV) with response discrepancy between the two definitions of response.
3.4. Predictors of Nonresponse to CRT
Predictors of echocardiographic nonresponse included NYHA class IV, ischemic etiology, and the absence of beta-blocker therapy. Predictors of functional nonresponse included non-left bundle branch block (NLBBB) morphology, NYHA class IV, and ischemic etiology. Multivariate analysis revealed that NYHA class IV was the strongest predictor of nonresponse for both echocardiographic and functional criteria (Table 4).
3.5. Hospitalization Due to Heart Failure (HF)
Among 260 patients, 90 patients (35%) were hospitalized during follow-up. The Kaplan–Meier analysis showed that the cumulative number of patients with HF hospitalization was not significantly different between echocardiographic responders and non-responders (p = 0.1927). By contrast, there was a significant difference in the cumulative number of patients with HF hospitalization between functional responders and non-responders (p = 0.0024) (Figure 2)
3.6. Mortality
For the mean follow-up duration of 48 ± 45 months, there were 109 patient deaths. Fifty-six deaths were classified as cardiac deaths, among whom 11 died suddenly from VT/VF (SCD), and all other patients died of heart failure. Overall survival was better in responders as compared with non-responders for both response definitions (Figure 3). However, there was only a significant difference in the cumulative number of cardiac deaths between functional responders and non-responders (p = 0.0082, Figure 4).
3.7. Relationship between non-Responder Status and Clinical Outcomes
Cox regression analysis confirmed a stronger association with non-responder status and clinical outcomes for functional versus echocardiographic responders (Table 5). All-cause mortality was associated with both echocardiographic and functional response (p = 0.0334 and p < 0.0001, respectively). However, echocardiographic non-responder status was not associated with cardiac death (p = 0.1257) or HF hospitalization (p = 0.2115). Only functional non-responder status was significantly associated with cardiac death (p = 0.0186) and HF hospitalization (p = 0.0111).
4. Discussion
In this study, functional responders were associated with better clinical outcomes after CRT implantation, especially with regard to HF hospitalization and cardiac death. A functional response was more strongly associated with clinical outcomes than an echocardiographic response.
The definition of CRT response has varied in previous clinical trials [6,7,8]. However, the most common definition of CRT response includes echocardiographic parameters describing reverse remodeling [12,13,14], perhaps because echocardiographic data are more objective than symptoms, and some patients feel better after treatment and may experience placebo effects. Thus, many clinical trials use the NYHA functional class, as well as echocardiographic parameters, to define the response to CRT. Our study confirmed that the functional response definition is associated with subjective symptoms and could also be associated with better outcomes following CRT implantation.
The CRT response rate has remained at around 70% in the decade since the first trial of the CRT MIRACLE (Multicenter InSync Randomized Clinical Evaluation) study [1,2,3,4,5,15,16]. Our findings regarding echocardiographic response are in agreement with findings from previous studies. There was a higher proportion of echocardiographic non-responders who had ischemic cardiomyopathy (ICM). Reverse remodeling is relatively more limited in ICM, as compared with other etiologies associated with large scar areas [17,18]. From the MADIT CRT (Multicenter Automatic Defibrillator Implantation Trial with Cardiac Resynchronization Therapy) trial, Barsheshet et al. also reported a difference in the proportion of patients with echocardiographic response, based on whether they had ICM. They concluded that the risk assessment for a CRT defibrillator should be etiology specific [19]. In previous trials, more than half of the patients had ischemic etiology, and the response rate was 70%, which was based mostly on echocardiographic criteria [1,2,3,15]. However, even in patients classified as echocardiographic non-responders, intraventricular conduction disturbance was definitely corrected, as indicated by a narrower QRS after CRT. Through this correction of conduction disturbance, HF can improve, to some extent. In fact, in our study, patients without reverse remodeling had improvements in symptom status and lived longer.
The CAVIAR (CRT age and vectorcardiographic QRS area-interventricular mechanical delay and apical rocking) score was proposed by Maass et al. as an echocardiographic marker for CRT response [20]. They demonstrated the association of the CAVIAR score with the amount of reverse remodeling, as well as the clinical outcomes. Their findings were in agreement with previous studies reporting that reverse remodeling was associated with better clinical outcomes. However, reverse remodeling depends on the etiology [17,18,19,21]. Martens et al. reported that the cut-off in the LVEF for predicting a good clinical outcome was 5.5% in ICM vs. 10.5% in non-ICM [22]. They also confirmed that patients with ICM derive benefits, although there is a slight degree of reverse remodeling. On the basis of those data, CRT response should not be evaluated using only echocardiographic parameters but should also use clinical outcomes. Quantifiable numerical values, such as echocardiographic parameters, are a convenient form of evaluation and, therefore, have been used as the standard response criteria. However, the aim of CRT is to correct cardiac conduction disorders using a pacing system and, therefore, improve patients’ quality of life. Reverse remodeling is not essential, it is the result of CRT.
The ADVANCE CRT (Advance Cardiac Resynchronization Therapy) registry revealed that a site-specific assessment underestimated non-responders as compared with an objective measure of clinical composite score (CCS), thus overlooking higher-risk individuals [23]. They also mentioned the underutilization of remote monitoring and fewer additional treatments for non-responders. They emphasized that it is important to make an accurate diagnosis of a non-responder (using CCS) and actively manage the patient’s treatment, including medication, device reprogramming, or other interventions if needed.
Mullens et al. published a position statement on recommendations for managing patients who have undergone CRT, and patients who are future candidates for CRT [24]. They addressed the underutilization of CRT, the definition of CRT response, and the optimization of post-implant CRT care. They highlighted the issue of patients with HF who are managed in non-specialist care, which may result in delaying CRT. The situation is similar in Japan. It is difficult to have specialists at all institutes or hospitals; however, better communication between specialists and primary physicians should improve the understanding and education of CRT.
In our study, we assessed the functional response using only the NYHA functional classification; thus, this assessment may have also underestimated the non-responders. However, we assessed the response at the 6-month visit, and also each time a patient visited the clinic for medication adjustments and for device reprogramming if needed to achieve an effective CRT. In fact, it may be better to assess CRT response at 6 months after CRT implantation, because patients are often continuously managed up to 6 months after CRT implantation. Rickard et al. reported the survival effect of CRT LVEF improvement, i.e., an “echocardiographic response” [25]. They studied 526 patients and, among those patients, 196 (37.3%) were classified as non-responders. In our study, 67 of 260 patients (25.8%) were echocardiographic non-responders, which was relatively low; possible reasons for this are the smaller number of patients with ischemic etiology (68% versus 35%), AF (50% versus 22%), COPD (20% versus 2%), and the larger number of patients with LBBB morphology (66% versus 30%). However, the long-term survival of more than 5 years was quite similar in both responders and non-responders, based on the echocardiographic response definition. The prognosis may be influenced by a patient’s background and the presence of comorbidities may be difficult to predict. We continue the management of patients with the belief that short-term responses will lead to long-term effects.
Our data show that CRT is a very effective treatment, indeed, far more effective than is commonly thought. The understanding of a 70% response rate is mostly based on the echocardiographic response definition in studies with many patients who had ICM. We emphasize that the objectives of CRT are to improve the quality of life and prolong life and, therefore, based on these objectives, an echocardiographic response definition based on reverse remodeling is not essential. We only hope that these patients remain in good health and happy until the end of their lives.
4.1. Study Limitations
First, this study is a single-center retrospective observational study, with a small number of patients. The distributions of HF etiology or gender may be different at other institutions or in other countries [1,2,3,15]. However, Japan is known to have a relatively lower percentage of patients with ischemic etiology [26,27] than Western countries. Considering that reverse remodeling is more limited in ICM, the present results may underestimate the echocardiographic response rate due to the small percentage of study patients with ischemic etiology. However, there was a significant difference in the relationship between responder status and better clinical outcomes for both criteria, although the study included only a small number of patients with ischemic etiology.
4.2. Clinical Implications
The nonresponse rate for CRT is a significant concern, which discourages the use of this treatment. However, depending on the definition of response, there might not be as many non-responders as expected. In addition, considering that functional responders can correctly predict better prognoses, we encourage using CRT in as many patients with HF, as is possible and appropriate, according to current guidelines.
5. Conclusions
We investigated two definitions of response to CRT, i.e., echocardiographic response and functional response. The CRT response rate differs by response criteria. The functional response is significantly associated with better outcomes. If the purpose of CRT is to improve quality of life or prolong life, it may be sufficient to use functional criteria to assess response.
Author Contributions
Conceptualization, T.N., Y.I., and R.K.; methodology, T.N.; validation, K.N. and K.O.; formal analysis, T.N.; investigation, T.N. and Y.W.; resources, T.N.; data curation, N.O.; writing—original draft preparation, T.N.; writing—review and editing, T.N.; visualization, T.N.; supervision, Y.O.; project administration, T.N and S.K. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Ethics Committee of Nihon University Hospital. (protocol code RK-160510-02, 23 May 2016).
Informed Consent Statement
Written informed consent has been obtained from the patients to publish this paper.
Data Availability Statement
The data in this study are available on request from the corre-sponding author.
Conflicts of Interest
T.N. belongs to a department established by contributions from Abbot Medical, Biotronik Japan, Medtronic Japan, Japan Lifeline, and Boston Scientific. T.N. received lecture fees from Abbott Medical and Medtronic Japan. All other authors have no conflict of interest to report.
References
- Abraham, W.T.; Fisher, W.G.; Smith, A.L.; Delurgio, D.B.; Leon, A.R.; Loh, E.; Kocovic, D.Z.; Packer, M.; Clavell, A.L.; Hayes, D.L.; et al. MIRACLE Study Group. Cardiac resynchronization in chronic heart failure. N. Engl. J. Med. 2002, 346, 1845–1853. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bristow, M.R.; Saxon, L.A.; Boehmer, J.; Krueger, S.; Kass, D.A.; De Marco, T.; Carson, P.; DiCarlo, L.; DeMets, D.; White, B.G.; et al. Comparison of Medical Therapy, Pacing, and Defibrillation in Heart Failure (COMPABION) Investigators. Cardiac-resynchronization therapy with or without an implantable defibrillator or in advanced chronic heart failure. N. Engl. J. Med. 2004, 350, 2140–2150. [Google Scholar] [CrossRef] [PubMed]
- Cleland, J.G.; Daubert, J.C.; Erdmann, E.; Freemantle, N.; Gras, D.; Kappenberger, L.; Tavazzi, L. Cardiac Resynchronization-Heart Failure (CARE-HF) Study Investigators. The effect of cardiac resynchronization on morbidity and mortality in heart failure. N. Engl. J. Med. 2005, 352, 1539–1549. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tang, A.S.; Wells, G.A.; Talajic, M.; Arnold, M.O.; Sheldon, R.; Connolly, S.; Hohnloser, S.H.; Nichol, G.; Birnie, D.H.; Sapp, J.L.; et al. Cardiac-resynchronization therapy for mid-to-moderate heart failure. N. Engl. J. Med. 2010, 363, 2385–2395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Chung, E.S.; Leon, A.R.; Tavazzi, L.; Sun, J.P.; Nihoyannopoulos, P.; Merlino, J.; Abraham, W.T.; Ghio, S.; Leclercq, C.; Bax, J.J.; et al. Results of the predictors of response to CRT 8PROSPECT) trial. Circulation 2008, 117, 2608–2616. [Google Scholar] [CrossRef] [Green Version]
- Fornwalt, B.K.; Sprague, W.W.; BeDell, P.; Suever, J.D.; Gerritse, B.; Merlino, J.D.; Fyfe, D.A.; Leon, A.R.; Oshinski, J.N. Agreement is poor among current ariteria used to define response to cardiac resynchronization therapy. Circulation 2010, 121, 1985–1991. [Google Scholar] [CrossRef] [Green Version]
- Boidol, J.; Sredniawa, B.; Kowalski, O.; Szulik, M.; Mazurek, M.; Sokal, A.; Pruszkowska-Skrzep, P.; Kukulski, T.; Kalarus, Z.; Lenarczyk, R. Many response criteria are poor predictors of outcomes after cardiac resynchronization therapy: Validation using data from the randomized trial. Europace 2013, 15, 835–844. [Google Scholar] [CrossRef] [Green Version]
- Tomassoni, G. How to define cardiac resynchronization therapy response. JCRM 2016, 7, S1–S7. [Google Scholar] [CrossRef]
- Bleeker, G.B.; Bax, J.J.; Fung, J.W.; van der Wall, E.E.; Zhang, Q.; Schalij, M.J.; Chan, J.Y.; Yu, C.M. Clinical versus echocardiographic parameters to assess response to cardiac resynchronization therapy. Am. J. Cardiol. 2006, 97, 260–263. [Google Scholar] [CrossRef]
- Tsutsui, H.; Isobe, M.; Ito, H.; Okumura, K.; Ono, M.; Kitakaze, K.; Kinugawa, K.; Kihara, Y.; Goto, Y.; Komuro, I.; et al. On behalf of the Japanese Circulation Society and the Japanese Heart Failure Society Joint Working Group. JCS 2017/JHFS 2017 Guideline on diagnosis and treatment of acute and chronic heart failure. JCS Guidel. Circ. J. 2019, 83, 2084–2184. [Google Scholar] [CrossRef] [Green Version]
- Schiller, N.B.; Shah, P.M.; Crawford, M.; DeMaria, A.; Devereux, R.; Feigenbaum, H.; Gutgesell, H.; Reichek, N.; Sahn, D.; Schnittger, I.; et al. Recommendations for quantification of the left ventricle by two-dimensional echocardiography. J. Am. Soc. Echocardiogr. 1989, 2, 358–367. [Google Scholar] [CrossRef]
- Vidal, B.; Sitges, M.; Marigliano, A.; Díaz-Infante, E.; Azqueta, M.; Tamborero, D.; Macías, A.; Roig, E.; Brugada, J.; Paré, C.; et al. Relation of response to cardiac resynchronization therapy to left ventricular reverse remodeling. Am. J. Cardiol. 2006, 97, 876–881. [Google Scholar] [CrossRef] [PubMed]
- Ypenburg, C.; van Bommel, R.J.; Willem Borleffs, C.J.; Bleeker, G.B.; Boersma, E.; Schalij, M.J.; Bax, J.J. Long-term prognosis after cardiac resynchronization therapy is related to the extent of left ventricular reverse remodeling at midterm follow-up. J. Am. Coll. Cardiol. 2009, 53, 483–490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sutton, M.J.; Cerkvenik, J.; Borlaug, B.A.; Daubert, C.; Gold, M.R.; Ghio, S.; Chirinos, J.A.; Linde, C.; Ky, B. Effects of cardiac resynchronization therapy on cardiac remodeling and contractile function: Results from resynchronization reverses remodeling in systolic left ventricular dysfunction (REVERSE). J. Am. Heart Assoc. 2015, 4, e002054. [Google Scholar]
- Young, J.B.; Abraham, W.T.; Smith, A.L.; Leon, A.R.; Lieberman, R.; Wilkoff, B.; Canby, R.C.; Schroeder, J.S.; Liem, L.B.; Hall, S.; et al. Combined cardiac resynchronization and implantable cardioversion defibrillation in advanced chronic heart failure. The MIRACLE ICD Trial. JAMA 2003, 289, 2685–2694. [Google Scholar] [CrossRef]
- Abraham, W.T.; Young, J.B.; Leon, A.R.; Adler, S.; Bank, A.J.; Hall, S.A.; Lieberman, R.; Liem, L.B.; O’Connell, J.B.; Schroeder, J.S.; et al. Effects of cardiac resynchronization on disease progression in patients with left ventricular systolic dysfunction, an indication for an implantable cardioverter-defibrillator, and mildly symptomatic chronic heart failure. Circulation 2004, 110, 2864–2868. [Google Scholar] [CrossRef] [Green Version]
- Xu, Y.Z.; Cha, Y.M.; Feng, D.; Powell, B.D.; Wiste, H.J.; Hua, W.; Chareonthaitawee, P. Impact of myocardial scarring on outcomes of cardiac resynchronization therapy: Extent or location? J. Nucl. Med. 2012, 53, 47–54. [Google Scholar] [CrossRef] [Green Version]
- Sugano, A.; Seo, Y.; Yamamoto, M.; Harimura, Y.; Machino-Ohtsuka, T.; Ishizu, T.; Aonuma, K. Optimal cut-off value of reverse remodeling to predict long-term outcome after cardiac resynchronization therapy in patients with ischemic cardiomyopathy. J. Arrhythmia. 2017, 69, 456–461. [Google Scholar] [CrossRef] [Green Version]
- Barsheshet, A.; Goldenberg, I.; Moss, A.J.; Eldar, M.; Huang, D.T.; McNitt, S.; Klein, H.U.; Hall, W.J.; Brown, M.W.; Goldberger, J.J.; et al. Response to preventive cardiac resynchronization therapy in patients with ischaemic and nonischaemic cardiomyopathy in MADIT-CRT. Eur. Heart J. 2011, 32, 1622–1630. [Google Scholar] [CrossRef]
- Maass, A.H.; Vernooy, K.; Wijers, S.C.; van ’t Sant, J.; Cramer, M.J.; Meine, M.; Allaart, C.P.; De Lange, F.J.; Prinzen, F.W.; Gerritse, B.; et al. Refining success of cardiac resynchronization therapy using a simple score predicting the amount of reverse remodeling: Results from the Markers and Response to CRT (MARC) study. Europace 2018, 20, e1–e10. [Google Scholar] [CrossRef]
- Kloosterman, M.; van Stipdonk, A.M.W.; Ter Horst, I.; Rienstra, M.; Van Gelder, I.C.; Vos, M.A.; Prinzen, F.W.; Meine, M.; Vernooy, K.; Maass, A.H. Association between heart failure aetiology and magnitude of echocardiographic remodeling and outcome of cardiac resynchronization therapy. ESC Heart Fail. 2020, 7, 645–653. [Google Scholar] [CrossRef] [PubMed]
- Martens, P.; Nijst, P.; Verbrugge, F.H.; Dupont, M.; Tang, W.H.W.; Mullens, W. Profound differences in prognostic impact of left ventricular reverse remodeling after cardiac resynchronization therapy relate to heart failure etiology. Heart Rhythm 2018, 15, 130–136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Varma, N.; Boehmer, J.; Bhargava, K.; Yoo, D.; Leonelli, F.; Costanzo, M.; Saxena, A.; Sun, L.; Gold, M.R.; Singh, J.; et al. Evaluation, management, and outcomes of patients poorly responsive to cardiac resynchronization device therapy. J. Am. Coll. Cardiol. 2019, 74, 2588–2603. [Google Scholar] [CrossRef] [PubMed]
- Mullens, W.; Auricchio, A.; Martens, P.; Witte, K.; Cowie, M.R.; Delgado, V.; Dickstein, K.; Linde, C.; Vernooy, K.; Leyva, F.; et al. Optimized Implementation of cardiac resynchronization therapy—A call for action for referral and optimization of care. Eur. J. Heart Fail. 2020. [Google Scholar] [CrossRef]
- Rickard, J.; Cheng, A.; Spragg, D.; Bansal, S.; Niebauer, M.; Baranowski, B.; Cantillon, D.J.; Tchou, P.J.; Grimm, R.A.; Tang, W.; et al. Durability of the survival effect of cardiac resynchronizationtherapy by level of left ventricular functional improvement: Fate of “nonoresponders”. Heart Rhythm 2014, 11, 412–416. [Google Scholar] [CrossRef]
- Yokoshiki, H.; Shimizu, A.; Mitsuhashi, T.; Furushima, H.; Sekiguchi, Y.; Manaka, T.; Nishii, N.; Ueyama TMorita, N.; Nitta, T.; Okumura, K. Trends and determinant factors in the use of cardiac resynchronization therapy devices in Japan: Analysis of the Japan cardiac device treatment registry database. J. Arrhythmia. 2016, 32, 486–490. [Google Scholar] [CrossRef] [Green Version]
- Yokoshiki, H.; Mitsuyama, H.; Watanabe, M.; Mitsuhashi, T.; Shimizu, A. Cardiac resynchronization therapy in ischemic and non-ischemic cardiomyopathy. J. Arrhythmia. 2017, 33, 410–416. [Google Scholar] [CrossRef]

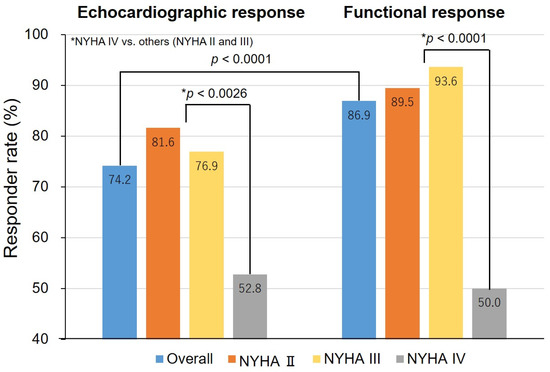

Figure 1.
Responder rates, overall and by the New York Heart Association (NYHA) classification. p-values were calculated to assess differences among patients with NYHA class IV versus NYHA class II or class III by response criteria. * p-value indicates the difference between NHYA IV versus others (NYHA II and III).
Figure 1.
Responder rates, overall and by the New York Heart Association (NYHA) classification. p-values were calculated to assess differences among patients with NYHA class IV versus NYHA class II or class III by response criteria. * p-value indicates the difference between NHYA IV versus others (NYHA II and III).

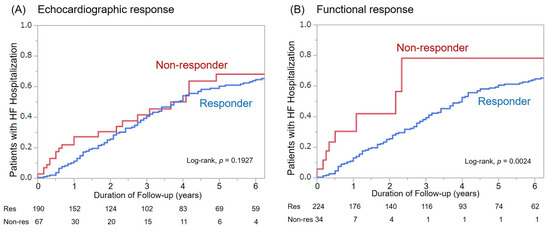

Figure 2.
Hospitalization for heart failure among responders and non-responders based on both response definitions. (A): Echocardiographic response, (B): Functional response.
Figure 2.
Hospitalization for heart failure among responders and non-responders based on both response definitions. (A): Echocardiographic response, (B): Functional response.

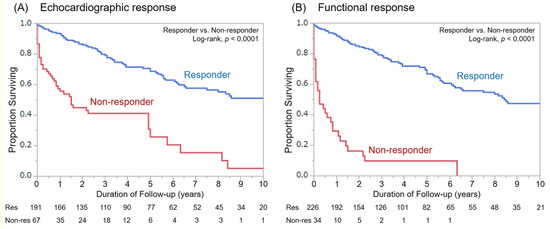

Figure 3.
Kaplan–Meier curves for all-cause mortality among responders and non-responders based on both response definitions. (A): Echocardiographic response, (B): Functional response.
Figure 3.
Kaplan–Meier curves for all-cause mortality among responders and non-responders based on both response definitions. (A): Echocardiographic response, (B): Functional response.

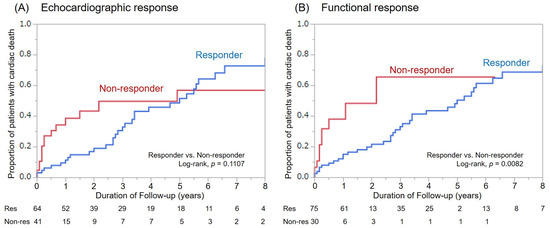

Figure 4.
Cumulative number of cardiac deaths among responders and non-responders based on both re-sponse definitions. (A): Echocardiographic response, (B): Functional response.
Figure 4.
Cumulative number of cardiac deaths among responders and non-responders based on both re-sponse definitions. (A): Echocardiographic response, (B): Functional response.
Table 1.
Baseline characteristics and medication.
| Overall (n = 260) | NYHA II (n = 38) | NYHA III (n = 186) | NYHA IV (n = 36) | p-Value (NYHA IV vs. Others) | |
|---|---|---|---|---|---|
| Age (years), mean | 67.3 | 69.2 | 67.5 | 64.3 | 0.1076 |
| Males, n (%) | 204 (78) | 31 (82) | 142 (76) | 31 (86) | 0.2290 |
| QRS duration (ms), mean | 152.7 | 156.9 | 153.9 | 141.8 | 0.0233 |
| LBBB morphology, n (%) | 172 (66) | 23 (68) | 123 (66) | 23 (64) | 0.7580 |
| LVEF (%), mean | 29.1 | 31.2 | 29.1 | 26.9 | 0.1998 |
| Ischemic etiology, n (%) | 91 (35) | 15 (39) | 57 (31) | 19 (53) | 0.0160 |
| Atrial fibrillation, n (%) | 58 (22) | 11 (29) | 41 (22) | 6 (17) | 0.3101 |
| Hypertension, n (%) | 130 (50) | 25 (66) | 93 (50) | 12 (33) | 0.0298 |
| Diabetes mellitus, n (%) | 98 (38) | 17 (45) | 64 (34) | 17 (47) | 0.2086 |
| COPD, n (%) | 6 (2) | 0 (0) | 5 (3) | 1 (3) | 0.8437 |
| eGFR (mL/min/1.73 m2), mean | 51.0 | 46.9 | 52.1 | 49.3 | 0.6354 |
| CRT pacemaker, n (%) | 96 (37) | 14 (37) | 70 (38) | 12 (33) | 0.6285 |
| Upgrade from pacemaker, n (%) | 52 (20) | 10 (26) | 38 (20) | 4 (11) | 0.1276 |
| Medication | |||||
| Beta blocker, n (%) | 230 (91) | 34 (92) | 167 (92) | 29 (85) | 0.2209 |
| ACEI or ARB, n (%) | 169 (67) | 28 (76) | 123 (68) | 18 (53) | 0.0652 |
| Diuretic, n (%) | 225 (89) | 34 (92) | 158 (87) | 33 (89) | 0.1045 |
NYHA, New York Heart Association class; LBBB, left bundle branch block; LVEF, left ventricular ejection fraction; COPD, chronic obstructive pulmonary disease; ACEI, angiotensin-converting enzyme inhibitor; ARB, angiotensin receptor blocker.
Table 2.
Characteristics of responders and non-responders.
| Echocardiographic | Functional | |||||
|---|---|---|---|---|---|---|
| Responder (n = 193) | Non-Responder (n = 67) | p-Value | Responder (n = 226) | Non-Responder (n = 34) | p-Value | |
| Age (years), mean | 67.4 | 67.0 | 0.8182 | 67.5 | 66.4 | 0.6411 |
| Males, n (%) | 147 (76) | 57 (85) | 0.1156 | 175 (77) | 29 (85) | 0.2801 |
| QRS duration (ms), mean | 154.1 | 148.6 | 0.2065 | 154.0 | 144.0 | 0.0794 |
| LBBB morphology, n (%) | 136 (71) | 44 (66) | 0.4667 | 160 (71) | 20 (59) | 0.1676 |
| NYHA IV, n (%) | 19 (10) | 17 (25) | 0.0026 | 18 (8) | 18 (53) | <0.0001 |
| LVEF (%), mean | 28.9 | 29.7 | 0.6460 | 29.6 | 26.3 | 0.1150 |
| Ischemic etiology, n (%) | 60 (31) | 31 (46) | 0.0266 | 74 (33) | 17 (50) | 0.0492 |
| Atrial fibrillation, n (%) | 39 (20) | 19 (28) | 0.1751 | 48 (21) | 10 (29) | 0.2993 |
| Hypertension, n (%) | 99 (51) | 31 (46) | 0.4782 | 114 (50) | 16 (47) | 0.7129 |
| Diabetes mellitus, n (%) | 71 (37) | 27 (40) | 0.6104 | 82 (36) | 16 (47) | 0.2318 |
| COPD, n (%) | 3 (2) | 3 (4) | 0.1990 | 6 (3) | 0 (0) | 0.1919 |
| eGFR (mL/min/1.73 m2), mean | 51.1 | 50.6 | 0.8808 | 51.8 | 45.8 | 0.1434 |
| CRT-Pacemaker, n (%) | 75 (39) | 21 (31) | 0.2682 | 86 (38) | 10 (29) | 0.3234 |
| Upgrade from pacemaker, n (%) | 44 (23) | 8 (12) | 0.0458 | 48 (21) | 4 (12) | 0.1741 |
| Medication | ||||||
| BetaBlocker, n (%) | 179 (93) | 59 (89) | 0.4017 | 212 (94) | 26 (79) | 0.0098 |
| ACEI or ARB, n (%) | 136 (70) | 37 (56) | 0.0343 | 155 (69) | 18 (55) | 0.1171 |
| Diuretic, n (%) | 172 (89) | 59 (89) | 0.9504 | 201 (89) | 30 (91) | 0.7279 |
NYHA, New York Heart Association class; LBBB, left bundle branch block; LVEF, left ventricular ejection fraction; COPD, chronic obstructive pulmonary disease; ACEI, angiotensin-converting enzyme inhibitor; ARB, angiotensin receptor blocker.
Table 3.
Characteristics of patients with response discrepancy between two criteria.
| Breakdown of Response Discrepancy (n = 39) | ||||||
|---|---|---|---|---|---|---|
| Response Discrepancy (n = 39) | No Response Discrepancy (n = 221) | p-Value | Functional Response without Echocardiographic Response (n = 33) | Echocardiographic Response without Functional Response (n = 6) | p-Value | |
| Age (years), mean | 67.8 | 67.0 | 0.7127 | 68.5 | 64.2 | 0.3814 |
| Males, n (%) | 33 (85) | 169 (76) | 0.2430 | 28 (85) | 5 (83) | 0.9253 |
| QRS duration (ms), mean | 149.1 | 153.3 | 0.4464 | 150.7 | 140.3 | 0.3042 |
| NYHA IV, n (%) | 5 (13) | 31 (14) | 0.8392 | 2 (6) | 3 (50) | 0.0110 |
| LBBB morphology, n (%) | 30 (73) | 150 (68) | 0.5473 | 22 (67) | 3 (50) | 0.4414 |
| LVEF (%), mean | 30.1 | 29.7 | 0.8482 | 31.0 | 24.2 | 0.1629 |
| Ischemic etiology, n (%) | 18 (46) | 73 (33) | 0.1189 | 15 (45) | 3 (50) | 0.8374 |
| Atrial fibrillation, n (%) | 12 (31) | 48 (22) | 0.2289 | 10 (30) | 2 (33) | 0.8831 |
| Hypertension, n (%) | 21 (54) | 109 (49) | 0.6022 | 16 (48) | 5 (83) | 0.0997 |
| Diabetes mellitus, n (%) | 12 (31) | 86 (39) | 0.3275 | 10 (30) | 2 (33) | 0.8831 |
| COPD, n (%) | 3 (8) | 3 (1) | 0.0409 | 3 (9) | 0 (0) | 0.3062 |
| eGFR, (ml/min/1.73 m2), mean | 51.1 | 48.4 | 0.5596 | 52.8 | 39.2 | 0.2372 |
| CRT-Pacemaker, n (%) | 15 (38) | 81 (37) | 0.8294 | 13 (39) | 2 (33) | 0.7773 |
| Upgrade from pacemaker, n (%) | 7 (18) | 45 (20) | 0.7254 | 5 (15) | 2 (33) | 0.3178 |
| Beta blocker, n (%) | 37 (95) | 201 (91) | 0.4348 | 32 (97) | 5 (83) | 0.2354 |
| ACEI or ARB, n (%) | 25 (64) | 148 (67) | 0.6999 | 20 (60) | 5 (83) | 0.2612 |
| Diuretic, n (%) | 35 (90) | 196 (89) | 0.9031 | 29 (88) | 6 (100) | 0.2339 |
NYHA, New York Heart Association class; LBBB, left bundle branch block; LVEF, left ventricular ejection fraction; COPD, chronic obstructive pulmonary disease; ACEI, angiotensin-converting enzyme inhibitor; ARB, angiotensin receptor blocker.
Table 4.
Predictors of nonresponse by response criteria.
| Echocardiographic | Functional | |||||||
|---|---|---|---|---|---|---|---|---|
| Univariate OR (95% CI) | p-Value | Multivariate OR (95% CI) | p-Value | Univariate OR (95% CI) | p-Value | Multivariate OR (95% CI) | p-Value | |
| Age | 0.10 (0.98–1.02) | 0.8178 | 0.99 (0.96–1.02) | 0.6429 | ||||
| Male Gender | 1.69 (0.67–5.16) | 0.2801 | 1.78 (0.87–3.96) | 0.1156 | ||||
| QRS duration | 0.99 (0.98–1.00) | 0.0729 | 0.99 (0.98–1.00) | 0.2017 | ||||
| LBBB morphology | 0.68 (0.39–1.22) | 0.1964 | 0.40 (0.19–0.82) | 0.0136 | 0.33 (0.14–0.76) | 0.0097 | ||
| NYHA IV | 3.11 (1.51–6.44) | 0.0022 | 2.76 (1.31–5.82) | 0.0076 | 13.0 (5.68–29.8) | <0.0001 | 13.5 (5.64–32.5) | <0.0001 |
| LVEF | 0.96 (0.92–1.01) | 0.1028 | 1.01 (0.98–1.04) | 0.6452 | ||||
| Ischemic etiology | 2.05 (0.99–4.28) | 0.0538 | 1.70 (0.94–5.82) | 0.0793 | 1.91 (1.08–3.38) | 0.0266 | 1.98 (0.87–4.52) | 0.1032 |
| Atrial fibrillation | 1.55 (0.67–3.37) | 0.2993 | 1.56 (0.82–2.93) | 0.1751 | ||||
| Hypertension | 0.82 (0.47–1.43) | 0.4782 | 0.87 (0.42–1.80) | 0.7131 | ||||
| Diabetes mellitus | 1.16 (0.66–2.05) | 0.6104 | 1.56 (0.76–3.23) | 0.2293 | ||||
| COPD | 2.97 (0.58–15.1) | 0.1990 | 0.01 (0.01–0.21) | 0.9915 | ||||
| eGFR | 0.10 (0.99-1.01) | 0.8802 | 0.99 (1.00–7.18) | 0.1354 | ||||
| CRT-Pacemaker | 0.72 (0.40–1.30) | 0.2682 | 0.68 (0.31–1.49) | 0.3325 | ||||
| Upgrade from pacemaker | 0.46 (0.20–1.03) | 0.0458 | 0.57 (0.25–1.31) | 0.1819 | 0.49 (0.17–1.47) | 0.2057 | ||
| Beta blocker | 0.21 (0.08–1.56) | 0.0028 | 0.74 (0.27–2.05) | 0.5636 | 0.47 (0.19–1.17) | 0.1026 | ||
| ACEI or ARB | 0.56 (0.26–1.21) | 0.1391 | 0.66 (0.37–1.20) | 0.1750 | ||||
| Diuretic | 1.18 (0.38–5.20) | 0.7889 | 1.21 (0.50–3.43) | 0.6842 | ||||
NYHA, New York Heart Association class; LBBB, left bundle branch block; LVEF, left ventricular ejection fraction; COPD, chronic obstructive pulmonary disease; ACEI, angiotensin-converting enzyme inhibitor; ARB, angiotensin receptor blocker; OR, odds ratio; CI, confidence interval.
Table 5.
Cox regression analysis of all-cause mortality, cardiac death, and hospitalization for both echocardiographic and functional responders.
Table 5.
Cox regression analysis of all-cause mortality, cardiac death, and hospitalization for both echocardiographic and functional responders.
| Mortality | Cardiac Death | HF Hospitalization | ||||
|---|---|---|---|---|---|---|
| HR (95% CI) | p-Value | HR (95% CI) | p-Value | HR (95% CI) | p-Value | |
| Echocardiographic Non-responder | 1.86 (1.05–3.15) | 0.0334 | 1.61 (0.34–1.15) | 0.1257 | 1.32 (0.85–1.99) | 0.2115 |
| Functional Non-responder | 6.45 (3.54–12.0) | <0.0001 | 2.65 (1.19–5.46) | 0.0186 | 2.78 (1.29–5.26) | 0.0111 |
HF, heart failure; HR, hazard ratio; CI, confidence interval.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Nakai, T.; Ikeya, Y.; Kogawa, R.; Otsuka, N.; Wakamatsu, Y.; Kurokawa, S.; Ohkubo, K.; Nagashima, K.; Okumura, Y. What Are the Expectations for Cardiac Resynchronization Therapy? A Validation of Two Response Definitions. J. Clin. Med. 2021, 10, 514. https://doi.org/10.3390/jcm10030514
AMA Style
Nakai T, Ikeya Y, Kogawa R, Otsuka N, Wakamatsu Y, Kurokawa S, Ohkubo K, Nagashima K, Okumura Y. What Are the Expectations for Cardiac Resynchronization Therapy? A Validation of Two Response Definitions. Journal of Clinical Medicine. 2021; 10(3):514. https://doi.org/10.3390/jcm10030514
Chicago/Turabian StyleNakai, Toshiko, Yukitoshi Ikeya, Rikitake Kogawa, Naoto Otsuka, Yuji Wakamatsu, Sayaka Kurokawa, Kimie Ohkubo, Koichi Nagashima, and Yasuo Okumura. 2021. "What Are the Expectations for Cardiac Resynchronization Therapy? A Validation of Two Response Definitions" Journal of Clinical Medicine 10, no. 3: 514. https://doi.org/10.3390/jcm10030514
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
