Experimental Mixed-Gas Permeability, Sorption and Diffusion of CO_{2}-CH_{4} Mixtures in 6FDA-mPDA Polyimide Membrane: Unveiling the Effect of Competitive Sorption on Permeability Selectivity

^{*}

## Abstract

**:**

_{2}-CH

_{4}mixtures were sorbed at 35 °C in 4,4′-(hexafluoroisopropylidene)diphthalic dianhydride (6FDA)-m-phenylenediamine (mPDA)—a polyimide of remarkable performance. The existence of a linear trend for all data of mixed-gas CO

_{2}versus CH

_{4}solubility coefficients—regardless of mixture concentration—was observed for 6FDA-mPDA and other polymeric films; the slope of this trend was identified as the ratio of gas solubilities at infinite dilution. The CO

_{2}/CH

_{4}mixed-gas solubility selectivity of 6FDA-mPDA and previously reported polymers was higher than the equimolar pure-gas value and increased with pressure from the infinite dilution value. The analysis of CO

_{2}-CH

_{4}mixed-gas concentration-averaged effective diffusion coefficients of equimolar feeds showed that CO

_{2}diffusivity was not affected by CH

_{4}. Our data indicate that the decrease of CO

_{2}/CH

_{4}mixed-gas diffusion, and permeability selectivity from the pure-gas values, resulted from an increase in the methane diffusion coefficient in mixtures. This effect was the result of an alteration of the size sieving properties of 6FDA-mPDA as a consequence of CO

_{2}presence in the 6FDA-mPDA film matrix.

## 1. Introduction

_{2}/CH

_{4}permeability selectivity of PIM-1 is ~15 (in the range of 0–10 atm CO

_{2}pressure), but drops to ~8 in a CO

_{2}/CH

_{4}mixture at 10 atm partial CO

_{2}pressure [4], that is, only ~50% of the ideal value. Because the overall intention of CO

_{2}-CH

_{4}separation studies is to design membrane materials for industrial applications, correct identification of the reasons for the deviation from ideality of permeability selectivity is crucial. Therefore, one should describe gas transport at both thermodynamic (sorption) and kinetic (diffusion) levels. The solution-diffusion theory that is commonly applied to describe the transport of fluids through dense polymer membranes affirms that permeability (P

_{i}) can be directly determined as the combination of solubility (S

_{i}) and diffusion (D

_{i}) coefficients of a specific gas in a membrane [7]. Hence, to accurately describe the transport of gases through membranes, one should preferably couple mixed-gas permeation data, measured by a well-established experimental technique [8], with mixed-gas sorption or diffusion data. Fraga et al. [9], for example, designed and implemented a new time lag apparatus for the direct measurement of mixed-gas permeability and diffusion coefficients in Pebax 2533, HyflonAD60X, and PIM-EA-TB—the same instrument was used by Monteleone et al. [10] to test mixed-gas diffusion coefficients of a spirobifluorene-based polymer of intrinsic microporosity (PIM-SBF-1). On the basis of our experimental capabilities, we estimated mixed-gas diffusion coefficient values by applying the solution-diffusion theory and combining experimental mixed-gas permeability and mixed-gas sorption values. Particularly, a newly developed sorption system was used for the mixed-gas sorption studies reported here [11]. To the best of our knowledge, so far, four types of mixed-gas sorption units have been described in the literature [11,12,13,14,15] and utilized to test a total of only 11 polymers [11,12,13,14,15,16,17,18,19,20,21,22,23]. Furthermore, the number of studies covering the diffusion of gas mixtures in polymers—retrieved from experiments of mixed-gas sorption and permeation—is even smaller. Some previous studies include the following: CO

_{2}-C

_{2}H

_{6}in XLPEO [24], n-C

_{4}H

_{10}-CH

_{4}in poly [1-trimethylsilyl-1-propyne] (PTMSP) [25], CO

_{2}-CH

_{4}in 6FDA-TADPO [22], CO

_{2}-CH

_{4}in PEO-based multi-block copolymer [26], n-C

_{4}H

_{10}-CH

_{4}in polydimethylsiloxane (PDMS) [27], and CO

_{2}-CH

_{4}in PDMS [11]. In our previous work [11], we showed that co-permeation of CO

_{2}in mixtures with CH

_{4}in rubbery polydimethylsiloxane (PDMS) increased mixed-gas diffusion of CH

_{4}.

_{2}permeability of ~14 Barrer and CO

_{2}/CH

_{4}permeability selectivity of ~70 measured at 2 atm and 35 °C [27]. Therefore, this membrane material is a particularly attractive polymer to perform a case study of mixed-gas sorption and diffusion of CO

_{2}-CH

_{4}mixtures in polyimides. Such a study may also clarify whether the deviation of the CO

_{2}mixed-gas permeability from the pure-gas values can be ascribed to competitive sorption phenomena—as commonly assumed in the literature [31,32,33]—or to phenomena related to CO

_{2}-induced dilation [34].

_{2}-CH

_{4}mixtures in isotropic 6FDA-mPDA films at 35 °C. First, we show the results of CO

_{2}-CH

_{4}mixed-gas sorption experiments, and then perform an analysis of mixture effects on the solubility coefficients and solubility selectivity at various equilibrium pressures. To analyze mixed-gas solubility data, isothermal surfaces of gas uptake were estimated via the following: (i) linear interpolation and (ii) the extension of the dual-mode sorption model [35] to mixtures supported by an empirical expression for better data fitting. In the second part of this work, experimental mixed-gas permeability values of 6FDA-mPDA obtained with equimolar CO

_{2}-CH

_{4}mixtures previously reported by our group [29] were divided by experimental mixed-gas solubilities to estimate CO

_{2}-CH

_{4}mixed-gas concentration-averaged effective diffusion coefficient data. These data show the interaction between CO

_{2}and the polymeric matrix of 6FDA-mPDA and the effect of CO

_{2}diffusion on CH

_{4}diffusion. Moreover, using our experimental data, we were able to clarify the impact of competitive sorption and CO

_{2}-sorption related phenomena on transport and separation of CO

_{2}-CH

_{4}mixtures in 6FDA-mPDA.

## 2. Materials and Methods

#### 2.1. Materials

^{3}. Moreover, the density of 240-µm thick 6FDA-mPDA films aged for >3 months was identical to that of the fresh film samples. This value was slightly lower than other values reported in the literature—that is, 1.464 g/cm

^{3}[36], 1.46 g/cm

^{3}[37,38], 1.456 ± 0.014 g/cm

^{3}[28], and 1.45 ± 0.01 g/cm

^{3}[39], which were measured via the Archimedes’ principle procedure.

_{2}in CH

_{4}were purchased from Air Liquide; gas mixtures of 37 mol% and 51 mol% CO

_{2}in CH

_{4}were purchased from AHG Specialty Gas Center (Jeddah, Saudi Arabia).

#### 2.2. Methods

#### 2.2.1. Barometric System

_{B}to V

_{A}, which contains the polymer sample (V

_{P}). Volume V

_{C}is connected to V

_{A}, V

_{B}, the gas chromatograph (GC, Agilent 490 Micro GC Natural Gas Analyzer, Santa Clara, USA), gas cylinders (custom-made mixtures and carrier gas), and a vacuum pump. V

_{C}allows a certain operational flexibility to this mixed-gas system; for example, by addition from V

_{C}, gases can be mixed in V

_{B}. V

_{C}can receive gas samples from both V

_{B}and V

_{A}for GC analysis. Furthermore, when using custom-made mixtures, the valve between V

_{B}and V

_{C}can be left open to increase the volume of the feed chamber so that more gas can be expanded to V

_{A}. P

_{A}and P

_{B}transducers of 35 atm range were used for both volumes V

_{A}and V

_{B}and were exchanged with transducers of 50 and 100 atm range, respectively, to explore high partial pressures (>15 atm partial gas pressure).

_{A}at time zero (i.e., immediately after gas is expanded from V

_{B}to V

_{A}) and the same amount at equilibrium; therefore, volume optimization increments the sensitivity of the mixed-gas sorption system and it was crucial to explore the low solubility coefficient of 6FDA-mPDA toward methane at high partial pressures (see later in this work). All volumes of the pressure-decay system were calibrated via a gas expansion procedure (V

_{A}= 9.00 ± 0.03 cm

^{3}; V

_{B}= 7.77 ± 0.03 cm

^{3}; Vc = 10.44 ± 0.04 cm

^{3}), already well described in the literature [9,10,11,12,13,14], in which a known reservoir volume, which was previously calibrated via water filling at room temperature, is added to V

_{A}(or eventually to V

_{B}). To the best data accuracy, all volume values employed reflected the actual situation of the system—that is, any maintenance-operation on the system was always followed by a leak-test and a re-calibration procedure, and were always very close to the first calibration values.

#### 2.2.2. Barometric Pure-Gas Sorption

_{4}and CO

_{2}barometric pure-gas sorption experiments were performed in the system shown in Figure 2. A fresh film sample of 1.16 g was loaded and degassed for 24 h at 35 °C. Gas was admitted in V

_{B}and was expanded after pressure equilibration to V

_{A}. Data were acquired continuously at a rate of one point every two seconds using custom-made software operating in LabVIEW (National Instruments™, Austin, USA) until the average pressure variation was approximately −2 × 10

^{−7}atm/s during 100 min; above this pressure, variation value uptakes were constant. At equilibrium, more gas was added to V

_{B}and expanded to V

_{A}.

_{A}at time zero and the amount of the same gas not sorbed by the polymer sample at equilibrium. Molar amounts were calculated via the equation of state of gases (corrected with compressibility factor) from pressure transducer readings. The Soave-Redlich-Kwong (S-R-K) equation of state [40,41] was used to estimate compressibility factors (S-R-K compressibility factors matched with values obtained via the virial equation of state [19]) and partial gas fugacities. The S-R-K parameters of CO

_{2}and CH

_{4}can be found elsewhere [15].

_{4}and CO

_{2}pure-gas uptake data. Because DMS model interpolation of gas uptake from fitted isotherms is usually very accurate, the DMS model was also used for estimation of CO

_{2}and CH

_{4}solubilities at infinite dilution of 6FDA-mPDA and other polymers discussed in this work (see Supporting Information).

#### 2.2.3. Gravimetric Gas Sorption

^{−7}mbar) for at least 24 h. When the sample weight was stable, sorption measurements were initiated; gas was introduced in the sample chamber at a rate of 0.1 atm/min to reach the desired equilibrium pressure. After equilibration, gas was added cumulatively to obtain a further pressure point.

#### 2.2.4. Barometric Mixed-Gas Sorption and Data Analysis

_{B}and, after pressure equilibration, expanded to V

_{A}. It should be noted that during this expansion procedure, the valve between A and B volumes was opened and then immediately closed to avoid any interaction between the feed gas in V

_{B}and the gas of V

_{A}now sorbing into the polymer sample (hence, we can assume that at time zero, V

_{A}and V

_{B}have the same gas composition). At sorption equilibrium (i.e., average pressure variation approximately −2 × 10

^{−7}atm/s during 100 minutes), two gas samples from V

_{B}and V

_{A}were sent to V

_{C}for GC analysis. Then, both V

_{B}and V

_{A}were degassed for a time long enough (about the same time allowed for sorption) to remove any sorbed (detectable) gas from the polymer sample in V

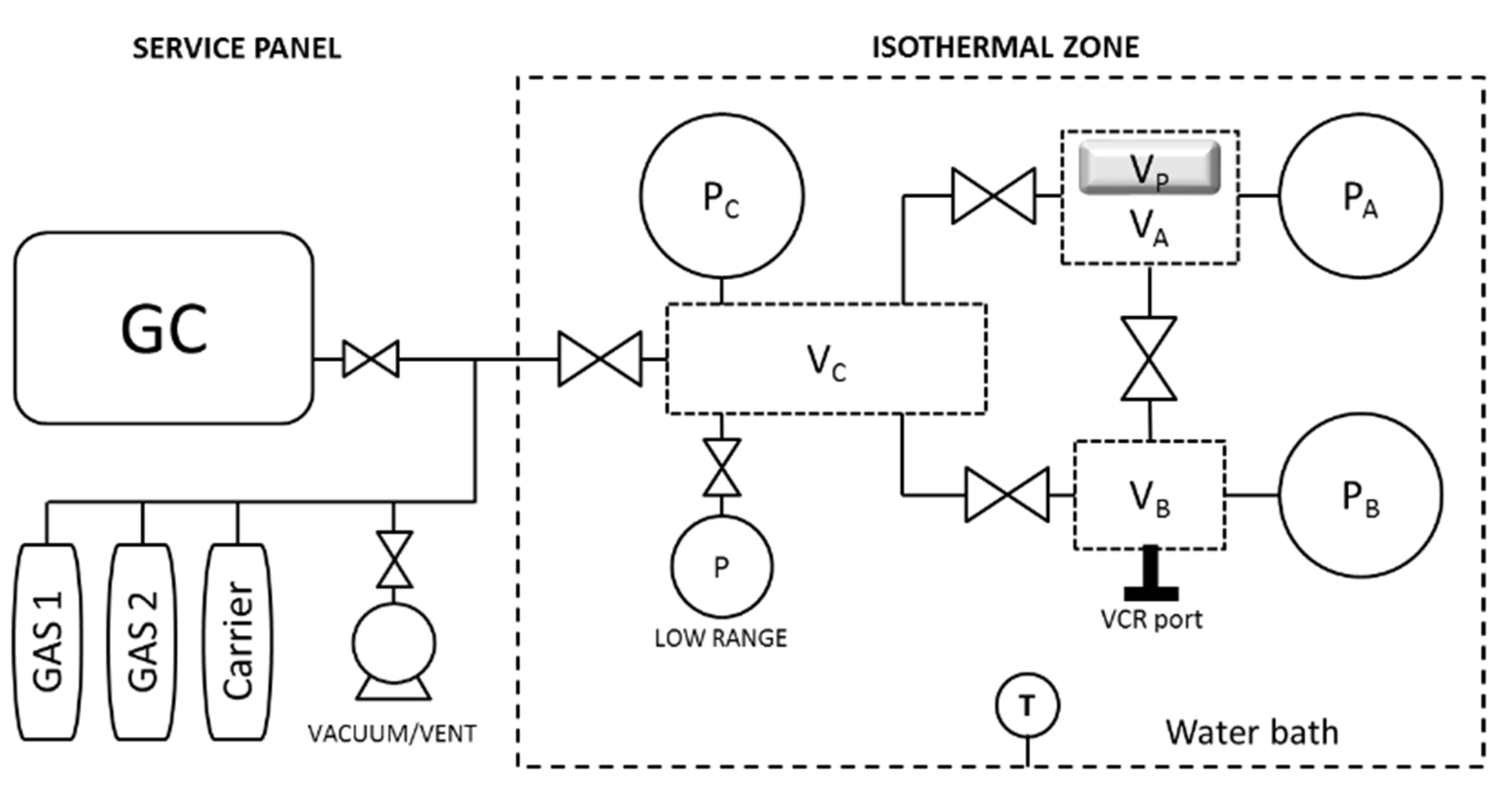

_{A}; the 6.8 atm range transducer—mounted on V

_{C}(see “low range” in Figure 2)—was used to detect gas desorption. If no desorption could be detected, the same gas mixture was added at a higher pressure to V

_{B}and then expanded to V

_{A}to perform the next mixed-gas uptake experiment. Once an experimental series at fixed mixture composition reached the highest total feed pressure allowed by V

_{B}(which depended on the maximum value of gas-cylinder pressure, P

_{B}transducer pressure range, and V

_{B}dimension), the next experimental series was carried out from a feed pressure of 7 atm. It should be noted that although we set the sequence of the concentration series in the direction of increasing CO

_{2}concentrations (i.e., mixtures of higher methane concentration were run first), the sample might have undergone CO

_{2}-conditioning when going from the last pressure of a series to the first experiment of the new series. This sample conditioning might have introduced a certain over-estimation of a few gas uptake data points; however, we anticipate that this effect was relatively small because between two consecutive experimental data points, the difference in CO

_{2}partial pressure was always lower than 8 atm, and because of the extensive sample degassing mentioned above between each experiment. Mixed-gas uptakes were calculated via mass balance and GC composition data [12,13,14,15].

_{2}and CH

_{4}mixed-gas sorption uptakes in 6FDA-mPDA in the form of three-dimensional data points were fitted via MATLAB

^{®}software (version R2016b, The MathWorks, Inc, Natick, MA, USA). All data were linearly interpolated or were fitted via the DMS model for mixtures [35] supported by an empirical equation for better data fitting. All details of this fitting analysis can be found in the Supporting Information of this work.

#### 2.2.5. Pure- and Mixed-Gas Permeation and Diffusion Coefficients

_{2}/CH

_{4}feed concentration were calculated as previously done elsewhere [14,24,26,27,43] from ${\overline{D}}_{i}={P}_{i}/{S}_{i}^{feed}$; where ${P}_{i}$ is the pure- or mixed-gas permeability at permeate pressures approaching zero, these permeabilities were previously published by our research group for 6FDA-mPDA [29], and ${S}_{i}^{feed}$ is the pure- or mixed-gas solubility coefficient of the i-gas at the feed pressure. Because our experimental mixed-gas solubility coefficients were obtained via constant feed concentration experiments (i.e., we could only control the concentration at the beginning of the experiment and not at equilibrium [11]), we used models to predict the ${S}_{i}^{feed}$ values at the fixed 50:50 mol% CO

_{2}/CH

_{4}equilibrium concentration. We predicted these values in two ways: (i) with a modified version of the dual-mode sorption model (details can be found in the Supporting Information), and (ii) with the use of the ‘linearinterp’ model within the ‘fit’ function of Matlab R2016b. The ‘linearinterp’ model simply connects all data points of the 3D uptake diagrams with planes (see Figure S5), therefore, the quality of the prediction of ${S}_{i}^{feed}$ strictly depends on the number of data points and on experimental accuracy. Both prediction methods for ${S}_{i}^{feed}$ produced very similar values (see later in the Results and Discussion section).

## 3. Results and Discussion

#### 3.1. Experimental Pure- and Mixed-Gas Sorption Data

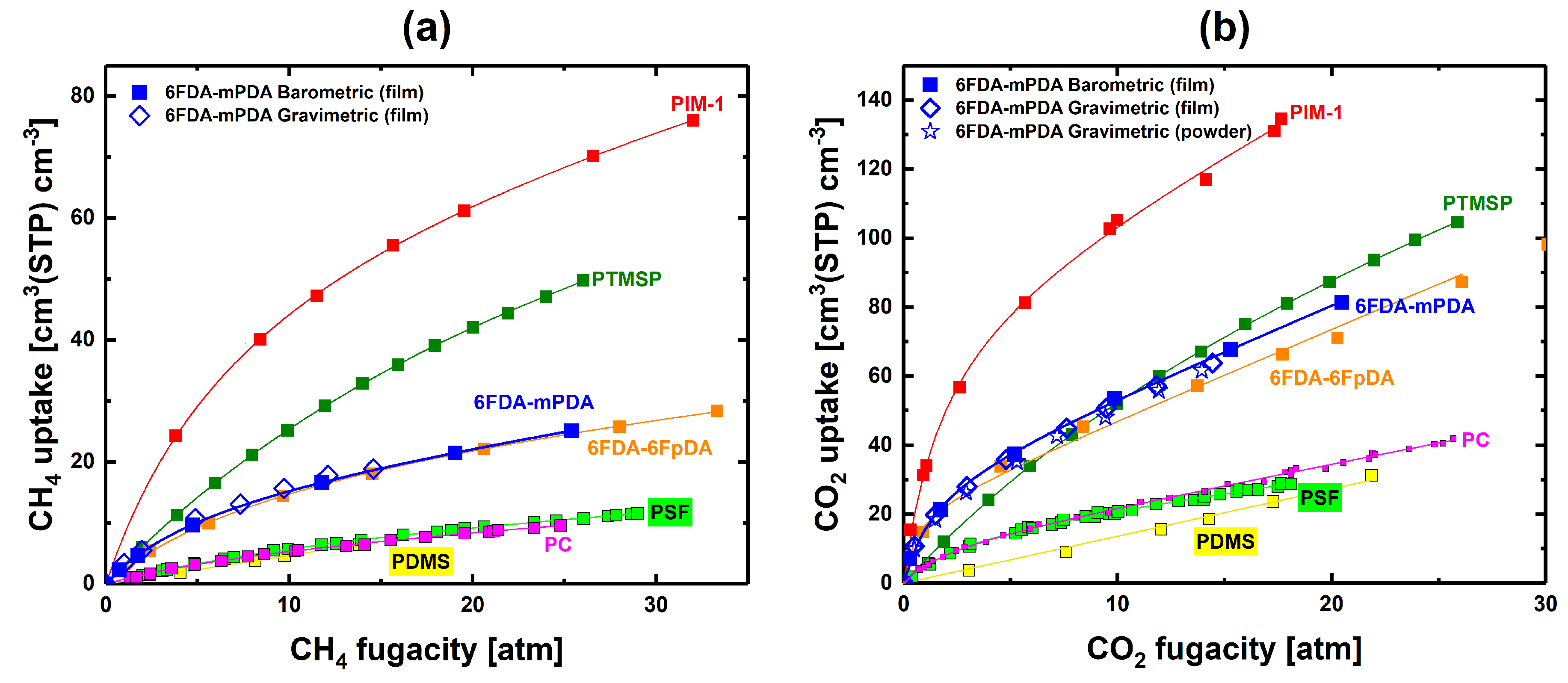

_{2}and CH

_{4}isotherms of 6FDA-mPDA are located between the curves of low-free-volume glassy polymers, PSF (polysulfone) and PC (polycarbonate), and high-free-volume PIM-1. The CH

_{4}sorption uptake in high-free-volume glassy PTMSP is much higher than in 6FDA-mPDA, as shown in Figure 3a. However, CO

_{2}uptakes are comparable for PTMSP and 6FDA-mPDA (Figure 3b). Hence, this example shows how gas/polymer affinity, as well as free volume, plays an important role in gas sorption.

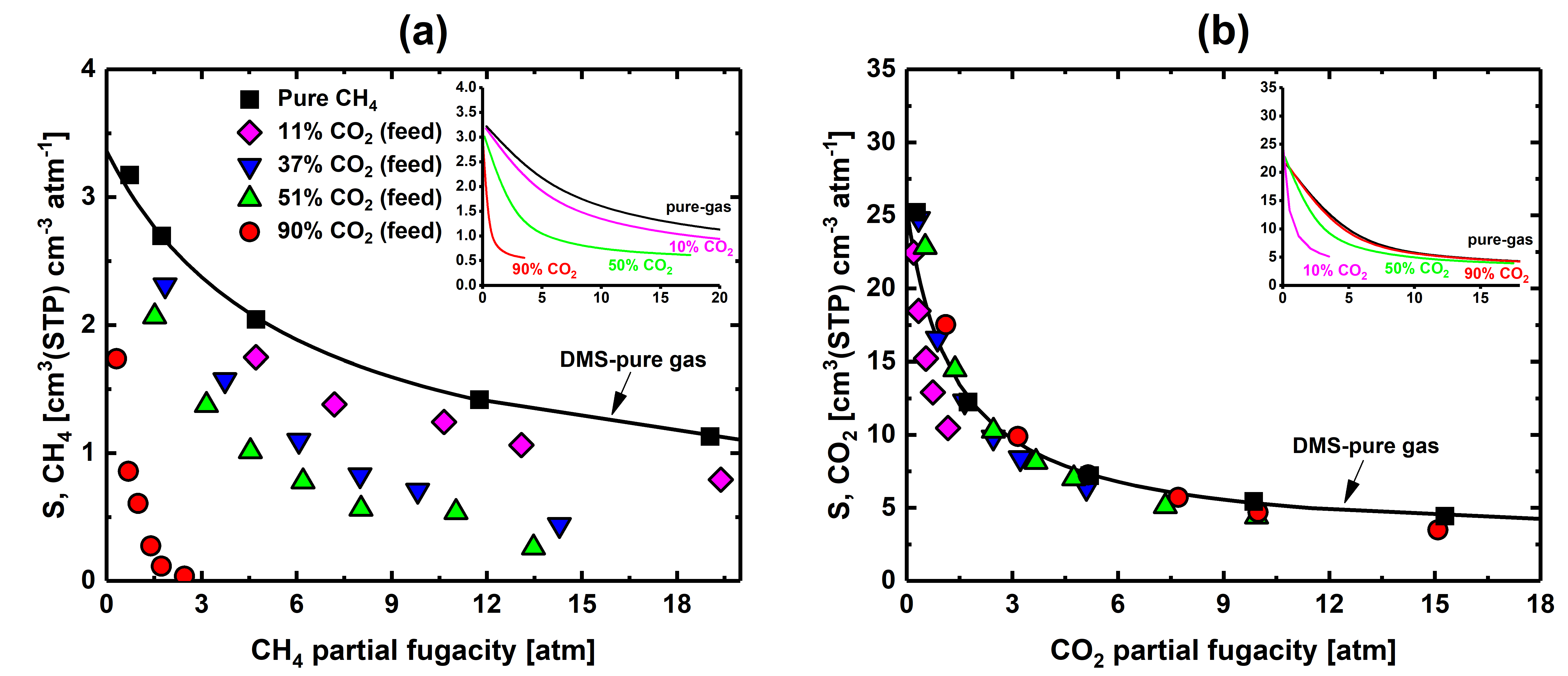

_{2}-CH

_{4}mixed-gas solubility coefficient data for 6FDA-mPDA as function of gas fugacity are shown in Figure 4 (all data are also listed in Table S4). The presence of CO

_{2}strongly influenced the solubility of CH

_{4}(Figure 4a), and, similarly but less markedly, CH

_{4}also affected CO

_{2}solubility (Figure 4b). The inserts in Figure 4 show the predictions of the extension to mixtures of the dual-mode sorption model (DMS-mix [35]) for CH

_{4}and CO

_{2}, respectively—these inset graphs are intended to provide a reference framework and to guide the reader through the mixed-gas data. The qualitative agreement between predictions of the DMS model and experiments (Figure 4) suggests that competitive sorption in the glassy polymer may be the main reason of the deviation of the mixed-gas data from the pure-gas solubility coefficient trends. Other effects that are not accounted for by the DMS model and that impact solubility at high pressures are presented in the Supporting Information of this paper.

_{2}, and hence high sorption uptake, the experimental data exhibit small scattering. Conversely, solubility coefficients of methane were scattered at low CH

_{4}feed concentrations and at high total pressures, because the accuracy limit of the system was approached (methane solubility coefficients lower than ~0.5 cm

^{3}(STP) cm

^{−3}atm

^{−1}require volumes optimization of the barometric pressure decay system, as discussed elsewhere [11]).

#### 3.2. Solubility Selectivity Analysis

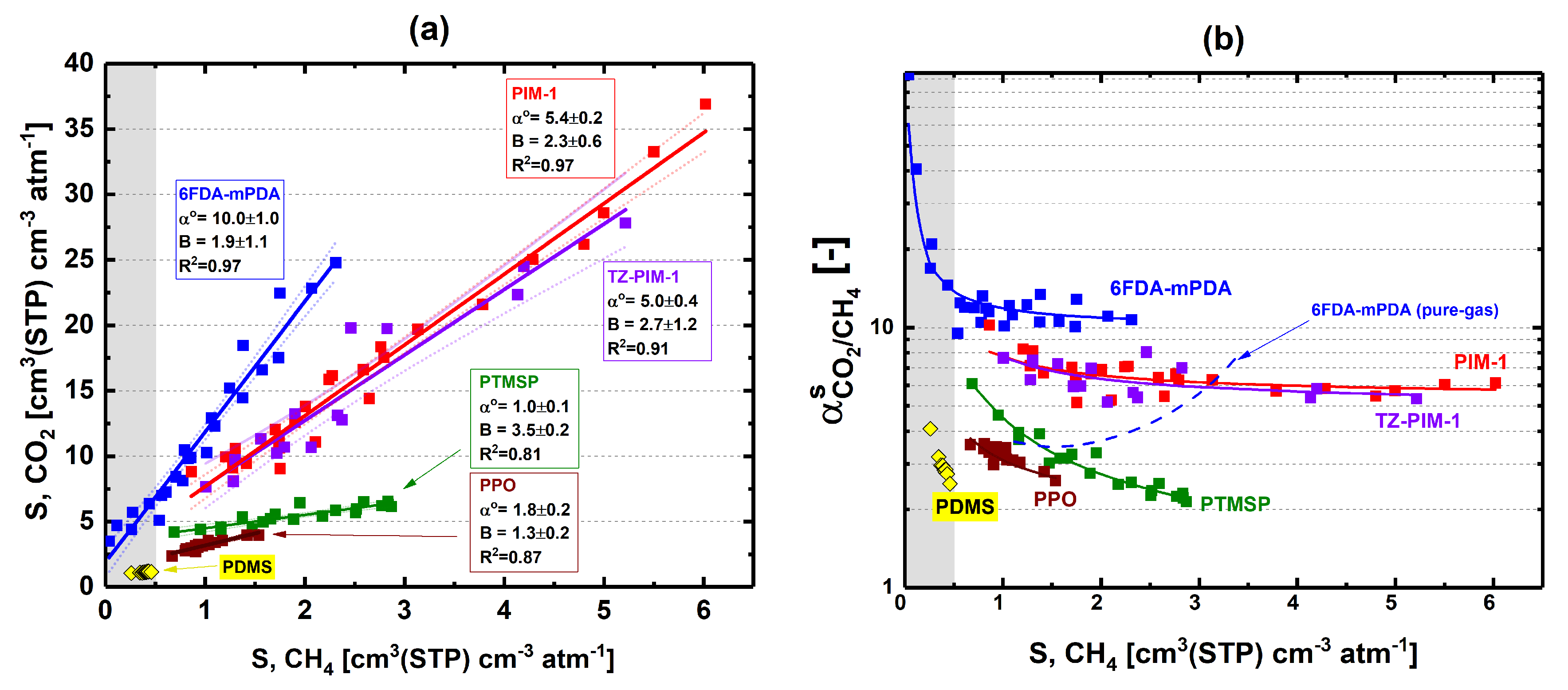

_{2}mixed-gas solubility coefficient versus CH

_{4}mixed-gas solubility coefficient (Figure 5a). Note that each mixed-gas sorption experiment produces two solubility coefficients: one for CO

_{2}and one for CH

_{4}; hence, these two solubility coefficients generate a single data point in the plot of Figure 5a. Experimental mixed-gas solubility coefficient data at 35 °C are also shown from previous studies for PIM-1 [20], TZ-PIM-1 [23], PTMSP [15], and PPO [18]—data of AO-PIM-1 [23] and polynonene [23] are plotted in Figure S1. Interestingly, all experimental data could be fitted with a straight line regardless of mixture concentration.

_{2}and CH

_{4}, respectively; ${\alpha}_{C{O}_{2}/C{H}_{4}}^{o}$ is the mixed-gas selectivity at infinite dilution, that is, the slope of the straight line; and $B$ is the intercept. We rearranged this equation as follows:

_{2}and CH

_{4}at infinite dilution. For most of the polymers shown in Figure 5a, the pure-gas solubility selectivity at infinite dilution (estimated via the DMS model in the form of Equation S2) was in good agreement with the experimental values found via linear interpolation of CO

_{2}mixed-gas solubility coefficient versus CH

_{4}mixed-gas solubility coefficient data (i.e., ${\alpha}_{C{O}_{2}/C{H}_{4}}^{o}$); this comparison is discussed in the Supporting Information of this work. When ${S}_{C{H}_{4}}$ is low (i.e., for high equilibrium pressures), a second limiting condition is found; in this case, the CO

_{2}/CH

_{4}solubility selectivity diverges positively from the ${\alpha}_{C{O}_{2}/C{H}_{4}}^{o}$ value if B > 0.

_{4}. For all polymers, predictions by Equation (2) follow the experimental data, and as ${S}_{C{H}_{4}}$ decreases, the mixed-gas solubility selectivity increases (B > 0)—especially in the grey region of Figure 5. Note that during linear fitting of CO

_{2}versus CH

_{4}mixed-gas solubilities of 6FDA-mPDA (Figure 5a), the data in the grey region had almost no influence on ${\alpha}_{C{O}_{2}/C{H}_{4}}^{o}$, while they could affect the value of B, but not the sign—this confirms the overall trends of solubility selectivity shown in Figure 5b. Interestingly, the mixed-gas data of rubbery PDMS [11] also follow the trend seen for 6FDA-mPDA.

_{2}solubility coefficient at infinite dilution in the 2014 upper bound solubility plot (Figure 6) discussed by Lou et al. [47]. The solubility selectivity at infinite dilution of AO-PIM-1 was obtained from pure-gas uptake experiments (see Supporting Information). For both PTMSP and PPO, the solubility selectivity at infinite dilution estimated from Equation (2) and from the DMS model (i.e., from the ratio of DMS solubility coefficients at infinite dilution calculated via Equation S2) did not agree within the respective standard deviations and were both plotted in Figure 6. The values of ${\alpha}_{C{O}_{2}/C{H}_{4}}^{o}$ and CO

_{2}solubility coefficient at infinite dilution for 6FDA-TADPO were uncertain, because of the limited number of pure- and mixed-gas data reported [22,48]. Although the standard error is very large, the pure-gas 6FDA-TADPO solubility trend is qualitatively similar to 6FDA-mPDA (Figure 6). Similarly, PIM-1, TZ-PIM-1, and AO-PIM-1 points group in a confined region of the 2014 CO

_{2}/CH

_{4}solubility upper bound plot.

#### 3.3. Equimolar CO_{2}-CH_{4} Mixed-Gas Diffusion

_{4}and CO

_{2}pure- and mixed-gas concentration-averaged effective diffusion coefficients are discussed.

_{2}mixed-gas permeability suffers from the presence of methane (a local minimum is found at about ~10 atm partial fugacity), whereas CH

_{4}mixed-gas permeability increases in mixed-gas conditions, particularly above ~10 atm partial fugacity (Figure 7a). Overall, the permeability selectivity of the mixture strongly diverges from the pure-gas trend (Figure 7b); at about 18 atm partial fugacity, almost 35% of the ideal permeability selectivity is lost. Frequently, it is assumed that competitive sorption is the cause for this loss of permeability selectivity. The data of mixed-gas solubilities at 50 mol% equilibrium concentration (Figure 8) show that competitive sorption strongly affects CH

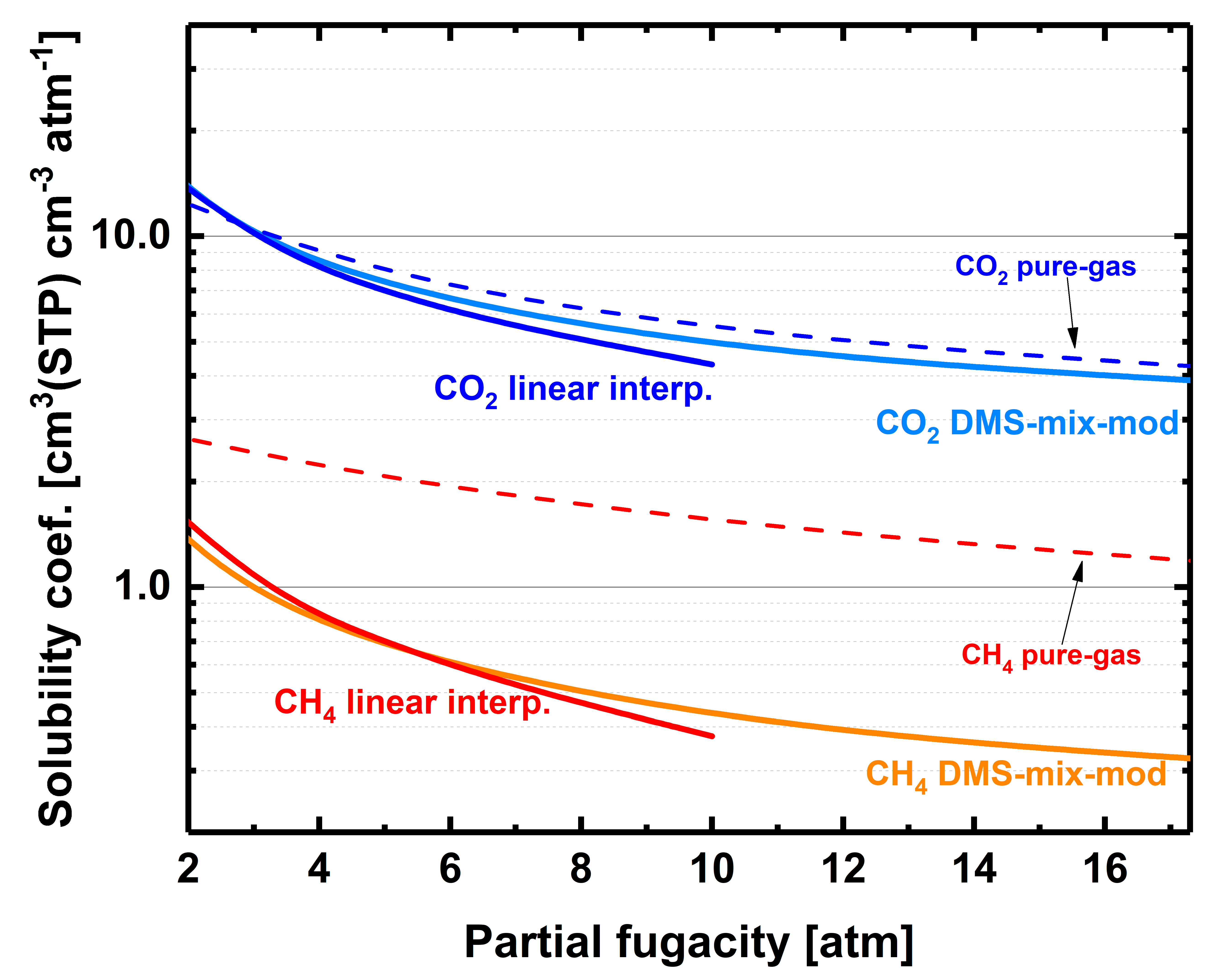

_{4}mixed-gas solubility—that is, when partial pressures increase, the CH

_{4}mixed-gas solubility coefficients diverge from the pure-gas values. Because the effect of competitive sorption on the solubility coefficient of CO

_{2}is limited, we found that at 2 atm CO

_{2}partial pressure, the CO

_{2}/CH

_{4}solubility selectivity jumps from a value of ~5 in the pure-gas state to ~10 in the mixture; moreover, as previously discussed, the CO

_{2}/CH

_{4}mixed-gas solubility selectivity increases with partial pressures. Thus, the effects of gas mixture on solubility selectivity are beneficial during separation of CO

_{2}from CH

_{4}(equimolar feed) and cannot be held responsible for the loss of permeability selectivity from ideality (Figure 7b).

_{4}notably deviate from the pure-gas trend, whereas CO

_{2}diffuses in the same manner in pure- and mixed-gas environments with almost no disturbance by methane (Figure 9a). The CO

_{2}/CH

_{4}mixed-gas diffusion selectivity drops from an average pure-gas value of ~18 to a mixed-gas value of ~5 (Figure 9b), simply because in the mixture, CH

_{4}diffusion is enhanced compared with that in the pure-gas environment because of the presence of CO

_{2}in the mixture. Similar effects on CO

_{2}-CH

_{4}diffusion were observed for PDMS rubber [11]; in this case, sorption of CO

_{2}induced the decline of the mixed-gas diffusion and permeability selectivity relative to the pure-gas values. A similar case was discussed by Ribeiro et al. [24], who described how the increase of C

_{2}H

_{6}mixed-gas diffusion coefficient and the decrease of the CO

_{2}/C

_{2}H

_{6}permeability selectivity could be ascribed to CO

_{2}-induced “plasticization” of a XLPEO rubber film.

_{2}and CH

_{4}. However, CH

_{4}mixed-gas diffusion rises immediately at low feed pressure after the polymer matrix sorbs CO

_{2}(Figure 9a); in other words, the effect of CO

_{2}sorption on gas transport occurs over the entire range of partial pressures explored in this work, and the local minima seen in Figure 7a were produced by counteracting thermodynamic and kinetic contributions to transport.

## 4. Conclusions

_{2}-CH

_{4}mixed-gas permeability and CO

_{2}/CH

_{4}mixed-gas permeability selectivity of 6FDA-mPDA at 35 °C, sorption and diffusion contributions to permeation were decoupled. Experimental data of mixed-gas solubility revealed a decrease of both CO

_{2}and, more markedly, CH

_{4}solubility due to mixture effects. We found that CO

_{2}versus CH

_{4}mixed-gas solubility coefficients of 6FDA-mPDA (and other glassy polymers previously studied) follow a linear trend regardless of equilibrium concentration. The slope of the trend line agrees well with the CO

_{2}/CH

_{4}solubility selectivity at infinite dilution, and the intercept indicates the way in which solubility selectivity deviates at increasing pressures. We found the same behavior reviewing mixed-gas sorption data of glassy polymers reported in the literature. In all cases, the CO

_{2}/CH

_{4}solubility selectivity increases with pressure from the value of solubility selectivity at infinite dilution.

_{2}/CH

_{4}solubility selectivity of 6FDA-mPDA improved under mixed-gas conditions, the decline of CO

_{2}/CH

_{4}mixed-gas permeability selectivity from the corresponding pure-gas permeability selectivities—typically observed during CO

_{2}-CH

_{4}permeation in polymeric films—could not be attributed to competitive sorption (as frequently assumed in the literature). Hence, we studied the kinetic behavior of 6FDA-mPDA to elucidate the effect of gas mixture effects on concentration-averaged effective diffusion coefficients as estimated from experimental mixed-gas sorption and permeation data. We observed that after CO

_{2}was added to CH

_{4}in a mixture, even at a low concentration, the concentration-averaged effective diffusion coefficient of CH

_{4}deviated from the pure-gas values, whereas the concentration-averaged effective diffusion coefficient of CO

_{2}essentially followed the pure-gas trend; hence, the departure of CO

_{2}/CH

_{4}permeability selectivity of 6FDA-mPDA from the pure-gas values can be explained by a depression of the size sieving capability of 6FDA-mPDA (i.e., it makes CH

_{4}diffusion faster than in the pure-gas environment) induced by the presence of CO

_{2}by sorption in the polymeric film matrix.

## Supplementary Materials

_{2}mixed-gas solubility vs. CH

_{4}mixed-gas solubility coefficient of AO-PIM-1 and polynonene [2]. For both interpolations, the slope was fixed at the value of pure-gas solubility selectivity at infinite dilution. For both interpolations, the slope was fixed at the value of pure-gas solubility selectivity at infinite dilution. Figure S2: In red and in blue, two examples of the behavior of the switch function (Equation S5) used in this work to track the behavior of ${K}_{D}{}_{i}$ and b

_{i}parameters. In this graph, ${A}_{i}^{pure}=1$. Figure S3: Comparison between experimental uptakes and model predictions for (a) CH

_{4}and (b) CO

_{2}. Black squares are predictions of the DMS-mix with pure-gas parameters. Red circles are predictions of the DMS-mix-mod. Figure S4: CH

_{4}(a) and CO

_{2}(b) mixed-gas uptakes in 6FDA-mPDA. Surfaces were obtained via the DMS-mix-mod fitting. The DMS-mix-mod allowed us to predict the solubility behavior beyond the region covered by experimental data. Figure S5: CH

_{4}(a) and CO

_{2}(b) mixed-gas uptakes in 6FDA-mPDA. Surfaces were obtained via linear interpolation. Table S1: Dual-mode model parameters of methane and carbon dioxide in 6FDA-mPDA for pure-gas sorption at 35 °C. Table S2: Comparison between solubility selectivities at infinite dilution retrieved from mixed-gas and pure-gas sorption data. Table S3: Parameters derived from DMS-mix-mod fitting. Table S4: Pure- and mixed-gas uptake data presented in this work.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Sholl, D.S.; Lively, R.P. Seven chemical separations to change the world. Nature
**2016**, 532, 435–438. [Google Scholar] [CrossRef] [PubMed] - Budd, P.M.; Msayib, K.J.; Tattershall, C.E.; Ghanem, B.S.; Reynolds, K.J.; McKeown, N.B.; Fritsch, D. Gas separation membranes from polymers of intrinsic microporosity. J. Membr. Sci.
**2005**, 251, 263–269. [Google Scholar] [CrossRef] - Swaidan, R.; Ma, X.; Litwiller, E.; Pinnau, I. High pressure pure- and mixed-gas separation of CO
_{2}/CH_{4}by thermally-rearranged and carbon molecular sieve membranes derived from a polyimide of intrinsic microporosity. J. Membr. Sci.**2013**, 447, 387–394. [Google Scholar] [CrossRef] - Swaidan, R.; Ghanem, B.S.; Litwiller, E.; Pinnau, I. Pure- and mixed-gas CO
_{2}/CH_{4}separation properties of PIM-1 and an amidoxime-functionalized PIM-1. J. Membr. Sci.**2014**, 457, 95–102. [Google Scholar] [CrossRef] - Sanders, D.F.; Smith, Z.P.; Guo, R.; Robeson, L.M.; McGrath, J.E.; Paul, D.R.; Freeman, B.D. Energy-efficient polymeric gas separation membranes for a sustainable future: A review. Polymer
**2013**, 54, 4729–4761. [Google Scholar] [CrossRef] [Green Version] - Puleo, A.C.; Paul, D.R.; Kelley, S.S. The effect of degree of acetylation on gas sorption and transport behavior in cellulose acetate. J. Membr. Sci.
**1989**, 47, 301–332. [Google Scholar] [CrossRef] - Wijmans, J.G.; Baker, R.W. The solution-diffusion model: A review. J. Membr. Sci.
**1995**, 107, 1–21. [Google Scholar] [CrossRef] - O’Brien, K.C.; Koros, W.J.; Barbari, T.A.; Sanders, E.S. A new technique for the measurement of multicomponent gas transport through polymeric films. J. Membr. Sci.
**1986**, 29, 229–238. [Google Scholar] [CrossRef] - Fraga, S.C.; Monteleone, M.; Lanč, M.; Esposito, E.; Fuoco, A.; Giorno, L.; Pilnáček, K.; Friess, K.; Carta, M.; McKeown, N.B.; et al. A novel time lag method for the analysis of mixed gas diffusion in polymeric membranes by on-line mass spectrometry: Method development and validation. J. Membr. Sci.
**2018**, 561, 39–58. [Google Scholar] [CrossRef] - Monteleone, M.; Esposito, E.; Fuoco, A.; Lanč, M.; Pilnáček, K.; Friess, K.; Bezzu, C.G.; Carta, M.; McKeown, N.B.; Jansen, J.C. A novel time lag method for the analysis of mixed gas diffusion in polymeric membranes by on-line mass spectrometry: Pressure dependence of transport parameters. Membranes
**2018**, 8, 73. [Google Scholar] [CrossRef] - Genduso, G.; Litwiller, E.; Ma, X.; Zampini, S.; Pinnau, I. Mixed-gas sorption in polymers via a new barometric test system: Sorption and diffusion of CO
_{2}-CH_{4}mixtures in polydimethylsiloxane (PDMS). Manuscript submitted for publication. - Koros, W.J.; Paul, D.R. Design considerations for measurement of gas sorption in polymers by pressure decay. J. Polym. Sci. Polym. Phys. Ed.
**1976**, 14, 1903–1907. [Google Scholar] [CrossRef] [Green Version] - Ribeiro, C.P.; Freeman, B.D. Carbon dioxide/ethane mixed-gas sorption and dilation in a cross-linked poly(ethylene oxide) copolymer. Polymer
**2010**, 51, 1156–1168. [Google Scholar] [CrossRef] - Raharjo, R.D.; Freeman, B.D.; Sanders, E.S. Pure and mixed gas CH
_{4}and n-C_{4}H_{10}sorption and dilation in poly(1-trimethylsilyl-1-propyne). Polymer**2007**, 48, 6097–6114. [Google Scholar] [CrossRef] - Vopička, O.; De Angelis, M.G.; Sarti, G.C. Mixed gas sorption in glassy polymeric membranes: I. CO
_{2}/CH_{4}and n-C_{4}/CH_{4}mixtures sorption in poly(1-trimethylsilyl-1-propyne) (PTMSP). J. Membr. Sci.**2014**, 449, 97–108. [Google Scholar] [CrossRef] - Sanders, E.S.; Koros, W.J.; Hopfenberg, H.B.; Stannett, V.T. Mixed gas sorption in glassy polymers: Equipment design considerations and preliminary results. J. Membr. Sci.
**1983**, 13, 161–174. [Google Scholar] [CrossRef] - Sanders, E.S.; Koros, W.J.; Hopfenberg, H.B.; Stannett, V.T. Pure and mixed gas sorption of carbon dioxide and ethylene in poly(methyl methacrylate). J. Membr. Sci.
**1984**, 18, 53–74. [Google Scholar] [CrossRef] - Story, B.J.; Koros, W.J. Sorption of CO
_{2}/CH_{4}mixtures in poly(phenylene oxide) and a carboxylated derivative. J. Appl. Polym. Sci.**1991**, 42, 2613–2626. [Google Scholar] [CrossRef] - Raharjo, R.D.; Freeman, B.D.; Sanders, E.S. Pure and mixed gas CH
_{4}and n-C_{4}H_{10}sorption and dilation in poly(dimethylsiloxane). J. Membr. Sci.**2007**, 292, 45–61. [Google Scholar] [CrossRef] - Vopička, O.; De Angelis, M.G.; Du, N.; Li, N.; Guiver, M.D.; Sarti, G.C. Mixed gas sorption in glassy polymeric membranes: II. CO
_{2}/CH_{4}mixtures in a polymer of intrinsic microporosity (PIM-1). J. Membr. Sci.**2014**, 459, 264–276. [Google Scholar] [CrossRef] - Gemeda, A.E.; De Angelis, M.G.; Du, N.; Li, N.; Guiver, M.D.; Sarti, G.C. Mixed gas sorption in glassy polymeric membranes. III. CO
_{2}/CH_{4}mixtures in a polymer of intrinsic microporosity (PIM-1): Effect of temperature. J. Membr. Sci.**2017**, 524, 746–757. [Google Scholar] [CrossRef] - Kamaruddin, H.D.; Koros, W.J. Some observations about the application of Fick's first law for membrane separation of multicomponent mixtures. J. Membr. Sci.
**1997**, 135, 147–159. [Google Scholar] [CrossRef] - Gemeda, A.E. Solubility, Diffusivity and Permeability of Gases in Glassy Polymers. Ph.D. Thesis, Università di Bologna, Bologna, Italy, 2015. [Google Scholar]
- Ribeiro, C.P.; Freeman, B.D.; Paul, D.R. Pure- and mixed-gas carbon dioxide/ethane permeability and diffusivity in a cross-linked poly(ethylene oxide) copolymer. J. Membr. Sci.
**2011**, 377, 110–123. [Google Scholar] [CrossRef] - Raharjo, R.D.; Freeman, B.D.; Paul, D.R.; Sanders, E.S. Pure and mixed gas CH
_{4}and n-C_{4}H_{10}permeability and diffusivity in poly(1-trimethylsilyl-1-propyne). Polymer**2007**, 48, 7329–7344. [Google Scholar] [CrossRef] - Reijerkerk, S.R.; Nijmeijer, K.; Ribeiro, C.P.; Freeman, B.D.; Wessling, M. On the effects of plasticization in CO
_{2}/light gas separation using polymeric solubility selective membranes. J. Membr. Sci.**2011**, 367, 33–44. [Google Scholar] [CrossRef] - Raharjo, R.D.; Freeman, B.D.; Paul, D.R.; Sarti, G.C.; Sanders, E.S. Pure and mixed gas CH
_{4}and n-C_{4}H_{10}permeability and diffusivity in poly(dimethylsiloxane). J. Membr. Sci.**2007**, 306, 75–92. [Google Scholar] [CrossRef] - Tanis, I.; Brown, D.; Neyertz, S.J.; Heck, R.; Mercier, R. A comparison of homopolymer and block copolymer structure in 6FDA-based polyimides. Phys. Chem. Chem. Phys.
**2014**, 16, 23044–23055. [Google Scholar] [CrossRef] - Alaslai, N.; Ghanem, B.; Alghunaimi, F.; Litwiller, E.; Pinnau, I. Pure- and mixed-gas permeation properties of highly selective and plasticization resistant hydroxyl-diamine-based 6FDA polyimides for CO
_{2}/CH_{4}separation. J. Membr. Sci.**2016**, 505, 100–107. [Google Scholar] [CrossRef] - Qiu, W.; Zhang, K.; Li, F.S.; Zhang, K.; Koros, W.J. Gas separation performance of carbon molecular sieve membranes based on 6FDA-mPDA/DABA (3:2) polyimide. ChemSusChem
**2014**, 7, 1186–1194. [Google Scholar] [CrossRef] - Gleason, K.L.; Smith, Z.P.; Liu, Q.; Paul, D.R.; Freeman, B.D. Pure- and mixed-gas permeation of CO
_{2}and CH_{4}in thermally rearranged polymers based on 3,3′-dihydroxy-4,4′-diamino-biphenyl (HAB) and 2,2′-bis-(3,4-dicarboxyphenyl) hexafluoropropane dianhydride (6FDA). J. Membr. Sci.**2015**, 475, 204–214. [Google Scholar] [CrossRef] - Swaidan, R.; Ghanem, B.; Litwiller, E.; Pinnau, I. Physical aging, plasticization and their effects on gas permeation in “rigid” polymers of intrinsic microporosity. Macromolecules
**2015**, 48, 6553–6561. [Google Scholar] [CrossRef] - Swaidan, R.; Ghanem, B.; Al-Saeedi, M.; Litwiller, E.; Pinnau, I. Role of intrachain rigidity in the plasticization of intrinsically microporous triptycene-based polyimide membranes in mixed-gas CO
_{2}/CH_{4}separations. Macromolecules**2014**, 47, 7453–7462. [Google Scholar] [CrossRef] - Staudt-Bickel, C.J.; Koros, W. Improvement of co
_{2}/ch_{4}separation characteristics of polyimides by chemical crosslinking. J. Membr. Sci.**1999**, 155, 145–154. [Google Scholar] [CrossRef] - Koros, W.J. Model for sorption of mixed gases in glassy polymers. J. Polym. Sci. Polym. Phys. Ed.
**1980**, 18, 981–992. [Google Scholar] [CrossRef] - Comesaña-Gándara, B.; Hernández, A.; de la Campa, J.G.; de Abajo, J.; Lozano, A.E.; Lee, Y.M. Thermally rearranged polybenzoxazoles and poly(benzoxazole-co-imide)s from ortho-hydroxyamine monomers for high performance gas separation membranes. J. Membr. Sci.
**2015**, 493, 329–339. [Google Scholar] [CrossRef] - Cheng, S.-X.; Chung, T.-S.; Wang, R.; Vora, R.H. Gas-sorption properties of 6FDA–durene/1,4-phenylenediamine (pPDA) and 6FDA–durene/1,3-phenylenediamine (mPDA) copolyimides. J. Appl. Polym. Sci.
**2003**, 90, 2187–2193. [Google Scholar] [CrossRef] - Heck, R.; Qahtani, M.S.; Yahaya, G.O.; Tanis, I.; Brown, D.; Bahamdan, A.A.; Ameen, A.W.; Vaidya, M.M.; Ballaguet, J.P.R.; Alhajry, R.H.; et al. Block copolyimide membranes for pure- and mixed-gas separation. Sep. Purif. Technol.
**2017**, 173, 183–192. [Google Scholar] [CrossRef] - Joly, C.; Le Cerf, D.; Chappey, C.; Langevin, D.; Muller, G. Residual solvent effect on the permeation properties of fluorinated polyimide films. Sep. Purif. Technol.
**1999**, 16, 47–54. [Google Scholar] [CrossRef] - Redlich, O.; Kwong, J.N.S. On the thermodynamics of solutions. V. An equation of state. Fugacities of gaseous solutions. Chem. Rev.
**1949**, 44, 233–244. [Google Scholar] [CrossRef] - Soave, G. 20 years of Redlich-Kwong equation of state. Fluid Phase Equilib.
**1993**, 82, 345–359. [Google Scholar] [CrossRef] - Koros, W.J.; Chan, A.H.; Paul, D.R. Sorption and transport of various gases in polycarbonate. J. Membr. Sci.
**1977**, 2, 165–190. [Google Scholar] [CrossRef] - Sadrzadeh, M.; Shahidi, K.; Mohammadi, T. Effect of operating parameters on pure and mixed gas permeation properties of a synthesized composite PDMS/PA membrane. J. Membr. Sci.
**2009**, 342, 327–340. [Google Scholar] [CrossRef] - Coleman, M.R. Isomers of Fluorine-Containing Polyimides for Gas Separation Membranes. Ph.D. Thesis, The University of Texas at Austin, Austin, TX, USA, 1992. [Google Scholar]
- Erb, A.J.; Paul, D.R. Gas sorption and transport in polysulfone. J. Membr. Sci.
**1981**, 8, 11–22. [Google Scholar] [CrossRef] - Koros, W.J.; Paul, D.R.; Rocha, A.A. Carbon dioxide sorption and transport in polycarbonate. J. Polym. Sci. Polym. Phys. Ed.
**1976**, 14, 687–702. [Google Scholar] [CrossRef] - Lou, Y.; Hao, P.; Lipscomb, G. NELF predictions of a solubility–solubility selectivity upper bound. J. Membr. Sci.
**2014**, 455, 247–253. [Google Scholar] [CrossRef] - Walker, D.R.B. Synthesis and Characterization of Polypyrrolones for Gas Separation Membranes. Ph.D. Thesis, The University of Texas at Austin, Austin, TX, USA, 1993. [Google Scholar]

**Figure 1.**Chemical structure and 3D representation of the repeat unit of 4,4′-(hexafluoroisopropylidene)diphthalic dianhydride (6FDA)-m-phenylenediamine (mPDA) polyimide.

**Figure 2.**Schematic of the barometric mixed-gas unit used for sorption experiments discussed in this work (adapted from the literature [11]). GC—gas chromatograph.

**Figure 3.**(

**a**) CH

_{4}and (

**b**) CO

_{2}pure-gas sorption isotherms at 35 °C vs. gas fugacity. Blue squares were obtained with 6FDA-mPDA films in our custom-built barometric system. Blue diamonds were obtained with 6FDA-mPDA films via gravimetric sorption. CO

_{2}pure-gas gravimetric sorption was also performed with a 6FDA-mPDA powder sample (blue stars). Sorption isotherms for polydimethylsiloxane (PDMS) [11], polysulfone (PSF) [45], polycarbonate (PC) [42,46], 6FDA-6FpDA polyimide [44], poly [1-trimethylsilyl-1-propyne] (PTMSP) [15], and polymers of intrinsic microporosity (PIM)-1 [20] are also shown. Interpolations were performed via the dual-mode sorption (DMS) model [42]—DMS parameters were determined in-house. PDMS uptakes were interpolated linearly.

**Figure 4.**(

**a**) Experimental CH

_{4}solubility coefficient vs. CH

_{4}fugacity and (

**b**) CO

_{2}solubility coefficient vs. CO

_{2}fugacity of 6FDA-mPDA. The inset graphs report the solubility coefficient behavior of CH

_{4}and CO

_{2}at various equilibrium concentrations—these curves were predicted using the dual-mode sorption model extended to mixtures (DMS-mix) [35] and the pure-gas DMS sorption parameters (Table S1). Note that the feed mixture concentration is the parameter for the experimental data in (

**a**,

**b**), whereas the concentration at equilibrium is the parameter for the DMS-mix predictions (insert graphs); hence, the comparison between experimental data and predictions is qualitative (i.e., the DMS-mix curves guide the reader through the data).

**Figure 5.**(

**a**) CO

_{2}vs. CH

_{4}mixed-gas solubility coefficient of 6FDA-mPDA at 35 °C—solid lines were estimated via linear fitting of experimental data (the dotted curves delimit the confidence intervals of each linear interpolation); (

**b**) data of CO

_{2}/CH

_{4}mixed-gas solubility selectivity vs. CH

_{4}mixed-gas solubility coefficient of 6FDA-mPDA (CO

_{2}/CH

_{4}mixed-gas solubility selectivity vs. CH

_{4}mixed-gas solubility coefficient mixed- (solid line) and pure-gas trends (dashed-line) are also shown for comparison). Mixed-gas solubility coefficient data from previous reports on PDMS [11], PIM-1 [20], TZ-PIM-1 [23], PTMSP [15], and PPO [18] are included in (

**a**,

**b**).

**Figure 6.**CO

_{2}solubility coefficient vs. CO

_{2}/CH

_{4}solubility selectivity (at infinite dilution) data of all polymers tested for CO

_{2}-CH

_{4}mixed-gas sorption at 35 °C [11,15,18,20,22,23,48]. CO

_{2}/CH

_{4}solubility selectivities were obtained from linear interpolation of CO

_{2}mixed-gas solubility coefficient vs. CH

_{4}mixed-gas solubility coefficient data or from pure-gas uptake data via DMS model equations—see the discussion in the Supporting Information and data values in Table S2. CO

_{2}solubility coefficients were estimated from experimental data of pure-gas CO

_{2}uptake. The 2014 CO

_{2}/CH
