Development of Cd (II) Ion Probe Based on Novel Polyaniline-Multiwalled Carbon Nanotube-3-aminopropyltriethoxylsilane Composite

Chemistry Department, Faculty of Science, King Abdulaziz University, Jeddah 21589, Saudi Arabia
Department of Chemistry, Faculty of Science and Humanities, Shaqra University, Dawadmi 11911, Saudi Arabia
Center of Excellence for Advanced Materials Research, King Abdulaziz University, Jeddah 21589, Saudi Arabia
Department of Chemistry, College of Science, University of Jeddah, Jeddah 21589, Saudi Arabia
Applied Sciences and Humanities Section, University Polytechnic, Faculty of Engineering and Technology, Aligarh Muslim University, Aligarh 202002, India
Laboratory of Biocomposite Technology, Institute of Tropical Forestry and Forest Products (INTROP), University Putra Malaysia, UPM, Serdang 43400, Selangor, Malaysia
Authors to whom correspondence should be addressed.
Membranes 2021, 11(11), 853;
Submission received: 13 September 2021 / Revised: 24 October 2021 / Accepted: 28 October 2021 / Published: 4 November 2021
(This article belongs to the Special Issue Ion-Exchange Membranes and Processes (Volume III))


Cadmium belongs to the group of potentially toxic metals that have high health and environmental significance. Due to its adverse effects on the environment, this study develops an effective electrochemical sensor for detecting a polyaniline-multiwalled carbon nanotube-3-aminopropyltriethoxysilane (PANI-MWCNT-APTES) substrate cast on the GCE. The as-prepared PANI-MWCNT-APTES was prepared by a wet chemical method, and its formation was investigated using several techniques. As a result, the prepared material exhibited a limit of detection of 0.015 µM for cadmium ions (Cd2+) in the linear dynamic range of 0.05 µM to 50 µM. Furthermore, the PANI-MWCNT-APTES-modified GCE current response was stable, repeatable, reproducible, and short. In addition, PANI-MWCNT-APTES/GCE was harnessed for the first time for cadmium detection in real water samples, and the result was satisfactory. Therefore, the recorded results suggest that the newly designed PANI-MWCNT-APTES is a promising material for detecting Cd in the near future for human health and environmental protection.

Graphical Abstract

1. Introduction

The world at large has consistently witnessed ever-increasing environmental pollution over the years, especially in the aquatic environment (water bodies), due to growing industrial establishment and operations. The effluents arising from industrial operations contain many toxic chemicals and potentially toxic metals (PTMs), which include metal ions such as cadmium. Cd (II) is highly generated from industrial processes such as textile operation, tanning, aluminum extrusion, agricultural processes, etc. [1,2,3]. The resultant effluents from the aforementioned industrial processes enter oceans and rivers and even percolate into underground aquifers [4]. Through this, Cd2+ interferes with aquatic lives and even affects humans through the oral route [5,6]. The toxicity of Cd2+ lies in its ability to bioaccumulate on living organisms, from trace concentrations to much higher concentrations [5]. At a certain concentration, Cd2+ becomes highly toxic to humans and another living organism in the biota. The permissible limit of Cd2+ in potable water and surface water indicated by the World Health Organization are 3 ng/mL and 5ng/mL, respectively [7,8]. A higher concentration of Cd2+ has been implicated in several health problems including kidney dysfunction, cancer, a blood disorder, and bone pain [9,10,11]. Due to its health significance and threat, there is a need for research on developing a sensitive and effective method of Cd2+ detection and monitoring in the environment, especially in drinking water and oceans. In the past and even till now, several efforts have been expended on developing methods of Cd2+ detection. These methods include atomic absorption spectrophotometry [12], inductively coupled plasma spectrophotometry [13], UV spectrophotometry [14], etc. These methods are sensitive and suitable for Cd2+ detection; however, they suffer setbacks in their high cost of analysis, cumbersomeness in sample preparation and equipment operation, high time consumption, unsuitability for in situ analysis, etc. Therefore, to address this problem, a fast, reliable, and sensitive method is required. An electrochemical method fits this, as it is speedy, reliable, suitable for in situ analysis, and cheap [15,16]. Therefore, the current study employs the electrochemical method for Cd2+ detection in water.
Previously, researchers have explored the detection of Cd2+ using the electrochemical method, but the methods suffer some setbacks such as result instability and high limits of detection. For instance, Hassanpoor et al., in their study, employed MnO2-reduced graphene oxide (rGO) nanocomposite Cd2+ sensing in an aqueous medium. The developed sensor displayed a high sensitivity with a relatively low limit of detection (1.12 µg/L). However, the current response of the developed sensor suffers instability in the presence of likely interferents, especially at high concentrations [17].
Wang et al. reported the detection of cadmium ion in wastewater using a thiacalix [4] arene (TC4A)-modified electrode. The electrochemical detection of Cd2+ was carried out using differential pulse anodic stripping voltammetry (DPASV). They reported a reduction in current responses in the linear dynamic range of 0.1–1 mg/L with a limit of detection of 4µg/L. The developed Cd ion sensor was reported to give good sensitivity and stability in water. However, the linear response of the sensor was deficient [18].
A lot of study is conducting on composite meterials for different applications because of high increase properties after making composite by involving individual initiators quality too [18,19,20,21,22,23,24,25,26,27,28]. Therefore, to improve the current response towards Cd2+ concentration, especially in terms of response stability, we explored a conducting polymer-based composite-coated electrode material. Specifically, the sensing material based on polyaniline-multiwalled carbon nanotube-3-aminopropyltriethoxysilane (PANI-MWCNT-APTES) composite was selected. The choice of this material was based on the excellent properties of the constituent of the composite. For instance, polyaniline is a conducting polymer with excellent properties such as high conductivity due to its delocalized pi-electron, high catalytic property, and high chemical stability [29,30]. In addition, the multiwalled carbon nanotube is a highly conductive and catalytic material, and it has equally good mechanical and chemical stability [31,32]. In addition, compositing MWCNT to PANI provides more active nucleation sites for PANI, excellent electron transfer, and good mechanical stability.
Therefore, compositing these materials is expected to result in a highly conductive, catalytic, and chemically stable material, which would have strong potential to act as electrocatalysts for electro-oxidation or for the reduction of heavy metal ions in an aqueous medium.
As far as we know, this study reports the synthesis of PANI-MWCNT-APTES composites for application as a Cd2+ electrochemical probe for the first-time.

2. Experimentation

2.1. Reagents Used

The reagents utilized for this research includes aniline monomers, multiwalled carbon nanotubes, potassium persulfates, hydrochloric acid, 3-aminopropyltriethoxysilane-98%, an acetate buffer, potassium ferricyanide, and deionized water obtained from Milli-Q plus system. All of the reagents were procured from Sigma Aldrich (St. Louis, MO, USA) USA and were used without any further purification.

2.2. Instrumentation

In this study, several techniques were used for material synthesis, characterization, and application. Among the instruments used are a Fourier Transform infrared spectrometer, FTIR (Perkin Elmer 2000, Waltham, MA, USA), a field emission scanning electron microscope, FESEM (JEOL JSAM 6300, Jeol, Tokyo, Japan), an X-ray diffraction spectrometer, XRD (X-Max Oxford Instruments, Abingdon, UK), an X-ray photoelectron spectrometer, XPS (Thermo Scientific Waltham, MA, USA), a thermogravimetric analyzer, TGA (Mettler Toledo, Greifensee, Switzerland), and an electrochemical work station (Autolab Potentiostat—PGSTAT302N-AUT85887) controlled by Nova 2.0 software. The electrochemical workstation comprises a working electrode (glassy carbon electrode—modified and bare), a reference electrode (Ag/AgCl—in 3M KCl), and a 0.5 mm wide platinum counter electrode. The electrical conductivity measurement was carried out using a four-probe method on press pallets of the PANI@MWCNT-APTESP using the DMV-001 digital multimeter (SES instrumentation, PVT. LTD., Roorkee, India).

2.3. Synthesis of PANI-MWCNT-APTES Composite

Polyaniline was prepared by the conventional chemical oxidation method, where the oxidation of aniline monomer was achieved by potassium persulfate (K2S2O8). At first, a varying concentration of 0.1 M aniline monomer was prepared in 1 M hydrochloric acid to form aniline hydrochloride. Then, the oxidizing agent, 0.1 M K2S2O3, was added gently to a varying volume of 0.1 M aniline (3, 5, and 7 mL dissolved in 100 mL 0.1 M K2S2O8 under vigorous stirring for 2 h at 0–4 °C. The incorporation of MWCNTs into PANI was performed using a mechanical method. Initially, before crosslinking to PANI, MWCNT-APTES was synthesized. Specifically, 200 mg of MWCNTs was dissolved in 50 mL ethanolic solution (65% v/v) and was ultrasonicated for 1 h. Subsequently, 2 mL of the APTES solution was added to the mixture. Finally, the mixture (APTES-MWCNTs) was added to the PANI matrix under vigorous stirring for 1 h to crosslink with PANI. The obtained PANI-MWCNT-APTES was then annealed at 75 °C overnight. The as-prepared PANI-MWCNT-APTES composite was then obtained and used for the remaining studies.

2.4. Fabrication of Electrodes for Sensing Application

The synthesized PANI-MWCNT-APTES composite was applied as the substrate on the surface of GCE for sensing application. Before the sensing application, the unmodified glassy carbon electrode (b-GCE) was thoroughly cleaned under sonication. To remove the materials adhered onto the b-GCE surface, it was electrochemically cleaned by a cyclic voltammetric sweep in 0.25 M H2SO4. The clean b-GCE was then collected, and 1 mg of the composite (PANI-MWCNT-APTES) was cast on it with the aid of 0.1 µL of nafion. The coated PANI-MWCNT-APTES-modified GCE was then put in the oven to dry at 50 °C for 30 min. The as-prepared PANI-MWCNT-APTES-GCE was then kept and used for further experiment.

2.5. Electrochemical Studies

The electrochemical studies of interest to this work include impedance spectroscopy, cyclic voltammetry, and linear sweep voltammetry. The frequency was set from 0.1 Hz to 100 kHz at 0.005 V amplitude and +0.2 V DC potential for the impedance spectroscopy. Cyclic voltammetry was used for electrochemical characterization using a potential window of −1 V to 1.2 V, a scan rate of 50 mV/s, and a step potential of 0.008 V. The LSV was performed using a potential window of −1 V to 1 V, a scan rate of 75 mV/s, and a modulation time of 0.024 s.
For the electrical conductivity measurement, 200 mg of the as-prepared PANI-MWCNT-APTES was finely ground to make pellets made with the aid of a hydraulic pressure machine operated at a pressure of 5 KN imposed for 20 min. A screw gauge determined the thickness of the pellets. The pellets made were subsequently used for electrical conductivity measurement at room temperature using the four-probe method.

2.6. Real Sample Analysis

In order to evaluate the efficacy of the developed probe for Cd2+ detection, real samples are collected and used for real-life Cd2+ determination. Seawater (obtained from Red Sea Jeddah, KSA) and underground water were used as real environmental samples. All of the samples were collected according to standard procedures and stored at 5 °C. In order to remove the matrix effect, a 50-fold dilution with acetate buffer was performed on the water samples. After that, a prepared standard solution of Cd2+ was spiked into the mixture, and the spiked concentration percentage recovery was determined.

3. Results and Discussions

3.1. PANI-MWCNT-APTES Composite’s Morphological Investigation

The morphological property of the as-prepared PANI-MWCNT-APTES composite was studied through scanning electron microscopy (SEM). The obtained SEM images are given in Figure 1.
From the FESEM image observation, the PANI synthesized is a semi-amorphous porous layer. The incorporation of APTES into the PANI porous layers could be observed in Figure 1b. It could be suggested that APTES, in this case, acts as a filler to the PANI matrix. Further doping with a multiwalled carbon nanotube is evident in Figure 1c,d, where the nanorod of multiwalled carbon nanotube reinforced the PANI-APTES composite. Thus, the obtained images from the FESEM analysis are suggestive of a composite material.

3.2. Elemental Study and Structural Investigation of PANI-MWCNT-APTES

The elemental composition of the synthesized composite was investigated using energy-dispersive X-ray spectroscopy (XEDS). The obtained result is displayed in Figure 2a. The result indicates that the elements predominately present in the as-prepared samples were carbon, nitrogen, oxygen, and silicon, which is consistent with the actual constituent of PANI-MWCNT-APTES.
The structural property of the synthesized PANI-MWCNT-APTES was assessed by X-ray diffraction spectroscopy. The obtained XRD spectrum is given in Figure 2b. The diffraction peaks were recorded in the range of 10° to 80°. The obtained prominent peaks at 14.5°, 20.2°, and 25° are peculiar to PANI, and the peaks are inconsistency with the (011), (020), and (200) planes [33,34]. The incorporation of MWCNT in the PANI matrix can be seen at a diffraction angle of 25.2°, inconsistent with the (002) phase [35]. The peak at 20° is peculiar to PANI, and the angle diffraction peak at 24° could be related to the silica group attached to the composite [36]. The obtained XRD spectrum revealed the non-crystallinity of the synthesized PANI-MWCNT-APTES.

3.3. Functionalities Investigation Using Infrared Spectroscopy (FTIR)

FTIR was conducted for the identification of the functionality in the as-prepared composite. The FTIR spectrum obtained was in the wavenumber range of 500 cm−1 to 4000 cm1, as given in Figure 2c. The observed peaks at 2927 cm−1 and 2854 cm−1 are attributable to the methyl–CH3 and –CH2 groups associated with PANI and MWCNT [37]. The peak at 1721 cm−1 is linked to the C–N stretch in PANI. The N–H stretch in the PANI ring and APTES gives rise to the strong absorption peak observed at 3441 cm−1 [38,39]. The C–N vibration that could arise due to crosslinking between APTES/PANI and MWCNT might not be unconnected to the peak observed at 1650 cm−1. In addition, the C=C in the conjugated PANI ring (benzenoid) could be linked to the peak at 1384 cm−1. The incorporation of APTES into PANI-MWCNT is confirmed by the peaks observed at 1100 cm−1 to 1070 cm−1, which is peculiar to the Si–O–Si and Si–O–C stretching vibration, respectively [40]. Therefore, the obtained FTIR results are suggestive of successful synthesis of PANI-MWCNT-APTES.

3.4. Thermogravimetry Analysis (TGA)

TGA is an important technique used to establish the stability of materials. The result of the TGA analysis is presented in Figure 2d. It could be observed that a weight loss of about 60% is recorded after 800 seconds. The material displayed good stability at an even higher temperature, which might be traced to the effect of MWCNT crosslinking the polymeric composite [41,42]. The differential thermal analysis (DTA) curve revealed three major endothermic reaction stages, namely at 103°, 280°, and 520 °C. The obtained result suggests an endothermic reaction.

3.5. Binding Energy

The binding energy of the constituent elements in the as-prepared polymeric composite is presented in Figure 3. The binding energy is obtained through XPS. Similar to XEDS, the obtained results confirm the presence of carbon, nitrogen, oxygen, and silica. The absence of other peaks indicates the successful completion of the chapter. The full XPS spectrum is illustrated in Figure 3a. The deconvolution of peaks was carried out to reveal a different chemical state of the individual constituent’s element present in the sample. The C 1s peak is deconvoluted into two peaks, namely at 284.7 eV and 285.5 eV (Figure 3c). The binding energy of C 1s gives a peak at PANI. The other peaks at 284.5, 285.8, 288.78, and 290.58 eV could be linked to C–C, C–O, C–H and –COOH, and π–π* [43].
The peak at around 530 eV is attributable to the oxygen peak. It was deconvoluted into two peaks, 531 eV and 533.2 eV belonging to C-O bond of carboxylic acid in MWCNT and Si-O of triethoxylsilane constituent (Figure 3e). Finally, the peak observed at 100 eV revealed peaks at 102 and 103 eV attributable to Silica. (Si-O) of the triethoxylsilane (Figure 3b) [44]. Nitrogen also exhibits two peaks when deconvoluted, giving rise at 402 eV and 416 eV (Figure 3d). This peak, as indicated earlier, could be linked to N-H strong stretch of PANI and C-N of PANI/MWCNT [26].

3.6. Electrical Conductivity of The PANI-MWCNT-APTES

The PANI-MWCNT/APTES nanocomposite pellet’s electrical resistivity was calculated by a sample conductivity test using the four-probe process. The electrical conductivity was determined using the following equations described in Supplementary S1 [45].
At room temperatures, the electrical conductivity variation (σ) of the as-prepared PANI-MWCNT/APTES nanocomposite (3%, 5%, and 7% PANI concentration constituents) is presented in Figure 4a and Supplementary Table S1. The critical concentration of PANI in PANI@MWCNT/APTES for the highest conductivity was found (7%), as shown in (Figure 4a). Therefore, the composite using higher PANI contents has lower electrical resistivity at 1.63 Ω cm and higher conductivity, calculated by the formula described in Supplementary S1.

3.7. Electrochemical Behavior Investigation

The EIS and CV behavior in potassium ferricyanide couples was studied, as was the electrochemical behavior of the as-prepared material (PANI-MWCNT-APTES). The result of the EIS study is given in Figure 4b. The EIS was obtained from the plot of imaginary impedance and against the real impedance. The plot of these two is expressed as the Nyquist plot. The semi-circle of the Nyquist plot refers to the charge transfer resistance (Rct), a function of the conductivity/resistivity. The smaller the Rct, the better the mobility of the charge/ion in the electrolyte [44,46]. For this study, the obtained Rct for PANI-MWCNT-APTES is 131 Ω, while that of the bare electrode was 271 Ω (Supplementary Figures S1 and S2). Therefore, the value obtained for PANI-MWCNT-APTES-modified GCE is smaller than that for the bare one and therefore has less resistance.
In addition, the cyclic voltametric response in the 1 mM Fe (CN)63−/4− solution is given in Figure 4c. The PANI-MWCNT-APTES-GCE displayed a higher oxidation (1 mA) with a smaller peak-to-peak potential (395 mV). These phenomena indicate a faster electrochemical reaction on the PANI-MWCNT-APTES surface compared with bare GCE.

3.8. Electrochemical Sensing of Cd2+

The response of the fabricated material (PANI-MWCNT-APTES) coated on glassy carbon electrode towards a Cd2+ ion was examined using electrochemical techniques: cyclic voltammetry and linear sweep voltammetry.

3.8.1. Control Study

To start with, a controlled study was conducted to confirm that the recorded current response was due to the effect of PANI-MWCNT-APTES. The obtained result for the control experiment is presented in Figure 5a. It could be observed that, in the absence of PANI-MWCNT-APTES on the GCE, this was a tiny reduction in the current at a higher voltage, at −0.64 V. However, PANI-MWCNT-APTES-modified GCE displayed a sharp higher reduction peak at the reduced potential (−0.7 V). Moreover, the individual effect of the constituent PANI-MWCNT-APTES composite was investigated. As a result, PANI-only-modified GCE gave less reduction in the current at -0.7 V than PANI-MWNT-APTES. This indicates that the composition of PANI with MWCNT-APTES drastically improved the catalytic performance of PANI, thereby leading to its effectiveness in catalyzing the reduction of Cd2+ to zerovalent Cd.

3.8.2. PH Optimization

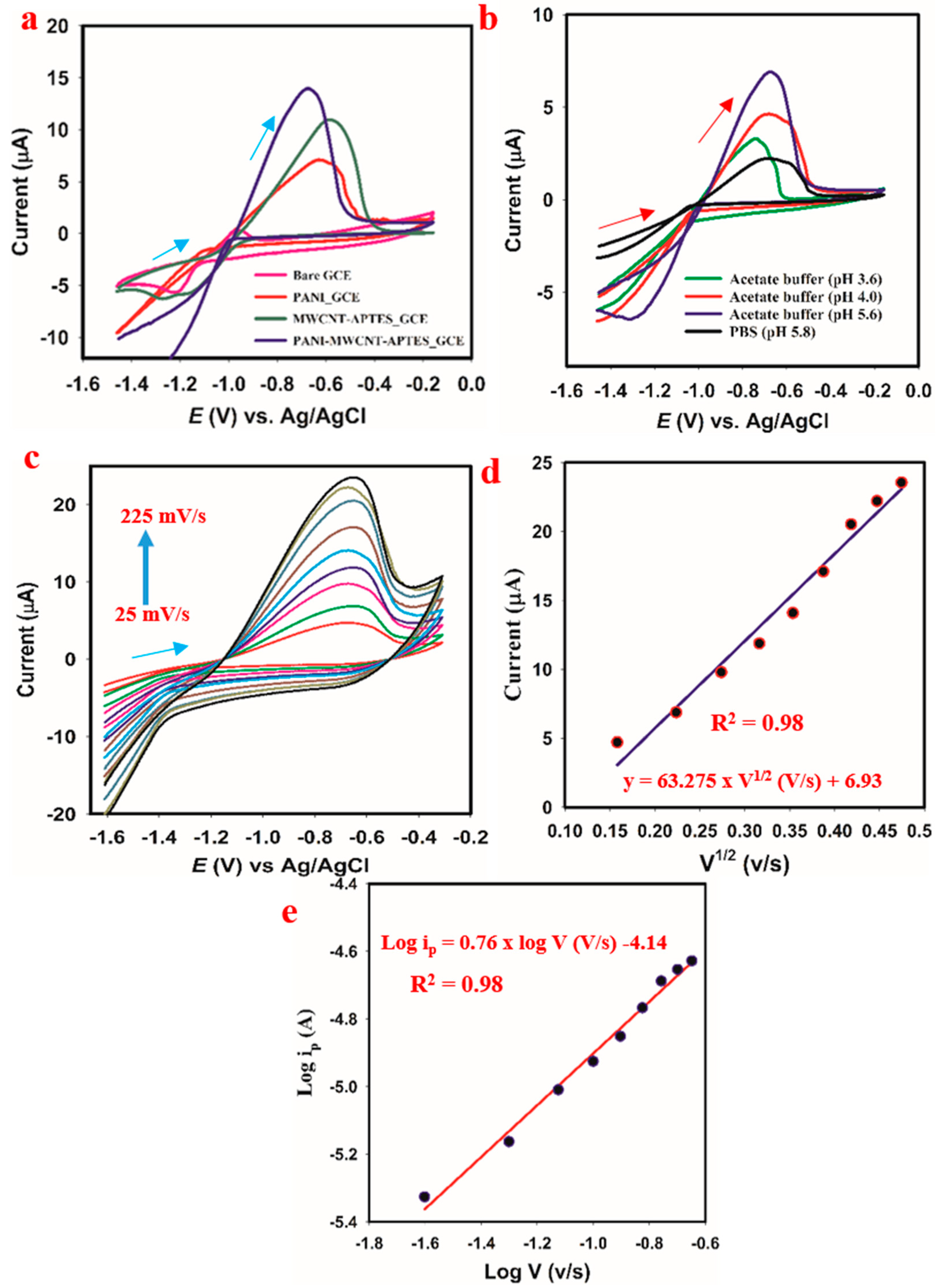

To start with, the effect of pH on the reduction in the current response exhibited by PANI-MWCNT-APTES towards Cd2+ ions was studied. The obtained result is presented in Figure 5b. The optimal result (highest reduction in the current) was obtained at pH 5.6 (HAc–NaoAc buffer), while the smallest current response was observed in the acidic phosphate buffer (pH 5.8). This study was conducted in an acidic medium because, in the alkaline medium, cadmium was precipitated with a clear visible white precipitate. This resulted in low or no reduction in the current (Figure not shown). The reason for the low reduction in the current could be associated with possible electrode surface fouling. Moreover, the solubility of metal ions decreases with an increase in pH medium, which could be why, at the essential medium, the concentration of Cd2+ reduced [47]. Therefore, the optimal pH was 5.6, and this was maintained for the remaining experiment.
In addition, the scan rate effect on the reduction in current response of PANI-MWCNT-APTES was also studied. The purpose of the scan rate study was to determine whether the electrochemical reduction of Cd2+ ion on the GCE substrate is a diffusion control or adsorption-controlled. Usually, a linear dependence of the current on the scan rate plus having the slope of the current against the scan rate in the range of 0–0.5 are indications of diffusion-controlled reactions. For this study, the current response increased with an increase in the scan rate with a correlation of 0.98 Equation (1). The correlation value (0.98) might suggest a non-linear relationship, and this would result in an adsorption-controlled reaction.
ip (µA) = 63.275 × ʋ1/2 + 6.9337 (R2 = 0.98)
As given in [48,49], the slope of the logarithm of reduction in the current plot against the logarithm of the scan rate that fell below 0.5 indicates a diffusion-controlled reaction. In contrast, the one close to 1 indicates an adsorption-controlled process. Thus, for this study, the slope obtained for the plot of the current reduction logarithm against the scan rate logarithm is 0.765 (Equation (2)).
Log ipc (A) = 0.765 × log v (V/s) − 4.13.
This indicates that the reduction process of Cd2+ ion on the PANI-MWCNT-APTES-modified GCE was proceeded by the adsorption-controlled process.

3.8.3. Effect of Increase in Cd2+ Concentration on the Current Response

The effect of varying concentrations of Cd2+ ion was investigated using linear sweep voltammetry. Linear sweep voltammetry was employed for this study because it is very accurate and is best suited for irreversible reactions [50,51]. This technique is based on the mechanism of measurement of the current given when the potential between the working electrode and the reference electrode varied linearly with time. The mechanism of Cd2+ detection is through the reduction and deposition of zerovalent Cd on the surface PANI-MWCNT-APTES-modified GCE. This type of reaction is irreversible, as presented in Equation (3).

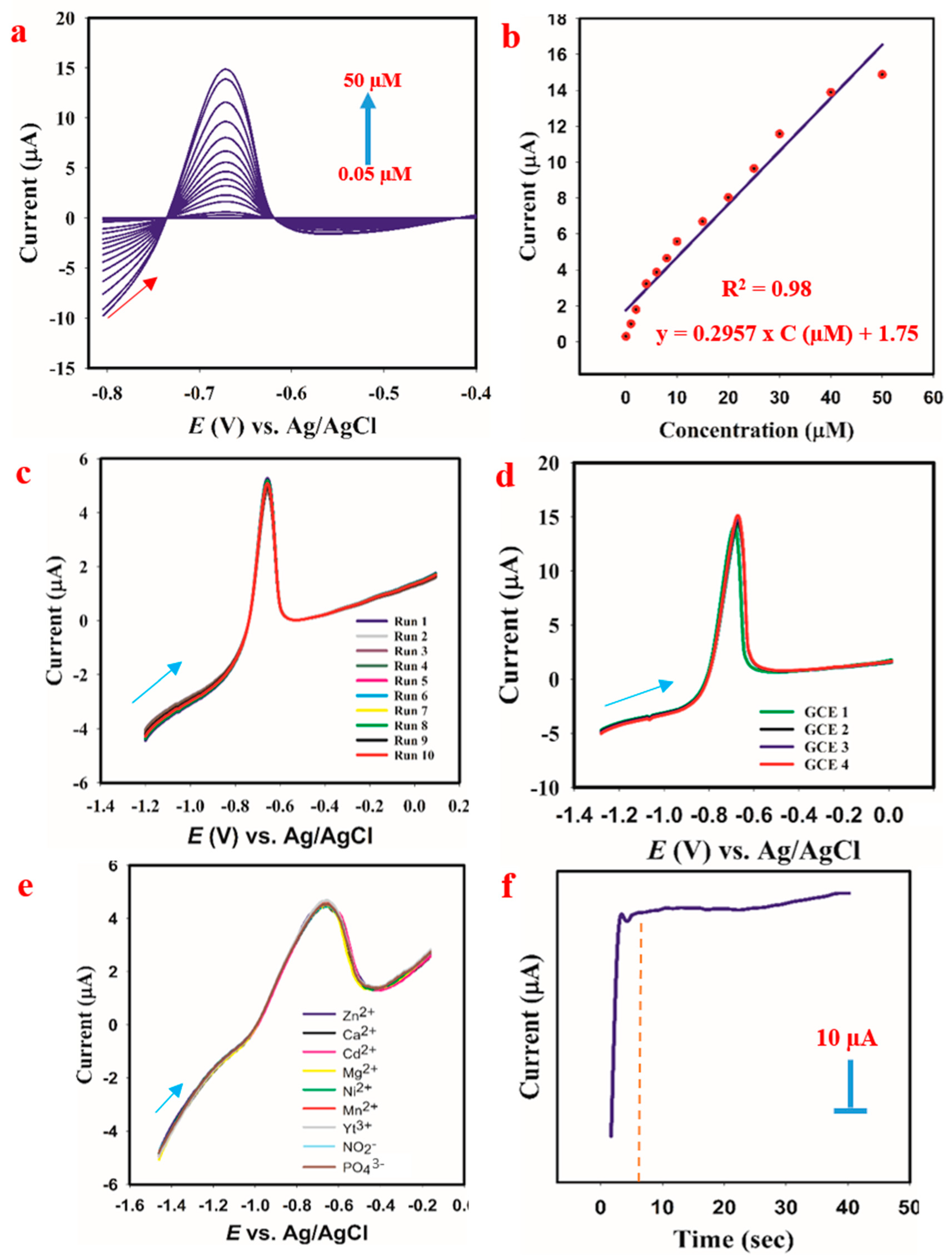

The obtained linear sweep voltammogram is given in Figure 6a. The result indicates a linear increase in the current reduction response with an increase in the Cd2+ ion concentration. This reduction in current indicates the reduction of Cd2+ to zerovalent Cd, as suggested in Equation (3).
C d 2 + + 2 e   C d
The slope of the calibration showed a linear relationship between the two parameters (concentration and current) with a correlation of 0.98%.

3.8.4. Evaluation of Sensor’s Performance

The developed method of Cd2+ ion detection based on linear sweep voltammetry was assessed on some analytical performance parameters such as detection limit (LOD), the limit of quantification (LOQ), sensor’s sensitivity, linear dynamic range (LDR), full dynamic range (FDR), and response time.
The LOD was calculated using the following formula (Supplementary S2):
LOD = [3 × Sd of the blank]/[slope of the calibration plot]
The obtained value was 0.0155 µM, as shown in Supplementary S2.
The LOQ was calculated using the following formula:
LOQ = 10 × [standard deviation of the blank]/[slope of the calibration plot]
The obtained value was 0.0517 µM, as shown in Supplementary S2.
The LDR indicates the range at which there is linear dependence of the current on the concentration. This ranged from 0.05 µM to 50 µM. However, the FDR indicates the full concentration range at which current response to the change in concentration was noticed. For this study, this ranged from 0 to 50 µM.
The sensitivity of PANI-MWNT-APTES-modified GCE to Cd2+ ions was obtained using the following formula:
Sensitivity = slope of the calibration/surface area of the GCE
The obtained value was 4.237 µA µM−1 cm−2, as shown by Supplementary S2.
Response time is a significant parameter in sensing applications because it indicates the time frame for the electrochemical process. Usually, a sensor with a fast response time is desirable for in situ analysis [52]. For this study, the response time recorded was 9 s (Figure 6f).
The stability of the current response of PANI-MWCNT-APTES was investigated by repetitive measurement techniques (repeatability and reproducibility). While repeatability indicates the accuracy of a method, reproducibility shows the precision of the sensor’s performance. For this study, ten consecutive measurements at the same experimental condition were conducted, and the obtained result is given in Figure 6c. The RSD of the mean value was 0.7%. For reproducibility, four different electrodes were modified with PANI-MWCNT-APTES, and their current response taken at different times was taken (Figure 6d). The RSD of the current responses of the four electrodes was 2.8%.

3.8.5. Interferents’ Effect on the Current Response

Usually, metal ions with similar charges tend to interfere with the redox reaction of each other. For instance, Cd2+ has two positive charges (2+) and is prone to interferents from metal ions with similar charges. Therefore, likely interfering ions mostly considered for this study are Mg2+, Mn2+, Ni2+, Ca2+, Zn2+, Yt3+, NO2, and PO43−. The obtained result is given in Figure 6e. It could be observed that, upon spiking of these likely interferents, the reduction current of Cd2+ ions was reduced slightly. However, the relative standard deviation (RSD) of the mean value of Cd2+ ions is less than 5%. Therefore, the response of PANI-MWCNT-APTES is stable in the matrix containing likely interferents.

3.8.6. Real Sample Analysis

As indicated in Section 2.6, the real samples used for this study are underground water and seawater. The percentage recovery method used for this study is described in the Supporting Electronic Information (Supplementary S3). The obtained result is given in Table 1.
The percentage recovery for the spiked Cd2+ ranged from 103.6% to 129.9%. Thus, the obtained result is satisfactory and suitable for use in real water samples.

3.8.7. Comparison with Literature

Table 2 presents previous studies on the detection of Cd2+ using different methods. Compared with the earlier reported method, the current study compares very well with the literature and even outperformed many. Significant progress on Cd2+ ion assays is the stability of PANI-MWCNT-APTES-modified GCE towards the Cd2+ reduction process. The typical setback in metal ion detection is electrode fouling, which makes the substrate (coated material) on the GCE have an unstable current response. However, it is suggested that crosslinking of MWCNT to the PANI-APTES matrix could have contributed to the anti-fouling nature of the PANI-MWCNT-APTES substrate.

4. Conclusions

The current study focused on detecting Cd2+ ions in water using a newly synthesized composite based on PANI-MWCNT-APTES. The composite was synthesized by the wet chemical method, and its successful synthesis, including XRD, XPS, FESEM, TGA-DTA, FTIR, and CV. The synthesized PANI-MWCNT-APTES was applied for electrochemical sensing of Cd using linear sweep voltammetry. The sensor gave a linear response to Cd2+ ions in the range of 0.05 µM to 50 µM with a limit of detection of 15.5 nM. It also displayed high sensitivity and stability. In addition, the developed sensor based on a PANI-MWCNT-APTES composite exhibited fast response time, and its current responses were not affected by likely interferents. It was also used satisfactorily for Cd2+ ion determination in real water samples. Therefore, this study provides a cheap and effective method of Cd2+ ion detection in the environment for human health safety and environmental pollution prevention.

Supplementary Materials

The following are available online at, Figure S1:EIS spectrum for PANI-MWCNT-APTES; Figure S2: EIS spectrum for bare GCE, Table S1 The results of electrical conductivity measurement.

Author Contributions

Conceptualization, R.S.A. and W.A.A.; methodology, R.S.A.; software, W.A.A. and I.K.; validation, R.S.A., W.A.A. and A.K.; formal analysis, R.S.A.; investigation, R.S.A.; resources, A.K. and H.M.M.; data curation, A.E.A.; writing—original draft preparation, R.S.A.; writing—review and editing, A.K. and A.M.A.; visualization, M.J.; supervision, H.M.M.; project administration, A.K.; funding acquisition, H.M.M. All authors have read and agreed to the published version of the manuscript.


This project was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah Saudi Arabia, under grant number (KEP-Phd-1-130-42).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.


This project was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah Saudi Arabia, under grant number (KEP-Phd-1-130-42). The authors, therefore, acknowledge DSR with thanks for the technical and financial support. The authors of this study thank the Center of Excellence for Advanced Materials Research (CEAMR), KAU, for the equipment support.

Conflicts of Interest

There are no known conflicts in this study.


  1. Verma, R.; Gupta, B.D. Detection of heavy metal ions in contaminated water by surface plasmon resonance based optical fibre sensor using conducting polymer and chitosan. Food Chem. 2015, 166, 568–575. [Google Scholar] [CrossRef]
  2. Nordberg, G.F. Cadmium and health in the 21st Century – historical remarks and trends for the future. BioMetals 2004, 17, 485–489. [Google Scholar] [CrossRef]
  3. Alizadeh, T.; Ganjali, M.R.; Nourozi, P.; Zare, M.; Hoseini, M. A carbon paste electrode impregnated with Cd2+ imprinted polymer as a new and high selective electrochemical sensor for determination of ultra-trace Cd2+ in water samples. J. Electroanal. Chem. 2011, 657, 98–106. [Google Scholar] [CrossRef]
  4. Oyeyiola, A.O.; Adeosun, W.; Fabunmi, I.A. Use of Agricultural Wastes for the Immobilization of Metals in Polluted Soils in Lagos State, Nigeria. J. Health Pollut. 2017, 7, 56–64. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Malik, N.; Biswas, A.K.; Qureshi, T.A.; Borana, K.; Virha, R. Bioaccumulation of heavy metals in fish tissues of a freshwater lake of Bhopal. Environ. Monit. Assess. 2010, 160, 267–276. [Google Scholar] [CrossRef] [PubMed]
  6. CHI, Q.; ZHU, G.; Langdon, A. Bioaccumulation of heavy metals in fishes from Taihu Lake, China. J. Environ. Sci. 2007, 19, 1500–1504. [Google Scholar] [CrossRef]
  7. Zhao, X.; Höll, W.H.; Yun, G. Elimination of cadmium trace contaminations from drinking water. Water Res. 2002, 36, 851–858. [Google Scholar] [CrossRef]
  8. WHO Guidelines for Drinking-Water Quality Recommendations, 3rd ed.; WHO: Geneva, Switzerland, 2006.
  9. Bhardiya, S.R.; Asati, A.; Sheshma, H.; Rai, A.; Rai, V.K.; Singh, M. A novel bioconjugated reduced graphene oxide-based nanocomposite for sensitive electrochemical detection of cadmium in water. Sens. Actuators B Chem. 2021, 328, 129019. [Google Scholar] [CrossRef]
  10. Gawin, M.; Konefał, J.; Trzewik, B.; Walas, S.; Tobiasz, A.; Mrowiec, H.; Witek, E. Preparation of a new Cd(II)-imprinted polymer and its application to determination of cadmium(II) via flow-injection-flame atomic absorption spectrometry. Talanta 2010, 80, 1305–1310. [Google Scholar] [CrossRef]
  11. Sahmoun, A.E.; Case, L.D.; Jackson, S.A.; Schwartz, G.G. Cadmium and Prostate Cancer: A Critical Epidemiologic Analysis. Cancer Investig. 2005, 23, 256–263. [Google Scholar] [CrossRef]
  12. Golbedaghi, R.; Jafari, S.; Yaftian, M.R.; Azadbakht, R.; Salehzadeh, S.; Jaleh, B. Determination of cadmium(II) ion by atomic absorption spectrometry after cloud point extraction. J. Iran. Chem. Soc. 2012, 9, 251–256. [Google Scholar] [CrossRef] [Green Version]
  13. Lambkin, D.; Alloway, B. The problem of arsenic interference in the analysis of soils for cadmium by inductively coupled plasma-optical emission spectrometry. Sci. Total Environ. 2000, 256, 77–81. [Google Scholar] [CrossRef]
  14. Fang, Y.; Cui, B.; Huang, J.; Wang, L. Ultrasensitive electrochemical sensor for simultaneous determination of cadmium and lead ions based on one-step co-electropolymerization strategy. Sens. Actuators B Chem. 2019, 284, 414–420. [Google Scholar] [CrossRef]
  15. Sacara, A.-M.; Pitzalis, F.; Salis, A.; Turdean, G.L.; Muresan, L.M. Glassy carbon electrodes modified with ordered mesoporous silica for the electrochemical detection of cadmium ions. ACS Omega 2009, 4, 1410–1415. [Google Scholar] [CrossRef]
  16. Kokkinos, C.; Economou, A.; Raptis, I.; Efstathiou, C.E. Lithographically fabricated disposable bismuth-film electrodes for the trace determination of Pb(II) and Cd(II) by anodic stripping voltammetry. Electrochim. Acta 2008, 53, 5294–5299. [Google Scholar] [CrossRef]
  17. Hassanpoor, S.; Rouhi, N. Electrochemical sensor for determination of trace amounts of cadmium (II) in environmental water samples based on MnO 2/RGO nanocomposite. Int. J. Environ. Anal. Chem. 2021, 101, 513–532. [Google Scholar] [CrossRef]
  18. Wu, W.; Jia, M.; Wang, Z.; Zhang, W.; Zhang, Q.; Liu, G.; Zhang, Z.; Li, P. Simultaneous voltammetric determination of cadmium(II), lead(II), mercury(II), zinc(II), and copper(II) using a glassy carbon electrode modified with magnetite (Fe3O4) nanoparticles and fluorinated multiwalled carbon nanotubes. Microchim. Acta 2019, 186, 97. [Google Scholar] [CrossRef] [PubMed]
  19. KHAN, A.; KHAN, A. Electrical conductivity and cation exchange kinetic studies on poly-o-toluidine Th(IV) phosphate nano-composite cation exchange material. Talanta 2007, 73, 850–856. [Google Scholar] [CrossRef]
  20. ul Haque, S.; Inamuddin; Nasar, A.; Rajender, B.; Khan, A.; Asiri, A.M.; Ashraf, G.M. Optimization of Glucose Powered Biofuel Cell Anode Developed by Polyaniline-Silver as Electron Transfer Enhancer and Ferritin as Biocompatible Redox Mediator. Sci. Rep. 2017, 7, 12703. [Google Scholar] [CrossRef] [Green Version]
  21. Khan, A.; Khan, A.A.P.; Rahman, M.M.; Asiri, A.M. High performance polyaniline/vanadyl phosphate (PANI–VOPO4) nano composite sheets prepared by exfoliation/intercalation method for sensing applications. Eur. Polym. J. 2016, 75, 388–398. [Google Scholar] [CrossRef]
  22. Khan, A.; Khan, A.A.P.; Asiri, A.M.; Rahman, M.M.; Alhogbi, B.G. Preparation and properties of novel sol-gel-derived quaternized poly(n-methyl pyrrole)/Sn(II)SiO3/CNT composites. J. Solid State Electrochem. 2015, 19, 1479–1489. [Google Scholar] [CrossRef]
  23. Baldoví, H.G.; Neaţu, Ş.; Khan, A.; Asiri, A.M.; Kosa, S.A.; Garcia, H. Understanding the Origin of the Photocatalytic CO2 Reduction by Au- and Cu-Loaded TiO2: A Microsecond Transient Absorption Spectroscopy Study. J. Phys. Chem. C 2015, 119, 6819–6827. [Google Scholar] [CrossRef]
  24. Khan, A.; Asiri, A.M.; Khan, A.A.P.; Rub, M.A.; Azum, N.; Rahman, M.M.; Al-Youbi, A.O.; Qusti, A.H. Dual nature, self oxidized poly(o-anisidine) functionalized multiwall carbon nanotubes composite: Preparation, thermal and electrical studies. Compos. Part B Eng. 2014, 58, 451–456. [Google Scholar] [CrossRef]
  25. Rahman, M.M.; Khan, S.B.; Marwani, H.M.; Asiri, A.M.; Alamry, K.A.; Rub, M.A.; Khan, A.; Khan, A.A.P.; Azum, N. Facile synthesis of doped ZnO-CdO nanoblocks as solid-phase adsorbent and efficient solar photo-catalyst applications. J. Ind. Eng. Chem. 2014, 20, 2278–2286. [Google Scholar] [CrossRef]
  26. Khan, A.; Khan, A.A.P.; Rahman, M.M.; Asiri, A.M.; Inamuddin; Alamry, K.A.; Hameed, S.A. Preparation and characterization of PANI@G/CWO nanocomposite for enhanced 2-nitrophenol sensing. Appl. Surf. Sci. 2018, 433, 696–704. [Google Scholar] [CrossRef]
  27. Narayanasamy, P.; Balasundar, P.; Senthil, S.; Sanjay, M.R.; Siengchin, S.; Khan, A.; Asiri, A.M. Characterization of a novel natural cellulosic fiber from Calotropis gigantea fruit bunch for ecofriendly polymer composites. Int. J. Biol. Macromol. 2020, 150, 793–801. [Google Scholar] [CrossRef]
  28. Khan, A.; Asiri, A.M.; Kosa, S.A.; Garcia, H.; Grirrane, A. Catalytic stereoselective addition to alkynes. Borylation or silylation promoted by magnesia-supported iron oxide and cis-diboronation or silaboration by supported platinum nanoparticles. J. Catal. 2015, 329, 401–412. [Google Scholar] [CrossRef]
  29. Ramaprasad, A.T.; Rao, V.; Sanjeev, G.; Ramanani, S.P.; Sabharwal, S. Grafting of polyaniline onto the radiation crosslinked chitosan. Synth. Met. 2009, 159, 1983–1990. [Google Scholar] [CrossRef]
  30. Saini, P. Fundamentals of Conjugated Polymer Blends, Copolymers and Composites: Synthesis, Properties, and Applications; Wiley-Scrivener: Hoboken, NJ, USA, 2015. [Google Scholar]
  31. Rohani, T.; Taher, M.A. Novel functionalized multiwalled carbon nanotube-glassy carbon electrode for simultaneous determination of ascorbic acid and uric acid. Arab. J. Chem. 2018, 11, 214–220. [Google Scholar] [CrossRef] [Green Version]
  32. Dhibar, S.; Bhattacharya, P.; Hatui, G.; Das, C.K. Transition metal doped poly(aniline-co-pyrrole)/multi-walled carbon nanotubes nanocomposite for high performance supercapacitor electrode materials. J. Alloys Compd. 2015, 625, 64–75. [Google Scholar] [CrossRef]
  33. He, W.; Wang, F.; Jia, D.; Li, Y.; Liang, L.; Zhang, J.; Hao, Q.; Liu, C.; Liu, H.; Zhao, J. Al-doped nickel sulfide nanosheet arrays as highly efficient bifunctional electrocatalysts for overall water splitting. Nanoscale 2020, 12, 24244–24250. [Google Scholar] [CrossRef]
  34. Zhang, D.; Wu, Z.; Li, P.; Zong, X.; Dong, G.; Zhang, Y. Facile fabrication of polyaniline/multi-walled carbon nanotubes/molybdenum disulfide ternary nanocomposite and its high-performance ammonia-sensing at room temperature. Sens. Actuators B Chem. 2018, 258, 895–905. [Google Scholar] [CrossRef]
  35. Ahmed, D.S.; Haider, A.J.; Mohammad, M.R. Comparesion of Functionalization of Multi-Walled Carbon Nanotubes Treated by Oil Olive and Nitric Acid and their Characterization. Energy Procedia 2013, 36, 1111–1118. [Google Scholar] [CrossRef] [Green Version]
  36. Zhou, Y.; Liu, J.; Huang, R.; Zhang, M.; Xiao, M.; Meng, Y.; Sun, L. Covalently immobilized ionic liquids on single layer nanosheets for heterogeneous catalysis applications. Dalt. Trans. 2017, 46, 13126–13134. [Google Scholar] [CrossRef] [PubMed]
  37. Peng, B.; Takai, C.; Razavi-khosroshahi, H.; Fuji, M. Effect of silane modification on CNTs/silica composites fabricated by a non-firing process to enhance interfacial property and dispersibility. Adv. Powder Technol. 2018, 29, 2091–2096. [Google Scholar] [CrossRef]
  38. Yang, X.; He, Y.; Zeng, G.; Chen, X.; Shi, H.; Qing, D.; Li, F.; Chen, Q. Bio-inspired method for preparation of multiwall carbon nanotubes decorated superhydrophilic poly (vinylidene fluoride) membrane for oil/water emulsion separation. Chem. Eng. J. 2007, 321. [Google Scholar] [CrossRef]
  39. Dhand, C.; Arya, S.K.; Datta, M.; Malhotra, B.D. Polyaniline–carbon nanotube composite film for cholesterol biosensor. Anal. Biochem. 2008, 383, 194–199. [Google Scholar] [CrossRef]
  40. Sonawane, S.; Thakur, P.; Paul, R. Study on thermal property enhancement of MWCNT based polypropylene (PP) nanocomposites. Mater. Today Proc. 2020, 27, 550–555. [Google Scholar] [CrossRef]
  41. Zhou, T.Y.; Tsui, G.C.P.; Liang, J.Z.; Zou, S.Y.; Tang, C.Y.; Mišković-Stanković, V. Thermal properties and thermal stability of PP/MWCNT composites. Compos. Part B Eng. 2016, 90, 107–114. [Google Scholar] [CrossRef]
  42. Ma, L.; Luo, P.; He, Y.; Zhang, L.; Fan, Y.; Jiang, Z. Improving the stability of multi-walled carbon nano-tubes in extremely environments: Applications as nano-plugging additives in drilling fluids. J. Nat. Gas Sci. Eng. 2020, 74, 103082. [Google Scholar] [CrossRef]
  43. Kundu, S.; Wang, Y.; Xia, W.; Muhler, M. Thermal Stability and Reducibility of Oxygen-Containing Functional Groups on Multiwalled Carbon Nanotube Surfaces: A Quantitative High-Resolution XPS and TPD/TPR Study. J. Phys. Chem. C 2008, 112, 16869–16878. [Google Scholar] [CrossRef]
  44. Asiri, A.M.; Adeosun, W.A.; Marwani, H.M.; Rahman, M.M. Homopolymerization of 3-aminobenzoic acid for enzyme-free electrocatalytic assay of nitrite ions. New J. Chem. 2020, 44, 2022–2032. [Google Scholar] [CrossRef]
  45. Manual, Scientific Equipment and Services; Thermo Fisher Scientific: Roorkee, India, 2000.
  46. Rahman, M.M.; Adeosun, W.A.; Asiri, A.M. Fabrication of selective and sensitive chemical sensor development based on flower-flake La2ZnO4 nanocomposite for effective non-enzymatic sensing of hydrogen peroxide by electrochemical method. Microchem. J. 2020, 159, 105536. [Google Scholar] [CrossRef]
  47. Apak, R.; Hizal, J.; Ustaer, C. Correlation between the Limiting pH of Metal Ion Solubility and Total Metal Concentration. J. Colloid Interface Sci. 1999, 211, 185–192. [Google Scholar] [CrossRef]
  48. Goseer, D.K. Cyclic Voltametry-Simulation and Analysis of Reaction; VCH: New York, NY, USA, 1993; ISBN 3-527-28226-2. [Google Scholar]
  49. Wu, J. Electrochemical Behavior and Direct Quantitative Determination of Tanshinone IIA in Micro-emulsion. Int. J. Electrochem. Sci. 2016, 5165–5179. [Google Scholar] [CrossRef]
  50. Bard, A.J.; Faulkner, L. Electrochemical Methods: Fundamentals and Applications; Wiley: New York, NY, USA, 2001. [Google Scholar]
  51. Skoog, D.A.; West, D.M.; Holler, F.J.; Crouch, S.R. Fundamentals of Analytical Chemistry; Cengage Learning: Boston, MA, USA, 2013. [Google Scholar]
  52. Adeosun, W.A.; Asiri, A.M.; Marwani, H.M. Sensitive determination of 2-nitrophenol using electrochemically deposited polymethyl red film for healthcare and environmental safety. Synth. Met. 2020, 261, 116321. [Google Scholar] [CrossRef]
  53. Dehdashtian, S.; Shamsipur, M. Modification of gold surface by electrosynthesized mono aza crown ether substituted catechol-terminated alkane dithiol and its application as a new electrochemical sensor for trace detection of cadmium ions. Colloids Surfaces B Biointerfaces 2018, 171, 494–500. [Google Scholar] [CrossRef] [PubMed]
  54. Wu, Q.; Zhou, M.; Shi, J.; Li, Q.; Yang, M.; Zhang, Z. Synthesis of Water-Soluble Ag 2 S Quantum Dots with Fluorescence in the Second Near-Infrared Window for Turn-On Detection of Zn(II) and Cd(II). Anal. Chem. 2017, 89, 6616–6623. [Google Scholar] [CrossRef]
  55. Brahim, N.B.; Mohamed, N.B.H.; Echabaane, M.; Haouari, M.; Chaâbane, R.B.; Negrerie, M.; Ouada, H. Ben Thioglycerol-functionalized CdSe quantum dots detecting cadmium ions. Sens. Actuators B Chem. 2015, 220, 1346–1353. [Google Scholar] [CrossRef]
  56. Xu, H.; Miao, R.; Fang, Z.; Zhong, X. Quantum dot-based “turn-on” fluorescent probe for detection of zinc and cadmium ions in aqueous media. Anal. Chim. Acta 2011, 687, 82–88. [Google Scholar] [CrossRef]
  57. Hu, M.H.; Huang, W.H.; Suo, L.L.; Zhou, L.H.; Ma, L.F.; Zhu, H.F. Gold nanoparticles functionalized with 2,6-dimercaptopurine for sensitive and selective colorimetric determination of cadmium(II) in food, biological and environmental samples. Anal. Methods 2017, 9, 5598–5603. [Google Scholar] [CrossRef]
  58. Dong, Y.; Ding, L.; Jin, X.; Zhu, N. Silver nanoparticles capped with chalcon carboxylic acid as a probe for colorimetric determination of cadmium(II). Microchim. Acta 2017, 184, 3357–3362. [Google Scholar] [CrossRef]
  59. Bhanjana, G.; Dilbaghi, N.; Kumar, R.; Umar, A.; Kumar, S. Sno2 quantum dots as novel platform for electrochemical sensing of cadmium. Electrochim. Acta 2015, 169, 97–102. [Google Scholar] [CrossRef]
  60. Wu, K.-H.; Lo, H.-M.; Wang, J.-C.; Yu, S.-Y.; Yan, B.-D. Electrochemical detection of heavy metal pollutant using crosslinked chitosan/carbon nanotubes thin film electrodes. Mater. Express 2017, 7, 15–24. [Google Scholar] [CrossRef]
  61. Ashkenani, H.; Taher, M.A. Determination of cadmium(II) using carbon paste electrode modified with a Cd-ion imprinted polymer. Microchim. Acta 2012, 178, 53–60. [Google Scholar] [CrossRef]
  62. Cheng, B.; Zhou, L.; Lu, L.; Liu, J.; Dong, X.; Xi, F.; Chen, P. Simultaneous label-free and pretreatment-free detection of heavy metal ions in complex samples using electrodes decorated with vertically ordered silica nanochannels. Sens. Actuators B Chem. 2018, 259, 364–371. [Google Scholar] [CrossRef]
  63. Figueiredo-Filho, L.C.S.; Janegitz, B.C.; Fatibelilo-Filho, O.; Marcolino-Junior, L.H.; Banks, C.E. Inexpensive and disposable copper mini-sensor modified with bismuth for lead and cadmium determination using square-wave anodic stripping voltammetry. Anal. Methods 2013, 5, 202–207. [Google Scholar] [CrossRef]
  64. Palisoc, S.; Causing, A.M.; Natividad, M. Gold nanoparticle/hexaammineruthenium/Nafion® modified glassy carbon electrodes for trace heavy metal detection in commercial hair dyes. Anal. Methods 2017, 9, 4240–4246. [Google Scholar] [CrossRef]
  65. Fomo, G.; Nwaji, N.; Nyokong, T. Low symmetric metallophthalocyanine modified electrode via click chemistry for simultaneous detection of heavy metals. J. Electroanal. Chem. 2018, 813, 58–66. [Google Scholar] [CrossRef]
  66. Foster, C.W.; Brownson, D.A.C.; Ruas de Souza, A.P.; Bernalte, E.; Iniesta, J.; Bertotti, M.; Banks, C.E. Pencil it in: Pencil drawn electrochemical sensing platforms. Analyst 2016, 141, 4055–4064. [Google Scholar] [CrossRef] [Green Version]

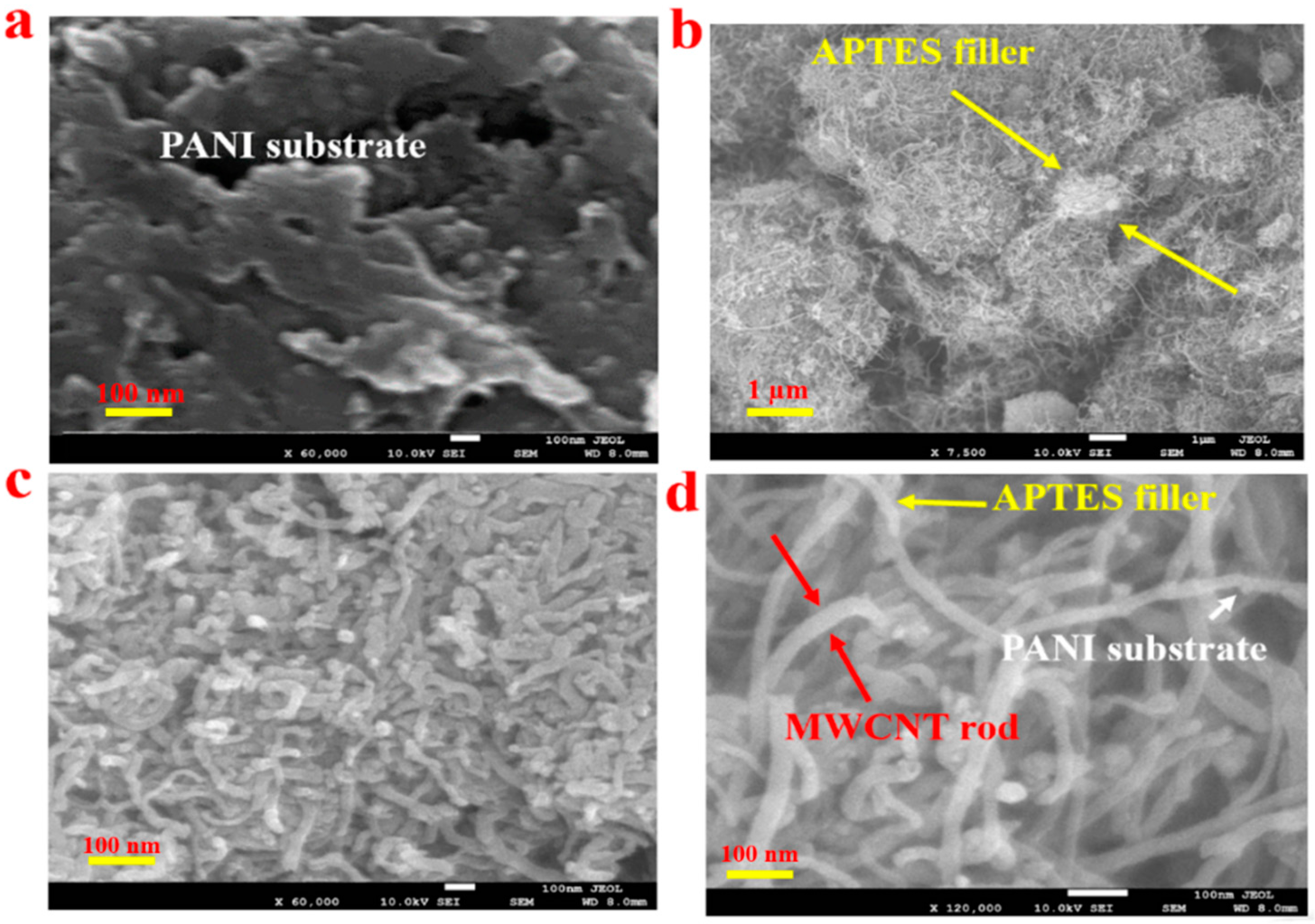

Figure 1. Scanning electron microscope images of (a) the PANI matrix, (b) the PANI-APTES composite, and (c) PANI-APTES-MWCNTs and (d) a magnified image of PANI-APTES-MWCNTs.
Figure 1. Scanning electron microscope images of (a) the PANI matrix, (b) the PANI-APTES composite, and (c) PANI-APTES-MWCNTs and (d) a magnified image of PANI-APTES-MWCNTs.
Membranes 11 00853 g001
Figure 2. (a) XEDS spectrum of PANI-MWCNT-APTES, (b) XRD spectrum, (c) FTIR spectrum, and (d) TGA and DTG recorded for PANI-MWCNT-APTES.
Figure 2. (a) XEDS spectrum of PANI-MWCNT-APTES, (b) XRD spectrum, (c) FTIR spectrum, and (d) TGA and DTG recorded for PANI-MWCNT-APTES.
Membranes 11 00853 g002
Figure 3. XPS spectrum of PANI-MWCNT-APTES: (a) Full spectrum. (b) Deconvoluted peak for Si. (c) Deconvoluted peak for C. (d) Deconvoluted peak for N. (e) Deconvoluted peak for O.
Figure 3. XPS spectrum of PANI-MWCNT-APTES: (a) Full spectrum. (b) Deconvoluted peak for Si. (c) Deconvoluted peak for C. (d) Deconvoluted peak for N. (e) Deconvoluted peak for O.
Membranes 11 00853 g003
Figure 4. (a) A chart showing the electrical conductivity of the as-prepared PANI-MWCNT-APTES. (b) The obtained Nyquist plot for PANI-MWCNT-APTES. (c) The obtained CV in a ferricyanide couple (1 mM Fe (CN)63-/4- prepared in 0.1 M KCl).
Figure 4. (a) A chart showing the electrical conductivity of the as-prepared PANI-MWCNT-APTES. (b) The obtained Nyquist plot for PANI-MWCNT-APTES. (c) The obtained CV in a ferricyanide couple (1 mM Fe (CN)63-/4- prepared in 0.1 M KCl).
Membranes 11 00853 g004
Figure 5. Electrochemical sensing responses: (a) effect of pH medium on the reduction in the current response exhibited by PANI-MWCNT-APTES in 15 µM CdSO4. (b) Control study in 50 µM CdSO4. (c) The obtained CV upon variation of the scan rate in 30 µM CdSO4 (d) Linear plot of the scan rate variation against current. (e) Linear plot of the logarithm for a reduction in current versus the logarithm of the scan rate.
Figure 5. Electrochemical sensing responses: (a) effect of pH medium on the reduction in the current response exhibited by PANI-MWCNT-APTES in 15 µM CdSO4. (b) Control study in 50 µM CdSO4. (c) The obtained CV upon variation of the scan rate in 30 µM CdSO4 (d) Linear plot of the scan rate variation against current. (e) Linear plot of the logarithm for a reduction in current versus the logarithm of the scan rate.
Membranes 11 00853 g005
Figure 6. (a) Effect of varying the Cd2+ ion concentration. (b) Linear plot of current response against Cd2+ concentration. (c) Repeatability test. (d) Reproducibility test. (e) The effect of interferents on current response. (f) The recorded response time.
Figure 6. (a) Effect of varying the Cd2+ ion concentration. (b) Linear plot of current response against Cd2+ concentration. (c) Repeatability test. (d) Reproducibility test. (e) The effect of interferents on current response. (f) The recorded response time.
Membranes 11 00853 g006
Table 1. Results for determining Cd (II) in real water samples.
Table 1. Results for determining Cd (II) in real water samples.
SampleAdded (μM)Found (μM)BiasRecovery (%)RSD (%)
Underground water00-- -
1010.58 ± 0.140.58105.81.3
5051.84 ± 0.131.84103.70.25
1010.36 ± 0.080.36103.60.77
5064.49 ± 0.1814.49129.90.28
Table 2. Comparison of the developed method in this study with the selected existing methods.
Table 2. Comparison of the developed method in this study with the selected existing methods.
Electrode/SubstrateMethodeLinear Range (LR) µM Limit of Detection (LOD) µM Ref.
Catechol-dithiolDPV15–354.5 [53]
Ag2S quantum dotsFluorescence1.0–400.55 [54]
CdSe quantum dotsFlourescence1.0–220.32 [55]
CdTe compositeFlourescence1.3–250.5 [56]
2,6-dimercaptopurineColorimetry84–3363.66 [57]
Chalcon carboxylic acid-AgNPsColorimetry0.227–3.180.13[58]
SnO2/Nafion/Au electrodeCV44.5-4004.4[59]
Chitosan/carbon nanotubes modified GCESWASV13.3–366.5 [60]
Cd-IIP-MCPEDPASV0.018–1.80.03 [61]
VMSF/ITO DPV1.0–200.23 [62]
BiFE SPESWASV0.99–12.00.53 [63]
AuNP/Ru[(NH3)6]3+/modified GCEASV2.66–6.121.77 [64]
CoPC/GCEDPSV0–1000.34 [65]
Back-to-back 6B pencil electrodeASV0.87–3.332.2 [66]
PANI-MWCNT-APTES-GCELSV0.05–500.0155 This Work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alruwais, R.S.; Adeosun, W.A.; Alsafrani, A.E.; Marwani, H.M.; Asiri, A.M.; Khan, I.; Jawaid, M.; Khan, A. Development of Cd (II) Ion Probe Based on Novel Polyaniline-Multiwalled Carbon Nanotube-3-aminopropyltriethoxylsilane Composite. Membranes 2021, 11, 853.

AMA Style

Alruwais RS, Adeosun WA, Alsafrani AE, Marwani HM, Asiri AM, Khan I, Jawaid M, Khan A. Development of Cd (II) Ion Probe Based on Novel Polyaniline-Multiwalled Carbon Nanotube-3-aminopropyltriethoxylsilane Composite. Membranes. 2021; 11(11):853.

Chicago/Turabian Style

Alruwais, Raja S., Waheed A. Adeosun, Amjad E. Alsafrani, Hadi M. Marwani, Abdullah M. Asiri, Imran Khan, Mohammad Jawaid, and Anish Khan. 2021. "Development of Cd (II) Ion Probe Based on Novel Polyaniline-Multiwalled Carbon Nanotube-3-aminopropyltriethoxylsilane Composite" Membranes 11, no. 11: 853.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
