Article

NADPH Oxidase (Rboh) Activity is Up Regulated during Sweet Pepper (Capsicum annuum L.) Fruit Ripening

by
Ángela Chu-Puga
,
Salvador González-Gordo
,
Marta Rodríguez-Ruiz
,
José M. Palma
and
Francisco J. Corpas
*
Group Antioxidant, Free Radical and Nitric Oxide in Biotechnology, Food and Agriculture, Department of Biochemistry, Cell and Molecular Biology of Plants, Estación Experimental del Zaidín, CSIC, C/Profesor Albareda 1, E-18008 Granada, Spain
*
Author to whom correspondence should be addressed.
Antioxidants 2019, 8(1), 9; https://doi.org/10.3390/antiox8010009
Submission received: 5 November 2018 / Revised: 6 December 2018 / Accepted: 25 December 2018 / Published: 1 January 2019
(This article belongs to the Special Issue Nitric Oxide (NO) and Hydrogen Sulfide (H2S) in Higher Plants under Physiological and Stress Conditions)
Browse Figures
Versions Notes

Abstract

:
In plants, NADPH oxidase (NOX) is also known as a respiratory burst oxidase homolog (Rboh). This highly important enzyme, one of the main enzymatic sources of superoxide radicals (O2•−), is involved in the metabolism of reactive oxygen and nitrogen species (ROS and RNS), which is active in the non-climacteric pepper (Capsicum annuum L.) fruit. We used sweet pepper fruits at two ripening stages (green and red) to biochemically analyze the O2•−-generating Rboh activity and the number of isozymes during this physiological process. Malondialdehyde (MDA) content, an oxidative stress marker, was also assayed as an index of lipid peroxidation. In red fruits, MDA was observed to increase 2-fold accompanied by a 5.3-fold increase in total Rboh activity. Using in-gel assays of Rboh activity, we identified a total of seven CaRboh isozymes (I–VII) which were differentially modulated during ripening. CaRboh-III and CaRboh-I were the most prominent isozymes in green and red fruits, respectively. An in vitro assay showed that CaRboh activity is inhibited in the presence of nitric oxide (NO) donors, peroxynitrite (ONOO−) and glutathione (GSH), suggesting that CaRboh can undergo S-nitrosation, Tyr-nitration, and glutathionylation, respectively. In summary, this study provides a basic biochemical characterization of CaRboh activity in pepper fruits and indicates that this O2•−-generating Rboh is involved in nitro-oxidative stress associated with sweet pepper fruit ripening.

1. Introduction

NADPH oxidase (NOX) is considered to be the most important enzyme responsible for superoxide radicals (O2•−) generation in mammalian cells. In humans, seven genes encoding NOX isozymes, involved in a wide range of cellular processes including apoptosis, host defense, cellular signal transduction, oxygen sensing, and angiogenesis have been identified [1]. In plants, the NOX enzyme is referred to as a respiratory burst oxidase homolog (Rboh). It is composed of six conserved transmembrane domains, the C-terminal harboring FAD and NADPH hydrophilic domains, two heme groups, and two N-terminal Ca2+-binding EF-hand motifs indicating that Rboh activity is regulated by Ca2+. Although the Rboh gene is ubiquitously expressed, the distribution and abundance of its different isozymes are cell- and tissue-specific. This suggests that each Rboh isozyme is involved in distinct physiological and stress functions, including seed germination, root hair formation, lignification, stomatal closure, senescence, systemic signaling, pollen tube growth, as well as abiotic and biotic stress [2,3,4,5,6,7,8,9,10], and in establishing symbiotic associations with Rhizobium [11,12].
Unlike tomato (Solanum lycopersicum L.), pepper (Capsicum annuum L.), which also belongs to the Solanaceae family, is a non-climacteric fruit due to its ethylene-independent ripening [13]. The numerous pepper fruit varieties differ in shape, color, and capsaicin content, but are all characterized by high vitamin C content [14]. Fruit ripening is a genetically programmed physiological process involving many phenotypical modifications that reflect the profound biochemical and molecular changes taking place during this developmental stage. In the case of sweet peppers, previous studies have indicated that different subcellular compartments, including peroxisomes, mitochondria, and plastids, are involved in the active metabolism of reactive oxygen species (ROS) and reactive nitrogen species (RNS) [15,16,17,18,19]. Thus, there is significant information indicating that NADPH-generating enzymes and antioxidant systems are modulated to different degrees [15,16,20,21,22]. Proteomic analyses have also shown that sweet pepper fruit ripening is accompanied by an increase in protein nitration, a NO-derived post-translational modification which triggers the inhibition of the antioxidant catalase, one of the most abundant proteins identified by proteomic approaches [23]. Ascorbate biosynthesis and S-nitrosothiols are also differentially modulated by NO [24,25]. However, to our knowledge, no information exists on how O2•−-generating Rboh activity is modulated during pepper fruit ripening and on the number of Rboh isozymes present in this non-climacteric fruit. This study therefore focuses on providing a basic biochemical characterization of Rboh activity in sweet pepper fruits and its profile during the ripening process.

2. Materials and Methods

2.1. Plant Material

California-type sweet pepper (Capsicum annuum L., cv. Melchor) fruits, obtained from Syngenta Seeds Ltd. (El Ejido, Almería, Spain), were used at two different ripening stages: Green immature and ripe red. Pepper plants were cultivated with optimal nutrient levels applied on rockwood as the soil substrate in the experimental greenhouse owned by Syngenta Seeds, Ltd., according to the usual crop program designed by the company, which usually involves planting seeds and germination in July to August, flowering in late September, and pollination and fruit setting from mid-October to late November [22]. Fresh fruits from the same plants at two distinct maturation stages (fully green and fully red) were collected at the same time from five different plants. Figure 1 shows a representative picture of the used sweet pepper fruits at the green and red ripening stages showing no external damages.

2.2. Preparation of Pepper Fruit Samples

Pepper fruits were ground in liquid N2 using a mortar and pestle, and the resulting powder was suspended in 50 mM Tris-HCl buffer, pH 7.5, containing 0.1 mM EDTA, 0.1% (v/v) Triton X-100, 1 mM MgCl2, 10% (v/v) glycerol to a final plant material/buffer ratio of 1:1 (w/v). Homogenates were then filtered through two layers of Miracloth and centrifuged at 27,000 g for 30 min. The supernatants were used for the assays.

2.3. Lipid Peroxidation Content

Lipid peroxidation was estimated by determining the thiobarbituric acid reacting substance (TBARS) content with the aid of malondialdehyde (MDA), which was used to prepare the standard curve [26].

2.4. Rboh Spectrophotometry Activity Assay

Superoxide (O2•−) generated by Rboh activity was measured using nitro blue tetrazolium (NBT) dye as an electron acceptor as described previously [27,28]. Briefly, NBT was rapidly converted to monoformazan by two O2•− molecules. This reduction was spectrophotometrically detected at 530 nm. Monoformazan concentrations (thus equimolar to those of O2•−) were calculated using a 12.8 mM−l cm−l extinction coefficient. The NBT reduction rate was linear over time up to 15 min and linearly dependent on the protein concentrations in the pepper samples. The reaction contained a mixture of 50 mM Tris-HCl buffer (pH 7.8), 1 mM CaCl2, 0.1 mM NBT, 0.1 mM NADPH plus the sample in a final volume of 1 ml. For this spectrophotometric assay of Rboh activity in pepper fruit samples, it was crucial to eliminate low molecular weight compounds which could cause significant interference through a nonspecific reduction of NBT. The pepper samples were then loaded on a PD-10 desalting column containing Sephadex™ G-25 which enabled high (Mr > 5000) and low (Mr < 1000) molecular weight substances to be separated through desalting and buffer exchange, thus eliminating interference. No reduction in NBT in the absence of NADPH was observed in the pepper samples. As an additional control to evaluate the specificity of this assay, activity was also assayed in the presence of 50 µM diphenyleneiodonium (DPI) which specifically inhibits superoxide radical generation by Rboh [29].

2.5. In-Gel Rboh Activity Assay and Isozyme Profile

Rboh isozymes were separated using non-denaturing polyacrylamide gel electrophoresis (PAGE) on 6% acrylamide gels [30] and visualized by a photochemical NBT reduction method described by López-Huertas et al. [31] and modified by Sagi and Fluhr [2]. After the electrophoresis, the gels were briefly incubated in the dark for 20 min in a reaction mixture solution containing 50 mM Tris-HCl buffer (pH 7.4), 0.2 mM NBT, 0.1 mM MgCl2, and 1 mM CaCl2. Subsequently, 0.2 mM NADPH was added, and the appearance of the blue formazan bands was monitored. The reaction was stopped by immersing the gels in distilled water. As controls, gels were pre-incubated 30 min with 50 mM DPI, a specific inhibitor of superoxide radical generation by Rboh [29].

2.6. In Vitro Treatment with Nitric Oxide (NO) Donors, Peroxynitrite (ONOO−) and Glutathione

For the in vitro assay, red pepper samples were incubated at 25 °C for 1 h with increasing concentrations of different potential modulators, including diethylamine NONOate (DEA NoNoate) and S-nitrosocysteine (CysNO) as NO donors; L-cysteine (L-Cys) and reduced glutathione (GSH) [20,32,33]. In the case of the peroxynitrite donor SIN-1 (3-morpholinosydnonimine), the samples were incubated at 37 °C for 1 h [34,35]. In all cases, the solutions were freshly made before use. As an internal control, we determined that none of these chemicals oxidized NADPH in the reaction medium in the absence of the pepper samples.

2.7. Other Assays

Protein concentration was determined using the Bio-Rad protein assay (Hercules, CA), with bovine serum albumin as standard. Band intensity was quantified using ImageJ 1.45 software (https://imagej.nih.gov/ij/). Data are presented as the mean ± SEM of at least three independent biological replicates. With the aid of Statgraphics Centurion software, we used pairwise analysis of variance (ANOVA) to detect differences between green and red peppers.

3. Results

In this study, we used California sweet pepper (Capsicum annuum L., cv. Melchor) fruits at the green and red ripening stages with no external damage (Figure 1). Malondialdehyde (MDA) content, which was measured as an index of lipid peroxidation, was observed to increase twofold in red fruits (Figure 2a), indicating that the ripening process involves oxidative stress. As part of an initial assay set-up for O2•−-generating Rboh activity in pepper samples, several controls were carried out, which showed that the crude extract samples have certain capacity to reduce NBT in the assay without the addition of NADPH (data not shown). Thus, to eliminate this interference, it was crucial to use PD-10 desalting columns containing Sephadex™ G-25 as indicated in the Materials and Methods section. This gel filtration step enabled us to obtain the protein fraction and to totally eliminate the nonspecific reduction of NBT. According to our assay, the activity in CaRboh was 53% higher in red fruits than in green fruits (Figure 2b).
An additional step in the biochemical characterization of CaRboh activity is the detection of different isozymes by non-denaturing PAGE. Given that total CaRboh activity was higher in red fruits, total protein loaded per lane for each sample needed to be optimized in order to obtain clearly visible, well separated activity bands in the gels, as some activity bands could not be detected with low protein amounts, while the bands appeared too wide and overlapped when larger amounts of protein were used. Figure 3 shows the optimized CaRboh isozyme pattern in green fruits using 80 µg protein (Figure 3 left panel), with 48 µg protein being sufficient to detect well defined CaRboh isozymes in red fruits (Figure 3 right panel). Thus, a total of seven CaRboh isoforms, with different electrophoretic mobility and abundance, could be globally detected in green and red fruits as considered both together. Table 1 shows the number of each CaRboh isozyme (I to VII according to their increasing electrophoretic mobility) and its relative abundance in green and red fruits, with CaRboh I being the most prominent in red fruits, accounting for 61% of the total activity. In green fruits CaRbohIII was the most abundant isozyme with around 35% of the total activity.
Given that fruit ripening is associated with nitro-oxidative stress and changes in NO and S-nitrosothiol content [17,23], we carried out in vitro assays to analyze the potential effect of increasing concentrations of different NO donors including DEA NONOate and CysNO. In all these assays, we used red fruit samples due to their higher levels of Rboh activity. DEA NoNoate at a concentration of 2 mM was found to significantly inhibit Rboh activity by around 30% (Figure 4a), while CysNO caused an inhibition of 48% at the same concentration (Figure 4b). In addition, peroxynitrite (ONOO−) at a concentration of 2 mM resulted in an inhibition of 21% (Figure 4c). On the other hand, while L-Cys (Figure 4d) had no significant effect on Rboh activity at any of the concentrations assayed, 2 mM of reduced glutathione (GSH) promoted an inhibition of 25% (Figure 4e).

4. Discussion

Recently, the metabolism of ROS and RNS, which causes nitro-oxidative stress, was found to be active during sweet pepper ripening [36]. However, to our knowledge, no information is available on the potential involvement of Rboh activity in this process. In this study, we therefore analyzed Rboh activity during pepper ripening and identified the principal isozymes present in both green and red pepper fruits.

4.1. Rboh Activity Increases during Pepper Fruit Ripening

Under our experimental conditions, the data obtained clearly show that total CaRboh activity significantly increases during pepper ripening, which opens up new questions about its potential role as the principal O2•−-generating enzyme [2]. This increase closely correlates with that observed in lipid peroxidation, a recognized marker of oxidative stress. However, its precise role is probably related to the ripening process, in which many biochemical pathways are redefined. In this respect, anthocyanin synthesis in the peels of apple (Malus domestica) fruits has been shown to directly correlate with an increase in Rboh activity [37], thus suggesting that O2•− acts as a regulator of anthocyanin content. Anthocyanins are also well known to play an important role in determining the color of many fruits including some pepper fruit varieties [38,39].
On the other hand, it is well known that many fruits are stored at low temperature because this is a very effective method to extend the shelf life of fruits. However, there is experimental evidence which showed the correlation between cold induced oxidative injuries and the O2•− generation by Rboh activity. Apple (Malus domestica Borkh) fruits stored for long periods at low temperatures can develop superficial injuries. The development of these damages is associated with oxidative reactions due to a burst of O2•− and H2O2 as a consequence of Rboh activity, which leads to lipid peroxidation, cell membrane damage, and cell death [40,41]. Conversely, subtropical fruits such as mango or banana are sensitive to cold. For example, in mango (Mangifera indica) fruits storage at 5 °C it was observed an increase in lipid peroxidation with concomitant rises of genes involved in the linolenic acid oxidative pathway as well as of five Rboh genes [42]. Instead, this Rboh activity could have also some potential beneficial effects due to a transitory oxidative stress which stimulates the antioxidant system as a priming effect. Thus, mature green banana (Musa acuminate) fruits exposed to heat treatment previous to storage at 7 °C showed less cold damage. The reason is that this heat treatment triggered an increase in the expression of a Rboh gene which was accompanied by a concomitant increase of ROS content (O2•− and H2O2) and ascorbate peroxidase (APX) activity/gene expression. Thus, authors suggested that the observed chilling resistance of banana fruits was correlated with the increase of the antioxidant system, specifically APX [43].

4.2. Total Rboh Activity is Inhibited in the Presence of NO Donors, Peroxynitrite and GSH

Given that NO metabolism is also modulated during pepper ripening when NO content diminishes [20,23,24,25], we used in vitro assays to analyze the inhibitory effect of NO and ONOO− on CaRboh activity. Our findings are in line with those regarding Arabidopsis thaliana, in which the isoenzyme AtRboh D involved in plant immunity undergoes S-nitrosation at Cys890, leading to low O2•− generation [44]. Similarly, in animal NADPH oxidase (NOX), S-nitrosation inhibits subunits of NOX2 [45] and NOX5 [46] isozymes. It has been well established that O2•− reacts very rapidly with NO to generate ONOO− (maximum rate constant for rapid reactions of around 4 × 109 M−1 s−1) [47], which depends on the diffusion capacity of these two molecules. The potent nitrating molecule peroxynitrate can mediate protein Tyr-nitration [48] which reflects an active nitro-oxidative metabolism [49]. In this respect, the in vitro assay of ONOO− showed that Rboh activity is inhibited in pepper samples, which suggests that nitration also takes place. To our knowledge, no information exists on this process occurring in NOX activity, which could be a cellular mechanism to limit the increase in O2·- when ONOO− content is already high. In pepper fruits, other enzymes, such as catalase and NADP-isocitrate dehydrogenase, which have been reported to be involved in controlling H2O2 and generating NADPH, are also inhibited by Tyr-nitration [20,23].
Glutathione (GSH), one of the most abundant antioxidants in plants, is also a component of cellular redox status. In previous reports using several varieties of pepper fruits it was reported that GSH decreased around 1.5-fold to 1.8-fold during ripening whereas ascorbate (ASC) content was unaffected [17,18]. In this context, it should be mentioned that GSH can interact with NO to generate S-nitrosoglutathione (GSNO), a physiological NO donor, which cellular content is regulated by the enzyme S-nitroglutathione reductase (GSNOR) that catalyzes the NADH dependent reduction of GSNO to oxidized glutathione (GSSG) and NH3 [50]. In sweet pepper fruits, it has been found that GSNOR activity and protein expression diminished during ripening whereas S-nitrosylated protein content increased [25]. Considering the close relationship between NO and GSH, it was also analyzed the potential effect of GSH. Under our experimental conditions, GSH was also observed to inhibit Rboh activity, thus suggesting the presence of a glutathionylation mechanism, which, to our knowledge, has never previously been reported in plant Rboh activity. However, a recent study shows that S-glutathionylation of NOX2 in human neutrophils allows O2·−generation to be maintained [51].

4.3. Isozymatic CaRboh Activity is Differentially Regulated in Green and Red Sweet Pepper Fruit

In plants, Rbohs are encoded by a multigene family. For example, in the model plant Arabidopsis thaliana, up to ten Rboh genes (from AtRboh A to AtRboh J), which are differentially expressed depending on the tissue, organ, developmental stage, and environmental conditions, have been identified [52,53,54,55,56]. Similarly, up to nine OsRbohs in rice (Oryza sativa) and eight SlRbohs in tomato (Solanum lycopersicum) have been identified [57,58,59]. These Rbohs play a versatile role in plant reproduction, growth, development, and responses to abiotic and biotic stress [60,61]. Accordingly, the seven differentially expressed CaRboh isozymes identified in pepper fruits would appear to have adaptable functions, with CaRboh-III and CaRboh-I being the most prominent enzymes in green and red fruits, respectively. However, in a previous study of pepper leaves exposed to low temperature, only four Rboh isozymes were found [6]. Similarly, in strawberry (Fragaria vesca) plants, seven genes, with tissue-specific Rboh gene expression, have been identified: FvRbohA, FvRbohC, FvRbohD, and FvRbohF were detected in roots, stems, leaves, flowers, and fruits; FvRbohB and FvRbohE were expressed in roots, stems, flowers, and fruits; and FvRbohH was only present in flowers and fruits [10].

5. Conclusions

This study, which provides novel insights into pepper fruit ripening, shows that superoxide-generating CaRboh activity increases during this process which closely correlates with the increase in lipid peroxidation and consequently with the physiological oxidative stress associated with pepper fruit ripening. Moreover, the number and abundance of the CaRboh isozymes identified are differentially regulated, suggesting some enzymatic specialization, with CaRboh-III and CaRboh-I being the most prominent isozymes in green and red fruits, respectively. All this opens up new lines of research to identify the specific functions of these isozymes in the ripening process. In addition, CaRboh activity appears to be regulated and inhibited by NO post-translational modifications, especially S-nitrosation, Tyr-nitration and probably also by glutathionylation. Taken together, these data suggest the connection between ROS and RNS metabolism during the physiological process of pepper fruit ripening. Figure 5 summarizes available information on how the different ROS and RNS parameters are modulated during pepper fruit ripening [20,36], incorporating data on Rboh activity and lipid peroxidation, and outlining the active nitro-oxidative metabolism in sweet pepper fruits.
In this context, future research should be focused in the identification of specify enzymatic systems responsible of the NADPH generation during the fruit ripening necessary for the Rboh activity. Furthermore, NADPH is also required by the antioxidant system, specifically to regenerate the soluble antioxidant GSH by the enzyme glutathione reductase (GR) which is part of the ascorbate-glutathione cycle [61]. An illustrative example which shows the interconnection among all these elements (Rboh, NADPH, GSH, ascorbate, and antioxidant enzymes) has been described in a recent report on apple fruit. Thus, during postharvest store of this fruit it has been shown the relevance of Rboh and antioxidant activities which were supported by the NADPH-generating enzyme, glucose-6-phosphate dehydrogenase (G6PDH) allowing together an enhance disease resistance against blue mold [62].

Author Contributions

Á.C.-P. carried out experiments and collected, analyzed, and interpreted the data. S.G.-G. analyzed and interpreted the data. M.R.-R. carried out experiments and interpreted data. J.M.P. interpreted the data and critically revised the article. F.J.C. conceived, designed the experiments, and wrote the article. All authors approved the final submitted version of the manuscript.

Funding

This work was supported by the ERDF-cofinanced grant from the Ministry of Economy and Competitiveness (AGL2015-65104-P) and Junta de Andalucía (group BIO192), Spain.

Acknowledgments

The technical assistance of Carmelo Ruiz-Torres and María J. Campos is deeply acknowledged. The provision of pepper fruits by Syngenta Seeds Ltd. (El Ejido, Almería, Spain) is acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bedard, K.; Krause, K.-H. The NOX family of ROS-generating NADPH oxidases: Physiology and pathophysiology. Physiol. Rev. 2007, 87, 245–313. [Google Scholar] [CrossRef] [PubMed]
  2. Sagi, M.; Fluhr, R. Production of reactive oxygen species by plant NADPH oxidases. Plant Physiol. 2006, 41, 336–340. [Google Scholar] [CrossRef] [PubMed]
  3. Potocký, M.; Jones, M.A.; Bezvoda, R.; Smirnoff, N.; Zárský, V. Reactive oxygen species produced by NADPH oxidase are involved in pollen tube growth. New Phytol. 2007, 174, 742–751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Suzuki, N.; Miller, G.; Morales, J.; Shulaev, V.; Torres, M.A.; Mittler, R. Respiratory burst oxidases: The engines of ROS signaling. Curr. Opin. Plant Biol. 2011, 14, 691–699. [Google Scholar] [CrossRef] [PubMed]
  5. Airaki, M.; Leterrier, M.; Valderrama, R.; Chaki, M.; Begara-Morales, J.C.; Barroso, J.B.; del Río, L.A.; Palma, J.M.; Corpas, F.J. Spatial and temporal regulation of the metabolism of reactive oxygen and nitrogen species during the early development of pepper (Capsicum annuum) seedlings. Ann. Bot. 2015, 116, 679–693. [Google Scholar] [CrossRef] [PubMed]
  6. Airaki, M.; Leterrier, M.; Mateos, R.M.; Valderrama, R.; Chaki, M.; Barroso, J.B.; del Río, L.A.; Palma, J.M.; Corpas, F.J. Metabolism of reactive oxygen species and reactive nitrogen species in pepper (Capsicum annuum L.) plants under low temperature stress. Plant Cell Environ. 2012, 35, 281–295. [Google Scholar] [CrossRef] [PubMed]
  7. Kadota, Y.; Shirasu, K.; Zipfel, C. Regulation of the NADPH Oxidase RBOHD during plant immunity. Plant Cell Physiol. 2015, 56, 1472–1480. [Google Scholar] [CrossRef]
  8. Jiménez-Quesada, M.J.; Traverso, J.Á.; Alché, J.D. NADPH oxidase-dependent superoxide production in plant reproductive tissues. Front. Plant Sci. 2016, 7, 359. [Google Scholar] [CrossRef]
  9. Morales, J.; Kadota, Y.; Zipfel, C.; Molina, A.; Torres, M.A. The Arabidopsis NADPH oxidases RbohD and RbohF display differential expression patterns and contributions during plant immunity. J. Exp. Bot. 2016, 67, 1663–1676. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, Y.; Li, Y.; He, Y.; Hu, W.; Zhang, Y.; Wang, X.; Tang, H. Identification of NADPH oxidase family members associated with cold stress in strawberry. FEBS Open Bio 2018, 8, 593–605. [Google Scholar] [CrossRef] [Green Version]
  11. Montiel, J.; Arthikala, M.K.; Cárdenas, L.; Quinto, C. Legume NADPH oxidases have crucial roles at different stages of nodulation. Int. J. Mol. Sci. 2016, 17. [Google Scholar] [CrossRef] [PubMed]
  12. Arthikala, M.K.; Montiel, J.; Sánchez-López, R.; Nava, N.; Cárdenas, L.; Quinto, C. Respiratory burst oxidase homolog gene a is crucial for rhizobium infection and nodule maturation and function in common bean. Front. Plant Sci. 2017, 8, 2003. [Google Scholar] [CrossRef] [PubMed]
  13. Cherian, S.; Figueroa, C.R.; Nair, H. ‘Movers and shakers’ in the regulation of fruit ripening: A crossdissection of climacteric versus nonclimacteric fruit. J. Exp. Bot. 2014, 65, 4705–4722. [Google Scholar] [CrossRef] [PubMed]
  14. Palma, J.M.; Jiménez, A.; Corpas, F.J.; Materos, R.M.; Martí, M.C.; Sevilla, F.; del Río, L.A. Role of ascorbate on the fruit phyiology of pepper (Capsicum annuum L.) Functional. Plant. Sci. Biotech. 2011, 5, 56–61. [Google Scholar]
  15. Palma, J.M.; Sevilla, F.; Jiménez, A.; del Río, L.A.; Corpas, F.J.; de Morales, P.A.; Camejo, D.M. Physiology of pepper fruit and the metabolism of antioxidants: Chloroplasts, mitochondria and peroxisomes. Ann. Bot. 2015, 116, 627–636. [Google Scholar] [CrossRef] [PubMed]
  16. Palma, J.M.; de Morales, P.Á.; del Río, L.A.; Corpas, F.J. The proteome of fruit peroxisomes: Sweet pepper (Capsicum annuum L.) as a model. Subcell. Biochem. 2018, 89, 323–341. [Google Scholar] [PubMed]
  17. Mateos, R.M.; León, A.M.; Sandalio, L.M.; Gómez, M.; del Río, L.A.; Palma, J.M. Peroxisomes from pepper fruits (Capsicum annuum L.): Purification, characterisation and antioxidant activity. J. Plant Physiol. 2003, 160, 1507–1516. [Google Scholar] [CrossRef]
  18. Martí, M.C.; Camejo, D.; Olmos, E.; Sandalio, L.M.; Fernández-García, N.; Jiménez, A.; Sevilla, F. Characterisation and changes in the antioxidant system of chloroplasts and chromoplasts isolated from green and mature pepper fruits. Plant Biol. (Stuttg) 2009, 116, 13–24. [Google Scholar] [CrossRef]
  19. Camejo, D.; Jiménez, A.; Palma, J.M.; Sevilla, F. Proteomic identification of mitochondrial carbonylated proteins in two maturation stages of pepper fruits. Proteomics 2015, 15, 2634–2642. [Google Scholar] [CrossRef] [PubMed]
  20. Muñoz-Vargas, M.A.; González-Gordo, S.; Cañas, A.; López-Jaramillo, J.; Palma, J.M.; Corpas, F.J. Endogenous hydrogen sulfide (H2S) is up-regulated during sweet pepper (Capsicum annuum L.) fruit ripening. In vitro analysis shows that NADP-dependent isocitrate dehydrogenase (ICDH) activity is inhibited by H2S and NO. Nitric Oxide 2018, 81, 36–45. [Google Scholar] [CrossRef]
  21. Mateos, R.M.; Bonilla-Valverde, D.; del Río, LA.; Palma, J.M.; Corpas, F.J. NADP-dehydrogenases from pepper fruits: Effect of maturation. Physiol. Plant. 2009, 135, 130–139. [Google Scholar] [CrossRef] [PubMed]
  22. Mateos, R.M.; Jiménez, A.; Román, P.; Romojaro, F.; Bacarizo, S.; Leterrier, M.; Gómez, M.; Sevilla, F.; del Río, L.A.; Corpas, F.J.; et al. Antioxidant systems from Pepper (Capsicum annuum L.): Involvement in the response to temperature changes in ripe fruits. Int. J. Mol. Sci. 2013, 14, 9556–9580. [Google Scholar] [CrossRef] [PubMed]
  23. Chaki, M.; Álvarez de Morales, P.; Ruiz, C.; Begara-Morales, J.C.; Barroso, J.B.; Corpas, F.J.; Palma, J.M. Ripening of pepper (Capsicum annuum) fruit is characterized by an enhancement of protein tyrosine nitration. Ann. Bot. 2015, 116, 637–647. [Google Scholar] [CrossRef] [PubMed]
  24. Rodríguez-Ruiz, M.; Mateos, R.M.; Codesido, V.; Corpas, F.J.; Palma, J.M. Characterization of the galactono-1,4-lactone dehydrogenase from pepper fruits and its modulation in the ascorbate biosynthesis. Role of nitric oxide. Redox Biol. 2017, 12, 171–181. [Google Scholar] [CrossRef] [PubMed]
  25. Rodríguez-Ruiz, M.; Mioto, P.; Palma, J.M.; Corpas, F.J. S-nitrosoglutathione reductase (GSNOR) activity is down-regulated during pepper (Capsicum annuum L.) fruit ripening. Nitric Oxide 2017, 68, 51–55. [Google Scholar] [CrossRef] [PubMed]
  26. Buege, J.A.; Aust, S.D. Microsomal lipid peroxidation. Methods Enzymol. 1978, 52, 302–310. [Google Scholar] [PubMed]
  27. Bielski, B.H.J.; Shiue, G.G.; Bajuk, S. Reduction of nitro blue tetrazolium by CO2− and O2− radicals. J. Phys. Chem. 1980, 84, 830–833. [Google Scholar] [CrossRef]
  28. Van Gestelen, P.; Asard, H.; Caubergs, R.J. Solubilization and separation of a plant plasma membrane NADPH-O2− synthase from other NAD(P)H oxidoreductases. Plant Physiol. 1997, 115, 543–550. [Google Scholar] [CrossRef]
  29. Leterrier, M.; Airaki, M.; Palma, J.M.; Chaki, M.; Barroso, J.B.; Corpas, F.J. Arsenic triggers the nitric oxide (NO) and S-nitrosoglutathione (GSNO) metabolism in Arabidopsis. Environ. Pollut. 2012, 166, 136–143. [Google Scholar] [CrossRef]
  30. Davis, B.J. Disc ge electrophoresis. Ann. N. Y. Acad. Sci. 1964, 121, 404–427. [Google Scholar] [CrossRef]
  31. López-Huertas, E.; Corpas, J.F.; Sandalio, M.L.; del Río, L.A. Characterization of membrane polypeptides from pea leaf peroxisomes involved in superoxide radical generation. Biochem. J. 1999, 337, 531–536. [Google Scholar] [CrossRef] [PubMed]
  32. Kato, H.; Takemoto, D.; Kawakita, K. Proteomic analysis of S-nitrosylated proteins in potato plant. Physiol. Plant. 2013, 148, 371–386. [Google Scholar] [CrossRef] [PubMed]
  33. De Freitas-Silva, L.; Rodríguez-Ruiz, M.; Houmani, H.; da Silva, L.C.; Palma, J.M.; Corpas, F.J. Glyphosate-induced oxidative stress in Arabidopsis thaliana affecting peroxisomal metabolism and triggers activity in the oxidative phase of the pentose phosphate pathway (OxPPP) involved in NADPH generation. J. Plant Physiol. 2017, 218, 196–205. [Google Scholar] [CrossRef] [PubMed]
  34. Begara-Morales, J.C.; Chaki, M.; Sánchez-Calvo, B.; Mata-Pérez, C.; Leterrier, M.; Palma, J.M.; Barroso, J.B.; Corpas, F.J. Protein tyrosine nitration in pea roots during development and senescence. J. Exp. Bot. 2013, 64, 1121–1134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Chaki, M.; Carreras, A.; López-Jaramillo, J.; Begara-Morales, J.C.; Sánchez-Calvo, B.; Valderrama, R.; Corpas, F.J.; Barroso, J.B. Tyrosine nitration provokes inhibition of sunflower carbonic anhydrase (β-CA) activity under high temperature stress. Nitric Oxide 2013, 29, 30–33. [Google Scholar] [CrossRef] [PubMed]
  36. Corpas, F.J.; Freschi, L.; Rodríguez-Ruiz, M.; Mioto, P.T.; González-Gordo, S.; Palma, J.M. Nitro-oxidative metabolism during fruit ripening. J. Exp. Bot. 2018, 69, 3449–3463. [Google Scholar] [CrossRef] [PubMed]
  37. Zhang, J.; Chen, C.; Zhang, D.; Li, H.; Li, P.; Ma, F. Reactive oxygen species produced via plasma membrane NADPH oxidase regulate anthocyanin synthesis in apple peel. Planta 2014, 240, 1023–1035. [Google Scholar] [CrossRef] [PubMed]
  38. Stommel, J.R.; Ushko, M.P.; Haynes, K.G.; Whitaker, B.D. Differential inheritance of pepper (Capsicum annuum) fruit pigments results inblack to violet fruit colour. Plant Breed. 2014, 133, 788–793. [Google Scholar] [CrossRef]
  39. Kovács, Z.; Csilléry, G.; Szőke, A.; Kiss, E.; Veres, A. Characteristics and regulation of anthocyanin biosynthesis in pepper-review. Columella-J. Agric. Environ. Sci. 2017, 4, 47–58. [Google Scholar]
  40. Lurie, S.; Watkins, C.B. Superficial scald, its etiology and control. Postharvest Biol. Technol. 2012, 65, 44–60. [Google Scholar] [CrossRef]
  41. Zermiani, M.; Zonin, E.; Nonis, A.; Begheldo, M.; Ceccato, L.; Vezzaro, A.; Baldan, B.; Trentin, A.; Masi, A.; Pegoraro, M.; et al. Ethylene negatively regulates transcript abundance of ROP-GAP rheostat-encoding genes and affects apoplastic reactive oxygen species homeostasis in epicarps of cold stored apple fruits. J. Exp. Bot. 2015, 66, 7255–7270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Sivankalyani, V.; Sela, N.; Feygenberg, O.; Zemach, H.; Maurer, D.; Alkan, N. Transcriptome dynamics in mango fruit peel reveals mechanisms of chilling stress. Front. Plant Sci. 2016, 7, 1579. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, H.; Zhang, Z.; Xu, L.; Huang, X.; Pang, X. The effect of delay between heat treatment and cold storage on alleviation of chilling injury in banana fruit. J. Sci. Food Agric. 2012, 92, 2624–2629. [Google Scholar] [CrossRef] [PubMed]
  44. Yun, B.W.; Feechan, A.; Yin, M.; Saidi, N.B.; Le Bihan, T.; Yu, M.; Moore, J.W.; Kang, J.G.; Kwon, E.; Spoel, S.H.; et al. S-nitrosylation of NADPH oxidase regulates cell death in plant immunity. Nature 2011, 478, 264–268. [Google Scholar] [CrossRef] [PubMed]
  45. Selemidis, S.; Dusting, G.J.; Peshavariya, H.; Kemp-Harper, B.K.; Drummond, G.R. Nitric oxide suppresses NADPH oxidase-dependent superoxide production by S-nitrosylation in human endothelial cells. Cardiovasc. Res. 2007, 75, 349–358. [Google Scholar] [CrossRef] [PubMed]
  46. Qian, J.; Chen, F.; Kovalenkov, Y.; Pandey, D.; Moseley, M.A.; Foster, M.W.; Black, S.M.; Venema, R.C.; Stepp, D.W.; Fulton, D.J. Nitric oxide reduces NADPH oxidase 5 (NOX5) activity by reversible S-nitrosylation. Free Radic. Biol. Med. 2012, 52, 1806–1819. [Google Scholar] [CrossRef] [PubMed]
  47. Goldstein, S.; Czapski, G. The reaction of NO• with O2•− and HO2•−: A pulse radiolysis study. Free Radic. Biol. Med. 1995, 19, 505–510. [Google Scholar] [CrossRef]
  48. Corpas, F.J.; Palma, J.M.; del Río, L.A.; Barroso, J.B. Protein tyrosine nitration in higher plants grown under natural and stress conditions. Front. Plant Sci. 2013, 4, 29. [Google Scholar] [CrossRef]
  49. Corpas, F.J.; Barroso, J.B. Nitro-oxidative stress vs oxidative or nitrosative stress in higher plants. New Phytol. 2013, 199, 633–635. [Google Scholar] [CrossRef] [Green Version]
  50. Leterrier, M.; Chaki, M.; Airaki, M.; Valderrama, R.; Palma, J.M.; Barroso, J.B.; Corpas, F.J. Function of S-nitrosoglutathione reductase (GSNOR) in plant development and under biotic/abiotic stress. Plant Signal Behav. 2011, 6, 789–793. [Google Scholar] [CrossRef] [Green Version]
  51. Nagarkoti, S.; Dubey, M.; Awasthi, D.; Kumar, V.; Chandra, T.; Kumar, S.; Dikshit, M. S-Glutathionylation of p47phox sustains superoxide generation in activated neutrophils. Biochim. Biophys. Acta Mol. Cell Res. 2018, 1865, 444–454. [Google Scholar] [CrossRef] [PubMed]
  52. Sagi, M.; Davydov, O.; Orazova, S.; Yesbergenova, Z.; Ophir, R.; Stratmann, J.W.; Fluhr, R. Plant respiratory burst oxidase homologs impinge on wound responsiveness and development in Lycopersicon esculentum. Plant Cell 2004, 16, 616–628. [Google Scholar] [CrossRef] [PubMed]
  53. Maruta, T.; Inoue, T.; Tamoi, M.; Yabuta, Y.; Yoshimura, K.; Ishikawa, T.; Shigeoka, S. Arabidopsis NADPH oxidases, AtrbohD and AtrbohF, are essential for jasmonic acid-induced expression of genes regulated by MYC2 transcription factor. Plant Sci. 2011, 180, 655–660. [Google Scholar] [CrossRef] [PubMed]
  54. Scuffi, D.; Nietzel, T.; Di Fino, L.M.; Meyer, A.J.; Lamattina, L.; Schwarzländer, M.; Laxalt, A.M.; García-Mata, C. Hydrogen sulfide increases production of NADPH oxidase-dependent hydrogen peroxide and phospholipase D-derived phosphatidic acid in guard cell signaling. Plant Physiol. 2018, 176, 2532–2542. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, W.; Chen, D.; Zhang, X.; Liu, D.; Cheng, Y.; Shen, F. Role of plant respiratory burst oxidase homologs in stress responses. Free Radic. Res. 2018, 3, 1–14. [Google Scholar] [CrossRef] [PubMed]
  56. Kaur, G.; Guruprasad, K.; Temple, B.R.; Shirvanyants, D.G.; Dokholyan, N.V.; Pati, P.K. Structural complexity and functional diversity of plant NADPH oxidases. Amino Acids 2018, 50, 79–94. [Google Scholar] [CrossRef]
  57. Wang, G.F.; Li, W.Q.; Li, W.Y.; Wu, G.L.; Zhou, C.Y.; Chen, K.M. Characterization of rice NADPH oxidase genes and their expression under various environmental conditions. Int. J. Mol. Sci. 2013, 14, 9440–9458. [Google Scholar] [CrossRef]
  58. Li, X.; Zhang, H.; Tian, L.; Huang, L.; Liu, S.; Li, D.; Song, F. Tomato SlRbohB, a member of the NADPH oxidase family, is required for disease resistance against Botrytis cinerea and tolerance to drought stress. Front. Plant Sci. 2015, 6, 463. [Google Scholar] [CrossRef]
  59. Kaur, G.; Pati, P.K. In silico insights on diverse interacting partners and phosphorylation sites of respiratory burst oxidase homolog (Rbohs) gene families from Arabidopsis and rice. BMC Plant Biol. 2018, 18, 161. [Google Scholar] [CrossRef]
  60. Marino, D.; Dunand, C.; Puppo, A.; Pauly, N. A burst of plant NADPH oxidases. Trends Plant Sci. 2012, 17, 9–15. [Google Scholar] [CrossRef]
  61. Corpas, F.J.; Barroso, J.B. NADPH-generating dehydrogenases: Their role in the mechanism of protection against nitro-oxidative stress induced by adverse environmental conditions. Front. Env. Sci. 2014, 2, 55. [Google Scholar] [CrossRef]
  62. Wei, M.; Ge, Y.; Li, C.; Han, X.; Qin, S.; Chena, Y.; Qi Tang, Q.; Li, J. G6PDH regulated NADPH production and reactive oxygen species metabolism to enhance disease resistance against blue mold in apple fruit by acibenzolar-S-methyl. Postharvest Biol. Technol. 2019, 148, 228–235. [Google Scholar] [CrossRef]
Antioxidants 08 00009 g001 550
Figure 1. Sweet pepper (Capsicum annuum L.) fruit at distinct maturation stages (fully green and fully red).
Figure 1. Sweet pepper (Capsicum annuum L.) fruit at distinct maturation stages (fully green and fully red).
Antioxidants 08 00009 g001
Antioxidants 08 00009 g002 550

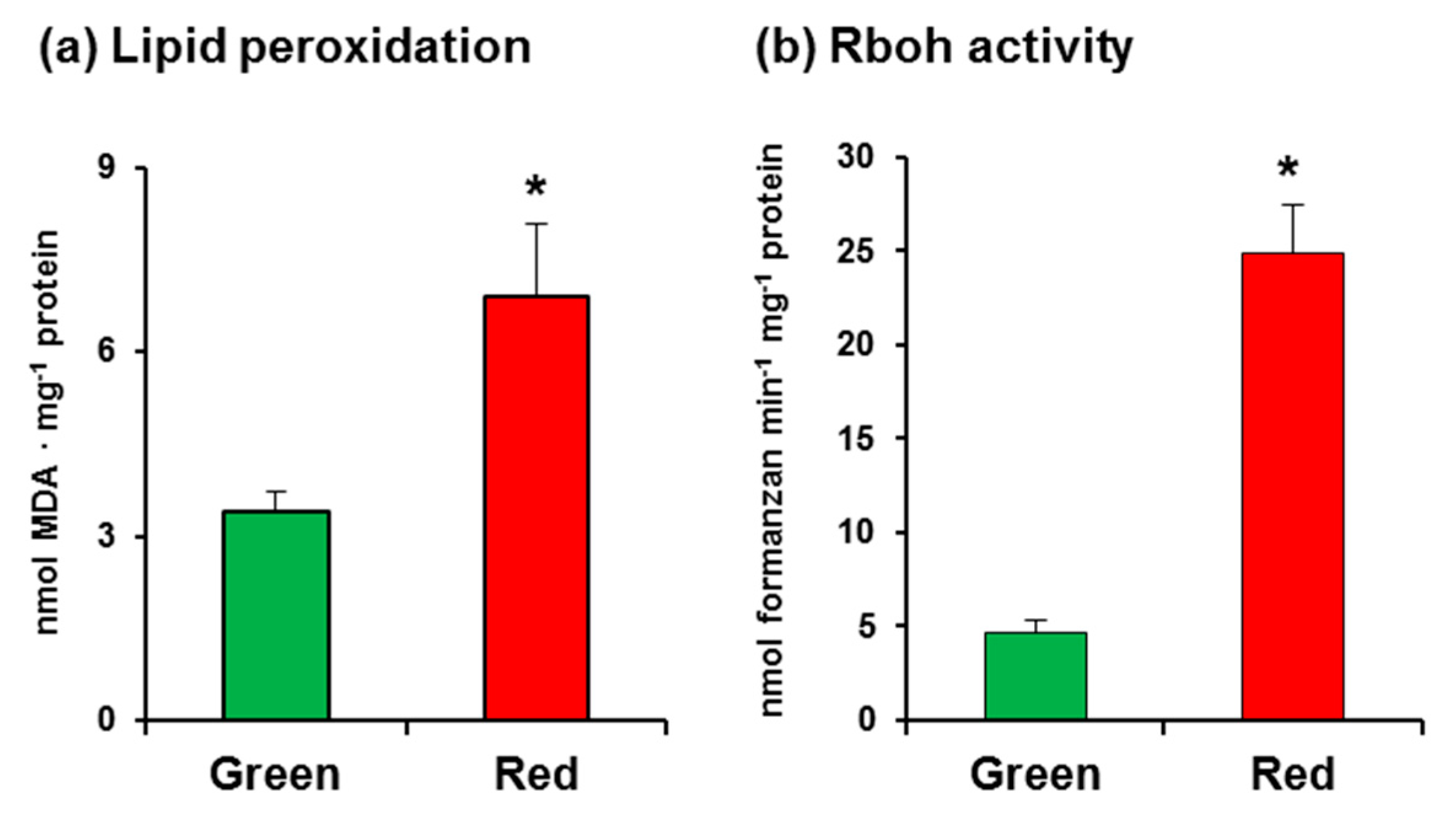

Figure 2. (a) Lipid peroxidation in pepper fruits. (b) Total respiratory burst oxidase homolog (Rboh) activity in pepper fruits. Data are the mean ± SEM of at least three independent biological replicates. Asterisks indicate that differences between values were statistically significant at p < 0.05.
Figure 2. (a) Lipid peroxidation in pepper fruits. (b) Total respiratory burst oxidase homolog (Rboh) activity in pepper fruits. Data are the mean ± SEM of at least three independent biological replicates. Asterisks indicate that differences between values were statistically significant at p < 0.05.
Antioxidants 08 00009 g002
Antioxidants 08 00009 g003 550

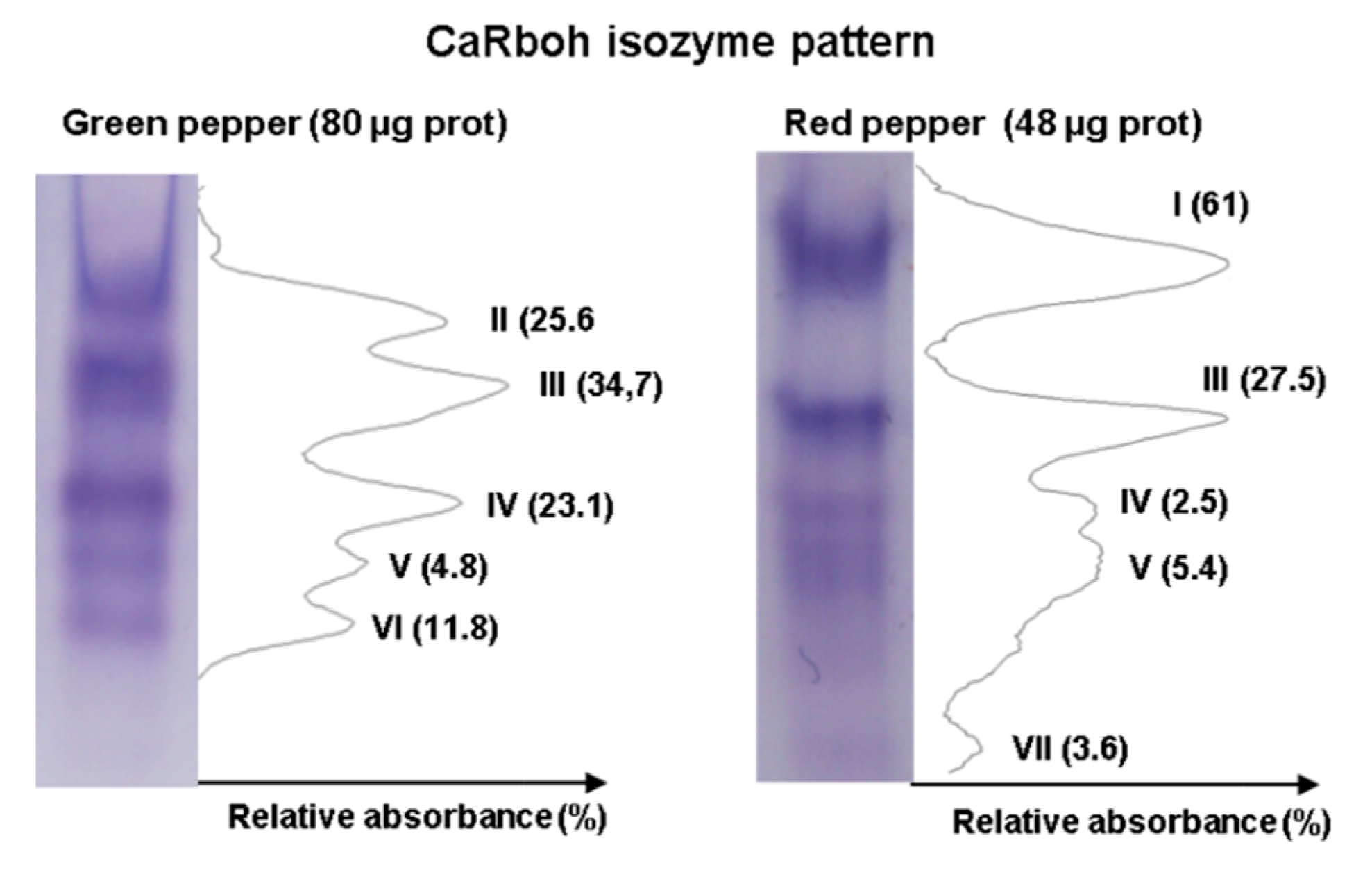

Figure 3. Activity of CaRboh isozymes in green and red pepper fruits. Protein samples were separated by non-denaturing polyacrylamide gel electrophoresis (PAGE, 6%) and activity was detected by the nitro blue tetrazolium (NBT) reducing method. For green and red peppers, 80 μg and 48 μg of protein were loaded per lane, respectively. Band intensity was quantified using ImageJ 1.45 software.
Figure 3. Activity of CaRboh isozymes in green and red pepper fruits. Protein samples were separated by non-denaturing polyacrylamide gel electrophoresis (PAGE, 6%) and activity was detected by the nitro blue tetrazolium (NBT) reducing method. For green and red peppers, 80 μg and 48 μg of protein were loaded per lane, respectively. Band intensity was quantified using ImageJ 1.45 software.
Antioxidants 08 00009 g003
Antioxidants 08 00009 g004 550

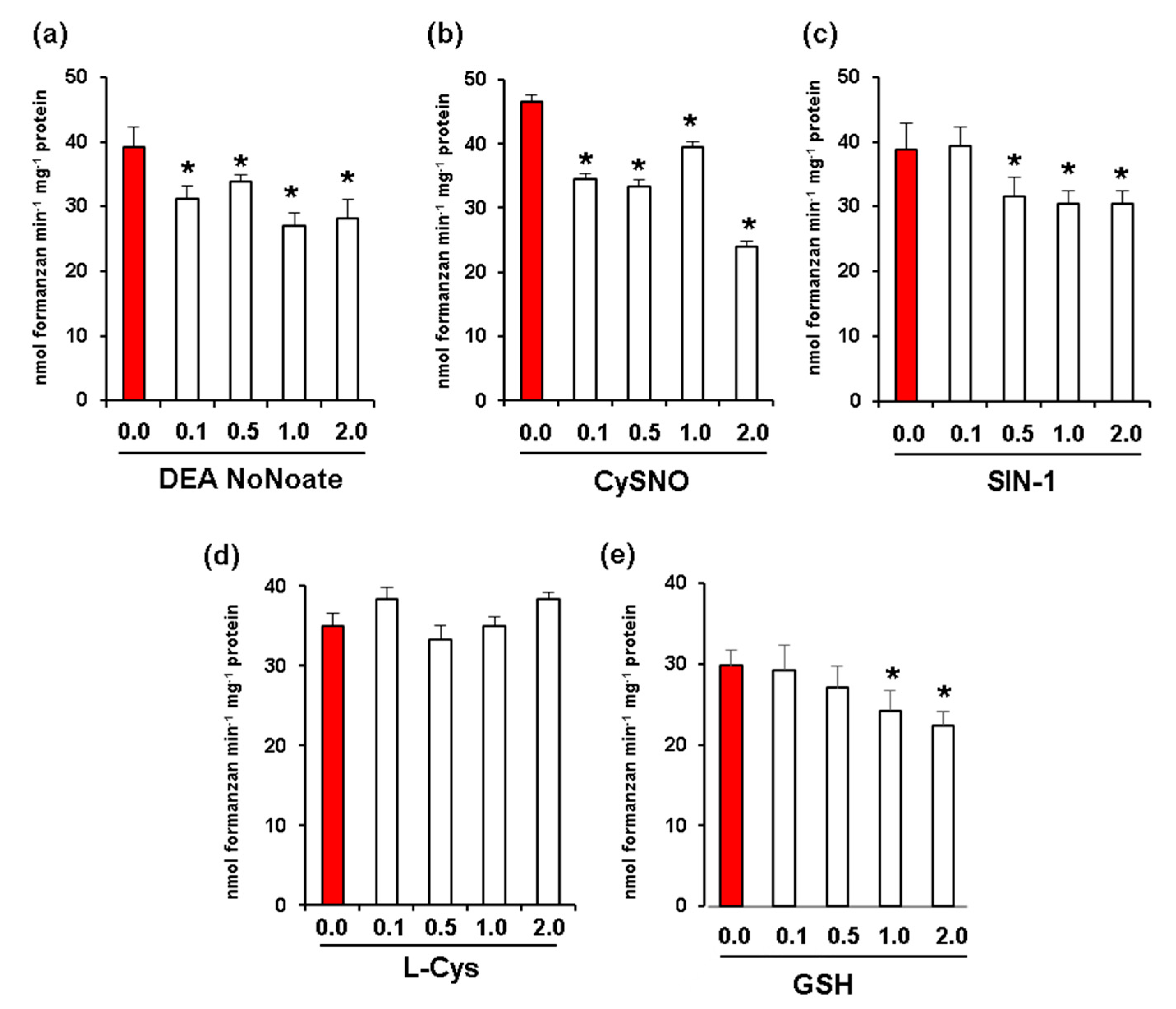

Figure 4. Effect of nitric oxide (NO) and peroxynitrite (ONOO-) on CaRboh activity in red green pepper fruits. (a) Effect of diethylamine NONOate (DEA NoNoate, nitric oxide donor). (b) Effect of S-nitrosocysteine (CySNO, NO donor). (c) Effect of 3-morpholinosydnonimine (SIN-1, peroxynitrite donor). (d) Effect of L-cisteine (L-Cys). (e) Effect of glutathione (GSH). Treatments with DETA-NONOate and S-nitrosocysteine (CySNO) as NO donors, L-Cys and GSH were done by incubating the pepper samples with these compounds at 25 °C for 1h. In the case of SIN-1, the assay was done at 37 °C for 1 h. Data represent the mean ± SEM of at least three independent biological replicates. Asterisks (*) indicate significant differences (p < 0.05) in comparison to the control.
Figure 4. Effect of nitric oxide (NO) and peroxynitrite (ONOO-) on CaRboh activity in red green pepper fruits. (a) Effect of diethylamine NONOate (DEA NoNoate, nitric oxide donor). (b) Effect of S-nitrosocysteine (CySNO, NO donor). (c) Effect of 3-morpholinosydnonimine (SIN-1, peroxynitrite donor). (d) Effect of L-cisteine (L-Cys). (e) Effect of glutathione (GSH). Treatments with DETA-NONOate and S-nitrosocysteine (CySNO) as NO donors, L-Cys and GSH were done by incubating the pepper samples with these compounds at 25 °C for 1h. In the case of SIN-1, the assay was done at 37 °C for 1 h. Data represent the mean ± SEM of at least three independent biological replicates. Asterisks (*) indicate significant differences (p < 0.05) in comparison to the control.
Antioxidants 08 00009 g004
Antioxidants 08 00009 g005 550

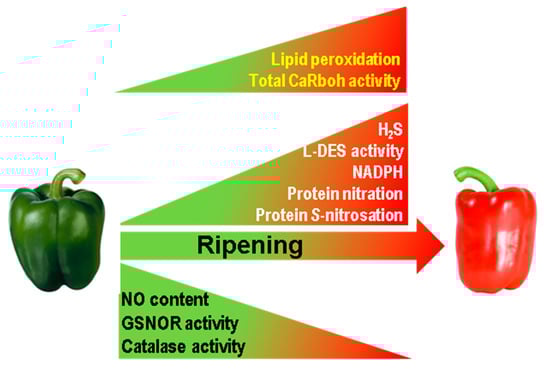

Figure 5. Reactive oxygen species (ROS) and reactive nitrogen species (RNS) metabolism during sweet pepper (Capsicum annuum L.) fruit ripening. In the model previously reported [20,36] it has been incorporated the total superoxide-generating CaRboh activity as well as the content of lipid peroxidation both increasing in red ripe fruits as reported in this work. GSNOR, nitrosoglutathione reductase. H2S, hydrogen sulfide. L-DES, L-cysteine desulfidrase.
Figure 5. Reactive oxygen species (ROS) and reactive nitrogen species (RNS) metabolism during sweet pepper (Capsicum annuum L.) fruit ripening. In the model previously reported [20,36] it has been incorporated the total superoxide-generating CaRboh activity as well as the content of lipid peroxidation both increasing in red ripe fruits as reported in this work. GSNOR, nitrosoglutathione reductase. H2S, hydrogen sulfide. L-DES, L-cysteine desulfidrase.
Antioxidants 08 00009 g005
Table
Table 1. Identification (I to VII) and relative abundance (%) of the respiratory burst oxidase homolog (CaRboh) isozymes detected in green and red pepper (Capsicum annuum L.) fruits by the NBT reducing method after non-denaturing PAGE. Band intensity was quantified using ImageJ 1.45 software.
Table 1. Identification (I to VII) and relative abundance (%) of the respiratory burst oxidase homolog (CaRboh) isozymes detected in green and red pepper (Capsicum annuum L.) fruits by the NBT reducing method after non-denaturing PAGE. Band intensity was quantified using ImageJ 1.45 software.
Pepper Fruit StageCaRboh Isozymes (%)
IIIIIIIVVVIVII
GreenND25.634.723.14.811.8ND
Red61ND27.52.55.4ND3.6
ND: not detected.
