Open AccessArticle
Appl. Sci. 2019, 9(8), 1577; https://doi.org/10.3390/app9081577

Dual-View Three-Dimensional Display Based on Direct-Projection Integral Imaging with Convex Mirror Arrays

1
HoloDigilog Human Media Research Center, Nano Device Application Center, Kwangwoon University, 21, Gwangun-ro, Nowon-Gu, Seoul 01890, Korea
2
Intelligent Medical Platform Research Center, Kyunghee University, 1732, Deogyeong-daero, Giheung-gu, Yongin-si, Gyeonggi-do 17104, Korea
3
HoloDigilog Human Media Research Center, 3D Display Research Center, Kwangwoon University, 21, Gwangun-ro, Nowon-Gu, Seoul 01890, Korea
*
Author to whom correspondence should be addressed.
Received: 27 March 2019 / Revised: 10 April 2019 / Accepted: 11 April 2019 / Published: 16 April 2019
(This article belongs to the Special Issue Holography, 3D Imaging and 3D Display)
PDF [851 KB, uploaded 16 April 2019]

Abstract

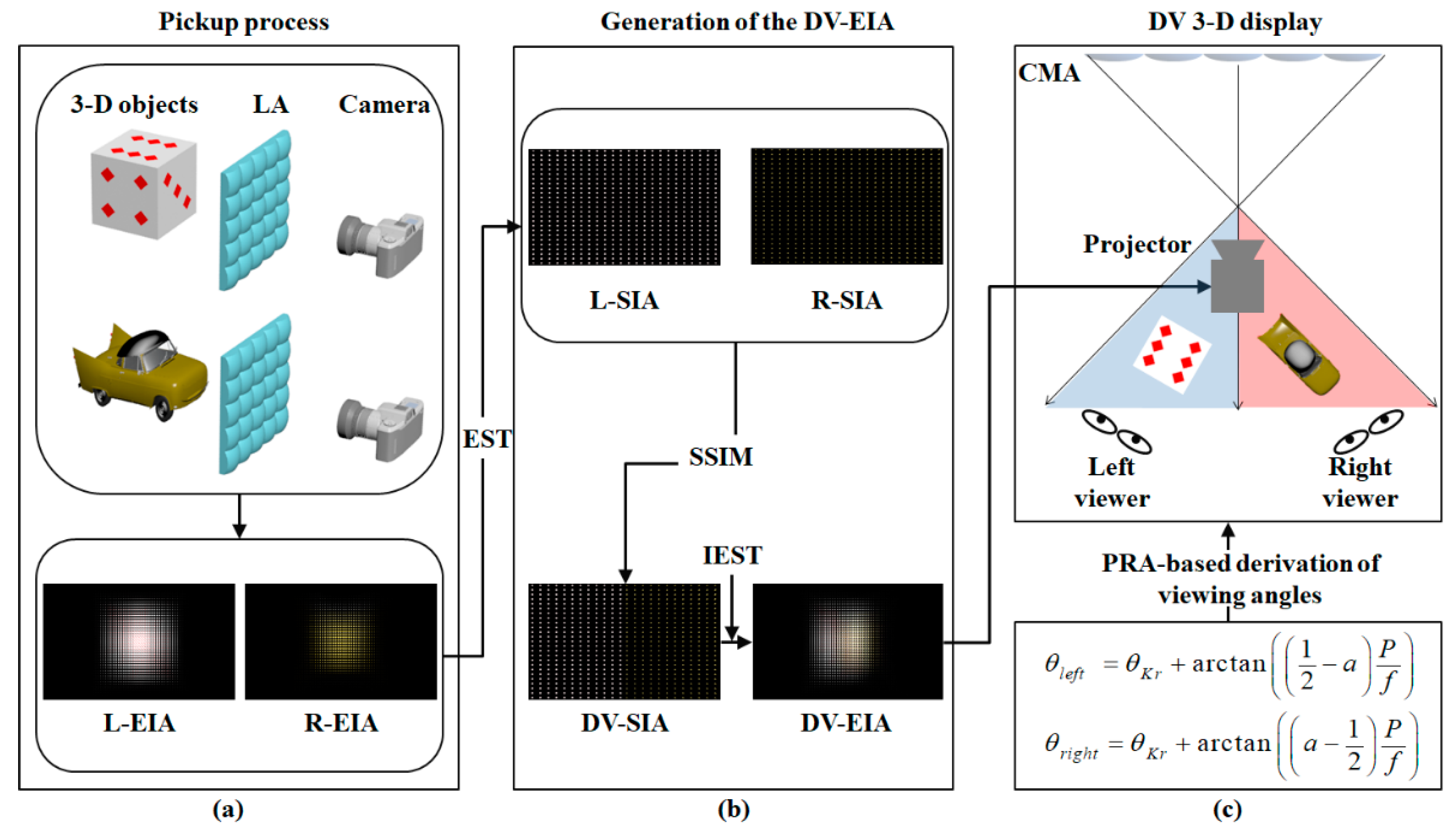

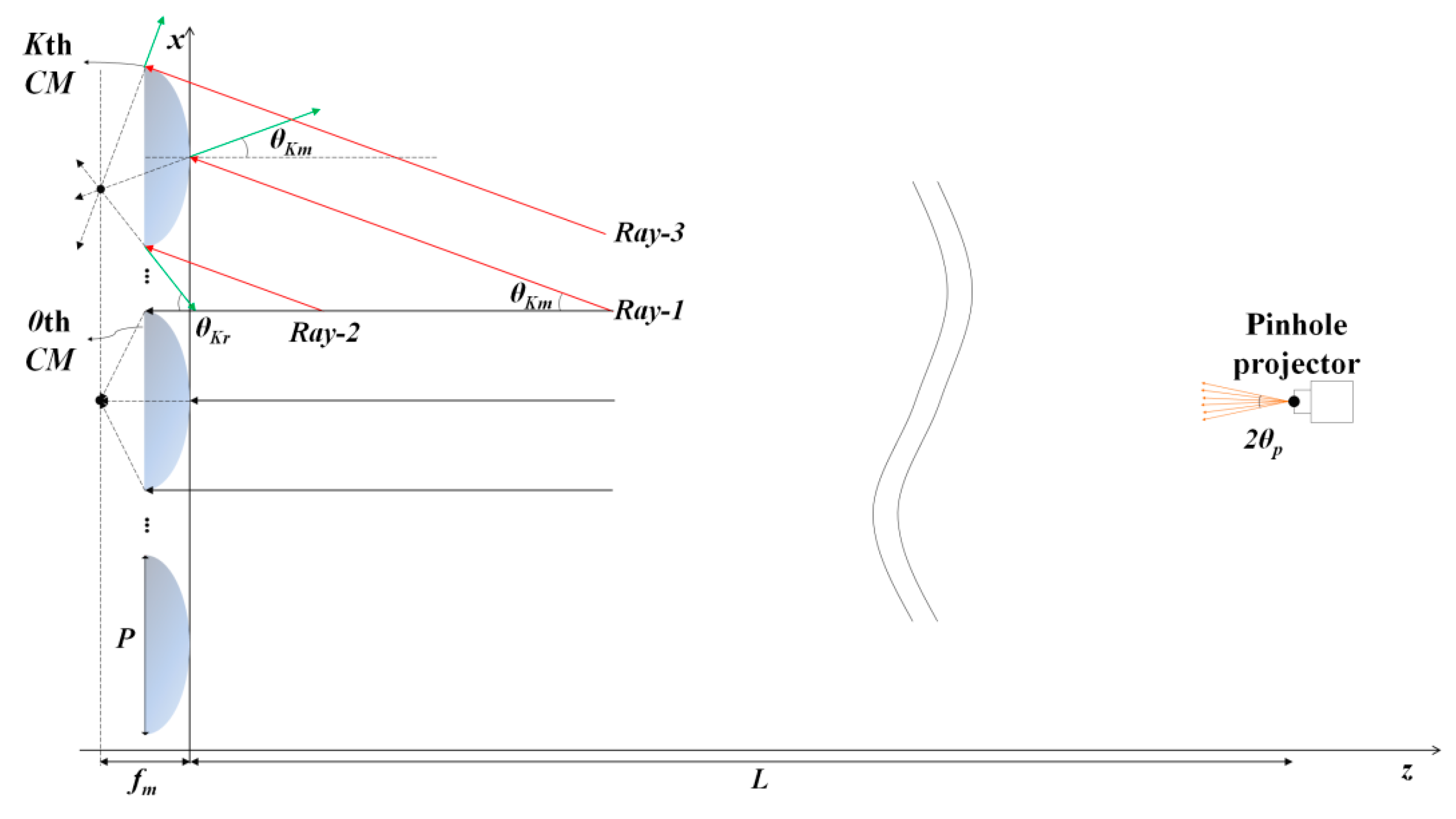

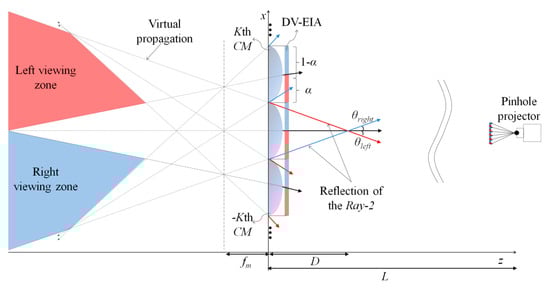

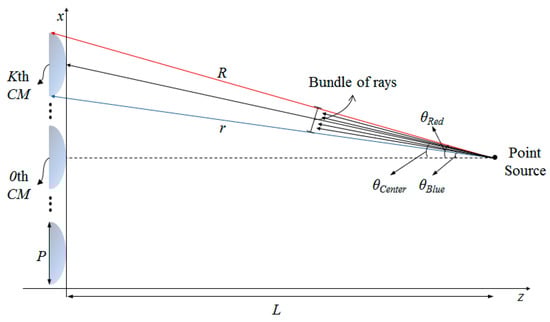

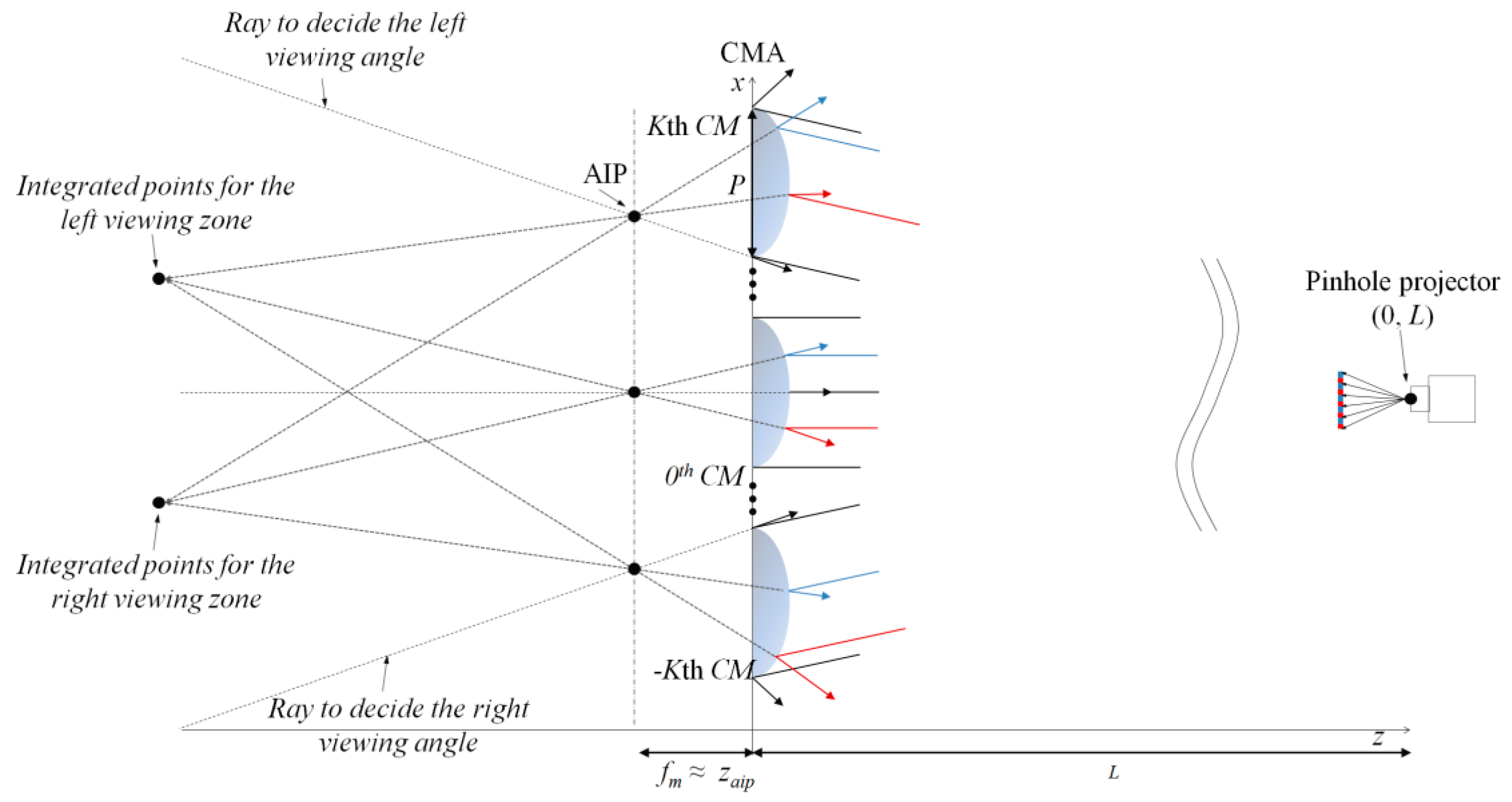

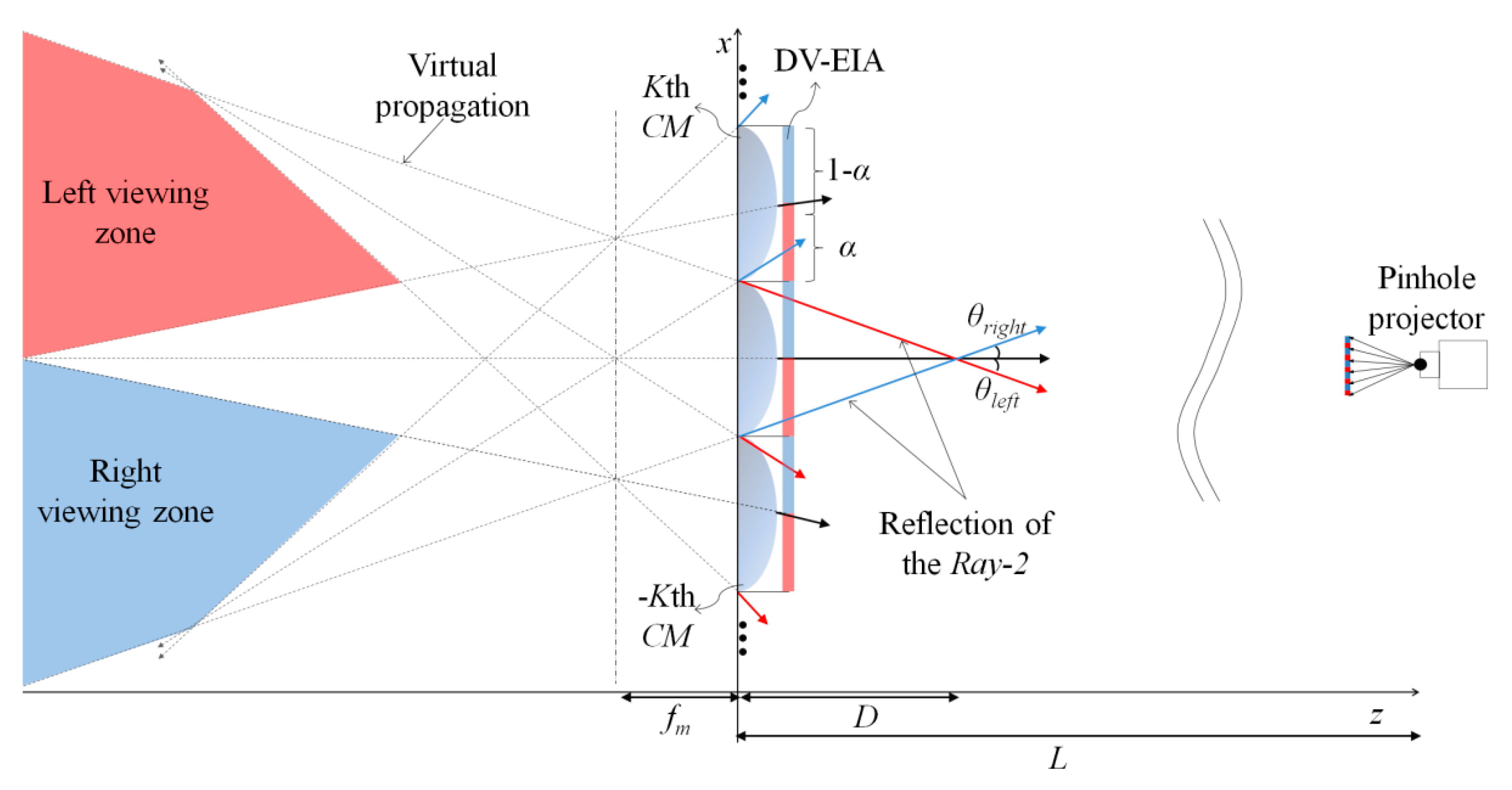

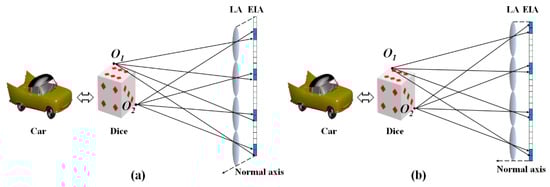

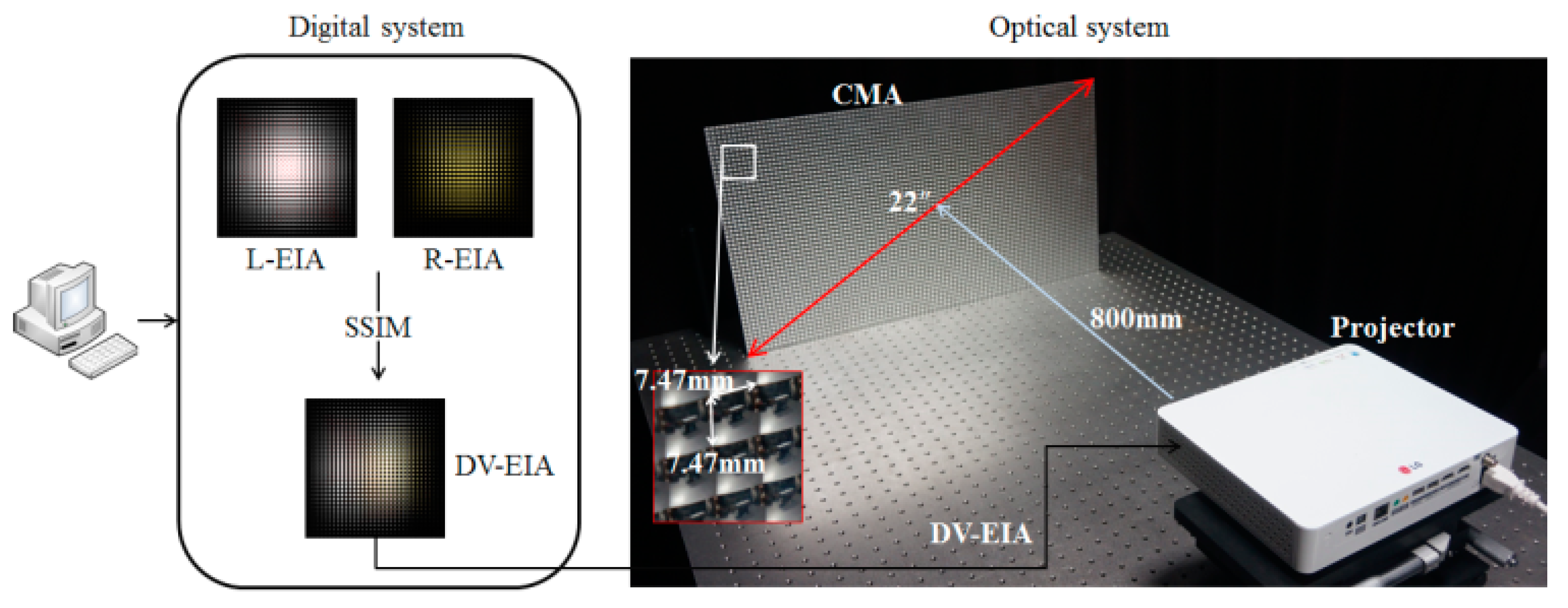

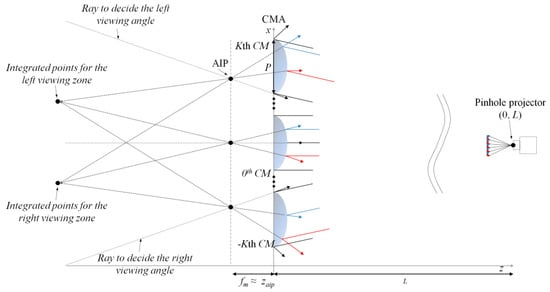

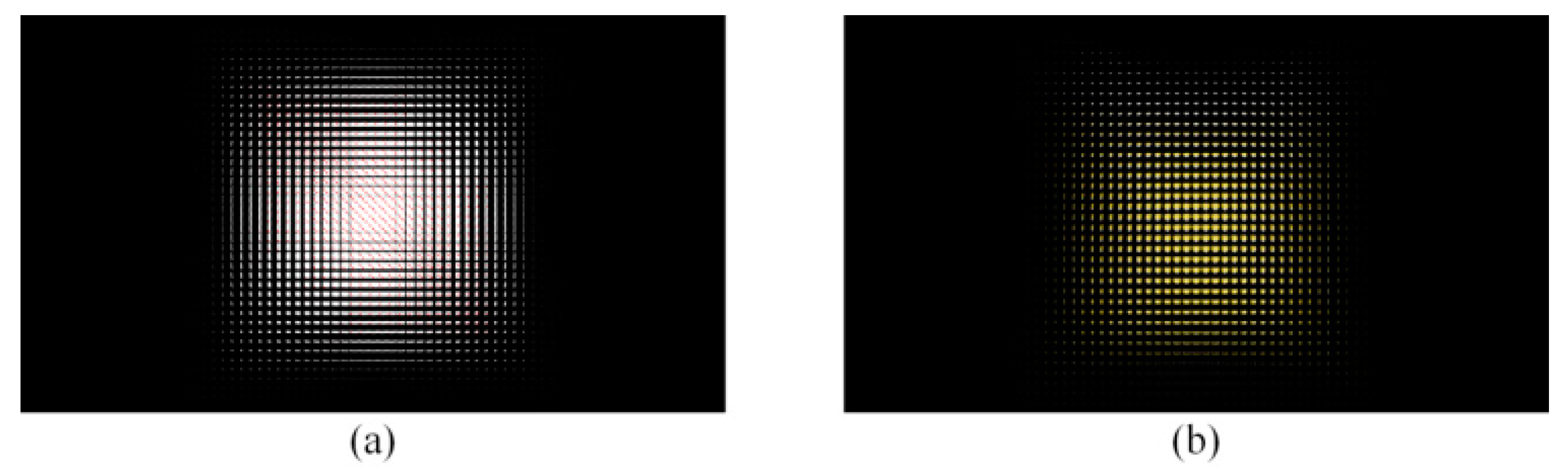

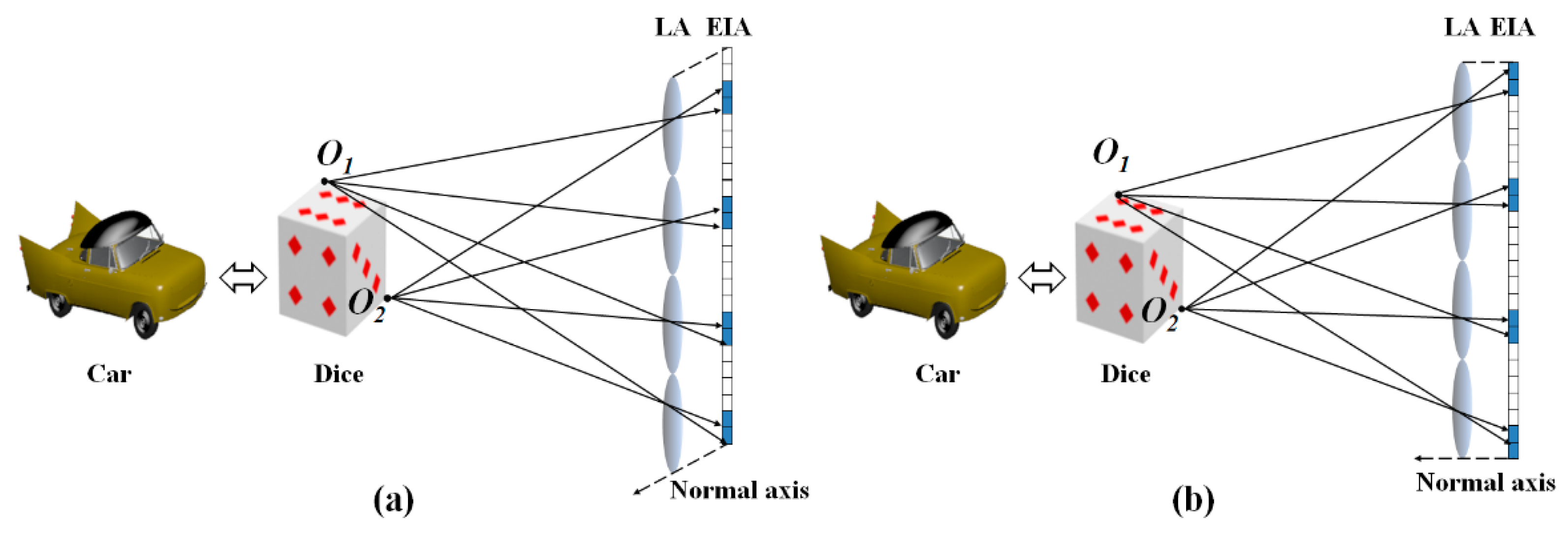

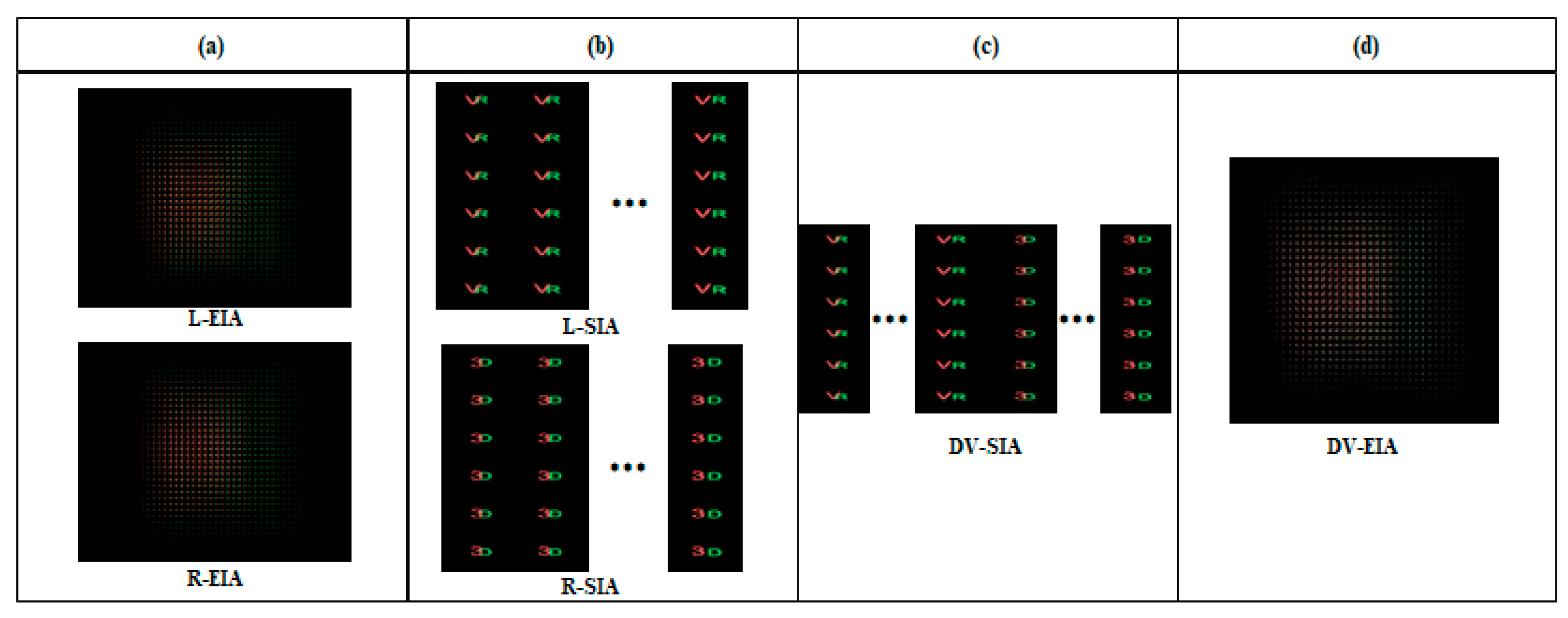

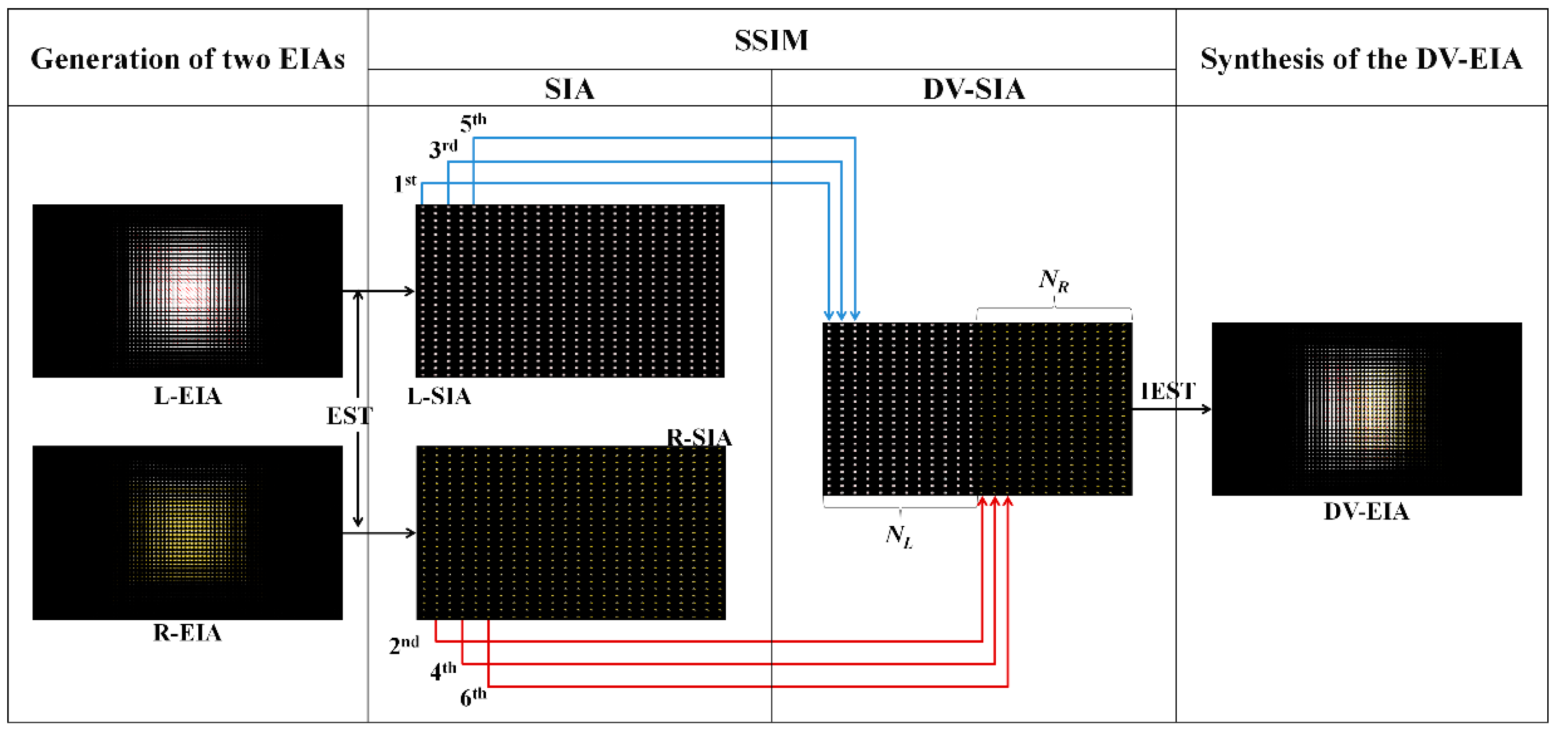

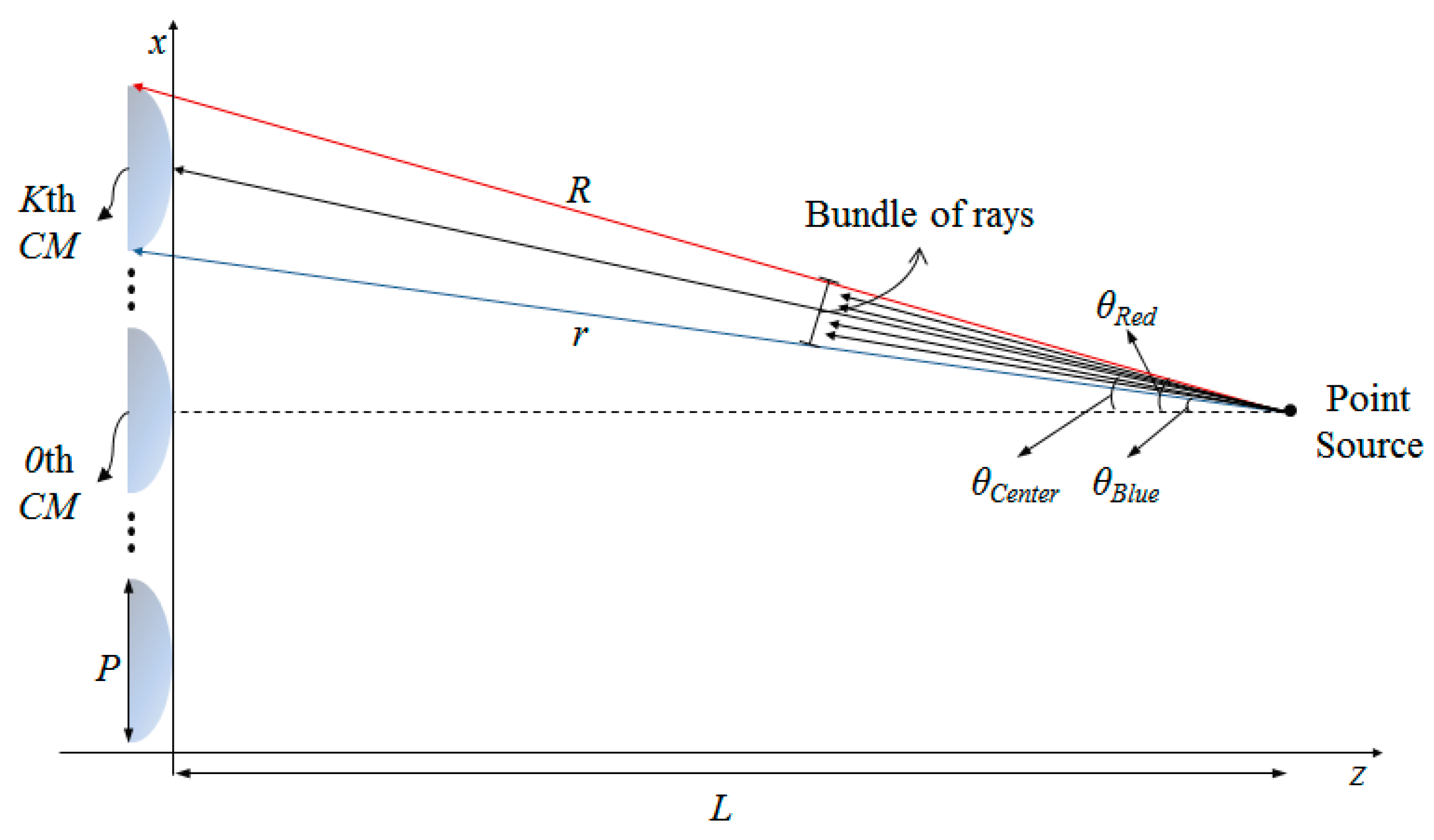

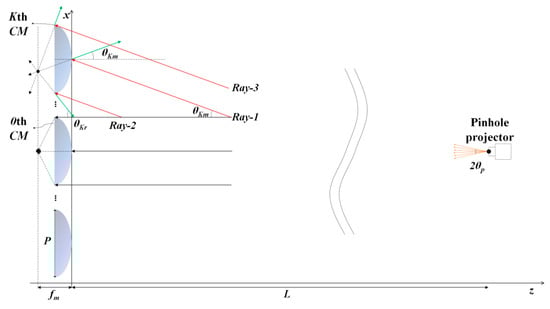

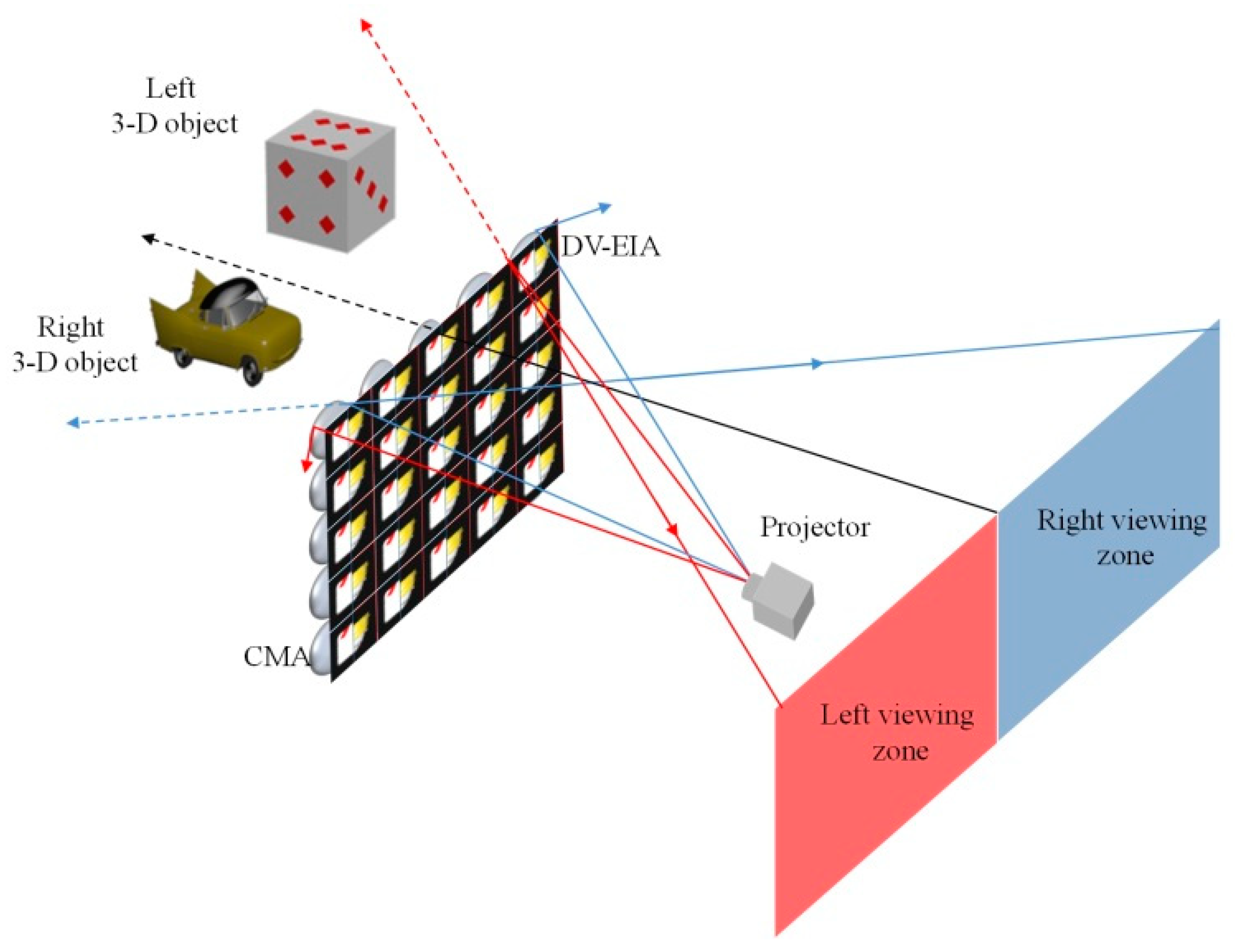

Dual three-dimensional (3-D) view displays have been attracting much attention in many practical application fields since they can provide two kinds of realistic 3-D images with different perspectives to the viewer. Thus, in this paper, a new type of the dual-view 3-D display system based on direct-projection integral imaging using a convex-mirror-array (CMA) is proposed. Two elemental image arrays (EIAs) captured from each of the two 3-D objects are synthesized into a single dual-view EIA (DV-EIA) with a selective sub-image mapping scheme. The divergent beam of the projector containing the information of the DV-EIA is projected onto the CMA. On each convex mirror of the CMA, left and right-view components of the DV-EIA are separated and reflected back into their viewing directions. Two different 3-D scene images are then integrated and displayed on their respective viewing zones. Ray-optical analysis with the parallel-ray-approximation method and experiments with the test 3-D objects on the implemented 22″ DV 3-D display prototype confirm the feasibility of the proposed system in the practical application
Keywords: 3-D optical imaging processing; 3-D optical display; 3-D projection integral imaging; holographic display; three-dimensional dual-view display 3-D optical imaging processing; 3-D optical display; 3-D projection integral imaging; holographic display; three-dimensional dual-view display
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Choi, H.-M.; Choi, J.-G.; Kim, E.-S. Dual-View Three-Dimensional Display Based on Direct-Projection Integral Imaging with Convex Mirror Arrays. Appl. Sci. 2019, 9, 1577.
