The Potential Benefits of Therapeutic Treatment Using Gaseous Terpenes at Ambient Low Levels

by
Jo-Chun Kim
1,
Trieu-Vuong Dinh
1,
Hong-Keun Oh
1,
Youn-Suk Son
2,
Ji-Won Ahn
3,
Kyu-Yong Song
1,
In-Young Choi
1,
Chan-Ryul Park
4,
JanJan E. Szulejko
5 and
Ki-Hyun Kim
5,*
1
Department of Civil and Environmental Engineering, Konkuk University, 120 Neungdong-ro, Gwangjin-Gu, Seoul 05029, Korea
2
Department of Environmental Engineering, Pukyong National University, 45 Yongso-ro, Nam-Gu, Busan 48513, Korea
3
International Climate and Environmental Research Center, Konkuk University, 120 Neungdong-ro, Gwangjin-Gu, Seoul 05029, Korea
4
Urban Forest Research Center, National Institute of Forest Science, 57 Hoegi-ro, Dongdaemun-gu, Seoul 02455, Korea
5
Department of Civil and Environmental Engineering, Hanyang University, Seoul 04763, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(21), 4507; https://doi.org/10.3390/app9214507
Submission received: 17 September 2019 / Revised: 5 October 2019 / Accepted: 20 October 2019 / Published: 24 October 2019
(This article belongs to the Section Environmental Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:

Featured Application

residents who have less chance to contact with natural monoterpene emitted from plants.

Abstract

Biological volatile organic compounds (BVOCs) are emitted abundantly from the flora. Among BVOCs, monoterpenes (MTs) have been used for aromatherapy (e.g., forest bathing) to treat human physiological and psychological conditions. However, relatively little is known about the therapeutic effects of MTs at low part per billion by volume (ppbv) levels. The effects of artificial MTs on human subjects were assessed by both olfactory and therapeutic parameters (brain alpha waves and stress index). Gaseous standards of three monoterpenes (i.e., α-pinene, β-pinene, and d-limonene) prepared at low ppbv levels were used individually and as mixtures. Fifty-nine healthy and non-asthmatics volunteer university students were selected for the test. All human subjects inhaled low ppbv levels of monoterpene in the testing room. Brain alpha waves and stress index were investigated during the inhalation time. Questionnaires were also used after testing. It was found that the detection threshold of MTs was close to 5 ppbv. When the MT levels increased from 0 to 20 ppbv, the mean values of brain alpha waves derived from all participants increased from 9.8 to 15.1. In contrast, the stress index values declined from 46.2 to 34.7. The overall results suggest that MTs have great potential to positively affect the relaxation state of subjects in a manner similar to forest bathing in terms of short-term effect. They can thus be applied as potential therapeutic media for mental health care.

1. Introduction

In general, natural aromatherapy has been shown to be a potential and effective solution to treat harmful psychological conditions such as anxiety, depression, and anger. Aromatic compounds called phytoncides or wood essential oils of plant constituents have been identified as the cause of psychological effects [1,2,3,4]. Monoterpenes (MTs: C10H16) are a class of biological volatile organic compounds (BVOCs) consisting of two isoprene units. They are the second most abundant BVOCs emitted from plants [5]. The emission and composition of MTs have been widely investigated (Table 1) [6,7,8,9,10,11,12,13,14,15]. Of these compounds, α-pinene, β-pinene, and d-limonene are predominant. Many studies have explored the effects of MTs on human health with respect to their composition and concentration level [1,3,4,16,17,18,19,20,21]. It was also documented that several MTs may exert adverse health effects on humans [21]. However, these adverse effects could only occur when MTs concentrations exceeded the threshold level of human sensory irritation or when they reacted with ozone to produce harmful by-products.
Forest environments are known to affect various human senses, including vision, olfaction, and auditory and tactile sensations [22]. To date, much effort has been applied to assess the effect of such environmental conditions on human wellbeing. Some of those studies focused on the complex mixtures of BVOCs released from materials such as wood chips or wood-extracted oil [23,24,25,26,27,28]. However, it is not easy to determine the relative significance of a particular component among many different BVOC components.
The effects of forest bathing (e.g., Shinrin-Yoku) on human psychology have been well documented [22]. However, the MT levels in a forest can vary widely from pptv to ppbv, due to the combined effects of many factors such as reactivity, temperature, wind speed, and emission rate of MTs from the flora. Moreover, the effects of forest bathing, such as those of phytoncides, are complex, since they include all elements associated with senses (i.e., vision, olfaction, audition and tactile sensations) [22]. Therefore, it is not easy for a human to consistently recognize the odor of MTs. Also, the presence of MTs may not have an effect on human psychology and physiology. Therefore, the results of these previous studies could be biased if they are used to assess the effects of forest bathing. Thus, we attempted to investigate the effect of MTs at fixed concentrations and exposure times on young human subjects in the laboratory to remove the visual and auditory effects present in a forest.
It was found that a relaxed physiological state was observed at relatively low concentrations of α-pinene (e.g., 0.3–3.0 part per million by volume-ppmv) [28]. Likewise, the inhalation of d-limonene (~0.3 ppmv) was reported to induce a comfortable and soothing state [28]. Further, the inhalation of d-limonene (2.5 ppmv) for 90 s was reported to provide physiological and psychological relaxation [29]. However, those tests were conducted using MTs prepared at artificially high concentrations (e.g., at sub-ppmv levels) rather than at those which are actually present in ambient air.
No research has been conducted to directly assess the effects of ambient-level MTs on human psychology using standard samples made of three major MTs (α- pinene, β- pinene, and d- limonene) at low ppbv levels. Accordingly, we used a cohort of 59 subjects to investigate the human psychological response to inhaling the three major MTs at low ppbv levels by monitoring two parameters: alpha waves and stress index.

2. Materials and Methods

2.1. Apparatus and Materials

A standard gas generation system based on the permeation technique (Dynacalibrator 230, Valco Instruments Co. Inc., Houston, TX, USA) was used for the generation of MT standard gases for olfactory tests. A zero-air generator (M701, Teledyne Advanced Pollution Instrumentation Inc., San Diego, CA, USA) was used to supply zero air. The outlet air of the zero-air generator did not contain any quantifiable VOCs. In this work, three MTs (i.e., α-pinene, β-pinene, and d-limonene) were selected as the main target because of their general abundance (see Table 1). They were generated using a permeation tube system containing them at high concentration levels in (near) pure forms (>99%) (100-106-1805-U90, 100-103-1851-U90, and 100-022-1855-U90, Valco Instruments Co. Inc., TX, USA). The outlet concentrations of the MTs were maintained in the range of 2 to 20 ppbv. For the actual human olfactory test, the mixture gas was made to flow at 5 L/min into a funnel, which was placed close to the subject’s nose. The test mixture of the MTs generated from the permeation system was also analyzed to determine their real concentrations and compositions using a gas chromatograph (6890, Agilent Technologies, Santa Clara, CA, USA) coupled with a mass-selective detector (5975, Agilent Technologies, USA) as reported elsewhere [30]. To pretreat the sample gas, an adsorption tube trap [30,31] or absorption needle trap [32] can be employed. In this study, MTs samples were collected by an adsorption tube trap made of 110 mg of Tenax TA (60/80 mesh, Sigma-Aldrich Inc., Louis, MO, USA) and 100 mg of Carbotrap (20/40 mesh, Supelco, USA). The analytical procedures for the quantitation of the selected targets have been reported elsewhere [30].
Temporal stability in the generation of MT gases for the olfactory test was assessed for up to 12 h. Once the generation system was equilibrated with regard to temperature, the target gases collected from the outlet of the generation system were measured hourly for 12 h. The temporal variability was assessed in terms of the relative standard deviation (RSD), and the values were stable (<2.5%).

2.2. Test Subjects

A total of 59 healthy and non-asthmatics volunteer subjects were recruited for the test. Among the volunteers, those who had problems with olfactometric capabilities were excluded. The age of the students ranged between 22 to 33 years. They were divided into two groups. The first group consisted of 29 subjects (23 males), who took part in the first experiment (see Section 2.3.1). The second group comprised 30 subjects (15 males), who participated in the second experiment (see Section 2.3.2). Informed consent was obtained from all individual participants included in the study. All participants were asked not to use perfume and strong smelly cosmetics at least 24 h prior to the experiment.

2.3. Experimental Procedure

Due to the variability of MT levels in ambient air (see Table 1), it is important to select proper concentration levels for human olfaction tests. Two types of olfactory experiments were designed and conducted. In our first experiment (Exp 1), measurements of target gases were carried out using individual standard gases of MT, wherein the detection threshold values of each MT were measured. In this study, the detection threshold was defined as the MT concentration at which 50% of participants could distinguish their presence from the background. This approach was adopted by following the odor threshold procedures from the US EPA (1990) [33]. A questionnaire was used to investigate the relative preference among the three MTs by each participant because of their various mixing ratios in ambient air (Table 1). Information regarding the relative preference was then used to determine a mixing ratio for the three target MTs in the next experiment (Exp 2). To this end, a mixture of the three MTs (α-pinene, β-pinene, and d-limonene = 1:0.5:0.5) was generated. Hence, during Exp 2, each participant inhaled the mixture over 2.5 min to quantitatively assess the therapeutic potential of the MT gases.

2.3.1. Assessment of the Human Olfactory Response to the Odors of α- Pinene, β- Pinene, d- Limonene (Exp 1)

Exp 1 was conducted to determine the human olfactory response at given concentration levels of each MT. Each participant was led into a clean testing room (L × W × H = 7 × 7 × 3 (147) m3) and inhaled a test MT mixture dispensed from a funnel close to the nose for 2.5 min (Figure 1). The exposure time was 2.5 min because it was sufficient to observe physiological changes [29].
Sequentially, each participant inhaled each MT standard prepared at four different concentration levels (i.e., 2, 3, 5, and 7 ppbv). The different concentration were presented randomly. To this end, the permeation tubes for standard MT gases of α- pinene, β- pinene, and d- limonene were used at permeation rates of 201, 252, and 253 ng/min, respectively. For every single MT tested, each participant inhaled samples at a certain concentration level for 2.5 min. To avoid contamination of the room during the experiment [34], a 15 min break was taken by all participants before the inhalation of a mixture at a different concentration levels. The testing room was ventilated with fresh air during this time, at a flow rate of approximately 30 m3/min. The participant seated in the room during break time. The inhalation testing room was maintained at a temperature of 25 ± 1 °C and a relative humidity of 50 ± 5%. Before and after each experiment where one kind of MT was tested, the room was ventilated with fresh air for one hour using fans. After inhaling the MTs at all concentration levels, the participants were asked to answer a questionnaire (see Table 2).

2.3.2. Effects of Mixed Monoterpenes on Human Psychology and Physiology (Exp 2)

The second group was recruited for Exp 2, which employed the same test chamber used in Exp 1. The participants in Exp 2 inhaled a mixture of MT gases instead of individual gases, as explained above. Here, a mixture of MTs consisting of α-pinene, β-pinene, and d-limonene was generated using permeation tubes as described above. As shown in Table 1, the ratio of β-pinene to α-pinene varied from 0.03 to 1.34, and that of d-limonene to α-pinene ranged from 0.00 to 1.67. Their average mixing ratios were about 1:0.7:0.4 (refer to Table 1). On the other hand, the results of the Exp 1 showed that people preferred d-limonene over α-pinene or β-pinene. Consequently, we set the mixing ratio of the 3 MTs to be α-pinene/β-pinene/d-limonene = 1:0.5:0.5. Although outdoor ambient MT concentrations are often variable from pptv to low ppbv levels (Table 1), people could clearly detect MT odors at the ppbv level (from Exp 1). It was found that the detection threshold of MT in this study was 5 ppbv (from Exp 1). However, 100% of participants could detect the odor at 7 ppbv. Moreover, MTs at ambient levels exert their effects on humans via olfactory mechanisms rather than via the blood-borne route through the lungs [22]. Hence, 7 ppbv was selected as the minimum concentration of MTs in this work to make sure that all participants could detect the MTs’ odors. Furthermore, the maximum total concentration of MTs in the ambient air was about 20 ppbv (Table 1). Thus, the total concentration of the mixture was varied as follows: 0, 7, 15, and 20 ppbv (see Table 3). The total concentration was calculated on the basis of the total mass of all compounds in the mixture. The mass of each compound was derived from its calibration curve. Each participant inhaled different levels of the mixed MTs for 2.5 min. For this test, a break was given at 15 min intervals between measurements at different concentration levels.
During exposure to MTs, the participant’s heart rate was continuously monitored using a heart rate variability (HRV) sensor (UbioMacpa, Bio-sense Creative Co. Ltd., Republic of Korea) to evaluate the subject’s physiological condition. HRV (including blood pressure and pulse rate) has been used frequently to estimate changes in the autonomic nervous activity [22]. In the present research, the HRV values were interpreted on the basis of a stress index: good (HRV < 24), temporary stress (25 < HRV < 35), primary stress (35 < HRV < 45), accumulated stress (45 < HRV < 60), and chronic stress (HRV > 60). Moreover, the brain waves of the participants were also measured using a brain wavemeter (EEG, Neuroharmony Co., Republic of Korea). The relaxed status of each subject was presented as the alpha value of the brain wave (i.e., alpha wave). Note that the alpha waves are unitless and observed in the frequency range of 8 to 12 Hz in association with physical relaxation [35]. The measured data for alpha waves were downloaded through the software system of the brain wavemeter.
After inhaling the MT standard test mixtures, questionnaires were administered to assess the psychological conditions, which were related to the stress index and alpha wave (Table 4).
Analysis of variance (ANOVA) and STATGRAPHICS Centurion XV software ver. 15.2.05 (Statpoint Technologies Inc., Warrenton, VA USA) were used to analyze the stress index and alpha waves. The stress index and alpha wave values (p ≤ 0.05) among participants were evaluated statistically using Fisher’s least significant difference (LSD) procedure. All experimental materials and procedures involved in these experiments have been reviewed and approved by the Konkuk University Institutional Review Board (reference number: 7001355-201507-HR-065, email: [email protected]).

3. Results

3.1. Effect of Individual α-Pinene, β-Pinene, and d-Limonene on Humans

As seen in Table 5 and Table A1 , 50% of the participants could detect the odors of the MTs at 5 ppbv. Therefore, the human olfactory MT detection threshold was set to 5 ppbv. On the other hand, it was found that 100% of participants could detect the odors of the MTs at 7 ppbv.
In this research, it was observed that d-limonene was the preferred odor (62% of participants), followed by β-pinene (24% of participants). In contrast, α-pinene was the least favorite odor in this study. Most of the participants preferred d-limonene as it is preferably used in many commercial and popular products (as orange, lime, lemon, etc.).

3.2. The Effects of Mixtures of Monoterpenes on Human Psychology and Physiology

Variations in alpha waves and stress index values observed in Exp 2 are shown in Figure 2 and Figure 3, respectively.
As shown in Figure 2, the increase in MT concentration caused an increase in alpha waves, indicating that the participants felt relaxed in the presence of MTs, but this response was dose-dependent. All participants showed the most physiological benefit at 20 ppbv MT (mean of the alpha waves = 15.1 ± 4.0, refer to Table A2) compared to background conditions (mean of alpha wave = 9.8 ± 3.0, refer to Table A2). This pattern was confirmed by the LSD results. The mean values of alpha waves changed significantly (p value = 0) with increasing concentration of MTs. The increasing alpha patterns were similar for both gender groups (Table 6). Although female olfaction was more sensitive than that of males (obtained from Exp 1), there was no statistically significant (p-values > 0.05) difference in mean alpha wave values between males and females.
As illustrated in Figure 3, the increase of MT concentrations resulted in the decrease of the stress index values. In addition, the mean background stress index of both male and female participants was 46.2 ± 6.2 (refer to Table A2) and was higher at 20 ppbv MT (34.7 ± 5.2, refer to Table A2). This indicates that MT exposure helps reduce human stress. Since the concentrations of MTs were at ppbv levels, their effects must occur via the olfactory processing pathway, not via the blood-borne route through the lungs [28]. The alpha wave data showed that there was also no significant difference (p-values > 0.25) in mean stress index between males and females (Table 6).
Figure 4 shows variations in alpha waves and stress index with respect to the concentrations of MTs within 2.5 min. The alpha waves of males (slope: 0.292) increased more rapidly than those of females (slope: 0.214). This indicates that the alpha waves of male were more sensitive to inhaling MTs than those of females. On the other hand, the stress index of females (slope: −0.611) decreased more rapidly than that of males (slope: −0.497). This indicates that stress in females was reduced more readily by inhaling MTs than in males. Furthermore, when comparing the variations in alpha waves and stress index between males and females as a function of MT concentration, the alpha waves (r2 = 0.999) and stress index (r2 = 0.995) of females were slightly more consistent than those of males (alpha wave: r2 = 0.982; stress index: r2 = 0.981). This indicates that MT affected female psychology more than male psychology, because the olfactory system of females is more sensitive than that of males [36].
The results obtained from the questionnaires also showed similar psychological patterns (refer to Table A3). Only 44% of the participants felt comfortable before inhaling the MTs. In contrast, after inhaling the MTs, 87% of the participants felt comfortable. The distribution of comfortable female and male participants increased from 40% and 47% to 80% and 93%, respectively.

4. Discussion

In terms of MT detection threshold, our results are similar to those of previous studies. Cain et al. (2007) reported that the detection threshold of limonene was 2 to 4 ppbv [37]. In contrast, the P100 threshold of α-pinene was about 15 ppbv (90 µg/m3) [38]. Furthermore, a larger fraction of female subjects was able to detect the odor of 5 ppbv MTs compared to male subjects (Table 5). This indicates that the female olfactory response is more subtle than the male response. It was suggested that women have more neurons and glial cells than men [36]. Moreover, the odor perception of women is more effective than that men [39].
The concentration of MTs in our experiments was adjusted on the basis of their natural levels in forests. Moreover, the concentrations of MTs can vary depending on many factors such as season, climate, and forest composition [22]. Therefore, the concentration of MTs must be chosen on the basis of their detection limits when studying MTs effects on human psychology. The results of this study showed that all participants could clearly sense the MTs at a concentration of 7 ppbv, indicating that MTs might not affect human psychology when they are present under the detectable smell level (2 ppbv). In a study, it was concluded that the strong odor of α-pinene (~16.7 ppmv) was uncomfortable for the subjects [28]. However, this concentration level was much higher (e.g., in ppmv level) than that in ambient level (e.g., in ppbv level). In this study, the objective was exposure to the low (ppbv) levels of MTs. Thus, it is not easy to directly compare those results to ours.
It was found that the inhalation of low ppbv levels of MTs was helpful to improve the psychology of all subjects in this study. These results are consistent with those reported previously regarding the inhalation of mixed MTs [23,24,25,26,28]. Participants who smelled Japanese cedar wood reported enhanced comfort and a relaxation after 40–60 s [26]. The smell of Hiba oil also mitigated depression and anxiety [25], while enhancing contingent negative variation [24]. Moreover, after inhaling Taiwan cypress, the performance of the participants was improved with respect to certain tasks [27]. Besides, their maximum blood pressure also decreased [27]. It was also reported that the inhalation of 0.3–3 ppmv of α-pinene and 0.3 ppmv of d-limonene from air greatly improved the comfort of subjects [28]. In addition, Cedrol was shown to decrease heart rate and systolic blood pressure [23].
Accordingly, the inhalation of single MTs revealed a good effect on human psychology. However, high concentrations of MTs could bring about adverse effects on psychology. In addition, mixtures of MTs also helped improve the subjects’ comfort at low ppmv levels of MTs. On the basis of this study, it is suggested that the exposure to ppbv levels of artificial MTs should help improve human psychology and physiology. In the combination with an image display device (such as projector, television, and visual-reality device), the use of artificial monoterpenes would generate similar positive effects as a forest bathing, without visiting a real forest. It would offer diverse therapeutic opportunities for those who cannot access the forest environment with ease.

5. Conclusions

In conclusion, the individual and integrated effects of MTs on human physiology and psychology were investigated in a laboratory setting. Monoterpenes (α-pinene, β-pinene, and d-limonene) at ambient forest concentration levels were artificially generated and tested. It was observed that the human olfactory detection thresholds of α-pinene, β-pinene, and d-limonene were close to 5 ppbv. In terms of physiological and psychological effects, we found that the alpha waves of male participants were more sensitive to MTs than those of females. However, the female participants went into a state of relaxation faster than the males after inhaling MTs. Decreased stress index and increased brain alpha waves were observed after inhaling MTs, indicating that MTs relaxed the subjects physiologically and psychologically. These results suggest that using MTs can help improve human psychological wellbeing in a short-term after inhaling. This will help people who are unable to travel to a natural environment. This can also help people relax within a short period of time and with low cost. This is also a potential therapeutic method to treat psychiatric patients. Hence, more researches should be conducted to explore the potential therapeutic benefits of airborne terpenes at low ppbv levels. To evaluate the changes in stress and other physiological and psychological conditions in relation to terpenes in more details, we are proposing to use wearable devices such as those for electrocardiogram (ECG), photoplethysmogram (PPG), galvanic skin response (GSR) recording, etc. in the future works.

Author Contributions

J.-C.K. and K.-H.K. conceptualized the work. Data curation was performed by J.-W.A., I.-Y.C., H.-K.O. and K.-Y.S. The methodology was created by J.-C.K., T.-V.D. and Y.-S.S. wrote the original draft. Review and editing were done by C.-R.P., J.S., and K.-H.K.

Acknowledgments

This research was supported by the National Institute of Forest Science (FE 0000-2018-01). KHK also acknowledges support made in part by grants from the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT & Future Planning (No. 2016R1E1A1A01940995).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Summary of MT olfaction tests at four different concentrations of each MT standard gas (Exp 1).
Table A1. Summary of MT olfaction tests at four different concentrations of each MT standard gas (Exp 1).
Raw Counting Data
No.Concentration (ppbv)2357
CompoundsNumber of participant
1α-pinene161929
2β-pinene041529
3d-limonene052029
Ratio of Participant Could Smell MT Odor
No.Concentration (ppbv)2357
CompoundsRatio of participant (%)
1α-pinene3.4520.765.5100
2β-pinene0.0013.851.7100
3d-limonene0.0017.269.0100
The Test of Preference between Three Tested MTs
No.CompoundMaleFemaleTotalPercentage (%)
1α-pinene40413.8
2β-pinene61724.1
3d-limonene1351862.1
Table
Table A2. Summary of alpha waves and stress index data in the psychological test (Exp 2).
Table A2. Summary of alpha waves and stress index data in the psychological test (Exp 2).
OrderCodeAgeAlpha Wave Intensity vs MT (ppbv)Stress Index vs MT (ppbv)
071520071520
1F1F12112.7013.5714.0515.9040393632
2F2F22112.5512.5813.4016.3957513524
3F3F32112.9314.3418.5320.1244424040
4F4F42110.4013.0213.9115.8751474236
5F5F5229.9515.2015.8616.2539373328
6F6F62210.7213.4119.2520.5557564441
7F7F72110.1710.2210.7411.6152434040
8F8F8218.0910.0710.7411.2450383939
9F9F9216.076.7410.6110.8842414039
10F10F102610.4210.3911.8713.3143333432
11F11F11218.089.059.139.3835322625
12F12F122310.0910.0311.2711.9947373529
13F13F133011.0313.4913.9514.9644403935
14F14F14235.857.209.2010.9341403838
15F15F153416.3317.2020.7021.1856433434
16M1M1248.0611.1712.7613.3448484644
17M2M2258.5212.5813.3213.9443414037
18M3M3254.826.699.6010.0354434137
19M4M4249.7014.7615.4617.3448444140
20M5M5237.5012.6113.8415.3042403935
21M6M6247.997.9511.9218.9343414040
22M7M72412.8413.9416.9019.9843393837
23M8M8239.3111.1311.9313.9448423937
24M9M92312.4114.9218.0619.7237363531
25M10M102413.1713.2914.8921.3142413836
26M11M112310.9211.1211.8511.9445402924
27M12M12256.158.309.1911.2145393831
28M13M13235.847.569.9113.1439363231
29M14M14245.617.688.269.0056494536
30M15M152615.9716.2819.1322.2654434234
Note: F is female, M is male.
Table
Table A3. Summary of participants’ answers to the questionnaire for the psychological test (Exp 2).
Table A3. Summary of participants’ answers to the questionnaire for the psychological test (Exp 2).
No.CodeBefore inhaling MTAfter Inhaling MT
Very StableStable NormalUnstableVery UnstableVery StableStable NormalUnstableVery Unstable
1F1 x x
2F2 x x
3F3 x x
4F4 x x
5F5 x x
6F6 x x
7F7 x x
8F8 x x
9F9 x x
10F10 x x
11F11 x x
12F12x x
13F13 x x
14F14 x x
15F15 x x
16M1 x x
17M2x x
18M3 x x
19M4x x
20M5 x x
21M6 x x
22M7 x x
23M8 x x
24M9x x
25M10 x x
26M11 x x
27M12 x x
28M13 x x
29M14 x x
30M15 x x
Note: F is female, M is male, x is selected.

References

  1. Li, Q.; Nakadai, A.; Matsushima, H.; Miyazaki, Y.; Krensky, A.M.; Kawada, T.; Morimoto, K. Phytoncides (wood essential oils) induce human natural killer cell activity. Immunopharmacol. Immunotoxicol. 2006, 28, 319–333. [Google Scholar] [CrossRef] [PubMed]
  2. Li, Q.; Morimoto, K.; Nakadai, A.; Inagaki, H.; Katsumata, M.; Shimizu, T.; Hirata, Y.; Hirata, K.; Suzuki, H.; Miyazaki, Y.; et al. Forest bathing enhances human natural killer activity and expression of anti-cancer proteins. Int. J. Immunopathol. Pharmacol. 2007, 20, 3–8. [Google Scholar] [CrossRef] [PubMed]
  3. Li, Q.; Morimoto, K.; Kobayashi, M.; Inagaki, H.; Katsumata, M.; Hirata, Y.; Hirata, K.; Suzuki, H.; Li, Y.J.; Wakayama, Y.; et al. Visiting a forest, but not a city, increases human natural killer activity and expression of anti-cancer proteins. Int. J. Immunopathol. Pharmacol. 2008, 21, 117–127. [Google Scholar] [CrossRef] [PubMed]
  4. Li, Q. Effect of forest bathing trips on human immune function. Environ. Health Prev. Med. 2010, 15, 9–17. [Google Scholar] [CrossRef]
  5. Geron, C.D.; Pierce, T.E.; Guenther, A.B. Reassessment of biogenic volatile organic compound emissions in the Atlanta area. Atmos. Environ. 1995, 29, 1573–1578. [Google Scholar] [CrossRef]
  6. Bouvier-Brown, N.C.; Goldstein, A.H.; Gilman, J.B.; Kuster, W.C.; De Gouw, J.A. In-situ ambient quantification of monoterpenes, sesquiterpenes and related oxygenated compounds during BEARPEX 2007: Implications for gas-and particle-phase chemistry. Atmos. Chem. Phys. 2009, 9, 5505–5518. [Google Scholar] [CrossRef]
  7. Hakola, H.; Laurila, T.; Rinne, J.; Puhto, K. The ambient concentrations of biogenic hydrocarbons at a northern European, boreal site. Atmos. Environ. 2000, 34, 4971–4982. [Google Scholar] [CrossRef]
  8. Hsieh, C.-C.; Chang, K.-H.; Wang, L.-T. Ambient concentrations of biogenic volatile organic compounds in Southern Taiwan. Chemosphere 1999, 39, 731–744. [Google Scholar] [CrossRef]
  9. Kalabokas, P.; Bartzis, J.G.; Bomboi, T.; Ciccioli, P.; Cieslik, S.; Dlugi, R.; Foster, P.; Kotzias, D.; Steinbrecher, R. Ambient atmospheric trace gas concentrations and meteorological parameters during the first BEMA measuring campaign on May 1994 at Castelporziano, Italy. Atmos. Environ. 1997, 31, 67–77. [Google Scholar] [CrossRef]
  10. Kesselmeier, J.; Kuhn, U.; Wolf, A.; Andreae, M.O.; Ciccioli, P.; Brancaleoni, E.; Frattoni, M.; Guenther, A.; Greenberg, J.; De Castro Vasconcellos, P.; et al. Atmospheric volatile organic compounds (VOC) at a remote tropical forest site in central Amazonia. Atmos. Environ. 2000, 34, 4063–4072. [Google Scholar] [CrossRef] [Green Version]
  11. Kim, J.C.; Kim, K.H. Seasonal variations of Monoterpene concentrations in a Pine forest in Florida, USA. J. Korean Soc. Atmos. Environ. 2002, 18, 175–180. [Google Scholar]
  12. Saxton, J.E.; Lewis, A.C.; Kettlewell, J.H.; Ozel, M.Z.; Gogus, F.; Boni, Y.; Korogone, S.O.U.; Serça, D. Isoprene and monoterpene measurements in a secondary forest in northern Benin. Atmos. Chem. Phys. 2007, 7, 4095–4106. [Google Scholar] [CrossRef] [Green Version]
  13. Tani, A.; Nozoe, S.; Aoki, M.; Hewitt, C.N. Monoterpene fluxes measured above a Japanese red pine forest at Oshiba plateau, Japan. Atmos. Environ. 2002, 36, 3391–3402. [Google Scholar] [CrossRef]
  14. Yassaa, N.; Custer, T.; Song, W.; Pech, F.; Kesselmeier, J.; Williams, J. Quantitative and enantioselective analysis of monoterpenes from plant chambers and in ambient air using SPME. Atmos. Meas. Tech. 2010, 3, 1615–1627. [Google Scholar] [CrossRef] [Green Version]
  15. Oh, G.Y.; Park, G.H.; Kim, I.S.; Bae, J.S. Comparison of Major Monoterpene Concentrations in the Ambient Air of South Korea Forests. J. Korean. Soc. 2010, 99, 698–705. [Google Scholar]
  16. Falk, A.A.; Hagberg, M.T.; Lof, A.E.; Wigaeus-Hjelm, E.M.; Wang, Z.P. Uptake, distribution and elimination of alpha-pinene in man after exposure by inhalation. Scand. J. Work. Environ. Health 1990, 16, 372–378. [Google Scholar] [CrossRef]
  17. Komori, T.; Fujiwara, R.; Tanida, M.; Nomura, J.; Yokoyama, M.M. Effects of citrus fragrance on immune function and depressive states. Neuroimmunomodulation 1995, 2, 174–180. [Google Scholar] [CrossRef]
  18. Li, Q.; Nakadai, A.; Ishizaki, M.; Morimoto, K.; Ueda, A.; Krensky, A.M.; Kawada, T. Dimethyl 2,2-dichlorovinyl phosphate (DDVP) markedly decreases the expression of perforin, granzyme A and granulysin in human NK-92CI cell line. Toxicology 2005, 213, 107–116. [Google Scholar] [CrossRef]
  19. Li, Q.; Kobayashi, M.; Kawada, T. DDVP markedly decreases the expression of granzyme B and granzyme 3/K in human NK cells. Toxicology 2008, 243, 294–302. [Google Scholar] [CrossRef]
  20. Li, Q.; Morimoto, K.; Kobayashi, M.; Inagaki, H.; Katsumata, M.; Hirata, Y.; Hirata, K.; Shimizu, T.; Li, Y.J.; Wakayama, Y.; et al. A forest bathing trip increases human natural killer activity and expression of anti-cancer proteins in female subjects. J. Biol. Regul. Homeost. Agents 2008, 22, 45–55. [Google Scholar]
  21. Wolkoff, P.; Nielsen, G.D. Effects by inhalation of abundant fragrances in indoor air—An overview. Environ. Int. 2017, 101, 96–107. [Google Scholar] [CrossRef] [PubMed]
  22. Tsunetsugu, Y.; Park, B.J.; Miyazaki, Y. Trends in research related to “shinrin-yoku” (taking in the forest atmosphere or forest bathing) in Japan. Environ. Health Prev. Med. 2010, 15, 27–37. [Google Scholar] [CrossRef] [PubMed]
  23. Dayawansa, S.; Umeno, K.; Takakura, H.; Hori, E.; Tabuchi, E.; Nagashima, Y.; Oosu, H.; Yada, Y.; Suzuki, T.; Ono, T.; et al. Autonomic responses during inhalation of natural fragrance of “Cedrol” in humans. Auton. Neurosci. Basic Clin. 2003, 108, 79–86. [Google Scholar] [CrossRef]
  24. Hiruma, T.; Yabe, H.; Sato, Y.; Sutoh, T.; Kaneko, S. Differential effects of the hiba odor on CNV and MMN. Biol. Psychol. 2002, 61, 321–331. [Google Scholar] [CrossRef]
  25. Itai, T.; Amayasu, H.; Kuribayashi, M.; Kawamura, N.; Okada, M.; Momose, A.; Tateyama, T.; Narumi, K.; Uematsu, W.; Kaneko, S. Psychological effects of aromatherapy on chronic hemodialysis patients. Psychiatry Clin. Neurosci. 2000, 54, 393–397. [Google Scholar] [CrossRef] [PubMed]
  26. Miyazak, Y.; Morikawa, T.; Yamamoto, N. Effect of wooden odoriferous substance on humans. Jpm. J. Physiol. Anthropol. 1999, 4, 49–50. [Google Scholar]
  27. Miyazaki, Y.; Motohashi, Y.; Kobayyashi, S. Changes in mood by inhalation of essential oils in humansII. Effect of essential oils on blood-pressure, heart-rate, R-R intervals, performance, sensory evaluation and POMS. Mokuzai Gakkaishi 1992, 38, 909–913. [Google Scholar]
  28. Tsunetsugu, Y.; Morikawa, T.; Miyazak, Y. The relaxing effects of the smell of wood. Wood Ind. 2005, 60, 598–602. [Google Scholar]
  29. Joung, D.; Song, C.; Ikei, H.; Okuda, T.; Igarashi, M.; Koizumi, H.; Park, B.J.; Yamaguchi, T.; Takagaki, M.; Miyazaki, Y. Physiological and psychological effects of olfactory stimulation with D-Limonene. Adv. Hortic. Sci. 2014, 2, 90–94. [Google Scholar]
  30. Lim, J.H.; Kim, J.C.; Kim, K.J.; Son, Y.S.; Sunwoo, Y.; Han, J.S. Seasonal variations of monoterpene emissions from Pinus densiflora in East Asia. Chemosphere 2008, 73, 470–478. [Google Scholar] [CrossRef]
  31. Ghimenti, S.; Tabucchi, S.; Lomonaco, T.; Di Francesco, F.; Fuoco, R.; Onor, M.; Lenzi, S.; Trivella, M.G. Monitoring breath during oral glucose tolerance tests. J. Breath Res. 2013, 7, 017115. [Google Scholar] [CrossRef]
  32. Biagini, D.; Lomonaco, T.; Ghimenti, S.; Bellagambi, F.G.; Onor, M.; Scali, M.C.; Barletta, V.; Marzilli, M.; Salvo, P.; Trivella, M.G.; et al. Determination of volatile organic compounds in exhaled breath of heart failure patients by needle trap micro-extraction coupled with gas chromatography-tandem mass spectrometry. J. Breath Res. 2017, 11, 047110. [Google Scholar] [CrossRef]
  33. U.S. EPA. Reference Guide to Odor Thresholds for Hazardous Air Pollutants Listed in the Clean Air Act Amendments of 1990; U.S. EPA: Washington, DC, USA, 1990.
  34. Ghimenti, S.; Tabucchi, S.; Bellagambi, F.G.; Lomonaco, T.; Onor, M.; Trivella, M.G.; Fuoco, R.; Di Francesco, F. Determination of sevoflurane and isopropyl alcohol in exhaled breath by thermal desorption gas chromatography–mass spectrometry for exposure assessment of hospital staff. J. Pharm. Biomed. Anal. 2015, 106, 218–223. [Google Scholar] [CrossRef] [PubMed]
  35. Empson, J. Human Brainwaves: The Psychological Significance of the Electroencephalogram; Palgrave Macmillan: London, UK, 1986; ISBN 978-1-349-18312-8. [Google Scholar]
  36. Oliveira-Pinto, A.V.; Santos, R.M.; Coutinho, R.A.; Oliveira, L.M.; Santos, G.B.; Alho, A.T.L.; Leite, R.E.P.; Farfel, J.M.; Suemoto, C.K.; Grinberg, L.T.; et al. Sexual dimorphism in the human olfactory bulb: Females have more neurons and glial cells than males. PLoS ONE 2014, 9, e111733. [Google Scholar] [CrossRef] [PubMed]
  37. Cain, W.S.; Schmidt, R.; Wolkoff, P. Olfactory detection of ozone and d-limonene: Reactants in indoor spaces. Indoor Air 2007, 17, 337–347. [Google Scholar] [CrossRef] [PubMed]
  38. Nagata, Y. Odor Intensity and Odor Threshold Value. J. Jpn. Air Clean. Assoc. 2003, 41, 17–25. [Google Scholar]
  39. Doty, R.L.; Cometto-Muñiz, J.E.; Jalowayski, A.A.; Dalton, P.; Kendal-Reed, M.; Hodgson, M. Assessment of upper respiratory tract and ocular irritative effects of volatile chemicals in humans. Crit. Rev. Toxicol. 2004, 34, 85–142. [Google Scholar] [CrossRef] [PubMed]
Applsci 09 04507 g001 550

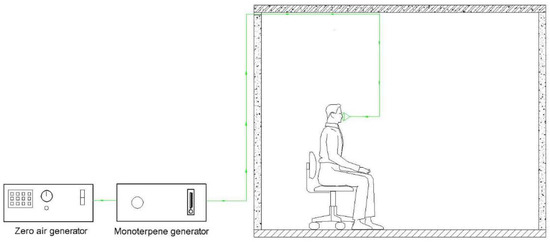

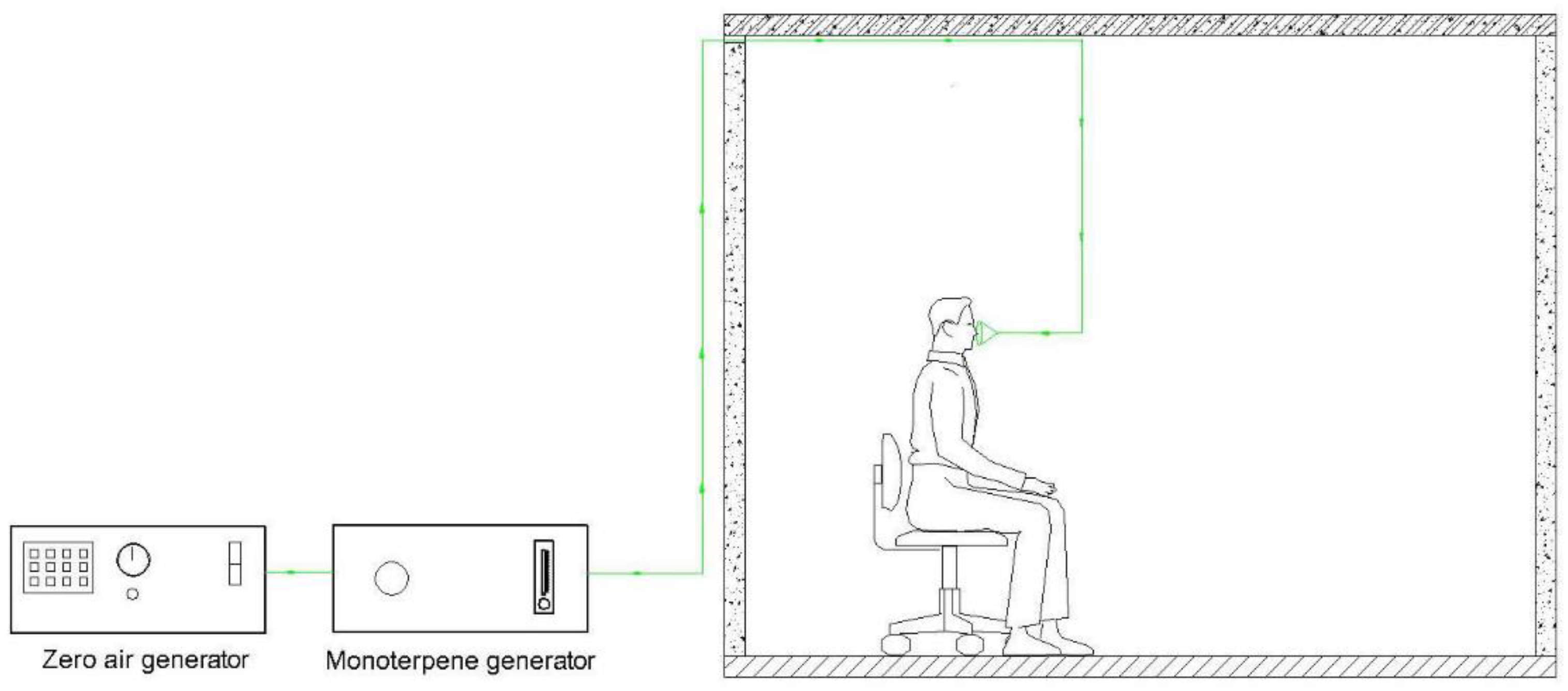

Figure 1. Experimental scheme for monoterpene (MT) exposure in Exps 1 and 2.
Figure 1. Experimental scheme for monoterpene (MT) exposure in Exps 1 and 2.
Applsci 09 04507 g001
Applsci 09 04507 g002 550

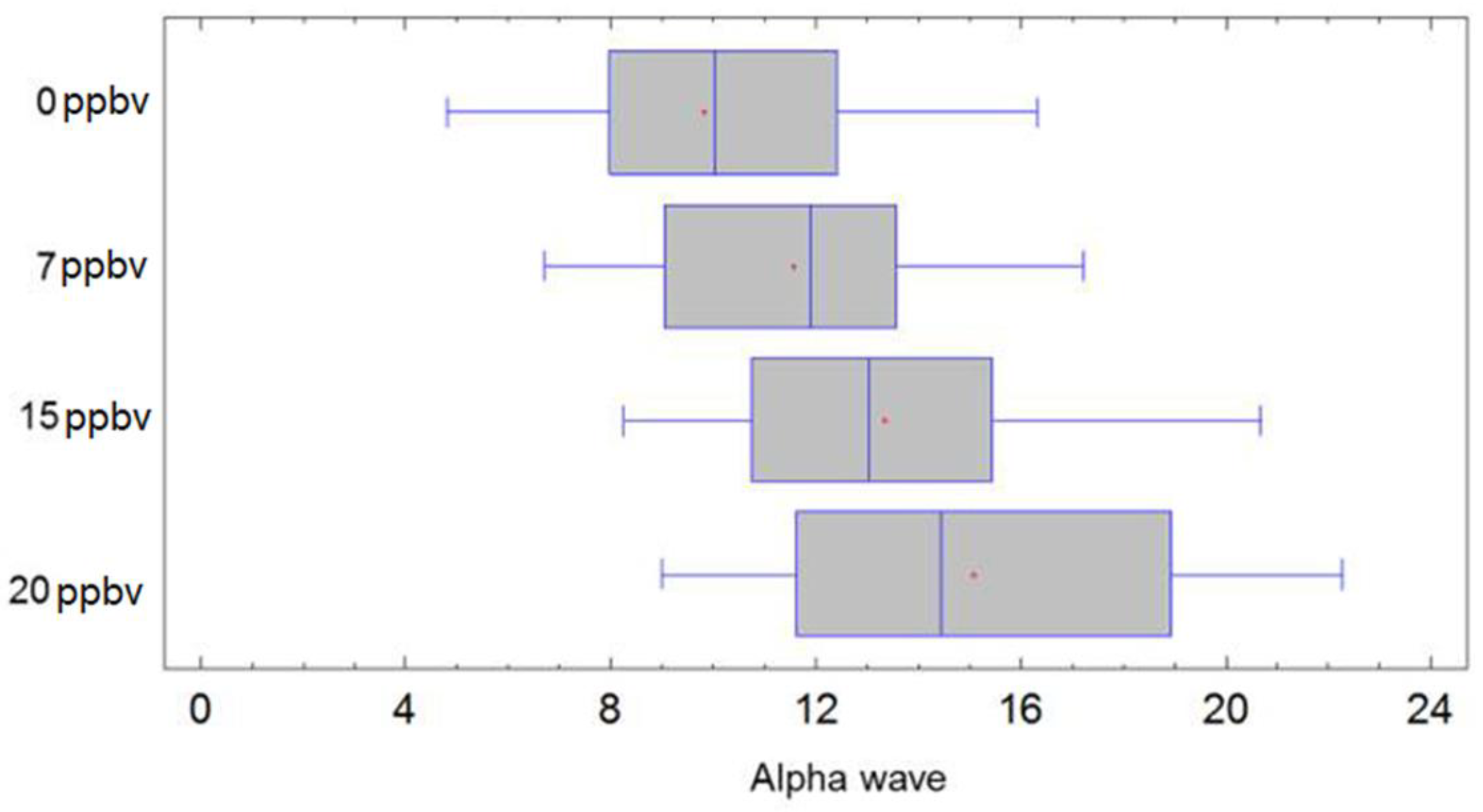

Figure 2. The alpha wave values of 30 participants (15 male and 15 female) at different monoterpene concentrations, as obtained from Exp 2.
Figure 2. The alpha wave values of 30 participants (15 male and 15 female) at different monoterpene concentrations, as obtained from Exp 2.
Applsci 09 04507 g002
Applsci 09 04507 g003 550

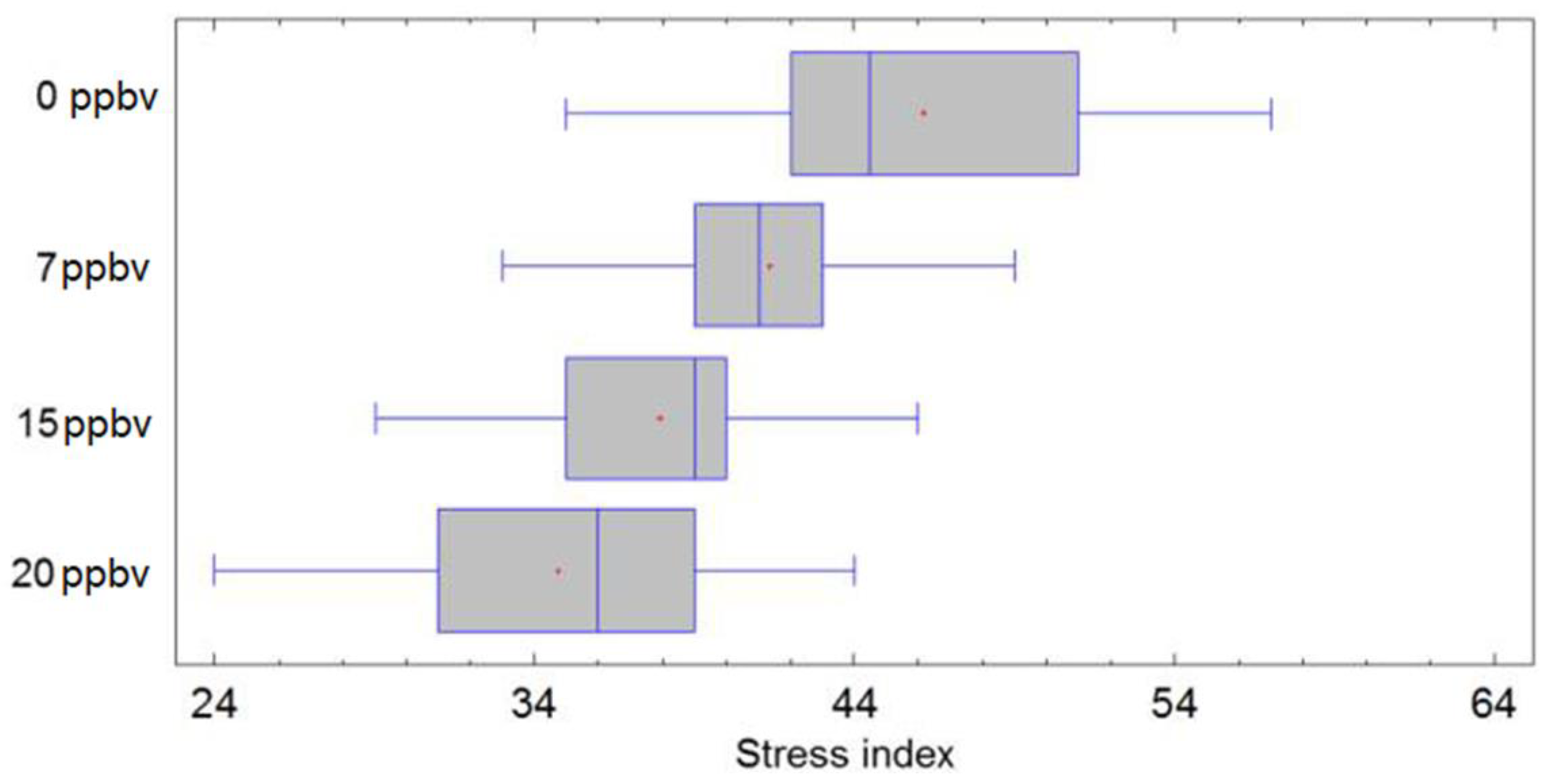

Figure 3. The stress index values from 30 participants (15 male and 15 female) at different monoterpene concentrations, as obtained from Exp 2.
Figure 3. The stress index values from 30 participants (15 male and 15 female) at different monoterpene concentrations, as obtained from Exp 2.
Applsci 09 04507 g003
Applsci 09 04507 g004 550

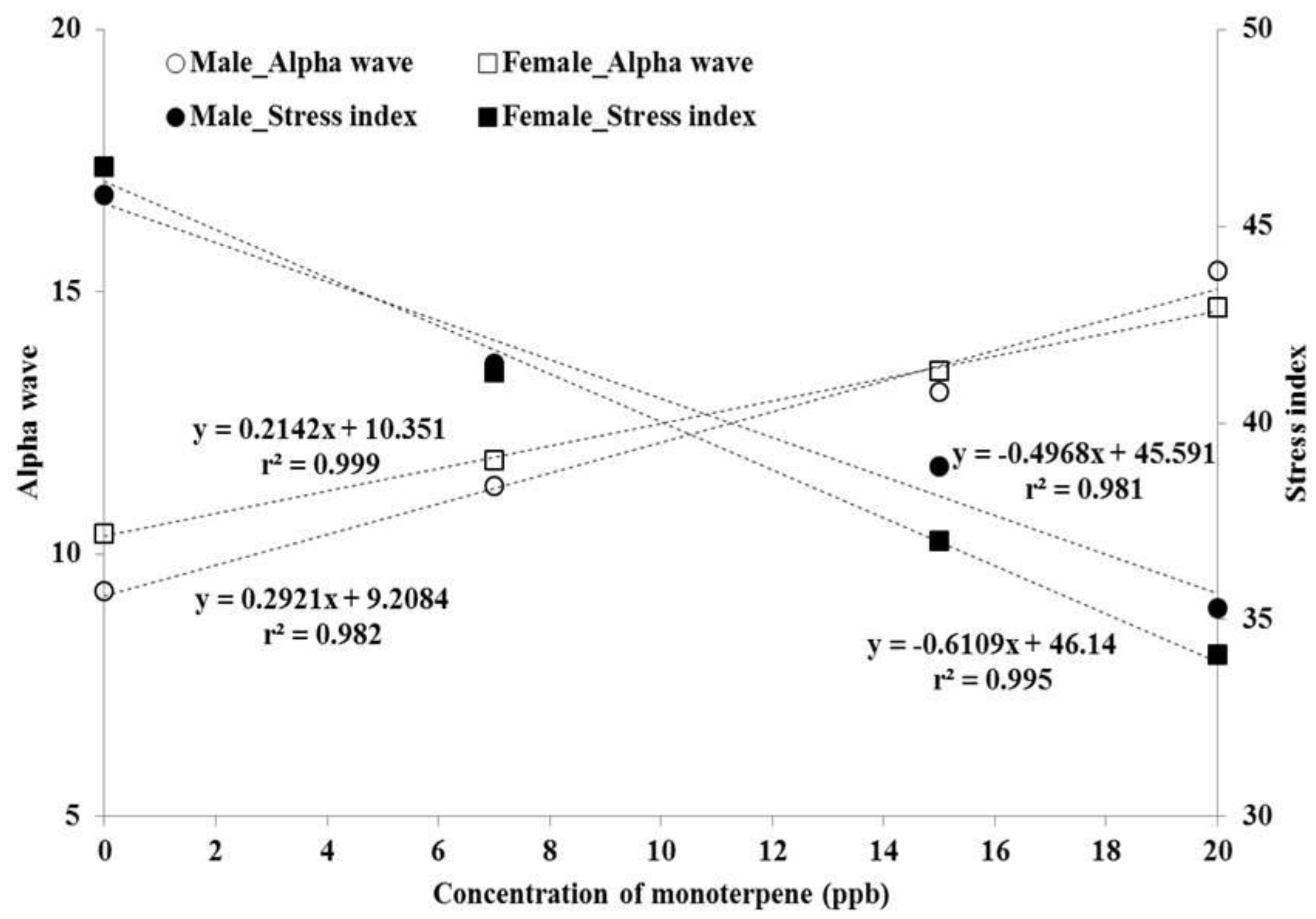

Figure 4. Variations of the mean values of alpha waves and stress index of 30 participants with respect to the concentration of MTs, as obtained from Exp 2.
Figure 4. Variations of the mean values of alpha waves and stress index of 30 participants with respect to the concentration of MTs, as obtained from Exp 2.
Applsci 09 04507 g004
Table
Table 1. Comparison of concentration levels (pptv) and composition ratios (%) of monoterpene compounds emitted from forests in different studies.
Table 1. Comparison of concentration levels (pptv) and composition ratios (%) of monoterpene compounds emitted from forests in different studies.
Siteα-Pineneβ-Pinened-Limonene3-CareneMyrceneCampheneetc. ΣM. TerpeneRef.
Castelporziano, Italy97 (33%)36 (12%)162 (55%)bdlbdlbdl0295[8,9]
Chiaotou, Taiwan100 (28%)253 (72%)bdlbdlbdlbdl0353[8]
Balbina, Amazonia, Brazil1100 (44%)500 (20%)350 (14%)bdl50 (2%)100 (4%)400 (16%)2500[10]
Ilomantsi, Finland100 (64%)16 (10%) *10 (6%)22 (14%)-2 (1%)6 (4%)156[7]
Austin Cary Forest, FL, USA125 (59%)86 (41%)bdlbdlbdlbdlbdl211[11]
Blodgett Forest, CA, USA104 (14%)311 (43%)76 (11%) **210 (29%)10 (1%)6 (1%)5 (1%)722[6]
Mainz, Germany117 (28%)98 (23%)74 (18%)49 (12%)24 (6%)bdl59 (14%)421[14]
Djougou, Benin300 (55%)200 (36%)50 (9%) **bdlbdlbdl0550[12]
Oshiba plareau, Japan70 (41%)26 (15%)74 (44%) **bdlbdlbdl0170[13]
Jönköping, Sweden9730 (50%)320 (2%)1300 (7%)7000 (36%)210 (1%)700 (4%)340 (2%)19,600[5]
Odae Chanamu forest, Korea133 (45%)55 (19%)61 (21%)bdlbdl44 (15%)bdl293[15]
Seonam temple forest, Korea32 (31%)38 (37%) *13 (13%)bdl-7 (7%)11 (11%)107[15]
Juknokwon forest, Korea77 (27%)103 (36%) *74 (26%)bdl-12 (4%)24 (8%)291[15]
* β-pinene+myrcene, ** d-limonene + β-phellamdrene, bdl: below detection limit, “-”: not detected, pptv: part per trillion by volume.
Table
Table 2. Questionnaire for the assessment of human responses to the odors of α- pinene, β- pinene, d- limonene.
Table 2. Questionnaire for the assessment of human responses to the odors of α- pinene, β- pinene, d- limonene.
1. What is your gender?
① Male ② Female
2. Do you smoke?
① Yes ② No
3. How is your current physical condition?
① Excellent ② Fine ③ Good ④ Not good ⑤ Not very good
4. What do you think about sample 1 smell?
① Very refresh ② Refresh ③ Normally ④ Uncomfortable ⑤ Very uncomfortable
5. What do you think about sample 2 smell?
① Very refresh ② Refresh ③ Normally ④ Uncomfortable ⑤ Very uncomfortable
6. What do you think about sample 3 smell?
① Very refresh ② Refresh ③ Normally ④ Uncomfortable ⑤ Very uncomfortable
7. What level can you smell clearly?
Sample 1: ① 2ppbv ② 3ppbv ③ 5ppbv ④ 7ppbv
Sample 2: ① 2ppbv ② 3ppbv ③ 5ppbv ④ 7ppbv
Sample 3: ① 2ppbv ② 3ppbv ③ 5ppbv ④ 7ppbv
8. Which sample do you think has the best odor?
① Sample 1 ② Sample 2 ③ Sample 3
9. Which sample has the worst odor among the three kinds of samples?
① Sample 1 ② Sample 2 ③ Sample 3
10. After the experiment, how is your physical condition?
① Excellent ② Fine ③ Good ④ Not good ⑤ Not very good
11. What do you think about your psychology state (stress, anger, sleepy) after smelling?
① Very stable ② Stable ③ Normally ④ Unstable ⑤ Very Unstable
12. Please write if you are suffering from diseases or symptoms.
(Example: Nose allergies, Sinusitis, etc.)
13. Please write a comment about the experiments.
Table
Table 3. Mixing ratios and concentrations of MTs for Exp 2.
Table 3. Mixing ratios and concentrations of MTs for Exp 2.
No.Total Concentration (ppbv)Mixing Ratio
α-Pineneβ-Pinened-Limonene
100.00.00.0
271.00.50.5
3151.00.50.5
4201.00.50.5
Table
Table 4. Questionnaire for the evaluation for the effects of mixed MTs on human psychology.
Table 4. Questionnaire for the evaluation for the effects of mixed MTs on human psychology.
1. What is your gender?
① Male ② Female
2. Do you smoke?
① Yes ② No
3. Currently, do you have rhinitis symptoms?
① Yes ② No
4. How is your psychological stability condition?
① Very comfortable ② Comfortable ③ Normal ④ Uncomfortable ⑤ Very uncomfortable
5. After the experiment, how is your psychological stability condition?
① Very comfortable ② Comfortable ③ Normal ④ Uncomfortable ⑤ Very uncomfortable
6. Please write if you are suffering from diseases or symptoms.
(Ex: Nose allergies, Sinusitis, etc.)
7. Please write a comment about the experiments.
Table
Table 5. Participants’ ability to detect MTs’ odor (%), as obtained from Exp 1.
Table 5. Participants’ ability to detect MTs’ odor (%), as obtained from Exp 1.
Concentration (ppbv)Ratio of Participants % (Ratio of Gender %)
α-Pineneβ-Pinened-Limonene
MaleFemaleTotalMaleFemaleTotalMaleFemaleTotal
20.00 (0.00)3.45 (16.7)3.450.00 (0.00)0.00 (0.00)0.000.00 (0.00)0.00 (0.00)0.00
317.2 (21.7)3.45 (16.7)20.710.3 (13.0)3.45 (16.7)13.813.8 (17.4)3.45 (16.7)17.2
544.8 (56.5)20.7 (100)65.531.0 (39.1)20.7 (100)51.748.3 (60.9)20.7 (100)69.0
779.3 (100)20.7 (100)10079.3 (100)20.7 (100)10079.3 (100)20.7 (100)100
Table
Table 6. Mean values of alpha wave and stress indexes of male and female participants obtained from Exp 2.
Table 6. Mean values of alpha wave and stress indexes of male and female participants obtained from Exp 2.
ParameterGendernBackground7 ppbv15 ppbv20 ppbv
Alpha waveMale39.3 (± 3.2)11.3 (± 3.1)13.1 (± 3.3)15.4 (± 4.2)
Female310.4 (± 2.7)11.8 (± 3.0)13.5 (± 3.6)14.7 (± 3.8)
p-value 1 0.3190.6960.7460.626
Stress indexMale345.8 (± 5.5)41.5 (± 3.7)38.9 (± 4.4)35.3 (± 4.8)
Female346.5 (± 7.0)41.3 (± 6.3)37.0 (± 4.4)34.1 (± 5.6)
p-value 1 0.7520.9160.2570.533
1 p-values were obtained from t-tests (95% confidence) to compare the means of male and female participants. Values in the parentheses are standard errors.

Share and Cite

MDPI and ACS Style

Kim, J.-C.; Dinh, T.-V.; Oh, H.-K.; Son, Y.-S.; Ahn, J.-W.; Song, K.-Y.; Choi, I.-Y.; Park, C.-R.; Szulejko, J.E.; Kim, K.-H. The Potential Benefits of Therapeutic Treatment Using Gaseous Terpenes at Ambient Low Levels. Appl. Sci. 2019, 9, 4507. https://doi.org/10.3390/app9214507

AMA Style

Kim J-C, Dinh T-V, Oh H-K, Son Y-S, Ahn J-W, Song K-Y, Choi I-Y, Park C-R, Szulejko JE, Kim K-H. The Potential Benefits of Therapeutic Treatment Using Gaseous Terpenes at Ambient Low Levels. Applied Sciences. 2019; 9(21):4507. https://doi.org/10.3390/app9214507

Chicago/Turabian Style

Kim, Jo-Chun, Trieu-Vuong Dinh, Hong-Keun Oh, Youn-Suk Son, Ji-Won Ahn, Kyu-Yong Song, In-Young Choi, Chan-Ryul Park, JanJan E. Szulejko, and Ki-Hyun Kim. 2019. "The Potential Benefits of Therapeutic Treatment Using Gaseous Terpenes at Ambient Low Levels" Applied Sciences 9, no. 21: 4507. https://doi.org/10.3390/app9214507

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
