Combined Model for IAQ Assessment: Part 1—Morphology of the Model and Selection of Substantial Air Quality Impact Sub-Models

by
Michał Piasecki
* and
Krystyna Barbara Kostyrko
Department of Thermal Physic, Acoustic and Environment, Building Research Institute, Filtrowa 1, 00-611 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(18), 3918; https://doi.org/10.3390/app9183918
Submission received: 17 July 2019 / Revised: 22 August 2019 / Accepted: 9 September 2019 / Published: 18 September 2019
(This article belongs to the Special Issue Indoor Air Quality)

Abstract

:
Indoor air quality (IAQ) is one of the most important elements affecting a building user’s comfort and satisfaction. Currently, many methods of assessing the quality of indoor air have been described in the literature. In the authors’ opinion, the methods presented have not been collected, systematized, and organized into one multi-component model. The application purpose of the assessment is extremely important when choosing IAQ model. This article provides the state-of-the-art overview on IAQ methodology and attempts to systematize approach. Sub-models of the processes that impact indoor air quality, which can be distinguished as components of the IAQ model, are selected and presented based on sensory satisfaction functions. Subcomponents of three potential IAQ models were classified according to their application potential: IAQ quality index, IAQ comfort index, and an overall health and comfort index. The authors provide a method for using the combined IAQ index to determine the indoor environmental quality index, IEQ. In addition, the article presents a method for adjusting the weights of particular subcomponents and a practical case study which provides IAQ and IEQ model implementation for a large office building assessment (with a BREEAM rating of excellent).

1. Introduction

1.1. State-of-the-Art Indoor Air Quality Measurement Systems

Approximately 30 years ago, people began to realize that buildings not only provide them with a sense of security, but can also significantly affect their health and well-being. This is particularly important due to the fact that people spend an increasing amount of time in closed indoor environment. Air quality and ventilation approaches were initially based on the users’ dissatisfaction with the scent of the human body and, as such, the understanding of indoor air quality (IAQ) had serious limitations. Large quantities of pollutants and their sources clearly influence the indoor comfort of building inhabitants, as well as their health. In 1998, Fanger [1] presented an approach to the quantitative determination of perceived IAQ based on the level of dissatisfaction of residents caused by bad odors and irritants, smoke, and other sources of pollution. This approach provided two new measures of IAQ: the olf, which quantifies the pollution generated from a strong source of human bio-pollutant in the range of the impact of emitted odors on perceived air quality, and the decipol, measuring the perceived air quality in an indoor space with a source of pollution of one olf at a ventilation rate of 10 l/s. The number of emitted olfs per floor unit in different types of buildings and the amounts of pollutants from tobacco smoking (in olfs) can then be determined. Consideration of only the odour of the human body, without taking into account the influence of pollutants from various other sources (for example emissions from construction products), was very limited. At this stage, the determination of IAQ did not take into account the significant differences among contaminants and did not distinguish their specific impacts on health or comfort. The study of emissions undetectable by the senses (such as carbon monoxide and other pollutants that affect health at concentrations below their odor threshold), together with health-effects thresholds, has become particularly important. The range of air pollutants that should be considered as IAQ components is very difficult to determine, because the composition of pollutants constantly changes due to the fact of their dynamic nature, secondary reactions, sorption processes, and other physical and chemical phenomena occurring in indoor environments, thus it cannot be inherently determined, as illustrated in Figure 1.
Smoking alone emits more than 7000 different compounds, many of which are harmful [2] for humans and animals and may transport biological pollutants that can act as allergens. People and household animals emit gases which are unpleasant, transfer pathogens, and cause diseases. These examples show that there are many paths for penetration of and exposure to the sources of pollution in indoor environments.
In connection with the growing need to determine levels of indoor air pollution, new centers performing tests and new methods have been created considering the ability to analyze an increasing number of harmful substances. Measurement of pollutant concentrations in the air is generally a task performed by experts mainly in accredited laboratories and the results are published in scientific journals, technical reports, and, eventually, in guidelines, e.g., those of American Society of Heating Refrigerating and Air Conditioning Engineers ASHRAE [3]. The presence and concentrations of pollutants are often detected and measured without careful consideration of the significance of these measurements, and the pollutants measured may not be the most widespread or the most harmful. Some emissions are incorrectly grouped together; for example, more than one million volatile organic compounds (VOCs) are known and their toxicities are generally unknown, but they are often reported as a single value and referred to as the total VOCs (TVOCs) component. Frequently, carbon dioxide is used as an indicator of IAQ, although it does not have such a negative effect on the health of residents in the concentrations in which it is usually found in buildings. In our opinion, CO2 is rather a marker of human bioeffluents. Examples of different understandings of the set of typical pollutants in an indoor environment are shown in Table 1 [4]. This table provides recommended values from the results of the European project HealthVent [5], which aimed to develop health-based ventilation guidelines. Table 1 also includes recommendations provided by the Word Health Organization (WHO) on the acceptable levels of pollutant concentrations [6,7], as well as recommendations from other organizations, such as China’s IAQ standard values [8]. Different approaches to the IAQ issue mean that the exposure limits assumed in the various source materials differ.
Theoretical work on a combined IAQ model allowing aggregation of the results of the assessment of components affecting humans [14] is not yet well recognized in the literature. However, studies on IAQ indicators, which aim to provide a quantitative description of indoor air pollution, have been conducted since the nineties. In 2003, a significant study by Sekhar et al. [15] was published related to the standard indoor pollutant index (IPSI), the disease symptom index in the building symptom index (BSI), and to the often-cited works by Moschandres and Sofuoglu [16,17] on the indoor environmental index (IEI), indoor air pollution index (IAPI), and the indoor pollutant standard index (IPSI). The IAPI characterizes air pollution in an office with a single number: the index. The index value ranges between zero (lowest pollution level, i.e., best indoor air quality) and 10 (highest pollution level i.e., worst indoor air quality). The IAPI is a composite index; sub-indices ed are aggregated using the arithmetic mean in conjunction with a tree-structured calculation scheme. This scheme gives rise to some reservations, because at the top of the tree-structured calculation scheme is the IEI (calculated as the arithmetic mean of the IAPI and the IDI (indoor air discomfort index), and the combination of IAQ sensation and thermal conditions does not appear until later.
While considering the indicators for the quantitative description of pollution, the proposal of the IEA Working Group named “Defining the Metrics of IAQ” should also be mentioned. This group prepared, in 2017, the document entitled “In the Search of Indices to Evaluate the Indoor Air Quality of Low-Energy Residential Buildings” [18]. The group made the following assumption for the categorization of various indicators: there should be one index per individual pollutant and a dimensionless coefficient should be specified to evaluate the IAQ, provided that the current (observed) concentrations of a given pollutant cj are related to the ELVs (exposure limit values) concentration cj,ELV.
I A Q i n d e x ( j ) = I j = c j c j , E L V
The index is calculated for each individual pollutant [18], which is specific only for this exact pollutant. The report showed that aggregation can be performed by addition, by taking the maximum value or by other methods, in an attempt to define metrics that can be used to evaluate IAQ. The assumption was that the reference value usually refers to health risks (accounting for chronic or acute effects), but other metrics can also be used, (e.g., odor or irritation threshold). There are two important properties to be considered when aggregating sub-indices: ambiguity and eclipsing. As a result of the analysis, the authors concluded “that there are problems with model aggregation methods. In the aggregation model Iagg = I1 + I2, ambiguity creates a false alarm and in the aggregation model Iagg = 1/2(I1 + I2), eclipsing underestimates the effect” [18]. Therefore, the discussion remains open [18]. The report also showed how there are large spreads of concentrations of individual pollutants (up to seven rows), even in the group of pollutants for which sub-indices were built. It determined the difficulties of building a weighted scheme based on the simplest percentage adjustment of the concentration shares and, thus, the share of the mass of pollutants to be removed by ventilation.
The current state of knowledge does not provide information authorizing the omission of certain pollutants. Hence, taking into account the lack of data on the characteristics of each chemical compound and consideration of the “removal efficiency” [19] requires us to abandon thinking about the adjustment of many individual pollutants, and to focus only on the creation of a model based on the representative and target components. In this state of knowledge, there are hopeful studies and proposals with a grey combined ∑IAQindex model and the grey clustering model for IAQ indicators proposed by Zhu and Li in 2017 [20] is particularly interesting, especially when the relationships between system factors and the system’s IAQ behavior and the interrelationships among the factors are uncertain. At first, all specific indoor air pollutants and related parameters should be measured. However, this is a very complex and time-consuming process. On the basis of the characteristics and correlations of the pollutants, the indoor air quality can be characterized by representative indicators. Studies [20] have pointed out that respirable particulates, CO2 and TVOCs, were the three most representative and independent environmental parameters which can be used as an evaluation index of indoor air quality in office buildings. Since each indicator represents a class of pollutants with similar sources and dissemination characteristics, this index group avoids unreliability due to the fact that these indicators are “too small” because of critical concentration depression. A data pretreatment method must be used in the calculation procedure, reflecting the differences in concentration levels among different pollutants, but also expressing their influence on the comfort and health of the indoor occupants. Moreover, the measured pollutant concentrations can be used to predict the probable levels of other parameters, and good agreement was found between the predictions and measured values.

1.2. The Research Questions

The main research question contained in the paper concerned whether it was possible with the current state of knowledge to create and use in practice an IAQ model that was based on a unified and coherent approach for input indoor air parameters (such as pollutant concentrations, odor levels, and moisture content) and provided one output parameter (we proposed occupant satisfaction, IAQindex (in %)). The authors looked for physical equations for the IAQindex’s subcomponents and dependencies for their predicted occupant satisfaction functions with a pollutant concentration cj (PD = f (cj) in %) which could be used as a model for subcomponents.
This paper’s intention was to provide an IAQ model with a step-by-step process which can be used to determine the value of the overall indoor environmental quality index (in %) including another three components: thermal comfort, acoustic comfort, and lighting quality. The innovative approach and added value of this article is in the use of the proposed IAQ model in practice and the relatively simple calculation of the overall IEQ value (with an uncertainty estimation) using the actual results of measurements in the Building Research Establishment Environmental Assessment Method BREEAM certified case study office building. The authors also provided occupant satisfaction functions for CO2, TVOCs, and formaldehyde HCHO in two variants: with experimental %PD values taken from the literature and for these pollutants’ %PD values converted from an Air Quality Index system (see Section 2.2.).

2. Methods

2.1. Research Content and Strategy

The proposed IAQ model is presented in Section 2.2, Section 2.3, Section 2.4, Section 2.5, Section 2.6 and Section 2.7. The model is later used to analyze the case study of an office building described in Section 2.9. Figure 2 presents the subsequent research steps from theory to practical application. Section 2.8 shows the method for determining indoor environmental quality IEQindex where IAQ index is a subcomponent/part of the IEQindex model. In order to determine the IAQ and IEQ, physical measurements of the indoor environment in the building were conducted using the experimental approach provided in Section 2.10. Based on these physical indoor measurements the IAQ and IEQ indexes (number of occupants satisfied with the indoor air and overall indoor quality, respectively) were assessed (see Section 3) and discussed (see Section 4).

2.2. The IAQ Model Proposal—Basic Assumptions

In the IAQ model construction process (our proposal), the commonly accepted approach is to transform individual concentrations of pollutants into subcomponents before they are aggregated into a single index (occupant satisfaction in %). However, summation of sub-indices can lead to situations in which all are under individual health thresholds, but the final indicator shows when the threshold has been exceeded. Conversely, the averaging of partial sub-indices can lead to an overall indicator showing an acceptable IAQ, even though one or more partial indicators are larger than their individual thresholds. One solution is to use the maximum value of all sub-indices to create the final form of the ∑IAQindex. Taking these issues into consideration, the authors created the ∑IAQ model with three complication levels adapted to the purposes of potential applications of the model, as presented in Figure 3;
  • Certification of a building, e.g., via the BREEAM system using (three sub-indices), called “quality”;
  • Design, including perceptible contaminants affecting comfort and using the IAQ index when calculating the IEQ (five sub-indices), called “comfort”;
  • Complex design, with the ∑IAQindex representing both comfort and health (seven sub-indices) called “comfort/health”.
The simplest one, “quality”, is an inner part of the ∑IAQcomfort model and can be used separately for simple applications with the main purpose of supporting a green building certification, e.g., via the BREEAM system using three components, i.e., CO2, HCHO, and TVOC. This model is used later on the case study of a BREEAM building.

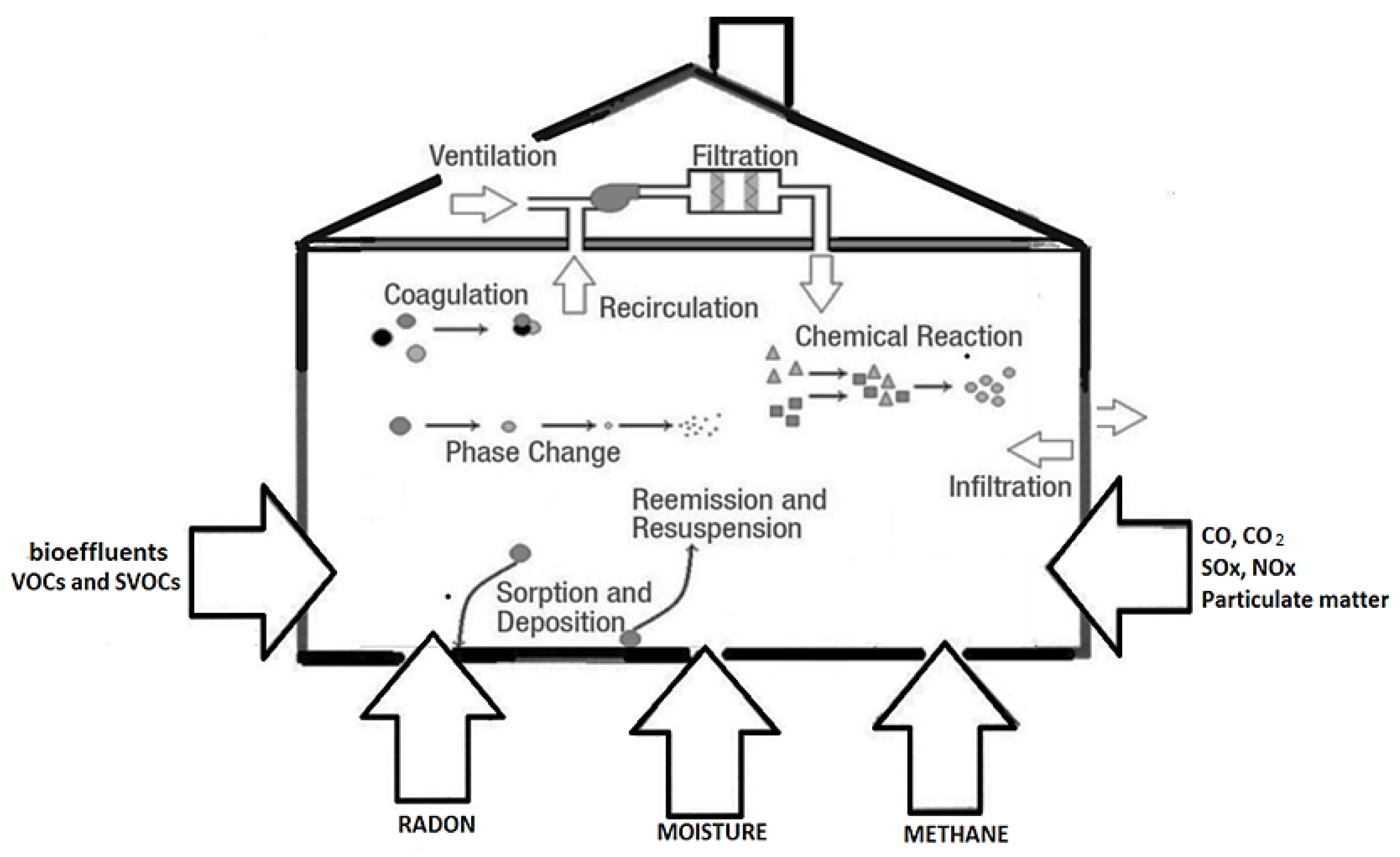

Figure 1 shows the processes influencing the morphology of the ∑IAQ model and Figure 3 provides a list of the pollutants for which three IAQ submodels were built, containing human-perceived contaminants (IAQquality and IAQcomfort models), but also the IAQcomfort/health model for both perceptible and imperceptible pollutants, i.e., those that are not perceptible by humans but affect health and require additional energy for intensive ventilation for health reasons. There are potential sub-indices, such as IAQ(VOCnon-odorous) or IAQ(CO) [5,7]. Dust pollutants may have their sub-index both in the comfort model (if reliable curves of human sensory perception of PM concentrations are known) or in the IAQcomfort/health model if their health impact is considered to be the dominant feature. Considering the types of pollutants harmful to health assigned to the sub-indices of IAQ, we only consider the most important air pollutants (i.e., target emissions) that were given in the WHO guide in 2010 [5,7]. Submodels of processes that impact on air quality in indoor environments, which can be distinguished as components of the IAQ model, were based on sensory satisfaction functions (index of occupant dissatisfaction (PD) with the level of air pollution). Subcomponents of the three potential IAQ models were classified according to their future potential applications: in the assessment of environmental quality index IEQ (models IAQquality and IAQcomfort) or in the design of ventilation taking into account all possible harmful-to-health pollutants (model IAQcomfort/health). In our opinion, such systematization creates order and has a practical dimension as presented later on in the case study. The following are the target pollutant groups:
  • In the air quality model ∑(IAQ)quality, the IAQ index subcomponents were assigned to the selected three pollutants. The submodels for the IAQ were CO2, TVOC, and formaldehyde HCHO, as recommended by References [5,10,21,22];
  • In the ∑(IAQ)comfort model, thepreviously provided simplified IAQquality subcomponents for the three main pollutants were extended with a set of selected compounds VOCodorous, related to the collection of IAQ sub-indices (VOCodorous) with an unknown cardinality, increased appropriately for the number of dominant pollutants. In addition, we provided a conditional deluge of two more components: (1) calculated using the enthalpy of hot and humid air (high enthalpy h > 55 kJ/kg [23]), the percentage of persons dissatisfied with respiratory cooling with humid air at relatively high temperatures and (2) the percentage of persons dissatisfied with indoor pollution with respect to dust pollution (PM10 and PM2.5), measured via panel tests. The introduction of a dust-pollution subcomponent to the IAQ model may be debatable, because some experimenters [24,25] underline the unique results of sensory tests of discomfort from dust, and the influence of “emissions” of respiratory dust particles on satisfaction is still under-researched. Considering the above, we expected two variants of the comfort model: with PD (PM10, PM2.5) or without this factor;
  • In the overall ∑IAQ model, comfort (IAQ)comfort and health risk (IAQ)health indicators were used, and, hence, this model was called (IAQ)comfort/health. Models for subcomponents of IAQ not perceived by humans but influencing health, can be borrowed from the index set in the AQI (air quality index) system [26,27,28], which was adapted to assess the quality of indoor air based on, and in accordance with, the concepts of the air quality assessment system used globally by the American EPA.
Values of AQI indices published on active EPA websites using the air quality index system were introduced for application in US federal regulations in 1999 [28]. Currently, the AQI system for outdoor air includes the following pollutants: ozone, particulate pollutants (PM10 and PM2.5), carbon monoxide CO, sulfur dioxide SO2, and nitrogen dioxide NO2. To convert a specific air pollutant concentration to an AQI, the EPA developed a tool called the AQI Calculator, which is an open resource [29]. This system (referring to the index from 2004 [16] and the indoor pollutant standard index (IPSI)) was further developed, and the proposed IAQI for indoor air presented by Wang et al. [30] in 2008 and a newer proposal [27] from 2017 for a similar but narrower set of indices, also for indoor air, were both modeled on it. The AQI and IAQI indicators showed an increase in the level of impact on human health with increasing concentrations of air pollution. There are some detected difficulties here, since “AQI is a piecewise linear function of the pollutant concentration” [27]. The calculated values of the AQI [31] or IAQI [30] indices, over the entire 0–500 scale calculated from the measured concentrations of selected contaminants or in the part of the scale corresponding to the IAQ rating, ranged from “good” to “unhealthy”, and can be converted to PD% for use in the model equation, (IAQ)comfort/health. Concentrations will be significant when the uncertainties of scale conversions are estimated. Authors believe that their way of converting the AQI scale to PD% (which is similar to the method of conversion of the IEQ components’ ordinal scales from the OFFICAIR EC project [32] to PD% scale; for example, the occupant percentage dissatisfied with noise [33,34] should be accepted in light of the expected results of a metrological analysis of the reliability of the combined ∑IAQ model.
Subcomponent models (physical functions, PD%) of the IAQ model for all individual air pollutants are presented later in this section.

2.3. ∑IAQ Model Weighting Scheme Considering Air Pollution Ventilating

To obtain a comprehensive picture of IAQ in a building, it is necessary to measure the number of pollutants with different individual concentrations. There are methods that weigh sub-indices [21] but the problem is finding an effective weighting scheme and understanding how to adjust them in the overall model of all the pollutants in ∑IAQ. For this reason, we proposed an adjustment method for the weights. In our opinion, provided in detail in References [33,34], and also according to Reference [22], the best weighting scheme, which would lead to a credibly aggregated model of IAQ composed of many extractable components (sub-indices), would be a system based on concentration values (the “excess masses” of pollutants to be regarded as loadings for the ventilation system). Therefore, the we aimed to determine the individual pollutants assigned to the IAQ model, their concentrations, cj, as the inputs of the IAQ submodels, and their “excess concentrations” originating from emissions or determined within indoor environments. Thus, it was possible to determine directly the energy requirements for ventilation purposes and the required minimum global ventilation rate. Determining the input concentration value, cj, for each IAQ sub-index enables the determination of the total mass of pollutants in the air, which is the basis for determining the air change rate N1, … 7 (overall air change rate), assuming that the model includes all significant IAQ pollutants.
Currently, according to References [35,36,37], the most common assumption made is that pollution from VOCj compounds arises only from emissions due to the presence of construction or finishing materials (for j = 1, 2, … n) (it can be assumed that the source i of an emission is the entire indoor environment and then i = 1) from the zero state. The physical model for determining the ventilation rate in indoor environments polluted with VOC-type pollutants from building materials is given by EN 16798-1:2019 [10], assuming that design parameters for indoor air quality are derived using limit values for substance concentrations. In accordance with ECA Report Number 11 [36], the design ventilation rate required to dilute an individual substance emitted from building materials is calculated as:
Q h = G h C h , j C h , 0 × 1 ε v
where Qh is the ventilation rate required for dilution in m3 per second, Gh is the emission rate of the substance in micrograms per second, Ch,j is the guideline value of the substance in micrograms per m3, Ch,o is the concentration of the substance in the supply air in micrograms per m3, and εv is the ventilation effectiveness.
In fact, in a building with active “indoor chemistry” (see Figure 1), the use of this formula seems to be increasing. Taking into account the dynamic nature of the processes of generating various pollutants, the approach to IAQ and its components should be changed and subcomponents should be treated as pollution load processes, increasing in number not only due to the emission processes but also due to the generation of bio-pollution, water evaporation, and even dust infiltration from outside. It is also possible to set steady-state (initial) concentrations of pollutants and to determine the expected time courses of removal of these pollutants by means of ventilation (curves ∑cj = f(τ)), at constant values of air change rate per hour ACH (h−1). Such ventilation rate calculations for CO2 were developed in 1997 by Persily [38] and similar ones were provided in 2017 by Gyot [39] at the Berkeley National Laboratory. These calculations are not very accurate, as shown in the general demonstration graph in Figure 4.

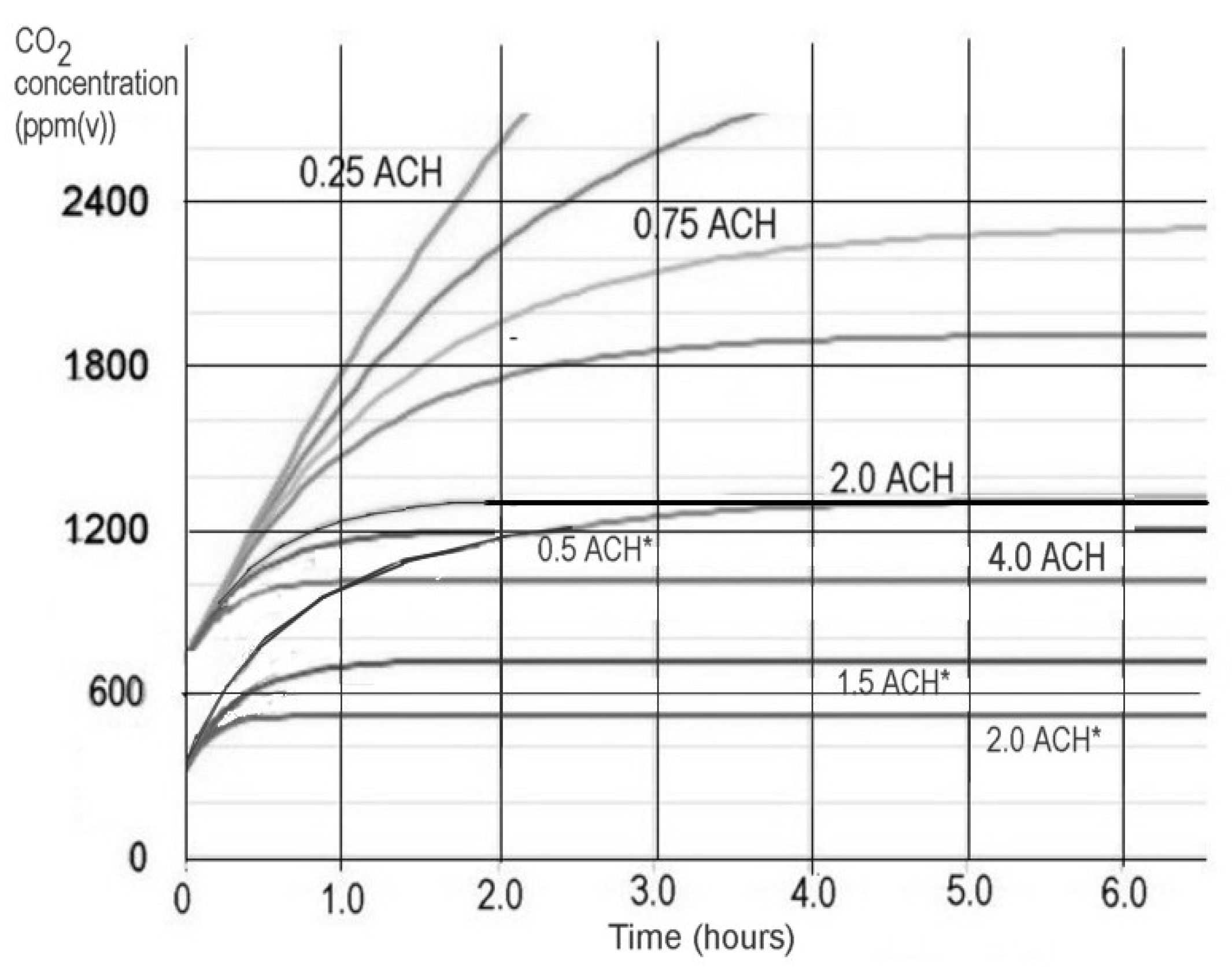

Less accurate time-dependent curves of the total minimum ventilation rate ACH needed for “contaminant exhaustion” can be determined using programs [40] based on generic engineering equations for the sum of pollutants ∑cj. The generic equation for pollution concentration (the ratio of the amount of polluting product to the amount of fluid in the space (such as air in a room) can be calculated from the following equation:
c = q/(n⋅V⋅(1 − eNt))
where c is the pollution concentration in the space (or in the room) with perfect mixing (m3/m3) or (kg/kg), q is the amount of pollution added to the space (m3/h) (kg/h), N is the air change rate per hour (h−1), V is the volume or mass of the space (m3) or (kg), e is the number 2.72, and t is time (h). If the initial concentration (at t = 0) in the space and the concentration in the supply fluid is zero, after some time the concentration in the room will stabilize. The ventilation rate graph for an amount of pollution q = 1 and a volume of space V = 1, shows the values of ∑cj, similar to Figure 4. In order to obtain more exact values of the VOC concentrations remaining in the room for the air change rate function, it is possible to use the published dependencies or for the assumed volumes V of ventilated spaces with determinate concentrations, as they can be determined experimentally. A simplified method for determining the ventilation rate N from a simple formula for the time, t, course of a trial ventilation was provided by the Japanese researchers Noguchi et al. [41] in 2016. A description of this method is worth reading. Based on the temporal changes of the TVOC concentration measured using a PIDTVOC meter [42], the air change rate N or the ventilation rate F was estimated using the following method. Assuming perfect mixing of the air in the room and a constant TVOC emission rate E, the concentration change of TVOC in the room can be expressed by the following equation:
C ( t ) = C j + ( E F ) ( 1 e F V t ) = C j + ( E F ) ( 1 e N t )
Finally, Equation (5) can be expressed with one unknown parameter, the air exchange rate N as:
log ( C s t C j C s t C ( t ) ) = N t
The initial concentration cj can be determined from the experimental results. After a long time, when the exponential term in Equation (5) can be assumed to be zero, the concentration C(t) becomes constant. The steady-state concentration Cst can be determined from the temporal change in the experimental results where the concentration levels off.
The rule that the IAQ model should include a weighting scheme, referring to the variation in the share of pollutants in the IAQ, has been noted in References [35,37]. According to the first proposal, the weighting system is based on the differentiation of coefficients Rj, which are the ratios of the real concentration values (or mass of pollutants) to the values of reference concentrations, representing the so-called relative masses of non-eliminated pollutants. This can also be represented by the desirable reduction in the level of pollution by means of ventilation and, thus, also by the energy requirements. For one emission source, the proposed system with a coefficient Rj for a given pollutant Cj has the formula:
R j = y j I j ,    j = 1 , 2 , m
where Ij is the ratio of the gas-phase concentration to the reference concentration value. For example, for the LCI (Lowest Concentration of Interest) value for the jth compound emitted from the building material, the factor Rj is dimensionless, since yj is the gas-phase concentration for the jth compound in μg∙m−3, Ij is the lowest concentration of interest (LCI) [41] for the jth compound in μg∙m−3 and m is the number of all elected compounds. The weight coefficients Wj are used as the weights of the equations in the IAQ index, according to:
W j = R j j = 1 m R j    j = 1 , 2 , m
The authors of Reference [35] justified adjusting the coefficients where ∑Rj ≤ 1, but they did not explain the physical meaning of this condition. We believe that further discussion should include the issue of whether the “relative mass” of contamination expressed by Equation (6) has a proper place in the weighting scheme for the equations. The dimensionless quantity (7) does not have a sound physical meaning [37]. In our opinion, this type of calculation method is debatable.
One should strive to cover all the sub-indices of the combined IAQij model with a weighting scheme that would give VOCs a share in the total energy requirements for ventilation. The term “relative mass” should correspond to weights rationally proportional to the energy expenditure for ventilation of individual pollutants (IAQ sub-indices). Therefore, our future work will focus on introducing weights for all expressions in the overall IAQ model equation. However, since this is currently not possible without an adjustment method adapted to weight determination for very small concentrations, it was decided to present our model as an interim solution. We proposed the use of weights based on the “excess concentration” values within the pollutant categories only with similar and comparable orders of concentration values, for example the VOCodorous and VOCnon-odorous categories. The rules of adjustment with boundary conditions will be provided and justified in the follow-up article to this report.

2.4. ∑IAQ Model Scheme Morphology

According to the new proposal, for models with air quality sub-indices IAQ(Pj) (developed with the standard EN 16798-1:2019 as a reference for IEQ model creation [22,33] and with assumptions described in Reference [34]), in the case where indoor air has many pollutants, P1, … j, the combined ΣIAQindex equation is:
ΣIAQindex = WP1·IAQ(P1)index + WP2IAQ(P2)index, …, WPjIAQ(Pj)index
where the WP1, … Pj weighting system for IAQ components is created on the basis of the arithmetic mean and the concept of “excess concentration” is introduced only for groups of pollutants with similar concentration values. There is a difference in concentration Δcj between the observed concentration of pollutant cj and the reference concentration cref (cELV or cLCI), which is below the current concentration in contaminated rooms. Thus, the excess concentration is:
Δcj = cjcref
The weights W1, … j for all three IAQ models are determined on the basis of arithmetic means or by adjusting all the values of Δcj in a given model using Equation (10):
W j ( I A Q c o m f o r t / h e a l t h ) = Δ c j j = 1 7 Δ c 1 7
where the sum of the adjusted weights Wj of all ventilated pollutants described with sub-indices should be unity. The weight values for a given IAQ model, (e.g., IAQcomfort) may be different, but the sum of the sub-index weights must be ≤1.0.
The values of the reference concentrations are the concentration levels that are acceptable or recommended as limit values for various pollutants Pj. In the case of the ∑IAQquality submodel as part of the IEQindex model, weights should be used for the VOCodorous (HCHO and TVOC) reference threshold concentrations of odors. The weights in the weighting system should be adjusted to unity according to the Equation (11):
W H C H O = Δ c j j = 2 , 3 Δ c 2 , 3 = ( c j c r e f ) ( c T V O C c r e f ) + ( c H C H O c r e f )
There are, however, non-typical cases in which the scales have different values. This is the case for formaldehyde, the concentration of which is many times lower in the building than the threshold level cth. According to the WHO [7], the admissible value cref is also higher than the concentration in the building. In this case, the authors recommend taking the reference value as zero. Then, the weight WHCHO described by Equation (11) (for two pollutants), would not be negative (cHCHO − cref). The ASHRAE Guideline 10 (2011) [3] recommends that the IEQ model (and appropriate weights, Wi) should contain synergy effects of environmental parameters included in the subcomponents and their sensory perceptions.
Figure 5 shows the extended IAQindex model with its sub-indices treated as components of the IEQindex, but also with sub-indices of the IAQcomfort/health type, i.e., pollutants that do not belong to the IEQ model but are important to health and the energy balance of a building with a mechanical ventilation system. The experimental dependencies of the percentage of persons dissatisfied, %PD, and the values of the concentrations of pollutants, cj, sensed in indoor air in the appropriate ranges are of fundamental significance in the sub-indices relevant to the IEQ model [43].
From the dependencies, expressed as the curves for PD(CO2) or PD(VOCodorous), the equations of the models are derived Equations (12)–(14):
ΣIAQquality = W1·IAQ(CO2) + W2·IAQ(TVOC) + W3· IAQ(HCHO)
∑IAQcomfort = W1·IAQ(CO2) + W2·IAQ(TVOC) + W3·IAQ(HCHO) + W4·IAQ(VOCodorous) + W5·IAQ(h)
∑IAQcomfort/health = W1·IAQ(CO2) + W2·IAQ(TVOC) + W3·IAQ(HCHO) + W4·IAQ(VOCodorous) + W5·IAQ(h) + W6·IAQ(PM2.5, PM10) + W7a·IAQ(VOCnon-odorous) + W7b·IAQ(CO) + W7c·IAQ(NO2)
The scheme of the ∑IAQcomfort/health model consists of seven (or more) components or IAQ submodels and these are models for the various types of pollutants: IAQ(CO2), IAQ(TVOC), IAQ(HCHO), IAQ(VOCodorous), IAQ(h), IAQ (PM2.5, PM10), and the selected IAQ(VOCnon-odorous). The IAQ(VOCodorous) and IAQ(VOCnon-odorous) models should be multiplied, depending on the number of dominant VOC pollutants, and, hence, the ∑IAQcomfort/health model will, in practice, have more than seven components.
The inputs of each IAQ submodel are unit concentrations in air of a given pollutant,cj (in the case of IAQ(h). This is the moisture content x in well-known units “g of water vapor (gw) per kg of dry air (kga)”, converted to a concentration of cj in μgwater/m3 (or H—absolute humidity in gw/m3 which is a measure of water-vapor density). In some cases, it is necessary to convert the pollution-derived parameter to VOC concentration (conversion of the odor intensity OI to VOC concentration is described later in this section).
From the concentration values, total air pollution can be calculated, and, subsequently, also the energy needed to ventilate the indoor air pollution. When the concentration levels of pollutants are variable and are increasing due to the presence of emissions, then the formulas given in Reference [36] and the amended standard EN 16798-1:2019 are used to calculate the required ACH ventilation rate. When the level of contamination is set (or quasi-fixed) and the volume and other parameters of the ventilated room are known, it is possible to calculate ventilation-time curves, i.e., maximum ventilation curves for ACH ventilation rate to reach concentration levels ELV, LCI or the olfactory threshold level, according to Reference [40] or another adequate equation.
There are two outputs of each IAQ submodel as described below:
  • The weights of the weighting system for the model ∑IAQquality and hypothetically W1, … 5 for the model ∑IAQcomfort or W1, …, 7 for the model ∑IAQcomfort/health (in a hypothetical model with a set adjustment method). These should reflect the energy load of the IAQ expressed by the theoretically assumed increase in the current concentration of pollutant cj relative to the reference concentration of cj,ref, which determines the level of this concentration intended to be obtained by ventilation.
  • The PD% with the IAQ as a function of air pollution concentration. These values, determined in panel tests, reflect the impact of the interaction of air with a given pollutant at the actual level of concentration, estimated via panelists’ sensations/perceptions (PD = f(cj) in %).
Examples of measurable physical parameters for the purpose of IAQ and IEQ calculations (see case study) are given in the following section.
For the construction of the combined model ∑IAQindex with a weighting scheme useful for aggregating sub-indices, we proposed the model presented in Figure 5. In this scheme, the combined IAQ model is shown as the basic assumption for the aggregation of all sub-indices. First, the model was cut by a cross-connected vertical connection regarding the inputs of submodels—the calculation of the sum of the masses of all pollutants ∑cj in the ventilated space, using the values for the inputs of all submodels of IAQ concentration values of contaminants. The sum of the concentrations of all air pollutants expressed as mass units of pollution per m3 of volume (which can be read after multiplication by V (m3) as the mass to be displaced by ventilation), is the basis for calculating the “air change rate per hour” (ACH), the minimum air exchange rate needed to reduce the observed mass level of air pollution in a ventilated room (see Reference [40]). The second connection concerns the submodel outputs—the conversion of excess concentration to a dimensionless value, which allows to for the weighting scheme of the ∑IAQindex combined model and the weights of individual IAQ submodels to be determined.
Additional assumptions were as follows:
  • The sum ∑Δc1, … 7, which admittedly constitutes an excess mass increase of the sum of pollutants described by the submodels, was treated only as a “virtual energy load of the building” for ventilation conducted for the elimination of pollutants, and therefore, when adjusting the weights, the possibility of dividing the excess concentration by the sum of concentrations should be considered.
  • The percentage of persons dissatisfied PD(IAQcomponent) determined experimentally in sensory studies using panelists’ sense of air quality during their exposure to an internal environment deteriorated by a given contamination component (PD = f (cj)), was derived from the literature or direct experiments.
Values of weights W1, … j in sets of three, five or more components of the three ∑IAQindex models (see Equations (12)–(14), were adjusted to a value of unity by dividing Δc1, …, j of each component by the sum of excess concentrations ∑Δc1,… j in μ/m3. We proposed the use of cref values, apart from the values of cLCI [18], cELV, and the threshold values cth for odorous compounds, were as follows.
  • For IAQ(CO2) and IAQ(HCHO), the cELV concentrations were derived from EN 16798-1:2019 [10];
  • For IAQ(TVOC) and IAQ(VOCodorous), the threshold concentrations, cth, for identified odorous compounds or mixtures are from Reference [44];
  • For the IAQ(h), the water-vapor concentration H (gw/m3), recalculated from the moisture content x (gw/kgdry air) using the gas constant for the water vapor and the actual temperature, the value of h up to the critical value for “high enthalpy of humid air” was evaluated using the formula:
    h = 1.006ta + x·(2501 + 1.805ta)
    where h is the specific enthalpy of humid air (kJ/kg), which must be >55 kJ/kg. The EN 16798-1:2019 standard [10] recommends a limit for the dehumidification of air of 12gw/kgdry air (this value must be converted to a c value in gw/m3).
  • For IAQ(VOCnon-odorous), the cELV value in cases where no established LCI values were derived from the EN 16798-1:2019 standard.
  • For IAQ(PM2.5, PM10), the cELV values were derived from the WHO [7] or other organizations (Table 1 and Table 2).
The proposed reference values of pollutants forming the sub-indices of the IAQ model are given in Table 2. With reference to the concentration values of cLCI, it should be noted that according to References [18], this value is typically acquired by dividing occupational exposure limits by a safety factor (100 or 1000). Concentration cLCI is taken from Lowest Concentration of Interest (EU-LCI) from European Commission lists.
However, the model values for exposure limit values (ELVs) of indoor air pollution, in accordance with the recommendations of the health-based ventilation guidelines [5], should be adopted in accordance with the current WHO guidelines given in the periodically issued WHO Air Quality Guidelines [7].

2.5. Selection of Submodels for Pollutant Components

Our overall selection of physical subcomponent equations and dependences for %PD = f(cj) is presented in Table 3. The models presented were used to determine the IEQ for the sample building. The highlighted pollutants were taken into account in the case study building assessment.

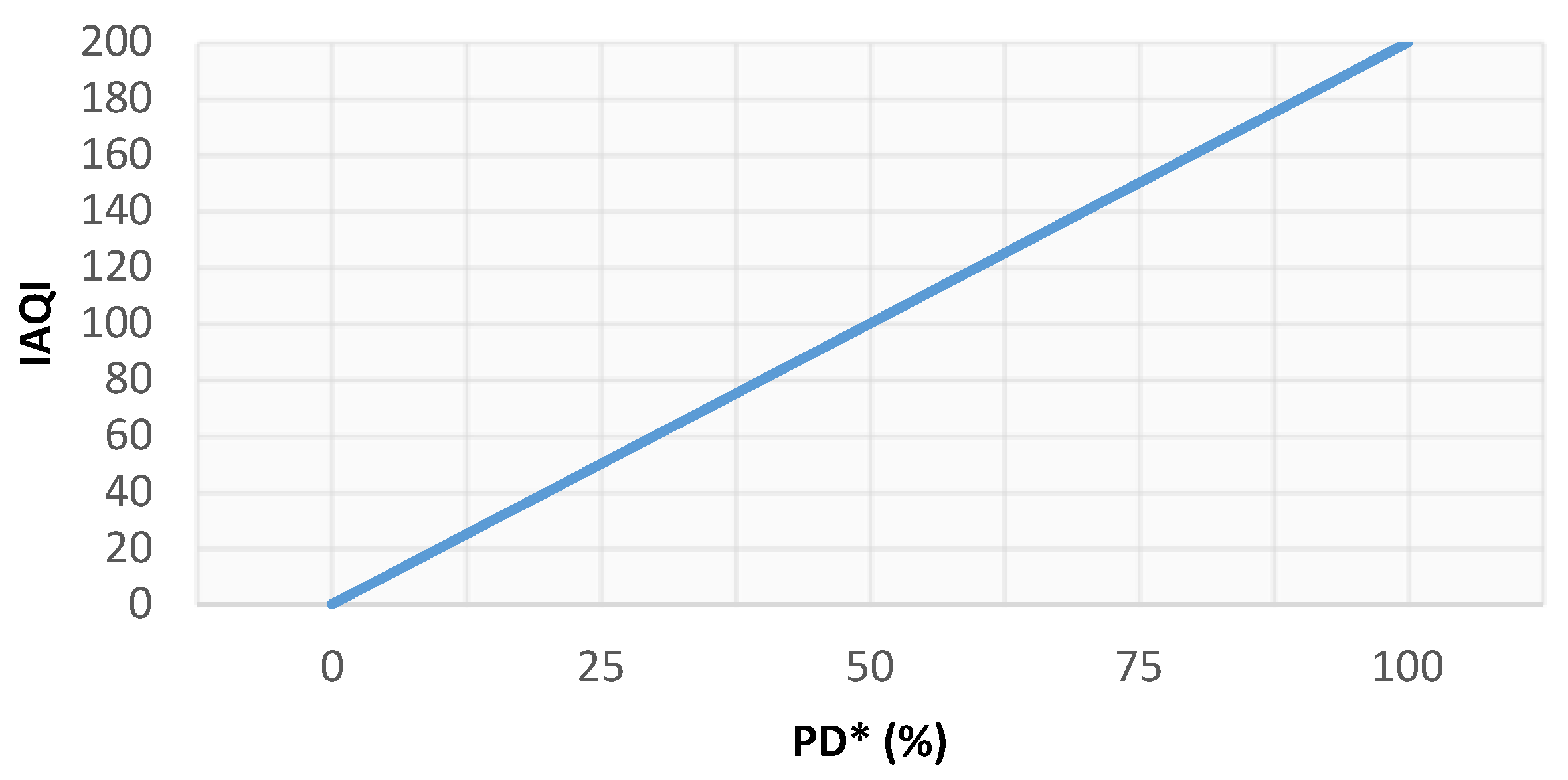

The air quality indexes (i.e., AQI [31] and IAQI [30]) are piecewise linear functions of the pollutant concentrations. At the boundary between AQI categories, there is a discontinuous jump of one AQI unit. To convert from concentration cj to Ij (in the converted scale index Ij will be PDj, Equation (16) is used.
Ij = ((IhighIlow)/(chighclow)) · (cpclow) + Ilow
where Ij is the air quality index I in the PD*% scale, clow is the pollutant concentration break point, which is ≤cj, chigh is the pollutant concentration break point, which is ≥cj, Ilow is the index break point corresponding to clow, Ihigh is the index break point corresponding to chigh and cp is the truncated (to an integer) actual concentration for the pollutant. Little data exist on the AQI’s metrological reliability for AQI and IAQI. Only in the EPA Air Program undertaken at Cornell University [26] is there a previous review of the quality assurance requirements for AQI.

2.6. The Representative VOCs for Indoor Environment

The time when IAQ studies focused on a class of contaminants referred to as volatile organic compounds (VOCs) is bygone. The analytical methodology available was the primary basis for this focus, but the recent broadening of analytical methods has led to growing realization that other compounds (i.e., SVOCs) beyond traditional VOCs are implicated in IAQ problems. The choice of VOCs remains a challenge in IAQ assessment. Moreover, VOCs is somewhat vague term, the definition of which is not universally agreed upon. It has been defined in terms of vapor pressures and boiling points, as well as molecular chain lengths detectable by chromatographic techniques. Due to the complexity of VOC emission profiles, it is tempting to simplify the analysis and reporting of emissions by grouping all detected compounds together. The first problem with this approach is that individual compounds have highly variable health and/or comfort effects, the result being that concentration alone is not predictive of IAQ effects. Levels of concern vary by orders of magnitude, so a collective concentration will not correlate with IAQ. Second, VOC detection and quantification are highly method dependent. A given sampling and analysis system cannot capture or respond to all the VOCs present in any indoor environment or in the test chamber for a given emitting material. Thus, the term “total” is misleading. The important aspect of IAQ submodel selection is the strategy defined by the US EPA as “VOCs—Total versus Target: Irritancy, Odor and Health Impact”. The representative 90 target VOCs were presented by Canada’s National Research Council’s Institute for Research in Construction (NRG-IRC) in collaboration with several academic and governmental partners, including Health Canada. The compounds were selected based on health impact, occurrence in indoor air, known emission from building materials, as well as suitability for detection and quantification by gas chromatography-mass spectrometry (GC-MS) or high-performance liquid chromatography (HPLC). Our list of target VOCs was actually representative for indoor environment and recommended by the HealthVent project and is provided in Table 1.

2.7. Steps of ΣIAQindex Calculation

After selection of the IAQ model type (∑IAQquality or ∑IAQcomfort), the IAQindex evaluation was carried out using the complex model ∑IAQ from Figure 5, which should contain the following stages.
(a)
Calculation of the total concentration of pollutants in the ventilated space or the total mass of air pollutants per m3, the level of which is to be reduced by the ventilation process (taking into account the ventilated volume of the room and the emissions present).
(b)
Selection of the IAQindex model shape from the models defined by Equations (12)–(14), with the provision that due to the multiplication of the submodels for IAQ(VOCodorous), the number of subcomponents of the IAQcomfort model will be more than five.
(c)
Processing the input data of the submodels to obtain the concentration value cj, e.g., converting the measured OI value into a concentration value for a given pollutant cj in μg/m3.
(d)
Calculation of the excess concentration values for each identified contaminant (Table 2) Δcj = cj−cref.
(e)
Calculation of the sum of excess concentrations (see Table 2), ∑Δcj.
(f)
Calculation of adjusted weights Wj for the selected model equations. IAQquality and IAQcomfort, are determined on the basis of arithmetic means or by adjusting all the values of Δcj in a given model using Equation (10), only for groups of pollutants with similar concentration values.
(g)
Calculation of the value of the ventilating air flow for the environment described in the IAQindex model in accordance with the requirements of the standard EN 16798-1:2019 (a method using the criteria for the ventilation required for the individual substance emitted) [10].
(h)
Calculation of given IAQ environmental input parameters, including concentrations of pollutants cj assigned to submodels. The PD values from their sensory equations (Table 3) are presented as the dependence of the percentage of persons dissatisfied PD = f (cj, …), from one of the formulas from Table 3, in order to determine this function.
(i)
Selection of the ∑IAQquality model equation (with weights W1, W2, and W3) or the IAQcomfort model equation (with weights W1,…W5 or more) and calculation from Equation (13) of the value with adjusted weights, followed by multiplication of IAQ submodels (Equation (8)) and insertion as a term of the IEQindex in Equation (18) [34].
When selecting the ∑IAQcomfort/health model type, an IAQindex evaluation is carried out using the combined model ∑IAQ from Figure 5, which should contain the following steps.
(a)
Calculation of the total concentration of pollutants ∑cj in the ventilated space or the total mass of air pollutants per m3, the level of which is to be reduced by the ventilation process (taking into account the ventilated volume of the room and the emissions present).
(b)
Choosing the IAQindex model (12) from among the models defined by Equations (12)–(14), with the provision that by multiplying the IAQ(VOCnon-odorous) submodels, the number of subcomponents of the IAQcomfort/health model will be more than seven.
(c)
Processing of submodel input data to obtain concentration values cj in μg/m−3.
(d)
Calculation of excess concentration values for each pollutant identified (Table 2) using Δcj = cj−cref.
(e)
Calculation of the sum of excess concentration values for submodels 1–7 via ∑Δc1…7
(f)
Determination of the adjusted weights W1, … 7 for the equation of the IAQcomfort/health model on the basis of arithmetic means or by adjusting all the values of Δcj in a given model using Equation (10), only for groups of pollutants with similar concentration values.
(g)
Calculation of the values of the ventilating air stream from the total concentration of indoor air pollutants ∑cj (for instance, Reference [42]), for the environment described by the ∑IAQindex model (Figure 5) in accordance with the requirements of the EN 16798-1:2019 standard for the individual substances emitted and using an alternative method when the concentration in the room has stabilized.
(h)
Calculation of the given IAQ input parameters, including concentrations of all pollutants, cj, assigned to the submodels. The PD values are taken from their sensory equations (Table 3) depending on the percentage of persons dissatisfied, PD = f (cj, … ), or selected from the formulas for determining this function given in Table 3.
(i)
Development of IAQPM2.5, IAQPM10, and IAQnon-odorous submodels. When it is planned to use the indoor air quality index scale IAQI or a similar scale, it is necessary to convert these to PD* values in %, in two steps: (1) by reading from the standard curves of the IAQI = f(cj) all IAQI values for the determined (measured) VOCnon-odorous concentration values and using the converted scale calibration curve, PD = f(IAQI), by reading from the recalibration curve (Equation (16)), the PD = f(cj) values on the dissatisfaction rating scale from zero to 100 in %, according to Footnote 7 in Table 3.
(j)
Calculation of IAQ values for Pj pollutant submodels from Equation (8) and insertion into the model equation ∑IAQcomfort/health (14) (with weights W1, W2, …, W7 or more).

2.8. The IEQ Assessment Equation with ∑IAQ As a Subcomponent

The proposed IAQ model can be a substantial component of the IEQ model; for example, in the case study shown later in the article. The indoor environmental quality index refers to the quality of a building’s environment with respect to the occupants’ satisfaction in %. The morphology of the IEQ index model used to assess buildings, to determine as an IEQ component the IAQindex and to determine other subcomponents TCindex—thermal comfort, ACcindex—acoustic comfort and Lindex—light quality based on measurements of physical properties in each of the submodels—in accordance with the scheme of the Piasecki–Kostyrko model, is presented in Figure 6 [22].
The EN 16798-1:2019 is the reference for IEQ model creation [22,33]. The standard allows complex indoor information to be presented as one overall indicator of indoor environmental quality of the building—IEQindex. The model reliability, including the uncertainties of measurements and data for this model, was discussed clearly in Reference [34], where the authors also presented the internal incongruity in the IEQ model structure and the justification for using the crude weights method for each subcomponent. Originally, the IEQ model was expressed as a polynomial equation consisting of four terms by Wong [43]. The IEQindex is composed of the following subcomponents (SIi): thermal comfort (TCindex), indoor air quality (IAQindex), acoustics (ACcindex), and lighting quality (Lindex). Multiplying their weights, Wi, leads to Equation (17).
IEQindex = Σ Wi·SIi
The authors adopted the crude weighting system, where all elements are weighted in the same way (0.25 for W1W4), as shown in Equation (18).
I E Q i n d e x = 0.25 T C i n d e x + 0.25 Σ I A Q i n d e x + 0.25 A C c i n d e x + 0.25 L i n d e x
As a consequence of the equation, the subcomponents SIi (the predicted percentage of those satisfied) can be calculated using Equation (19).
SIi = 100 − PD(SIi)
where PD is the predicted percentage dissatisfied (PPD) and PD(SIi) is the percentage of persons dissatisfied with the IEQ subcomponent (SIi) level. The authors’ simulations for IEQindex sub-indices and preliminary metrological analysis of the overall IEQ model fitting were performed with Monte Carlo tests.
It is easy to show that the standard deviations of these values are equal:
SD(SIi) = SD(PD(SIi))

2.9. A Case Study of a Building

The experimental part of this study was performed simultaneously with the BREEAM certification process, including determination of the three primary IAQ pollutants: formaldehyde concentration, CO2, and VOCs in the indoor air [22]. The building is a high tower, made of a convex concrete–steel structure with a glass facade. The basic information on the assessed building is presented in Table 4. At the time of the test, the building had a standard empty office without furniture (so-called pre-occupancy stage). The walls were plastered and painted, the suspended ceilings were in place, and the floors were finished with synthetic carpets. All building installations were active, including the mechanical ventilation controlled by the Building Management System BMS system with zonal CO2 concentration sensors. The building was tested a few days after the formal end of finishing works. The tests were made on the 55th and 47th floor.
Measurement points in the building were determined based on the analysis of frequencies of designed occupancies of the room and interior finish standards (open spaces). The sampling plan was prepared with the BREEAM assessors conducting the certification process of the facility. The main focus was on the IAQ index of open spaces in which the largest number of people may reside, and these represent the largest occupied usable floor space. According to the detailed design project documents, the building emphasizes the use of materials with known and low emission levels (BREEAM certified).

2.10. The Equipment, Measurements, and Experimental Approach

Standardized CEN and ISO analytical methods were used to determine the VOC concentrations and CO2 and formaldehyde concentrations in the indoor air of the building. Selection of the sampling points was made with the BREEAM assessor in two representative office zones per tested floor and a minimum of two floors. The building was tested three days after formal final finishing works at the pre-occupancy stage with no users inside. For this office building, the tests were conducted on the 55th and 47th floors. Air samples were collected using an active sampling procedure with an electronic mass flow controller, which controlled the air flow (10 dm3/h for VOC tests and up to 30 dm3/h for formaldehyde tests). Indoor samples were set up in selected representative office locations, approximately 1.5 m above the floor, away from windows, doors, potential emission sources, and direct sunlight. Air samples were tested in accordance with the ISO 16000-6:2011 and ISO 16000-3:2011 standards. The VOCs were assessed using tubes filled with Tenax adsorbent. Then, they were thermally desorbed using a thermal desorption apparatus (TD-20, Shimadzu, Tokyo, Japan). The process of separation and analysis of volatile compounds was achieved using a gas chromatograph equipped with a mass spectrometer (GC/MS) (model: GCMS-QP2010, Shimadzu, Tokyo, Japan). The following GC oven temperature program was applied: initial temperature 40 °C for five min, 10 °C per min to 260 °C, and the final temperature of 260 °C for 1 min. The 1:10 split ratio injection mode was applied. The method used has a limit of quantification of 2 μg/m3. The volatile compounds were identified by comparing the retention times of chromatographic peaks with the retention times of reference compounds and by searching the NIST data base (National Institute of Standards and Technology, Gaithersburg, MD, USA) mass spectral database. Identified compounds were quantified using a relative identification factor obtained from standard solution calibration curves. TVOC was calculated by summing identified and unidentified compounds eluting between n-hexane and n-hexadecane. In order to determine volatile aldehydes, air samples were taken via cassettes using a solid absorbent silica gel coated with 2,4-dinitrilophenyl hydrazine (2,4-DNPH), and then subjected to a laboratory test using high-performance liquid chromatography (HPLC) with UV-Vis detection (Dionex 170S, Dionex, Sunnyvale, CA, USA) and an isocratic pump (Dionex P580A, Dionex, Sunnyvale, CA, USA). The described method has a limit of quantification at 2 μg/m3.
Other IEQindex components were tested as follows. The acoustic tests confirming the designed values were carried out by the measurement of the equivalent sound levels, LAeq, in the selected locations. The measurements were carried out during the daytime (starting at 11:00). The following equipment was used for the measurements: Brüel&Kjær 4231 acoustic calibrator (Brüel&Kjær, Nærum, Denmark), Nor-121 analyzer (Norsonic, Tranby, Norway), Brüel&Kjær 4165 measuring microphones (Brüel&Kjær, Nærum, Denmark), analyzer with microphone Norsonic-140 (Norsonic, Tranby, Norway). Before the tests were carried out, the calibration of the measuring path was conducted in accordance with the instructions to “check the acoustic measurement channel”. The test results were evaluated in relation to the requirements considering permissible sound levels A in rooms intended for human dwellings. Thermal environmental measurements were provided using the microclimate multifunctional instrument HD32.1 and the tests were in accordance with ISO 7726 and ISO 7730. VOCs were tested simultaneously at all points. Visual comfort (Hea 01) was confirmed by using a MAVOLUX 5032C instrument (USB version) with a 3C15683 detector (Gossen, Nürnberg, Germany), in accordance with EN 12464 provisions.

2.11. Additional Explanations

The adaptation of the IAQ model to a practical casestudy was mainly for illustrative purposes in the context of the presented IAQ calculation/aggregation method. We did not focus deeply on discussing the technical or environmental issues of the presented building. Other IEQ subcomponents, such as thermal, acoustic, and visual satisfaction (in %), used to determine the IEQ index, were experimentally determined and partly presented in References [22,33]. Authors do not focus on these results in this article, as they have already been discussed in other papers [22].

3. Results

3.1. Results for theIAQindex and IEQindex Prediction

A previous publication of ours [22] reported on IEQ and IAQ building assessments for a larger number of BREEAM buildings, where IEQ was assessed without calculating the combined ∑IAQ index. The combined model of the ∑IAQindex presented in this paper had not yet been previously developed, and we were limited in determining the IEQindex, thus we only took into account two of the most well-known pollutants (i.e., CO2 and TVOC) separately. The assessment of the IEQ index was made by adaptation of the measured parameters (complying with the draft EN 16798-1:2019 standard for indoor environments) as the input values for the submodels of the IEQindex. The input values for the case study are presented in Table 5, which provides the input data for determining the IEQindex sub-indices of thermal comfort (TCindex), indoor air quality (IAQindex), acoustics (ACcindex), and lighting quality (Lindex) for an office building (47th floor) three days after completion of the finishing work before users were allowed in the building (i.e., pre-occupancy stage).

3.2. Results for the ΣIAQindex and IEQindex Assessment Including Identified Pollutants (CO2, TVOC, and HCHO)

The example of a modified calculation of the collective submodel ∑IAQquality for three basic pollutants, as a component of the IEQ model for determining one project value for this indicator, is provided in two variants. The first variant uses sub-indices of IAQ for two pollutants, CO2 and TVOC, which are described in Table 5, as well the sub-index of the third pollutant, HCHO (according to Reference [47]), where these differences in the approaches mean one must combine them into one submodel ∑IAQ in order to be used in IEQ calculation. The second variant uses submodels of IAQ for TVOC and HCHO pollutants based on the IAQI system [30] and then converts them into percentages of persons dissatisfied PD* in %. According to the diagram of the model ∑IAQ from Figure 5 and using Equation (12) of the ∑IAQquality model, the submodel weights are calculated as follows.
WCO2 for the submodel IAQ(CO2) = 0.5 is a component of the polynomial:
∑IAQquality = 0.5·IAQ(CO2) + 0.5·IAQ(VOC)
WVOC for submodel IAQ(VOC) = 0.5 is a weight for combined submodel of the polynomial:
IAQ(VOC) = WTVOC⋅IAQ(TVOC) + WHCHO⋅IAQ(HCHO)
with the terms WTVOC and WHCHO calculated from Equation (14) using the measured values cj (actual concentration of TVOC and HCHO) and the reference values cref (Table 6).
In our case study, the value of the submodel IAQ weight for the model (HCHO) ought to also be calculated from the measured value and the reference value cref. However, formaldehyde is an unusual pollutant because, although it belongs to VOCodorous compounds, the concentrations found in buildings are many times lower than the HCHO threshold cth = 300 μg/m3 according to the WHO [7] and lower than the threshold concentrations of HCHO from 60 μg/m3 to 70 μg/m3 issued in 2013 by the American Industrial Hygiene Association [44]. The permissible value of cref = 100 μg/m3 is also higher than the formaldehyde concentration found in buildings, according to Reference [5] and the standard EN16798-1:2019 [10]. Therefore, the authors propose that in such a case (to avoid a negative value of Δcj), the value modelling the reference should be taken as zero. Then, the form of the adjusted WHCHO weight in the model described by Equation (11) for air with three pollutants, would be as follows.
W H C H O = Δ c j j = 2 3 Δ c 2 3 = ( c H C H O 0 ) ( c T V O C c E L V ) + ( c H C H O 0 )
The results of the weights assessment for the two variants of the ∑IAQquality model are presented in Table 6.
According to the diagram of the model ∑IAQ from Figure 5 and Equation (8), we proposed sensory equations for the percentage of persons dissatisfied %PD* in two variants.
The submodel ∑IAQ’s first variant includes the following:
  • The IAQ submodels used so far in References [22,33] for CO2 and TVOC pollutants, as shown in Table 5;
  • The IAQ submodel for formaldehyde, using two types of equations depending on the range of HCHO concentrations measured in the building. Formaldehyde concentrations in the air with values above the threshold concentration, cth, for its odor, i.e., above 60 or even 300 μg/m3, can be used to create IAQ submodels for rooms with volatile and aromatic VOC compounds as well as for the HCHO equation [50].
    P D H C H O = exp   ( 2.14 OI 3.81 ) exp   ( 2.14 OI 3.81 ) + 1
However, in the case study building, the maximum concentration of HCHO was 18 μg/m3 and, therefore, its concentration in the air was several times lower than the concentration of the odor threshold, cth [44]. The intensity of the formaldehyde odor was undetectable under these conditions, and the sensory equation PD = f(OI), which is appropriate for sensory detection of IEQ, is not applicable for odors below the threshold. Therefore, for small concentrations, we proposed the use of the equation taken from the work of Zhu and Li [47] based on the analysis of “health effects on the human body”, derived from “indoor air quality comfort evaluation experiments and the literature”.
P M V H C H O = 2 l o g c H C H O 0.01
This equation links the value of the new unit “the effect of formaldehyde on human comfort”, called PMVHCHO, with its cHCHO concentration (μg/m3) in the air. It covers the range from 10 μg/m3 to 320 μg/m3 and, as declared by the authors, this value has the same nature as PMV thermal comfort, which can be converted into a PD% unit according to the formula in Reference [48], experimentally confirmed for nearly zero energy buildings (NZEBs) by Reference [58].
PDHCHO = 100 − 95·exp(−0.03353·PMV4 − 0.2179·PMV2)
The submodel ∑IAQ’s second variant includes the following.
  • The IAQ(CO2) submodel used so far for CO2 pollution, as shown in Table 5.
  • The IAQ submodels for TVOC and HCHO types of pollution used as indoor air quality index ratio values borrowed from the IAQI system [30], which are then converted into percentages of persons dissatisfied (PD* in %) in the following way
(a)

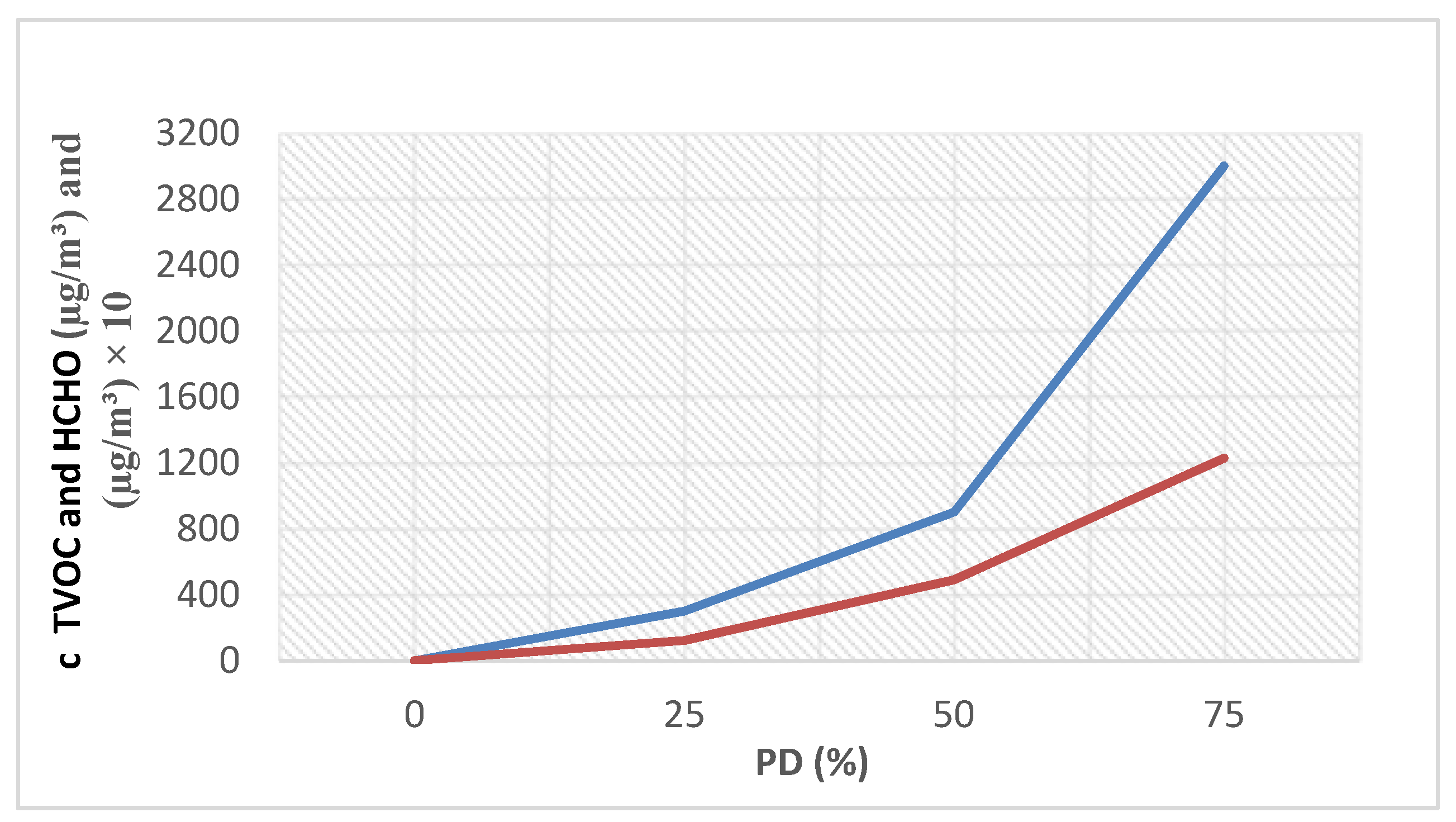

The reference curves of IAQI = f(cj) [30] for two dependencies of the IAQI index on TVOC and HCHO contamination values must be reconstructed. On the y-axis are the IAQI index values from zero to 200 in the range from “no risk” to “unhealthy” and on the x-axis, the cj values are presented.
(b)

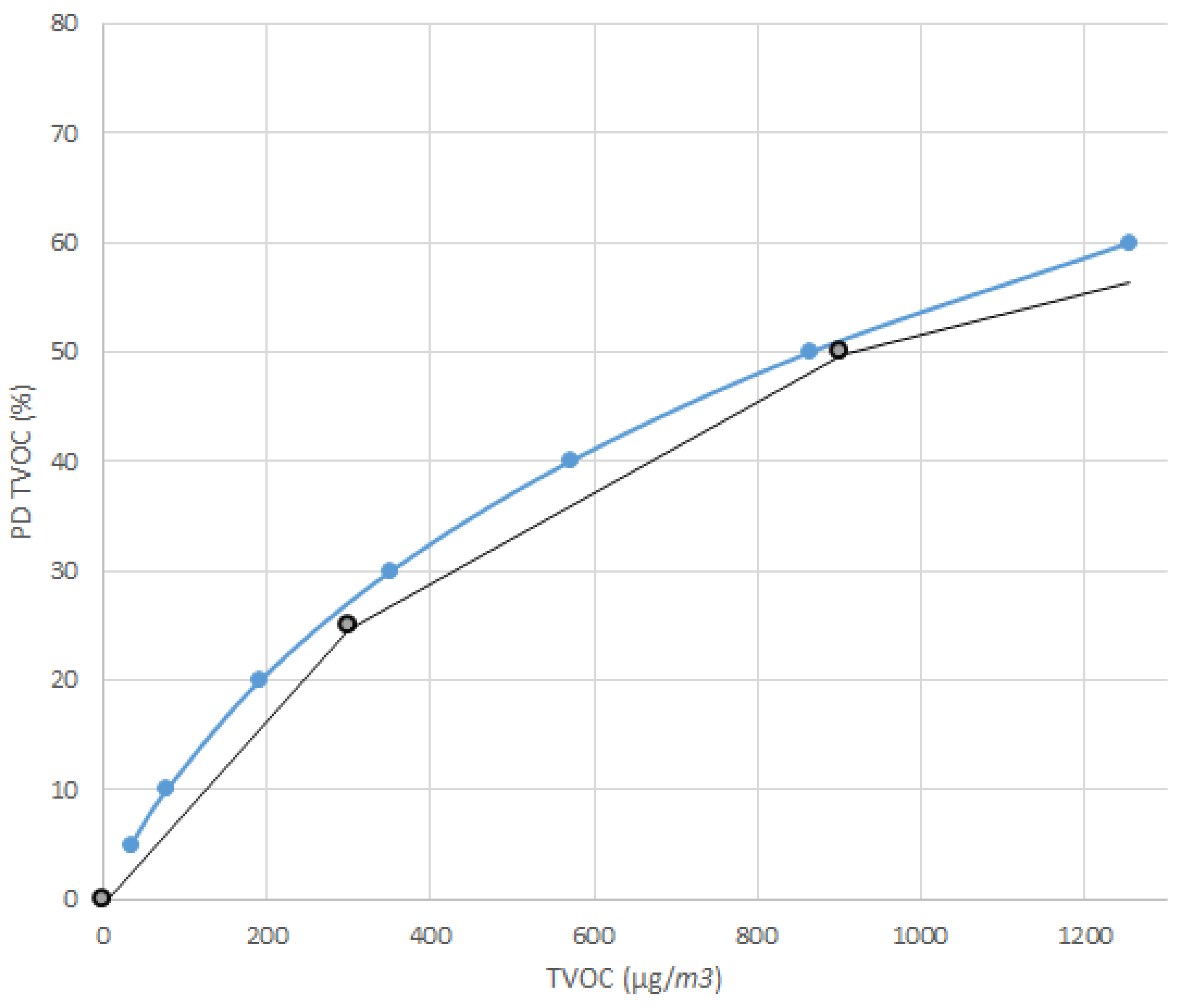

In accordance with the measured values of cTVOC and cHCHO, the values IAQITVOC and IAQIHCHO are determined from the functions IAQITVOc = f(c) and IAQIHCHO = f(c).
(c)
Based on the IAQI system parameters [30] given in Footnote 6 of Table 3, which are presented as data for the functions for indexes, the IAQITVOC and IAQIHCHO values appropriate for the break pointsi n perceived pollution concentration values are calculated in a range from zero (good) to 200 (unhealthy) using the ordinal scale IAQI = f(c) [27]. This function was converted to IAQITVOC and IAQIHCHO scales using the concentration function scales PD*(TVOC) and PD*(HCHO) in the PD* range from 0 to 100% (Figure 7).
(d)
The data used for calculation and conversion of IAQI and PD* scales are presented in Table 7.
(e)
Based on data determined for the new converted scales (Table 7) for the percentage of persons dissatisfied (PD*(TVOC) and PD*(HCHO) concentration functions), the PD*(c) working graphs were drawn (Figure 8). (To harmonize the concentration scale of pollutants on the y-axis, cHCHO values multiplied by 10 were applied.)
(f)
The interpolation of the percentage of persons dissatisfied (PD*(TVOC) and PD*(HCHO)) in %) for the measured values of pollution concentrations in the air must be made using the graph from Figure 8 or using Equation (16) [31].
In the context of the results for the overall IEQ model index when treating both the main pollutants CO2 and TVOC separately, we present in Table 8a the transformed IEQ calculations with the sub-indices ∑IAQ. The results for the individual case study building IAQ subcomponents are taken from Table 5 (for cTVOC = 787 μg/m3 and cHCHO = 18 μg/m3 [22]). The IEQ index with ∑IAQquality values was calculated using two variants—the first conventional and the second borrowed from the IAQI scale [30] (Table 8a).
Standard deviations for each concentration are provided in Table 8b.

4. Discussion

4.1. Discussion of the ∑IAQindex Theoretical Model

For years, the authors, as accredited laboratory personnel, have conducted IAQ pollution tests in indoor environments for various applications. Based on our experience, it was concluded that the general approach to assessing combined IAQ has not yet been systematized and that there is a global tendency to assess individual IAQ parameters separately or to group them without a justified aggregation method. This is not a good situation from the point of view of building users’ needs. This, in our opinion, may lead to incorrect IAQ interpretations in specific building situations. In the context of analyzing the problem in this paper, authors presented a summary of the state-of-the-art methods and also provided a new approach for solving some of these problems. As presented, it is possible to create a ∑IAQ index aggregating the results of indoor air analyses, taking into account various representative pollutants. Three levels of comprehensive air quality assessments (with three, five or seven subcomponents), depending on the application of the assessment, were proposed, together with step-by-step procedures. This may be practical, as shown in the evaluation of a case study on a building. We originally selected the main IAQ subcomponent equations and user satisfaction dependences, %PD = f(cj), and provided them all in one place (Table 3). We then proposed and justified the weighting schemes for the IAQ total equation. In most of the studies in the literature, the weighting schemes used for IEQ or IAQ assessments are not physically justified or explained. There are known methods of weighting sub-indices, but the problem that was solved in this paper was an effective system for weight adjustments. For the construction of the combined model IAQindex, with a weighting scheme useful for aggregating sub-indices, we proposed the model scheme presented in Figure 5. According to the results, the advantage of the complex model ∑IAQindex, in which the input quantities always constitute concentrations of given pollutants, is the ability to use these concentrations to calculate excess pollution concentrations from Equation (10) and generate weighting schemes W1, … n for all three models by adjusting the weights based on the concentration values of excess air pollutants to a value ≤1.0 for each IAQindex model. The Δcj values determine the masses of pollutants that must be removed by ventilation to eliminate the target pollutant effect. They can be determined as differences between the current concentrations of pollutants and the concentration of pollutants at the reference or standard level (e.g., cELV or cLCI), and in the case of VOCodorous, the odor threshold cth. The presented approach may allow planning of air quality for the building.
As discussed, it is important to identify those VOCs with comfort, health, and impacts and focus on the IAQ sub-model choice aspect, briefly defined as the strategy “VOCs—Total vs. Target: Comfort, Irritancy, Odor, and Health Impact”. The model from Figure 5 has uniform inputs, i.e., concentration levels cj and two outputs: (1) weighed (adjusted) and (2) sensory equations, PD* = f (cTVOC), constituting the IAQ submodel equations. These second outputs of submodels (PD* values) are coefficients of satisfaction from the comfort sensation or lack of “health risk”. These are the terms of the equation describing “combined ∑IAQ“, which meets the requirements of the abovementioned strategy of selecting IAQ sub-models related to IAQ components that have the most impact on the resulting IEQ perception.
Models for subcomponents of IAQ not perceived by humans but influencing health are recommended to be used from the index set in the AQI system [26,27,28], which was adapted by the authors to assess the quality of indoor air based on, and in accordance with, the concepts of the air quality assessment system used globally by the American EPA. In the context of the subcomponent of the TVOC concentration in Figure 8, the authors provided the relationships of PD* = f(cTVOC) based on Jokl research [49] and resulting from the IAQI scale [30] as converted by the authors. The relationship between PD* and TVOC concentration in both approaches is strongly correlated, as shown in Figure 9.
The curves obtained from the conversion confirm Jokl’s predictions provided in [49] and previously accepted idea. However, the final confirmation of these curves will be done experimentally as panel tests, as planned by the authors for the near future.

4.2. Discussion of Results for the Case Study on a Building

The experimental study was performed in a BREEAM certified building, and included the determination of formaldehyde concentration, CO2, and VOCs in the indoor air. The example calculation of the combined ∑IAQ model for three basic pollutants, as components of the IEQindex model, is presented in two variants but the calculated PD*TVOC values obtained with both calculation methodswere very similar. The first variant of ∑IAQ calculation used %PD = f(cj) curves in % sub-indices of IAQ for three pollutants, and the differences in approach in Table 5 and Table 8a meant combining them into one IEQ submodel: the ∑IAQ model intended for the IEQ calculation. The second variant used submodels of IAQ for TVOC and HCHO pollutants based on the IAQI system [30] which were then converted into percentages of persons dissatisfied (PD* in %).
The first conclusion is that CO2 concentration cannot be used separately for the IAQindex assessment, especially at the pre-occupancy stage (Table 5). The building was polluted with VOC emissions and HCHO from the construction products directly after finishing works were completed.
The authors confirmed that all three pollutions should be a simultaneously integrated part of the IAQ model, because the importance of TVOC is much greater, representing the main source of pollution—the construction and finishing materials.
According to the results, we recognized two variants of the combined ∑IAQindex calculation. For the first variant [22], the combined ∑IAQ index of satisfied users was 69.1% and, for the second variant (new approach with converted AQI index), the ∑IAQ index was 70.0% satisfied. The results ofthe IEQindex(1) (for Variant 1) were within the interval of combined overall uncertainty,±16.24%, and the results of the IEQindex(2) (for Variant 2) were that the overall uncertainty was ±16.15%. Therefore, the result was convergent, which confirms the credibility of the proposed approach.
The results obtained also showed that, in the period immediately after completion of finishing works in indoor spaces, there may be a temporarily increased concentration of TVOC, which systematically decreases over time, as we have shown in other papers. In the case of a building, the research showed that tests carried out immediately after finishing works gave results that significantly exceeded the BREEAM limits for TVOC at 300 µg/m3 (twice as high). It should be expected that an acceptable level should be reached after a minimum of one month from the completion of the work.
For correctness of the obtained calculations, the authors are conducting a model credibility analysis that will be provided in the next article—Indoor Air Quality Model Part II: The Combined Model ∑IAQindex Reliability Analysis. The model uncertainty estimate may be compromised because the model reproduces the discomfort level associated with the dominant component.

Author Contributions

Conceptualization, M.P. and K.B.K.; methodology, M.P. and K.B.K.; formal analysis, M.P. and K.B.K.; investigation, M.P. and K.B.K.; resources, M.P. and K.B.K.; data curation, M.P. and K.B.K.; writing—original draft preparation, M.P. and K.B.K.; writing—review and editing, M.P. and K.B.K.; visualization, M.P. and K.B.K.; supervision, K.B.K.; project administration, M.P.; funding acquisition, M.P.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fanger, P.O. What is IAQ? Indoor Air 2006, 16, 328–334. [Google Scholar] [CrossRef] [PubMed]
  2. Jones, L.L.; Hashim, A.; McKeever, T.; Cook, D.G.; Britton, J.; Leonardi-Bee, J. Parental and household smoking and the increased risk of bronchitis, bronchiolitis and other lower respiratory infections in infancy: Systematic review and meta-analysis. Respir. Res. 2011, 12, 5. [Google Scholar] [CrossRef] [PubMed]
  3. ASHRAE. ASHRAE Guideline No. 10. Interactions Affecting the Achievement of Acceptable Indoor Environments; ASHRAE: New York, NY, USA, 2011. [Google Scholar]
  4. Kostyrko, K.; Kozicki, M. Trends in odor measurments and detecting MVOC content in the interiors of buildings. In Conference on Metrology MKM18; The Scientific Papers of Faculty of Electrical and Control Engineering; Gdańsk University of Technology: Gdansk, Poland, 2018; Volume 59, p. 97. [Google Scholar]
  5. Carrer, P.; de Oliveira Fernandes, E.; Santos, H.; Hänninen, O.; Kephalopoulos, S.; Wargocki, P. On the development of health-based ventilation guidelines: Principles and framework. Int. J. Environ. Res. Public Health 2018, 15, 1360. [Google Scholar] [CrossRef] [PubMed]
  6. WHO Regional Office for Europe. Evolution of WHO Air Quality Guidelines: Past, Present and Future; WHO Regional Office for Europe: Copenhagen, Denmark, 2017. [Google Scholar]
  7. WHO Regional Office for Europe. WHO guidelines for indoor air quality. Nutr. J. 2010, 9, 454. [Google Scholar]
  8. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. GB/T 18883-2002, Indoor Air Quality Standard; General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China: Beijing, China, 2002. (In Chinese)
  9. Asikainen, A.; Carrer, P.; Kephalopoulos, S.; Fernandes, E.D.O.; Wargocki, P.; Hänninen, O. Reducing burden of disease from residential indoor air exposures in Europe (HEALTH-VENT project). Environ. Health A Glob. Access Sci. Source 2016, 15 (Suppl. 1), 35. [Google Scholar]
  10. CEN. Part 1: Indoor environmental input parameters for design and assessment of energy performance of buildings addressing indoor air quality, thermal environment, lighting and acoustics. In EN 16798 Energy Performance of Buildings–Ventilation of Buildings; CEN: Brussels, Belgium, 2019. [Google Scholar]
  11. Wang, Z.; Bai, Z.; Yu, H.; Zhang, J.; Zhu, T. Regulatory standards related to building energy conservation and indoor-air-quality during rapid urbanization in China. Energy Build. 2004, 36, 1299–1308. [Google Scholar] [CrossRef]
  12. China National StandardsGB 3095-2012 Ambient Air Quality; The Standardization Administration of China (SAC): Beijing, China, 2012.
  13. The Government of the Hong Kong Special Administrative Region IAQ Management Group. A Guide on Indoor Air Quality. Certification Scheme for Offices and Public Places; The Government of the Hong Kong Special Administrative Region IAQ Management Group: Hong Kong, China, 2019.
  14. Piasecki, M.; Kostyrko, K. Indoor Environmental Quality Assessment Model IEQ Developed in ITB. Part 1. Choice of the Indoor Environmental Quality Subcomponent Models. Ciepłownictwo Ogrzew. Went. 2018, 49/6, 223–232. [Google Scholar]
  15. Sekhar, S.C.; Tham, K.W.; Cheong, K.W. Indoor air quality and energy performance of air-conditioned office buildings in Singapore. Indoor Air 2003, 13, 315–331. [Google Scholar] [CrossRef]
  16. Moschandreas, D.J.; Sofuoglu, S.C. The indoor environmental index and its relationship with symptoms of office building occupants. J. Air Waste Manag. Assoc. 2004, 54, 1440–1451. [Google Scholar] [CrossRef]
  17. Sofuoglu, S.C.; Moschandreas, D.J. The link between symptoms of office building occupants and in-office air pollution: The Indoor Air Pollution Index. Indoor Air 2003, 13, 332–343. [Google Scholar] [CrossRef]
  18. IEA. Indoor Air Quality Design and Control in Low-Energy Residential Buildings-Annex 68 Subtask 1: Defining the Metrics in the Search of Indices to Evaluate the Indoor Air Quality of Low-Energy Residential Buildings; AIVC Contributed Report, 17; Abadie, M.O., Wargocki, P., Eds.; IEA: Paris, France, 2017.
  19. Chen, C.; Chiang, C.; Shao, W.; Huang, L. Hazards of VOCs emissions from building material and ventilation effectiveness in Taiwan. In Proceedings of the Indoor Air Conference, Copenhagen, Denmark, 17–22 August 2008; Volume 1. [Google Scholar]
  20. Zhu, C.; Li, N. Study on Grey Clustering Model of Indoor Air Quality Indicators. Procedia Eng. 2017, 205, 2246–2253. [Google Scholar] [CrossRef]
  21. Salisa, L.C.R.; Abadiea, M.; Wargocki, P.; Rode, C. Towards the definition of indicators for assessment of indoor air quality and energy performance in low-energy residential buildings. Energy Build. 2017, 152, 492–502. [Google Scholar] [CrossRef]
  22. Piasecki, M.; Kozicki, M.; Firlag, S.; Goljan, A.; Kostyrko, K. The approach of including TVOCs concentration in the indoor environmental quality model (IEQ)- case studies of BREEAM certified office buildings. Sustainability 2018, 10, 3902. [Google Scholar] [CrossRef]
  23. Toftum, J.; Jørgensen, A.S.; Fanger, P.O. Upper limits of air humidity for preventing warm respiratory discomfort. Energy Build. 1998, 28, 15–23. [Google Scholar] [CrossRef]
  24. Wang, Z.; Yu, Z. PM2.5 and Ventilation in a Passive Residential Building. Procedia Eng. 2017, 205, 3646–3653. [Google Scholar] [CrossRef]
  25. Morawska, L.; Ayoko, G.A.; Bae, G.N.; Buonanno, G.; Chao, C.Y.H.; Clifford, S.; Fu, S.C.; Hänninen, O.; He, C.; Isaxon, C.; et al. Airborne particles in indoor environment of homes, schools, offices and aged care facilities: The main routes of exposure. Environ. Int. 2017, 108, 75–83. [Google Scholar] [CrossRef]
  26. Cornell’s Legal Information Institute. Available online: https:/www.law.cornell.edu/sfr/text/40/appendix-A_to_part_58 (accessed on 20 May 2019).
  27. Saad, S.M.; Shakaff, A.Y.M.; Saad, A.R.M.; Yusof, A.M.; Andrew, A.M.; Zakaria, A.; Adom, A.H. Development of indoor environmental index: Air quality index and thermal comfort index. In AIP Conference Proceedings; American Institute of Physics: Melville, NY, USA, 2017; Volume 1808, p. 020043. [Google Scholar]
  28. Mintz, D. Technical Assistance Document for the Reporting of Daily Air Quality–The Air Quality Index (AQI); U.S. EPA: Washington, DC, USA, 2013.
  29. United States EPA-Environmental Protection Agency Office of Air Quality Planning and Standards Air Quality Assessment Division Research Triangle Park, NC. Available online: https://airnow.gov/index.cfm?action=airnow.calculator (accessed on 25 June 2019).
  30. Wang, H.; Tseng, C.; Hsieh, T. Developing an indoor air quality index system based on the health risk assessment. In Proceedings of the Indoor Air Conference, Copenhagen, Denmark, 17–22 August 2008; Volume 1. [Google Scholar]
  31. United States EPA-Environmental Protection Agency Office of Air Quality Planning and Standards Air Quality Assessment Division Research Triangle Park, NC. EPA-454/B-18-007- Technical Assistance Document for the Reporting of Daily Air Quality; United States EPA-Environmental Protection Agency Office of Air Quality Planning and Standards: Research Triangle Park, NC, USA, 2018.
  32. Sakellaris, I.A.; Saraga, D.E.; Mandin, C.; Roda, C.; Fossati, S.; de Kluizenaar, Y.; Carrer, P.; Dimitroulopoulou, S.; Mihucz, V.G.; Szigeti, T.; et al. Perceived indoor environment and occupants’ comfort in European “modern” office buildings. The OFFICAIR Study. Int. J. Environ. Res. Public Health 2016, 13, 444. [Google Scholar] [CrossRef]
  33. Piasecki, M.; Kostyrko, K.; Pykacz, S. Indoor environmental quality assessment: Part 1: Choice of the indoor environmental quality subcomponent models. J. Build. Phys. 2017, 41, 264–289. [Google Scholar] [CrossRef]
  34. Piasecki, M.; Kostyrko, K.B. Indoor environmental quality assessment, part 2: Model reliability analysis. J. Build. Phys. 2018, 42, 288–315. [Google Scholar] [CrossRef]
  35. Ye, W.; Won, D.; Zhang, X. A Simple VOC Prioritization Method to Determine Ventilation Rate for Indoor Environment Based on Building Material Emissions. Procedia Eng. 2015, 121, 1697–1704. [Google Scholar] [CrossRef]
  36. Bienfait, D. ECA Report No. 11 Guidelines for Ventilation Requirements in Buildings; Commission of the European Communities: Bruxelles, Belgium, 1992.
  37. Ye, W.; Won, D.; Zhang, X. A practical method and its applications to prioritize volatile organic compounds emitted from building materials based on ventilation rate requirements and ozone-initiated reactions. Indoor Built Environ. 2017, 92–93, 324–333. [Google Scholar] [CrossRef]
  38. Persily, A.K. Evaluating building IAQ and ventilation with indoor carbon dioxide. ASHRAE Trans. 1997, 103, 4072. [Google Scholar]
  39. Gyot, G.; Sherman, M.H.; Walker, I.S.; Clark, J.D. Residential Smart Ventilation: A Review; LBNL 2001056; Ernest Orlando Lawrence Berkeley National Laboratory: Berkeley, CA, USA, 2017.
  40. Engineering ToolBox. Available online: https://www.engineeringtoolbox.com (accessed on 5 May 2019).
  41. Noguchi, M.; Mizukoshi, A.; Yanagisawa, Y.; Yamasaki, A. Measurements of volatile organic compounds in a newly built daycare center. Int. J. Environ. Res. Public Health 2016, 13, 736. [Google Scholar] [CrossRef] [PubMed]
  42. Haag, W. Rapid continuous TVOC measurements using PPB-level PIDs. In Proceedings of the 10th International Conference on Indoor Air Quality and Climate, Beijing, China, 4–9 September 2005; pp. 938–941. [Google Scholar]
  43. Wong, L.T.; Mui, K.W.; Hui, P.S. A multivariate-logistic model for acceptance of indoor environmental quality (IEQ) in offices. Build. Environ. 2008, 43, 1–6. [Google Scholar] [CrossRef]
  44. American Industrial Hygiene Association (AIHA). Odor Thresholds for Chemicals with Established Health Standards; American Industrial Hygiene Association: Falls Church, VA, USA, 2013. [Google Scholar]
  45. Jokl, M.V. Evaluation of indoor air quality using the decibel concept based on carbon dioxide and TVOC. Build. Environ. 2000, 35, 677–697. [Google Scholar] [CrossRef]
  46. Tahsildoost, M.; Zomorodian, Z.S. Indoor environment quality assessment in classrooms: An integrated approach. J. Build. Phys. 2018, 42, 336–362. [Google Scholar] [CrossRef]
  47. Zhu, C.; Li, N. Study on indoor air quality evaluation index based on comfort evaluation experiment. Procedia Eng. 2017, 205, 2246–2253. [Google Scholar] [CrossRef]
  48. European Committe for Standardization. CEN/CR 1752:1998 Ventilation for Buildings. Design Criteria for the Indoor Environment; International Organization for Standardization: Geneva, Switzerland, 1998. [Google Scholar]
  49. Jokl, M.V. Indoor Air Quality Assessment Based on Human Physiology–Part 1. New Criteria Proposal. Acta Polytech. 2003, 43, 31–37. [Google Scholar]
  50. Wargocki, P.; Knudsen, H.N.; Krzyżanowska, J. Some methodological aspects of sensory testing of indoor air quality. In Proceedings of the CLIMA 2010, Antalya, Turkey, 9–12 May 2010. [Google Scholar]
  51. ISO. ISO 16000-28 Determination of Odor Emissions from Building Products Using Test Chambers; ISO: Geneva, Switzerland, 2013. [Google Scholar]
  52. Kim, K.H.; Kim, Y.H. Composition of key offensive odorants released from fresh food materials. Atmos. Environ. 2014, 205, 2246–2253. [Google Scholar] [CrossRef]
  53. Wu, C.; Liu, J.; Zhao, P.; Piringer, M.; Schauberger, G. Conversion of the chemical concentration of odorous mixtures into odor concentration and odor intensity: A comparison of methods. Atmos. Environ. 2016, 127, 283–292. [Google Scholar] [CrossRef]
  54. Yeganeh, B.; Haghighat, F.; Gunnarsen, L.; Afshari, A.; Knudsen, H. Evaluation of building materials individually and in combination using odor threshold. Indoor Built Environ. 2006, 15, 583–593. [Google Scholar] [CrossRef]
  55. Gunnarsen, L.; Fanger, P.O. Adaptation to indoor air pollution. J. Environ. Int. 1992, 18, 43–54. [Google Scholar] [CrossRef]
  56. Fang, L.; Clausen, G.; Fanger, P.O. Impact of temperature and humidity on the perception of indoor air quality. Indoor Air 1998, 8, 80–90. [Google Scholar] [CrossRef]
  57. Połednik, B. Zanieczyszczenia a Jakość Powietrza Wewnętrznego w Wybranych Pomieszczeniach; Biblioteka Cyfrowa Politechniki Lubelskiej: Lublin, Poland, 2013. (In Polish) [Google Scholar]
  58. Piasecki, M.; Fedorczak-Cisak, M.; Furtak, M.; Biskupski, J. Experimental Confirmation of the Reliability of Fanger’s Thermal Comfort Model—Case Study of a Near-Zero Energy Building (NZEB) Office Building. Sustainability 2019, 11, 2461. [Google Scholar] [CrossRef]
Figure 1. Overview of the physical and chemical processes of potential pollution sources in the indoor environment of a building. (VOCs—Volatile Organic Compounds, SVOCs—semi Volatile Organic Compounds).
Figure 1. Overview of the physical and chemical processes of potential pollution sources in the indoor environment of a building. (VOCs—Volatile Organic Compounds, SVOCs—semi Volatile Organic Compounds).
Applsci 09 03918 g001
Figure 2. To determine the indoor air quality and indoor environmental quality (IEQ) indexes for the case study. (TC—thermal comfort, L—light quality, ACc—acoustic comfort).
Figure 2. To determine the indoor air quality and indoor environmental quality (IEQ) indexes for the case study. (TC—thermal comfort, L—light quality, ACc—acoustic comfort).
Applsci 09 03918 g002
Figure 3. ∑IAQ model has three possible levels (i.e., similar to a Russian doll structure) adapted to the potential applications of the model.
Figure 3. ∑IAQ model has three possible levels (i.e., similar to a Russian doll structure) adapted to the potential applications of the model.
Applsci 09 03918 g003
Figure 4. Of CO2 above outdoors levels with two people in the contaminated building (ACH—air change rate) and in a typical clean office room (ACH*).
Figure 4. Of CO2 above outdoors levels with two people in the contaminated building (ACH—air change rate) and in a typical clean office room (ACH*).
Applsci 09 03918 g004
Figure 5. ΣIAQindex model with weighting scheme.
Figure 5. ΣIAQindex model with weighting scheme.
Applsci 09 03918 g005
Figure 6. The research steps necessary to determine the IEQindex for buildings, including physical and design parameters of buildings and subcomponent models.
Figure 6. The research steps necessary to determine the IEQindex for buildings, including physical and design parameters of buildings and subcomponent models.
Applsci 09 03918 g006
Figure 7. Percentage of persons dissatisfied, %PD*, in relation to IAQI values.
Figure 7. Percentage of persons dissatisfied, %PD*, in relation to IAQI values.
Applsci 09 03918 g007
Figure 8. The percentage of persons dissatisfied function of TVOC (blue line) and HCHO (brown line) versus concentration.
Figure 8. The percentage of persons dissatisfied function of TVOC (blue line) and HCHO (brown line) versus concentration.
Applsci 09 03918 g008
Figure 9. PDTVOC based on conversion from IAQI to the PD* scale and study of Weber-Fechner theory.
Figure 9. PDTVOC based on conversion from IAQI to the PD* scale and study of Weber-Fechner theory.
Applsci 09 03918 g009
Table 1. Acceptable levels of pollutant concentrations occurring in indoor air, according to World Health Organization (WHO) recommendations supported by the results of the EU research program HealthVent, values recommended by the standard EN 16798-1:2019 (replacing EN 15251:2007), values recommended by the Chinese indoor air quality (IAQ) standard GB/T 18883-2002 and for acceptable levels of pollution for the certification of office buildings in Hong Kong.
Table 1. Acceptable levels of pollutant concentrations occurring in indoor air, according to World Health Organization (WHO) recommendations supported by the results of the EU research program HealthVent, values recommended by the standard EN 16798-1:2019 (replacing EN 15251:2007), values recommended by the Chinese indoor air quality (IAQ) standard GB/T 18883-2002 and for acceptable levels of pollution for the certification of office buildings in Hong Kong.
PollutantWHO Guidelines for IAQ with Updates [6,7]HealthVent Project [5,9]EN 16798-1:2019 [10]IAQ Standards for China [8,11,12]IAQ Certification Hong Kong [13]
CO2 <500 ppm beyond
outdoor level
485 ppm<1000 ppmv
1800 mg/m3 (8 h)
CO100 mg/m3 (15’)
35 mg/m3 (1 h)
10 mg/m3 (8 h)
7 mg/m3 (24 h)
19 mg/m3 (8 h)100 mg/m3 (15’)
35 mg/m3 (1 h)
7 mg/m3 (24 h)
1 mg/m310 mg/m3
7000 μg/m3 (8 h)
Formaldehyde
HCHO
0.1 mg/m3 (30’)0.03 mg/m3 (30’)0.1 mg/m3 (30’)10 μg/m3<0.1 mg/m3 (8 h)
Benzene>0.17 mg/m3<outdoor concentra
tion
No safe level can be determined0.11 mg/m317 μg/m3
NO240 μg/m3 (1 year)
200 μg/m3 (1 h)
40 μg/m3
(1 week)
40 μg/m3
(1 year)
200 μg/m3 (1 h)
10 μg/m3150 μg/m3 (8 h)
SO220 μg/m3 (24 h) 20 μg/m3 (24 h)20μg/m3 (24 h)
Naphthalene0.01 mg/m3
0.02 (1 year)
0.01 mg/m3
(1 year)
0.01 mg/m3
(1 year)
0.01 mg/m3 (8 h)
Trichloroethene>2.3 μg/m3 230 μg/m3 (8 h)
Tetrachloroethene0.25 mg/m3
(1 year)
0.25 mg/m3
(1 year)
0.25 mg/m3
(1 year)
0.25 mg/m3 (8 h)
Respirable particulate matter
PM2.5
10.0 μg/m3
(1 year)
10 μg/m3
(1 year)
15 μg/m3 (1 year)
35 μg/m3 (24 h)
100 μg/m3 (8 h)
PAH *>0.012 ng/m3 No safe level can be determined 1.2 ng/m3 (8 h)
TVOC ** 1000 μg/m3600 μg/m3600 μg/m3 (8 h)
* PAH Para-Aminohippuric Acid—cyclic aromatic hydrocarbons; ** TVOC Total Volatile Organic Compounds; Reference [13] provides additional TVOC certification tests for new office buildings by determining (at the ppbv level) the content of carbon tetrachloride, chloroform, 1,2- and 1,4-dichlorobenzene, ethylbenzene, toluene, and o-, m- and, p-xylene.
Table 2. Exemplary pollution concentration reference values for low-pollution building.
Table 2. Exemplary pollution concentration reference values for low-pollution building.
Component of Pollution PjReference ConcentrationReference ValueReference/Recommendation List
CO2 (outdoor 350 ppm)cELV380 ppmEN 16798-1:2019
TVOCcELV
cth
<300 μg/m3
50 μg/m3
EN 16798-1:2019
MV. Jokl [45]
HCHOcELV


or
cth
30 μg/m3 (30 min)
100 μg/m3 (30 min)
9 μg/m3 (1 year)

300 μg/m3
60 μg/m3
EN 16798-1:2019
WHO Guidelines for IAQ (2010)
IEA-AIVC Report. Annex 68 (2017)

AIHA Odor Thresholds for Chemicals with Established Health Standards (2013)
VOCodorous (as in EN 16516)
Naphthalene
Nitrogen dioxide
Ammonia
Ozone
Carcinogenic VOCs
cth
or
cELV

10 μg/m3 (1 year)
20 μg/m3 (1 year)
70 μg/m3 (1 year)
100 μg/m3 (8 h)
5 μg/m3
AIHA Odor Thresholds for Chemicals (2013)

EN 16798-1:2019
Moisture content x in indoor air (enthalpy >55 kJ/kg, ta = 23 °C and 60% RH)
x [gwater/kgdry air] ⇒ H [gwater/m3]
> unacceptable value of moisture content x at 23 °C.x > 12 g/kg
RH > 60%
EN 16798-1:2019
PM10

PM2.5
cELV

cELV
cDIRECTIVE
20 μg/m3

10 μg/m3
2 25 μg/m3 (1 year)
WHO Air Quality Guidelines (2010)
EU Directive 2008/50/EC introduced additional PM2.5 objectives targeting the exposure of the population to fine particles.
VOCnon-odorous (EN 16516 includes pollutants with limit values on concentration that have been identified):
Carbon monoxide
Carcinogenic 1 VOCs
cELV or
cLCI




7 mg/m3 (24 h)
5 mg/m3

EN 16798-1:2019
EN 16516;

WHO Guidelines for IAQ (2010)
1 Limit values and carcinogenic effect: the level of PAHs, particles, benzene, and trichloroethylene should always be kept as low as possible.
Table 3. Selection of physical equations for IAQindex components and dependences for PD = f(cj).
Table 3. Selection of physical equations for IAQindex components and dependences for PD = f(cj).
Sub
Component
Input ParametersSensory Equations
to Calculate the %PD Value
References
CO2c(CO2)
(in ppm)
PDIAQ(CO2) = 395·exp(−15.15·CCO20.25)
cIAQ(CO2) = 55 833·(ln(PD) − 5.98)−4
I A Q = 6 × 10 0.07 c C O 2 2 0.0025 × c C O 2 + 1.9416
P M V C O 2 = 6.364 × l o g c c o 2 485
PD = 100 − 95·exp(−0.03353·PMV4 − 0.2179·PMV2)
[36]
[45]
[46]
[47]
[48]
TVOC 1c(TVOC)

PD

IAQI
PD*
cTVOC = 16,000(ln(PD) − 5.988)4;
cTVOC(μg/m3)
PD(IAQ)TVOC = 405·exp(−11,3·cTVOC−0.25)
In Taiwan EPA Indoor Air Quality Index System (IAQI). Nine major indoor air pollutants are included: PM10, PM2.5, CO2, CO, O3, HCHO, TVOC, bacteria, and fungi. We proposed the use of a calibration curve IAQI = f(cTVOC) for conversion to PD* %
[49]
[22,45]

[30]
HCHO



c(HCHO)


(pi)2
OI3
PD

c(HCHO)

IAQI
PD*
P M V H C H O = 2 log c H C H O 0.01 ,   cHCHO(mg/m3)
PD = 100–95·exp(−0.03353·PMV4 − 0.2179·PMV2)
P D I A Q ( O I ) = 1 1 + 1 exp ( 2.14 O I 3.81 )
------------------------------------------------------
In the Taiwan EPA Indoor Air Quality Index6 System (IAQI). Nine major indoor air pollutants are included: PM10, PM2.5, CO2, CO, O3, HCHO, TVOC, bacteria and fungi. We proposed the use of the calibration curve IAQI = f(cHCHO) for conversion 7 to PD*%
[47]

[48]
[50,51]




[30]

SVOC and VOCodoros

cVOC
OI4

cVOC
OI3



OI3
ACCVOC
PD







OI2 in scale (pi) recalculation to ⇒OI3
Formulae for the conversion of odorant concentration cj to odor intensity OI for recalculation (4) of the conversion of odor intensity to odorant concentration.
------------------------------------------------------
Conversion of the chemical concentrations cj (mg m−3) into odor concentrations cOD (ouE m−3) and odor intensities OI; cOD,0 – unity of odor concentration (cOD,0 = 1ouE m−3)
OIj = kj log cOD,j + 0.5
------------------------------------------------------
The mean of acceptability votes as a function of the mean of intensity votes.
ACC = −0.45 OI + 0.93, R2 = 0.979
ACC in scale: from −1 to +1
OI odor intensity in scale: from 0 to 5
P D I A Q ( O I ) = ( exp ( 0.18 5.283 A C C 1 + exp ( 0.18 5.283 A C C ) 3100
------------------------------------------------------
The perceived intensity in pi units is determined by comparing the intensity of the sample with different specified intensities of the reference substance, (e.g., acetone). Concentrations for 1 to n (pi) follow a linear gradation of the acetone concentration.
Confidence intervals should be within
±2 pi. Recalculation (pi) to OI
[52]





[53]




[54]



[55]




[51]






[34]
Moisture x in high enthalpy h of moist
air 5
(in room tempera
ture ta when air
enthalpy
h > 55 kJ/kg)
x (gw/kga)
⇒H (gw/m3)
(H-absolute
humidity)
The recommended criteria for dimensioning of humidification and dehumidification. It is recommended to limit the absolute humidity value to x = 12gw/kga or H(gw/m3)
h = 1.006 t + 0.622 ( 2501 + 1.84 t ) 0.01 RH exp ( 23.58 4043 / ( t + 273.15 37.58 ) ) P a t m + 0.01 RH exp ( 23.58 4043 / ( t + 273.15 37.58 ) )
IAQ acceptability equation
ACC = ah + b
where a and b are different for different pollutants
----------------------------------------------------
P D = 100 1 + exp ( 3.58 + 0.18 ( 30 t a ) + 0.14 ( 42.5 0.01 p v ) %

ACC = 5.63 + 0.46 ln RH—1.32 ln h
uncertainty of acceptability ACC is ±0.12.
P D I A Q ( h ) = ( exp ( 0.18 5.283 A C C 1 + exp ( 0.18 5.283 A C C ) 3100
[10]



[56]








[23]

[57]


[55]
Particulate matter 6
PM2.5
PM10
cPM2.5
cPM10
IAQI (Indoor Air Quality index) 6 is the proposal for a system comparable to the World AQI EPA system
cPM2.5⇒IAQI⇒PD*%
cPM10⇒IAQI⇒PD*%
[30]
Air pollutants 7
VOCnon-odorous
CO, NO2
cVOCIAQI 6 value for cVOC was calculated with System IAQI [27] by interpolation and after which the index IAQI must be converted 7 to PD*%[30]
1 TVOC, according to Reference [45], represents a narrow chromatographic picture that excludes, for example, the lower aldehydes, e.g., formaldehyde. 2 The measurement of the intensity of the odors in the building in which emissions from construction materials occur can be performed by a panel of participants, where the room is treated as a “test room for background odor” according to Section 6.8.1 of ISO 16000-28:2013, “Indoor Air—Part 28: Determination of odor emissions from building products using test chambers” (2013) [51]. The assessment of the 90% confidence level is possible through the use of a 15-pi odor intensity scale with a reading uncertainty of ±2 pi. 3 OI is perceived odor intensity on a six-level scale from 0 to 5 (no odor = 0, slight odor = 1, moderate odor = 2, strong odor = 3, very strong odor = 4, and overpowering odor = 5). 4 Based on the study Kim and Kim (2014) [52] selected 22 odorants with a similar chemical structure (structural formula) and determined an equation to convert the concentration x in ppm to intensify y, with odor OI on a scale of zero to five. The study included odors from the distribution of food. These 22 odorants can be divided into five chemical groups: (1) reduced sulfur compounds, (2) carbonyls, (3) nitrogenous compounds, (4) VOCs, and (5) volatile fatty acids. For example, for the group of reduced sulfur compounds for compound number 1, the conversion equation for H2S is Y = 0.950logX + 4.14, for the carbonyl compounds group for compound number 10, ammonium NH3, it is Y = 670logX + 2.38, and for the VOC group for styrene it is Y = 1.420logX + 3.10. 5 If one considers a cooling system that removes heat from a space but does not remove moisture unless condensation occurs, such as radiant cooling without dehumidification in a ventilation system, the importance of humidity is very clear. The sensible cooling of air in a room (no change in absolute humidity) from 25 °C and 60% RH to 20 °C (process a–b for x = 0.012 kgw/kga).This value, coupled with a high temperature, ta = 25 °C, is accepted as the critical limit value for dehumidification by EN16798-1:2019 [10] and can be converted into an absolute humidity H (gw/m3). These processes are expected to significantly increase thermal comfort and air quality. Nevertheless, the same change in enthalpy of the air h can be achieved by simply reducing the humidity by 10% RH and keeping the temperature constant (processes a–c). Since IAQ is a function of enthalpy, these are expected to be the same. Here, a change in humidity of 10% RH at constant temperature is equivalent to a change in temperature of 5 or 6 °C at constant moisture content in air x (kgw/kgdry air). 6 The IAQI system [30] adopts the methodology of AQI to set up the range of IAQI values from zero to 500, including 50, 100, 150, 200, 300, and 500. The IAQI values of 100 and 150 correspond to the concentrations in the Taiwan IAQG standard. Other IAQI values between 50 and 200 correspond to the concentration rankings given by several reference resources including the US EPA AQI system [31]. All on-site concentrations of indoor air pollutants (HCHO, TVOC, PM10, PM2.5, CO, CO2, O3, bacteria, fungi, SO2, and NO2) are combined using the IAQI system. The IAQI values are calculated on the basis of the concentration value c using the interpolation method for each air pollutant. In the IAQI system, the index range 0–50 is “good” with a significance level of “little or no risk”, 51–100 is “moderate” where “sensitive persons or those with respiratory symptoms are concerned”, 101–150 is “unhealthy for sensitive groups”, 151–200 is “unhealthy for all individuals”, 201–300 is “very unhealthy—more serious health effects for everyone for short-term exposure”, and 301–500 is “hazardous” with “health warning of emergency conditions for everyone”. Therefore, the comfort scale for IAQI is adequate for index values from zero to 200 and our proposal is to use the “hypothetical” scale of PD* of 0–100% in this range, converted from IAQI. 7 The method of conversion of the IAQI scale to the PD* scale is based on experiences gained during research [27]. The IAQI values in a health-risk scale can be given in % for persons giving a verbal answer of “no risk”, “moderate”, and “unhealthy” as their health risk evaluation. Therefore, when determining, for instance, the concentration function values of the %PDIAQI(TVOC) and %PDIAQI(HCHO) components, it is necessary to recalculate the scale IAQI = f(c) in the range from zero to 200 to the scale PD* from 0 to 100%. There are break points in the new PD*% scale: for IAQI values 0–50, PD*% is 0–25, for IAQI values 51–100, PD*% is 26–50, for IAQI values 101–150, PD*% is 51–75, and for IAQI values 151–200, PD*% is 76–100.
Table 4. Information on the building in the case study.
Table 4. Information on the building in the case study.
Office Building CertificateFacade ViewIndoor ViewLife-StageNumber of FloorsNet Area (m2)IAQ Assessed
Area (m2)Number of Floors
BREEA
Mexcellent
Applsci 09 03918 i001 Applsci 09 03918 i002pre-occupant4959,00030002
Table 5. Physical parameters 1 and IEQindex results calculated using Equation (9) separately for an IAQindex with internal air pollution of CO2 and an IAQindex with internal TVOC air pollution, assuming a realistic uncertainty of parameter measurement for the case study of a building (47th floor; open space) three days after the completion of finishing works.
Table 5. Physical parameters 1 and IEQindex results calculated using Equation (9) separately for an IAQindex with internal air pollution of CO2 and an IAQindex with internal TVOC air pollution, assuming a realistic uncertainty of parameter measurement for the case study of a building (47th floor; open space) three days after the completion of finishing works.
Sub-IndexSub-Index PD(SIi) ModelsInput ValuesSub-Index (Satisfied)
and ±SD
TCindexPMV (Fanger-CBE-ISO 7730)
PMV = f(ta, tr, va, pa, M, Icl,)
PDTC = f(PMV)
Icl 0.55 clo90% ± 3.2%
ta 24.0 °C
tr 24.5 °C
va 0.15 m/s
RH 45%
M 1.1 met
IAQindexPDIAQ(CO2) = 395·exp(−15.15·CCO2−0.25)450 ppm85.2% ± 0.6%
PDIAQ(TVOC) = 405·exp(−11.3·CTVOC−0.25)787 μg/m352.0% ± 18.0%
ACcindexPDACc = 2·(ActualSound_Pressure_Level(dB(A))
−DesignSound_Pressure_Level(dB(A)))
Actual (background) noise level
Design sound level


55 dB(A)
45 dB(A)
80% ± 6.7%
LindexPDL = −0.0175 + 1.0361/{1 + exp(+4.0835 · (log10(Emin) − 1.8223))} 450 lux98.4% ± 9.0%
IEQ(CO2) First variant with cCO2 as an IAQindex parameter IEQCO2 = 92.2% ± 5.8% 1
IEQTVOCSecond variant with cTVOC as an IAQindex parameterIEQTVOC = 80.1% ± 10.7%
1 The IEQ and its measurement’s uncertainty (with subcomponent standard deviation values) were calculated for IEQ physical parameter values, where ta is the air temperature (°C), tr is the mean radiant temperature (°C), va is the relative air velocity (m/s), pa is the water-vapor partial pressure (Pa), M is the metabolic rate (met), and Icl, is the clothing insulation (clo). In addition, cCO2 is the concentration in ppm, cTVOC is the highest observed TVOC concentration in μg/m3, actual noise is in dB(A), and Emin is the minimum daylight illuminance (lux).
Table 6. Calculation of the weights of the WTVOC and WHCHO values for the two sub-indices of the combined IAQ(VOC) model.
Table 6. Calculation of the weights of the WTVOC and WHCHO values for the two sub-indices of the combined IAQ(VOC) model.
Sub-IndexInput Value cj Input 1 Value crefExcess Concentration ΔcjWj
IAQ(TVOC)787 μg/m3300 μg/m3487 μg/m30.96
IAQ(HCHO)18 μg/m3018 μg/m30.04
1 EN 16798-1:2019 for a very low-pollution building.
Table 7. Recalculation and conversion of IAQI value scales.
Table 7. Recalculation and conversion of IAQI value scales.
PD* ValueIAQI ValueEvaluationcTVOC-TVOC (1 h)cHCHO-HCHO (1 h)
%--ppmμg/m3ppmμg/m3
00No risk0000
2550Good0.3 1300 0.01 212.3
50100Moderate0.9900 0.0449.1
75150Unhealthy for sensitive3.030000.10122.8
100200Unhealthy4.646000.75921.0
1 Conversion factors TVOC: 0.3 ppm corresponds to 300 μg/m3 [44]. 2 Conversion factors HCHO: 1 ppm corresponds to 1228 μg/m3 [44].
Table 8. (a) Physical parameters (Footnote 1 in Table 5) and IEQ results calculated from Equation (9) with ∑IAQ; assuming realistic uncertainty of parameter measurements for the case study building (47th floor; open space) a few days after completion of the finishing works. (b) Measured pollutant concentrations c and standard deviations SD(c).
(a)
(a)
Sub-IndexSub-Index PD(SI) ModelsInput ValuesSub-Index (Satisfied) and ±SD
TCindex Icl 0.55 clo90.0% ± 3.2%
PMV (Fanger-CBE-ISO 7730)
PMV = f(ta,tr, va, pa, M, Icl,dyn)
PDTC = f(PMV)
ta 24°C
tr 24.5°C
va 0.15 m/s
RH 45%
M 1.1 met
∑IAQindex(1)
Sub-indices
First variant
PDIAQ(CO2) = 395·exp(−15.15·CCO2−0.25)c = 450 ppm85.2% ± 0.6%
PDIAQ(TVOC) = 405·exp(−11.3·CTVOC−0.25)
P M V H C H O = 2 l o g c H C H O 0.01
PDHCHO = 100 − 95·exp(−0.03353·PMV4 − 0.2179·PMV2)
c = 787 μg/m3

c = 0.018 mg/m3
52.0% ± 18.0%


65.8% ± 10.7%%
∑IAQindex(1)IAQVOC = 0.96·IAQvariant1(TVOC) + 0.04·IAQvariant1(HCHO)
IAQindex(1) = 0.5·IAQ(CO2) + 0.5·IAQvariant 1(VOC)
53.0% ± 17.3%

69.1% ± 9.0%
∑IAQindex(2)
Sub-indices 1)
Second Variant
PDIAQ(CO2) = 395·exp(−15.15·CCO2−0.25)
PD*TVOC read from the graph with PD*TVOC = f(cTVOC)
or determined from Equation (16)
PD*HCHO read from the graph with PD*HCHO = f(cHCHO)
or determined from Equation (16)
SD for cTVOC and cHCHO at
“break points”±12%
c = 450 ppm
c = 787μg/m3±18%

c = 18μg/m3±12%
85.2% ± 0.6%
54% ± 13.8%

71.1%± 11.0%
∑IAQindex(2)IAQVOC = 0.96·IAQvariant2(TVOC)
+ 0.04·IAQvariant2(HCHO)
IAQindex(2) = 0.5·IAQ(CO2)
+ 0.5·IAQvariant 2(VOC)
54.7% ± 13%

70.0% ± 6.5%
ACcindexPDACc = 2·(ActualSound_Pressure_Level(dB(A) −
DesignSound_Pressure_Level(dB(A))
Actual (background) noise
Design sound level


55 dB(A)
45 dB(A)
80.0% ± 6.7%
LindexPDL = −0.0175 + 1.0361/{1 + exp(+4.0835 ·(log10(Emin) − 1.8223))} 450 lux98.4% ± 9.0%
IEQindex(1) with ∑IAQindex(1)
meas. IEQindex(1)
±SD

overall IEQindex(1)±uoverall 2)

IEQindex±SD = W1TCindex + W2⋅∑IAQindex(1) + W3⋅Accindex + W4⋅Lindex



±uoverall(IEQ) = (∑ (SDreal(PD(SIi))2 + ∑ (SDvotePD(SIi))2)−2
IEQindex(1)±uoverall
84.4%±3.7%
umeas = 2 · 3.7 = ±7.4%



uoveall = ±16.24%
84.4%±16.24%
IEQindex(2)with
∑IAQindex(2)
measIEQindex(2)±SD

overall IEQindex(2)±uoverall 2)


IEQindex±SD =
W1TCindex + W2⋅∑IAQindex(2) + W3⋅ACcindex + W4⋅Lindex


±uoverall(IEQ) = (∑ (SDreal(PD(SIi))2 + ∑ (SDvotePD(SIi))2)−2
IEQindex(2)±uoverall

84.6%±3.3%
umeas = 2 ·3.3 = ±6.6%


uoverall = ±16.15%
84.6%±16.15%
(b)
(b)
cmesSD(cmeas)cHSD(cH)cLSD(cL)PD*HSDPD*LSD
TVOC78718%⇒141.790012%⇒10830012%⇒365012%2512%
HCHO1812%⇒2.1649.112%⇒5.8912.312⇒1.485012%2512%
1) The method of calculation of mean values PD* and ± SD(PD*) for TVOC and HCHO is based on Equation (16) and takes the form (27).
P D * = ( P D H * P D L * ) ( c H c L ) × ( c m e a s c L ) + P D H *
Concentrations c and SD(c) are in μg/m3; PD*H, PD*L, and SD(PD*) are in %, and standard deviations of the HCHO concentration of 12% was adopted on the basis of reports from IAQ research conducted as part of BREEAM in 2016 [22]. The assumptions were that cH and PD*H are the coordinates of the upper break point (i.e., high break point) of the converted scale PD* = f(c), and cL and PD*L are the coordinates of the lower break point (i.e., low break point) of the converted scale PD* = f(c). Standard deviations were assumed for cmeas, cTVOC, and cHCHO as well as for PD* = ±12%, as this is half of the transformed segment of the scale, which according to Table 7 covers a range of 25% of PD*, with one perceived category of air quality, e.g.,“no risk” or “moderate”. Therefore, the maximum standard deviation was 12.5% and, according to the literature on AQI and IAQI values, it should be rounded to a total value. 2) SDvote(PD(SIi)) from the ±uoverall(IEQ) equation was the standard deviation of a probability distribution of an each. (SIi)vote and was calculated primary using the PD(SIi) equation calibration curve [34].

Share and Cite

MDPI and ACS Style

Piasecki, M.; Kostyrko, K.B. Combined Model for IAQ Assessment: Part 1—Morphology of the Model and Selection of Substantial Air Quality Impact Sub-Models. Appl. Sci. 2019, 9, 3918. https://doi.org/10.3390/app9183918

AMA Style

Piasecki M, Kostyrko KB. Combined Model for IAQ Assessment: Part 1—Morphology of the Model and Selection of Substantial Air Quality Impact Sub-Models. Applied Sciences. 2019; 9(18):3918. https://doi.org/10.3390/app9183918

Chicago/Turabian Style

Piasecki, Michał, and Krystyna Barbara Kostyrko. 2019. "Combined Model for IAQ Assessment: Part 1—Morphology of the Model and Selection of Substantial Air Quality Impact Sub-Models" Applied Sciences 9, no. 18: 3918. https://doi.org/10.3390/app9183918

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
