Smartphone-Based Point-of-Care Cholesterol Blood Test Performance Evaluation Compared with a Clinical Diagnostic Laboratory Method
1
BBB Inc., Seoul 06194, Korea
2
Department of Neurology, Incheon St. Mary’s Hospital, The Catholic University of Korea, Incheon 21431, Korea
3
Department of Radiology, Incheon St. Mary’s Hospital, The Catholic University of Korea, Incheon 21431, Korea
*
Authors to whom correspondence should be addressed.
Received: 10 July 2019 / Accepted: 14 August 2019 / Published: 14 August 2019

Abstract

:

Featured Application

Faster, more convenient point-of-care cholesterol blood test.

Abstract

Managing blood cholesterol levels is important for the treatment and prevention of diabetes, cardiovascular disease, and obesity. An easy-to-use, portable cholesterol blood test could accelerate more frequent testing by patients and at-risk populations. We aim to evaluate the performance of smartphone-based point-of-care cholesterol blood tests compared to that of hospital-grade laboratory tests. We used smartphone systems that are already familiar to many people. Because smartphone systems can be carried around everywhere, blood can be measured easily and frequently. We compared the results of cholesterol tests with those of existing clinical diagnostic laboratory methods. We found that smartphone-based point-of-care lipid blood tests were as accurate as hospital-grade laboratory tests (N = 116, R > 0.97, p < 0.001 for all three cholesterol blood tests, i.e., total cholesterol, high density lipoprotein, and triglyceride). Our system could be useful for those who need to manage blood cholesterol levels to motivate them to track and control their behavior.
Keywords:
point-of-care; cholesterol; clinical diagnostics; laboratory test

1. Introduction

Total cholesterol (TC), high density lipoprotein (HDL), and triglyceride (TG) levels indicate blood lipid levels. Controlling blood lipid levels is known to be at least indirectly associated with the treatment and prevention of various diseases, including diabetes mellitus [1], cardiovascular disease [2], and obesity [3]. It is important to quickly and easily diagnose blood lipid levels using a point-of-care testing (POCT) device to control blood lipid levels more effectively than hospital examinations [4].
By removing barriers to blood testing, patients can check their blood more frequently. This gives them access to temporal changes in their biomarkers, making it easier to monitor and manage their health. One way to remove barriers to testing is to use the familiar smartphone interface [5]. We can take advantage of the sophisticated imaging technology and computing power available in smartphones, which enables more accurate and comprehensive diagnostics. This may improve preventive treatment for chronic metabolic diseases.
The elemarkTM lipid check is a smartphone-based in vitro diagnostic device for rapid self-testing of three lipid markers. This device has functions to store/output the measured value. A whole blood sample that does not require centrifugation is used in the test to shorten the test time. This study examines the accuracy of the elemarkTM lipid tests compared to hospital grade clinical diagnostic laboratory methods, which are typically full-menu clinical chemistry analyzers, processing up to 2000 tests per hour with a full menu of assays, ideal for large hospitals. Small hospitals and individual patients need an easy-to-use point-of-care alternative because they cannot afford the size and cost of a full menu analyzer.

2. Materials and Methods

The elemarkTM lipid check device was developed in September 2016 as a self-testing cholesterol measuring device. TC, HDL, and TG were measured using elemarkTM compatible cholesterol test strips. The elemarkTM System includes the elemarkTM Analyzer and the SD LipidoCareTM lipid test strip (Figure 1).
The system is operated on a lithium-ion battery (3000 mAh), providing 2G (850/900/1800/1900), 3G (850/900/1900/2100), 4G (800/850/1700/1800/2100/2600), Wi-Fi (802.11 b/g/n), and Bluetooth (V4.0) connectivity. The dimensions of the device are 159 mm × 81 mm × 9.5 mm, with a 5.5 inch HD display and a weight of 193 g. The system runs on AndroidTM OS, an MT6735P processor, and 32 GB ROM/3 GB RAM memory. The test time duration was 3 min and a 35 uL blood sample was required. The detection ranges of TC, TG, and HDL were 100–450 mg/dL, 45–650 mg/dL, and 25–95 mg/dL, respectively.
This experiment was approved by the Incheon St. Mary’s Hospital Institutional Review Board (IRB) in Incheon, South Korea (OC16SISI0139), and complied with the World Medical Association Declaration of Helsinki regarding ethical conduct of research involving human subjects. We followed the experimental procedures described in the normative references for the application of the International Organization for Standardization (ISO) [6,7]. We recruited normal participants (20–80 years of age) from the local community in Incheon, South Korea. All participants were given thorough explanations about the experiment and they all gave written informed consent. We anonymized the identity of the sample sources. Because it was a simple blood test, the risk of the sample supplier was minimized. Minimal risk is defined as the degree and severity of harm or discomfort that may arise from studies not greater than the daily life of a healthy person or a routine physical or psychological examination [8].
The test temperature was controlled at 20~26 °C during the experiment. The AU5800 Analyzer (Beckman Coulter Inc., IN, USA) was used as the reference device. Total cholesterol (TC), triglyceride (TG), and high-density lipoprotein (HDL) were measured and reported. Low density lipoprotein (LDL) was calculated as TC–HDL–TG/5. LDL was not reported in this evaluation study.
The elemarkTM cholesterol meter was stored at −30 °C to 70 °C, with a relative humidity of 90% or less and an altitude of less than 2000 m. The cholesterol test strips (SD Biosensor LipidCare Lipid Profile Strips) were stored at room temperature between 2 °C and 32 °C and were used immediately after the individual pouches were opened.
The venous whole blood in the treated ethylenediaminetetraacetic acid (EDTA) tube was used for elemarkTM and the venous serum blood in the treated EDTA tube was separated from the venous whole blood and used in the reference device (AU5800). We recruited 116 participants for a blood test (80 women, 36 men, 70.8 ± 10.8 years) (Table 1). Samples were tested and analyzed within one day of blood collection. The comparison results between elemarkTM and AU5800 were analyzed. A correlation coefficient was used to evaluate the correlation between the two measurements (Figure 2).
Tukey’s fences were used to identify outliers based on interquartile range. The interquartile range is a measure of the statistical variance and is equivalent to the difference between the 75th and 25th percentiles. For example, if Q1 and Q3 are the lower and upper quartiles, respectively, anomalies can be defined with any observation outside the range:
[Q1 − k(Q3 − Q1), Q3 + k(Q3 − Q1)]
When k = 1.5, values out of the above range were regarded as outliers [9,10].

3. Results

We compared the results between the elemarkTM and reference devices (Table 2). Linear regression analysis showed that TC, TG, and HDL had high correlations between the two devices (TC: correlation coefficient (R) = 0.97, coefficient of determination (R2) = 0.94, p-value = 2.25 × 10−73; TG: R = 0.99, R2 = 0.98, p-value = 1.34 × 10−92; HDL: R = 0.97, R2 = 0.93, p-value = 1.67 × 10−69) (Figure 3).
The system accuracy results showed that 99.1% of the TC concentration values at 100 mg/dL or above were within ±15% of the reference results, 96.7% of the TG concentration values at 100 mg/dL or above were within ±15% of the reference results, and 100% of the HDL concentration values less than 100 mg/dL were within ±10 mg/dL of the reference results (Table 2).

4. Discussion

We verified the accuracy of elemarkTM by confirming the correlation between the whole blood lipid measurement values of three lipid markers (TC, TG, HDL) from elemarkTM and the serum lipid values of the same three lipid markers from existing automated hospital equipment. elemarkTM satisfied the acceptance criteria for the CE approval; 95% of the individual blood-testing parameter result fell within ±10 mg/dL of the appropriate reference result at HDL concentration <100 mg/dL and within ±15% of the reference result at TC and TG concentrations ≥100 mg/dL [11].
We used a smartphone-based, easy-to-use, intuitive user interface (Figure 2) [12,13]. Smartphone-based point-of-care blood tests have several advantages in terms of computation, communication, usability, and cost-effectiveness [14,15]. In addition, data generated from point-of-care devices can be easily shared with caregivers and healthcare professionals, helping to manage chronic disease in patients. Because the device is always connected to the network, data points cannot be lost and the generated data can be automatically saved and configured for later analysis. Future machine learning-based analysis will allow us to predict cholesterol levels and calculate a patient’s risk of metabolic disease [16,17].
Our study has several limitations. We used venous blood for the elemarkTM test. Capillary whole blood results are known to be different from venous whole blood results [18]. Future studies showing actual use cases should use capillary whole blood. We are also aware that the recruited participants were mainly from the elderly population (70.8 ± 10.8 years of age). However, we believe that our current study of method comparison results is independent of age distribution. Rather, our results showed that elderly participants at high risk for cardiovascular disease produced accurate cholesterol diagnostics.

Author Contributions

Conceptualization, K.Y., J.C., I.-U.S. and Y.-A.C.; methodology, K.Y.; software, K.Y.; validation, K.Y., I.-U.S. and Y.-A.C.; formal analysis, K.Y.; investigation, K.Y., I.-U.S. and Y.-A.C.; resources, J.C.; data curation, I.-U.S. and Y.-A.C.; writing—original draft preparation, K.Y.; writing—review and editing, K.Y., I.-U.S. and Y.-A.C.; visualization, K.Y.; supervision, I.-U.S. and Y.-A.C.; project administration, J.C.; funding acquisition, J.C.

Funding

This study was funded by BBB Inc.

Acknowledgments

The authors acknowledge Juhee Lee for her technical support.

Conflicts of Interest

K.Y. and J.C. work for BBB Inc.

References

  1. New, M.I.; Roberts, T.N.; Bierman, E.L.; Reader, G.G. The Significance of Blood Lipid Alterations in Diabetes Mellitus. Diabetes 1963, 12, 208–212. [Google Scholar] [CrossRef] [PubMed]
  2. Frantz, I.D.; Dawson, E.A.; Ashman, P.L.; Gatewood, L.C.; Bartsch, G.E.; Kuba, K.; Brewer, E.R. Test of effect of lipid lowering by diet on cardiovascular risk. The Minnesota Coronary Survey. Arterioscler. Thromb. Vasc. Biol. 1989, 9, 129–135. [Google Scholar]
  3. Ravelli, A.; van der Meulen, J.H.P.; Osmond, C.; Barker, D.; Bleker, O. Infant feeding and adult glucose tolerance, lipid profile, blood pressure, and obesity. Arch. Dis. Child. 2000, 82, 248–252. [Google Scholar] [CrossRef] [PubMed]
  4. Pai, N.P.; Vadnais, C.; Denkinger, C.; Engel, N.; Pai, M. Point-of-Care Testing for Infectious Diseases: Diversity, Complexity, and Barriers in Low- And Middle-Income Countries. PLoS Med. 2012, 9, e1001306. [Google Scholar] [CrossRef] [PubMed]
  5. Oncescu, V.; Mancuso, M.; Erickson, D. Cholesterol testing on a smartphone. Lab Chip 2014, 14, 759–763. [Google Scholar] [CrossRef] [PubMed]
  6. Kroll, M.H.; Biswas, B.; Budd, J.R.; Durham, P.; Gorman, R.T.; Gwise, T.E.; Halim, A.; Hatjimihail, A.T.; Hilden, J.; Kyunghee, S. Assessment of the diagnostic accuracy of laboratory tests using receiver operating characteristic curves; approved guideline. Clin. Lab. Stand. Inst. Doc. 2011, 31, 1–45. [Google Scholar]
  7. International Organization for Standardization. In Vitro Diagnostic Test Systems: Requirements for Blood-glucose Monitoring Systems for Self-testing in Managing Diabetes Mellitus; ISO: Geneva, Switzerland, 2003. [Google Scholar]
  8. 45 CFR 46. Available online: https://www.hhs.gov/ohrp/regulations-and-policy/regulations/45-cfr-46/index.html (accessed on 26 March 2018).
  9. Hoaglin, D.C.; Iglewicz, B.; Tukey, J.W. Performance of some resistant rules for outlier labeling. J. Am. Stat. Assoc. 1986, 81, 991–999. [Google Scholar] [CrossRef]
  10. Hoaglin, D.C.; John, W. Tukey and data analysis. Stat. Sci. 2003, 18, 311–318. [Google Scholar]
  11. Shephard, M.D.; Mazzachi, B.C.; Shephard, A.K. Comparative performance of two point-of-care analysers for lipid testing. Clin. Lab. 2007, 53, 561–566. [Google Scholar] [PubMed]
  12. Erickson, D.; O’Dell, D.; Jiang, L.; Oncescu, V.; Gumus, A.; Lee, S.; Mancuso, M.; Mehta, S. Smartphone technology can be transformative to the deployment of lab-on-chip diagnostics. Lab Chip 2014, 14, 3159–3164. [Google Scholar] [CrossRef] [PubMed]
  13. Roda, A.; Calabretta, M.M.; Calabria, D.; Caliceti, C.; Cevenini, L.; Lopreside, A.; Zangheri, M. Smartphone-Based Biosensors for Bioanalytics: A Critical Review. In Past, Present and Future Challenges of Biosensors and Bioanalytical Tools in Analytical Chemistry: A Tribute to Professor Marco Mascini, Volume 77; Elsevier Science Ltd.: Oxford, UK, 2017; Chapter 8; p. 237. [Google Scholar]
  14. Haggerty, L.; Tran, D. Cholesterol point-of-care testing for community pharmacies: A review of the current literature. J. Pharm. Pract. 2017, 30, 451–458. [Google Scholar] [CrossRef] [PubMed]
  15. El-Osta, A.; Woringer, M.; Pizzo, E.; Verhoef, T.; Dickie, C.; Ni, M.Z.; Huddy, J.R.; Soljak, M.; Hanna, G.B.; Majeed, A. Does use of point-of-care testing improve cost-effectiveness of the NHS Health Check programme in the primary care setting? A cost-minimisation analysis. BMJ Open 2017, 7, e015494. [Google Scholar] [CrossRef] [PubMed]
  16. Oh, J.; Yun, K.; Hwang, J.-H.; Chae, J.-H. Classification of suicide attempts through a Machine learning algorithm Based on Multiple systemic Psychiatric scales. Front. Psychiatry 2017, 8, 192. [Google Scholar] [CrossRef] [PubMed]
  17. Oh, J.; Yun, K.; Maoz, U.; Kim, T.-S.; Chae, J.-H. Identifying Depression in the National Health and Nutrition Examination Survey Data using a Deep Learning Algorithm. J. Affect. Disord. 2019. [Google Scholar] [CrossRef] [PubMed]
  18. Kupke, I.R.; Zeugner, S.; Gottschalk, A.; Kather, B. Differences in lipid and lipoprotein concentrations of capillary and venous blood samples. Clin. Chim. Acta 1979, 97, 279–283. [Google Scholar] [CrossRef]

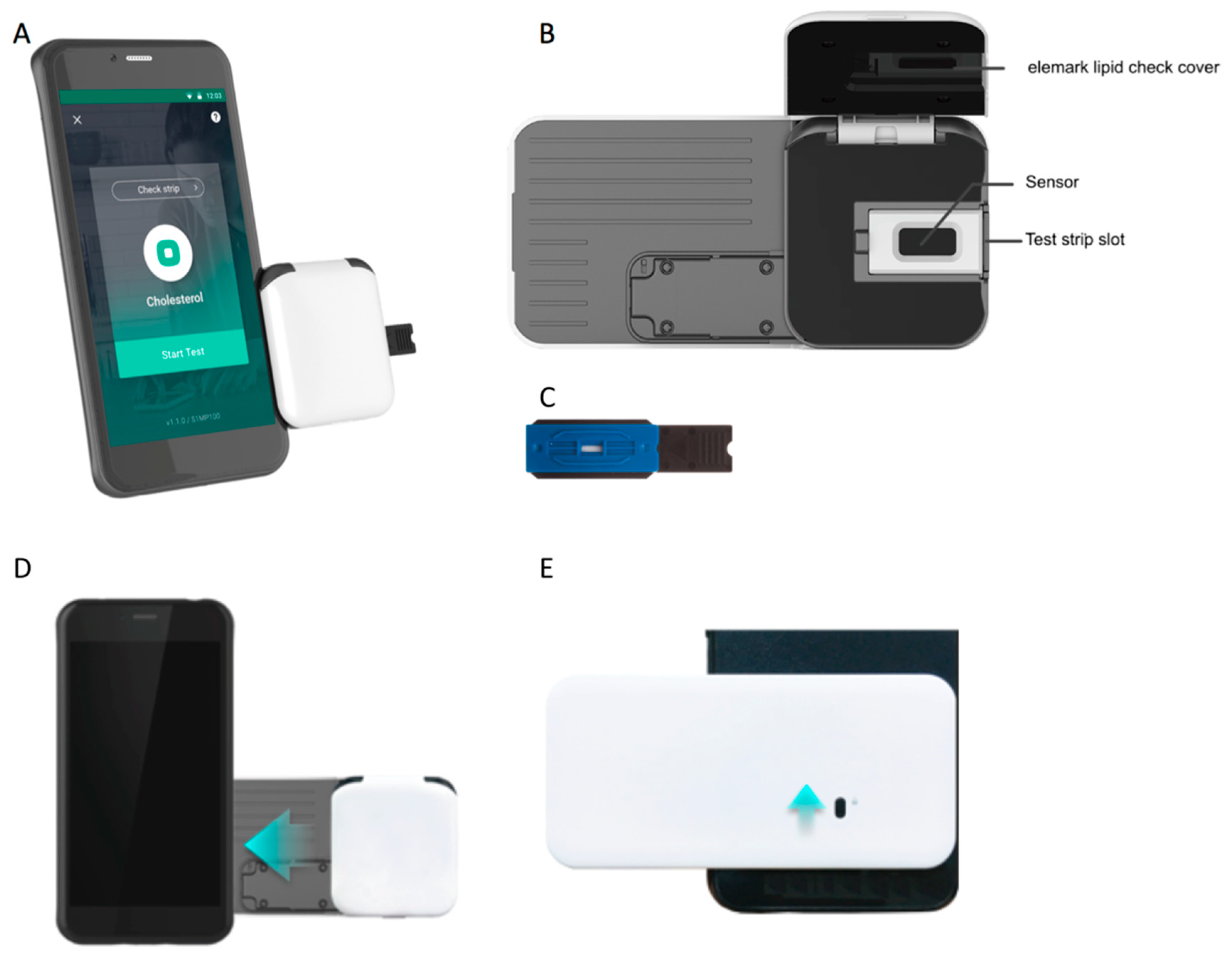

Figure 1. Device components. (A) elemarkTM, (B) elemarkTM lipid check, (C) elemarkTM lipid check cholesterol test strip, (D) connection of the elemarkTM lipid check to a compatible mobile device in the shown direction, (E) button is pushed up to lock the elemarkTM lipid check.
Figure 1. Device components. (A) elemarkTM, (B) elemarkTM lipid check, (C) elemarkTM lipid check cholesterol test strip, (D) connection of the elemarkTM lipid check to a compatible mobile device in the shown direction, (E) button is pushed up to lock the elemarkTM lipid check.
Applsci 09 03334 g001

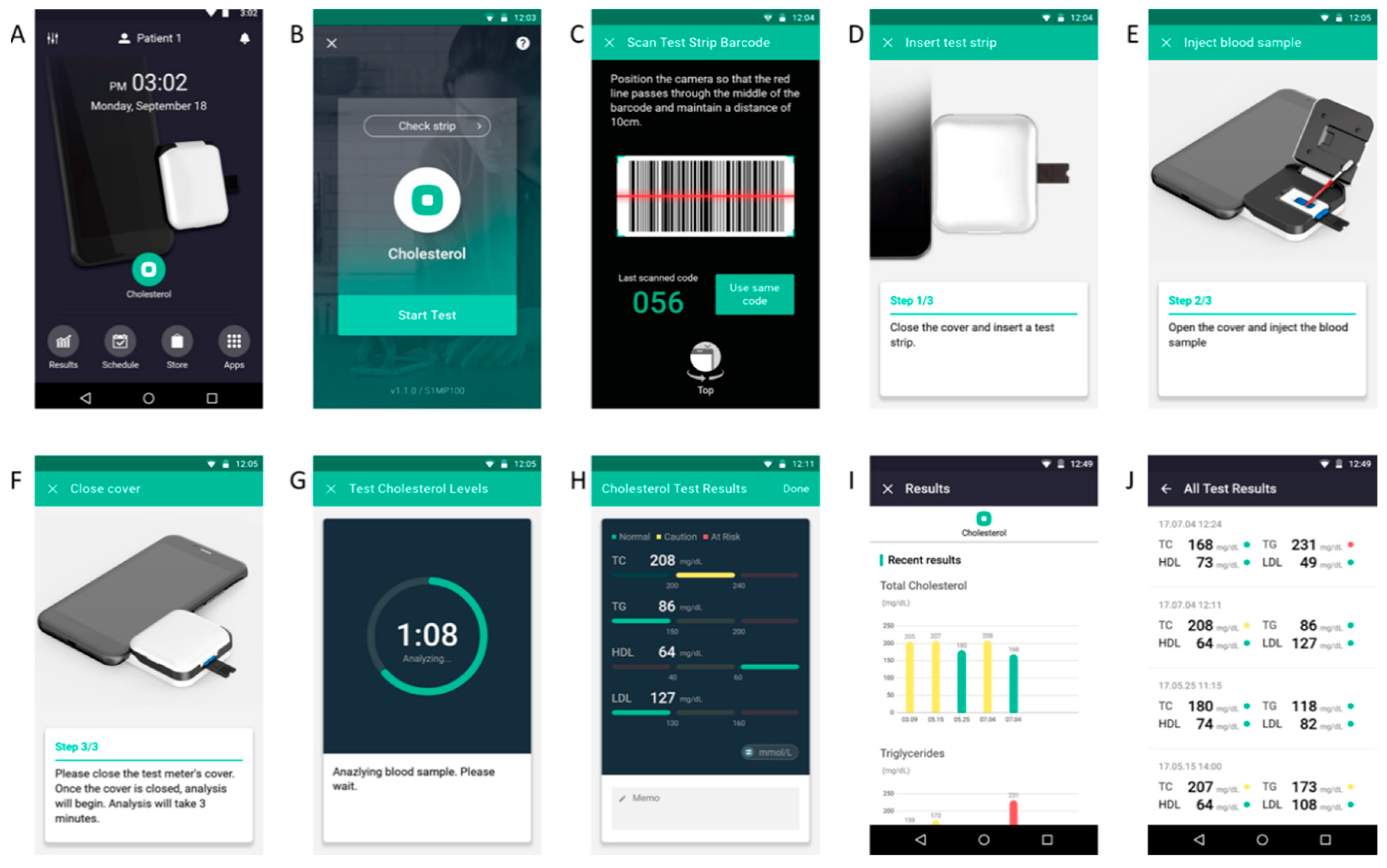

Figure 2. Test procedure. (A) Tap on the cholesterol icon to launch the app. (B) Press the Start Test button. (C) Use the camera of the mobile device to scan the barcode in the strip box. Once the cholesterol test strip is validated, the app automatically goes to the next step. (D) Insert the cholesterol measurement strip into the elemarkTM lipid check as shown. (E) Blood samples are collected using a lancing device. Open the elemarkTM lipid check cover, place the open end of the capillary into the sample area of the cholesterol test strip, and gently squeeze the capillary tube bulb to inject the blood sample. (F) Follow the on-screen instructions to close the cover. (G) Wait three minutes for analysis. (H) When the analysis is finished, the test results are displayed on the screen. (I) The user can check the latest test result graphically. (J) The user can check all test results.
