The Effect of Grain Size on the Hydrodynamics of Mudflow Surge from a Tailings Dam-Break

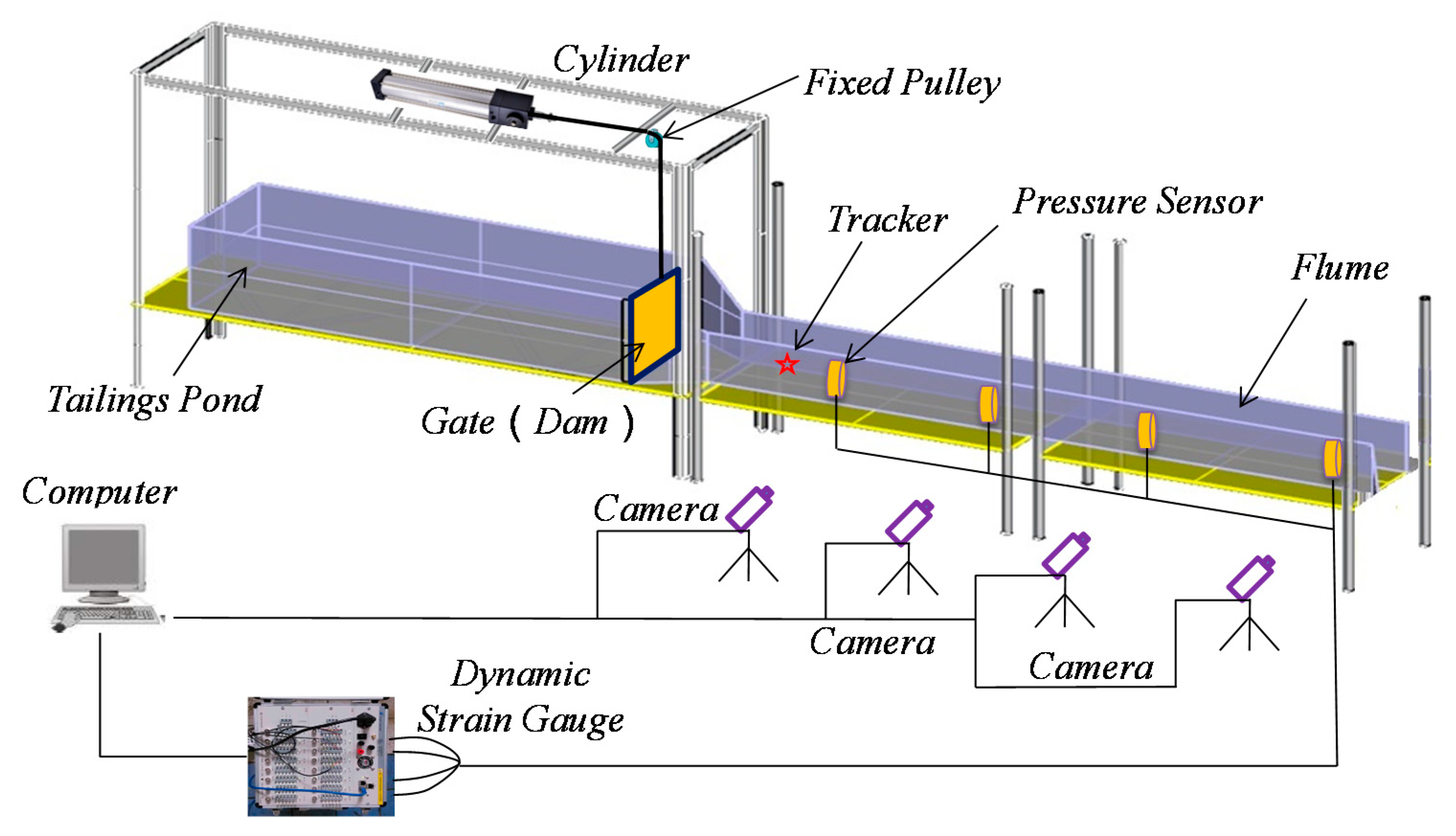

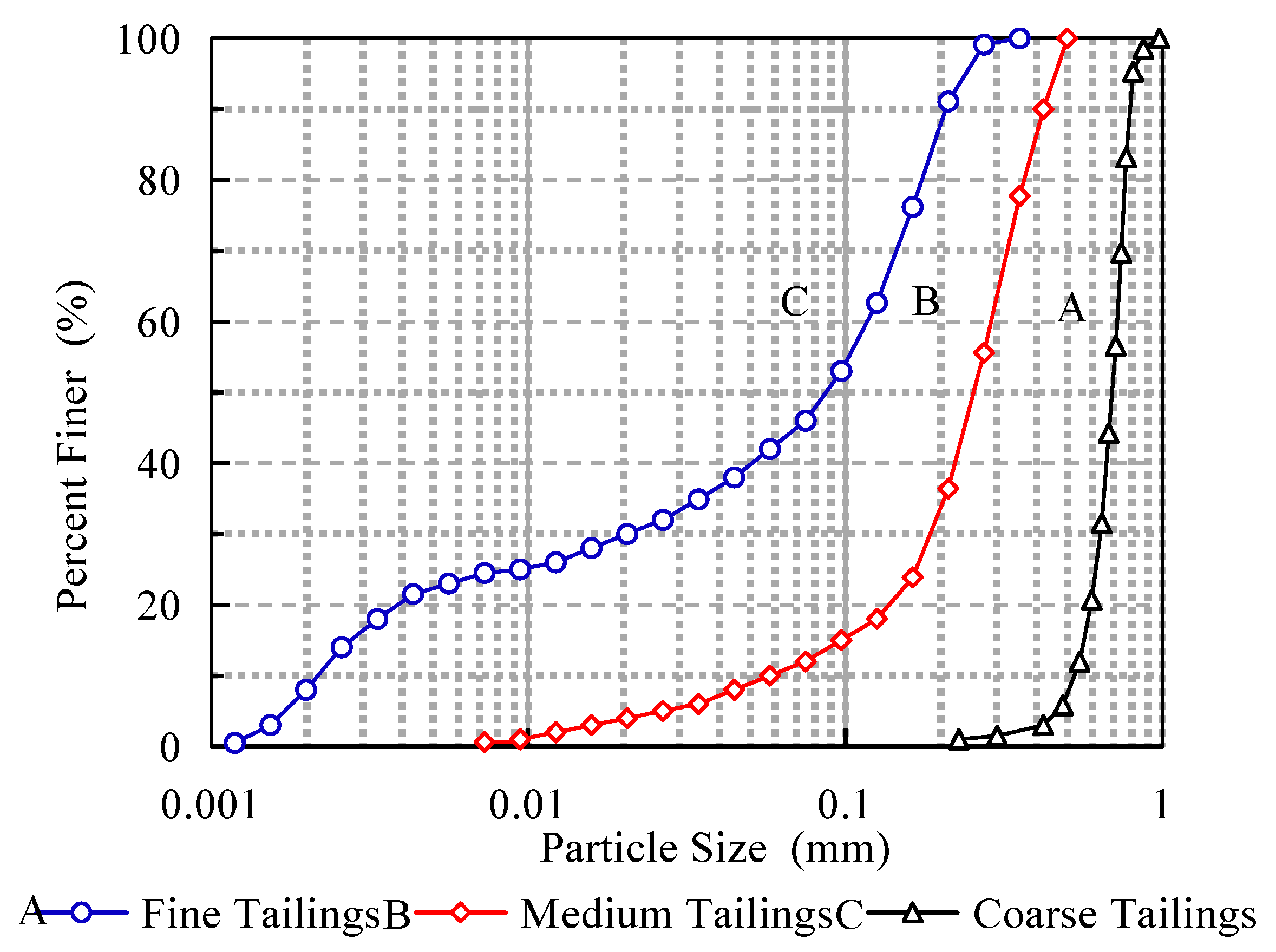

Due to the differences in mineral processing techniques, the grain-size of tailings used in the construction of a tailings pond is not commensurate. It has been determined that the hydrodynamic characteristics of mudflow resulting from the failure of tailings dams are directly influenced by grain-size, solids concentration, and the surface roughness of gully and impoundment geometry. However, the behavior and influence of the grain size of mudflow resulting from a tailings dam failure have not been sufficiently examined. To investigate the effect of grain size on the hydrodynamic characteristics of mudflow surging from tailings dam failure, the law of mudflow evolution, the change of dynamics pressure, and the velocity distributions of mudflow have been obtained via a series of flume experiments utilizing three types of grain size tailings (d₅₀ = 0.72 mm; d₅₀ = 0.26 mm; d₅₀ = 0.08 mm, respectively). This study proves conclusively that with an increase in grain size, the peak value of mudflow depth notably decreases in the same section. Furthermore, it has been noted that both the velocity and the dynamic pressure raise significantly, wherein the velocity displays two distinct primary stages; namely a rapid reduction stage and a slow reduction stage. This research provides a framework for the exploration of the effect of grain size on the hydrodynamics of slurry surging from a tailings dam failure, and all presented results provide an indispensable tool in terms of the accurate assessment of potential damage in the case of a prospective impoundment failure.
