Effect of Nanoparticles Addition on the Microstructure and Properties of Lead-Free Solders: A Review

1
College of Materials Science and Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
2
School of Materials Science and Engineering, Nanjing University of Science and Technology, Nanjing 210096, China
3
State Key Laboratory of Advanced Brazing Filler Metals and Technology, Zhengzhou Research Institute of Mechanical Engineering Co., Ltd., Zhengzhou 450002, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(10), 2044; https://doi.org/10.3390/app9102044
Submission received: 12 April 2019 / Revised: 11 May 2019 / Accepted: 13 May 2019 / Published: 17 May 2019
(This article belongs to the Special Issue Nanotechnology for Novel Nanojoining and Microjoining)

Abstract

:
With the development of microelectronic packaging and increasingly specific service environment of solder joints, much stricter requirements have been placed on the properties of lead-free solders. On account of small size effect and high surface energy, nanoparticles have been widely used to improve the microstructure and properties of lead-free solders. Therefore, the composite solders bearing nanoparticles have recently attracted wide attention. This article reviewed the recent research on SnAgCu, SnBi, and SnZn composite solder alloys and introduced the effect of nanoparticles on their microstructure, mechanical properties, wettability, and reliability. The mechanism of nanoparticles strengthening was analyzed and summarized. In addition, the shortcomings and future development trends of nanoparticle-reinforced lead-free solders were discussed, which is expected to provide some theoretical reference for the application of these composite solder in 3D IC package.

1. Introduction

Under the drive of device miniaturization, high-density packaging technologies, such as ball grid array (BGA), chip scale package (CSP), and wafer level packaging (WLP), have been applied in the advanced electronical equipment, which decreases the joint size and calls for excellent property of packaging materials [1]. To meet the actual requirement of electronic industries, packaging materials for electronic devices are required to have not only perfect electrical conductivity, wettability, and mechanical properties, but also low cost and high reliability. Traditional SnPb solders were widely used in electronic packaging because of low cost and excellent performance. However, due to the toxicity of lead, most countries have implemented a series of laws such as waste electrical and electronic equipment (WEEE) and restriction of hazardous substances (RoHS), to restrict the use of lead in various electronic and electrical products [2].
Electrically conductive adhesives (ECAs) and lead-free solders were considered as promising alternatives of SnPb solders. ECAs, mainly composed of matrix polymer and conductive fillers, offer numerous advantages such as environmental friendliness, lower processing temperature, and fine pitch capability [3]. However, the application of ECAs is limited due to its lower thermal conductivity and electrical conductivity, poor mechanical properties, and low reliability [4]. Especially, ECAs can hardly meet the requirements of three-dimension integrated circuits (3D ICs) packaging technology, which easily produces high current density and Joule heating. Therefore, compared with ECAs, the development of lead-free solder alloys with better reliability, thermal, and electrical properties to replace SnPb solders has always been one of research focuses in the field of microelectronic joining. Although the application of SnPb solder is limited, its excellent performance makes it a reference standard for the development of new lead-free solders [5]. Nowadays, several Sn-based lead-free solder alloys have been synthesized, such as SnAgCu, SnZn, and SnBi solder alloys. However, these lead-free solders still have some shortages such as high melting point, poor wettability and reliability, and high cost, which fail to meet the actual production needs. As a result, it is urgent that an effective way to improve the performance of the solder alloys is found.
Currently, researchers mainly improve the performance of lead-free solders by microalloying and nanoparticles strengthening. Microalloying is a method of improving the properties of the solder by adding trace alloying elements to change the solder composition. The alloying elements can be mainly divided into rare earth (RE) elements (Ce, La, Pr, Nd, etc.) [6,7] and other metal elements (Ga, In, Mg, Ni, Ag, etc.) [8,9,10,11]. However, there are still some shortcomings in this method, which limits the widely application of the lead-free solders containing minor alloying elements. For example, adding excessive RE elements will result in the formation of Sn whisker on the surface of solder joints, causing premature failure of electronic device [12,13].
Due to excellent physicochemical properties and size effects, nanoparticles play a significant role in refining grains, increasing mechanical properties, and improving wettability of lead-free solder [14,15,16,17,18,19]. Therefore, more and more researchers are focused on the preparation and performance characterization of the composite solders reinforced by various nanoparticles. Up to now, types of nanoparticles studied extensively mainly includes metals (Cu, Ni, Mn, Co, etc.), oxides (La2O3, Fe2O3, TiO2, etc.), ceramic (SiC, TiC, etc.), and carbon materials (carbon nanotubes (CNTs), graphene nanosheets (GNSs), etc.).
Although some research results have been achieved, there are still some deficiencies in the strengthening effect of nanoparticles. For example, the effect of nanoparticles on the melting characteristics of lead-free solder is not obvious [20,21,22]. Besides, there is no practical application of the composite solders reinforced by nanoparticles in electronic industries because of its high cost and complex preparation. Therefore, in order to comply with the trend of green development and meet the requirements of the electronics industry for packaging materials, the influence of nanoparticles doping on the microstructure and properties of lead-free solders was analyzed comprehensively, which is expected to provide some theoretical reference for the development of high-performance nanoparticle-reinforced lead-free solders.

2. SnAgCu-Based Solders

2.1. Microstructure

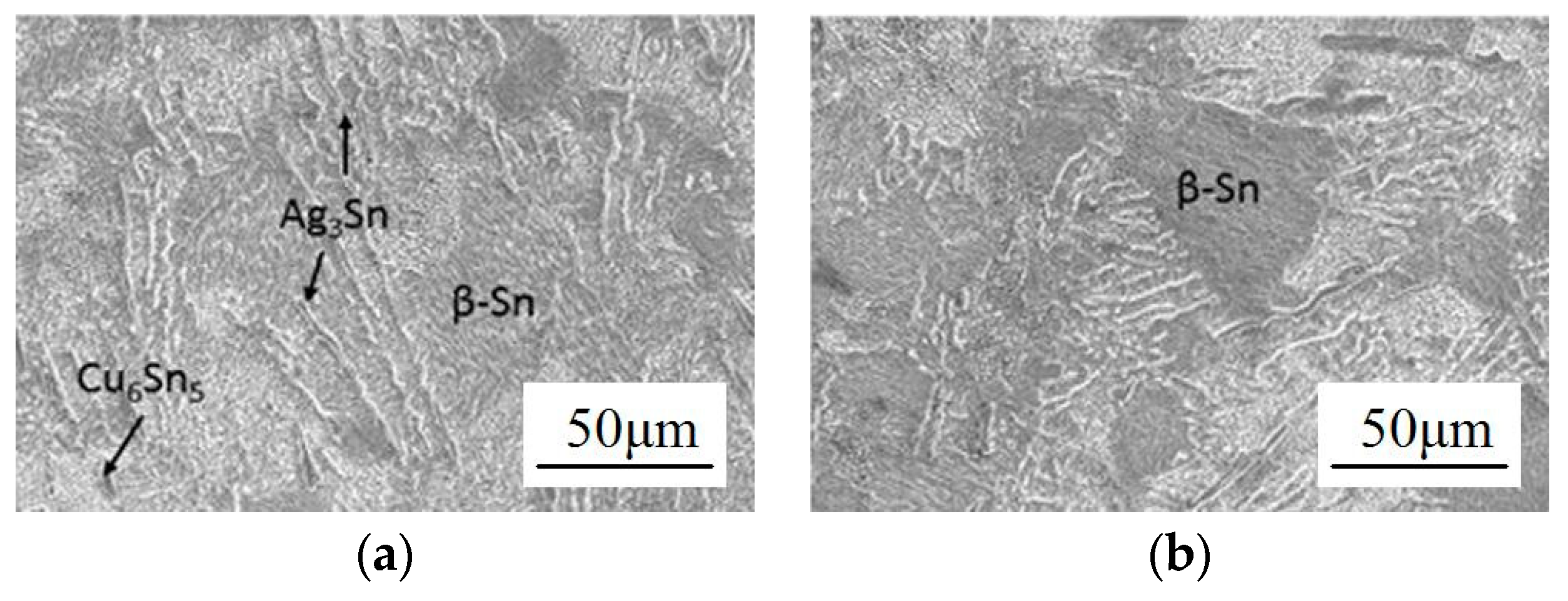

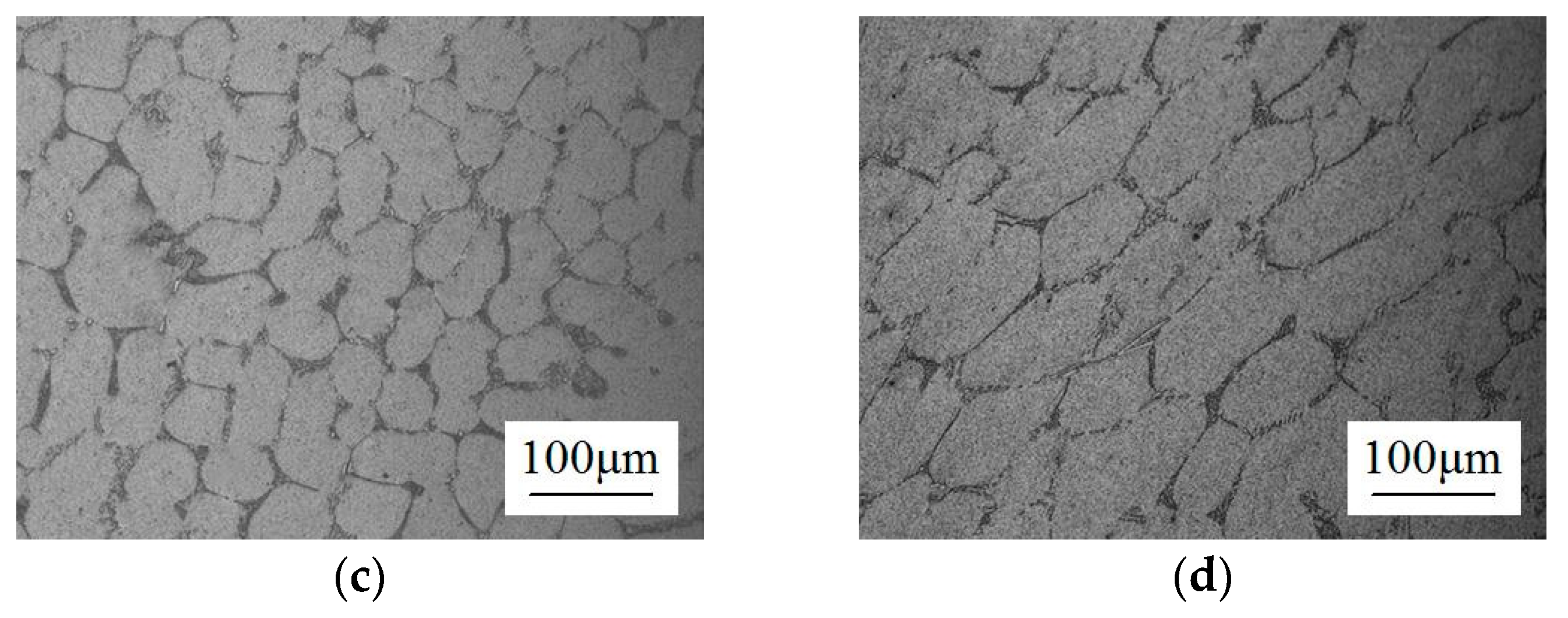

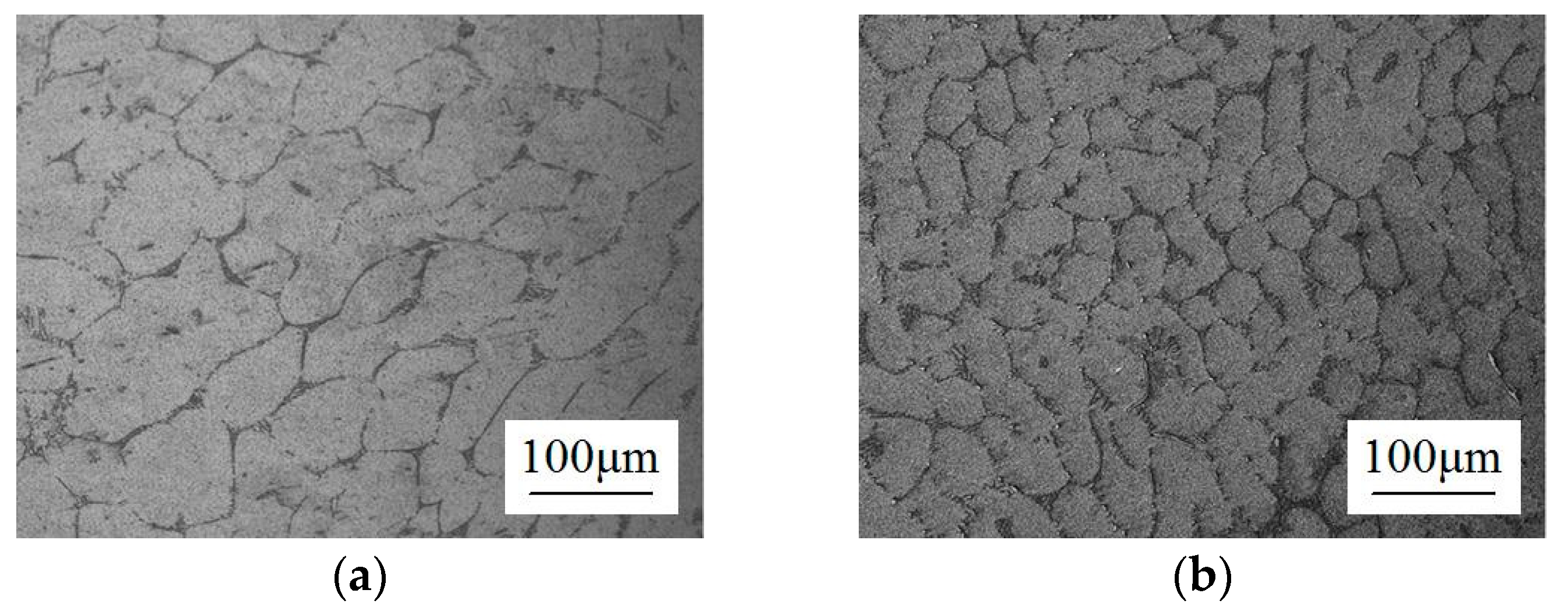

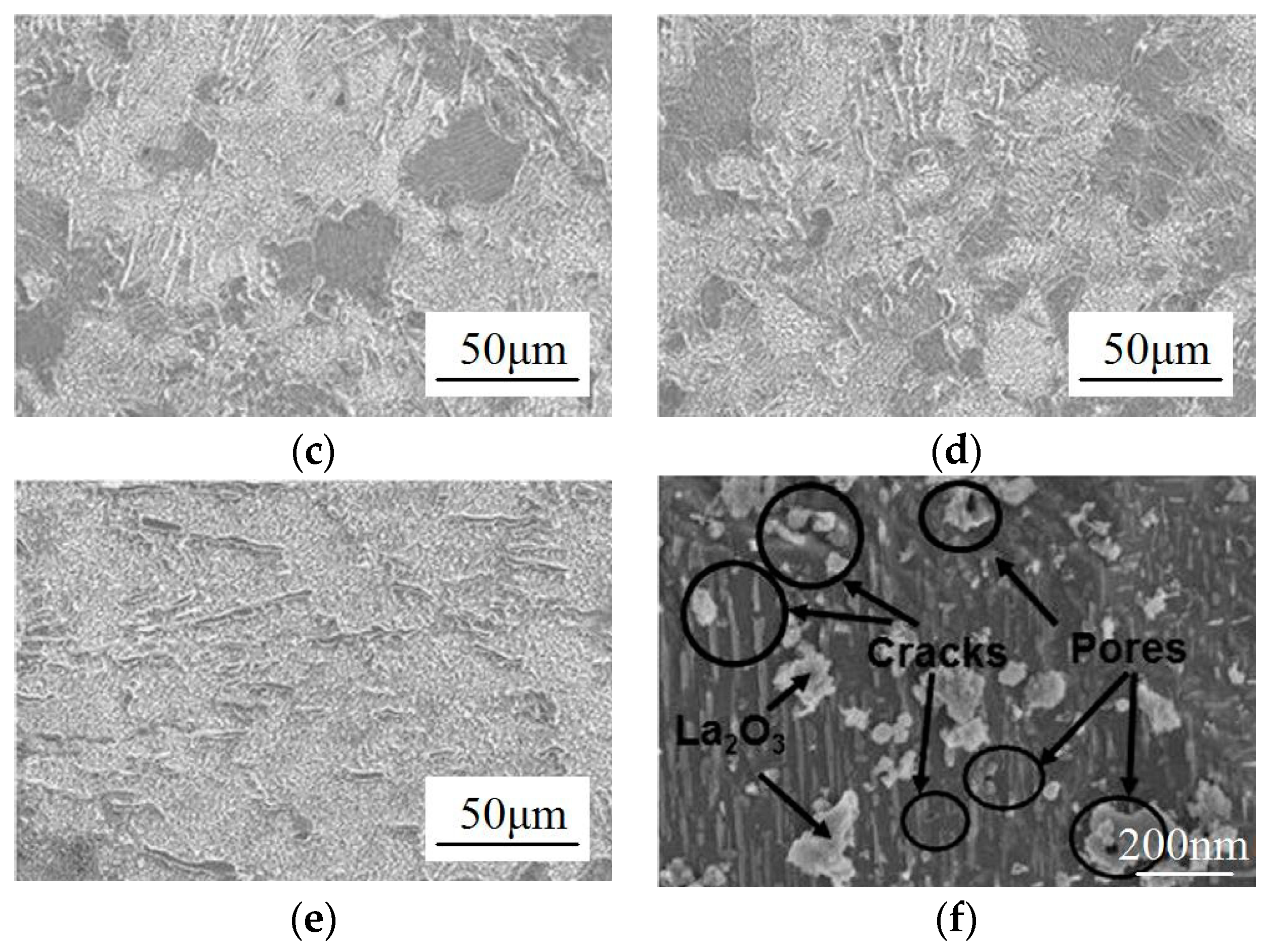

Adding trace La2O3 nanoparticles to SAC-305 solder could provide a large number of nucleation sites to refine the microstructure of the composite solder. However, when the content exceeded 0.1 wt.%, the nanoparticles would aggregate together, resulting in the formation of cracks and voids, as shown in Figure 1 [23].
In the reflow process, a brittle interfacial layer is rapidly formed at the interface between the molten solder and the substrate; meanwhile, the overgrowth of intermetallic compounds (IMCs) will result in lower connecting strength of solder joints [24,25]. After multiple reflow, the coarsening of the Cu6Sn5 layer occurs and the Cu3Sn layer is formed at the interface between the Cu6Sn5 layer and the substrate, which decreases the reliability of the joints. Chan et al. [26] found that adding Zn nanoparticles could decrease the growth rate of Cu6Sn5 and suppress the formation of Cu3Sn. Research [27] found that the grain size of Cu6Sn5 IMC increased with the increasing reflow time, and TiO2 nanoparticles could effectively suppress the growth of the IMC layer by preventing the diffusion of Cu and Sn atoms.
Considering the effect of secondary phase particles on the migration of grain boundary during grain growth, the total restraining force acting on the boundary can be expressed as follows:
F = 3 f γ b 2 r
where f is the volume fraction of secondary phase particles at grain boundary, γb is the interface energy per unit area of grain boundary, and the r is the radius of secondary phase particles. It is obvious that F is inversely proportional to r. Therefore, the γ-Fe2O3 nanoparticle with smaller size have a better refining effect on β-Sn phase in SAC105–Fe2O3 composite solder, as shown in Figure 2 [28]. On account of high surface energy, the doped CNTs were easily adsorbed on the surface of β-Sn and IMCs, which significantly refined the microstructure of the composite solder by inhibiting the migration of grain boundaries [29].

2.2. Mechanical Properties

During operation, solder joints are subjected to the thermal-mechanical stress because of the temperature change and mismatch in the CTEs (coefficients of thermal expansion) of different materials. Therefore, high enough strength is required for the joints due to the accumulation of residual stress during operation caused by CETs mismatch [29]. The addition of minor Al nanoparticles into the SnAgCu solder could obviously refine Cu6Sn5, Ag3Sn IMCs, and eutectic microstructure, thus enhancing the mechanical properties of the solder. However, the mechanical properties of the solder would decrease once the content of Al nanoparticles exceeded 0.1 wt.%, as shown in Figure 3 [30]. Tang [31] found the fracture of some Sn0.3Ag0.7Cu as flowed solder joints presented brittle characteristic and some microcracks occurred. Owing to the growth of IMCs during reflow, a large stress was accumulated inside or around the IMC, which would result in local stress concentration and strength reduction in the tensile test. Since Mn nanoparticles addition could reduce the IMC thickness and reduce the accumulation of stress during reflow, the UTS of Mn-containing solder joints was improved.
Compared with the original solder, the strength and hardness of the SnAgCu–nano TiO2 composite solder were significantly improved because TiO2 particles could pin the movement of dislocations and grain boundaries. However, it is worth noting that the plasticity of the composite solder decreased to a certain extent and many holes were found at the Ag3Sn grain boundaries [32,33]. The mechanical properties of SnAgCu–nano La2O3 composite solder were greatly improved because the addition of La2O3 nanoparticles refined the microstructure and increased dislocation density by secondary phase strengthening [23].
Ag-GNSs nanoparticles were added into SnAgCu solder and the research result shows that compared with GNSs nanoparticles, the strengthening effect of Ag-GNSs nanoparticles is more obvious because Ag can react with Sn matrix to form Ag3Sn, which makes the distribution of Ag-GNSs in the matrix more uniform and stable [34].

2.3. Wettability

Due to the high melting point, Ni nanoparticles addition can form a frame construction in the solder joint, thereby promoting the spreading of the molten SnAgCu solder [35,36]. During the wetting process, Ag nanoparticles in the composite flux gathered at the interface between the molten SnAgCu solder and the Cu substrate, reducing the surface energy of the system and greatly increasing the wetting force [37].

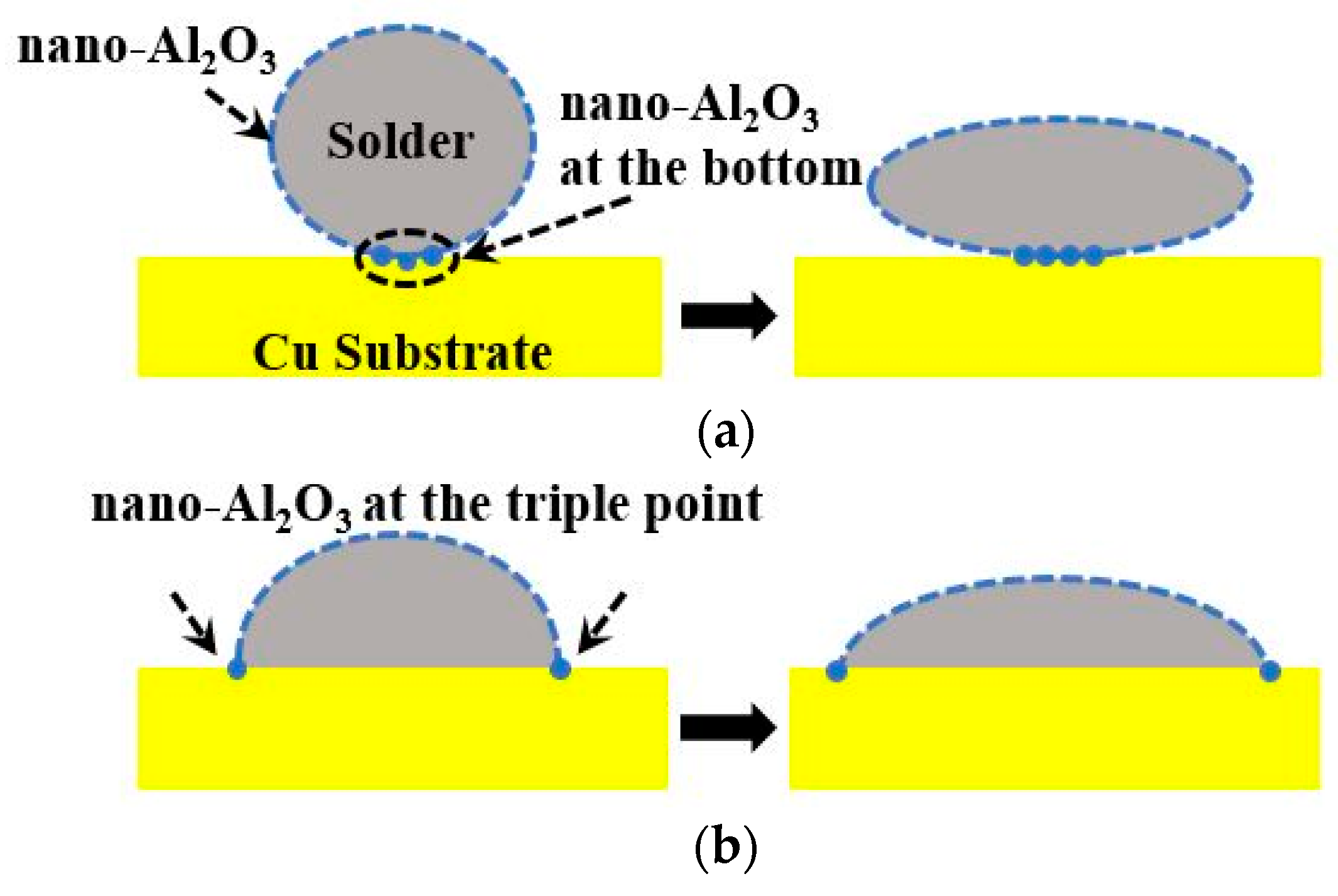

Absorption of Fe2O3 nanoparticles on the surface of the Cu substrate decreased the surface tension of molten SnAgCu–nano Fe2O3 composite solder and thus the wettability of the solder was improved [38]. Figure 4 shows the effect of α-Al2O3 nanoparticles on the spreading area of Sn–0.3Ag–0.7 Cu solder; the maximum spreading area of the composite solder is 79 mm2 with 0.12 wt.% Al2O3 nanoparticles addition [39]. The wettability of the composite solder increases because α-Al2O3 nanoparticles are easily adsorbed at the surface of Cu substrate and decrease the surface tension of the solder. According to the Young equation, the contact angle increases when the surface tension is reduced, resulting in a bigger spreading area; the schematic diagrams of the wetting and spreading process is shown in Figure 5.
Appropriate content of GNSs can significantly increase the spreading area of SnAgCu solder; however, when the content exceeds 0.1 wt.%, GNSs tend to agglomerate and float onto the top of the molten solder and, hence, the wettability of the composite solder decreases [40].

2.4. Reliability

After high-temperature storage, the coarsening IMC layer of solders joint could be obtained, which has been proven to be harmful to solder joints [41,42,43]. Competitive growth of Cu6Sn5 and Cu3Sn layers reduces the mechanical properties of solder joints and increases the risk of fracture [44]. Zhao et. al [45] found the absorption of TiO2 nanoparticles on the surface of interfacial IMCs could hinder the diffusion and reaction between Cu and Sn, so the formation and growth of IMCs was inhibited. With 0.5 wt.% TiO2 nanoparticles addition, the activation energies of overall IMC layer growth increased from 42.48 KJ/mol to 60.31 KJ/mol, which meant more energy was needed for elements diffusion and IMCs growth [46]. TiC nanoparticles can also lower the growth rate of IMCs layer during aging. One reason is that the particles can be adsorbed on the surface of IMCs and the other is that the gathering of TiC particles at the interface decreases the concentration gradient of Sn. Consequently, appropriate content of TiC nanoparticles effectively inhibited the growth of Cu6Sn5 and Cu3Sn layers during aging, as shown in Figure 6 [47].
The increasing current density in IC brings a deteriorative electromigration effect and the improvement of EM resistance of solder joints gradually becomes a research focus in reliability research [48,49]. CNTs will entangle with each other after adding it in the strengthening phase in lead-free solder. Because of the excellent electrical conductivity of CNTs, the conductivity channel formed by CNTs greatly decreases the current intensity of the solder matrix, which increases the service life of the solder joints [29,50,51]. After SAC-CNTs/Cu solder joints underwent aging at 100 °C and a current density of 1.2 × 104 A/cm2 for 336 h, a Cu3Sn layer formed between the Cu6Sn5 layer and the Cu substrate. The diffusion of Cu atoms from the solder matrix to the interface was impeded due to the pinning effect of CNTs, therefore the thickness of Cu6Sn5 and Cu3Sn layers at both the anode side and cathode side decreased with the increase of CNTs content [52].
Since lead-free solders are usually exposed to corrosion environments, it is important to improve corrosion resistance of the solder for improving reliability and mechanical properties of solder joints [53]. Han [54] found that GNSs could significantly improve corrosion resistance of SAC solder and the optimum content was 0.03 wt.%. Uniformly distributed GNSs increased the tortuosity of oxygen diffusion pathway and inhibited the diffusion of oxygen in the solder, as illustrated in Figure 7. Furthermore, the addition of GNSs refined the microstructure of the solder and the fine grains formed the initial passivation film to inhibit further corrosion.

3. SnBi-Based Solders

3.1. Microstructure

After adding Ni nanoparticles into SnBiAg solder, the Bi-rich phase and Ag3Sn IMC was refined because the formation of Ni-Sn IMCs could act as nucleation sites and inhibit the grain growth [55]. With the addition of 0.4 wt.% Ag nanoparticles, a mass of dispersed nano-Ag3Sn particles formed, which inhibited the grain growth and provided a refined microstructure [56]. It is worth noting that refinement effect does not always increase with the decrease of nanoparticles dimension. Because of small size and high surface energy, Ag nanoparticles with a size of 31 nm have a stronger tendency to agglomerate to larger particles and cannot disperse in the solder matrix in comparison with those of 76 nm and 133 nm [57]. As a result, SnBi solder-doped 31 nm Ag nanoparticles presents larger grain size and interphase spacing, as shown in Figure 8.
Liu et al. [58] has reported the influence of Cu nanoparticles on the microstructure of SnBi nano-composite solder. The formation of Cu6Sn5 IMC phase was detected by analyzing XRD patterns of SnBi-3Cu solder. During solidification, the Cu6Sn5 nanoparticles served as nucleation sites and greatly increased the nucleation rate, which led to the grain refinement of the solder bulk. Wu et al. [59] found that with 0.05 wt.% Cu6Sn5 nanoparticles addition, the grain refinement of SnBi–nano Cu6Sn5 composite solder reached the maximum. Smaller amount of Cu6Sn5 nanoparticles had no obvious effect on the nucleation rate, however when the content was excessive, the agglomeration of Cu6Sn5 nanoparticles would weaken its refinement effect.
Ni can react with SnBi solder matrix to form some stable intermetallic compounds such as Ni3Sn4 and Ni3Sn, thereby increasing the bonding force between Ni-CNTs and the matrix. As a result, Ni-CNTs distribute more uniformly and become harder to agglomerate in comparison with pure CNTs [60,61]. Therefore, Ni-CNTs can effectively suppress the growth of interfacial IMCs because of their higher stability in the solder joints during soldering.

3.2. Mechanical Properties

The formation of IMCs layer is the basis of fine bonding between the solder and substrate, but the excessive growth of IMCs layer will reduce the reliability of interconnection and the lifetime of electronic devices. Research [57] found Ag nanoparticles addition could suppress the growth of Cu-Sn IMC and improve the shear strength of the solder joints by 18.9% after 180 min liquid reaction at 220 °C. The improvement behavior can be explained by refinement strengthening, dispersion strengthening, and absorption theory. Under external force, the deformation of the composite solder is dispersed to smaller grains with different orientation, which suppressed the formation of cracks and increased the ductility of the solder.
Wu et al. [62] reported that 0.05 wt.% Ni-CNTs could effectively increase the ultimate tensile strength (UTS) of SnBi solder bulks and joints, as shown in Figure 9. What is more, the fracture surface of SnBi-CNTs solder appeared more regular than the plain SnBi solder and CNTs were detected pining at the grain boundaries in high magnification, which demonstrated that the grain growth was suppressed, and the microstructure was refined by Ni-CNTs addition. However, excessive CNTs could gradually translate the fracture modes from ductile fracture to brittle fracture and decrease the UTS and elongation of the composite solder at the same time.
It was found that the effect of GNSs on the fracture surface of SnBi solder was similar to that of CNTs [63]. The phenomenon that GNSs embedded in the fractured solder bulk was investigated, meaning strong bonding was formed between GNSs and the matrix. When the solder was under tensile stress, GNSs would be pulled out from the matrix to reduce the stress concentration that appeared in the crack tip. However, due to the restacking behavior of GNSs, the elongation of the composite solders decreased when the content exceeded 0.01%. Wu et al. [64] used finite element modeling (FEM) method to analyze the stress distribution at the interface of GNSs reinforced Sn58Bi0.7Zn solder joints (after aging for 120 min) in the tensile test. The result showed that the GNSs addition changed the maximum stress position from the Cu/IMC interface in undoped joints to the IMC/solder interface in GNSs-doped joints, which indicated that the composite solder joints have better tensile properties.

3.3. Wettability

Adding BaTiO3 nanoparticles can reduce the surface tension between the liquid solder and increase the fluidity of the molten solder, thereby increasing the spreading coefficient of SnBi solder greatly [65]. Compared with original SnBi solder, the spread area of SnBi–1Y2O3 composite solder on the Cu substrate increased by 20% under the same experimental conditions, as shown in Figure 10 [66]. When the addition of Y2O3 exceeded 1 wt.%, the increasing viscosity of the molten solder inhibited its flow and, hence, the wettability decreased.
With the addition of 0.5 wt.% Ni nanoparticles, the contact angle of molten SnBiAg–Ni composite solder on the Cu substrate decreased from 33.1° to 23.4° [55]. Due to extremely high surface activity, Ni nanoparticles tended to gather at the molten SnBi/Cu surface, which lowered the surface tension between the molten solder and the substrate and significantly promoted the spreading process. Therefore, the wettability of SnBi solder bearing Ni nanoparticles was improved.
Sun et al. [67] reported that nano-Cu particles could react with Sn to form stable Cu6Sn5 IMC during reflow, which inhibited the spreading of the molten solder. Therefore, the spread ratio (SR) value of SnBi solder bearing Cu nanoparticles decreased with the increasing content of Cu nanoparticles.

3.4. Reliability

The reliability of SnBi solder joint is sensitive to the high-density current, which is much more severe in the increasingly finer pitch of advanced electronical devices [68]. Compared with other Sn-based solders, the Cu6Sn5 layer at the SnBi/Cu interface grows faster and the probability of cracks formation increases under high-density current. The current also causes the migration and segregation of Sn and Bi atoms in the solder, which results in the formation of Sn-rich layer and brittle Bi-rich layer on the anode side and cathode side, respectively [69,70]. Numerous studies have shown that adding nanoparticles can significantly improve the electromigration resistance of SnBi solders.
Chan et al. [71] reported that nano-Ag particles could react with Sn to form fine and dispersed Ag3Sn particles, which refined the microstructure of the composite solder and hindered the migration of Bi atoms. After adding 2 wt.% Ag nanoparticles, Bi atomic flux of Sn58Bi solder decreased from 7.43 × 1012 atoms/cm3 to 4.77 × 1012 atoms/cm3 under the current density of 5 × 103 A/cm2 at 303 K, which meant SnBi-Ag solder joints have stronger EM resistance. Nano-Al2O3 particles tended to gather at the surface of interfacial IMCs layer and inhibited the atomic migration in the solder joints under the electro-thermal treatment, and thus, the EM resistance of the composite solder is significantly improved [72].
The addition of nanoparticles also has an important influence of the corrosion resistance. The corrosion rate can be calculated as:
R = 8.76 × 10 7 × ( M M t ) S T ρ

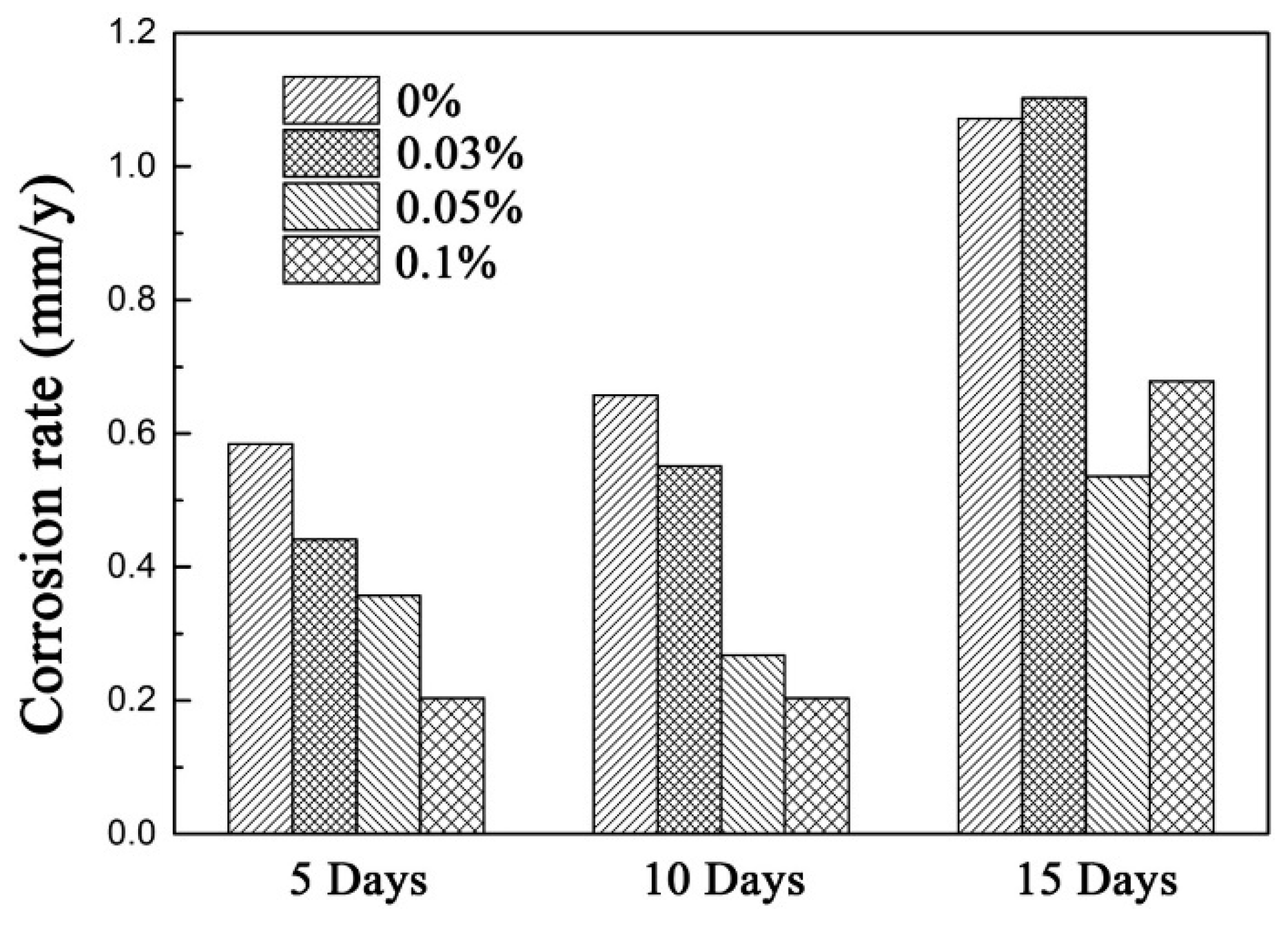

where M and Mt represent the mass of sample before and after corrosion, S is the surface area of sample, T is the corrosion time, and ρ is the density of sample [73]. Figure 11 [59] illustrates that 0.05 wt.% and 0.1 wt.% Cu6Sn5 nanoparticles obviously suppress the growth of corrosion rate, especially in the first 10 days. The grain-refining effect of Cu6Sn5 nanoparticles results in more boundaries, which can serve as corrosion barriers, thus improving the corrosion resistance of the composite solder. A similar phenomenon was detected in the corrosion process of the SnBi–GNSs composite solder [63]. After corrosion of 400 h, Bi dendrites formed and less ditches existed at the gapping space of surface microstructure with the addition of 0.05 wt.% GNSs. Besides, the corrosion rate of the SnBi-0.05GNSs solder almost remained stable at 0.45 mm/y.

4. SnZn-Based Solders

4.1. Microstructure

The matrix microstructure of the SnZn solder mainly consists of β-Sn phase and needle-shaped α-Zn phase, in which the coarsening α-Zn phase greatly decreases the mechanical properties of SnZn solder [74]. Besides, the existence of Zn-rich phase greatly reduces the oxidation resistance of the SnZn solder, which limits the practical use of the SnZn solder. Different from other Sn-based solders, the interfacial IMCs layer of the SnZn/Cu solder joint is mainly Cu5Zn8, which increases the risk of fracture of solder joints during service due to its poor reliability [75].
It is generally known that soldering process parameters have a great influence on the microstructure and properties of solder joints. Zhang et al. [76] found the thickness of Cu5Zn8 layer increased with the reflow time and temperature, and the addition of Ni and Ag nanoparticles could effectively suppress the IMC growth behavior. Besides, with the addition of Ni nanoparticles, the grain growth of needle-shaped α-Zn phase could also be inhibited because Zn-Ni IMCs and Ni nanoparticles increased the heterogeneous nucleation sites, as shown in Figure 12 [77]. Due to high surface energy and large special surface area, Al2O3 nanoparticles can also provide nucleation sites during the solidification process of the solder. So, it can not only inhibit the coarsening of dendrite Sn-Zn eutectic structure, but also refine the microstructure of the composite solder [78].
The gathering of ZrO2 nanoparticles at the phase boundaries decreased surface energy of the boundaries and inhibited the growth of Zn-rich phase [79]. Therefore, the average grain size and spacing of Zn-rich phase were significantly reduced by the addition of ZrO2 nanoparticles, as shown in Table 1. It was also reported that the addition of ZrO2 changed the thickness and composition of interfacial IMCs in SnZn-ZrO2/Cu solder joints. Due to the refining effect of ZrO2 nanoparticles, less Zn atoms could migrate from the solder bulk to the interface to form Cu5Zn8 layer while the migration of Cu atoms became easier, resulting in the increased thickness of Cu6Sn5 layer. A small addition of ZnO nanoparticles can significantly decrease the sizes of the β-Sn dendrites [80]. The refinement can be attributed to the absorption of ZnO on the grain surface, which reduces the growth rate of β-Sn grains.

4.2. Mechanical Properties

The addition of 1.0 wt.% Sb nanoparticles greatly increased the tensile strength and decreased the elongation of the composite solder, as shown in Figure 13 [81]. The formation of ε-Sb3Zn4 not only reduced the amount of Zn atoms to form Zn-rich phase, but also acted as nucleation sites, making the distribution of Zn-rich phase more uniform. Thus, the tensile properties of the SnZn–nano Sb3Zn4 composite solder were improved. However, the microstructure of the solder matrix deteriorated when excessive Sb was added, resulting in the decrease of the tensile strength. It was reported that Al2O3 nanoparticles have a similar effect on the mechanical properties of SnZn solders [78].
Zhang et al. [82] found Ag nanoparticles could react with Sn atoms to form spherical-shaped Ag3Sn IMC phase, which refined the solder matrix and improved the mechanical properties. SnZn solder joints showed a typical brittle fracture, while SnZn-Ag solder joints presented dimple failure morphologies because of the refining effect of Ag nanoparticles. Due to the pinning effect and dispersion strengthening of ZnO, the sliding of grain boundaries was retarded and the tensile creep properties of the composite were improved [80].
In summary, Table 2 lists the mechanical properties of some lead-free solders bearing nanoparticles. As seen from the table, SnBi-based solders present higher strength and carbon nanomaterials (CNTs, GNSs) have great influence of the composite solders. In general, the addition of nanoparticles improves the tensile strength of the solders, but simultaneously reduces the elongation due to their strong restriction effect on the movements of dislocation. Therefore, the optimum content should be further determined by comprehensive comparison of mechanical properties and other performance such as wettability and reliability.

4.3. Wettability

The SnZn solder has a poor wettability due to its poor oxidation resistance, which decreases the reliability of the solder joints. Figure 14 [88] shows that the addition of ZrC nanoparticles has a significant impact on the wettability of the SnZn solder. Compared with the plain SnZn solder, the spreading area of the SnZn–0.06 ZrC composite solder could be increased from 143.64 mm2 to 190.92 mm2. However, when the content is excessive, ZrC nanoparticles would agglomerate at the surface of the molten solder, which inhibited the wetting and spreading of the liquid solder on Cu substrate.
Generally, the larger the width of wetting ring is, the better wettability the solder has. Figure 15 illustrates that with the addition of Al2O3 nanoparticles, the spreading area and the width of precursor film increased [89]. Therefore, the wettability was improved by adding small amount of Al2O3 nanoparticles.

4.4. Reliability

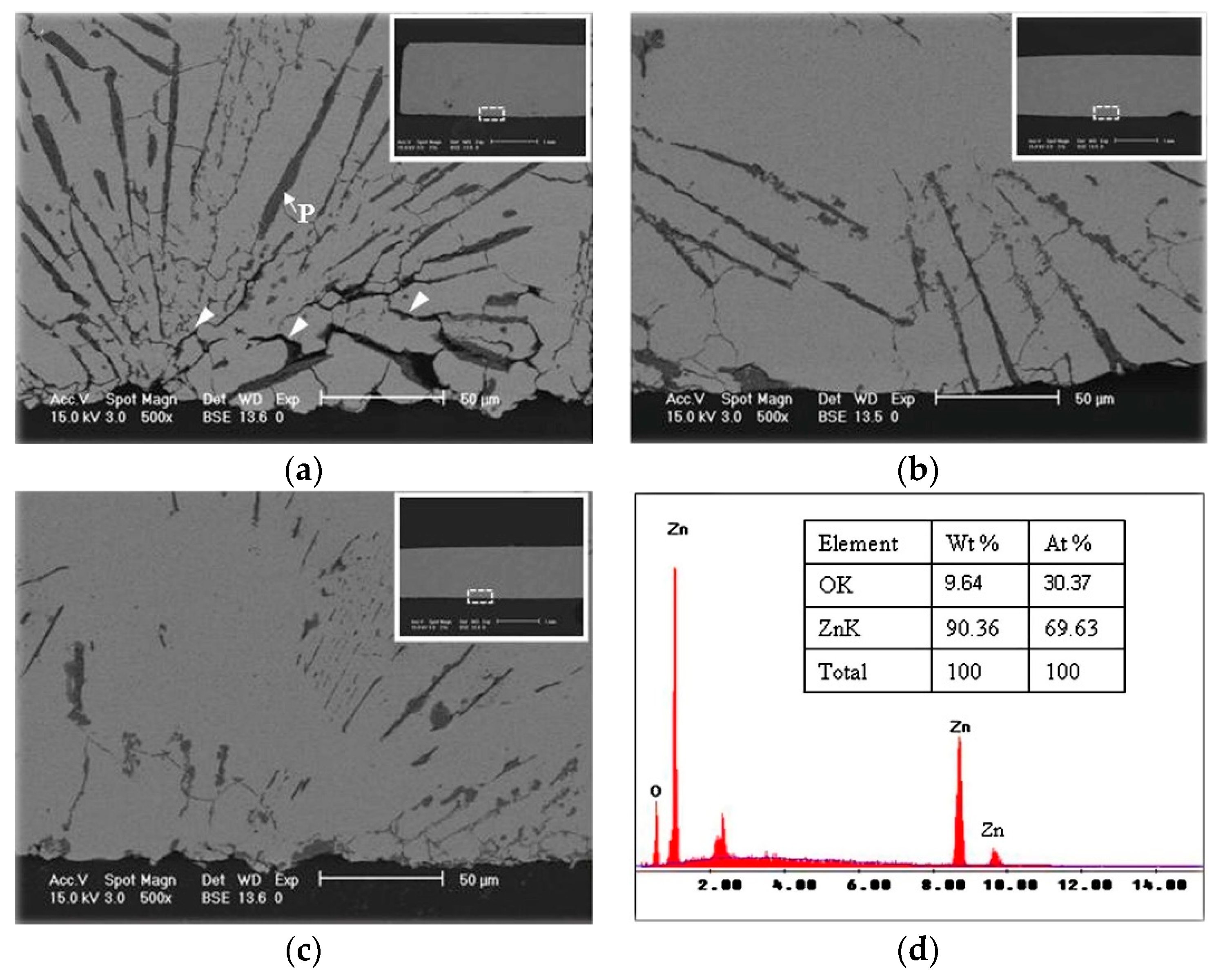

During aging and reflow, the thickness of brittle Cu5Zn8 interfacial layer increases with time, which brings a great threat to the reliability of SnZn solders. Some research reported that RE addition could suppress the coarsening of Cu5Zn8 IMC, but it would also result in spontaneous growth of Sn whiskers and finally lead to the potential failure of electronics devices [90]. Research [91] shows that Ni nanoparticles can effectively increase the shear load of the solder joints due its grain refinement.
The practical use of SnZn solders is limited because the existence of Zn-rich phase greatly reduces the oxidation resistance of the SnZn solder [92]. Under high temperature and humidity conditions, water vapor and oxygen oxidized both the surface microstructure and Zn-rich phase in the solder matrix, resulting in volume expansion and the increase of internal stress, which easily induces cracks along Sn grain boundaries. Chan et al. [91] found the addition of Ni nanoparticles could aid the formation of IMCs in the grain boundaries, so the penetration of H2O and O2 was inhibited as well as the formation of ZnO. It is also reported that Ag nanoparticles increased the thermal and humidity stability of the SnZn-based solder alloy [76]. As shown in Figure 16, the oxidation of Zn-rich phase was significantly inhibited with the addition of Ni and Ag nanoparticles.

5. Conclusions

Although lots of research results have been achieved in nanoparticle-reinforced lead-free solder, there are still several shortages existing in the application of the composite solder. Firstly, nanoparticle-reinforced lead-free solders remain in the experimental research stage and hardly replace the SnPb solder to meet the requirement of electronic package industries. Secondly, compared with microalloying, the amount of research on nanoparticle-reinforced lead-free solders is still relatively less and the influence mechanism of nanoparticles on the reliability of the composite solders in various service environments is insufficient. What is more, the preparation process of nanoparticle-reinforced composite solder is complex and the cost is high, which limits its industrial application. To further improve the properties of nanoparticle-reinforced lead-free solders, future development trends can be carried out in the following aspects:
  • With the development of electronic devices towards miniaturization and high performance, stricter requirements have been put forward for the reliability of lead-free solders. The current research mainly focuses on the effect of thermal stress and current stress on the performance of the solders. However, more and more electronic devices are applied to harsh environments such as cryogenic temperatures [93,94] and irradiation [95]. Therefore, research on the reliability of the solder bearing nanoparticles in these harsh environments will become a hot spot in this subject.
  • It has been proven that the coupling effects of RE and nanoparticles can further refine the microstructure and improve the mechanical properties of lead-free solders [96]. Thus, the combined addition of RE and nanoparticles may become a new reinforcement method to improve the performance of the solders.
  • Due to small tendency of agglomeration and fine physical and chemical properties, carbon-based nanomaterials can effectively improve the microstructure of lead-free solders and improve the properties [97,98]. Consequently, the development of new carbon-based nanomaterial-reinforced solders with better performance may become a new direction for the future research.
  • At present, lead-free solders bearing nanoparticles are mainly fabricated by mechanical mixing of the solder particles and nanoparticles. It is claimed that the nanoparticle-reinforced lead-free solders can also be directly prepared by adding nanoparticles though flux doping [37,99] and in-situ formation [100]. Therefore, exploring new preparation methods with simpler processes and low cost attracts wide attention from researchers.

Author Contributions

S.X. conceived the idea; P.Z. and J.W. wrote the paper; P.X., S.Z., and W.L. advised the paper. All authors reviewed the paper.

Funding

This work was funded by the National Natural Science Foundation of China, grant No.51675269 and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Seong Jun, K.; Coskun, K.; Taner, O.; Moonsub, S.; Ninad, P.; Alam, M.A.; Rotkin, S.V.; Rogers, J.A. High-performance electronics using dense, perfectly aligned arrays of single-walled carbon nanotubes. Nat. Nanotechnol. 2007, 2, 230–236. [Google Scholar]
  2. Ramli, M.I.I.; Saud, N.; Salleh, M.A.A.M.; Derman, M.N.; Said, R.M. Effect of TiO2 additions on Sn-0.7Cu-0.05Ni lead-free composite solder. Microelectron. Reliab. 2016, 65, 255–264. [Google Scholar] [CrossRef]
  3. Singh, A.K.; Panda, B.P.; Mohanty, S.; Nayak, S.K.; Gupta, M.K. Recent Developments on Epoxy-Based Thermally Conductive Adhesives (TCA): A Review. Polym. Plast. Technol. Eng. 2017, 57, 903–934. [Google Scholar] [CrossRef]
  4. Li, Y.; Wong, C.P. Recent advances of conductive adhesives as a lead-free alternative in electronic packaging: Materials, processing, reliability and applications. Mater. Sci. Eng. R 2006, 51, 1–35. [Google Scholar] [CrossRef]
  5. Shuang, L.; Xue, S.B.; Peng, X.; Luo, D.X. Present status of Sn–Zn lead-free solders bearing alloying elements. J. Mater. Sci. Mater. Electron. 2015, 26, 4389–4411. [Google Scholar]
  6. Dudek, M.A.; Chawla, N. Effect of Rare-Earth (La, Ce, and Y) Additions on the Microstructure and Mechanical Behavior of Sn-3.9Ag-0.7Cu Solder Alloy. Metall. Mater. Trans. A 2010, 41, 610–620. [Google Scholar] [CrossRef]
  7. Peng, X.; Xue, S.B.; Shen, Y.F.; Fei, L.; Hong, Z. Wettability and interfacial whiskers of Sn–9Zn–0.5Ga–0.08Nd solder with Sn, SnBi and Au/Ni coatings. J. Mater. Sci. Mater. Electron. 2014, 25, 3520–3525. [Google Scholar]
  8. Chen, K.I.; Cheng, S.C.; Wu, S.; Lin, K.L. Effects of small additions of Ag, Al, and Ga on the structure and properties of the Sn–9Zn eutectic alloy. J. Alloy. Compd. 2006, 416, 98–105. [Google Scholar] [CrossRef]
  9. Xu, C.; Feng, X.; Jian, Z.; Yao, Y. Effect of In on microstructure, thermodynamic characteristic and mechanical properties of Sn–Bi based lead-free solder. J. Alloy. Compd. 2015, 633, 377–383. [Google Scholar]
  10. Gao, F.; Takemoto, T.; Nishikawa, H. Effects of Co and Ni addition on reactive diffusion between Sn–3.5Ag solder and Cu during soldering and annealing. Mater. Sci. Eng. A 2006, 420, 39–46. [Google Scholar] [CrossRef]
  11. Tian, S.; Li, S.; Zhou, J.; Xue, F.; Cao, R.; Wang, F. Effect of indium addition on interfacial IMC growth and bending properties of eutectic Sn–0.7Cu solder joints. J. Mater. Sci. Mater. Electron. 2017, 28, 16120–16132. [Google Scholar] [CrossRef]
  12. Xue, P.; Wang, K.H.; Zhou, Q.; Huang, J.; Long, W.M.; Zhang, Q.K. Effect of Nd on tin whisker growth in Sn–Zn soldered joint. J. Mater. Sci. Mater. Electron. 2016, 27, 3742–3747. [Google Scholar] [CrossRef]
  13. Zhang, L.; Yang, F.; Zhong, S.-J. Whisker growth on SnAgCu–xPr solders in electronic packaging. J. Mater. Sci. Mater. Electron. 2016, 27, 5618–5621. [Google Scholar] [CrossRef]
  14. Fawzy, A.; Fayek, S.A.; Sobhy, M.; Nassr, E.; Mousa, M.M.; Saad, G. Tensile creep characteristics of Sn–3.5Ag–0.5Cu (SAC355) solder reinforced with nano-metric ZnO particles. Mater. Sci. Eng. A 2014, 603, 1–10. [Google Scholar] [CrossRef]
  15. Salleh, M.A.A.M.; Mcdonald, S.D.; Gourlay, C.M.; Yasuda, H.; Nogita, K. Suppression of Cu6Sn5 in TiO2 reinforced solder joints after multiple reflow cycles. Mater. Des. 2016, 108, 418–428. [Google Scholar] [CrossRef]
  16. Yi, L.; Luo, K.; Lim, A.B.Y.; Zhong, C.; Wu, F.; Chan, Y.C. Improving the mechanical performance of Sn57.6Bi0.4Ag solder joints on Au/Ni/Cu pads during aging and electromigration through the addition of tungsten (W) nanoparticle reinforcement. Mater. Sci. Eng. A 2016, 669, 291–303. [Google Scholar]
  17. Fathian, Z.; Maleki, A.; Niroumand, B. Synthesis and characterization of ceramic nanoparticles reinforced lead-free solder. Ceram. Int. 2017, 43, 5302–5310. [Google Scholar] [CrossRef]
  18. Zhang, L.; Tu, K.N. Structure and properties of lead-free solders bearing micro and nano particles. Mater. Sci. Eng. R 2014, 82, 1–32. [Google Scholar] [CrossRef]
  19. Huang, Y.; Xiu, Z.; Wu, G.; Tian, Y.; He, P. Sn–3.0Ag–0.5Cu nanocomposite solders reinforced by graphene nanosheets. J. Mater. Sci. Mater. Electron. 2016, 27, 6809–6815. [Google Scholar] [CrossRef]
  20. Zhu, Z.; Sun, H.; Wu, F.; Chan, Y.C. Comparative study of the microstructure and mechanical strength of tin-copper (Sn0.7Cu) solder modified with silver (Ag) by both alloying and doping methods. J. Mater. Sci. Mater. Electron. 2016, 27, 1–10. [Google Scholar] [CrossRef]
  21. Gain, A.K.; Chan, Y.C.; Yung, W.K.C. Effect of additions of ZrO2 nano-particles on the microstructure and shear strength of Sn–Ag–Cu solder on Au/Ni metallized Cu pads. Microelectron. Reliab. 2011, 51, 2306–2313. [Google Scholar] [CrossRef]
  22. El-Daly, A.A.; Elmosalami, T.A.; Desoky, W.M.; El-Shaarawy, M.G.; Abdraboh, A.M. Tensile deformation behavior and melting property of nano-sized ZnO particles reinforced Sn–3.0Ag–0.5Cu lead-free solder. Mater. Sci. Eng. A 2014, 618, 389–397. [Google Scholar] [CrossRef]
  23. Sharma, A.; Baek, B.G.; Jung, J.P. Influence of La2O3 nanoparticle additions on microstructure, wetting, and tensile characteristics of Sn–Ag–Cu alloy. Mater. Des. 2015, 87, 370–379. [Google Scholar] [CrossRef]
  24. Ma, H.; Kunwar, A.; Liu, Z.; Chen, J.; Wang, Y.; Huang, M.; Zhao, N.; Ma, H. Shielding effect of Ag3Sn on growth of intermetallic compounds in isothermal heating and cooling during multiple reflows. J. Mater. Sci. Mater. Electron. 2018, 29, 4383–4390. [Google Scholar] [CrossRef]
  25. Fouzder, T.; Shafiq, I.; Chan, Y.C.; Sharif, A.; Yung, W.K.C. Influence of SrTiO3 nano-particles on the microstructure and shear strength of Sn–Ag–Cu solder on Au/Ni metallized Cu pads. J. Alloy. Compd. 2011, 509, 1885–1892. [Google Scholar] [CrossRef]
  26. Chan, Y.H.; Arafat, M.M.; Haseeb, A.S.M.A. Effects of reflow on the interfacial characteristics between Zn nanoparticles containing Sn-3.8Ag-0.7Cu solder and copper substrate. Solder Surf. Mt. Tech. 2013, 25, 91–98. [Google Scholar] [CrossRef]
  27. Tang, Y.; Luo, S.M.; Li, G.Y.; Yang, Z.; Hou, C.J. Ripening Growth Kinetics of Cu6Sn5 Grains in Sn-3.0Ag-0.5Cu-xTiO2/Cu Solder Joints During the Reflow Process. J. Electron. Packag. 2018, 140. [Google Scholar] [CrossRef]
  28. Zhao, X.; Wen, Y.; Li, Y.; Liu, Y.; Wang, Y. Effect of γ-Fe2O3 nanoparticles size on the properties of Sn-1.0Ag–0.5Cu nano-composite solders and joints. J. Alloy. Compd. 2016, 662, 272–282. [Google Scholar] [CrossRef]
  29. Zhu, Z.; Chan, Y.C.; Zhong, C.; Gan, C.L.; Wu, F. Effect of the size of carbon nanotubes (CNTs) on the microstructure and mechanical strength of CNTs-doped composite Sn0.3Ag0.7Cu-CNTs solder. Mater. Sci. Eng. A 2018, 727, 160–169. [Google Scholar] [CrossRef]
  30. Lei, S.; Liang, Z.; Le, X.; Zhong, S.J.; Jia, M.; Li, B. Effect of nano-Al addition on properties and microstructure of low-Ag content Sn–1Ag–0.5Cu solders. J. Mater. Sci. Mater. Electron. 2016, 27, 7665–7673. [Google Scholar]
  31. Tang, Y.; Luo, S.M.; Huang, W.F.; Pan, Y.C.; Li, G.Y. Effects of Mn nanoparticles on tensile properties of low-Ag Sn-0.3Ag-0.7Cu-xMn solder alloys and joints. J. Alloy. Compd. 2017, 719, 365–375. [Google Scholar] [CrossRef]
  32. Tsao, L.C.; Chang, S.Y. Effects of Nano-TiO2 additions on thermal analysis, microstructure and tensile properties of Sn3.5Ag0.25Cu solder. Mater. Des. 2010, 31, 990–993. [Google Scholar] [CrossRef]
  33. Zhang, L.; Han, J.; Liu, F.; Guo, Y.; He, C.; University, J.N. Effect of Nano-particles TiO2 on the Microstructures and Properties of SnAgCu Solders. Rare Metal Mat. Eng. 2013, 42, 1897–1900. [Google Scholar]
  34. Jing, H.Y.; Guo, H.J.; Wang, L.X.; Wei, J.; Xu, L.Y.; Han, Y.D. Influence of Ag-modified graphene nanosheets addition into Sn–Ag–Cu solders on the formation and growth of intermetallic compound layers. J. Alloy. Compd. 2017, 702, 669–678. [Google Scholar] [CrossRef]
  35. Du, C.H.; Li, Z.K.; Liu, B.; Li, C.T. The Frontier Analysis of RCS for Micro-Nano Particle. Adv. Mater. Res. 2011, 337, 526–531. [Google Scholar] [CrossRef]
  36. Fu, G. Composite lead-free electronic solders. J. Mater. Sci. Mater. Electron. 2007, 18, 129–145. [Google Scholar]
  37. Shen, J.; Chan, Y.C. Effect of metal/ceramic nanoparticle-doped fluxes on the wettability between Sn–Ag–Cu solder and a Cu layer. J. Alloy. Compd. 2009, 477, 909–914. [Google Scholar] [CrossRef]
  38. Yue, G.; Zhao, X.; Yi, L.; Ying, L.; Yong, W.; Li, Z. Effect of nano-Fe2O3 additions on wettability and interfacial intermetallic growth of low-Ag content Sn–Ag–Cu solders on Cu substrates. J. Alloy. Compd. 2015, 627, 39–47. [Google Scholar]
  39. Jie, W.; Xue, S.; Wang, J.; Wu, M.; Wang, J. Effects of α-Al2O3 nanoparticles-doped on microstructure and properties of Sn–0.3Ag–0.7Cu low-Ag solder. J. Mater. Sci. Mater. Electron. 2018, 29, 7372–7387. [Google Scholar]
  40. Sharma, A.; Sohn, H.-R.; Jung, J.P. Effect of Graphene Nanoplatelets on Wetting, Microstructure, and Tensile Characteristics of Sn-3.0Ag-0.5Cu (SAC) Alloy. Metall. Mater. Trans. A 2015, 47, 494–503. [Google Scholar] [CrossRef]
  41. Li, Y.; Ge, J.; Zhang, Y.; Dai, J. Interfacial IMC Layer and Tensile Properties of Ni-Reinforced Cu/Sn–0.7Cu–0.05Ni/Cu Solder Joint: Effect of Aging Temperature. Trans. Indian Inst. Met. 2017, 70, 2429–2439. [Google Scholar]
  42. Tang, Y.; Li, G.Y.; Chen, D.Q.; Pan, Y.C. Influence of TiO2 nanoparticles on IMC growth in Sn–3.0Ag–0.5Cu–xTiO2 solder joints during isothermal aging process. J. Mater. Sci. Mater. Electron. 2014, 25, 981–991. [Google Scholar] [CrossRef]
  43. Li, H.; An, R.; Wang, C. In situ quantitative study of microstructural evolution at the interface of Sn3.0Ag0.5Cu/Cu solder joint during solid state aging. J. Alloy. Compd. 2015, 634, 94–98. [Google Scholar] [CrossRef]
  44. Chen, J.-S.; Wang, K.-Y.; Chen, J.-Q.; Yu, L. Suppression effect of Cu and Ag on Cu3Sn layer in solder joints. J. Mater. Sci. Mater. Electron. 2013, 24, 4630–4635. [Google Scholar]
  45. Wen, Y.; Zhao, X.; Chen, Z.; Gu, Y.; Wang, Y.; Chen, Z.; Wang, X. Reliability enhancement of Sn-1.0Ag-0.5Cu nano-composite solders by adding multiple sizes of TiO2 nanoparticles. J. Alloy. Compd. 2017, 696, 799–807. [Google Scholar] [CrossRef]
  46. Tsao, L.C. Suppressing effect of 0.5 wt.% nano-TiO2 addition into Sn-3.5Ag-0.5Cu solder alloy on the intermetallic growth with Cu substrate during isothermal aging. J. Alloy. Compd. 2011, 509, 8441–8448. [Google Scholar] [CrossRef]
  47. Chen, G.; Peng, H.; Silberschmidt, V.V.; Chan, Y.C.; Liu, C.; Wu, F. Performance of Sn–3.0Ag–0.5Cu composite solder with TiC reinforcement: Physical properties, solderability and microstructural evolution under isothermal ageing. J. Alloy. Compd. 2016, 685, 680–689. [Google Scholar] [CrossRef] [Green Version]
  48. Huang, M.; Zhang, Z.; Zhou, S.; Chen, L. Stress relaxation and failure behavior of Sn–3.0Ag–0.5Cu flip-chip solder bumps undergoing electromigration. J. Mater. Res. 2014, 29, 2556–2564. [Google Scholar] [CrossRef]
  49. An, R.; Tian, Y.; Zhang, R.; Wang, C. Electromigration-induced intermetallic growth and voids formation in symmetrical Cu/Sn/Cu and Cu/Intermetallic compounds (IMCs)/Cu joints. J. Mater. Sci. Mater. Electron. 2015, 26, 2674–2681. [Google Scholar] [CrossRef]
  50. Sharma, A.; Di, E.X.; Chow, J.; Mayer, M.; Sohn, H.R.; Jung, J.P. Electromigration of composite Sn-Ag-Cu solder bumps. Electron. Mater. Lett. 2015, 11, 1072–1077. [Google Scholar] [CrossRef]
  51. Yang, Z.; Wei, Z.; Ping, W.U. Effects of Ni-coated Carbon Nanotubes addition on the electromigration of Sn-Ag-Cu solder joints. J. Alloy. Compd. 2013, 581, 202–205. [Google Scholar] [CrossRef]
  52. Sha, X.U.; Yan, C.C.; Zhang, K.; Yung, K.C. Interfacial intermetallic growth and mechanical properties of carbon nanotubes reinforced Sn3.5Ag0.5Cu solder joint under current stressing. J. Alloy. Compd. 2014, 595, 92–102. [Google Scholar]
  53. Bui, Q.V.; Nam, N.D.; Noh, B.I.; Kar, A.; Kim, J.G.; Jung, S.B. Effect of Ag addition on the corrosion properties of Sn-based solder alloys. Mater. Corros. 2015, 61, 30–33. [Google Scholar] [CrossRef]
  54. Xu, L.Y.; Zhang, Z.K.; Jing, H.Y.; Wei, J.; Han, Y.D. Effect of graphene nanosheets on the corrosion behavior of Sn–Ag–Cu solders. J. Mater. Sci. Mater. Electron. 2015, 26, 5625–5634. [Google Scholar] [CrossRef]
  55. Gain, A.K.; Zhang, L. Interfacial microstructure, wettability and material properties of nickel (Ni) nanoparticle doped tin–bismuth–silver (Sn–Bi–Ag) solder on copper (Cu) substrate. J. Mater. Sci. Mater. Electron. 2016, 27, 1–13. [Google Scholar] [CrossRef]
  56. Sun, H.; Li, Q.; Chan, Y.C. A study of Ag additive methods by comparing mechanical properties between Sn57.6Bi0.4Ag and 0.4 wt% nano-Ag-doped Sn58Bi BGA solder joints. J. Mater. Sci. Mater. Electron. 2014, 25, 4380–4390. [Google Scholar] [CrossRef]
  57. Yi, L.; Chan, Y.C. Effect of silver (Ag) nanoparticle size on the microstructure and mechanical properties of Sn58Bi–Ag composite solders. J. Alloy. Compd. 2015, 645, 566–576. [Google Scholar]
  58. Yang, L.; Hao, Z.; Sun, F. Solderability of SnBi-nano Cu solder pastes and microstructure of the solder joints. J. Mater. Sci. Mater. Electron. 2016, 27, 2235–2241. [Google Scholar]
  59. Li, X.; Yong, M.; Wei, Z.; Ping, W. Effects of nanoscale Cu6Sn5 particles addition on microstructure and properties of SnBi solder alloys. Mater. Sci. Eng. A 2017, 684, 328–334. [Google Scholar] [CrossRef]
  60. Peng, H.E.; Xiao-Chun, L.; Lin, T.S.; Hai-Xin, L.I.; Jing, A.N.; Xin, M.A.; Feng, J.C.; Yan, Z.; Qi, L.I.; Qian, Y.Y. Improvement of mechanical properties of Sn-58Bi alloy with multi-walled carbon nanotubes. T. Nonferr. Metal. Soc. 2012, 22, s692–s696. [Google Scholar]
  61. Sun, H.; Chan, Y.C.; Wu, F. Effect of CNTs and Ni coated CNTs on the mechanical performance of Sn57.6Bi0.4Ag BGA solder joints. Mater. Sci. Eng. A 2016, 656, 249–255. [Google Scholar] [CrossRef]
  62. Yang, L.; Wei, Z.; Liang, Y.; Cui, W.; Ping, W. Improved microstructure and mechanical properties for Sn58Bi solder alloy by addition of Ni-coated carbon nanotubes. Mater. Sci. Eng. A 2015, 642, 7–15. [Google Scholar] [CrossRef]
  63. Ma, Y.; Li, X.; Zhou, W.; Yang, L.; Wu, P. Reinforcement of graphene nanosheets on the microstructure and properties of Sn58Bi lead-free solder. Mater. Des. 2017, 113, 264–272. [Google Scholar] [CrossRef]
  64. Ma, D.; Wu, P. Improved microstructure and mechanical properties for Sn58Bi0.7Zn solder joint by addition of graphene nanosheets. J. Alloy. Compd. 2016, 671, 127–136. [Google Scholar] [CrossRef]
  65. Yang, L.; Dai, J.; Zhang, Y.; Jing, Y.; Ge, J.; Liu, H. Influence of BaTiO3 Nanoparticle Addition on Microstructure and Mechanical Properties of Sn-58Bi Solder. J. Electron. Mater. 2015, 44, 2473–2478. [Google Scholar] [CrossRef]
  66. Liu, X.; Huang, M.; Wu, C.M.L.; Lai, W. Effect of Y2O3 particles on microstructure formation and shear properties of Sn-58Bi solder. J. Mater. Sci. Mater. Electron. 2010, 21, 1046–1054. [Google Scholar] [CrossRef]
  67. Zhang, H.; Liu, Y.; Sun, F.; Ban, G.; Fan, J. Effects of nano-copper particles on the properties of Sn58Bi composite solder pastes. Microelectron. Int. 2017, 34, 40–44. [Google Scholar] [CrossRef]
  68. Wang, F.; Chen, H.; Huang, Y.; Liu, L.; Zhang, Z. Recent progress on the development of Sn–Bi based low-temperature Pb-free solders. J. Mater. Sci. Mater. Electron. 2019, 30, 3222–3243. [Google Scholar] [CrossRef]
  69. Yang, Q.L.; Shang, J.K. Interfacial segregation of Bi during current stressing of Sn-Bi/Cu solder interconnect. J. Electron. Mater. 2005, 34, 1363–1367. [Google Scholar] [CrossRef]
  70. Gu, X.; Yang, D.; Chan, Y.C.; Wu, B.Y. Effects of electromigration on the growth of intermetallic compounds in Cu/SnBi/Cu solder joints. J. Mater. Res. 2008, 23, 2591–2596. [Google Scholar] [CrossRef]
  71. Ismathullakhan, S.; Lau, H.; Chan, Y.C. Enhanced electromigration reliability via Ag nanoparticles modified eutectic Sn–58Bi solder joint. Microsyst. Technol. 2013, 19, 1069–1080. [Google Scholar] [CrossRef]
  72. Hu, T.; Yi, L.; Chan, Y.C.; Wu, F. Effect of nano Al2O3 particles doping on electromigration and mechanical properties of Sn–58Bi solder joints. Microelectron. Reliab. 2015, 55, 1226–1233. [Google Scholar] [CrossRef]
  73. Li, L.F.; Cheng, Y.K.; Xu, G.L.; Wang, E.Z.; Zhang, Z.H.; Wang, H. Effects of indium addition on properties and wettability of Sn–0.7Cu–0.2Ni lead-free solders. Mater. Des. 2014, 64, 15–20. [Google Scholar] [CrossRef]
  74. Liang, Z.; Junhua, C.; Jiguang, H.; Yonghuan, G.; Chengwen, H.E. Microstructures and properties of SnZn-xEr lead-free solders. J. Rare Earth. 2012, 30, 790–793. [Google Scholar]
  75. Peng, X.; Xue, S.B.; Shen, Y.F.; Hong, Z. Interfacial microstructures and mechanical properties of Sn–9Zn–0.5Ga–xNd on Cu substrate with aging treatment. Mater. Des. 2014, 60, 1–6. [Google Scholar]
  76. Gain, A.K.; Zhang, L. Microstructure, thermal analysis and damping properties of Ag and Ni nano-particles doped Sn-8Zn-3Bi solder on OSP-Cu substrate. J. Alloy. Compd. 2014, 617, 779–786. [Google Scholar] [CrossRef]
  77. Fouzder, T.; Li, Q.; Chan, Y.C.; Chan, D.K. Microstructure and kinetic analysis of the properties and behavior of nickel (Ni) nano-particle doped tin–zinc–bismuth (Sn–8Zn–3Bi) solders on immersion silver (Ag)-plated copper (Cu) substrates. J. Mater. Sci. Mater. Electron. 2014, 25, 2529–2539. [Google Scholar] [CrossRef]
  78. Xing, W.Q.; Yu, X.Y.; Li, H.; Le, M.; Wei, Z.; Peng, D.; Wang, W.X.; Min, D. Microstructure and mechanical properties of Sn-9Zn-xAl2O3 nanoparticles (x = 0–1) lead-free solder alloy: first-principles calculation and experimental research. Mater. Sci. Eng. A 2016, 678, 252–259. [Google Scholar] [CrossRef]
  79. Peng, C.; Shen, J.; Yin, H. Influences of ZrO2 nano-particles on the microstructures and microhardness of Sn8Zn1Bi-xZrO2/Cu solder joints. J. Mater. Sci. Mater. Electron. 2013, 24, 203–210. [Google Scholar] [CrossRef]
  80. Al-Ganainy, G.S.; El-Daly, A.A.; Fawzy, A.; Hussein, N. Effect of adding nanometric ZnO particles on thermal, microstructure and tensile creep properties of Sn–6.5 wt%Zn–3 wt%In solder alloy. J. Mater. Sci. Mater. Electron. 2017, 28, 13303–13312. [Google Scholar] [CrossRef]
  81. Shafiq, I.; Chan, Y.C.; Yung, W.K.C. Influence of small Sb nanoparticles additions on the microstructure, hardness and tensile properties of Sn–9Zn binary eutectic solder alloy. J. Mater. Sci. Mater. Electron. 2012, 23, 1427–1434. [Google Scholar] [CrossRef]
  82. Gain, A.K.; Chan, Y.C.; Sharif, A.; Wong, N.B.; Yung, W.K.C. Interfacial microstructure and shear strength of Ag nano particle doped Sn-9Zn solder in ball grid array packages. Microelectron. Reliab. 2009, 49, 746–753. [Google Scholar] [CrossRef]
  83. Liu, X.D.; Han, Y.D.; Jing, H.Y.; Wei, J.; Xu, L.Y. Effect of graphene nanosheets reinforcement on the performance of Sn-Ag-Cu lead-free solder. Mater. Sci. Eng. A 2013, 562, 25–32. [Google Scholar] [CrossRef]
  84. Chen, G.; Wu, F.; Liu, C.; Silberschmidt, V.V.; Chan, Y.C. Microstructures and properties of new Sn–Ag–Cu lead-free solder reinforced with Ni-coated graphene nanosheets. J. Alloy. Compd. 2016, 656, 500–509. [Google Scholar] [CrossRef] [Green Version]
  85. Xu, L.; Chen, X.; Jing, H.; Wang, L.; Wei, J.; Han, Y. Design and performance of Ag nanoparticle-modified graphene/SnAgCu lead-free solders. Mater. Sci. Eng. A 2016, 667, 87–96. [Google Scholar] [CrossRef]
  86. Kumar, K.M.; Kripesh, V.; Tay, A.A.O. Single-wall carbon nanotube (SWCNT) functionalized Sn–Ag–Cu lead-free composite solders. J. Alloy. Compd. 2008, 450, 229–237. [Google Scholar] [CrossRef]
  87. Ahmed, M.; Fouzder, T.; Sharif, A.; Gain, A.K.; Chan, Y.C. Influence of Ag micro-particle additions on the microstructure, hardness and tensile properties of Sn–9Zn binary eutectic solder alloy. Microelectron. Reliab. 2010, 50, 1134–1141. [Google Scholar] [CrossRef]
  88. Li, Y.; Song, B.; Zhang, Y.; Xiong, Y.; Shi, X.; Zhang, K. Microstructure, interfacial IMC layer and mechanical properties of Cu/Sn-9Zn-xZrC/Cu solder joints. Mater. Res. Express 2018, 5. [Google Scholar] [CrossRef]
  89. Xing, W.-Q.; Yu, X.-Y.; Li, H.; Ma, L.; Zuo, W.; Dong, P.; Wang, W.-X.; Ding, M. Effect of nano Al2O3 additions on the interfacial behavior and mechanical properties of eutectic Sn-9Zn solder on low temperature wetting and soldering of 6061 aluminum alloys. J. Alloy. Compd. 2017, 695, 574–582. [Google Scholar] [CrossRef]
  90. Xue, P.; Xue, S.-B.; Shen, Y.-F.; Zhu, H. Inhibiting the growth of Sn whisker in Sn-9Zn lead-free solder by Nd and Ga. J. Mater. Sci. Mater. Electron. 2014, 25, 2671–2675. [Google Scholar] [CrossRef]
  91. Gain, A.K.; Chan, Y.C.; Yung, W.K.C. Effect of nano Ni additions on the structure and properties of Sn–9Zn and Sn–Zn–3Bi solders in Au/Ni/Cu ball grid array packages. Mater. Sci. Eng. B 2009, 162, 92–98. [Google Scholar] [CrossRef]
  92. Lee, J.E.; Kim, K.S.; Inoue, M.; Jiang, J.; Suganuma, K. Effects of Ag and Cu addition on microstructural properties and oxidation resistance of Sn–Zn eutectic alloy. J. Alloy. Compd. 2008, 454, 310–320. [Google Scholar] [CrossRef]
  93. Tian, R.; Tian, Y.; Wang, C.; Zhao, L. Mechanical properties and fracture mechanisms of Sn-3.0Ag-0.5Cu solder alloys and joints at cryogenic temperatures. Mater. Sci. Eng. A 2017, 684, 697–705. [Google Scholar] [CrossRef]
  94. Yao, Y.; Li, X.; He, X. Effect of deep cryogenic treatment on mechanical properties and microstructure of Sn3.0Ag0.5Cu solder. J. Mater. Sci. Mater. Electron. 2018, 29, 4517–4525. [Google Scholar] [CrossRef]
  95. Wang, J.; Xue, S.; Lv, Z.; Wang, L.; Liu, H.; Wen, L. Effect of gamma-ray irradiation on microstructure and mechanical property of Sn63Pb37 solder joints. J. Mater. Sci. Mater. Electron. 2018, 29, 20726–20733. [Google Scholar] [CrossRef]
  96. Wu, J.; Xue, S.; Wang, J.; Wu, M. Coupling effects of rare-earth Pr and Al2O3 nanoparticles on the microstructure and properties of Sn-0.3Ag-0.7Cu low-Ag solder. J. Alloy. Compd. 2019, 784, 471–487. [Google Scholar] [CrossRef]
  97. Chen, G.; Li, L.; Du, J.; Silberschmidt, V.V.; Chan, Y.C.; Liu, C.; Wu, F. Thermo-migration behavior of SAC305 lead-free solder reinforced with fullerene nanoparticles. J. Mater. Sci. 2016, 51, 10077–10091. [Google Scholar] [CrossRef]
  98. Khodabakhshi, F.; Sayyadi, R.; Javid, N.S. Lead free Sn-Ag-Cu solders reinforced by Ni-coated graphene nanosheets prepared by mechanical alloying: Microstructural evolution and mechanical durability. Mater. Sci. Eng. A 2017, 702, 371–385. [Google Scholar] [CrossRef]
  99. Bashir, M.N.; Haseeb, A.S.M.A.; Rahman, A.Z.M.S.; Fazal, M.A.; Kao, C.R. Reduction of electromigration damage in SAC305 solder joints by adding Ni nanoparticles through flux doping. J. Mater. Sci. 2015, 50, 6748–6756. [Google Scholar] [CrossRef]
  100. Shen, J.; Liu, Y.C.; Gao, H.X. In situ nanoparticulate-reinforced lead-free Sn–Ag composite prepared by rapid solidification. J. Mater. Sci. Mater. Electron. 2006, 18, 463–468. [Google Scholar] [CrossRef]
Figure 1. Field emission scanning electron microscope (FESEM) image of SnAgCu–nano La2O3 composite solder: (a) 0% La2O3; (b) 0.01% La2O3; (c) 0.03% La2O3; (d) 0.05% La2O3; (e) 0.1% La2O3; (f) high-resolution image of (e) [23].
Figure 1. Field emission scanning electron microscope (FESEM) image of SnAgCu–nano La2O3 composite solder: (a) 0% La2O3; (b) 0.01% La2O3; (c) 0.03% La2O3; (d) 0.05% La2O3; (e) 0.1% La2O3; (f) high-resolution image of (e) [23].
Applsci 09 02044 g001aApplsci 09 02044 g001b
Figure 2. Microstructure of the solders: (a) SAC105; (b) SAC105-nano Fe2O3 (20 nm); (c) SAC105-nano Fe2O3 (50 nm); (d) SAC105-nano Fe2O3 (200 nm) [28].
Figure 2. Microstructure of the solders: (a) SAC105; (b) SAC105-nano Fe2O3 (20 nm); (c) SAC105-nano Fe2O3 (50 nm); (d) SAC105-nano Fe2O3 (200 nm) [28].
Applsci 09 02044 g002aApplsci 09 02044 g002b
Figure 3. The mechanical properties of SAC105–xAl solder joints: (a) Tensile force; (b) shear force [30].
Figure 3. The mechanical properties of SAC105–xAl solder joints: (a) Tensile force; (b) shear force [30].
Applsci 09 02044 g003
Figure 4. Spreading areas of SnAgCu–nano Al2O3 composite solder [39].
Figure 4. Spreading areas of SnAgCu–nano Al2O3 composite solder [39].
Applsci 09 02044 g004
Figure 5. Schematic diagram of the effect of Al2O3 nanoparticles on the wetting and spreading: (a) Contribution to wetting; (b) contribution to spreading [39].
Figure 5. Schematic diagram of the effect of Al2O3 nanoparticles on the wetting and spreading: (a) Contribution to wetting; (b) contribution to spreading [39].
Applsci 09 02044 g005

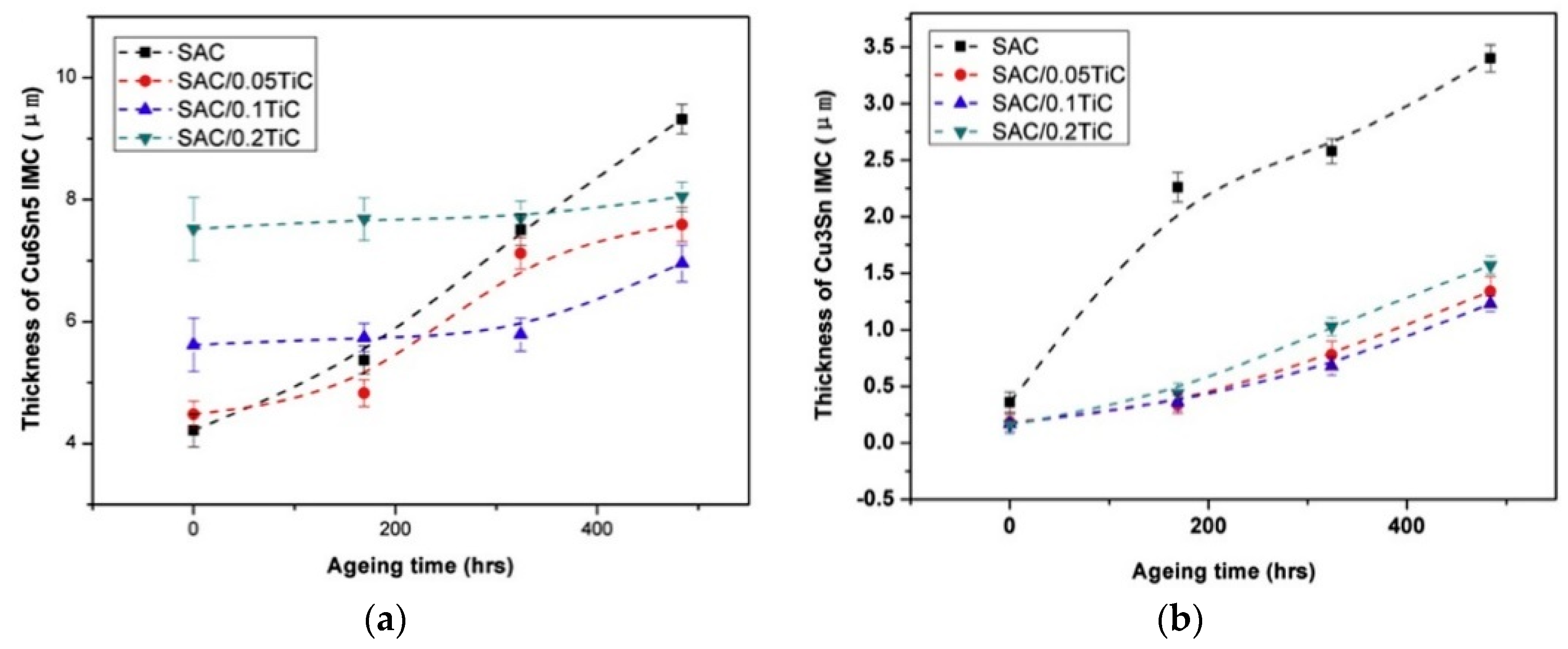

Figure 6. Effect of TiC nanoparticles content on the thickness of IMCs layers during aging (a) Cu6Sn5; (b) Cu3Sn [47].
Figure 6. Effect of TiC nanoparticles content on the thickness of IMCs layers during aging (a) Cu6Sn5; (b) Cu3Sn [47].
Applsci 09 02044 g006
Figure 7. Schematic representation of the inhibition effect of graphene nanosheets (GNSs) on oxygen diffusion [54].
Figure 7. Schematic representation of the inhibition effect of graphene nanosheets (GNSs) on oxygen diffusion [54].
Applsci 09 02044 g007
Figure 8. SEM morphology of as-prepared solder: (a) Pure SnBi solder; (b) SnBi solder-doped 31 nm Ag nanoparticles; (c) SnBi solder-doped 76 nm Ag nanoparticles; (d) SnBi solder-doped 133 nm Ag nanoparticles [57].
Figure 8. SEM morphology of as-prepared solder: (a) Pure SnBi solder; (b) SnBi solder-doped 31 nm Ag nanoparticles; (c) SnBi solder-doped 76 nm Ag nanoparticles; (d) SnBi solder-doped 133 nm Ag nanoparticles [57].
Applsci 09 02044 g008
Figure 9. Effect of carbon nanotubes (CNT) on the tensile properties of SnBi solder: (a) ultimate tensile strength (UTS) of SnBi-xCNT solder bulks and solder joints; (b) tensile stress–displacement curves of the SnBi-xCNT solder bulks (x = 0, 0.05, 0.1, 0.2); (cf) fracture surfaces of the SnBi-xCNT solder slab (x = 0, 0.05, 0.1, 0.2) [62].
Figure 9. Effect of carbon nanotubes (CNT) on the tensile properties of SnBi solder: (a) ultimate tensile strength (UTS) of SnBi-xCNT solder bulks and solder joints; (b) tensile stress–displacement curves of the SnBi-xCNT solder bulks (x = 0, 0.05, 0.1, 0.2); (cf) fracture surfaces of the SnBi-xCNT solder slab (x = 0, 0.05, 0.1, 0.2) [62].
Applsci 09 02044 g009aApplsci 09 02044 g009b
Figure 10. The effect of Y2O3 content on the spread area of SnBi–nano Y2O3 composite solder on the Cu substrate [66].
Figure 10. The effect of Y2O3 content on the spread area of SnBi–nano Y2O3 composite solder on the Cu substrate [66].
Applsci 09 02044 g010
Figure 11. Corrosion rate of SnBi–xnano Cu6Sn5 composite solder: x = 0%, 0.03%, 0.05%, 0.1% [59].
Figure 11. Corrosion rate of SnBi–xnano Cu6Sn5 composite solder: x = 0%, 0.03%, 0.05%, 0.1% [59].
Applsci 09 02044 g011
Figure 12. Microstructure of: (a) SnZnBi solders after being reflowed for 5 min; (b) SnZnBi–0.5Ni composite solders after being reflowed for 30 min; (c) SnZnBi solders after being reflowed for 30 min; (d) SnZnBi–0.5Ni composite solders after being reflowed for 30 min [77].
Figure 12. Microstructure of: (a) SnZnBi solders after being reflowed for 5 min; (b) SnZnBi–0.5Ni composite solders after being reflowed for 30 min; (c) SnZnBi solders after being reflowed for 30 min; (d) SnZnBi–0.5Ni composite solders after being reflowed for 30 min [77].
Applsci 09 02044 g012
Figure 13. Effect of Sb nanoparticles on the tensile properties of the Sn–9Zn–xSb composite solders (x = 0, 0.5, 1.0, 1.5) [81].
Figure 13. Effect of Sb nanoparticles on the tensile properties of the Sn–9Zn–xSb composite solders (x = 0, 0.5, 1.0, 1.5) [81].
Applsci 09 02044 g013
Figure 14. Spreading area of SnZn–xZrC (x = 0, 0.03, 0.06, 0.09, 0.12) composite solders [88].
Figure 14. Spreading area of SnZn–xZrC (x = 0, 0.03, 0.06, 0.09, 0.12) composite solders [88].
Applsci 09 02044 g014
Figure 15. Macro morphology of SnZn–Al2O3 composite solders after wetting on the 6061-aluminum alloy: (a) 0% Al2O3; (b) 0.5% Al2O3; (c) 1.0% Al2O3 [89].
Figure 15. Macro morphology of SnZn–Al2O3 composite solders after wetting on the 6061-aluminum alloy: (a) 0% Al2O3; (b) 0.5% Al2O3; (c) 1.0% Al2O3 [89].
Applsci 09 02044 g015
Figure 16. Microstructure of (a) SnZnBi, (b) SnZnBi–0.5Ag, and (c) SnZnBi–0.5Ni solder alloys at 85 °C/85% relative humidity (RH) after exposure for 250 h and (d) energy dispersive spectrometer (EDS) analysis of region P in (a) [76].
Figure 16. Microstructure of (a) SnZnBi, (b) SnZnBi–0.5Ag, and (c) SnZnBi–0.5Ni solder alloys at 85 °C/85% relative humidity (RH) after exposure for 250 h and (d) energy dispersive spectrometer (EDS) analysis of region P in (a) [76].
Applsci 09 02044 g016
Table 1. Grain size and spacing of Zn-rich phase in the SnZnBi–xZrO2 solder.
Table 1. Grain size and spacing of Zn-rich phase in the SnZnBi–xZrO2 solder.
SolderMaximal Size (μm)Minimal Size (μm)Average Size (μm)Average Spacing (μm)
SnZnBi10.51.24.6 ± 0.092.2 ± 0.1
SnZnBi–0.25ZrO22.50.51.5 ± 0.11.3 ± 0.04
SnZnBi–0.5ZrO26.60.42.8 ± 0.31.1 ± 0.06
SnZnBi–1ZrO28.30.63.4 ± 0.52.1 ± 0.08
Table 2. The mechanical properties of nanoparticle-reinforced lead-free solders.
Table 2. The mechanical properties of nanoparticle-reinforced lead-free solders.
SoldersUTS (MPa)Elongation (%)MicrohardnessReferences
Sn3.0Ag0.5Cu46.029.5/[83]
Sn0.3Ag-0.5Cu/0.1Mn56.5//[31]
Sn3.5Ag0.25Cu/1TiO270.125.218.5 HV[32]
Sn3.0Ag0.5Cu/0.05La2O379.014.113 HV[23]
Sn3.0Ag0.5Cu/0.03GNSs50.323.5/[83]
3Sn3.0Ag0.5Cu/0.1GNSs50.721.5/[83]
Sn3.0Ag0.5Cu/0.2Ni-GNSs58.4/14.6 HV[84]
Sn3.0Ag0.5Cu/0.05Ag-GNSs50.114.7/[85]
Sn3.8Ag0.7Cu/1CNTs56.724.4/[86]
Sn58Bi81210.30 GPa[63]
Sn58Bi/0.01GNSs84320.26 GPa[63]
Sn58Bi/0.1GNSs93170.41 GPa[63]
Sn58Bi/0.03CNTs94.221.7/[60]
Sn9Zn41.043.413.6 BHN[87]
Sn9Zn/1.0Ag43.619.416 BHN[87]
Sn9Zn/1.0Sb53.621.615.9 BHN[81]
Sn9Zn/1.0Al2O343.444.927 HV[78]

Share and Cite

MDPI and ACS Style

Zhang, P.; Xue, S.; Wang, J.; Xue, P.; Zhong, S.; Long, W. Effect of Nanoparticles Addition on the Microstructure and Properties of Lead-Free Solders: A Review. Appl. Sci. 2019, 9, 2044. https://doi.org/10.3390/app9102044

AMA Style

Zhang P, Xue S, Wang J, Xue P, Zhong S, Long W. Effect of Nanoparticles Addition on the Microstructure and Properties of Lead-Free Solders: A Review. Applied Sciences. 2019; 9(10):2044. https://doi.org/10.3390/app9102044

Chicago/Turabian Style

Zhang, Peng, Songbai Xue, Jianhao Wang, Peng Xue, Sujuan Zhong, and Weimin Long. 2019. "Effect of Nanoparticles Addition on the Microstructure and Properties of Lead-Free Solders: A Review" Applied Sciences 9, no. 10: 2044. https://doi.org/10.3390/app9102044

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
