Open AccessArticle
Appl. Sci. 2018, 8(9), 1624; https://doi.org/10.3390/app8091624

Surface Plasmon Polariton Triggered Generation of 1D-Low Spatial Frequency LIPSS on Fused Silica

1
Applied Laser and Photonics Group, University of Applied Sciences Aschaffenburg, Würzburger Straße 45, 63743 Aschaffenburg, Germany
2
Applied Laser Technologies, Ruhr-Universität Bochum, Universitätsstraße 150, 44801 Bochum, Germany
*
Author to whom correspondence should be addressed.
Received: 13 August 2018 / Revised: 6 September 2018 / Accepted: 9 September 2018 / Published: 12 September 2018
Full-Text   |   PDF [7582 KB, uploaded 12 September 2018]   |

Abstract

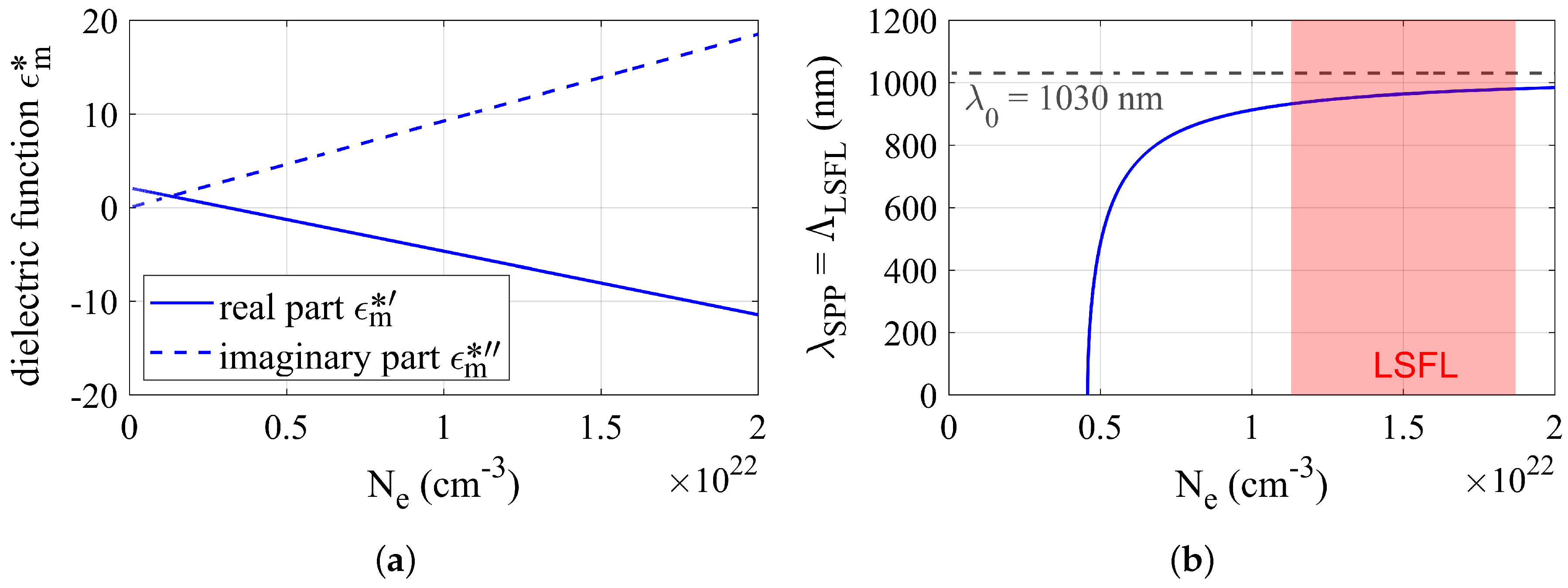

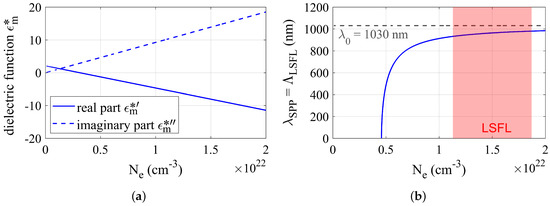

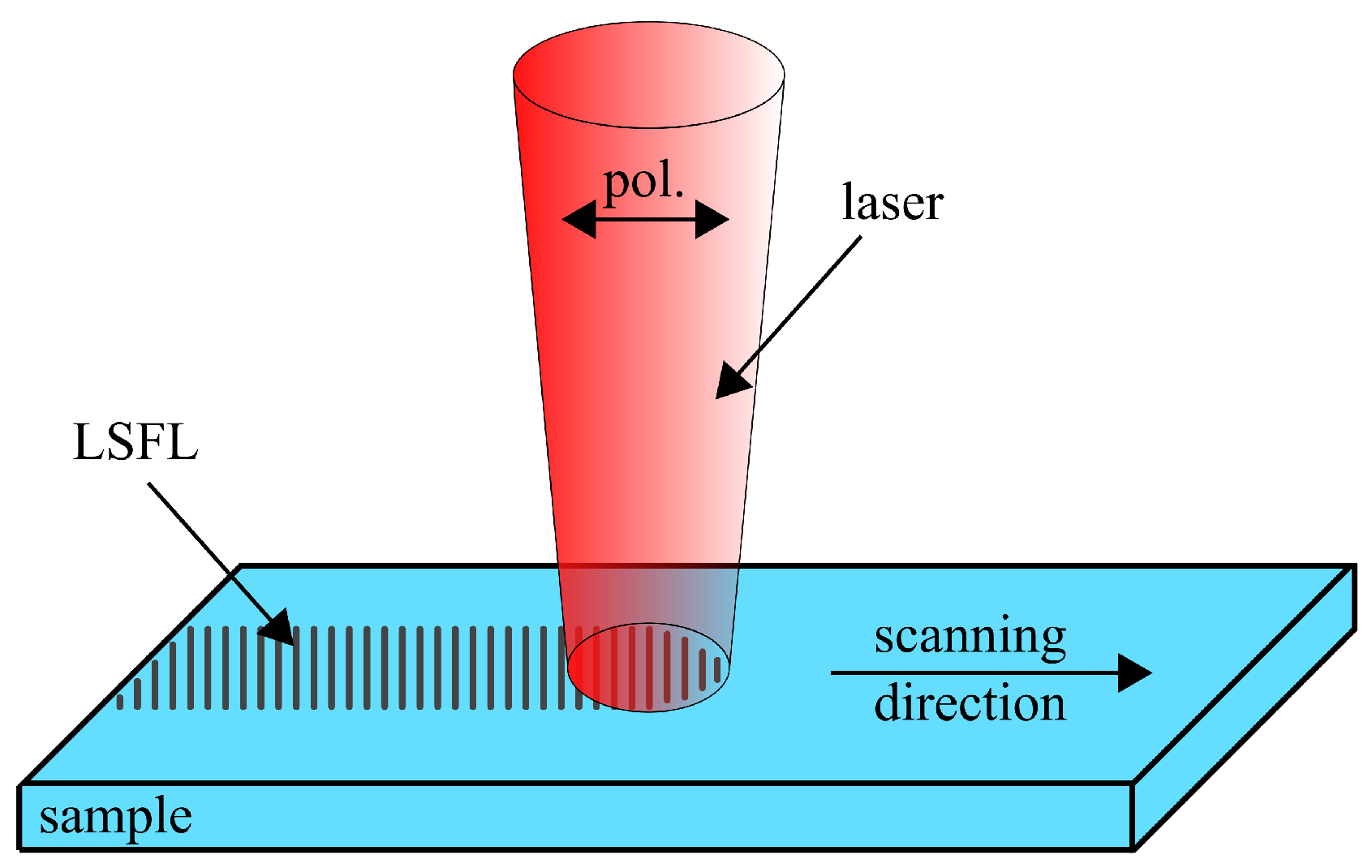

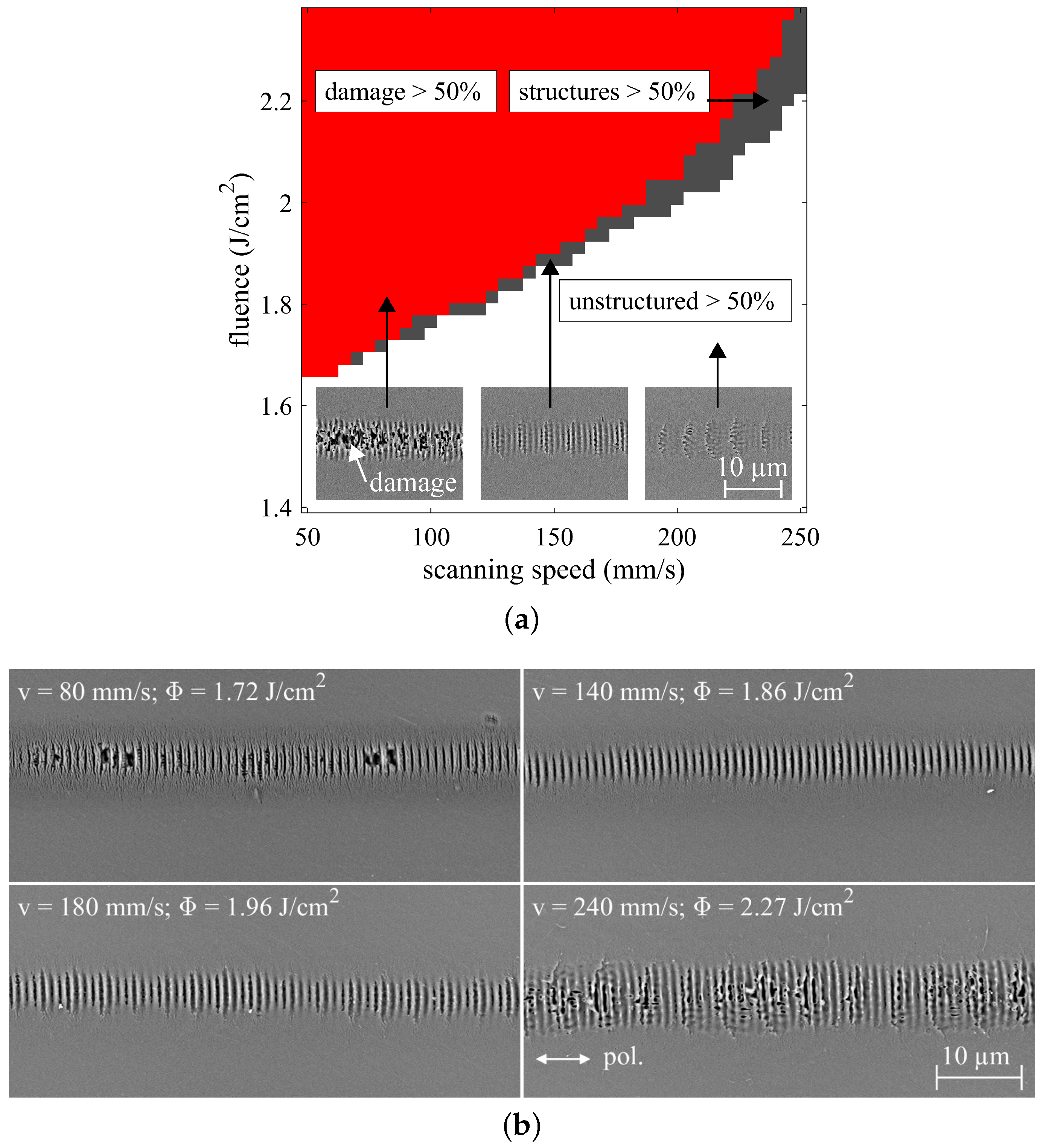

We report on the generation of low spatial frequency laser-induced periodic surface structures along straight lines on fused silica by spatially scanning the laser parallel to its polarization direction. The influence of the applied laser fluence and the scanning speed on the periodic surface structures is investigated. The parameter study shows that periodic structures appear in a limited parameter regime of combined fluence and scan speed with periodicities smaller than the laser wavelength. Most strikingly, we observe a perpendicular orientation of the self-assembled periodic structures to the electrical field of the laser, notably a previously unreported result for this dielectric material. This behavior is explained taking into account calculations of surface plasmon polaritons including a Drude model for free carrier excitation within silica by femtosecond laser irradiation. View Full-Text
Keywords: laser-induced periodic surface structures; LIPSS; LSFL; surface plasmon polariton; fused silica laser-induced periodic surface structures; LIPSS; LSFL; surface plasmon polariton; fused silica
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Schwarz, S.; Rung, S.; Esen, C.; Hellmann, R. Surface Plasmon Polariton Triggered Generation of 1D-Low Spatial Frequency LIPSS on Fused Silica. Appl. Sci. 2018, 8, 1624.
