Open AccessArticle
Appl. Sci. 2018, 8(4), 602; https://doi.org/10.3390/app8040602

Inducing Strong Non-Linearities in a Phonon Trapping Quartz Bulk Acoustic Wave Resonator Coupled to a Superconducting Quantum Interference Device

1
ARC Centre of Excellence for Engineered Quantum Systems, University of Western Australia, 35 Stirling Highway, Crawley WA 6009, Australia
2
FEMTO-ST Institute, CNRS, Univ. Bourgogne Franche Comte, ENSMM, 26 Chemin de l’Épitaphe, 25000 Besançon, France
*
Author to whom correspondence should be addressed.
Received: 22 March 2018 / Revised: 4 April 2018 / Accepted: 4 April 2018 / Published: 11 April 2018
(This article belongs to the Special Issue Brillouin Scattering and Optomechanics)
Full-Text   |   PDF [1519 KB, uploaded 3 May 2018]   |

Abstract

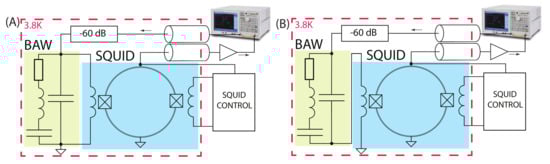

A quartz Bulk Acoustic Wave resonator is designed to coherently trap phonons in such a way that they are well confined and immune to suspension losses so they exhibit extremely high acoustic Q-factors at low temperature, with Q × f products of order 10 18 Hz. In this work we couple such a resonator to a Superconducting Quantum Interference Device (SQUID) amplifier and investigate effects in the strong signal regime. Both parallel and series connection topologies of the system are investigated. The study reveals significant non-Duffing response that is associated with the nonlinear characteristics of Josephson junctions. The nonlinearity provides quasi-periodic structure of the spectrum in both incident power and frequency. The result gives an insight into the open loop behaviour of a future Cryogenic Quartz Oscillator in the strong signal regime. View Full-Text
Keywords: BAW Resonator; SQUID; phonon trapping; low noise oscillator; non-linear coupling BAW Resonator; SQUID; phonon trapping; low noise oscillator; non-linear coupling
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
