Open AccessArticle
Appl. Sci. 2018, 8(2), 231; https://doi.org/10.3390/app8020231

Trajectory Tracking of an Omni-Directional Wheeled Mobile Robot Using a Model Predictive Control Strategy

1
College of IoT Engineering, Hohai University, Changzhou 213022, China
2
Changzhou Key Laboratory of Robotics and Intelligent Technology, Hohai University, Changzhou 213022, China
3
Jiangsu Key Laboratory of Special Robots, Hohai University, Changzhou 213022, China
4
Research Institute of Intelligent Control and Systems, Harbin Institute of Technology, Harbin 150080, China
5
School of Electromechanical and Automobile Engineerng, Changzhou Vacational Institue of Engineering, Changzhou 213164, China
6
Key Laboratory of Autonomous Systems and Networked Control, College of Automation Science and Engineering, South China University of Technology, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
Received: 13 November 2017 / Revised: 28 January 2018 / Accepted: 30 January 2018 / Published: 2 February 2018
(This article belongs to the Special Issue Bio-Inspired Robotics)
Full-Text   |   PDF [1116 KB, uploaded 2 February 2018]   |

Abstract

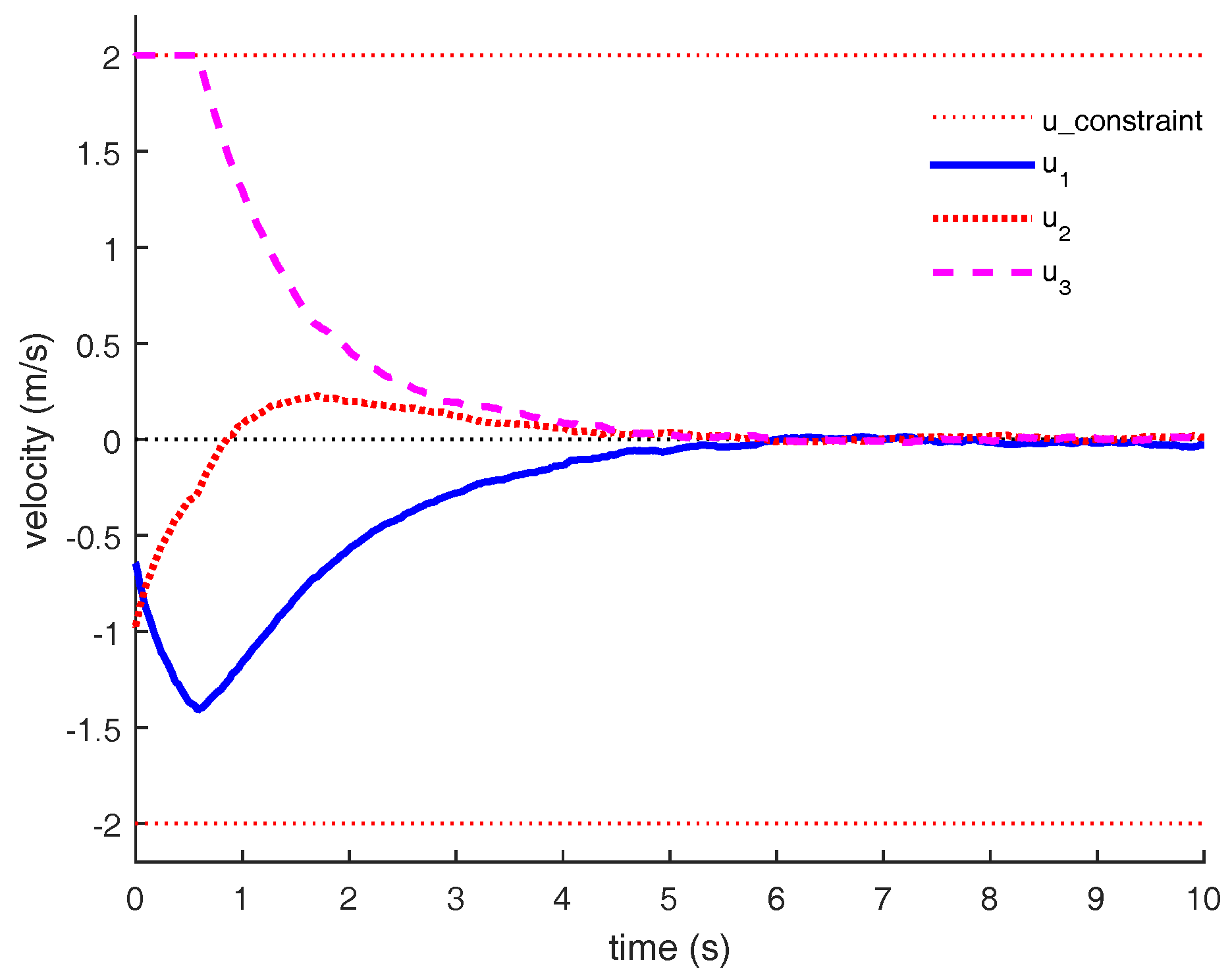

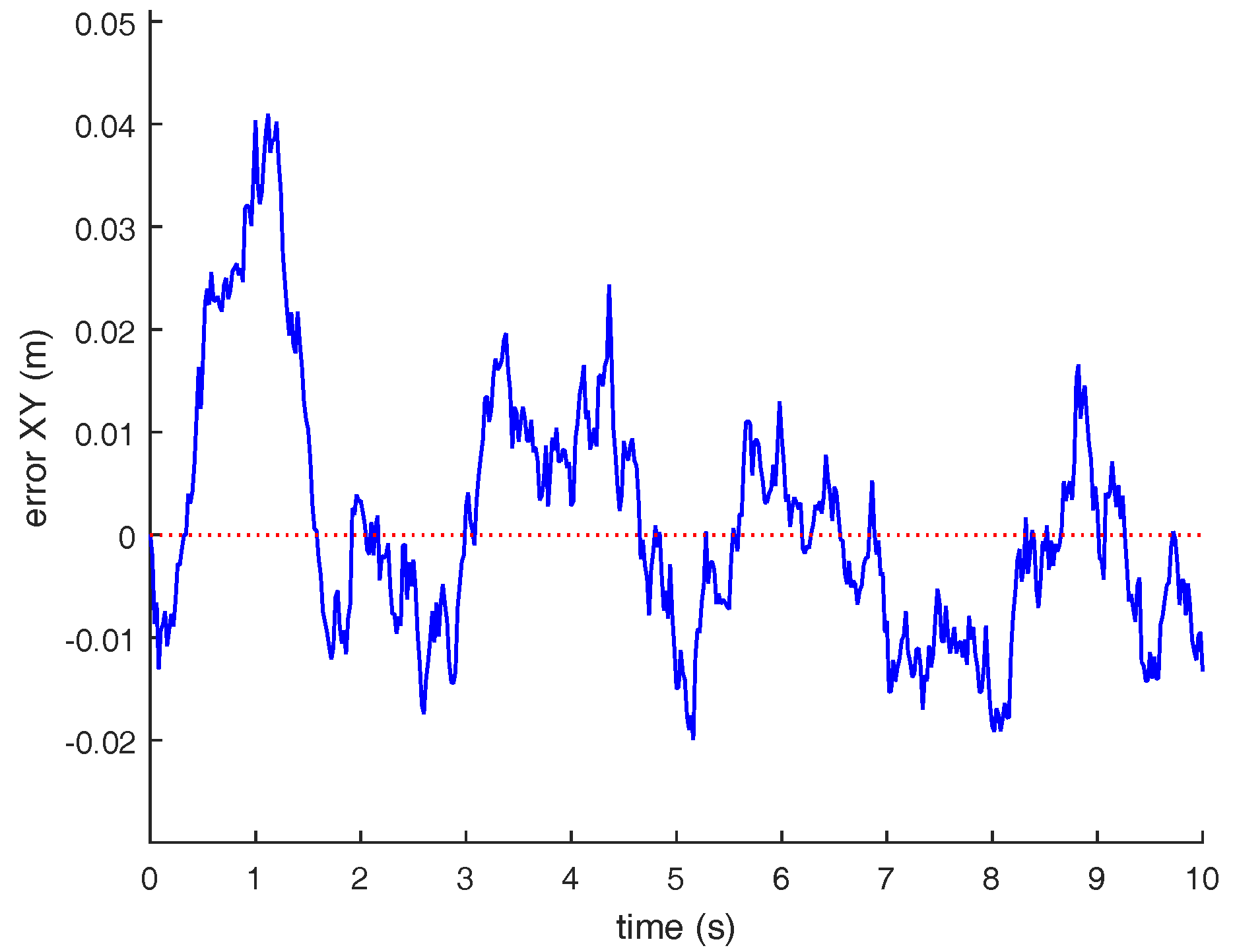

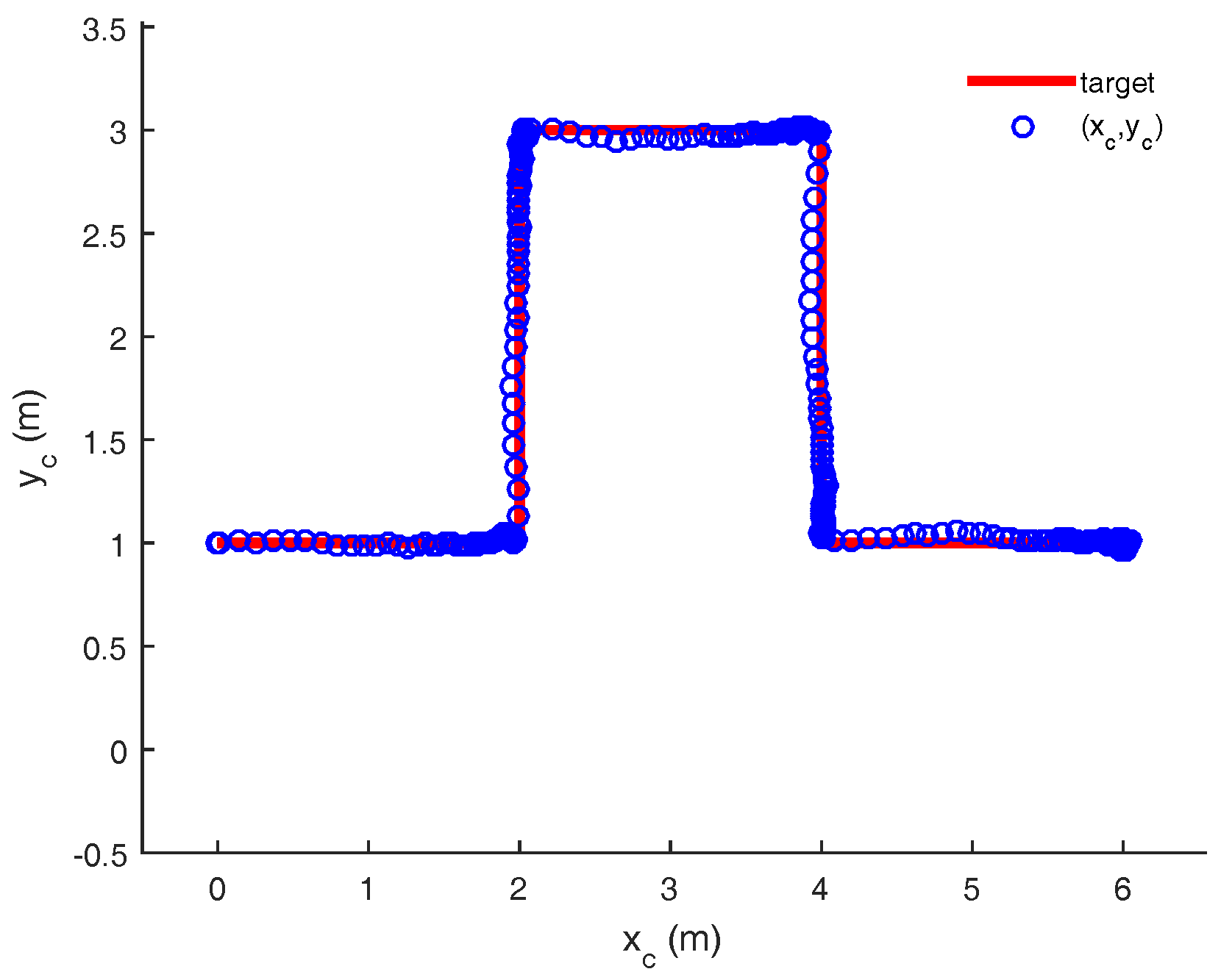

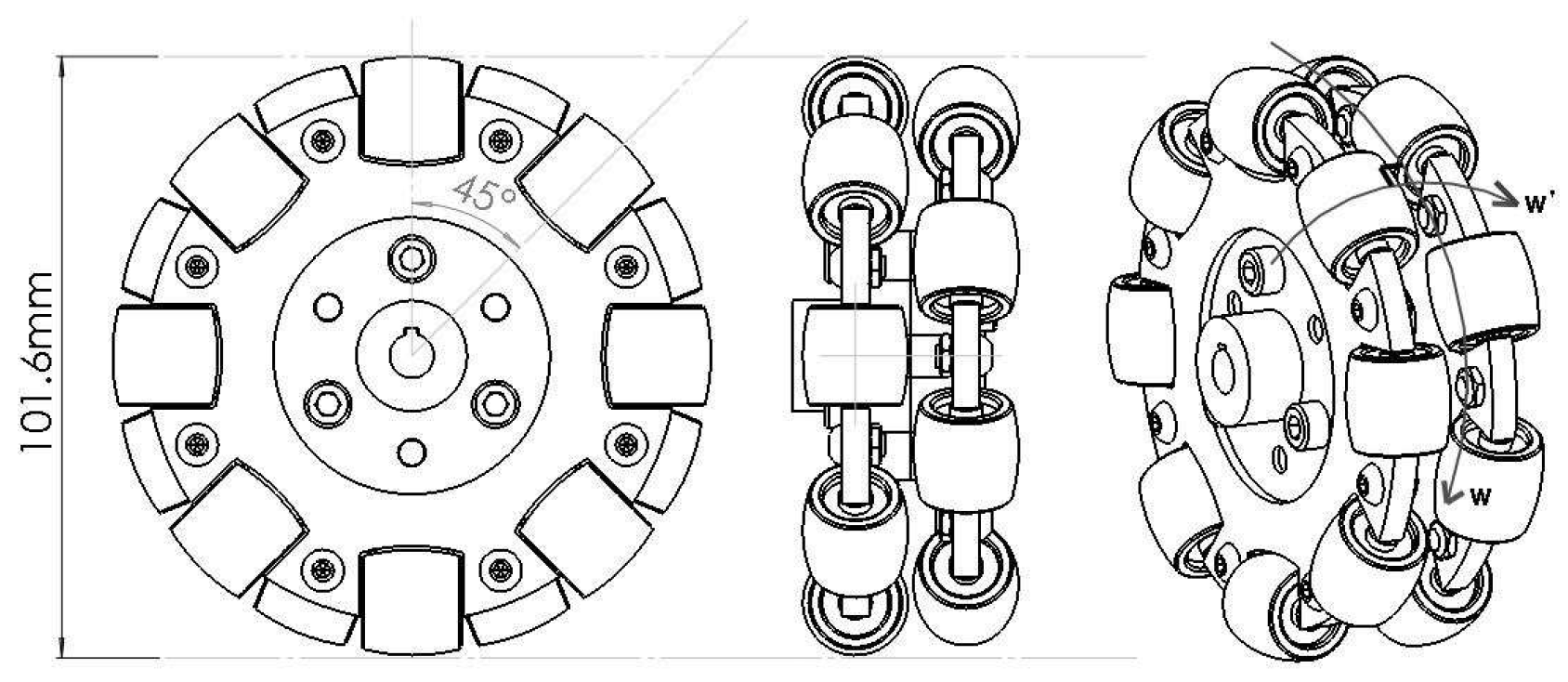

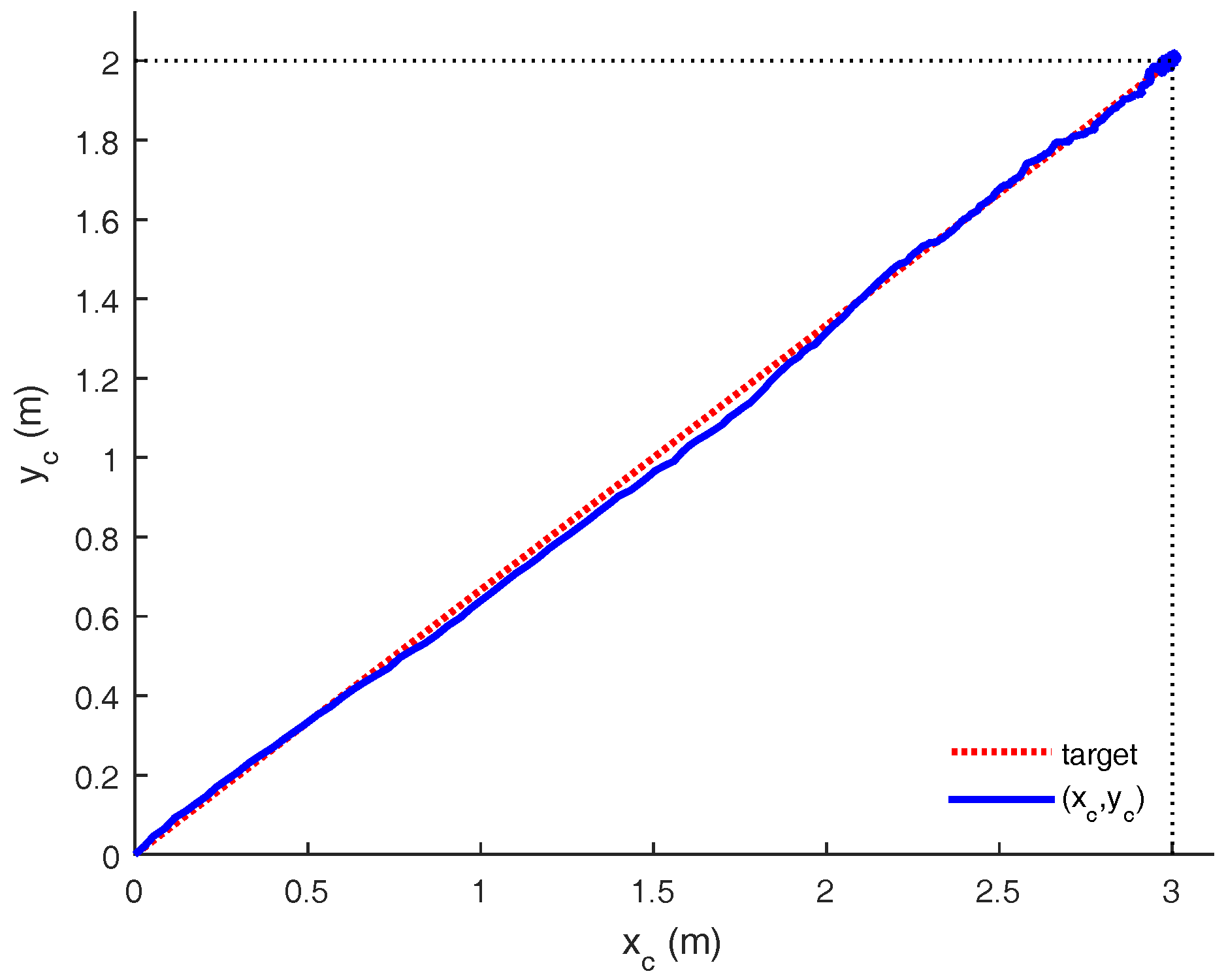

This paper addresses trajectory tracking of an omni-directional mobile robot (OMR) with three mecanum wheels and a fully symmetrical configuration. The omni-directional wheeled robot outperforms the non-holonomic wheeled robot due to its ability to rotate and translate independently and simultaneously. A kinematics model of the OMR is established and a model predictive control (MPC) algorithm with control and system constraints is designed to achieve point stabilization and trajectory tracking. Simulation results validate the accuracy of the established kinematics model and the effectiveness of the proposed MPC controller. View Full-Text
Keywords: omni-directional mobile robot (OMR); kinematics model; model predictive control; point stabilization; trajectory tracking omni-directional mobile robot (OMR); kinematics model; model predictive control; point stabilization; trajectory tracking
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
