Introducing Bentonite into the Environment in the Construction Stage of Linear Underground Investment Using the HDD Method
2. Materials and Methods
- determination of the subject and selection of the study area;
- analysis of the scientific literature;
- field work and participation in the implementation of the HDD drilling;
- geomorphological analyses;
- processing of daily reports in the work on HDD in Pęciszów;
- statistical analysis of the obtained results;
- definition of dependence;
- determination of correlation; and
- drilling liquid is introduced to the environment on a much larger scale than that declared by investors; and
- the scale of the loss of bentonite used for directional drilling depends on the type of soil on which the construction works are conducted.
- medium and fine fluvial sands and fluvial muds (cohesive dusty humic soils, locally sandy soils);
- Pleistocene fine sands and lacustrine deposits (silts, dusty humic soils);
- Pleistocene loam and cohesive dusty soils;
- Glacial sandy soils; and
- Pleistocene medium, fine and dusty sands of a fluvioglacial origin.
- the volume of treated drilling fluid per day and the soil formation (type of fraction);
- total loss of material (bentonite) during drilling, depending on the type of soil and the related fraction; and
- the percentage ratio of daily drilling fluid loss (i per 1LM) to the bentonite used.
- Kow (X,Y)—covariance between properties X and Y;
- —standard deviation of parameter X; and
- —standard deviation of parameter Y.
- a positive correlation, where high values of one variable are accompanied by high variables of the other one (and, obviously, the reverse: low values of one variable are accompanied by low values of the other one);
- negative correlation, where low values of one variable are accompanied by high values of the other one; and
- 0 correlation, where there is no linear connection between the two variables.
3. Realization of the Investment Using Horizontal Directional Drilling (HDD)

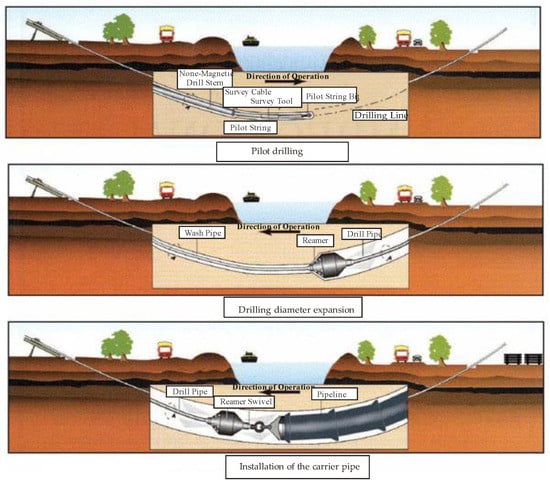

- Pilot drilling. The drilling is performed using the drilling rig, drill string, drilling tools, and a navigation system. The circulation system of the drilling fluid is closed. The borings that come out of the borehole, together with the drilling fluid, are separated, the excavated soil is stored behind the separator in waste pits, and the treated liquid is poured into the mixer. Next, the fluid of the appropriate parameters is poured into the buffer, then collected from the buffer and fed by a pump into the drill string and, later, into the drill and the wall of the drilling borehole, supporting the processing of the drilled layer.
- Drilling diameter expansion. The drilling is widened using expanding tools. The process consists of one or two stages. The diameter of the borehole provides an appropriate safety buffer for the installed carrier pipe. The drilling liquid, together with the excavated waste, is transported from the pipe using a transfer pump through a transfer pipeline to the machinery end, where it is separated.
- Installation of the carrier pipe. The pipe is placed on rollers, then fastened to a swivel and pulled into the drilling borehole using the drilling rig and the drill string. During the whole installation process, drilling fluid is fed directly into the borehole (Figure 3).
4. Amount of Drilling Fluid Loss in the Drilling Realization Stage

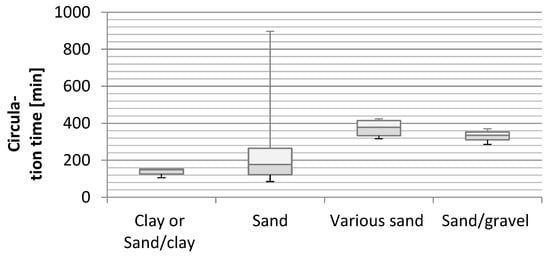

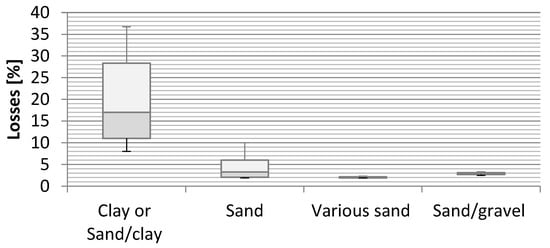

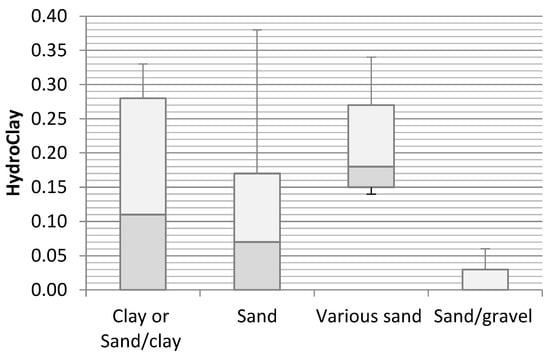

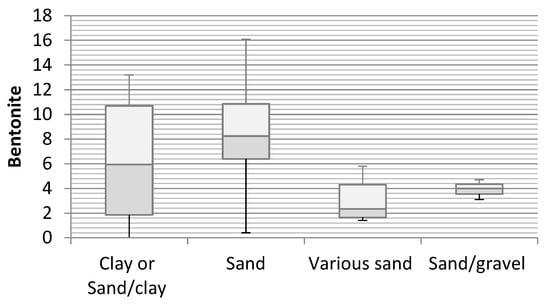

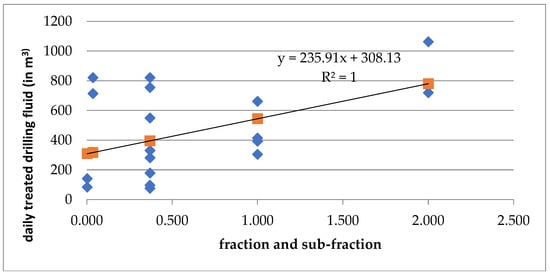

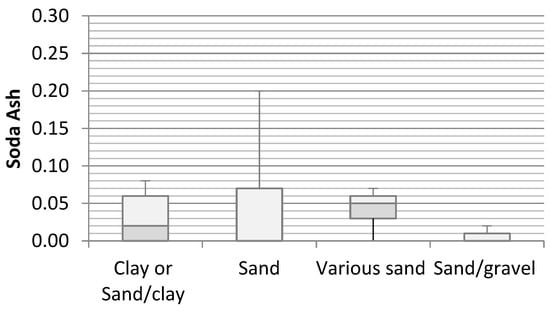

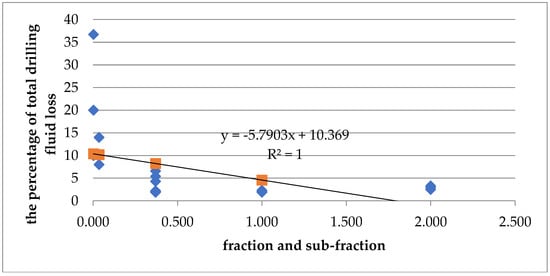

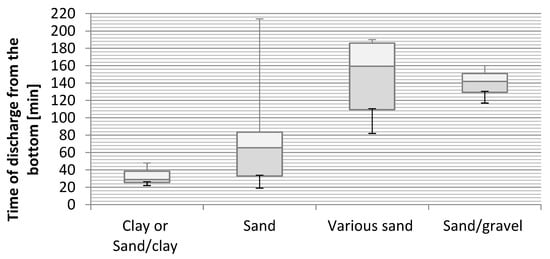

5. Discussion—Influence of Soil Substrate on the Loss of Drilling Fluid
Conflicts of Interest
Explanations and Future Research
References and Notes
