A Prediction Method for Height of Water Flowing Fractured Zone Based on Sparrow Search Algorithm–Elman Neural Network in Northwest Mining Area
Abstract
:1. Introduction

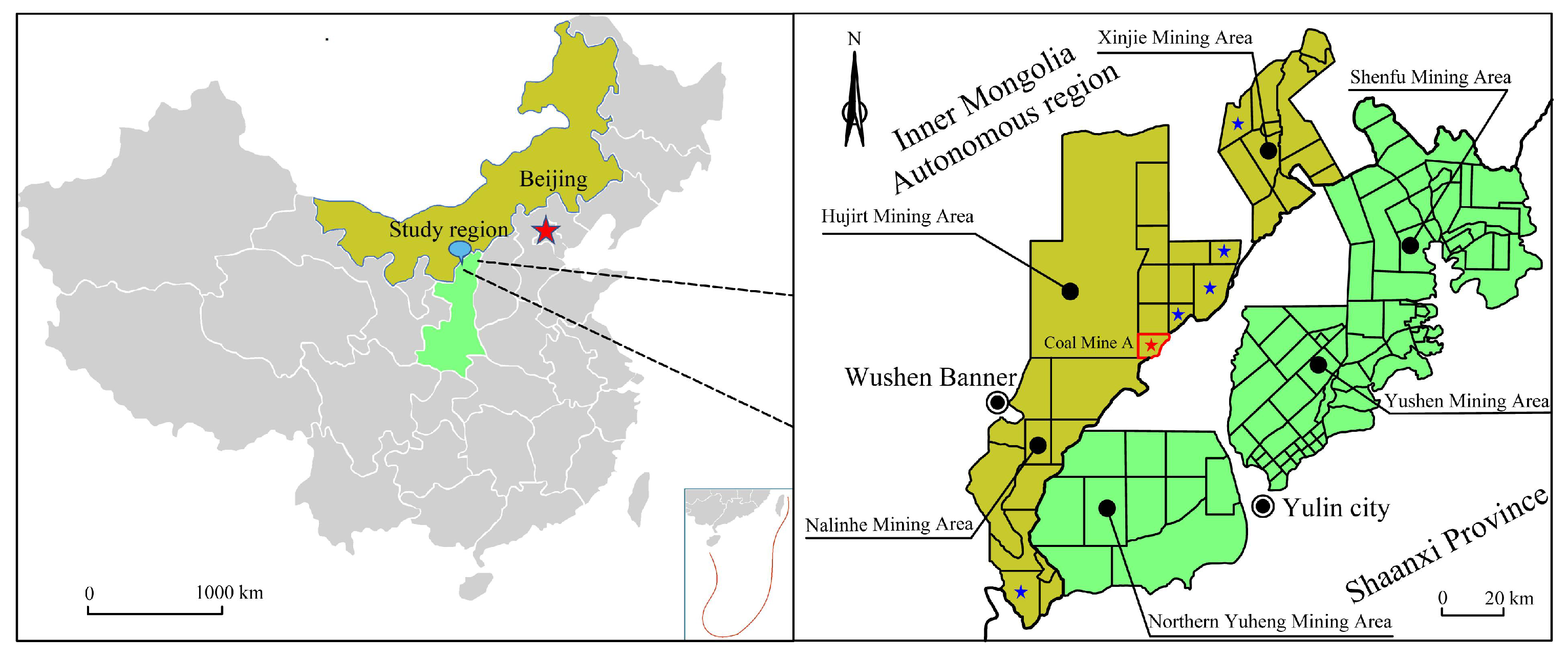

2. Geological Setting
3. Influencing Factors and Data Preprocessing
3.1. Selection of Influencing Factors
- 1.
- Mining method (Im);
- 2.
- The ratio of the thickness of hard rock layers and soft rock layers in the bedrock (Ir);
- 3.
- Buried depth (Id);
- 4.
- Mining height (Ih);
- 5.
- Working face length (Il).
3.2. Data Preprocessing

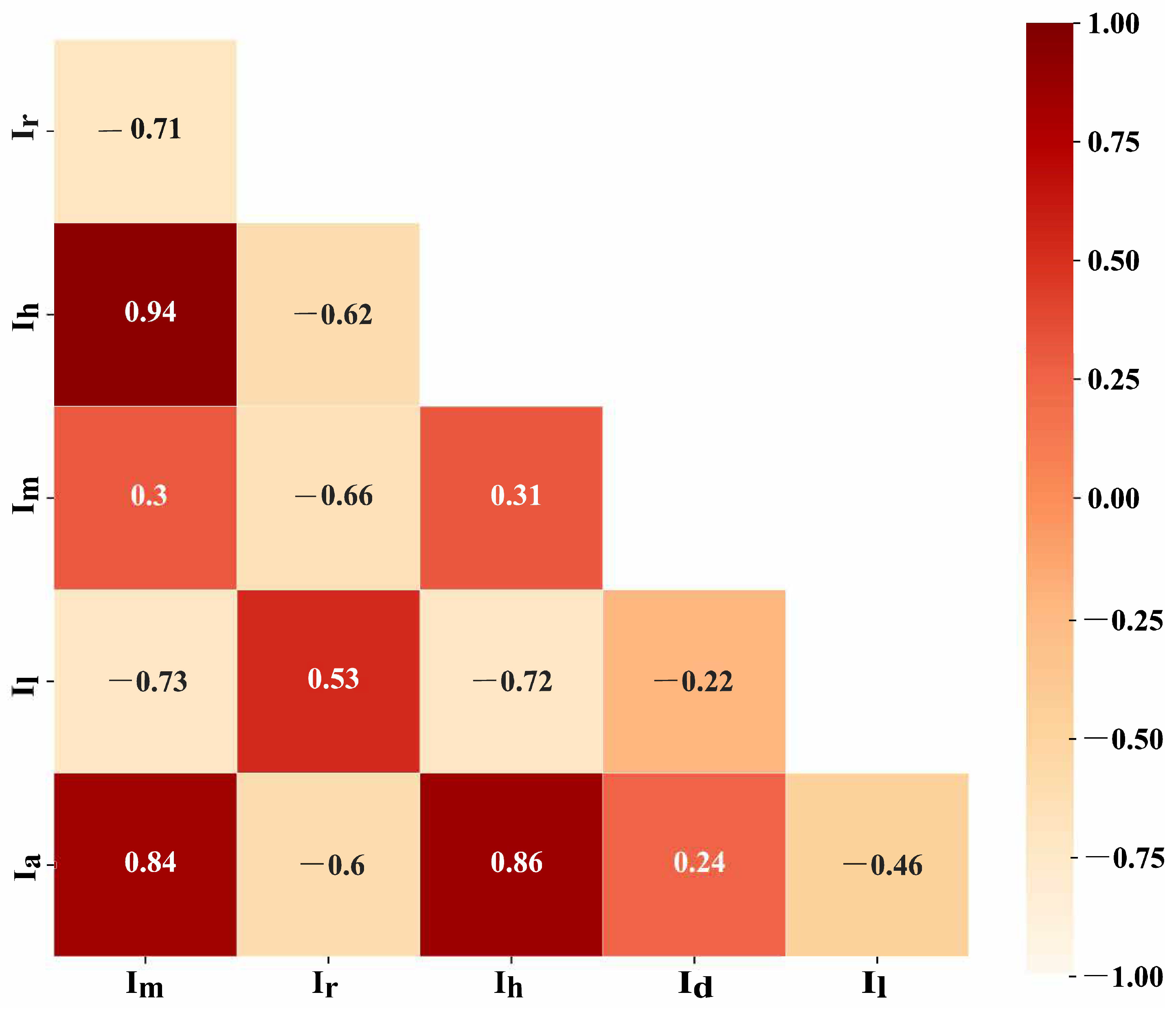

3.3. Correlations among Input Features and Output
4. SSA-ELMAN Neural Network Model

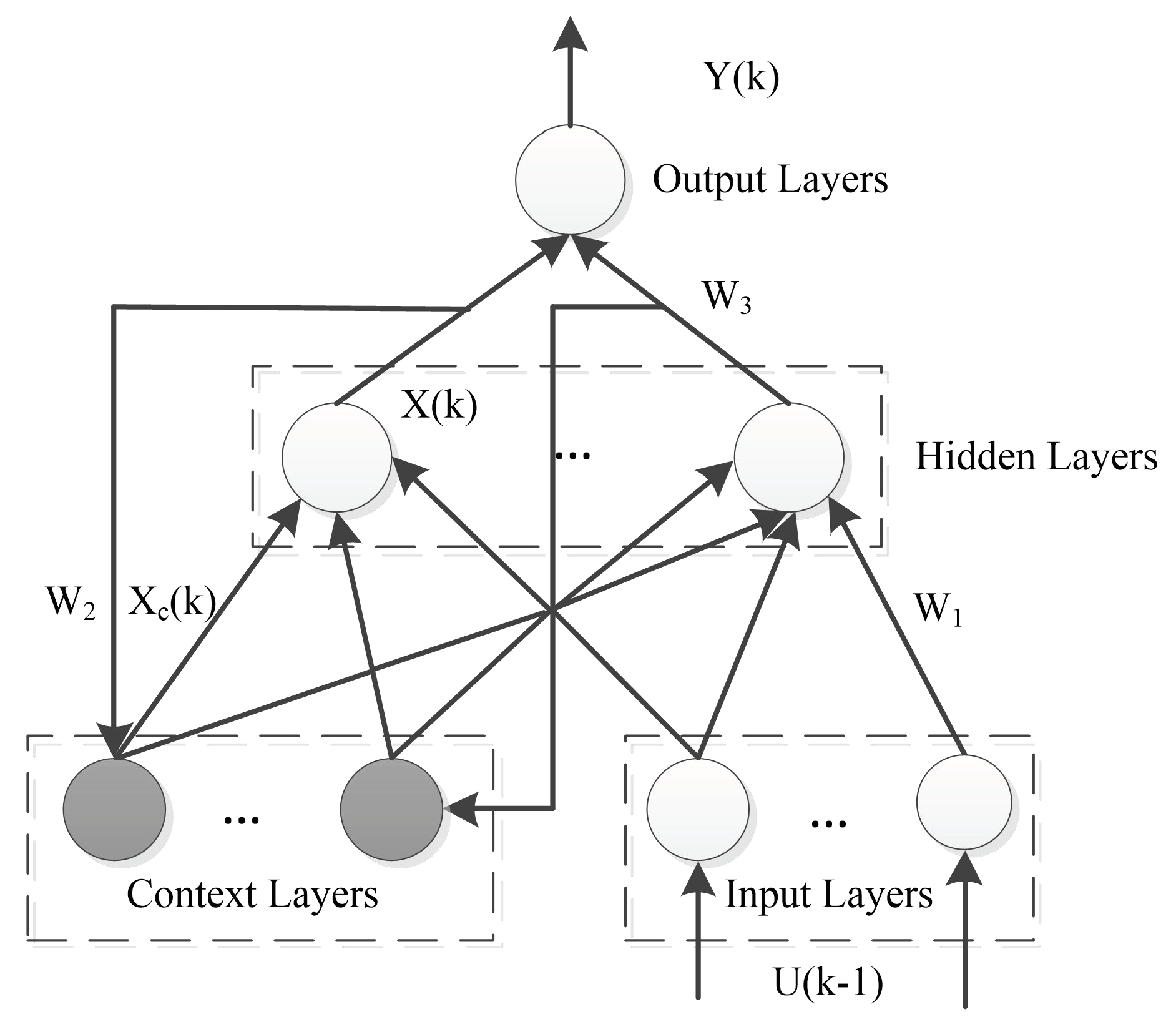

4.1. Elman Neural Network
4.2. Sparrow Search Algorithm
- 1.
- Producers;
- 2.
- Scroungers;
- 3.
- Guards;

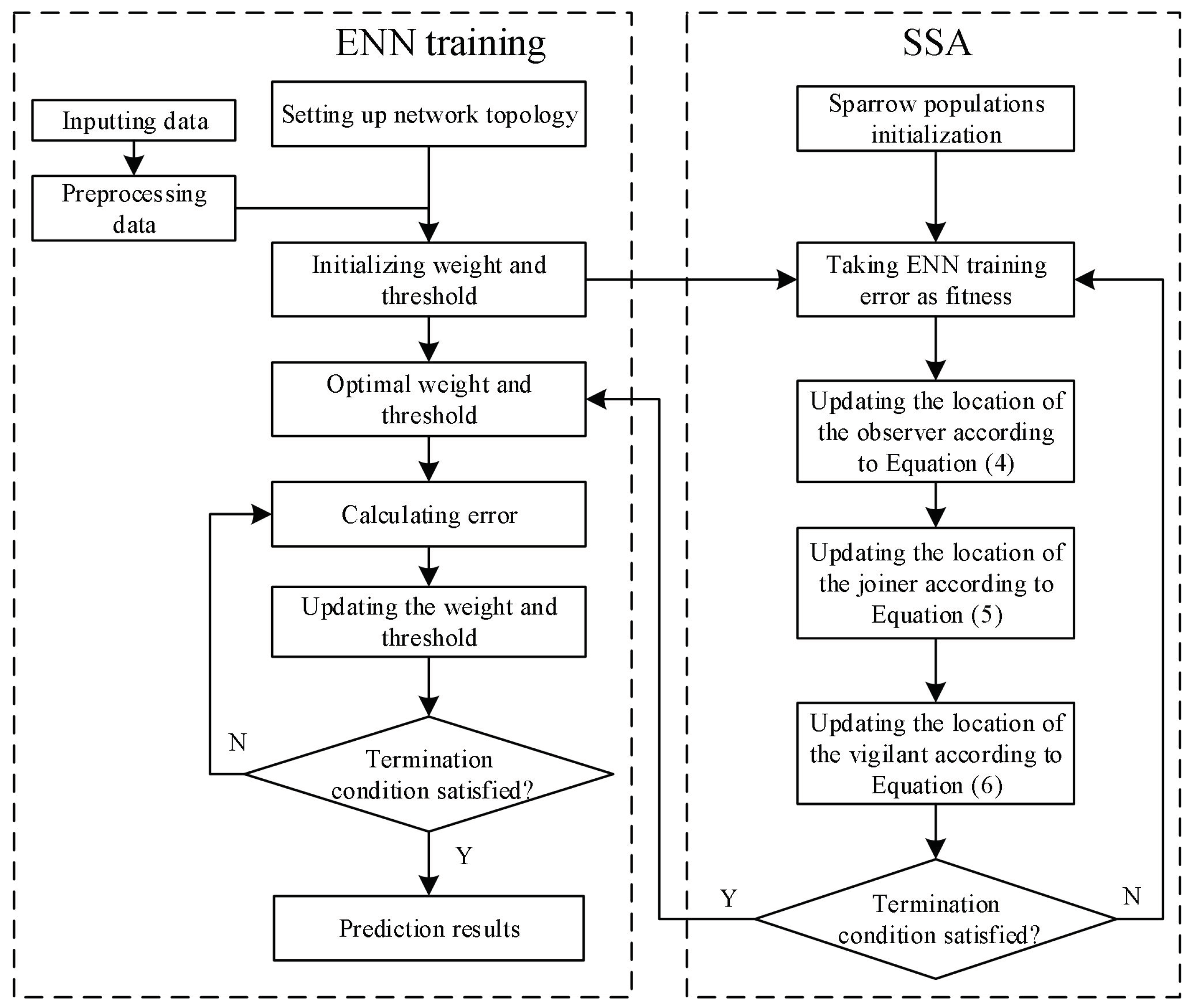

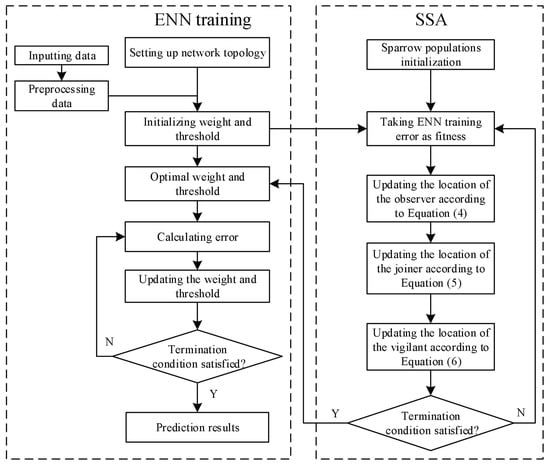

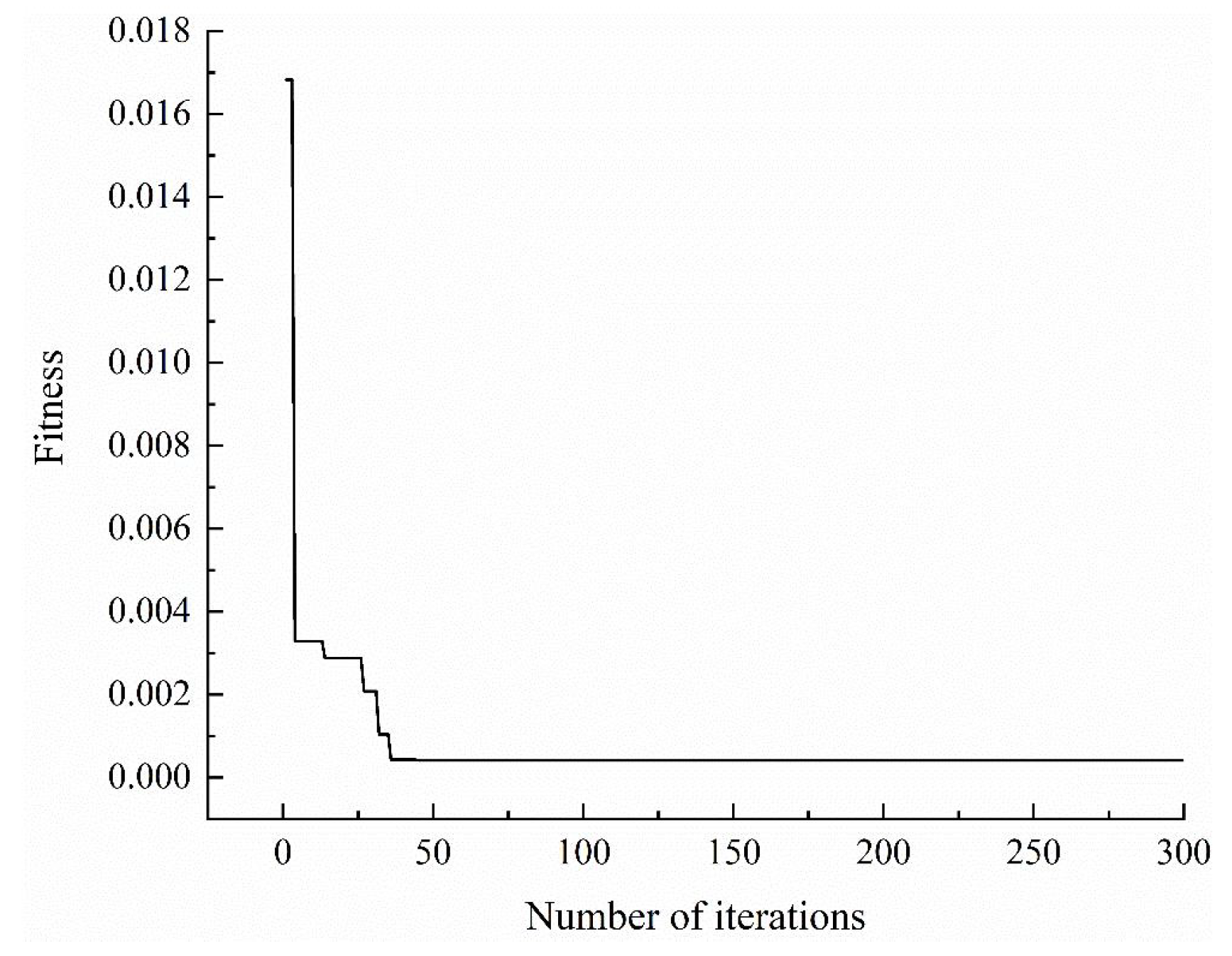

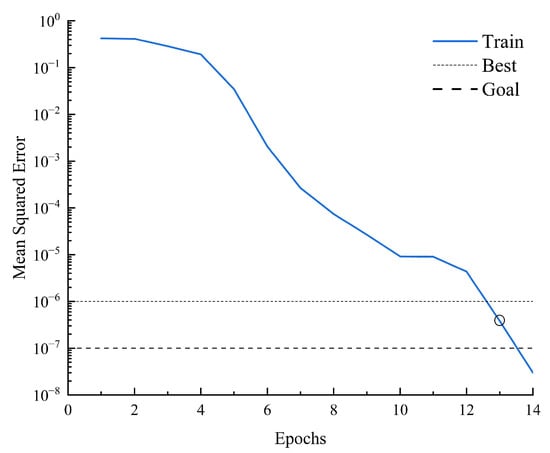

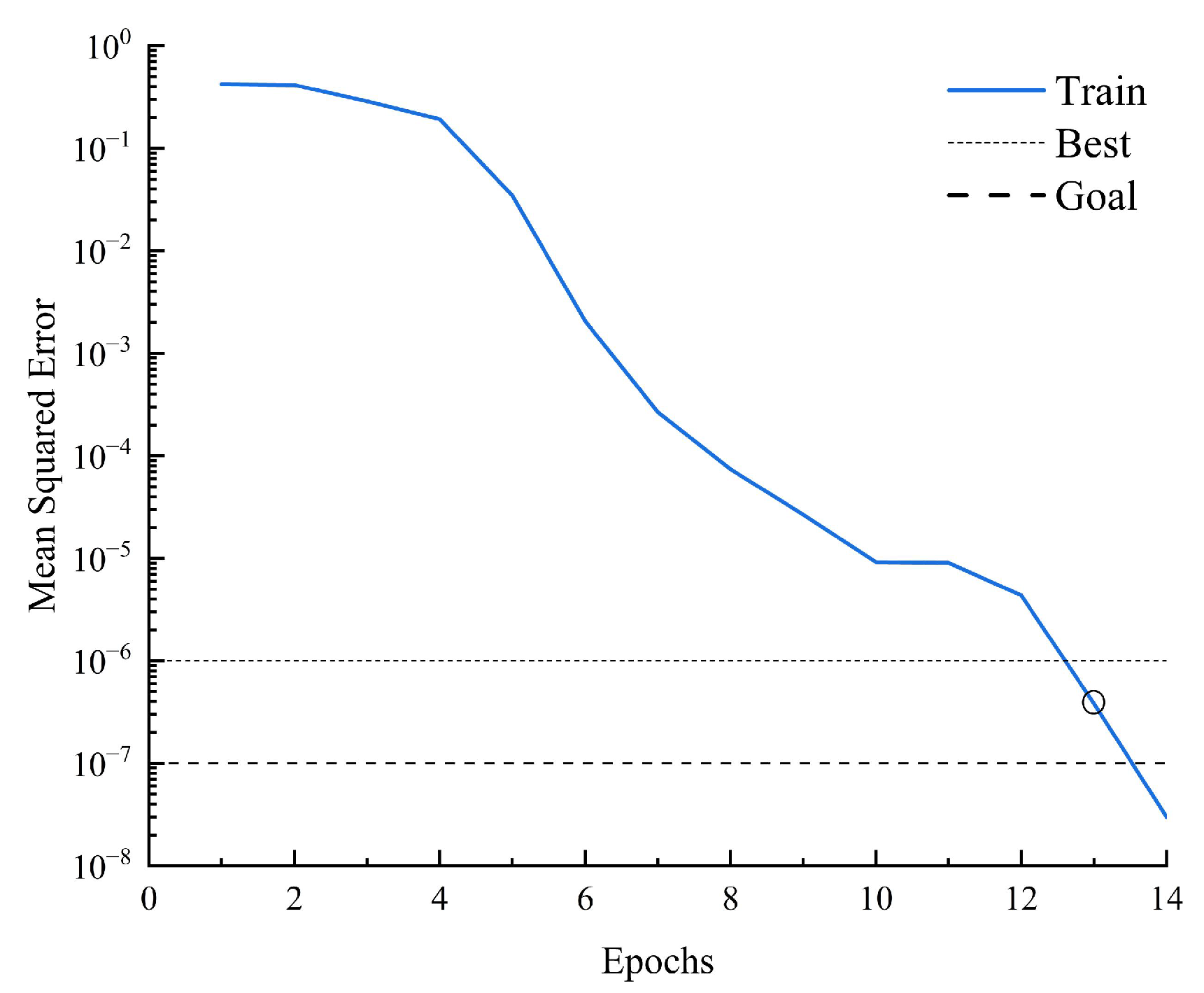

4.3. Construction of Prediction Model Based on SSA-Elman Neural Network
5. Verification of the Prediction Model for Height of WFFZ

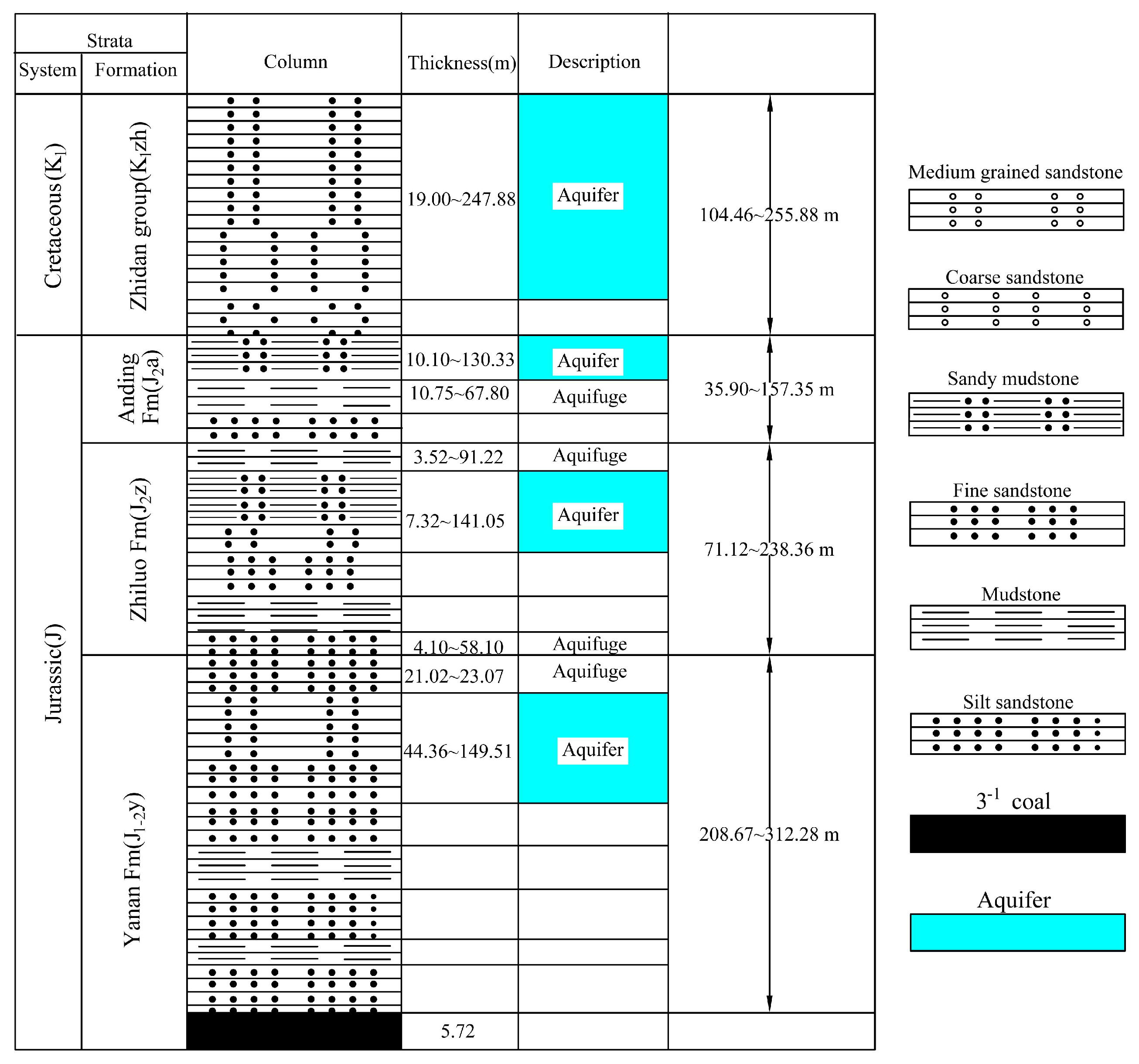

5.1. Engineering Background

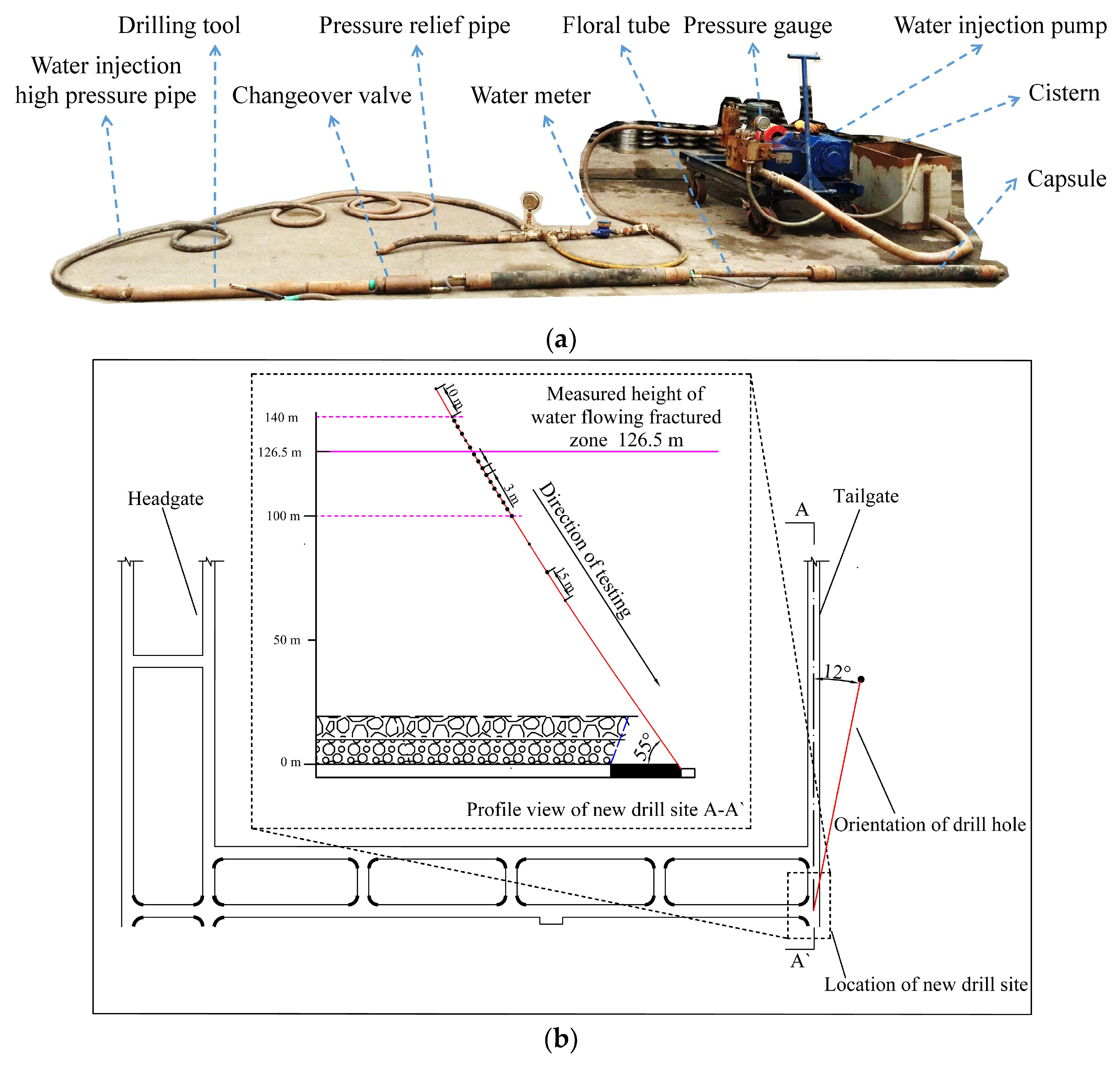

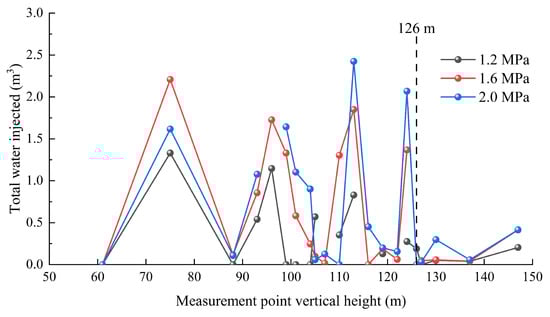

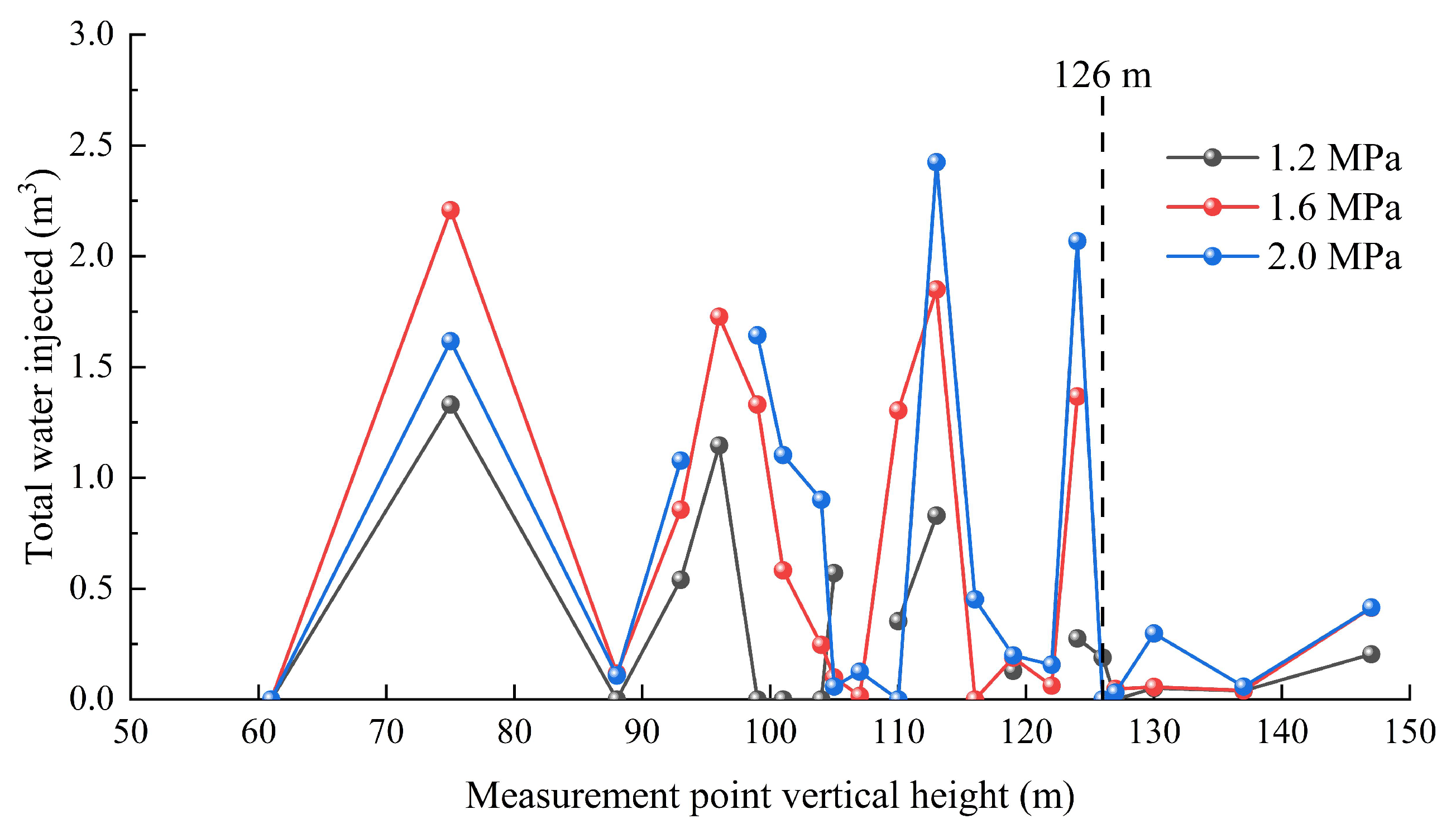

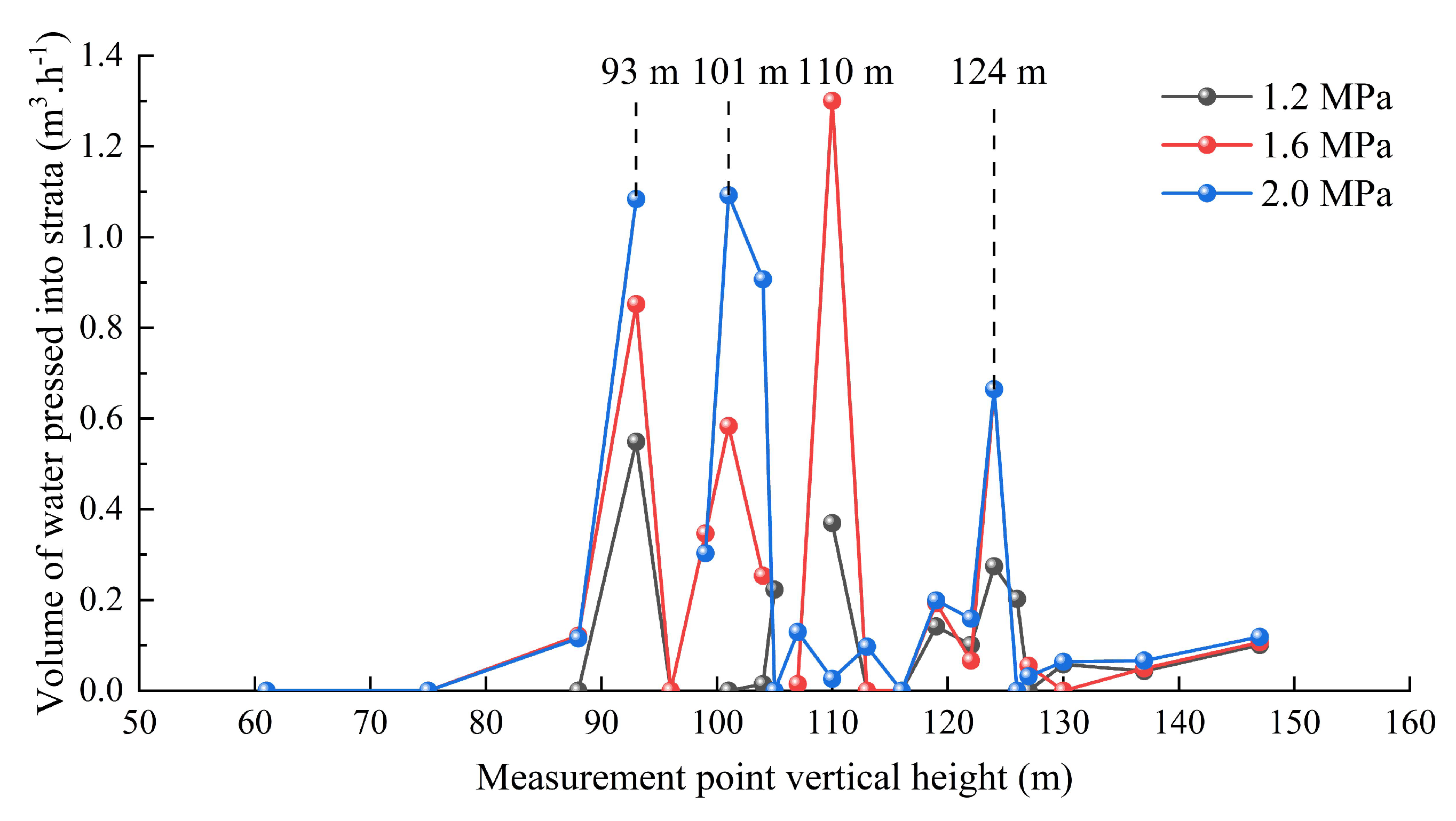

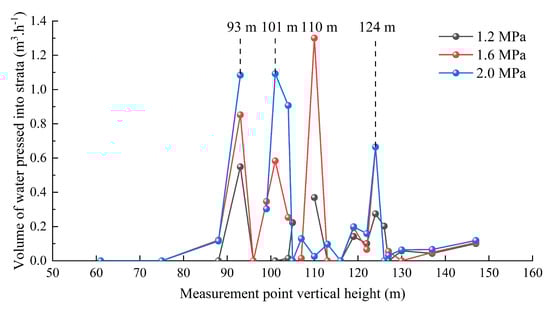

5.2. Field Measurements of Height of WFFZ

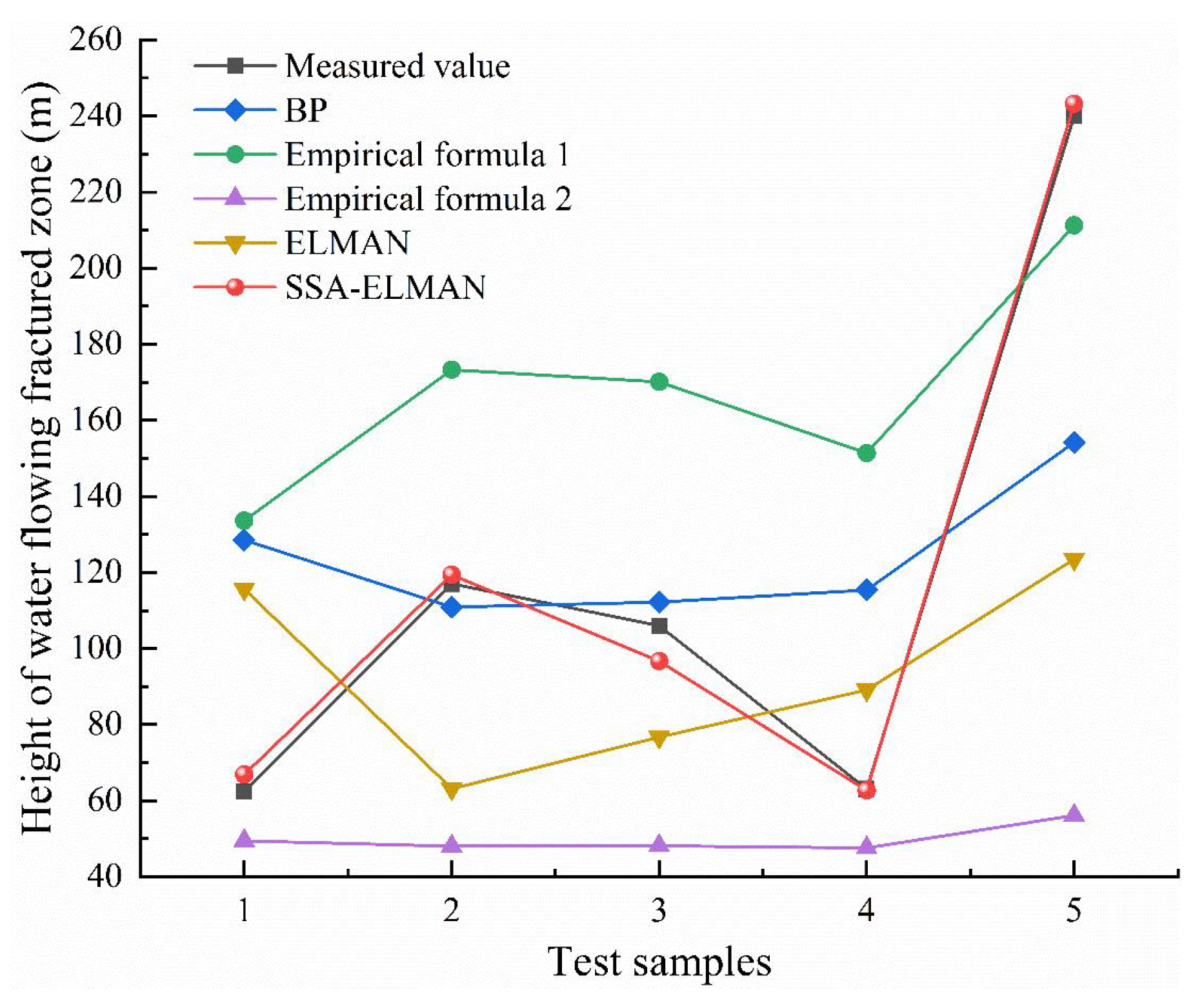

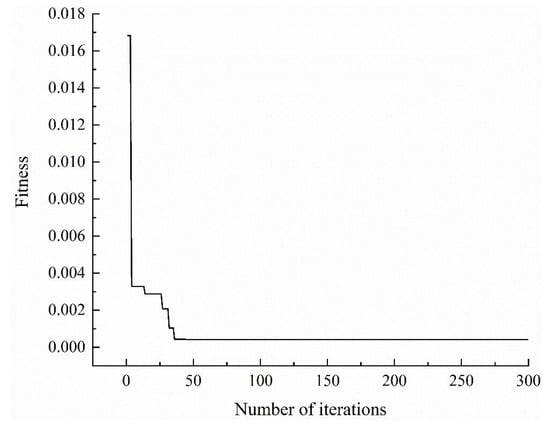

5.3. Model Verification

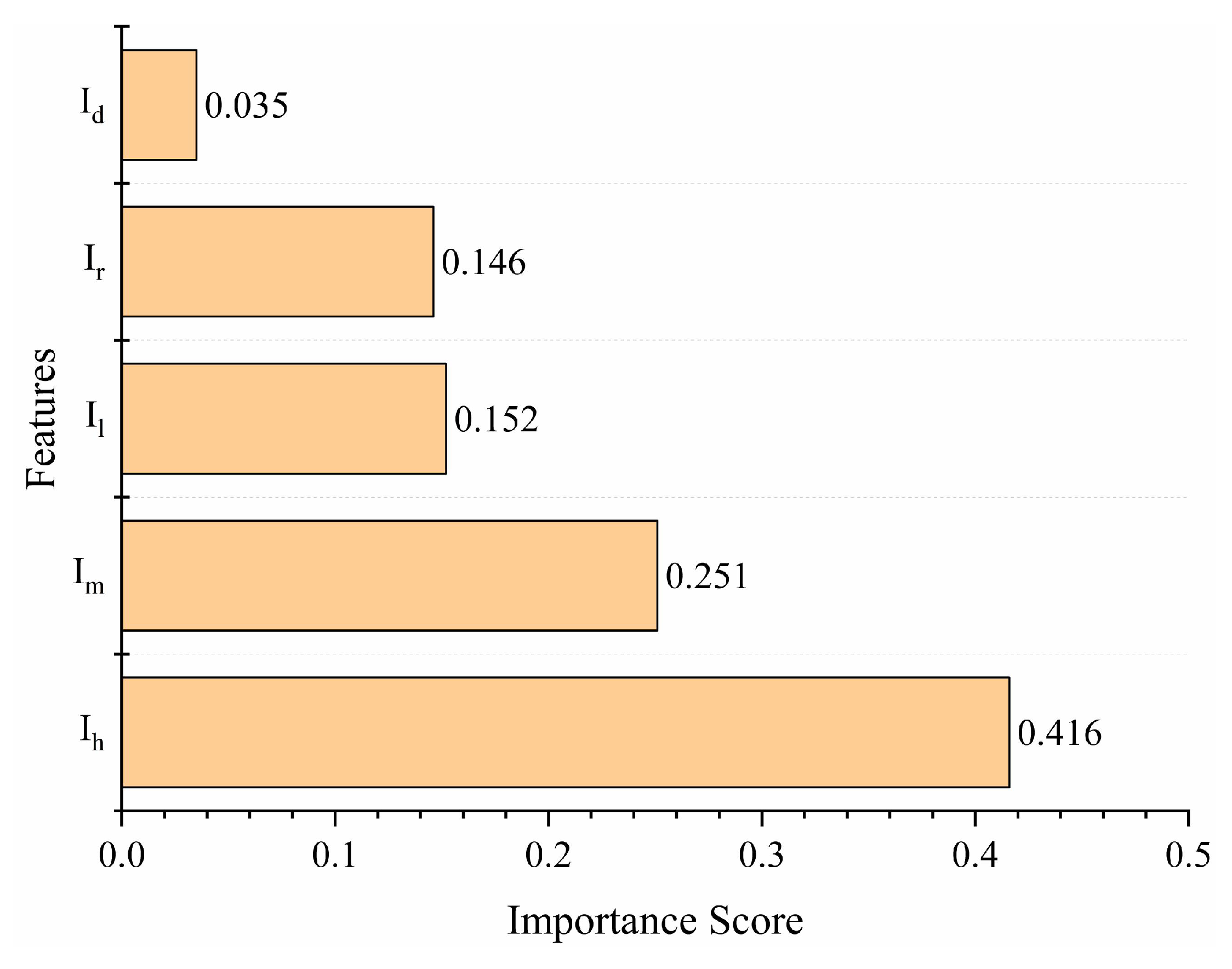

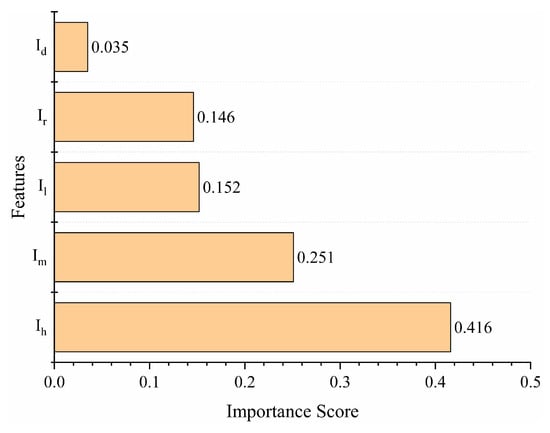

5.4. Feature Importance
6. Conclusions
- (1)
- The Jurassic coal seams in the Inner Mongolia-Shaanxi border area are middle-deep buried underground and have special overburden strata. We considered five factors (mining method, the ratio of the thickness of hard rock layers and soft rock layers in the bedrock, buried depth, mining height, and working face length) that influence the development of the height of the water-flowing fractured zone. In particular, the ratio of the thickness of the hard rock layers to the thickness of the soft rock layers in the bedrock was selected as a parameter to characterize an overburdened structure. The linear correlation between coal seam mining conditions and parameters and the height of WFFZ is analyzed by the Pearson correlation coefficient, which offers a foundation for developing a prediction model.
- (2)
- An SSA-Elman neural network water-flowing fractured zone height prediction model was established using the sparrow search algorithm to optimize the weights and thresholds of the original Elman neural network. This model can fit the nonlinear relationship between the development of the WFFZ and its influencing factors better in the Inner Mongolia-Shaanxi border area.
- (3)
- In response to the requirement for accurate water-transmission fissure heights in the middle and deep Jurassic coal seams, we used the MAE and RMSE to quantitatively evaluate the performances of the different models. The results show that the MAE and RMSE of the SSA-Elman neural network model in the evaluation stage are 3.93 and 4.93, respectively, which indicates that this model has the best prediction accuracy compared with traditional calculation methods and prediction models.
- (4)
- Using the mining conditions of panel 31110X of Coal Mine A as an engineering example, we obtained a prediction value of 124.9 m using the SSA-Elman neural network model. This has the smallest error of the prediction models compared with the measured value of 126 m, demonstrating that the SSA-Elman neural network model developed in the study is more accurate in predicting the height of the water flowing fractured zone and more closely represents the real situation. Thus, it can provide guidance regarding the water inflow from a mining face and the use of advanced water discharge techniques in the Inner Mongolia-Shaanxi border area.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Wang, S.; Shen, Y.; Sun, Q.; Hou, E. Scientific issues of coal detraction mining geological assurance and their technology expectations in ecologically fragile mining areas of Western China. J. Min. Strat. Control. Eng. 2020, 2, 5–19. [Google Scholar] [CrossRef]
- Qian, M.; Miao, X.; Xu, J. Theoretical study of key stratum in ground controls. J. China Coal Soc. 1996, 21, 225–230. [Google Scholar]
- Xu, J.; Zhu, W.; Wang, X. New method to predict the height of fractured water-conducting zone by location of key strata. J. China Coal Soc. 2012, 37, 762–769. [Google Scholar] [CrossRef]
- Huang, Q.; Han, J. Study on fracture evolution mechanism of shallow-buried close coal seam mining. J. Min. Saf. Eng. 2019, 36, 706–711. [Google Scholar] [CrossRef]
- Zhang, D.; Li, W.; Lai, X.; Fan, G.; Liu, W. Development on basic theory of water protection during coal mining in northwest of China. J. China Coal Soc. 2017, 42, 36–43. [Google Scholar] [CrossRef]
- Li, Z.; Xu, Y.; Li, L.; Zhai, C. Forecast of the height of water flowing fractured zone based on BP neural networks. J. Min. Saf. Eng. 2015, 32, 905–910. [Google Scholar] [CrossRef]
- Xie, X.; Li, X.; Shang, X.; Weng, L.; Deng, Q. Prediction of height of water flowing fractured zone based on PCA-BP neural networks Mode. China Saf. Sci. J. 2017, 27, 100–105. [Google Scholar] [CrossRef]
- Chai, H.; Zhang, J.; Yan, C. Prediction of height of water-conducting fracture zone in mining overburden based on GA-SVR. J. Min. Saf. Eng. 2018, 35, 359–365. [Google Scholar] [CrossRef]
- Mao, Z.; Lai, W.; Huang, C. Prediction of height of water flowing fractured zone based on APSO-LSSVM model. J. Liaoning Tech. Univ. Nat. Sci. 2020, 39, 34–40. [Google Scholar]
- Xue, J.; Wang, H.; Zhao, C.; Yang, J.; Zhou, Z.; Li, D. Prediction of the height of water-conducting fracture zone and water-filling model of roof aquifer in Jurassic coalfield in Ordos Basin. J. Min. Saf. Eng. 2020, 37, 1222–1230. [Google Scholar] [CrossRef]
- Yang, Q.; Wang, L.; Ma, H.; Yu, K.; Delgado Martin, J. Hydrochemical Characterization and Pollution Sources Identification of Groundwater in Salawusu Aquifer System of Ordos Basin. Environ. Pollut. 2016, 216, 340–349. [Google Scholar] [CrossRef]
- Fan, L.; Ma, X.; Li, Y.; Li, C.; Yao, C.; Xiang, M. Geological disasters and control technology in high intensity mining area of western China. J. China Coal Soc. 2017, 42, 276–285. [Google Scholar] [CrossRef]
- Dong, S.; Ji, Y.; Wang, H.; Zhao, B.; Cao, H.; Liu, Y.; Liu, Y.; Ji, Z.; Liu, B. Prevention and control technology and application of roof water disaster in Jurassic coal field of Ordos Basin. J. China Coal Soc. 2020, 45, 2367–2375. [Google Scholar] [CrossRef]
- Hou, E.; Wen, Q.; Ye, Z.; Chen, W.; Wei, J. Height Prediction of Water-Flowing Fracture Zone with a Genetic-Algorithm Support-Vector-Machine Method. Int. J. Coal Sci. Technol. 2020, 7, 740–751. [Google Scholar] [CrossRef]
- Pham, D.T.; Liu, X. Training of Elman Networks and Dynamic System Modelling. Int. J. Syst. Sci. 1996, 27, 221–226. [Google Scholar] [CrossRef]
- Wang, J.; Zhang, W.; Li, Y.; Wang, J.; Dang, Z. Forecasting Wind Speed Using Empirical Mode Decomposition and Elman Neural Network. Appl. Soft. Comput. 2014, 23, 452–459. [Google Scholar] [CrossRef]
- Ruiz, L.G.B.; Rueda, R.; Cuellar, M.P.; Pegalajar, M.C. Energy Consumption Forecasting Based on Elman Neural Networks with Evolutive Optimization. Expert. Syst. Appl. 2018, 92, 380–389. [Google Scholar] [CrossRef]
- Ren, G.; Cao, Y.; Wen, S.; Huang, T.; Zeng, Z. A Modified Elman Neural Network with a New Learning Rate Scheme. Neurocomputing 2018, 286, 11–18. [Google Scholar] [CrossRef]
- Xue, J.; Shen, B. A Novel Swarm Intelligence Optimization Approach: Sparrow Search Algorithm. Syst. Sci. Control. Eng. 2020, 8, 22–34. [Google Scholar] [CrossRef]
- Tuerxun, W.; Chang, X.; Hongyu, G.; Zhijie, J.; Huajian, Z. Fault Diagnosis of Wind Turbines Based on a Support Vector Machine Optimized by the Sparrow Search Algorithm. IEEE Access 2021, 9, 69307–69315. [Google Scholar] [CrossRef]
- Zhou, J.; Wang, S. A Carbon Price Prediction Model Based on the Secondary Decomposition Algorithm and Influencing Factors. Energies 2021, 14, 1328. [Google Scholar] [CrossRef]
- Zhou, J.; Chen, D. Carbon Price Forecasting Based on Improved CEEMDAN and Extreme Learning Machine Optimized by Sparrow Search Algorithm. Sustainability 2021, 13, 4896. [Google Scholar] [CrossRef]
- Li, G.; Hu, T.; Bai, D. BP Neural Network Improved by Sparrow Search Algorithm in Predicting Debonding Strain of FRP-Strengthened RC Beams. Adv. Civ. Eng. 2021, 2021, 9979028. [Google Scholar] [CrossRef]
- Cao, B.; Bai, G.; Li, H. Prediction of gas content based on PCA-GA-BP neural network. J. Saf. Sci. Technol. 2015, 11, 84–90. [Google Scholar] [CrossRef]
- Breiman, L. Random Forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef] [Green Version]
Panel | Measured Value | Normalized Value | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Im | Ir | Ih (m) | Id (m) | Il (m) | Ia (m) | Im | Ir | Ih | Id | Il | Ia | |
Hulusu 21102 | ZC 1 | 1.53 | 2.85 | 634.8 | 320 | 45.6 | 0 | 0.04 | 0.01 | 0.87 | 0.85 | 0.00 |
Hongqinghe 31101 | ZC | 2.82 | 6.5 | 669 | 240 | 106.1 | 0 | 0.65 | 0.51 | 0.95 | 0.56 | 0.30 |
Nalinhe mine #2 | ZC | 2.93 | 5.5 | 580 | 247 | 103.23 | 0 | 0.70 | 0.37 | 0.75 | 0.58 | 0.29 |
Hanglaiwan 30101 | ZC | 3.13 | 4.8 | 248 | 300 | 122.02 | 0 | 0.80 | 0.28 | 0.00 | 0.78 | 0.38 |
Tingnan mine 107 | ZF 2 | 1.45 | 9.9 | 650 | 116 | 165.83 | 1 | 0.00 | 0.97 | 0.91 | 0.10 | 0.60 |
Xiagou mine 2801 | ZF | 1.45 | 9.9 | 332 | 90 | 149 | 1 | 0.00 | 0.97 | 0.19 | 0.00 | 0.52 |
Caojiatan 122106 | ZC | 3.13 | 6.0 | 280 | 360 | 136.10 | 0 | 0.80 | 0.44 | 0.07 | 1.00 | 0.45 |
Huoshizui mine 8712 | ZF | 1.45 | 10 | 628.16 | 200 | 220 | 1 | 0.00 | 0.99 | 0.86 | 0.41 | 0.87 |
Dafosi 40106 | ZF | 1.45 | 9.1 | 450 | 180 | 245.51 | 1 | 0.00 | 0.86 | 0.45 | 0.33 | 1.00 |
Hujiahe 401101 | ZF | 1.45 | 10.1 | 644.52 | 180 | 225.43 | 1 | 0.00 | 1.00 | 0.89 | 0.33 | 0.90 |
Yushuwan 20104 | ZC | 3.13 | 5 | 280 | 255 | 138.40 | 0 | 0.80 | 0.31 | 0.07 | 0.61 | 0.46 |
Jinjitan 12−2, upper 101 | ZC | 3.13 | 5.0 | 260 | 300 | 120.25 | 0 | 0.80 | 0.31 | 0.03 | 0.78 | 0.37 |
Lingxin mine L331 | ZC | 3.56 | 2.75 | 250 | 280 | 57.35 | 0 | 1.00 | 0.00 | 0.00 | 0.70 | 0.06 |
Hongliu mine 1121 | ZC | 3.56 | 5.3 | 330 | 302 | 62.5 | 0 | 1.00 | 0.35 | 0.18 | 0.79 | 0.08 |
Menkeqing 11-3102 | ZC | 1.53 | 4.75 | 692 | 300 | 117 | 0 | 0.04 | 0.27 | 1.00 | 0.78 | 0.36 |
Muduchaideng mine, coal seam 3-1 | ZC | 1.53 | 4.8 | 685 | 250 | 106 | 0 | 0.04 | 0.28 | 0.98 | 0.59 | 0.30 |
Jinfeng mine 011802 | ZC | 3.56 | 4.6 | 500 | 280 | 63.12 | 0 | 1.00 | 0.25 | 0.57 | 0.70 | 0.09 |
Shilawusu mine 221, upper 06A | ZF | 1.53 | 9.5 | 660 | 300 | 240 | 1 | 0.04 | 0.92 | 0.93 | 0.78 | 0.97 |
Model | MAE | RMSE | |
---|---|---|---|
SSA-ELMAN | 3.93 | 4.93 | |
ELMAN | 55.75 | 64.54 | |
BP | 43.29 | 53.92 | |
Empirical Equation (1) * | 61.70 | 64.72 | |
Empirical Equation (2) | 67.86 | 92.01 |
Model | Height of WFFZ (m) | Proportionality Coefficient | Absolute Error (m) | Relative Error (%) | |
---|---|---|---|---|---|
SSA-ELMAN | 124.9 | 23.51 | 1.1 | 0.87 | |
ELMAN | 168.9 | 31.87 | 42.9 | 34.05 | |
BP | 69.2 | 10.72 | 56.8 | 45.08 | |
Empirical Equation (1) | 166.8 | 31.47 | 40.8 | 32.38 | |
Empirical Equation (2) | 49.47 | 9.33 | 76.53 | 60.74 |
