A Three-Dimensional Design to Study the Shock Waves of Linear Cascade with Reduced Mass Flow Requirements

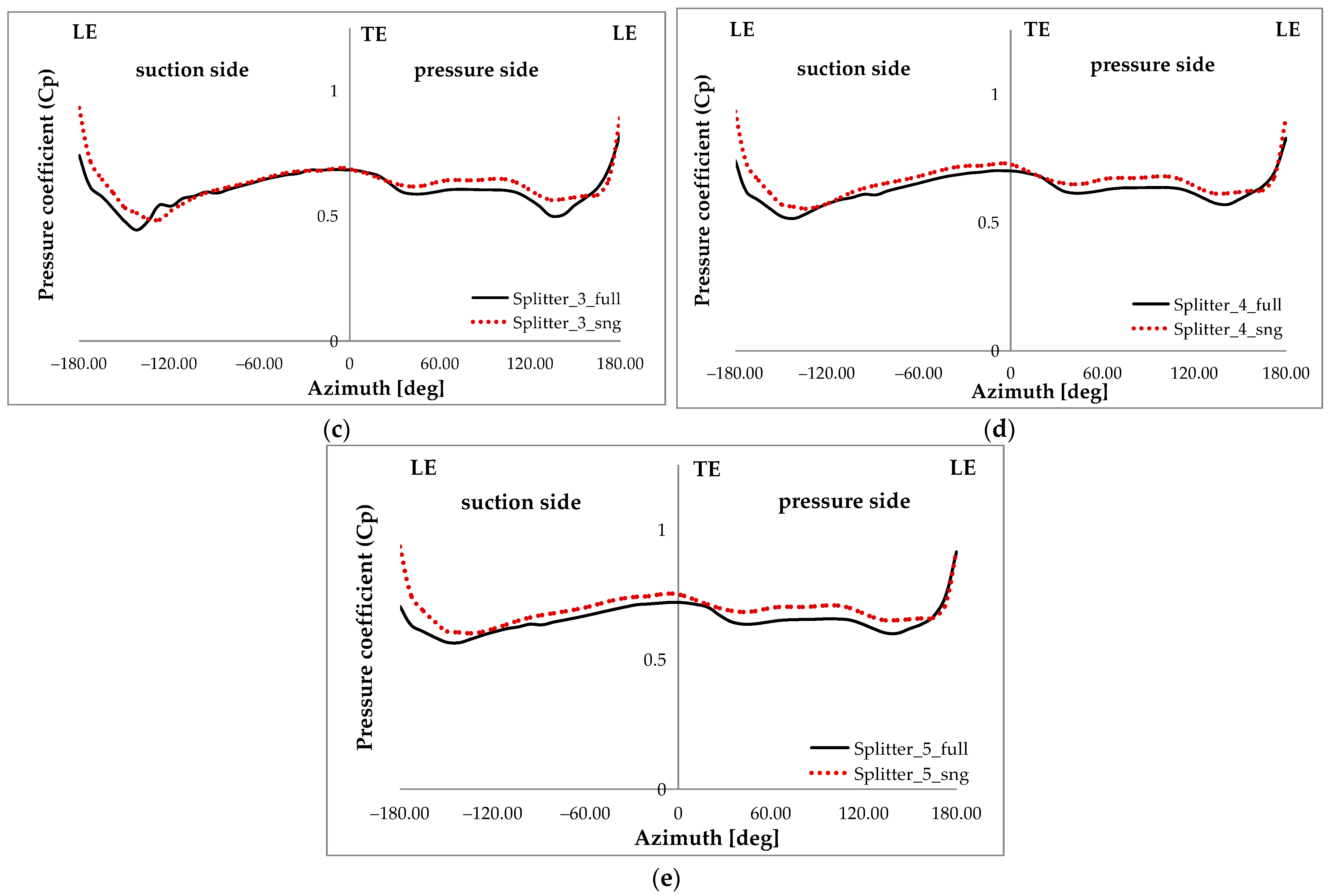

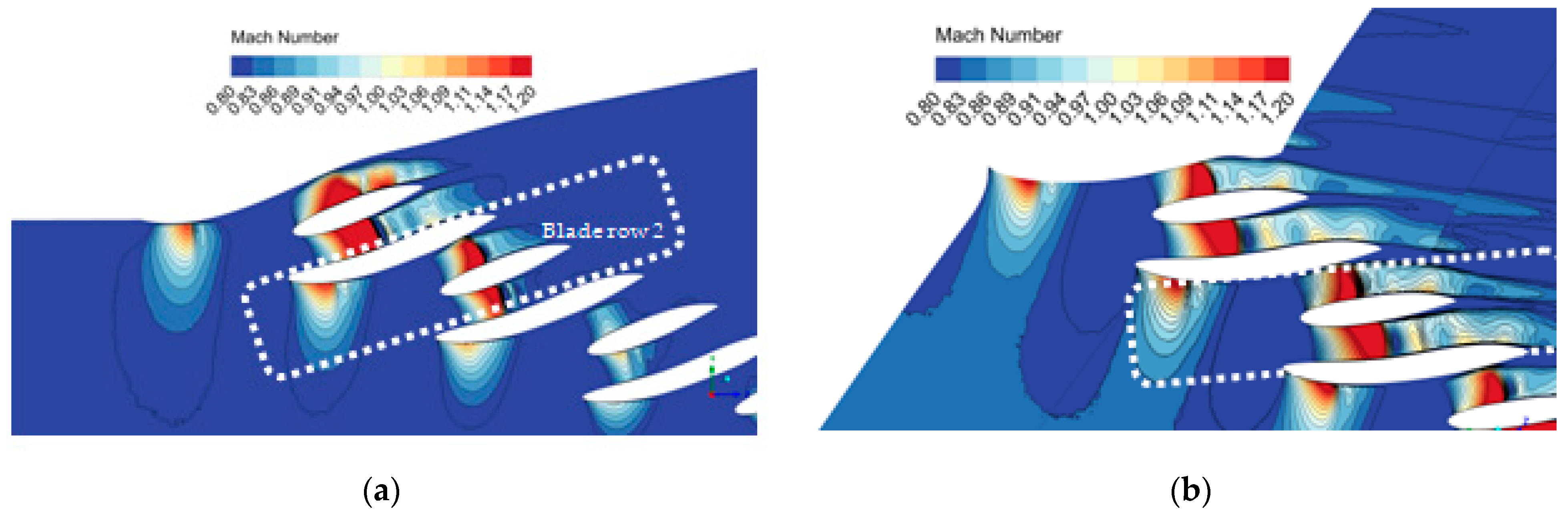

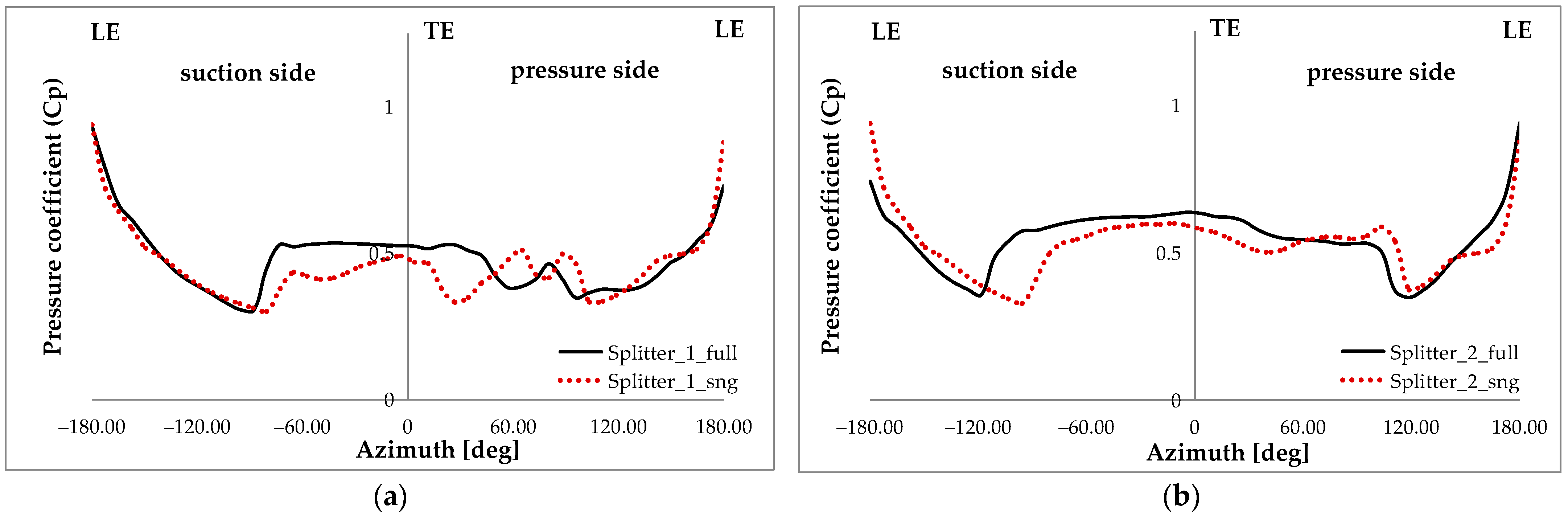

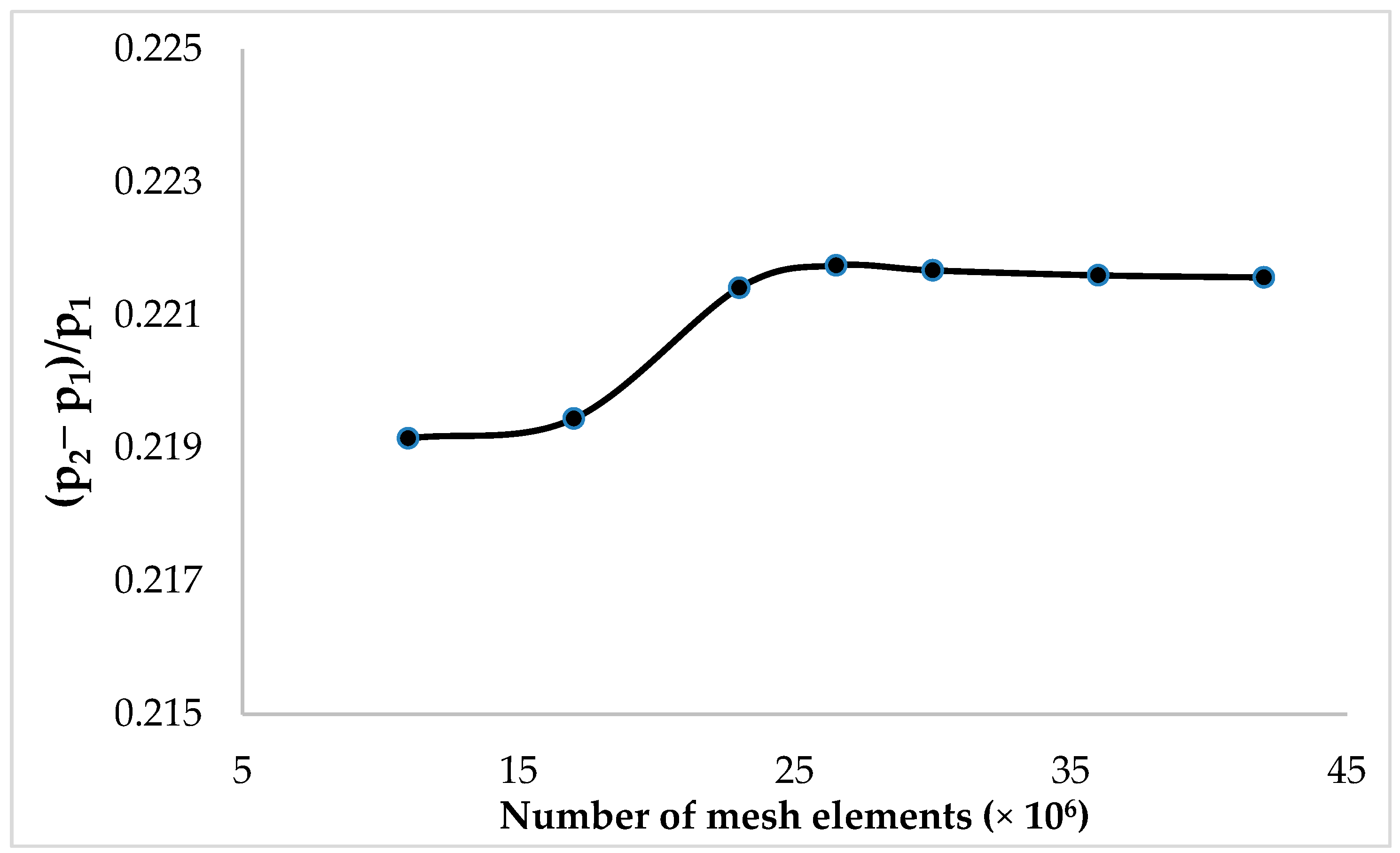

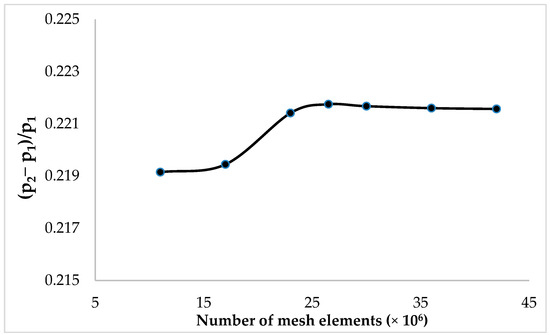

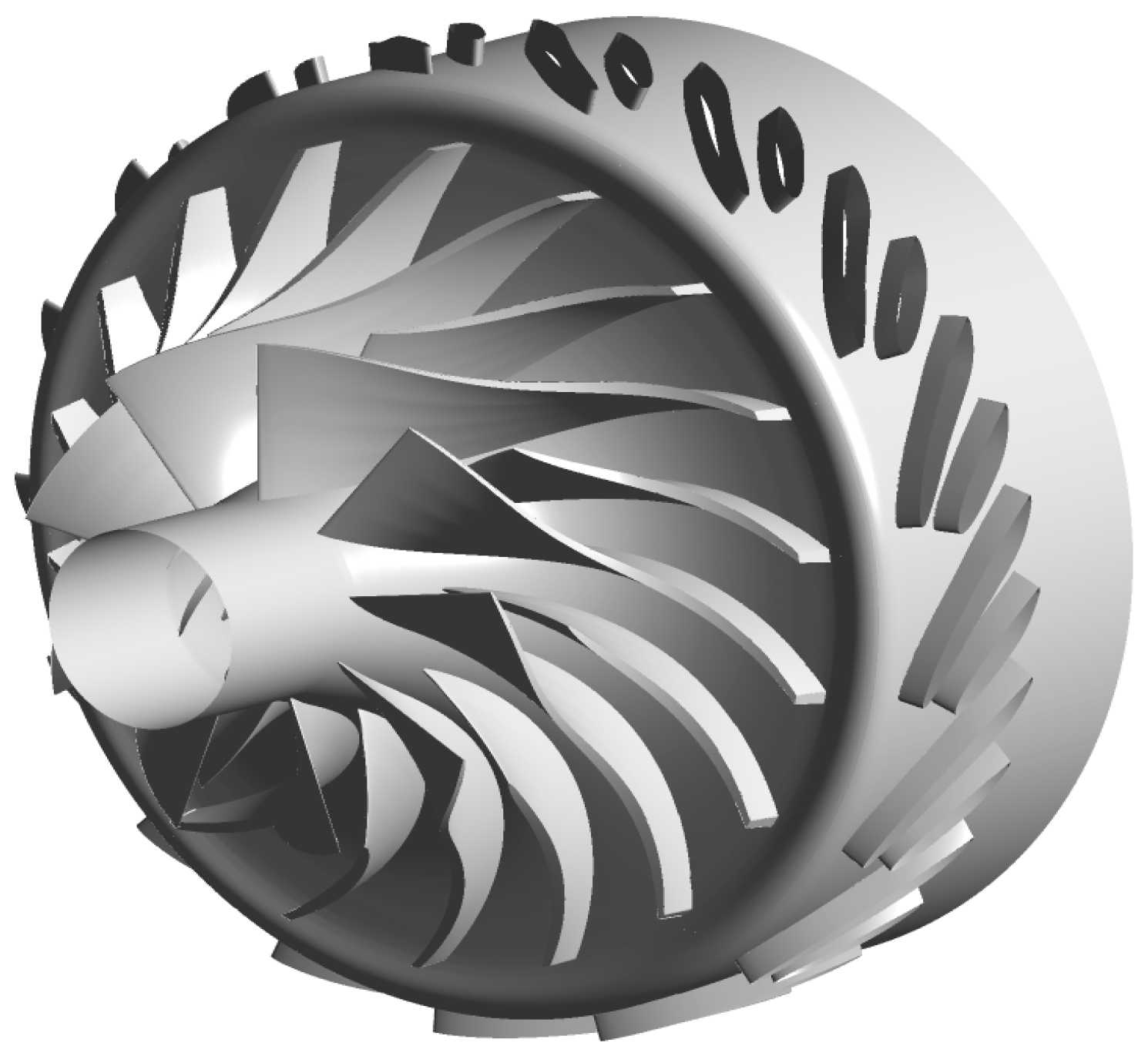

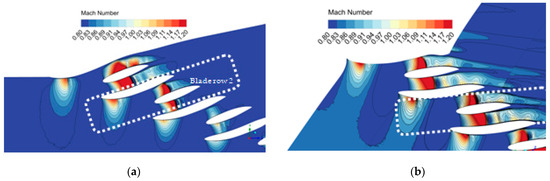

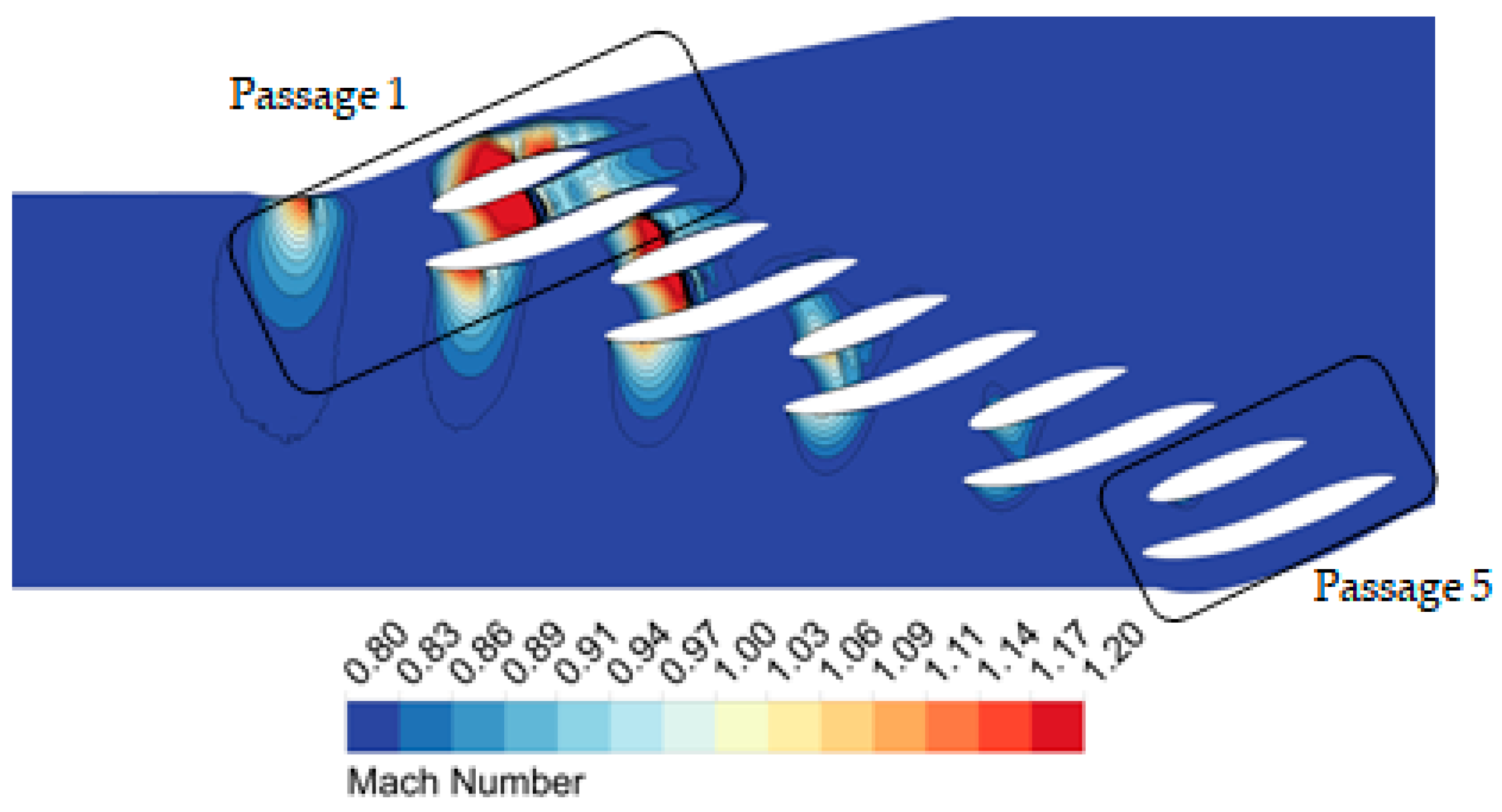

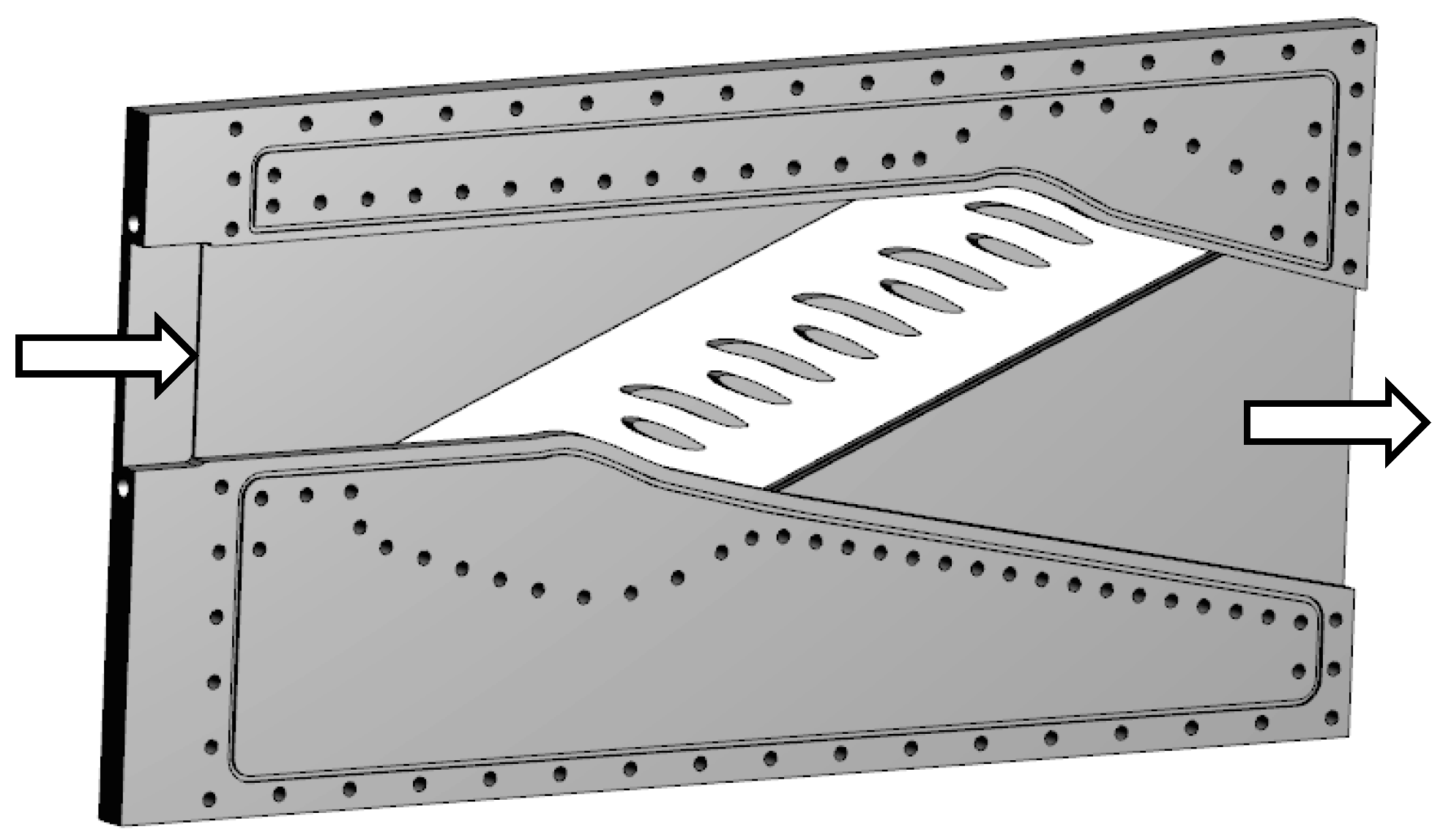

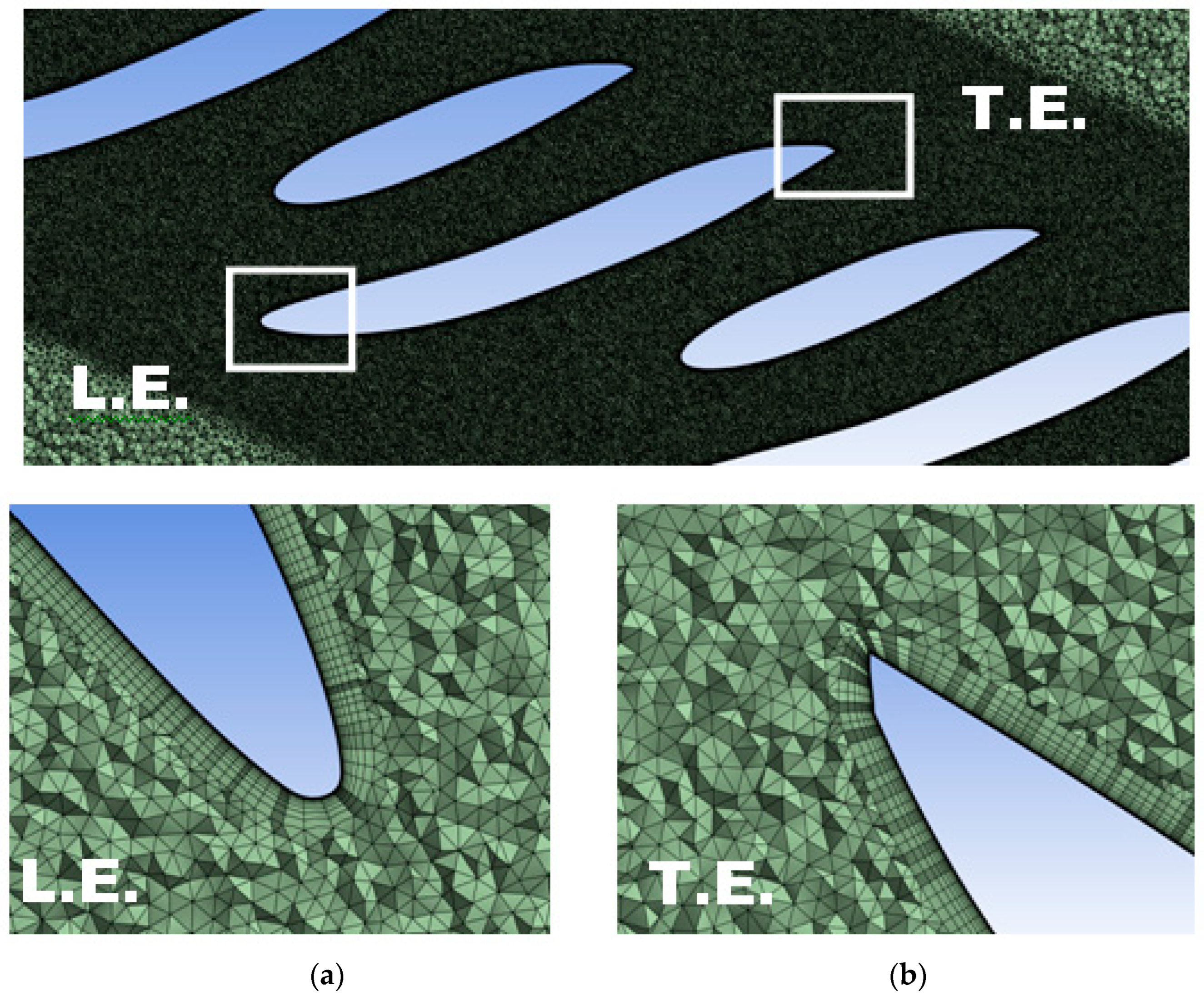

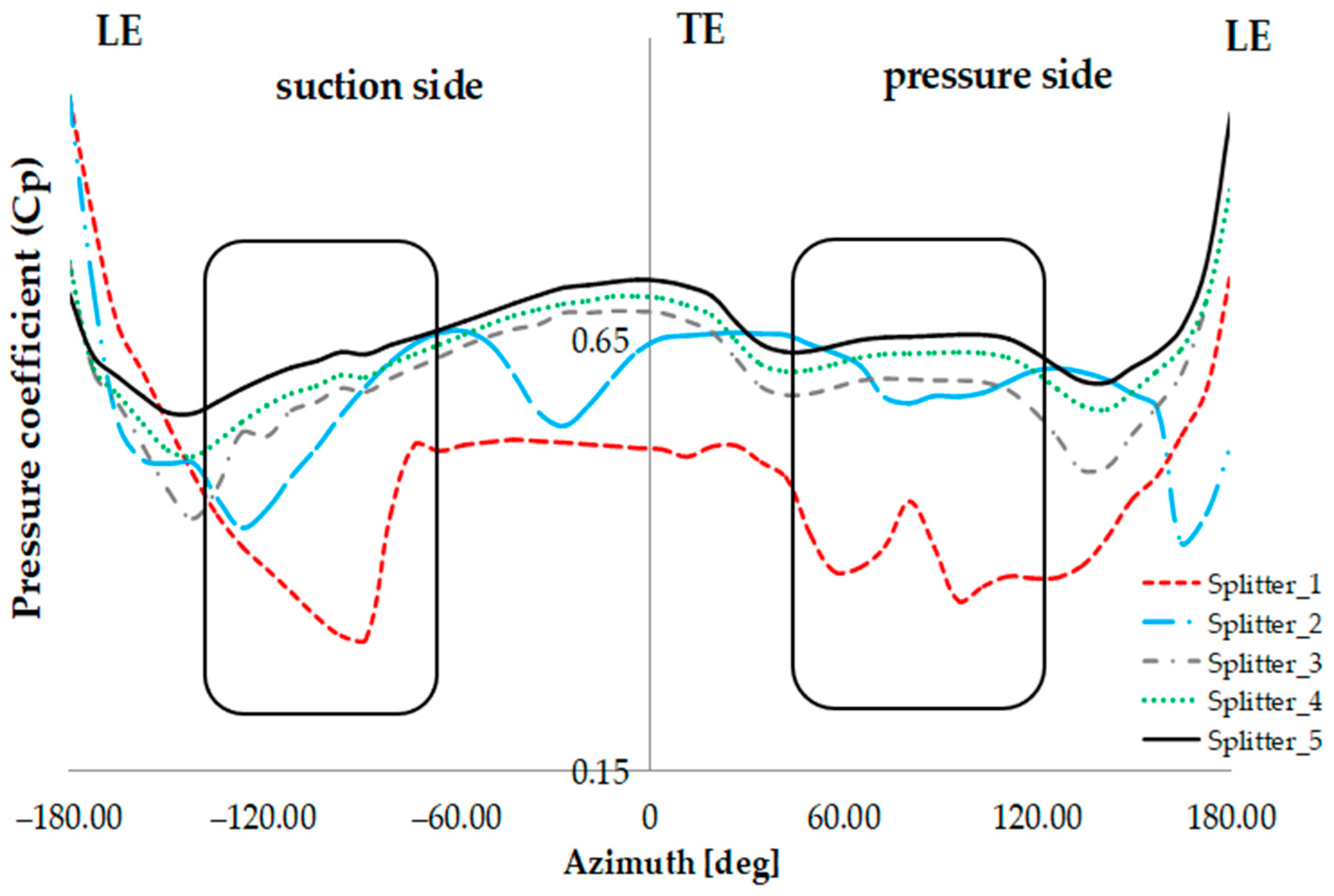

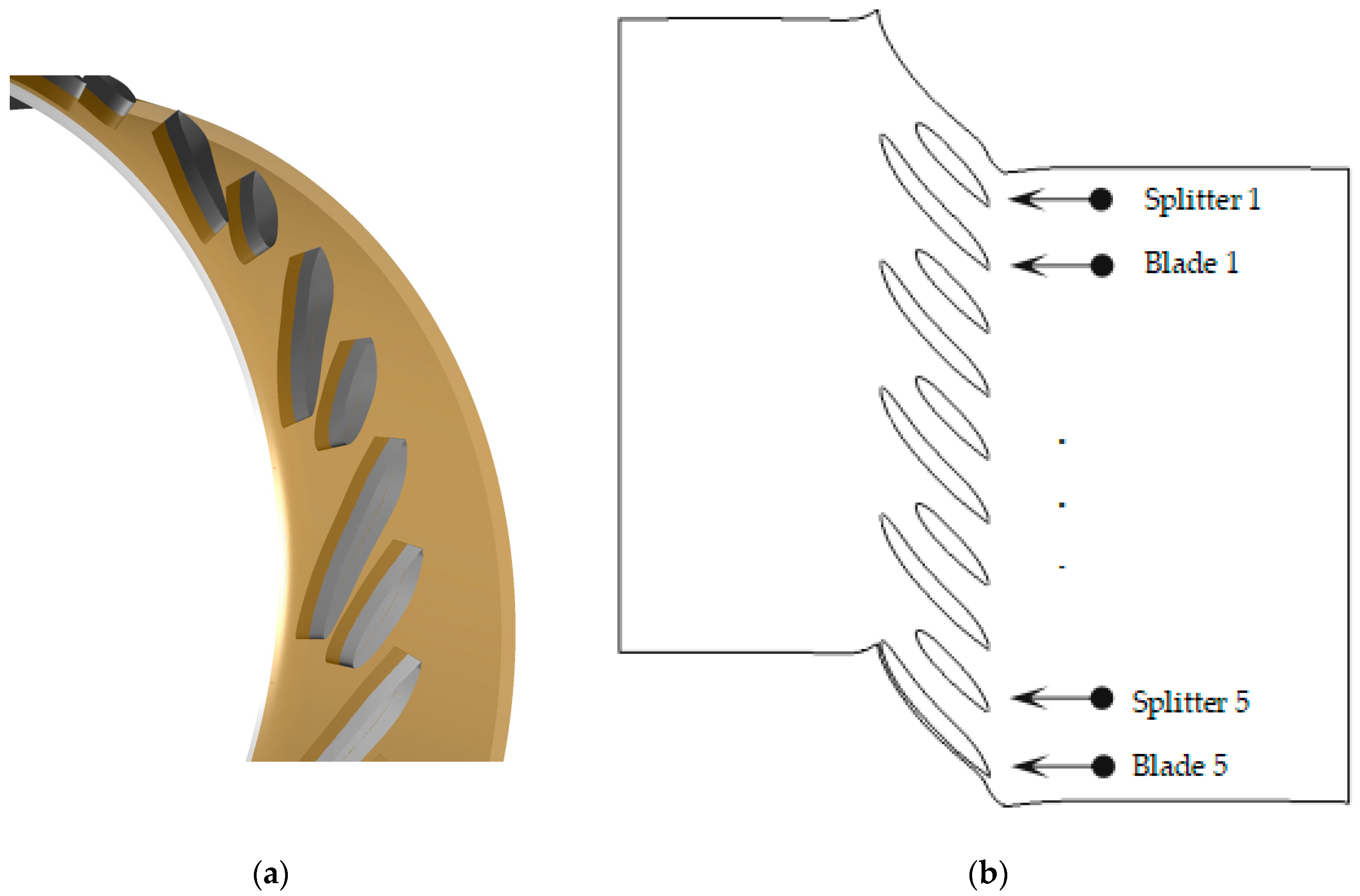

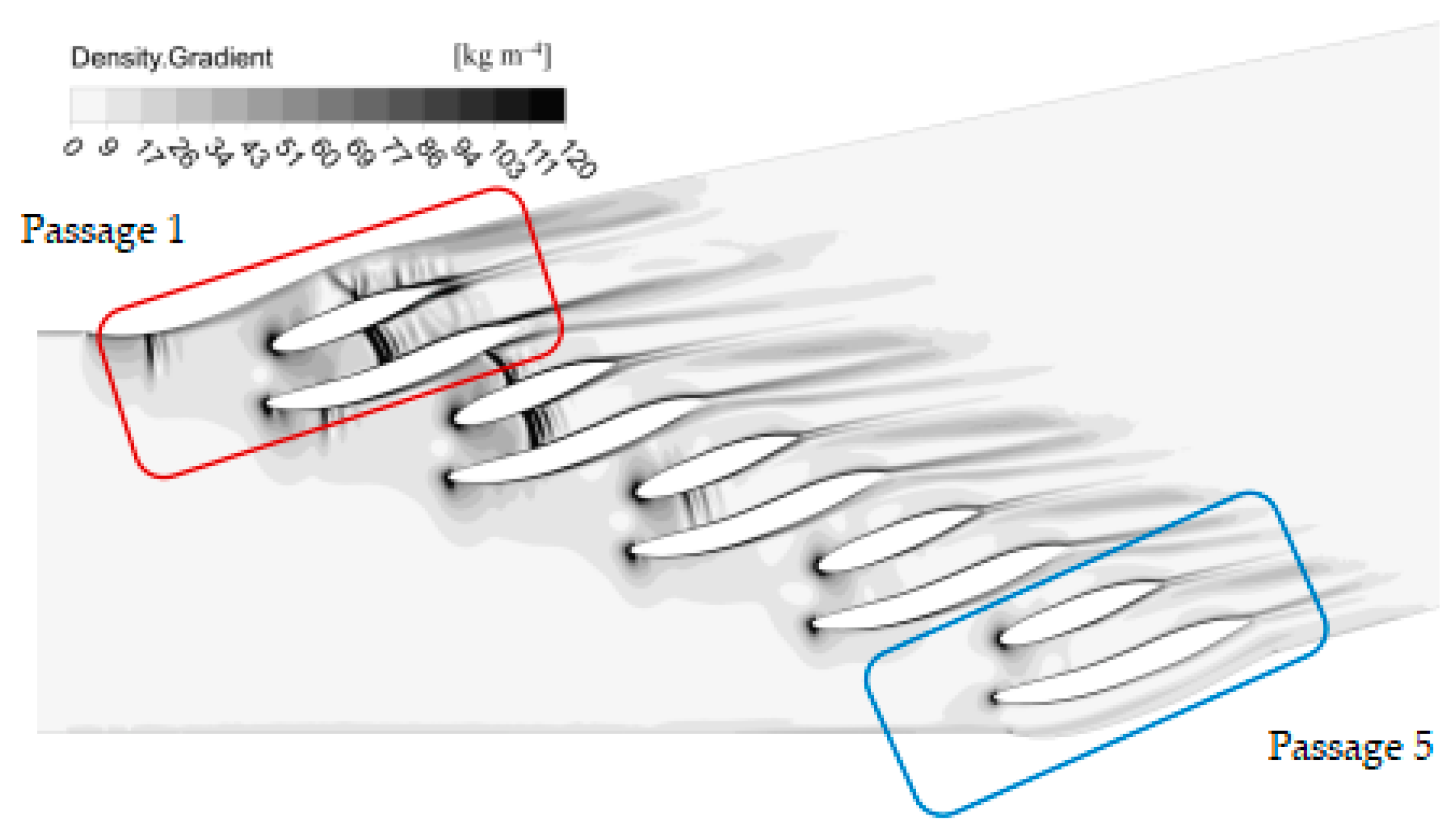

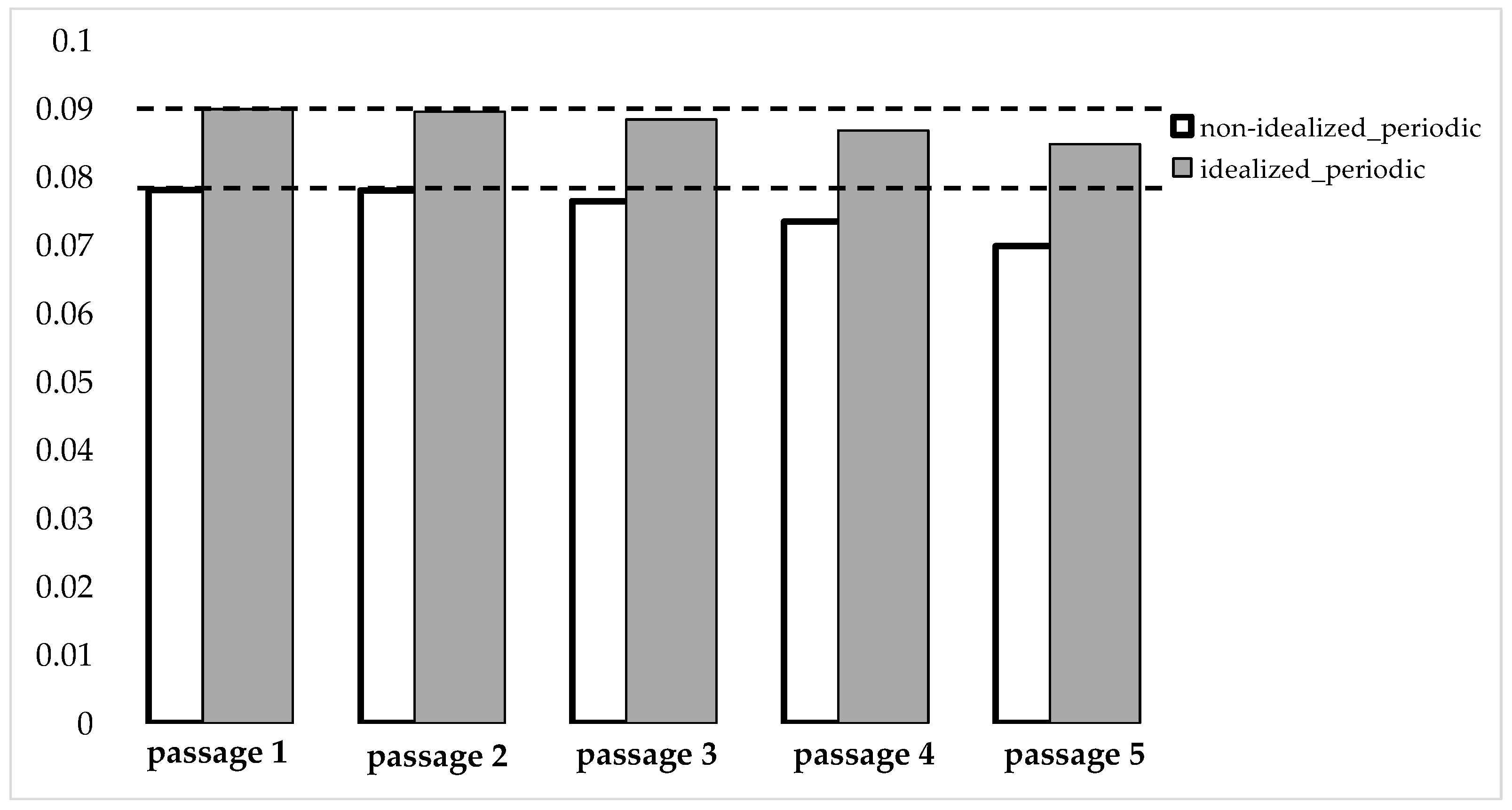

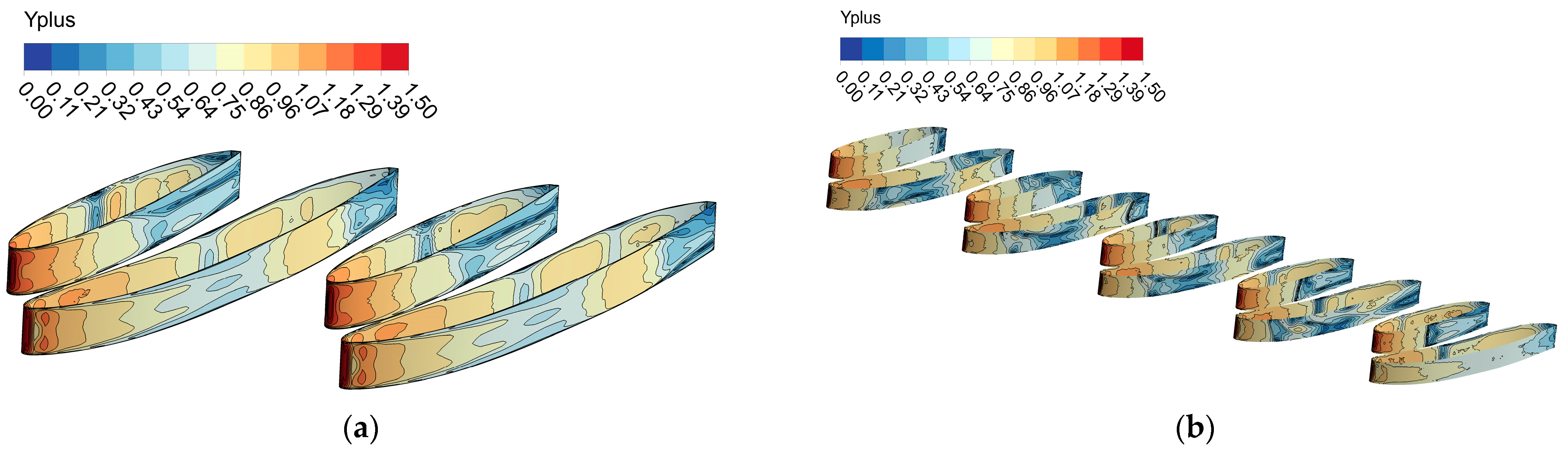

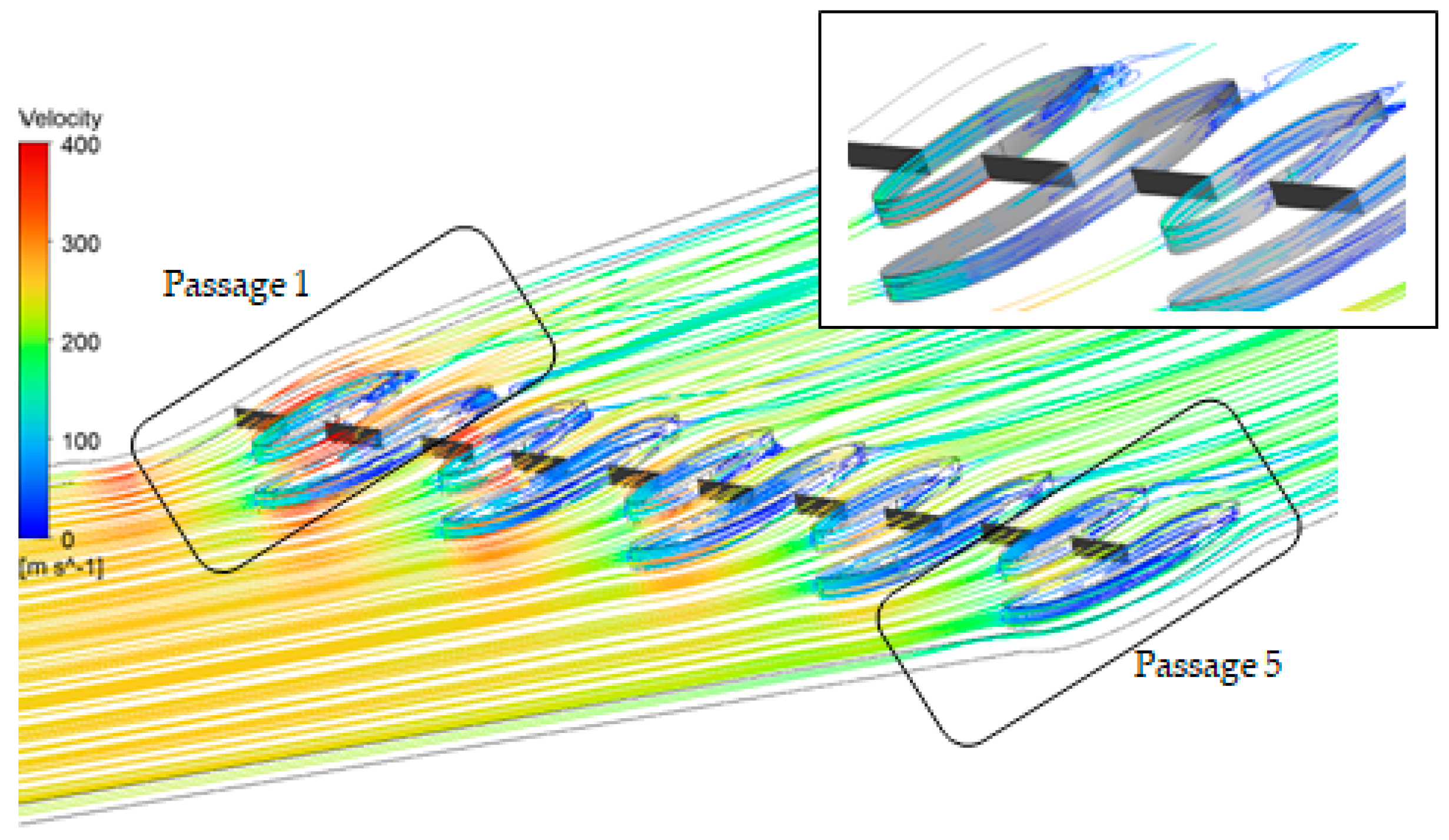

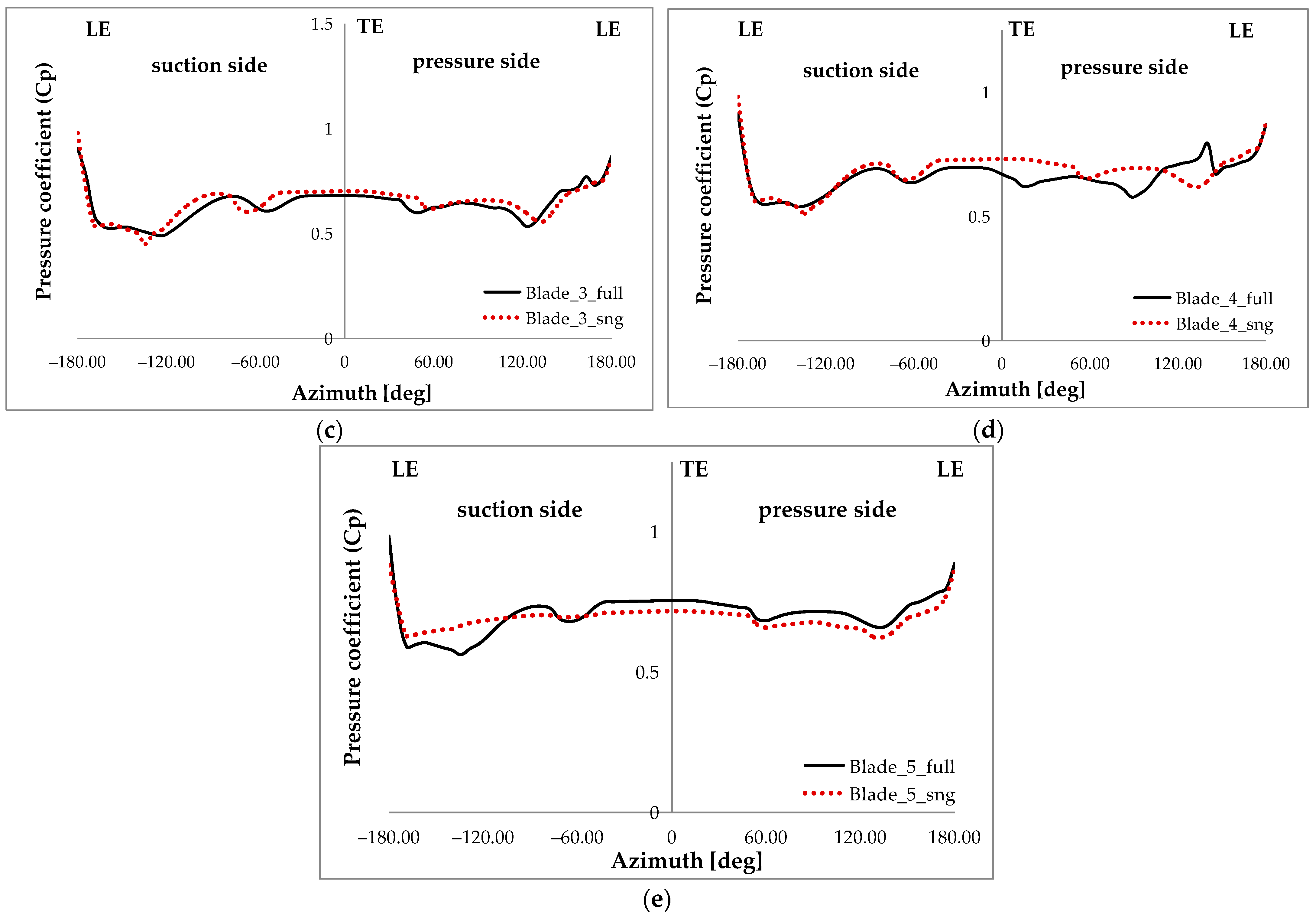

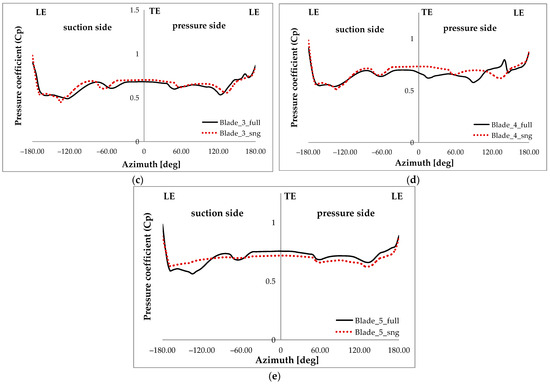

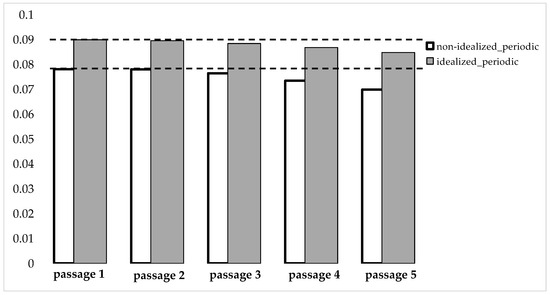

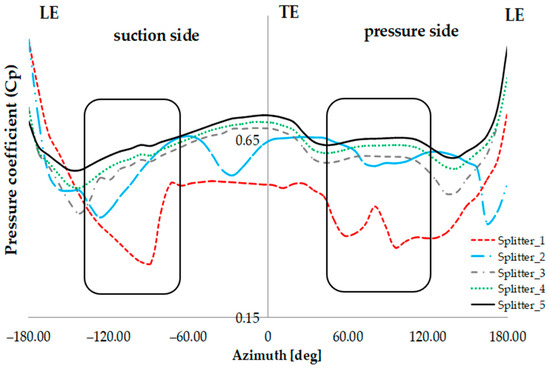

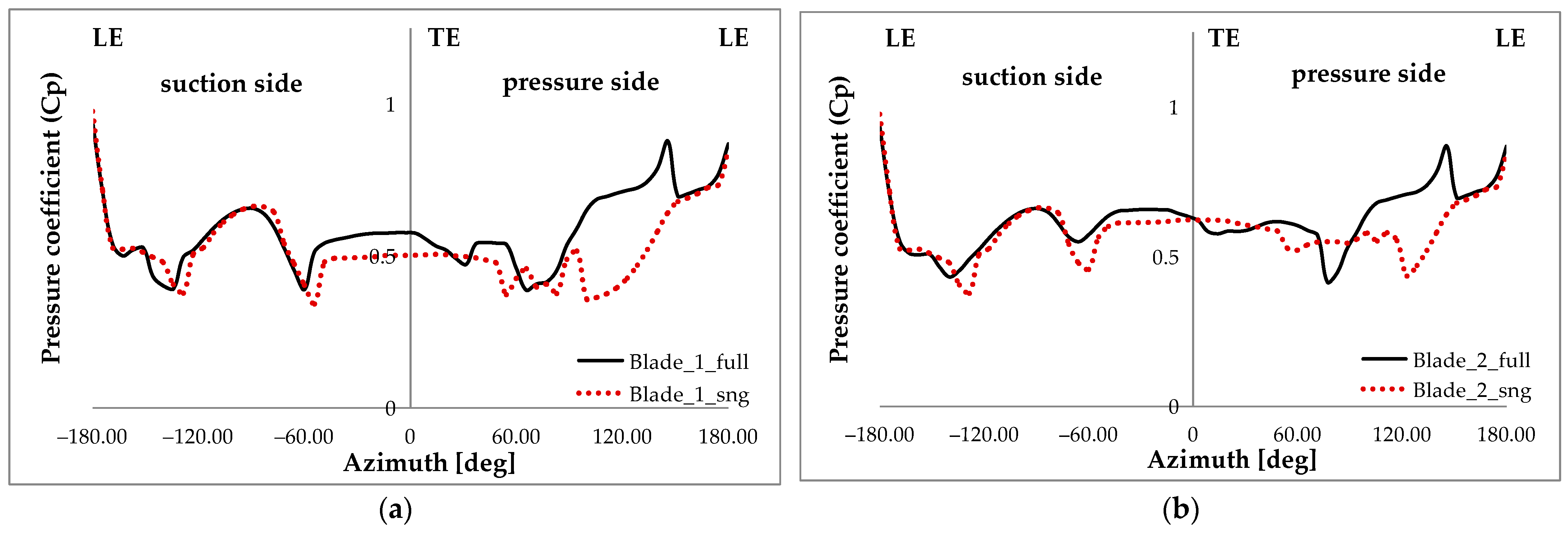

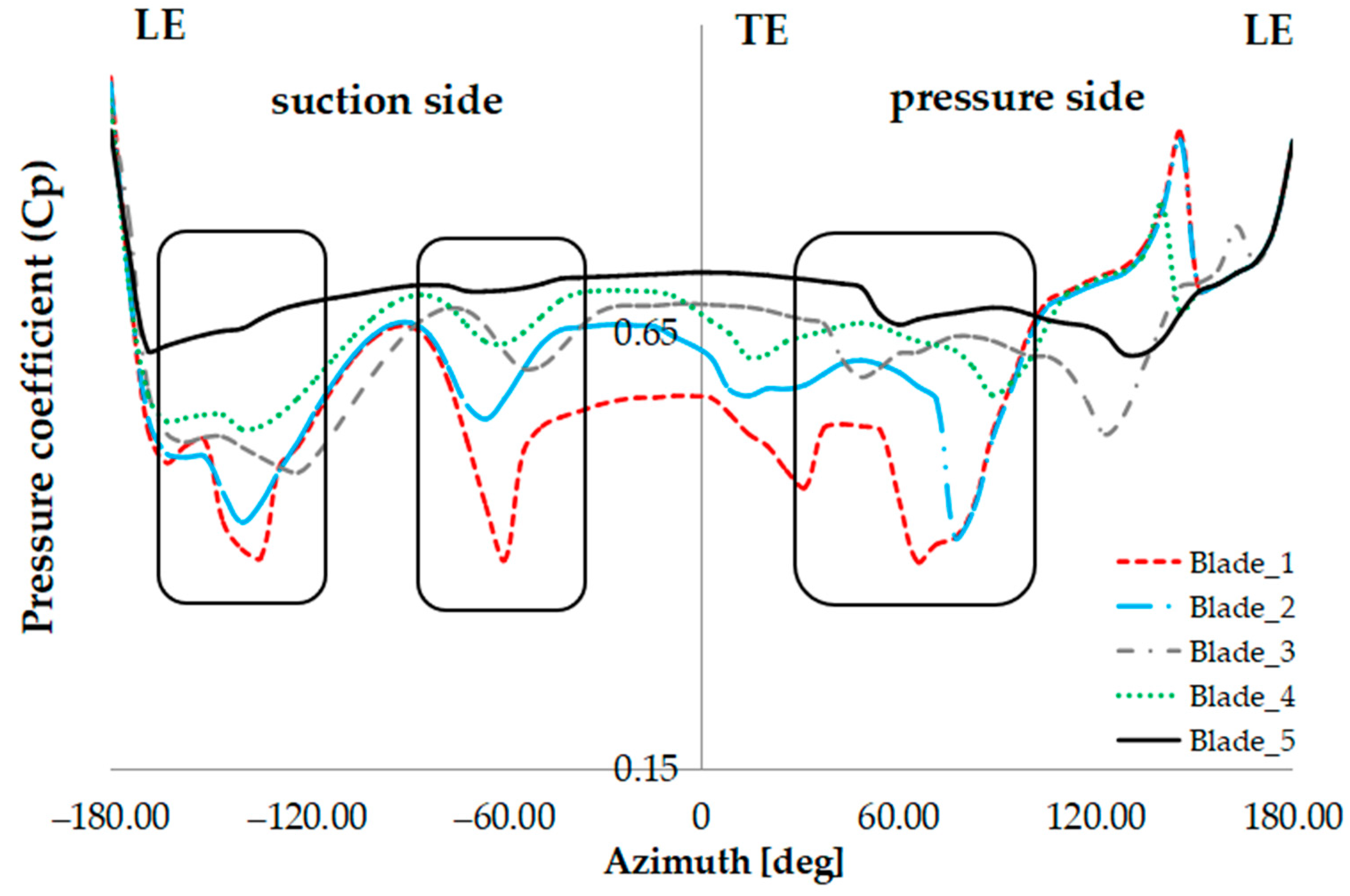

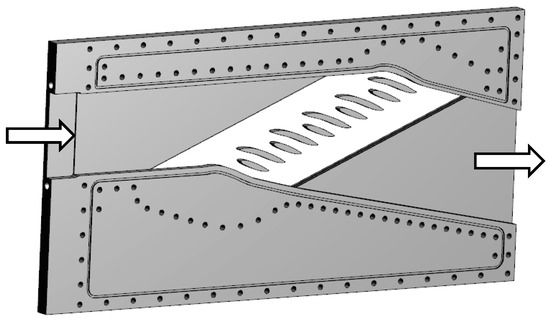

This paper presents the development of high-specific-speed mixed flow/centrifugal compressor vaned diffusers. Specifically, the design of a test rig that will make the visualization of shock waves on diffuser vanes manageable is addressed in the current study. In this particular case, linearization of an existing state-of-the-art compressor stage was used. For the computational modeling, a series of RANS analyses were conducted to examine the flow characteristics of the two cases explored: a complete transonic cascade and an idealized periodic passage. The distinct behavior exhibited by each vane passage within the entire cascade offers the opportunity to analyze the shockwave structures across a mass flow range of ±9% around the design point. Overall, the pressure coefficient distributions and flow field patterns appear to align with the single-passage conditions, although there are some minor lateral wall influences, particularly in the first passage close to the suction lateral wall. However, because of the nature of the flow, which is characterized by high velocity and density differences near the vanes, the equivalent mass flow per individual passage was difficult to estimate. This may also be attributed to the small endwall axial vortices; nonetheless, for the purposes of this paper, this was of little consequence.
