O₂ Loaded Germanosilicate Optical Fibers: Experimental In Situ Investigation and Ab Initio Simulation Study of GLPC Evolution under Irradiation

Abstract

In this work we present a combined experimental and ab initio simulation investigation concerning the Germanium Lone Pair Center (GLPC), its interaction with molecular oxygen (O₂), and evolution under irradiation. First, O₂ loading has been applied here to Ge-doped optical fibers to reduce the concentration of GLPC point defects. Next, by means of cathodoluminescence in situ experiments, we found evidence that the 10 keV electron irradiation of the treated optical fibers induces the generation of GLPC centers, while in nonloaded optical fibers, the irradiation causes the bleaching of the pre-existing GLPC. Ab initio calculations were performed to investigate the reaction of the GLPC with molecular oxygen. Such investigations suggested the stability of the dioxagermirane (DIOG) bulk defect, and its back conversion into GLPC with a local release of O₂ under irradiation. Furthermore, it is also inferred that a remarkable portion of the O₂ passivated GLPC may form Ge tetrahedra connected to peroxy bridges. Such structures may have a larger resistance to the irradiation and not be back converted into GLPC.

1. Introduction

Point defects in silica have attracted the attention of many research groups in the past few decades [1,2,3,4,5,6,7,8]. They cause the appearance of absorption bands in the glass transmission window [1,2,3], and consequently, defect generation or conversion implies variations of the optical properties of silica. It is well known that generation and conversion of point defects take place when silica is exposed to ionizing radiation, such as X- and γ-rays, as well as electron beams [1,2,3,4,5,6,7,8]. For these reasons, a relevant part of the study of radiation effects on silica-based optical fibers or bulk glasses has been devoted to point defect characterization in terms of electronic level structure, and identifying the absorption (sometimes luminescence) bands associated with each defect structure. At the same time, the generation mechanisms and the conversion of defects were the main topics of a great number of investigations [3,8,9,10,11,12,13,14,15,16]. Moreover, a few experimental techniques, such as H₂ or O₂ loading of optical fibers, have been designed with the aim to enhance the radiation resistance by passivating radiation-induced point defects, and to enhance the duration of the optical fiber in a harsh environment [17,18].

One of the most important defects related to applicative and basic research relevance is the Germanium Lone Pair Center (GLPC [19]) in Ge-doped silica, which is employed to produce one of the most common optical fiber types in telecommunications and sensing applications [20,21]. It is accepted that the GLPC is an electron donor and that its presence affects the sensitivity of the silica to radiation or laser exposure [11,16,22]. The microscopic structure of such defect must be mentioned as well. The GLPC is a twofold coordinated Ge atom with two electrons forming a lone pair [19,23]. This defect is responsible for absorption bands at about 5.12 eV (related to a singlet–singlet transition) and at about 3.8 eV (related to a singlet–triplet transition) [19,23]. Furthermore, it is responsible for two emission bands at 4.3 eV (inverse singlet–singlet transition) and at ~3.1 eV (triplet–singlet transition, the triplet state can be populated by intersystem crossing processes) [19,23]. In particular, the latter emission at ~3.1 eV (i.e., ~400 nm) could be exploited to study the kinetics of creation or bleaching of GLPC centers in silica by means of cathodoluminescence (CL) spectroscopy [24,25].

In the present investigation, other aspects related to the GLPC must be remembered. The GLPC defect is usually present in high concentrations in nonirradiated optical fibers because of the manufacturing processes, and its concentration decreases when the fibers are exposed to radiation [26]. Furthermore, a recent investigation has proven that O₂ loading of the optical fiber is able to destroy these GLPC, then modify their response to consecutive irradiation [10], suggesting a possible method to tune the radiation response of germanosilicate optical fibers in the ultraviolet and visible domains. However, in this previous investigation, the basic mechanisms responsible for the GLPC bleaching in O₂ loaded fibers were not deeply investigated.

In this work, to better understand how O₂ loading bleaches the GLPC centers (before irradiation) and how they can be generated during irradiation in treated optical fibers, we completed our experimental work with ab initio calculations. These simulations enabled us to identify the relevant structures resulting from the reaction of the GLPC with molecular oxygen, and to evaluate the stability of such bulk defects and their possible back conversion to GLPC, or alternatively their permanent bleaching. In particular, the present work provides strong support in favor of the existence and stability of dioxagermirane (DIOG) as a bulk point defect in O₂-loaded Ge-doped fibers. The dioxagermirane defect is a germanium-based analogue of the dioxasilyrane [27], a point defect which was first detected as a surface defect on reactive silica [28] and has recently been found in luminescent siliceous materials and silica nanoparticles [29,30]. Moreover, in a previous theoretical study, the DIOG (i.e., the (O₂)Ge= defect) was investigated as a surface defect in germanium oxides [31]. Although the DIOG still preserves the “memory” of the underlying defect (GLPC), we demonstrated that relaxation paths may exist which lead to a reconstruction of the tetrahedral network around the GLPC, resulting in a loss of memory of the original defect in O₂-loaded fibers. Since the O₂ molecule is one of the major diffusing species in silica, we have focused this work primarily on the formation of DIOG, which is likely to be the dominant mechanism for the GLPC bleaching during the O₂ loading process. The diffusion of atomic oxygen might lead, at a GLPC site, to the formation of germanone [10,32], which in principle could provide an alternative bleaching mechanism, is not considered hereafter. In fact, it requires the expensive dissociation of the O₂ molecule and the diffusion of atomic oxygen in silica, requiring activation energies above 1.3 eV, which is far less likely than the diffusion of molecular oxygen [33,34]. Though the formation of germanone might constitute a bleaching channel under extreme irradiation conditions, its study is beyond the scope of the present paper.

2. Materials and Methods

A two-step Ge-doped optical fiber produced by iXBlue Photonics Division [35] is studied in the present investigation. Such fiber has a total diameter of ~125 µm and a 62.5 µm core diameter. The inner part of the core has a diameter of ~40 µm and a Ge content of ~9 wt% (weight per cent), and such part is separated from the pure silica cladding by a ring made of 5 wt% Ge-doped silica, with a width of about 10 µm. The chemical composition of the investigated sample has been previously reported [24].

The O₂ loading of the sample was performed by keeping the sample in a PARR-4651 high pressure vessel at ~400 °C for ~21 days in a 90-bar oxygen atmosphere, according to previous investigation [10]. We stress that the presence of the O₂ inside such a treated fiber was tested by monitoring, as a function of the position along fiber diameters, the Raman line of the molecular oxygen [10,36]. Such studies proved that the content of O₂ is uniform along the fiber cross section with micrometer precision [10,36]. Independent experimental evidence of the effectiveness of our O₂-loaded treatment can also be inferred by the radiation-induced near-infrared luminescence of interstitial O₂, which is present in the loaded samples and absent in the untreated ones [37].

Cathodoluminescence and electron irradiation (at room temperature) were performed simultaneously using a field emission-scanning electronic microscope (SEM) JEOL JSM 7100f, equipped with a GATAN MONOCL4 detector (spectral range 300–750 nm, 1.7–4 eV). The electron beam is used both to excite the luminescence of point defects and simultaneously to irradiate the sample. For the present investigation, we acquired CL monochromatic images by monitoring the intensity of the incoming CL signal from the fiber at the wavelength of about 400 (±5) nm (i.e., 3.1 eV), then we extracted the luminescence profile as a function of the position from the center of the fiber (and of the number of scans, i.e., time). Based on previous studies, we are confident that the signal at 400 nm is due to the GLPC emission [24]. We employed the following parameters: electron energy 10 keV, a probe current of 4.2 nA, and an exposition time of about 20 s per scan. The investigated area was adapted to capture the core of the optical fiber, so the size of all the CL images is (~90 × 70) µm². We note that for acquiring CL spectra, the scanned area by the electron beam is much smaller to facilitate the response of only the selected zone. For the same experimental conditions (beam energy, probe current…), the dose rate of the CL spectra is much higher compared to the CL imaging, with a difference of about 1.7 × 10⁷ Gy/s. To avoid large irradiation effects, we used CL imaging to evaluate the GLPC luminescence kinetics.

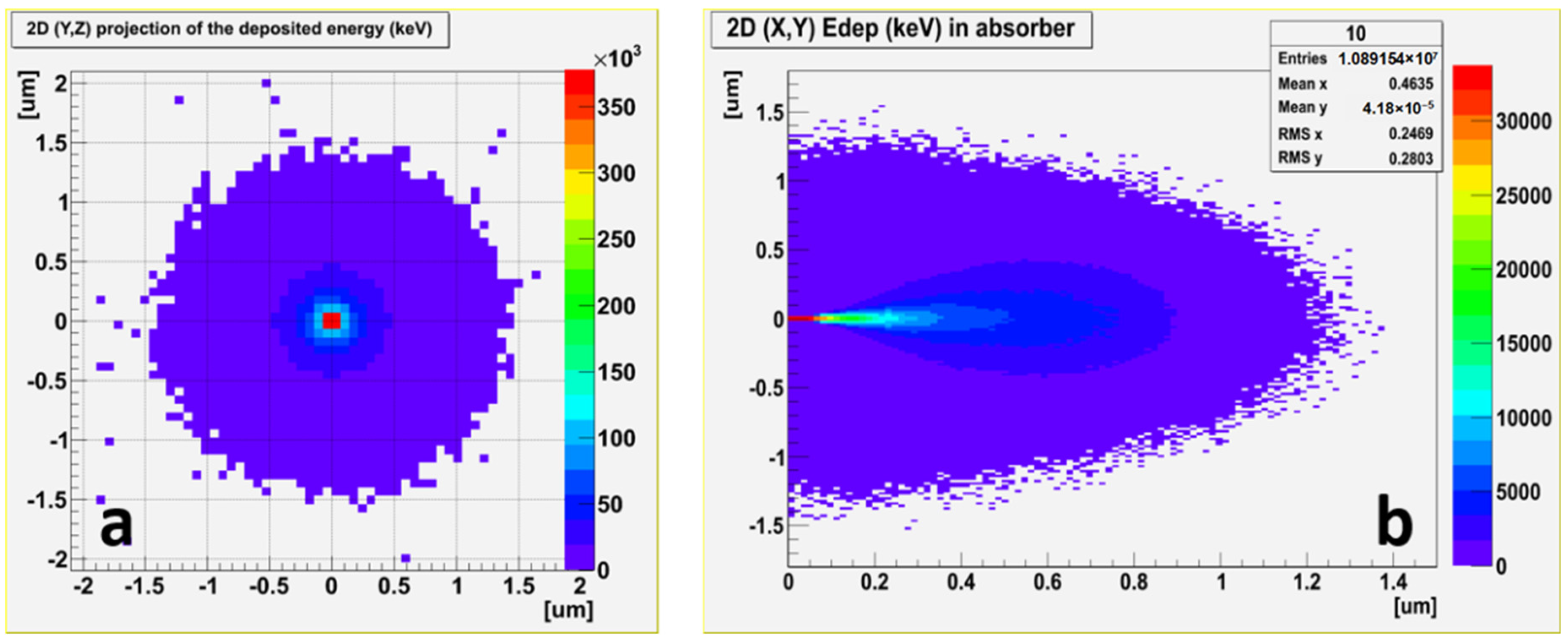

The electron penetration and the accumulated dose were evaluated by Geant4 [38], and the results are displayed in Figure 1. Particularly, the interaction volume depends on the energy of the primary electrons. For an energy E = 10 keV, the electrons could penetrate up to ~1.3 µm. According to the Monte Carlo simulations, the estimated dose rate for the recorded CL images using the above conditions is about 3.36 × 10⁴ Gy/s.

The first principle calculations presented in this work are based on Density Functional Theory (DFT) and were performed using the Quantum-ESPRESSO (QE) package [39]. We have adopted local-density approximation (LDA) for describing the exchange-correlation functional, together with norm-conserving pseudopotentials. Wave functions are expanded on a basis of plane waves up to a kinetic cutoff of 80 Ry. The expansion is carried out at the sole Γ point of the Brillouin zone, as justified by the size of the adopted supercell and the large band gap of our silica-based system [15]. The relaxation of the DIOG and GLPC atomic structures has been achieved by using the Broyden–Fletcher–Goldfarb–Shanno algorithm [39] and by setting up a threshold of 0.0025 eV Å⁻¹ on the atomic forces. For the calculation of the reaction pathways and energy barriers along the minimum energy path (MEP), we adopted the climbing image nudged elastic band (CI-NEB) method, as implemented in the QE distribution. For each application of the NEB method, we used 11 configurations (NEB images). A threshold of 0.1 eV Å⁻¹ (on the norm of the force orthogonal to the path) was applied as criterion for the convergence of the MEP. We note that only a small set of GLPC configurations [15] was employed for the present investigation, leading to a statistically limited analysis.

3. Results

3.1. In Situ CL Investigation of GLPC Kinetics in the O₂-Loaded Sample

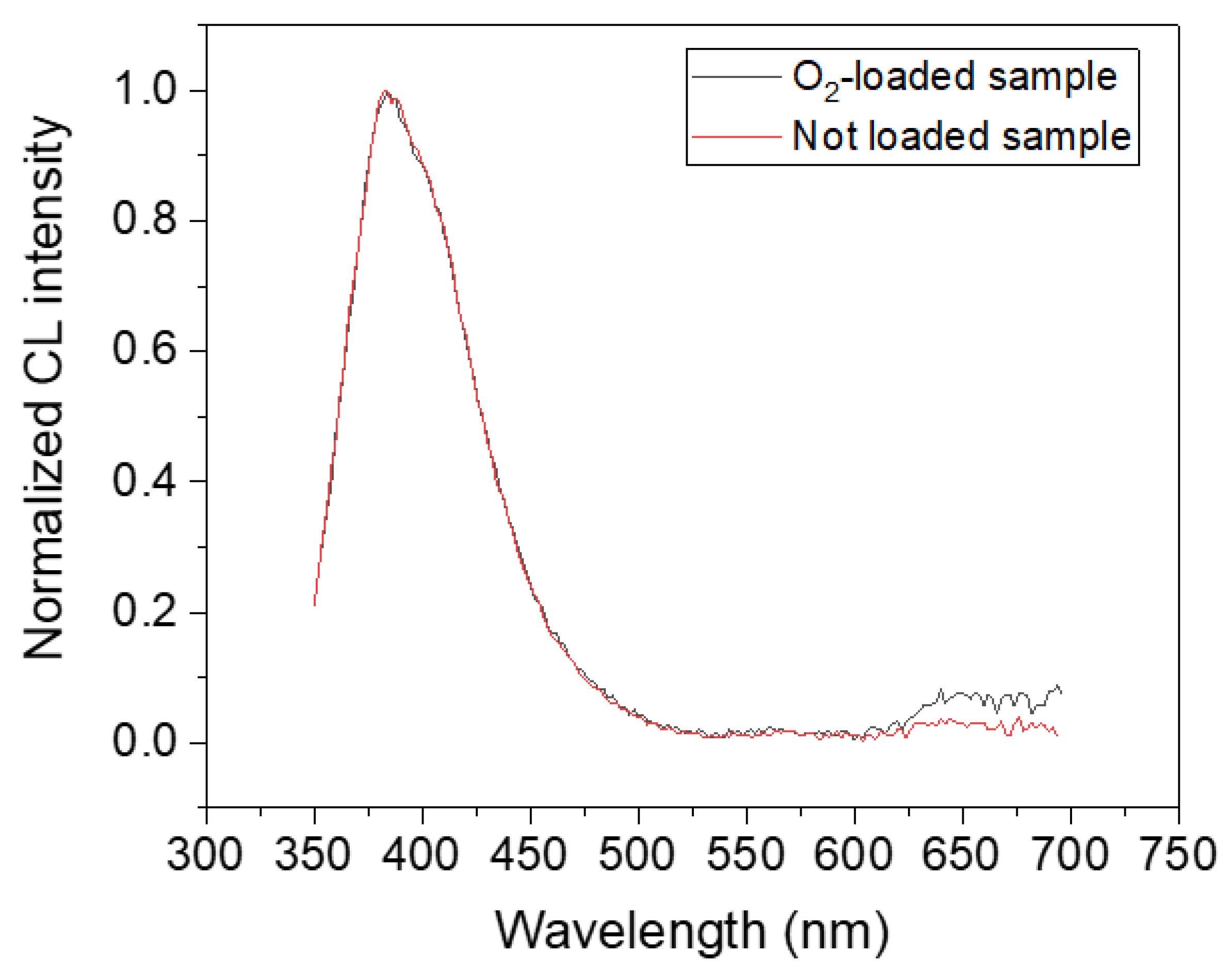

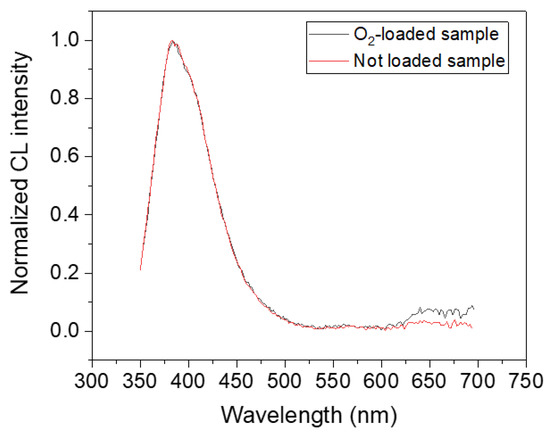

In this section, we present experimental results of the CL in situ measurements. Figure 2 illustrates the normalized CL spectra of the Ge-doped optical fiber in the O₂-loaded and unloaded samples. We can easily observe that the luminescence at 400 nm is the main emission band in the core of both samples, and it is attributed (according to the literature) to the GLPC defects [24]. The normalized spectra are very similar and there is no change in the shape of the GLPC emission at 400 nm in the CL spectra, which indicates, at least from the spectroscopic point of view, that we are studying the same kind of centers.

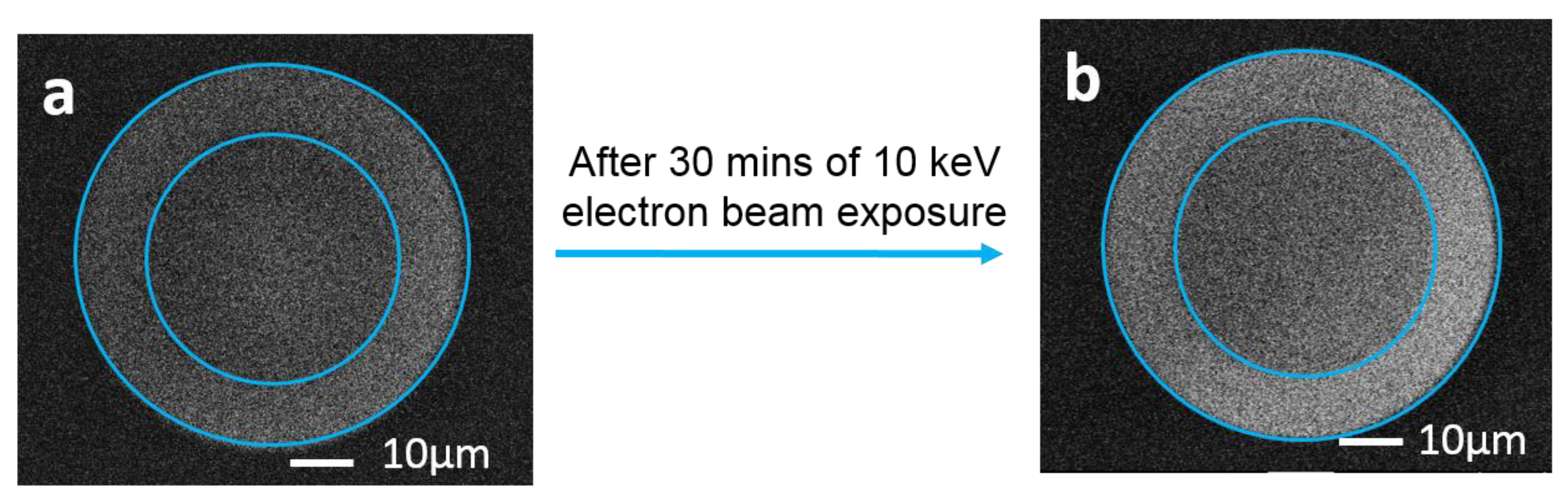

We then followed on-line the kinetics of the emitting point defects using CL imaging. Many CL monochromatic images at 400 nm (±5 nm) were recorded as a function of the irradiation time up to ~30 min, then the luminescence profiles were extracted from these images following the method used previously [24]. In Figure 3 we present the first (Figure 3a) and the last (Figure 3b) recorded monochromatic images of the sample. The different Ge-doped zones are distinguished by blue circles, where the central part is the one with ~9 wt% of Ge and the surrounding part is doped with ~5 wt% of Ge, as mentioned above.

Comparing the two images, we can observe an increase of the luminescence signal after 30 min of irradiation. Moreover, the outer part seems to be brighter than the inner one. This indicates that the electron irradiation leads to an increase in the luminescence of the GLPC at 400 nm. In the first image, the CL signal is low since GLPC centers were bleached by the O₂-loading treatment as previously reported [10]. Such behavior differs from what is observed for nonloaded fibers [24], where the starting signal is high and is reduced by electron irradiation until it reaches a stable value [24]. With the aim of creating a better visualization of the above reported images, radial profiles were extracted following the method previously explained [24]. Figure 4a demonstrates the radial profiles of the first and the last CL monochromatic images, whereas Figure 4b presents the in situ kinetics of the GLPC luminescence as a function of the electron irradiation, which in this case is represented by the number of scans in the different Ge-doped regions.

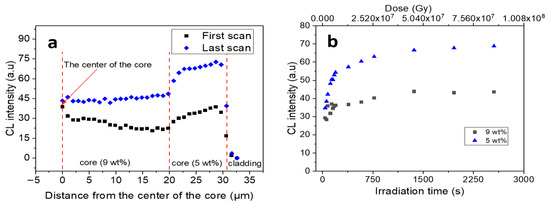

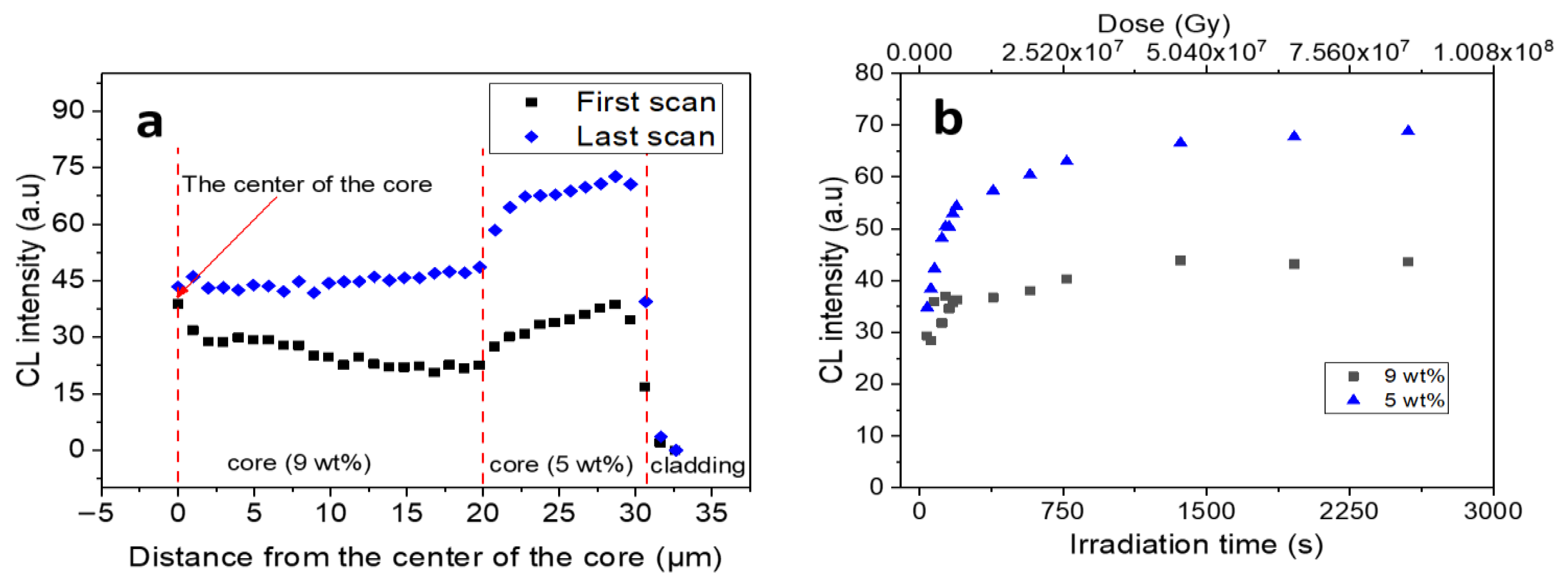

Basing on the results reported in Figure 4, we can notice that in the radial profile of the first scan, the intensity of the GLPC signal is slightly lower in the higher Ge-doped zone (i.e., for a distance from the center of the core < 20 µm). After 30 min of irradiation, the CL signal at 400 nm indicates an increase, which is still smaller in the higher Ge-doped region than in the outer 5 wt% Ge-doped region. Following on line the kinetics in both zones (Figure 4b), we can observe that the increase in the GLPC signal is more efficient in the zone doped with 5 wt% as compared to the 9 wt% Ge-doped zone. Indeed, in the lower-doped zone, the signal increased by a factor of ~2. In our previous studies [24,40], we highlighted that the GLPC bleaching mechanism under electron irradiation of the untreated sample leads to an equilibrium state, where the remaining GLPC signal is also higher in the lower Ge-doped zone, even though it was not the case before irradiation. In Figure 5, we compare the radial profiles (normalized to the CL signal detected at about 15 μm from the core center) of the last recorded CL images of the O₂ loaded and the unloaded samples.

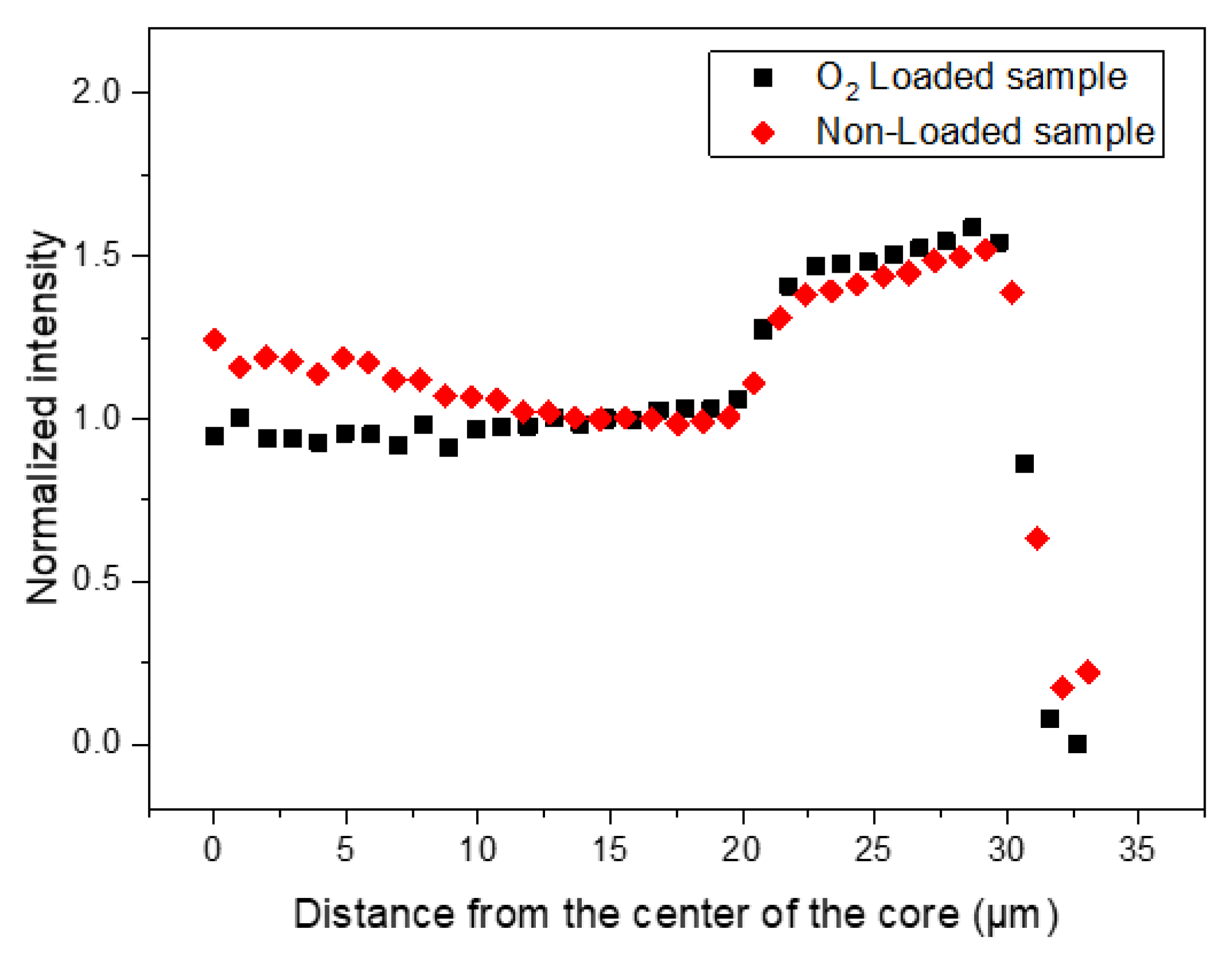

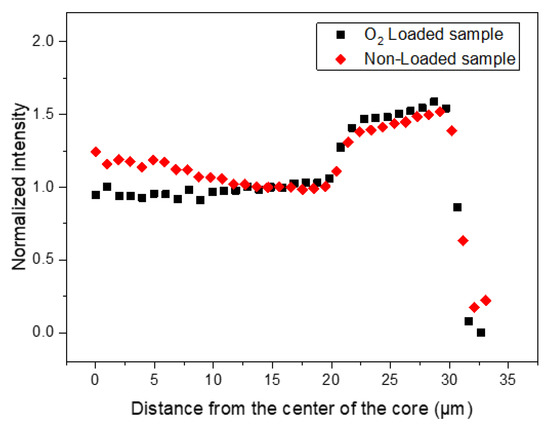

It isn’t able that as the images of both samples were recorded separately, we normalized them to allow the comparison of their shapes. These normalized profiles are very close apart at the core center, where we note a difference within the 20% of the normalized signal. We conclude that whether the sample is O₂-loaded or not, the final normalized profile after electron irradiation is similar, with a higher GLPC signal in the lower-Ge-doped part. In this context, we emphasize that the same observation was reported previously [41], where pre-irradiated (γ-rays and UV) samples were investigated under electron irradiation, and their radial profiles after irradiation exhibit the same shape of the pristine one.

3.2. Ab Initio Calculations of Bulk Dioxagermirane Defects

To identify the relevant bleaching/creation mechanisms of GLPC point defects in O₂-loaded germanosilicate optical fibers, we have carried out a few dedicated first principle calculations. Since DIOG has been proposed as one of the possible defects involved in the oxygen-induced bleaching mechanisms of GLPC previously [10], we have obtained by first principle relaxation several DIOG point defects in a Ge-doped silica supercell model [15]. The DIOG structure involves an isosceles quasi-equilateral triangle OGeO, in which the two oxygen atoms of the O₂ molecule are bonded to the Ge of the GLPC, as schematically illustrated in Figure 6a.

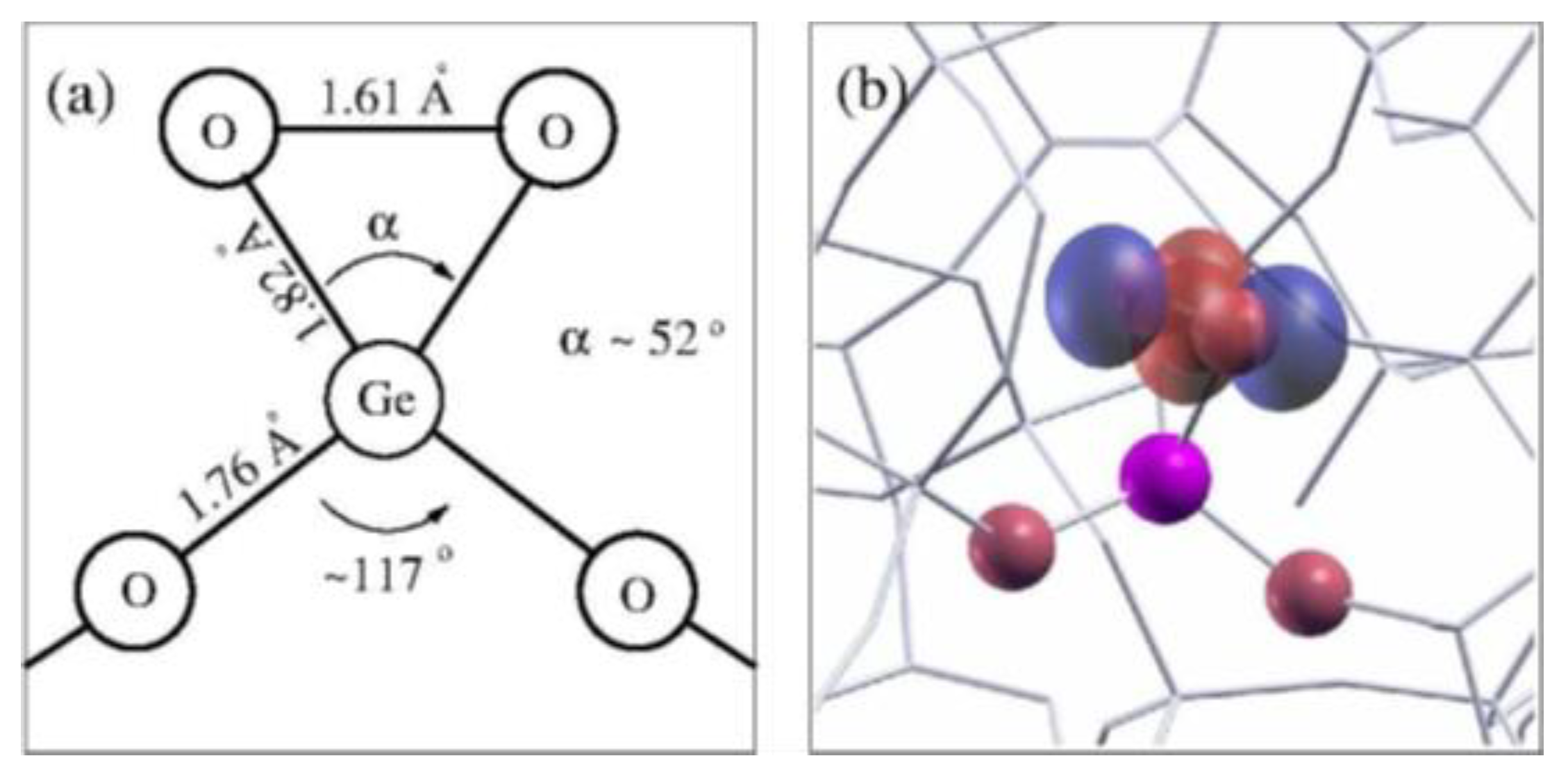

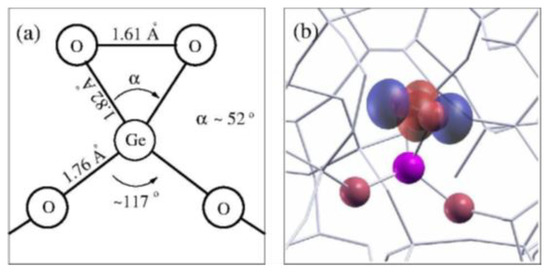

The molecular oxygen atoms form Ge–O bonds with an average Ge–O distance of 1.82 (±0.03) Å to be compared with the typical Ge–O bond distance (1.73–1.78 Å) in GeO₂ [42]. Furthermore, the O–O distance of 1.61 (±0.01) Å increases by about 30% with respect to the one of the free O₂ molecules (1.21 Å), resulting in a narrow O–Ge–O angle (Figure 6a) with mean value of 52.3° (±1.0°), in agreement with the geometric parameters reported previously [31]. Such a small angle involves considerably strained p-orbitals. Despite the likely stress on orbitals and consequent destabilization of the bonds, our calculations indicate that the DIOG configuration is a very robust bulk configuration, and 70% of our DIOGs could be properly relaxed with force convergence thresholds as small as those typically used (~0.0025 eV Å⁻¹) for vibrational spectra calculations [39,42]. The presence of a DIOG defect will cause the appearance of defect levels in the band gap of silica. In particular, the highest occupied molecular orbital (HOMO) level of a DIOG configuration is located ~2 eV above the top of the silica valence band, and it corresponds to p-orbitals of the O₂ oxygen atoms which are bonded to the GLPC (Figure 6b).

The formation energies of DIOG and GLPC centers have been calculated following the procedure outlined previously [15]. The calculated formation energy of the DIOG provides a mean value of ~4.5 eV, while the formation energy for a GLPC defect is ~0.6 eV larger. The latter discrepancy indicates that the absorption of an oxygen molecule at a GLPC site is a favorable process. This is understandable since the DIOG represents a step towards a healing path for the Ge-doped silica network, since it restores the fourfold coordination of the Ge atom. Overall, these results indicate that the dioxagermirane defects are good candidates for explaining the interaction of the excess oxygen with Ge lone pair defects (i.e., GLPC) in bulk silica. In fact, the latter interaction has been proven to annihilate a large portion of GLPC/ODC-II defects [10].

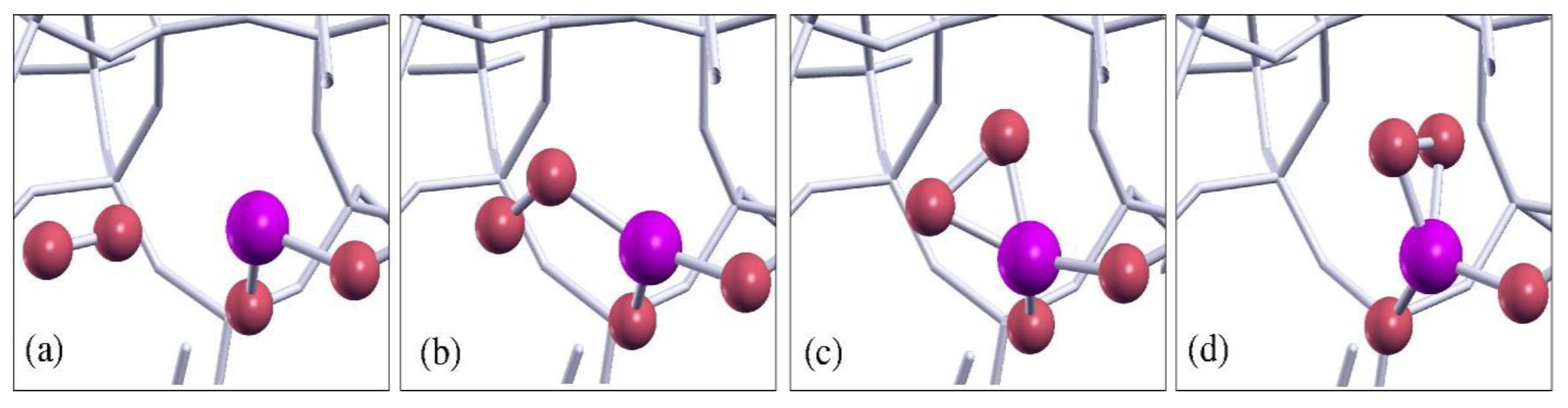

To better characterize the excess-oxygen absorption process at a GLPC, NEB simulations have been performed on Ge-doped silica to further evaluate if the absorption of an O₂ molecule at a GLPC site is a favorable process. Thus, silica configurations containing the DIOG defect and conversely the GLPC + O₂ configurations have been considered to be initial and final reaction configurations (Figure 7a,d). The calculated activation energies for the reaction of oxygen release from a DIOG defect span from 1.0 to 1.6 eV, with an average value of approximately 1.3 eV. Such an activation energy value falls in the upper bound of the range of activation energy values [~0.9 to 1.3 eV] reported in the literature for the migration of oxygen in silica [33,43,44]. The reverse reaction, which corresponds to the passivation of GLPC by an oxygen molecule (Figure 7), has an activation energy of approximately 0.2 eV, which further indicates that the absorption of an oxygen molecule is a favorable process.

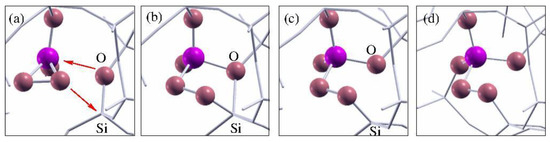

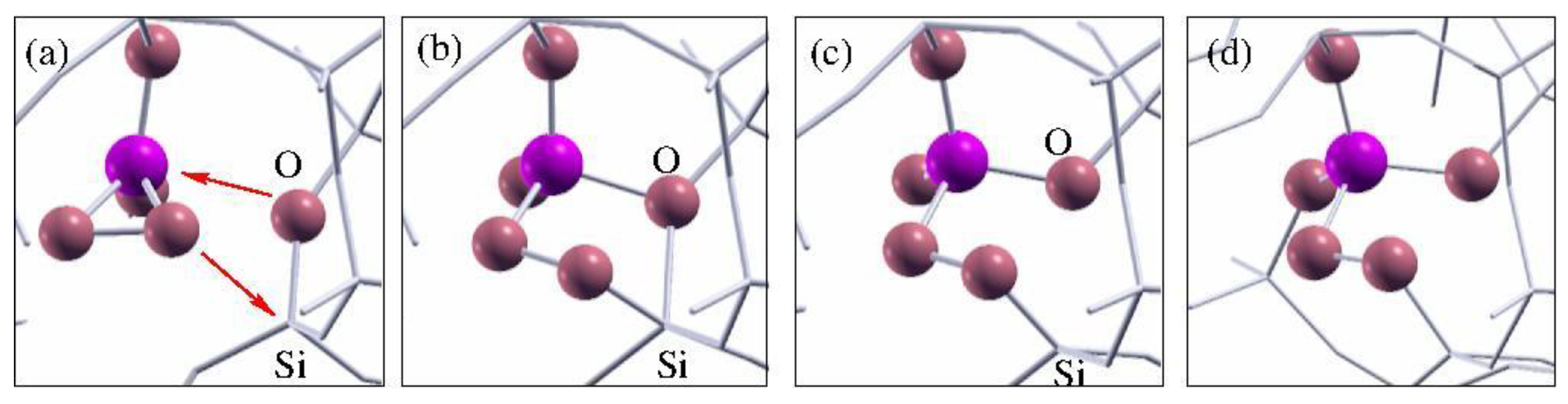

Besides the formation mechanism of DIOG in O₂ loaded Ge-doped silica fibers, we also have addressed the mechanism describing molecular oxygen interaction with GLPC and resulting in the reconstruction of the tetrahedron based network. A schematic representation of the reconstruction reaction can be seen in Figure 8. An oxygen atom from a nearby Si–O–Si bridge forms a bond with the Ge atom of the DIOG. At the same time, the DIOG moves closer to the Si–O–Si bridge so that the molecular oxygen attached to the Ge forms a new O–Si bond (with a temporarily fivefold-coordinated Si atom) and an O–Ge bond is broken. Finally, the structure relaxes into a GeO₄ tetrahedron connected to a peroxy bridge (having a O–O length of ~1.48 Å [45]). The likelihood of a network reconstruction mechanism following the interaction between O₂ molecule and GLPC is supported by the fact that a few NEB simulations of oxygen release from DIOG spontaneously provided it as an intermediate step. Moreover, in a few cases, DIOG could not be formed, or was temporarily formed, and the structural optimization directly resulted in a network reconstruction (i.e., the reconstruction reaction could happen spontaneously with no energy barrier). A detailed investigation of the network reconstruction reaction is however beyond the scope of the present paper and is not further discussed hereafter. Yet, our calculations allow us to speculate that the activation barrier is likely to be lower than ~1 eV, and thus it should be easily accessible with diffusion-based oxygen loading [10,15]. The comparison of formation energies between the reconstructed network configurations and their corresponding DIOG configurations indicates that the latter have a considerably larger (by ~1.2 eV) formation energy, indicating that the reconstruction of the network, whenever it occurs, represents the energetically favored endpoint.

4. Discussion

As indicated by recent investigations, the O₂ loading of the optical fiber can destroy the GLPC centers and modify the optical fiber response to consecutive irradiation [10]. This is particularly interesting in the context of radiation-hardened optical fibers [17,18], particularly in the ultraviolet and visible domains. In the present work we provided strong evidence, in the O₂-loaded sample, of a GLPC increase (Figure 4) that is induced by electron irradiation. Such an increase is observed until the ~40th scan (dose ~2.7 × 10⁷ Gy), then a limit value, confined within a factor ~2, is reached. The resulting behavior is similar in the two investigated Ge-doped regions (5 wt% and 9 wt%), even if the growth of the signal is higher in the less-doped parts of the fibers, while in the higher-doped region, a growth of only ~25% is recorded. We also note that due to the high dose rate in the first scan, each investigated point accumulates a dose of about 0.67 MGy. The observed behavior prompts two essential questions: what are the microscopic mechanisms behind the observed increase in the CL signal of GLPC centers, and what kind of point defects can arise from the interaction of an O₂ molecule with a GLPC in bulk silica?

Our ab initio results suggest that the O₂ loading of the optical fiber, which is performed prior to irradiation, can lead to the formation of bulk DIOG defects in silica. In fact, our calculations indicate that the DIOG could be readily formed whenever an oxygen molecule is present near the GLPC, i.e., in the presence of O₂ excess inside Ge-doped silica, thus providing an explanation for the bleaching effect of the O₂ loading on the GLPC concentration (Figure 3a). Under electron irradiation, some GLPC centers are regenerated due to the release of excited/ionized O₂ species from a DIOG (Figure 7). Particularly, the reaction in the case of neutral species requires overcoming an energy barrier (~1.3 eV), being easily accessible during irradiation [15,46], and representing an upper bound for the release of the excited/ionized O₂ species. Since O₂ at room temperature did not escape from the material, we approximated that (particularly when there is a starting excess of O₂ in the silica matrix) an equilibrium can be reached between the regeneration of GLPC under irradiation and the passivation by oxygen at room temperature which leads to the formation of dioxagermirane or other defects [10]. We note that electron-stimulated desorption may occur at the surface of samples as reported previously [47,48]. Specifically, oxygen might be desorbed, and because the sample volume is mostly occupied by silica, oxygen vacancies might be generated in silica, and ODC-II centers could be generated during the irradiation occasionally. Yet, since the CL measurements were carried out at room temperature, oxygen diffusion is low so that, regarding the GLPC center (and hence its luminescence), the effect of this surface desorption in the bulk is not relevant. DIOG could release molecular oxygen, but the latter would not move far from the GLPC, so we do not expect it to lead to a remarkable desorption from the sample at room temperature within the total irradiation time.

As the oxygen loading is often performed using diffusion mechanisms at temperatures around ~500 °C [10], it could be speculated that a combination of excess oxygen and temperature could reconstruct the network at a GLPC site, similar to an oxygen molecule easily passivating an oxygen vacancy and forming a peroxy defect. The reconstruction reaction at a GLPC site may be a more complex network relaxation, analogous to the GLPC generation from an oxygen (mono-)vacancy which involves advanced “rotation” and “puckering” mechanisms [15]. The mechanism displayed in Figure 8 may provide a way to completely remedy the structural memory of the preexisting GLPC defect at certain network sites, so that further irradiation treatments would not regenerate it, leading to a partial regeneration of GLPC in O₂-loaded samples. Furthermore, the latest experimental studies indicate that the oxygen is most probably incorporated into the network in the form of peroxy bridges [49].

Even if the CL experiment implies that the data of the first image is due to an irradiated sample, and even if a quantitative comparison of the final intensities detected in the O₂-loaded and unloaded fiber should be performed (however difficult), it is interesting to note that in both samples, a limit value is reached at a high dose (Figure 5). Consequently, although a quantitative comparison of these two values needs further investigation, a stable amount of GLPC exists. Furthermore, we note that in one case (unloaded sample) we bleached and destroyed the GLPC centers, whereas in the other case, we generated them after the O₂ loading had significantly reduced their concentration before irradiation. It is also worth noting that both the normalized profiles reported in Figure 5 strongly suggest a role of the Ge content in determining such stable content, at least for the investigated values of 5 wt% and 9 wt%. The latter remark implies that suitable doping strategies may be envisaged to control the final amount of GLPC centers.

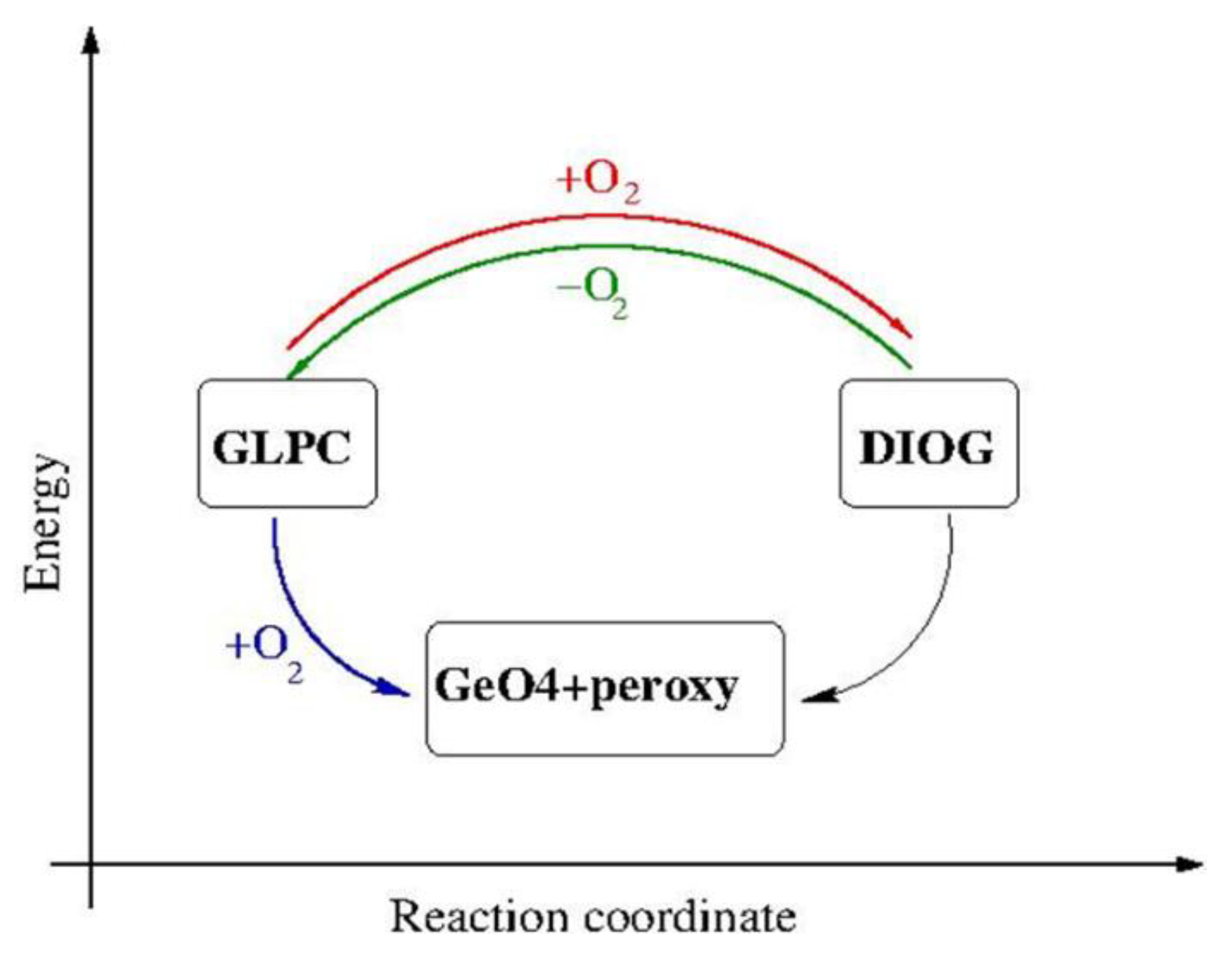

In summary, our investigation provides a strong support in favor of the formation and stability of DIOG bulk point defects in O₂-loaded Ge-doped fibers. Next, under electron irradiation, the DIOG can release molecular oxygen and convert back to GLPC, thus providing a reasonable explanation for the observed CL increase in GLPC intensity in irradiated samples (Figure 3 and Figure 4). Furthermore, our calculations suggest that an important fraction of GLPC sites could be passivated permanently by O₂, resulting in the formation of a low-energy configuration which exhibits “healed” Ge tetrahedra linked to peroxy bridges (Figure 8 and Figure 9). The latter configuration might not convert back to GLPC under irradiation, resulting in a lower final intensity of GLPC in O₂-loaded samples compared to the unloaded and nonirradiated one.

5. Conclusions

In this work, by means of cathodoluminescence experiments, we have demonstrated that electron irradiation of O₂-loaded Ge-doped optical fibers leads to the generation of GLPC centers, at variance with the behavior observed in unloaded optical fibers, where the irradiation causes bleaching of the GLPC. Moreover, by means of ab initio calculations, we have identified relevant structures resulting from the reaction of the GLPC center with molecular oxygen (i.e., the DIOG point defect, or alternatively, the complex formed by a healed GeO₄ tetrahedron connected to a peroxy bridge) and discussed how much such bulk defects are stable and can reform GLPC, or alternatively correspond to a permanent bleaching. Hence the present combined experimental and ab initio investigation allows us to interpret the generation of GLPC centers, in irradiated O₂-loaded germanosilicate fibers, in terms of oxygen-release reaction from DIOG bulk defects.
