1. Introduction
Currently, China’s rapidly developing social economy has an increasing demand for deep resources, energy, and urban underground space [
1]. Tunnels, subways, and other underground engineering structures are constantly subjected to various corrosion damages caused by the complex hydrochemical environment around them, which leads to the continuous deterioration of physical and mechanical properties of rock materials, seriously affecting the safety and durability of underground engineering. At the same time, engineering surrounding rock subjected to long-term hydrochemical corrosion damage will also be subjected to mechanical impact rock breaking, blasting excavation, and earthquake and other dynamic load impacts [
2], posing a great threat to the safety and stability of underground engineering.
Shallow rock works are susceptible to acid rain erosion, and many scholars at home and abroad have carried out research on mechanical property tests, intrinsic models, and numerical simulations of rocks under the effect of acidic chemical corrosion. In terms of static tests, Wu et al. [
3] used acoustic emission technology to analyze the damage and failure process of limestone under uniaxial compression after being corroded by different acid solutions; Wang et al. [
4] conducted uniaxial compression and scanning electron microscopy tests on panel sandstone under the action of different acidic solutions and discussed the corrosion mechanism of panel sandstone under the action of hydrochemicals; Tian et al. [
5] carried out triaxial compression tests on marble after immersion in the Na
2SO
4 solution under different acidic conditions and compared and analyzed the strength damage, deformation characteristics, and mechanical parameters’ response mechanisms of granite under a hydrochemical environment with different pH values; Li et al. [
6] conducted indoor compressive strength test and CT scan test of calcareous cemented feldspar sandstone with different pH solutions and proposed a rock chemical damage model that can be applied to acidic solutions to quantitatively describe the process of rock dissolution; Ma et al. [
7] conducted dissolution kinetics test and uniaxial compression test on limestone and calcite under acidic hydrochemical solution corrosion and established the dissolution kinetics equation and strength damage equation of limestone and calcite specimens; Chen et al. [
8] conducted indoor simulated acid rain solution marble immersion test and uniaxial compression test to study the effect of acid rain corrosion on the uniaxial compression properties of marble. As for the dynamic mechanical tests, Liu et al. [
9] conducted static and dynamic load coupling tests on red sandstone immersed in acidic solution for 30 days and analyzed and summarized the fractal dimension and related laws after rock fragmentation; Zhang et al. [
10] conducted the dynamic tensile test on limestone specimens corroded by acidic mixed chemical solutions at different times with the separated Hopkins pressure bar and explored the dynamic tensile strength, dissipated energy, and transmission energy of limestone with the change of corrosion damage degree; Liu et al. [
11] used the Hopkinson pressure bar test system to conduct a dynamic compression test on marly limestone, silt stone, and pale red limestone specimens after maintenance with different acidic and neutral chemical solutions and investigated the effects of chemical corrosion and chemical corrosion–temperature coupling, chemical corrosion–damage coupling on the dynamic properties of the rocks and their mechanisms.
Many deep rock mass engineering structures both at home and abroad have been subjected to long-term hydrochemical corrosion, such as groundwater [
12], which is generally alkaline in nature, and its resulting chemical corrosion, as one of the important factors affecting the long-term stability of underground engineering structures, has a non-negligible weakening effect on the strength, deformation, and damage characteristics of rock masses, which has attracted the attention of scientific researchers at present. In terms of static tests, Hu et al. [
13] analyzed the effect of corrosion by different chemical solutions on the strength of sandstone through the uniaxial compression test and came to the conclusion that the stronger the alkalinity of the chemical solutions, the greater the effect on the corrosion of sandstone, namely, the greater the decrease in the strength of sandstone specimens. Wang et al. [
14] conducted a triaxial compression test on granite after immersion in different alkaline solutions, and the results showed that the cohesion of the specimens increased with the increase in the pH value of the immersion solution, and the angle of internal friction decreased with the increase in the pH value; Ding et al. [
15] conducted a triaxial compression test on limestone after immersion in different pH chemical solutions and studied the characteristics of the effect of chemical corrosion on each stage of the full stress–strain curve of the specimens and found that the pH value was more sensitive to the peak strength of the specimens when it varied from neutral to weak alkali; Xin [
16] studied the variation law of macroscopic mechanical properties and macroscopic damage characteristics of weakly cemented siltstone in different alkaline water environments in the seven mines of Danan Lake and found that the deterioration of various mechanical parameters had an obvious time effect through analysis; Wang et al. [
17] conducted different chemical solution immersion tests and triaxial compression tests on malmstone and concluded that the stronger the alkalinity and the higher the concentration of the solution, the stronger the effect on the corrosion of malmstone, and the reduction in the cohesion of the specimens was greater than their internal friction angle. Li et al. [
18] analyzed and explored the hydrochemical damage mechanism of sandstone through shear strength tests of sandstone under the action of different hydrochemical solutions. It was found that when the hydrochemical solution was more acidic or alkaline, the secondary porosity was larger, and the change of P-wave velocity was more significant. Cui et al. [
19] analyzed and compared sandstone specimens soaked in the NaOH solution for 28 days by using SEM electron microscopy scanning technique and X-ray powder crystal diffraction technique and established a convection–diffusion–reaction model of the water–rock system; the change in porosity was used to quantitatively describe the changes in the micro-structure of the rock due to water–rock action. Wang et al. [
20] obtained the creep equation of deep sandstone under chemical corrosion by a uniaxial creep test of sandstone under acidic and alkaline solution corrosion, and the corresponding model fitting curves and creep parameters were obtained by fitting the experimental data and verified its creep model. Yang et al. [
21] studied the evolution law of fracture opening in single-fissure granite under the condition of stress-chemical coupling and established the fracture opening evolution model under the permeation of alkaline solution and acidic solution, respectively. As for the dynamic mechanical tests, Li et al. [
22] subjected the limestone specimens to corrosion in three groups of solutions with different pH (acid, neutral, and alkaline) and conducted the impact compression tests on them using the separated Hopkinson pressure bar apparatus and found that the porosity of the specimens increased gradually with the increase in corrosion time, and the dynamic compressive strength and dynamic elastic modulus of the limestone showed different degrees of deterioration after corrosion by different solutions, and the fractal dimension also increased.
It can be seen that although there are more studies on the basic physical properties of rocks under the action of chemical corrosion at present, the research results were mainly focused on the static load test of rocks after acidic corrosion, while the dynamic load test of rocks after alkali corrosion was relatively little researched. In practical engineering, some underground projects are subjected to impact loads, such as rock burst and earthquakes, in addition to groundwater corrosion [
23]; therefore, it is necessary to study the mechanical properties of rocks after the coupling effect of alkali chemical corrosion and dynamic mechanics.
In order to study the effects of different corrosion times on the physical properties as well as dynamic mechanical properties of sandstone under a strong alkaline solution, sandstone specimens were subjected to the NaOH solution with pH 11 for corrosion (0, 1, 3, 7, 14, and 28 d), and then, the values of their basic physical properties were measured. The impact compression and Brazilian splitting tests were carried out on sandstone specimens after corrosion with alkaline solutions under the same loading conditions using a 50 mm diameter split Hopkinson pressure bar (SHPB) test apparatus. Due to the limitation of space, this paper focuses on the macroscopic mechanical parameters, such as dynamic compressive strength, dynamic stress–strain curve, dynamic elastic modulus, average strain rate, and dynamic peak strain of sandstone with corrosion time in the impact compression test.
2. Physical Properties of Sandstone after Different Times of Corrosion by Strong Alkali Solution
The sandstone rock specimens required for the test in this paper were taken from the Dingji coal mine of the Huainan Mining Group, with an off-white appearance (static uniaxial compressive strength was 84.77 Mpa, Young’s modulus was 6.41 Gpa). The main mineral composition of the sandstone was quartz, kaolinite, sanidine, and other components according to the XRD test, and the processed specimens were taken from the same rock to ensure the comparability of the test; the sandstone was processed into a cylindrical specimen with a diameter of 50 mm and a height of 25 mm [
24], and the unevenness of the specimen ends was controlled to be less than ± 0.02 mm. The non-parallelism of the two ends was less than ± 0.05 mm [
25], and the axis deviation was less than ± 0.25°. A total of 60 specimens were processed, 10 of which were non-corroded, and the remaining 50 were divided into 10 groups for different corrosion time compression and splitting tests, respectively.

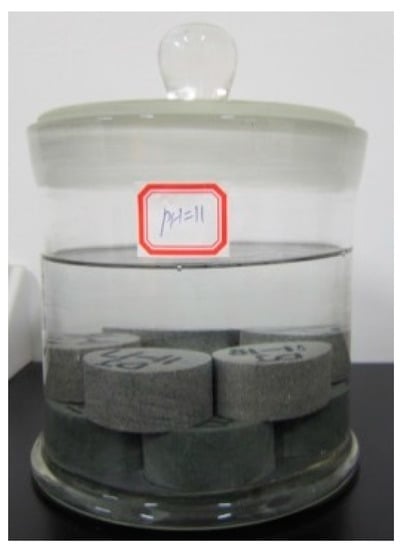

In the test, five groups of NaOH solutions with a pH of 11 were placed in glass containers, as shown in
Figure 1. Ten specimens were placed into each group of chemical solutions for corrosion at 1, 3, 7, 14, and 28 d. At the end of each time gradient, 10 specimens were taken out of the solution to measure the mass, diameter, length, and other parameters of the specimens again.
2.1. Measurements of Basic Physical Quantities of Sandstone
In this paper, the test set up corrosion at 0 d (non-corroded), 1 d, 3 d, 7 d, 14 d, and 28 d, a total of six time gradients, during the test process, periodically removing the sandstone specimen from the solution, first with a cotton cloth to wipe away the surface moisture, control the surface of the specimen for any dripping liquid, and then letting it stand for 5 min indoors, to ensure that the specimen surface liquid had evaporated dry, and then using the vernier caliper and electronic scales to measure its diameter and length, as well as the mass.
The basic physical parameters, such as volume, mass, and density of sandstone specimens before and after different times of corrosion by the strong alkali solution, are shown in
Table 1.
2.2. Density and Mass Variation

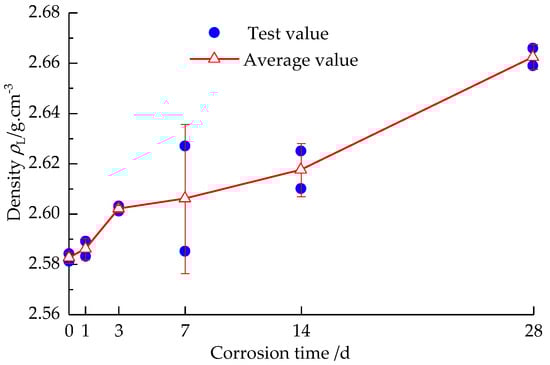

From
Figure 2, it can be seen that the average density of sandstone specimen increases with the corrosion time when the strong alkali solution is corroded for 1 d–14 d, and when the corrosion is 14 d–28 d, the average density growth rate of the sandstone specimen shows a stable trend. Preliminary analysis: 1 d–14 d, the solution enters the rock fissure, resulting in the increase in density of sandstone specimen, while 14 d–28 d, the rock absorbs the solution, gradually tending to saturate; then, the density growth rate tends to be stable at this time.

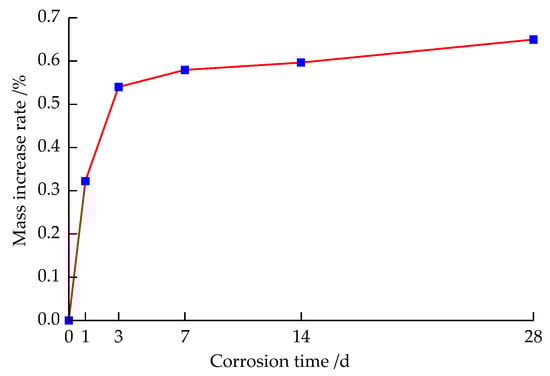

It can be seen from
Figure 3 that the sandstone mass changed rapidly after placing the sandstone specimen in strong alkali solution corrosion for 1 d to 14 d. The reason is that when the sandstone specimen is placed in the solution for corrosion, the solution penetrates into the originally existing micro-pores or micro-cracks inside the sandstone, and then, the pores inside the sandstone specimen continue to expand due to chemical reactions, such as hydrolysis, between the aqueous chemical solution and some mineral components in the sandstone, resulting in a secondary micropore. The hydrochemical solution continues to penetrate into these new micropores, resulting in faster growth of the sandstone mass increase rate in the early stage; but, when sandstone was corroded for 14 d to 28 d, the sandstone mass change rate tended to level off. The reason is that the water–rock chemical reaction tended to stabilize, and the absorption solution of the internal micropore fissure in the sandstone was close to saturation. It can be seen that the hydrochemical corrosion of sandstone has a time effect.
The hydrochemical corrosion process of sandstone must be accompanied by the change of some macroscopic physical parameters, among which the significant phenomenon is that the mass of the sandstone specimen changes with the change of corrosion time. Additionally, the mass change of sandstone specimens in the corrosion process is often compared and analyzed with the mass increase rate as a measurement index, which can be calculated as shown in Equation (1).
where W(
t) represents the sandstone specimen after corrosion by strong alkali solution mass increase rate, %; m
t and m are sandstone specimen corrosion times
t after and not corrosive mass.
3. Dynamic Compressive Mechanical Properties of Sandstone after Corrosion by Strong Alkali Solution

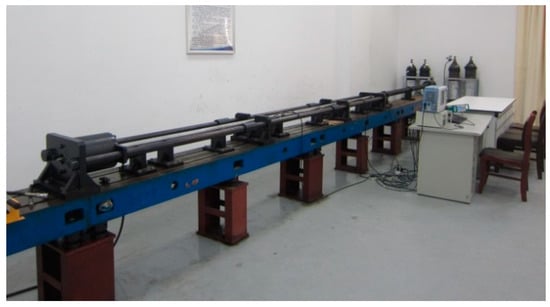

In this paper, the Hopkinson pressure bar (SHPB) apparatus was adopted from the State Key Laboratory of Mining Response and Disaster Prevention and Control in Deep Coal Mines. The SHPB test apparatus consists of five parts: impact loading system, load transfer system, data acquisition system, speed measuring device system, and preload axial compression system [
26], as shown in
Figure 4.
The rods were machined from high-strength alloy steel with an elastic modulus of 210 GPa and p-wave velocity of 5190 m/s. The incident bar, transmission bar, and absorbing bar were, respectively, 2000, 1500 and 1000 mm in length, with diameters of 50 mm. 120-3AA endless weld-free strain gauges were used for the strain gauges. The impact bar (bullet) adopted the spindle shape to realize the half-sine wave loading and satisfy the stress uniformity of the specimen in the impact process. The impact adopted nitrogen compressed gas. The driving air pressure for the impact compression test and dynamic splitting test was 0.6 MPa and 0.3 MPa, respectively, and the spindle-shaped bullet was strictly controlled to be in the same position in the launch tube before each impact, so that the impact distance of the impact bar remained unchanged in order to ensure the consistency of the applied impact load, so that the impact velocity and loading waveform obtained during the test with the same driving air pressure remained consistent.
3.1. Dynamic Stress–Strain Curves of Sandstone at Different Corrosion Times

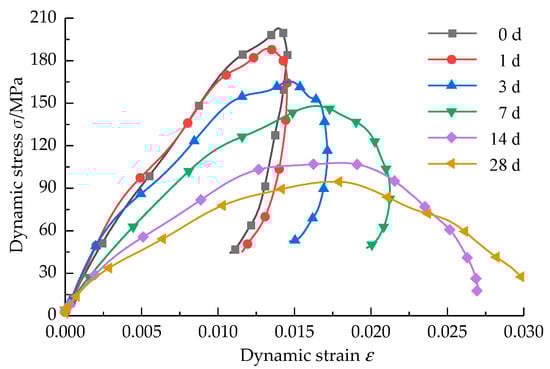

The sandstone specimens were subjected to SHPB impact compression tests after corrosion by strong alkali solutions at different times, and the dynamic stress–strain curves were obtained after treatment, as shown in
Figure 5.
According to the basic principle of the SHPB test [
27], data processing by the three-wave method [
28] can be used to obtain mechanical parameters, such as dynamic stresses and strains in sandstone specimens.
The
σ-ε curve change law is basically the same; the curve length in the elastic deformation stage is larger than that in the plastic deformation stage. When the specimens were non-corroded and corroded at 1 d, the
σ-ε curve peak front was steeper, and the strain was relatively small from 1 d to 3 d; in the curve of the stage line elastic stage, the slope of the sandstone specimen curve decreased with the increase in corrosion time, that is, the dynamic elastic modulus of the specimen decreased with the increase in corrosion time. In the third stage of the curve, the dynamic peak stress of the sandstone after corrosion at 28 d was much smaller than the other time gradients when loaded, and the corresponding damage strain also increased sharply. Similarly, we can deduce that the dynamic peak stress of the sandstone also had a time effect like the dynamic elastic modulus (with corrosion time extension, the sandstone specimen softening effect will also increase), thus confirming the increased micropore fissures in the sandstone specimen, making the sandstone specimen corrosion softened by corrosion. At the same time, the flexibility became stronger, and the corrosion effect of the alkali solution changed the internal composition and microstructure of the sandstone; with the extension of corrosion time, the length gap between the elastic deformation curve and the plastic deformation decreased. This phenomenon indicates that with the extension of corrosion time, sandstone brittleness gradually weakened, and ductility gradually increased. According to the composition of sandstone in
Section 2, we concluded that with the extension of corrosion time, cations such as K
+, Na
+, Ca
2+, Mg
2+ in the sandstone and quartz, the main component of the sandstone, continue to combine with OH
- ions in the solution and undergo chemical reactions, so that the original mineral composition is destroyed by decomposition, secondary fractures increase, and the sandstone structure becomes loose, which is similar to the conclusion of the study by Chen et al. [
29] and Wang et al. [
14].
3.2. Dynamic Compressive Strength and Dynamic Peak Strain Variation

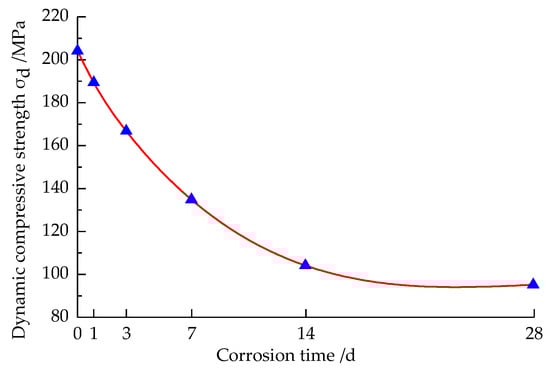

Under the condition of impact air pressure 0.60 MPa, the deterioration of dynamic compressive strength with corrosion time of the sandstone specimens corroded by strong alkali solution at different times is shown in
Figure 6.
It can be seen from
Figure 6 that the dynamic compressive strength of the standard sandstone specimens without corrosion reached 204.11 MPa, while the dynamic compressive strength of the specimens decreased by 7.27%, 18.36%, 34.06%, 49.14%, and 53.53% after corrosion for five different times, respectively, compared with the non-corroded specimens. It shows that the dynamic compressive strength of the sandstone specimens corroded by strong alkali solution was obviously lower than that of non-corroded specimens, that is, it deteriorated more greatly; the dynamic compressive strength of the sandstone specimens corroded by different times with the extension of corrosion time showed a sharp decline in the early stage and a steady and slow decline in the later stage, and the dynamic compressive strength of the specimens corroded at 28 d was the smallest. We compared our results with those in [
1,
22] and found that compared with the sandstone specimens in our study, the dynamic compressive strength of the limestone specimens decreased less with the extension of corrosion time after corrosion by a strong alkali solution. The reason for this analysis is that the main component of the limestone is calcite, which is not easily dissolved in a strong alkali solution, and only a small amount of hydrolysis reaction exists, while the main component of sandstone is quartz, which easily reacts with OH
− ions in strong alkali, and with the prolongation of corrosion time, the internal microfracture pores of the sandstone increased, leading to its structural deterioration and causing an obvious decrease in dynamic compressive strength, and the dynamic compressive strength of the specimens decreased in a quadratic function relationship with corrosion time, as shown in Equation (2).
where
σd is the dynamic compressive strength of the specimen after corrosion at different times, MPa.

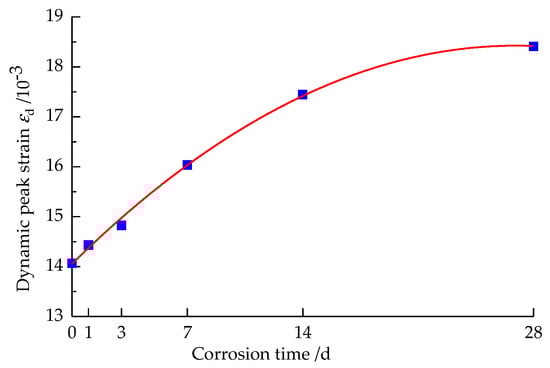

The dynamic peak strain curve of the specimen after corrosion by the strong alkali solution for different times is shown in
Figure 7.
As can be seen from
Figure 7, the dynamic peak strain of the sandstone specimen increases as a quadratic polynomial function with the extension of corrosion time, and the curve is fitted as shown in Equation (3).
where
εd is the dynamic peak strain of the sandstone after different times of corrosion by the strong alkali solution, 10
−3.
The dynamic peak strain of each sandstone specimen after different times of corrosion by a strong alkali solution is greater than that without corrosion, which shows that the strain-softening effect of sandstone specimens after corrosion placed in a strong alkali solution is significant, and the softening effect of the specimens will be enhanced with the increase in corrosion time. The εd value of sandstone specimens corroded for 1 d increased by 2.60% compared with that of non-corroded specimens. Compared with 1 d, the εd value increased by 2.73% at 3 d. The εd value after 7 d of corrosion increased by 8.13% compared with that after 3 d of corrosion. The εd value after 14 d of corrosion increased by 8.79% compared with that after 7 d, while the εd value after 28 d of corrosion only increased by 5.54% compared with that after 14 d of corrosion, that is, the increase was most significant when the corrosion was 7 d–14 d, and the growth rate of the dynamic peak strain decreased when the corrosion was 14 d–28 d.
From the analysis of the water–rock chemical reaction and sandstone microstructure, the whole reaction process can be divided into two stages. The first stage is the initial stage of reaction, in which the water–rock chemical reaction rate is faster, and the reaction phenomenon is significant; at a micro level, the OH− ions in the strong alkali solution react with part of the components in the sandstone specimen, and the internal micro porosity expands violently, and the porosity increases sharply, which makes the original dense structure of the rock become relatively loose and fragile gradually. At a macro level, it shows a sharp deterioration of the dynamic compressive strength and a rapid increase in the dynamic peak strain. The second stage is the late stage of reaction, when the reaction between OH- ions and part of the components of sandstone specimens is close to equilibrium, the chemical reaction rate of water–rock starts to slow down, and the rate of increase in sandstone porosity gradually decreases, and the decrease in the dynamic compressive strength and the increase in the dynamic peak strain also tends to level off.
3.3. Variation of the Dynamic Elastic Modulus

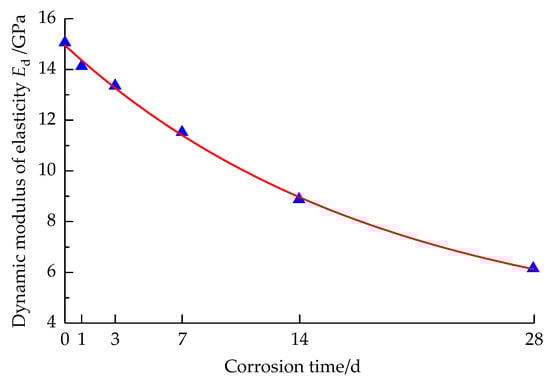

The dynamic elastic modulus of sandstone specimens corroded by strong alkali solution at different times is shown in
Figure 8.
It can be seen from
Figure 8 that the dynamic elastic modulus of sandstone specimens corroded by the strong alkali solution is smaller than that of non-corroded specimens. The
Ed of sandstone specimens shows an overall decreasing trend with the extension of corrosion time, which is consistent with the dynamic compressive strength and reaches the minimum at 28 d of corrosion. The dynamic elastic modulus of the sandstone specimen decreases rapidly with the extension of corrosion time from 1 d to 14 d, while at 14 d–28 d, the rate of decrease in dynamic elastic modulus with the extension of corrosion time becomes smaller and gradually becomes stable, which is similar to the findings of Li et al. [
22], but in contrast, under the same corrosion time conditions, the pre-decrease in dynamic elastic modulus of the sandstone specimens under the strong alkali solution corrosion was significantly greater than that of the limestone specimens. By fitting the variation trend of the dynamic elastic modulus of the sandstone, it is found that the dynamic elastic modulus of the sandstone specimen has an exponential term relationship with corrosion time, as shown in Equation (4).
where
Ed is the sandstone dynamic elastic modulus after different times of corrosion by the strong alkali solution, GPa.
The Ed value loss percentage of corroded specimens was 6.21%, 11.36%, 23.58%, 41.19%, and 59.34%, respectively, compared with that of non-corroded specimens. This indicates that the corrosion treatment of the strong alkali solution results in the obvious deterioration of the dynamic mechanical properties of the sandstone, and it shows a time effect.
3.4. Variation of the Average Strain Rate
Figure 9 shows the change curve of the average strain rate of the sandstone specimens after corrosion by the strong alkali solution at different times.
It can be seen from
Figure 9 that the average strain rate of the sandstone specimens increases as a quadratic function of corrosion time, and the curve is fitted as shown in Equation (5).
where
is the average strain rate of the sandstone after different times of corrosion by the strong alkali solution, s
−1.
The average strain rate of the sandstone specimens at 1 d–7 d of corrosion treatment increased rapidly with the extension of corrosion time, while when the specimens were corroded at 7 d–28 d, the growth rate of the average strain rate began to slow down with the extension of corrosion time. On the whole, the average strain rate increased with the extension of corrosion time of the specimens in the strong alkali solution. Typically, the rock strength in the same rock increases with the increasing strain rate [
30]. In contrast, the dynamic compressive strength of the specimens in the tests in this paper decreased with the increasing average strain rate, and the two were negatively correlated, fully demonstrating the time effect of the sandstone specimens under corrosion by the strong alkali solution, i.e., the deterioration of the specimens increased with increasing corrosion time.
3.5. Specimen Compression Damage Pattern
As can be seen in
Figure 10a, the specimen was in the splitting tensile damage when the stress was small, and the specimens were relatively intact as a whole; compared with
Figure 10a, after 1 day of corrosion, the specimens were slightly less intact as a whole, and the number of fragments increased from one to four–five; with the extension of corrosion time, in
Figure 10c–e, the fragmentation of the specimens increased, the number of fracture surfaces and fragments increased, and more small-sized fragments were created; comparing
Figure 10b–e, it can be observed that with the prolongation of corrosion time, the sandstone specimen as a whole showed a trend of spalling-type damage from the outside to the inside, while in
Figure 10f, the specimen was more obviously crushed by the impact crushing effect, and the damage pattern of the specimen shows that there are basically only small-sized fragments and granular debris.
In terms of the specific consideration of the impact of corrosion, we believe that the reason is that with the extension of corrosion time, quartz, the main component of sandstone, constantly reacts with OH
− ions in the strong alkaline solution [
19]:
In addition, other mineral components present in the sandstone in small amounts constantly react chemically or hydrolytically with OH
− ions to produce new substances, e.g., sanidine reacts readily with water and OH
− ions [
31]:
With the corrosion time extended, the continuous water chemistry dissolves the sandstone gradually, the original dense structure becomes loose, the sandstone’s internal secondary pores increase, and the original cracks continue to expand, causing the internal structural deterioration of the sandstone (which is consistent with the results from Refs [
19,
22,
31]), resulting in the dynamic compressive strength of the specimen also being reduced, so that the degree of damage to the specimen continues to increase, and the longer the corrosion time, the more obvious the increase, which corresponds to the law that their dynamic compressive strength decreases with increasing corrosion time.
