MR Imaging–Pathologic Correlation of Uveal Melanomas Undergoing Secondary Enucleation after Proton Beam Radiotherapy

Abstract

Background: Currently, radiotherapy represents the most widely employed therapeutic option in patients with uveal melanoma. Although the effects of proton beam radiotherapy on uveal melanoma end ocular tissues have been histologically documented, their appearance at MR imaging is still poorly understood. The purpose of our study was to elucidate the magnetic resonance (MR) semiotics of radiotherapy-induced changes to neoplastic tissues and ocular structures in patients with uveal melanoma undergoing secondary enucleation after proton beam radiotherapy. Methods: Nine patients with uveal melanoma who had undergone proton beam radiotherapy, MR imaging, and subsequent secondary enucleation were retrospectively selected. The histopathologic findings evaluated for irradiated tumors were necrosis, fibrosis, and viable tumor, while the histopathologic findings evaluated for extratumoral ocular/periocular tissues were radiation-related intraocular inflammation, vitreous hemorrhage, optic nerve degeneration, iris neovascularization, and periocular fibrotic adhesions. On MR images, the appearance of the abovementioned histologic features was assessed on conventional and diffusion-weighted sequences. Results: T2-weighted sequences performed better in detecting radiation-induced necrosis, fibrosis, optic nerve degeneration, and periocular fibrotic adhesions. T1-weighted sequences were preferable for identifying cataracts, vitreous hemorrhage, and inflammatory complications. Contrast-enhanced T1-weighted sequences were irreplaceable in assessing iris neovascularization, and in confirming inflammatory complications. Conclusions: In the light of their increasing role in the multidisciplinary management of patients with uveal melanoma, radiologists should be aware of the MR appearance of the effects of radiotherapy on neoplastic and ocular tissue, in order to improve the accuracy of follow-up MR examinations.

1. Introduction

Uveal melanoma accounts for about 3% of all melanomas. Even though uveal melanoma is rather uncommon (incidence of 5.1 cases per million person-years), it represents the most frequent primary intraocular malignancy in the adult population [1,2]. The neoplasm originates from uveal melanocytes, in descending order of frequency, from the choroid (90%), the ciliary body (6%), or the iris (4%) [2,3,4].

Today, three different histologic types of uveal melanoma are recognized: spindle cell, epithelioid cell, and mixed cell type [5,6,7]. Various prognostic factors may influence the patient’s outcome. In particular, ciliary body involvement, extraocular extension, diffuse growth pattern, some histopathological features (epithelioid cell type), and genetic factors (monosomy 3, 6p gain, or loss of BAP-1 gene) are associated with a more severe prognosis and increased risk of metastases [5].

The diagnosis is essentially entrusted to clinical evaluation and ophthalmological imaging methods; nevertheless, currently, radiological imaging techniques play a critical role in the clinical management of patients with uveal melanoma. In particular, magnetic resonance imaging (MRI) has multifaceted utility for a variety of different purposes: confirmation of clinical diagnosis, assessment of disease extent, evaluation and prediction of tumor response to radiotherapy treatment, follow-up, and detection of local radiotherapy-related complications [8,9,10,11].

Enucleation and, more recently, radiotherapy (plaque brachytherapy and proton beam radiotherapy) represent the two pillars underpinning the local treatment of uveal melanoma. Since the initial observations of Zimmerman et al. [12], different studies and trials have proven no significant difference in terms of mortality between eye-sparing radiation therapies and surgery [13,14,15,16,17]; therefore, over the last few decades, radiotherapy techniques have gained in importance, and currently represent the most widely used therapeutic option [1].

Enucleation is currently reserved for a few indications: large tumors (basal diameter >20 mm, thickness >12 mm), and uveal melanomas with optic nerve or orbital involvement. Enucleation can be divided into the following types: (1) primary, in patients who do not undergo any other type of therapy, and (2) secondary, in patients already treated with eye-conserving radiotherapy. Indications for secondary enucleation include tumor progression after radiotherapy (local recurrence or extrascleral extension) and treatment-related complications (e.g., ocular pain, vision loss, vitreous hemorrhage, neovascular glaucoma, or chronic inflammation) [18,19,20]. Over the years, considerable progress has been made in radiotherapy techniques and in the management of radiation-related complications; hence, both primary and secondary enucleation have become less frequent. In different series the rate of secondary enucleation after radiotherapy is up to 12.5% [17,21].

Although proton beam radiotherapy has been used in the treatment of uveal melanomas since 1975 [22], only a few authors have reported histopathologic findings of irradiated eyes undergoing secondary enucleation; owing to the rarity of neoplasm and of enucleation, the latter becoming increasingly rare, the scientific literature dealing with this topic is scant. The first articles dealing with the histopathologic and ultrastructural features of uveal melanomas enucleated after prior proton beam radiotherapy date back to the 1980s [22,23,24,25]. In these studies, patients underwent enucleation because of treatment failure [23,25] or clinical treatment-related complications [22,24,25]. A- and B-scan ultrasonographies (US) were used as imaging methods to study uveal melanomas before enucleation [22,23,24]; nevertheless, a real radiologic–pathologic correlation was not performed. Lemke et al. [26] were the first to carry out a correlation between MR and histologic findings in enucleated eyes with uveal melanoma; however, patients underwent primary enucleation and, therefore, did not incur any kind of radiotherapy.

The histologic appearance of eyes with uveal melanoma undergoing primary enucleation is very different from that of eyes undergoing secondary enucleation; this is due to radiation-related changes observable in the latter [19,27].

At present, the effects of proton beam radiotherapy on both melanoma cells and healthy ocular/periocular structures have been well documented from a histological point of view [22,23,24,25,27,28,29]; nevertheless, much less is known about their appearance under MR imaging.

In our study we focused on the MR imaging–pathologic correlation of uveal melanomas undergoing secondary enucleation after proton beam radiotherapy. In particular, our aim was to elucidate the MR semeiotics of radiotherapy-induced changes on both neoplastic tissues and healthy ocular structures.

2. Materials and Methods

2.1. Patients

Our single-institution retrospective cohort study was carried out in accordance with the Code of Ethics of the World Medical Association (Declaration of Helsinki) for experiments involving humans, and in accordance with the recommendations of our local ethics committee. Informed consent was waived because of the retrospective design of the study.

Employing the search software of our picture archiving and communication system (PACS) and the Anatomic Pathology Section database, we identified patients affected by uveal melanoma who had undergone MR examination and subsequent enucleation between September 2016 and December 2020. Among these patients, those who underwent secondary enucleation were considered for eligibility in our study. Patient inclusion criteria were as follows: proton beam radiotherapy performed as primary treatment for uveal melanoma at INFN LNS Nuclear Physics Laboratory, Catania (Istituto Nazionale di Fisica Nucleare INFN—Laboratori Nazionali del Sud, Catania); MR examination (brain and orbit) performed at our department before enucleation; secondary enucleation performed within 2 weeks of MR examination; histopathologic diagnosis of uveal melanoma. Patient exclusion criteria were as follows: incomplete MR protocol; poor quality of MR images; interval between MR examination and enucleation greater than 2 weeks; incomplete radiotherapeutic treatment; radiotherapy treatment other than proton beam radiotherapy. Demographic information and the reason for enucleation were recorded.

2.2. Proton Beam Therapy Protocol

All patients underwent proton beam radiotherapy at the INFN LNS Nuclear Physics Laboratory (Istituto Nazionale di Fisica Nucleare INFN—Laboratori Nazionali del Sud, Catania), using a superconducting cyclotron that delivers a 62-MeV proton beam [30]. A total dose of 60 GyRBE (Gray relative biological effectiveness, taking into account a constant RBE of 1.1 over the modulated Bragg peak) was split into four consecutive daily fractions of 15 GyRBE. EYEPLAN, a dedicated software developed at Massachusetts General Hospital by Goitein and Miller [31], was used for treatment planning.

2.3. MR Protocol

All MR examinations were performed using a closed-configuration superconducting 1.5-T MRI unit (Signa HDxT; GE Healthcare, Milwaukee, WI, USA) with 57.2 mT/m gradient strength and 120 T/m/s slew rate, by means of an 8-channel high-resolution neurovascular phased-array coil with array spatial sensitivity technique (ASSET) parallel acquisition. All patients underwent an MR examination of the brain and orbit. MR pulse sequences and corresponding imaging parameters of our MR protocol of the orbit are summarized in

Table 1. Orbital MRI protocol. The synoptic table summarizes the imaging parameters of the MR sequences. T1-weighted FSE spectral presaturation sequences were performed before and after the intravenous administration of 0.2 mL gadoteric acid (gadoterate dimeglumine, Dotarem, 0.5 mol/L; Guerbet, Roissy, Charles-de-Gaulle Cedex; France) per kilogram of body weight. DW imaging sequence was performed before contrast medium administration. All sequences had a field of view that included orbital structures, lids, and the optic chiasm.

MRI Protocol	T2W FSE	T2W FSE STIR	T1W FSE	T1W FSE Fat Sat	DWI SE EPI
Acquisition plane	axial, coronal	axial, coronal	axial, coronal	axial, coronal	axial
Repetition time/Echo time (msec)	3220/120	3700/50	550/14.9	450/15.1	4800/89.9
Flip angle	90°	90°	90°	90°	90°
Echo train length	19	12	2	2	-
N. of averages	4	3	3	2	8
Section thickness (mm)	3	3	3	3	4
Interslice gap (mm)	0.3	0.3	0.3	0.3	0.4
Field of view (mm)	160 × 160	160 × 160	160 × 160	160 × 160	200 × 200
Matrix	352 × 256	256 × 256	256 × 224	256 × 256	192 × 192
Frequency direction	Superior to inferior	Anterior to posterior	Right to left	Right to left	Right to left
b-value (sec/mm2)	-	-	-	-	0–1000

T1W = T1-weighted; T2W = T2-weighted; FSE = fast spin-echo; STIR = short tau inversion recovery; fat sat = fat saturation; DWI = diffusion-weighted imaging; SE = spin-echo; EPI = echo-planar imaging.

.

2.4. Histopathology

Enucleated specimens were fixed in formaldehyde, paraffin processed, cut, and stained with hematoxylin–eosin following the routine protocol. Specifically, specimens were cut at 90° to the plane of the lesion, including the median portion of the eye, encompassing the tumor, cornea, and optic disk. Histological slides were available for diagnostic review in all cases. On enucleated eyes two pathologists jointly recorded and evaluated determined histopathologic features on both irradiated tumors and extratumoral ocular tissues. On irradiated tumors the following histopathologic findings were evaluated: necrosis, fibrosis, and viable tumor tissue. On irradiated extratumoral ocular/periocular tissues the following histopathologic findings were evaluated: radiation-related intraocular inflammation (uveitis, endophthalmitis, and chronic conjunctivitis), vitreous hemorrhage, optic nerve degeneration, iris neovascularization, and periocular fibrotic adhesions.

2.5. Image Analysis

MR images were matched with corresponding histological sections (histopathology slides), taking into account specific anatomic landmarks such as the optic disc and ciliary body. On MR images the appearance of the abovementioned histologic features was recorded and assessed on both conventional sequences (T1-weighted and T2-weighted) and diffusion-weighted imaging (DWI) sequences, by two radiologists. According to the purposes of the study, the radiologists were not blinded to the clinical history of the patients. Moreover, on the MR images, the radiologists evaluated the appearance of the lens and, in particular, the radiation-related cataract. These findings were not assessed in terms of histopathology; therefore, they were correlated with the most recent preoperative clinical examination.

3. Results

3.1. Patients

On the basis of the abovementioned criteria, 11 patients were identified for potential inclusion in the study. Of these patients, two had to be excluded: one because of inadequate quality of MR images, the other because of plaque brachytherapy treatment. Therefore, the final enrolled population included nine patients (six men, three women). The patients’ mean age at irradiation was 55.5 years (range 29–78 years). The time interval between irradiation and enucleation ranged from 12 months to 46 months. The reasons for secondary enucleation were as follows: tumor progression after radiation therapy (local recurrence or extrascleral extension) (n = 4), treatment-related complications (ocular pain, vision loss, vitreous hemorrhage, neovascular glaucoma, or chronic inflammation) (n = 2) or both (n = 3). The demographic data of our case series are summarized in

Table 2. Demographic data of the enrolled population.

Patient	Gender	Age	Eye	Tumor Location	Interval between Irradiation and Enucleation	Reasons for Enucleation
1	Male	65	Left	Choroid	36 months	Tumor progression/recurrence and treatment-related complications
2	Female	72	Left	Choroid	46 months	Treatment-related complications
3	Male	60	Right	Choroid	35 months	Tumor progression/recurrence
4	Male	29	Right	Choroid	34 months	Tumor progression/recurrence
5	Male	37	Right	Choroid	38 months	Tumor progression/recurrence and treatment-related complications
6	Male	58	Right	Choroid	12 months	Treatment-related complications
7	Male	44	Right	Choroid	32 months	Tumor progression/recurrence
8	Female	75	Left	Choroid	14 months	Tumor progression/recurrence and treatment-related complications
9	Female	78	Right	Choroid	18 months	Tumor progression/recurrence

.

3.2. Histopathologic Findings

3.2.1. Histopathologic Findings with Respect to Irradiated Tumors

Radiation-induced necrosis was found in 5/9 patients. It was characterized by intratumoral coagulation and liquefaction necrosis, with dispersion of melanin pigment and enrichment with melanophages.

Fibrosis occurred in 1/9 patients, and was characterized by scar-like collagen bundles that replaced previously viable tumor tissue.

Viable tumor tissue was found in 7/9 patients. It was characterized by the presence of visible neoplastic cells with a distinct nucleus.

The histopathologic features of the enucleated specimens are summarized in

Table 3. Histopathologic and MRI findings with respect to irradiated and subsequently enucleated tumors.

Patient	Histologic Type	Radiation-Induced Necrosis Histology MRI		Fibrosis Histology MRI		Viable Tumor Tissue Histology MRI
1	Epithelioid cell	-	-	-	-	Yes	Yes
2	Necrosis without viable tumor tissue	Yes	Yes	-	-	-	-
3	Spindle cell	Yes	Yes	-	-	Yes	Yes
4	Epithelioid cell	Yes	Yes	-	-	Yes	Yes
5	Spindle cell	-	-	-	-	Yes	Yes
6	Fibrotic scar without viable tumor tissue	-	-	Yes	Yes	-	-
7	Spindle cell	Yes	Yes	-	-	Yes	Yes
8	Mixed cell type	-	-	-	-	Yes	Yes
9	Mixed cell type	Yes	-	-	-	Yes	Yes

.

3.2.2. Extratumoral Histopathologic Findings

The histologic appearance of irradiated extratumoral ocular tissues was as follows:

• Radiation-related intraocular inflammation (uveitis, endophthalmitis, and chronic conjunctivitis) (3/9 patients): presence of a conspicuous inflammatory infiltrate—mainly composed of lymphocytes, plasma cells, and granulocytes—populating the extratumoral ocular tissues.
• Vitreous hemorrhage (2/9 patients): extravasation of red blood cells within and around the vitreous body.
• Optic nerve degeneration (3/9 patients): gliosis and loss of axonal tissue, which was replaced by fibrosis.
• Iris neovascularization (1/9 patients): enrichment of blood vessels on the iris’ surface.
• Periocular fibrotic adhesions (1/9 patients): bands of scar-like tissue.

Extratumoral histopathologic findings are summarized in

Table 4. Histopathologic findings with respect to irradiated extratumoral ocular tissues.

Patient	Radiation-Related Intraocular Inflammation	Vitreous Hemorrhage	Optic Nerve Degeneration	Iris Neovascularization	Periocular Fibrotic Adhesion
1	-	Yes	-	-	-
2	Yes	-	-	-	-
3	-	-	Yes	-	-
4	-	-	-	-	-
5	Yes	-	Yes	-	-
6	Yes	-	-	Yes	-
7	-	-	Yes	-	Yes
8	-	Yes	-	-	-
9	-	-	-	-	-

.

3.3. MR Findings

3.3.1. MR Findings with Respect to Irradiated Tumors

The MR findings with respect to irradiated tumors are summarized in Table 3.

After MR imaging, radiation induced necrosis was appreciable in 4/9 patients. Radiation-induced necrosis showed high signal intensity on T1-weighted, low signal intensity on T2-weighted, no restriction on DW images, and no enhancement on contrast-enhanced fat-suppressed T1-weighted images (Figure 1). In the one remaining patient with histopathologic evidence of necrosis (Table 3), the irradiated tumor was characterized by microscopic foci of necrosis, only appreciable under pathologic examination and, therefore, below the resolving power (spatial resolution) of MR imaging.

At MR imaging fibrosis was appreciable in 1/9 patients. Fibrosis showed intermediate signal intensity on T1-weighted images, low signal intensity on T2-weighted images, no restriction on DW images, and moderate enhancement on contrast-enhanced fat-suppressed T1-weighted images.

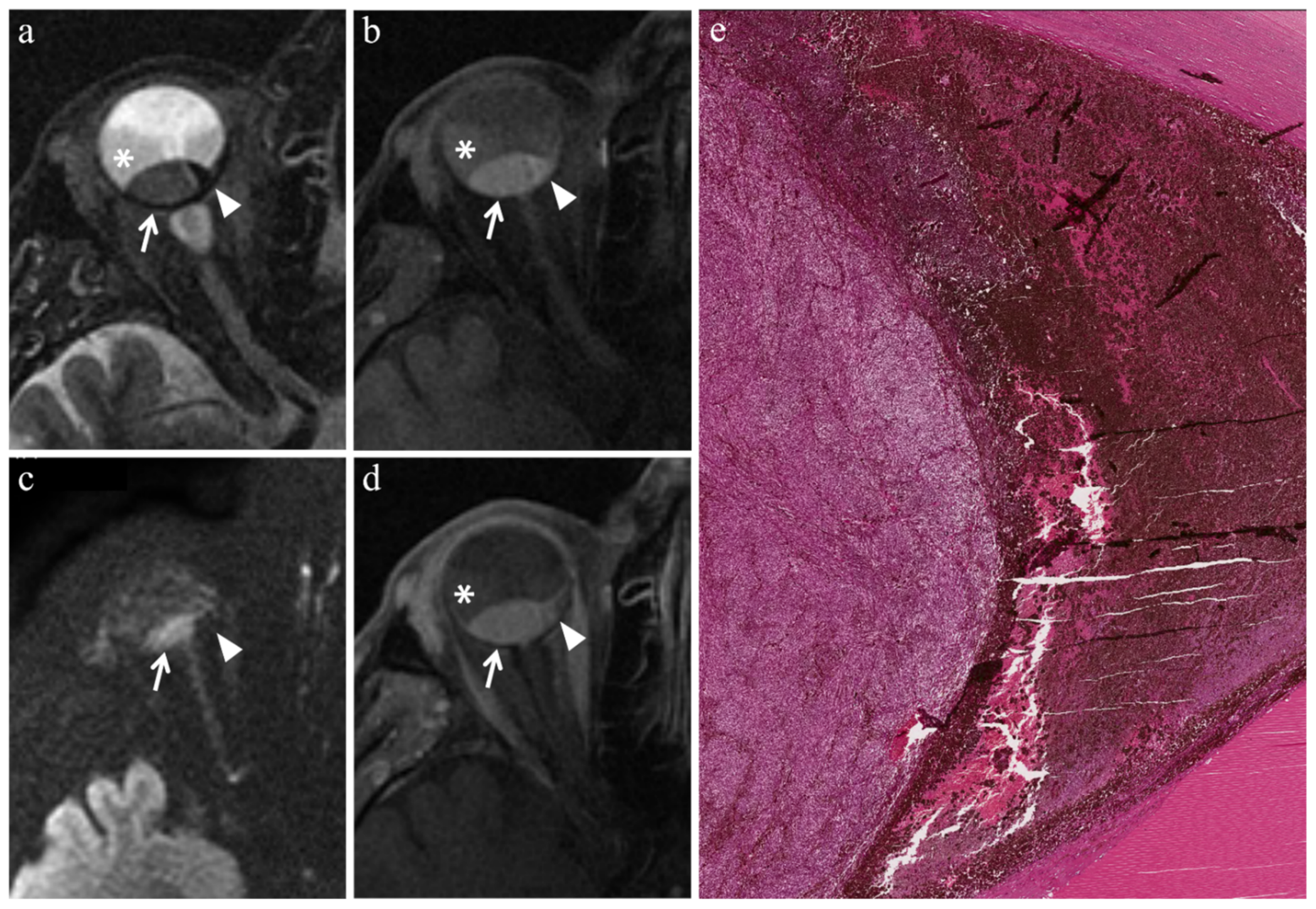

At MR imaging viable tumor tissue was appreciable in 7/9 patients. The MR appearance of viable tumor tissue resembled that of primary melanoma, largely depending on the melanin content. Typical pigmented melanomas showed high signal intensity on T1-weighted images and low signal intensity on T2-weighted images. Poorly pigmented lesions demonstrated intermediate signal intensity on both T1- and T2-weighted sequences. In any case, viable tumor tissue displayed restricted diffusion on DW sequences (high signal intensity on DW images, low signal intensity on the ADC map) due to high cellularity.

Table 5. Chart summarizing the MR imaging appearance of irradiated uveal melanomas.

MR Finding	T2	T1	Gd-T1	DWI
Radiation-induced necrosis	Low signal	High signal	No enhancement	Low signal
Fibrosis	Low signal	Intermediate signal	Moderate enhancement	Low signal
Viable tumor tissue, pigmented melanoma	Low signal	High signal	Enhancement of viable tissue	High signal
Viable tumor tissue, poorly pigmented melanoma	Intermediate signal	Intermediate signal	Enhancement of viable tissue	High signal

low signal; intermediate signal; high signal; no enhancement; enhancement of the viable tissue.

summarizes the MR imaging appearance of irradiated uveal melanomas.

3.3.2. Extratumoral MR Findings

The MR appearance of irradiated extratumoral ocular tissues was as follows:

Radiation-related intraocular inflammation (uveitis, endophthalmitis, and chronic conjunctivitis).

In the case of panuveitis (1/9 patients), MRI showed diffuse thickening of the globe wall that displayed noticeable enhancement on contrast-enhanced fat-suppressed T1-weighted images. This sequence also showed a coexisting diffuse choroidal detachment.

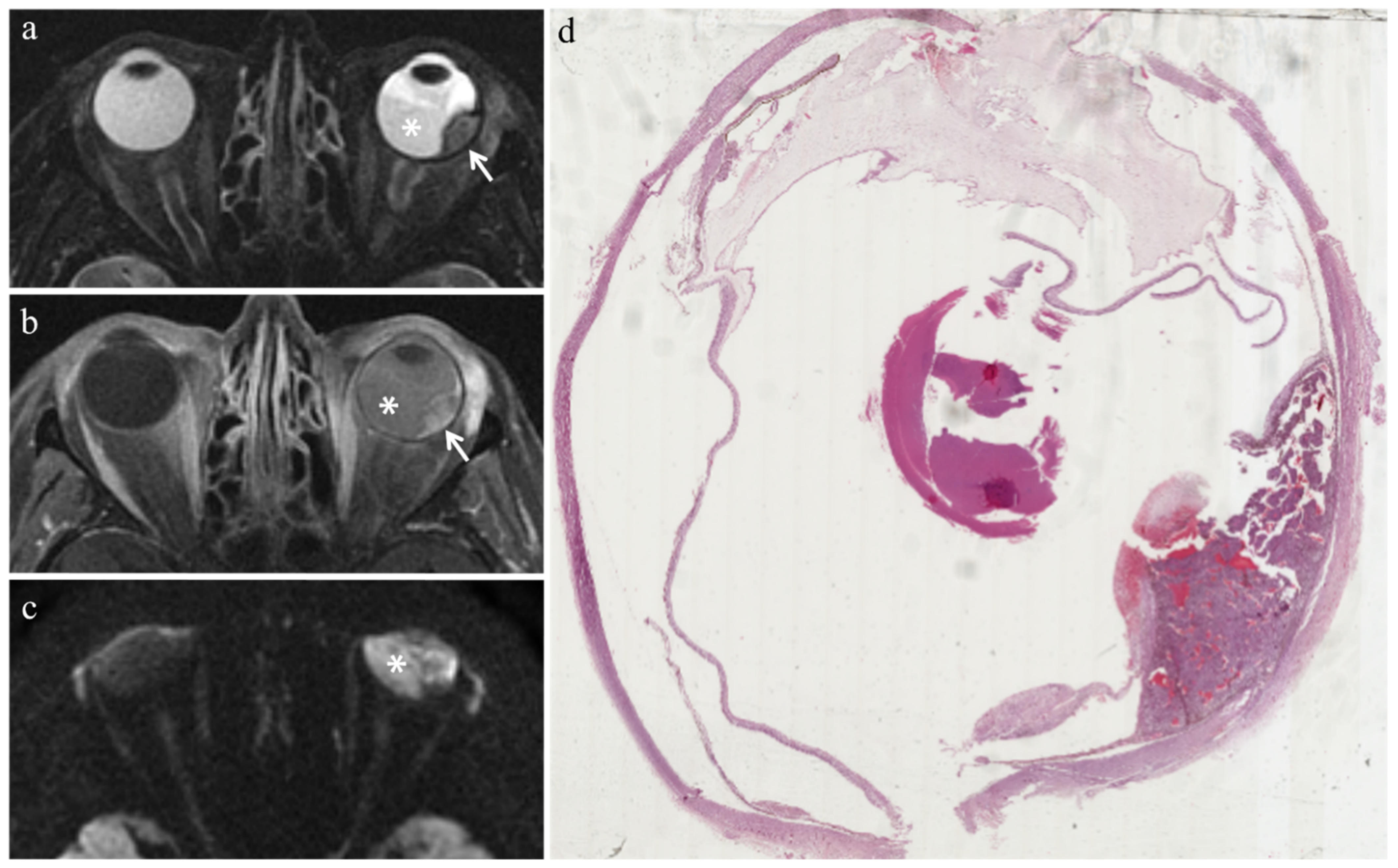

In endophthalmitis (3/9 patients), the anterior chamber and vitreous body showed increased signal intensity on precontrast T1-weighted images. Another typical finding was the high signal intensity of the vitreous body on T2-weighted fluid-attenuated inversion recovery (FLAIR) sequences performed for the brain examination executed concomitantly with the MR of the orbit (Figure 2).

Chronic conjunctivitis (1/9 patients). The conjunctiva appeared thickened with considerable enhancement on contrast-enhanced fat-suppressed T1-weighted sequences.

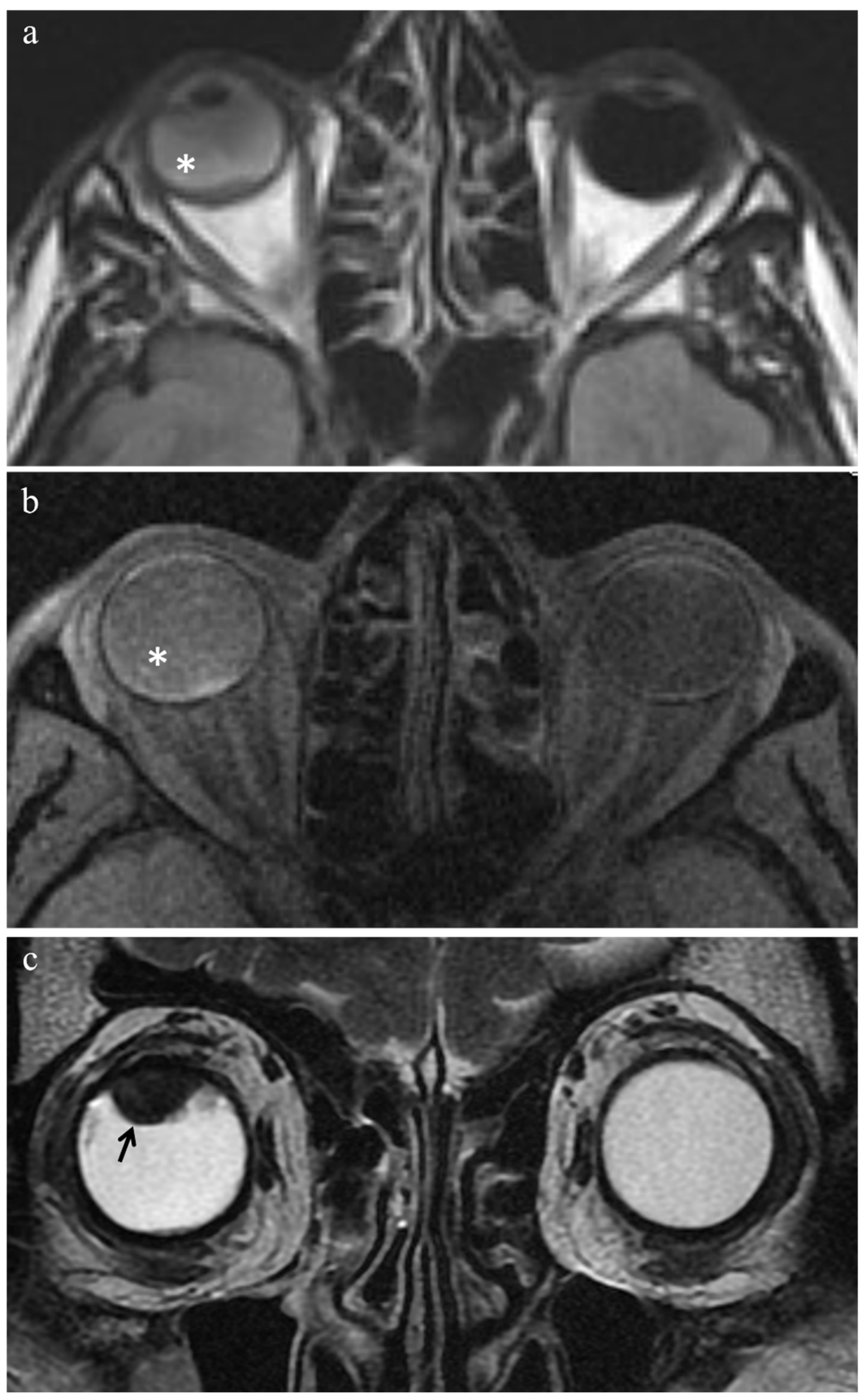

Vitreous hemorrhage (2/9 patients) was better visible on T1-weighted sequences in which both the anterior chamber and the vitreous body displayed high signal intensity. In 1/2 patients, on T2-weighted images, an intraocular fluid–fluid level, with relative hypointensity of the dependent portion, was identifiable within the vitreous body. On DW images vitreous hemorrhage showed restricted diffusion (Figure 3).

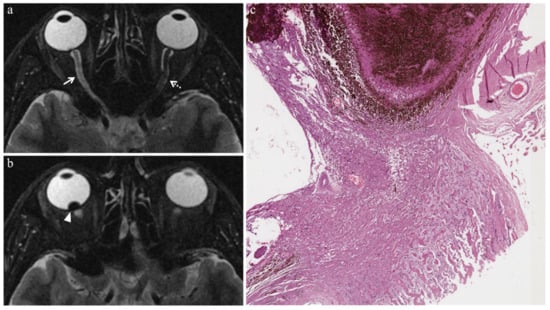

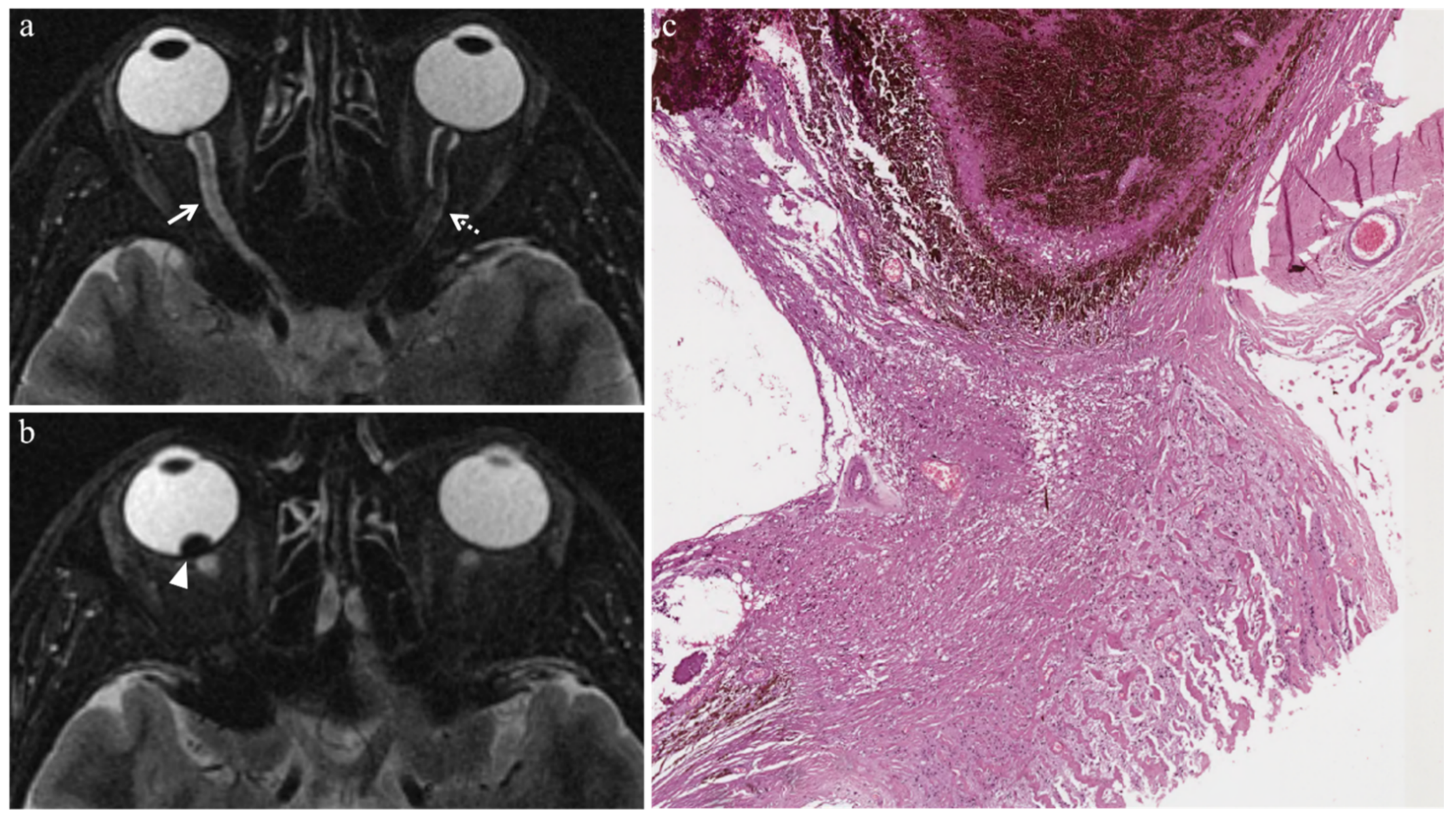

Optic nerve degeneration (3/9 patients). The optic nerve of the affected eye appeared thinned and moderately hyperintense on T2-weighted images in comparison with the contralateral one (Figure 4).

Iris neovascularization (1/9 patients). Conspicuous enhancement of the ciliary body and of the anterior part of the choroid was seen on contrast-enhanced fat-suppressed T1-weighted images.

Radiation induced cataract (1/9 patients). The lens demonstrated a peripheral hyperintense rim on T1-weighted sequences.

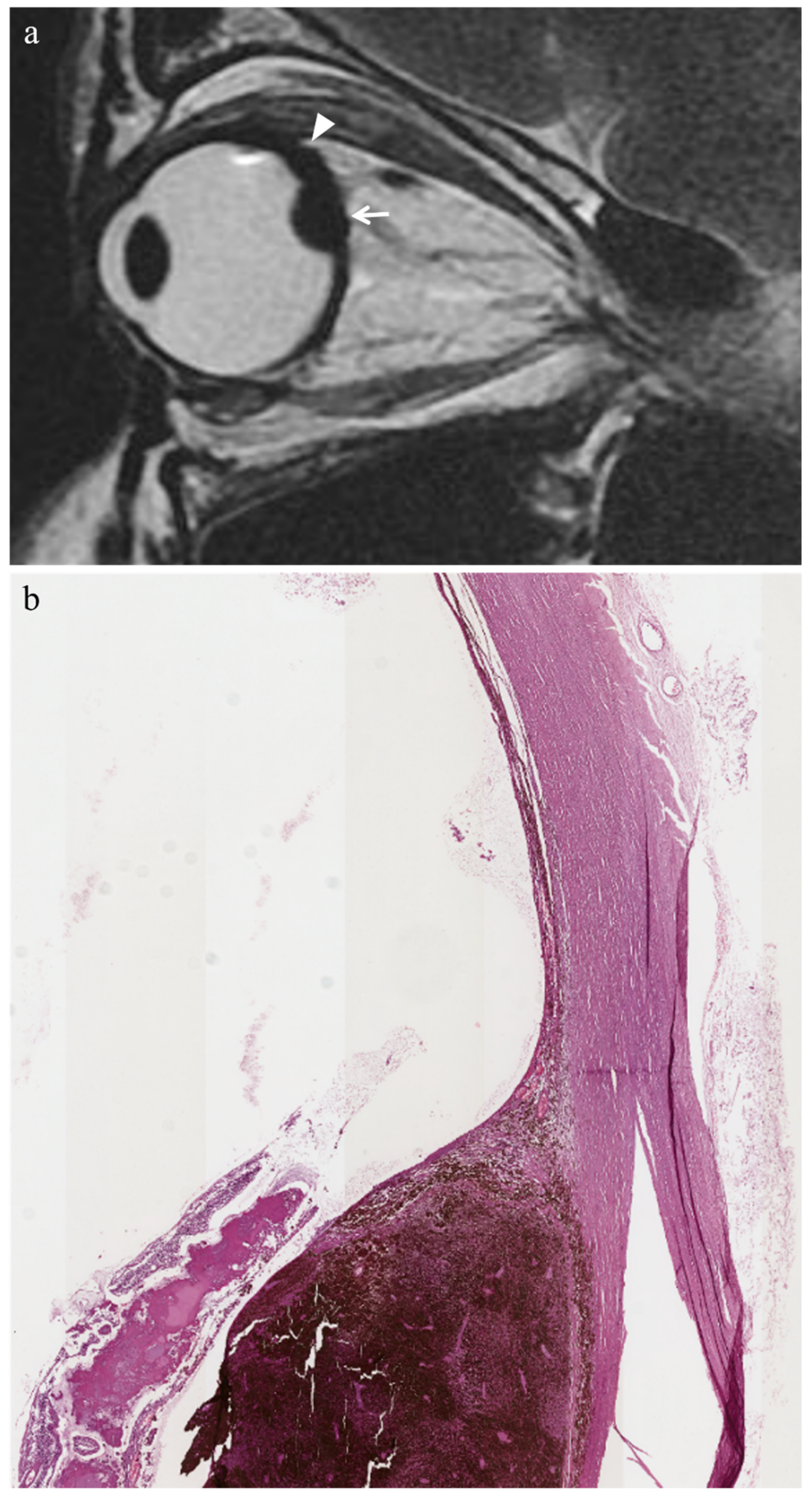

Periocular fibrotic adhesions (1/9 patients). Soft tissue thickening, hypointense on T1 and T2-weighted images, was detectable along the outer boundary of the sclera (Figure 5).

Table 6. MR imaging appearance of irradiated extratumoral ocular tissues.

MR Finding	T2	T1	Gd-T1	DWI
Uveitis	High signal	Low signal	Enhancement	High signal
Endophthalmitis	High signal of the anterior chamber and vitreous body on T2-FLAIR	High signal of the anterior chamber and vitreous body	-	High signal
Chronic conjunctivitis	-	-	Enhancement	-
Vitreous hemorrhage	Variable signal intensity with possible fluid-fluid level	High signal of the anterior chamber and vitreous body	Moderately hyperintense	High signal
Optic nerve degeneration	Moderately hyperintense	-	-	-
Iris neovascularization	Low signal	Intermediate signal	Conspicuous enhancement of the ciliary body	-
Radiation-induced cataract	-	Peripheral high signal	Peripheral high signal	-
Periocular fibrotic adhesion	Low signal	Low signal	-	-

low signal; intermediate signal; moderately hyperintense; high signal; enhancement; peripheral high signal; variable signal intensity with possible fluid-fluid level.

summarizes the MR imaging appearance of irradiated extratumoral ocular tissues.

4. Discussion

The aim of our study was to elucidate the MR semeiotics of radiotherapy-induced changes on both neoplastic tissues and healthy ocular structures in patients with uveal melanoma undergoing secondary enucleation after proton beam radiotherapy. When performing this MR imaging–pathologic correlation we took into account certain histopathologic features and compared them with individually matched MR images.

The histopathologic appearance of eyes with uveal melanoma undergoing secondary enucleation after radiotherapy is different from that of eyes undergoing primary enucleation. Saornil et al. [27] and Avery et al. [19] described the histopathologic changes in eyes with uveal melanoma that had undergone secondary enucleation after proton beam radiotherapy and plaque brachytherapy, respectively, comparing them with those of primary enucleation. Irradiated lesions demonstrated more inflammation, necrosis, fibrosis, blood vessel damage, and hemorrhage, as well as fewer mitoses than nonirradiated tumors [19,27]. As for extratumoral findings, eyes undergoing secondary enucleation had more vitreous hemorrhage and iris neovascularization [19].

Previous authors have postulated a direct relationship between the duration of the time frame between radiotherapy and enucleation and the amount of histopathological alterations [24]. According to Seddon et al., in particular, areas of necrosis were more numerous and extensive several months after irradiation [24]. Necrosis in irradiated tumors is the result of a dual effect: (1) a direct cytotoxic effect of radiation on neoplastic cells, and (2) an indirect action through the damage of neoplastic vasculature with resultant ischemia. Immune response against degenerated and necrotic neoplastic cells, in the form of inflammatory infiltrates (often with a perivascular distribution), would also play a role in tumor regression [24,27]. From a histological point of view, radiation-induced necrosis is characterized by dispersion of the melanin pigment with storage of pigment-laden macrophages [32]. In our study, at the histopathologic examination, we found necrosis in 5/9 irradiated tumors; in 4 of these patients necrosis was seen under MR imaging. Radiation-induced necrosis had a peculiar appearance under MR imaging. It showed low signal intensity on T2-weighted images because of melanin pigment dispersion. Moreover, when proton beam radiotherapy-induced necrosis and viable neoplastic tissue were present in the treated tumor, the border between these two areas was well-defined under MRI. This finding, particularly evident in T2-weighted sequences, had a strong overlap with histopathology, showing a stark transition between the two distinct portions of the tumor. Such an appearance is related to the physical properties of protons and, in particular, to the possibility of obtaining a highly collimated beam with minimal lateral scatter [22,23]. Therefore, the appearance of radiation-induced necrosis is different from that of spontaneous necrosis, observable in nonirradiated melanomas, especially in those of considerable size. Our observation is in contrast with that of Ferry et al. who, in a previous article, assumed the impossibility of the pathologist being able to distinguish radiation-induced necrosis from spontaneous necrosis in uveal melanomas [22]. On the other hand, Saornil et al., taking into account different histologic findings, managed to distinguish irradiated from nonirradiated eyes in 85% of cases of their series [27].

Gragoudas et al. suggested that the time course of necrotic alterations after radiotherapy could be related to the baseline dimensions of the neoplasm; in particular, small lesions would exhibit necrotic alterations earlier than large tumors [29]. We agree with this hypothesis, not only as regards the necrosis, but also with regard to another degenerative alteration—namely, fibrosis. Indeed, in our series, the choroidal melanoma that showed fibrotic alterations was a relatively small lesion (basal diameters 4 × 4 mm, prominence 6 mm), and the time course from radiotherapy to enucleation was rather short. In this patient, exhibiting complete tumor regression in the form of fibrotic remnants, the low signal intensity on T2-weighted images was related to fibroblasts, collagen deposition, and the abundant presence of melanophages. Our data are consistent with those of Kincaid et al. who, in two uveal melanomas enucleated after proton beam radiotherapy, found areas of fibrosis characterized by storage of collagen inside the stroma [25]. In our opinion, however, factors other than tumor size should also be taken into account, such as tumor response to radiotherapy, which may be heterogeneous and related to other determinants, including histologic type, cell kinetics, and host immune response [33].

Inflammatory complications are rather common after proton beam radiotherapy, being reported in 28% of patients during the first 5 years of treatment. Tumor size is considered the main risk factor [34]. Inflammatory complications encompass a wide spectrum of clinical manifestations (uveitis, endophthalmitis, conjunctivitis, etc.). Early detection and treatment of intraocular inflammation after radiotherapy is crucial since, if misdiagnosed, such a complication may result in secondary enucleation, even in the absence of tumor recurrence [34].

Uveitis may affect the anterior segment (iritis), the ciliary body (cyclitis), the posterior segment (choroiditis), or the whole uveal layer (panuveitis). In this last case, MRI may reveal a thickening of the anterior segment and the posterior aspect of the globe, associated with conspicuous enhancement on fat-suppressed T1-weighted images acquired after contrast agent administration [35].

In endophthalmitis the inflammatory process causes an increase in the protein content of the vitreous body and anterior chamber, due to leakage from retinal and choroidal vessels [35]. These vitreous changes are easily detectable in the form of increased signal intensity on unenhanced T1-weighted sequences, and also on T2-weighted FLAIR sequences commonly used in the brain MR protocol. On the other hand, vitreous alterations are less visible on contrast-enhanced T1-weighted sequences (because of modifications of the MR dynamic range induced by gadolinium) and hardly detectable on T2-weighted images. Uveitis and endophthalmitis can coexist, and may also be associated with choroidal and retinal detachment [35].

It has been hypothesized that in the pathogenesis of radiation-related inflammation, tumor necrosis plays a relevant role through the release of proinflammatory cytokines [34]. This assumption is consistent with our series; in the patient showing the most severe inflammatory complications, with concomitant panuveitis and endophthalmitis, the choroidal melanoma was wholly replaced by necrosis without appreciable neoplastic tissue. This patient underwent secondary enucleation four years after proton beam radiotherapy. In this case, at gross examination, the eyeball was surrounded by pus, and the posterior chamber showed necrotic–hemorrhagic content. Under MRI the edematous thickening of the periocular tissues displayed high signal intensity on fat-suppressed T2-weighted (STIR) images, restricted diffusion on DW images, and marked enhancement on contrast-enhanced fat-suppressed T1-weighted images. Moreover, the last sequence excellently demonstrated the diffuse thickening and enhancement of the detached choroid. The alterations to the anterior chamber and vitreous body, typically seen in endophthalmitis, were better demonstrated on unenhanced T1-weighted sequences.

Chronic conjunctivitis is a rather common complication following proton beam radiotherapy, and is related both to the direct action of radiation on the conjunctival epithelium, and to changes in the tear film caused by the treatment [36]. In one enucleated eye of our series, at the histologic examination, we observed an evident (sub)-conjunctival inflammatory infiltrate consistent with chronic conjunctivitis. Following MR this alteration was clearly detectable only on fat-suppressed T1-weighted sequences acquired after contrast medium administration, which showed a conspicuous enhancement and thickening of the conjunctiva of the treated eye. On the other hand, these findings were hardly or not at all perceptible on T2-weighted and plain T1-weighted sequences.

Vitreous hemorrhage is observable in about 8% of patients treated with proton beam radiotherapy. It is less common after proton beam radiotherapy than after brachytherapy. In cases of recurrent vitreous hemorrhage, enucleation can be indicated because of the impossibility of performing a correct fundoscopic evaluation during follow-up [37]. The composition of the vitreous body (acellular fluid with 99% water content) explains its physiological water-like appearance under MRI [38]. In our series, vitreous hemorrhage occurred in 2/9 patients; in identifying this alteration, T1-weighted sequences performed better than T2-weighted ones, due to T1 shortening provided by subacute blood products (methemoglobin). The anterior chamber and the vitreous body lost their physiological water-like appearance and became hyperintense on T1-weighted images. The appearance on T2-weighted images may vary depending on the severity and the age of bleeding, and sometimes a fluid–fluid level with a relatively low signal intensity of the dependent portion can be seen. The T2-weighted FLAIR sequence of the brain study may also be of help in detecting vitreous hemorrhage, easily demonstrating the loss of the physiological water-like hypointensity of the vitreous body.

Seddon et al. reported a series of three patients in which secondary enucleation was performed because of proton beam radiotherapy-related complications. In the patient with the longest time interval between irradiation and enucleation (11 months), the authors found optic nerve atrophy under light microscopy, although the tumor involved the ciliary body and choroid without covering the optic disc [24]. Kincaid et al. reported a series of five patients with uveal melanoma treated with proton beam radiotherapy, in which secondary enucleation was performed because of clinical complications and tumor growth. In two patients the authors described optic nerve atrophy; moreover, in these cases the tumor was away from the optic disc [25]. In our series, three patients showed optic nerve degeneration at the histologic examination and corresponding optic nerve thinning with T2 hyperintensity under MRI; in these cases, the tumor involved the optic disc. Whether optic nerve degeneration represents the result of the location of the lesion covering the optic nerve head, the consequence of the radiotherapy, or both, is debatable. The slightly hyperintense signal of the optic nerve we observed on T2-weighted images resembles the appearance of the subacute and chronic phases of Wallerian degeneration—a progressive anterograde disintegration of axons associated with demyelination following an injury to the cell body or the proximal portion of the axon [39]. In our case the optic nerve, formed by the axons of the ganglion cells of the retina, represents the first neuron of the visual pathway, extending from the ganglion cell layer of the retina to the lateral geniculate body of the thalamus. Ganglion cell injury—caused by tumor invasion, by radiation, or by both—determined, in turn, the degeneration of the axons constituting the optic nerve. These changes were displayed under MRI in the form of hyperintensity on T2-weighted images, volume loss (nerve thinning), and atrophy.

Neovascular glaucoma is one of the most serious complications of radiotherapy, as well as a leading indication for secondary enucleation [25]. Avery et al. found iris neovascularization in 39% of the irradiated eyes undergoing secondary enucleation after plaque brachytherapy, and postulated that this alteration could be the result of radiation-induced ischemia [19]. In the case reported by Ferry et al. of a ciliary body melanoma enucleated after proton beam radiotherapy, the patient exhibited rubeosis iridis—iris neovascularization involving both the treated and the untreated areas [22]. Boyd et al. investigated the pathogenesis of iris neovascularization, and its link with irradiation, in 11 patients who underwent secondary enucleation after proton beam radiotherapy. Differently from the previous author, they found that neovascularization more often affected the nonirradiated side of the iris, and when it was observable on both sides of the iris, it was more conspicuous on the untreated side [21]. The pathogenesis of iris neovascularization and neovascular glaucoma has been clarified in the last few decades. It has been postulated that the detached retina, the tumor, and even the residual scar resulting from irradiation of the neoplasm, synthesize angiogenic factors that, in turn, would be responsible for iris neovascularization [21,37]. This theory is consistent with our own case series, in which the patient with neovascular glaucoma showed only a residual fibrotic remnant of the choroidal melanoma after radiotherapy. Neovascular glaucoma was characterized by a noticeable neovascularization of the iris and the ciliary body, and at the histological examination appeared as copious congested end ectatic vessels. Under MRI the angiogenic process manifested in the form of a considerable enhancement of the ciliary body (and the anterior portion of the choroid) on fat-suppressed T1-weighted images obtained after contrast agent administration.

Cataracts are another complication ascribable to radiotherapy, affecting about 33% of patients treated with proton beam radiotherapy. The physical properties of protons allow for the sparing of healthy tissues located both on the sides of and behind the lesion; however, the amount of radiation at the entrance of the beam can be comparatively high, thereby promoting the development of a cataract [37]. In their series Kincaid et al. described a dense cataract in one patient. In this case, at the histological examination, the lens cortex displayed vacuolation, fragmentation of fibers, and development of globules [25]. In our series one patient experienced a cataract; in this case, under MR imaging, the involved lens demonstrated a peripheral hyperintense rim on T1-weighted sequences. This particular appearance somehow resembles cortical laminar necrosis, a pathological phenomenon associated with hypoxia, status epilepticus, infections, metabolic diseases, and drug intoxication. Cortical laminar necrosis is characterized by a high signal intensity on T1-weighted sequences, with gyral distribution at the level of cortical brain lesions; gyriform T1 hyperintensity is related to the storage of necrotic debris and denatured proteins [40,41,42]. Similarly, it is conceivable that the hyperintense T1 signal we observed in the peripheral portion of the lens may be the result of radiation-induced damage to the proteins of the cortical fibers and the accumulation of debris in the subcapsular region of the lens [28].

In previous articles, some authors reported a noticeable impediment during enucleation because of the dense fibrotic adhesions resulting from radiotherapy [22,43]. In our series, we observed similar findings in one patient who underwent secondary enucleation three years after proton beam radiotherapy because of local recurrence of a choroidal melanoma. The histologic examination showed the thickening of the sclera in close proximity to the insertion of the superior rectus muscle, in correspondence to the tantalum clips used to delimit the tumor borders before proton beam treatment. Under MR imaging the soft tissue thickening along the outer edge of the sclera was better visible on T2-weighted images, in which fibrotic alteration appeared hypointense because of collagen fiber deposition.

To our knowledge, to date, ours is the first study making a radiologic–pathologic correlation of MR findings and histopathologic data of uveal melanomas treated with proton beam radiotherapy undergoing secondary enucleation. To elucidate the MR appearance of alterations induced by radiotherapy on neoplastic and healthy ocular tissues has twofold relevance, since it helps us to understand the pathological basis of the effects of radiation, and also enhances the radiologist’s diagnostic confidence in the evaluation of follow-up MR examinations of patients with uveal melanoma. Indeed, during the last few years radiologists have acquired an increasingly important role in the multidisciplinary approach to patients with uveal melanoma. Although the detection of radiotherapy-related complications is not the primary aim of MR imaging, the thorough assessment of the effects of radiotherapy on both neoplastic and ocular tissue, and the confirmation of the clinical findings of the MR examination, may be crucial in patients’ multidisciplinary management and, in particular, in choosing whether or not to perform enucleation.

Admittedly, our study has various limitations. The small sample size and retrospective design were the main limitations of our study. Nevertheless, it should be noted that uveal melanoma is a rare neoplasm and, fortunately, enucleation has become increasingly uncommon in the last decade. MR examinations were performed at only one time point, just before enucleation; no MRI was performed at the time of diagnosis, before radiotherapy. The potential different orientation between MR images and histopathology slides could have made the radiologic–pathologic correlation in certain cases difficult; nevertheless, the use of specific anatomic landmarks (optic disc, ciliary body) has made it possible to overcome this obstacle. We deliberately did not take into account some extratumoral ocular findings, such as retinal detachment and choroidal detachment, because these findings can be related to the presence of the tumor and, therefore, already be present before radiotherapy. Lastly, we exclusively evaluated histopathological alterations with a counterpart in MR imaging; therefore, we did not take into account some purely histologic alterations observable in irradiated tumors, such as mitotic figures and balloon cells.

5. Conclusions

The radiologic–pathologic correlation between MR images and histopathological data after secondary enucleation enabled us to elucidate the MR semeiotics of radiotherapy-induced changes on neoplastic tissues and healthy ocular structures. Because of their relevant role in the multidisciplinary approach to uveal melanoma, and the responsibility that results from this, radiologists should be aware of the effects of radiotherapy on tissues and of their appearance at MR imaging. Enhancing accuracy in evaluating radiation-induced changes can help the multidisciplinary team make crucial clinical decisions and, ultimately, improve the therapeutic management of patients with uveal melanoma.

Moreover, although the MR protocol in the study of uveal melanoma is somewhat standardized, radiologists need to know the role and the diagnostic contribution of each MR pulse sequence in performing different specific tasks, in order to fully exploit the multiparametric capabilities of MRI. Overall, T2-weighted sequences perform better in detecting radiation-induced necrosis and fibrosis, as well as optic nerve degeneration and periocular fibrotic adhesions, whereas T1-weighted sequences are preferable for identifying alterations to the lens, vitreous hemorrhage, and inflammatory complications. Contrast-enhanced fat-suppressed T1-weighted sequences are irreplaceable in assessing iris neovascularization and confirming the presence of inflammatory complications.
