A Four-Level Maturity Index for Hot Peppers (Capsicum annum) Using Non-Invasive Automated Mobile Raman Spectroscopy for On-Site Testing

Abstract

A handheld Raman spectrometer was used to determine the ripeness of peppers. Raman spectra were recorded non-invasively on the fruit surface. The spectroscopic data were transformed into a classification scheme referred to as the maturity index which allowed for attribution of the fruit stadium to four levels from immature to fully mature. Hot pepper and tomato ripening includes pectic polysaccharide depolymerization, chlorophyll degradation and carotenoid formation, among others. The latter were followed non-invasively by Raman spectroscopy. Two portable systems and one benchtop system were compared for their applicability and robustness to establish a suitable maturity index. Spectral acquisition, data treatment and multivariate data analysis were automated using a Matlab script on a laptop computer. The automated workflow provided a graphic visualization of the relevant parameters and results on-site in real time. In terms of reliability and applicability, the chemometric model to determine the maturity of fruits was compared to a univariate procedure based on the average intensity and ratio of three characteristic signals. Portable Raman spectrometers in combination with the maturity index or a chemometric model should be suitable to assess the stage of maturing for carotenoid-containing fruits and thus to determine ripeness on-site or during a sorting process in an automated manner.

1. Introduction

For the determination of the degree of fruit ripeness, no quantitative characteristics or parameters are listed in EU quality standards. However, qualitative characteristics are defined for the fruit-bearing cycle, e.g., the respiration increase or the development of ethylene [1]. To assess fruit development and growth, various parameters such as pulp color and pulp firmness are used [2,3,4,5]. Other parameters comprise starch degradation, the Brix value, acidity and the sugar/acid ratio [4]. On a cell-size scale, the depolymerization and size of pectic and hemicellulose polysaccharides were associated with fruit maturation, particularly of tomatoes and hot peppers [6,7,8]. The determination of these parameters except fruit size and base color can only be achieved by destruction of the fruit, such as homogenization, extraction, staining or labeling, and at the expense of the producer. Fruit ripening is the last phase of fruit development and is associated with increased respiration, which is often accompanied by degradation of chlorophyll and increasing carotenoid content [9,10]. A correlation between ethylene and abscisic acid levels at different stages of ripeness was investigated for hot peppers [11].

Raman spectroscopy has not been exploited to its full potential in food analysis, although its application is increasing [12]. Raman techniques do not require the laborious pre-treatment described above. Samples can be investigated at ambient temperature and pressure [13]. The technique is fast and non-invasive and portable handheld spectrometers allow spectral recording and testing the fruit on the plant or during sorting. Water has only little or no response, unlike in infrared spectroscopy, such that fresh and dried fruits can be analyzed. The Raman methodology also allows inspecting for food safety through a glass or polymer packaging [14,15].

At the molecular level, one of the starting points of carotenoid synthesis is geranylgeranyl pyrophosphate (GGPP; C₂₀H₃₆O₇P₂) [16,17]. As a first step in this pathway, two GGPP molecules are condensed by phytoene synthase (PSY) into phytoene (C₄₀H₆₄) [18,19]. Through desaturation reactions of the enzymes phytoene desaturase (PDS) and ζ-carotene desaturase (ZDS), the characteristic double bonds are formed, which lend the carotenoids their intense color. Finally, the carotenoid cis-trans isomerase (CRTISO) forms the all-trans lycopene, where the synthetic pathway separates. At this point, various lycopene cyclases (LCY) start to produce either α- or β-carotene [9,20,21,22,23]. The different carotenoids have been extensively studied in tomatoes and assigned to stages of ripeness using mobile Raman spectroscopy [24,25]. Four to six classes of maturity were described, reflecting the color from green to red [26,27,28]. The spectroscopic results were interpreted with the help of advanced multivariate data analysis, such as soft independent modeling of class analogy (SIMCA), artificial neural networks (ANN) and partial least squares regression (PLSR), to achieve classification according to maturation. However, similar studies for hot peppers have not been described.

The carotenoid pathway applies to all pepper species as can be recognized by the well-known color change during maturing. The molecular transformations and the color change do not only occur within the fruit on the plant, but also to already harvested fruit. Green or yellow harvested fruits also turn red when adequately stored and allowed to continue ripening. Since the degree of ripeness is related to the nutrients and to the carotenoid content, Raman spectroscopy is particularly suitable for monitoring of the process [29,30,31,32,33,34]. It provides good sensitivity to carotenoids and is non-invasive, such that the fruit can continue to evolve after analysis. Handheld or portable spectrometers are suitable for on-site testing without sample preparation [35]. In this study, Raman carotenoid signals typical for hot peppers are described and the signal evolution during maturing is followed. A multivariate chemometric model and a straightforward univariate model are proposed and compared, allowing a four-stage classification of the ripeness of hot pepper fruits.

2. Materials and Methods

2.1. Fruit Samples

Hot peppers were purchased as pot plants from a local building supplies store (Hornbach, Krefeld, Germany). The plants grew at ambient humidity and temperature, (22 ± 3) °C and 50% humidity according to laboratory settings. Ambient light conditions were simulated using a Roleadro LED 300 W plant lamp (Shenzhen Houyi Energy Efficiency Co. Ltd., Shenzhen, China). The lamp emitted red light at 610–615, 620–630 and 650–660 nm and blue light at 430–440 and 450–470 nm with a red-to-blue intensity ratio of 4:1. Plants were sufficiently watered at regular intervals. Fruits were either investigated on the plant or picked and sorted according to their current evolution state. For carotenoid evolution monitoring, 21 hot peppers from 1 plant were investigated over a period of 110 days. For spectral intensity variability studies, fruits on plants or harvested were selected accordingly. For principal component analysis (PCA) and maturity index (MI) determination, 122 harvested hot peppers from 4 plants were investigated, yielding a total of 1119 spectra. The tomatoes for comparison were obtained as picked fruits from a local farmer (Carsten Knodt Gemuesebau, Toenisvorst, Germany) and investigated as received. Each of the three stages of ripeness was represented by 10 fruits. The obvious fruit color was noted and used for the referencing of PCA and MI.

2.2. Spectroscopy

Raman spectra were acquired using a handheld Raman (h-RAM) spectrometer, IDRaman mini 2.0 (Ocean Optics, Orlanda, FL, USA). The spectrometer was powered either from a laptop computer or using regular AA batteries. Its weight amounted to 380 g. The h-RAM was equipped with a point-and-shoot adapter (Ocean Optics, Orlanda, FL, USA).Using raster orbital scanning (ROS), the laser beam was moved following a circular pattern with a diameter of 3 mm. The laser beam had a width of approximately 25 μm. Spectra were acquired from 400 to 2300 cm⁻¹ and the spectral resolution was 13 cm⁻¹. The laser excitation wavelength was 785 ± 0.5 nm with a power of 100 mW. As a second instrument, a QE Pro Spectrometer Raman spectrometer (Ocean Optics, Orlando, Fl, USA) was used operating at 638 nm and 35 mW with a 638 LAB FCA laser (Ocean Optics, Orlando, FL, USA). An RIP-RPB-638-FC probe was coupled to the spectrometer. The spectra were recorded with a resolution of 7–10 cm⁻¹ and a Raman range of 150 to 3150 cm⁻¹. The software OceanView 1.5.2 (Ocean Optics, Orlando, FL, USA) was used for spectral acquisition. No sample preparation was required when using the two fieldable spectrometers, since both the point-and-shoot adapter and the RIP-RPB-638-FC probe allowed measurements on the fruit by positioning the probe tip close to the fruit surface. The exclusion of ambient light using a blackened cardboard cylinder helped improve the signal intensity.

For comparison, Raman spectra were also recorded on an NXR FT-Raman module (Thermo Scientific, Waltham, MA, USA). The module was connected to a Nicolet 6700 FT-IR spectrometer (Thermo Scientific, Waltham, MA, USA). The spectra were processed using Omnic software version 8.0 (Thermo Scientific, Waltham, MA, USA). For each measurement, 64 spectra were accumulated in the range of 100 to 3800 cm⁻¹. The resolution was set to 6 cm⁻¹. The wavelength of the laser was 1064 nm with a power of 900 mW. For this benchtop spectrometer, sample preparation required the excision of a part of the hot pepper (10 × 10 mm) and positioning it in the spectrometer’s sample cell.

2.3. Data Analysis

The spectral raw data recorded with the Raman spectrometers were uploaded onto a cloud and imported into Matlab R 2016b (MathWorks, Inc., Natick, MA, USA). Automated spectral processing and preprocessing were applied. Spectral preprocessing was carried out as weighted normalization using the standard normal variate (SNV) using Matlab together with PLS_Toolbox version 8.2.1 for Matlab (Eigenvector Research, Inc., Wenatchee, WA, USA). Spectra were also derivatized. Principal component analysis (PCA) was performed. A number of 3 latent variables were applied, yielding the best results. The singular value decomposition (SVD) algorithm was used for the PCA. Using a home-built Matlab script, the peak intensities of the 3 major Raman bands were identified and used for computing the four-level color-coded maturity index. The results were visualized, allowing instant evaluation after spectral investigation.

3. Results and Discussion

3.1. Detection of Carotenoids by Raman Spectroscopy

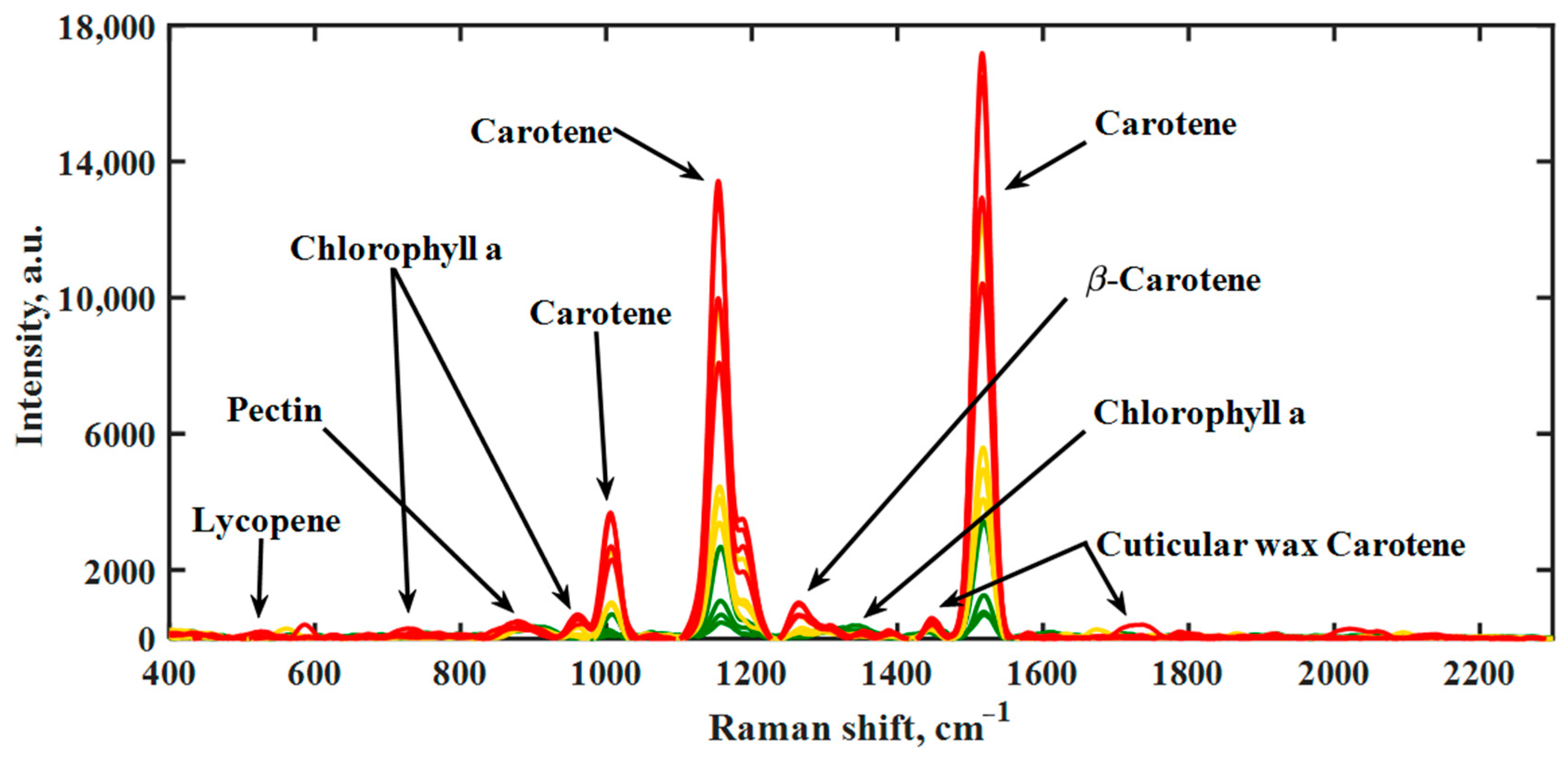

In general, chlorophylls show only very weak Raman responses. Carotenoids, on the other hand, provide very intense Raman signals, so that even small amounts in biological samples such as fruits can be detected. This characteristic feature is important to help detect and compare carotenoid contents in the very early stages of hot pepper maturation. In this respect, only the still completely green hot peppers showed no carotenoid signals at all. In Figure 1, Raman spectra of hot peppers are shown depending on the maturation process of the fruit on the plant. The important and intense carotenoid bands were observed in the range of about 800 to 1600 cm⁻¹. Most bands of green peppers can be assigned to chlorophyll, polysaccharides and waxes, which are present in the cuticular of the fruit.

The band at about 860 cm⁻¹ could be assigned to a C-O-C asymmetric stretching of the glycoside linkage in acidic pectins [29,36]. The weak band at 1327 cm⁻¹ was attributed to chlorophyll a which is known for the highest intensities in a neat chlorophyll spectrum [10,13]. The most intense bands in the spectrum were assigned to the carotenoids, observed at 1150–1170 and 1500–1550 cm⁻¹. The band is due to the in-phase C=C as well as C-C stretching vibration of the polyene chain. In the range of 1000–1020 cm⁻¹, methyl groups attached to the polyene chain were recognized, showing moderate intensity [23]. Schulz et al. demonstrated the dependence of a peak shift in the range of 1510–1536 cm⁻¹ on the number of conjugated C=C bonds [10,16,37]. The complete assignment of the predominant bands in Raman spectra of hot peppers is given in Figure 1.

3.2. Influence of Excitation Wavelength, Resolution and ROS Technology

For the automated determination of the ripeness of the fruit, a Raman spectrometer with suitable features should be used; it needs an appropriate excitation wavelength and sufficient resolution paired with the highest possible robustness. Three different Raman spectrometers were used to determine the degree of ripeness of the fruit (for spectral comparison, see Figure 2).

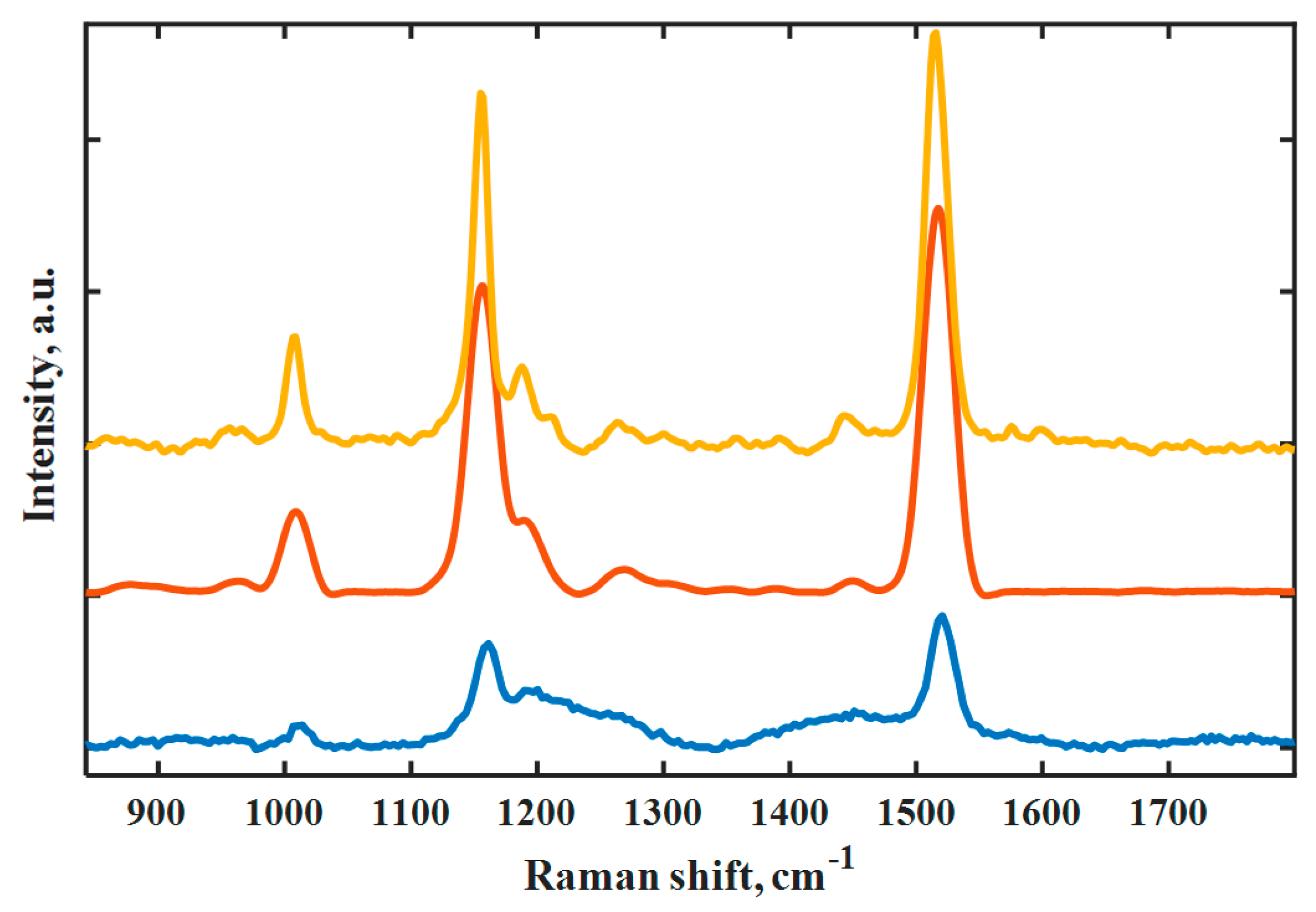

The three characteristic carotenoid signals at 1001, 1156 and 1515 cm⁻¹ were detected using the three spectrometers with laser wavelengths at 638, 785 and 1064 nm. The spectrum with the laser wavelength at 638 nm suffered from strong fluorescence, so that an extended spectral editing was required. While the fruit surface contains a variety of compounds, the interference stemmed presumably from chlorophylls showing broad absorbance around 662 nm. However, the intensities after background correction remained significantly lower compared to the results of the other two spectrometers. The resolution of the instrument having the laser at 1064 nm amounted to 6 cm⁻¹ and was much better than that of the handheld instrument. However, it was a benchtop device for laboratory use and was therefore not suitable for field or on-site use. The spectrum recorded with the handheld device having a laser wavelength of 785 nm displayed more intense signals and an enhanced signal-to-noise ratio as would be expected due to the wavelength dependence of the Raman intensity (λ⁴). The excitation wavelength was sufficiently red-shifted not to fall within the steeply declining carotenoid absorption in the visible range. The most commonly available 785 nm Raman laser proved indeed the best choice due to the lack of interference and the most available sensitivity. In addition, the raster orbital scanning technology contributed to improved sensitivity due to averaging over a wider area of the fruit surface [38]. The narrow, focused laser beam followed a circular motion over a larger sample area to yield a better resolution and intensity since an alternating color was observed over the fruit surface due to the maturing process, which the raster orbital scanning (ROS) technology took into account better than the sampling technique of the other Raman spectrometers. Thus, the handheld spectrometer was judged more suitable for field use to determine the degree of ripeness. In addition, the spectrometer was coupled directly with a laptop for spectrometer control and evaluation software.

3.3. Development of Carotenoid Concentration during Maturation

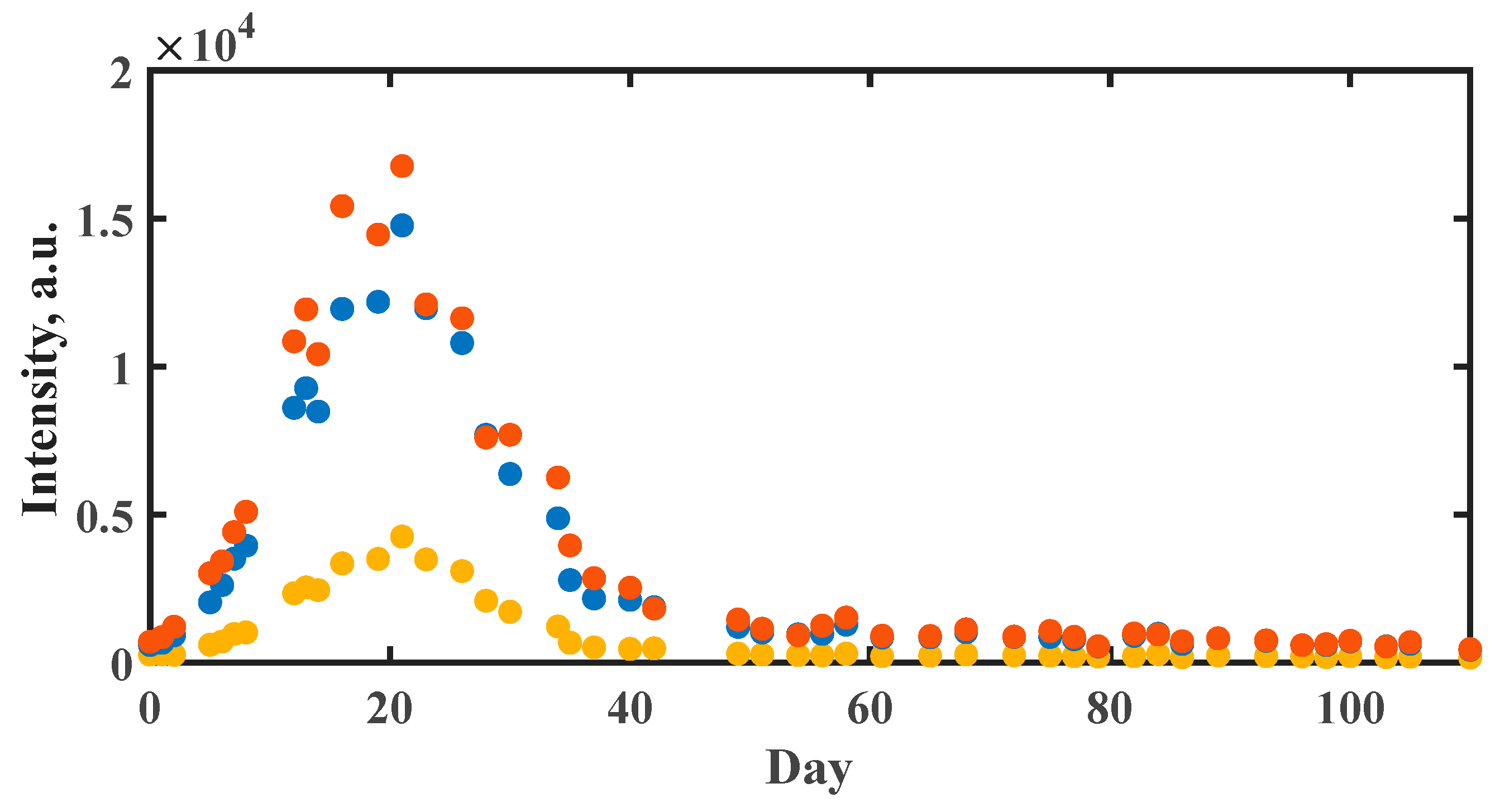

To assess the maturation level, immature green peppers were monitored over a period of 110 days using Raman spectroscopy. A spot on the surface of the fruits was labeled to ensure measurement at the same position during the observation period. Due to a visible change in color after a few days, a significant increase in the carotenoid signals was expected and found, cf. Figure 3. Over time, the fruit grew fully mature and overripe and dried, and hence carotenoid signals were observed with decreasing intensities.

There was a clear increase in the three characteristic carotenoid signals after three days. Within the following seventeen days, discoloration of the fruits from green to red occurred. During the remaining days, the characteristic red color persisted, but a continuous decrease in the carotenoid bands was observed. From the 50th day onwards, the intensities remained constant at a rather low level. This was traced back to the drying of the fruit and the continuous degradation of the carotene, which preceded and accompanied the fruit deterioration. The long-term experiment demonstrated that the build-up and disintegration of carotenoids could be followed by Raman spectroscopy and that the discoloration from green to red corresponded to a change in the carotenoid levels.

3.4. Variabilities of the Raman Band Intensities

Since the maturation process of tomatoes has been studied intensely [30,31,39], 30 hot peppers were compared to the same number of tomatoes. Each species was represented by 10 fruits of the categories immature, maturing and fully matured fruits, see

Table 1. Inter-fruit variations of the Raman band intensities at 1500 cm⁻¹ within 10 fruits of each category (green, orange and orange/red, red, see below) and species.

Species	Peppers			Tomatoes
Color	Green	Orange	Red	Green	Orange	Red
Mean value	3.6 × 102	2.1 × 103	7.5 × 103	1.2 × 102	3.2 × 102	5.5 × 102
Std. deviation	9.3 × 101	2.0 × 103	4.9 × 103	6.2× 101	1.0 × 102	1.9 × 102
Minimum	2.2 × 102	2.8 × 102	1.6 × 103	2.1× 101	1.6 × 102	2.2 × 102
Maximum	5.9 × 102	9.4 × 103	1.8 × 104	2.3 × 102	5.1 × 102	1.0 × 103

. The categories were related to green, orange and red fruits, respectively.

A comparison of the intensity values revealed a higher carotenoid content within the peppers than within the tomatoes, which might be due to the higher water content of tomatoes, thus a lower carotenoid concentration. The intensity also increased along with the ripening process from green to red. Both green hot peppers and green tomatoes showed low variations within their sample group of 10. The variations increased significantly during the ripening process. This was explained as due to the fact that fruits of the category orange showed features of different stages of ripeness. The discoloration played an additional role, as the green chlorophyll masked the red carotene and hence led to an obvious lower concentration of the carotene. Hence, the standard deviation of orange and red peppers was almost as large as the mean of all samples in this category.

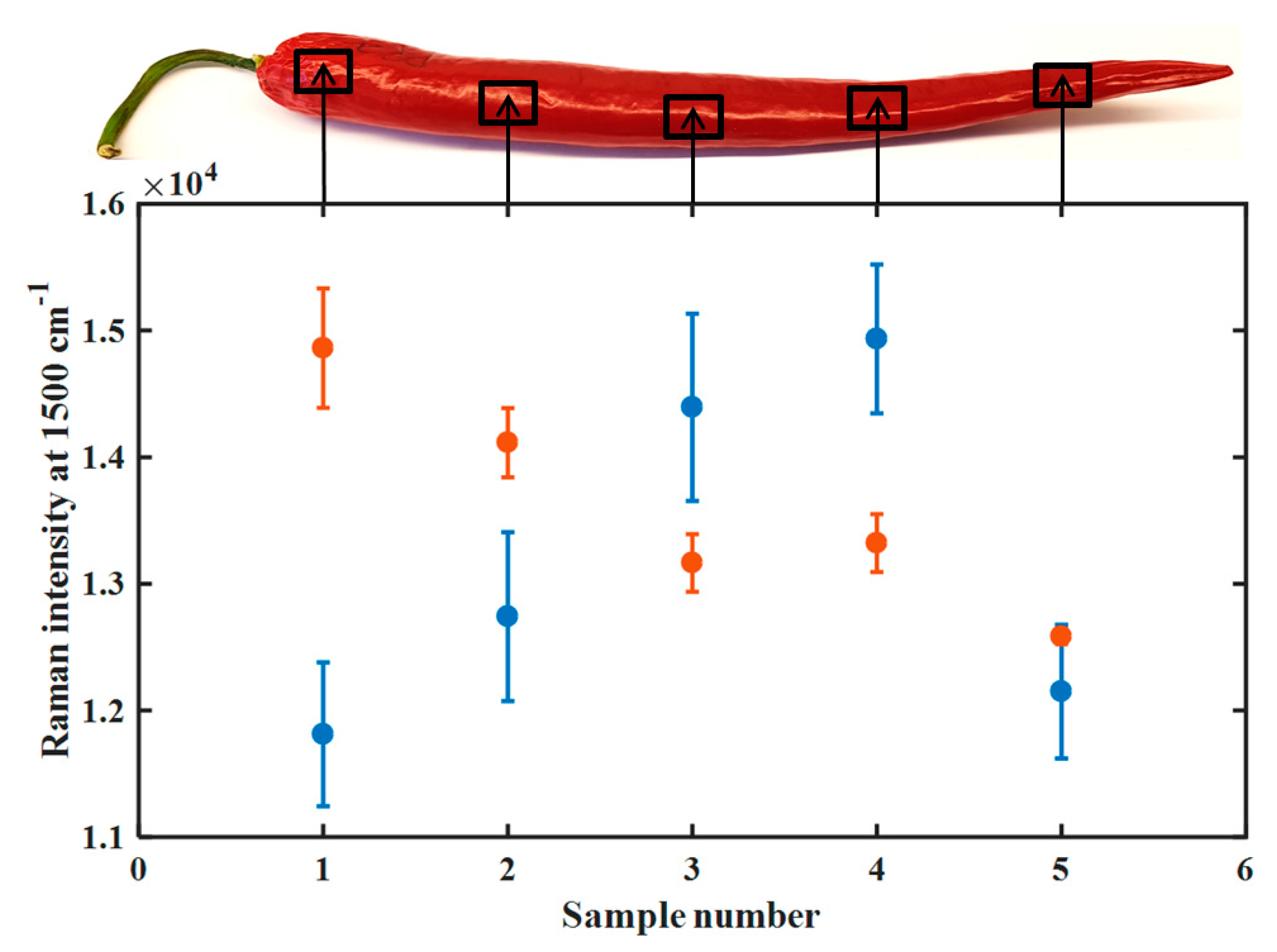

Since the inter-fruit variation appeared somewhat large, the intra-fruit variability was investigated. Five different measuring locations were defined on single fruits. A ripe pepper was compared with a red tomato, i.e., a ripe tomato, see

Table 2. Intra-fruit variations of Raman band intensities at 1500 cm⁻¹ measured as triplicates on 5 spots each on a hot pepper and tomato.

Species	Pepper	Tomato
Color	Red	Red
Mean value	1.3 × 104	6.5 × 102
Std. deviation	1.8 × 103	2.2 × 102
Minimum	1.1 × 103	3.8 × 102
Maximum	1.8 × 104	1.1 × 103

. Each test point was examined as a triple measurement using the same parameters.

The carotenoid concentration was not found significantly different for the two fruits at the distinct measuring locations. The intra-fruit variation proved comparable to the inter-fruit variation within a color category as shown in Table 1. This is an important finding since an automated analysis would not necessarily have to pay attention and aim for a specific test point. It should hence be sufficient that the laser beam would be focused on an intact area of the fruit surface. For a potential field application, the influence of the test location on the fruit surface on the maturity index to be calculated was furthermore verified. Figure 4 shows the results of triple measurements carried out at five points using the handheld spectrometer (blue) and the benchtop spectrometer (orange).

Intensities at 1500 cm⁻¹ recorded with the portable Raman spectrometer yield a mean of 13.4 × 10⁴ with moderate variation. The intensities observed in the spectrum of the benchtop spectrometer were slightly higher, although the absolute intensity would not affect the results with respect to the maturity index. Overall, the intensities displayed a lower intra-spot variability of the multiple measurements as indicated by the error bars. The inter-spot variations ranged for both instruments from 1.1 × 10⁴ to 1.6 × 10⁴ at 1500 cm⁻¹, again with a lower variation in the case of the benchtop instrument. Near the stalk, no significantly higher carotenoid concentration was found than at the other measuring points. Inter- and intra-spot variability would greatly influence the results of a field measurement. However, the low variability due to the selection of the test spot position and instrument and the good precision within replicate measurements favor on-site use. It should also be noted that the intra-spot deviation was smaller than the inter-spot variation, as would be expected. Overall, the variations observed with both instruments were in a comparable and acceptable range. The performance of the portable spectrometer seemed sufficient to take advantage of the benefits of portability for field use, e.g., on a plantation.

3.5. Classification of Pepper Using Principal Component Analysis

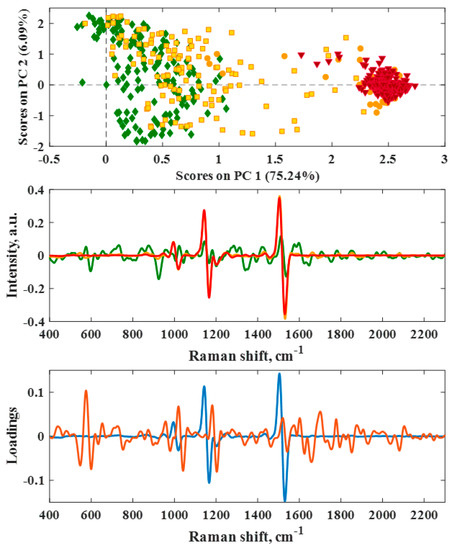

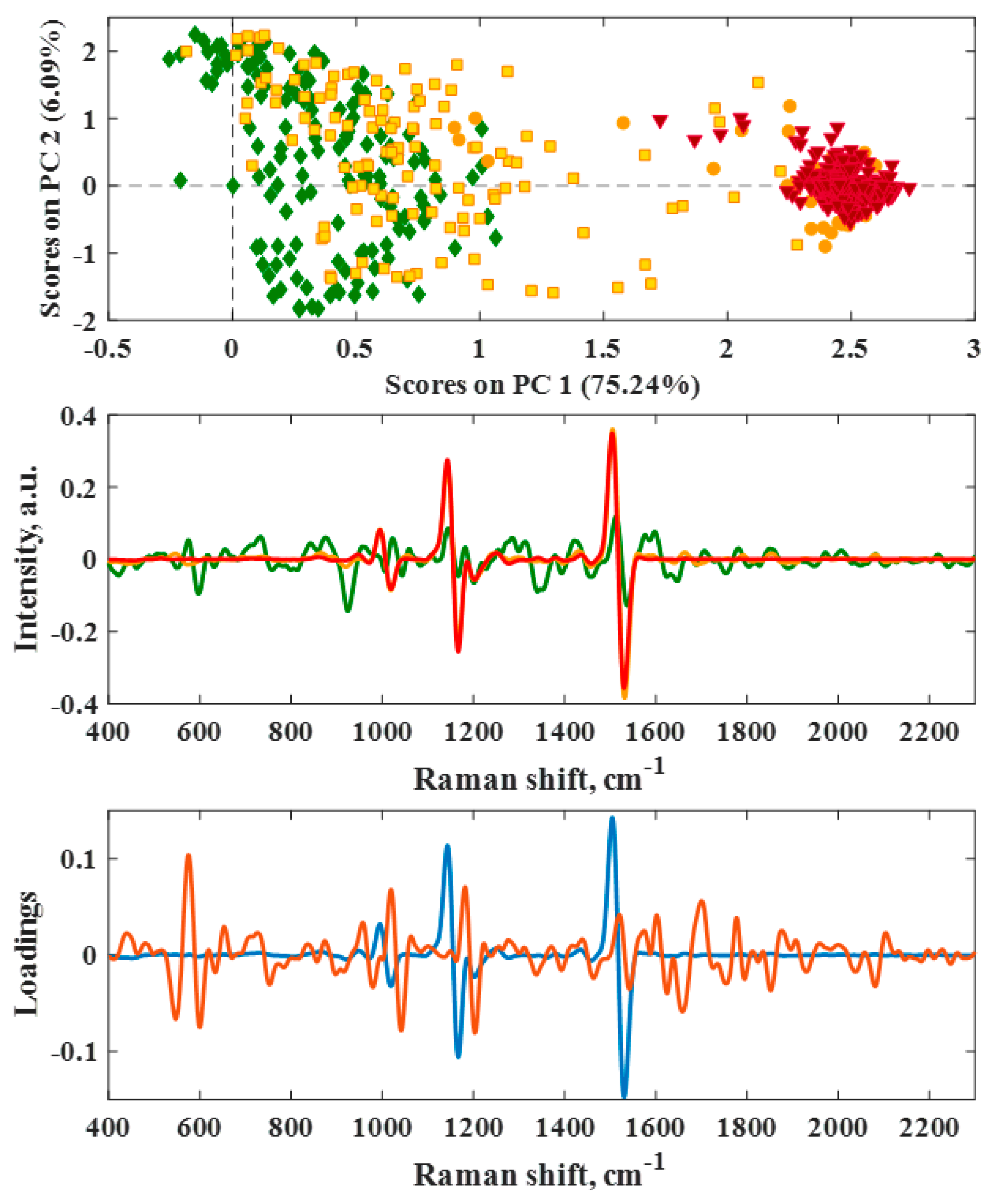

Further, for a visual inspection based on the fruit color, the assessment of the maturity level may be carried out in automated mode, e.g., if an automated sorting was envisaged. Before a quantitative measure of such assessment is established, a qualitative procedure using multivariate data analysis should be presented. To this purpose, principal component analysis (PCA) was chosen, cf. Figure 5.

The scores plot visualizes the 1119 samples labeled according to their maturity category, cf.

Table 3. Maturity index values, fruit colors and maturity levels for hot peppers.

Maturity Index	Color	Maturity
<2	green	Fully immature continued ripening proposed
2–3	orange	Immature significantly lower carotenoid levels than full mature; further plant ripening recommended
3–4	orange/red	Harvestable might reach slightly lower carotenoid contents in the after-ripening than full ripening; harvest possible, post-maturity recommended
>4	red	Fully ripe/mature suitable for immediate consumption; storage not recommended

. For PCA, preprocessed Raman spectra, i.e., derivative spectra, served as the input matrix. From the representation of the first and second principal components, it can be seen that immature (green) and fully ripe fruit (red) are well separated due to the three major signals, cf. Figure 3. In particular, fully ripe fruits and, to some extent, very immature fruits appear centered on the first component. In contrast, immature and harvestable fruits are spread along the PC1 axis. However, ripening and harvestable fruits (yellow squares and orange circles) are clearly distributed between the early growth and the mature stage. This finding can be interpreted in that ripening fruits still have a higher chlorophyll content and thus are more similar to immature fruits, cf. Figure 1 and Figure 5. From the loading vectors in Figure 5, it can be recognized that the carotenoid level exercises the biggest influence on the spectral and thus ripeness distinction. Chlorophyll and different carotene species are reflected by higher loadings. Determination of the optimum harvest time hence proved difficult when using qualitative PCA. An alternative method might be sought in a univariate method which relies exclusively on the three characteristic carotenoid signals and leads to a quantitative statement on the ripeness of the fruit.

3.6. Maturity Index

The intensities of the characteristic carotenoid bands at 1156 and 1515 cm⁻¹ were very similar in all measurement series, cf. Figure 1, while the intensities of the band at 1001 cm⁻¹ appeared with lower intensity but a proportional change referenced to the other two signals. Exemplarily, a fully ripe fruit would show a slightly higher ratio when the intensities of the two bands at higher wavenumbers were very large. Based on the proportional evolution of the signal at 1001 cm⁻¹, the peak intensity ratio was taken as a measure for ripeness. Hence, the level of ripeness could be assessed independent of the absolute value of the obtained intensities. The calculated value is referred to as the color-coded maturity index (MI), with the averaged intensities I_x of the signals at x = 1156 and 1515 cm⁻¹ and the intensity of the signal at 1001 cm⁻¹ as a reference (see Equation (1)).

$$\mathrm{MI} = \frac{I_{1156}+I_{1515}}{2\ast I_{1001}}$$

(1)

The maturity index is hence dimensionless. As an advantage, the MI allows comparing studies from different Raman spectrometers, since the effect of different intensities due to different laser wavelengths and powers is compensated for.

The maturity index can provide an estimate of the carotenoid level and hence the time of harvest. Previous work on tomatoes reported that harvesting too early might result in lower carotenoid contents, while within this study, no significant differences were observed for green peppers ripening on the plant and for those ripening post-harvest. The calculated maturity index for hot peppers was compared to the fruit color at the time of spectral recording. The values obtained could be assigned to four fruit color classes: green, orange, orange/red and red. During the extensive study, 1109 spectra were recorded from 130 fruits on plants, suggesting that a finer graduation would be possible. An MI between 1 and 2 corresponded to green hot peppers. Reddish green and orange fruits exhibited values with strong variation from 1 to 4. An MI between 3 and 4 indicated red fruits. Deep red fruits were associated with an index of 4. Dried nearly brown hot peppers gave rise to values above 4. It should be noted that a reference system for tomatoes may comprise five or six stages [26,27]. For a feasibility study on hot peppers, an index comprising four levels was considered sufficient. The MI values and assignments to color, ripeness and possible harvest stadiums are listed in Table 3. The maturity states and possible harvest and storage recommendations were extracted and adopted from literature data mostly on tomatoes.

Unripe peppers possess low amounts of carotenoids. They hence appear green due to the predominant color of chlorophylls. When the fruit turns to orange-red, the color becomes carotenoid-dominated. At this point, fruits may be picked and the evolution proceeds detached from the plant or fruits may proceed ripening on the plant (see above). Analysis of the Raman data revealed similar carotenoid levels for fruits that continued maturing post-harvest and for fruits that continued maturing on the plant. In Figure 6, the calculated maturity index was plotted versus the corresponding sample number of peppers and tomatoes of different maturing stages. The index range can be divided into unripe fruits appearing mostly green (green), ripening fruits with a color change from green to orange (orange) and fully ripe fruits colored red to dark red (red).

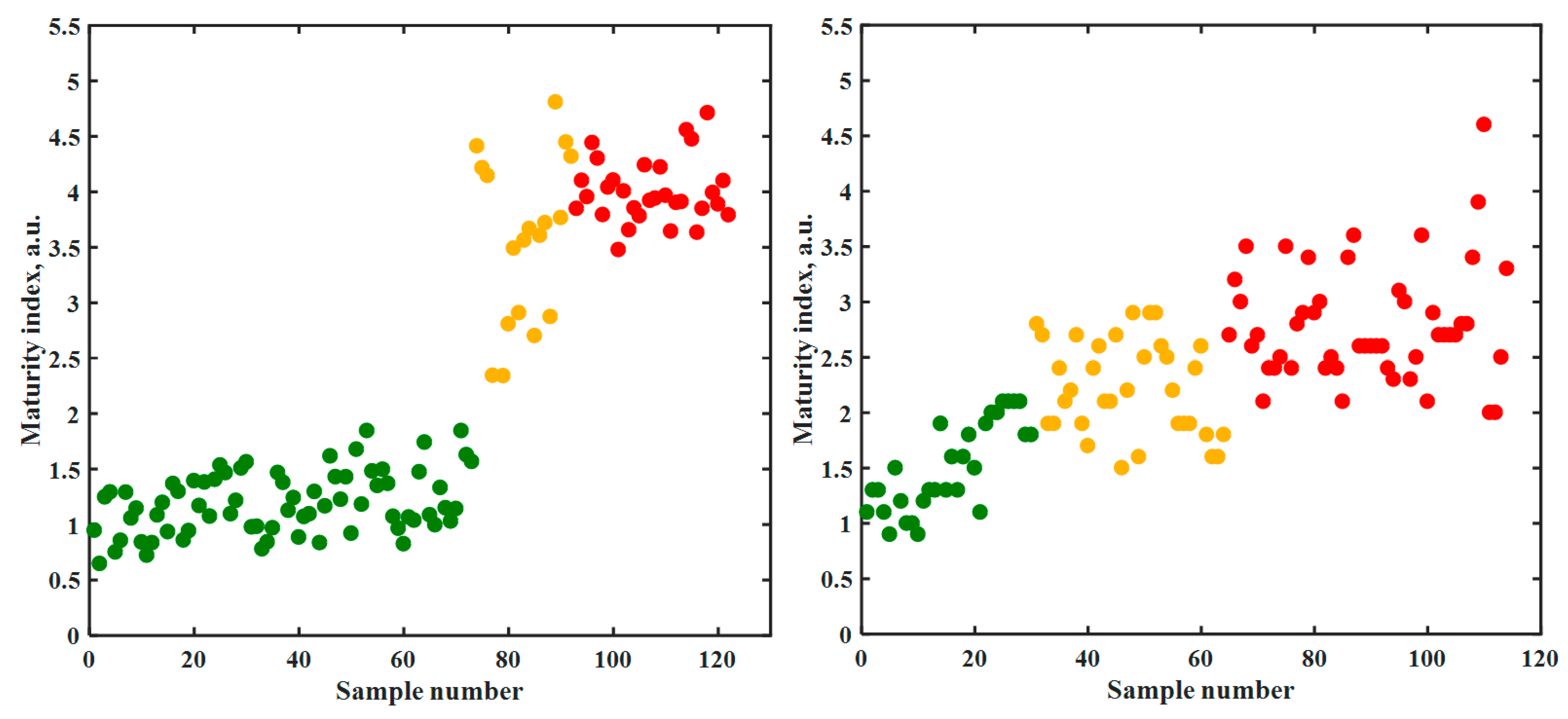

Immature peppers were associated with a maturity index between 0.5 and 2. The rather strong variation can again be explained in terms of the low carotenoid and higher chlorophyll content, which gave rise to poor Raman spectra yielding low and hence somewhat noise-afflicted intensity values. The index values of ripening peppers, immature and harvestable, also varied, since at this stage, an uneven carotenoid distribution exists along the fruit and thus inhomogeneous color gradients were perceived. The spectrum and thus the index depended on the investigated spot on the fruit surface. Averaging over several test spots did not reduce the variations to a larger extent, as was shown above. However, a minimum value of about 2.3 could be recognized. Above this value, the analyzed fruits started to display a reddish gloss.

The strong variation within the group of ripening fruits was hence due to the changing colors. Some fruits had a red tip but were green otherwise. However, other fruits exhibited a discoloration in the middle. The fully ripe state (red) was associated with a value of 4 or larger, while the index variation decreased significantly. The variation within this group could be traced back mainly to the aging process of pepper, as some fruits were already overripe.

The lower carotenoid concentrations in tomatoes as compared to hot peppers can be traced back to the higher water content. The Raman intensities observed for both fruit species were therefore different. As a consequence, the tomato maturity index assumed a range different from the one obtained for hot peppers. Tomato fruits seemed immature up to a value of 1.5. Due to the strong uneven discoloration, a similar variability occurred for the ripening tomatoes as for the peppers. Unlike for peppers, a clear distinction between the individual categories could not be recognized, cf. Figure 6. In summary, the maturity index is specific for one fruit species. Values need to be determined specifically.

Within this study, a total of seven different visual color classes were discerned for hot peppers. As a consequence of the spectroscopic performance, they were reduced to the four categories indicated in Table 3. For tomatoes, no similar detailed classification was achieved in contrast to previous studies [26,27]. Three categories as depicted in Figure 6 were attainable at this level. Again, the ripening fruit stage was the least well defined in terms of the maturity index. The last 14 data points stemmed from overripe tomatoes, which, through the different rotting processes, led to dispersed values of the maturity index.

While the PCA model distinguished well between ripe and unripe hot peppers but lacked the intermediate stages, one to two ripening categories could be defined using the maturity index. Applying more sophisticated multivariate methods might overcome the disadvantage. The signal variability due to the biological variation in the sample might deteriorate the accuracy of such a chemometric model as well. Hence, the univariate maturity index might be a simple alternative. Raman spectral recording, peak picking, intensity extraction and average ratio computation are easily automated as well as single value comparison to the calibrated index range.

4. Conclusions

The non-invasive determination of the maturity index enabled the assessment of the maturation state of hot peppers. Using a handheld Raman spectrometer at 785 nm laser wavelength, it was possible to investigate the maturation of the fruits. Raman spectra were recorded on the same fruit during ripening and on fruits at different stages of ripeness. Inter-fruit and intra-fruit variations were analyzed as well. Both variations occurred in the same order of magnitude, demonstrating a robust measuring process. For the evaluation, a Matlab script delivered the maturity index directly from the raw spectral data. A fast direct estimate of the maturity state can hence be made on-site, allowing an automated and non-destructive analysis, e.g., in a large greenhouse or at a storing facility. A more detailed view of the fruit color and the discoloration at the measuring point needs to be documented in order to adapt the maturity index for tomatoes. The study suggests that maturity can be identified based on the carotenoid level for fruits other than tomatoes or hot peppers. As a major advantage of Raman spectroscopy over colorimetric studies, valuable information about organic molecules such as carotenoids and chlorophylls associated with the ripening process can be obtained. It should also be possible to further identify the type of carotenoids synthesized in the fruit by more detailed analysis of the Raman shifts.
