Plasmonic Effect on the Magneto-Optical Property of Monolayer WS₂ Studied by Polarized-Raman Spectroscopy

Abstract

In recent years, the magneto-optical properties of two-dimensional transition metal disulfides have attracted more and more attention due to their further device applications in spintronics and valleytronics. However, to our knowledge, the plasmonic effect on the magneto-optical properties of WS₂ has not been studied. In this work, monolayer WS₂ transferred on SiO₂/Si substrate and Au film were investigated respectively using polarized-Raman spectroscopy at 4 K under different magnetic fields. Prominent magnetic field–induced variations in the Raman intensities of WS₂ samples were observed, which also exhibited significant differences in the spectral evolution versus magnetic field. The resonance magnetic field was 5 T and 5.5 T for the WS₂ on SiO₂/Si substrate and Au film, respectively. Remarkably, the magneto-optical Raman intensities of $A_1^{\prime }$ and 2LA(M) modes for WS₂ on Au film were reduced to approximately 60% compared with that of WS₂ on SiO₂/Si. These results suggest that the plasmonic effect–induced charge transfer plays an important role in the magneto-optical Raman effect of WS₂.

1. Introduction

Two-dimensional (2D) transition metal disulfides (TMDs), which are composed of strong bonding layers with weak Van der Waals force interlayer attraction and can be stripped into separate atomic layers under certain conditions, have attracted extensive attention in the past 10 years because they exhibit extraordinary physical properties and extensive prospective applications in devices [1,2,3]. WS₂ is a typical 2D TMD, which consists of an S-W-S atomic interlayer. The transition from indirect band gap to direct band gap occurs when the thickness of WS₂ decreases to monolayer [4]. Monolayer WS₂ has a direct band gap with a theoretical value of ~2.1 eV [5], slightly larger than that of monolayer MoS₂. The direct bandgap for monolayer WS₂ opens up opportunities for the applications in electronic and optoelectronic devices, such as light-emitting diodes, photodetectors and photoelectric sensors [6,7]. The band structure tunability with strain also meet the needs of field effect transistors (FET) [8,9] and hydrogen evolution [10]. Moreover, WS₂ has been considered as a natural candidate for valley research because of the unique symmetry and strong spin-orbit coupling [11].

In recent years, due to the potential device applications in spintronics and valleytronics, increasing research on the magneto-optical properties of 2D TMDs, such as valley Zeeman splitting [12,13], valley-and spin-polarized Landau levels [14], magnetic-field modulated valley polarization and valley coherence [15,16,17], has been carried out. Optical spectroscopic methods, such as circular polarized photoluminescence (PL) and magnetic circular dichroism (MCD) have been employed to study the magneto-optical properties of 2D TMDs [18,19,20,21]. Applying a magnetic field up to 7 T, a splitting for the PL peaks was observed in WS₂ [19]. Raman spectroscopy has been demonstrated to be a feasible tool to investigate the magneto-optical effect in 2D TMDs [22,23,24]. Ji et al. observed a giant magneto-optical Raman effect in MoS₂, which was closely related to the symmetry breaking induced by the electron motions modulated by the external magnetic field [22]. In a recent work, reduction of the magneto-optical Raman intensity of MoS₂ was attributed to the lattice defects–induced scattering of electron motion [25]. WS₂ grown on sapphire has been investigated using the magneto-Raman technique at 77 K [24].

It has been demonstrated that localized surface plasmonic resonance (LSPR) occurring on noble metal nanostructures–induced charge transfer from nanostructures to TMDs can prominently enhance the optoelectronic properties of TMDs. The effective hole mobility, up to ~100 (cm²/Vs,) and high on/off current ratio of >10⁶ were observed on the Au decorated WSe₂ [26]. Butun et al. reported a fourfold enhancement in the absorption of a WS₂ film after being hybridized with Ag nanodiscs [27]. The enhanced Raman and PL emission were observed on the hybrids of WS₂ and Au nanoparticles (NPs), which were attributed to the increased internal quantum efficiency and decreased activation energy due to coupling with Au NPs [28]. Thus, the plasmonic effect is predicted to have influence on the magneto-optical properties of WS₂. However, to our knowledge, study of the plasmonic effect on the magneto-optical Raman property of WS₂ has not been reported.

In this work, polarized-Raman spectroscopy was performed on monolayer WS₂ on SiO₂/Si and Au film, respectively, in order to get a clear overview of the plasmonic effect on the magneto-optical property of monolayer WS₂. Dramatic magnetic field–induced modifications of the intensities of Raman modes were observed in WS₂ on different substrates. Moreover, the magneto-optical Raman intensity for WS₂ on Au film was much lower than that for the WS₂ on SiO₂/Si, demonstrating that the charge transfer induced by the surface plasmon that occurs on Au film can offer a significant impact on the magneto-optical Raman effect of monolayer WS₂. Our results provide useful information for understanding the magneto-optical properties of TMDs and the fabrication of TMD-related magneto-optical devices.

2. Materials and Methods

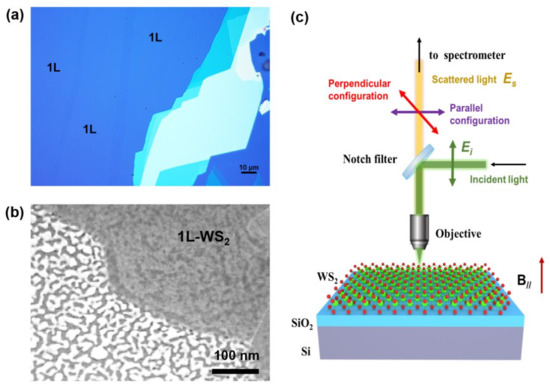

Single-crystalline monolayer WS₂ was prepared using a modified mechanical exfoliation method for bulk crystal and drily transferred onto a 280 nm SiO₂/Si substrate and Au film, respectively. The 10 nm thick Au film was deposited on a 30 nm SiO₂/Si substrate using the magnetron sputtering technique. The number of layers was further confirmed by ultralow frequency (ULF) Raman spectroscopy [29]. Figure 1a shows a white-light micrograph of a mechanical exfoliated WS₂ sample with the thickness overlaid. Large area 1L WS₂ was successfully obtained on a SiO₂/Si substrate. The optical image for monolayer WS₂/Au is similar. Figure 1b presents the magnified scanning electron micrograph (SEM) image of WS₂/Au heterostructure, in which the gray-colored zone indicates the WS₂ transferred. It can be seen clearly that the Au film in fact is composed of aggregated nanoparticles rather a continuous film. The size of nanoparticles (NPs) ranges from 5 to 30 nm. It has been demonstrated that NPs have a higher plasmonic modulation effect than the flat film due to the localized surface plasmon resonance (LSPR) that occurs on NPs. Low-temperature magneto-Raman measurements were performed in a cryostat (attocube AttoDRY 1100) with a custom-designed Raman micro-spectroscopy system. The temperature was fixed at 4 K, while the direction of magnetic field was normal to the sample surface (so-called Faraday geometry) and varied from 0 to 9 T. A linearly polarized 532 nm laser was used as the excitation source, and the power on the sample surface was approximately 2 mW. A low temperature compatible objective (NA = 0.8) was used to focus the laser and collect the Raman signal. The Raman spectra were collected in the parallel-polarized (VV) and crossed-polarized (VH) configurations, as presented in Figure 1c. In VV configuration, the polarizations of scattered and incident light were parallel to each other, while the polarization of scattered light was perpendicular to that of incident light in VH configuration.

3. Results and Discussion

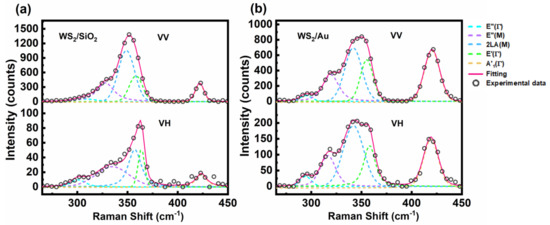

Figure 2 presents the zero-field polarized-Raman spectra of the monolayer WS₂ on SiO₂/Si and Au film, respectively. The Raman spectra of WS₂/SiO₂ exhibit obvious dependence on polarization configurations, as shown in Figure 2a. The line shape of the Raman spectra of the VV spectrum of WS₂/SiO₂ resumes that of monolayer WS₂ in previous literature [11,30]. When the polarization configuration changes from VV to VH, the overall intensity of the spectrum is significantly weakened. After fitting with Lorentzians, five peaks are identified in the range of 250–450 cm⁻¹ for the Raman spectra of WS₂/SiO₂, which is consistent with previous literature [31]. Among them, three peaks are worthy of special attention: the second-order resonant peaks involving longitudinal acoustic mode 2LA(M); the in-plane $E^{\prime }$ vibration mode of two S atoms in the plane in reverse motion with W atom; the out-of-plane $A_1^{\prime }$ vibration mode of two S atoms moving backward out of plane [24,32]. At VV configuration, $E^{\prime }$ mode is just a shoulder peak on the right side of 2LA(M) mode in the Raman spectra of WS₂/SiO₂. And the peak intensities of 2LA(M) and $A_1^{\prime }$ are much higher than that of E′ mode. In contrast, the intensities of the 2LA(M) and $A_1^{\prime }$ modes are obviously weaker relative to $E^{\prime }$ under VH configuration. The $E^{\prime }$ mode emerges as an isolated peak, whereas the 2LA(M) mode shrinks significantly. The polarization dependence for the Raman spectra of WS₂/SiO₂ follows the Raman selection rules (RSRs) for WS₂ [24,33].

On the other hand, the Raman spectra of WS₂/Au exhibit prominent different polarization dependent behaviors, as shown in Figure 2b. In sharp contrast to the Raman spectra of WS₂/SiO₂, the spectra lineshapes of WS₂/Au exhibit obvious distinctions. The intensity of 2LA(M) and $A_1^{\prime }$ modes are enhanced prominently and become comparable to that of $E^{\prime }$ mode. Especially in the VH configuration, the intensity of 2LA(M) is still hardening. The Raman spectra in Figure 2b clearly evidence the breaking of RSRs on WS₂/Au, which could be associated with the strong coupling between the plasmon and phonons in WS₂ [34]. As it is well known, the localized electromagnetic (EM) field at close vicinity of the Au NPs can be enhanced due to the LSPR effect under an excitation [35]. The intensity enhancement of the Raman modes for WS₂/Au is attributed to the surface enhanced Raman scattering (SERS) process as a result of the enhanced EM field [28]. In addition to the SERS process, other physical mechanisms cannot be excluded from the distinct polarized-Raman spectra of WS₂/Au. The strain induced by Au NPs underneath also contributes to the intensity enhancement of 2LA(M) mode [36,37].

It has been demonstrated that the A₁-symmetry mode is very sensitive to the doping effect [38,39]. For the hybrids composed of TMDs and noble metal NPs, the “hot carriers” are generated and transfer from NPs to WS₂ flake under the light illumination [40,41]. Employing ultrafast transient absorption spectroscopy with pumping photon energy below the indirect bandgap of the rippled MoS₂ quadrilayer, Camellini et al. directly demonstrated a plasmon-induced charge transfer between Au and MoS₂ [42]. As reported by Bhattacharya and coauthors, the Au NPs acted as dopants to WS₂ in the plasmonic hybrid nanostructures [28]. The broadening and enhancement of $A_1^{\prime }$ mode observed in this work is closed related with the electronic doping effect from Au film.

According to the definite lattice orientation for the single crystalline monolayer of WS₂, its out-of-plane $A_1^{\prime }$ and in-plane $E^{\prime }$ lattice vibrations are aligned with the vertical and horizontal EM fields [43]. The vibrations for LA mode are parallel to the direction of propagation [44,45]. The Raman intensity of $E^{\prime }$ mode is solely determined by the in-plane horizontal EM fields, whereas the Raman intensities of 2LA(M) and $A_1^{\prime }$ mode are contributed mainly by the vertical out-of-plane EM field. The prominent enhanced intensities of 2LA(M) and $A_1^{\prime }$ modes shown in Figure 2b demonstrate that the local EM field in the vertical direction is dominant on the Au NPs prepared in this work. To further study the LSPR effect on the polarized-Raman spectra of TMDs, nanostructures with enhanced EM field along specialized directions, such as dimer or nanogap, should be utilized in the future.

The differences between the Raman spectra for WS₂/SiO₂ and WS₂/Au are closely related to the plasmon-phonon coupling effect. To study the plasmon effect on the magneto-optical property of WS₂, the polarized-Raman spectra of WS₂/SiO₂ and WS₂/Au were collected at different magnetic fields. In Figure 3, the spectra were normalized using the intensity of the Raman peak of Si substrate in order to see the intensity evolution of Raman modes of WS₂. As displayed in Figure 3a, in VV configuration, the intensity of the Raman spectra decreases with increasing field, reaches the lowest value at approximately 6 T, then recovers with continuously increasing field. Remarkably, the intensity of 2LA(M) and $A_1^{\prime }$ modes decrease much faster than that of $E^{\prime }$ mode. The VV spectrum at 6T resembles the features of the VH spectra at 0 T, in which the $E^{\prime }$ mode becomes an isolated peak. In sharp contrast, the Raman intensity displays an anticorrelated evolution in VH configuration. As shown in Figure 3b, the spectral intensity grows with increasing field up to 6 T, and then recedes with continuously increased field. In particular, the intensity of 2LA(M) and $A_1^{\prime }$ modes enhances more quickly than that of $E^{\prime }$ mode. Of note, the VH spectra at 6 T resemble the features of the VV spectra at 0 T. Overall, one can see that the magnetic field–induced variations for the polarized-Raman spectra of WS₂/SiO₂ exhibit strong similarities with previous reporting [24]. Similar magnetic field modulation behaviors of the polarized-Raman intensity were also reported in MoS₂ [22,25]. The magnetic field–induced electron motion plays a key role in the Raman scattering process. Ji and coauthors proposed a semi-classic scenario to illustrate the magneto-Raman effect in MoS₂ [22]. Under the magnetic field in normal direction to the sample plane, the in-plane electron motion generates a transverse component due to the Lorentz force, leading to a transfer of Raman intensity between the crossed polarization configurations. The elements of Raman tensor, which are normally the electronic susceptibilities with respect to lattice normal coordinates, can be expressed as a function of external field. Therefore, the expression of the measured Raman intensity can be associated with the magnitude of magnetic field and direction of light polarization.

Magnetic field–induced modulations were also observed on the Raman spectra of WS₂/Au, as shown in Figure 3c,d, which also exhibited obvious intensity fluctuation with increasing field. However, the field-induced variations for WS₂/Au significantly differ from that for WS₂/SiO₂. One can see that both 2LA(M) and $E^{\prime }$ modes vary significantly with increasing magnetic field in VV configuration. At 6 T, 2LA(M) mode is still clearly identified, and $A_1^{\prime }$ mode is still greatly residual under VV configuration. The VV spectra at 6 T resembles the line shape of the VH spectra at 0 T.

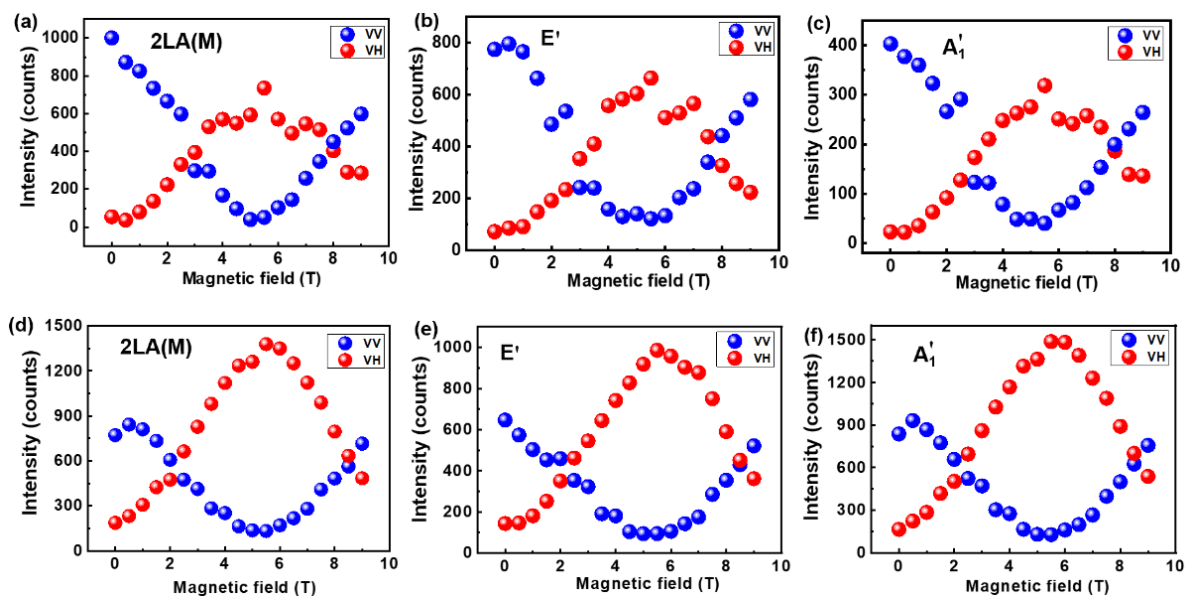

The magnetic field–dependent Raman spectra for WS₂/SiO₂ and WS₂/Au were deconvoluted using the Lorentz function, in order to get a clear view of the magnetic field dependence of peak intensity of WS₂ on different substrates. As presented in Figure 4a–c, the intensities of 2LA(M), $A_1^{\prime }$ and $E^{\prime }$ modes for WS₂/SiO₂ exhibit similar magnetic field dependences. The peak intensities vary oppositely in VV and VH polarization configurations. The maximum intensity in VH configuration and the minimum intensity in VV configuration take place at around 5 T. For simplicity, the magnetic field for the extreme point of intensity is defined as the resonance magnetic field. The similar magnetic field–induced intensity modulations are also observed on WS₂/Au, as displayed in Figure 4d–f. The resonance magnetic field for WS₂/Au is 5.5 T, which is a little higher than that for WS₂/SiO₂. Noticeable, the intensity amplitudes of 2LA(M), $E^{\prime }$ and $A_1^{\prime }$ modes for WS₂/Au are very close in VH configuration, which are different from those for WS₂/SiO₂. The reason for the striking difference between these two WS₂ samples is discussed below.

To quantify the effects of magnetic fields on Raman intensity, the magneto-Raman intensity of monolayer WS₂ on two different substrates was calculated according to previous literature [24,25], as follows:

$$\mathrm{Magneto-Raman} \mathrm{intensity}=\frac{I\left(B\right)-I\left(0\right)}{I\left(0\right)}\times 100\%$$

(1)

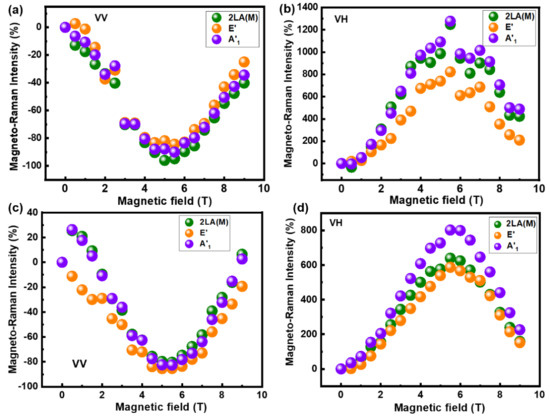

where I(B) is the Raman intensity obtained under different magnetic fields. As presented in Figure 5a, the magneto-Raman intensity of the 2LA(M), $E^{\prime }$ and $A_1^{\prime }$ modes for WS₂/SiO₂ exhibit a similar variation with increasing magnetic field, which are negative under VV configuration and reach the lowest value at around 5 T. In contrast, the VH polarization configuration witnesses the largest magneto-Raman intensity at 5 T. The VH magneto-Raman intensity of $A_1^{\prime }$ is higher than that of 2LA(M) and E′. Moreover, the lowest VV magneto-Raman intensity is nearly −100%, whereas the magneto-Raman intensity for the 2LA(M) and $A_1^{\prime }$ modes boosts to 1300% under VH polarization configuration.

On the other hand, the magneto-Raman intensity for WS₂/Au exhibits similar variations as that of WS₂/SiO₂, as shown in Figure 5c,d. In the VV configuration, the VV magneto-Raman intensity for WS₂/Au varies in the range from 20% to −90%, while the highest magneto-Raman intensity is just 800% in the VH configuration. It is worthy to note that the magneto-Raman intensity of $A_1^{\prime }$ mode for WS₂/Au is much lower than that for WS₂/SiO₂. The magneto-Raman intensities of $A_1^{\prime }$ and 2LA(M) modes for WS₂/Au were reduced to ~60% of that for WS₂/SiO₂. This difference in the amplitude of the magneto-Raman intensity between WS₂/SiO₂ and WS₂/Au can be attributed to the Au NPs underneath WS₂ flake, which breaks the polarization rules for WS₂. Due to the light-matter interaction, LSPR takes place at the surface of Au NPs. When plasmonic losses couple to WS₂, momentums with different wave vectors are provided by the near-field components in the nanogap between metal NPs [34]. Because the morphologies of Au NPs are irregular, the polarization of electromagnetic wave reflected from Au NPs is randomly distributed. Therefore, the proportions for the Raman signal with different polarizations change as a result of the disturbed polarization of excitation light.

Compared with previous literature, the low temperature magneto-optical Raman results obtained in this work exhibit significant difference in resonance magnetic field. Strikingly, the resonance field of monolayer WS₂ in this work (5 T or 5.5 T) is higher than that for the WS₂ grown on sapphire substrate using the CVD method (WS₂/Al₂O₃) at room temperature (4 T) [24]. Based on previous reports, the resonant magnetic field strength is inversely proportional to optical mobility [22]. A smaller optical mobility was predicted for the WS₂ samples in our work according to the results shown in Figure 4 and Figure 5. Normally, the mobility of mechanically exfoliated (ME) WS₂ is higher than that of CVD WS₂ [46]. In addition, as demonstrated on MoS₂, the amplitude of resonance magnetic field at low temperature is smaller than that at high temperature [22,25]. Therefore, the primary origin for the discrepancy in the optical mobility (or resonance magnetic field) between our work and previous reports can be attributed to the different dielectric properties of the substrates used. As the magnetic field effect on Raman process is through the field-modulated motion of electrons [22], the change transfer from the substrate to WS₂ cannot be neglected. The sapphire substrate has a better electronic screening effect than SiO₂. It is assumed that more photon-induced charges can be evolved into the field-modulated Raman process. Moreover, the LSPR induced hot electrons transferred from Au NPs to WS₂, which disturbed the electronic motion under the magnetic fields. Therefore, the resonance magnetic field for WS₂/Au is the highest as compared to WS₂/SiO₂ and WS₂/Al₂O₃. These results suggest that a high-k substrate, such as HfO₂, would be helpful for reducing the resonance magnetic field.

4. Conclusions

To summarize, magneto-Raman spectroscopy has been successfully performed on monolayer WS₂ transferred on SiO₂/Si substrate and Au film, respectively. Dramatic variations of Raman intensity were observed as a function of magnetic field, which can be associated with the symmetry breaking as a result of the electron motion induced by the magnetic field. Strikingly, prominent differences were observed in the magnetic field evolutions for WS₂ on SiO₂/Si substrate and Au film. The magneto-optical Raman intensity for WS₂ on Au film was much lower than that for WS₂ on SiO₂/Si. It is demonstrated that the plasmonic effect–induced charge transfer plays an important role in the magneto-optical Raman effects of WS₂. Our results provide useful information for understanding the magneto-optical properties of TMDs and further fabricating TMD-based magneto-optical devices.
