Fabricating Sustainable All-Cellulose Composites

Abstract

Climate change, waste disposal challenges, and emissions generated by the manufacture of non-renewable materials are driving forces behind the production of more sustainable composite materials. All-cellulose composites (ACCs) originate from renewable biomass, such as trees and other plants, and are considered fully biodegradable. Dissolving cellulose is a common part of manufacturing ACCs, and currently there is a lot of research focused on effective, but also more environmentally friendly cellulose solvents. There are several beneficial properties of ACC materials that make them competitive: light weight, recyclability, low toxicity, good optical, mechanical, and gas barrier properties, and abundance of renewable plant-based raw material. The most prominent ACC applications are currently found in the food packing, medical, technical and vehicle industries. All-cellulose nanocomposites (ACNCs) expand the current research field and can offer a variety of more specific and functional applications. This review provides an overview of the manufacture of sustainable ACCs from lignocellulose, purified cellulose, and cellulosic textiles. There is an introduction of the cellulose dissolution practices of creating ACCs that are currently researched, the structure of cellulose during complete or partial dissolution is discussed, and a brief overview of factors which influence composite properties is presented.

1. Introduction

Worldwide, an ever-increasing amount of consumable materials is produced and used. At the same time, we are facing severe environmental crises: poor waste management, microplastics in all waterways, depleting natural resources, and increasing greenhouse gases in the atmosphere [1]. It is important that technological development respond to the growing demand for sustainable materials that do not intensify the current waste problem.

Wood- or plant-based cellulose fibres have shown their potential as a reinforcement in composites for a relatively long time [2] alongside the commonly used glass-fibre [3] and carbon-fibre [4] reinforcements. The challenge is finding a bio-based option for the composite matrix, which is responsible for binding the fibres, transferring load, and shaping and protecting the final composite. Using wood-plastics is a step in a more sustainable direction, but they have proven been challenging to recycle [5], and therefore, they also contribute negatively to the waste problem when the material is disposed of. Furthermore, two chemically different components often have poor interfacial compatibility, which can lead to water uptake, reduction of the material’s mechanical properties [6] and shortening of the lifespan of the product. One way to overcome this problem and increase recyclability is to create single-polymer composites (SPCs), where reinforcement and matrix are composed of the same materials [7]. This effectively removes the fibre-matrix adhesion challenges between different types of polymers [8].

All-cellulose composites (ACCs) can provide an environmentally friendly alternative to conventional petrochemical-based materials since they are a type of SPCs from biomass-derived cellulose, and as such, they are easily recyclable, and they originate from renewable sources. A pioneering study of ACC materials was published by Nishino et al. [8], who created a cellulose-based composite with good mechanical and thermal properties. Since then, there has been a growing interest in the research and development of ACC and in finding suitable solvent systems for the process [9,10,11,12,13,14,15]. Currently, ACCs are produced from various cellulosic raw materials (plant fibres, chemically pulped wood, textile fibres and different varieties of micro- and nano-celluloses) using different processing methods [16,17]. All-cellulose nanocomposites (ACNC) are a subclass of nanocomposites produced using plant- and bacterial-based nanocellulose. They are manufactured via same methods as macroscale ACCs and they can improve the desired properties of the composite material such as enhance its mechanical strength [18,19,20,21,22]. Despite these recent developments, most of the recently developed ACC and ACNC materials are still produced in a laboratory scale.

Cellulose-based biocomposites have already found commercial success in many industries and therefore there are also potential interests for ACC materials. Current legislation and policies also lead the way to more sustainable product manufacturing. For instance, the European Commission’s Green Deal action plan [23,24,25] pushes the transportation industries to more sustainable practices and to generate less carbon dioxide emissions. One solution for the road transport, marine and aviation industries is to replace indoor plastic components with cellulose-based components [26]. Emission reduction occurs not only via the use of sustainable materials but through weight reduction that leads to more efficient fuel consumption [27]. In addition, low-density bio-based composites can improve key performance factors, such as impact resistance, energy absorption capacity, and reduce noise and vibration. They can also offer advantages in production cost [28]. Furthermore, low density ACC materials with good optical and gas barrier properties, flexibility, and high mechanical strength can be used applications in areas such as display panels, photoelectric devices, filtration materials, biomedical engineering applications, high-performance food packaging and structural materials [29,30]. Lightweight, rigid and porous all-cellulose aerogels can be an environmentally friendly alternative to synthetic foams [10] and can be used in technical applications, such as adsorbents, catalysts, detectors and acoustic and thermal insulators, as well as in many life science applications, such as pharmacology, cosmetics and bio-medical applications [31].

This review introduces some of the most essential green solvent-based fabrication routes for making all-cellulose composite materials for versatile end use profiles. In the brief outline on cellulose chemistry and composition we provide an overview on cellulose dissolution and regeneration practices that utilize different solvent systems. Different fabrication routes to combine natural fibres to dissolved matrix systems finally lead to fabrication techniques to obtain single polymer composites from cellulose and how to influence their properties.

2. Cellulose

2.1. Characteristics of Cellulose

In nature, cellulose is found in the cell walls of plants, including trees, and it has a vital role in providing mechanical strength and structural support [32]. Plant-based cellulose is accompanied by hemicellulose, lignin, pectin, and other substances [33]. Besides plants, certain bacteria, algae and fungi produce cellulose [34].

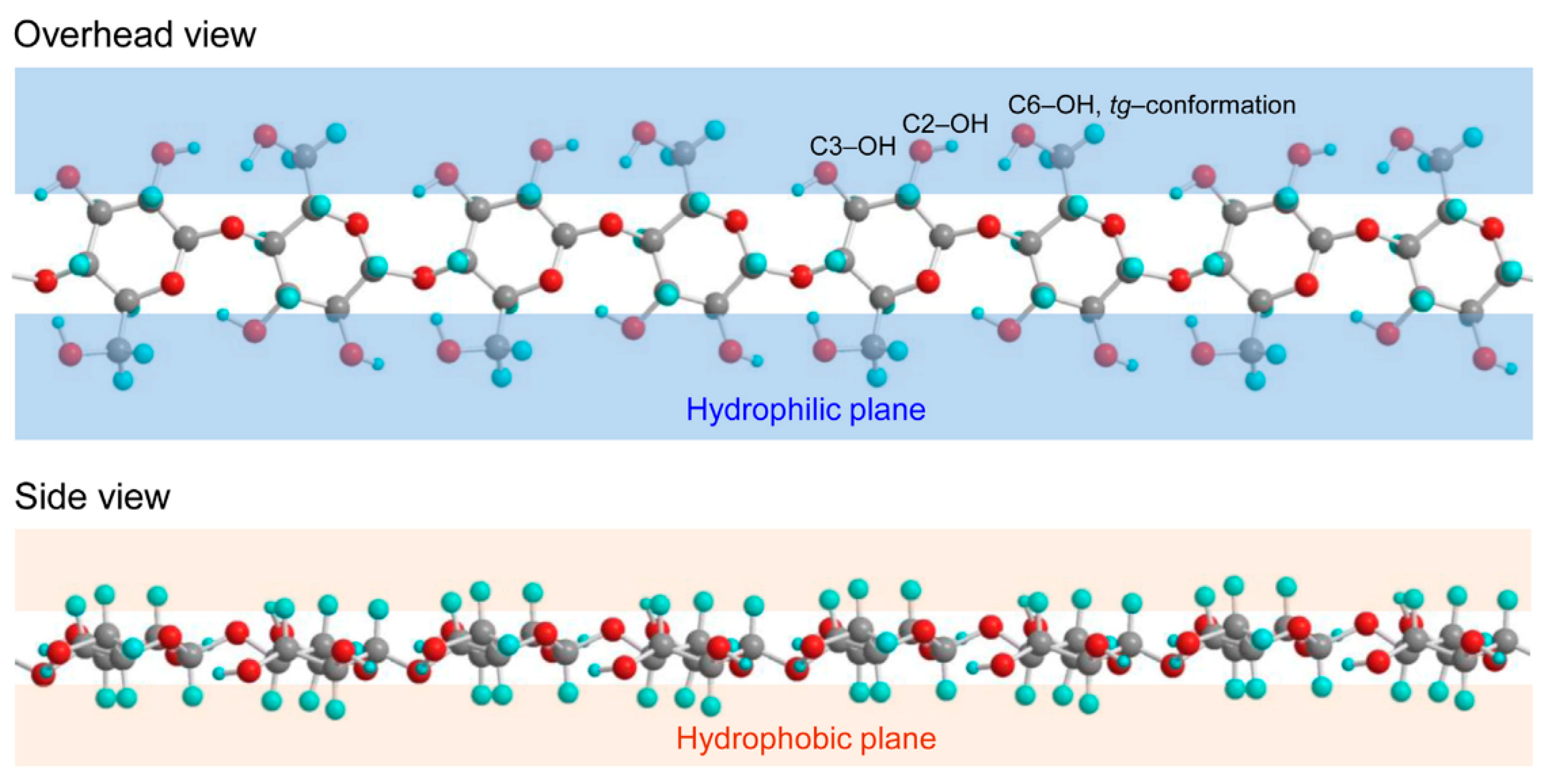

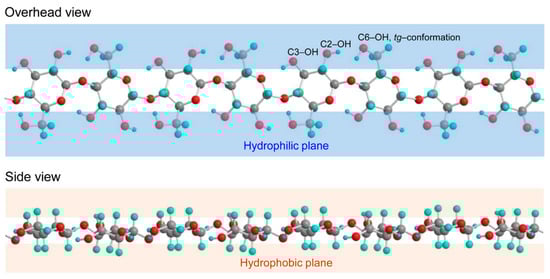

Cellulose is a linear homopolysaccharide consisting of β-D-glucopyranose units linked by glycosidic β(1–4) bonds. Each unit contains three hydroxyl groups. The long polymer chain has repeating elements, which have two anhydroglucose units (AGU) that form polymerized chain lengths of several thousand units [34]. Cellulose has an amphiphilic nature: the equatorial direction of a glucopyranose ring is hydrophilic, and the axial direction of the ring has a hydrophobic character (Figure 1). These characteristics play a significant role in hydrophilic and hydrophobic interactions between cellulose molecules and other compounds in water [35,36,37].

Cellulose can be considered a semi-crystalline polymer with highly oriented crystalline domains coexisting with non-crystalline amorphous phases, which have a lower degree of order [38,39]. The cellulose crystalline domains have four major allomorphs (I, II, III and IV) based on molecular orientation. The most common allomorph found in nature is cellulose I and the most thermodynamically stable structure is established in cellulose II [34,40]. Cellulose I can have two sub-allomorphs, triclinic I^α and monoclinic I^β, which can be found alongside each other, and the ratio depends on the origin of the cellulose [34]. Cellulose I^α dominates in primitive organisms, such as algae and bacteria, while cellulose I^β is found mainly in higher plants [41] and aquatic animals, such as tunicates [42]. Cellulose II can be modified irreversibly from cellulose I through alkaline treatment (mercerization) or by the cellulose dissolution process (regeneration) [34]. Cellulose III is obtained through liquid ammonia (NH³), while cellulose IV is obtained through the heating of small crystallites in glycerol at 260 °C. Cellulose III can be reversibly formed from cellulose I, II or IV, and cellulose IV can be reversibly formed from cellulose I, II or III. The crystalline regions are strong, rigid, and quite inaccessible to water and most chemical reagents, whereas the amorphous regions are weaker and contribute to increased hydrophilicity and accessibility [42]. Physical, chemical, enzymatic or microbiological modifications of cellulose can lead to changes in its crystalline structure and result in new derivatives [43,44].

Cellulose has a strong capability to form intra- and intermolecular hydrogen bonds in its establishment network, and these internal hydrogen bonds hinder the free rotation of the glucopyranose rings, which increases the stiffness of the cellulose chains [45,46]. Although cellulose has the same structural motif in each material, its degree of polymerization (DP, the number of monomer units in the polymer) and crystallinity (degree of packing order) can vary greatly [47]. DP and crystallinity depend on the origin and treatment of the raw material [34]. Insights of the physical properties and morphological structure of single polymeric chain, such as chain length or degree of crystallization, can be investigated via X-ray, optical and electron-microscope imaging, or chemical and physical analysis methods [48].

2.2. Nanocellulose

The production of nanoscale cellulose has captured great attention due to its biodegradability, renewability, high mechanical properties and low density [49]. Nanocellulose, as a general term, applies to a wide range of nano- and micro-sized fibrils and crystalline particles (sometimes also referred to as whiskers). Different terminologies have been used for the various types and forms. Because of inconsistency in terminology, the Technical Association of the Pulp and Paper Industry (TAPPI) has proposed standard terms for various types of nanocellulose based on their size and form (

Table 1. Standardize terms for cellulose nanomaterials according (I) TAPPI/W123021 [42], and [II] cellulose nanomaterials review: structure, properties, and nanocomposite [50]. Each abbreviation have two alternatives. e.g., cellulose nanocrystal (CNC) and nanocrystalline cellulose (NCC).

NAME	ABBREVIATION	WIDTH	LENGTH	L/D RATIO
Cellulose nanocrystal	CNC (NCC)	(I) 3–10 nm (II) 3–20 nm	(II) 50–500 nm	(I) > 5
Cellulose nanofibril	CNF (NFC)	(I) 5–30 nm (II) 3–100 nm	(II) 0.5–2 µm	(I) > 50
Cellulose microcrystal	CMC (MCC)	(I) 10–15 µm (II) 10–50 µm	(II) 10–50 µm	(I) < 2
Cellulose microfibril	CMF (MFC)	(I) 10–100 nm (II) 10–100 nm	(I) 0.5–50 µm (II) 0.5–10’s µm

). Nanocellulose can be processed from plant-derived cellulose, but it is also found natively in tunicates and bacteria. The feedstock used in nanocellulose manufacture is highly important, as it affects the properties and size of the extracted cellulose [42].

The biosynthesis of cellulose forms continuous microfibrils, which self-organises fibre bundles with crystalline and amorphous domains [22]. The term cellulose microfibrils (MFC) was first introduced in 1983 by Turbak et al. [51] when he and his co-workers developed a new method to prepare highly fibrillated cellulose from wood fibres by high-pressure homogenization treatment in water. The extraction of cellulose microfibrils require great precision in order to minimize damage to the fibrillary structure and to keep the long axial length of the microfibrils to preserve the large aspect ratio. The other native features of the cellulose, such as crystallinity and degree of polymerization, must also be secured [52]. An ideal production method should produce large amounts of high-quality material with low energy consumption. To meet these requirements, a number of pre-treatments can be used to improve the conversion efficiency. Different chemical, mechanical and enzymatic treatments are used for removal of non-cellulosic constituents and loosen the cell wall structure of the cellulose fibres to ease further processing [53].

Cellulose nanofibrils (CNFs), or their microfibril bundles, are typically produced using a variety of mechanical processes, including grinding/refining, high-pressure homogenization, cryocrushing, high-intensity ultrasonic treatments, electrospinning, steam explosion and microfluidization [50,54]. Chemical modification methods such as TEMPO mediated oxidation [55], ammonium persulfate oxidation [56], carboxymethylation [57] and cationization [58] have also emerged as promising methods for CNF production.

‘Rod-like’ cellulose microcrystals (MCC) and cellulose nanocrystals (CNC) can be obtained from different cellulosic sources such as wood, cotton, bacteria or tunicates with varied dimensions [59,60]. Their dimensions depend on the origin of the cellulose fibre or fibril and the employed conditions. Isolated nanoscale fibres or crystals from natural fibres show much higher strength and stiffness in comparison to the original source [49]. The elastic moduli of solid wood, single pulp fibre, microfibrils and crystallites have been measured at 10, 40, 70 and 250 GPa, respectively [61]. Cellulose nano- and micro-crystals can be produced from nano- and microfibrils by applying chemical treatments (mainly acid) or mechanical processes, which break hydrogen bonds in amorphous regions while crystalline domains remain untouched [62,63].

When producing nanocellulose, the drying process is a critical step. As cellulose is hydrophilic, hydrogen bonds can be formed during drying, leading to an irreversible agglomeration known as hornification [64]. This changes the size of nanocellulose, as well as its unique characteristics. The formation of additional hydrogen bonds correlates with the amount of water removed and does not depend directly on temperature [65,66]. A wide variety of drying methods, such as freeze drying, supercritical drying, atomization drying and spray drying, have been developed to prevent aggregation [54].

3. Dissolution of Cellulose

3.1. Cellulose Mercerization

Cellulose is hard to dissolve in most common solvents due to the large quantities of inter- and intra-molecular bonds and van der Waals forces [67]. In addition, hydrophobic interactions that contribute to the stability of cellulose polymers also play a role in dissolution kinetics [43,68]. The melting temperature of cellulose is above the stage of degradation, meaning that cellulose degrades before it liquifies [8,45]. Since cellulose cannot melt, as it is not thermoplastic, reshaping the cellulose structure and breaking the strong intra- and intermolecular hydrogen bond network requires the dissolution of cellulose [69]. The amorphous regions of cellulose have higher free energy, and they are more easily accessed by solvents [35]. Hence, prior to dissolution, the crystalline domains of cellulose are often transformed into disordered regions by different activation processes [70].

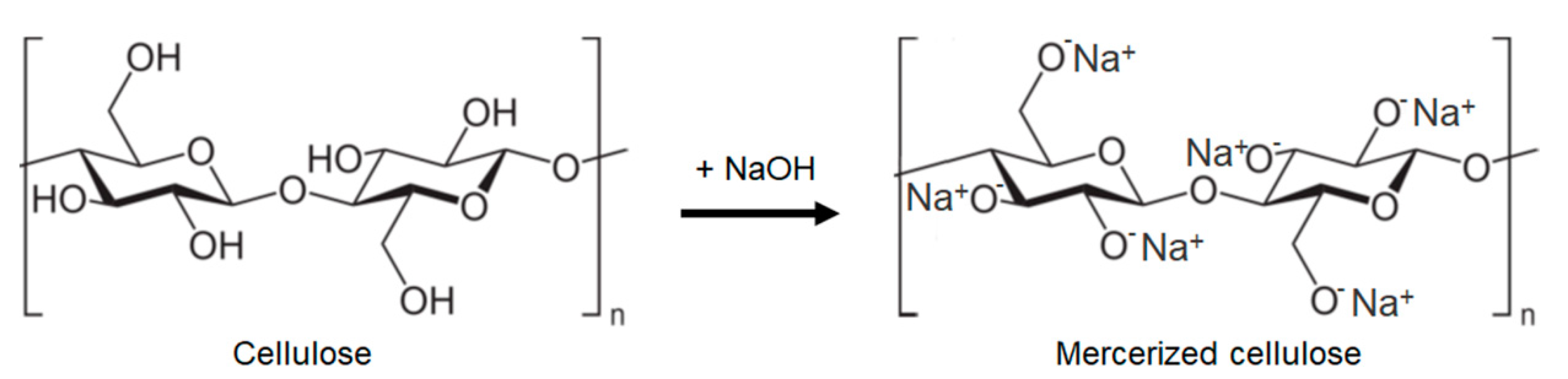

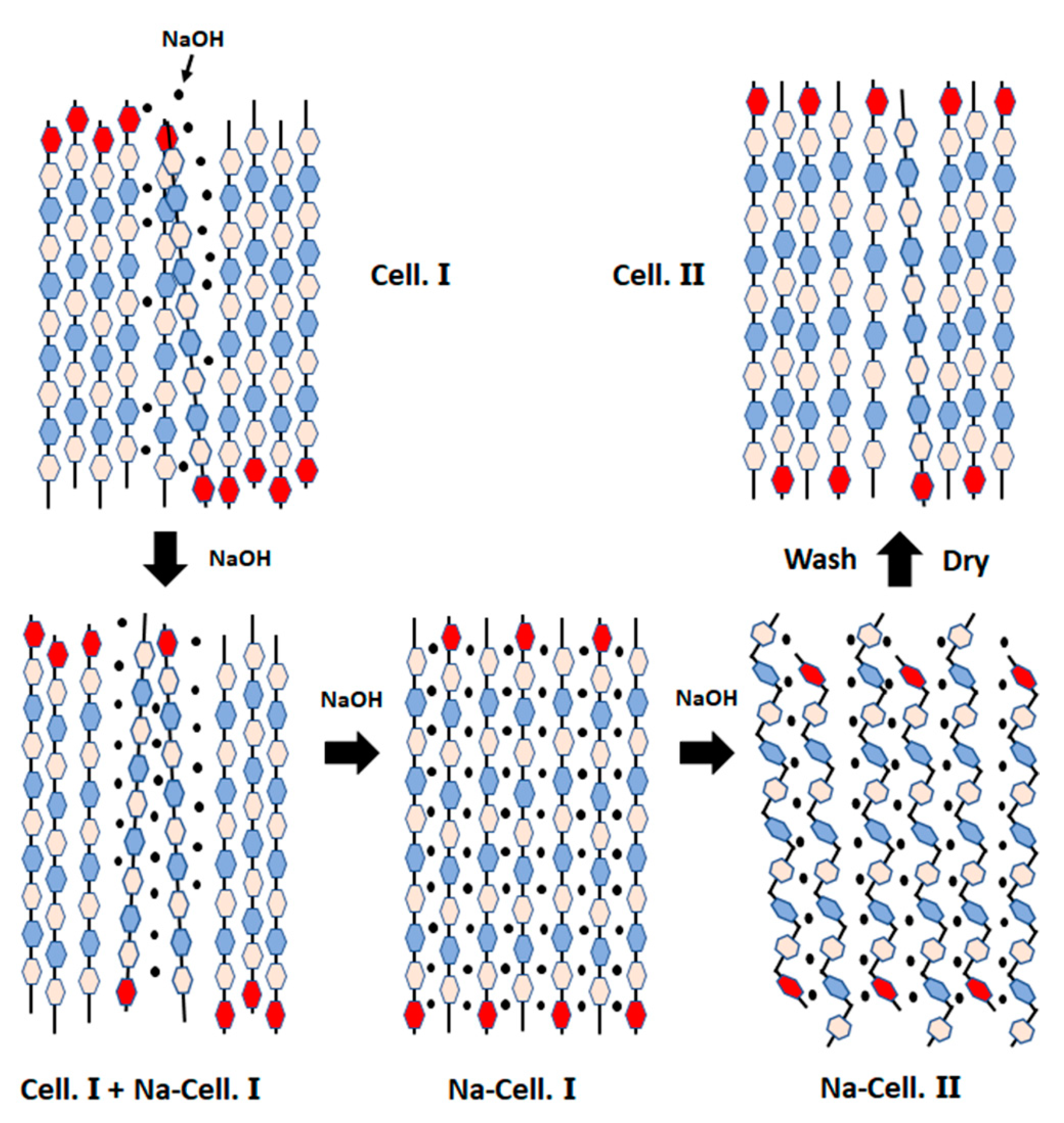

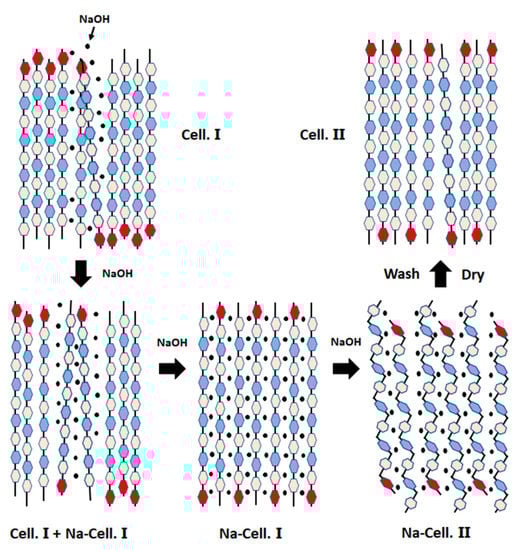

Mercerization is widely used alkaline treatment for cellulose modification and was devised already in 1844 by John Mercer [71]. In the mercerization process, native cellulose fibres are immersed in an aqueous NaOH solution. When the fibres come in contact with strong alkali solutions their properties changes. An initial swelling by the alkali ions occurs in the amorphous regions between the fibrils. The alkali ions will then penetrate further into the crystalline regions which generates a more open and reactive alkaline cellulose structure (Figure 2) [72].

The mercerization process can be used as a pre-treatment to efficiently lower the degree of polymerization, disrupt the crystalline structure of cellulose, and ultimately promote the accessibility of dissolution practices [73]. The mercerization process also provides better mechanical properties, shine, smooth surface, dimensional stability and improved dye intake for the cellulose fibres [39]. In addition, on the molecular level the mercerization changes the crystalline structure of cellulose from cellulose I to cellulose II (Figure 3) [41]. There are conflicting views regarding the mechanism on how cellulose I, which have parallel configuration, transforms to antiparallel configuration without undergoing a fully dissolved state [39]. Contrary to this, it is clearly noted that temperature change can affect the mercerization efficiency [74].

3.2. Solvents for Cellulose

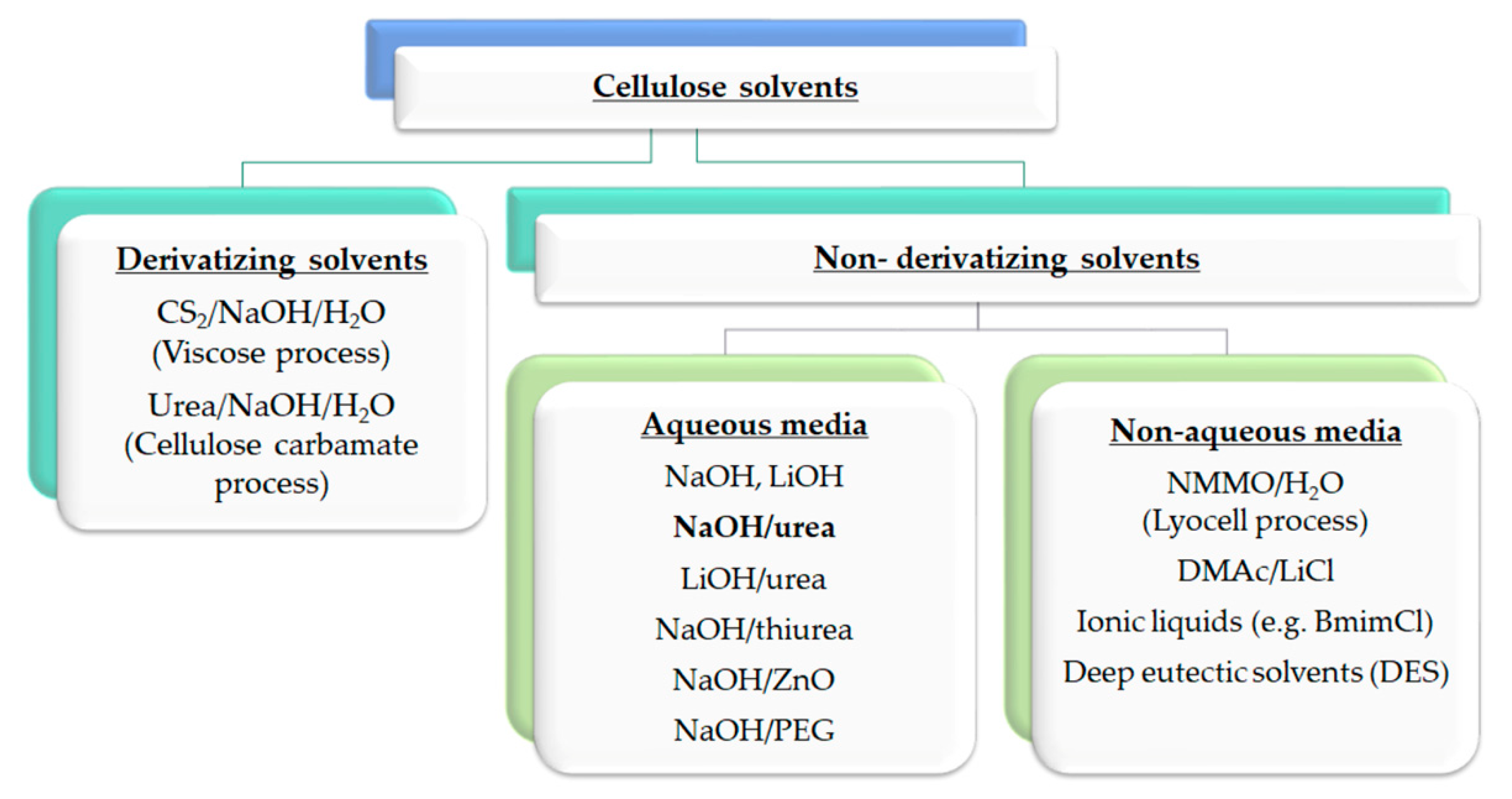

Many efficient cellulose dissolution solvent systems are currently in use (Figure 4). The most used industrial scale solvent systems are the viscose and lyocell processes. Other processes such as DMAc/LiCl, cellulose carbamate, aqueous NaOH-with additives, ionic liquids and deep eutectic solvents (DES) are in different stages of technological maturity and constantly developed further.

Some of the solvent systems developed especially in past have a negative impact on the environment [67]. Therefore, finding new ways to effectively dissolve cellulose and produce regenerated cellulose materials in an environmentally friendly way has recently been of major interest within research on cellulose refining technologies [76,77,78].

Cellulose solvents can be divided into two categories: derivatising and non-derivatising solvents. Non-derivatising solvents physically dissolve cellulose by breaking hydrogen bonds. Therefore, these solvents only change intermolecular interactions. Non-derivatising solvents can, more specifically, be divided into aqueous and non-aqueous sub-groups. Derivatising solvents convert cellulose polymers into soluble intermediates by derivatizing cellulose’s hydroxyl groups. These solvents can form hydrolytically unstable, organo-soluble cellulose intermediates, such as ethers, esters, or acetal derivatives [79].

3.3. Derivatising Solvents

The most widely used and important industrial-scale method to dissolve and process cellulose is the viscose process, which is used to create viscose fibres and cellophane films [39,67]. During the viscose process, cellulose, often from wood pulp or cotton linters, is treated with sodium hydroxide and then with carbon disulfide, resulting in a product called cellulose xanthate. The alkaline cellulose xanthate forms a thick solution, which is forced through small openings into acid, where it will eventually coagulate as regenerated cellulose [40]. In the traditional viscose process, the usage of carbon disulfide in the solution is a cause of environmental pollution, and the development of volatile sulphur-containing compounds (e.g., H₂S, COS) requires complex recovery technologies [80,81,82].

The cellulose carbamate process is an attractive, more sustainable alternative to the viscose process, and it can utilize conventional viscose spinning equipment [83,84,85]. Cellulose carbamate is a cellulose derivate with carbamate groups substituted on the hydroxyl groups along chain molecules [86], and it can be prepared through various routes. In the conventional processes, the formation of cellulose carbamate begins when cellulose is treated with urea at a temperature above its melting point in an alkali medium with an organic solvent, such as xylene (the CarbaCell process) or toluene [87,88]. Other ways to produce cellulose carbamate include using supercritical CO₂ [89,90], microwave heating [83,91], electron beam irradiation [92], liquid ammonia [88,93] or deep eutectic solvents [94] as part of the manufacturing processes. Recent developments in process operation, increased understanding of physical chemistry, and lower cost of raw materials have increased the competitiveness of cellulose carbamate processes. Further improvements need to be focused on handling the rigorous processing conditions (e.g., pre-treatments, reaction times, temperatures and specific equipment requirements) and efficient chemical recycling [83,88].

3.4. Non-Derivatising Solvents

3.4.1. Non-Aqueous Solvents

The Lyocell process, in commercial use since 1991, allows for the dissolution of cellulose without derivatisation, complexation or special activation [40]. In the Lyocell process, cellulose pulp is dissolved in an aqueous solution of N-Methyl-morpholine N-oxide (NMMO). Using spinnerets, the formed solution is extruded across an air gap into a coagulation bath containing water, which works as a non-solvent. While NMMO is separated by extraction, the cellulose fibres are regenerated in the water by precipitation [95]. The Lyocell process is considered to be a more environmentally friendly option than the viscose process because NMMO hydrates are non-toxic to the environment [96]. However, the NMMO also has limited thermal stability, due to which a variety of additional by-products may appear [97,98].

The dissolution of cellulose using organic solvents in combination with salts, such as in the case of the DMAc/LiCl solvent system, has also captured both industrial and academic interest [99,100,101,102]. The DMAc/LiCl solvent system has been widely applied, and it can also dissolve cellulose with high molecular weight without noticeable degradation [103]. The drawbacks of this process are the high cost and difficulties with recycling the solvent due to its low volatility, which limits its further development for commercial applications [68,104].

Ionic liquids have risen as alternative, environmentally friendly and powerful solvent systems for shaping cellulose [68,105]. What makes ionic liquids interesting is that they are organic salts that exist as liquids at relatively low temperatures (<100 °C) and can obtain good thermal stability, low melting point and low vapor pressure [106,107]. Ionic liquids such as 1-butyl-3-methylimidazolium chloride can dissolve refined or natural cellulose without causing derivatisation [108,109]. One emerging process, which is currently in its pilot scale and utilizes ionic liquids to dissolve cellulose, is the Ioncell process [110,111]. The Ioncell pulp (Ioncell-P) method can be used to produce high-purity cellulose from bleached paper-grade birch kraft [112], and Ioncell fibres (Ioncell-F) can be formed using the same dry-jet wet spinning technique as the Lyocell-NMMO system [113]. One of the current challenges with the commercialisation of the Ioncell process is recovering the solvent from the coagulation bath without impairing its solvation power. Therefore, more research is still required to improve the recyclability and long-term chemical stability of the solvent system without compromising energy efficiency [80,112,113].

Deep eutectic solvents (DESs) share many characteristics and physiochemical properties with ionic liquids, but they are generally considered easier to prepare with high purity at low cost [81,114]. DESs are composed of two or three often cheap and safe chemicals that consist of a hydrogen bond donor and a hydrogen bond acceptor [115,116]. These components are capable of self-association and form a eutectic mixture with a melting point lower than that of each individual component. In most cases, DESs are liquids between room temperature and 70 °C [115]. One promising DES system can be formed by combining choline chloride (ChCl) and urea [116]. The benefits of this DES system are the good availability of chemicals and their low melting point. However, based on current knowledge, the solubility of cellulose in DESs is far below that of ionic liquids or in the Lyocell process, but it can be improved in the future [81,115].

3.4.2. Aqueous Solvents

It was discovered already in 1930s that by combining some additives to the aquatic NaOH or LiOH solution, the solubility of cellulose can be improved, and cellulose can be dissolved [117,118,119,120,121]. Such additives include urea [122,123,124], thiourea [13,125,126,127] zinc oxide (ZnO) [128,129] and poly(ethylene glycol) (PEG) [130,131]. Although these additives improve cellulose solubility, the role of the additives has not been fully understood. It is suggested that e.g., in aqueous NaOH-urea dissolution process, the hydroxyl (OH^-) anion breaks the inter- and intra-molecular hydrogen bonds of the cellulose, while sodium (Na⁺) ions stabilize the hydrophilic hydroxyl groups and urea stabilizes the hydrophobic part of cellulose [132]. Rapid dissolution of cellulose occurs in conditions such as aqueous 7wt% NaOH/ 12wt% urea solution, which has been pre-cooled to −12 °C [118]. Here, similar to many other dissolution processes, degree of dissolution is related to molecular weight, crystallinity and applied conditions [133]. Therefore, having comprehensive understanding of structure and property relationship of dissolution mechanisms will be essential and ease commercial development for the NaOH-urea solvent system in industrial scale. These solvent systems are particularly interesting since they are cost-effective, non-volatile, they possess of low environmental toxicity, and they show great potential when it comes to the usage of cellulose from agricultural and forestry wastes [41,77,134]. The only apparent disadvantage of these methods is the need to involve freezing-to-thawing [135], which requires specific cooling equipment.

4. All-Cellulose Composites

4.1. Raw Materials for the ACC

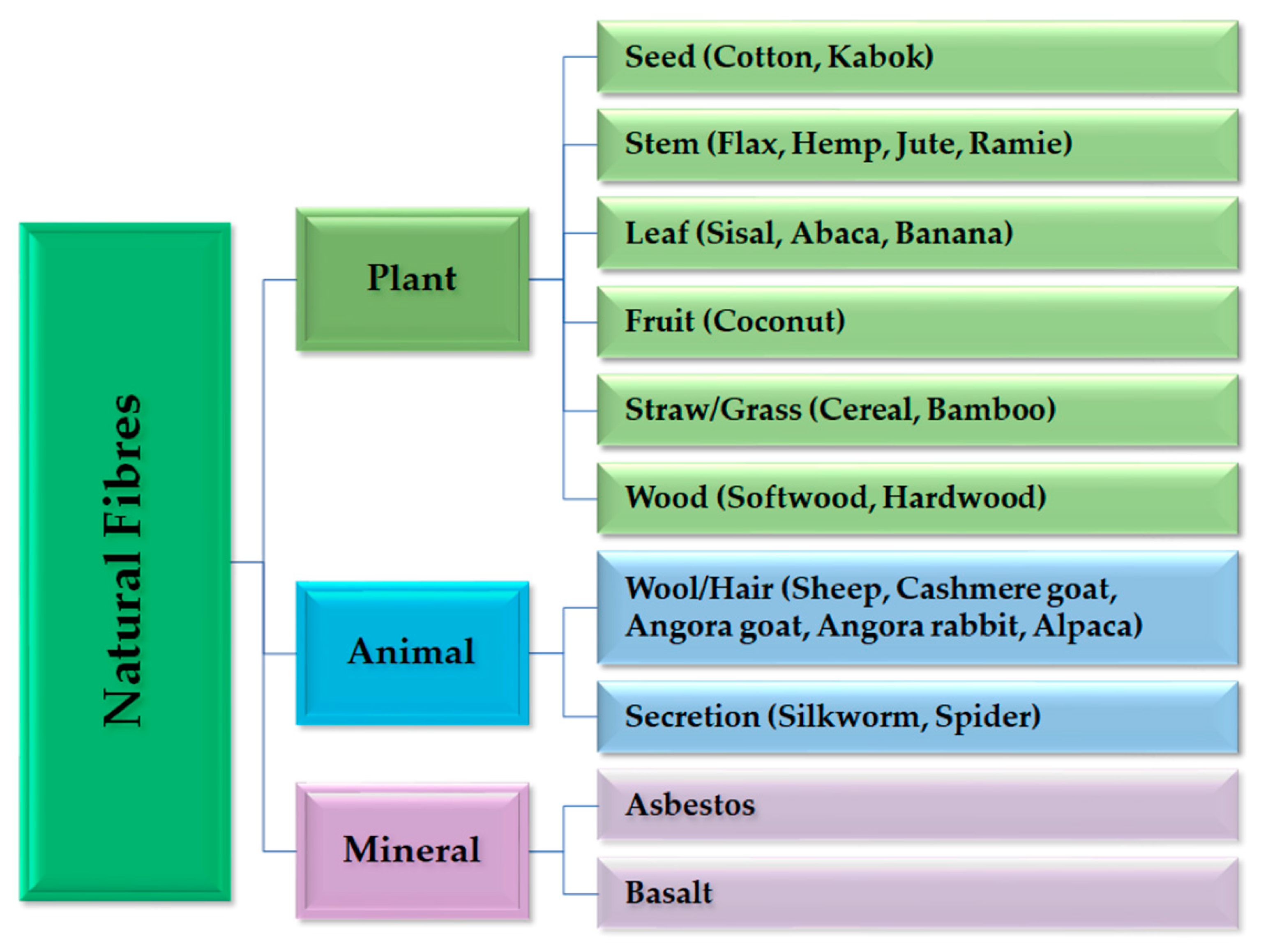

Natural fibres are divided into three categories: plant fibres, animal fibres and mineral fibres (Figure 5). Plant fibres are the most used in conventional composite processing only as a reinforcement. All plant fibres contain cellulose, while animal fibres are made from proteins [136].

Plant-based cellulose is considered one of the most promising substitutes for petroleum-based raw materials [137]. The fibre structure and characteristics depend on and vary with the plant species, age, growth location, climate and part of the plant. Therefore, one of the main challenges with plant fibres is the large variation in their properties [42,138]. Fibres are extracted from trees using either chemical or mechanical methods. The characteristics of wood fibre depend somewhat on the processing method used, but mostly on the anatomy of the wood material in the particular tree species. Wood fibres can be divided into softwoods, such as spruce and pine, and hardwoods, such as birch and eucalyptus. Both can be used to create pulp or dissolving pulp. Dissolving pulp has a higher cellulose content and lower hemicellulose content compared to paper-grade pulp, and therefore it is used more commonly in upgraded and high-quality products. Two widely used commercial production methods for dissolving pulp are pre-hydrolysis kraft (PHK) and acid sulphite (AS) [98]. Pulp can also be produced from cellulosic waste with new innovative technologies [139,140].

Man-made cellulose fibres, such as viscose or lyocell, are developed from pulp or dissolving pulp. They are mainly used in the textile industry [141] but are also important materials used in composite manufacturing [142]. Textile-reinforced composites typically have high strength-to-weight and stiffness-to-weight ratios, which can improve the mechanical properties of the composites [143]. Cellulose-based textiles are renewable, but at the same time, textile industry as a whole (including the unsustainable cotton production) are one of the largest contributors to harmful environmental effects on Earth, and it also generates large amounts of textile waste [144,145]. Therefore, the industry is searching for more sustainable plant-based fibres to meet the demands of current standards, where the focus is on waste reduction, production efficiency, durability, water saving, recycling and closed-loop production [145].

The frontrunner in the field of sustainable fibre production, Lensing AG, produces wood pulp-based fibres called EcoVero^TM, the production of which consumes less water and releases less emissions than generic viscose production, and their Tencel^TM x Refibra^TM fibre contributes to the circular economy by using an efficient closed-loop process [146,147]. Kuura-fiber is another new pulp-based wood fibre, which shares similar sustainable values, and it is currently on pilot scale production by Metsä Fibre in Äänekoski bioproduct mill, Finland [148]. Recycled textiles and agriculture waste are used in a fibre technology called Infinna^TM, created by the Infinited Fiber company [149], and recycled cotton fibres have been transformed into sustainable yarn by Haksa Textiles [150]. More recently, new types of wood fibre have been mechanically produced without using harmful chemicals or solvent systems. In Spinnova’s innovative fibre process, the pulp is mechanically refined and transformed into spinning-ready fibre suspension without dissolution or regeneration [151].

These novel textile fibres offer versatile reinforcement choices for a more sustainable composite industry. Recently, biocomposites [152] and all-cellulose composites [153] have also been created using denim waste.

4.2. Biocomposites

Biocomposites have at least one of their constituents (either reinforcement or matrix) derived from biomass [154]. Already in the early 1940s Henry Ford created natural fibre reinforcement biocomposites using soy-based plastics to reduce the weight of the cars [155]. However, it was not until recently that bio-based automotive parts caught popularity among the car manufacturers due to increasing emission control and sustainability concerns [156].

The most commercially important biocomposites are made by combining man-made and biobased sources. Commonly, matrices are petrochemically derived thermoplastic polymers, such as polypropylene or polyamide, or thermoset polymers, such as unsaturated polyester or epoxy resins; meanwhile, the reinforcement is formed using a variety of biobased sources, such as natural cellulosic plant-based fibres or wood pulp [157,158]. The use of wood and plant fibres in composites is motivated not only by their sustainability characteristics, but also their good performance, low cost, low density, safe handling, high electrical resistance, good acoustic insulation and the fact that they do not require moulding equipment [159,160]. A major drawback of natural plant-based fibres compared to man-made fibres is the hydrophilic nature of cellulose. Water absorption by cellulose fibres can result in aging, poor mechanical properties and reduced dimensional stability of the composite. Plant fibres also naturally have poor fire resistance, and they degrade when heated to over 200 °C. They are also easily susceptible to biological degradation [138,160].

Nanocellulose, which is used as a raw material especially for ACNC, can be obtained by two approaches (i) top-down and (ii) bottom up. The top-down approach involves the disintegration of lignocellulosic biomass into nanoscale cellulose. In the bottom-up approach nanoscale cellulose can be produced via fermentation of low weight sugars by cellulose-producing bacteria, such as from the Acetobacter species. This type of nanoscale bacteria (BC) is pure cellulose and does not include hemicellulose, lignin, or pectin [161]. When cellulose-based composites are produced from less purified sources, such as wood pulps or other plant fibres, hemicellulose and lignin are always present to some degree, and these can act as impurities which often results impairing properties of the composite [30].

4.3. Matrix-Reinforcement Compatibility

Two main components forming a composite are the reinforcement and the matrix, where reinforcement gives strength and stiffness to the composite [162], and the matrix acts as a binder for the reinforcement and transfer external loads along the reinforcing fibres [138,163]. Compatibility between reinforcement and matrix depends on fibre dimensions, microstructure, and morphology; as well as the mechanical, physical, chemical, and thermal characteristics of the different constituents present in the interfacial zone. During composite manufacturing the changes in the constituent’s properties or structure also influence interfacial interactions. For instance, if the fabrication process involves cooling from high temperatures to ambient temperature, the difference in the expansion coefficients of two components might lead to thermal stress and can be the cause of plastic deformation and impaired matrix-reinforcement compatibility [4].

The main performance challenge when using conventional biocomposites is the poor interfacial adhesion between the hydrophilic plant-based reinforcement and the hydrophobic matrix phases, which can lead to weakened mechanical performance, as well as problems in recycling due to the heterogeneous mixture [159,164]. One way to overcome weak compatibility and recyclability challenges in conventional composites and biocomposites is to create single-polymer composite (SPC), where similar or identical polymers are used for both the reinforcement and the matrix [165]. The polymers can be of renewable or non-renewable origin [166]. Non-renewable SPCs are, e.g., all-polyethylene composites [167] and all-propylene composites [164], whereas renewable fully cellulosic SPCs are bio-based. Basically, all-cellulose composites are reviving old vulcanized fibre technology where a cellulosic material is converted into a unique SPC laminate product [168,169].

5. Production of ACC

5.1. Processing Routes

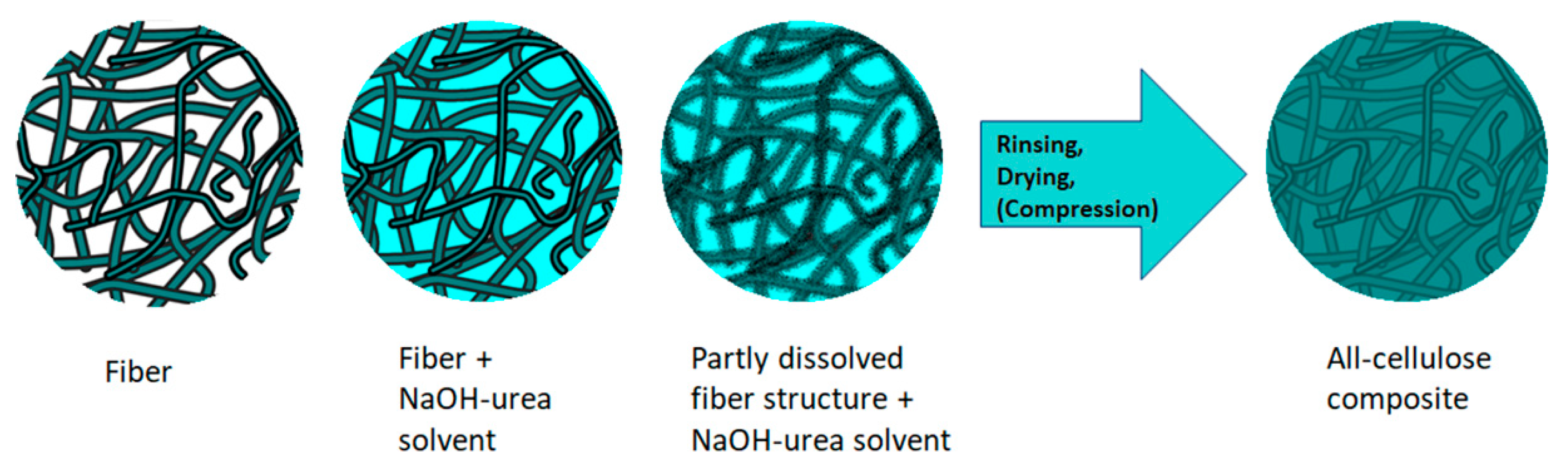

There are two main ways to produce ACCs [102,170,171,172,173]. The first method is the one-step method. It is based on the partial dissolution of cellulosic materials, where the same raw material is used to create both reinforcement and matrix (Figure 6) [6,14]. This type of composite can also be called a self-reinforcing composite [172]. Here, the chosen cellulose solvent system will partially dissolve the surface or weaker regions of the reinforcement fibres, and the dissolved cellulose will form a matrix surrounding the initial fibre structure during its precipitation. Meanwhile, the core of the reinforcing fibres maintains its original structure and chemical crystallinity, which has a reinforcing effect on the composite [131]. One of the great benefits of this approach is that interfaceless composites can be prepared where the boundaries between reinforcement and matrix are indefinite between the phases [14]. In addition, the undissolved fibre content of the composite can easily be controlled by changing the dissolution time [102].

Another way to manufacture ACCs is the two-step method, in which a high-strength reinforcing fibre is impregnated with a solution containing dissolved cellulose, which forms a matrix around the fibre structure after the regeneration process. This way, the composite is formed from solid cellulose and dissolved cellulose, which are chemically bound to each other at a specific temperature, pressure and curing time. The advantage of this method is that the fibre content of the composite is easily controlled by changing the mixing ratio [102], and the processing method is beneficial for composite bulk production [173].

5.2. Factors Influencing Composite Properties

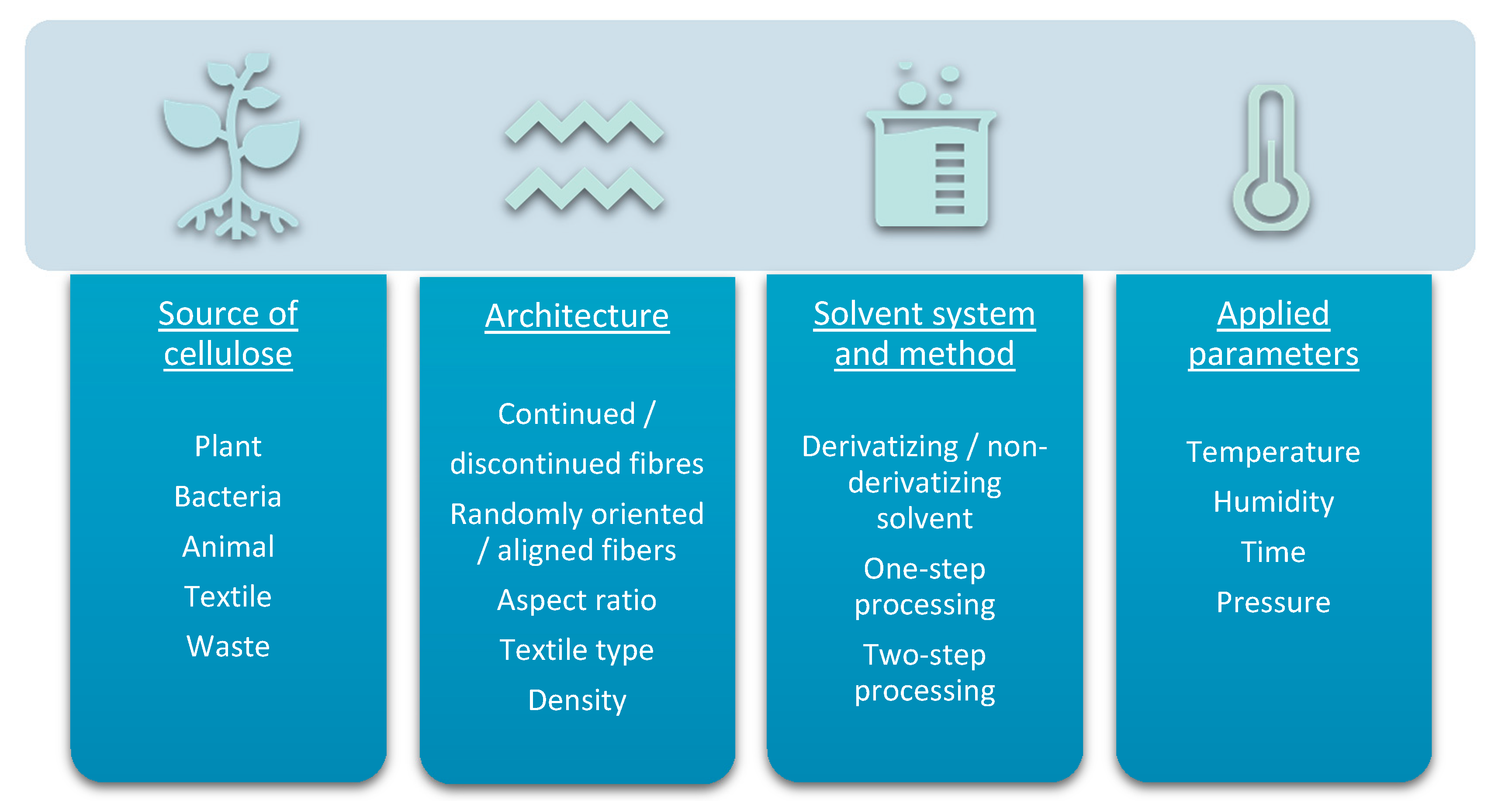

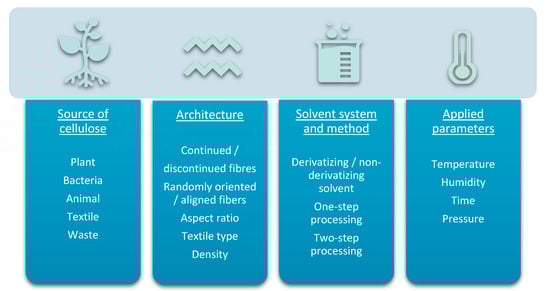

The mechanical properties of composites are influenced by several factors (Figure 7). The source of the raw materials is a crucial element. Amongst the cellulose-based natural fibres, flax, hemp and ramie fibres are having the highest tensile strength (345–1830 MPa, 550–1110 MPa, 400–938 MPa respectively) and the highest specific Young’s moduli (18–53 GPa/g cm⁻³, 39–47 GPa/g cm⁻³, 29–85 GPa/g cm⁻³ respectively) [174]. However, there are much variability within literature. The average modulus of tensile strength of regenerated cellulose fibres has been measured to have lower values than flax fibres, but fracture toughness of regenerated cellulose fibres was superior to flax [175]. In comparison with natural fibres, the man-made cellulose fibres also show better homogeneity in terms of their structure and mechanical properties [176].

Nanocellulose as the raw material can improve tensile modulus of the composites and can be used in the production of high-performance composites. Methods and values regarding the properties of nanocellulose varies in the literature, but generally smaller specimens tend to have higher density and higher strength [177]. Therefore, it is not unexpected that a nanofiber-based ACC sheet has been proven to be 11 times stronger than a similar sheet from microfiber, when same raw material (canola straw) and dissolution method (DMAc/LiCl) was used [178]. Besides the fibre size, also the source of the raw material has a huge influence on the ACC properties. Comparative research, where two different forms of cellulose nano-whiskers were used to produce the ACC, concluded that tunicate cellulose enhanced the mechanical properties of the composites to a greater degree than cotton derived nanocellulose [179].

Volume fraction, aspect ratio and adhesion between reinforcement and matrix are highly relevant for the creation of the composites [39,138]. High cellulose content in reinforcement and good fibre dispersion will promote better mechanical performance and interfacial bonding in natural fibre composites [174,180]. In general, the strength of an ACC increases up to a certain limit proportionately with increasing filler fraction [102]. After certain limit the increase of filler content will not enhance properties, but rather decrease them. When the maximum content is achieved, the strain to failure of the composite decreases, leading to an embrittlement of the material [179]. In addition, when the reinforcement content is very high, a large number of voids might appear, which is seen as low density [173].

Better compatibility between matrix and reinforcement has been researched for the two-step processed ACC when there was higher cellulose content in matrix constituent. According to Duchemin [181], it would be beneficial to have a high cellulose content in the solution of dissolved cellulose to minimize matrix shrinkage during regeneration, which helps to maintain good bonding between the matrix and the reinforcement. On the other hand, solutions with high cellulose content have high viscosity, which makes their impregnation challenging. Very low cellulose concentrations, in turn, lead to inconsistent cellulose network formation. The possible formation of pores or voids after regeneration leaves the ACC structurally heterogeneous and mechanically weak. Similarly, the use of cellulose reinforcement with a high degree of crystallinity makes the interfacial bonding poor, as the particles are less accessible to the hydroxyl groups of the more open-structured matrix cellulose. Therefore, the degree of shrinkage for dissolved and undissolved cellulose will vary during the drying process, which can also create unwanted interfacial voids. The negative impact of internal cracking can be avoided and controlled to some degree by applying light pressure during drying [182]. One way to improve mechanical performance is to apply additional chemical modification. For instance, alkali treatment can fill the cracks and voids between reinforcement and matrix, which contributes to improving the interface and the quality of the composite [183].

The engineered architecture and alignment of the reinforcing fibres have a major impact on the mechanical properties of the composite. Fibres can be continuous or discontinuous, aligned randomly or unidirectionally, and fabric architecture can be nonwoven, woven or knitted [2]. ACC with uniaxial reinforcement offer generally higher stiffness and strength along the fibre direction, compared to randomly reinforced composites [102,184]. Lyocell fabric, with modified structure, had massive improvement in microstructure of ACC. Here, the fabric was modified by removing weft yarn to create unidirectional effect. Compared to regular fabric, this modified structure helped to bind the undissolved cellulose fraction properly, leaving almost no voids. This significant reduction of internal void content generated ACC with better tensile and flexural properties than those most conventional biocomposites [185].

ACC can be produced by using multiple different solvent systems and manufacturing methods. Comparative studies on how different solvent systems affect the properties of ACC can be challenging to carry out reliably, when each solvent system still need to be optimized individually. Notwithstanding, Pullawan et al. (2014) found out that LiCl based matrix performed better than NaOH/urea-based system for ACNC production regarding tensile strength and modulus [179].

Many of the process variables in ACC production, such as temperature, humidity, pressure and dissolution time depend on chosen solvent system. Generally, the strength of the fibres increases with increasing moisture content and decreases as temperature increases [186]. When producing ACC-based aerogels, a major influential factor is the drying method—freeze-drying, CO₂ drying or vacuum drying—since it determines the resulting morphology of the ACC [187]. Adak and Mukhopadhyay [185] have researched the effect of applied pressure on the structure and properties of ACCs. According to the study application of pressure during composite manufacturing, controlled shrinkage and void formation and improved adhesion. This significantly contributed to better tensile and flexural properties of ACC laminates. In another study related to pressure, the elongation at break of cotton fabricated ACC decreased and the tensile modulus increased with increasing pressure of hot press. In the same study on hinoki lumber based ACC, a diverse outcome was obtained: applying 10 MPa and 5 MPa pressure gave higher tensile modulus than when applying a pressure of 15 MPa. The decrease in tensile modulus at 15 MPa can be related to observed cracks in formed composite [188].

The optimal immersion and dissolution time depends on the characteristics and volume of the cellulose and chosen solvent system; therefore, the dissolution time needs to be tailored for each composite. Ideally, in partial dissolution, when the immersion time in the solvent increases, the non-crystalline regions form as long as the dissolution process is active and re-solidified parts turn into amorphous regions [6]. When higher amount of cellulose is dissolved, the formation of internal voids will be reduced, due to improvement of intra and inter-laminar adhesion. The phenomenon has been reported in multiple studies [6,185,189]. The speed of regeneration also affects the properties of the composite, since slow precipitation develops a more ordered packing structure compared to fast generation [10]. Dormanns et al. [17] showed that the optimal dissolution time with NaOH-urea solvent system was five minutes for rayon-reinforced laminate. An increased dissolution time led to a decrease in the tensile strength of the composite and caused microstructural changes to the crystallinity. Dissolution takes place initially in the amorphous regions between the crystallite parts, but with longer dissolution times, a more extensive breakdown occurs, and the fibres are weakened, which leads to a composite lacking strength. In another study, where dissolving pulp was used as raw material with NaOH-urea solvent system, the optimal dissolution time was found to be only 30 s, and longer dissolution times had minimal or no effect on the crystallinity or mechanical properties of the composite [171].

6. Conclusions

Due to increased awareness of environmental issues, there is a strong motivation to replace petrochemical-based materials with more sustainable alternatives. All-cellulose composites seem to be a good candidate, since they are renewable and biodegradable, have low toxicity and low density, and have good mechanical, optical and gas barrier properties. Whereas regular biocomposites suffer from fibre-matrix adhesion-related challenges, ACCs can overcome this problem by both matrix and reinforcement having the same or a similar chemical structure, which results in good interfacial compatibility.

Due to the presence of strong hydrogen bonds and the semicrystalline structure of cellulose, it cannot melt, and it is challenging to dissolve. Therefore, finding an effective solvent system to dissolve cellulose is a necessary step when developing ACC materials. Many conventional dissolving agents for cellulose generate by-products that are harmful to the environment during production; therefore, there is currently considerable interest in the research and development of sustainable cellulose solvents. Different raw materials, solvent systems, composite manufacturing methods, additives and processing parameters can lead to a variety of composite materials with unique properties.
