# The Helical Resonator: A Scheme for Radio Frequency Plasma Generation

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Geometry

## 3. Propagation of Electromagnetic Perturbations into the Resonator

## 4. The Helical Resonator as a Transmission Line

## 5. The Fully Shielded Helical Resonator

## 6. Effect of a Capacitive Load

## 7. Experimental Results

## 8. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

RF | Radio Frequency |

HV | High Voltage |

## Appendix A. Transmission Line Theory

## References

- Cvetic, J.M. Tesla’s high voltage and high frequency generators with oscillatory circuits. Serbian J. Electr. Eng.
**2016**, 13, 301–333. [Google Scholar] [CrossRef] [Green Version] - Macalpine, W.W.; Schildknecht, R.O. Coaxial resonators with helical inner conductor. Proc. IRE
**1959**, 47, 2099–2105. [Google Scholar] [CrossRef] - Niazi, K.; Lieberman, M.A.; Lichtenberg, A.J.; Flamm, D.L. Operation of a helical resonator plasma source. Plasma Sources Sci. Technol.
**1994**, 3, 452–465. [Google Scholar] [CrossRef] - Welton, R.F.; Thomas, E.W.; Feeney, R.K.; Moran, T.F. Simple method to calculate the operating frequency of a helical resonator-RF discharge tube configuration. Meas. Sci. Technol.
**1991**, 2, 242–246. [Google Scholar] [CrossRef] - Hopwood, J. Review of inductively coupled plasma for plasma processing. Plasma Sources Sci. Technol.
**1992**, 1, 109–116. [Google Scholar] [CrossRef] - Bongkoo, K.; Park, J.C.; Kim, Y.H. Plasma Uniformity of Inductively Coupled Plasma Reactor with Helical Heating Coil. IEEE Trans. Plasma Sci.
**2001**, 29, 383–387. [Google Scholar] [CrossRef] - Siverns, J.D.; Simkins, L.R.; Weidt, S.; Hensinger, W.K. On the application of radio frequency voltages to ion traps via helical resonators. Appl. Phys. B
**2012**, 107, 921–934. [Google Scholar] [CrossRef] [Green Version] - Medhurst, R.G.H.F. resistance and self-capacitance of single layer solenoids. Wirel. Eng.
**1947**, 24, 35–43. [Google Scholar] - De Miranda, C.M.; Pichorim, S.F. Self-resonant frequencies of air-core single-layer solenoid coils calculated by a simple method. Electr. Eng.
**2015**, 97, 57–64. [Google Scholar] [CrossRef] - Everard, J.K.A.; Cheng, K.K.M.; Dallas, P.A. High-Q helical resonator for oscillators and filters in mobile communication systems. Electron. Lett.
**1989**, 25, 1648–1650. [Google Scholar] [CrossRef] - Antoniuk, J.; Żukociński, M.; Abramowicz, A.; Gwarek, W. Investigation of Resonant Frequencies of Helical Resonators. In Proceedings of the 11th Microcoll, Budapest, Hungary, 10–11 September 2003; p. 5. [Google Scholar]
- Blažević, Z.; Poljak, D. Some notes on transmission line representations of Tesla’s transmitters. In Proceedings of the 16th International Conference on Software, Telecommunications and Computer Networks, Split, Croatia, 25–27 September 2008; pp. 60–69. [Google Scholar]
- Bletzinger, P. Dual mode operation of a helical resonator discharge. Rev. Sci. Instrum.
**1994**, 65, 2975. [Google Scholar] [CrossRef] - Deng, K.; Sun, Y.L.; Yuan, W.H.; Xu, Z.T.; Zhang, J.; Lu, Z.H.; Luo, J. A Modified Model of Helical Resonator with Predictable Loaded Resonant Frequency and Q-Factor. Rev. Sci. Instrum.
**2014**, 85, 104706. [Google Scholar] [CrossRef] [PubMed] - Deri, R.J. Dielectric measurements with helical resonators. Rev. Sci. Instrum.
**1986**, 57, 82. [Google Scholar] [CrossRef] - Yang, J.H.; Zhang, Y.; Li, X.M.; Li, L. An improved helical resonator design for rubidium atomic frequency standards. IEEE Trans. Instrum. Meas.
**2010**, 59, 1678. [Google Scholar] [CrossRef] - Zhu, J.W.; Hao, T.; Stevens, C.J.; Edwards, D.J. Optimal design of miniaturized thin-film helical resonators. Appl. Phys. Lett.
**2008**, 93, 234105. [Google Scholar] [CrossRef] - Ollendorf, F. Die Grundlagen der Hochfrequenztechnik; Springer: Berlin, Germany, 1926; pp. 79–87. [Google Scholar]
- Sichak, W. Coaxial Line with Helical Inner Conductor. Proc. IRE
**1954**, 42, 1315–1319. [Google Scholar] [CrossRef] - Sensiper, S. Electromagnetic Wave Propagation on Helical Structures (A Review and Survey of Recent Progress). Proc. IRE
**1955**, 43, 149–161. [Google Scholar] [CrossRef] - Uhm, H.S.; Choe, J.-Y. Properties of the electromagnetic wave propagation in a helix-loaded waveguide. J. Appl. Phys.
**1982**, 53, 8483. [Google Scholar] [CrossRef] - Anicin, B.A. Plasma loaded helical waveguide. J. Phys. D Appl. Phys.
**2000**, 33, 1276–1281. [Google Scholar] [CrossRef] - Niazi, K.; Lichtenberg, A.J.; Lieberman, M.A. The dispersion and matching characteristics of the helical resonator plasma source. IEEE Trans. Plasma Sci.
**1995**, 23, 833. [Google Scholar] [CrossRef] - Corum, K.L.; Corum, J.F. RF coils, helical resonators and voltage magnification by coherent spatial modes. In Proceedings of the 5th International Conference on Telecommunications in Modern Satellite, Cable and Broadcasting Service. TELSIKS 2001. Proceedings of Papers (Cat.No.01EX517), Nis, Yugoslavia, 19–21 September 2001; Volume 1, p. 339. [Google Scholar]
- Park, J.-C.; Kang, B. Impedance model of helical resonator discharge. IEEE Trans. Plasma Sci.
**1997**, 25, 1398–1405. [Google Scholar] [CrossRef] - Kraus, J.D. The helical antenna. Proc. IRE
**1949**, 37, 263–272. [Google Scholar] [CrossRef] - Corum, J.; Daum, J.; Moore, H.L. Tesla Coil Research; Contractor Report ARCCD.CR-92006; U.S. Army Armament Research, Development and Engineering Center: Picatinny, NJ, USA, 1992. [Google Scholar]
- Park, J.-C.; Lee, J.K.; Kang, B. Properties of inductively coupled plasma source with helical coil. IEEE Trans. Plasma Sci.
**2000**, 28, 403–413. [Google Scholar] [CrossRef]

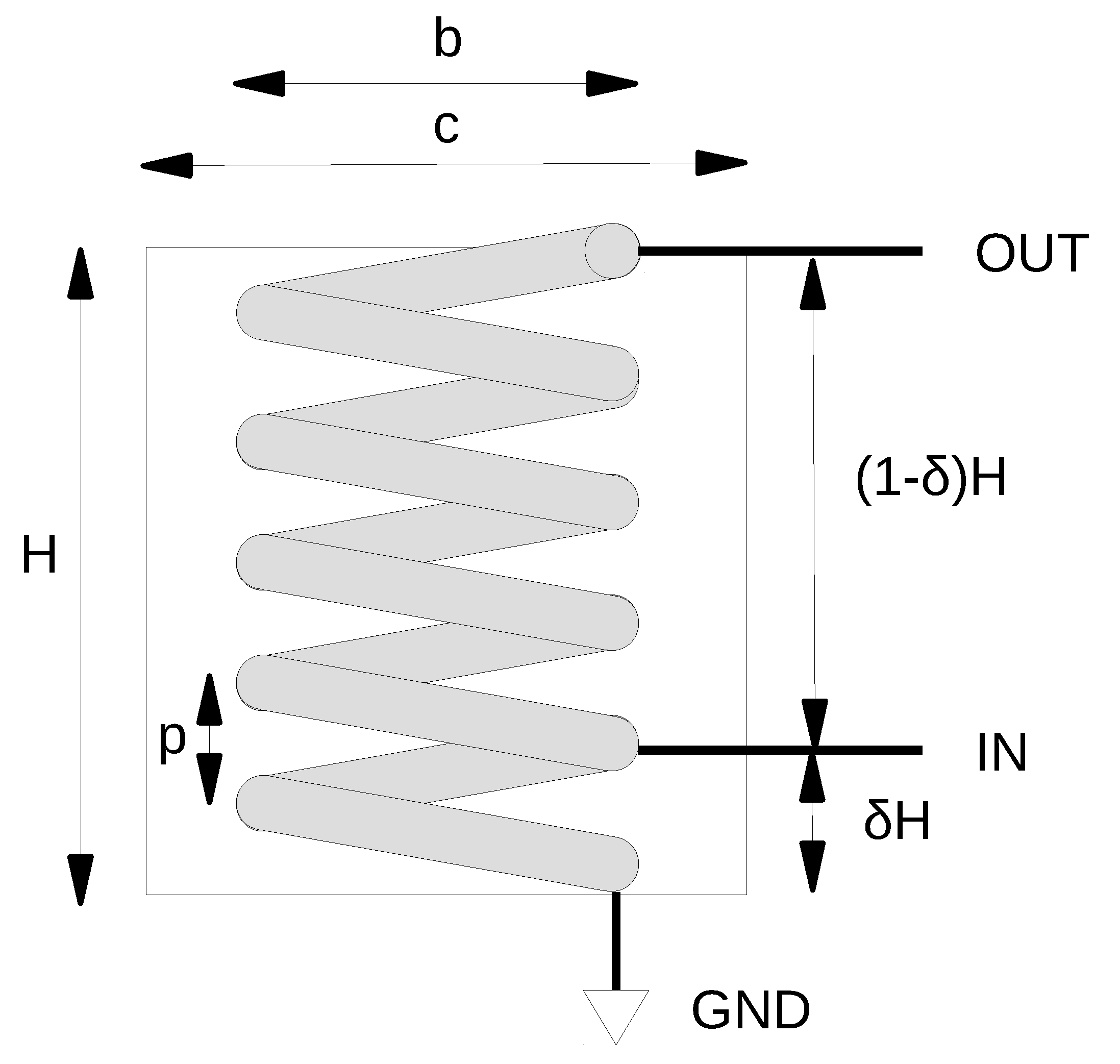

**Figure 1.**Schematics of the helical resonator. The terminals labeled IN and OUT are the ones where the voltages ${V}_{in}$ and ${V}_{out}$ are evaluated. The external rectangle represents the screen.

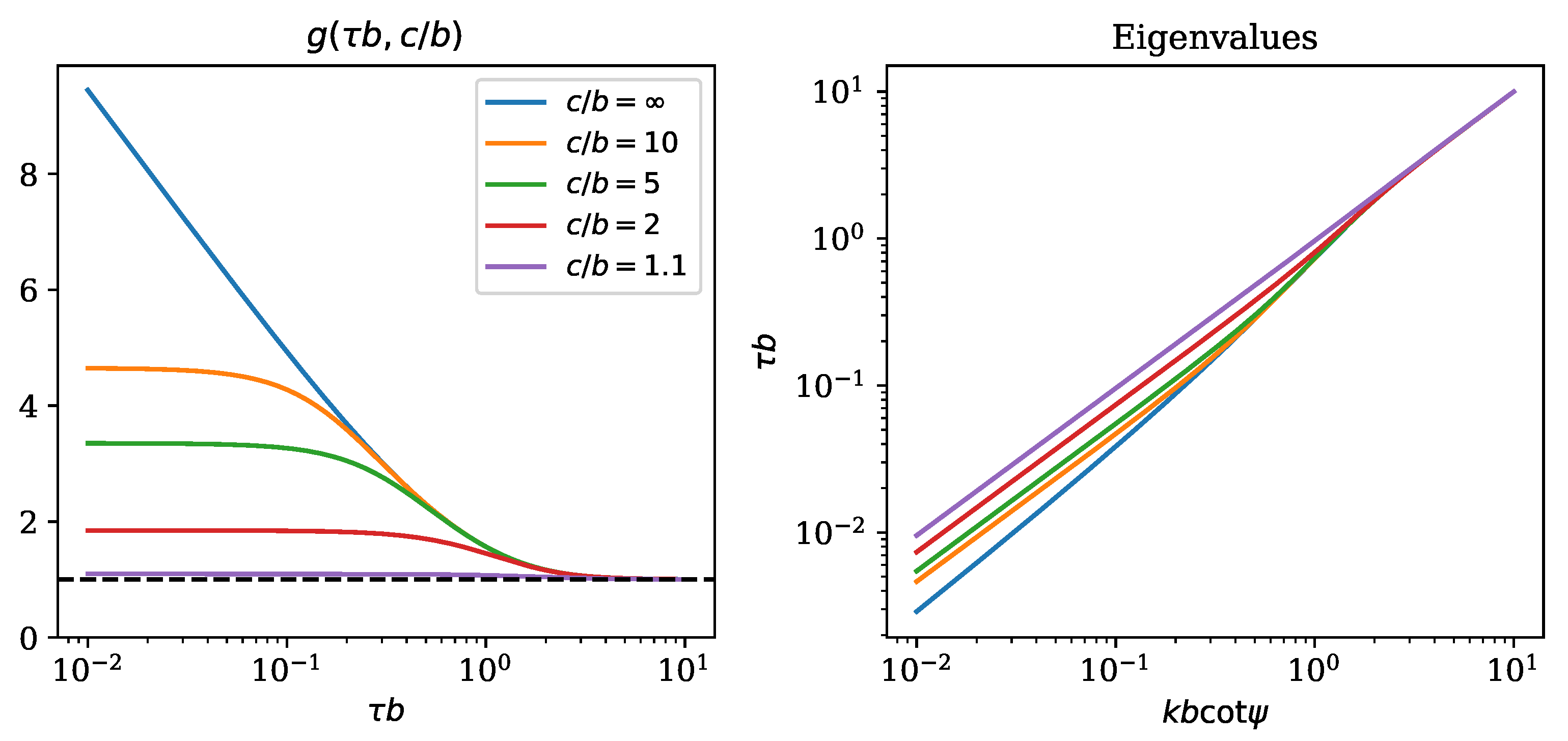

**Figure 2.**

**Left**: function $g(\tau b,c/b)$ entering the eigenvalue equation, plotted as versus $\tau b$ for different values of $c/b$.

**Right**: solutions of the eigenvalue equation, plotted versus $kbcot\psi $ for different values of $c/b$.

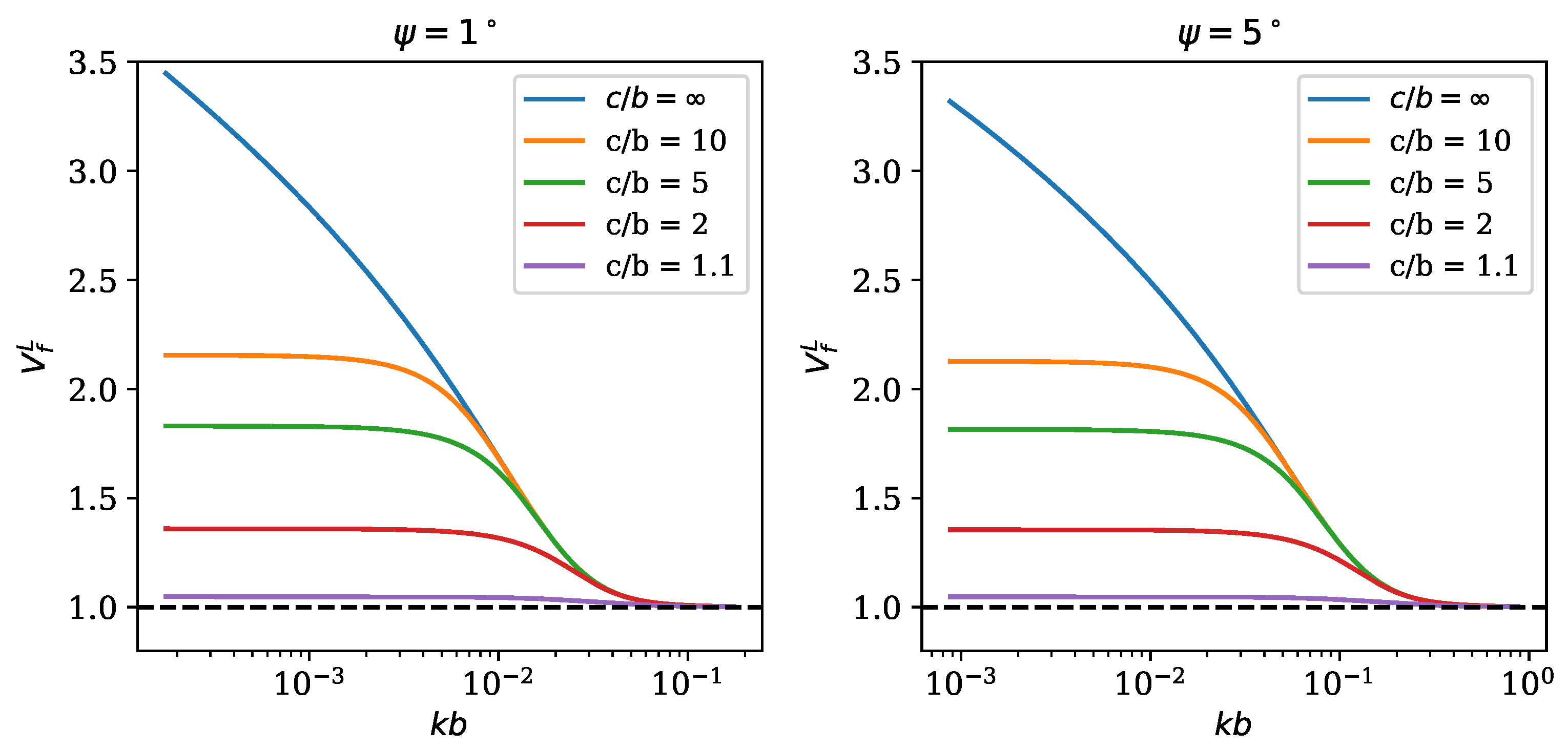

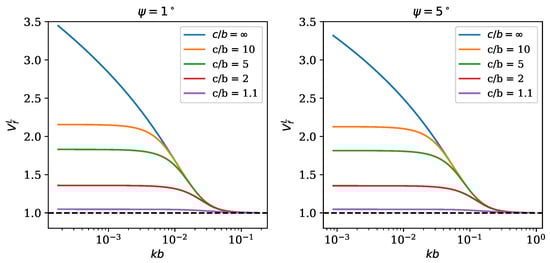

**Figure 3.**Longitudinal velocity factor ${V}_{f}^{L}$ plotted as a function of the normalized frequency $kb$, for different values of the shield proximity $c/b$; the left panel refers to a pitch angle $\psi ={1}^{\circ}$, the right panel to $\psi ={5}^{\circ}$.

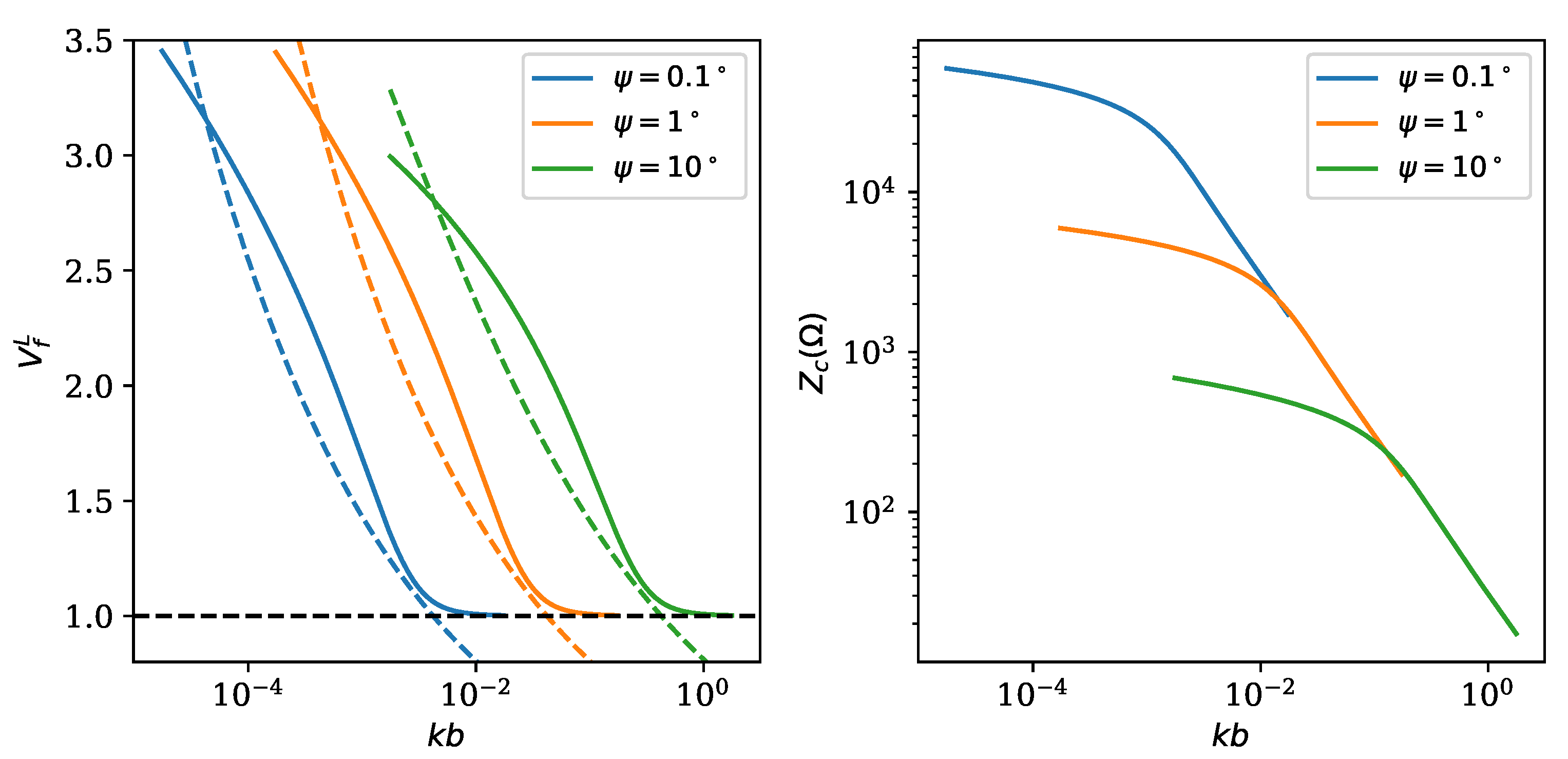

**Figure 4.**

**Left**: exact longitudinal velocity factor ${V}_{f}^{L}$ for the case without shield plotted as a function of the normalized frequency $kb$ (solid lines) and approximation obtained from Equation (27) (dashed lines), for three different values of the pitch angle $\psi $.

**Right**: characteristic impedance for the case without shield plotted as a function of the normalized frequency $kb$, for three different values of the pitch angle $\psi $.

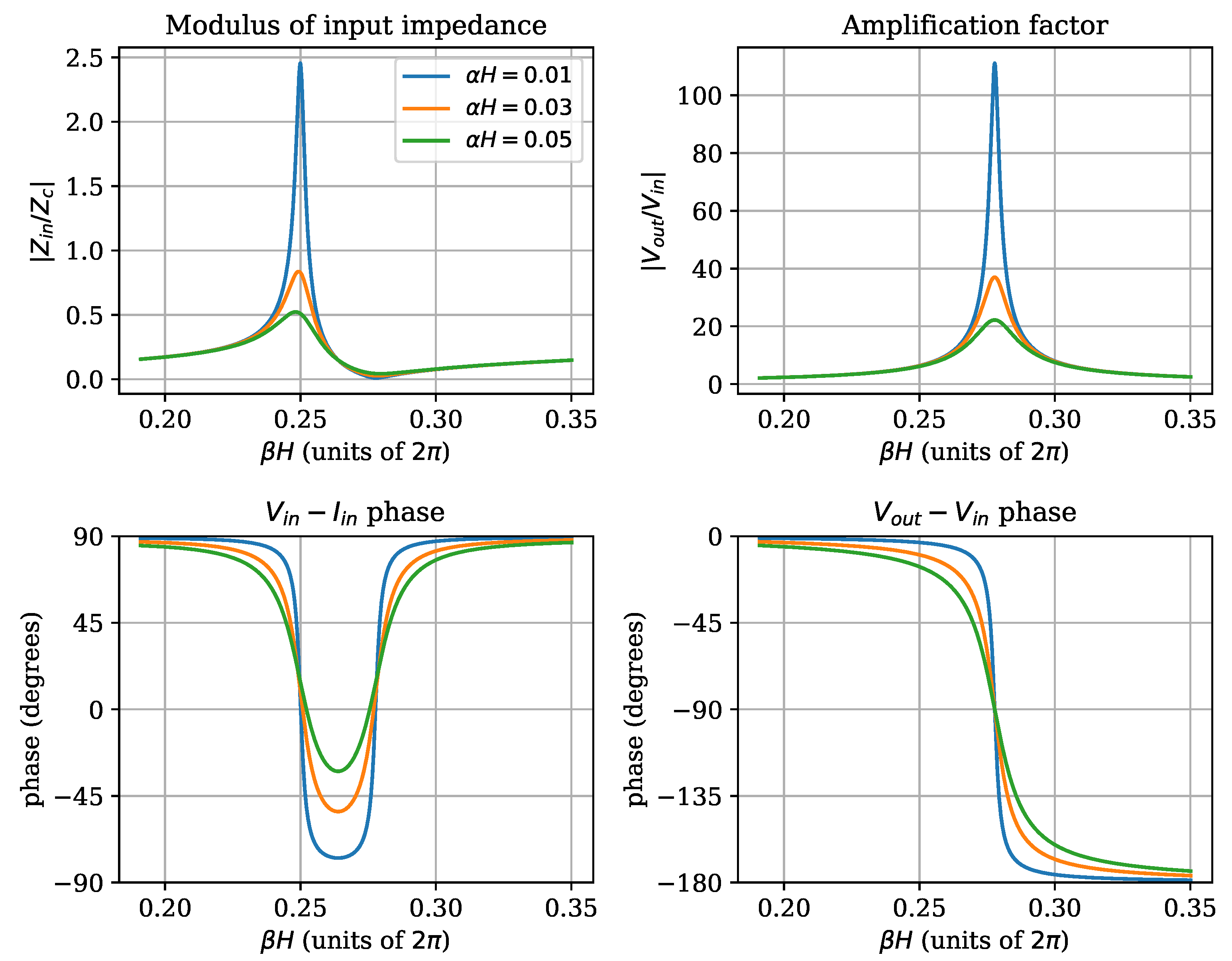

**Figure 5.**Behavior of the helical resonator modeled as a transmission line plotted as a function of the normalized wave number $\beta H$ expressed in units of $2\pi $, for three different values of the attenuation factor $\alpha H$. The curves are computed for $\delta =0.1$. Top left: modulus of the input impedance $|{Z}_{in}|$ normalized to the characteristic impedance ${Z}_{c}$. Top right: voltage amplification factor $|{V}_{out}/{V}_{in}|$. Bottom left: phase shift in degrees between input voltage and input current. Bottom right: phase shift in degrees between the input voltage and the output voltage.

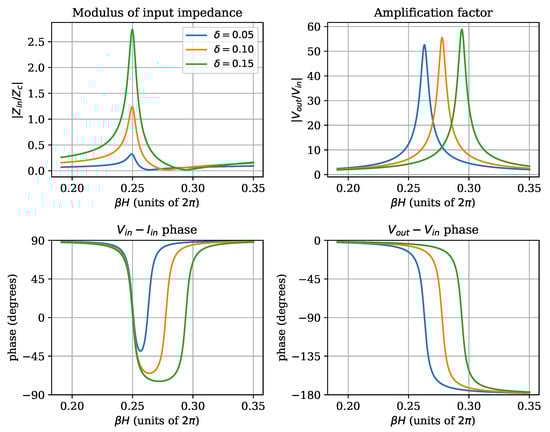

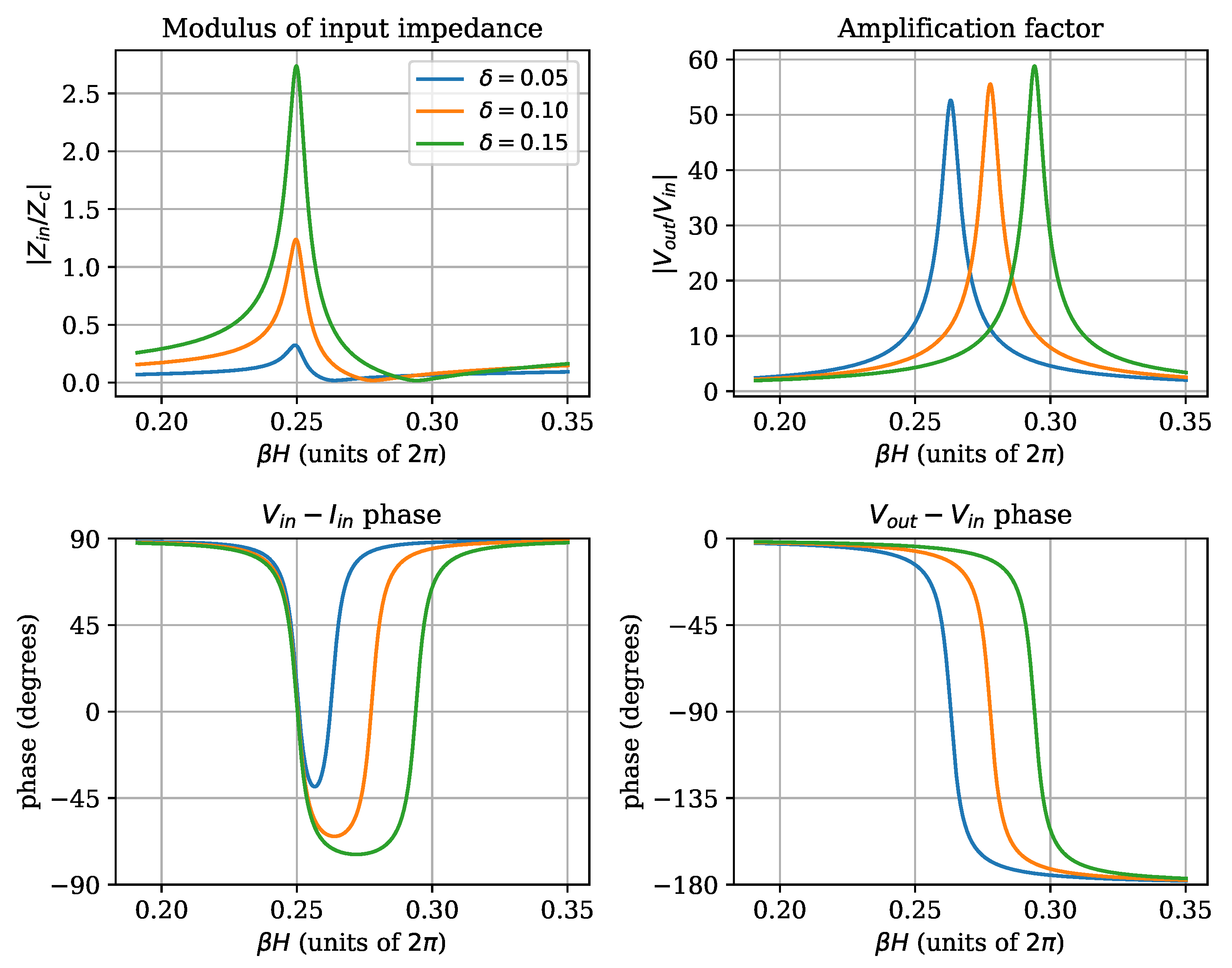

**Figure 6.**Behavior of the helical resonator modeled as a transmission line plotted as a function of the normalized wave number $\beta H$ expressed in units of $2\pi $, for three different values of the relative tap position $\delta $. The curves are computed for $\alpha H=0.02$. Top left: modulus of the input impedance $|{\mathrm{Z}}_{in}|$ normalized to the characteristic impedance ${\mathrm{Z}}_{c}$. Top right: voltage amplification factor $|{V}_{out}/{V}_{in}|$. Bottom left: phase shift in degrees between input voltage and input current. Bottom right: phase shift in degrees between the input voltage and the output voltage.

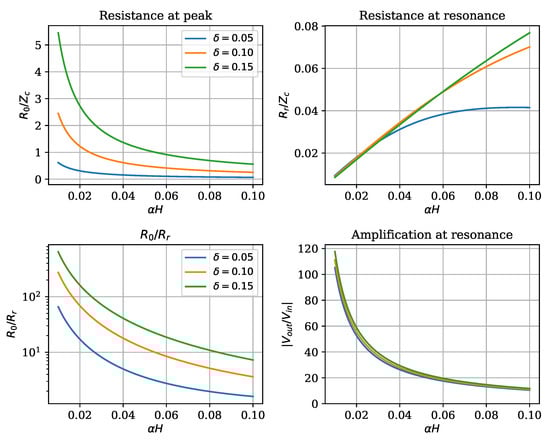

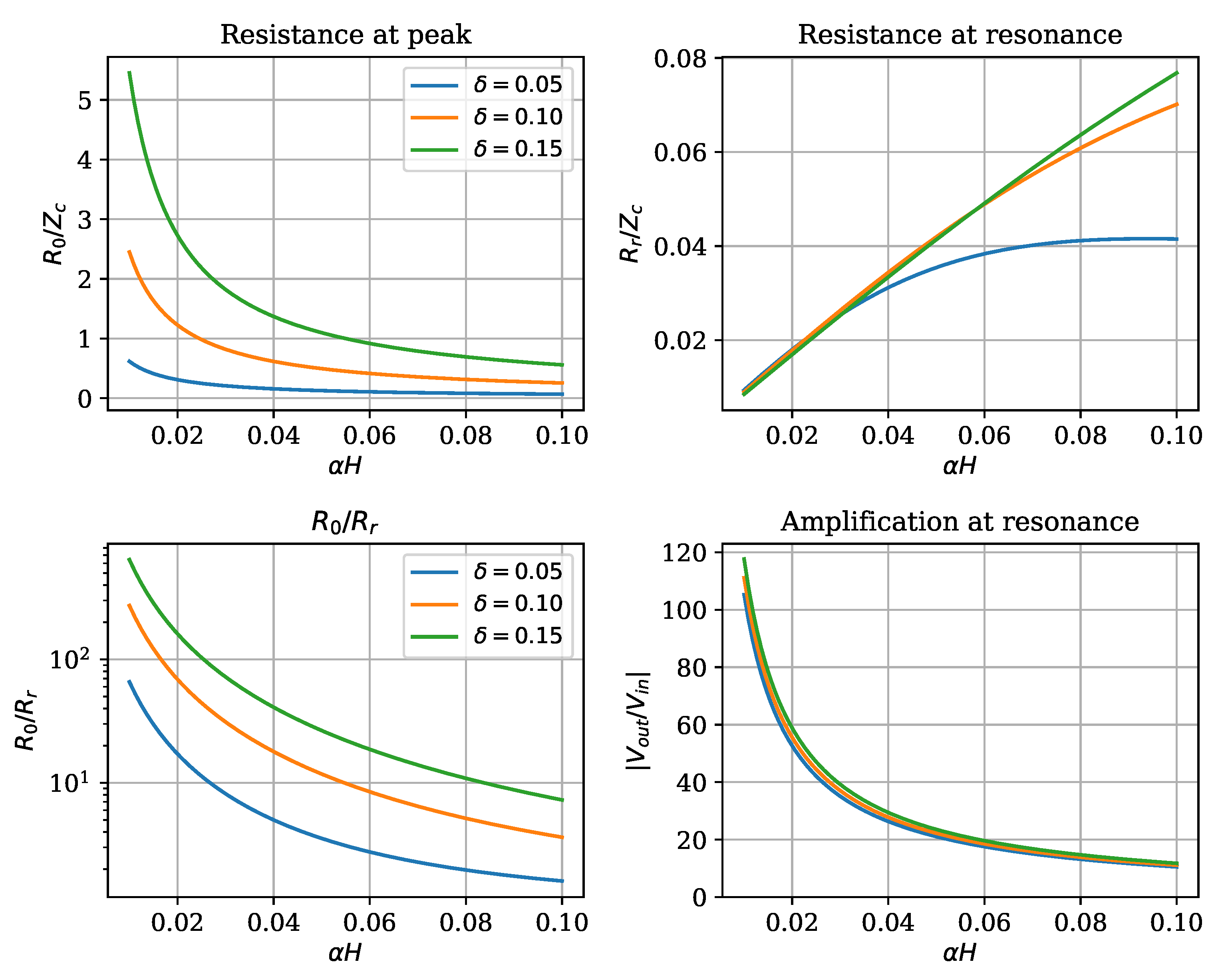

**Figure 7.**Behavior of the helical resonator at the peak resistance and at the resonance, plotted as a function of the normalized attenuation factor $\alpha H$, for three different values of the relative tap position $\delta $. Top left: input resistance at peak, normalized to the characteristic impedance ${\mathrm{Z}}_{c}$. Top right: input resistance at resonance, normalized to the characteristic impedance ${\mathrm{Z}}_{c}$. Bottom left: ratio of the previous two quantities. Bottom right: voltage amplification factor $|{V}_{out}/{V}_{in}|$.

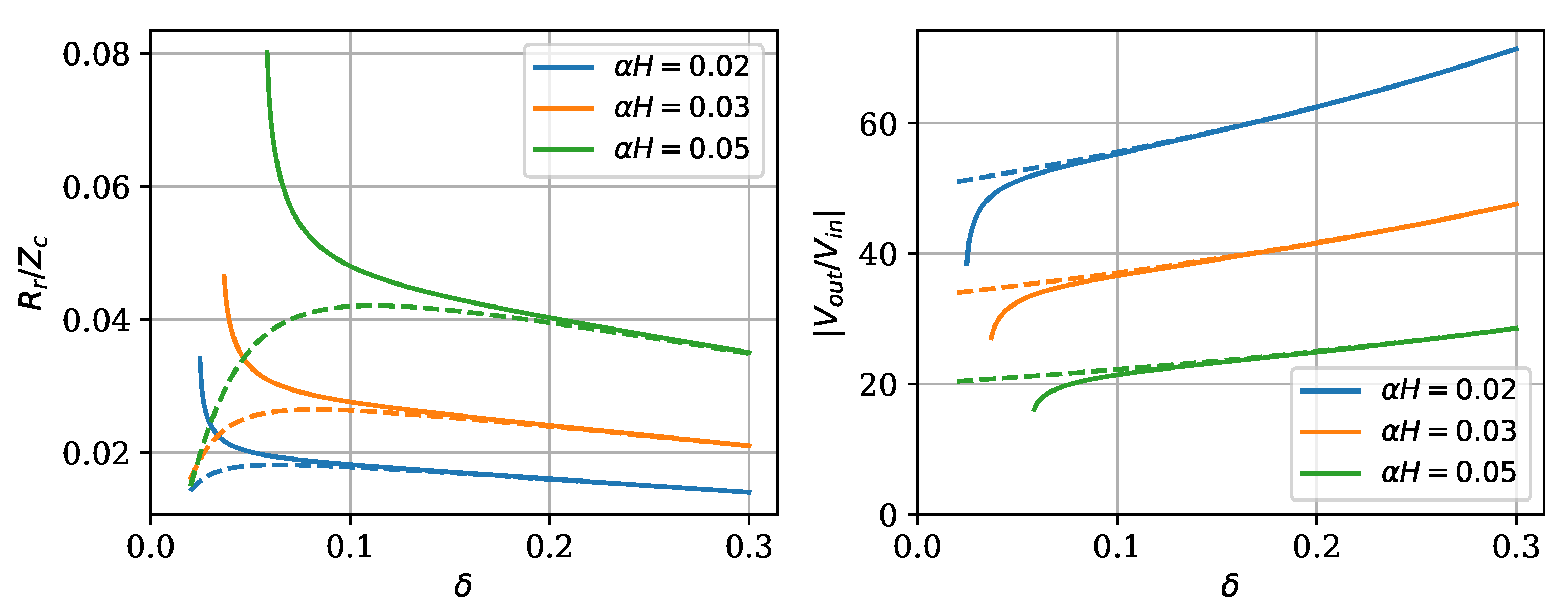

**Figure 8.**Behavior of the helical resonator at the point of purely resistive input impedance near resonance (continuous line) and at resonance (dashed line), plotted as a function of the tap position $\delta $, for three different values of the normalized attenuation factor $\alpha H$.

**Left**: input resistance at resonance, normalized to the characteristic impedance ${\mathrm{Z}}_{c}$.

**Right**: voltage amplification factor $|{V}_{out}/{V}_{in}|$.

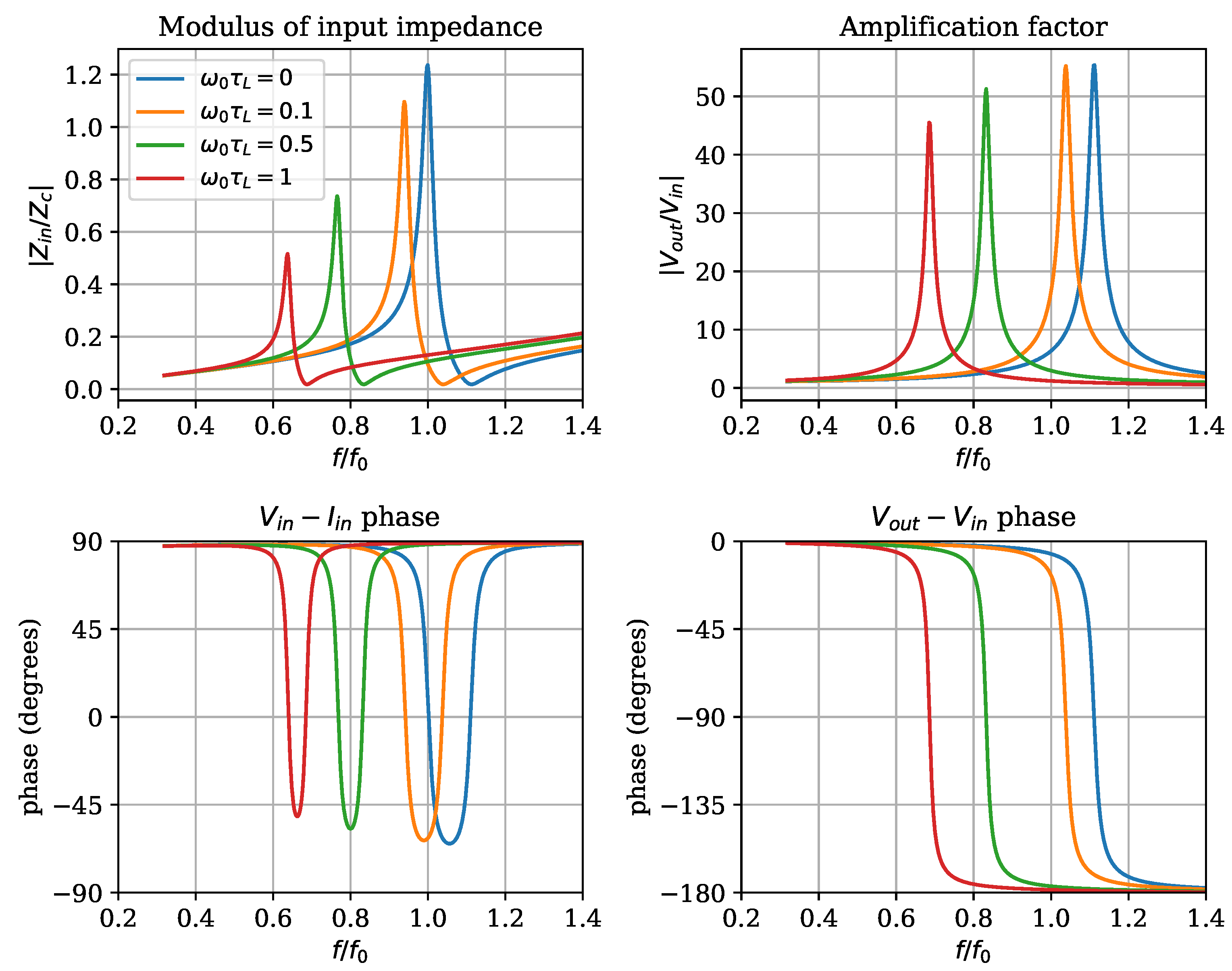

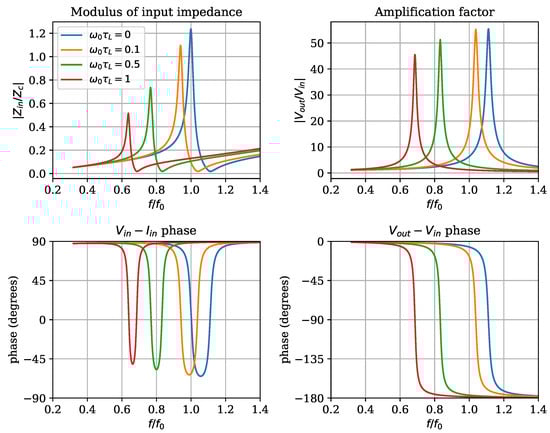

**Figure 9.**Behavior of the fully shielded helical resonator with capacitive load plotted as a function of frequency f, normalized to the frequency ${f}_{0}$ of maximum impedance modulus, for different values of ${\omega}_{0}{\tau}_{L}$. The curves are computed for $\alpha H=0.02$ and $\delta =0.1$. Top left: modulus of the input impedance $|{\mathrm{Z}}_{in}|$ normalized to the characteristic impedance ${\mathrm{Z}}_{c}$. Top right: voltage amplification factor $|{V}_{out}/{V}_{in}|$. Bottom left: phase shift in degrees between input voltage and input current. Bottom right: phase shift in degrees between the input voltage and the output voltage.

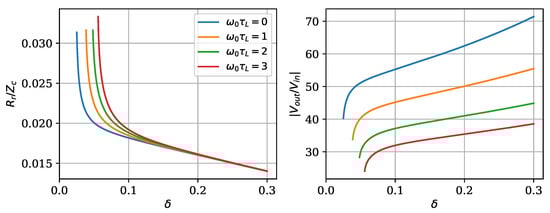

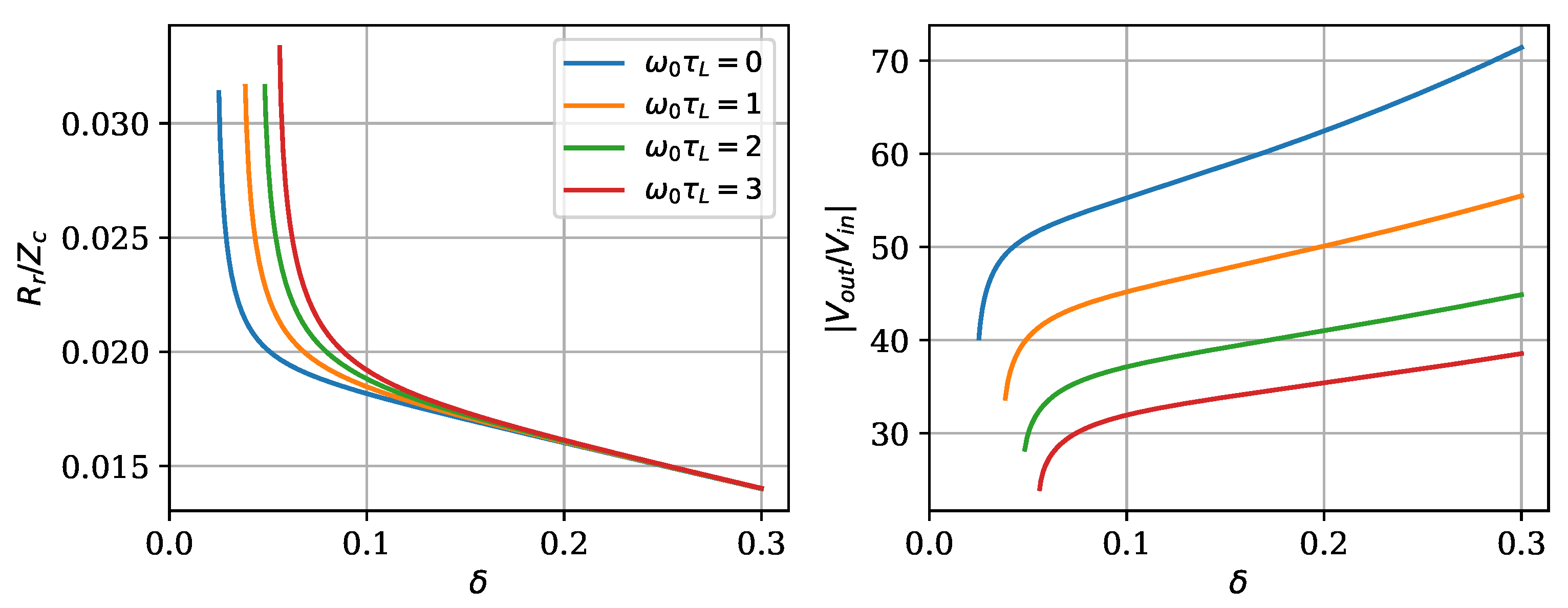

**Figure 10.**

**Left**: plot of the input resistance normalized to the characteristic impedance of the fully shielded resonator with capacitive load, achieved in the purely resistive condition near the resonance, as a function of the relative tap point position $\delta $, for different values of ${\omega}_{0}{\tau}_{L}$. (

**Right**): voltage amplification factor for the same conditions. The attenuation factor is $\alpha H=0.02$.

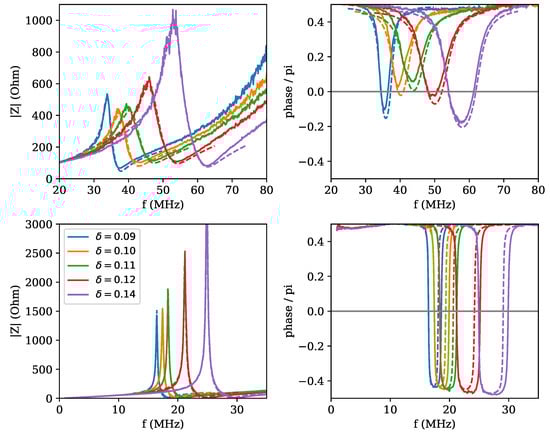

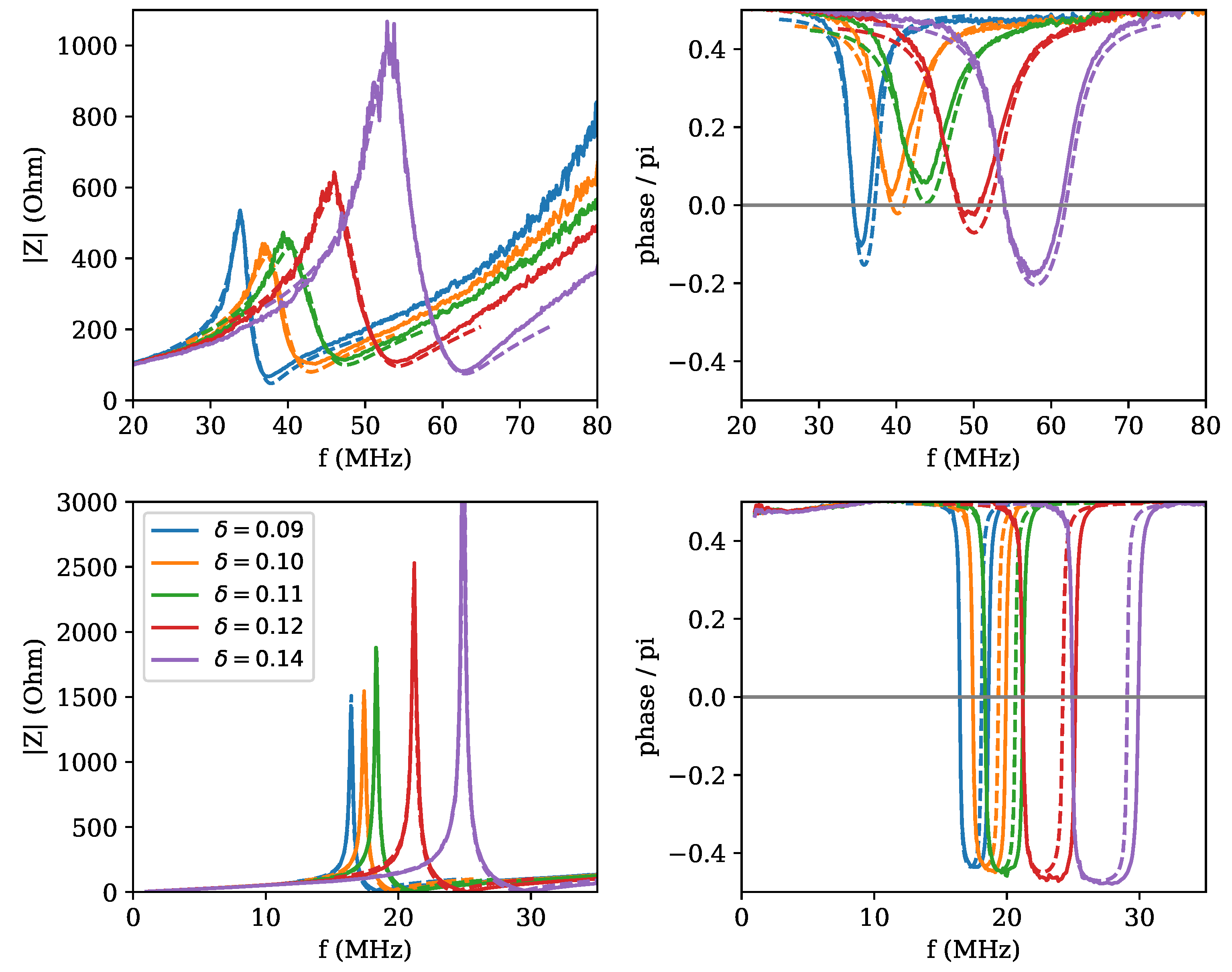

**Figure 11.**(

**Top**): plot of the modulus (

**left**) and phase (

**right**), normalized to $\pi $, of the input impedance of resonator 1. The different curves correspond to different number of turns above the tap point. The dashed curves are the fits obtained as described in the text.

**Bottom**: same as above, but with the addition of a conducting shield around the resonator.

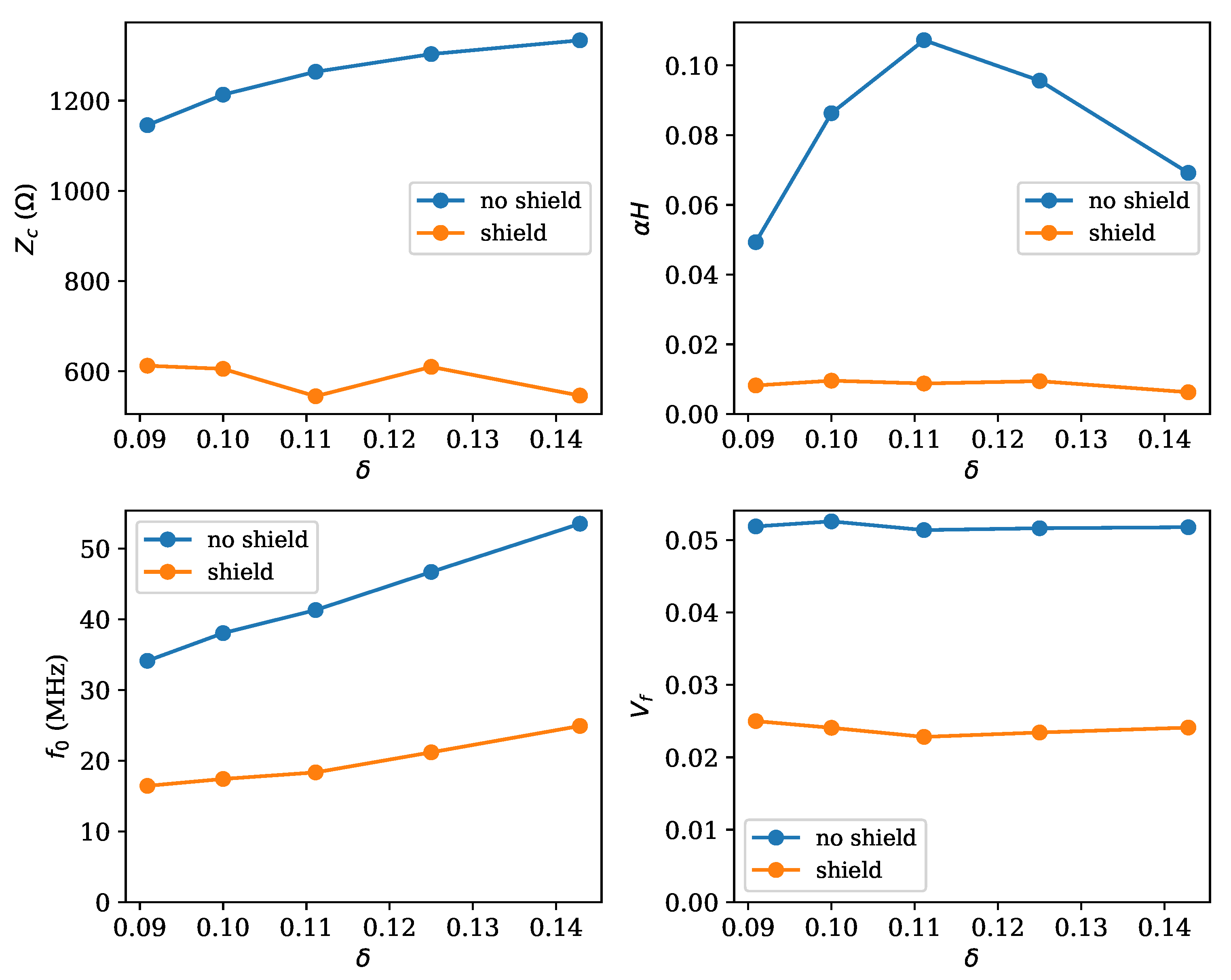

**Figure 12.**Parameters resulting from the fits of the input impedance data for resonator 1, plotted as a function of the relative distance $\delta $ of the tap point from the bottom end. Top left: characteristic impedance. Top right: attenuation parameter. Bottom left: frequency at which the total electrical length of the resonator is $\pi /2$. Bottom right: velocity factor, obtained from the previous quantity. In all graphs, results without and with conducting shield are reported.

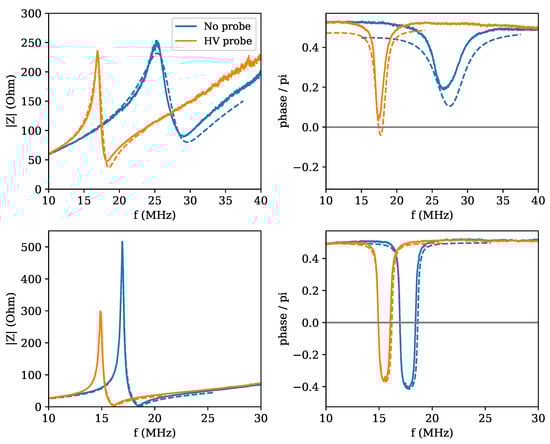

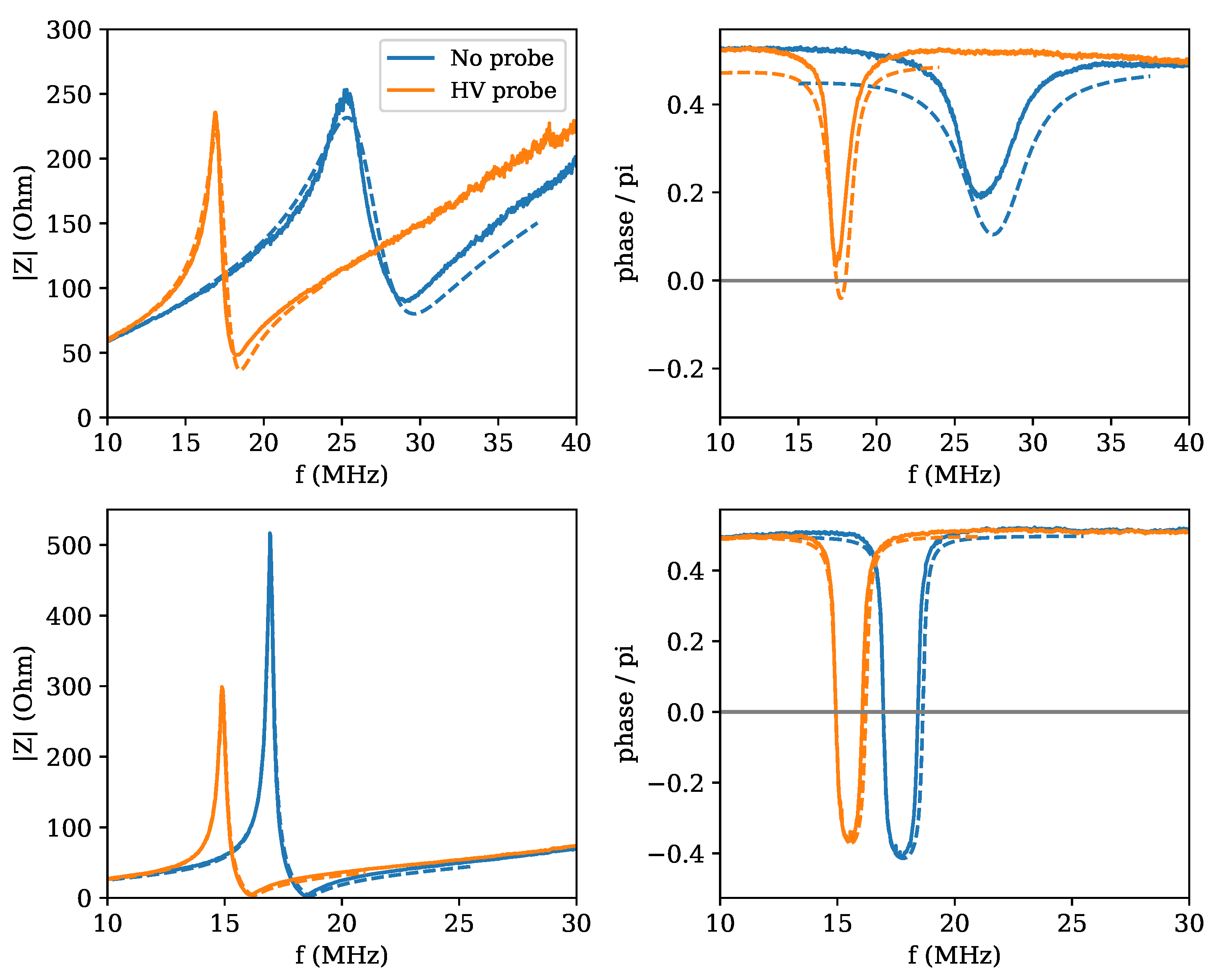

**Figure 13.**

**Top**: plot of the modulus (

**left**) and phase (

**right**), normalized to $\pi $, of the input impedance of resonator 2, both in standard configuration and with the HV probe attached to the open end. The dashed curves are the fits obtained as described in the text.

**Bottom**: same as above, but with the addition of a conducting shield around the resonator.

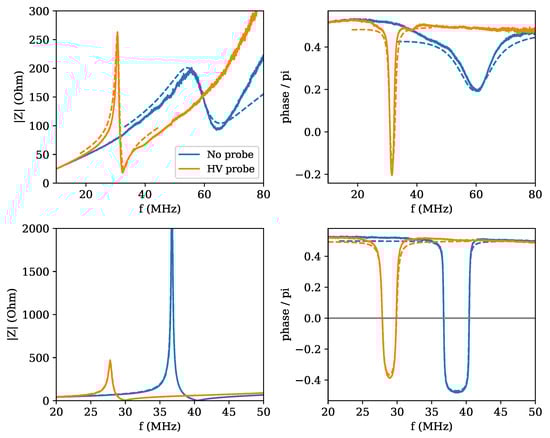

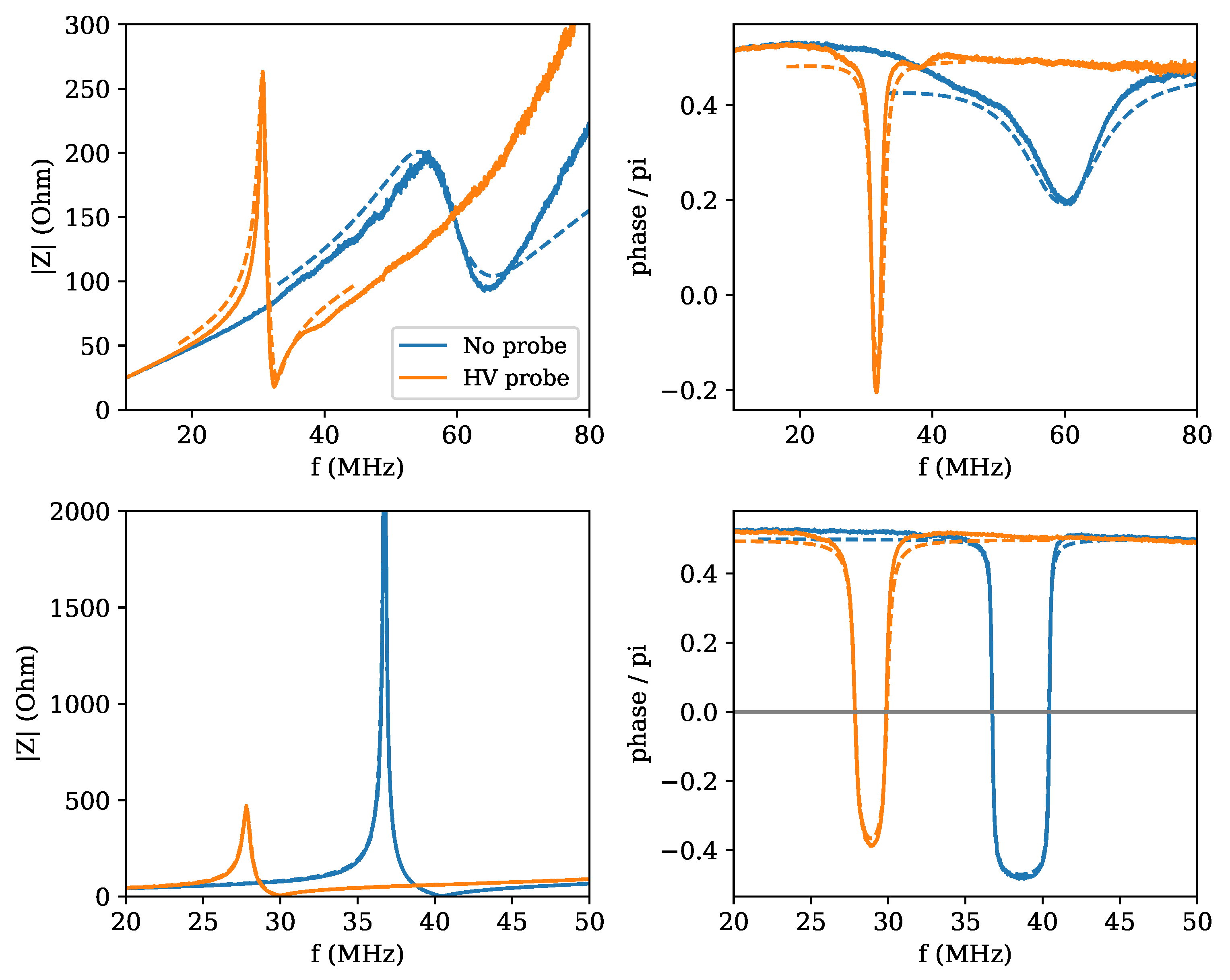

**Figure 14.**

**Top**: plot of the modulus (

**left**) and phase (

**right**), normalized to $\pi $, of the input impedance of resonator 3, both in standard configuration and with the HV probe attached to the open end. The dashed curves are the fits obtained as described in the text.

**Bottom**: same as above, but with the addition of a conducting shield around the resonator.

**Table 1.**Parameters resulting from the fit of the input impedance curves for resonators 2 and 3. The load characteristic time ${\tau}_{L}$ and the associated load capacitance C are also reported.

Shield | HV Probe | ${\mathbf{Z}}_{\mathit{c}}\left(\mathbf{\Omega}\right)$ | $\mathit{\alpha}\mathit{H}$ | ${\mathit{V}}_{\mathit{f}}$ | ${\mathit{\tau}}_{\mathit{L}}$ (ns) | C (pF) | |
---|---|---|---|---|---|---|---|

Resonator 2 | No | No | 1003 | 0.119 | 0.025 | - | - |

Resonator 2 | No | Yes | 1003 | 0.047 | 0.025 | 5.58 | 5.56 |

Resonator 2 | Yes | No | 272.4 | 0.011 | 0.016 | - | - |

Resonator 2 | Yes | Yes | 272.4 | 0.015 | 0.016 | 2.04 | 7.48 |

Resonator 3 | No | No | 1064 | 0.173 | 0.055 | - | - |

Resonator 3 | No | Yes | 1064 | 0.026 | 0.055 | 4.54 | 4.26 |

Resonator 3 | Yes | No | 501.7 | 0.004 | 0.036 | - | - |

Resonator 3 | Yes | Yes | 501.7 | 0.013 | 0.036 | 2.29 | 4.57 |

**Table 2.**Comparison of the experimental amplification factor at resonance with the expected value $1/\alpha H$ predicted from the fit outcome, for resonators 2 and 3, with and without shield.

Shield | $1/\mathit{\alpha}\mathit{H}$ | ${\mathit{V}}_{\mathit{out}}/{\mathit{V}}_{\mathit{in}}$ | |
---|---|---|---|

Resonator 2 | No | 21.4 | 41 |

Resonator 2 | Yes | 61.8 | 80 |

Resonator 3 | No | 38.0 | 30 |

Resonator 3 | Yes | 77.6 | 100 |
