Economic and Technical Viability of Using Shotcrete with Coarse Recycled Concrete Aggregates in Deep Tunnels

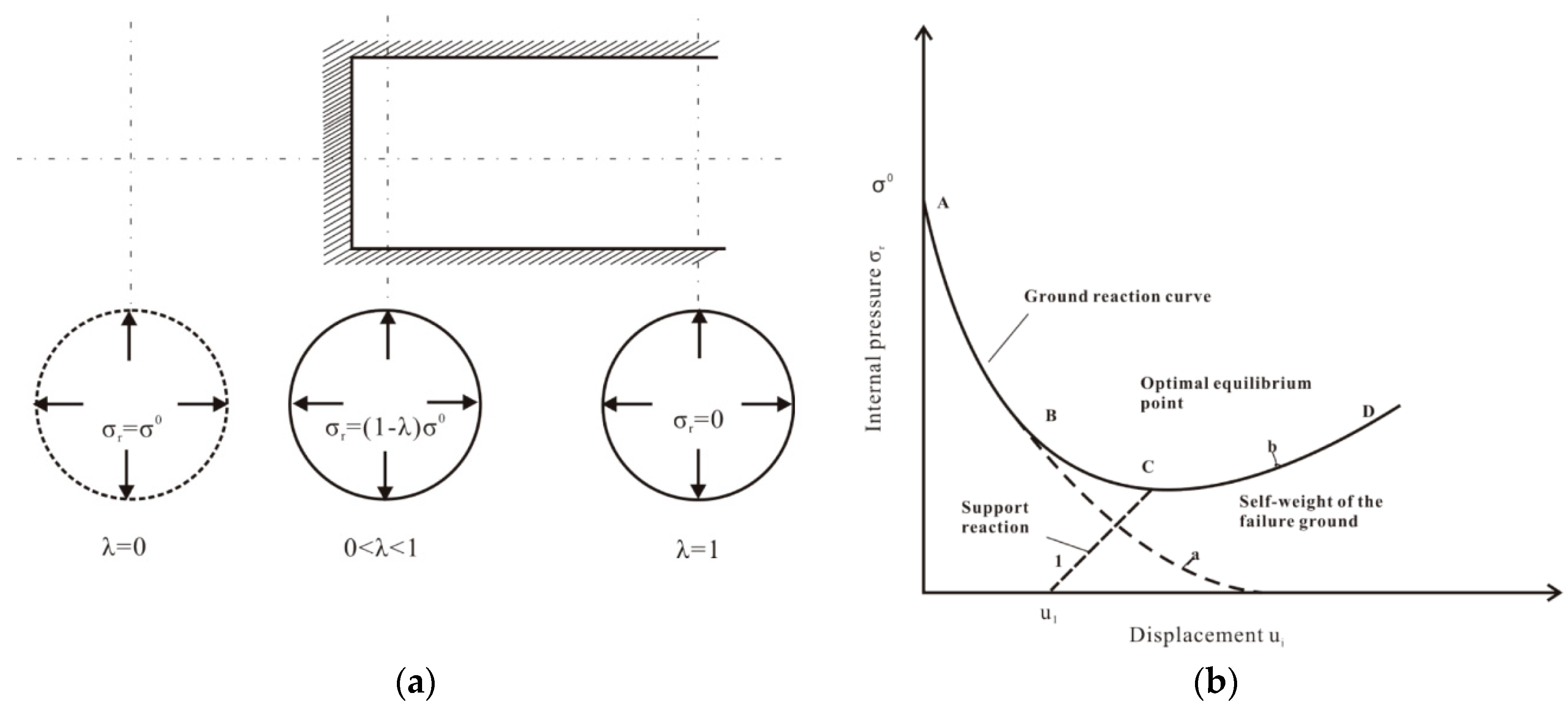

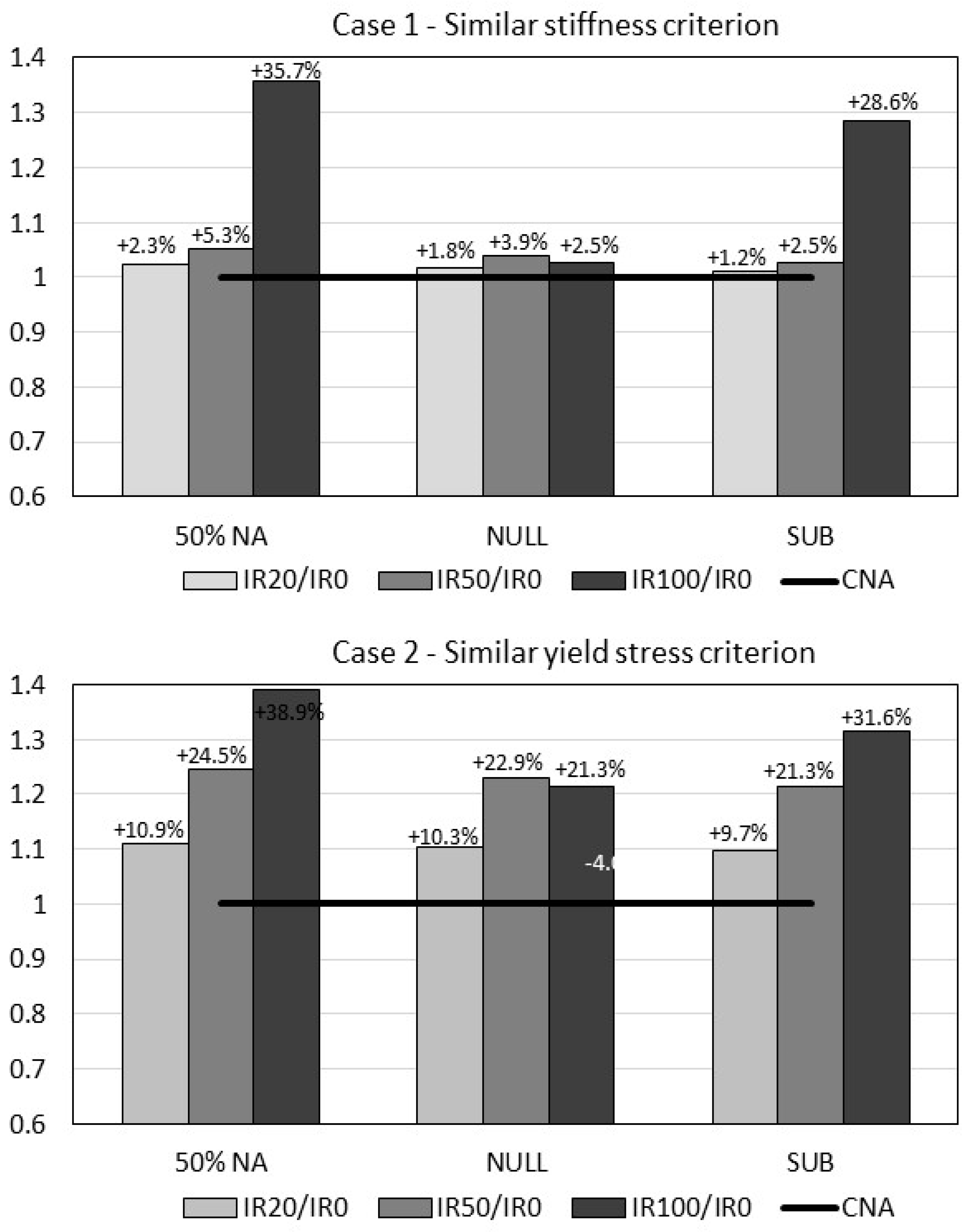

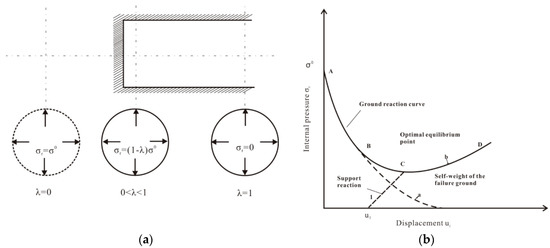

This work analyzes the technical and economic viability of using coarse recycled aggregates from crushed concrete in shotcrete, as a primary lining support in tunnels. Four incorporation ratios of coarse natural aggregate (CNA) with coarse recycled concrete aggregates from concrete (CRCA) were studied: 0%, 20%, 50% and 100%. The mechanical properties of the dry-mix shotcrete were obtained in an independent experimental campaign. Initially, the technical viability of CRCA shotcrete was validated for deep rock tunnels, based on the convergence-confinement method. Two cases were studied to determine the equivalent thickness for each combination of replacement ratio using CRCA shotcrete: (i) similar stiffness and (ii) similar yield stress. Subsequently, an economic assessment was performed. The stiffness criterion increased the thickness below 10% in both the 20% and 50% replacement ratios, which shows their technical viability with very marginal cost increase (<5%). On the other hand, the maximum pressure criteria required higher increments, close to 30% in the 50% replacement ratio. A full replacement was proven to be impracticable in both analyses. View Full-Text
