Ultrawideband Low-Profile and Miniaturized Spoof Plasmonic Vivaldi Antenna for Base Station

Abstract

Stable radiation pattern, high gain, and miniaturization are necessary for the ultra-wideband antennas in the 2G/3G/4G/5G base station applications. Here, an ultrawideband and miniaturized spoof plasmonic antipodal Vivaldi antenna (AVA) is proposed, which is composed of the AVA and the loaded periodic grooves. The designed operating frequency band is from 1.8 GHz to 6 GHz, and the average gain is 7.24 dBi. Furthermore, the measured results show that the radiation patterns of the plasmonic AVA are stable. The measured results are in good agreement with the simulation results.

1. Introduction

The fifth-generation (5G) mobile communication systems have found various applications, such as autonomous driving [1], telemedicine [2], and virtual reality [3]. Considering radio wave propagation and available bandwidth, the bands between 3 and 5 GHz have been allocated for 5G services in many regions, such as 3.4–3.8 GHz in Europe, 3.7–4.2 GHz in the USA, and 3.3–3.6 and 4.8–4.99 GHz in China [4]. Hence, in the 2G/3G/4G/5G base station applications, the wide bandwidth covers the 2G, 3G, and 4G bands (1.7–2.7 GHz) and the new sub-6 GHz 5G frequency bands. It is urgent to investigate and design ultra-wideband antennas to cover the aforementioned bands and maintain good impedance matching within the entire frequency bands of interest, with a stable half-power bandwidth (HPBW) and a smaller structure.

Crossed dipole antennas are widely used in wireless communication systems due to their advantages of wide bandwidth, stable radiation patterns, and ease of fabrication [5]. Various crossed dipoles were utilized to achieve a wide impedance bandwidth, such as magnetoelectric dipole antennas [6], bow-tie dipole [7], fan-shaped dipole [8], octagonal loop dipole [9], and double-loop dipole [10]. For most of them, the wide impedance bandwidth only covers 2G/3G/4G bands. Furthermore, the antenna profile is not low due to the necessary broadband feeding part.

The microstrip antennas have advantages of low profile, light weight, and ease of conformability. However, their impedance bandwidth and isolation are not good enough. Some attractive techniques have been proposed to broaden the impedance bandwidth by using parasitic patches [11], loading H-slot [12] and U-slot [13], using a multiresonant structure [14], and using a fractal structure [15]. Although the shorted-dipoles printed antenna fed by integrated baluns [16] and the dual-band folded dipole antenna [17] cover 2G/3G/4G/5G frequency band, the gain and radiation pattern of these antennas are unstable over the operating frequency band.

Another typical ultra-wideband antenna is based on tapered slot technique. As one of the most typical types, Vivaldi antenna was firstly introduced in [18] and has found many applications [19,20]. However, its size is still large. Surface plasmons (SPs) are collective electron–photon oscillations confined to the metal surface, which are characterized by subwavelength confinement and field enhancement in optical spectrum [21]. Spoof SPs could be obtained by constructing periodic metal surfaces to get the characteristics of SPs in the microwave frequencies [22,23]. They have been explored in many antenna applications such as holo-graphic antenna [24,25], metasurface planar lenses [26,27], and metasurface superstrate [28,29]. It has been shown that by loading plasmonic metamaterials, the antenna can be efficiently miniaturized [30].

Here, by loading plasmonic metamaterials, a modified antipodal Vivaldi antenna (AVA) is designed and measured, which is composed of the AVA and the loaded periodic slots. The designed operating frequency is from 1.8 GHz to 6 GHz, which covers 2G/3G/4G/5G frequency band. The simulated results and measured results agree well. It shows that the radiation pattern of the plasmonic AVA is stable and the average gain is 7.24 dBi over the operating frequency band.

2. Methods and Principles

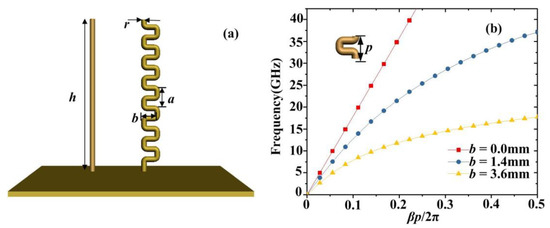

The typical monopole antenna and the plasmonic monopole antenna are illustrated in Figure 1a. Usually, the plasmonic monopole antenna is composed of the corrugated monopole antenna with grooves along the metal wire. Here, we use meander wires to simulate the effects of the grooves for simplicity. The dispersion relations of both antennas are calculated and plotted in Figure 1b. When the groove depth b is 0 mm, it is the typical monopole antenna. From Figure 1b, it can be seen that when the groove depth is increased (from 0 mm to 3.6 mm), the corresponding asymptotic frequencies are decreased and the dispersion curves are lowered. It can be concluded that when the wave vector β is fixed, the operating frequency is lower for the plasmonic monopole antenna with deeper grooves. Hence, the electrical size of the plasmonic monopole antenna would be smaller, compared with that of the traditional monopole antenna.

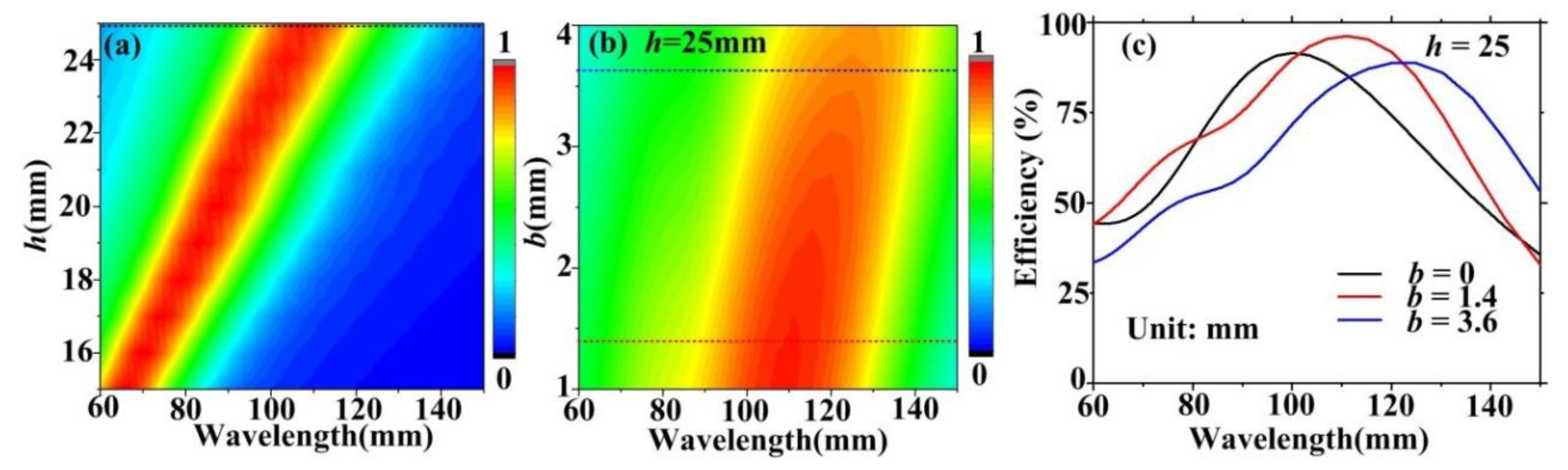

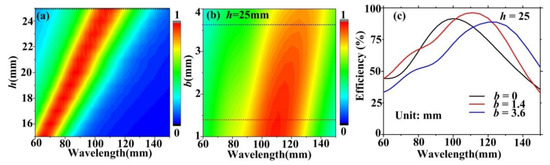

The efficiencies of the typical and plasmonic monopole antennas are calculated and illustrated in Figure 2. Figure 2b shows the efficiencies of the plasmonic monopole antenna with different groove depths from 1 mm to 4 mm. From Figure 2b, it can be seen that the operating frequencies red-shifts (corresponding to longer wavelengths) when the groove depth is increased for the fixed height of the monopole antenna (25 mm). Especially, the efficiency curves corresponding to three typical groove depths are plotted in Figure 2c. It can be clearly observed that the central operating frequency red-shifts when the groove depth b is 0 mm (typical monopole antenna), 1.4 mm, and 3.6 mm, respectively. Meanwhile, we can observe that there is an optimized efficiency when tuning the groove depth. Hence, it indicates that the plasmonic theory provides a scheme for miniaturization and optimization of the antenna.

3. Design of Plasmonic Antipodal Vivaldi Antenna

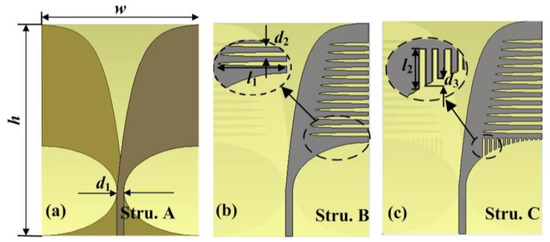

The typical AVA is illustrated in Figure 3a, which is denoted by Structure A, where the metal layers are on both sides of the 0.8-mm-thickness F4B substrate (${\epsilon }_r=2.65,tan\delta =0.001$) with a dimension of 94 mm × 70 mm. A microstrip feeding line is adopted for broadband impendence matching. The port width of the microstrip feeding line is fixed to 1.35 mm. The exponential profile curves employed in this design can be calculated by the following equations:

$$y=c_1{e}^{Rx}+c_2$$

(1)

$$c_1=\frac{y_2-y_1}{e^{R{x}_2}-e^{R{x}_1}}$$

(2)

$$c_2=\frac{y_1{e}^{R{x}_2}-y_2{e}^{R{x}_1}}{e^{R{x}_2}-e^{R{x}_1}}$$

(3)

The tentative plasmonic AVA is shown in Figure 3b, which is named as Structure B. The final plasmonic AVA is shown in Figure 3c, which is denoted by Structure C, where periodic elliptic grooves are cut from the feeding section to the terminal of the antenna for both structures. Furthermore, the rectangular gradual grooves with a width of 1 mm around the feeding section are further etched to realize the miniaturization of the AVA for Structure C. The detailed structures of the gradual grooves are shown in the insets of Figure 3b,c.

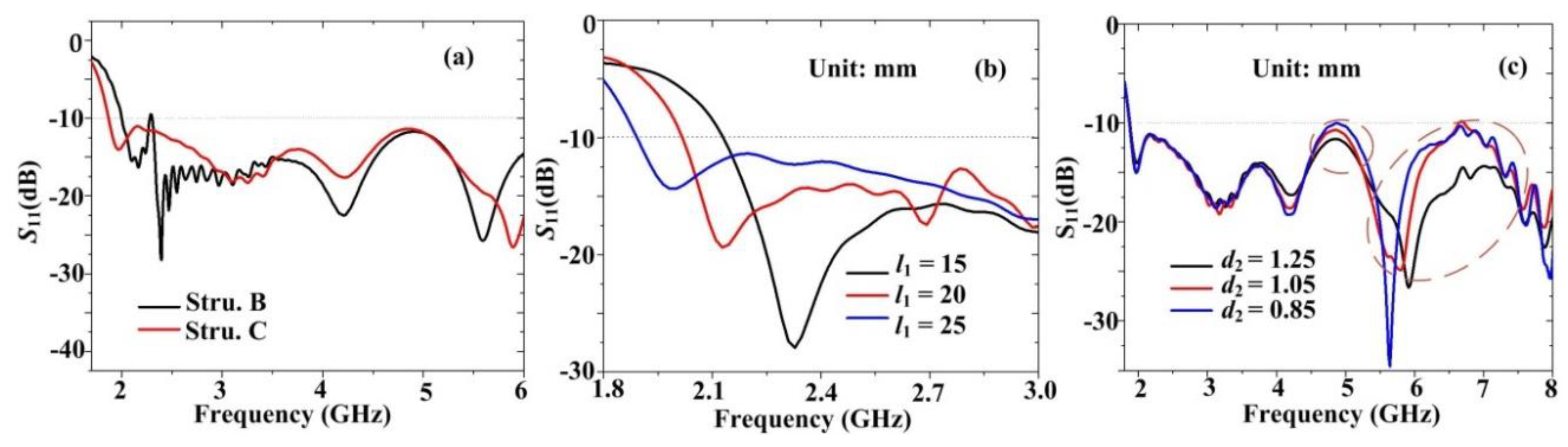

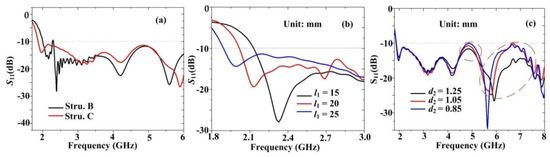

The numerical simulations were performed by using CST Microwave Studio. The simulated return losses changing with the grooves are shown in Figure 4. First, from Figure 4a, it can be observed that the impedance matching at lower frequencies is better for Structure C, compared with Structure B, and the operating frequency red-shifts. Thus, loading the rectangular gradual grooves can make the AVA further miniaturized. Then, the typical parameters of structures B and C are the maximum groove depth l₁ and the groove gap d₂. It can be seen that the operating frequency red-shifts when the maximum groove depth l₁ is bigger, while the groove gap d₂ mainly affects the input impedance at higher frequency. The optimized maximum groove depth l₁ and the groove gap d₂ are set to be 26 mm and 1.25 mm, respectively, to make sure that the lowest operating frequency is 1.8 GHz when the S₁₁ is not larger than −10 dB.

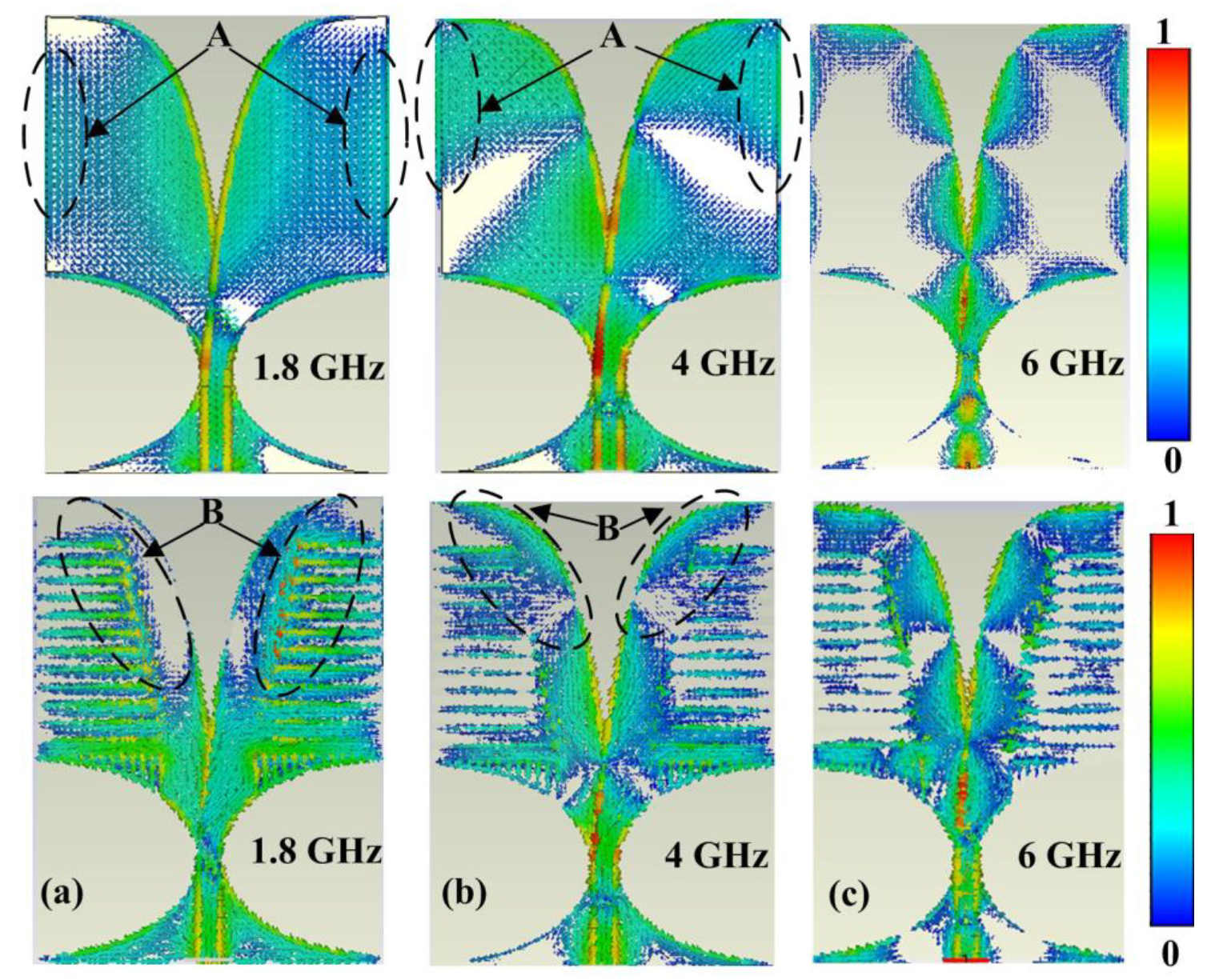

It is expected that the etched grooves would change the surface currents and then the effective impedance. In order to understand the operating principle of the AVA and plasmonic AVA, surface current distributions at 1.8 GHz, 4 GHz, and 6 GHz are illustrated in Figure 5. First, it can be seen that the surface currents distribution at the region A of the AVA is larger than that of the plasmonic AVA at 1.8 GHz. After loading the periodic slots, electromagnetic waves are concentrated at the end of the coupling section and the inner end of the tapered slots (region B), as shown in Figure 5a. Hence, radiated electromagnetic energy can be concentrated in the axial direction of the tapered slot (y-direction). The same thing is true for the cases of the plasmonic AVA at 4 GHz and 6 GHz, as shown in Figure 5b,c.

4. Results

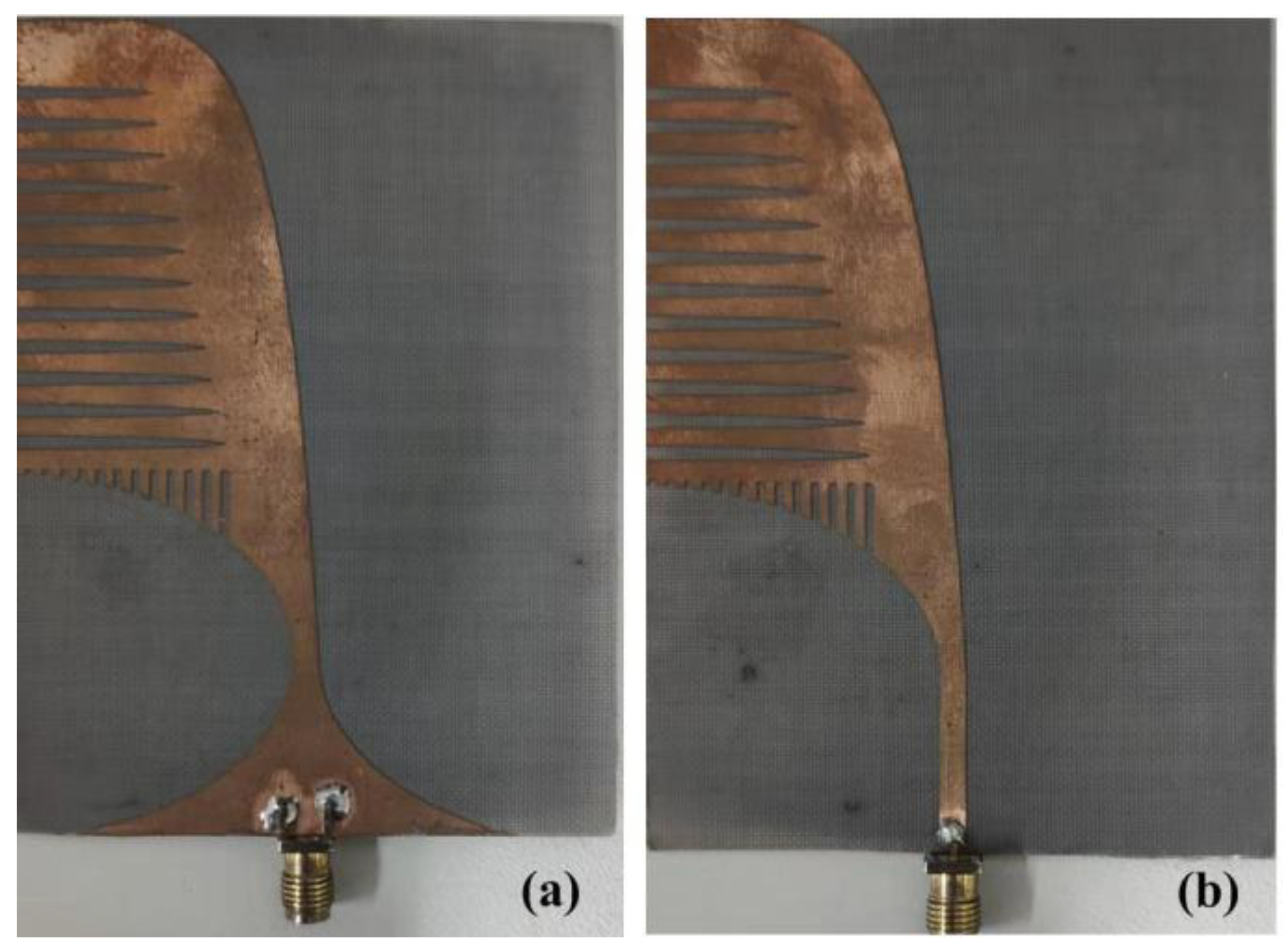

In order to validate the proposed antenna, the plasmonic AVA has been fabricated and tested. A 50-Ω SMA connector was used to feed the antenna. The fabricated plasmonic AVA is shown in Figure 6a,b. The antennas were measured by using vector network analyzer (Keysight 8722ES), and the anechoic chamber operates from 600 MHz to 40 GHz.

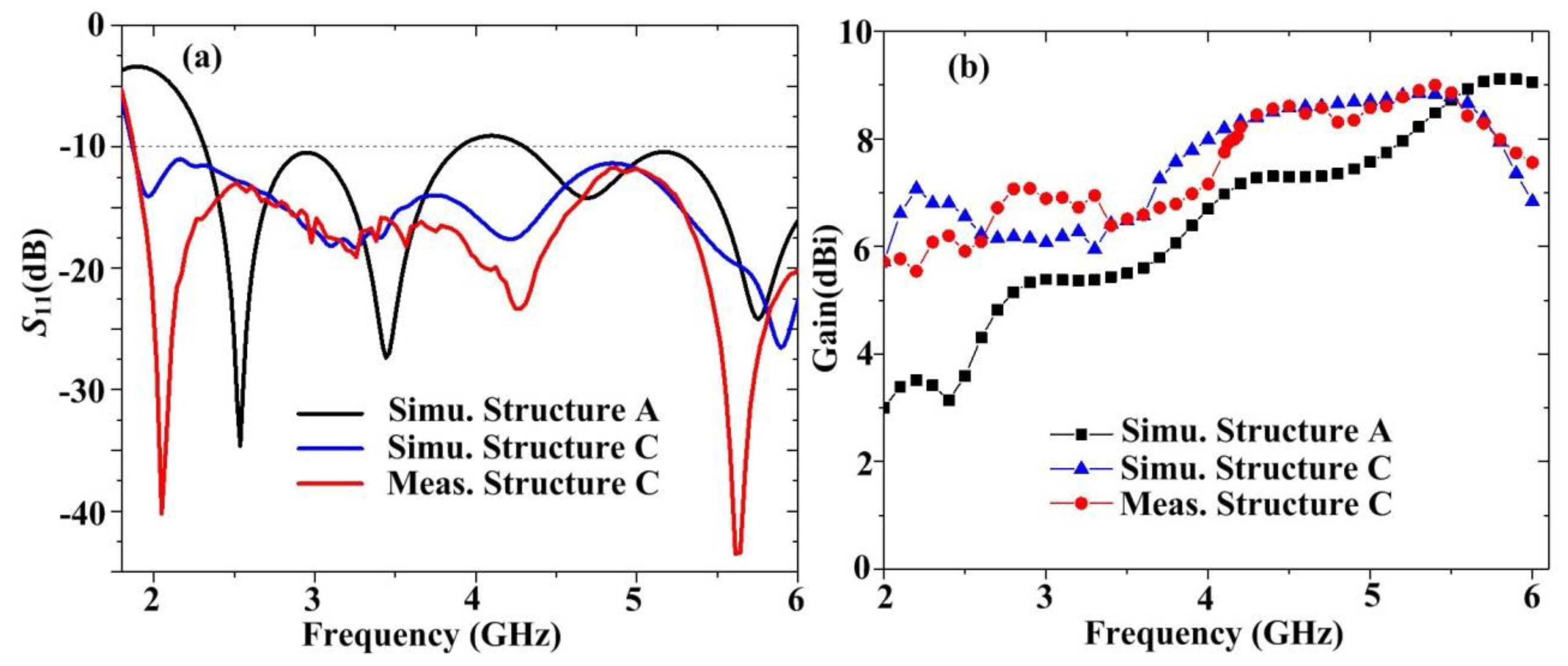

The simulated and measured reflection coefficients are illustrated in Figure 7a. It can be observed that the lowest operating frequency (S₁₁ ≤ −10 dB) of Structure A (typical AVA) is 2.4 GHz, while it is 1.8 GHz for Structure C (plasmonic AVA). The corresponding electrical sizes are 0.75λ₀ and 0.56λ₀, respectively, where λ₀ is the wavelength in the air corresponding to the lowest operating frequency. Hence, it can be seen that the electrical size of the plasmonic AVA has been reduced by 25.3 percent, compared with that of the typical AVA. The measured S₁₁ of the plasmonic AVA is also plotted in Figure 7a. It can be observed that the measured results agree well with the simulation results. The simulated and measured gains of the AVA and the plasmonic AVA are shown in Figure 7b. Compared to the gains of the AVA, it can be seen that the gain of the plasmonic AVA has been increased at the frequencies lower than 5.5 GHz and decreased at frequencies higher than 5.5 GHz. The measurement results agree well with the simulated results for the plasmonic AVA. The gain is larger than 5.5 dBi over the operating frequency from 1.8 GHz to 6 GHz. The measured peak gain is 9.12 dBi at 5.4 GHz. The measured average gain is 7.24 dBi over the operating frequency band, which covers 2G/3G/4G/5G bands.

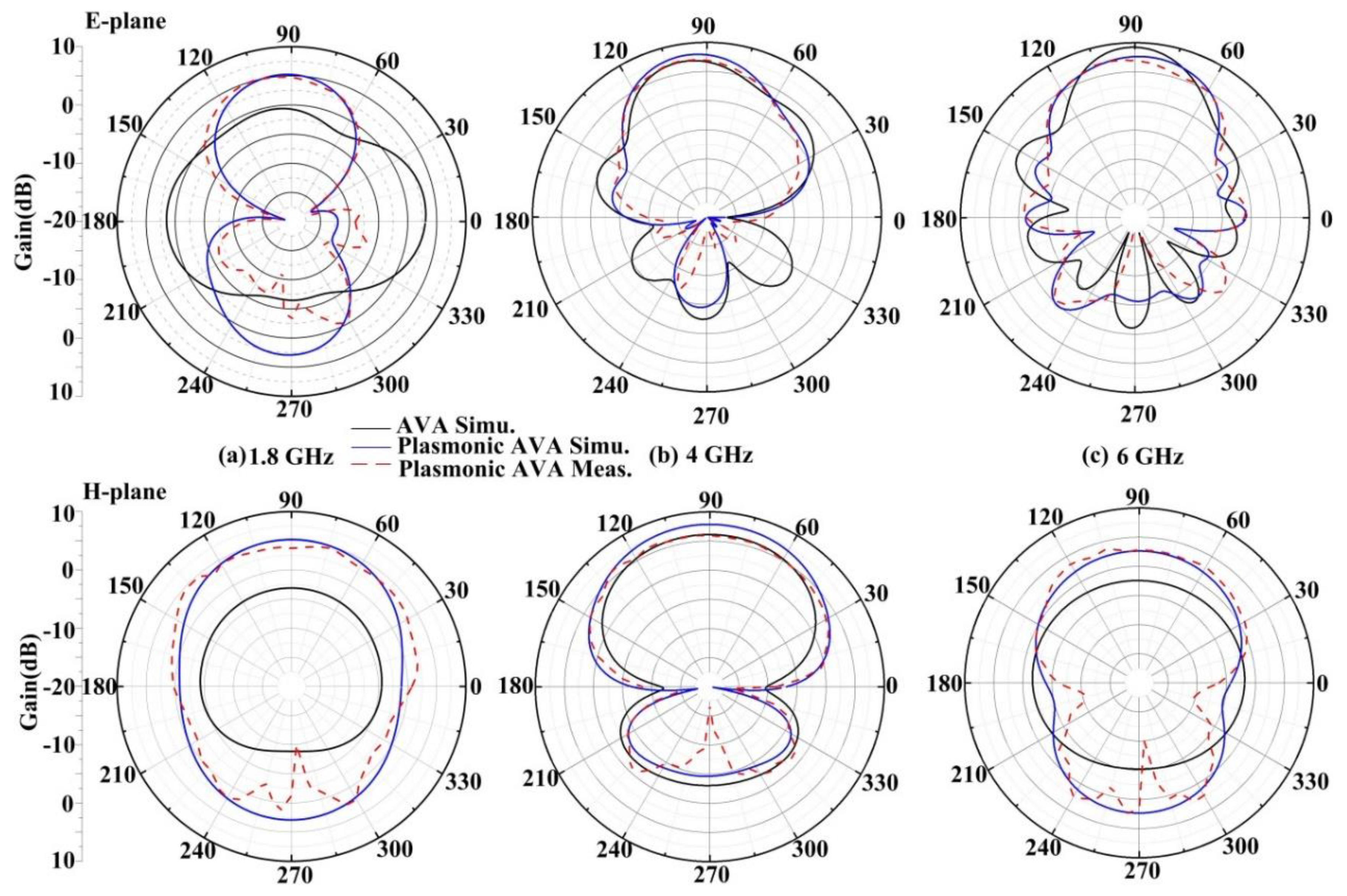

The simulated and measured radiation patterns of the plasmonic AVA at 1.8 GHz, 4 GHz, and 6 GHz are illustrated in Figure 8. The upper and lower panels are the E-plane and H-plane radiation patterns, respectively. The half-power beam width (HPBW) in E-plane of the AVA and plasmonic AVA is shown in the

Table 1. Simulated half-power bandwidth (HPBW) of the AVA and plasmonic AVA.

Frequency	Typical AVA	Plasmonic AVA
1.8 GHz	113.5	52.3
2.0 GHz	66.6	54.7
3.0 GHz	61	52.9
4.0 GHz	52.2	52.6
5.0 GHz	48.1	47.1
6.0 GHz	41	66.9

. It can be seen that the radiation patterns of the plasmonic AVA are stable, compared with the results of the typical AVA.

5. Discussion

The quantitive comparison of similar antennas has been given in

Table 2. Comparison of the similar antennas.

Reference (Year)	Physical Size (mm2)	fmin (GHz)	Gain (dBi)	Electrical Size
[31] (2018)	71 × 50	2.0	4–7.5	0.47λ0 × 0.3λ0
[32] (2018)	50 × 40	2.8	5.5–9	0.46λ0 × 0.37λ0
[33] (2011)	60 × 48	2.4	3.8–10	0.48λ0 × 0.38λ0
[34] (2019)	90 × 80	3.76	5–7	1.13λ0 × 1.0λ0
[35] (2019)	186 × 77	2.5	4–16	1.55λ0 × 0.64λ0
[36] (2018)	60.7 × 57.5	3.3	3.8–12.6	0.67λ0 × 0.63λ0
[37] (2017)	104 × 100	2.0	2.2–8	0.69λ0 × 0.67λ0
Structure A	94 × 70	2.4	3–9	0.75λ0 × 0.56λ0
Structure B	94 × 70	2.1	4.5–8	0.66λ0 × 0.49λ0
Structure C	94 × 70	1.8	5.5–9	0.56λ0 × 0.42λ0

. For the 2G/3G/4G/5G base station applications, the wide bandwidth is necessary to cover the 2G, 3G, and 4G bands and the new sub-6 GHz 5G frequency bands. Hence, only sub-6 GHz frequency band of the proposed antenna is shown here. Besides, the gain, HPBW, and the electrical size should be considered simultaneously for the base station antenna. From Table 2, we can see that the lowest operating frequency of the proposed plasmonic AVA is the lowest (1.8 GHz). The electrical size is 0.56λ₀, which is a little larger than that of Refs. [31,32,33], where λ₀ is the wavelength in the air corresponding to the lowest operating frequency. The minimum gain (5.5 dBi) is the highest, since high gain is necessary for the base station antenna.

6. Conclusions

Here, a broadband and miniaturized plasmonic antipodal Vivaldi antenna is designed and measured, where plasmonic metamaterials are loaded on the antipodal Vivaldi antenna to improve the antenna performance. Compared of the typical AVA, the electrical size of the plasmonic AVA is reduced. The operating frequency is from 1.8 GHz to 6 GHz, which covers the 2G/3G/4G/5G communication band. The simulated and measured results of the plasmonic agree well. The measured results show that the radiation pattern of the plasmonic AVA is stable and the average gain of the antenna is 7.24 dBi.
