DeepDCA: Novel Network-Based Detection of IoT Attacks Using Artificial Immune System

Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah 21589, Saudi Arabia
Xinjiang Technical Institute of Physics & Chemistry, Chinese Academy of Sciences, Urumqi 830011, China
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(6), 1909;
Submission received: 2 February 2020 / Accepted: 18 February 2020 / Published: 11 March 2020


Recently Internet of Things (IoT) attains tremendous popularity, although this promising technology leads to a variety of security obstacles. The conventional solutions do not suit the new dilemmas brought by the IoT ecosystem. Conversely, Artificial Immune Systems (AIS) is intelligent and adaptive systems mimic the human immune system which holds desirable properties for such a dynamic environment and provides an opportunity to improve IoT security. In this work, we develop a novel hybrid Deep Learning and Dendritic Cell Algorithm (DeepDCA) in the context of an Intrusion Detection System (IDS). The framework adopts Dendritic Cell Algorithm (DCA) and Self Normalizing Neural Network (SNN). The aim of this research is to classify IoT intrusion and minimize the false alarm generation. Also, automate and smooth the signal extraction phase which improves the classification performance. The proposed IDS selects the convenient set of features from the IoT-Bot dataset, performs signal categorization using the SNN then use the DCA for classification. The experimentation results show that DeepDCA performed well in detecting the IoT attacks with a high detection rate demonstrating over 98.73% accuracy and low false-positive rate. Also, we compared these results with State-of-the-art techniques, which showed that our model is capable of performing better classification tasks than SVM, NB, KNN, and MLP. We plan to carry out further experiments to verify the framework using a more challenging dataset and make further comparisons with other signal extraction approaches. Also, involve in real-time (online) attack detection.

1. Introduction

Recently in the academic and industrial circles, Internet of Things (IoT) have became an active area. According to Cisco, 500 billion devices will be connected by the year 2030 [1]. Although this technology is promising in many sectors, such as uch as smart homes, health-care, intelligent transportation, power smart grid and numerous areas that not yet even conceived [2], it carries with it many security risks. Easy accessibility and tremendous propagation of IoT devices creates a fertile environment for cyber attacks. Most of these devices are small, inexpensive and have limited memory and computing capacity to run the current existing security software [3]. Additionally, the Original Equipment Manufacturers (OEMs) are using commercial embedded Real-Time Operating Systems (RTOS), such as FreeRTOS and OpenRTOS to minimize the cost [4] which makes these end devices vulnerable to be targeted. As stated by a report for Malwarebytes, the IoT attacks will continue at steady levels with increased sophistication [5]. For example, recent malware such as Mirai [6] and Ransomware of Things (RoT) [7,8] proven that conventional security methods are ineffective and do not provide decentralized and strong security solutions. In addition to the urgent need for a new paradigm of security commensurate with the changes that have emerged with the IoT ecosystem. Where the security problems inherited from the traditional network alongside the Advanced Persistent Threat (APT). Therefore, to dissolve the obstacles security of IoT we must look at solutions from a comprehensive perspective and take into account new circumstances and requirements. Lately, multiple solutions have been applied to secure the IoT environment and guarantee security requirements like authentication, availability, integrity, confidentiality and privacy [9].
From another aspect, the Artificial Immune System (AIS) is a bionic intelligent system that mimics the biological immune system and its way to protect against foreign or dangerous invaders [10]. AIs has proven effective in protecting TCP/IP networks [11,12], Wireless Sensor Networks (WSN) [13,14], and Mobile Ad Hoc Network (MANET) [15,16]. This makes it more suitable for a dynamic and changeable environment such as IoT. Moreover, the human immune system properties make it a perfect approach to resolve IoT security dilemmas. Due to its ability to self-learning, adaptability robustness, resource optimization, dynamic structure, and lightweight [17] make it adapted to various applications such as computer security [18], intrusion detection [19,20], anomaly detection [21], data analysis [22,23], pattern recognition [24] and scheduling [25,26]. Over and above, AIS methods solve multi-objective optimization problems successfuly [27,28], control engineering [29,30] and robotics [31].
After extensive IoT attacks, we reviewed the proposed recommendations and solutions to avoid infection. The suggested solutions were generally summed up to change the default passwords for the IoT devices, disable some ports, and guide consumers and manufacturers to use more secure devices. Although these security practices are effective and provide the first line of defense, their application is limited to security management and human interaction. Another challenge in the case of known software vulnerabilities is the delay of download the patches. Under these conditions, intrusion detection techniques become more important. Thus, the motivation for this study is that the traditional detection approaches are not able to efficiently detect new variants of IoT attacks. Consequently, it is urgent to study intrusion detection approaches in depth.Wherefore, the immune-based detection methods consider as a priority option due to its desirable properties.
The artificial immune system has various algorithms detect different types of attacks. The second generation of these algorithms called Dendritic Cell Algorithm (DCA). Greensmith introduced this novel danger-based AIS to detect port-scan attacks over wired networks [32]. DCA is inspired by the capability of DCs to receive multiple antigens and signals, as well as reveal the context of each antigen. A novel DeepDCA is introduced in this study by sing an AIS inspired algorithm promises to address the challenges of IoT environment that make it vulnerable to attacks. The DeepDCA is verified and tested in this study to detect DoS, DDoS, Information gathering and theft. DeepDCA can be generalized to detect other types of attacks on IoT.
In this paper, we propose a novel Deep Learning and Dendritic Cell Algorithm based IDS framework; named DeepDCA. To identify IoT intrusion and minimize the false alarm generation. Our contributions can be summarized as follows:
  • Design a novel IDS composite of Self Normalizing Neural Network (SNN) for signals categorization with Dendritic Cell Algorithm (DCA)
  • Introduce the concept of Self Normalizing Neural Network in the DCA signal extraction phase to search for the convenient features, reduce the complexity and automate this phase while preserving excellent performance.
  • Implement the proposed framework on IoT dataset and evaluate its performance based on a variety of IDS performance metrics.
  • Use an IoT dataset instead of the out-dated KDD Cup 99 dataset.
The rest of this paper is organized as follows. Section 2 provides a brief background of recent large-scale attacks targeting IoT devices and existing IoT security Approaches. Section 3 describes the dendritic cell algorithm generally and the basic concepts of Self Normalizing Neural Network. Related work for the AIS algorithms in the IoT ecosystem summarizes in Section 4. While Section 5 presents the proposed method based on DCA and SNN for signal selection and categorization. Followed by the evaluation results of the proposed IDS in Section 5. Finally, Section 6 concludes the paper.

2. Background

2.1. Intrusion Detection Systems

Many technologies designed to protect the internet from destruction, breaches and unauthorized access. However, there are many defense technologies designed to protect this environment. IDSs are one of the essential parts that aim to monitor, analyze the network traffic and detect attacks. According to Hernández-Pereira, Elena, et al. [33] Intrusion can be defined as “any set of actions that attempt to compromise the Confidentiality, Integrity, and Availability (CIA) of information resources.” Typical IDS have an analysis engine, sensors, and a reporting system. The sensors collect network, and host data then send it to the analysis engine. Hence, the analysis engine investigates the collected data and detect intrusions. If intrusion exists, the network administrator receives an alert from the reporting system [34].

Intrusion Detection Systems Architecture

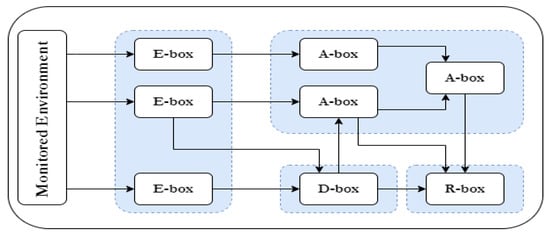

The architecture of the IDSs functional modules divided into four types: [35] (see Figure 1)
  • Event-boxes (E blocks): these blocks monitor the target system by sensor elements and acquire the information events.
  • Database-boxes (D blocks): these blocks store information from E blocks.
  • Analysis-boxes (A blocks): these blocks analyze events and detect potential abnormal behavior.
  • Response-boxes (R blocks): these blocks execute in case an intrusion occurs.

2.2. IoT Security Overview

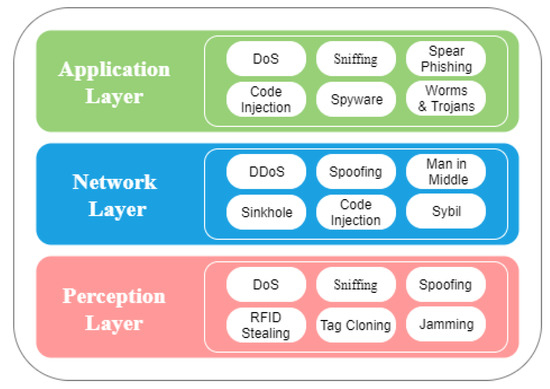

The dynamic characteristics of the Internet of things and the desire to make devices connected anywhere, anytime, and anyplace creates critical challenges about privacy and security. Researchers from the HP lab addressed that almost 70% of IoT devices are vulnerable to be targeted, which means 25 vulnerabilities per device [36]. The vulnerabilities around privacy, lack of encryption standards, authentication/authorization. Additionally, the threats and security problems inherited from the traditional network [37]. As shown in Figure 2, the attacks classified on the IoT three layers: perception, network, and application-layer [38].

2.3. Existing IoT Security Approaches

2.3.1. Non Artificial Intelligence-Based Security Method

Many of non-artificial intelligence-based security methods have been implemented to secure the IoT environment. A good example of these methods: identity-based encryption, watchdog, reputation and trust mechanisms, Complex Event Processing (CEP) and lightweight cryptography. Table 1 summarize the presented techniques.

2.3.2. Artificial Intelligence-Based Security Method

Artificial intelligence has attracted attention in recent years, especially in the field of IoT security. The following Table 2 summarizes the leading technologies that have been introduced to protect the IoT ecosystem.

3. Dendritic Cell Algorithm

Algorithm Overview

In 1994, Pollu Matzinger introduced the danger theory and described the immune mechanism through the danger signals activation when damage exists [59,60]. It also states that in the absence of tissue-related danger signals, the innate immune mechanism will be suppressed [61]. This process derived from the cell death process (apoptosis and necrosis). The dendritic cell algorithm (DCA), presented by Green-Smith et al. which considered as de facto danger theory algorithm.DCA goes through four phases as detailed below [62]:
  • Phase 1. Pre-processing and initialization: this phase includes two main steps: feature reduction and signal categorization. First, feature reduction which selects the most important attributes from the training set. Next, the selected features classify to signal category: safe, danger and PAMP.
  • Phase 2. Detection: in this phase, the DCA has to generate a signal database by combining the input signals with the antigens to obtain cumulative output signals.
  • Phase 3. Context Assessment: the generation of cumulative output signals from the detection phase are used to perform context assessment of antigens. If the collected antigens by a DC has a greater Mature DCs (mDC) than its Semi-Mature DCs (smDC) value, it is labeled as 1, otherwise 0.
  • Phase 4. Classification: the calculated value deriving from the Mature Context Antigen Value (MCAV) for each antigen is used to assess the degree of the anomaly. When the value of MCAV is closer to 1, the antigen probability of been anomalous is higher. The MCAV of antigen is calculated by dividing the number of times an antigen appears in the mature context by the total number of that antigen presentation. When the MCAV is calculated, the classification task starts by comparing the MCAV of each antigen to an anomalous threshold. Antigens with MCAVs greater than the anomaly threshold are classified into the abnormal otherwise are classified into normal.

4. Self-Normalizing Neural Networks

Self-normalizing neural networks are introduced in 2017 by Gnter Klambauer [63]. It is a higher-level abstraction neural networks where the neuron activations automatically concentrate on a fixed mean and variance. Unlike other neural networks algorithms that lack the ability to normalizing the outputs and need further layers such as batch normalization [64]

4.1. SELU Activations

The activation function proposed in SNN is Scaled exponential linear units (SELU). It is similar to the Rectified Linear Units (ReLU) but with a simple exponential function. The SELU activation function is defined as:
sel ( x ) = λ x if x > 0 α e x α if x 0
where x denotes input α ( α = 1.6733 ) , λ ( λ = 1.0507 ) are hyper parameters which control the mean and variance of the output distribution.

4.2. Alpha Dropout

Ordinarily, the neurons are dropout in a random way by setting his weight to zero with probability 1 p . In doing this the network is prevented to set mean and variance to an expected value. The ReLUs works very well with the standard dropout for the following reason: zero goes down to the low variance region which is the default value. In the case of SELU, we have that the default low variance is given by lim x s e l u ( x ) = λ α = α and for this reason the standard dropout does not fill well. Then for sets that the input values randomly to α , alpha dropout is the proposed to fit them well. The original values of mean and variance are restored by alpha dropout and the self-normalizing property is preserved too. Therefore by making activation into negative values saturation at random alpha dropout suits SELU.

5. Related Work: AIS and IoT

The using of AIS approaches to secure the IoT started in 2010, in this section, we will address the AIS methods that have been used to secure the IoT area based on the IoT layers.

5.1. Sense Layer

Many solutions based on AIS have been applied to secure the physical layer communication. The work of Chmielewski and Brzozowski [65], presented a “support system for existing solutions” embedded in a re-programmable FPGA (Field Programmable Gate Array). This model based on hybrid negative selection algorithm, called b-v model to detect the zero-day attacks. Besides, Chen et al. [66] investigated and computed the intensity value of security threats faced by IoT. They addressed a theoretical security situation sense model. This model consists of a security threat sense sub-model (STS) and a security situation assessment sub-model (SSA). This work introduced a notable mathematical theoretical model but this would be more interesting if it describes how to apply it within IoT and what type of data could be used.

5.2. Network Layer

So far, most of the AIS- based studies have been carried out in the network layer to handle the IoT security. A signature-based IDS proposed by Liu et al. [67]. This IDS contains memory detectors that simulate the antigens in the human body and classify datagrams as normal and malicious. In spite of that theory mathematically analyzed and detected a various number of intrusions, it has a high computational running and the researchers did not specify how to implement it in limited resources devices. Additionally, a dynamic approach called Artificial Immune System Response Model (AISRM) was produced by Liu et al. [68]. The proposed model captures the IoT data packets and transforms them into immune antigens then detects and responds to attacks. Although this is an adaptable model proven through a simulation experiment, the central server scalability is a significant problem where all communication passes through.

5.3. Application Layer

For the application layer, smart homes represented the majority. In this context Arrignton et al. [69] proposed a Behavioral Intrusion Detection System based on positive and negative selection algorithms. This work provides an important insight into the process of detecting abnormal behavior related to non-playing characters such as a human. Nonetheless, due to the expanding of IoT network, this would delays the performance and leads to consume the resources. And conversely, in order to reduce the cost and time and provide the optimal solution, Yang et al. [70] developed a multi-objective optimization model.

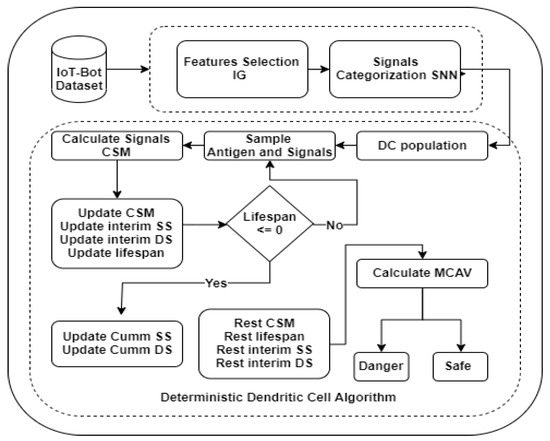

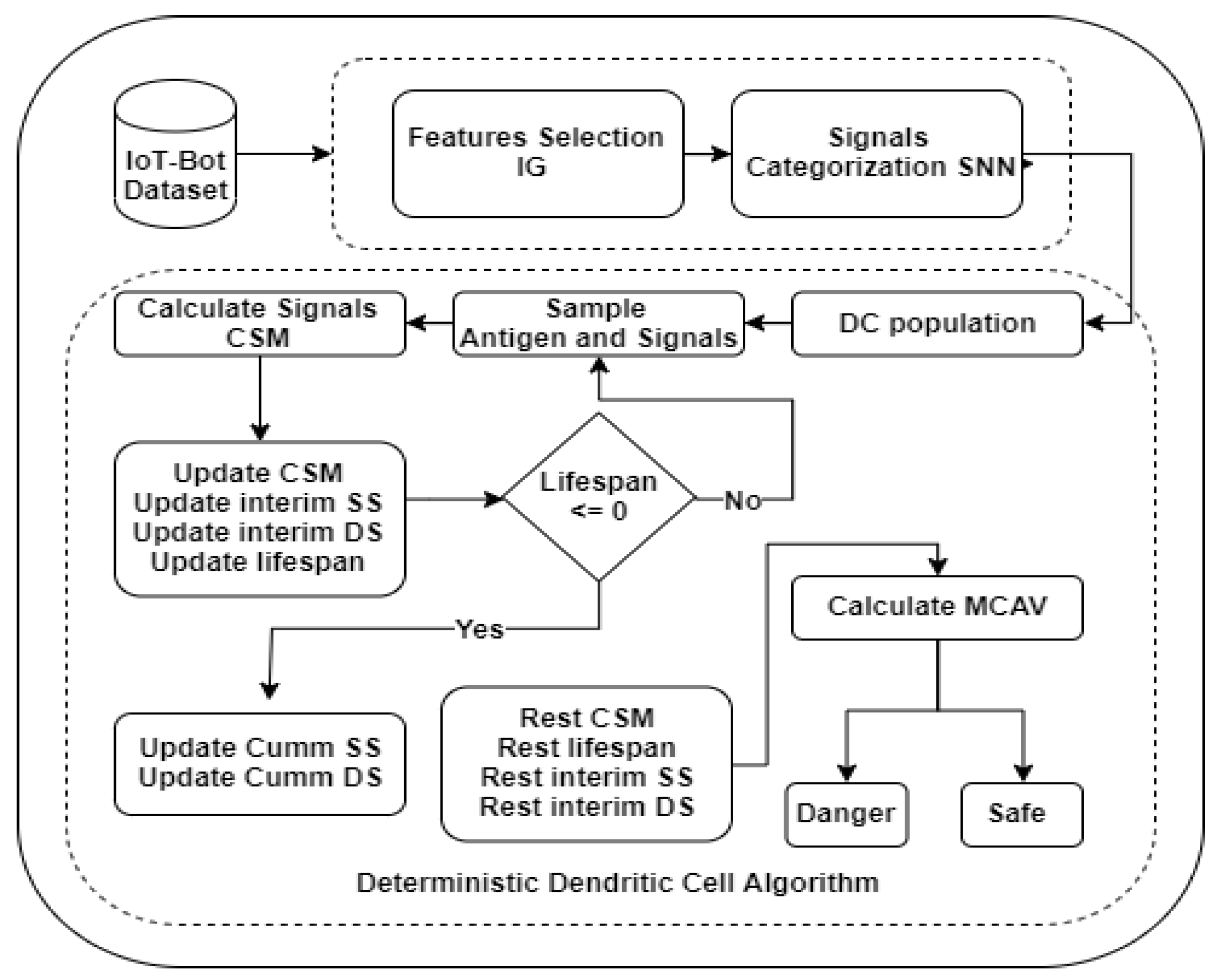

6. DeepDCA: Deep Learning Dendritic Cell Algorithm

This Section presents the DeepDCA model for the automate DCA data pre-processing phase. As shown in Figure 3, the framework consists of three main steps, namely: Features Selection, Signals Categorization, and Deterministic Dendritic Cell algorithm. The proposed approach functions will mainly focus on the pre-processing phase.

6.1. Feature Selection

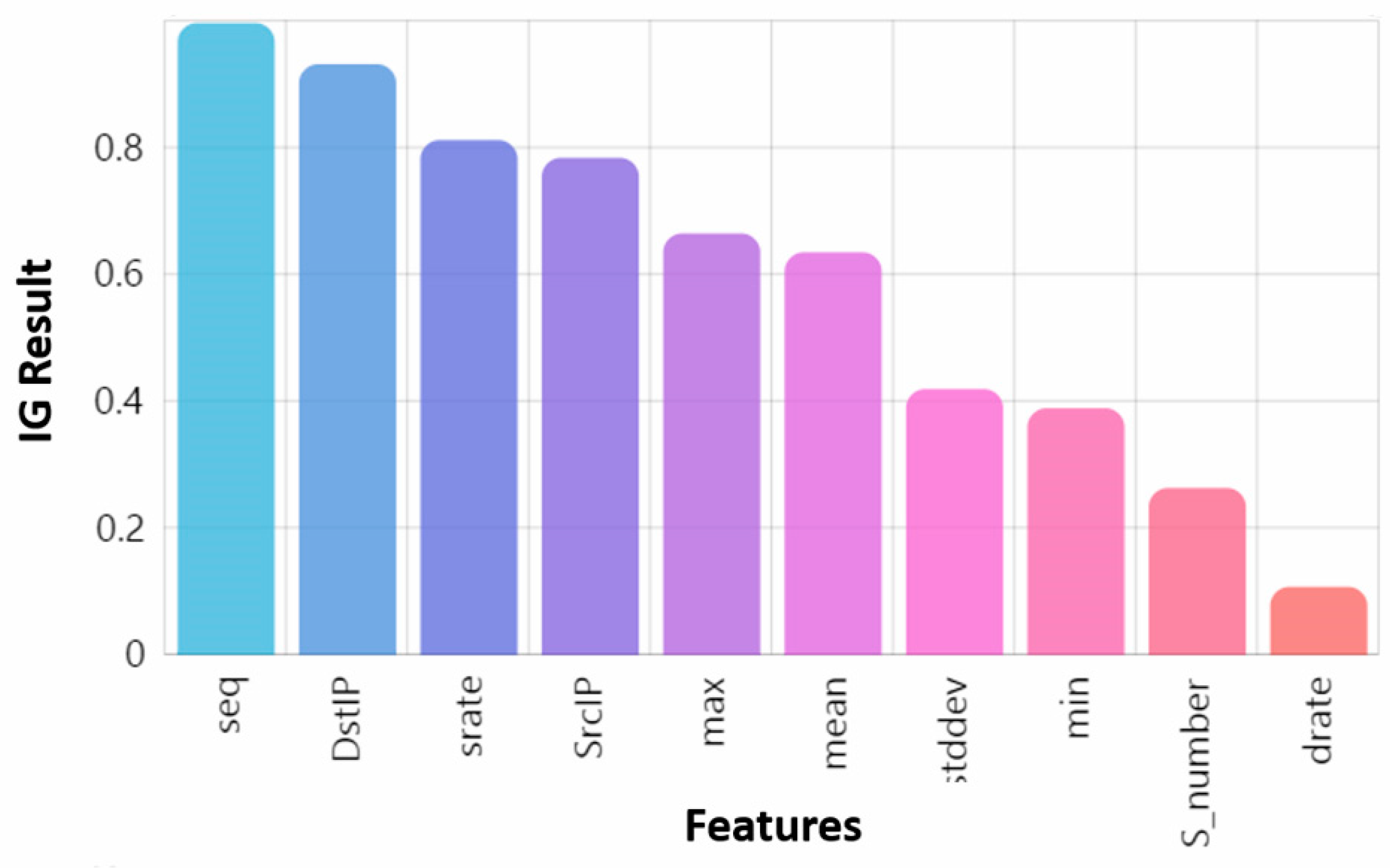

This framework adopted the Information Gain (IG) approach to decide which features are more important. The I G ( F ) is a measure of the reduction in entropy of variable F that is archived by learning after the value for the feature is observed. In Data Science the information gain used for ranking the features. A feature with high information gain ranked higher than others and has a strong power in the classification process. The I G can be obtained by [71]:
I G ( S ) = E ( F ) v values ( S ) F v | F | E F v
where I G is the gain, v a l u e s ( S ) is symbolize all the possible values of an attribute S. Moreover, F v is a subset generated by partitioning S based on feature F, and E ( F ) is the entropy which computed as the following:
Entropy ( F ) = i = 1 i = 2 p i log 2 p i

6.2. The SNN Signal Categorization

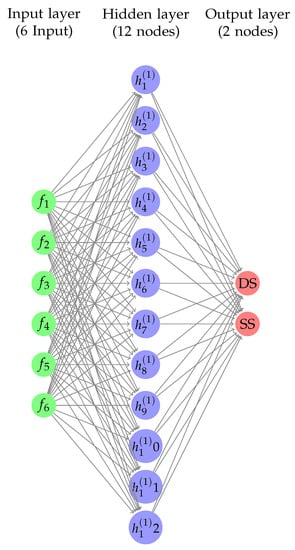

The SNN module assign each selected attribute to specific signal category (see Figure 4). The guidelines for signal categorization are presented below:
  • Danger Signal: this signal indicates to the presence of anomalous situation or attack circumstances
  • Safe Signal: this signal indicates to the presence of normal behavior or non-attack circumstances

Generation of DCA Signals

The SNN is designed to extract the signals as safe (SS) and danger (DS) signal form the features (f_1, f_2, ..., f_N) as the following parametrized:
S S f 1 , f 2 , , f N = 100 sigmoid b S + i w S , i selu b S , i + v S , i f i
S D f 1 , f 2 , , f N = 100 sigmoid b D + i w D , i selu b D , i + v D , i f i
w S , i a n d w D , i > = 0
The sigmoid activation function at the output neurons assures that the signals are contained in the range 0–100. Where the selu activation function at the hidden layer neurons admits to cut off high or low values of the feature attributes—depending on the signs of the parameters v S , i or v D , i . The positivity restriction on the weights w S , i and w D , i breaks the symmetry between the formulae for the two signals. It prohibits the SNN from choosing a solution where w S , i = w D , i . These steps illustrate using the Algorithm 1.
Algorithm 1 SSN for Signal Categorization.
      Input: Features ( f 1 , f 2 , , f N ) ;
      Output: Signals as safe (SS) and danger (DS)
initialise number of hidden layers L, weights w;
for i in Number of inputs do
      Add input f i ;
      Add neuron H S , i SeLU activation & connect with f i ;
      Add neuron H D , i SeLU activation & connect with f i ;
      Add A l p h a D r o p o u t Layer for the S S ;
      Connect it with H S , i , i = 1 , , N u m b e r o f i n p u t s ;
      Add AlphaDropout Layer for D S ;
      Connect it with H D , i , i = 1 , , N u m b e r o f i n p u t s ;
      Add neuron S with s i g m o i d activation;
      Connect it with the AlphaDropout Layer for S S ;
      Add neuron D with sigmoid activation
      Connect it with the AlphaDropout Layer for D S ;
end for
while no of epochs not complete & condition not fulfilled do
      Update weights;
      Compute training and validation loss;
      Evaluate model performance;
end while

6.3. Signal Processing

The combined signals to produce the intermediate output values of K and c s m . The value K is a measure of the anomaly or irregularity in the cell, by other hands, the c s m value represents the concentration of the complete signal that a cell exposes in all its useful life. When the cell depletes its shelf life will migrate and will be ready to classify all of the antigens collected in his past useful life, at this time produce the classification as normal or abnormal. The addition of safe signals with the danger signals gives the value c s m . Therefore, the value K is obtained subtracting of the danger signals twice the safe signal. The following equation gives the values:
K i = D S i 2 S S i .

6.3.1. Costimulation (CSM)

The generated signals from the SSN module combine to produce two intermediate output values C S M and K. By Costimulation we mean the process of cumulative concentration of signals within its environment by a DC in a period of time of his life. For a DC in the moment that his life span expires, it immediately migrates to the lymph node and exhibits antigens in certain circumstances. With the following equation the calculation of the value c s m is performed:
c s m i = S S i + D S i ,
where S and D are the input value for the safe and danger signals.

6.3.2. Lifespan

By mean of the term lifespan of a DC we signify the total time that a DC takes to collect all of the signal concentration on its environment previous to the migration to the lymph node. When the value of lifespan results in less than the sum of the concentration the lifespan of the DC stops of subtracting the accumulated concentration of signals over time. Thus, the value of lifespan is a fixed quantity, but overtime this value is decreasing as the following Equation (9) assures-where i = 1 , , N -:
l i f e s p a n = l i f e s p a n S S i + D S i

6.4. Anomaly Metrics: M C A V and K α

Once all data are processed it is possible to calculate the metric M C A V , the mature context antigen value obtained from the output of the cell that comes out from the run-time process. The value is calculated for each antigen of type α , where the symbol α is associated with a collection of antigens that has in common the same value. Clearly we could think by its name that M C A V is indeed a measure of the proportion of antigen contained in a completely mature cell whose value is given by the following equation:
M C A V α = M A g ,
where M C A V α represents the antigen M C A V of the collection α , M is the number of the mature antigen of type α , and A g is the total quantity of antigen presented for the collection of an antigen of type α . This is a probabilistic metric with values between zero and one, when the value of this metric goes to one, the probability of maturity of the cell increase. The classification rule applied on as follows in Equation (11) and the deterministic DCA could be described by mean of the Algorithm 2.
f ( x ) = Malicious , if M C A V > a t Legitimate , otherwise
Algorithm 2 Determisnistic DCA for Intrusion Detection.
      Input Antigens and Signals;
      Output Antigens Types and accumulative k values
set number of cells;
initialise DCs()
while data do
    for input do
          if Antigens then
            cell index = antigen counter modulus cells number;
            DC of cell index assigned antigen;
            update DCs antigen profile;
          else           ▹ This occur for the case of signals;
            calculate csm and k;
            for all DCs do
                  DC.lifspan- = csm;
                  DC.k+ = k;
                  if DC.lifespan less or equal to then
                       logDC.k, number of antigens and iterations
                       reset DC();
                  end if
            end for
          end if
    end for
end while
for antigen Type do
      calculate anomaly metrics;
end for

7. Experimental Setup

To conduct this experiment, we performed it on the High-Performance Computing (HPC) called Aziz. Aziz is a Fujitsu PRIMERGY CX400, Intel True Scale QDR, Intel Xeon E5-2695v2 12C 2.4GHz which provides a distributed computing facility. Moreover, for data exploration and visualization we used ggplot framework [72] and Seaborn [73]. For preprocessing steps and feature engineering, Pandas framework [74] and Numpy framework [75] have been used. To calculate performance metrics, scikit-learn [76] was used, and finally, for data analysis, scikit-learn framework and Keras [77] were used. We followed the Cross-Industry Standard Process (CRISP) methodology [78]. CRISP is a structured methodology for Data Mining projects conceived in 1996. which contain the following steps: Business Understanding, Data Understanding, Data Preparation, Modeling, Evaluation, and Deployment.

7.1. Data Acquisition

To illustrate the effectiveness of our model we selected The BoT-IoT dataset [79]. This data was created in the Cyber Range Lab of The center of UNSW Canberra Cyber and has more than 72,000,000 records which include DDoS, DoS, OS and Service Scan, Keylogging and Data exfiltration attacks. Table 3 illustrate the statistics distribution of considered features.

7.2. Exploratory Data Analysis (Understating the Data)

Exploratory Data Analysis (EDA) is “the process of examining a dataset without preconceived assumptions about the data and its behavior” [80]. The goal of the EDA is to evaluate the cleanliness and missing data and explorer the relationships among variables which give us a deep insight (see Table 4).

7.3. Preparation Steps of Bot-IoT Dataset

Handling Categorical Variables

The categorical feature values (‘saddr’, ‘sport’, ‘daddr’, ‘dport’, ‘state’, ‘category’, and ‘subcategory’) have converted into numeric values for easily applying feature selection method and the DeepDCA algorithm.

7.4. Feature Selection

Feature selection is a primary step to enhance IDS performance, reduce the computational cost and improve accuracy. In the original dataset, a selection of the 10 best features has been provided (see Table 5). In this work, we used the best 10 features and adopted the Information Gain (IG) approach to decide which features are more important. Figure 5 shows information gain for each feature. The features (‘seq’, ‘DstIP’, ‘srate’, ‘SrcIP’, ‘max’), are the most discriminative attribute. While the rest (‘mean’, ‘stddev’, ‘min’, ‘state_number’, ‘drate’) have small maximum information gain (smaller than 0.5), which little contribute to intrusion detection.

7.5. DeepDCA-Based Classification

7.5.1. Initialization

In this phase, we initialized the population of DCA with size up to a limit of 100 cells. Then, an array size named antigens set to store antigen per iteration. Finally, initialize the output parameters K and C S M K to zero.

7.5.2. Signals and Antigen

The antigen represented by an attribute of the dataset which identifies the traffic packets uniquely, in our case the antigen is “pkSeqID” attribute. For the Signals, SNN models meant to implement a parametrized signal extraction process for the DCA. It defined to have 1 input layer with six neurons equal to the number of input features, one hidden layer, and 1 output neuron for the binary classification.. The Model was trained in 125 epochs. The task of the hidden layer neurons would be to encode the decision for a threshold and transform the input attributes into signals normalized into the interval [0, 1] (hence, s i g m o i d activation). Therefore, the hidden layer neurons should decide for a sign and threshold for each feature. Then, we used s e l u activation functions for the hidden layer and an a l p h a d r o p o u t layer between the hidden layer and the output neurons. The output neurons can choose a sign and weight per input signal, and would again yield signals within the interval [0, 1]. Figure 6 represents the accuracy and loss of SNN model.

7.5.3. Dendritic Cell Algorithm Module

Once the data pre-processing phase is performed, the model moves to the next stages -as described in Section 3, which are the Signal Processing, the Context Assessment, and the Classification Procedure.

7.6. Evaluation Criteria

The confusion matrix is usually used to evaluate the performance of the classification model. The confusion matrix relies on the four terms of True Positive (TP), True Negative (TN), False Negative (FN) and False Positive (FP) [81] as shown in Table 6.
  • TP: is the number of actual malicious records classified as attacks.
  • FP: is the number of actual legitimate records classified as attacks.
  • TN: is the number of actual legitimate records identified as normal,
  • FN: is the actual anomalous records categorized as normal
Also, we evaluate the performance of DeepDCA model in terms of Accuracy, Precision, Recall, F-measure, and False alarm rate:
A c c u r a c y = T P + T N T P + T N + F P + F N
P r e c i s i o n = T P T P + F P
R e c a l l = T P T P + F N
F m e a s u r e = 2 P r e c i s i o n R e c a l l P r e c i s i o n + R e c a l l

8. Result and Analysis

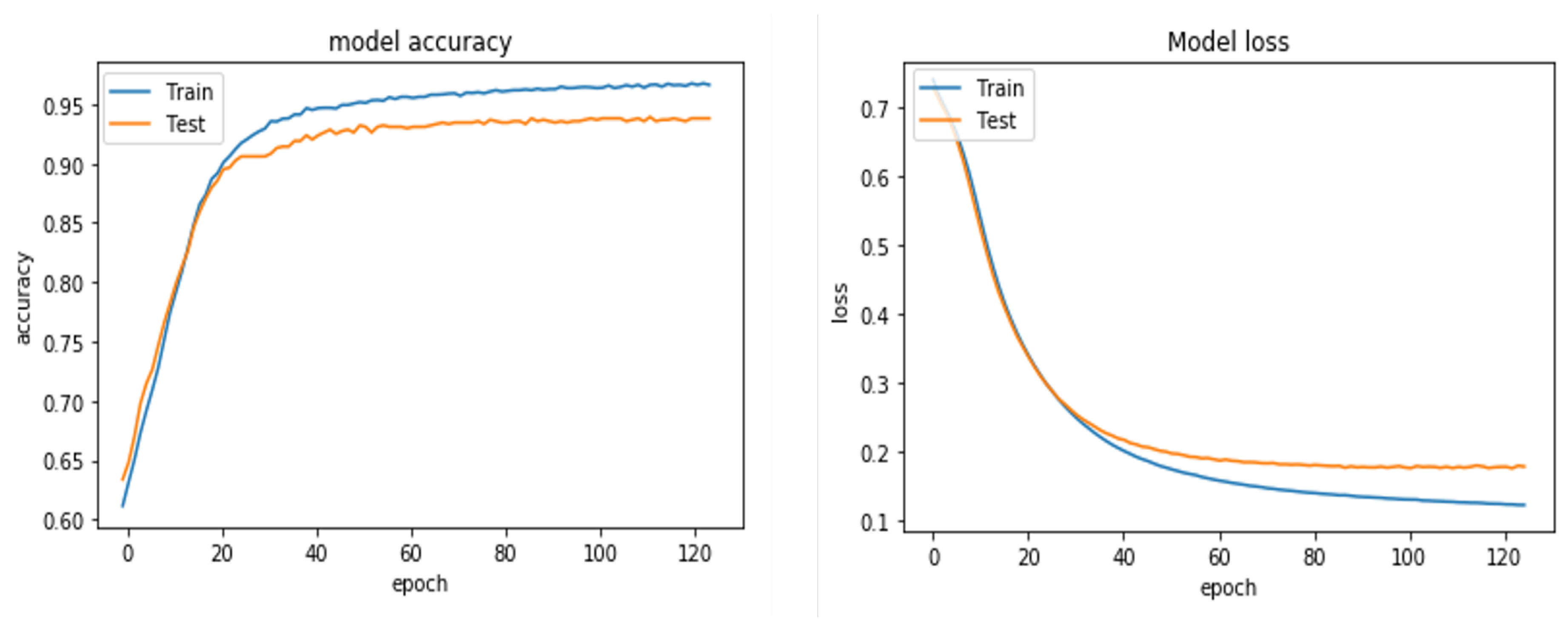

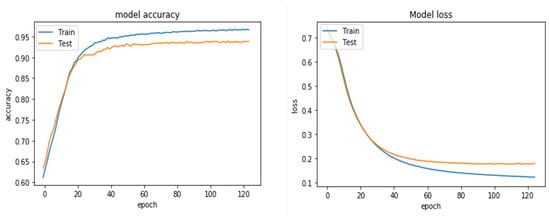

This section presents the results obtained when applying the DeepDCA model for intrusion detection. Several hyper-parameters are examined such as the selected features and the attack types.

8.1. Impact of Features

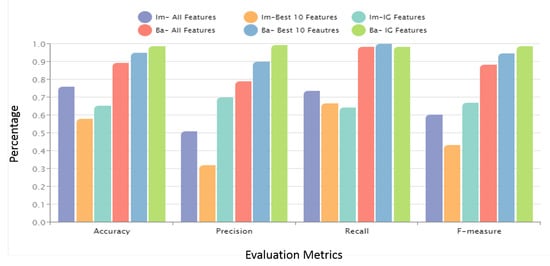

Table 7 illustrate the influence of the features employed in the learning process. The first three records in the table represent the result of the imbalanced data. We examined all features of the BoT-IoT then the best 10 features, and finally, the selected features using information gain (see Section 7.4). As the accuracy is misleading metrics when dealing with imbalanced classes problem, Recall, Precision F-measure are telling a more truthful story. Precision is a measure of (exactness), recall for (completeness) of a model and the F-measure is a harmonic mean of the two. As shown in Table 7, even though the accuracy for all features of the imbalanced classes gets a better result, the rest of the metrics are not in line with it. The IG-selected features have the best indication of detection performance for imbalanced classes. On the other hand with balanced data, as expected fewer features render better results in general. The results produce slightly worse when added to the full features set. Consequently, DeepDCA yields a better result when dealing with balanced classes and features that have a higher importance in the detection process. For make it easier to compare the result, Figure 7 shows the same results in a different format.

8.2. Impact of Attack Scenarios

We evaluated the proposed IDS by measuring the performance metrics in different attack scenarios as shown in Table 8. The results illustrated that DeepDCA performed well in detecting various attack types although its performance was better in DDoS/DoS attacks which may be due to the abundance of data about this attack in the BoT-IoT dataset.

8.3. Comparison with Classifiers

The performance evaluation results of the DeepDCA model are compared with four commonly used methods for intrusion detection, namely the Support-Vector Machines (SVM), Naive Bayes (NB), K Nearest Neighbor (KNN) and Multilayer Perceptron (MLP). The comparison made is in terms of Accuracy, F-measure, Recall/sensitivity and Precision. Table 9 shows that DeepDCA slightly better than MLP and outperformed other classifiers SVM, NB and KNN. To sum up, applying the DeepDCA for the Intrusion detection system was validated against an IoT dataset demonstrating over 98.73% accuracy. It was able to identify successfully different types of attacks and showed good performances in terms of detection rate and false-positive rates.

9. Conclusions

In this research, we develop a Deep Learning Dendritic Cell Algorithm (DeepDCA). Our framework adopts DCA and Self Normalizing Neural Network. The aim of this research is to classify IoT intrusion and minimize the false alarm generation. Also, automate and smoothe the signal extraction phase which improves the classification performance. The proposed IDS selects the convenient set of features from the IoT-Bot dataset and to perform their signal categorization using the SNN. The experimentation results show that our DeepDCA performed well in detecting the IoT attacks with a high detection rate demonstrating over 98.73% accuracy and low false-positive rate. Also, capable of performing better classification tasks than SVM, NB, KNN and MLP classifiers. We plan to carry out further experiments to verify the framework using more challenging datasets with missing and noisy data and make further comparisons with other signal extraction approaches. Also, involve in real-time (online) attack detection.

Author Contributions

Conceptualization, S.A.; Formal analysis, S.A.; Funding acquisition, D.A., B.A. and A.A.-B.; Investigation, S.A.; Methodology, S.A.; Project administration, D.A.; Supervision, D.A., L.C., B.A. and A.A.-B.; Validation, S.A.; Visualization, S.A.; Writing—original draft, S.A.; Writing—review and editing, D.A. All authors have read and agreed to the published version of the manuscript.


This project was funded by the Deanship of Scientific Research (DSR) at King Abdulaziz University, Jeddah, under Grant no. (RG-6-611-39).


The authors, therefore, acknowledge with thanks DSR technical and financial support. Also, Computation for the work described in this paper was supported by High-Performance Computing Center Aziz Supercomputer ( The authors would like to thank the members of Aziz support team for the continuous support and guidance.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
IGInformation Gain
SSSafe Signals
DSdanger Signals
NBNaive Bayes
DCDendritic Cell
TPTrue Positive
TNTrue Negative
FNFalse Negative
FPFalse Positive
IoTInternet of Things
AISArtificial Immune Systems
HPCHigh Performance Computing
IDSIntrusion Detection System
SNNSelf Normalizing Neural Network
DCADendritic Cell Algorithm
RoTRansomware32of Things
APTAdvanced Persistent Threat
EDAExploratory Data Analysis
WSNWireless Sensor Networks
CIAConfidentiality, Integrity, and Availability
CEPComplex Event Processing
LWCLightweight Cryptography
mDCMature DCs
MCAVMature Context Antigen Value
SELUScaled exponential linear units
ReLURectified Linear Units
SVMSupport-Vector Machines
KNNK Nearest Neighbor
smDCSemi-Mature DCs
RTOSReal-Time Operating Systems
MANETMobile Ad Hoc Network
CRISPCross-Industry 231 Standard Process
DeepDCADeep Learning and Dendritic Cell Algorithm

References and Notes

  1. Kim, N.; Lee, I.; Zazo, J.; Belei, B. Internet of Things EDITOR. Technical report, 2019.
  2. Airehrour, D.; Gutierrez, J.; Ray, S.K. Secure routing for internet of things: A survey. J. Netw. Comput. Appl. 2016, 66, 198–213. [Google Scholar] [CrossRef]
  3. Yang, Y.; Wu, L.; Yin, G.; Li, L.; Zhao, H. A Survey on Security and Privacy Issues in Internet-of-Things. IEEE Internet Things J. 2017, 4, 1250–1258. [Google Scholar] [CrossRef]
  4. RTE Ltd. FreeRTOS—Market leading RTOS (Real Time Operating System) for embedded systems with Internet of Things extensions, 2018.
  5. Malwarebytes LABS. 2019 State of Malware. Technical report, 2019; p. 33.
  6. Kolias, C.; Kambourakis, G.; Stavrou, A.; Voas, J. DDoS in the IoT: Mirai and other botnets. Computer 2017, 50, 80–84. [Google Scholar] [CrossRef]
  7. Zahra, A.; Shah, M.A. IoT based ransomware growth rate evaluation and detection using command and control blacklisting. In Proceedings of the ICAC 2017—2017 23rd IEEE International Conference on Automation and Computing: Addressing Global Challenges through Automation and Computing, Huddersfield, UK, 7–8 September 2017; pp. 1–6. [Google Scholar] [CrossRef]
  8. Yaqoob, I.; Ahmed, E.; ur Rehman, M.H.; Ahmed, A.I.A.; Al-garadi, M.A.; Imran, M.; Guizani, M. The rise of ransomware and emerging security challenges in the Internet of Things. Comput. Netw. 2017, 129, 444–458. [Google Scholar] [CrossRef]
  9. Lin, J.; Yu, W.; Zhang, N.; Yang, X.; Zhang, H.; Zhao, W. A Survey on Internet of Things: Architecture, Enabling Technologies, Security and Privacy, and Applications. IEEE Internet Things J. 2017, 4, 1125–1142. [Google Scholar] [CrossRef]
  10. Timmis, J.; Hone, A.; Stibor, T.; Clark, E. Theoretical advances in artificial immune systems. Theor. Comput. Sci. 2008, 403, 11–32. [Google Scholar] [CrossRef] [Green Version]
  11. Seredynski, F.; Bouvry, P. Anomaly detection in TCP/IP networks using immune systems paradigm. Comput. Commun. 2007, 30, 740–749. [Google Scholar] [CrossRef]
  12. Kim, J.; Bentley, P. An Artificial Immune Model for Network Intrusion Detection. In Proceedings of the 7th European Congress on Intelligent Techniques and Soft Computing (EUFIT’99), Aachen, Germany, 13–16 September 1999. [Google Scholar]
  13. Saleem, K.; Fisal, N.; Hafizah, S.; Rashid, R.A. An intelligent information security mechanism for the network layer of WSN: BIOSARP. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics); Springer: Berlin/Heidelberg, Germany, 2011; Volume 6694 LNCS, pp. 118–126. [Google Scholar] [CrossRef] [Green Version]
  14. Suthaharan, S. Big data classification. ACM SIGMETRICS Perform. Eval. Rev. 2014, 41, 70–73. [Google Scholar] [CrossRef]
  15. Mazhar, N.; Farooq, M. BeeAIS: Artificial immune system security for nature inspired, MANET routing protocol, BeeAdHoc. In Proceedings of the 6th International Conference on Artificial Immune Systems, Santos, Brazil, 26–29 August 2007; Springer: Berlin/Heidelberg, Germany, 2007; pp. 370–381. [Google Scholar] [CrossRef]
  16. Mazhar, N.; Farooq, M. A sense of danger. In Proceedings of the 10th Annual Conference on Genetic And Evolutionary Computation—GECCO ’08, Atlanta, GA, USA, 12–16 July 2008; ACM Press: New York, NY, USA, 2008; p. 63. [Google Scholar] [CrossRef]
  17. Aldhaheri, S.; Alghazzawi, D.; Cheng, L.; Barnawi, A.; Alzahrani, B.A. Artificial Immune Systems approaches to secure the internet of things: A systematic review of the literature and recommendations for future research. J. Netw. Comput. Appl. 2020, 102537. [Google Scholar] [CrossRef]
  18. Harmer, P.K.; Williams, P.D.; Gunsch, G.H.; Lamont, G.B. An artificial immune system architecture for computer security applications. IEEE Trans. Evolut. Comput. 2002, 6, 252–280. [Google Scholar] [CrossRef] [Green Version]
  19. Jungwon, K.; Bentley, P. Towards an artificial immune system for network intrusion detection: An investigation of clonal selection with a negative selection operator. In Proceedings of the 2001 Congress on Evolutionary Computation (IEEE Cat. No.01TH8546), Seoul, Korea, 27–30 May 2001; Volume 2, pp. 1244–1252. [Google Scholar] [CrossRef]
  20. Kim, J.; Bentley, P.J. An evaluation of negative selection in an artificial immune system for network intrusion detection. In Proceedings of the Genetic and Evolutionary Computation Conference (GECCO), San Francisco, CA, USA, 7–11 July 2001; pp. 1330–1337. [Google Scholar] [CrossRef]
  21. Greensmith, J.; Aickelin, U.; Cayzer, S. Introducing Dendritic Cells as a Novel Immune-Inspired Algorithm for Anomaly Detection. 2016. doi:10.2139/ssrn.2832073.
  22. Alves, R.T.; Delgado, M.R.; Lopes, H.S.; Freitas, A.A. An Artificial Immune System for Fuzzy-Rule Induction in Data Mining; Springer: Berlin/Heidelberg, Germany, 2004; pp. 1011–1020. [Google Scholar] [CrossRef] [Green Version]
  23. Freitas, A.A.; Timmis, J. Revisiting the foundations of artificial immune systems for data mining. IEEE Trans. Evolut. Comput. 2007, 11, 521–540. [Google Scholar] [CrossRef]
  24. De Castro, L.N.; Timmis, J. Artificial Immune Systems: A Novel Paradigm to Pattern Recognition. Neural Netw. Pattern Recognit. 2002, 67–84. [Google Scholar]
  25. Hart, E.; Ross, P.; Nelson, J. Producing robust schedules via an artificial immune system. In Proceedings of the 1998 IEEE International Conference on Evolutionary Computation Proceedings, IEEE World Congress on Computational Intelligence (Cat. No.98TH8360), Anchorage, AK, USA, 4–9 May 1998; pp. 464–469. [Google Scholar] [CrossRef] [Green Version]
  26. Engin, O.; Döyen, A. A new approach to solve hybrid flow shop scheduling problems by artificial immune system. Future Gener. Comput. Syst. 2004, 20, 1083–1095. [Google Scholar] [CrossRef]
  27. Coello, C.A.; Cortés, N.C. Solving multiobjective optimization problems using an artificial immune system. Genet. Program. Evolvable Mach. 2005, 6, 163–190. [Google Scholar] [CrossRef]
  28. Alonso, F.R.; Oliveira, D.Q.; Zambroni De Souza, A.C. Artificial immune systems optimization approach for multiobjective distribution system reconfiguration. IEEE Trans. Power Syst. 2015, 30, 840–847. [Google Scholar] [CrossRef]
  29. Huang, X.; Tan, Y.; He, X. An intelligent multifeature statistical approach for the discrimination of driving conditions of a hybrid electric vehicle. IEEE Trans. Intell. Transp. Syst. 2011, 12, 453–465. [Google Scholar] [CrossRef]
  30. Gu, S.; Tan, Y.; He, X. Recentness biased learning for time series forecasting. Inf. Sci. 2013, 237, 29–38. [Google Scholar] [CrossRef]
  31. Ishiguro, A.; Kondo, T.; Watanabe, Y.; Shirai, Y.; Uchikawa, Y. Emergent construction of artificial immune networks for autonomous mobile robots. In Proceedings of the 1997 IEEE International Conference on Systems, Man, and Cybernetics. Computational Cybernetics and Simulation, Orlando, FL, USA, 12–15 October 1997; Volume 2, pp. 1222–1228. [Google Scholar] [CrossRef]
  32. Greensmith, J. The Dendritic Cell Algorithm. Ph.D. Thesis, University of Nottingham, Nottingham, UK, 2007. [Google Scholar]
  33. Hernández-Pereira, E.; Suárez-Romero, J.A.; Fontenla-Romero, O.; Alonso-Betanzos, A. Conversion methods for symbolic features: A comparison applied to an intrusion detection problem. Expert Syst. Appl. 2009, 36, 10612–10617. [Google Scholar] [CrossRef]
  34. Zarpelão, B.B.; Miani, R.S.; Kawakani, C.T.; de Alvarenga, S.C. A survey of intrusion detection in Internet of Things. J. Netw. Comput. Appl. 2017, 84, 25–37. [Google Scholar] [CrossRef]
  35. García-Teodoro, P.; Díaz-Verdejo, J.; Maciá-Fernández, G.; Vázquez, E. Anomaly-based network intrusion detection: Techniques, systems and challenges. Comput. Secur. 2009, 28, 18–28. [Google Scholar] [CrossRef]
  36. Kasinathan, P.; Pastrone, C.; Spirito, M.A.; Vinkovits, M. Denial-of-Service detection in 6LoWPAN based Internet of Things. In Proceedings of the International Conference on Wireless and Mobile Computing, Networking and Communications, Lyon, France, 7–9 October 2013; pp. 600–607. [Google Scholar] [CrossRef]
  37. Deogirikar, J.; Vidhate, A. Security attacks in IoT: A survey. In Proceedings of the International Conference on IoT in Social, Mobile, Analytics and Cloud, I-SMAC 2017, Palladam, India, 10–11 February 2017; pp. 32–37. [Google Scholar] [CrossRef]
  38. Ivan, C.; Vujic, M.; Husnjak, S. Classification of Security Risks in the IoT Environment. In Proceedings of the 26th DAAAM International Symposium on Intelligent Manufacturing and Automation, Zadar, Croatia, 21–24 October 2015. [Google Scholar]
  39. Tambe, A.; Aung, Y.L.; Sridharan, R.; Ochoa, M.; Tippenhauer, N.O.; Shabtai, A.; Elovici, Y. Detection of threats to IoT devices using scalable VPN-forwarded honeypots. In Proceedings of the CODASPY 2019—9th ACM Conference on Data and Application Security and Privacy, Dallas, TX, USA, 25–27 March 2019; pp. 85–96. [Google Scholar] [CrossRef] [Green Version]
  40. Al Salami, S.; Baek, J.; Salah, K.; Damiani, E. Lightweight encryption for smart home. In Proceedings of the 2016 11th International Conference on Availability, Reliability and Security, ARES 2016, Salzburg, Austria, 31 August–2 September 2016; pp. 382–388. [Google Scholar] [CrossRef]
  41. Cervantes, C.; Poplade, D.; Nogueira, M.; Santos, A. Detection of sinkhole attacks for supporting secure routing on 6LoWPAN for Internet of Things. In Proceedings of the 2015 IFIP/IEEE International Symposium on Integrated Network Management, IM 2015, Ottawa, ON, Canada, 11–15 May 2015; pp. 606–611. [Google Scholar] [CrossRef]
  42. Notra, S.; Siddiqi, M.; Gharakheili, H.H.; Sivaraman, V.; Boreli, R. An experimental study of security and privacy risks with emerging household appliances. In Proceedings of the 2014 IEEE Conference on Communications and Network Security (CNS), San Francisco, CA, USA, 29–31 October 2014; pp. 79–84. [Google Scholar] [CrossRef] [Green Version]
  43. Chen, J.; Chen, C. Design of complex event-processing IDS in internet of things. In Proceedings of the 2014 6th International Conference on Measuring Technology and Mechatronics Automation, ICMTMA 2014, Zhangjiajie, China, 10–11 January 2014; pp. 226–229. [Google Scholar] [CrossRef]
  44. Wen, Q.; Dong, X.; Zhang, R. Application of dynamic variable cipher security certificate in Internet of Things. In Proceedings of the 2012 IEEE 2nd International Conference on Cloud Computing and Intelligence Systems, IEEE CCIS 2012, Hangzhou, China, 30 October–1 November 2012; Volume 3, pp. 1062–1066. [Google Scholar] [CrossRef]
  45. Kasinathan, P.; Costamagna, G.; Khaleel, H.; Pastrone, C.; Spirito, M.A. DEMO: An IDS framework for internet of things empowered by 6LoWPAN. In Proceedings of the 2013 ACM SIGSAC Conference on Computer & Communications Security—CCS ’13, Berlin, Germany, 4–8 November 2013; ACM Press: New York, NY, USA, 2013; pp. 1337–1340. [Google Scholar] [CrossRef]
  46. Raza, S.; Wallgren, L.; Voigt, T. SVELTE: Real-time intrusion detection in the Internet of Things. Ad Hoc Netw. 2013, 11, 2661–2674. [Google Scholar] [CrossRef]
  47. Khraisat, A.; Gondal, I.; Vamplew, P.; Kamruzzaman, J.; Alazab, A. A novel ensemble of hybrid intrusion detection system for detecting internet of things attacks. Electronics 2019, 8, 1210. [Google Scholar] [CrossRef] [Green Version]
  48. Khater, B.S.; Wahab, A.W.B.A.; Idris, M.Y.I.B.; Hussain, M.A.; Ibrahim, A.A. A lightweight perceptron-based intrusion detection system for fog computing. Appl. Sci. 2019, 9, 178. [Google Scholar] [CrossRef] [Green Version]
  49. Lopez-Martin, M.; Carro, B.; Sanchez-Esguevillas, A.; Lloret, J. Network Traffic Classifier with Convolutional and Recurrent Neural Networks for Internet of Things. IEEE Access 2017, 5, 18042–18050. [Google Scholar] [CrossRef]
  50. AL-Hawawreh, M.; Moustafa, N.; Sitnikova, E. Identification of malicious activities in industrial internet of things based on deep learning models. J. Inf. Secur. Appl. 2018, 41, 1–11. [Google Scholar] [CrossRef]
  51. Tama, B.A.; Rhee, K.H. Attack Classification Analysis of IoT Network via Deep Learning Approach. Res. Briefs Inf. Commun. Technol. Evol. (ReBICTE) 2017. [Google Scholar] [CrossRef]
  52. Su, J.; Vargas, D.V.; Prasad, S.; Sgandurra, D.; Feng, Y.; Sakurai, K. Lightweight Classification of IoT Malware based on Image Recognition. In Proceedings of the 2018 IEEE 42nd Annual Computer Software and Applications Conference (COMPSAC), Tokyo, Japan, 23–27 July 2018; pp. 664–669. [Google Scholar]
  53. Bansal, A.; Mahapatra, S. A comparative analysis of machine learning techniques for botnet detection. In Proceedings of the 10th International Conference on Security of Information and Networks—SIN ’17, Jaipur, India, 17 July 2017; ACM Press: New York, NY, USA, 2017; pp. 91–98. [Google Scholar] [CrossRef]
  54. Aminanto, M.E.; Kim, K. Deep Learning-based Feature Selection for Intrusion Detection System in Transport Layer. Available online: (accessed on 23 February 2019).
  55. Canedo, J.; Skjellum, A. Using machine learning to secure IoT systems. In Proceedings of the 2016 14th Annual Conference on Privacy, Security and Trust, PST 2016, Auckland, New Zealand, 12–14 December 2016; pp. 219–222. [Google Scholar] [CrossRef]
  56. Hodo, E.; Bellekens, X.; Hamilton, A.; Dubouilh, P.L.; Iorkyase, E.; Tachtatzis, C.; Atkinson, R. Threat analysis of IoT networks using artificial neural network intrusion detection system. In Proceedings of the 2016 International Symposium on Networks, Computers and Communications (ISNCC), Yasmine Hammamet, Tunisia, 11–13 May 2016; pp. 1–6. [Google Scholar] [CrossRef] [Green Version]
  57. Chawla, S.; Thamilarasu, G. Security as a Service: Real-time Intrusion Detection in Internet of Things. In Proceedings of the Fifth Cybersecurity Symposium, CyberSec ’18, Coeur d’ Alene, ID, USA, 9–11 April 2018; pp. 12:1–12:4. [Google Scholar]
  58. Jin, Y.L.; Ding, Y.S.; Hao, K.R.; Liu, Y.J. Efficient service request detection algorithm based on hormone regulation mechanism in the Internet of things. J. China Univ. Posts Telecommun. 2013, 20, 86–90. [Google Scholar] [CrossRef]
  59. Matzinger, P. Tolerance, Danger, and the Extended Family. Ann. Rev. Immunol. 1994, 12, 991–1045. [Google Scholar] [CrossRef]
  60. Matzinger, P. The danger model: A renewed sense of self. Science 2002, 296, 301–305. [Google Scholar] [CrossRef] [Green Version]
  61. Aickelin, U.; Cayzer, S. The Danger Theory and Its Application to Artificial Immune Systems. In Proceedings of the 7th International Conference on Artificial Immune Systems (ICARIS-2008), Phuket, Thailand, 10–13 August 2008; pp. 141–148. [Google Scholar] [CrossRef] [Green Version]
  62. Chelly, Z.; Elouedi, Z. A survey of the dendritic cell algorithm. Knowl. Inf. Syst. 2016, 48, 505–535. [Google Scholar] [CrossRef]
  63. Klambauer, G.; Unterthiner, T.; Mayr, A.; Hochreiter, S. Self-Normalizing Neural Networks. In Proceedings of the Advances in Neural Information Processing Systems 30 (NIPS 2017), Long Beach, CA, USA, 4–9 December 2017. [Google Scholar]
  64. Ioffe, S.; Szegedy, C. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In Proceedings of the 32nd International Conference on Machine Learning, ICML 2015, Lille, France, 6–11 July 2015; Volume 1, pp. 448–456. [Google Scholar]
  65. Chmielewski, A.; Brzozowski, M. Immune approach to the protection of IoT devices. In Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics); Springer: Cham, Swizerland, 2016; Volume 10018 LNCS, pp. 75–92. [Google Scholar] [CrossRef]
  66. Chen, R.; Liu, C.M.; Xiao, L.X. A Security Situation Sense Model Based on Artificial Immune System in the Internet of Things. Adv. Mater. Res. 2011, 403–408, 2457–2460. [Google Scholar] [CrossRef]
  67. Liu, C.; Yang, J.; Chen, R.; Zhang, Y.; Zeng, J. Research on immunity-based intrusion detection technology for the Internet of Things. In Proceedings of the 2011 7th International Conference on Natural Computation, ICNC 2011, Shanghai, China, 26–28 July 2011; Volume 1, pp. 212–216. [Google Scholar] [CrossRef]
  68. Liu, C.; Zhang, Y.; Cai, Z.; Yang, J.; Peng, L. Artificial immunity-based security response model for the internet of things. J. Comput. 2013, 8, 3111–3118. [Google Scholar] [CrossRef]
  69. Arrington, B.; Barnett, L.E.; Rufus, R.; Esterline, A. Behavioral modeling intrusion detection system (BMIDS) using internet of things (IoT) behavior-based anomaly detection via immunity-inspired algorithms. In Proceedings of the 2016 25th International Conference on Computer Communications and Networks, ICCCN 2016, Waikoloa, HI, USA, 1–4 August 2016; pp. 1–6. [Google Scholar] [CrossRef]
  70. Yang, Z.; Ding, Y.; Jin, Y.; Hao, K. Immune-Endocrine System Inspired Hierarchical Coevolutionary Multiobjective Optimization Algorithm for IoT Service. IEEE Trans. Cybern. 2018, 50, 164–177. [Google Scholar] [CrossRef] [PubMed]
  71. Kayacik, H.G.; Zincir-Heywood, A.N.; Heywood, M.I. Selecting features for intrusion detection: A feature relevance analysis on KDD 99 intrusion detection datasets. In Proceedings of the Third Annual Conference on Privacy, Security and Trust, Fredericton, NB, Canada, 12–14 October 2005. [Google Scholar]
  72. Wickham, H.; Winston, C. Create Elegant Data Visualisations Using the Grammar of Graphics. R Package Version 3.1.0. Available online: (accessed on 12 May 2019).
  73. Waskom, M.; Botvinnik, O.; Hobson, P.; Cole, J.B.; Halchenko, Y.; Hoyer, S.; Miles, A.; Augspurger, T.; Yarkoni, T.; Megies, T.; et al. Seaborn: Statistical data visualization. 2018.
  74. McKinney, W. pandas: A Foundational Python Library for Data Analysis and Statistics. In Proceedings of the Workshop Python for High Performance and Scientific Computing (SC11), Seattle, WA, USA, 18 November 2011. [Google Scholar]
  75. Oliphant, T.E. Guide to NumPy. Methods 2010, 1, 378. [Google Scholar] [CrossRef] [Green Version]
  76. Pedregosa, F.; Michel, V.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Vanderplas, J.; Cournapeau, D.; Pedregosa, F.; Varoquaux, G.; et al. Scikit-learn: Machine Learning in Python Gaël Varoquaux Bertrand Thirion Vincent Dubourg Alexandre Passos PEDREGOSA, VAROQUAUX, GRAMFORT ET AL. Matthieu Perrot. Technical report, 2011.
  77. van Merriënboer, B.; Bahdanau, D.; Dumoulin, V.; Serdyuk, D.;Warde-Farley, D.; Chorowski, J.; Bengio, Y. Blocks and Fuel: Frameworks for deep learning. 2015.
  78. Chapman, P.; Clinton, J.; Kerber, R.; Khabaza, T.; Reinartz, T.; Shearer, C.R.H.; Wirth, R. CRISP-DM 1.0 Step-by-Step Data Mining Guide. 1999.
  79. Koroniotis, N.; Moustafa, N.; Sitnikova, E.; Turnbull, B. Towards the development of realistic botnet dataset in the Internet of Things for network forensic analytics: Bot-IoT dataset. Future Gener. Comput. Syst. 2019, 100, 779–796. [Google Scholar] [CrossRef] [Green Version]
  80. Collins, M. Network Security Through Data Analysis II; O’Reilly Media: Sebastopol, CA, USA, 2014; p. 347. [Google Scholar]
  81. Lippmann, R.; Haines, J.W.; Fried, D.J.; Korba, J.; Das, K. 1999 DARPA off-line intrusion detection evaluation. Comput. Netw. 2000, 34, 579–595. [Google Scholar] [CrossRef]
Figure 1. General architecture for IDS systems.
Figure 1. General architecture for IDS systems.
Applsci 10 01909 g001
Figure 2. Attacks on IoT Layers.
Figure 2. Attacks on IoT Layers.
Applsci 10 01909 g002
Figure 3. Flowchart of The DeepDCA Proposed Model.
Figure 3. Flowchart of The DeepDCA Proposed Model.
Applsci 10 01909 g003
Figure 4. SSN Architecture for Signal Categorization.
Figure 4. SSN Architecture for Signal Categorization.
Applsci 10 01909 g004
Figure 5. Features Ranking Based on Information Gain.
Figure 5. Features Ranking Based on Information Gain.
Applsci 10 01909 g005
Figure 6. SNN Model Accuracy and Loss.
Figure 6. SNN Model Accuracy and Loss.
Applsci 10 01909 g006
Figure 7. Comparison of Features Impact in Classification Process (Im = Imbalanced Data, Ba = Balanced Data).
Figure 7. Comparison of Features Impact in Classification Process (Im = Imbalanced Data, Ba = Balanced Data).
Applsci 10 01909 g007
Table 1. Non-Artificial Intelligence-based Security Method.
Table 1. Non-Artificial Intelligence-based Security Method.
RefYearTechniquesMetricsIoT LayerSimulatorCategory
[39]2019Generic honeypot framework by utilizing VPN connectionsDetection rate, low cost and maintenance effortApplications LayerSimulation DataHoneypot
[40]2016Identity-based encryptionEfficiency (overhead cost associated with computation and communication)Applications LayerSimulation DataLightweight cryptography (LWC)
[41]2015Watchdog, reputation and trust mechanismsDetection rate, false positives and false negatives.Network LayerSimulator CoojaIntrusion detection system
[42]2014External entity as the ISP or Security as a service (SECaaS or SaaS) provider, to install access control rules in the network........Network LayerCaptured the network activity using the Wireshark packet analyzer.Emerging household appliances
[43]2014Complex event processing (CEP)CPU utilization, memory consumption and processing timeApplications LayerEsper an engine for CEP and event series analysis.Real-time intrusion
[44]2013Dynamic variable cipher security certificate “one time one cipher”Repetition rateSensor LayerSimulation DataLightweight cryptography (LWC)
[45]2013Rule-based detectionDetection rate, false positivesNetwork LayerDemoIntrusion detection system
[46]2013End-to-End message security such as IPsec and DTLSDetection rate, True positives rate energy and memory consumptionNetwork LayerContiki’s network simulator CoojaReal-time intrusion
Table 2. Artificial Intelligence-based Security Methods (FS = Features Selection).
Table 2. Artificial Intelligence-based Security Methods (FS = Features Selection).
NoYearTechniquesDatasetMetricsIoT LayerFSCategory
[47]2019C5 and One Class Support Vector Machine classifierBot-IoT datasetDetection rate and False positiveNetwork LayerYesIntrusion Detection System
[48]2019Multilayer Perceptron (MLP)ADFA-LD and ADFA-WDAccuracy, Recall, and F1Network LayerNoIntrusion Detection System
[49]2018Recurrent Neural Network (RNN) + Convolutional Ceural Network (CNN)RedIRIS.Accuracy, Precision, Recall, and F1Network LayerNoA network traffic classifier (NTC)
[50]2018Deep-learning (DAE + Deep Feed Forward Neural Network (DFFNN))NSL-KDD and UNSW-NB15Accuracy, Detection rates, and False Positive RateNetwork LayerYesAnomaly Detection
[51]2017Deep Neural Network + Grid Search StrategyUNSW-NB15, CIDDS-001, and GPRS.Accuracy, Precision, Recall and False Alarm Rate.Transport LayerNoAnomaly Detection
[52]2017Convolutional Neural Networks (CNN)IoTPOTDetection rates, AccuracyNetwork LayerNoLight-weight Detection
[53]2017Recurrent Neural Network (RNN)ISCX Intrusion Detection Dataset and the CTU-13 DatasetSensitivity, Specificity, Precision, Confusion Matrix Accuracy and F1 ScoreApplications LayerNoBotnet Detection
[54]2016Stacked Auto Encoder (SAE) Deep learningKDD99Detection rates, and False Positive RateTransport LayerYesIntrusion Detection System
[55]2016artificial neural network (ANN)Collect the data in TestbedDetection rates, and False Positive RateNetwork LayerNoAnomaly Detection
[56]2016Artificial Neural Network (ANN)Simulated IoT network.Accuracy, and False Alarm Rate.Applications LayerNoThreat Analysis
[57]2016Machine Learning + Security as a Service......Accuracy, and False Alarm RateTransport LayerNoIntegrated Intrusion Detection System
[58]2013Hormone-based Service Detection Algorithm (HSDA)Simulated IoT networkStability of the network, Saving energy and Detection ratesNetwork LayerNoAnomaly Detection
Table 3. Statistical Description for The Dataset.
Table 3. Statistical Description for The Dataset.
Discrete columns7
Continuous columns40
All missing columns0
Missing observations0
Complete Rows3,668,045
Memory allocation13.6 Mb
Table 4. Frequency distribution of considered features.
Table 4. Frequency distribution of considered features.
Data theft642
DoSDoS TCP615,800431,060184,740
DoS UDP1,032,975723,08230,9893
DoS HTTP14851039446
DDoSDDoS TCP977,380684,166293,214
DDoS UDP948,255663,778284,477
DDoS HTTP989692297
Table 5. BoT-IoT best 10 features Description.
Table 5. BoT-IoT best 10 features Description.
FeatureData TypeDescription
pkSeqIDOrdinalRow Identifier
SeqNumericalArgus sequence number
MeanNumericalAverage duration of aggregated records
StddevNumericalStandard deviation of aggregated records
MinNumericalMinimum duration of aggregated records
MaxNumericalMaximum duration of aggregated records
SrateNumericalSource-to-destination packets per second
DrateNumericalDestination-to-source packets per second
NINConn PSrcIPNumericalTotal Number of packets per source IP
NINConn PDstIPNumericalTotal Number of packets per Destination IP
Table 6. Confusion Matrix.
Table 6. Confusion Matrix.
ActualPositiveTrue PositiveFalse Negative
NegativeFalse PositiveTrue Negative
Table 7. DeepDCA performance based on Features Impact among Imbalanced and Balanced Data.
Table 7. DeepDCA performance based on Features Impact among Imbalanced and Balanced Data.
Best 100.58000.32000.66670.4324
Best 100.95000.90001.00000.9474
Table 8. DeepDCA Performance Evaluation Metrics in Different Attack Categories.
Table 8. DeepDCA Performance Evaluation Metrics in Different Attack Categories.
Table 9. Comparison of Classifiers Performance.
Table 9. Comparison of Classifiers Performance.
Proposed IDS98.73%99.17%98.36%98.77%

Share and Cite

MDPI and ACS Style

Aldhaheri, S.; Alghazzawi, D.; Cheng, L.; Alzahrani, B.; Al-Barakati, A. DeepDCA: Novel Network-Based Detection of IoT Attacks Using Artificial Immune System. Appl. Sci. 2020, 10, 1909.

AMA Style

Aldhaheri S, Alghazzawi D, Cheng L, Alzahrani B, Al-Barakati A. DeepDCA: Novel Network-Based Detection of IoT Attacks Using Artificial Immune System. Applied Sciences. 2020; 10(6):1909.

Chicago/Turabian Style

Aldhaheri, Sahar, Daniyal Alghazzawi, Li Cheng, Bander Alzahrani, and Abdullah Al-Barakati. 2020. "DeepDCA: Novel Network-Based Detection of IoT Attacks Using Artificial Immune System" Applied Sciences 10, no. 6: 1909.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
