HBIM-GIS Integration: From IFC to CityGML Standard for Damaged Cultural Heritage in a Multiscale 3D GIS

Department of Environment, Land and Infrastructure Engineering (DIATI), Politecnico di Torino, Corso Duca degli Abruzzi 24, 10129 Turin, Italy
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(4), 1356; https://doi.org/10.3390/app10041356
Received: 21 January 2020 / Revised: 9 February 2020 / Accepted: 13 February 2020 / Published: 17 February 2020
(This article belongs to the Special Issue BIM and HBIM: Standardisation and interoperability)

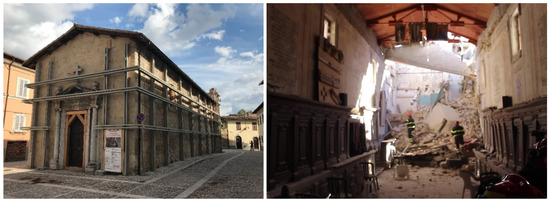

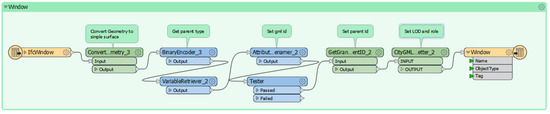

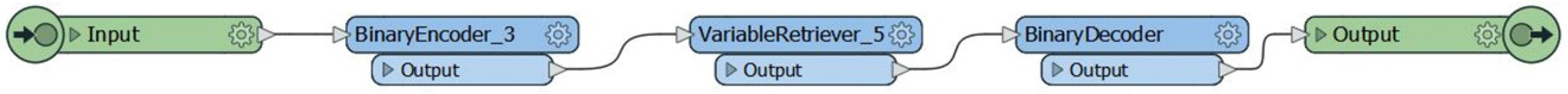

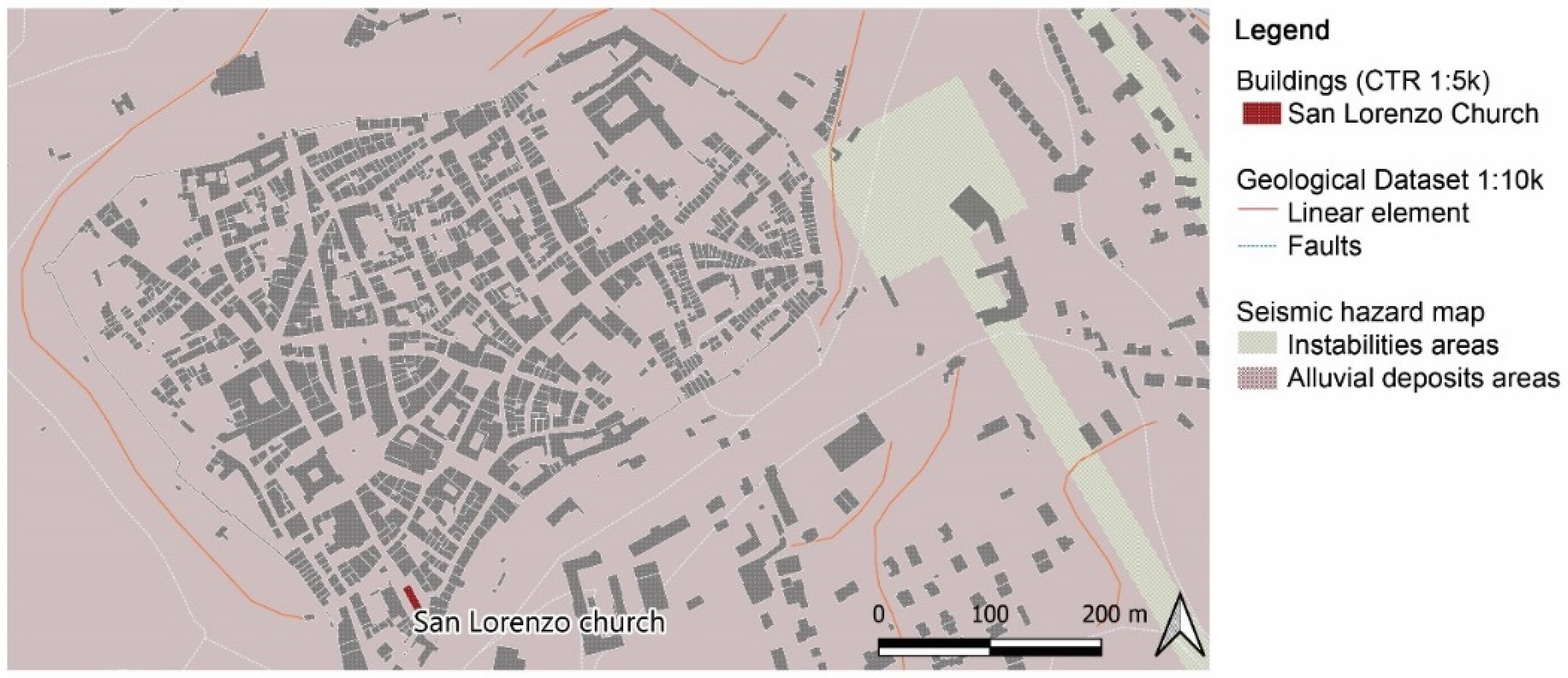

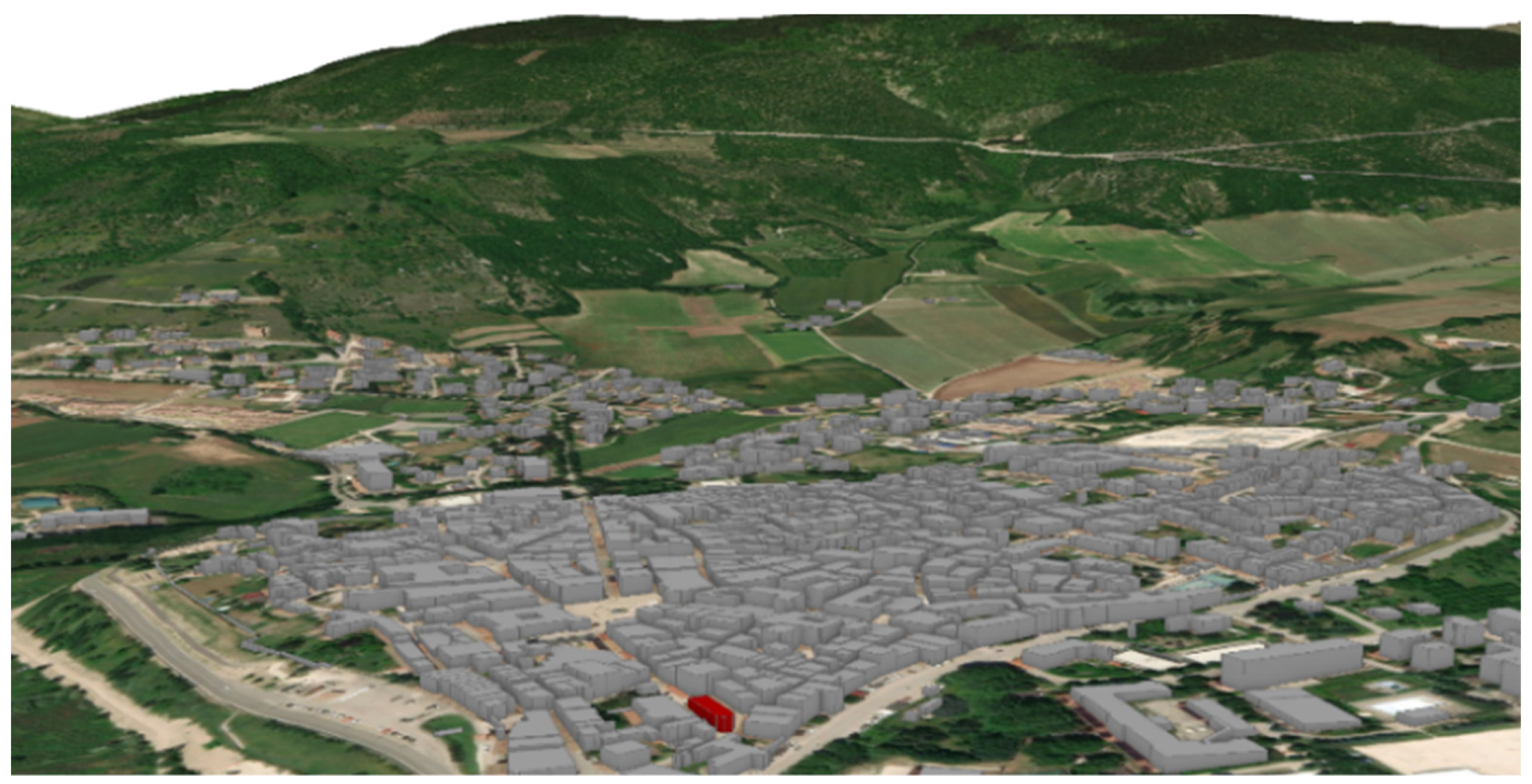

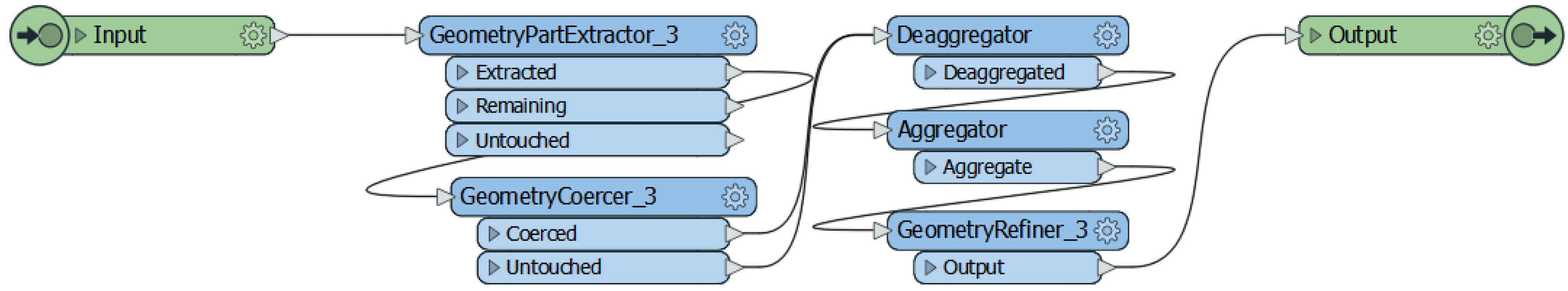

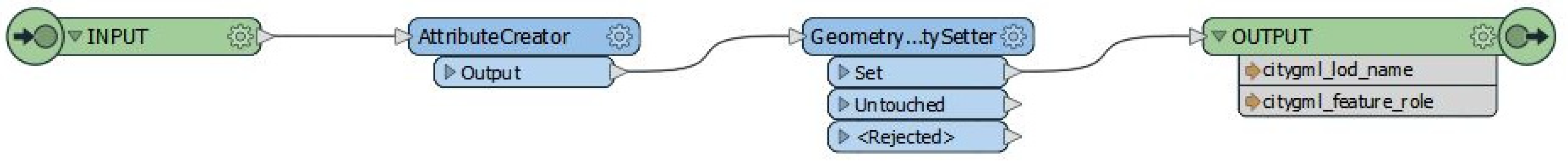

This study describes the technical-systemic and conceptual-informative interoperability tests for the integration of a Historic Building Information Modeling (HBIM) model in a 3D Geographic Information System (GIS) environment aimed to provide complete and useful documentation for multiscale analyses on cultural heritage particularly exposed to risks. The case study of the San Lorenzo Church in Norcia (Italy) has been chosen given the urgent need to update the existing documentation for its protection and conservation issues, due to the extensive damage suffered after the series of earthquakes that occurred in central Italy starting from summer 2016. Different tests to evaluate two levels of conceptual interoperability (technical and semantic) when importing the HBIM model into a GIS environment were performed, whether with commercial software or with open source ones (ArcGIS Pro and QGIS, respectively). A data integration platform (Feature Manipulation Engine, FME) has been used for converting the IFC (Industry Foundation Classes) data format into the GML (Geography Markup Language) format, in order to obtain a unique and unified model and vocabulary for the 3D GIS project, structured with different levels of detail, according to CityGML standard. Finally, as HBIM-GIS integration is considered, the loss of geometric and informative data has been taken into account and evaluated. View Full-Text
Keywords: HBIM; GIS; IFC; CityGML; FME; conceptual interoperability; cultural heritage; multiscale analyses; earthquake HBIM; GIS; IFC; CityGML; FME; conceptual interoperability; cultural heritage; multiscale analyses; earthquake
Show Figures

Figure 1
