Optimization Design of the Spaceborne Connecting Structure for a Lightweight Space Camera

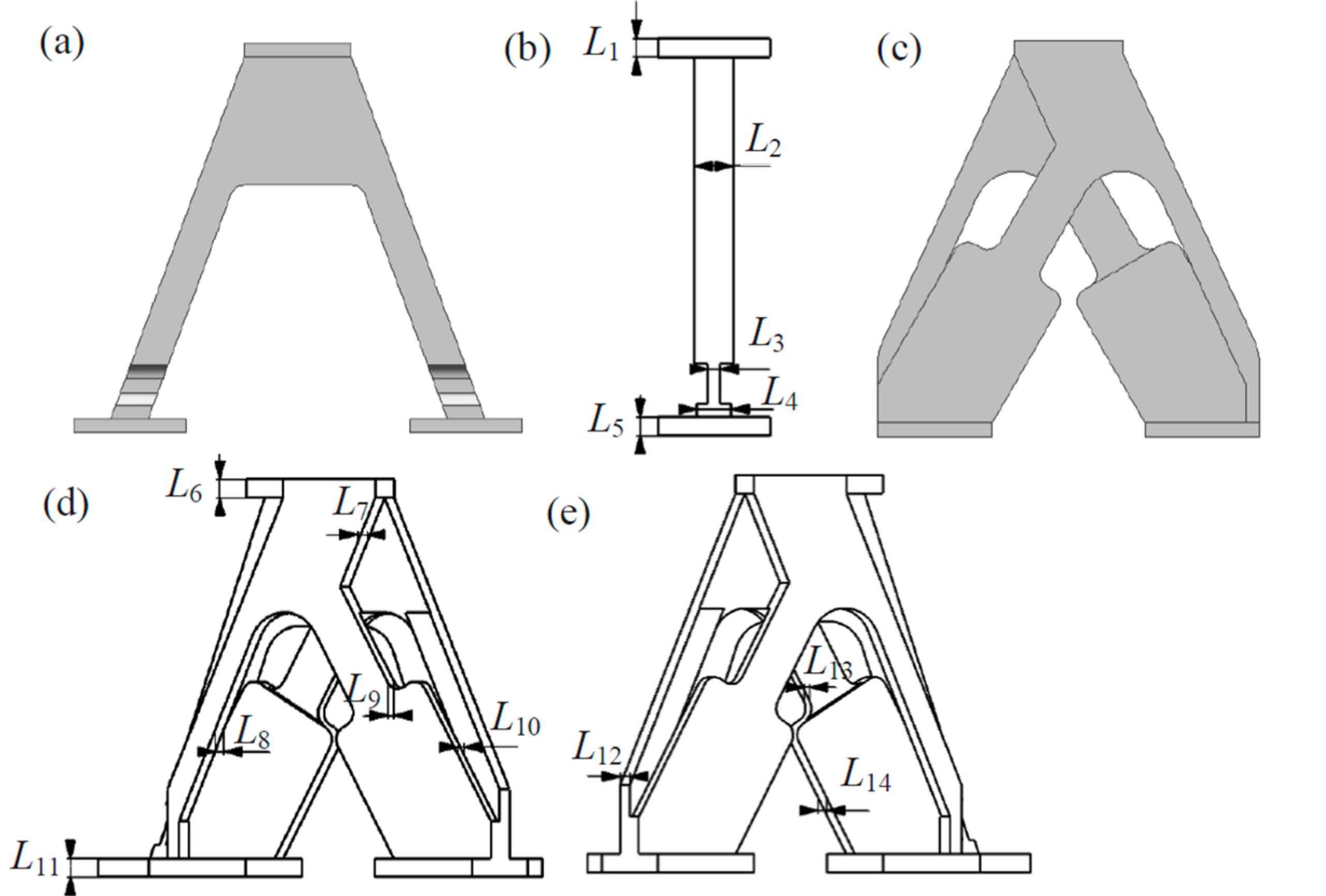

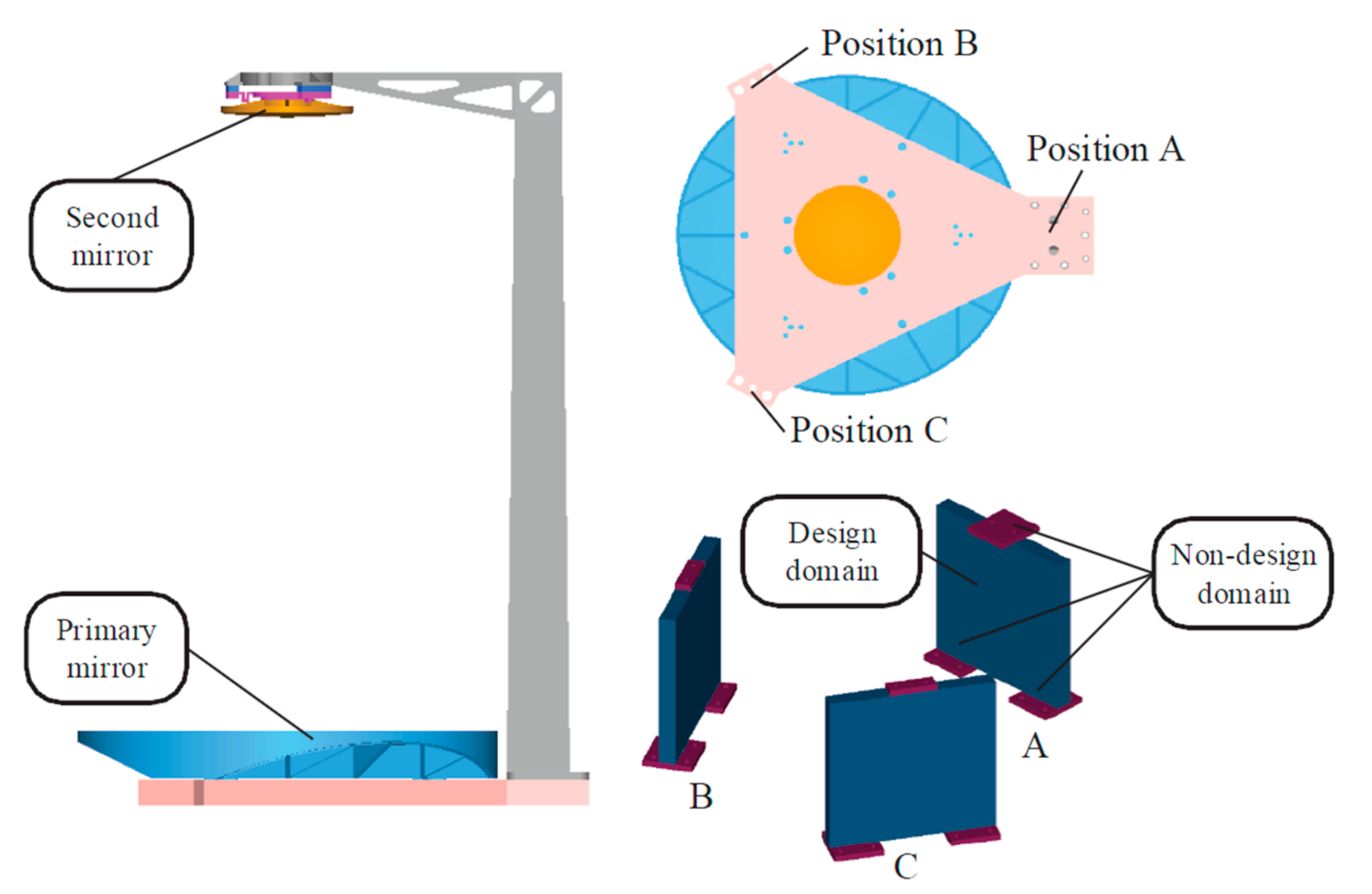

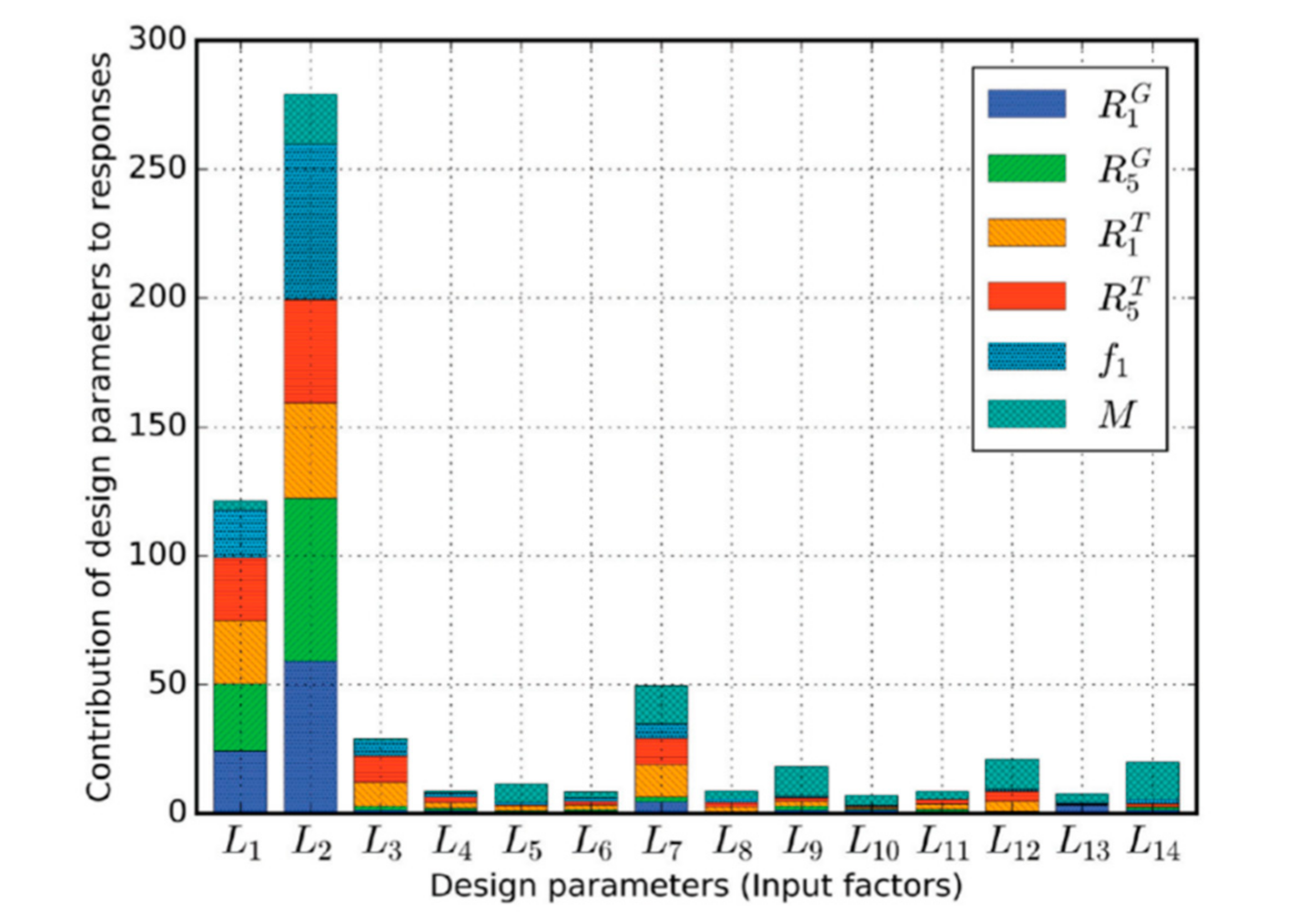

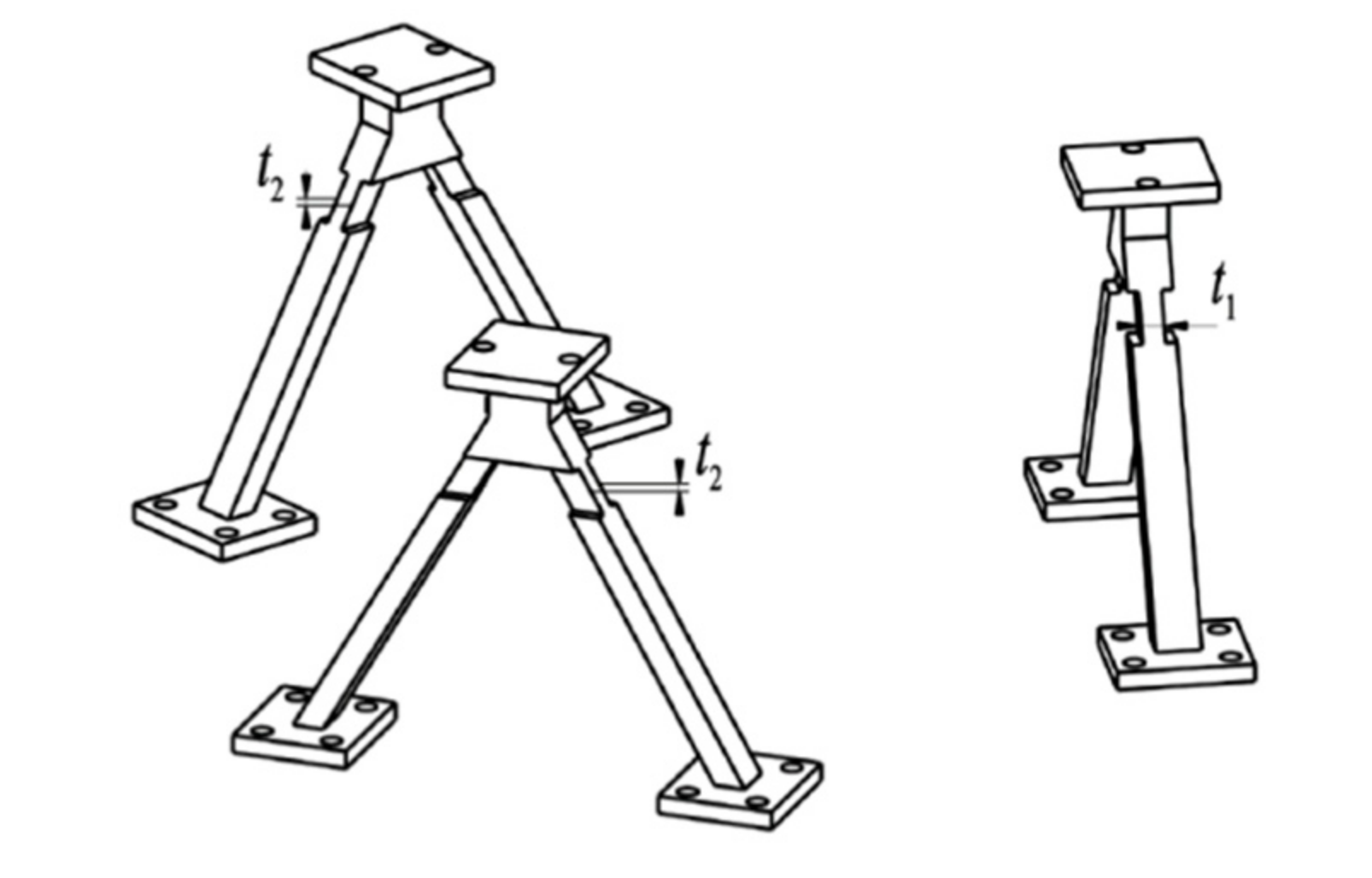

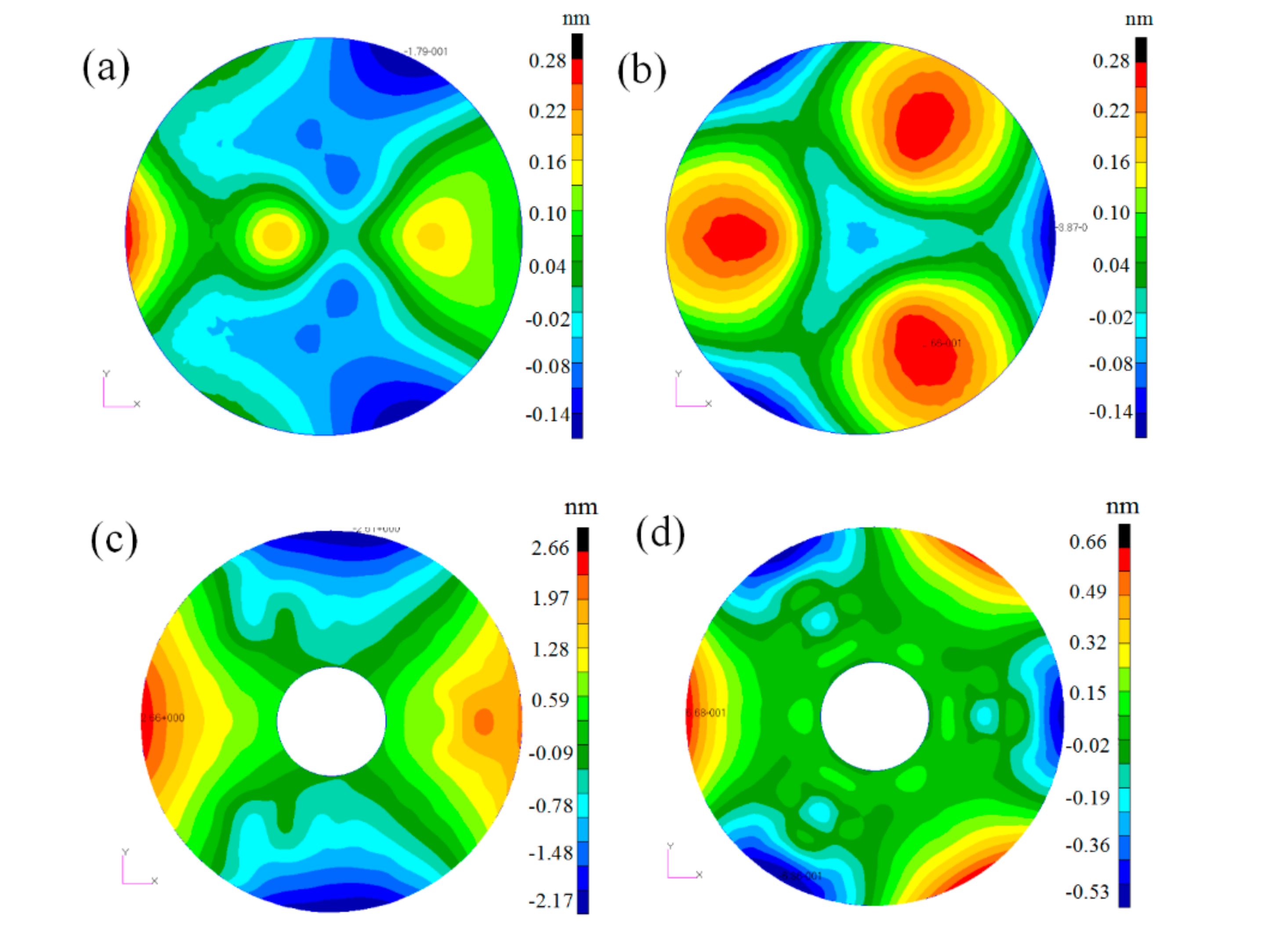

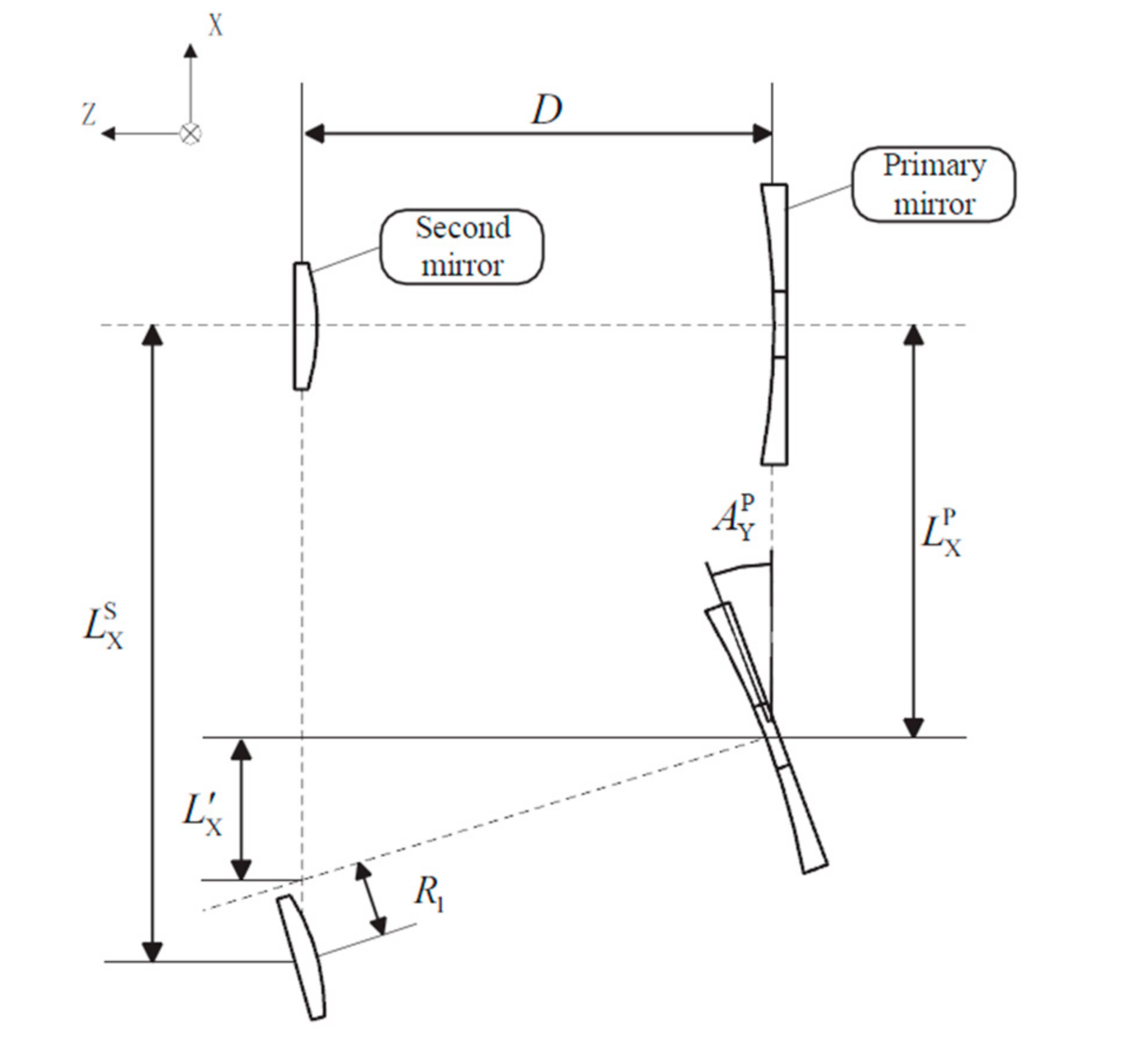

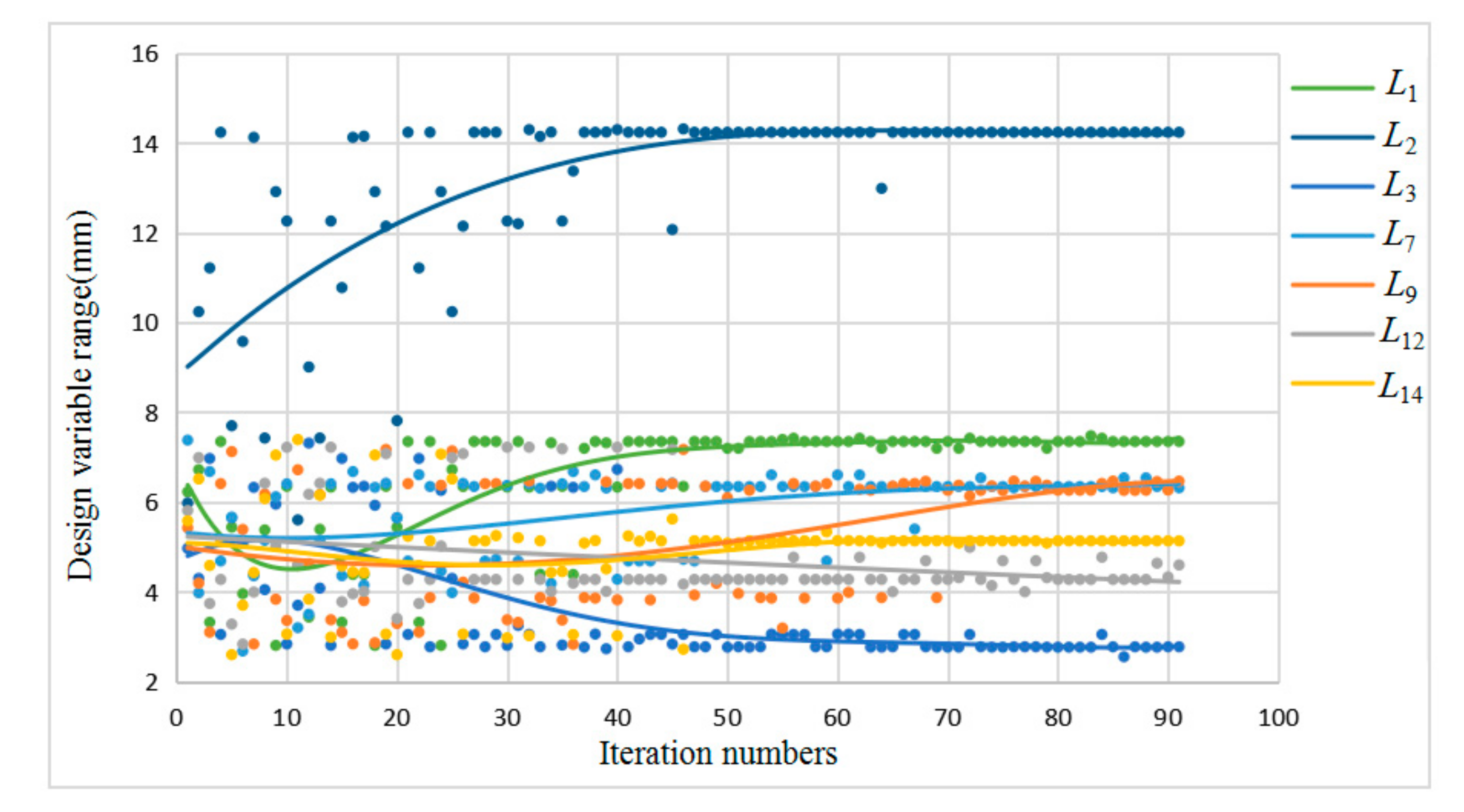

For a lightweight space camera installed vertically with a satellite platform, due to the different conditions between ground and orbit, the relative deformation between the camera and the satellite platform results in a drift of the camera line of sight (LOS), which affects the imaging quality. This paper proposed an optimization method for the spaceborne connecting structure considering the camera LOS drift. By using a variable density topology optimization method, the configuration of the connecting structure was obtained. Based on the configuration, the sensitivity of its size parameters to the system’s performance was analyzed. Analysis data showed that the size parameters have an obvious influence on the camera LOS shift. In order to obtain the optimal combination of size parameters, a multi-objective parametric optimization model was established. Finally, engineering analysis of the optimized structure showed that the system performances meet the design requirements of the satellite, and the lightweight ratio of the connecting structure reaches 54%. This study provides a reference for the design of other similar structures for space cameras.
