1. Introduction
Modeling of virtual analog audio effects is the process of emulating an audio effect unit and seeks to recreate the sound, behaviour and main perceptual features of an analog reference device [
1]. Audio effect units are analog or digital signal processing systems that transform certain characteristics of the sound source. These transformations can be linear or nonlinear, time-invariant or time-varying and with short-term and long-term memory. Most typical audio effect transformations are based on dynamics, such as compression, tone such as distortion, frequency such as equalization, and time such as artificial reverberation or modulation based audio effects.
Nonlinear audio effects: These effects are widely used by musicians and sound engineers and can be classified into two main types of effects: dynamic processors such as compressors or limiters; and distortion effects such as tube amplifiers [
2]. Distortion effects are mainly used for aesthetic reasons and are usually applied to electric musical instruments such as electric guitar, bass guitar, electric piano or synthesizers. The main sonic characteristic of these effects is due to their nonlinearities and the most common processors are overdrive, distortion pedals, tube amplifiers and guitar pickup emulators.
Dynamic range processors are nonlinear time-invariant audio effects with long temporal dependencies, and their main purpose is to alter the variation in volume of the incoming audio. This is achieved with a varying amplification gain factor, which depends on an envelope follower along with a waveshaping nonlinearity. These effects tend to introduce a low amount of harmonic distortion, while for tube amplifiers a strong distortion is desired [
2].
Thus, distortion effects and dynamic range processors are based on the alteration of the waveform which leads to various degrees of amplitude and harmonic distortion. The nonlinear behavior of certain components of the effects’ circuit performs this alteration, which can be seen as a waveshaping nonlinearity applied to the amplitude of the incoming audio signal in order to add harmonic and inharmonic overtones. For example, a waveshaping transformation depends on the amplitude of the input signal and consists in using a nonlinear function, such as an hyperbolic tangent, to distort the shape of the incoming waveform [
3].
Modulation based audio effects: Modulation based or time-varying audio effects involve audio processors that include a modulator signal within their analog or digital implementation [
4]. These modulator signals are in the low frequency range (usually below 20 Hz). Their waveforms are based on common periodic signals such as sinusoidal, squarewave or sawtooth oscillators and are often referred to as a Low Frequency Oscillator (LFO). The LFO periodically modulates certain parameters of the audio processors altering the timbre, frequency, loudness or spatialization characteristics of the audio. Based on how the LFO is employed and the underlying signal processing techniques used when designing the effect units, we can classify modulation based audio effects into
time-varying filters such as phaser or wah-wah;
delay-line based effects such as flanger or chorus; and
amplitude modulation effects such as tremolo or ring modulator [
2].
The Leslie speaker cabinet is a type of modulation based effect that combines amplitude, frequency and spatial modulation. It consists of a vacuum-tube amplifier and crossover filter followed by a rotating
horn and rotating
woofer inside a wooden cabinet. This effect can be interpreted as a combination of tremolo, Doppler effect and reverberation [
5].
Audio effects modeling: Modeling these types of effect units or analog circuits has been heavily researched and remains an active field, see
Section 2 for more details. Virtual analog methods for modeling nonlinear and time-varying audio effects mainly involve circuit modeling and optimization for specific analog components such as vacuum-tubes, operational amplifiers or transistors. This often requires models that are too specific for a certain circuit or making certain assumptions when modeling specific nonlinearities. Therefore such models are not easily transferable to different effects units since expert knowledge of the type of circuit being modeled is always required. Also, musicians tend to prefer analog counterparts because their digital implementations may lack the broad behaviour of the analog reference devices.
Recently, deep learning architectures have been explored for black-box modeling of audio effects. In previous works, we explored convolutional neural networks (CNN) to model linear effect units, such as equalization [
6]; nonlinear effects with short-term memory, such as distortion, overdrive and amplifier emulation [
7]. Furthermore, in [
8], the later architecture was extended with recurrent neural networks (RNN) in order to model linear and nonlinear, time-varying and time-invariant audio effects with long temporal dependencies, such ring modulation or multiband compression. Also, in [
9], Damskägg et al. explored variants of the WaveNet architecture [
10] in order to model nonlinear effects such as a tube amplifier.
In this work, we analyse and compare the deep learning architectures from [
7,
8,
9] and we propose a new model based on the combination of the convolutional and dense architectures from [
8] with the feedforward WaveNet from [
9]. Therefore, we explore whether a latent-space based on WaveNet can learn long temporal dependencies such as those learned by the Bidirectional Long-Short Term Memory (Bi-LSTM) layers from [
8].
We show the models performing virtual analog modeling of the Universal Audio vacuum-tube preamplifier 610-B, the Universal Audio transistor-based limiter amplifier 1176LN and the rotating horn and rotating woofer of a 145 Leslie speaker cabinet. We measure the performance of the models via perceptually-based objective metrics and through a subjective listening test. We report that convolutional and feedforward WaveNet architectures perform similarly when modeling nonlinear audio effects without memory and with long temporal dependencies, but fail to model time-varying tasks such as the Leslie speaker. On the other hand, and across all tasks, the models that incorporate RNNs or WaveNet architectures to explicitly learn long temporal dependencies, tend to outperform (objectively and subjectively) the rest of the models.
The paper is structured as follows. In
Section 2 we present the relevant literature related to modeling nonlinear and time-varying audio effects and
Table 1 summarizes the different approaches.
Section 3 provides the description of the different deep learning models and
Section 4 the experimental procedures.
Section 5,
Section 6 and
Section 7, respectively show the obtained results, discussion and conclusions.
3. Methods
In this section we present the architecture of the different black-box audio effects modeling networks: the deep convolutional audio effects modeling architecture (
CAFx) from [
7], the feedforward
WaveNet from [
9] and the convolutional and recurrent audio effects modeling architecture (
CRAFx) from [
8]. Also, we introduce
CWAFx, a combination of the convolutional, dense and activation layers from
CRAFx together with a latent-space based WaveNet. All the models are based entirely in the time-domain and end-to-end; with raw audio as the input and processed audio as the output. Code is availabe online (
https://mchijmma.github.io/DL-AFx/). Also,
Appendix A shows the number of parameters and processing times across all models.
3.1. Convolutional Audio Effects Modeling Network: CAFx
The model is divided into three parts: adaptive front-end, synthesis back-end and latent-space DNN. The architecture is designed to model nonlinear audio effects with short-term memory and is based on a parallel combination of cascade input filters, trainable waveshaping nonlinearities, and output filters. All convolutions are along the time dimension and all strides are of unit value. This means, during convolution, we move the filters one sample at a time. The model is depicted in
Figure 1 and its structure is described in detail in
Table 2. We use an input frame of size 4096 sampled with a hop size of 2048 samples.
The
adaptive front-end consists of a convolutional encoder. It contains two CNN layers, one pooling layer and one residual connection. The first convolutional layer is followed by the
absolute value as nonlinear activation function and the second convolutional layer is locally connected. This means that we follow a filterbank architecture since each filter is only applied to its corresponding row in the input feature map. This layer is followed by the
softplus nonlinearity. The
max-pooling layer is a moving window of size 64, where the maximum value within each window corresponds to the output and the positions of the maximum values are stored and used by the back-end. The operation performed by the first layer can be described by (
1):
where ∗ denotes the convolution operator,
is the kernel matrix from the first layer, and
is the feature map after the input audio
x is convolved with
. The weights
consist of 128 one-dimensional filters of size 64. The residual connection
is equal to
, which corresponds to the frequency band decomposition of the input
x.
The operation performed by the second layer is described by (
2):
where
is the second feature map obtained after the locally connected convolution with
, the kernel matrix of the second layer which has 128 filters of size 128.
The adaptive front-end performs time-domain convolutions with the raw audio and is designed to learn a latent representation for each audio effect modeling task. It also generates a residual connection which is used by the back-end to facilitate the synthesis of the waveform based on the specific audio effect transformation. By using the
absolute value as activation function of the first layer and by having larger filters
, we expect the front-end to learn smoother representations of the incoming audio, such as envelopes [
49].
The latent-space DNN contains two layers. Following the filter bank architecture, the first layer is based on locally connected dense layers and the second layer consists of a fully connected (FC) layer. The DNN modifies the latent representation into a new latent representation which is fed into the synthesis back-end. The first layer applies a different dense layer to each row of the matrix and the second layer is applied to each row of the output matrix from the first layer. In both layers, all dense layers have 64 hidden units, are followed by the softplus function and are applied to the complete latent representation rather than to the channel dimension.
The synthesis back-end accomplishes the nonlinear task by the following steps. First, , the discrete approximation of , is obtained via unpooling the modified envelopes . Then the feature map is the result of the element-wise multiplication of the residual connection and . This can be seen as an input filtering operation, since a different envelope gain is applied to each of the frequency band decompositions obtained in the front-end.
The second step is to apply various waveshapping nonlinearities to
. This is achieved with a a DNN with smooth adaptive activation functions (DNN-SAAF). The DNN-SAAF consists of 4 FC dense layers. All dense layers are followed by the
softplus function with the exception of the last layer. Locally connected Smooth Adaptive Activation Functions (SAAFs) [
50] are used as the nonlinearity for the last layer. SAAFs consist of piecewise second order polynomials which can approximate any continuous function and are regularized under a Lipschitz constant to ensure smoothness. Overall, each function is locally connected and composed of 25 intervals between
to 1.
We tested different standard and adaptive activation functions, such as the parametric and non parametric rectifier linear unit (ReLU), hyperbolic tangent, sigmoid and fifth order polynomials. Nevertheless, we found stability problems and non optimal results when modeling nonlinear effects. Since each SAAF explicitly acts as a waveshaper, the DNN-SAAF is constrained to behave as a set of trainable waveshaping nonlinearities, which follow the filter bank architecture and are applied to the channel dimension of the modified frequency decomposition .
Finally, the last layer corresponds to the deconvolution operation, which can be implemented by transposing the first layer transform. This layer is not trainable since its kernels are transposed versions of . In this way, the back-end reconstructs the audio waveform in the same manner that the front-end decomposed it. The complete waveform is synthesized using a hann window and constant overlap-add gain.
3.2. Feedforward WaveNet Audio Effects Modeling Network—WaveNet
The
WaveNet architecture corresponds to a feedforward variation of the original autoregressive model. For a regression task, such as nonlinear modeling, the predicted samples are not fed back into the model, but through a sliding input window, where the model predicts a set of samples in a single forward propagation. The feedforward Wavenet implementation is based on the architecture proposed in [
9] and [
46]. The model is divided into two parts: stack of dilated convolutions and a post-processing block. The model is depicted in

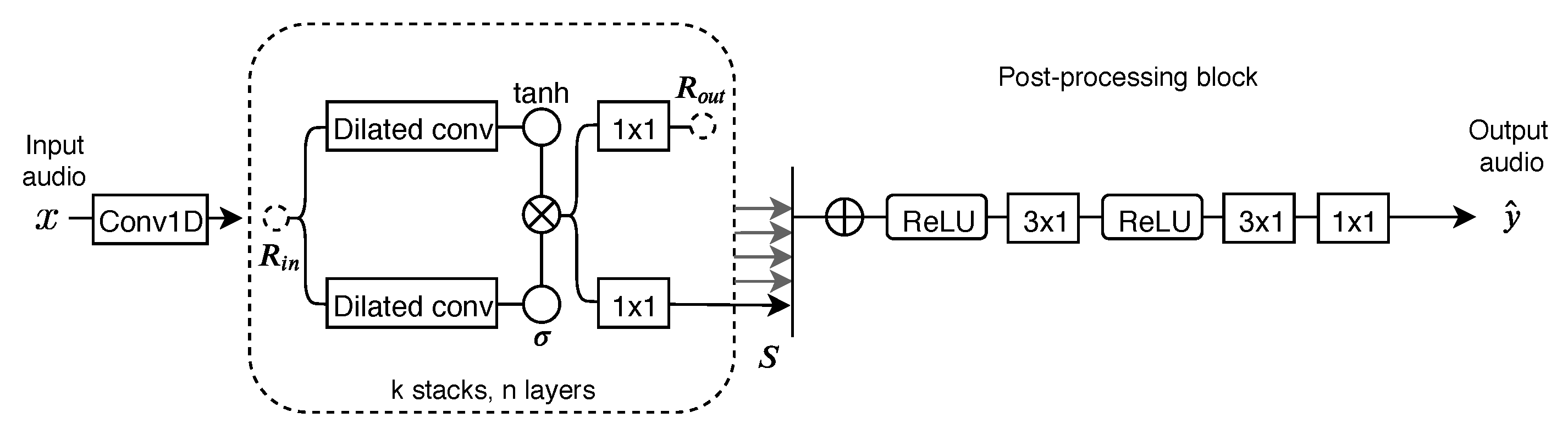

Figure 2 and its structure is described in
Table 3.
We use 2 stacks of 8 dilated convolutional layers with a dilation factor of 1, 2, …, 128 and 16 filters of size of 3. From
Figure 1, prior to the stack of dilated convolutions, the input
x is projected into 16 channels via a 3 × 1 convolution. This in order to match the number of channels within the feature maps of the dilated convolutions.
The
stack of dilated convolutions processes the input feature map
with 3 × 1 gated convolutions and exponentially increasing dilation factors. This operation can be described by:
Where
and
are the filter and gated convolutional kernels,
and
the hyperbolic tangent and sigmoid functions and ∗ and · the operators for convolution and element-wise multiplication. The residual output connection
and the skip conection
are obtained via a 1 × 1 convolution applied to
z. Thus,
is sent to the post-processing block and
is added to the current input matrix
, thus, resulting in the residual input feature map of the next dilated convolutional layer.
The post-processing block consists in summing all the skip connections followed by a ReLU. Two final 3 × 1 convolutions are applied to the resulting feature map, which contain 2048 and 256 filters and are separated by a ReLU. As a last step, a 1 × 1 convolution is introduced in order to obtain the single-channel output audio .
Since the receptive field of the model is of 1022 samples, in order to output frames of 4096 samples, the input presented to the model consists of sliding frames of 5118 samples.
3.3. Convolutional Recurrent Audio Effects Modeling Network—CRAFx
The
CRAFx model builds on the
CAFX architecture and is also divided into three parts: adaptive front-end, latent-space and synthesis back-end. A block diagram can be seen in
Figure 3 and its structure is described in detail in
Table 4. The main difference is the incorporation of Bi-LSTMs into the latent-space and the modification of the synthesis back-end structure. This in order to allow the model to learn nonlinear transformations with long temporal dependencies. Also, instead of 128 channels, due to the training time of the recurrent layers, this model uses 32 channels.
In order to allow the model to learn long-term memory dependencies, the input consists of the current audio frame
x concatenated with the 4 previous and 4 subsequent frames. These frames are of size 4096 and sampled with a hop size
samples. The input
is described by:
The adaptive front-end is exactly the same as the one from CAFx, but its layers are time distributed, i.e., the same convolution or pooling operation is applied to each of the 9 input frames. In this model, is the corresponding row in for the frequency band decomposition of the current input frame x. Thus, the back-end does not directly receive information from the past and subsequent context frames.
The
latent-space consists of three Bi-LSTM layers of 64, 32, and 16 units, respectively. Bi-LSTMs are a type of RNN that can access long-term context from both backward and forward directions [
51]. Bi-LSTMs are capable of learning long temporal dependencies when processing time series where the context of the input is needed [
52].
The Bi-LSTMs process the latent-space representation , which is learned by the front-end and contains information regarding the 9 input frames. These recurrent layers are trained to reduce the dimension of , while also learning the modulators . This new latent representation is fed into the synthesis back-end in order to reconstruct an audio signal that matches the modeling task. Each Bi-LSTM has dropout and recurrent dropout rates of and the first two layers have as activation function. Also, the nonlinearities of the last recurrent layer are locally connected SAAFs.
The
synthesis back-end accomplishes the reconstruction of the target audio by processing the frequency band decomposition
and the nonlinear modulation
. The new structure of the back-end incorporates a Squeeze-and-Excitation (SE) [
53] layer after the DNN-SAAF block (DNN-SAAF-SE).
The SE block explicitly models interdependencies between channels by adaptively scaling the channel-wise information of feature maps [
53]. Thus, we propose a SE block which applies a dynamic gain to each of the feature map channels and follows the structure from [
54]. It consists of a global average pooling operation followed by two FC layers. The FC layers are followed by
ReLU and
sigmoid activation functions accordingly. Since the feature maps of the model are based on time-domain waveforms, we incorporate an
absolute value layer before the global average pooling operation.
Following the filter bank architecture, the back-end matches the time-varying task by the following steps. First, an upsampling operation is applied to the learned modulators which is followed by an element-wise multiplication with the residual connection . This can be seen as a frequency dependent amplitude modulation to each of the channels or frequency bands of . This is followed by the nonlinear waveshaping and channel-wise scaled filters from the DNN-SAAF-SE block.
Thus, the modulated frequency band decomposition is processed by the learned waveshapers from the DNN-SAAF layers and further scaled by the frequency dependent gains from the SE layers. The resulting feature map can be seen as modeling the nonlinear short-term memory transformations within the audio effects modelling tasks. Then, is added back to , acting as a nonlinear feedforward delay line. The structure of the back-end is informed by the general architecture in which the modulation based effects are implemented in the digital domain, through the use of LFOs, digital filters and delay lines.
Finally, the complete waveform is synthesized in the same way as in CAFx, where the last layer corresponds to the transposed and non-trainable deconvolution operation.
3.4. Convolutional and WaveNet Audio Effects Modeling Network - CWAFx
We propose a new model based on the combination of the convolutional and dense architectures from
CRAFx with the dilated convolutions from
WaveNet. Since the Bi-LSTM layers in the former were in charge of learning long temporal dependencies from the input and context audio frames, we replace these recurrent layers with a feedforward WaveNet. As it has been shown that dilated convolutions outperform recurrent approaches when learning sequential problems [
55], such as in [
56], where Bi-LSTMs are successfully replaced with this type of temporal convolutions.
Thus, we investigate whether a latent-space based on stacked dilated convolutions can learn frequency-dependent amplitude modulation signals. The model is depicted in
Figure 4 and the structure of the
latent-space WaveNet is described in detail in
Table 5. The
adaptive front-end and
synthesis back-end are the same as the ones presented in
CRAFx.
The latent representation from the front-end corresponds to 9 rows of 64 samples and 32 channels, which can be unrolled into a feature map of 576 samples and 32 channels. Thus, we approximate these input dimensions with a latent-space WaveNet with receptive and target fields of 510 and 64 samples, respectively. We use 2 stacks of 7 dilated convolutional layers with a dilation factor of 1, 2, …, 64 and 32 filters of size 3. Also, we achieved better fitting by keeping the dimensions of the skip connections and by replacing the final 1 × 1 convolution with a FC layer. The latter has 64 hidden units followed by the tanh activation function and is applied along the latent dimension.
4. Experiments
4.1. Training
The training of the CAFX, CRAFx and CWAFx architectures includes an initialization step. This pretraining stage consists in optimizing a network formed solely by the convolutional and pooling layers of the front-end and back-end. This pretraining allows to have a better fitting when training for the nonlinear or time-varying tasks. Thus, within an unsupervised learning task, this network is trained to process and reconstruct both the dry audio x and target audio y. Only during this step the unpooling layer of the back-end uses the time positions of the maximum values recorded by the max-pooling operation.
Once the front-end and back-end are pretrained, the rest of the convolutional, recurrent, dense and activation layers are incorporated into the respective models, and all the weights are trained following an end-to-end supervised learning task. The WaveNet model is trained directly following this second step. Since small amplitude errors are as important as large ones, the loss function to be minimized is the mean absolute error between the target and output waveforms.
For both training steps,
Adam [
57] is used as optimizer and we use an early stopping patience of 25 epochs, i.e., training stops if there is no improvement in the validation loss. The model is fine-tuned further with the learning rate reduced by a factor of 4 and also a patience of 25 epochs. The initial learning rate is 1 × 10
and the batch size consists of the total number of frames per audio sample. On average, the total number of epochs is approximately 750. We select the model with the lowest error for the validation subset (see
Section 4.2). For the
Leslie speaker modeling tasks, the early stopping and model selection procedures were based on the training loss. This is explained in more detail in
Section 6.
4.2. Dataset
Raw recordings of individual 2-second notes of various 6-string electric guitars and 4-string bass guitars are obtained from the
IDMT-SMT-Audio-Effects dataset [
58]. We use the 1250 unprocessed recordings of electric guitar and bass to obtain the wet samples of the respective audio effects modeling tasks. The raw recordings are amplitude normalized and for each task the test and validation samples correspond to
of this dataset each. After the analog audio processors were sampled with the raw notes, all the recordings were downsampled to 16 kHz. The dataset is available online (
https://mchijmma.github.io/DL-AFx/).
4.2.1. Universal Audio Vacuum-Tube Preamplifier 610-B
This microphone tube preamplifier (preamp) is sampled from a 6176 Vintage Channel Strip unit. In order to obtain an output signal with high harmonic distortion, the preamp is overdriven with the following settings: gain dB, level 6, line impedance and high and low boost/cut 0 dB.
4.2.2. Universal Audio Transistor-Based Limiter Amplifier 1176LN
Similarly, the wildly used field-effect transistor limiter 1176LN is sampled from the same 6176 Vintage Channel Strip unit. The limiter samples are recorded with the following settings: attack 800 s, release 1100 ms, input level 4, output level 7 and ratio ALL. We use the slowest attack and release settings in order to further test the long-term memory of the models. The compression ratio value of ALL corresponds to all the ratio buttons of an original 1176 being pushed simultaneously. Thus, this setting also introduces distortion due to the variation of attack and release times.
4.2.3. 145 Leslie Speaker Cabinet
The output samples from the rotating
horn and
woofer of a
145 Leslie speaker cabinet are recorded with a
AKG-C451-B microphone. Each recording is done in mono by placing the condenser microphone perpendicularly to the
horn or
woofer and 1 meter away. Two speeds are recorded for each rotating speaker;
tremolo for a fast rotation and
chorale for a slow rotation. The rotation frequency of the
horn is approximately 7 Hz and
Hz for the
tremolo and
chorale settings, respectively, while the
woofer has slower speed rotations [
36].
Since the horn and woofer speakers are preceded by a 800 Hz crossover filter, we apply a highpass FIR filter with the same cutoff frequency to the raw notes of the electric guitar and use only these samples as input for the horn speaker. Likewise, for the woofer speaker we use a lowpass FIR filter to preprocess the raw bass notes. The audio output of both speakers is filtered with the respective FIR filters. This in order to reduce mechanical and electrical noise and also to focus the modeling tasks on the amplitude and frequency modulations. Also, the recordings are amplitude-normalized.
4.3. Objective Metrics
Three metrics are used when testing the models with the various modeling tasks. Since the mean absolute error depends on the amplitude of the output and target waveforms, before calculating this metric, we normalize the energy of the target and the output and define it as the energy-normalized mean absolute error (mae).
As an objective evaluation for the
Leslie speaker time-varying tasks, we propose an objective metric which mimics human perception of amplitude and frequency modulation. The modulation spectrum uses time-frequency theory integrated with the psychoacoustics of modulation frequency perception, thus, providing long-term knowledge of temporal fluctuation patterns [
59]. The modulation spectrum mean squared error (
ms_mse) is based on the audio features from [
60] and [
61] and is defined as follows:
A Gammatone filter bank is applied to the target and output entire waveforms. In total we use 12 filters, with center frequencies spaced logarithmically from 26 Hz to 6950 Hz.
The envelope of each filter output is calculated via the magnitude of the Hilbert transform and downsampled to 400 Hz.
A Modulation filter bank is applied to each envelope. In total we use 12 filters, with center frequencies spaced logarithmically from Hz to 100 Hz.
The Fast Fourier Transform (FFT) is calculated for each modulation filter output of each Gammatone filter. The energy is summed across the Gammatone and Modulation filter banks and the ms_mse metric is the mean squared error of the logarithmic values of the FFT frequency bins.
The evaluation for the nonlinear tasks with short-term and long-term memory corresponds to mfcc_cosine: the mean cosine distance of the Mel-frequency cepstral coefficients (MFCCs). This metric is calculated as follows:
A log-power-melspectogram is computed from the energy-normalized waveforms. This is calculated with 40 mel-bands and audio frames of 4096 samples and hop size.
13 MFCCs are computed using the discrete cosine transform and the mfcc_cosine metric is the mean cosine distance across the MFCC vectors.

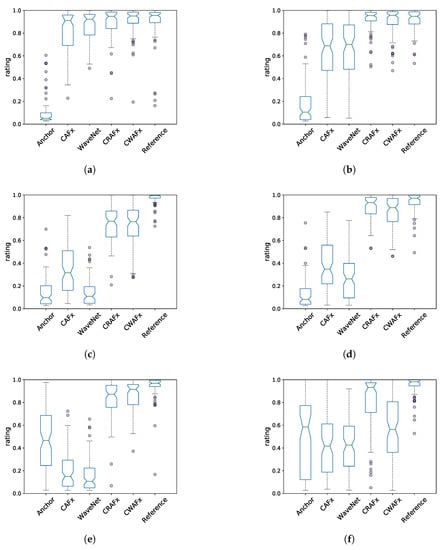

4.4. Listening Test
Thirty participants between the ages of 23 and 46 took part in the experiment which was conducted at a professional listening room at Queen Mary University of London. The Web Audio Evaluation Tool [
62] was used to set up the test and participants used
Beyerdynamic DT-770 PRO studio headphones.
The subjects were among musicians, sound engineers or experienced in critical listening. The listening samples were obtained from the test subsets and each page of the test contained a reference sound, i.e., a recording from the original analog device. The aim of the test was to identify which sound is closer to the reference, and participants rated 6 different samples according to the similarity of these in relation to the reference sound.
Therefore, participants were informed what modeling task they were listening to, and were asked to rate the samples from ‘least similar’ to ‘most similar’. This in a scale of 0 to 100, which was then mapped into a scale of 0 to 1. The samples consisted of a dry sample as anchor, outputs from the 4 different models and a hidden copy of the reference.
5. Results
The training procedures were performed for each architecture and each modeling task:
preamp corresponds to the vacuum-tube preamplifier,
limiter to the transistor-based limiter amplifier,
horn tremolo and
horn chorale to the
Leslie speaker rotating horn at fast and slow speeds, respectively, and
woofer tremolo and
woofer chorale to the rotating woofer at the corresponding speeds. Then, the models were tested with samples from the test subset and the audio results are available online (
https://mchijmma.github.io/DL-AFx/).

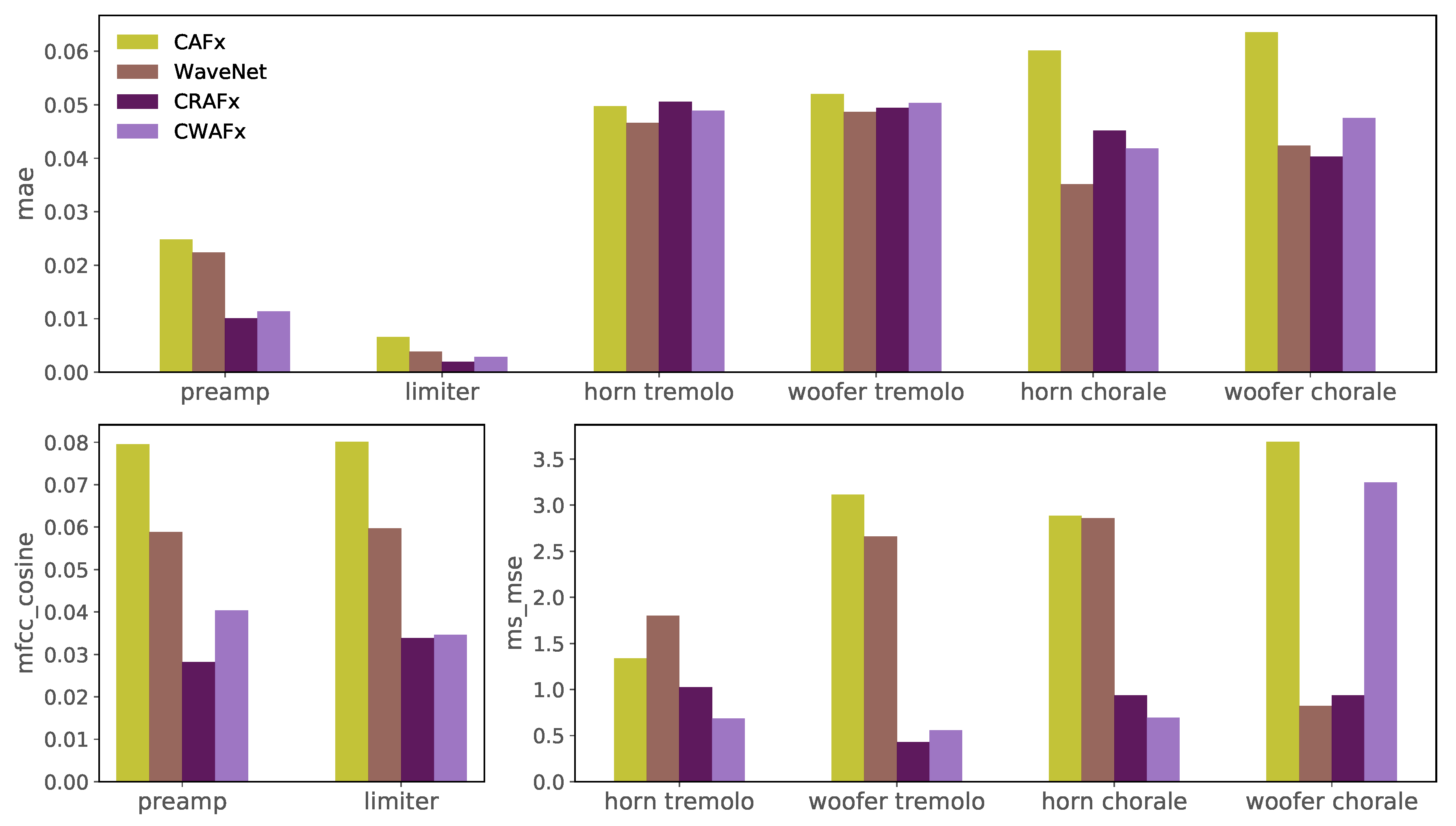

Figure 5 shows the
mae,
mfcc_cosine and
ms_mse for all the test subsets. It can be seen that the
mae models’ performance is similar within each modeling tasks with
limiter having the lowest error. Also,
CAFx presents the largest errors, with the
Leslie speaker chorale settings being the highest.
In terms of perceptually-based metrics such as the mfcc_cosine and ms_mse, the CRAFx and CWAFx models achieved the best scores. This with the exception of the woofer chorale task, where the CWAFx model did not manage to accomplish the task. Overall, CRAFx and CAFx correspond to the highest and lowest scoring models, respectively.
The results of the listening test for all modeling tasks can be seen in
Figure 6 as notched box plots. The end of the notches represents a
confidence interval and the end of the boxes represent the first and third quartiles. Also, the green lines illustrate the median rating and the purple circles represent outliers. In general, both anchors and hidden references have the lowest and highest median, respectively. The perceptual findings match closely the objective metrics from
Figure 5, since the architectures that explicitly learn long-temporal dependencies, such as
CRAFx and
CWAFx outperform the rest of the models. Furthermore, for the
woofer chorale task, the unsuccessful performance of the latter is also evidenced in perceptual ratings. This indicates that the latent-space WaveNet fails to learn low-frequency modulations such as the
woofer chorale rotating rate.
For selected test samples of the
preamp and
limiter tasks and for all the different models,

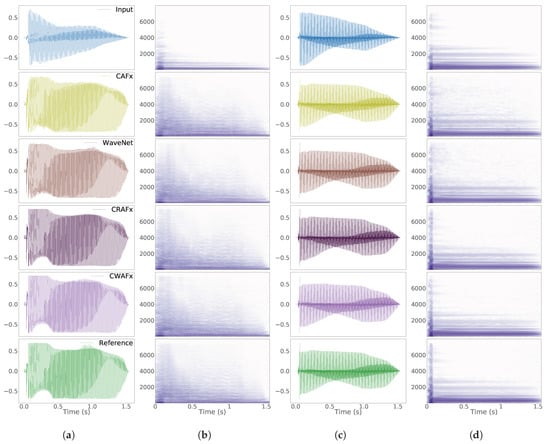

Figure 7 shows the input, reference, and output waveforms together with their respective spectrogram. Both in the time-domain and in the frequency-domain, it is observable that the waveforms and spectrograms are in line with the objective and subjective findings. To more closely display the performance of these nonlinear tasks,

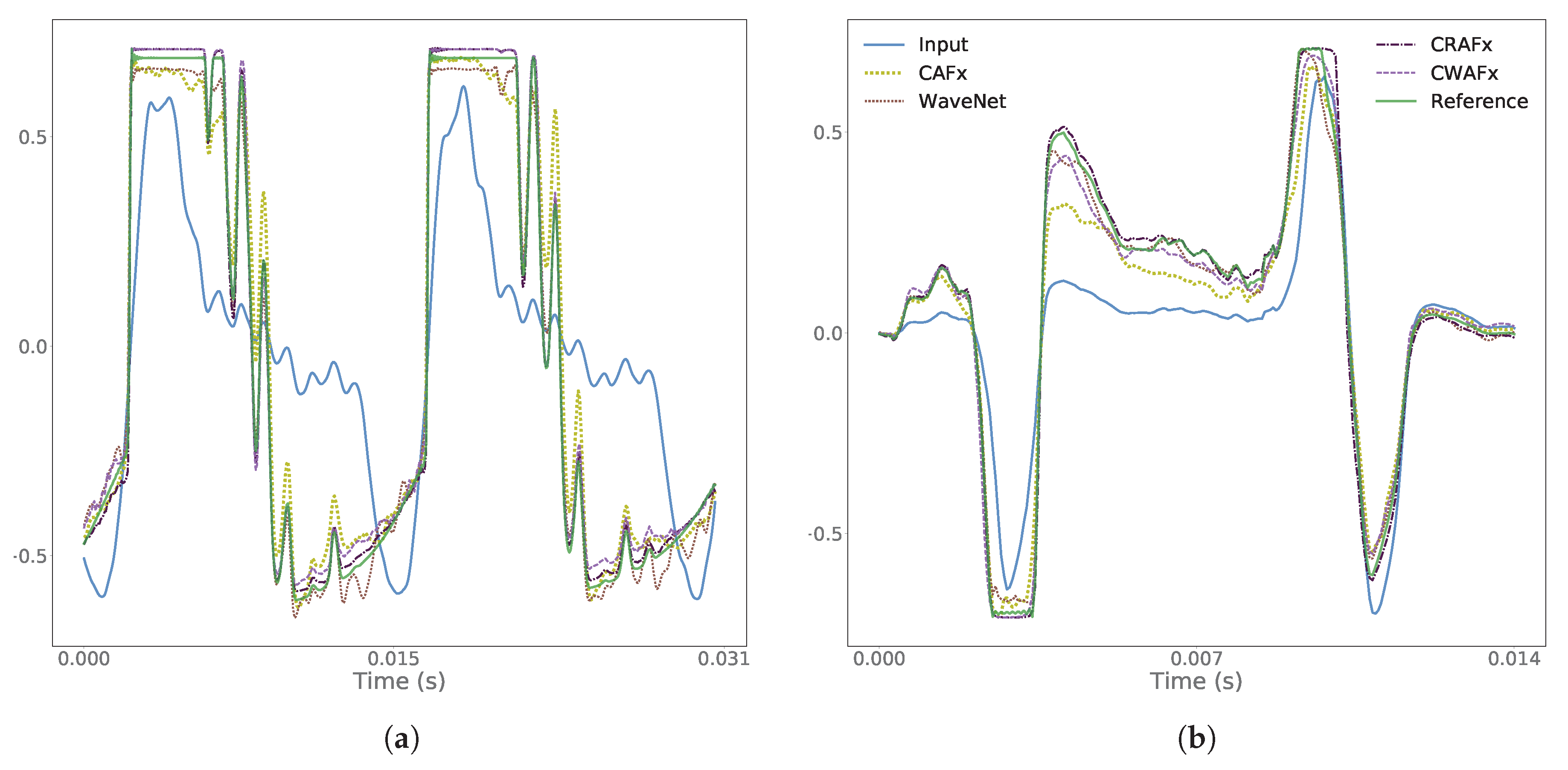

Figure 8 shows a segment of the respective waveforms. It can be seen how the different models match the waveshaping from the overdriven
preamp as well as the attack waveshaping of the
limiter when processing the onset of the test sample.
Regarding the
Leslie speaker modeling task,
Figure 9,
Figure 10,
Figure 11 and
Figure 12 show the different waveforms together with their respective modulation spectrum and spectrogram:

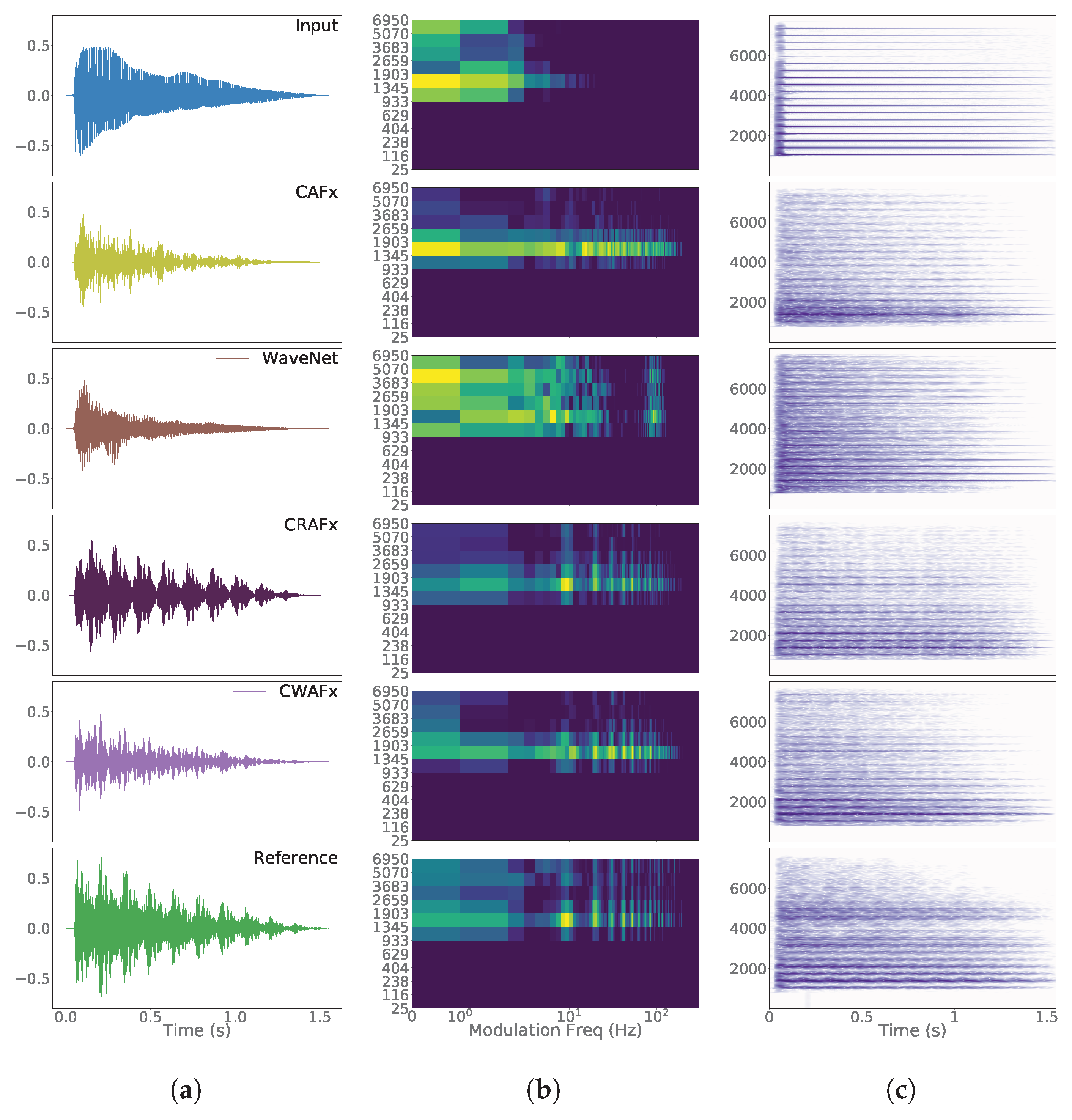

Figure 9 horn-tremolo,

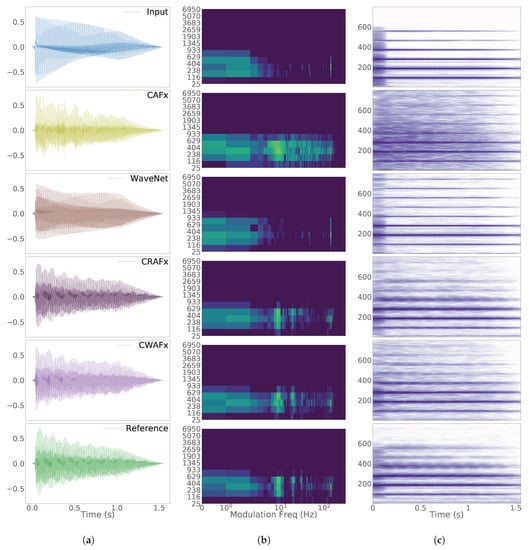

Figure 10 woofer-tremolo,

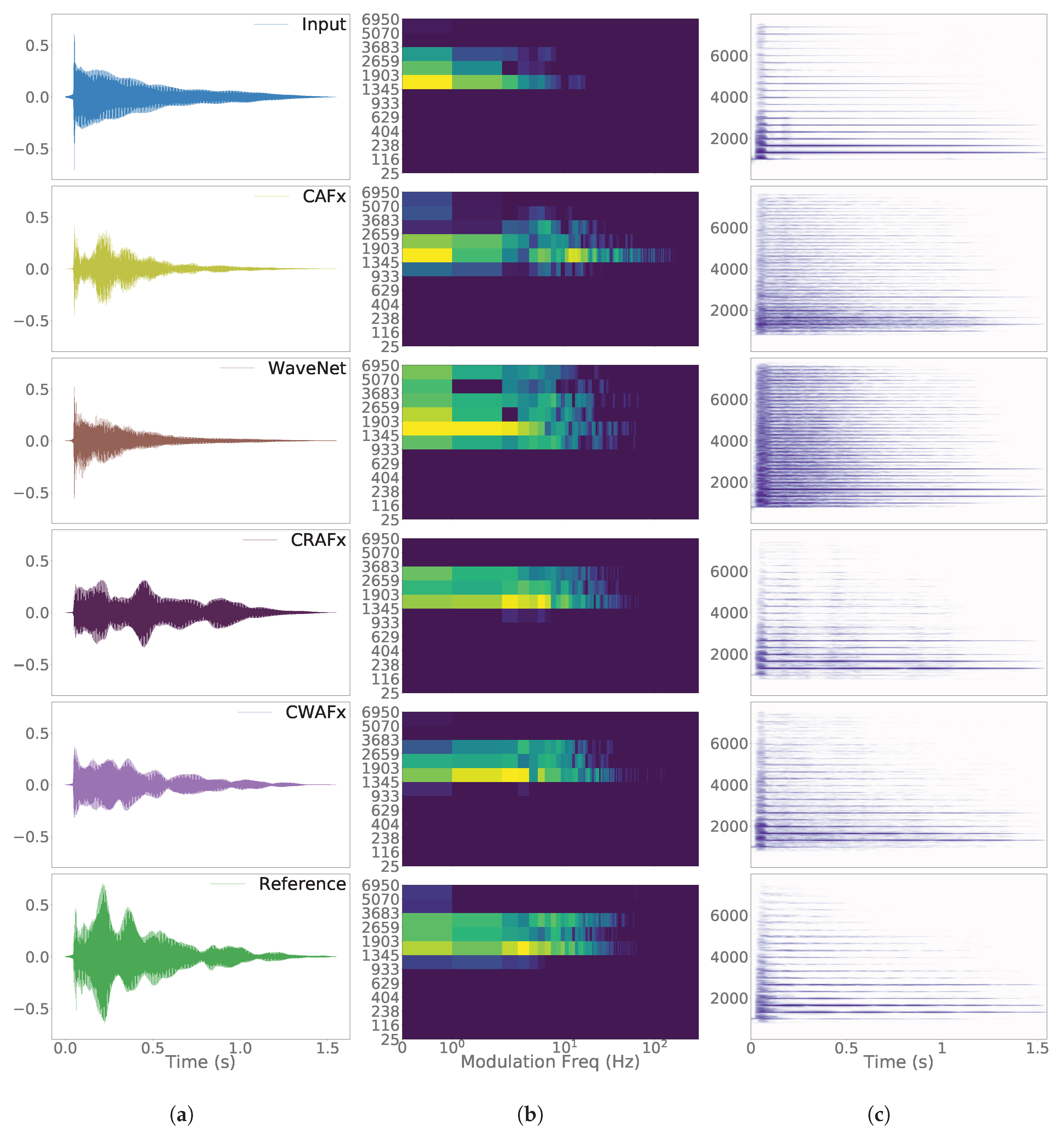

Figure 11 horn-chorale and

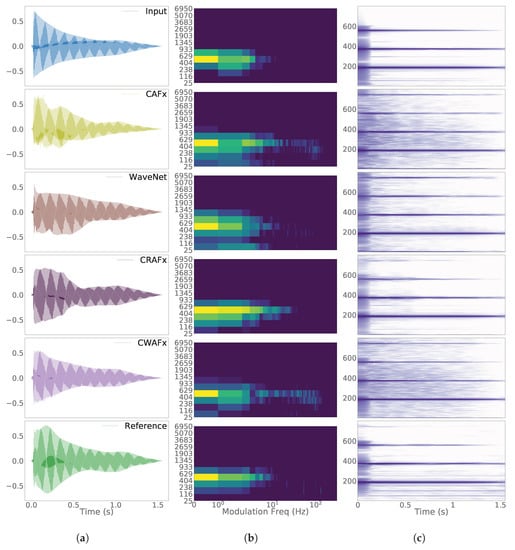

Figure 12 woofer-chorale. From the spectra, it is noticeable that
CRAFx and
CWAFx introduce and match the amplitude and frequency modulations of the reference, whereas
CAFX and
WaveNet fail to accomplish the time-varying tasks.
7. Conclusions
In this work, we explored different deep learning architectures for black-box modeling of audio effects. Using raw audio and a given audio effects modeling task, we explored the capabilities of end-to-end DNNs to process the audio accordingly. We tested the models when modeling nonlinear effects with short-term and long-term memory such as a tube preamp and a transistor-based limiter; and nonlinear time-varying processors such as the rotating horn and woofer of a Leslie speaker cabinet.
Through objective perceptual-based metrics and subjective listening tests we found that across all modeling tasks, the architectures that incorporate Bi-LSTMs or, to a lesser extent, latent-space dilated convolutions to explicitly learn long temporal dependencies, outperform the rest of the models. With these architectures we obtain results that are virtually indistinguishable from the analog reference processors. Also, state-of-the-art DNN architectures for modeling nonlinear effects with short-term memory perform similarly when matching the preamp task and considerably approximate the limiter task, but fail when modeling the time-varying Leslie speaker tasks.
The nonlinear amplifier, rotating speakers and wooden cabinet from the Leslie speaker were successfully modeled. Nevertheless, the crossover filter was bypassed in the modeling tasks since the dry and wet audio were filtered accordingly. This was due to the limited frequency bandwidth of the bass and guitar samples, thus, this modeling task could be further explored with a more appropriate dataset such as Hammond organ recordings.
As future work, a cost function based on both time and frequency can be used to further improve the modeling capabilities of the models. In addition, since the highest ranked architectures use past and subsequent context input frames, more research is needed on how to adapt these architectures to overcome this latency. Thus, real-time applications would benefit significantly from the exploration of end-to-end DNNs that include long-term memory without resorting to large input frame sizes and the need for past and future context frames. Also, an end-to-end WaveNet architecture with a receptive field as large as the context input frames from CRAFx and CWAFx could also be explored for the time-varying modeling tasks.
Modeling of artificial reverberators such as a plate or spring can also be explored. Moreover, as shown in [
9], the introduction of controls as a conditioning input to the networks can be investigated, since the models are currently learning a static representation of the audio effect. Finally, applications beyond virtual analog can be investigated, for example, in the field of automatic mixing the models could be trained to learn a generalization from mixing practices.
