Injury Biomechanics of a Child’s Head: Problems, Challenges and Possibilities with a New aHEAD Finite Element Model

1
Faculty of Mechanical Engineering, Wroclaw University of Science and Technology, Lukasiewicza 7/9, 50-371 Wroclaw, Poland
2
TEMA—Centre for Mechanical Technology and Automation, Department of Mechanical Engineering, University of Aveiro, Campus de Santiago, 3810-193 Aveiro, Portugal
3
Department of Neurosurgery, Wroclaw Medical University, 50-556 Wroclaw, Poland
4
Provincial Specialist Hospital in Legnica, Department of Neurosurgery, 59-220 Legnica, Poland
5
Faculty of Mechanical Engineering, University of Zielona Gora, Prof. Szafrana 4, 65-516 Zielona Gora, Poland
6
Lower Silesia Specialist Hospital of T. Marciniak—Department of Neurosurgery, Emergency Medicine Center, A.E. Fieldorfa 2, 54-049 Wroclaw, Poland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(13), 4467; https://doi.org/10.3390/app10134467
Submission received: 3 June 2020 / Revised: 22 June 2020 / Accepted: 23 June 2020 / Published: 28 June 2020
(This article belongs to the Special Issue In-Silico Methods in Musculoskeletal Biomechanics and Biotribology)

Abstract

:
Traumatic brain injury (TBI) is a major public health problem among children. The predominant causes of TBI in young children are motor vehicle accidents, firearm incidents, falls, and child abuse. The limitation of in vivo studies on the human brain has made the finite element modelling an important tool to study brain injury. Numerical models based on the finite element approach can provide valuable data on biomechanics of brain tissues and help explain many pathological conditions. This work reviews the existing numerical models of a child’s head. However, the existing literature is very limited in reporting proper geometric representation of a small child’s head. Therefore, an advanced 2-year-old child’s head model, named aHEAD 2yo (aHEAD: advanced Head models for safety Enhancement And medical Development), has been developed, which advances the state-of-the-art. The model is one of the first published in the literature, which entirely consists of hexahedral elements for three-dimensional (3D) structures of the head, such as the cerebellum, skull, and cerebrum with detailed geometry of gyri and sulci. It includes cerebrospinal fluid as Smoothed Particle Hydrodynamics (SPH) and a detailed model of pressurized bringing veins. Moreover, the presented review of the literature showed that material models for children are now one of the major limitations. There is also no unambiguous opinion as to the use of separate materials for gray and white matter. Thus, this work examines the impact of various material models for the brain on the biomechanical response of the brain tissues during the mechanical loading described by Hardy et al. The study compares the inhomogeneous models with the separation of gray and white matter against the homogeneous models, i.e., without the gray/white matter separation. The developed model along with its verification aims to establish a further benchmark in finite element head modelling for children and can potentially provide new insights into injury mechanisms.

Graphical Abstract

1. Introduction

Brain injuries are the leading cause of death among the paediatric population. Surveillance data reveals that 1 in every 20 emergency department presentations at paediatric hospitals is for a TBI (traumatic brain injury), making TBIs more common than burns or poisonings. For children, such injuries represent a common interruption to the normal growing up [1].
Statistics show that 95% of all children who have suffered from TBI survive. In contrast, only 65% of the children who have experienced severe TBI survive. The highest mortality occurs in children who are less than 2 years old. TBI mortality rates are gradually decreasing to the age of 12, and then the second peak in mortality is observed at the age of 15 years [2].
TBI overtakes other common paediatric fatal diseases such as congenital malformations and oncological disease [3,4]. Recent studies have shown that the mortality rate of TBI was as high as 8.99 per 100,000 population by the end of the 20th century. It began to decrease in the next 15 years to 4.42 and since then, unfortunately, it increased up to the ratio of 5.17 [5]. Thanks to the implementation of safety regulations, passive safety devices and the development of modern treatment methods, the number has decreased, yet it still requires action for further improvement [6,7,8,9]. TBI can cause a serious burden to a child’s life and even in cases of good recovery, long-lasting behavioural problems after paediatric TBI can be found in up to 33% of the survivors [3,10,11]. It is not always evident if these long-lasting posttraumatic changes are related to brain contusions or rather microinjuries to white matter structure [12,13]. TBI also comes with higher treatment costs than any other kind of trauma, and typically requires a longer time of treatment and rehabilitation. Patients more often need repeated medical assistance and a higher number of hospital readmissions [14].
Apart from prevention of injuries, a method in case of severe medical conditions shall be developed to enable medical professionals to have an early selection of patients who are at higher risk of unfavourable progression of the disease. These patients would require intensive care and monitoring from admission to hospital. Biomechanical simulations based on the finite element method can be implemented to reconstruct the probable mechanism of injury [15]. However, as it provides information of value in case of legal aspects, from daily medical practice, it is more important to provide a reliable prognosis. Biomechanical testing may provide information on future trauma development and pinpoint possible points of weakness after injury [16]. To foresee how the injury will develop is of utmost importance and provides information as to whether intense clinical and radiological monitoring may be necessary.
It should be noted that TBI in children is a serious social problem. At the same time, since there is limited data obtained from radiological imaging (due to invasiveness and limited use of computed tomography in the children population), recognition of mechanics of brain tissue damage is somewhat hindered. Computed Tomography (CT) is rarely used in the infant population because it induces high-dose radiation and consequently becomes almost the last resort.
At the same time, it should be emphasized that one of the best methods for biomechanical assessment of human tissues is experimental research. However, it is obvious that obtaining human cadaveric specimens, in particular children, is practically impossible or ethically biased. Animal studies are an alternative. Due to some similarity in the structure of some brain tissues, pig specimens are one of the most frequently used samples. Nevertheless, they do not allow a complete reference to the human system. In addition, they do not provide a comprehensive insight into the tissues’ interactions under mechanical loads. Hence, numerical models are currently one of the best solutions for biomechanical evaluation. However, a literature review shows that there is presently a serious gap in the numerical head models of young children. This is due to the limited availability of medical data of young children without pathologies. Moreover, the development of a child is highly nonlinear, among others biased by genetics and its environment. The uncertainty of where to find the gathered data within the broad range of the regional population increases the difficultness of validation or even makes it impossible.
Therefore, in this work, the authors present current problems, challenges, and opportunities for modelling the head of a small child. Bearing in mind the current knowledge in the field of numerical modelling, the authors present their original head model of a small child based on the finite element (FE) approach. The model of a 2-year-old (2yo) child’s head is an outcome of interdisciplinary research and it is a part of a holistic project, aHEAD (advanced Head models for safety Enhancement and medical Development [17])—thus, it bears the name aHEAD 2yo. A method for verifying the developed model was also proposed. The developed model along with its verification aims to establish a further benchmark.

2. Injury Biomechanics of Small Children

2.1. Pediatric Anthropometry

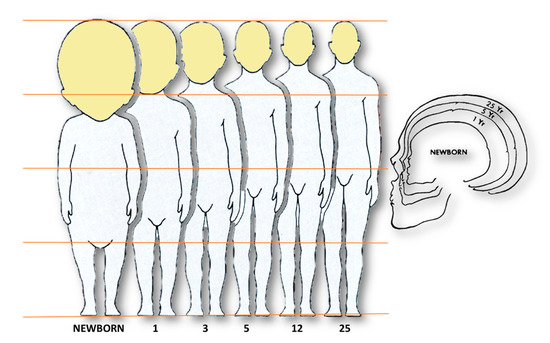

The proportions of individual body regions change significantly from birth to adult age [18,19]. The shape of the head changes from birth to adulthood (Figure 1). For an infant, the face is a very small part of the total head volume. The facial portion of the head at birth is smaller than the cranium, having a face-to-cranium ratio of 1:8 compared to the ratio of 1:2.5 for adults [20]. Interestingly, at birth, the head is often more than 1:4 of the total body length, whereas in the adult, it is approximately 1:7.

2.2. Injury Types

The most common mechanisms of brain injury include falls, collisions, projectiles, and punches [22,23]. Falls are the most common mechanism of TBI [24]. Short-distance falls are a common cause of trauma in young children, and an important topic in forensic science in cases of child abuse. This kind of injury results in impacts with high-magnitude and short-duration linear and rotational acceleration [25]. Low compliance of hard impact surfaces (e.g., ground) must be taken into consideration.
Coats et al. [26] showed that coronal rotation in similar cases was minimal and axial head rotation resulted in higher peak angular accelerations than sagittal rotation, most probably due to the convexity of the occipital region and neck’s laxity. Ibrahim et al. [27] pointed out that infants sustained more skull fractures than toddlers (71% versus 39%) from short-distance falls. These resulted in primary intracranial injury without soft tissue or skull injury in infants (6%) and toddlers (16%). Sullivan et al. [28] indicated fall height and impact site as crucial conditions for predicting the extent of the injury. Impact on occipital and parietal areas produced greater angular velocities as the head rebounded after impacts.
In comparison with falls and collisions, brain injuries induced by punches and projectiles are characterized by lower effective mass and higher velocity [29]. Moreover, the compliance of the human fist is greater than the compliance of hard surfaces [30]. Therefore, the velocity of the impacting object and the impacted region have a determining role in such low-mass events. For example, the further the impact lands outside of the centre of gravity, the greater the rotational acceleration will be, which is a significant issue in most TBIs [31,32].
Intracranial haemorrhagic trauma is a result of short-duration events (5 ms) [28]. Overall, contusions and epidural hematomas (EDH) are more related to linear acceleration, while subdural hematomas (SDH) and traumatic subarachnoid haemorrhage are more closely related with rotational acceleration [33]. Diffuse axonal injury (DAI) is also rotationally dominant and present especially in high acceleration-deceleration, with head rotation impacts such as traffic accidents [34,35,36,37]. In a paper by Ibrahim et al. [38], scaling rotational accelerations from the 4-week-old toddler piglets to the 5-day-old infant animals by brain mass alone resulted in more severe subarachnoid haemorrhage and white matter injury in the younger group. This is probably due to greater stiffness of the younger brain, which requires three times lower strain to produce a similar haemorrhage [38].
Frequency of TBI in up to 4-year-old patients is twice the rate of TBI in the next most affected population (15–24 years old) [39]. Most of these injuries are limited to mild TBI, mainly concussions, which can be defined as a clinical syndrome of biomechanically induced alteration of brain function, typically affecting memory and orientation, which may involve loss of consciousness. The occurrence of concussion in children under 15 years old is 692/100,000 [39]. Most of the patients with mild TBI do not present symptoms that necessitate further diagnostics, e.g., computed tomography (CT), therefore most radiological data from the paediatric population comes from patients diagnosed with a medium to severe trauma. Space occupying lesions, which are the result of primary injury of brain parenchyma and injuries of major intracranial vessels, fall into this category.
Epidural bleeding, which is usually a result of middle meningeal artery rupture, is more common in younger people than in the elderly. In children, epidural hematomas usually have a less severe course than in young adults, and the hematomas tend to be relatively smaller in the paediatric population. SDH is quite frequent in infants—especially in those suffering from domestic abuse [40]. In children, similarly to adults, bridging veins are the origin of the bleeding. On the other hand, in a paper by Raul et al. [40], in contrary to the elderly population, it was shown that enlargement of subdural space in infants does not have a significant impact on the risk of SDH. Posttraumatic subarachnoid haemorrhages are also commonly seen in paediatric patients.

2.3. Cases of Medical Injuries

Minor injuries come as about one-fifth of cases referring to emergency departments [41]. CT scanning cannot and should not be used in every case because of radiation exposure. But, even when applied, the result cannot rule out all the uncertainty. Figure 2 presents two selected clinical cases depicting the brain hematoma and skull fractures.

3. Numerical Models of Paediatric Heads—State-of-the-Art

Biomechanical systems of the human body are very difficult to model due to the complex geometry, heterogeneity, nonlinear behaviour of the materials involved and complex boundary conditions [42,43,44,45]. It is particularly difficult to map the biomechanics of the head of a small child. This difficulty is caused by a rapid change in the head geometry and changes in the mechanical properties of the child’s bone and tissue structures with age. Due to the tightened legal regulations and very rare availability of paediatric corpses, determining the mechanical parameters of tissues for this age group is considerably difficult. This, in turn, is the main limiting factor in FE (finite element) models of paediatric heads. Table 1 summarizes the current models of paediatric heads depicted in the literature.
To represent a paediatric head numerically, appropriate geometry, material properties, and boundary conditions need to be defined. Analysing the current state of scientific articles and comparing to adult versions, the low number of paediatric is noticeable.

3.1. Validation and Verification of Computational Paediatric Models

Verification and validation of developed numerical models is the final possibility for researchers to prove and state the applicability and meaningfulness of their work by reflecting and presenting the real biological response. In a different outcome, this step might also reveal a gap, which helps to realise and point out an approach’s limitations. The general path for this is based on an accurately represented geometry in the discrete model with an accordingly approved mesh quality. A consecutive step is the implementation of case-specific information such as boundary conditions and mechanical properties. This is based on both appropriate testing procedures and specimens. The verification or validation of paediatric numerical models faces at this point a significant limitation, which is found in two aspects: the availability of specimens as well as clear experimental data for comparison. As mentioned, the highly non-linear nature of development of a child can be found also in the material properties. Consequently, it is the missing dataset over the entirety of the population which intensifies the problem to define an age-dependent average for material properties in this early stage of life. Moreover, while real-world experiments are strongly connected to ethical questions, the rarely available specimen tend to be from the upper range of the age span. In a consequence, real-world accident data and reconstruction by human surrogates is widely used as a substitutional path. Nonetheless, biofidelity might be not given by this approach in detail and covers partially the clear view on the basing injury mechanisms. Furthermore, scaling adult anthropometry for paediatric models has been applied many times in FEHMs, but is denied for the clear research about paediatric-specific injury biomechanics [52]. Nonetheless, the bottleneck is established by the missing or limited evidential material and experimental data over the entirety of the population. Therefore, researchers proposed a substitutional approach. Thereby, the strict requirement of implementing an appropriate in-detail geometry and quality within the mesh is accepted as a base, meaning that further developed models should decrease the current simplifications. Then, with an intense focus on the appropriate interpretation and discussion of the simulative results, a contribution to the scientific research can be achieved. The rigorous comparison of the achieved simulations to real-world (accident) cases is another supportive asset.

3.2. Mechanical Properties of the Brain Tissue Structures

During biological human development, the structures undergo significant physical changes. Therefore, the mechanical properties of brain tissues in individual age groups may show significant differences. These can be most visible up to an age of six [53]. Currently, there is little data in the literature regarding differences in mechanical properties in individual age groups during child development. The studies, which have been presented so far, have shown that brain tissue is a very soft non-linear viscoelastic solid material, with a very low linear viscoelastic strain limit in the range of 0.1–0.3%. In addition, brain tissue is strain rate-dependent. This soft tissue increases its stiffness as the deformation rate increases [54,55]. Depending on the type of load, tissue damage occurs at 25–100% strain. However, it should be noted that still, little is known about the mechanical properties of brain tissue due to inconsistent data presented in the current literature. Although it is known that brain tissue is anisotropic, the anisotropy of the axonal fibre bundle of white matter has not been comprehensively established. Between grey and white matter, there might be some differences in mechanical properties, which is associated with their structural difference (Table 2). Grey matter contains a densely packed network of neural cell bodies and associated glial cells. In contrast, white matter contains myelinated axonal tracts, relatively few neuronal cell bodies, and a supporting environment of glial cells.
In addition, some researchers have shown that there are regional differences in mechanical properties in individual regions. Conversely, it should be kept in mind that between individual authors, there are significant differences in the description of the mechanical properties of brain tissues [56,57,58]. This phenomenon may be associated with a different methodological approach, including the freshness and hydration of the tested samples.
Table 2. Brain tissue composition [59,60,61].
Table 2. Brain tissue composition [59,60,61].
Water (wt%)Ash (wt%)Lipid (wt%)Protein (wt%)
Whole brain76.3–78.5 (77.4)1.4–2 (1.5)9–178–12
Grey matter83–861.55.38–12
White matter68–771.41811–12
It should be noted that few scientists have studied the mechanical properties of brain tissue depending on age. Nevertheless, they showed that the mechanical properties of the tissue differ significantly between age groups. The average weight of a human brain after birth is usually 350 to 450 g and continues to grow rapidly up to about 2 years. Prange and Margulies [57] took fresh samples of the cerebral cortex of grey matter from a 5-year-old and tested it within 3 h of its collection. For comparison, this cerebral cortex was also collected from an adult. This study showed that the brains of 5-year-olds were stiffer than the brains of adults.
At the same time, Sack et al. [62] performed magnetic resonance elastography (MRE) on using in vivo samples and found that the brain tissue modulus decreases with age, from early adulthood to old age. It is worth noting that the authors came to similar conclusions by conducting animal experiments and comparing results from young and older individuals. Significantly higher brain tissue stiffness was observed in juveniles [57,63,64]. However, it should be noted that the mechanical properties between different animal species can differ significantly. Nevertheless, the differences between the measured properties of brain tissue have been discussed for decades (Table 3). Some studies show immediate significant decreases in brain stiffness after death [65,66,67,68].

4. Materials and Methods

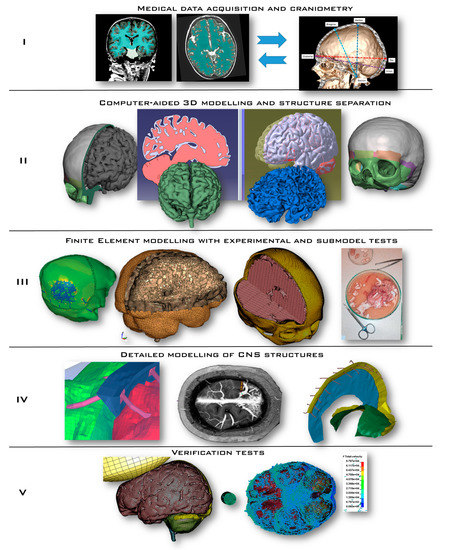

Several stages are necessary to develop a high-fidelity numerical model of the human head, from medical imaging to geometry segmentation, ending with the development of the FE model and its validation, as seen in the literature [72,73,74,75,76]. Depending on the degree of complexity and desired accuracy, this methodology can go from an almost straightforward task to an extremely time-consuming work, e.g., when aiming for the detailed modelling of the central nervous system (CNS) structures. In this section, the authors present their numerical model of a young child’s head. Its development was carried out in five well-defined stages (Figure 3):
I
Medical data acquisition and craniometry verification/measurement
II
Computer-aided design—3D modelling and structural segmentation/separation
III
Finite element modelling supported on experimental and sub-model testing
IV
Detailed model of CNS structures
V
Verification tests
The first stage consists of gathering medical data and extracting the regions of interest for geometry generation. For a model to fit a wider population, it needs to respect the mean craniofacial anthropometric values. Therefore, in this work, 12 medical imaging sets from healthy individuals were considered and their craniometry assessed, selecting the case with a higher degree of similarity with the regional mean values. The selected dataset also included the contrast series and the angiographic CT series. This series includes at least 2/3 of the head within the scan, which would help recognize cerebral vessels. The main structures were segmented, and their geometry extracted. It is very important to add that the chosen DICOM (Digital Imaging and Communications in Medicine) set was based only on the MRI (Magnetic Resonance Imaging). Unlike for adults, where CTs are a common clinical approach, the MRI is a preferable medical approach for young children. However, extracting bone structures such as a skull from an MRI is a much more time-consuming procedure compared to the CT-based extraction or a combined MRI-CT approach. At this point, it should be noted that several years of intensive research have not been successful in establishing a generally accepted and undoubtedly functioning segmentation algorithm that could automatically perform an MRI-based task for the brain instances. Therefore, mainly manual methods, as preferred in practice, are still used [77].

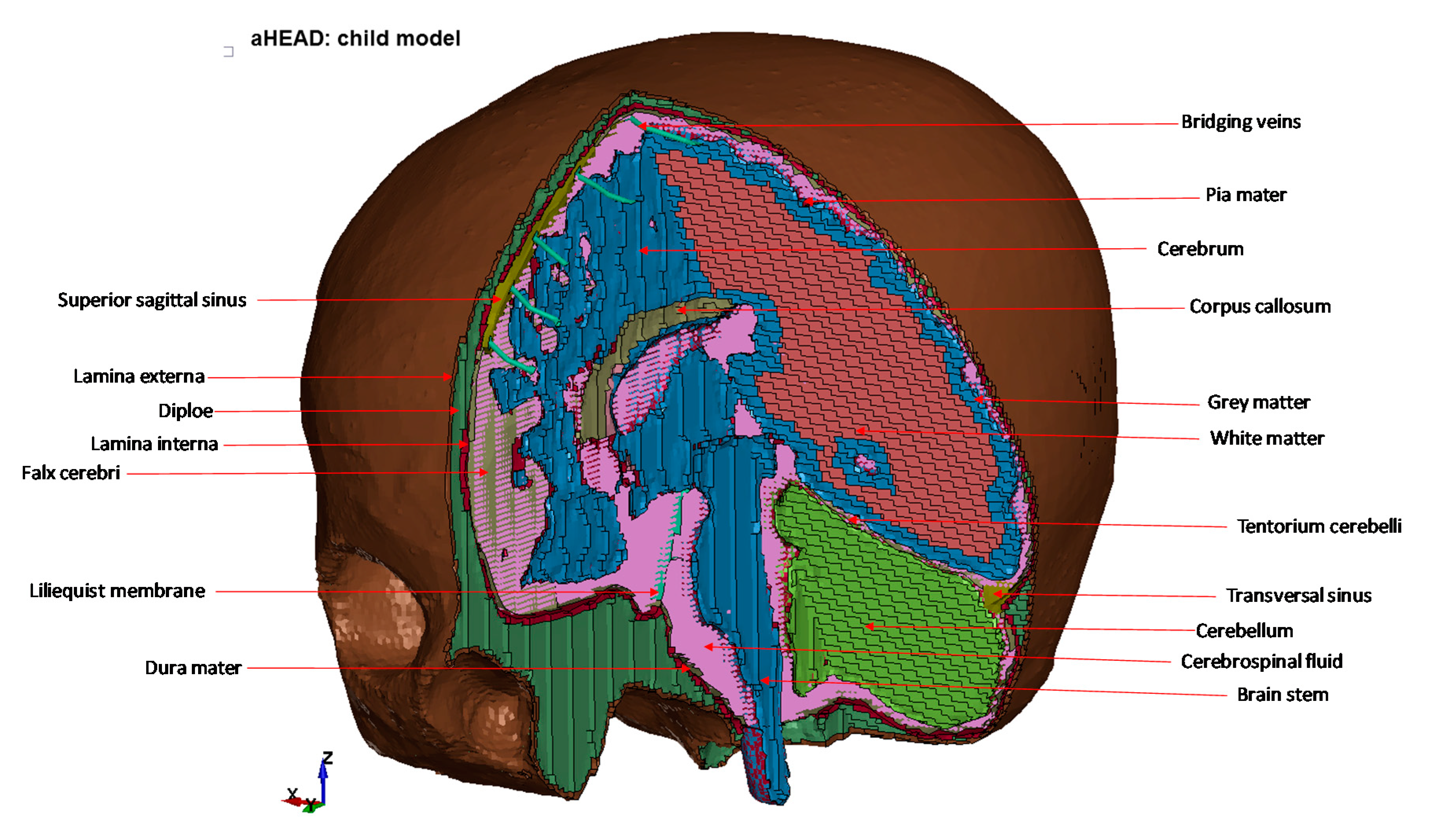

In stage II, with the aid of CAD (computer-aided design) tools, CATIA and Meshmixer software, 3D geometries were developed for the skull and brain, including their structural segmentation (e.g., white versus grey matter). These 3D geometries were then imported to a FE software to model the referred head structures (stage III).
In stage III, a mesh-sensitive study is carried out, varying the type of element and their size. Triangular and tetrahedral elements, commonly used in FE head models, are associated with poor performance issues, such as the constant-strain triangle [78,79], which is an issue in head modelling due to the existence of strain gradients. Therefore, there is the necessity of employing quadrilateral and hexahedral elements to eliminate artificial behaviours, which is not an easy task due to the complexity of some intracranial structures, leading meshing algorithms to fail in its generation. In this work, novel algorithms were used for the generation of high-quality, entirely hexahedral meshes, including both soft and hard tissues. The same arguments are valid for fluid modelling, which is usually oversimplified by employing solid tetrahedral or hexahedral elements. The aHEAD model employs fluid–structure interaction (FSI) by smoother particle hydrodynamics (SPH), being able to simulate the CSF (cerebrospinal fluid) flow during an impact, which is not properly done with conventional models with solid elements and simple (n = 1) hyper-elastic material models [80].
Additionally, sub-models were developed to understand the feasibility of the modelling strategy of each component and the constitutive modelling strategy. These sub-models also make it possible to efficiently identify possible modelling issues that would be hard to diagnose in the full model. As already referred, experiments were also carried out in order to identify suitable material models.
The penultimate stage IV was dedicated to the modelling of several intracranial structures of the CNS. This stage demands meticulous actions in order to guarantee precise modelling of intracranial structures, such as the superior sagittal sinus (SSS) and the bridging veins (BV) as well as the falx cerebri and tentorium cerebelli. The final aHEAD 2-year-old child model is depicted in Figure 4.
The final stage V, due to the inexistence of experimental child head impact data for the numerical model validations, consists in a verification stage by simulating several tests where loading conditions, objects and impact regions are varied to impose several impact conditions, such as different degrees of strain rate on the brain tissue.

4.1. Materials and Nomenclature

Analysing publications in the field of head numerical modelling and head biomechanics during road accidents, Global Human Body Models Consortium (GHBMC) and Total Human Model for Safety (THUMS) models are the most popular [81,82]. Even though they are representatives of the group of full-body response models, the grade of details is high concerning their implemented head models. Moreover, unlike other models available in the literature, more recent versions of these models have a division into grey and white matter. Medical cases show that most brain damage occurs at the interface between grey matter and white matter, e.g., diffuse axonal injury. This is because these structures have a different structure, which in turn must affect their mechanical properties.
Due to the fact that currently children’s models presented in the literature do not distinguish between grey and white matter, the authors based their model on the material properties available for global models GHBMC and THUMS as well as Ogden’s model.
The approach of this study is to use the above models of materials for either homogeneous brain structure —i.e., without white/grey matter separation—or inhomogeneous brain structure —i.e., with white (W) and grey (G) matter. Thus, for a homogeneous brain model, the whole brain is modelled by the white matter (W), whereas for an inhomogeneous model, the authors used different parameters for both grey and white matter (W/G).
Therefore, the nomenclature of the materials used in this publication is as follows:
  • Hyper-elastic Ogden Rubber is MAT_HYPERELASTIC (W)
  • Viscoelastic GHBMC is MAT_VISCOELASTIC 1 (W or W/G)
  • Viscoelastic THUMS is MAT_VISCOELASTIC 2 (W or W/G)
The mechanical properties used for this study are tabularized in Table 4, whereas are: ν—Poisson’s ratio, G0—shear modulus, G1—Long-time (G∞) shear modulus, Mu1—first shear modulus, and alpha-1—first exponent for Ogden Rubber (Hyper-elastic) model material in LS-DYNA code [81].

4.2. Boundary Conditions

The boundary conditions for the simulations were set following Hardy et al. [93], where the measurements were recorded using a 6-axis accelerometer, which registered both linear and angular acceleration. The output data from the accelerometer, with six different acceleration functions in time, was used in the numerical simulations as the input load function applied to the skull’s centre of mass (Figure 5). The geometric and material verifications were carried out based on the correlation with Hardy’s research, which was based on the measurement of the relative displacement of the brain in relation to the skull. The test with the identifier C755-T2 was selected for this research due to the circumstance that it has been widely used in literature for Finite Element Head Models (FEHMs).
In this study, the effect of the selection of the material model on the relative displacement of the brain was investigated. The intracranial motion was compared between homogeneous (just white matter—W) and inhomogeneous brain (different mechanical properties for white and grey matters—W/G). Importantly, all markers (FE nodes) except for a5, are located in the white matter of the brain.

5. Results and Discussion

We commenced five simulations, where the model was subjected to the same acceleration loading in accordance with the C755-T2 test:
2 simulations for MAT_VISCOELASTIC 1 (W and W/G)
2 simulations for MAT_VISCOELASTIC 2 (W and W/G)
1 simulation for MAT_HYPERELASTIC (W), as the data for grey matter is missing in the literature for this model of material.
As the craniocerebral injuries arise as a result of the relative displacement of the brain relative to the skull, we hypothesized that depending on the mechanical properties of the brain tissue, the displacements may be significantly different. In practice, this can change the degree of brain tissue damage. Thus, the study presents to what extent the application of the material model affects the displacement of brain tissue. At the same time, the effect of grey matter and white matter separation in the model on brain displacement is investigated.
The research results showed that depending on the material model used, the brain kinematics are different. This phenomenon can be observed in Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11, where displacements as a function of time for different groups of materials is presented.
The obtained results for MAT_VISCOELASTIC 1 showed that taking into account the distinction in the numerical model of white and grey matter may have a significant impact on brain displacement, as shown in Figure 10, which depicts the markers placed in the brain model with only white matter (W) and the brain model with the separation between white and grey matter (W/G). It should be noted that in this simulation, both angular and linear velocities were implied as the mechanical loading. At this point, it should be mentioned that angular acceleration is the main cause of DAI.

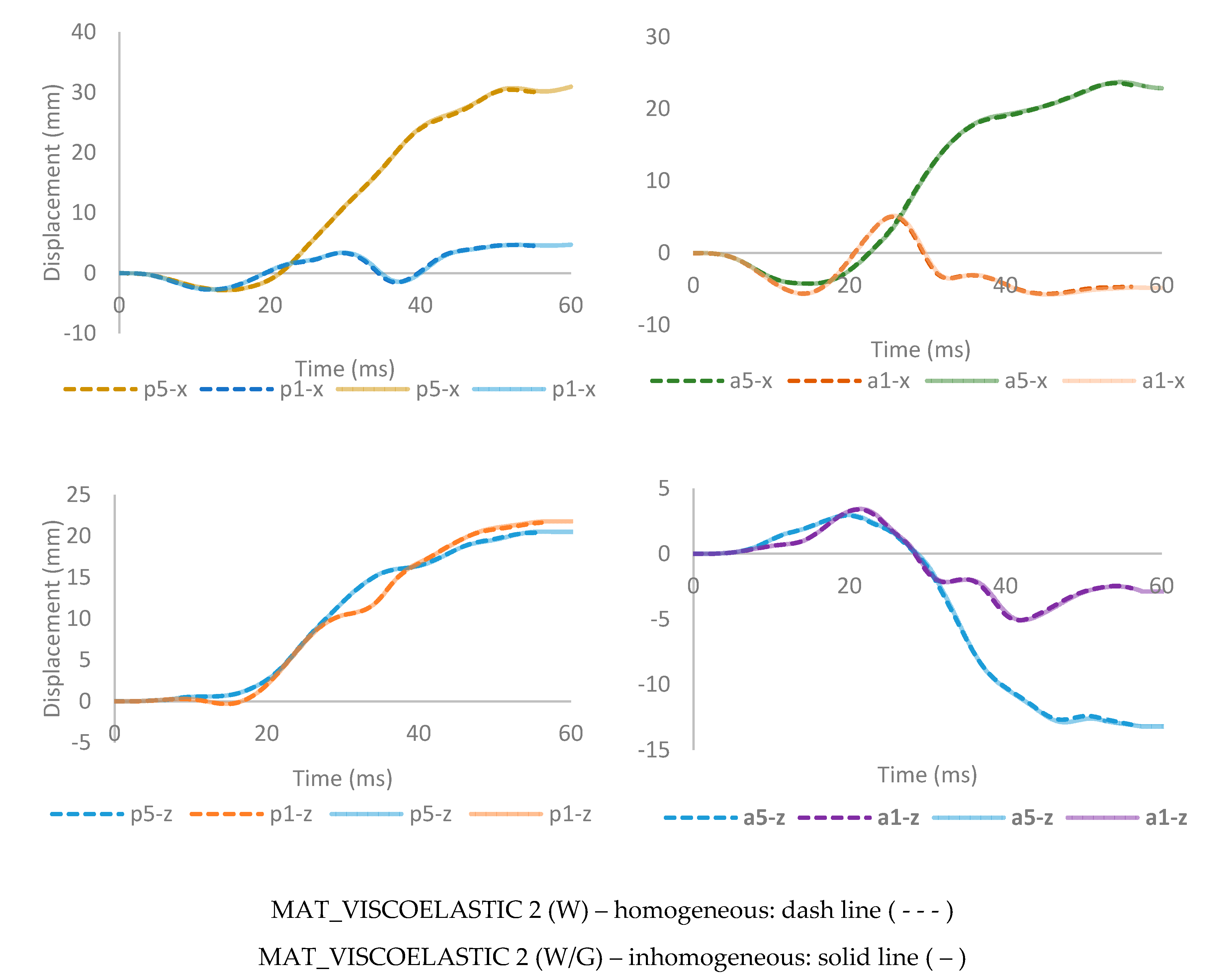

Interestingly, for MAT_VISCOELASTIC 2, the W/G matter separation does not significantly influence the kinematics of the 10 selected markers (FE nodes). The overlapping displacement-in-time characteristics for homogeneous and inhomogeneous MAT_VISCOELASTIC 2 are depicted in Figure 11. This issue needs some further research, yet the authors’ hypothesis is that the Kelvin/Maxwell relaxation/decay constant plays a significant role. When the relaxation/decay constant parameter is lower, then tendency for relaxation behaviour in time increment is lower. Therefore, relaxation strain is much lower for both grey and white matter. As a consequence, the strain difference between grey and white matter do not expose such distinction in homogeneous and inhomogeneous MAT_VISCOELASTIC 2 models.

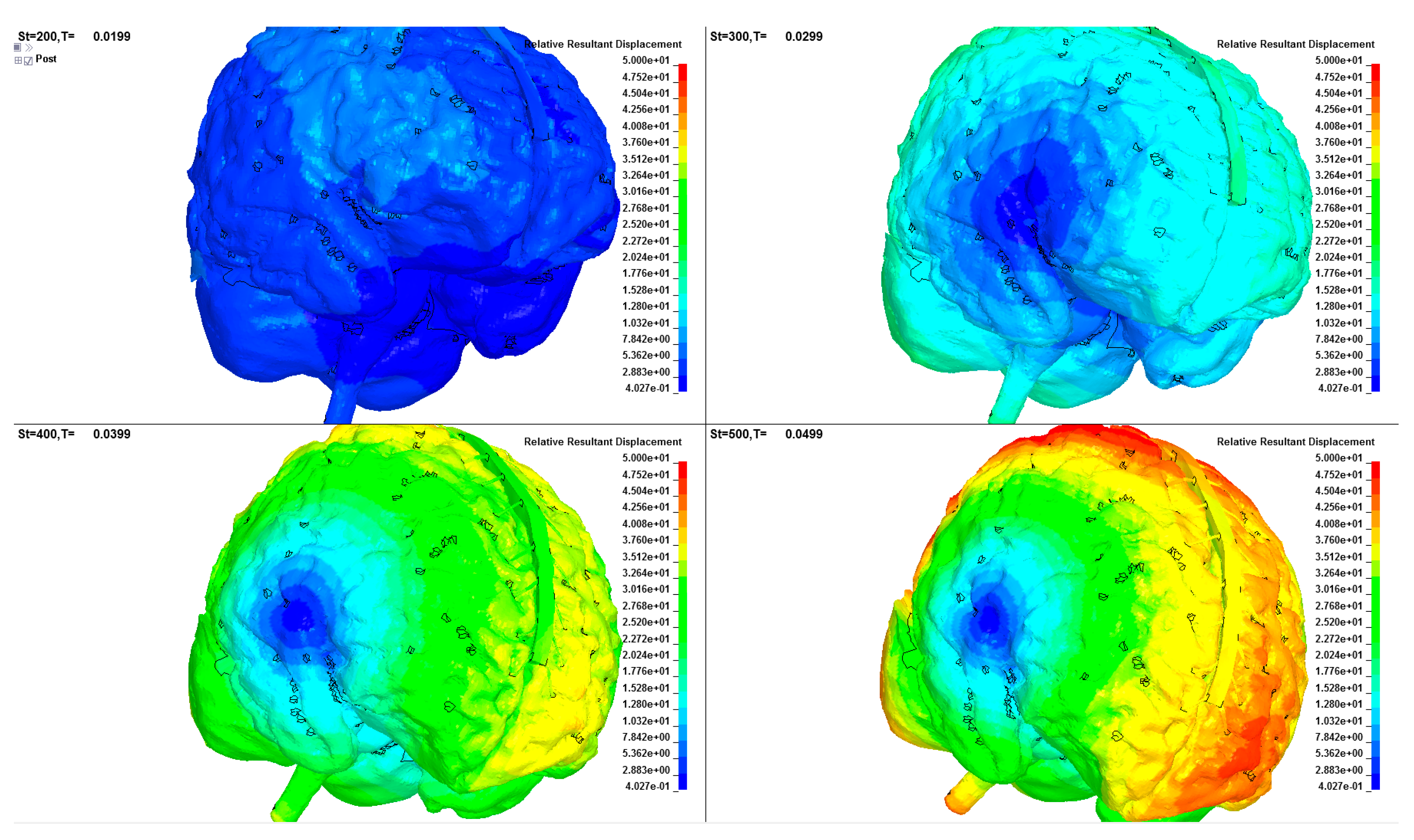

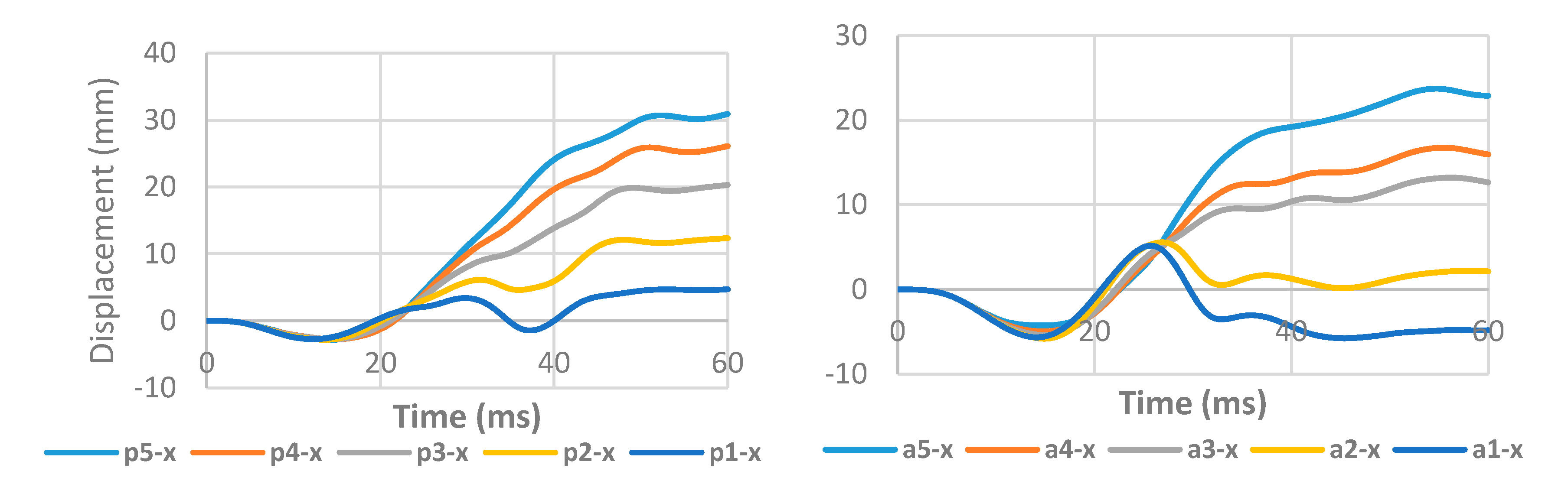

Figure 12 depicts the relative resultant displacement of the brain for the C755-T2 test for the MAT_VISCOELASTIC 1 (W/G) inhomogeneous brain model. We can observe that the most displaced finite elements are located in the brain cortex as they are subjected to the highest angular acceleration. It is worth to notice again that DAI is usually caused by high rotational accelerations, leading to shear loads in the brain tissue [33]. A similar phenomenon is observed for all the considered configurations in this paper.

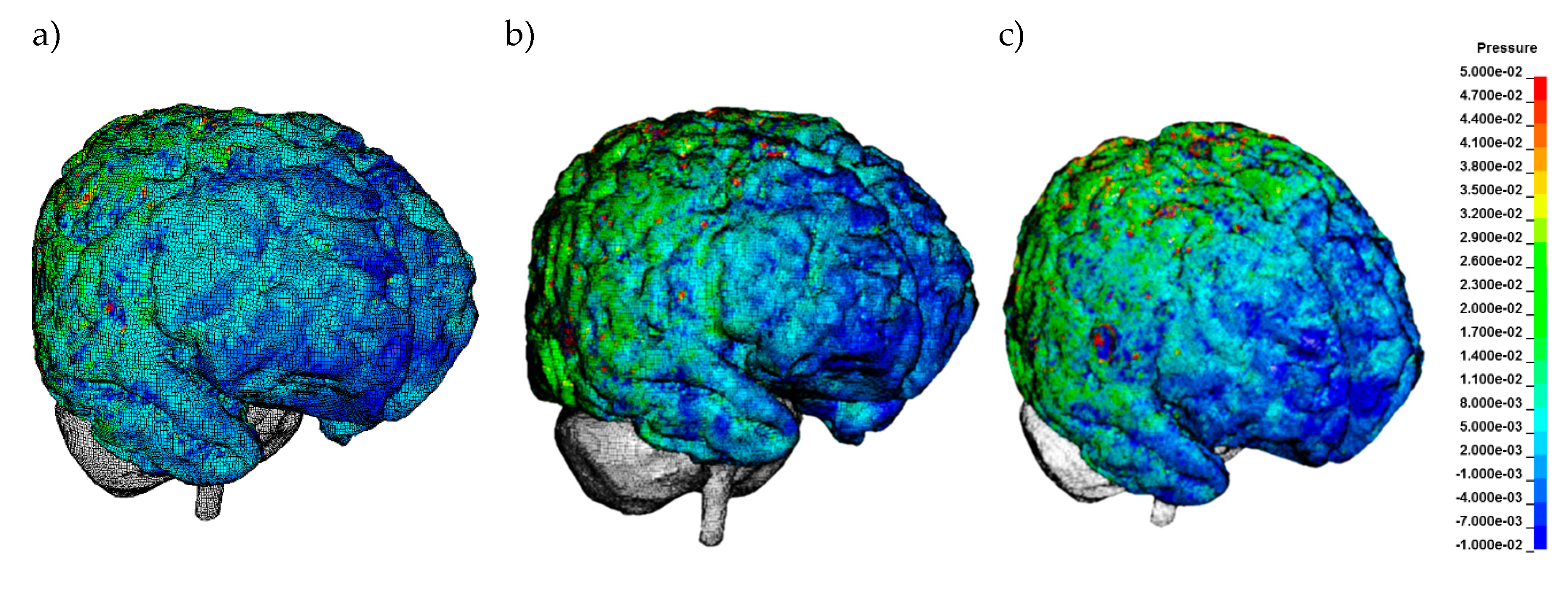

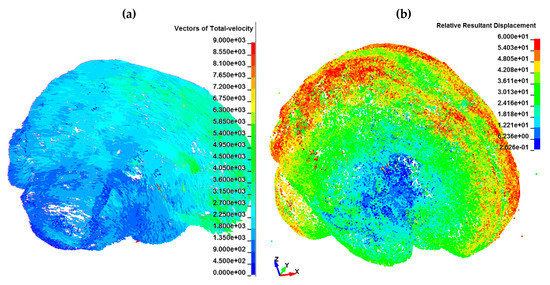

In all the respective simulations, we can see a noticeable pressure gradient at 10 ms after the loading, i.e., just after the 20 g linear acceleration inducement. The occurrence of brain contusions is associated with pressure gradients, correlated with linear acceleration during a head impact [95]. To a degree, traumatic brain hematoma is in a continuum with brain contusions and cortex lacerations and can be secondary to those lesions in some cases. These lesions are usually seen in orbitofrontal and temporal pole regions. Often, these lesions occur on the opposite area of the brain—so-called contrecoup injuries, often more severe than coup lesions [39]. In Figure 13, the coupe phenomenon is visible in the frontal lobe for all the studied models.
Due to the novel introduction SPH approach as the CSF, we obtained biofidelic interference between the brain and skull without a compromise of the simplifications often seen in the literature, such as node cortex-CSF-skull node sharing. Thus, in the aHEAD model, the particles can flow around the brain and create soft support for brain tissue. This approach allows the authors to simulate proper interaction between the skull and brain, as is depicted in Figure 14.
The paediatric head trauma depends on many factors, such as environment and age. The most common cause of injury among the paediatric population seems to be motor vehicle accidents. Falls tend to be more common among the youngest, up to 5 years old [10,96,97,98,99,100,101]. Head injuries are the most frequent trauma at this age range [96,102] and have the highest impact on adolescence life comparing all age groups followed by injury repetition. After major head trauma, CT scans reveal skull fractures of different magnitudes in over 50% of clinically not silent lesions [103], followed by a similar number of brain concussions and brain edema. Less often, a posttraumatic SDH and EDH are found [103,104]. Due to the difficulty of obtaining CT images from healthy children, the authors only had magnetic resonance images. This fact constitutes a certain difficulty in creating the skull model. The model of the brain divided into segments allows us to accurately characterize the formation of the DAI mechanism and makes it possible to determine the stress distribution at the white matter and grey matter junction. Based on the presented research, the further the tissues are from the skull’s CoG, the bigger the relative displacements are. This effect can be observed for markers a3, a4, a5, p3, p4, and p5 for all considered material models.
In 2013, Bharat K. Soni et al. wrote: “(…) little attention has been paid to detailed modelling of the brain, which lags the complexity of currently published adult brain models. None of the published paediatric head models have utilised different properties to represent grey and white matter, although this distinction has been reported to influence injury prediction in the adult” [21]. Thus, the current approach goes beyond the state-of-the-art in this field. Numerical modelling related to the biomechanics of head injuries can provide a quick and inexpensive way to predict how external mechanical loads affect individual craniocerebral tissues. It should be noted that simulations using the finite element method provide a much more accurate representation of the tissue biomechanics system than multibody simulations. Nevertheless, preparing an accurate model with this level of complexity is significantly labour-intensive and time-consuming. Models need a high level of representation of anatomy, providing paediatric-specific data on head mechanical properties and of the environment of injury. Many of the current models simplify the anatomy, due to the finite element meshing limitations. In that case, a vast propagation of injury energy can be seen, that does not necessarily represent the true nature of the lesion and how the brain reacts to it in real life.
In every research method, there is a question with assessing the reliability of the obtained results. The issue is to determine the mechanical properties of human’s body parts, including the tissues that constitute the analysed anatomical region. Paediatric head models in impact biomechanics can offer useful information to researchers, but it is currently difficult to consider quantitative results from the models due to a lack of rigorous validation. Especially, due to the uncertainty, if the gathered data can refer statistically to a wider group of patients with the same or similar age, or if the data simply represents the underlying patient. It makes the data to a resilient choice of data from a limited set of available real-world cases. What remains is the complex interpretation of numerical results. It helps to reveal injury mechanisms while trying to prove the robustness of the data.

6. Conclusions

The limitation of in vivo studies on the human brain made the finite element modelling an important tool to study head injuries. The numerical modelling might provide additional data about brain injury propagation (occurrence of secondary brain trauma), and therefore have some input to medical practice in the treatment of certain trauma cases. It might point to potential lesions, which are not yet visible in radiological imaging, or not obvious on the initial examination. Compared with the adult FEHM, relatively few studies have been reported for modelling paediatric impact biomechanics. What is more, the degree of anatomical detail has been lagging behind that of the adult models. Scaling down an adult head to obtain a child head in testing should not be used and specific child geometry is needed to investigate child injury mechanisms.
The aHEAD 2yo model of a small child is very advanced in its structure and material compared to the models currently available in the literature. The authors believe this comprehensive work will push the state-of-the-art of paediatric head models. Although validation is limited due to the inherent difficulties of obtaining experimental data, a new high-quality model is presented, and the intracranial motion is assessed. These results will make it possible to further comparisons between future numerical paediatric head models. Thus, the authors believe that this model may serve as the benchmark model as all material data and the model structure have been revealed and referred.
It should be mentioned that in the presented model, the space for cerebrospinal fluid was filled with the smoothed-particle hydrodynamics meshfree method. This approach allows cerebrospinal fluid to have complex dynamics, which was presented in the paper. On the other hand, modelling of local quasi-flow by implementing low shear-modulus by solid elements may inherit a significant, yet not intended, support for the brain within the skull. Nevertheless, the vast majority of FEHMs have set the cerebrospinal fluid as solid finite elements, which may not sufficiently reflect the biomechanics of the tissue. In addition, the aHEAD model consists only of hexahedral elements for 3D structures. However, in order for paediatric FEHMs to realise their full potential, extensive cadaveric or tissue tests need to be performed. Since this is unlikely to occur, mainly due to ethical responses, some new techniques and methods, such as the ones described in this study, must be developed to bridge the gaps in the state-of-the-art.
The study showed that the use of the material model has a significant impact on the biomechanical response of the brain during impact. At the same time, it has been presented that the differentiation of white and grey matter may significantly affect brain displacement under the mechanical loading. It can be interpreted that the model divided into grey and white matter more accurately reflects the brain response in the real world compared to the unsegmented model. As a result, the biomechanics of destruction in the interface of grey/white matter can be better investigated. It should be noted that material models should be improved by conducting further experimental research on children’s tissues. In particular, we still know very little about how the material characteristics change during brain development. During this period, the mechanical properties and tissue proportions including grey matter to white matter can change significantly. It is important to emphasize that currently, there is a lack of data for validation of children’s head models. To date, the current validation of numerical models consists mainly of comparing acceleration and deflection force diagrams for fall and compression tests.
Overall, the numerical biomechanics research has made a significant contribution to understanding the mechanisms and tolerances of adult traumatic brain injury, and it continues to play a crucial role in forming guidelines for adult motor vehicle occupancy, sports safety, and other fields where TBI or DAI might occur.

Author Contributions

Conceptualization: M.P., J.W., F.A.O.F., M.R. and M.S.; Data curation, J.W., M.P., M.R. and M.S.; Formal analysis, M.P., F.A.O.F., K.K., A.K., M.R. and D.S.; Funding acquisition, M.P.; Investigation, J.W., M.P., F.A.O.F., M.R., M.S. and D.S.; Methodology, J.W., M.P., F.A.O.F. and M.R.; Project administration, M.P.; Resources, M.P.; Software, M.P.; Supervision, J.W. and M.P.; Validation, J.W., M.P., K.K., A.K. and D.S.; Visualization, J.W., M.P. and D.S.; Writing—original draft, J.W., M.P., F.A.O.F., K.K., M.R., M.S. and D.S.; Writing—review & editing, F.A.O.F., K.K. and A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was co-funded by the National Centre for Research and Development of Poland, grant number LIDER/8/0051/L-8/16/NCBR/2017. www.aheadproject.org/

Acknowledgments

Fábio A. O. Fernandes acknowledges the support given by Fundação para a Ciência e a Tecnologia (FCT) under a grant CEECIND/01192/2017.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. CDC Traumatic Brain Injury in the United States; CDC: Washington, DC, USA, 2002.
  2. Luerssen, T.G.; Klauber, M.R.; Marshall, L.F. Marshall Outcome from head injury related to patient’ age. J. Neurosurg. 1988, 68, 409–416. [Google Scholar]
  3. Sariaslan, A.; Sharp, D.J.; D’Onofrio, B.M.; Larsson, H.; Fazel, S. Long-Term Outcomes Associated with Traumatic Brain Injury in Childhood and Adolescence: A Nationwide Swedish Cohort Study of a Wide Range of Medical and Social Outcomes. PLoS Med. 2016, 13, e1002103. [Google Scholar] [CrossRef] [Green Version]
  4. Heron, M. Deaths: Leading Causes for 2016. Natl. Vital. Stat. Rep. 2018, 67, 1–77. [Google Scholar]
  5. Cheng, P.; Li, R.; Schwebel, D.C.; Zhu, M.; Hu, G. Traumatic brain injury mortality among U.S. children and adolescents ages 0–19years, 1999–2017. J. Saf. Res. 2020, 72, 93–100. [Google Scholar] [CrossRef]
  6. Ptak, M.; Kaczyński, P.; Fernandes, F.; De Sousa, R.A. Computer Simulations for Head Injuries Verification after Impact; Lecture Notes in Mechanical Engineering; Springer: Cham, Germany, 2017. [Google Scholar]
  7. Jamroziak, K.; Bajkowski, M.; Bocian, M.; Polak, S.; Magier, M.; Kosobudzki, M.; Stepien, R. Ballistic Head Protection in the Light of Injury Criteria in the Case of the Wz.93 Combat Helmet. Appl. Sci. 2019, 9, 2702. [Google Scholar] [CrossRef] [Green Version]
  8. Sławiński, G.; Malesa, P.; Świerczewski, M. Analysis Regarding the Risk of Injuries of Soldiers Inside a Vehicle during Accidents Caused by Improvised Explosive Devices. Appl. Sci. 2019, 9, 4077. [Google Scholar] [CrossRef] [Green Version]
  9. Ratajczak, M.; Klekiel, T.; Sławiński, G.; Będziński, R. Investigation of Helmet-Head Interaction in the Aspect of Craniocerebral Tissue Protection; Sringer: Cham, Germany, 2020; Volume 1033, pp. 308–315. [Google Scholar]
  10. Olsen, M.; Vik, A.; Lund Nilsen, T.I.; Uleberg, O.; Moen, K.G.; Fredriksli, O.; Lien, E.; Finnanger, T.G.; Skandsen, T. Incidence and mortality of moderate and severe traumatic brain injury in children: A ten year population-based cohort study in Norway. Eur. J. Paediatr. Neurol. 2019, 23, 500–506. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Wade, S.L.; Kaizar, E.E.; Narad, M.E.; Zang, H.; Kurowski, B.G.; Miley, A.E.; Moscato, E.L.; Aguilar, J.M.; Yeates, K.O.; Taylor, H.G.; et al. Behavior Problems Following Childhood TBI: The Role of Sex, Age, and Time Since Injury. J. Head Trauma Rehabil. 2020. [published online ahead of print, 26 Feb 2020]. [Google Scholar] [CrossRef] [PubMed]
  12. King, R.; Grohs, M.N.; Kirton, A.; Lebel, C.; Esser, M.J.; Barlow, K.M. Microstructural neuroimaging of white matter tracts in persistent post-concussion syndrome: A prospective controlled cohort study. Neuroimage Clin. 2019, 23, 101842. [Google Scholar] [CrossRef] [PubMed]
  13. Shapiro, J.S.; Silk, T.; Takagi, M.; Anderson, N.; Clarke, C.; Davis, G.A.; Dunne, K.; Hearps, S.J.C.; Ignjatovic, V.; Rausa, V.; et al. Examining Microstructural White Matter Differences between Children with Typical and Those with Delayed Recovery Two Weeks Post-Concussion. J. Neurotrauma 2020. [Google Scholar] [CrossRef] [PubMed]
  14. Hsia, R.Y.; Mannix, R.C.; Guo, J.; Kornblith, A.E.; Lin, F.; Sokolove, P.E.; Manley, G.T. Revisits, readmissions, and outcomes for pediatric traumatic brain injury in California, 2005–2014. PLoS ONE 2020, 15, e0227981. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Li, X.; Sandler, H.; Kleiven, S. Infant skull fractures: Accident or abuse? Forensic Sci. Int. 2019, 294, 173–182. [Google Scholar] [CrossRef]
  16. Li, X.; Kleiven, S. Improved safety standards are needed to better protect younger children at playgrounds. Sci. Rep. 2018, 8, 15061. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Ptak, M. project aHEAD. Available online: https://aheadproject.org/index_en.html (accessed on 5 April 2020).
  18. Burdi, A.R.; Huelke, D.F.; Snyder, R.G.; Lowrey, G.H. Infants and children in the adult world of automobile safety design: Pediatric and anatomical considerations for design of child restraints. J. Biomech. 1969, 2, 267–280. [Google Scholar] [CrossRef] [Green Version]
  19. Wolański, W.; Kawlewska, E.; Larysz, D.; Gzik, M.; Gorwa, J.; Michnik, R. Prediction of the Child’s Head Growth in the First Year of Life; Springer: Cham, Germany, 2019; pp. 267–275. [Google Scholar]
  20. Huelke, D.F. An Overview of Anatomical Considerations of Infants and Children in the Adult World of Automobile Safety Design. Annu. Proc./Assoc. Adv. Automot. Med. 1998, 42, 93–113. [Google Scholar]
  21. Crandall, J.R.; Myers, B.S.; Meaney, D.F.; Zellers Schmidtke, S. Pediatric Injury Biomechanics; Crandall, J.R., Myers, B.S., Meaney, D.F., Zellers Schmidtke, S., Eds.; Springer: New York, NY, USA, 2013; ISBN 978-1-4614-4153-3. [Google Scholar]
  22. Karton, C.; Blaine Hoshizaki, T. Concussive and subconcussive brain trauma: The complexity of impact biomechanics and injury risk in contact sport. In Handbook of Clinical Neurology; 2018; Volume 158, pp. 39–49. [Google Scholar]
  23. Chybowski, L.; Przetakiewicz, W. Estimation of the Probability of Head Injury at a Given Abbreviated Injury Scale Level by Means of a Fuction of Head Injury Criterion. Syst. Saf. Hum. Tech. Facil. Environ. 2020, 2, 91–99. [Google Scholar] [CrossRef]
  24. Styrke, J.; Stålnacke, B.-M.; Sojka, P.; Björnstig, U. Traumatic Brain Injuries in a Well-Defined Population: Epidemiological Aspects and Severity. J. Neurotrauma 2007, 24, 1425–1436. [Google Scholar] [CrossRef]
  25. Post, A.; Hoshizaki, T.B.; Gilchrist, M.D.; Brien, S.; Cusimano, M.; Marshall, S. The dynamic response characteristics of traumatic brain injury. Accid. Anal. Prev. 2015, 79, 33–40. [Google Scholar] [CrossRef] [Green Version]
  26. Coats, B.; Margulies, S.S. Potential for head injuries in infants from low-height falls. J. Neurosurg. Pediatr. 2008, 2, 321–330. [Google Scholar] [CrossRef]
  27. Ibrahim, N.G.; Wood, J.; Margulies, S.S.; Christian, C.W. Influence of age and fall type on head injuries in infants and toddlers. Int. J. Dev. Neurosci. 2012, 30, 201–206. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Sullivan, S.; Coats, B.; Margulies, S.S. Biofidelic neck influences head kinematics of parietal and occipital impacts following short falls in infants. Accid. Anal. Prev. 2015, 82, 143–153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Kendall, M.; Post, A.; Gilchrist, M.D. A Comparison of dynamic impact response and brain deformation metrics within the cerebrum of head impact reconstructions representing three mechanisms of head injury in ice hockey. In IRCOBI Conference 2012; International Research Council on the Biomechanics of Injury: Dublin, Ireland, 2012. [Google Scholar]
  30. Thompson, A.K.; Bertocci, G.; Rice, W.; Pierce, M.C. Pediatric short-distance household falls: Biomechanics and associated injury severity. Accid. Anal. Prev. 2011, 43, 143–150. [Google Scholar] [CrossRef]
  31. Pike, J.A. Head Injury Biomechanics, Volume 2—The Brain; SAE International: Warrendale, PA, USA, 2011; ISBN 978-0-7680-6445-2. [Google Scholar]
  32. Post, A.; Oeur, A.; Hoshizaki, T.; Gilchrist, M. The Influence of Centric and Non-Centric Impacts to American Football Helmets on the Correlation Between Commonly Used Metrics in Brain Injury Research. In Proceedings of the IRCOBI Conference; International Research Council on Biomechanics of Injury Conference (IRCOBI), Dublin, Ireland, 12–14 September 2012. [Google Scholar]
  33. Fernandes, F.A.O.; Sousa, R.J.a.D. Head injury predictors in sports trauma—A state-of-the-art review. Proc. Inst. Mech. Eng. Part H J. Eng. Med. 2015, 229, 592–608. [Google Scholar] [CrossRef]
  34. Ptak, M. Method to Assess and Enhance Vulnerable Road User Safety during Impact Loading. Appl. Sci. 2019, 9, 1000. [Google Scholar] [CrossRef] [Green Version]
  35. Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M.; Wilhelm, J. Certified Motorcycle Helmets: Computational Evaluation of the Efficacy of Standard Requirements with Finite Element Models. Math. Comput. Appl. 2020, 25, 12. [Google Scholar] [CrossRef] [Green Version]
  36. Sybilski, K.; Małachowski, J. Sensitivity study on seat belt system key factors in terms of disabled driver behavior during frontal crash. Acta Bioeng. Biomech. 2019, 21, 169–180. [Google Scholar] [CrossRef]
  37. Baranowski, P.; Damaziak, K.; Malachowski, J.; Mazurkiewicz, L.; Muszyński, A. A child seat numerical model validation in the static and dynamic work conditions. Arch. Civ. Mech. Eng. 2014. [Google Scholar] [CrossRef]
  38. Ibrahim, N.G.; Ralston, J.; Smith, C.; Margulies, S.S. Physiological and Pathological Responses to Head Rotations in Toddler Piglets. J. Neurotrauma 2010, 27, 1021–1035. [Google Scholar] [CrossRef]
  39. Gelineau-Morel, R.N.; Zinkus, T.P.; Le Pichon, J.-B. Pediatric Head Trauma: A Review and Update. Pediatr. Rev. 2019, 40, 468–481. [Google Scholar] [CrossRef]
  40. Raul, J.-S.; Roth, S.; Ludes, B.; Willinger, R. Influence of the benign enlargement of the subarachnoid space on the bridging veins strain during a shaking event: A finite element study. Int. J. Legal Med. 2008, 122, 337–340. [Google Scholar] [CrossRef] [PubMed]
  41. Lewartowska-Nyga, D.; Skotnicka-Klonowicz, G. Minor head trauma—Trivial matter or sirious diagnostic and therapeutic problem? The role of Infrascanner in the diagnostic process. Dev. Period. Med. 2016, 20, 126–133. [Google Scholar] [PubMed]
  42. Karliński, J.; Ptak, M.; Chybowski, L. A Numerical Analysis of the Working Machine Tyre Inflation Process to Ensure Operator Safety. Energies 2019, 12, 2971. [Google Scholar] [CrossRef] [Green Version]
  43. Miller, K. (Ed.) Biomechanics of the Brain; Biological and Medical Physics, Biomedical Engineering; Springer: New York, NY, USA, 2011; ISBN 978-1-4419-9996-2. [Google Scholar]
  44. Arkusz, K.; Klekiel, T.; Sławiński, G.; Będziński, R. Influence of energy absorbers on Malgaigne fracture mechanism in lumbar-pelvic system under vertical impact load. Comput. Methods Biomech. Biomed. Eng. 2019, 22, 313–323. [Google Scholar] [CrossRef] [PubMed]
  45. Pałka, Ł.; Kuryło, P.; Klekiel, T.; Pruszyński, P. A mechanical study of novel additive manufactured modular mandible fracture fixation plates—Preliminary Study with finite element analysis. Injury 2020. [Google Scholar] [CrossRef] [PubMed]
  46. Roth, S.; Raul, J.-S.; Ludes, B.; Willinger, R. Finite element analysis of impact and shaking inflicted to a child. Int. J. Legal Med. 2007, 121, 223–228. [Google Scholar] [CrossRef]
  47. Roth, S.; Vappou, J.; Raul, J.-S.; Willinger, R. Child head injury criteria investigation through numerical simulation of real world trauma. Comput. Methods Programs Biomed. 2009, 93, 32–45. [Google Scholar] [CrossRef]
  48. Desantis Klinich, K.; Hulbert, G.M.; Schneider, L.W. Estimating infant head injury criteria and impact response using crash reconstruction and finite element modeling. Stapp Car Crash J. 2002, 46, 165–194. [Google Scholar]
  49. Coats, B.; Margulies, S.S.; Ji, S. Parametric study of head impact in the infant. Stapp Car Crash J. 2007, 51, 1–15. [Google Scholar]
  50. Margulies, S.S.; Thibault, K.L. Infant skull and suture properties: Measurements and implications for mechanisms of pediatric brain injury. J. Biomech. Eng. 2000, 122, 364–371. [Google Scholar] [CrossRef]
  51. Prange, M.T.; Kiralyfalvi, G.; Margulies, S.S. Pediatric Rotational Inertial Brain Injury: The Relative Influence of Brain Size and Mechanical Properties, SAE United States: New York, NY, USA, 1999.
  52. Roth, S.; Raul, J.-S.; Willinger, R. Biofidelic child head FE model to simulate real world trauma. Comput. Methods Programs Biomed. 2008, 90, 262–274. [Google Scholar] [CrossRef] [PubMed]
  53. Thompson, P.M.; Gledd, J.N.; Woods, R.P.; MacDonald, D.; Evans, A.C.; Toga, A.W. Growth patterns in the developing brain detected by using continuum mechanical tensor maps. Nature 2000, 404, 190–193. [Google Scholar] [CrossRef] [PubMed]
  54. Dehghani, H.; Noll, I.; Penta, R.; Menzel, A.; Merodio, J. The role of microscale solid matrix compressibility on the mechanical behaviour of poroelastic materials. Eur. J. Mech. A/Solids 2020, 83, 103996. [Google Scholar] [CrossRef]
  55. Franceschini, G.; Bigoni, D.; Regitnig, P.; Holzapfel, G.A. Brain tissue deforms similarly to filled elastomers and follows consolidation theory. J. Mech. Phys. Solids 2006, 54, 2592–2620. [Google Scholar] [CrossRef]
  56. Arbogast, K.B.; Meaney, D.F.; Thibault, L.E. Biomechanical characterization of the constitutive relationship for the brainstem. In Proceedings of the SAE Technical Papers; SAE International: Warrendale, PA, USA, 1995. [Google Scholar]
  57. Prange, M.T.; Margulies, S.S. Regional, Directional, and Age-Dependent Properties of the Brain Undergoing Large Deformation. J. Biomech. Eng. 2002, 124, 244. [Google Scholar] [CrossRef] [Green Version]
  58. Coats, B.; Margulies, S.S. Material properties of porcine parietal cortex. J. Biomech. 2006, 39, 2521–2525. [Google Scholar] [CrossRef]
  59. Duck, F.A. Physical Properties of Tissues: A Comprehensive Reference Book, 1st ed.; Academic Press: Cambridge, MA, USA, January 1990. [Google Scholar]
  60. Lindell, B.; Dunster, J.; Valentin, J. International commission on radiological protection: History, policies, procedures. Chin J. Radiol. Health 2009, 8, 1–8. [Google Scholar]
  61. White, D.R.; Griffith, R.V.; Wilson, I.J. 2. The Composition of Body Tissues. J. Int. Comm. Radiat. Units Meas. 1992, os24, 5–9. [Google Scholar]
  62. Sack, I.; Beierbach, B.; Wuerfel, J.; Klatt, D.; Hamhaber, U.; Papazoglou, S.; Martus, P.; Braun, J. The impact of aging and gender on brain viscoelasticity. Neuroimage 2009, 46, 652–657. [Google Scholar] [CrossRef]
  63. Gefen, A.; Gefen, N.; Zhu, Q.; Raghupathi, R.; Margulies, S.S. Age-Dependent Changes in Material Properties of the Brain and Braincase of the Rat. J. Neurotrauma 2003, 20, 1163–1177. [Google Scholar] [CrossRef]
  64. Duhaime, A.C.; Margulies, S.S.; Durham, S.R.; O’Rourke, M.M.; Golden, J.A.; Marwaha, S.; Raghupathi, R. Maturation-dependent response of the piglet brain to scaled cortical impact. J. Neurosurg. 2000, 93, 455–462. [Google Scholar] [CrossRef]
  65. Fallenstein, G.T.; Hulce, V.D.; Melvin, J.W. Dynamic mechanical properties of human brain tissue. J. Biomech. 1969, 2, 217–226. [Google Scholar] [CrossRef] [Green Version]
  66. Metz, H.; McElhaney, J.; Ommaya, A.K. A comparison of the elasticity of live, dead, and fixed brain tissue. J. Biomech. 1970, 3, 453–458. [Google Scholar] [CrossRef]
  67. Weaver, J.B.; Perrinez, P.R.; Bergeron, J.A.; Kennedy, F.E.; Wang, H.; Lollis, S.S.; Doyley, M.M.; Hoopes, P.J.; Paulsen, K.D. The effects of interstitial tissue pressure on the measured shear modulus in vivo. In Proceedings of the Medical Imaging 2007, San Diego, CA, USA, 17–22 February 2007; Volume 6511, p. 65111A. [Google Scholar]
  68. Vappou, J.; Breton, E.; Choquet, P.; Willinger, R.; Constantinesco, A. Assessment of in vivo and post-mortem mechanical behavior of brain tissue using magnetic resonance elastography. J. Biomech. 2008, 41, 2954–2959. [Google Scholar] [CrossRef] [PubMed]
  69. Kriewall, T.J.; Akkas, N.; Bylski, D.I.; Melvin, J.W.; Work, B.A. Mechanical behavior of fetal dura mater under large axisymmetric inflation. J. Biomech. Eng. 1983, 105, 71–76. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Bylski, D.I.; Kriewall, T.J.; Akkas, N.; Melvin, J.W. Mechanical behavior of fetal dura mater under large deformation biaxial tension. J. Biomech. 1986, 19, 19–26. [Google Scholar] [CrossRef] [Green Version]
  71. Meaney, D.F. Biomechanics of Acute Subdural Hematoma in the Subhuman Primate and man. Ph.D. Thesis, University of Pennsylvania, Philadelphia, PA, USA, 1991. [Google Scholar]
  72. Ratajczak, M.; Ptak, M.; Chybowski, L.; Gawdzińska, K.; Będziński, R. Material and Structural Modeling Aspects of Brain Tissue Deformation under Dynamic Loads. Materials 2019, 12, 271. [Google Scholar] [CrossRef] [Green Version]
  73. Fernandes, F.A.O.; Alves de Sousa, R.J.; Ptak, M. Validation of YEAHM. In SpringerBriefs in Applied Sciences and Technology; Springer: Cham, Germany, 2018; pp. 41–58. [Google Scholar]
  74. Migueis, G.F.J.; Fernandes, F.A.O.; Ptak, M.; Ratajczak, M.; Alves de Sousa, R.J. Detection of bridging veins rupture and subdural haematoma onset using a finite element head model. Clin. Biomech. 2019, 63, 104–111. [Google Scholar] [CrossRef]
  75. Yang, B.; Tse, K.-M.; Chen, N.; Tan, L.-B.; Zheng, Q.-Q.; Yang, H.-M.; Hu, M.; Pan, G.; Lee, H.-P. Development of a finite element head model for the study of impact head injury. Biomed. Res. Int. 2014, 2014, 408278. [Google Scholar] [CrossRef]
  76. Zhou, Z.; Li, X.; Kleiven, S. Fluid–structure interaction simulation of the brain–skull interface for acute subdural haematoma prediction. Biomech. Model. Mechanobiol. 2019, 18, 155–173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Miller, K. (Ed.) Biomechanics of the Brain; Biological and Medical Physics, Biomedical Engineering; Springer Springer International Publishing, Springer Nature Switzerland AG: Cham, Switzerland, 2019; ISBN 978-3-030-04995-9. [Google Scholar]
  78. Yang, K.H. Isoparametric Formulation and Mesh Quality. In Basic Finite Element Method as Applied to Injury Biomechanics; Elsevier: London, UK, 2018; pp. 111–119. [Google Scholar]
  79. Rusiński, E.; Czmochowski, J.; Smolnicki, T. Advanced Finite Element Method for Load-carrying Structures of Machines; Publishing House of Wrocław University of Technology: Wrocław, Poland, 2000; ISBN 8370854583. [Google Scholar]
  80. Toma, M.; Nguyen, P.D.H. Fluid–structure interaction analysis of cerebrospinal fluid with a comprehensive head model subject to a rapid acceleration and deceleration. Brain Inj. 2018, 32, 1576–1584. [Google Scholar] [CrossRef] [PubMed]
  81. GHMBC. LLC User Manual: M50 Occupant Version 4.2 for LS-DYNA; Livermore; 2014. [Google Scholar]
  82. Dyna More Human Model—Total HUman Model for Safety THUMS v 4.0. Available online: http://www.dynamore.de/en/products/models/human (accessed on 11 May 2012).
  83. Fernandes, F.A.O. Análise Biomecânica de impactos com capacetes: Novos materiais e geometrias, Biomechanical Analysis of Helmeted Head Impacts: Novel Materials and Geometries; Universidade de Aveiro: Aveiro, Portugal, 2017. [Google Scholar]
  84. Fernandes, F.A.O.; Tchepel, D.; Alves de Sousa, R.J.; Ptak, M. Development and validation of a new finite element human head model. Eng. Comput. 2018, 35, 477–496. [Google Scholar] [CrossRef]
  85. LLC Elemance—GHBMC Model. In Global Human Body Models Consortium; Clemmons, NC, USA, 2014.
  86. LLC Elemance Global Human Body Models Consortium. In User Man. M50 Occupant Version 4.2 LS-DYNA; Livermore; 2014.
  87. Monea, A.G.; Van der Perre, G.; Baeck, K.; Delye, H.; Verschueren, P.; Forausebergher, E.; Van Lierde, C.; Verpoest, I.; Vander Sloten, J.; Goffin, J.; et al. The relation between mechanical impact parameters and most frequent bicycle related head injuries. J. Mech. Behav. Biomed. Mater. 2014, 33, 3–15. [Google Scholar] [CrossRef] [PubMed]
  88. Delye, H.; Goffin, J.; Verschueren, P.; Vander Sloten, J.; Van der Perre, G.; Alaerts, H.; Verpoest, I.; Berckmans, D. Biomechanical properties of the superior sagittal sinus-bridging vein complex. Stapp Car Crash J. 2006, 50, 625–636. [Google Scholar]
  89. Ratajczak, M. Analysis of changes in biomechanical parameters of brain tissues caused by dynamic loads. Ph.D. Thesis, Wroclaw University of Science and Technology, Poland, March 2018. [Google Scholar]
  90. Giordano, C.; Kleiven, S. Development of a 3-Year-Old Child FE Head Model, Continuously Scalable from 1.5- to 6-Year-Old. IRCOBI Conf. 2016, 288–302. [Google Scholar]
  91. Gomez-Gesteira, M.; Crespo, A.J.C.; Rogers, B.D.; Dalrymple, R.A.; Dominguez, J.M.; Barreiro, A. SPHysics—Development of a free-surface fluid solver—Part 2: Efficiency and test cases. Comput. Geosci. 2012, 48, 300–307. [Google Scholar] [CrossRef]
  92. DYNAmore GmbH LS-DYNA Examples, Wave-Structure Interaction. Available online: https://www.dynaexamples.com/sph/intermediate-examples/wavestructure (accessed on 4 April 2020).
  93. Hardy, W.N. Response of the Human Cadaver Head to Impact; Wayne State University: Detroit, MI, USA, 2007. [Google Scholar]
  94. Hardy, W.N.; Mason, M.J.; Foster, C.D.; Shah, C.S.; Kopacz, J.M.; Yang, K.H.; King, A.I.; Bishop, J.; Bey, M.; Anderst, W.; et al. A study of the response of the human cadaver head to impact. Stapp Car Crash J. 2007, 51, 17–80. [Google Scholar]
  95. Crooks, D.A. Pathogenesis and biomechanics of traumatic intracranial haemorrhages. Virchows Arch. A Pathol. Anat. Histopathol. 1991, 418, 479–483. [Google Scholar] [CrossRef]
  96. Pitone, M.L.; Attia, M.W. Patterns of injury associated with routine childhood falls. Pediatr. Emerg. Care 2006, 22, 470–474. [Google Scholar] [CrossRef]
  97. Mayer, L.; Meuli, M.; Lips, U.; Frey, B. The silent epidemic of falls from buildings: Analysis of risk factors. Pediatr. Surg. Int. 2006, 22, 743–748. [Google Scholar] [CrossRef] [Green Version]
  98. Kemp, A.; Nickerson, E.; Trefan, L.; Houston, R.; Hyde, P.; Pearson, G.; Edwards, R.; Parslow, R.C.; Maconochie, I. Selecting children for head CT following head injury. Arch. Dis Child. 2016, 101, 929–934. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  99. Grivna, M.; Al-Marzouqi, H.M.; Al-Ali, M.R.; Al-Saadi, N.N.; Abu-Zidan, F.M. Pediatric falls from windows and balconies: Incidents and risk factors as reported by newspapers in the United Arab Emirates. World J. Emerg. Surg 2017, 12, 45. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  100. Gise, R.; Truong, T.; Poulsen, D.M.; Soliman, Y.; Parsikia, A.; Mbekeani, J.N. Pediatric traumatic brain injury and ocular injury. J. Aapos 2018, 22, 421–425.e3. [Google Scholar] [CrossRef] [PubMed]
  101. Sarnaik, A.; Ferguson, N.M.; O’Meara, A.M.I.; Agrawal, S.; Deep, A.; Buttram, S.; Bell, M.J.; Wisniewski, S.R.; Luther, J.F.; Hartman, A.L.; et al. Age and Mortality in Pediatric Severe Traumatic Brain Injury: Results from an International Study. Neurocrit Care 2018, 28, 302–313. [Google Scholar] [CrossRef] [PubMed]
  102. Ivarsson, B.J.; Crandall, J.R.; Okamoto, M. Influence of age-related stature on the frequency of body region injury and overall injury severity in child pedestrian casualties. Traffic Inj. Prev. 2006, 7, 290–298. [Google Scholar] [CrossRef]
  103. Chaitanya, K.; Addanki, A.; Karambelkar, R.; Ranjan, R. Traumatic brain injury in Indian children. Childs Nerv. Syst. 2018, 34, 1119–1123. [Google Scholar] [CrossRef]
  104. Waqas, M.; Javed, G.; Nathani, K.R.; Ujjan, B.; Quadri, S.A.; Tahir, M.Z. The Outcome and Patterns of Traumatic Brain Injury in the Paediatric Population of a Developing Country Secondary to TV Trolley Tip-Over. Pediatr. Neurosurg. 2018, 53, 7–12. [Google Scholar] [CrossRef]
Figure 1. Changes in body proportions from birth to adulthood in years and the differences in head proportions from newborn to adult (on right), data from [18,21].
Figure 1. Changes in body proportions from birth to adulthood in years and the differences in head proportions from newborn to adult (on right), data from [18,21].
Applsci 10 04467 g001

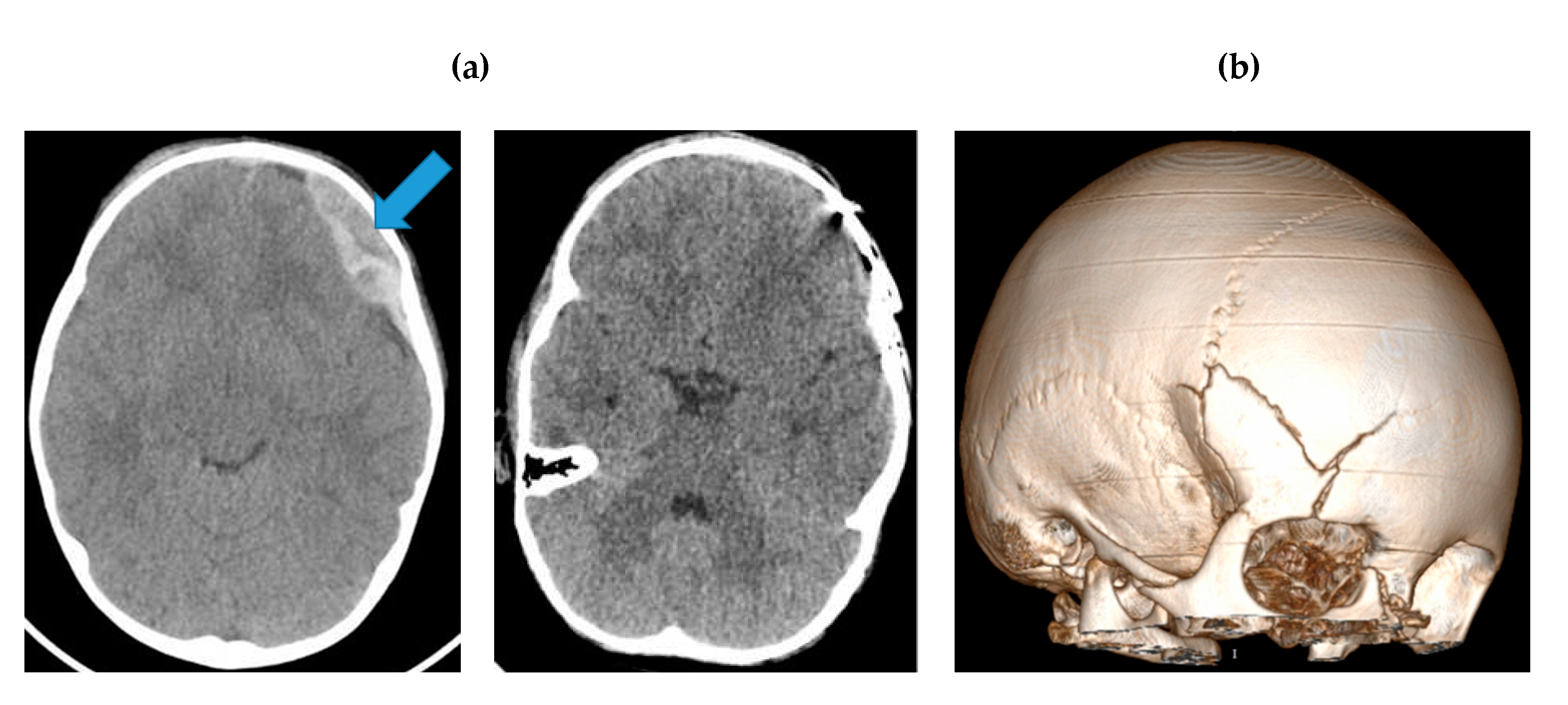

Figure 2. (a) A case of a 3-year-old patient who suffered a low-height fall. It resulted in a hyperacute EDH in the frontal region (inhomogeneous density), indicated by the arrow. The inhomogeneity is a result of a very acute stage when not all the blood in the hematoma is aggregated. The middle panel presents the post-surgery. Fast emergency diagnostics followed by rapid treatment allowed the patient to undergo proper recovery. There are no visible secondary traumatic injuries of the brain in the post-op images. (b) The CT of a 7-year-old boy hospitalized after politrauma from being crushed by a truck wheel. A multi fracture is visible in the right frontotemporal region.
Figure 2. (a) A case of a 3-year-old patient who suffered a low-height fall. It resulted in a hyperacute EDH in the frontal region (inhomogeneous density), indicated by the arrow. The inhomogeneity is a result of a very acute stage when not all the blood in the hematoma is aggregated. The middle panel presents the post-surgery. Fast emergency diagnostics followed by rapid treatment allowed the patient to undergo proper recovery. There are no visible secondary traumatic injuries of the brain in the post-op images. (b) The CT of a 7-year-old boy hospitalized after politrauma from being crushed by a truck wheel. A multi fracture is visible in the right frontotemporal region.
Applsci 10 04467 g002
Figure 3. Development of a numerical model of a small child’s head depicted in five stages.
Figure 3. Development of a numerical model of a small child’s head depicted in five stages.
Applsci 10 04467 g003
Figure 4. Cut view and description of the implemented instances within the aHEAD 2yo child model.
Figure 4. Cut view and description of the implemented instances within the aHEAD 2yo child model.
Applsci 10 04467 g004

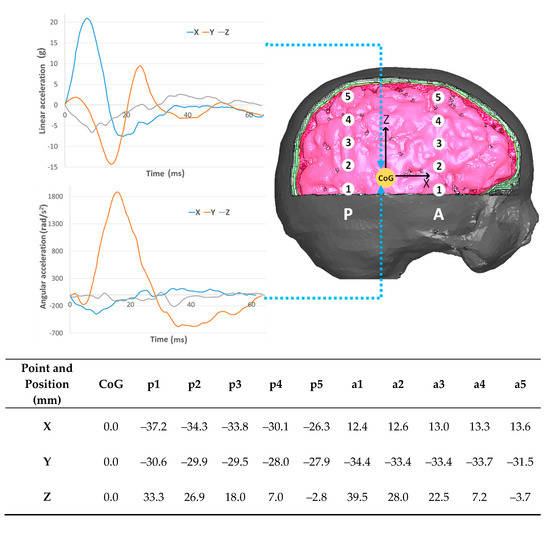

Figure 5. Boundary conditions—linear and angular acceleration loading of skull Centre of Gravity (CoG) according to Hardy et al. test C755-T2 [94]—marker numbers depicted for the frontal A (anterior) and rear columns P (posterior). Below: coordinates of the node numbers (markers) relative to CoG of the skull used for the simulations
Figure 5. Boundary conditions—linear and angular acceleration loading of skull Centre of Gravity (CoG) according to Hardy et al. test C755-T2 [94]—marker numbers depicted for the frontal A (anterior) and rear columns P (posterior). Below: coordinates of the node numbers (markers) relative to CoG of the skull used for the simulations
Applsci 10 04467 g005

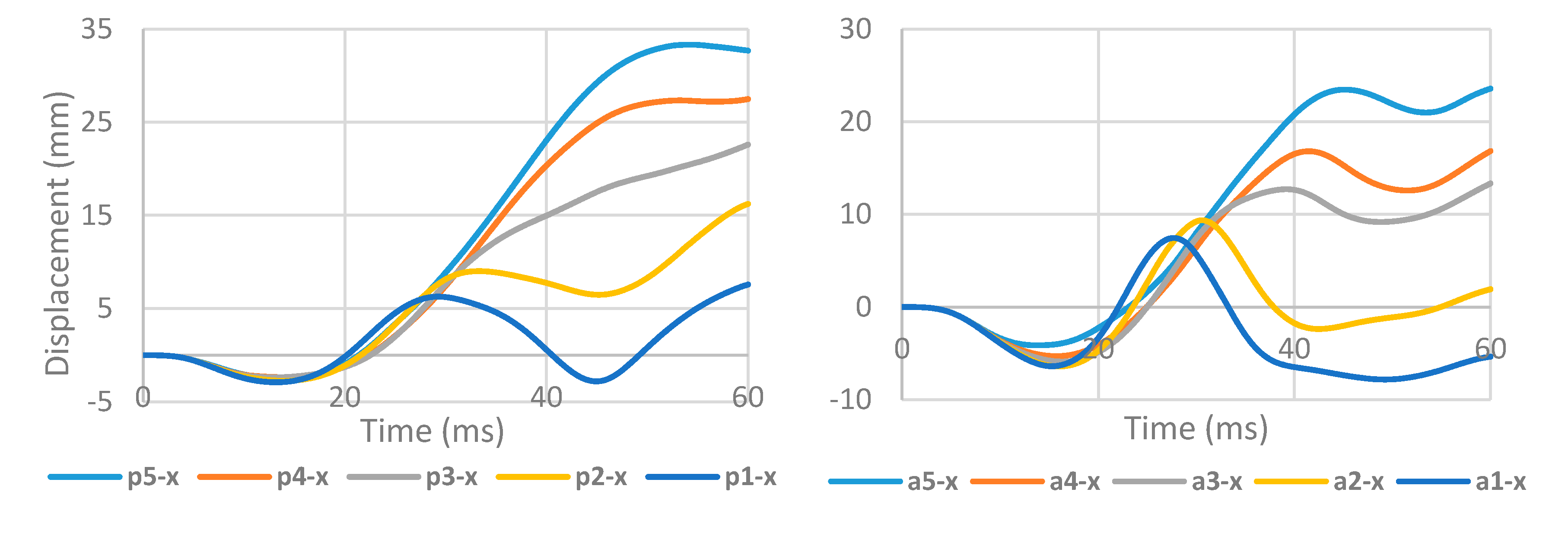

Figure 6. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_HYPERELASTIC (W) for the brain.
Figure 6. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_HYPERELASTIC (W) for the brain.
Applsci 10 04467 g006

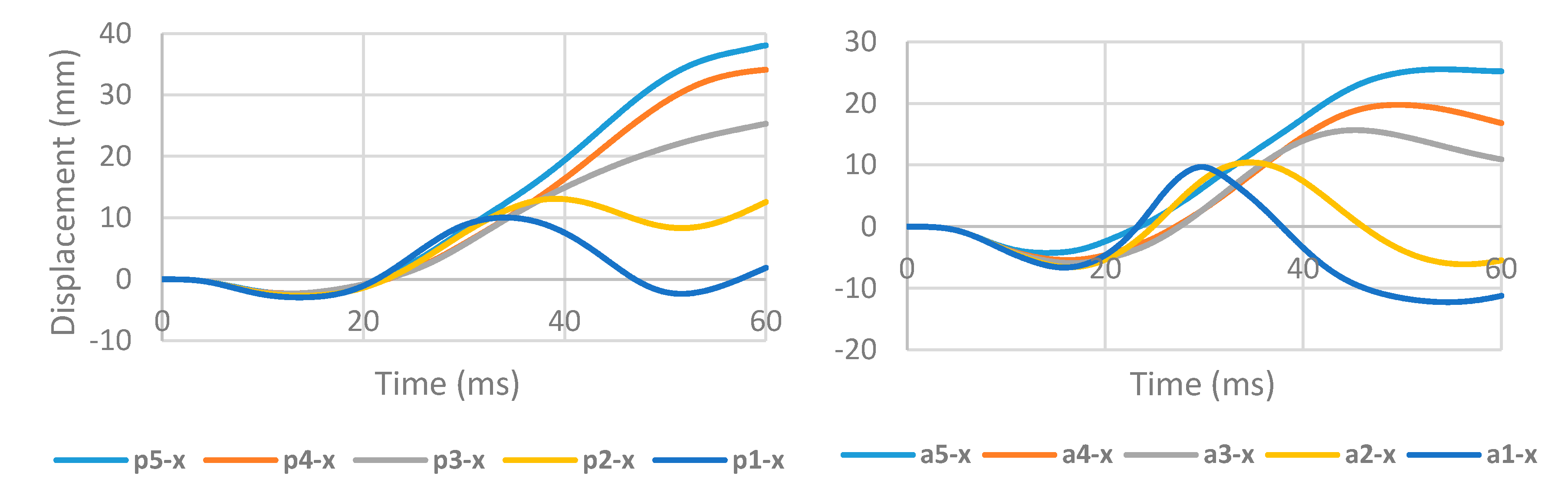

Figure 7. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_VISCOELASTIC 1 (W) for the brain.
Figure 7. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_VISCOELASTIC 1 (W) for the brain.
Applsci 10 04467 g007

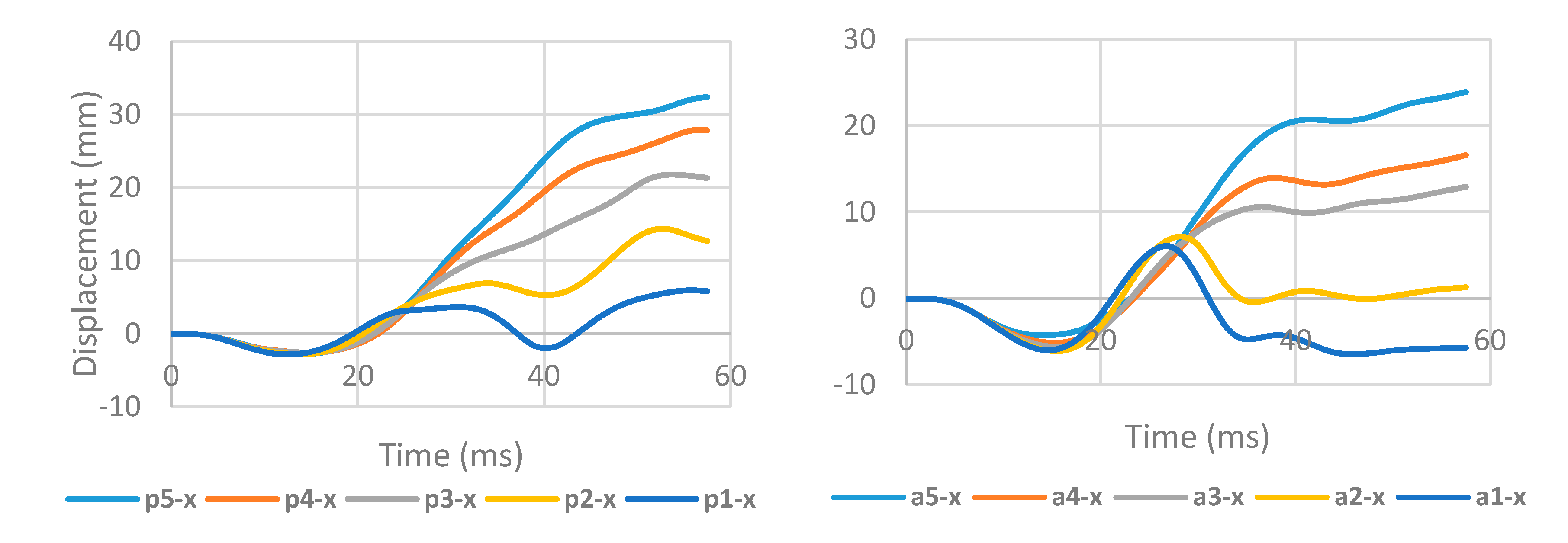

Figure 8. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_VISCOELASTIC 1 (W/G) for the brain.
Figure 8. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_VISCOELASTIC 1 (W/G) for the brain.
Applsci 10 04467 g008
Figure 9. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_VISCOELASTIC 2 (W/G) for the brain.
Figure 9. Displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X-direction using the homogeneous MAT_VISCOELASTIC 2 (W/G) for the brain.
Applsci 10 04467 g009

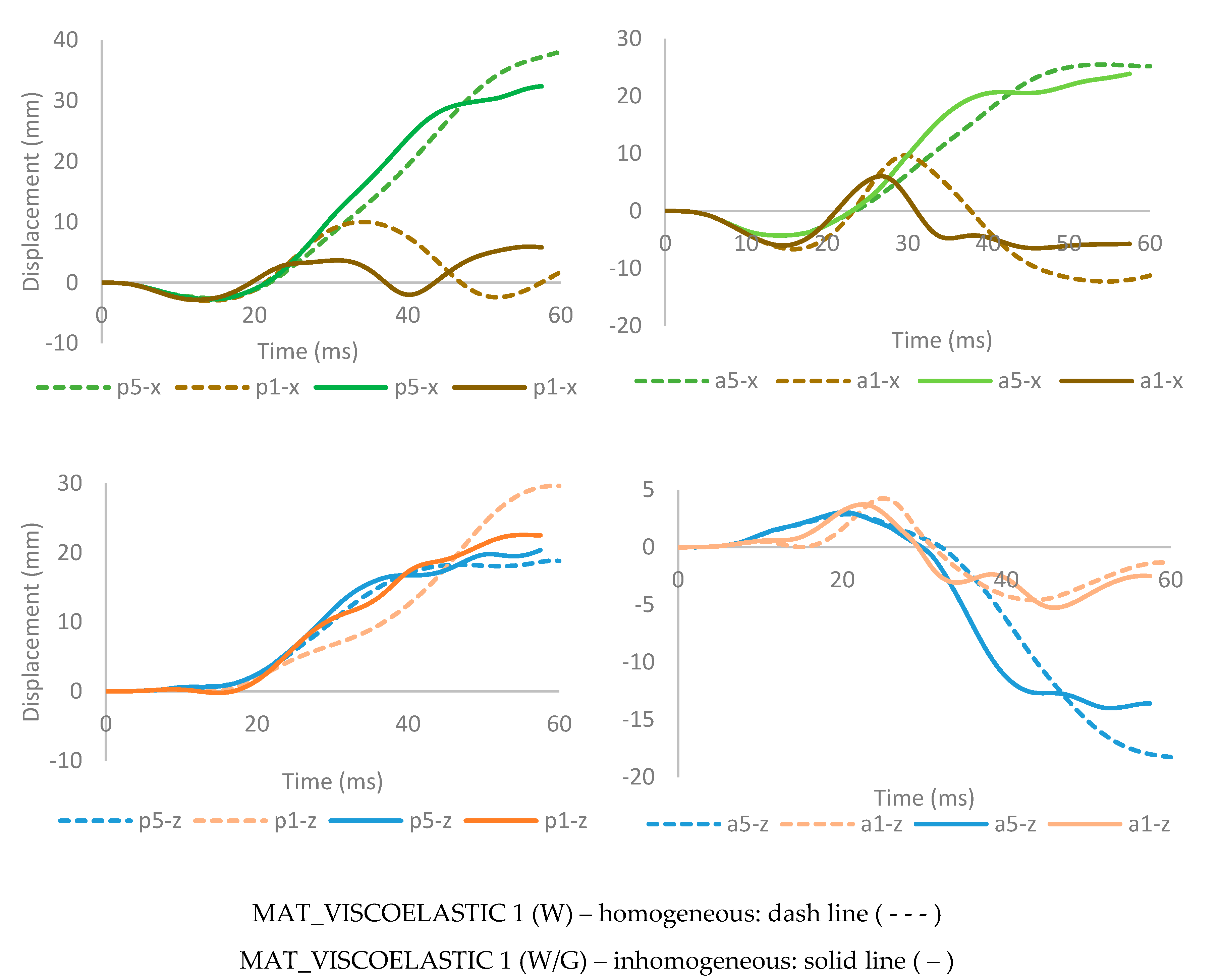

Figure 10. Comparison between homogeneous and inhomogeneous for the displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns and in the X and Z-direction MAT_VISCOELASTIC 1 for the brain.
Figure 10. Comparison between homogeneous and inhomogeneous for the displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns and in the X and Z-direction MAT_VISCOELASTIC 1 for the brain.
Applsci 10 04467 g010
Figure 11. Comparison between homogeneous and inhomogeneous for the displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X and Z-direction MAT_VISCOELASTIC 2 for the brain.
Figure 11. Comparison between homogeneous and inhomogeneous for the displacement-in-time characteristics of the markers in the rear (p) and frontal (a) columns in the X and Z-direction MAT_VISCOELASTIC 2 for the brain.
Applsci 10 04467 g011
Figure 12. Relative resultant displacement (mm) of the brain in relation to skull CoG in 100 ms intervals for inhomogeneous MAT_VISCOELASTIC 1 (W/G). The video is under the link https://youtu.be/-xbyx-nCMOI.
Figure 12. Relative resultant displacement (mm) of the brain in relation to skull CoG in 100 ms intervals for inhomogeneous MAT_VISCOELASTIC 1 (W/G). The video is under the link https://youtu.be/-xbyx-nCMOI.
Applsci 10 04467 g012
Figure 13. Contours of hydrostatic pressure in (MPa) on the cortex approximately 10 ms after the loading for (a) MAT_VISCOELASTIC 1 (W/G), (b) MAT_VISCOELASTIC 2 (W/G), and (c) MAT_VISCOELASTIC 1 (W)—the coupe phenomenon is visible in the frontal lobe.
Figure 13. Contours of hydrostatic pressure in (MPa) on the cortex approximately 10 ms after the loading for (a) MAT_VISCOELASTIC 1 (W/G), (b) MAT_VISCOELASTIC 2 (W/G), and (c) MAT_VISCOELASTIC 1 (W)—the coupe phenomenon is visible in the frontal lobe.
Applsci 10 04467 g013
Figure 14. Cerebral Spinal Fluid behaviour (a) vectors of total velocity (mm/s) in the 30 ms after loading, (b) relative resultant displacement (mm) in relation to the skull CoG in the 60 ms after loading.
Figure 14. Cerebral Spinal Fluid behaviour (a) vectors of total velocity (mm/s) in the 30 ms after loading, (b) relative resultant displacement (mm) in relation to the skull CoG in the 60 ms after loading.
Applsci 10 04467 g014
Table 1. Numerical models of paediatric heads presented in current literature.
Table 1. Numerical models of paediatric heads presented in current literature.
ValidationMaterial LawMesh ElementsGeometryFE SolverAgeFE MeshReference
NoneLinear viscoelastic brain, linear elastic bone (interpolated)/suture/cerebrospinal fluid (CSF)/scalp6 -month-old: 69,324 solid elements, 9187 shell elements
3-year-old: 23,000 solid elements, 3500 shell elements
3D, CT Radioss6 months/3 years Applsci 10 04467 i005Roth et al., 2007, 2009 [46,47]
NoneLinear viscoelastic brain, linear elastic bone/suture/CSF/scalpnot available3D, CTLS-DYNA6 months Applsci 10 04467 i004DeSantis Klinich, Hulbert, and Schneider, 2002 [48] (Desantis Klinich, Hulbert, and Schneider 2002)
Skull fracture location as predicted by ultimate stressOgden brain, orthotropic linear elastic bone, linear elastic suture and scalp11,066 tetrahedral solid elements, 624 hexagonal solid elements, 18,706 shell elements, 2485 membrane elements3D CT, Magnetic Resonance Imaging (MRI), suture geometry idealisedABAQUS/Explicit1.5 months Applsci 10 04467 i003Coats, Margulies, and Ji, 2007 [49]
NoneLinear viscoelastic brain, linear elastic bone/suture12,772 elements3D IdealisedANSYS/LSDYNA3D1 month Applsci 10 04467 i002Margulies and Thibault 2000 [50]
NoneOgden brain, Rigid skull and falx5834 elementsPseudo 3DPATRAN2 weeks Applsci 10 04467 i001Prange, Kiralyfalvi, and Margulies, 1999 [51]
Table 3. Mechanical properties of brain tissues from paediatric heads.
Table 3. Mechanical properties of brain tissues from paediatric heads.
ReferenceTissueResearch MethodMechanical PropertiesAge
Prange and Margulies, 2002 [57]Brain (temporal cortex)Shear stress–relaxationInstantaneous shear modulus: 304 Pa5 years
Kriewall et al., 1983; Bylski et al., 1986 [69,70]DuraAxisymmetric tension
Biaxial tension
Stiffness:
3.377 ± 1.052 N/m
1.814 ± 590 N/m
30–42 weeks gest
Meaney, 1991 [71]Bridging veinsUniaxial tensionStiffness:
235 ± 199 N/m
Ultimate stress:
12.02 ± 5.9 MPa
Stretch ratio:
1.67 ± 0.27
3–9 years
Table 4. Mechanical properties of brain tissues from paediatric heads; units: t/mm/s/MPa.
Table 4. Mechanical properties of brain tissues from paediatric heads; units: t/mm/s/MPa.
StructureReferenceDensity
(t/m3)
Young’s Modulus or Bulk Modulus (MPa)Other Material ParametersType
No. of FEs
Image of Structure
White Matter—left/right hemisphereFernandes 2017 [83,84]
- MAT_HYPERELASTIC
1.04 × 10−9Ν = 0.49999
Mu1 = 0.0012
Alpha1 = 5.05007
hexa 233,760/245,830 Applsci 10 04467 i006
GHBMC [85]
MAT_VISCOELASTIC 1
1.06 × 10−9Bulk modulus
2.19 × 10−3
G0 = 7.5 × 10−3
G1 = 1.5 × 10−3
THUMS
MAT_VISCOELASTIC 2
1.00 × 10−9Bulk modulus
2.16 × 10−3
G0 = 12.5 × 10−3
G1 = 6.125 × 10−3
Grey matter—left/right hemisphereFernandes 2017 [83,84]
- MAT_HYPERELASTIC
1.04 × 10−9Ν = 0.49999hexa 208,498/201,127 Applsci 10 04467 i007
GHBMC [85]
MAT_VISCOELASTIC 1
1.06 × 10−9Bulk modulus
2.19 × 10−3
G0 = 6 × 10−3
G1 = 1.2 × 10−3
THUMS
MAT_VISCOELASTIC 2
1.00 × 10−9Bulk modulus
2.16× 10−3
G0 = 10 × 10−3
G1 = 5 × 10−3
CerebellumFernandes 2017 [83,84]1.04 × 10−9Ν = 0.49999
Mu1 = 0.0012
Alpha1 = 5.05007
hexa 128,659 Applsci 10 04467 i008
BrainstemFernandes 2017 [83,84]1.04 × 10−9Ν = 0.49999
Mu1 = 0.0012
Alpha1 = 5.05007
hexa 20,981 Applsci 10 04467 i009
Pia materLLC Elemance 2014; Ratajczak et al. 2019 [72,86]1.13 × 10−931.5ν = 0.45000shell 141,831 Applsci 10 04467 i010
Dura mater (with falx cerebri and tentorium cerebelli)LLC Elemance 2014; Ratajczak et al. 2019 [72,86]1.13 × 10−931.5ν = 0.45000tri shell 950 Applsci 10 04467 i011
quad shell 25,169
Superior sagittal sinus and transversal sinusLLC Elemance 2014; Ratajczak et al. 2019 [72,86]1.04 × 10−928.2ν = 0.45000tri shell 212 Applsci 10 04467 i012
quad shell 9065
Bridging veinsDelye et al. 2006; LLC Elemance 2014; Monea et al. 2014 [86,87,88]1.13 × 10−9300.48000tri shell 410 Applsci 10 04467 i013
quad shell 14,291
Lamina internaGiordano and Kleiven 2016; Margulies 2000; Ratajczak et al. 2019 [50,72,89,90]2.1 × 10−94 × 1030.25000hexa 158,553 Applsci 10 04467 i014
DiploeGiordano and Kleiven 2016; Margulies 2000; Ratajczak et al. 2019 [50,72,90]1.0 × 10−91 × 1030.30000hexa 121,436 Applsci 10 04467 i015
Lamina externaGiordano and Kleiven 2016; Margulies 2000; Ratajczak et al. 2019 [50,72,90]2.1 × 10−94 × 1030.25000hexa 195,357 Applsci 10 04467 i016
Cerebrospinal fluid (CSF)DYNAmore GmbH 2018; Gomez-Gesteira et al. 2012 [91,92]1 × 10−9viscosity coefficient 7 × 10−10SPH
165,289
Applsci 10 04467 i017
Corpus callosumFernandes 2017 [83,84]1.04 × 10−9Same as for WMSame as for WMhexa 6452 Applsci 10 04467 i018
Third ventricle complexFernandes 2017 [83,84]1.04 × 10−9Same as for WMSame as for WMhexa 762 Applsci 10 04467 i019
Liliequist membraneFernandes 2017 [83,84]1.04 × 10−928.20.45000tri shell
56
Applsci 10 04467 i020
0.45000quad shell
189

Share and Cite

MDPI and ACS Style

Wilhelm, J.; Ptak, M.; Fernandes, F.A.O.; Kubicki, K.; Kwiatkowski, A.; Ratajczak, M.; Sawicki, M.; Szarek, D. Injury Biomechanics of a Child’s Head: Problems, Challenges and Possibilities with a New aHEAD Finite Element Model. Appl. Sci. 2020, 10, 4467. https://doi.org/10.3390/app10134467

AMA Style

Wilhelm J, Ptak M, Fernandes FAO, Kubicki K, Kwiatkowski A, Ratajczak M, Sawicki M, Szarek D. Injury Biomechanics of a Child’s Head: Problems, Challenges and Possibilities with a New aHEAD Finite Element Model. Applied Sciences. 2020; 10(13):4467. https://doi.org/10.3390/app10134467

Chicago/Turabian Style

Wilhelm, Johannes, Mariusz Ptak, Fábio A. O. Fernandes, Konrad Kubicki, Artur Kwiatkowski, Monika Ratajczak, Marek Sawicki, and Dariusz Szarek. 2020. "Injury Biomechanics of a Child’s Head: Problems, Challenges and Possibilities with a New aHEAD Finite Element Model" Applied Sciences 10, no. 13: 4467. https://doi.org/10.3390/app10134467

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
