Effects of Solid Die Types in Complex and Large-Scale Aluminum Profile Extrusion

1
Department of Mechanical Engineering, Hung Yen University of Technology and Education, Dan Tien, Khoai Chau, Hung Yen 49000, Vietnam
2
Department of Mechanical Engineering, National Kaohsiung University of Science and Technology, 415 Chien-Kung Road, Kaohsiung City 80778, Taiwan
3
Department of Ultra-Precision Machines and Systems, Korea Institute of Machinery and Materials, Yuseong-gu, Daejeon 34103, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(1), 263; https://doi.org/10.3390/app10010263
Received: 19 November 2019 / Revised: 25 December 2019 / Accepted: 26 December 2019 / Published: 29 December 2019
(This article belongs to the Special Issue Structural Integrity of Aluminium Alloys)

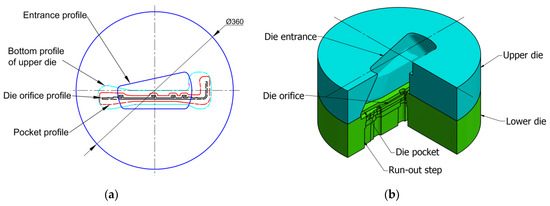

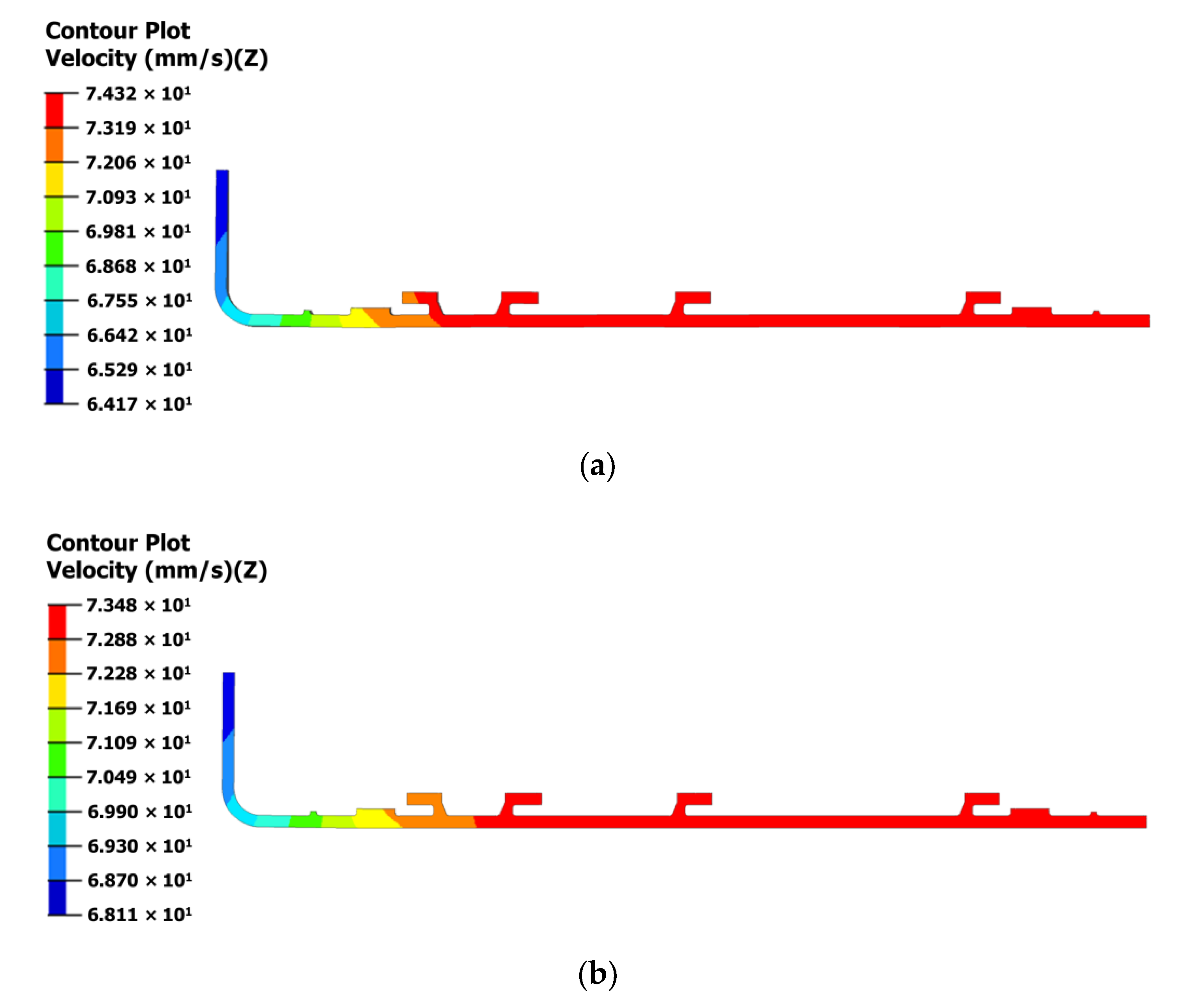

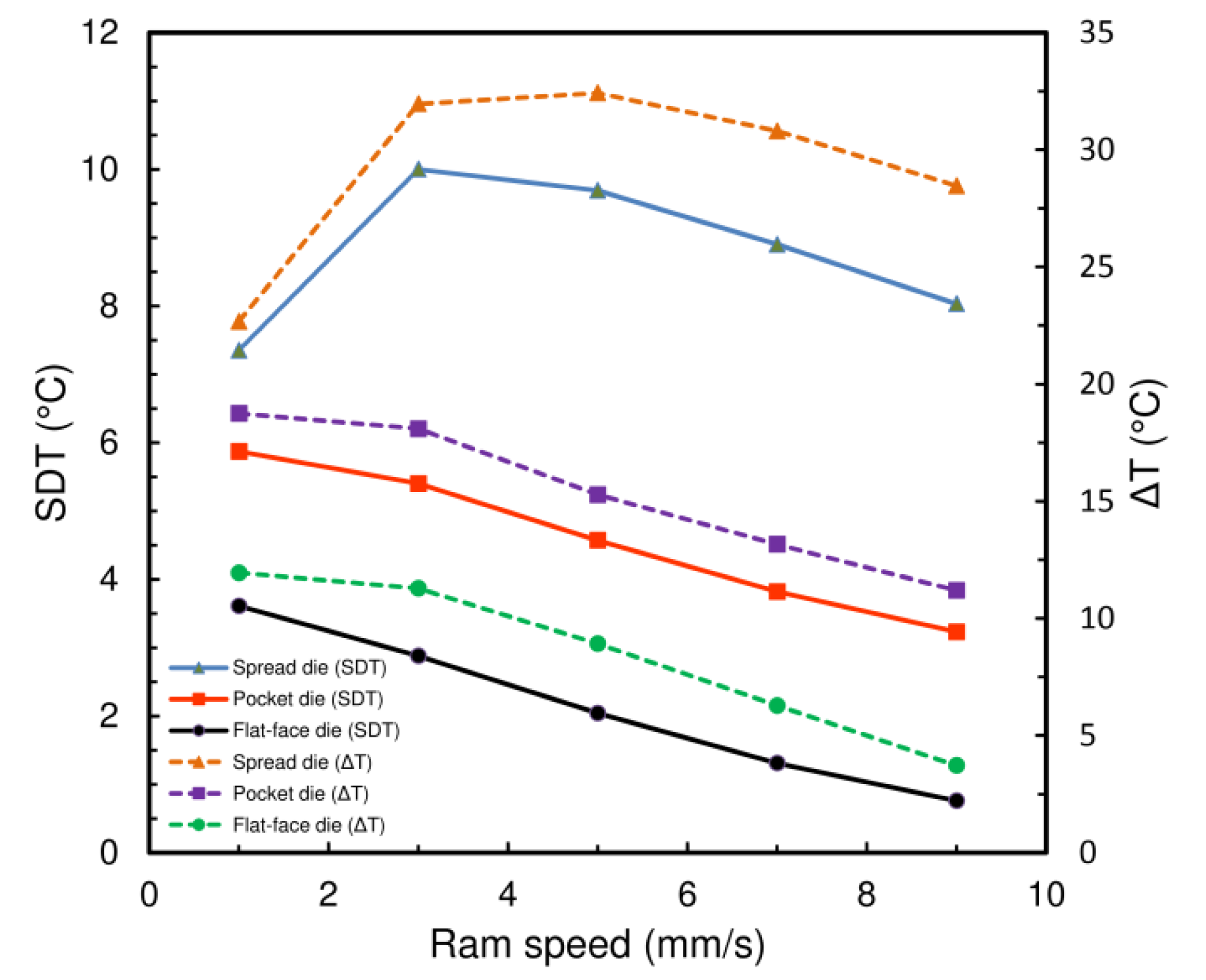

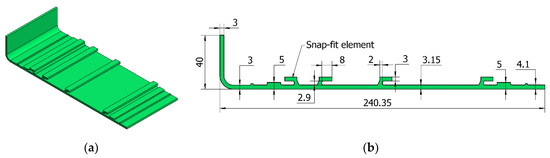

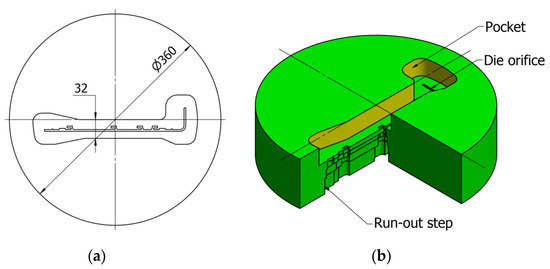

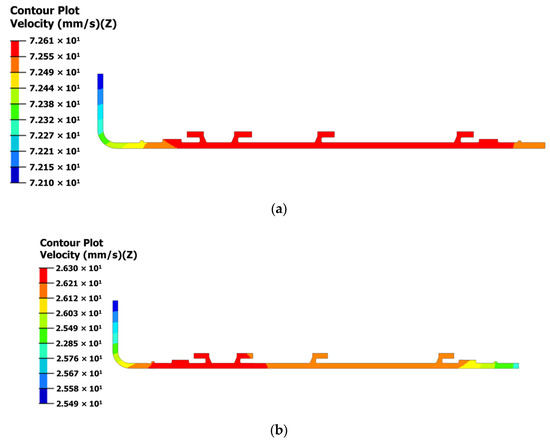

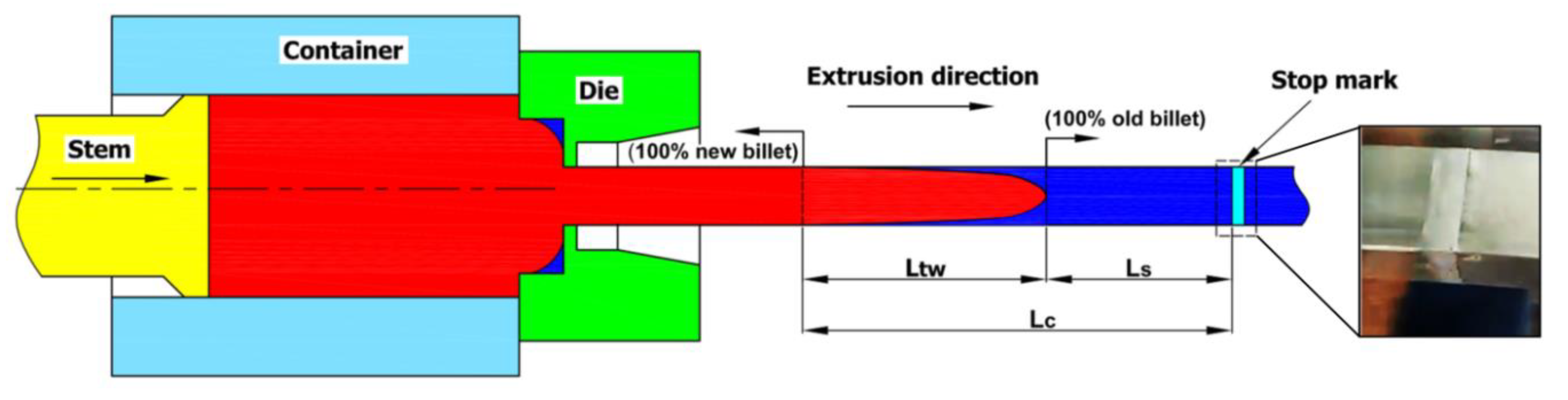

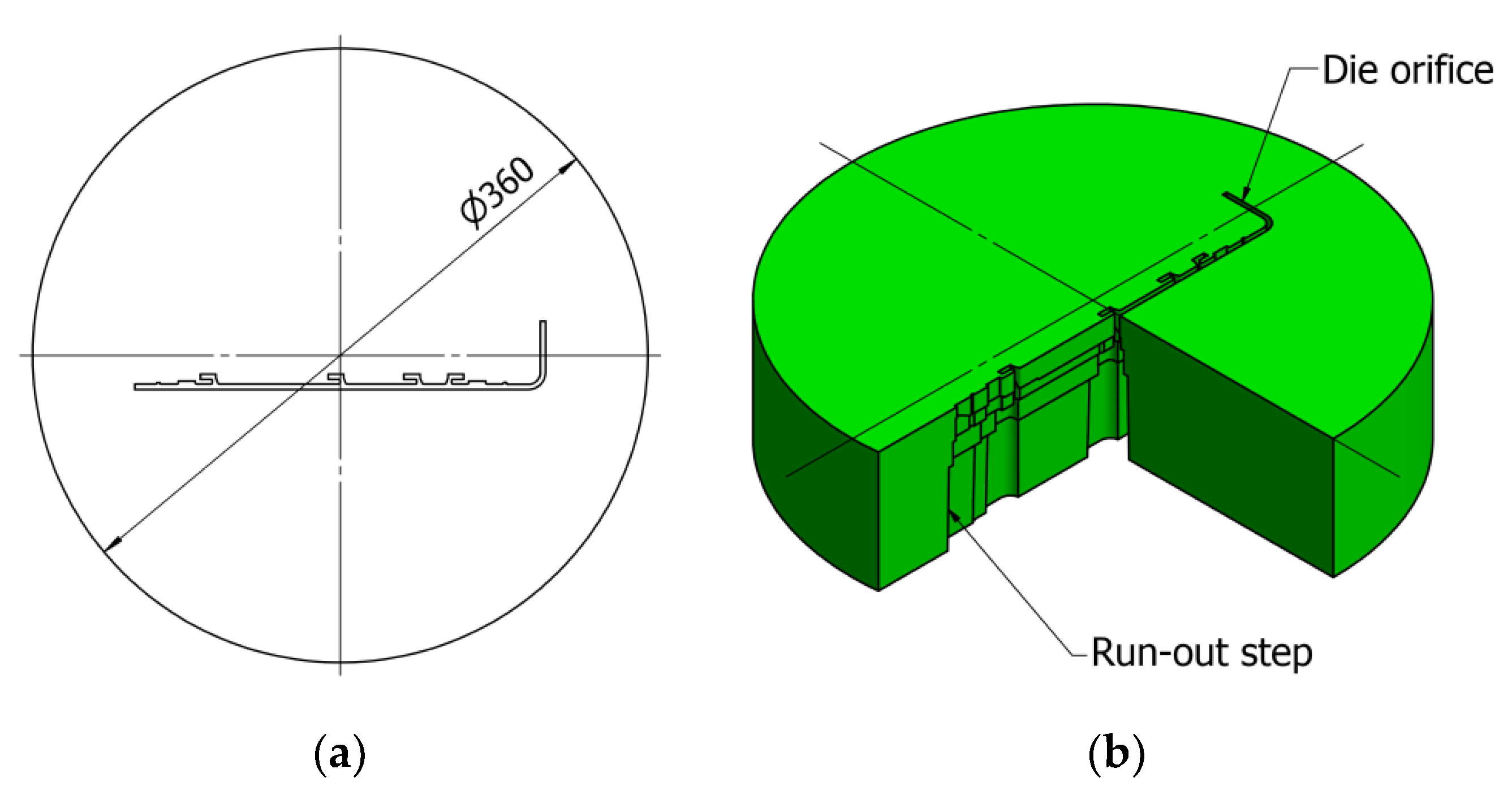

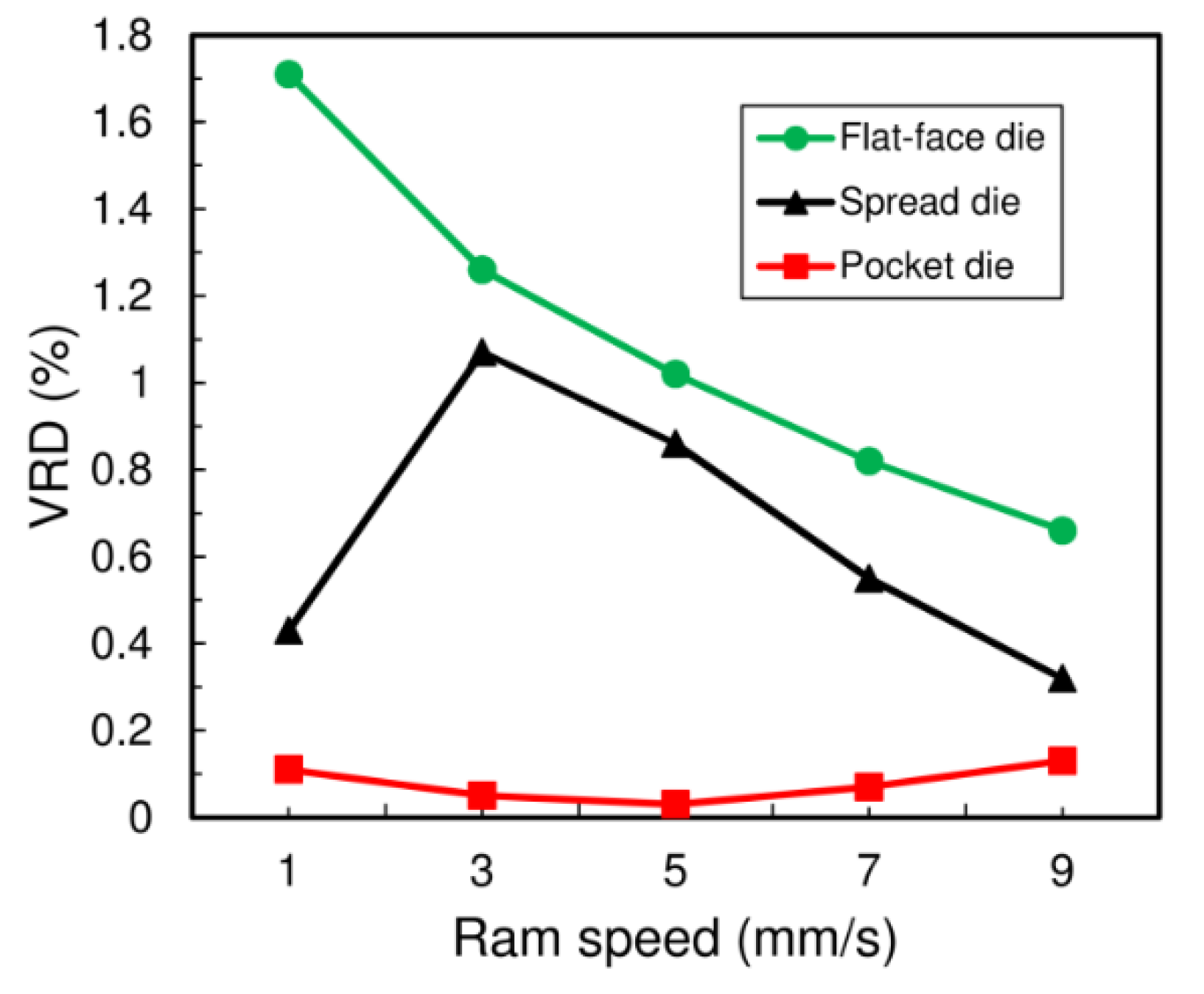

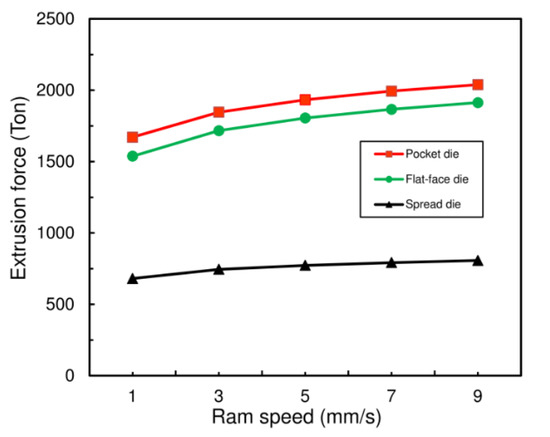

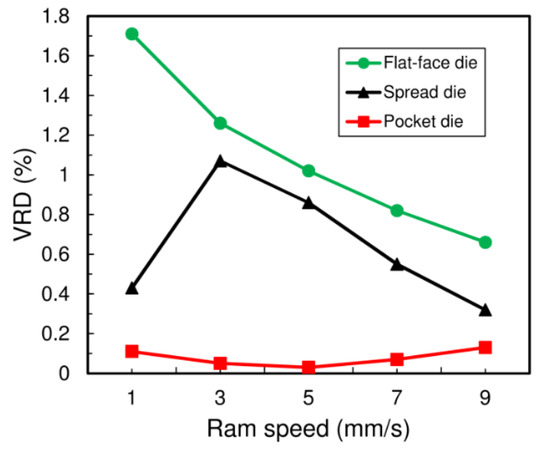

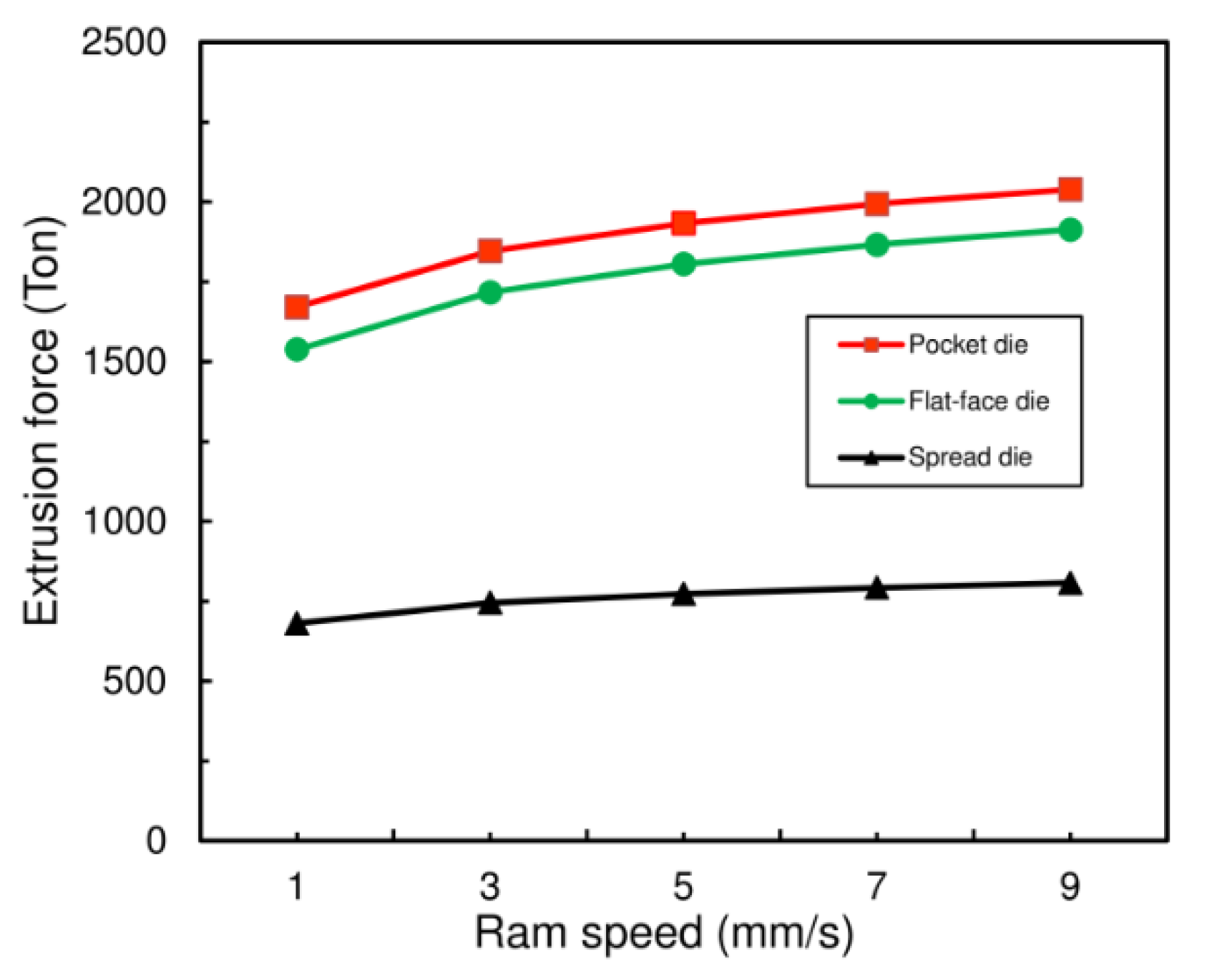

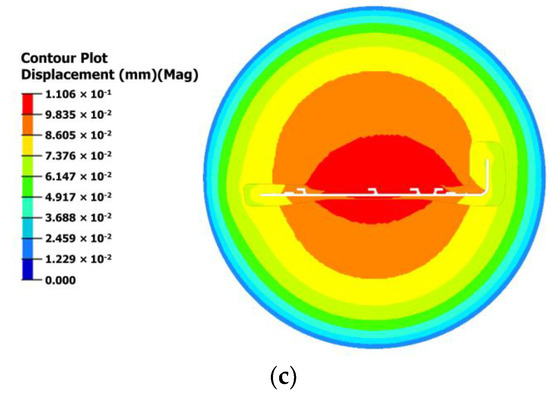

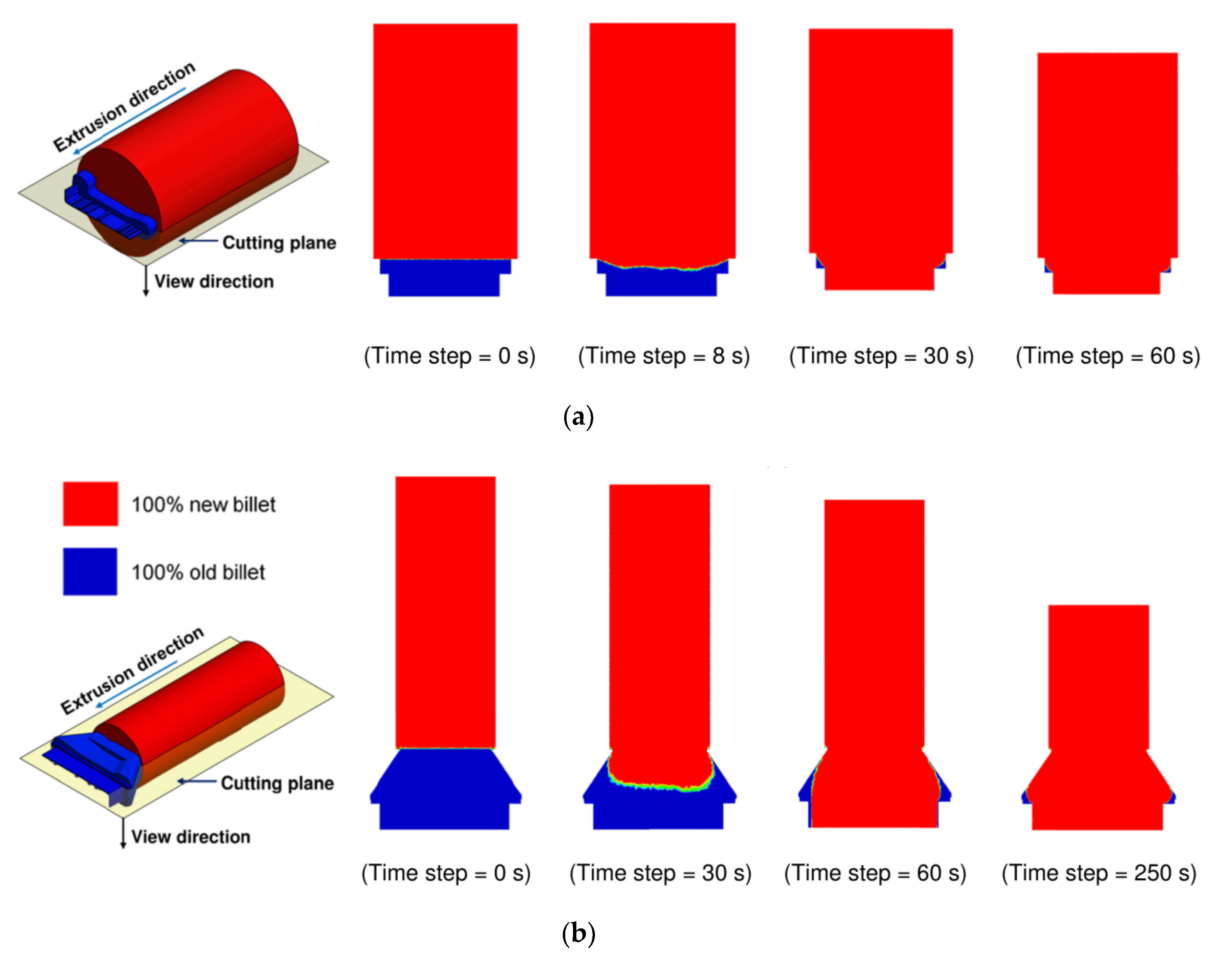

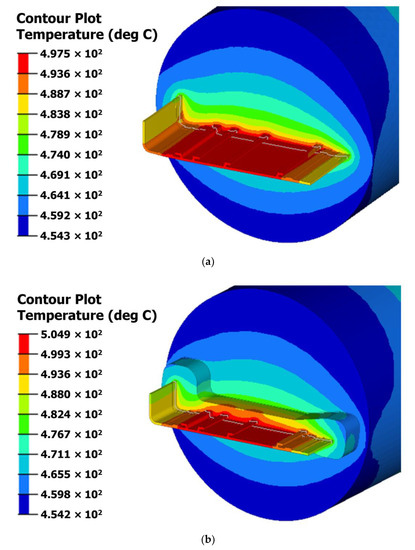

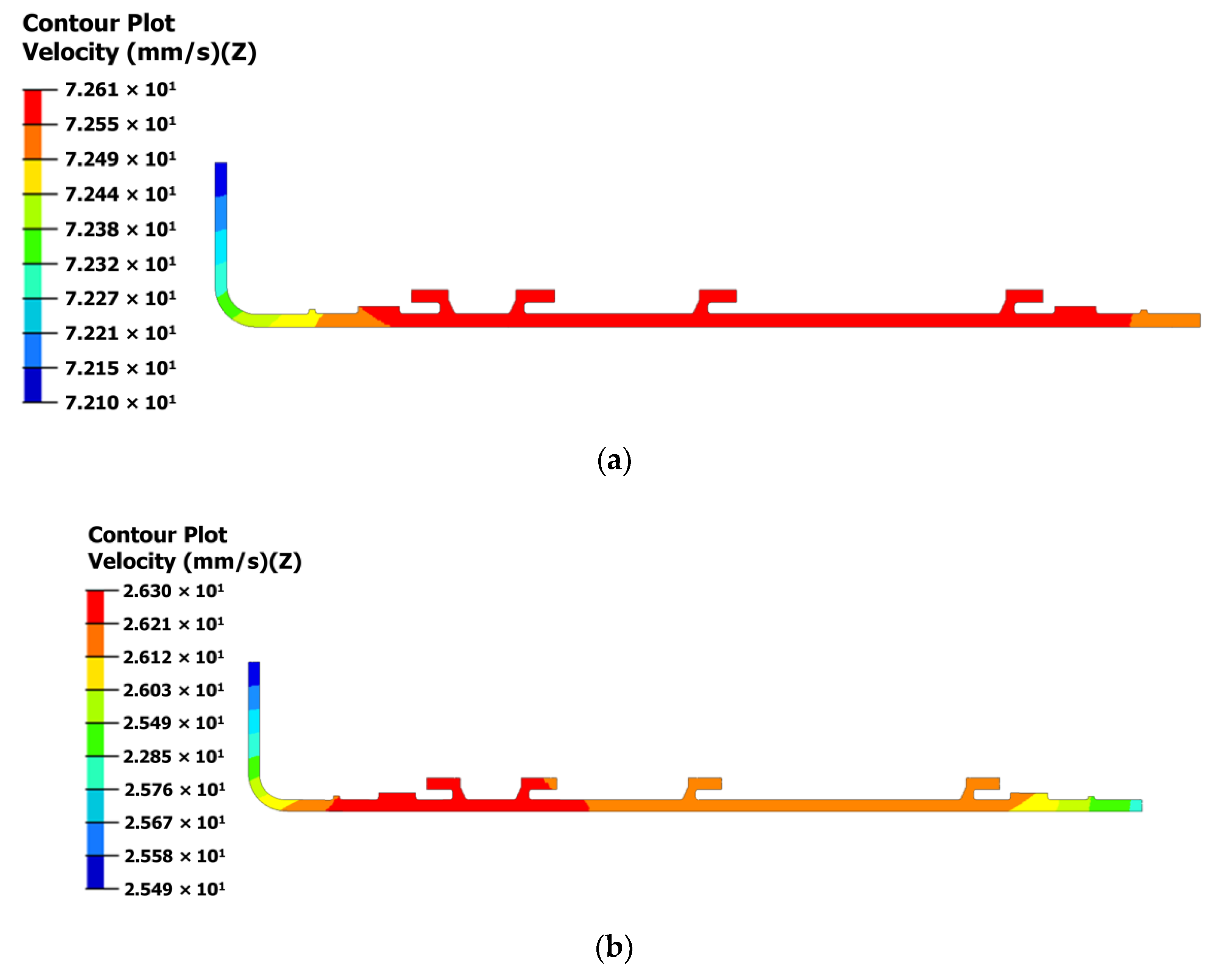

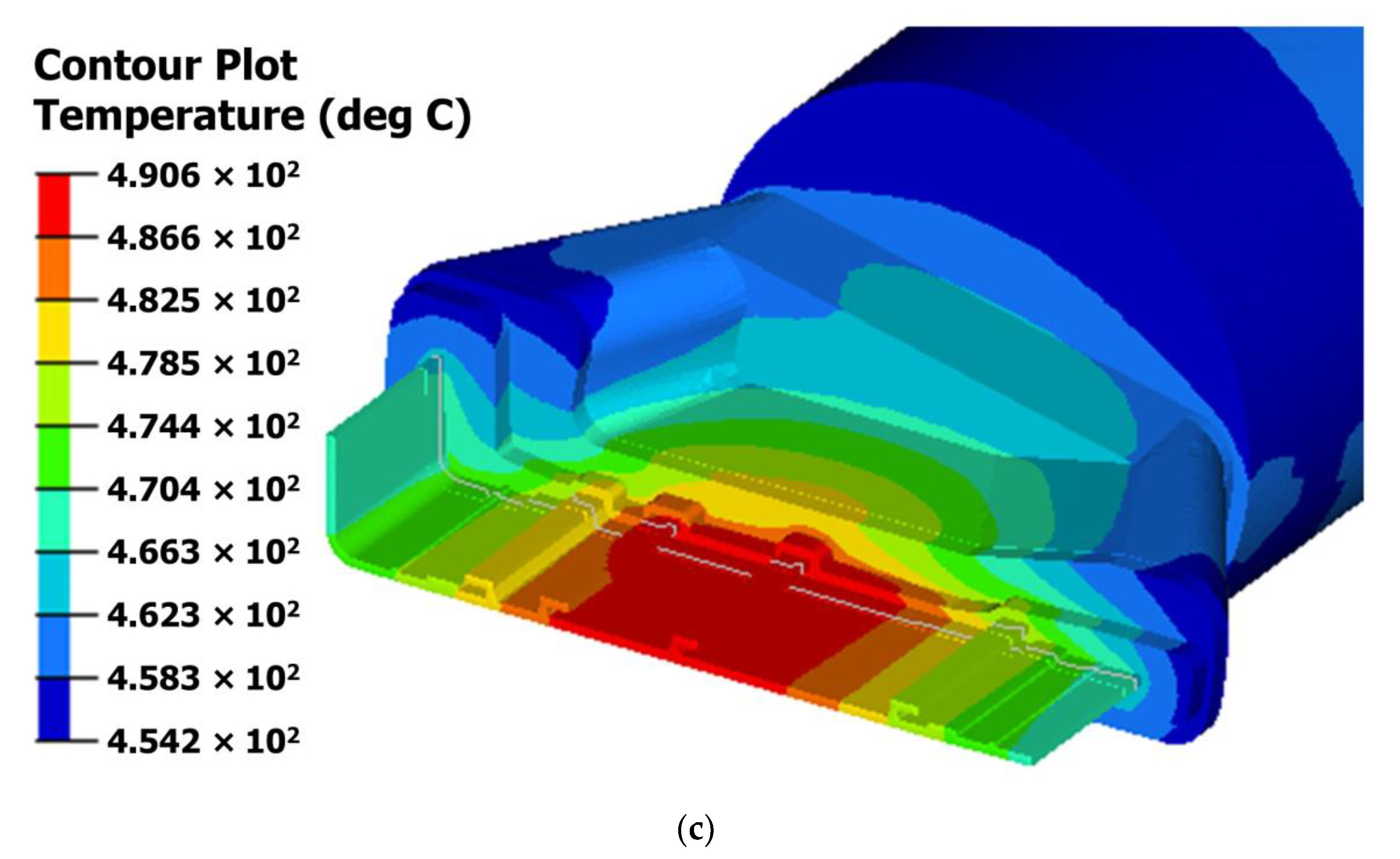

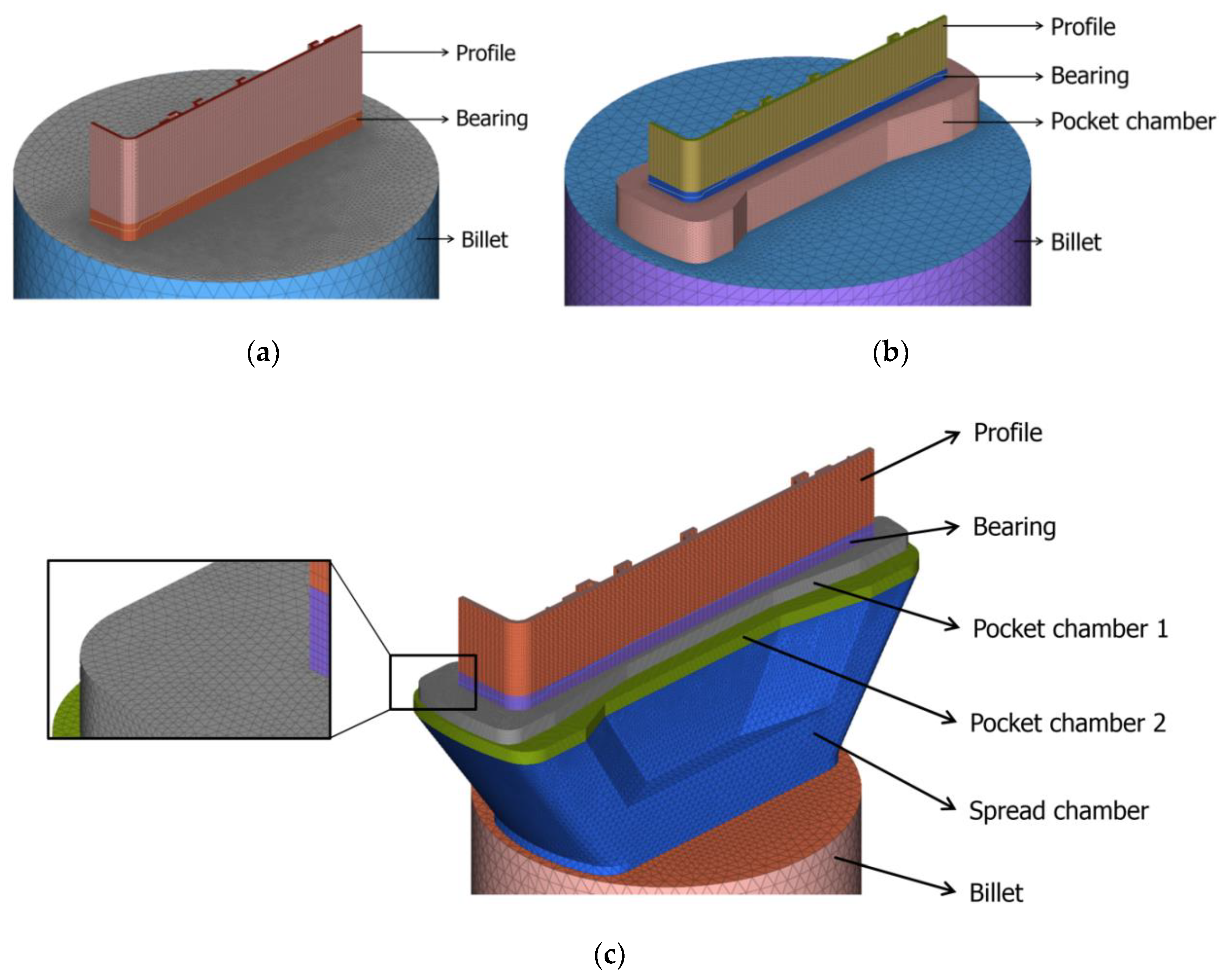

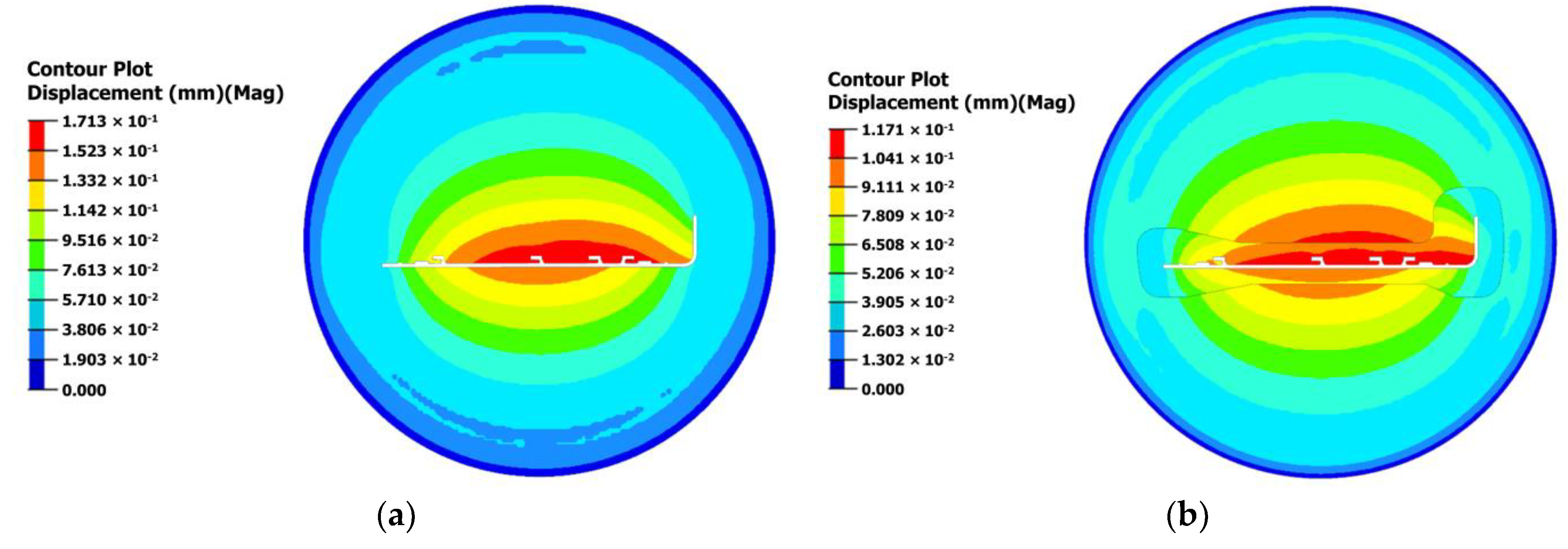

Increasing customer requirements for quality and productivity in extruding aluminum products has led to the development of different types of extrusion dies. In this study, three different types of dies, including traditional flat die, pocket die and spread die were designed to extrude complex and large-scale solid profiles. The design parameters for these dies were used from actual extrusion experience. The results obtained from steady-state simulation such as velocity, temperature, extrusion force, and die deformation were used to assess the advantages and disadvantages of the dies. Transient simulations were performed to analyze the evolution of transverse weld in the pocket and spread dies. The effects of ram speeds on the related extrusion parameters were also investigated. The research results provide useful guides for designers and engineers in selecting these types of extrusion dies. View Full-Text
Keywords: solid die types; extrusion die design; pocket die; spread die; complex aluminum profile; large-scale aluminum profile; metal flow; die deflection; transverse weld; ram velocity solid die types; extrusion die design; pocket die; spread die; complex aluminum profile; large-scale aluminum profile; metal flow; die deflection; transverse weld; ram velocity
Show Figures

Graphical abstract

MDPI and ACS Style

Truong, T.-T.; Hsu, Q.-C.; Tong, V.-C. Effects of Solid Die Types in Complex and Large-Scale Aluminum Profile Extrusion. Appl. Sci. 2020, 10, 263.
