The Effect of Ultrasonication Pretreatment on the Production of Polyphenol-Enriched Extracts from Moringa oleifera L. (Drumstick Tree) Using a Novel Bio-Based Deep Eutectic Solvent

School of Agricultural Sciences, University of Thessaly, N. Temponera Street, 43100 Karditsa, Greece
Food Quality & Chemistry of Natural Products, Mediterranean Agronomic Institute of Chania (M.A.I.Ch.), International Centre for Advanced Mediterranean Agronomic Studies (CIHEAM), P.O. Box 85, 73100 Chania, Greece
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(1), 220;
Submission received: 3 December 2019 / Revised: 22 December 2019 / Accepted: 24 December 2019 / Published: 27 December 2019
(This article belongs to the Special Issue High-Performance Green Extraction of Natural Products)


Moringa oleifera L. leaves are a plant tissue particularly rich in polyphenolic phytochemicals with significant bioactivities, and there has been significant recent interest for the production of extracts enriched in these substances. The current investigation is aimed at establishing a green extraction process, using a novel eco-friendly natural deep eutectic solvent, composed of glycerol and nicotinamide. Furthermore, sample ultrasonication prior to batch stirred-tank extraction was studied to examine its usefulness as a pretreatment step. Optimization of the extraction process through response surface methodology showed that the maximum total polyphenol yield (82.87 ± 4.28 mg gallic acid equivalents g−1 dry mass) could be achieved after a 30 min ultrasonication pretreatment, but the difference with the yield obtained from the non-pretreated sample was statistically non-significant (p < 0.05). Extraction kinetics revealed that the activation energy for the ultrasonication-pretreated samples was more energy-demanding, a fact attributed to phenomena pertaining to washing of the readily extracted polyphenols during pretreatment. Liquid-chromatography-diode array-mass spectrometry showed that ultrasonication pretreatment may have a limited positive effect on polyphenol extractability, but the overall polyphenolic profile was identical for the ultrasonication-pretreated and non-pretreated samples.

1. Introduction

Moringa oleifera Lam. is a cruciferous plant of the Moringaceae family, often called drumstick tree. M. oleifera is a popular staple in several parts around the globe, and it is consumed for its high nutritional value, as its leaves are rich in β-carotene, vitamin C, vitamin E, polyphenols, etc. [1,2]. Moreover, M. oleifera has been reported to display a broad range of biological functions, such as neuroprotective activity, chemopreventive properties, anti-inflammatory potency, and hepatoprotective activity. As a number of studies have provided strong evidence regarding the therapeutic value of M. oleifera for diseases like diabetes, rheumatoid arthritis, atherosclerosis, etc., this plant has attracted significant attention for its pharmacological functions [3]. The pharmacological potency of M. oleifera may be closely associated with its polyphenolic composition, which includes a wide range of structures, represented mainly by flavonoids (kaempferol and quercetin glycosides) and phenolic acids and their derivatives (i.e., caffeoylquinic acids and their isomers) [4,5]. In fact, the strong antioxidant effects exerted by M. oleifera leaf extracts and decoctions have been attributed to their high flavonoid content [6,7,8].
By virtue of their flavonoid richness, M. oleifera leaves have been a subject of recent research on the production of polyphenol-containing extracts, and several methodologies have been used for such a purpose, including pressurized hot water [9] and aqueous two-phase extraction [10], ultrasound-assisted extraction with aqueous ethanol [11], and subcritical ethanol extraction [12]. However, extraction with novel, green solvents, the so-called deep eutectic solvents (DES), have lately been proposed as eco-friendly and particularly effective means of polyphenol recovery from M. oleifera leaves [13,14]. DES are neoteric designer liquids, composed of food-grade, low-cost biomaterials, such as polyols, organic acids, amines, organic acid salts, etc. [15]. Their facile and straight-forward synthesis, as well as their unique properties, including low or no toxicity, absence of flammability, tunability, recyclability, and biodegradability, make DES ideal solvents for the development of green extraction processes, and over the last five years, DES have attracted particularly high interest for the polyphenol extraction from a wide number of plant tissues [16].
Ultrasonication is a state-of-the-art technology implicated in sustainable ‘‘green” extraction procedures, since numerous studies have demonstrated the efficiency of ultrasounds in accelerating the rate of solid–liquid extractions. By implementing ultrasonication techniques, effective extractions can be accomplished in minutes with high reproducibility, requiring reduced solvent volume, lower energy input and simpler sample manipulation, providing at the same time in some cases higher purity of the final product [17]. On such a ground, this study was performed with the aim at examining the extraction of M. oleifera leaf polyphenols and the impact of ultrasonication as a pretreatment step. Response surface was deployed to optimize extraction variables and kinetics was used to obtain a deeper insight into the effect of ultrasonication. A final assessment of the process was conducted through the determination of the ultrasonication-treated and non-treated samples.

2. Materials and Methods

2.1. Chemicals

Glycerol anhydrous (99.5%), sodium carbonate anhydrous (99%), aluminium chloride anhydrous (98%), sodium acetate anhydrous (98.5%), and ascorbic acid (99.5%) were from Penta (Praha, Czechia). Gallic acid hydrate (99%) was from Panreac (Barcelona, Spain). Rutin (quercetin 3-O-rutinoside) hydrate (>94%), kaempferol 3-O-glucoside, 2,4,6-tris (2-pyridyl)-s-triazine (TPTZ) (99%), neochlorogenic acid (≥98%) and Folin-Ciocalteu’s phenol reagent were from Sigma-Aldrich (St. Louis, MO, USA). Iron chloride hexahydrate was from Merck (Darmstadt, Germany). Nicotinamide and chlorogenic acid (95%) were from Fluorochem (Hadfield, UK).

2.2. Plant Material

M. oleifera trees were cultivated in the Agioi Apostoloi area (at 3922039.400 N and 2154000.600 E and elevation of 100 m, according to Google Earth Pro version (64 bit) (Google, Inc., Mountain View, CA, USA) of Karditsa prefecture (Thessaly, Greece). The leaves from the plants were collected on the 25th October 2018, when the trees were 2 months old and they were transferred to the laboratory 30 min after collection. Afterwards, they were thoroughly washed with tap water and freeze dried using a Telstar Cryodos 80 freeze dryer (Telstar Industrial, S.A., Terrassa, Spain) for 12 h (the moisture content of the leaves was 8%) and ground in a ball-mill to give a powder with average particle diameter of 0.161 mm. The material was stored in air-tight plastic bags, at −40 °C.

2.3. Synthesis of DES

The procedure followed for the synthesis of all DES used was based on a previous report [18]. Accurately weighted appropriate amounts of glycerol (hydrogen bond donor) and nicotinamide (hydrogen bond acceptor) were mixed in a 100-mL round-bottomed flask and heated up to 80 °C, under stirring at 500 rpm, for an approximate time period of 60 min. This time was sufficient to observe the formation of a transparent liquid. The liquids formed were allowed to cool down to room temperature and stored in sealed glass vials. The vials were checked periodically for the appearance of crystals, to ensure solvent stability. Checking was performed over a period of several weeks.

2.4. Screening Batch Stirred-Tank Extractions

An amount of 0.570 g of dried plant material was transferred into a 50-mL round-bottomed flask with 20 mL of solvent to give a liquid-to-solid ratio (RL/S) of 35 mL g−1. The mixture was extracted at 50 °C for 150 min, under continuous stirring at 500 rpm, on a thermostated hot plate (Witeg, Wertheim, Germany). An aliquot of 1 mL of the extract obtained was placed in a 1.5-mL Eppendorf tube and centrifuged at 10,000× g for 10 min. The clear supernatant was used for all analyses. Control extractions were performed with deionised water, 60% (v/v) aqueous methanol and 60% (v/v) aqueous ethanol, under identical conditions.

2.5. Ultrasound-Assisted Pretreatment

The pretreatment was carried out by ultrasonicating the solvent/solid material mixture before the batch stirred-tank extractions. Ultrasonication was conducted in an Elma D-78224 Singen HTW heated ultrasonic bath (Elma Schmidbauer GmbH, Singen, Germany), operated at a frequency of 50 Hz, a power of 550 W and an acoustic energy density of 78.6 W L−1 [19]. Pretreatments were performed at ambient temperature (23 ± 2 °C).

2.6. Response Surface Optimisation of the Extraction

The design of experiment was implemented with the aim at assessing the effect of three selected parameters (independent variables), the DES concentration (CDES, termed as X1), the liquid-to-solid ratio (RL/S, termed as X2), and the stirring speed (SS, termed as X3), on the extraction yield of total polyphenols (YTP), which represented the response [19]. The mode chosen was Box–Behnken with three central points and the independent variables were coded between −1 (lower limit) and +1 (upper limit), as follows:
x i = X i X 0 Δ X i ,   i = 1 ,   2 ,   3 .
The term xi represents the dimensionless value of the independent variable i and Xi the actual one. X0 is termed the actual value of the independent variable i at the central point of the design, and ΔXi the step change of Xi (Table 1). The range of values for the variables used was decided on the basis of previously published results [13,14]. Model significance, as well as the significance for each polynomial coefficient and the overall coefficient R2 for the mathematical model were evaluated by performing ANOVA, at least at 95% significance level. Non-significant dependent terms (p > 0.05) of the model were not considered and were omitted. Model validation was accomplished by runs performed under the predicted optimal conditions. The actual (measured) values were then compared with the predicted ones.

2.7. Total Polyphenol (TP) Determination

All samples were diluted 1:50 with 0.5% aqueous formic acid prior to determinations. For TP determination, a protocol described elsewhere was used [20]. Aliquot of 0.1 mL of diluted sample was mixed with 0.1 mL Folin-Ciocalteu reagent in a 1.5-mL Eppendorf tube and allowed to stand for 2 min. Following this, 0.8 mL of Na2CO3 solution (5% w/v) was added to the mixture and the tube was incubated in a thermostated water bath, at 40 °C, for 20 min. After incubation, the tube was cooled with tap water and the absorbance was recorded at 740 nm, using appropriate blank. Determination of total polyphenol concentration (CTP) was carried out using a gallic acid calibration curve (10–80 mg L−1) and results were expressed as mg gallic acid equivalents (GAE) L−1. The extraction yield in total polyphenols was then calculated as follows:
Y TP   ( mg   GAE   g 1 ) = C TP × V dm
where V is the extraction volume (in L) and dm is the dry mass of the solid material (in g).

2.8. Total Flavonoid (TFn) Determination

The determination was carried out according to a published protocol [21]. Samples were diluted as described for TP analysis and then 0.1 mL sample was mixed with 0.86 mL 35% (v/v) aqueous ethanol and 0.04 mL of reagent composed of 5% (w/v) AlCl3 and 0.5 M CH3COONa. The mixture was left to react at room temperature for 30 min, and the absorbance was recorded at 415 nm. Total flavonoid concentration (CTFn) was determined using a calibration curve constructed with rutin as standard (15–300 mg L−1). Results were reported as mg rutin equivalents (RtE) L−1. Yield in TFn (YTFn) was estimated as described for TP.

2.9. Determination of the Antiradical Activity (AAR)

A previously established methodology was employed [22], using DPPH as the radical probe. Each extract was diluted 1:50 prior to analysis, as described for TP determination, and then 0.025 mL of the diluted sample was mixed with 0.975 mL DPPH (100 μM in methanol) and incubated at ambient temperature. The absorbance at 515 nm was read at t = 0 min (immediately after mixing) and at t = 30 min. The AAR of the extract was determined using the equation:
A AR = C DPPH C TP × ( 1 A 515 ( f ) A 515 ( i ) ) × Y TP
where CDPPH and CTP is the DPPH concentration (μM) and total polyphenol concentration (mg L−1) in the reaction mixture, respectively, A515(f) is the A515 at t = 30 min, and A515(i) is the A515 at t = 0. YTP represents the extraction yield (mg g−1) in TP of each extract assayed. AAR was given as μmol DPPH g−1 dm.

2.10. Determination of the Reducing Power (PR)

The ferric-reducing power of the extracts was determined as reported elsewhere [22]. Before the assay, all extracts were diluted 1:50, as described for TP determination. Following this, 0.05 mL sample was incubated with 0.05 mL FeCl3 (4 mM in 0.05 M HCl), for 30 min, at 37 °C, in a water bath. After the completion of the incubation, samples were cooled with tap water and 0.9 mL TPTZ solution (1 mM in 0.05 M HCl) was added. The mixture was left under ambient temperature for further 5 min for colour development and then the absorbance was obtained at 620 nm. PR was reported as μmol ascorbic acid equivalents (AAE) g−1 dm, using an ascorbic acid calibration curve (50–300 μM).

2.11. Liquid Chromatography-Mass Spectrometry (LC-MS)

A modification of a method reported previously was used [23]. The chromatograph was a Finnigan (San Jose, CA, USA) MAT Spectra System P4000 pump, a UV6000LP diode array detector, and a Finnigan AQA mass spectrometer. The column used was a Fortis RP-18 column, 150 mm × 2.1 mm, 3 μm, operated at 40 °C, with a 10-μL injection loop. Mass spectra acquisition with electrospray ionization (ESI) in positive ion mode was accomplished with probe temperature set at 250 °C, acquisition at 10 and 50 eV, detector voltage at 650 V, capillary voltage at 4 kVm and source voltage at 25 V. The eluents used were 2% acetic acid (A) and methanol (B). The flow rate was 0.3 mL min−1, and the elution program used was 0–30 min, 0%–100% methanol, 30–40 min, 100% methanol.

2.12. High-Performance Liquid Chromatography (HPLC) Analyses

A Shimadzu CBM-20A liquid chromatograph (Shimadzu Europa GmbH, Nordrhein-Westfalen, Germany) was used, coupled with a SIL-20AC auto sampler and a Shimadzu SPD-M20A detector. The system was interfaced by Shimadzu LC solution software. Analyses were performed on a Phenomenex Luna C18(2) column (100 Å, 5 μm, 4.6 × 250 mm) (Phenomenex, Inc., Torrance, CA, USA), maintained at a temperature of 40 °C, using 20-μL sample injections. Eluents were (A) 0.5% aqueous formic acid and (B) 0.5% formic acid in MeCN/water (6:4), and the flow rate was 1 mL min−1. The elution program was as follows: 100% A to 60% A in 40 min, 60% A to 50% A in 10 min, 50% A to 30% A in 10 min, and then isocratic elution for another 10 min. Quantification was done at 325 nm (chlorogenates) and 355 nm (flavonols), using calibration curves constructed with chlorogenic acid (1–50 μg mL−1, R2 = 0.9999), neochlorogenic acid (1–50 μg mL−1, R2 = 0.9997) kaempferol 3-O-glucoside (1–50 μg mL−1, R2 = 0.9996), and quercetin 3-O-rutinoside (1–50 μg mL−1, R2 = 0.9990).

2.13. Statistical Analyses

Extractions were repeated at least twice, and determinations were carried out at least in triplicate. Values reported are means ± standard deviation (sd). Correlations were performed with regression analysis, at least at a 95% significance level (p < 0.05), using SigmaPlot™ 12.5. Experimental design and response surface methodology, as well as every associated statistical analysis (e.g., ANOVA) was performed with JMP™ Pro 13.

3. Results and Discussion

3.1. DES Synthesis and Examination of HBD: HBA Molar Ratio ( R m o l D / A )

The use of nicotinamide as HBA in L-lactic acid-based DES has been recently reported for the first time [24]; however, the use of glycerol as HBD in combination with nicotinamide as HBA, to the best of the authors’ knowledge, is heretofore unreported. When designing a DES, the role of R mol D / A in the polyphenol extraction performance is salient [19,25], and therefore, an initial screening of DES with varying R mol D / A was deemed essential in identifying the highest-performing combination.
Attempts to combine glycerol and nicotinamide at R mol D / A up to 4 were not met with success, since the DES synthesized tended to develop crystals within 24 h, at room temperature (23 ± 2 °C). Combination at R mol D / A = 5 produced a DES, which remained stable for several weeks, and based on this finding, a series of DES with R mol D / A ranging from 5 to 13 were synthesized and tested for their effectiveness in extracting polyphenols from M. oleifera. All the DES assayed were used as 70% (w/v) aqueous mixtures and the outcome of this screening is given in Figure 1. The DES with R mol D / A = 5 exhibited statistically higher extraction efficiency (p < 0.05) compared with all other DES and also 60% (v/v) aqueous ethanol and 60% (v/v) aqueous methanol. Water, on the other hand, was the least efficient solvent (p < 0.05). On this ground, the DES with R mol D / A = 5, assigned as GL-Nic (5:1), was chosen for further examination.

3.2. The Effect of Ultrasonication Pretreatment

To examine the effect of ultrasonication, GL-Nic (5:1) used as 70% (w/v) aqueous solution, was mixed with dried powder of M. oleifera leaves, shaken vigorously for a few seconds to form slurry, and then placed in the ultrasonication bath, at room temperature. Room temperature (23 ± 2 °C) was preferred, because at lower temperatures, ultrasonication results in better cavitation, which is the main effect involved in the ultrasound-assisted extraction. At higher temperatures, bubbles formed through cavitation collapse less violently, and thus the ultrasonication effect is less effective [26]. Ultrasonication treatments were performed for 5, 10, 20, 30, and 40 min, followed by stirred-tank extraction. As can be seen in Figure 2, a regime of 30-min ultrasonication gave statistically higher YTP (p < 0.05), whereas extraction without ultrasonication pretreatment (0 min) was significantly less effective (p < 0.05). Ultrasonication beyond 30 min resulted in decreased YTP, thus 30 min was chosen as the most appropriate pretreatment period.

3.3. Optimisation of Extraction Performance

The evidence emerged from recent examinations on polyphenol extraction with DES suggested that the three process (independent) variables considered, namely CDES, RL/S, and SS, are highly influential in solid/liquid extraction processes [19,25]. For this reason, these three parameters were used among several others to build a predictive extraction model. Two cases were examined, one with a 30-min ultrasonication regime prior to every extraction and one without ultrasonication. The purpose of such investigation was to clarify whether an ultrasonication step before batch stirred-tank extraction could affect the optimization settings and assist in achieving significantly higher extraction yield.
Appraisal of the fitted models and response surface suitability were based on the ANOVA test and lack-of-fit test. The p-value for each equation term was calculated to examine the contribution of linear, interaction, and quadratic effects in the independent variables (Table 2). Statistically non-significant terms were omitted from the mathematical models, which are given as polynomial equations in Table 3. The predicted response values calculated by the models, along with the measured (actual) values for each design point, are shown in Table 4. R2 provides indication of the amount of total variability around the mean explained by the regression model. R2 terms for both models were ≥0.95, so it would be argued that the estimation of the regression equations exhibited a good adjustment to the experimental data. The p value for lack-of-fit (assuming a confidence interval of 95%) was >0.05 for both models (Table 4), suggesting that the fitted models may be reliable predictors. By setting the values of all three process variables at their optima, using the desirability function (Figure 3), it was made possible to calculate the maximum predicted responses (Table 5). The response surface plots (Figure 4) were helpful in visualizing which variables were more influential to the response.
Ultrasonication of samples prior to stirred-tank extraction had a very pronounced effect on the extraction models, as can be concluded by the equations derived (Table 3). Thus, while CDES (X1) had a positive contribution in maximizing YTP in the extraction without ultrasonication pretreatment, it negatively affected the ultrasound-pretreated extraction. On the contrary, increased SS (X3) was significant for maximizing YTP in samples received no pretreatment, whereas ultrasound-pretreated samples required the lowest SS used to give maximum YTP.
Furthermore, for the extractions without pretreatment, RL/S (X2) had no direct impact on YTP, but its cross effect (X1X2) with CDES was negative. For the ultrasound-pretreated extractions, quadratic effects of both RL/S (X2) and SS (X2) were positive and significant.
The impact of the ultrasonication pretreatment could be more characteristically depicted by the changes found in the optimization settings of all three variables. Pretreatment resulted in shifting the theoretically required DES amount from 85% to 75% (w/v), RL/S from 20 to 100 mL g−1, and SS from 800 to 200 rpm (Table 5). This outcome suggested a profound influence of ultrasonication on the pattern through which the process variables can affect polyphenol extraction. On the other hand, it is to be emphasized that the ultrasonication pretreatment exerted virtually no effect on the extraction performance, since the optimal predicted values for YTP, for the extraction without and with pretreatment, had no statistically significant difference, being 80.93 ± 6.68 and 82.87 ± 4.28 mg GAE g−1 dm, respectively (Table 5).
A critical assessment of these data would point out that samples received no ultrasonication pretreatment required higher DES concentration and a relatively high speed of stirring to yield extracts with increased YTP. The optimum CDES determined was 85% (w/v), very close to the 80% (w/v) found for M. oleifera polyphenol extraction with a DES composed of glycerol and sodium acetate (6:1) [13]. Likewise, the optimum SS (800 rpm) was comparable to 900 rpm determined for polyphenol extraction from onion solid wastes, using a DES of glycerol/sodium propionate (8:1) [25]. By contrast, the optimum RL/S (20 mL g−1) was rather low compared with those reported for polyphenol extraction with DES, ranging from 29 mL g−1 [27] to 100 mL g−1 [25].
This picture was fundamentally changed when samples were ultrasonicated prior to stirred-tank extraction. The optimum CDES dropped to 75% (w/v), while ultrasonication-pretreated samples required 5 times higher RL/S but 4 times lower SS to provide maximum YTP (Table 5). Ultrasonication is known to contribute in intensification of extraction efficacy, owed to several phenomena that accompany irradiation with ultrasounds, including propagation of ultrasound pressure waves through the solvent and resulting cavitation effects [28,29]. The increased performance usually observed in the ultrasound-assisted extractions is generally attributed to mechanical, cavitation, and thermal effects, which can provoke cell wall disruption and reduction of particle size, resulting eventually in enhanced mass transfer across cell membranes. On such a theoretical background, it could be postulated that the reduced CDES required for the ultrasonicated-pretreated samples to reach optimum YTP, could probably be ascribed to higher polyphenol diffusivity and solubilization, as a result of cell wall/membrane disruption. Such an event could facilitate leaching and dissolution of polyphenols into the liquid phase, an assumption corroborated by the drastic decrease in the optimum SS required, from 800 to 200 rpm. It would appear that lower SS (200 rpm) is sufficient to provide the turbulence necessary for effective diffusion, whereas higher SS (800 rpm) might provoke adsorption effects, thereby hindering higher extraction yields.
On the other hand, the pronounced increase in the optimum RL/S could be attributed to a rapid accumulation of polyphenols at the surface of the solid particles, due to cell breakdown and particle disintegration, that would cause extensive liberation of polyphenols from the interior of the solid particles. Such accumulation would presumably require a higher concentration gradient for effective diffusivity, hence the higher RL/S. The parameter RL/S is tightly associated with diffusion phenomena [30,31,32], and it has been demonstrated that rising RL/S could bring about a significant diffusivity increase [33].

3.4. Extraction Kinetics and Temperature Effects

The optimization of the extraction process revealed significant changes in the extraction variables as a consequence of ultrasonication pretreatment, but to portray the ultrasound effect on the process in an integrated frame, information pertaining to the kinetics of the extraction and the effect of temperature was indispensable. Towards this objective, extraction kinetics were traced over a wide breadth of temperatures, ranging from 40 to 80 °C (Figure 5). In each case, the optimized conditions were used to carry out the extractions (Table 5). A modification of a previously proposed kinetic model was employed for both non-pretreated and ultrasound-pretreated samples [34]:
Y T P ( t ) = Y T P ( 0 ) + Y T P ( s ) t t 0.5 + t .
The term YTP(t) represents the extraction yield in total polyphenols (mg GAE g−1 dm) at any time t, YTP(0) is a fitting parameter, YTP(s) the yield in total polyphenols at equilibrium (saturation), and t0.5 half the time (min) required for the extraction to enter the regular regime. The phase of the regular regime refers to the period within which small increases in YTP are achieved within relatively large t [35]. In all cases examined, fitting of the kinetic model to the experimental data gave R2 > 0.98 (p < 0.0001), suggesting that the model implemented could very effectively describe extraction kinetics. Determination of the initial rate of the extraction, h, and the second-order extraction rate, k, was accomplished using the following equations:
h = Y T P ( s ) t 0.5 ,
k = 1 Y T P ( s )   t 0.5 .
The data generated from the kinetic assay are analytically presented in Table 6. The effect exerted by the ultrasonication pretreatment was shown to be temperature-dependent, since acceleration of the extraction (increased k) was seen only at 70 and 80 °C. This trend was corroborated by the values determined for h, which were increased for the ultrasound-pretreated samples at temperatures higher than 60 °C. Likewise, t0.5 was shorter for the extractions received ultrasonication pretreatment at temperatures higher than 60 °C. Furthermore, for every temperature tested, YTP of the ultrasonication-pretreated samples was always significantly higher than that of the non-pretreated ones. However, in both cases, temperature had a non-significant effect on YTP(s), since it varied between 82.03 to 83.90 mg GAE g−1 dm for the non-pretreated extractions and from 91.24 to 93.97 mg GAE g−1 dm for the ultrasound-pretreated extractions.
Pretreatment with ultrasonication is likely to solubilize all polyphenols occurring at and near the surface of the solid particles. This assumption could justify the fact that at temperatures 40–60 °C the stirred-tank extraction of the ultrasound-pretreated samples proceeded at a lower rate. On the other hand, the non-pretreated samples had a higher load of polyphenols at the exterior of the solid particles and exhibited apparently increased k and h. At higher temperatures, polyphenol extraction was more rapid for the ultrasonicated samples, most probably because the pretreatment brought about disruption of the cell walls of the plant material, which enabled more facile penetration of the solvent into the solid particles and easier entrainment of the solute (polyphenols) in the liquid phase. Concerning YTP(s), the variation as a response to T was non-significant, a fact indicating the T had virtually no effect on YTP(s). This outcome is a paradox, in light of previous investigations, which demonstrated that increasing T had a proportional effect on YTP(s) [36,37]. However, earlier studies on polyphenol extraction from M. oleifera leaves with a glycerol/sodium acetate DES revealed that switching T from 50 to 80 °C resulted in a constant decline in YTP(s) [13]. The fact that increasing T did not contribute in attaining higher YTP(s) might suggest that extraction could reach equilibrium after a given period of time, irrespective of the T.
The increase in k as a response to increasing T was found to obey the Arrhenius law:
k = k 0 e E a R T .
where k0, R, T, and Ea correspond to the temperature-independent factor (min−1), the universal gas constant (8.314 J K−1 mol−1), the absolute temperature (K), and the activation energy (J mol−1). The linear expression of Equation (7) would be:
l n k = l n k 0 + ( E a R ) 1 T .
Thus, Ea could be determined graphically, by the slope ( E a R ) of the straight line obtained by plotting lnk as a function of 1/T (Figure 6).
The Ea values for the extractions without and with ultrasonication pretreatment were 11.24 and 34.02 kJ mol−1, respectively (Table 6), clearly showing that the extraction of the ultrasonication-pretreated samples was more energy-demanding by almost 4 times. Based on this outcome, it would appear that ultrasonication prior to batch stirred-tank extraction does not lower the requirements in energy for accomplishing an efficient extraction of polyphenols from M. oleifera leaves, but the energetic needs are even higher.
Yet, such observation could be rather misleading and the increased of YTP(s) of the ultrasonication-pretreated samples should not be overlooked. The increased Ea value found for the ultrasonication pretreated extraction was most probably because during pretreatment the most readily extracted polyphenols were dissolved in the liquid phase (solvent), leaving behind (inside the solid particles) polyphenols that were more difficult to extract, since solubilization of these polyphenols would depend on internal diffusion, which is the rate-determining step in diffusion-controlled extractions [30,38]. Therefore, the following stirred-tank extraction was apparently more energy-demanding. However, considering YTP(s), it could be argued that ultrasonication facilitated the washing (initial) phase of the extraction, provoking extended release of superficial polyphenols, whereas the stirred-tank extraction recovered the remaining compounds, located deeper inside the particles. Indeed, just after ultrasonication the YTP was approximately 29.70 mg GAE g−1 dm, which was almost 30% of the YTP(s) achieved with ultrasonication pretreatment (Table 6). These data strongly supported that a large part of polyphenols was extracted during the ultrasonication step.

3.5. Polyphenolic Profile

To illustrate the effect of ultrasonication pretreatment on the analytical polyphenolic profile, LC-MS was undertaken for the samples obtained after 180 min of extraction, at 80 °C, under optimal conditions. A typical chromatogram is given in Figure 7, showing the principal substances detected at both 320 and 360 nm. It should be noted that for both ultrasonication-pretreated and non-pretreated samples, the chromatograms recorded were identical (data not shown), evidencing no effect of ultrasonication on the polyphenolic profile.
Peak #1 showed a pseudo-molecular ion at m/z = 355 and a derivative ion at m/z = 163. Considering the UV-vis characteristics, this structure was assigned to neochlorogenic acid. The identity of this peak was further confirmed by comparing the UV-vis spectrum and retention time (Rt) with an original standard. Likewise, peaks 2 and 3 were tentatively identified as chlorogenic acid and a chlorogenate isomer, respectively (Table 7).
Peak #4 displayed a pseudo-molecular ion at m/z = 595, a sodium adduct at m/z = 617, and a diagnostic fragment (aglycone) at m/z = 287. This compound was tentatively assigned to multiflorin B (kaempferol 3-O-rhamnosylglucoside). Similarly, peaks 7 and 8 were assigned to a kaempferol glucoside and kaempferol malonylglucoside. Peaks 5 and 6, which exhibited typical quercetin glycoside UV-vis pattern and diagnostic fragment at m/z = 303, were tentatively identified as quercetin glucoside and quercetin malonylglycoside derivative, respectively [39]. All these compounds have been previously reported in M. oleifera leaf extracts [13]; however, the presence of a quercetin rhamnoside derivative claimed in an earlier study [40] was not confirmed.
The information emerged from the quantitative data (Table 8) showed that ultrasonication pretreatment afforded changes in the recovery of major polyphenols, but not all substances were equally affected.
For neochlorogenic acid and chlorogenic acid, ultrasonication pretreatment brought about an increase by 3.1% and 9.1%, but for the chlorogenic acid isomer, a decrease by almost 1.9% was observed. Overall, total chlorogenate content was by 1.1% increased, a difference that falls within the limits of statistical error. Thus, ultrasonication pretreatment had practically no effect on chlorogenate extractability. On the other hand, all flavonol glycosides had higher content in the ultrasonication-pretreated sample, the increases varying from 0.65% (quercetin glucoside) to 14.6% (quercetin manolyglycoside derivative). Overall, the increase in flavonol content caused by ultrasonication pretreatment was 6.4%, and for all polyphenols considered (chlorogenates + flavonols), an increase by 4.7% was determined.

4. Conclusions

The extraction of M. oleifera leaf polyphenols with a novel, glycerol/nicotinamide DES was performed by deploying an ultrasonication pretreatment step. This process enabled the clarification of the use of ultrasounds in the performance of the extraction, with regard to yield, duration, and energy demands. The optimization through response surface methodology revealed that when samples were ultrasonication-pretreated, the subsequent batch stirred-tank extraction required less amount of DES and much lower stirring speed for maximum polyphenol yield, but also a higher amount of solvent per dry mass unit. However, no significant difference in the maximum polyphenol yield was determined. Kinetics showed that higher extraction rate, and therefore shorter extraction time, of the ultrasound-pretreated samples, could be attained only when stirred-tank extraction was carried out at T ≥ 70 °C. The higher energy barrier estimated for the ultrasonication-pretreated extractions was representative of the harder-to-extract compounds, since a significant wash out of the most readily extracted polyphenols took place during pretreatment. It is concluded that sample ultrasonication as a pretreatment step might be favourable in reducing extraction time, and solvent and energy requirements, but further studies with various plant tissues are needed to obtain a deeper insight.

Author Contributions

Conceptualization, S.L. and D.P.M.; formal analysis, A.L., S.G., I.K., O.K., G.B., and E.B.; investigation, A.L., S.G., I.K., O.K., G.B., and E.B.; writing—original draft preparation, S.L. and D.P.M.; writing—review and editing, S.L. and D.P.M.; supervision, S.L. and D.P.M. All authors have read and agreed to the published version of the manuscript.


This research was co-financed by the European Union and the Hellenic Ministry of Economy & Development through the Operational Programme Competitiveness, Entrepreneurship and Innovation, under the call RESEARCH—CREATE—INNOVATE (project code: T1EDK-05677).

Conflicts of Interest

The authors declare no conflict of interest.


AARantiradical activity (μmol DPPH g−1)
dmdry matter (g)
PRreducing power (μmol AAE g−1)
RL/Sliquid-to-solid ratio (mL g−1)
R mol D / A molar HBD:HBA ratio (dimensionless)
SSstirring speed (rpm)
ttime (min)
Ttemperature (°C)
YTPyield in total polyphenols (mg GAE g−1)


AAEascorbic acid equivalents
DESdeep eutectic solvents
DPPH2,2-diphenyl-1-picrylhydrazyl radical
GAEgallic acid equivalents
HBAhydrogen bond acceptor
HBDhydrogen bond donor
UPultrasonication pretreatment


  1. Gopalakrishnan, L.; Doriya, K.; Kumar, D.S. Moringa oleifera: A review on nutritive importance and its medicinal application. Food Sci. Hum. Wellness 2016, 5, 49–56. [Google Scholar] [CrossRef] [Green Version]
  2. Kou, X.; Li, B.; Olayanju, J.B.; Drake, J.M.; Chen, N. Nutraceutical or pharmacological potential of Moringa oleifera Lam. Nutrients 2018, 10, 343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Gupta, S.; Jain, R.; Kachhwaha, S.; Kothari, S. Nutritional and medicinal applications of Moringa oleifera Lam.—Review of current status and future possibilities. J. Herb. Med. 2018, 11, 1–11. [Google Scholar] [CrossRef]
  4. Lin, M.; Zhang, J.; Chen, X. Bioactive flavonoids in Moringa oleifera and their health-promoting properties. J. Funct. Foods 2018, 47, 469–479. [Google Scholar] [CrossRef]
  5. Saucedo-Pompa, S.; Torres-Castillo, J.; Castro-López, C.; Rojas, R.; Sánchez-Alejo, E.; Ngangyo-Heya, M.; Martínez-Ávila, G. Moringa plants: Bioactive compounds and promising applications in food products. Food Res. Int. 2018, 111, 438–450. [Google Scholar] [CrossRef]
  6. Lalas, S.; Athanasiadis, V.; Karageorgou, I.; Batra, G.; Nanos, G.D.; Makris, D.P. Nutritional characterization of leaves and herbal tea of Moringa oleifera cultivated in Greece. J. Herbs Spices Med. Plants 2017, 23, 320–333. [Google Scholar] [CrossRef]
  7. Rani, A.; Zahirah, N.; Husain, K.; Kumolosasi, E. Moringa genus: A review of phytochemistry and pharmacology. Front. Pharmacol. 2018, 9, 108. [Google Scholar] [CrossRef] [Green Version]
  8. Singh, A.K.; Rana, H.K.; Tshabalala, T.; Kumar, R.; Gupta, A.; Ndhlala, A.R.; Pandey, A.K. Phytochemical, nutraceutical and pharmacological attributes of a functional crop Moringa oleifera Lam: An overview. S. Afr. J. Bot. 2019, in press. [Google Scholar] [CrossRef]
  9. Nuapia, Y.; Cukrowska, E.; Tutu, H.; Chimuka, L. Statistical comparison of two modeling methods on pressurized hot water extraction of vitamin C and phenolic compounds from Moringa oleifera leaves. S. Afr. J. Bot. 2018, in press. [Google Scholar] [CrossRef]
  10. Djande, C.H.; Piater, L.; Steenkamp, P.; Madala, N.; Dubery, I. Differential extraction of phytochemicals from the multipurpose tree, Moringa oleifera, using green extraction solvents. S. Afr. J. Bot. 2018, 115, 81–89. [Google Scholar] [CrossRef]
  11. Hamed, Y.; Abdin, M.; Akhtar, H.; Chen, D.; Wan, P.; Chen, G.; Zeng, X. Extraction, purification by macrospores resin and in vitro antioxidant activity of flavonoids from Moringa oliefera leaves. S. Afr. J. Bot. 2019, 124, 270–279. [Google Scholar] [CrossRef]
  12. Wang, Y.; Gao, Y.; Ding, H.; Liu, S.; Han, X.; Gui, J.; Liu, D. Subcritical ethanol extraction of flavonoids from Moringa oleifera leaf and evaluation of antioxidant activity. Food Chem. 2017, 218, 152–158. [Google Scholar] [CrossRef] [PubMed]
  13. Karageorgou, I.; Grigorakis, S.; Lalas, S.; Makris, D.P. Enhanced extraction of antioxidant polyphenols from Moringa oleifera Lam. leaves using a biomolecule-based low-transition temperature mixture. Eur. Food Res. Technol. 2017, 243, 1839–1848. [Google Scholar] [CrossRef]
  14. Karageorgou, I.; Grigorakis, S.; Lalas, S.; Mourtzinos, I.; Makris, D.P. Incorporation of 2-hydroxypropyl β-cyclodextrin in a biomolecule-based low-transition temperature mixture (LTTM) boosts efficiency of polyphenol extraction from Moringa oleifera Lam leaves. J. Appl. Res. Med. Aromat. Plants 2018, 9, 62–69. [Google Scholar] [CrossRef]
  15. Mišan, A.; Nađpal, J.; Stupar, A.; Pojić, M.; Mandić, A.; Verpoorte, R.; Choi, Y.H. The perspectives of natural deep eutectic solvents in agri-food sector. Crit. Rev. Food Sci. Nutr. 2019, in press. [Google Scholar]
  16. De los Ángeles Fernández, M.; Boiteux, J.; Espino, M.; Gomez, F.V.; Silva, M.F. Natural deep eutectic solvents-mediated extractions: The way forward for sustainable analytical developments. Anal. Chim. Acta 2018, 1038, 1–10. [Google Scholar] [CrossRef]
  17. Chemat, F.; Rombaut, N.; Sicaire, A.-G.; Meullemiestre, A.; Fabiano-Tixier, A.-S.; Abert-Vian, M. Ultrasound assisted extraction of food and natural products. Mechanisms, techniques, combinations, protocols and applications. A review. Ultrason. Sonochem. 2017, 34, 540–560. [Google Scholar] [CrossRef]
  18. Mouratoglou, E.; Malliou, V.; Makris, D.P. Novel glycerol-based natural eutectic mixtures and their efficiency in the ultrasound-assisted extraction of antioxidant polyphenols from agri-food waste biomass. Waste Biomass Valorization 2016, 7, 1377–1387. [Google Scholar] [CrossRef]
  19. Lakka, A.; Karageorgou, I.; Kaltsa, O.; Batra, G.; Bozinou, E.; Lalas, S.; Makris, D. Polyphenol extraction from Humulus lupulus (hop) using a neoteric glycerol/L-alanine deep eutectic solvent: Optimisation, kinetics and the effect of ultrasound-assisted pretreatment. AgriEngineering 2019, 1, 403–417. [Google Scholar] [CrossRef] [Green Version]
  20. Cicco, N.; Lanorte, M.T.; Paraggio, M.; Viggiano, M.; Lattanzio, V. A reproducible, rapid and inexpensive Folin–Ciocalteu micro-method in determining phenolics of plant methanol extracts. Microchem. J. 2009, 91, 107–110. [Google Scholar] [CrossRef]
  21. Manousaki, A.; Jancheva, M.; Grigorakis, S.; Makris, D. Extraction of antioxidant phenolics from agri-food waste biomass using a newly designed glycerol-based natural low-transition temperature mixture: A comparison with conventional eco-friendly solvents. Recycling 2016, 1, 194–204. [Google Scholar] [CrossRef]
  22. Paleologou, I.; Vasiliou, A.; Grigorakis, S.; Makris, D.P. Optimisation of a green ultrasound-assisted extraction process for potato peel (Solanum tuberosum) polyphenols using bio-solvents and response surface methodology. Biomass Convers. Biorefin. 2016, 6, 289–299. [Google Scholar] [CrossRef]
  23. Karakashov, B.; Grigorakis, S.; Loupassaki, S.; Makris, D.P. Optimisation of polyphenol extraction from Hypericum perforatum (St. John’s Wort) using aqueous glycerol and response surface methodology. J. Appl. Res. Med. Aromat. Plants 2015, 2, 1–8. [Google Scholar] [CrossRef]
  24. Georgantzi, C.; Lioliou, A.-E.; Paterakis, N.; Makris, D. Combination of lactic acid-based deep eutectic solvents (DES) with β-cyclodextrin: Performance screening using ultrasound-assisted extraction of polyphenols from selected native Greek medicinal plants. Agronomy 2017, 7, 54. [Google Scholar] [CrossRef] [Green Version]
  25. Stefou, I.; Grigorakis, S.; Loupassaki, S.; Makris, D.P. Development of sodium propionate-based deep eutectic solvents for polyphenol extraction from onion solid wastes. Clean Technol. Environ. Policy 2019, 21, 1563–1574. [Google Scholar] [CrossRef]
  26. Ameta, R. Sonochemistry: A Versatile Approach. In Sonochemistry; Apple Academic Press: Palm Bay, FL, USA, 2018; pp. 371–373. [Google Scholar]
  27. Jancheva, M.; Grigorakis, S.; Loupassaki, S.; Makris, D.P. Optimised extraction of antioxidant polyphenols from Satureja thymbra using newly designed glycerol-based natural low-transition temperature mixtures (LTTMs). J. Appl. Res. Med. Aromat. Plants 2017, 6, 31–40. [Google Scholar] [CrossRef]
  28. Shirsath, S.; Sonawane, S.; Gogate, P. Intensification of extraction of natural products using ultrasonic irradiations—A review of current status. Chem. Eng. Process. 2012, 53, 10–23. [Google Scholar] [CrossRef]
  29. Pingret, D.; Fabiano-Tixier, A.S.; Chemat, F. Ultrasound-assisted extraction. Natural product extraction: Principles and applications. RSC Green Chem. 2013, 21, 89–112. [Google Scholar]
  30. Pinelo, M.; Sineiro, J.; Núñez, M.a.J. Mass transfer during continuous solid–liquid extraction of antioxidants from grape byproducts. J. Food Eng. 2006, 77, 57–63. [Google Scholar] [CrossRef]
  31. Rakotondramasy-Rabesiaka, L.; Havet, J.-L.; Porte, C.; Fauduet, H. Estimation of effective diffusion and transfer rate during the protopine extraction process from Fumaria officinalis L. Sep. Purif. Technol. 2010, 76, 126–131. [Google Scholar] [CrossRef]
  32. Krishnan, R.Y.; Rajan, K. Microwave assisted extraction of flavonoids from Terminalia bellerica: Study of kinetics and thermodynamics. Sep. Purif. Technol. 2016, 157, 169–178. [Google Scholar] [CrossRef]
  33. Shewale, S.; Rathod, V.K. Extraction of total phenolic content from Azadirachta indica or (neem) leaves: Kinetics study. Prep. Biochem. Biotechnol. 2018, 48, 312–320. [Google Scholar] [CrossRef] [PubMed]
  34. Makris, D. A novel kinetic assay for the examination of solid-liquid extraction of flavonoids from plant material. Res. J. Chem. Sci. 2015, 5, 18–23. [Google Scholar]
  35. Seikova, I.; Simeonov, E.; Ivanova, E. Protein leaching from tomato seed––experimental kinetics and prediction of effective diffusivity. J. Food Eng. 2004, 61, 165–171. [Google Scholar] [CrossRef]
  36. Trasanidou, D.; Apostolakis, A.; Makris, D.P. Development of a green process for the preparation of antioxidant and pigment-enriched extracts from winery solid wastes using response surface methodology and kinetics. Chem. Eng. Commun. 2016, 203, 1317–1325. [Google Scholar] [CrossRef]
  37. Athanasiadis, V.; Grigorakis, S.; Lalas, S.; Makris, D.P. Highly efficient extraction of antioxidant polyphenols from Olea europaea leaves using an eco-friendly glycerol/glycine deep eutectic solvent. Waste Biomass Valorization 2018, 9, 1985–1992. [Google Scholar] [CrossRef]
  38. Karacabey, E.; Mazza, G.; Bayındırlı, L.; Artık, N. Extraction of bioactive compounds from milled grape canes (Vitis vinifera) using a pressurized low-polarity water extractor. Food Bioprocess Technol. 2012, 5, 359–371. [Google Scholar] [CrossRef]
  39. Lin, H.; Zhu, H.; Tan, J.; Wang, H.; Wang, Z.; Li, P.; Zhao, C.; Liu, J. Comparative analysis of chemical constituents of Moringa oleifera leaves from China and India by ultra-performance liquid chromatography coupled with quadrupole-time-of-flight mass spectrometry. Molecules 2019, 24, 942. [Google Scholar] [CrossRef] [Green Version]
  40. Karageorgou, I.; Grigorakis, S.; Lalas, S.; Makris, D.P. The effect of 2-hydroxypropyl β-cyclodextrin on the stability of polyphenolic compounds from Moringa oleifera Lam leaf extracts in a natural low-transition temperature mixture. Nova Biotechnol. Chim. 2018, 17, 29–37. [Google Scholar] [CrossRef]

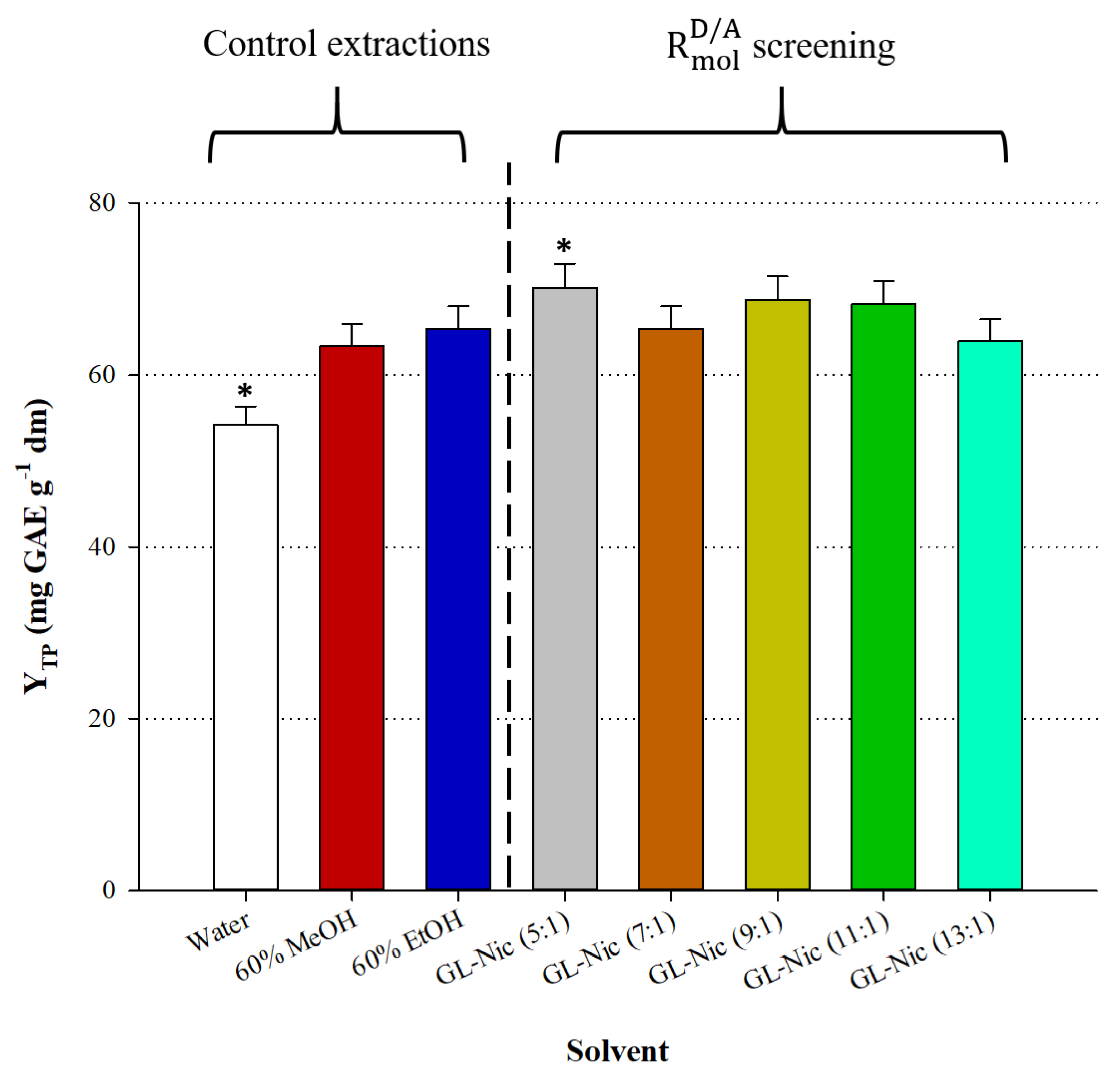

Figure 1. Plot showing the effect of R mol D / A on the extraction effectiveness of the DES tested. Extractions were carried out at 50 °C, with CDES = 70% (w/v), at 500 rpm, for 150 min. Assignment with “*” denotes statistically different value.
Figure 1. Plot showing the effect of R mol D / A on the extraction effectiveness of the DES tested. Extractions were carried out at 50 °C, with CDES = 70% (w/v), at 500 rpm, for 150 min. Assignment with “*” denotes statistically different value.
Applsci 10 00220 g001

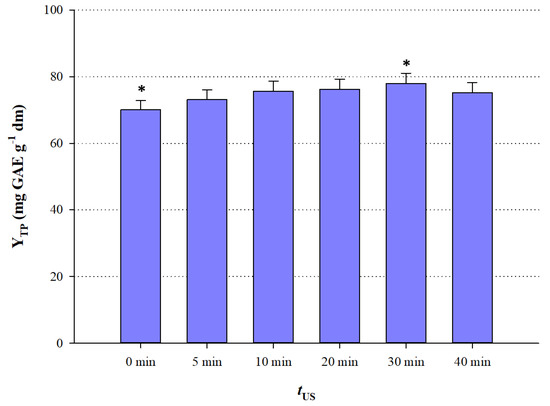

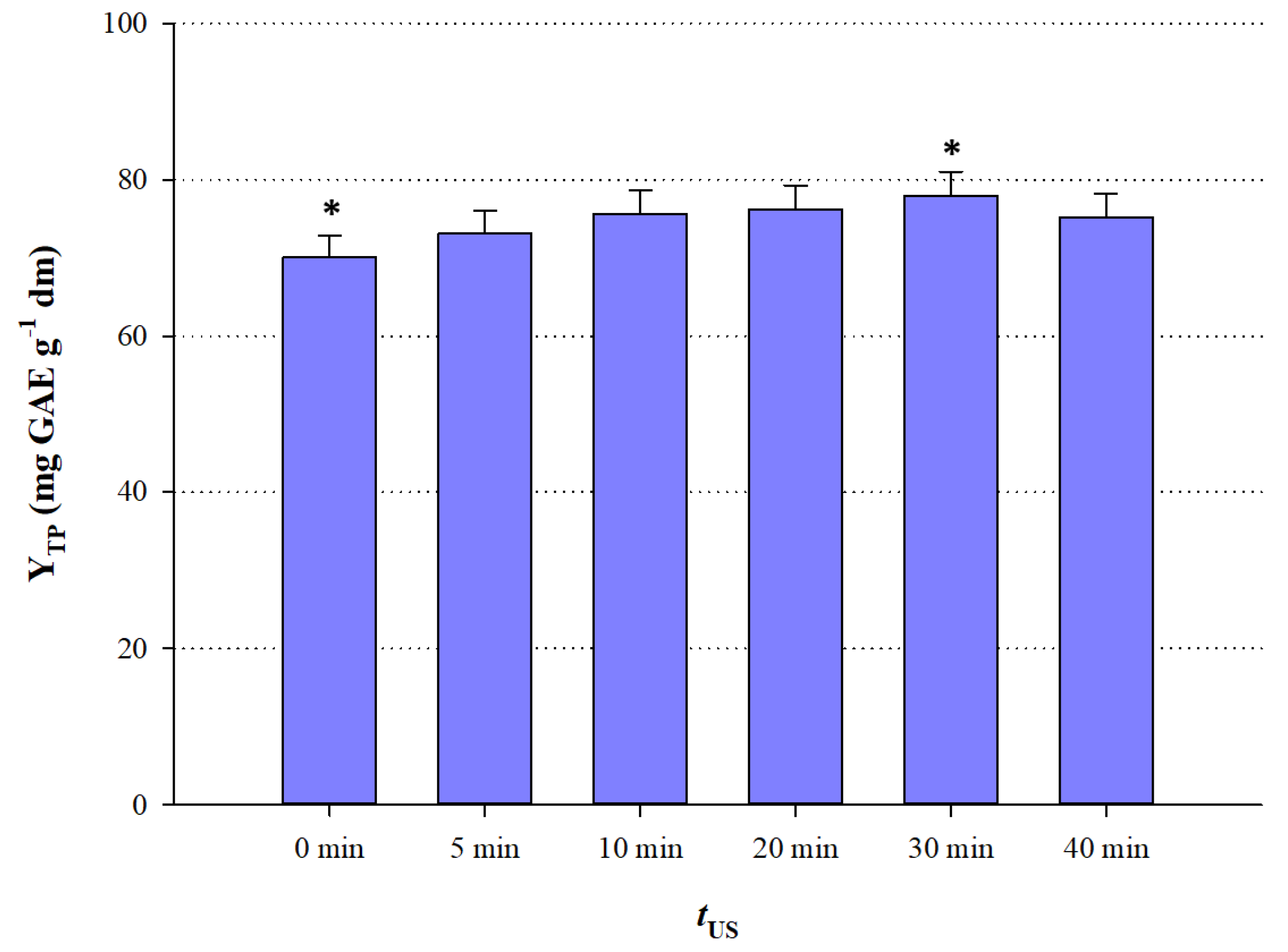

Figure 2. The effect of ultrasonication time (tUS) on the extraction yield of total polyphenols. Extractions were performed with the 70% (w/v) aqueous GL-Nic (5:1), at 23 °C and RL/S = 35 mL g−1 dm. Assignment with “*” denotes statistically different value.
Figure 2. The effect of ultrasonication time (tUS) on the extraction yield of total polyphenols. Extractions were performed with the 70% (w/v) aqueous GL-Nic (5:1), at 23 °C and RL/S = 35 mL g−1 dm. Assignment with “*” denotes statistically different value.
Applsci 10 00220 g002

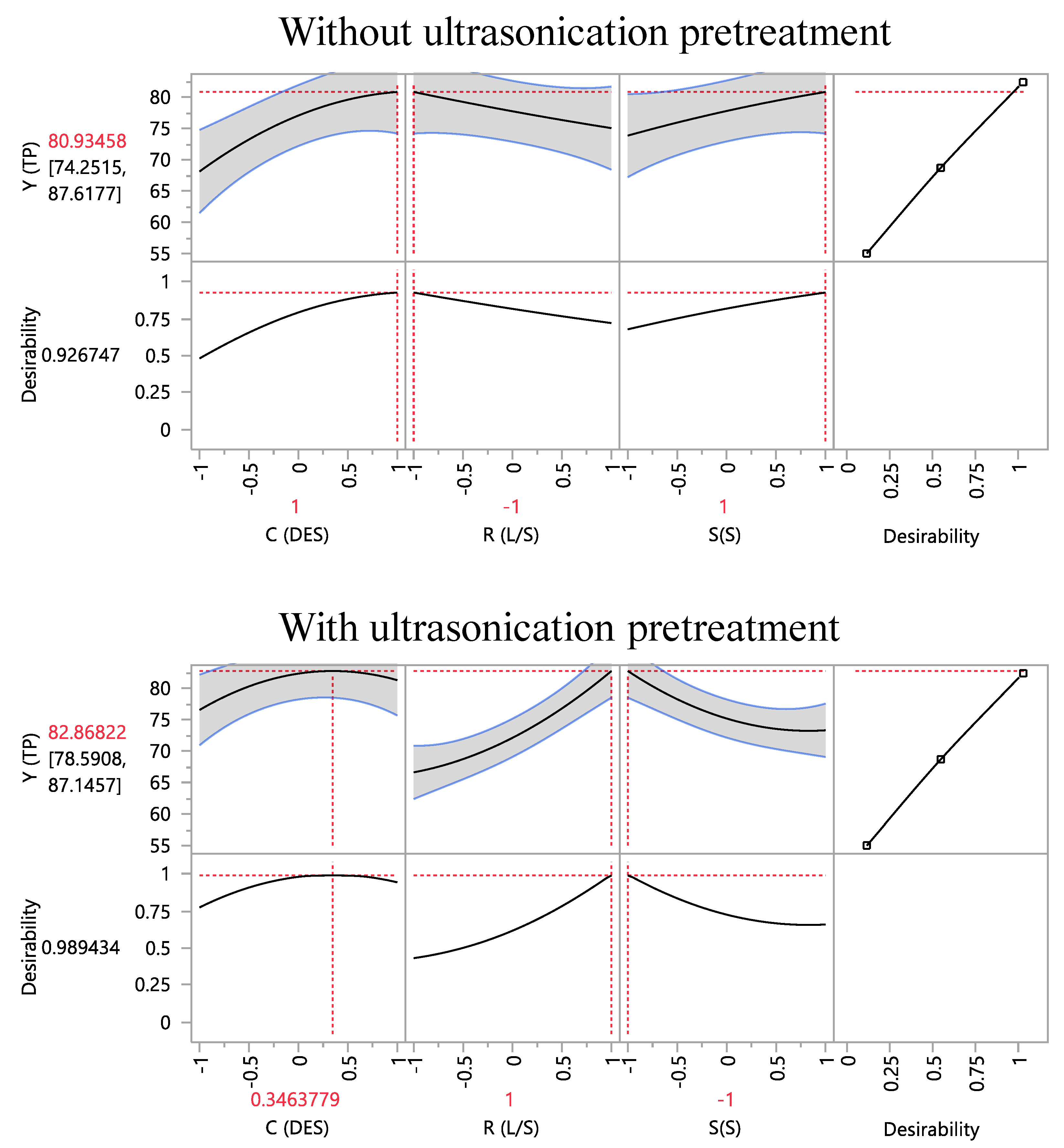

Figure 3. Desirability graphs displaying optimal settings and maximum theoretical extraction yields for total polyphenols (mg GAE g−1 dm).
Figure 3. Desirability graphs displaying optimal settings and maximum theoretical extraction yields for total polyphenols (mg GAE g−1 dm).
Applsci 10 00220 g003

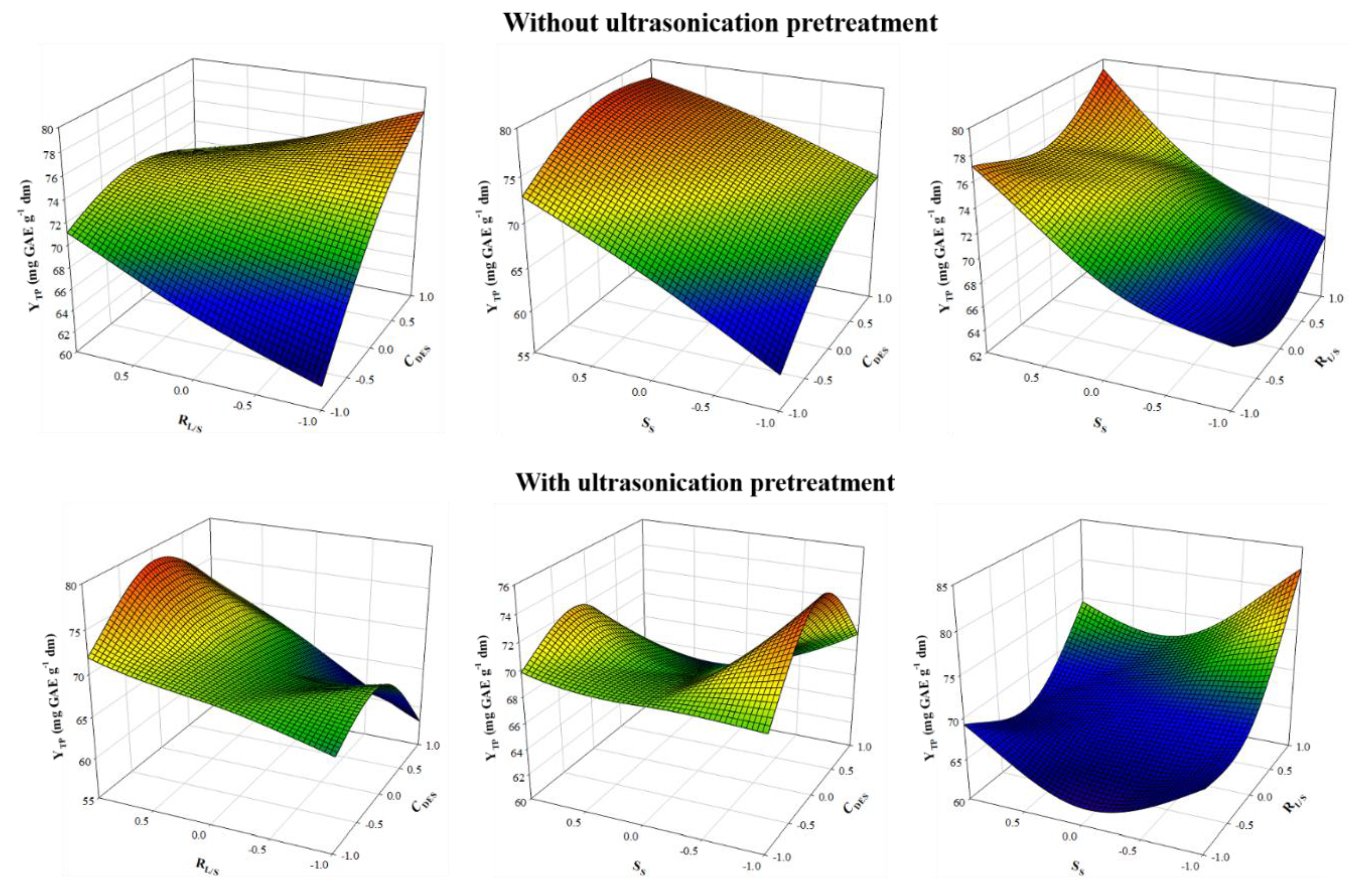

Figure 4. Three-dimensional diagrams given on a comparative arrangement, to illustrate the effect of ultrasonication pretreatment on the variations in the response (YTP), as a function of different variable levels.
Figure 4. Three-dimensional diagrams given on a comparative arrangement, to illustrate the effect of ultrasonication pretreatment on the variations in the response (YTP), as a function of different variable levels.
Applsci 10 00220 g004

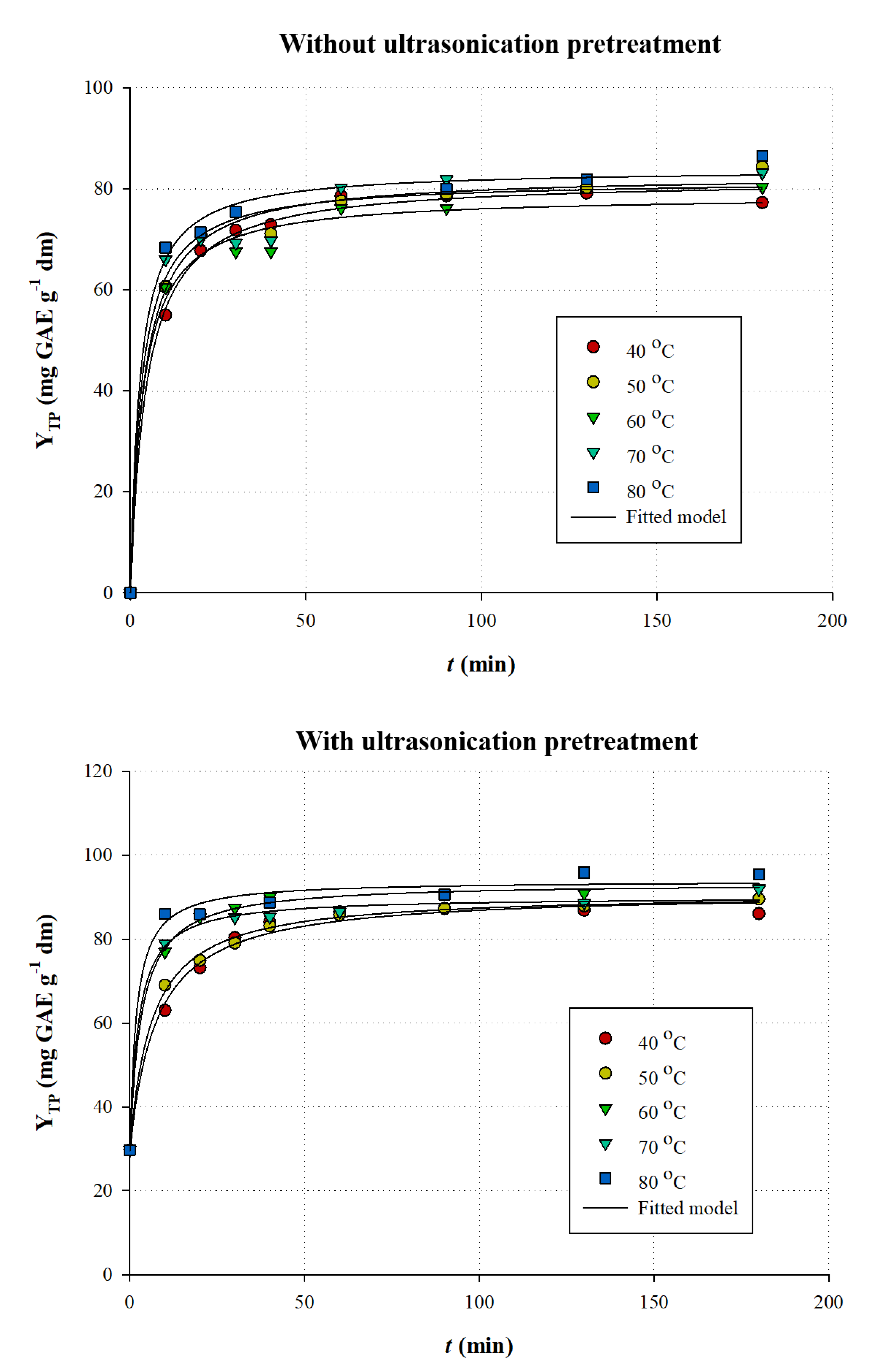

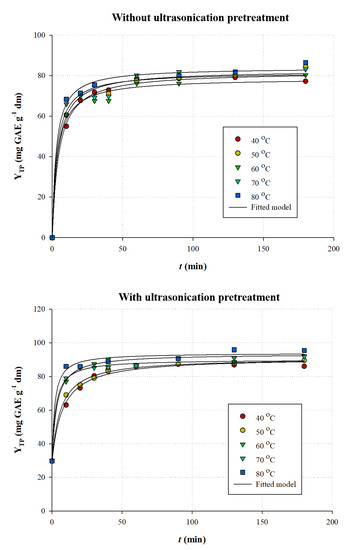

Figure 5. Kinetics of polyphenol extraction from M. oleifera leaves, with and without prior ultrasonication pretreatment. Extraction conditions for the non-pretreated sample: CDES = 85% (w/w); RL/S = 20 mL g−1; SS = 800 rpm. Extraction conditions for the ultrasonication-pretreated sample: CDES = 75% (w/w); RL/S = 100 mL g−1; SS = 200 rpm.
Figure 5. Kinetics of polyphenol extraction from M. oleifera leaves, with and without prior ultrasonication pretreatment. Extraction conditions for the non-pretreated sample: CDES = 85% (w/w); RL/S = 20 mL g−1; SS = 800 rpm. Extraction conditions for the ultrasonication-pretreated sample: CDES = 75% (w/w); RL/S = 100 mL g−1; SS = 200 rpm.
Applsci 10 00220 g005

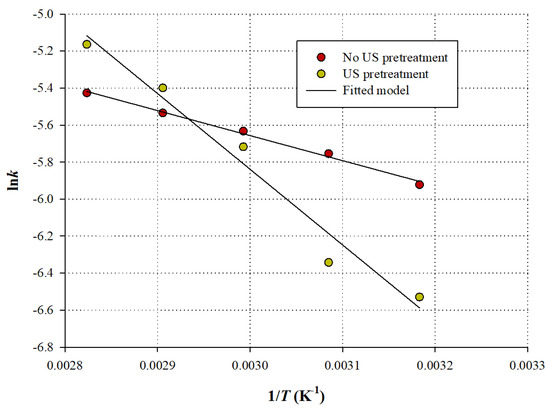

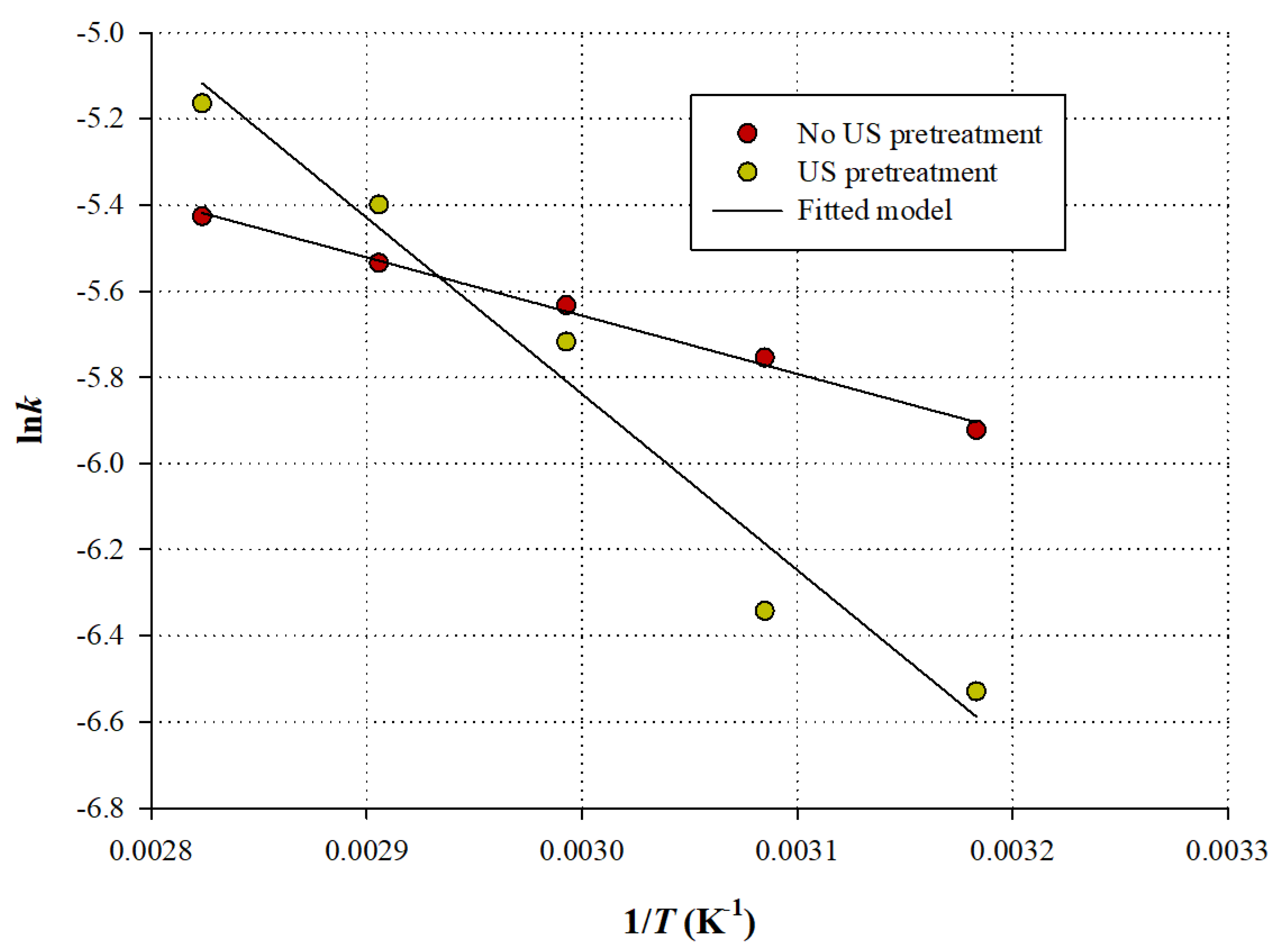

Figure 6. Arrhenius plot for the extractions with no pretreatment (No US) and ultrasonication pretreatment (US).
Figure 6. Arrhenius plot for the extractions with no pretreatment (No US) and ultrasonication pretreatment (US).
Applsci 10 00220 g006

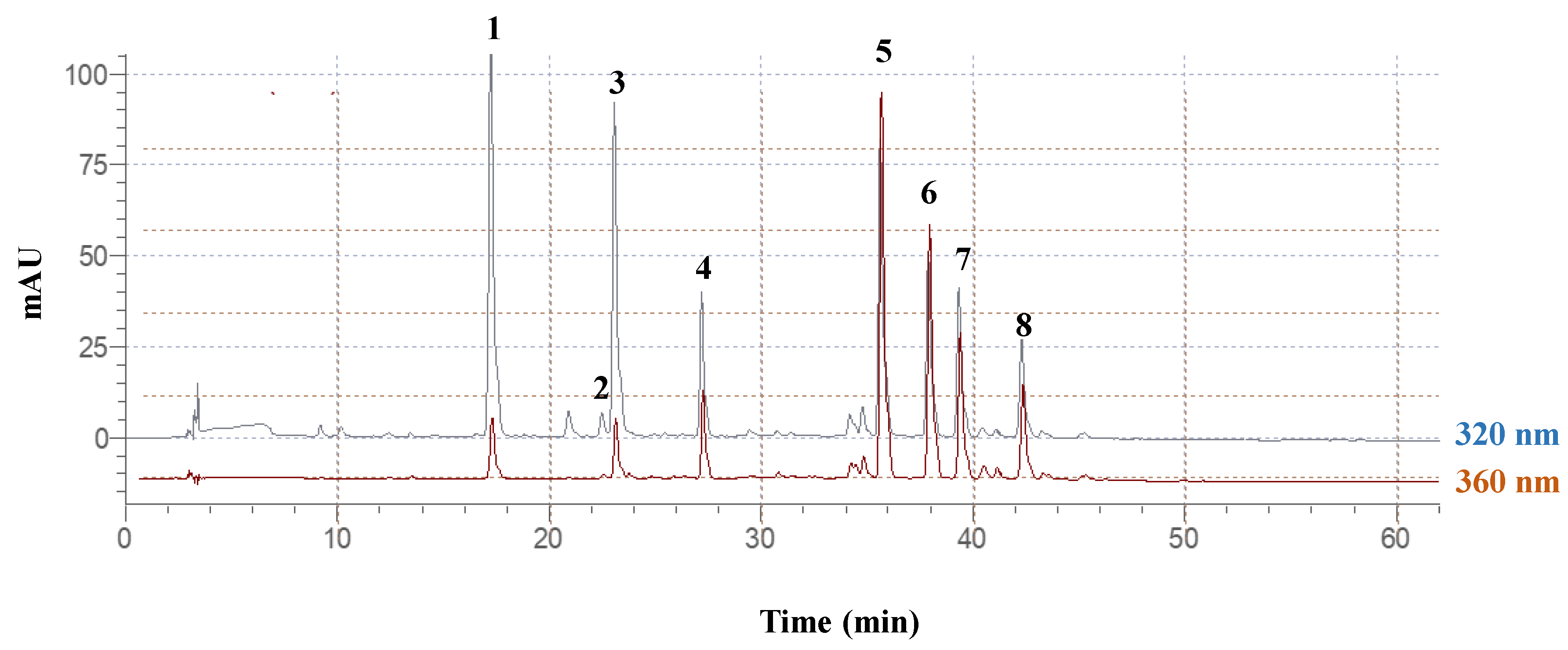

Figure 7. HPLC traces of the sample extracted under optimal conditions, at 80 °C, with ultrasonication pretreatment, recorded at 320 and 360 nm. Peak assignment: 1, neochlorogenic acid; 2, chlorogenic acid; 3, chlorogenic acid isomer; 4, multiflorin B; 5, quercetin glucoside; 6, quercetin manonylglycoside derivative; 7, kaempferol glucoside; 8, kaempferol malonylglucoside.
Figure 7. HPLC traces of the sample extracted under optimal conditions, at 80 °C, with ultrasonication pretreatment, recorded at 320 and 360 nm. Peak assignment: 1, neochlorogenic acid; 2, chlorogenic acid; 3, chlorogenic acid isomer; 4, multiflorin B; 5, quercetin glucoside; 6, quercetin manonylglycoside derivative; 7, kaempferol glucoside; 8, kaempferol malonylglucoside.
Applsci 10 00220 g007
Table 1. Process (independent) variables used for the experimental design and their codified levels.
Table 1. Process (independent) variables used for the experimental design and their codified levels.
Independent VariablesCode UnitsCoded Variable Level
CDES (%, w/v)X1557085
RL/S (mL g−1)X22060100
SS (rpm)X3200500800
Table 2. Statistical data obtained after implementing response surface methodology.
Table 2. Statistical data obtained after implementing response surface methodology.
TermStandard Errort Ratiop-ValueSum of SquaresF Ratio
No pretreatment
CDES0.7780115.090.0038 *125.21525.858
SS0.7780116.950.0009 *233.82048.286
CDES RL/S1.100274−3.540.0166 *60.684112.531
CDES SS1.100274−1.330.23988.614231.7789
RL/S SS1.1002740.400.70890.756900.1563
RL/S RL/S1.1452010.170.86850.147080.0304
SS SS1.145201−0.390.71180.740790.1530
Lack-of-fit 0.113322.34687.9870
Ultrasonication pretreatment
CDES1.07485963.28<0.0001 *28.388118.1905
RL/S0.658214−2.860.0353 *199.700157.617
SS0.6582147.590.0006 *21.385806.1702
CDES RL/S0.658214−2.480.055618.190235.2482
CDES SS0.9308552.290.070618.147605.2359
RL/S SS0.930855−2.290.070822.467606.4824
RL/S RL/S0.968865−3.540.0165 *24.506087.0705
SS SS0.9688652.660.0449 *30.175218.7061
Lack-of-fit 0.489111.07481.1804
* Asterisk denotes statistically significant values.
Table 3. Mathematical models (equations) derived after implementing response surface methodology (Box–Behnken design).
Table 3. Mathematical models (equations) derived after implementing response surface methodology (Box–Behnken design).
CasePolynomial EquationsR2p
No pretreatment72.98 + 3.96X1 + 5.41X3 − 3.90X1X2 0.950.0093
Ultrasonication pretreatment68.02 − 1.88X1 + 5.00X2 − 1.64X3 + 2.58 X 2 2 + 2.88 X 3 2 0.960.0055
Table 4. Points of the experimental design considered, and measured and predicted values of the response.
Table 4. Points of the experimental design considered, and measured and predicted values of the response.
Design PointIndependent VariablesResponse (YTP, mg GAE g−1 dm)
X1 (CDES, % w/v)X2 (RL/S, mL g−1)X3 (SS, rpm)Without UPWith UP
1−1 (55)−1 (20)0 (500)62.8262.1866.0966.18
2−1 (55)1 (100)0 (500)72.9671.0872.5871.91
31 (85)−1 (20)0 (500)76.0077.8857.4858.15
41 (85)1 (100)0 (500)70.5671.2072.5072.41
50 (70)−1 (20)−1 (200)68.7367.2167.0367.72
60 (70)−1 (20)1 (800)76.8677.1570.6569.19
70 (70)1 (100)−1 (200)67.7467.4581.0082.46
80 (70)1 (100)1 (800)77.6179.1375.1474.45
9−1 (55)0 (60)−1 (200)56.9459.1169.6268.83
101 (85)0 (60)−1 (200)70.3169.9670.6969.33
11−1 (55)0 (60)1 (800)72.5072.8568.4669.82
121 (85)0 (60)1 (800)80.0077.8361.0161.80
130 (70)0 (60)0 (500)72.9472.9866.0768.02
140 (70)0 (60)0 (500)73.9772.9868.4768.02
150 (70)0 (60)0 (500)72.0472.9869.5268.02
Table 5. Optimal predicted conditions and maximum predicted values (±sd) for the extraction of M. oleifera with and without ultrasonication pretreatment.
Table 5. Optimal predicted conditions and maximum predicted values (±sd) for the extraction of M. oleifera with and without ultrasonication pretreatment.
CaseMaximum Predicted Response (YTP, mg GAE g−1 dm)Optimal Conditions
CDES (w/v, %)RL/S (mL g −1)SS (rpm)
No pretreatment80.93 ± 6.688520800
Ultrasonication pretreatment82.87 ± 4.2875100200
Table 6. Kinetic data and the effect of temperature.
Table 6. Kinetic data and the effect of temperature.
T (°C)Kinetic Parameters
k (×10−3) (g mg−1 min−1)h (mg g−1 min−1)YTP(s) (mg GAE g−1)t0.5 (min)Ea (kJ mol−1)
No pretreatment
Ultrasonication pretreatment
Table 7. Analytical spectrometric data of the major polyphenolic phytochemicals detected in the extracts of M. oleifera leaves.
Table 7. Analytical spectrometric data of the major polyphenolic phytochemicals detected in the extracts of M. oleifera leaves.
NoRt (min)UV-Vis[M + H]+ (m/z)Fragment Ions (m/z)Tentative Identity
117.24244, 318355163Neochlorogenic acid
222.48246, 318355377, 163Chlorogenic acid
323.07246, 318355377, 163Chlorogenic acid isomer
427.19270, 320(s), 340595617[M + Na]+, 287Multiflorin B
535.62256, 318(s), 354465487[M + Na]+, 303Quercetin glucoside
637.89256, 316(s), 360833609, 573, 551, 303Quercetin malonylglycoside derivative
739.34264, 318(s), 348449471[M + Na]+, 287Kaempferol glucoside
842.30264, 348535557[M + Na]+, 287Kaempferol malonylglucoside
Table 8. Quantitative data for the major polyphenols detected in M. oleifera extracts.
Table 8. Quantitative data for the major polyphenols detected in M. oleifera extracts.
CompoundContent (mg g−1 dm) ± %rsd
No PretreatmentUltrasonication Pretreatment
Neochlorogenic acid6.61 ± 0.106.82 ± 0.11
Chlorogenic acid0.20 ± 0.000.22 ± 0.00
Chlorogenic acid isomer5.32 ± 0.075.22 ± 0.08
Total chlorogenates12.1312.26
Multiflorin B2.91 ± 0.033.11 ± 0.03
Quercetin glucoside10.58 ± 0.1110.65 ± 0.12
Quercetin malonylglycoside derivative5.97 ± 0.066.99 ± 0.07
Kaempferol glucoside3.87 ± 0.044.16 ± 0.05
Kaempferol malonylglucoside0.37 ± 0.000.42 ± 0.00
Total flavonols23.7025.33
Total polyphenols35.8337.59

Share and Cite

MDPI and ACS Style

Lakka, A.; Grigorakis, S.; Kaltsa, O.; Karageorgou, I.; Batra, G.; Bozinou, E.; Lalas, S.; Makris, D.P. The Effect of Ultrasonication Pretreatment on the Production of Polyphenol-Enriched Extracts from Moringa oleifera L. (Drumstick Tree) Using a Novel Bio-Based Deep Eutectic Solvent. Appl. Sci. 2020, 10, 220.

AMA Style

Lakka A, Grigorakis S, Kaltsa O, Karageorgou I, Batra G, Bozinou E, Lalas S, Makris DP. The Effect of Ultrasonication Pretreatment on the Production of Polyphenol-Enriched Extracts from Moringa oleifera L. (Drumstick Tree) Using a Novel Bio-Based Deep Eutectic Solvent. Applied Sciences. 2020; 10(1):220.

Chicago/Turabian Style

Lakka, Achillia, Spyros Grigorakis, Olga Kaltsa, Ioanna Karageorgou, Georgia Batra, Eleni Bozinou, Stavros Lalas, and Dimitris P. Makris. 2020. "The Effect of Ultrasonication Pretreatment on the Production of Polyphenol-Enriched Extracts from Moringa oleifera L. (Drumstick Tree) Using a Novel Bio-Based Deep Eutectic Solvent" Applied Sciences 10, no. 1: 220.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
