Impact of Teachers’ Decisions and Other Factors on Air Quality in Classrooms: A Case Study Using Low-Cost Air Quality Sensors

Abstract

This study investigates the impact of teacher decisions and other contextual factors on indoor air quality (IAQ) in mechanically ventilated elementary school classrooms using low-cost air quality sensors. Four classrooms at a K–8 school in San Jose, California, were monitored for airborne particulate matter (PM), carbon dioxide (CO₂), temperature, and humidity over seven weeks. Each classroom was equipped with an HVAC system and a portable air cleaner (PAC), with teachers having full autonomy over PAC usage and ventilation practices. Results revealed that teacher behaviors, such as the frequency of door/window opening and PAC operation, significantly influenced both PM and CO₂ levels. Classrooms with more active ventilation had lower CO₂ but occasionally higher PM_2.5 due to outdoor air exchange, while classrooms with minimal ventilation showed the opposite pattern. An analysis of PAC filter material and PM morphology indicated distinct differences between indoor and outdoor particle sources, with indoor air showing higher fiber content from clothing and carpets. This study highlights the critical role of teacher behavior in shaping IAQ, even in mechanically ventilated environments, and underscores the potential of low-cost sensors to support informed decision-making for healthier classroom environments.

1. Introduction

Indoor air quality (IAQ) in schools plays a critical role in the health, well-being, and academic performance of students and staff [1]. Schools are unique environments where large numbers of students spend extended periods in enclosed spaces, making air quality a crucial factor in the overall learning experience [2]. Maintaining good IAQ is essential to safeguarding the health of both students and staff, as poor air quality can contribute to allergen and pollutant exposure, transmission of respiratory pathogens, and difficulty in concentration, all of which can hinder students’ ability to learn and thrive [3]. Several factors contribute to poor IAQ, including inadequate ventilation, elevated carbon dioxide (CO₂) levels, particulate matter (PM), and volatile organic compounds (VOCs). These pollutants have been linked to respiratory problems, reduced cognitive function, and increased absenteeism [4]. Studies indicate that classroom ventilation is often insufficient, leading to CO₂ concentrations exceeding recommended thresholds, which negatively impact student performance and comfort [5]. Additionally, exposure to indoor pollutants such as allergens, mold spores, and traffic-related air pollution has been associated with asthma exacerbation and other respiratory conditions in children [6]. For the urban schools, the students are mainly transported by their parents’ cars. Therefore, car engine emissions could also be one of the important particulate matter (PM) sources [7], especially at school entrances or parking lots [8,9]. In addition, if a school is located near a highway or a busy traffic street, the school air quality could also be affected by the road traffic [10,11]. The PM produced during the combustion process in engines is primarily due to incomplete combustion, which is often referred to as soot, and consists of a mixture of solid particles and liquid droplets [12,13]. The U.S. Environmental Protection Agency (EPA) emphasizes the importance of proper ventilation, air filtration, and pollutant source control in maintaining good IAQ in schools [14]. Strategies such as increasing outdoor air exchange, using air purifiers, and regularly maintaining HVAC systems can significantly improve classroom air quality [15], fostering a healthier environment for students and staff alike.

Recent studies underscore the impact of IAQ on student health and academic performance. The EPA highlights that poor IAQ in schools can lead to health issues such as respiratory illnesses and allergies, contributing to higher absenteeism rates and lower academic achievement [14]. Research has shown that inadequate ventilation frequently results in elevated CO₂‚ levels, which can impair cognitive functions such as concentration and memory. A recent study reinforces the importance of maintaining optimal CO₂‚ levels through proper ventilation to support student performance [16]. The COVID-19 pandemic has further emphasized the need for improved IAQ in educational settings. One study investigated whether improving classroom air quality with air purifiers can help reduce student absenteeism [17]. Similarly, high-efficiency particulate air (HEPA) filter units in classrooms were found to significantly lower particulate matter and airborne viral RNA concentrations, thereby enhancing IAQ [18]. Furthermore, studies suggest that poor IAQ can negatively affect students’ cognitive abilities. Research indicates that exposure to indoor pollutants can hinder students’ ability to concentrate and perform academically [19]. Recognizing these challenges, many schools are taking steps to improve IAQ. For example, Richmond Public Schools in California (USA) received $15.3 million in federal funding to enhance energy efficiency and air quality in 22 schools, aiming to create healthier learning environments and improve student outcomes [20]. Collectively, these studies and initiatives highlight the critical need for maintaining good IAQ in schools to protect student health and enhance educational performance.

School cleaning policies also play an important role in maintaining IAQ through regular cleaning practices such as dusting, proper waste disposal, and timely filter replacement for portable air cleaners (PACs). These activities contribute significantly to PAC performance and help reduce the accumulation of dust, mold, and other allergens. Additionally, the physical arrangement of classrooms, including desk spacing and student movement, can influence air circulation. Crowded or poorly organized spaces may restrict airflow, while more open layouts can improve ventilation and reduce pollutant buildup [21]. In addition, teacher preferences could also affect IAQ in naturally ventilated schools [22].

This study examines the impact of teachers’ decisions and other factors on IAQ in mechanically ventilated school classrooms, where air quality is influenced by both centrally controlled HVAC systems and individually operated PACs. The use of the open-faced air sampler can help us to identify the differences between outdoor and indoor PMs for both morphologies and element compositions, therefore helping us to demonstrate the benefits of the use of PACs in mechanically ventilated classrooms [23]. One of the studies aims to identify common sources of indoor pollutants and assess their effects on students and staff. Rather than intervening or providing instructions to teachers, this research focuses on monitoring real-world classroom conditions. It explores how teachers’ management of ventilation, PAC usage, and site-specific factors influence air quality. Conducting an after study survey to understand how the teacher handled their classroom and explain the reasons and thoughts why they operate the classroom in their way. These communications can help us further understand the monitoring results. By understanding the various factors that affect IAQ, this study seeks to provide insights and recommendations for schools and teachers to improve air quality, ultimately fostering healthier and more conducive learning environments.

The objectives of this study were to utilize low-cost sensors to monitor daily indoor air quality patterns over time, assess the power consumption of PACs to understand their usage, compare indoor and outdoor PM concentrations between weekdays and weekends, track CO₂ concentration patterns during school and non-school days, evaluate the effects of ventilation conditions, PAC usage, and teachers’ decisions on classroom air quality, and analyze differences in PM morphology and chemistry between indoor and outdoor environments. Ultimately, this study aimed to highlight the significant role teachers play in managing classroom air quality through their decisions regarding ventilation, cleanliness, and PAC usage. The findings will demonstrate how an increased awareness of these factors can contribute to a healthier learning environment for students and staff.

2. Materials and Methods

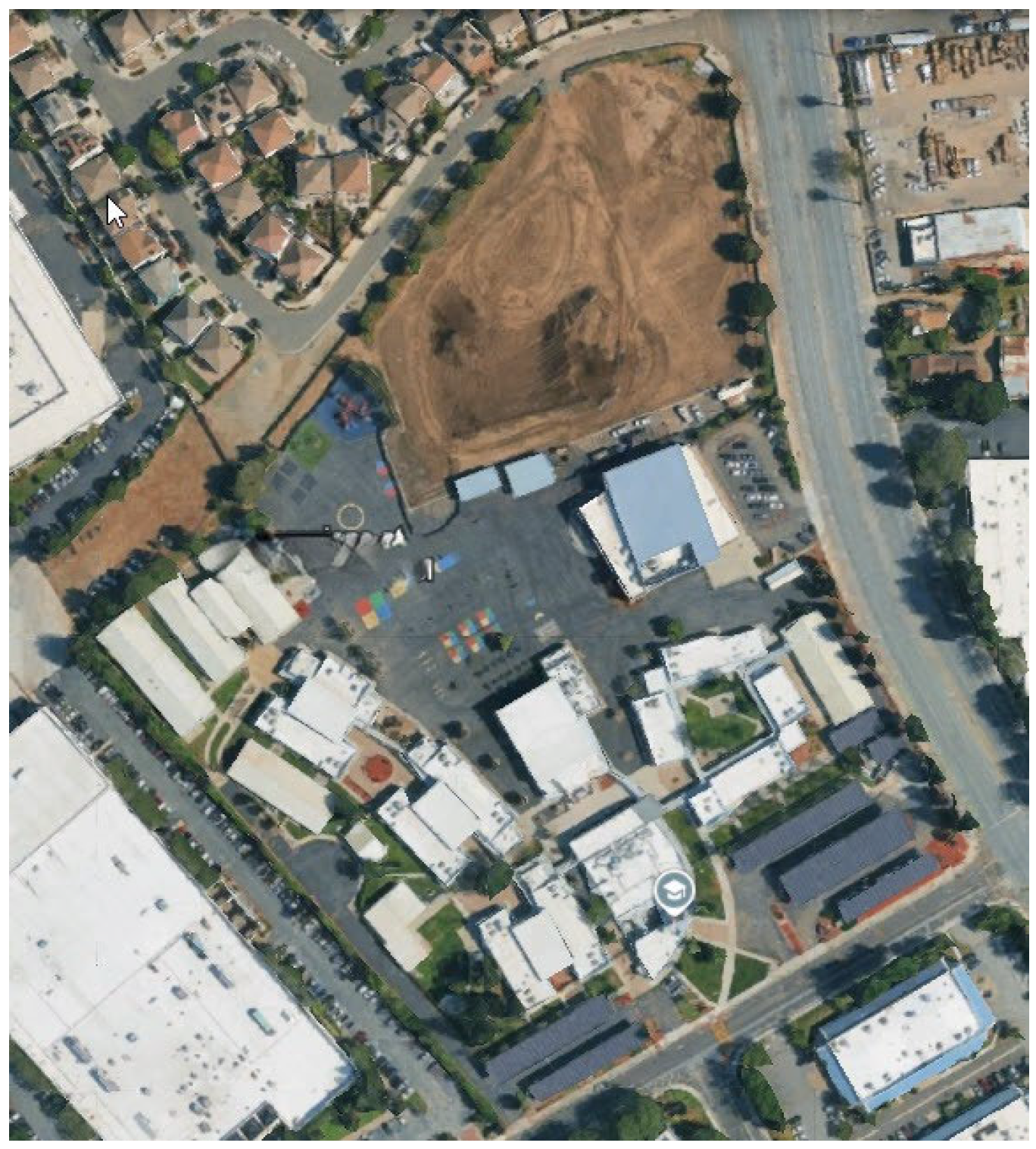

This pilot study was conducted in four mechanically ventilated classrooms at a kindergarten through eighth grade (K–8) school in San Jose, California. The school occupied an entire block and was bordered by roads on each side, as shown in Figure 1. Traffic was generally light during the daytime, with increased activity in the mornings and afternoons when parents drop off and pick up children. There was an unpaved playground where physical education classes and games took place. Dust from the playground could potentially affect the school’s air quality.

Each classroom had its own separate but identical mechanical ventilation system equipped with MERV 13 filters (Aerostar MERV 13 filter, Coral Springs, FL 33065, USA), and the ventilation rates across the classrooms were comparable. The outdoor air dampers were set to a fixed position, allowing an outdoor air fraction of approximately 15–18%. The supply and return airflow rates for each classroom were measured using a balometer (CH-15D Standard Hood, Evergreen Telemetry, Mesa, AZ, USA), and the values were converted to air changes per hour (ACH). The supply ACH was approximately 12 for Classrooms 1, 3, and 4, while Classroom 2 had an ACH of about 13. The HVAC systems were scheduled to operate two hours before classes began and continued running until two hours after classes ended.

In addition to mechanical ventilation, each classroom was equipped with a portable air cleaner (PAC) with HEPA filters (medical-grade H13 True HEPA filters). The PACs used in Classrooms 1, 3, and 4 were Alen BreatheSmart 75i True HEPA Air Purifiers (Alen Corporation, Austin, TX, USA), typically set at level 2, which corresponds to an airflow rate of approximately 314 m³/h (184 cfm), based on the manufacturer’s specifications. The PAC used in Classroom 2 was a Medify Air MA-112 (Medify Air, Boca Raton, FL, USA), typically set at level 2, which corresponds to an airflow rate of approximately 491 m³/h (289.2 cfm), also based on the manufacturer’s specifications. For the classrooms in this study (volume: 260 m³), these settings correspond to clean air delivery rates (CADR) of approximately 1.2 and 1.9 ACH, respectively.

Mechanical ventilation was controlled by the operation of the central HVAC system managed by the school facility manager, but the PAC was controlled by the individual teacher of each classroom. The HVAC filters normally were changed every three months, but the HEPA filters for PAC were changed every 12 to 15 months.

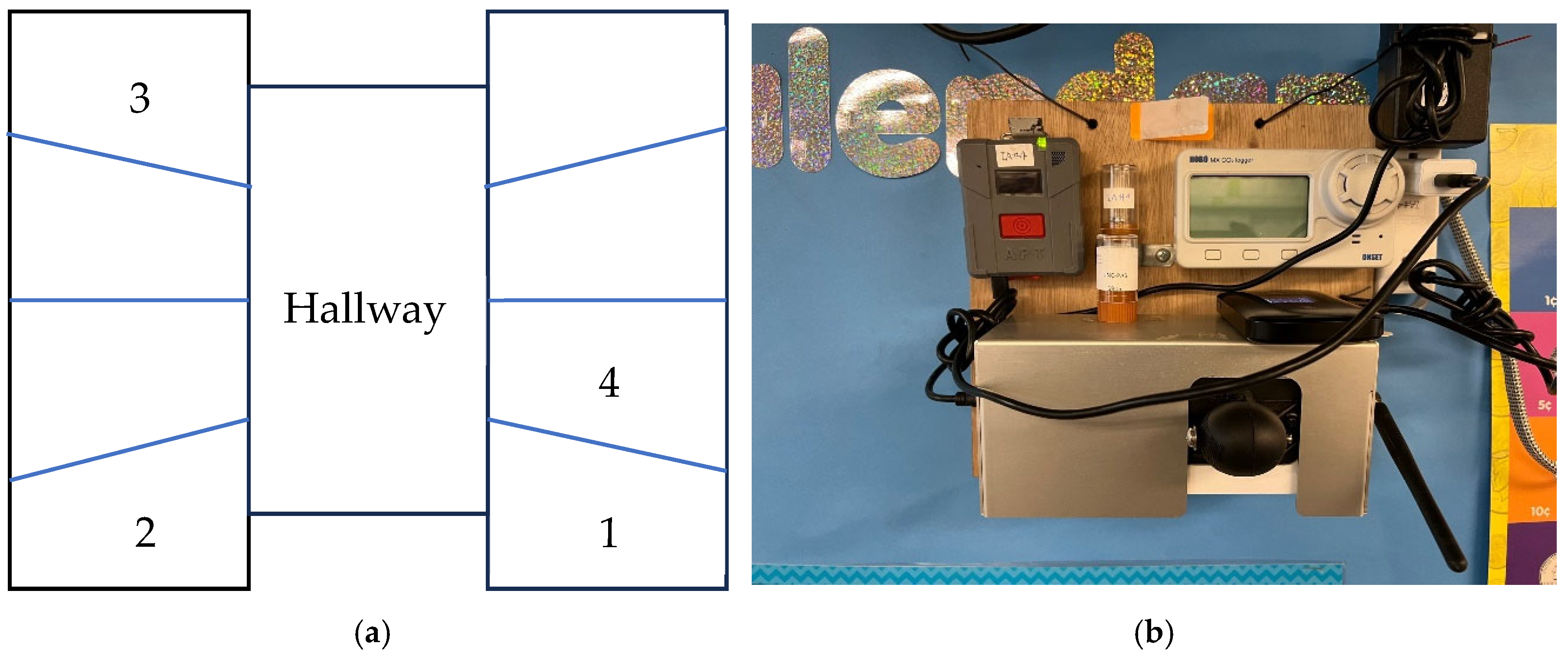

The layout of the classrooms is shown in Figure 2a. This school was chosen due to its similar structure for each classroom and established ventilation systems, which provided a controlled environment to evaluate the impact of PACs and other IAQ factors. The selected classrooms were representative of typical school settings [24], ensuring the findings could be applicable to similar educational environments. Each classroom had similar characteristics, including an area of approximately 260 m², a comparable number of students (19–22), and carpeted floors. Each classroom had two doors, one opening towards the hallway and the other opening towards the outside. Each classroom also had two windows opening to the outside.

For air monitoring, we installed the following devices and collected the following measurements: (1) two outdoor and two indoor sensors for each of four classrooms; (2) a PAC with a power consumption monitor in each classroom; (3) measurements of classroom dimensions, flooring type, and student occupant numbers; (4) bolometer measurements of total supply airflow to the classrooms and return airflow; and (5) microscopy analyses of Open-Face Passive Samplers (OPS) and used PAC filters for particle morphology and particle element composition. For more details on the parameters measured and the instruments and sensors used, refer to our previous publication [25].

The duration of the operation of the PACs and selected IAQ parameters was continuously monitored over a seven-week period, from 25 April 2022 to 9 June 2022. The monitored IAQ parameters included particulate matter (PM_2.5 and PM₁₀), carbon dioxide (CO₂) levels, temperature, and relative humidity (RH), providing a comprehensive view of the classroom environments. The monitors were installed during the school’s spring break (18–22 April 2022).

Each classroom was equipped with a sampling board that included a low-cost PM sensor, an OPS [23], and a data logger with sensors for CO₂, temperature, and RH. These sampling boards were mounted on a side wall at a height of approximately 1.6–1.8 m from the floor and at least 2 m away from doors and operable windows (Figure 2b). The PM sensor functioned using light-scattering technology and was remotely calibrated by the manufacturer. Two types of sensors, Clarity Nodes (Clarity, Berkeley, CA, USA) and APT Sensors (Applied Particulate Technology, St. Louis, MO, USA), were used in this study. The CO₂ sensor (HOBO MAX 1102A, ONSET, Bourne, MA, USA) operated on nondispersive infrared (NDIR) technology. Additionally, a plug load data recorder (ONSET, Bourne, MA, USA) was connected to each PAC to monitor its power consumption, allowing for the tracking of the duration of PAC operation and fan speed.

Field visits were conducted before and after this study to gather details about the classrooms, such as dimensions, floor material, and the type of PAC used. The selected classrooms for Grade 1 and 2 students were expected to have consistent groups of occupants daily. Attendance records were collected from the school office. There was an unpaved playground or soccer field at the school, located near the outdoor PM sensors. The school holds physical education (PE) classes for all grade levels, and we observed students playing on the playground during school hours. Visible dust was suspended from the playground surface while the children were playing, and this was also detected by the outdoor passive samplers.

To analyze particle morphology and chemical composition, OPS were installed indoors and outdoors. Understanding particle morphology and chemistry helps identify the sources of particulate matter, such as distinguishing between natural and anthropogenic particles, and the chemical composition provides additional insights into potential health impacts. This combined analysis is critical for assessing IAQ and determining effective mitigation strategies. The samplers and PAC filters were analyzed using scanning electron microscopy (SEM) to determine particle size, shape, and elemental composition. A new PAC filter was also analyzed for comparison purposes.

PM sensors measured both PM_2.5 and PM₁₀ concentrations, although this study focused on PM_2.5 due to accuracy concerns with PM₁₀ measurements from low-cost sensors [23,26]. The PM_2.5 data were analyzed for school hours, and indoor/outdoor (I/O) ratios and percent indoor reductions from outdoor PM_2.5 levels were calculated for each classroom.

While low-cost sensors provide accessible and continuous monitoring, they have limitations in accuracy and sensitivity compared to high-end instruments. These limitations could introduce variability in the data, particularly under extreme environmental conditions, which should be considered when interpreting the results. Before deploying, the sensors were placed on the roof of the California Department of Public Health in Richmond for two weeks to conduct a comparison study of the two sensor types, as shown in Figure 3a. This comparison study included data consultations by both vendors and enabled us to choose the best units for reliable deployment in the field. Figure 3b shows the comparison of the seven clarity sensors’ measurement results, and they have traced each other very well. The comparison between the Clarity Nodes and APT sensors is shown in Figure 4.

No direct guidance or suggestions were provided to teachers or school staff, i.e., teachers managed ventilation and PACs as usual based on their own preferences. Teachers’ decisions that could affect air quality included the operation of PACs, the opening of doors and windows during class time, and the use of ventilation systems

3. Results and Discussion

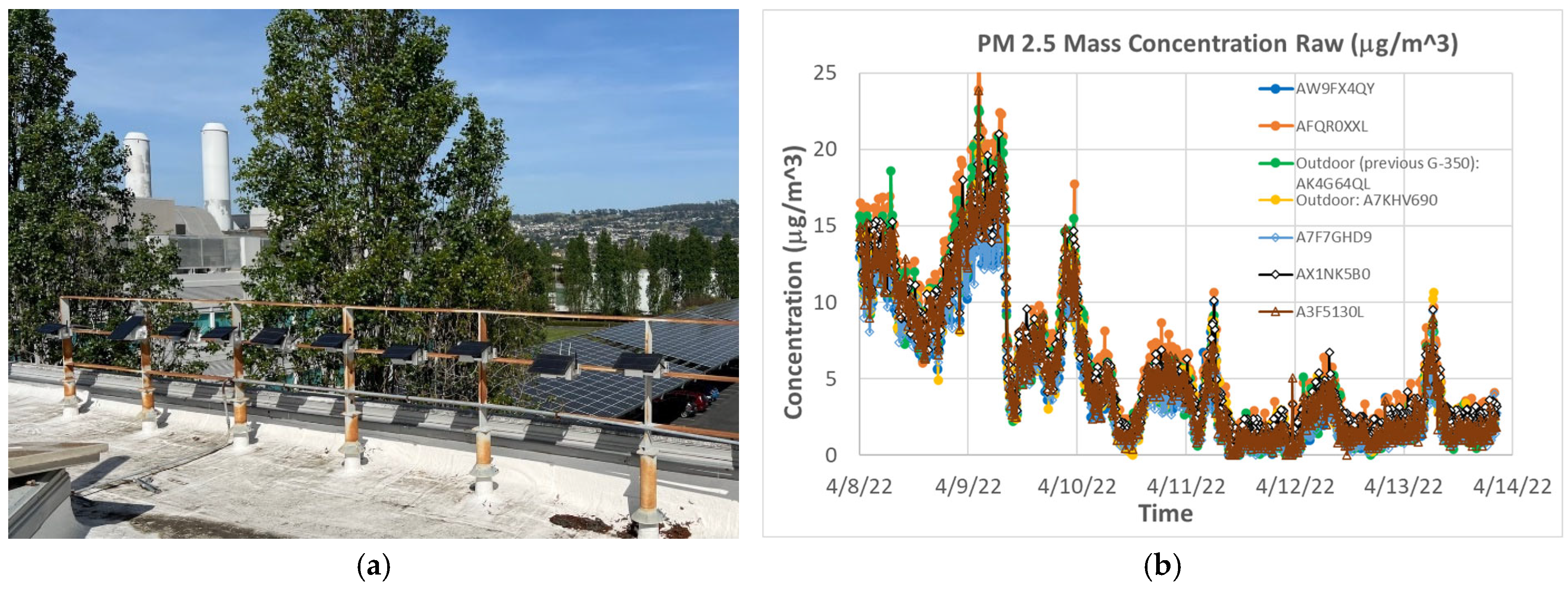

Real-time PM_2.5 concentrations measured by the two sensor types used in the classrooms showed that they tracked closely with each other and demonstrated consistent trends over time. While there are slight differences in peak values, the timing of the peaks is nearly identical, as shown in Figure 4.

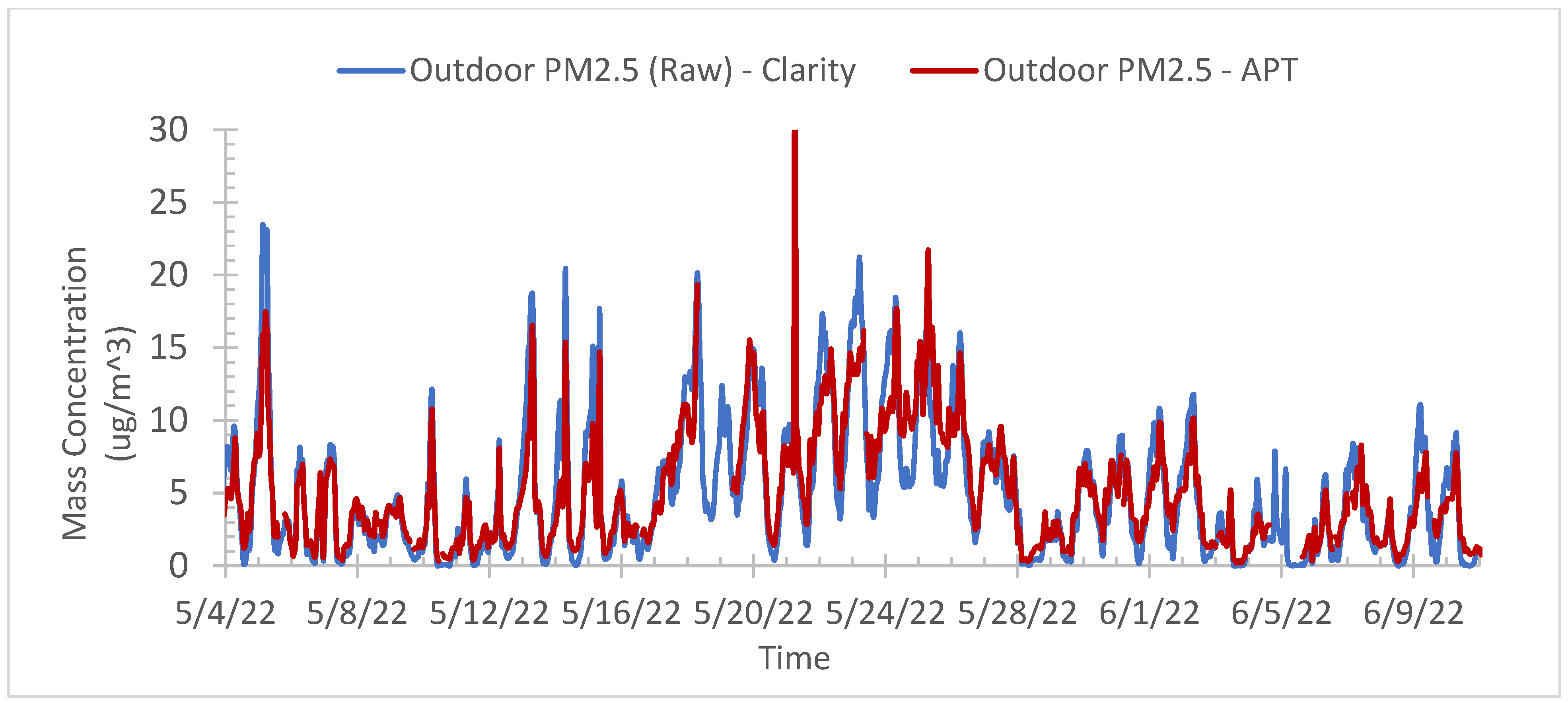

In general, the outdoor air quality of the school local area in this study was good, and even the peak PM_2.5 (both weekdays and weekend days) measured by both sensors was lower than the new US EPA ambient PM_2.5 standard (24-h average 9 μg/m³) [27], as shown in Figure 5. Both sensors recorded peak concentrations around 7:00 AM during the weekdays, which corresponded to the morning commute traffic time and student drop-off time (the school’s official day is 8:10 AM to 2:30 PM).

According to the evaluations by the California South Coast Air Quality Management District, both Clarity and APT sensors demonstrate reasonable accuracy and high precision [28,29]. More specifically, the evaluation reports indicate that Clarity Node PM_2.5 mass measurements correlate well with corresponding FEM BAM data (R² > 0.84), while APT MINIMA sensors exhibited an even stronger correlation with FEM PM_2.5 data (R² > 0.99). In our study, as shown in Figure 4, we observed that the two sensors closely tracked each other for outdoor PM_2.5 measurements. However, some indoor APT sensors experienced data loss due to wireless connectivity issues, resulting in partial gaps in indoor PM_2.5 measurements. In contrast, Clarity sensors achieved a 100% data recovery rate for all measurements, consistent with findings from prior field studies [30]. Therefore, Clarity sensor data were used for indoor PM_2.5 comparisons between classrooms.

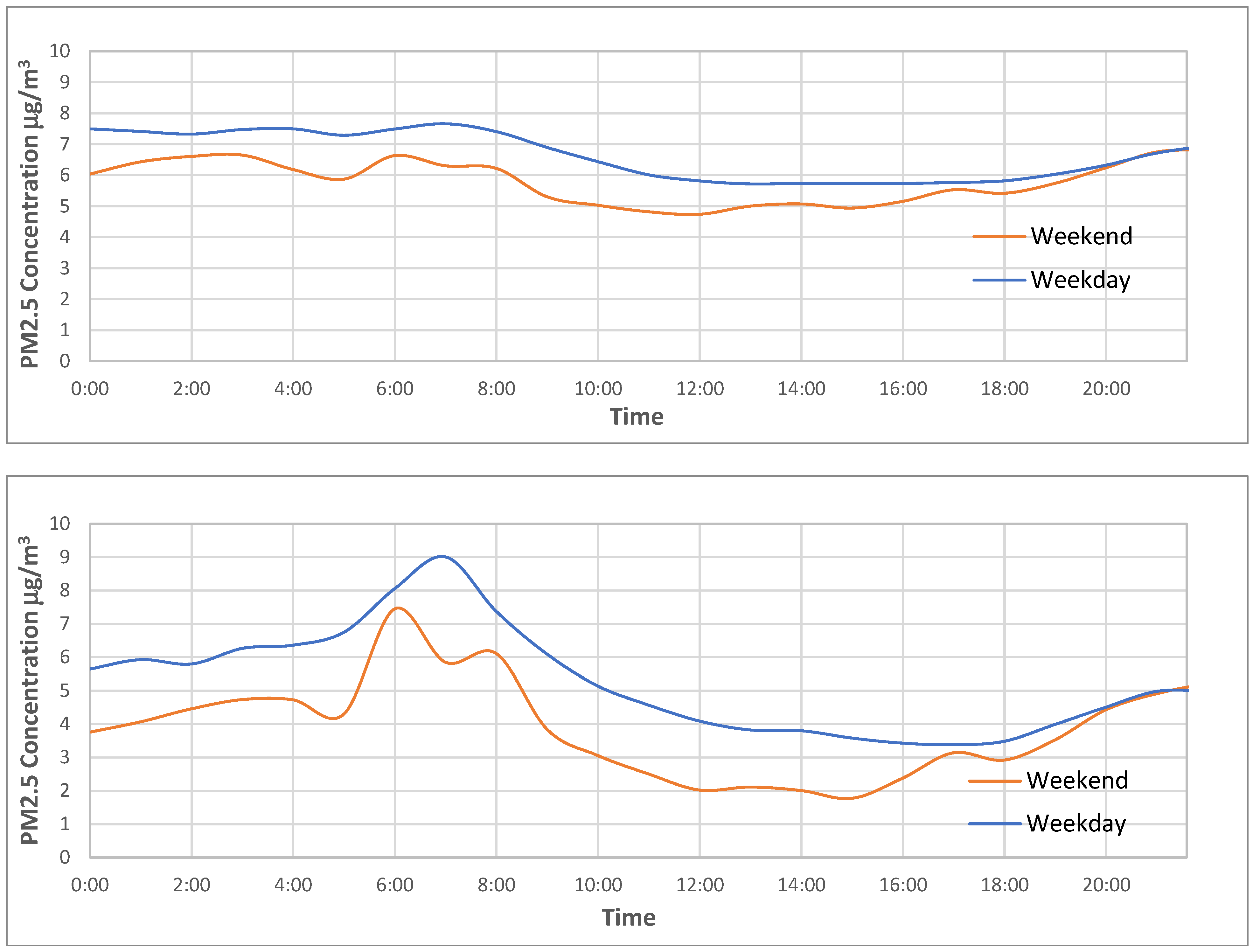

Figure 5, Figure 6 and Figure 7 present the hourly average PM_2.5 data collected over the five-week testing period. In Figure 5, for all school days’ average outdoor PM_2.5, Clarity sensors showed hourly standard deviation (Stdev) ranges from 1.49 to 3.15, with Stdev-to-mean ratios ranging from 0.29 to 0.46. In comparison, APT sensors had higher Stdev values ranging from 3.06 to 5.04, and Stdev-to-mean ratios between 0.56 and 0.92.

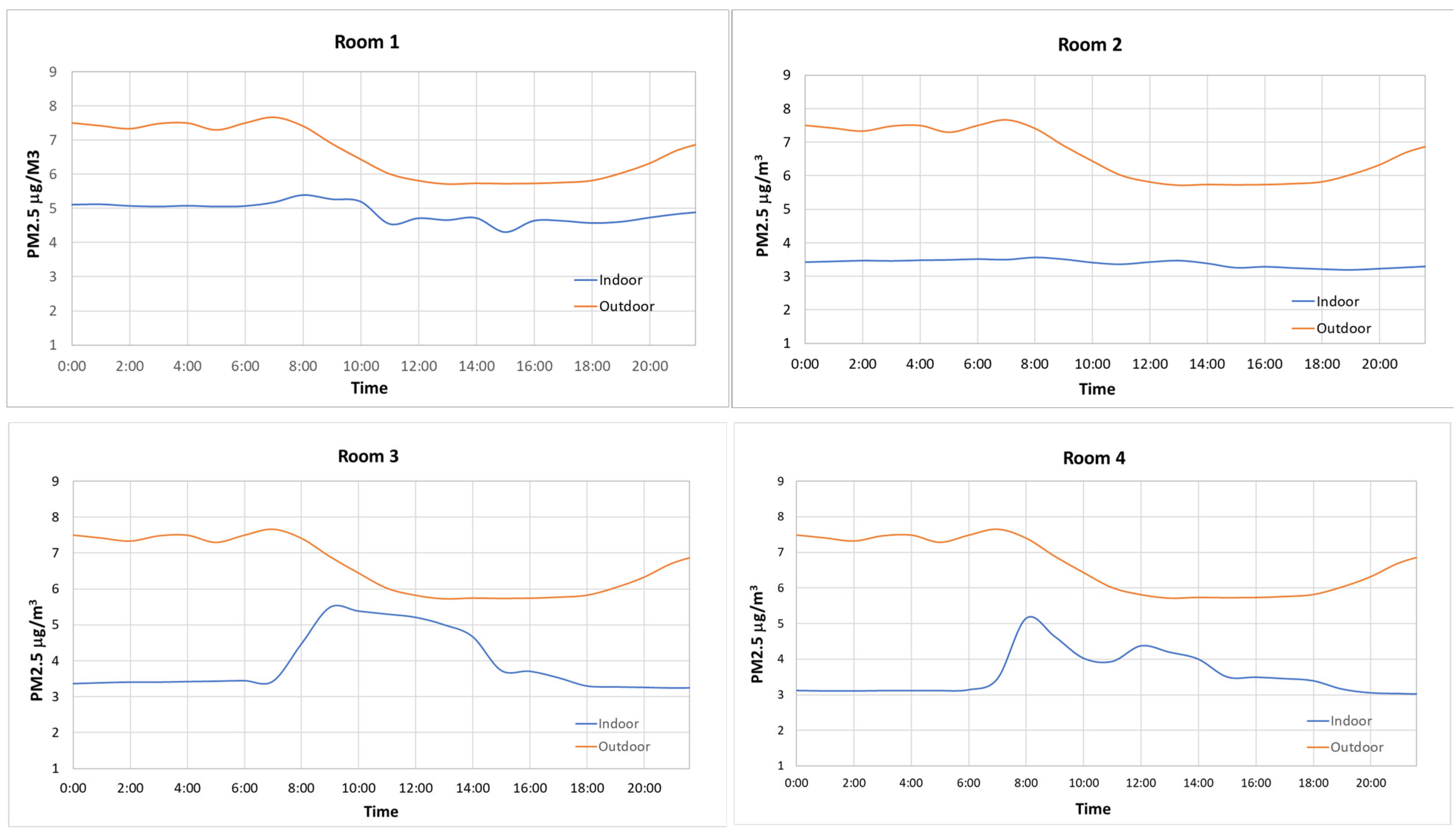

Figure 6 presents a comparison of hourly average PM_2.5 concentrations inside and outside the classrooms for all weekdays and weekends over the entire test period (7 weeks), as measured by Clarity Nodes. As shown in Figure 5, all four classrooms had lower PM_2.5 concentrations compared to outdoor levels. This is expected, as all classrooms were equipped with mechanical ventilation systems operated in a similar manner by the school technician and were also fitted with portable air cleaners (PACs).

For the PM_2.5 results shown in Figure 6, which were measured using Clarity Nodes. For school days, the hourly standard deviations (Stdev) for Classrooms 1, 2, 3, and 4 ranged from 0.51–0.88, 0.31–0.45, 0.40–0.82, and 0.07–0.75, respectively. The corresponding ratios of Stdev to the average PM_2.5 concentrations were 0.10–0.18 for Classroom 1, 0.08–0.13 for Classroom 2, 0.11–0.21 for Classroom 3, and 0.08–0.13 for Classroom 4.

As previously mentioned, the HVAC systems were identical across classrooms, all equipped with MERV 13 filters, and the air change rates (ACH) ranged from approximately 12 to 13. Assuming a PM_2.5 removal efficiency of 85% for MERV 13 filters [31], the equivalent clean air delivery rate during school hours can be roughly estimated as follows:

• 0.85 × 12 ACH = 10.2 ACH
• 0.85 × 13 ACH = 11.1 ACH

Therefore, the total ACH (HVAC + PAC) for Classrooms 1, 3, and 4 was approximately 11.4 (10.2 + 1.2), and for Classroom 2 it was about 13.0 (11.1 + 1.9). These estimates suggest that the HVAC system with MERV 13 filters played a dominant role in controlling indoor PM_2.5 levels in these mechanically ventilated classrooms, especially when compared to the contribution of PACs (i.e., 10.2 or 11.1 ACH vs. ≤1.9 ACH). With such high air exchange rates, the lower indoor PM_2.5 levels are understandable.

It is also evident that indoor PM_2.5 levels in all four classrooms were below the 24-h average threshold of 12 µg/m³ recommended by the Indoor Air Hygiene Institute, and even below the World Health Organization’s guideline of 5 µg/m³ [32]. These results are consistent with findings from other studies on mechanically ventilated classrooms [33]. In contrast, naturally ventilated classrooms often exhibit indoor PM levels that are higher than outdoor levels [34]. The results also showed that PM_2.5 levels were generally higher on weekdays compared to weekends.

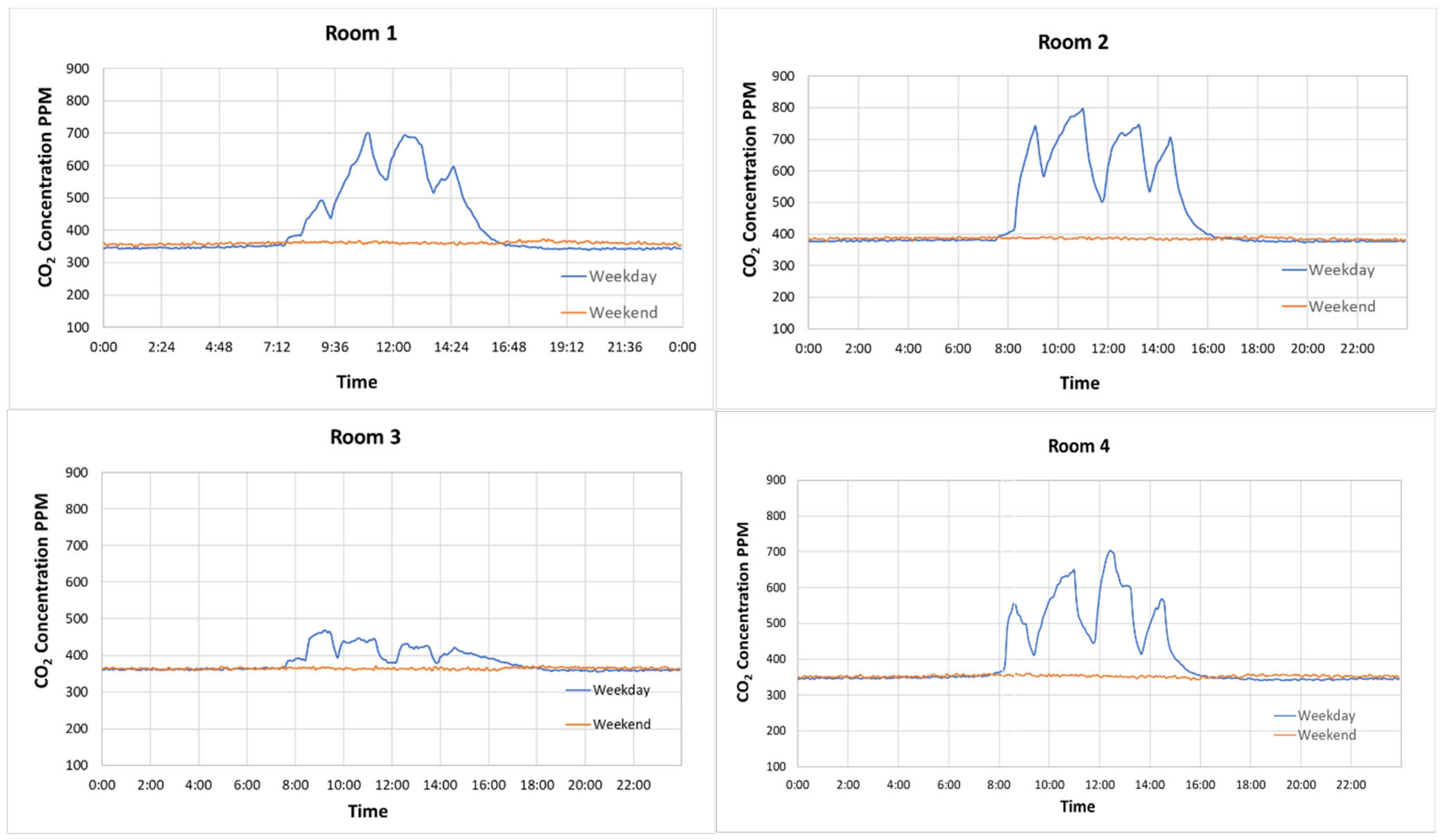

Figure 7 shows the CO₂ concentrations as a function of time for the four classrooms. As is well known, CO₂ is a key parameter for evaluating the outdoor air exchange rate (ACH) in indoor environments, particularly in classrooms. Since air quality in mechanically ventilated classrooms is closely tied to ACH, monitoring CO₂ levels is essential. Doing so helps ensure adequate ventilation, maintain proper indoor air quality, and improve thermal comfort [35].

The CO₂ measurements presented in Figure 7 were obtained using Onset HOBO MX1102 dataloggers (ONSET, Bourne, MA, USA), which logged the CO₂ concentration every 5 min. All CO₂ concentration data points measured at the same clock time of each day were averaged for the whole study period, and results were plotted in Figure 7. According to the manufacturer, this CO₂ sensor has an accuracy of ±50 ppm or ±5% of reading from 0 to 5000 ppm. Typically, in this study, the standard deviations (Stdev) for school days in the study period, the standard deviations (Stdev) for Classrooms 1, 2, 3, and 4 ranged from 0.01–109.08, 11.44–209.62, 12.60–75.68, and 12.06–74.59, respectively. The corresponding ratios of Stdev to the CO₂ concentrations were 0.01–0.32 for Classroom 1, 0.03–0.30 for Classroom 2, 0.03–0.16 for Classroom 3, and 0.03–0.29 for Classroom 4.

To better understand the PM_2.5 profiles in Figure 6 and CO₂ profiles in Figure 7 for each classroom, teachers were surveyed to understand each classroom’s teacher preferences in how they managed classroom air quality and the rationale behind their behaviors and preferences.

Table 1. Survey summaries of teacher decisions and their rationales for their choices in how they operated and managed factors that influenced air quality in their classrooms.

Classroom Number	1	2	3	4
Teacher Operation Habits	Always open the door towards the hallway, but keep the door and windows towards outside closed	Keep the doors and windows closed for most of the time but occasionally open the door to exchange indoor air	Opened the door and windows towards outside during all school time	Closed the doors and windows during the class time
Reasons	Helping the younger kids to find the classroom more easily	Just wanted to get some fresh air and get rid of odors once a while	The teacher Likes to have fresh outdoor air in the classroom during all school time	Close the door and window to avoid noise and make the students concentrate more to the classes
Grades	Kindergarten	First grade	Second grade	Second grade
PAC operation Pattern	All school hours	Random, when the teacher felt needed	24/7, but not always	24/7

shows the survey summaries of the teachers’ decisions and the rationales for their choices in how they managed factors that influenced air quality in their classrooms. Through the survey, we could better explain the monitoring results. Based on the teacher survey, Classroom 1 used the PAC during school hours, while Classroom 2 only operated it randomly when the teacher felt it was needed. Classrooms 3 and 4 mostly ran the PAC continuously 24 h a day, seven days a week, during this study.

3.1. Indoor and Outdoor PM_2.5 and CO₂ Concentration Analysis

As shown in Figure 6, all classrooms had lower PM_2.5 concentrations compared to outdoor levels. However, each classroom exhibited distinct PM_2.5 profiles. Notably, Classroom 3 had the highest PM_2.5 concentration during school hours (Figure 6, room 3). According to survey responses, this was likely because the teacher preferred to keep both doors and windows open throughout the school day, allowing more outdoor air to enter. This observation aligns with the CO₂ concentration measurements (Figure 7, room 3), where Classroom 3 recorded the lowest peak values, indicating a continuous influx of fresh air. It was also noted that even though the teacher in Classroom 3 kept the windows and doors open during school hours, the indoor PM_2.5 concentration remained slightly lower than the outdoor level. This was likely due to the high air exchange rate (ACH) provided by both the HVAC system and the PAC.

Conversely, Classroom 2 had the lowest PM_2.5 concentrations but the highest CO₂ levels. This is likely due to the teacher’s practice of keeping the door and windows closed to minimize outside noise, only opening them occasionally for ventilation. As shown in Figure 6, the low PM_2.5 levels in Classroom 2 may also be attributed to its higher supply and return airflow rates (ACH ≈ 13.0, compared to 11.4 in the other classrooms), as confirmed by on-site HVAC flow measurements. For detailed ACH measurements, please refer to our previous paper [25].

Classroom 4 showed a fluctuating PM_2.5 pattern (Figure 6) and had the second-highest CO₂ concentration (Figure 7, room 4). According to the teacher, the door and windows were typically kept closed during class, which likely contributed to these findings. In contrast, Classroom 1 consistently exhibited relatively high PM_2.5 levels. One possible explanation is that the teacher often kept the door open to the hallway, where PM_2.5 concentrations may have been more similar to outdoor levels. Other contributing factors might include the following: (1) poor sealing of windows or doors, allowing uncontrolled air exchange with the outdoors, or (2) improper installation of the HVAC filter, which could result in unfiltered air bypassing the system and entering the classroom directly.

In summary, teachers’ preferences regarding how they operate their classrooms can have a significant impact on indoor air quality. In mechanically ventilated classrooms equipped with MERV 13 filters, teachers who frequently opened windows or did not properly utilize the available ventilation systems could experience higher indoor PM_2.5 concentrations, as outdoor air enters without passing through high-efficiency filtration. Conversely, teachers who preferred to keep windows closed in classrooms ventilated by HVAC systems with MERV 13 filters, in combination with PACs, could achieve lower PM_2.5 concentrations when there are no significant indoor PM sources in classrooms. However, it is good practice to open the door and windows once a day to get rid of the odors and help minimize the CO₂ buildup.

How teachers manage their classrooms is a broad and complex topic, and this study may not be able to provide a complete answer. Depending on a school’s specific conditions—such as geographic location, local air quality, building design, and available equipment (e.g., presence or absence of HVAC or PACs)—different strategies may be necessary to achieve optimal indoor air quality. Nonetheless, based on classroom monitoring and our results analysis, it is evident that teacher preferences and operational decisions can significantly influence classroom air quality. This could be particularly critical during periods of elevated outdoor particulate matter (PM) concentrations, such as during wildfires incident [36].

Other factors that may affect classroom air quality include student occupancy and indoor activities, as well as outdoor influences such as unpaved playgrounds, vehicle traffic, engine emissions, and road dust—particularly during drop-off and pick-up times. PM and CO₂ concentrations can vary significantly at different times of the day and between weekdays and weekends, as illustrated in Figure 5, Figure 6 and Figure 7.

3.2. Carbon Dioxide Concentration Trends

Figure 7 illustrates the CO₂ concentration trends throughout the school day. All four classrooms exhibited four distinct CO₂ peaks corresponding to class periods, with valleys representing break times. At the beginning and end of the school day, CO₂ levels were low, aligning with outdoor concentrations.

Classroom 3 had the lowest CO₂ peaks, which aligns with the teacher’s practice of keeping doors and windows open to maximize fresh air intake. Classroom 2 recorded the highest average weekday CO₂ concentrations, consistent with the teacher’s habit of keeping the door and windows closed to minimize external noise and enhance student focus.

3.3. Indoor vs. Outdoor PM_2.5 Levels on Weekends

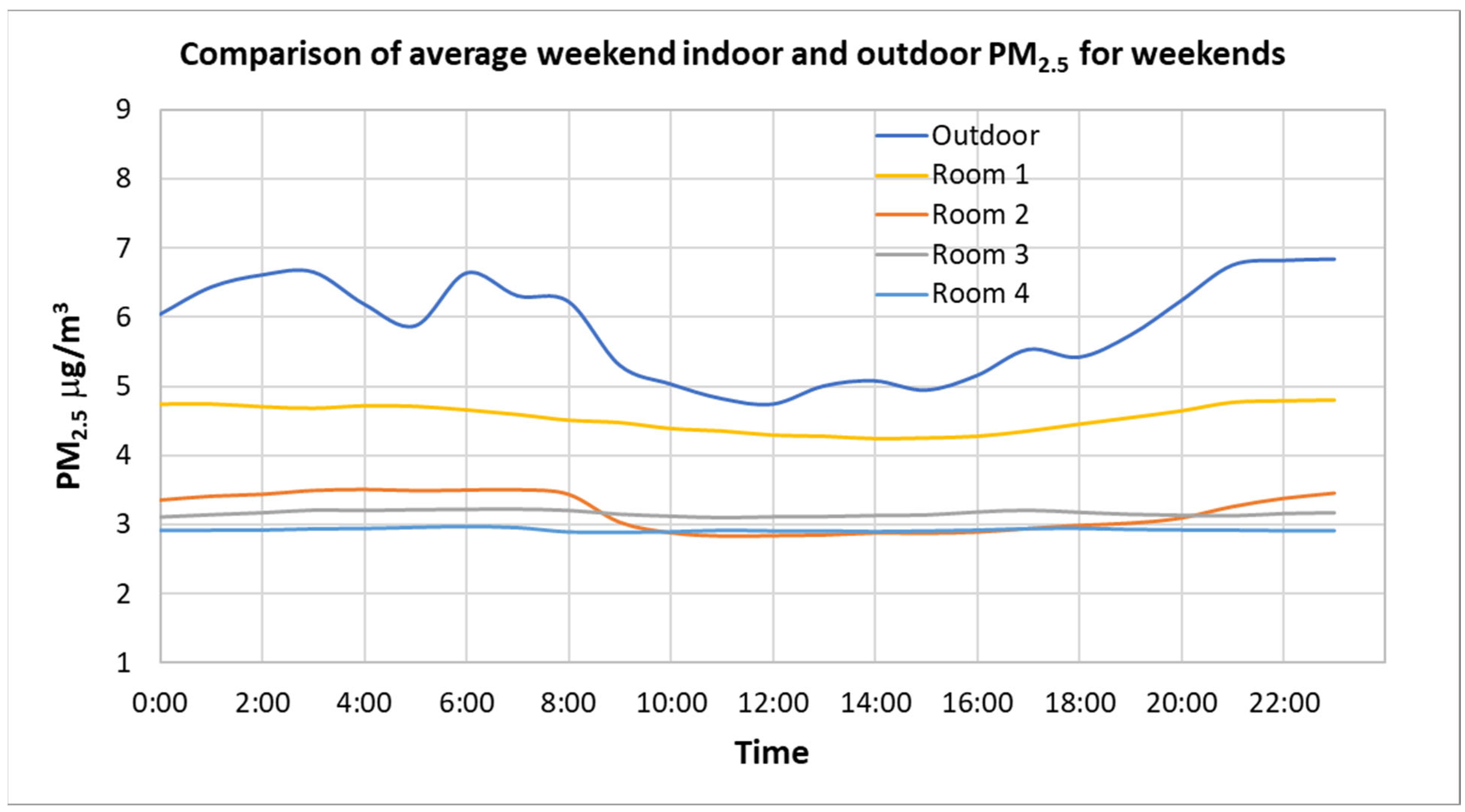

Figure 8 compares average indoor and outdoor PM_2.5 concentrations over seven weekends. Across all classrooms, indoor PM_2.5 levels remained lower than outdoor levels. Since no students were present on weekends, indoor PM_2.5 concentrations remained relatively stable, despite fluctuations in outdoor levels. Classroom 1 with higher PM_2.5 indicates that there was probably some air exchange from the outdoors because of the leakage of the windows or doors.

3.4. Temperature and Humidity Variations

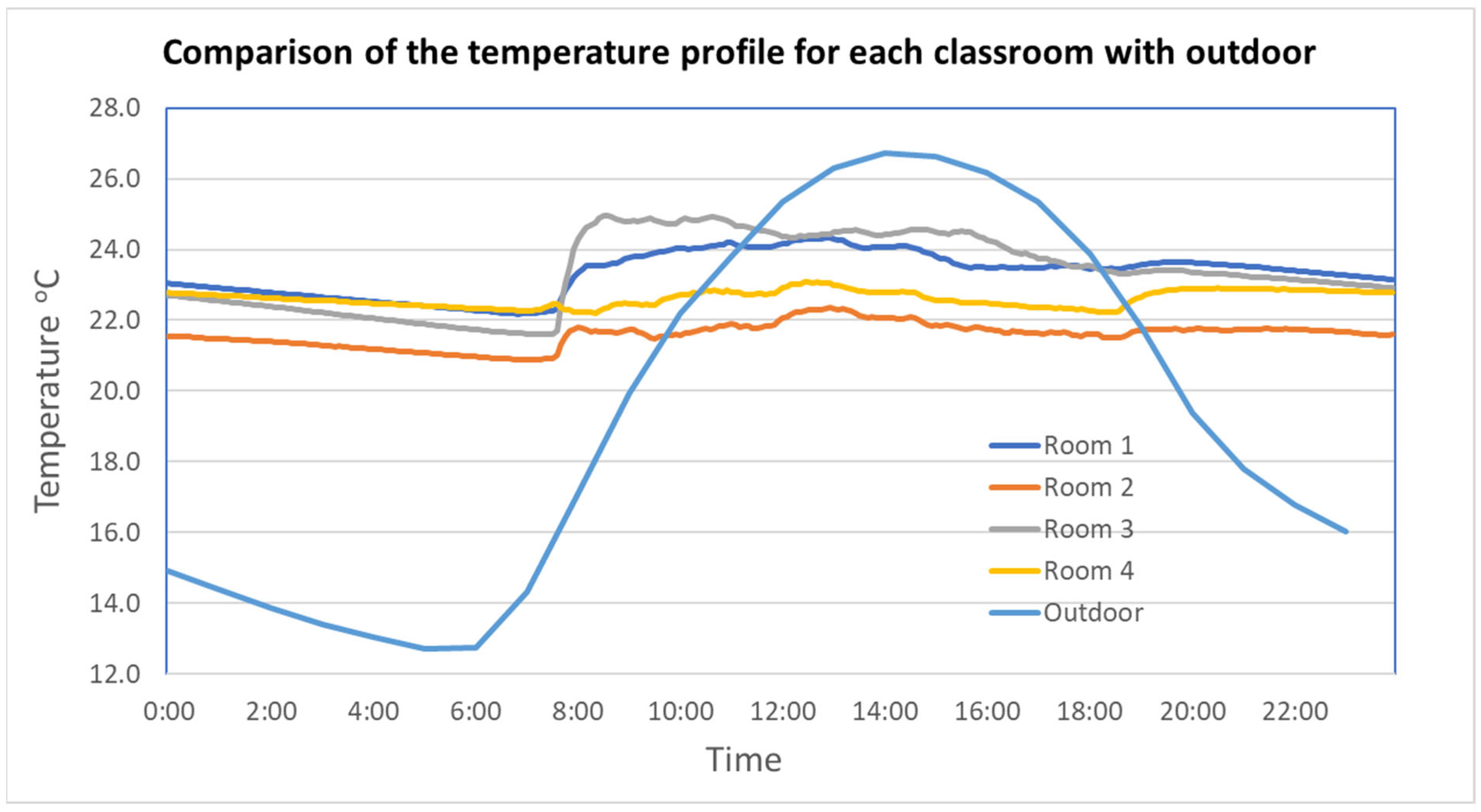

Figure 9 and Figure 10 further illustrate classroom environmental dynamics. As shown in Figure 9, indoor temperature variations followed outdoor temperature trends, to an extent influenced by teachers’ ventilation decisions. Classroom 3, with frequent door and window openings, experienced the most rapid temperature fluctuations, while Classroom 2, which remained closed off, showed the slowest response to outdoor temperature changes.

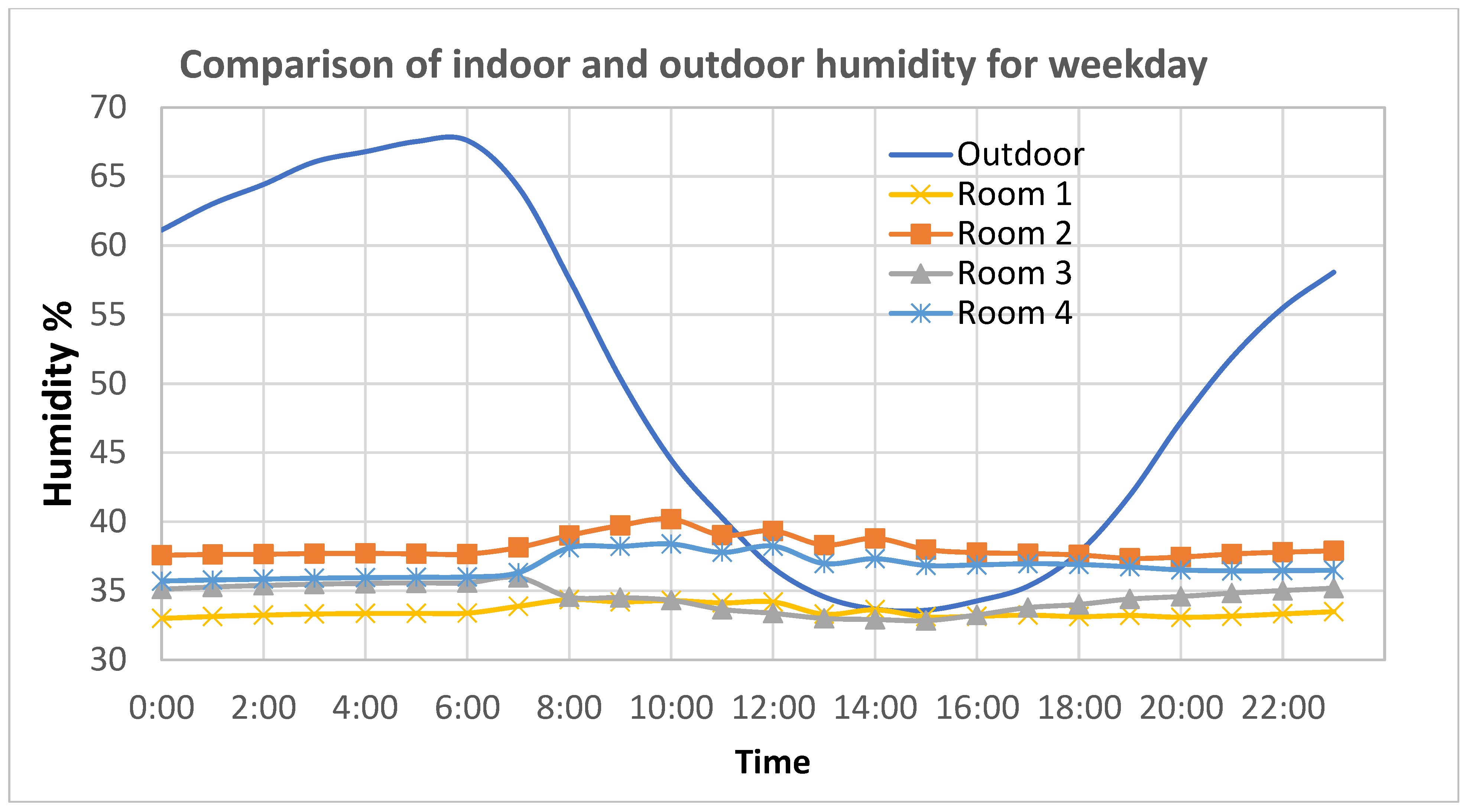

Figure 10 shows that the RH levels in each classroom were influenced by both outdoor humidity and indoor temperature fluctuations. In classrooms where doors and windows remained closed, the HVAC system initially caused a slight drop in temperature when activated, followed by gradual warming. Combined with higher morning outdoor humidity, this led to a brief rise in indoor RH, which then slowly decreased as the temperature increased throughout the day. In contrast, Classroom 3, where doors and windows were kept open, experienced a different pattern. The open ventilation allowed outdoor air to mix quickly with warmer indoor air. As a result, the outdoor air rapidly warmed, leading to a decrease in relative humidity due to the increased air temperature. This finding reinforces the impact of teacher preferences on classroom ventilation and indoor environments during school hours. Consequently, the degree to which classroom humidity followed outdoor RH trends was, in descending order, as follows: Room 3, Room 1, Room 4, and Room 2—mirroring the order of temperature increases observed in Figure 9.

3.5. Indoor PM Morphology and Air Filtration

As indicated above, the use of the open-faced passive air sampler will help us to identify the differences between outdoor and indoor PMs for both morphologies and element compositions, therefore helping us to demonstrate the benefits of the use of PACs in mechanically ventilated classrooms. In general, outdoor PM contained higher concentrations of silicon, iron, and phosphorus from soil sources, while indoor PM had a higher carbon content from synthetic fiber sources.

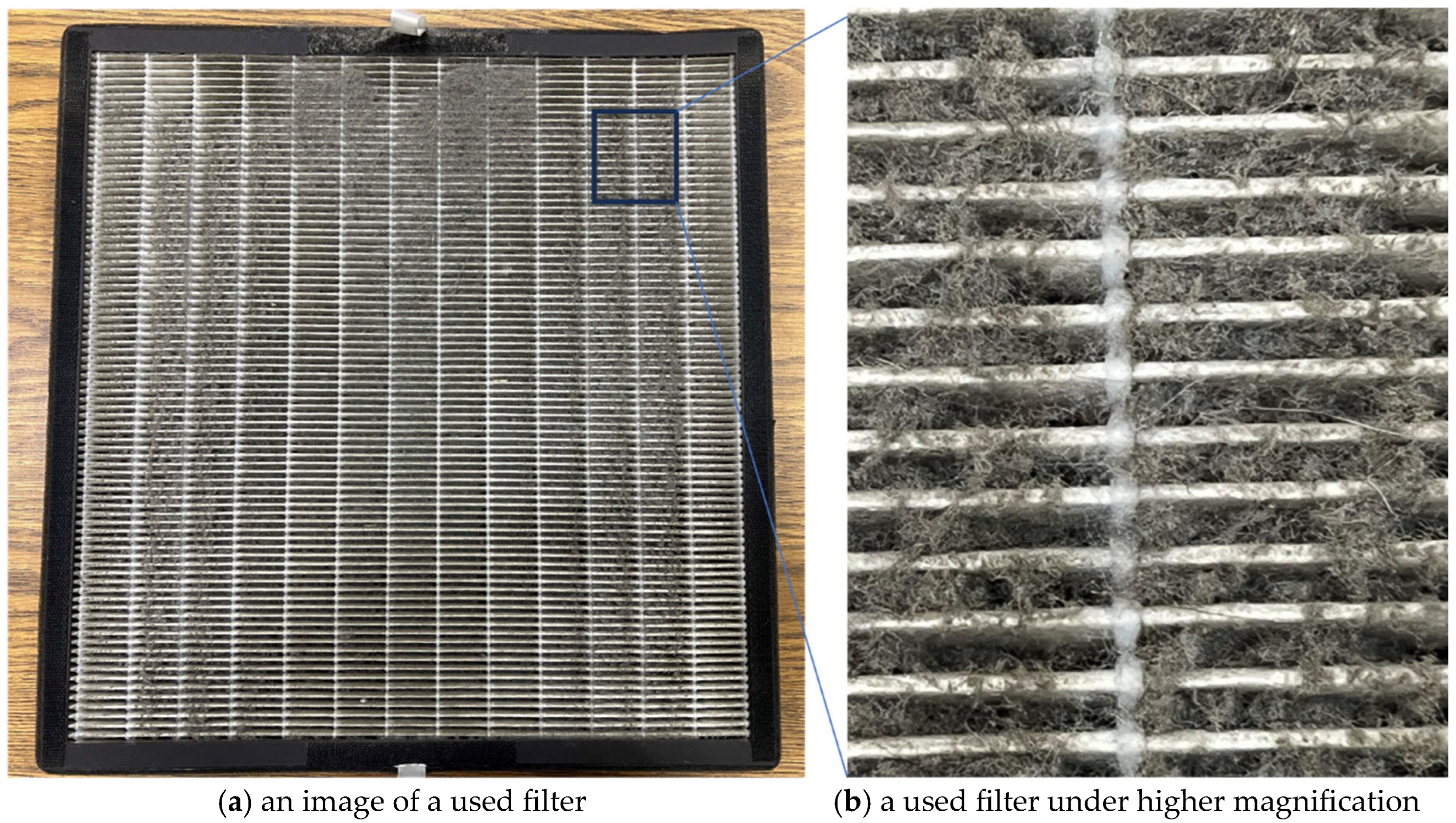

The used PAC filters (Figure 11) exhibited substantial fiber accumulation on the filters. Even with high-efficiency HVAC systems equipped with MERV 13 filters, PACs effectively removed additional PM and fibers generated indoors. Figure 12 provides a closer look at these filters using SEM. Figure 12a shows a new filter, while Figure 12b displays a used filter (approximately three months old). Figure 12c was imaged at higher magnification and highlights the presence of suspended fibers in the used filters, likely originating from carpeted floors and students’ clothing. These fibers included both natural and polymer fibers, which likely come from clothes, carpets, and hair.

3.6. Differences in PM Morphology: Indoor vs. Outdoor

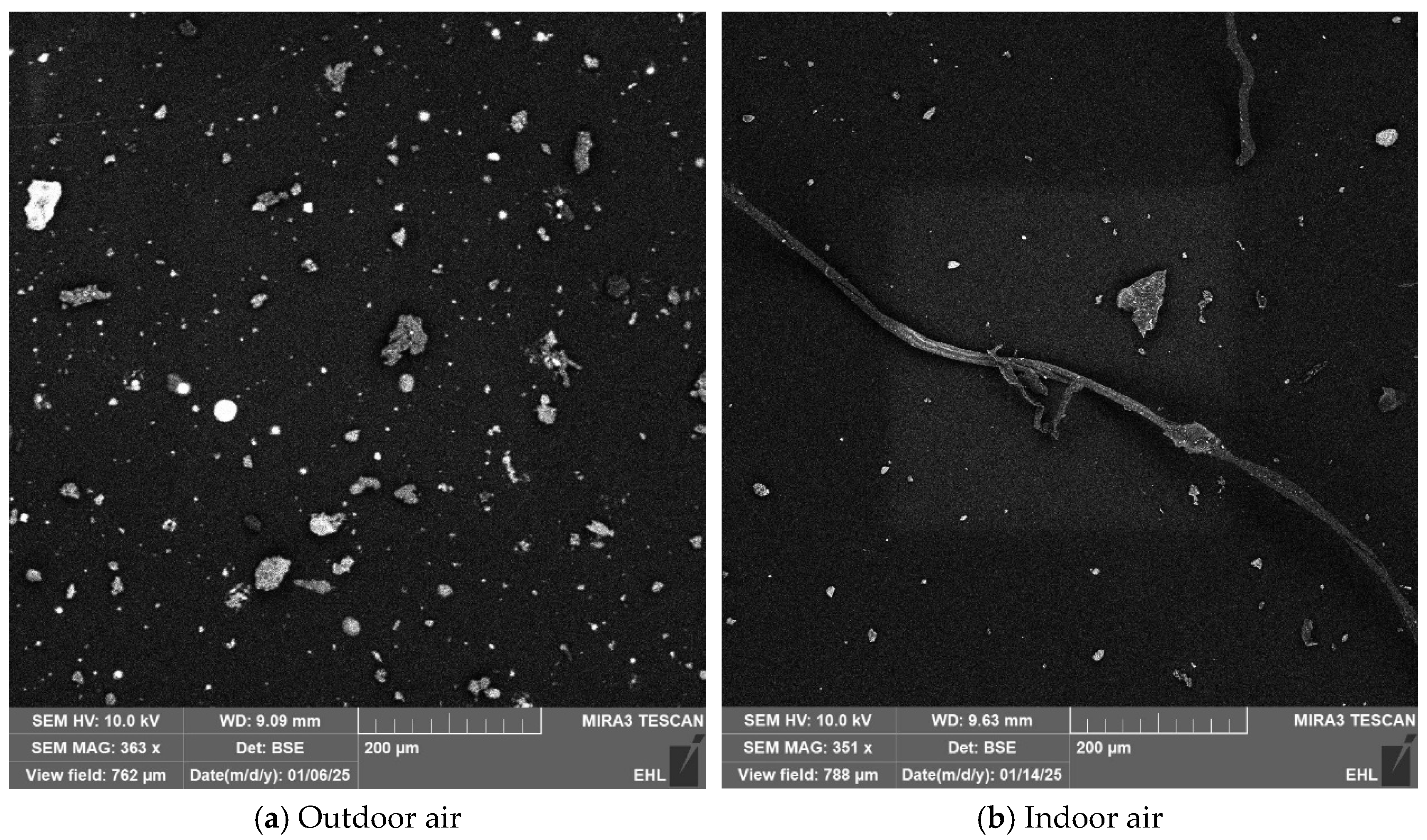

Figure 13 compares the morphology of outdoor and indoor PM collected with the OPS. Outdoor PM predominantly consisted of irregularly shaped particles with higher silicon, iron, and phosphorus concentrations (Figure 14), likely originating from windblown dust and the school playground [37]. In contrast, indoor PM had a higher carbon content of fibers, likely primarily derived from resuspended particles, carpet fibers, and dust from students’ clothing, which is similar to the previous finding [25].

4. Conclusions

Mechanical ventilation equipped with MERV 13 filters, combined with indoor portable air cleaners (PACs), reduced PM_2.5 concentrations in school classrooms compared to outdoor PM levels. Indoor PM concentrations were generally lower than outdoor concentrations during school hours when HVAC systems were operating. Teacher preferences significantly influenced indoor air quality (IAQ), affecting daily concentrations of both PM and CO₂.

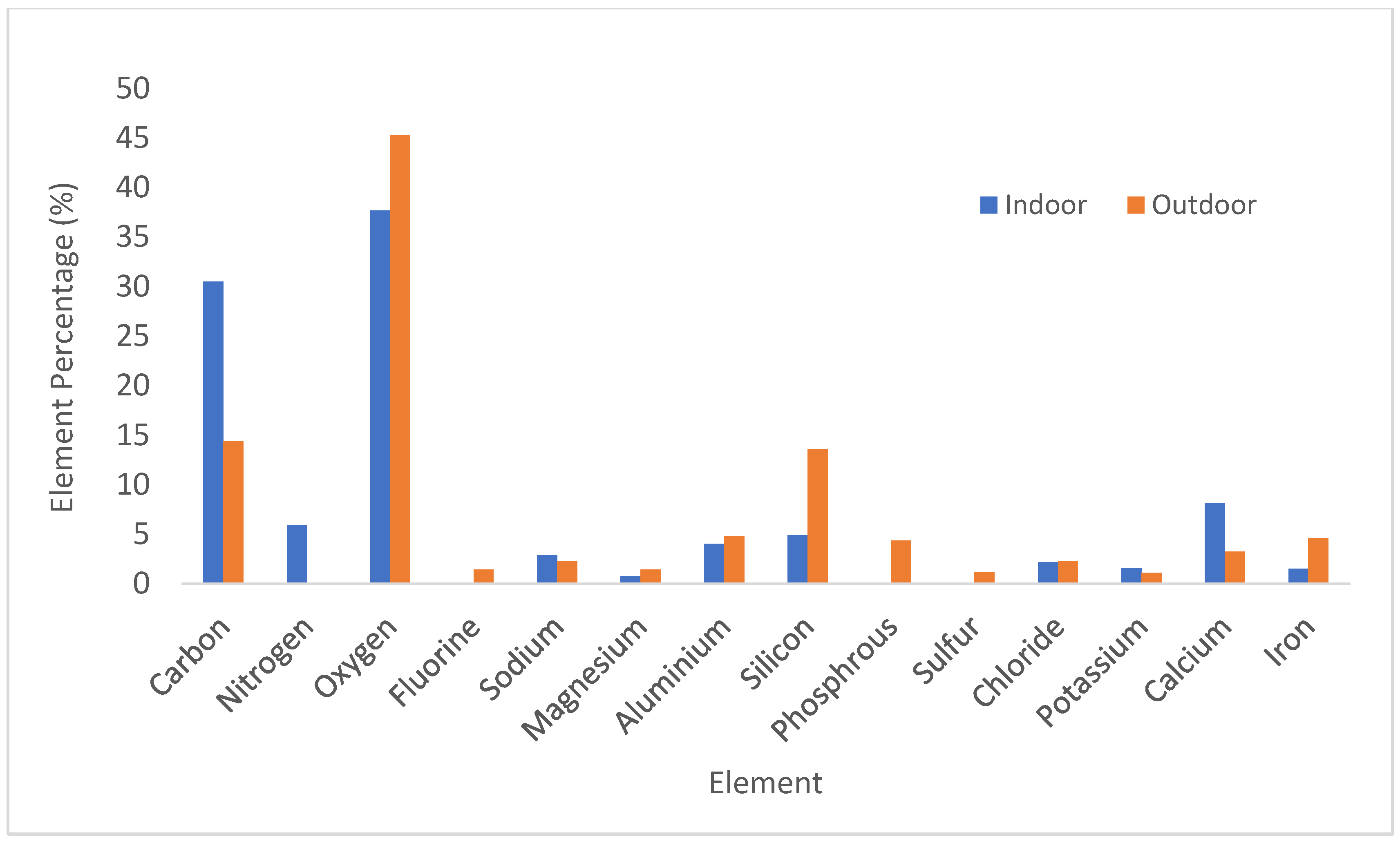

Different particle types (in terms of morphology and elemental composition) were observed in indoor and outdoor air samples. In the classroom, indoor air contained more fabric fiber-type particles compared to outdoor air. These carbon-rich fibers likely originated from students’ clothing or resuspended carpet fibers.

In mechanically ventilated classrooms with MERV 13 filters and high air change rates (ACH), PACs may have a relatively smaller impact on overall indoor PM concentrations. However, PACs can still help filter and remove PM generated indoors—particularly fibers—especially in classrooms with many students, where they help reduce the resuspension of particles, as shown in our air sample analysis. Ideally, PACs may also help reduce the transmission of respiratory pathogens, although this was not specifically measured in this study [38], and further research is needed in that area.
