Article

Vein Formation and Reopening in a Cooling Yet Intermittently Pressurized Hydrothermal System: The Single-Intrusion Tongchang Porphyry Cu Deposit

1
Geological Survey of Finland, P.O. Box 96, FI-02151 Espoo, Finland
2
GeoRessources, CNRS, Université de Lorraine, F-54506 Vandoeuvre-lès-Nancy, France
3
Department of Geology, Western Washington University, Bellingham, WA 98225, USA
*
Author to whom correspondence should be addressed.
Geosciences 2023, 13(4), 107; https://doi.org/10.3390/geosciences13040107
Submission received: 20 February 2023 / Revised: 18 March 2023 / Accepted: 27 March 2023 / Published: 1 April 2023

Abstract

:
Porphyry deposits are the dominant sources of copper and major sources of several base and precious metals. They are commonly formed via the repeated emplacement of hydrous magmas and associated fluid exsolution. As a result, mineralized hydrothermal veins may undergo multiple deposition and reopening processes that are not fully accounted for by existing fluid models. The Tongchang porphyry Cu deposit is a rare example of being related to a single intrusion. The simplicity in intrusive history provides an ideal starting point for studying fluid processes in more complex multi-intrusion porphyry systems. Detailed scanning electron microscope (SEM) cathodoluminescence imaging (CL) revealed rich microtextures in quartz and anhydrite that point to a fluid timeline encompassing early quartz deposition followed by fluid-aided dynamic recrystallization, which was succeeded by an intermediate stage of quartz dissolution and subsequent deposition, and ended with a late stage of continuous quartz deposition, brecciation, and fracturing. Vein reopening is more common than expected. Fifteen out of seventeen examined vein samples contained quartz and/or anhydrite that was older or younger than the vein age defined by vein sequences. Thermobarometry and solubility analysis suggests that the fluid events occurred in a general cooling path (from 650 °C to 250 °C), interspersed with two episodes of fluid pressurization. The first episode occurred at high-T (>500 °C), under lithostatic conditions alongside dynamic recrystallization, whereas the second one took place at a lower temperature (~400 °C), under lithostatic to hydrostatic transition conditions. The main episode of chalcopyrite veining took place subsequent to the second overpressure episode at temperatures of 380–300 °C. The results of this study reaffirm that thermal and hydraulic conditions are the main causative factors for vein reopening and growth in porphyry deposits.

1. Introduction

Porphyry deposits are the world’s dominant sources of copper and molybdenum as well as important reservoirs of other base and precious metals [1]. They are one of the areas of focus of critical raw material studies [2]. The deposits are normally found along the convergent plate tectonic margins, formed via optimally-integrated magmatic and hydrothermal processes rooted in the subduction lithospheric mantle [3,4,5,6,7]. Despite several decades of studies, many details still await to be revealed, particularly regarding the mechanism of vein growth, reopening, and sulfide deposition [8,9,10,11].
The most widely-used porphyry fluid model classifies hydrothermal veins as early A-type quartz vein (700–550 °C), transitional B-type molybdenite quartz vein (500–400 °C), and late D-type pyrite veins (350–250 °C) based on vein morphology, mineralogy, and chronology. However, this model assumes that the veins are formed in a single event that precipitates one generation of vein mineral. This assumption rarely holds for most porphyry deposits due to vein reopening, as revealed by several SEM-CL studies [12,13,14,15,16,17,18]. Erroneous interpretations on fluid source and conditions may result if they are based on bulk analyses of fluid inclusions, mineral chemistry, and isotopes of reopened veins.
Studies have shown that vein reopening in magmatic hydrothermal deposits may be linked to the number of igneous intrusions, which dictates the thermal and hydraulic properties of the system [8,19]. Ore deposits with a single intrusion may experience less reopening compared to multi-intrusion ones due to monotonic cooling, and thus less complicated hydraulic fracturing. The Tongchang Cu deposit is genetically associated with a single granodiorite intrusion [20]. This study presents a novel fluid model for the Tongchang Cu deposit by using integrated techniques of SEM-CL imaging [13,21,22], TitaniQ geothermobarometry [23,24,25,26,27], fluid inclusion microthermometry [13,28,29,30], and mineral solubility analysis [31,32].

2. Regional Geology

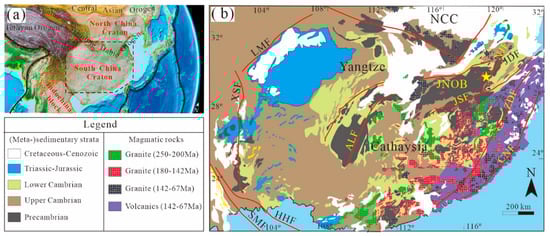

Most porphyry deposits form in terrains overriding subduction zones, where crustal magma chambers are fed by arc magmas [4]. Repetitive magma replenishment causes magma chambers to evolve chemically and mechanically, and drives the intrusion of multiple intrusive stocks [33]. In contrast, porphyry deposits with a single intrusion are rarely reported. Their scarcity is likely linked to the unique tectonic histories of the host terrain. The Tongchang porphyry deposit is a mono-intrusion system located in the inland of the South China Block (SCB), over 500 km from contemporaneous subduction belts [34] (Figure 1a). Interestingly, the deposit is situated within a much older subduction zone that sutured the SCB in the Neoproterozoic [35,36,37]. Despite the multiple reworking events in the Paleozoic and Mesozoic eras, geochemical and isotopic studies of the porphyry magmas have established connections with the Proterozoic subduction event [20,25,38,39]. For the sake of relevance and clarity, we describe Neoproterozoic and Mesozoic geology below.

2.1. Neoproterozoic Geology

The eastern SCB comprises the Jiangnan Orogen and Cathaysia block [40] (Figure 1b), separated by the Jiangshan—Shaoxing Fault [37]. The orogen consists of three tectonic domains separated by the Northeast Jiangxi [41] (Figure 1b) and Xiangtan-Miluo faults [42]. The northeast domain is a volcanic arc terrain of arc-derived granite and volcanic rocks (970–880Ma [43]), with minor turbidite, ophiolitic mélange, and blueschists [44]. The central and southwest domains expose low-grade metamorphosed volcano-sediments and intruding S-type granites [41] (860–800 Ma). The volcano-sedimentary sequences are deposited in two periods, separated by an angular unconformity [45]. The underlying sequences are dominated by flysch-like successions of sandstone, siltstone, slate, and phyllite deposited at 860–825Ma, including the Shuangqiaoshan Group in the northern Jiangxi and equivalents in other provinces [41,46]). The overlying sequence consists of slightly metamorphosed supracrustal rocks deposited in the Nanhua rift (e.g., the Banxi Group and equivalents [47]). The Cathaysia block comprises the Paleoproterozoic Badu Complex and Wuyishan granites as the basement, overlain by early Neoproterozoic volcanic successions (1000–900 Ma [48,49]. These rock associations have been interpreted as products of slab subduction [34,41,42,47,50,51].

2.2. Mesozoic Geology

The SCB is unconformably overlain by upper Neoproterozoic to lower Paleozoic, mid-Devonian to mid-Triassic, upper Triassic to lower Jurassic, and Cretaceous strata [34] (mainly clastic, volcanic and carbonate rocks, Figure 1b). The angular unconformities formed in three orogenic events in the Silurian, Triassic, and Jurassic eras [34]. Contemporaneous igneous activity was developed in large volumes. The Early Paleozoic (460–400 Ma) and Triassic (250–200 Ma) magmatic rocks are mainly S-type granites [52,53]. The Jurassic and Cretaceous igneous rocks are mainly A-type granite, syenite, and volcanic rocks, formed in two stages: i.e., 180–142 Ma and 142–67 Ma [53]. The early to middle Jurassic (190–170 Ma) is considered a period of magmatic quiescence with rock exposures only in the Dexing, Nanling and Qin-Hang regions [54]. Numerous tectonic models have been put forward for Mesozoic tectonics [34,53,55,56,57,58,59,60,61,62] (Figure 1d), all suggesting that the Dexing region had undergone an intraplate extension during this time period [20,38,63].

3. Deposit Geology

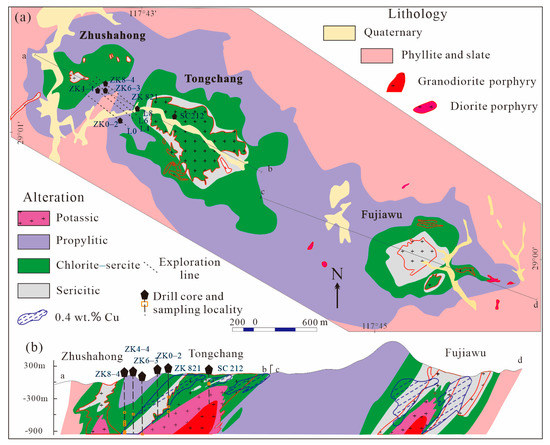

The Tongchang deposit is one of three mineralizing centers in the Dexing Cu district (Figure 2). Along with Zhushahong and Fujiawu, the three deposits appear in the intersections of regional and local faults that delineate a NW-SE alignment. The three granodiorite porphyries are identical in mineralogy and rock chemistry [20,38], and emanated from a common batholith at depths confirmed by borehole drillings. Alteration patterns are clearly separated despite the fact that the intrusions are close to one another (Figure 2). The ore types are similar except for different Au and Mo contents.

3.1. Wall Rock and Intruding Porphyries

Wall rocks of the Dexing district are phyllite and tuffaceous slate of the Shuangqiaoshan Group (Figure 3a,b). Biotite and actinolite hornfels are developed in the wall rocks surrounding the granodiorites (Figure 3c). The granodiorites are obliquely emplaced, and account for over 95 vol.% of igneous intrusions in this district. They show porphyritic texture in the peripheral and upper part of the intrusions (Figure 3d), and the center and lower portions grade into an equigranular texture (Figure 3e). Phenocrysts and groundmass have similar mineral composition to andesine, K-feldspar, quartz, hornblende, and biotite. Both the granodiorite and wall rocks are hydrothermally altered and mineralized (Figure 3f). LA-ICP-MS zircon U-Pb dating suggested that the granodiorite formed at 171 ± 3 Ma [20,38,63], contemporaneous with Cu-Mo mineralization (molybdenite Re-Os age of ~170 Ma [64]). The porphyry magmas are interpreted as a partial melt of Neoproterozoic subduction-modified lithosphere [20,38]. There is minor (<5 vol.%) post-ore diorite porphyry and aplite (Figure 3g–i). The diorite truncates mineralized veins (Figure 3h,i), and has been dated at ca. 154 Ma by the zircon U-Pb method [65].

3.2. Hydrothermal Alteration

Typical hydrothermal alteration types are developed in the Tongchang deposit including potassic, propylitic, chlorite-sericite, and sericitic assemblages [66].
The potassic alteration is preserved only in the deep parts of the porphyry stock. At shallow levels, potassic alteration is largely obscured by chlorite-sericite overprints (Figure 4a). In the potassic altered granodiorite, porphyritic textures are preserved, but primary minerals are widely replaced by secondary K-feldspar, biotite, and iron oxides. Propylitic alteration is pervasive in the peripheral rocks. Rock textures are largely unaffected with carbonation and hydration reactions.
Moving away laterally from the granodiorite-wall rock contact, chlorite–sericite alterations overprint on potassic and propylitic alterations (Figure 4b,f). While rock textures are largely preserved, most previous minerals were converted to chlorite, sericite, chalcopyrite, rutile, quartz, and anhydrite (Figure 4d).
The spatial distribution of sericitic alterations is structurally controlled. It is mainly developed in the granodiorite-wall rock contacts and surrounding faults and fractures. It obliterated earlier rock textures and converted all mafic minerals and feldspars into muscovite, rutile, pyrite, and quartz (Figure 4c,e).

3.3. Hydrothermal Veinlets and Mineralization

Stockworks of veins and veinlets are widely developed alongside the hydrothermal alterations. A previous work recognized three vein types conformable to the typical A-B-D classification, as mentioned previously. [67] further distinguished four subtypes of A-type veins, seven subtypes of B-type veins, and three subtypes of D-type veins. The early A veins are mostly wavy quartz dominant veins with variable amounts of K-feldspar, biotite, and magnetite. The transitional B veins are mainly straight-walled chlorite and quartz veins with pyrite, chalcopyrite, molybdenite, and bornite, along the vein centerline and edges. The late D pyrite-dominant veins have variable amounts of chalcopyrite and quartz. A detailed vein petrography is provided in Section 4.1.
The district has a total resource of 1870 Mt ore at an average grade of 0.46% Cu. Individually, Tongchang has 5.2 Mt Cu at 0.45%, 0.128 Mt Mo at 0.01%, 215 t Au at 0.19 g/t and 1279 t Ag; Fujiawu has 2.57 Mt Cu at 0.5% and 0.168 Mt Mo at 0.03%; and Zhushahong has 0.6 Mt Cu at 0.42% [20]. Over 85% of the ore is localized in the chlorite–sericite and sericitic alteration zones, displaying a hollow cylinder shape (Figure 1d). Copper minerals are predominantly chalcopyrite (>90%), with lesser bornite, tennantite, and chalcocite. The molybdenum is mainly in molybdenite. Gold is recovered as native gold and electrum [68]. Sulfide occurrences are different in the chlorite-sericite and sericitic zones. In the former, copper sulfides and molybdenite are primarily contained in the B-type chalcopyrite veins and altered mafic minerals with high chalcopyrite to pyrite ratios (2–0.5). In the sericitic zones, copper sulfides occur primarily as inclusions in pyrite and occasionally as tennantite aggregates [64] with low chalcopyrite to pyrite ratios (<0.1). Molybdenite is contained in D-type pyrite veins and altered wall rocks. Native Au, electrum and Au-rich pyrite are primarily hosted in the sericitic zone.

4. Samples and Methods

Sixteen representative rock samples were selected to represent different alteration and vein types. The sampling localities are marked in Figure 2 and Table 1, which include mining platforms (20 and 230 m) and drill cores of the Tongchang open pit (SC212), as well as drill cores (ZK0-2, ZK4-4, ZK6-3, ZK8-4, ZK821). Detailed descriptions of sample petrography are given in the Appendix A.

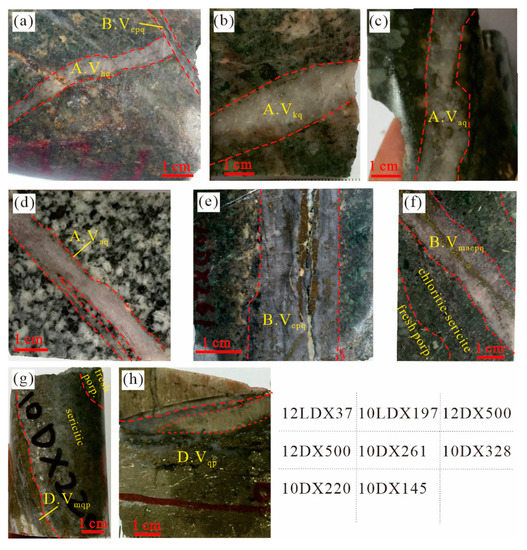

4.1. Vein Petrography

Three subtypes of A-type veins have been selected: hematite-quartz (A.Vhq), K-feldspar-quartz (A.Vkq), and anhydrite-quartz (A.Vaq). In the abbreviation, A denotes A-type, and the subscripts denote vein minerals in increasing mounts from left to right. The same abbreviation rule is used for all vein types.
A.Vhq veins have irregular vein boundaries without discernible alteration halos. They consist of about 95% quartz and 5% hematite (Figure 5a). They are commonly crosscut and reopened by chlorite-sericite-chalcopyrite-magnetite veins. A.Vkq veins consist of about 80–90% quartz and 10–20% K-feldspar, and are commonly enveloped by potassic halos (Figure 5b). Similarly, they are commonly crosscut and reopened by veinlets of chalcopyrite, muscovite, pyrite, and carbonate. A.Vaq veins consist of about 70% quartz, 20–30% anhydrite and variable amounts of pyrite, chalcopyrite, chlorite, carbonate, rutile, molybdenite, apatite and epidote (Figure 5c,d). They are commonly sandwiched by weak potassic halos. No crosscutting relationships have been observed between these three vein types.
Two B subtype veins have been selected, including chalcopyrite-pyrite-quartz (B.Vcpq) and molybdenite-anhydrite-chalcopyrite-pyrite quartz vein (B.Vmacpq). They are characterized by centerlines of sulfides and straight vein boundaries without alteration halos. B.Vcpq veins consist of about 70–90% quartz and 10–30% sulfides, with variable pyrite to chalcopyrite ratios (Figure 5e). B.Vmacpq veins differ from B.Vcpq veins with additional molybdenite and anhydrite in the vein and chloritic alteration halos. They commonly consist of about 70% quartz, 10% pyrite, 5–10% chalcopyrite, 5% anhydrite and minor amounts of molybdenite (Figure 5f). B.Vcpq and B.Vmacpq crosscut B.Vhq veins but no other crosscutting relations have been observed between B subtypes.
Two D subtype veins have been selected including molybdenite-quartz-pyrite (D.Vmqp) and pyrite-dominant (D.Vpd). D.Vmqp veins containing about 70–80% pyrite and 15–20% quartz and 5% molybdenite, bordered by centimeter-wide sericitic alteration halos (Figure 5g). D.Vmqp veins are crosscut by D.Vpd veins, but their relationships with other vein types is unclear. D.Vpd veins are dominated by pyrite (>95%) with minor amounts of quartz (<5%), and are commonly bordered by sericitic alteration halos (Figure 5h). D.Vpd veins usually crosscut A.Vhq, B.Vcpq, and D.Vmqp veins.

4.2. Analytical Methods

300 µm-thick sections were made by conventional cutting, grinding, and polishing. Mineral textures and parageneses were studied with petrographic microscopes and scanning electron microscopes (SEM) equipped with secondary electron (SE), backscattered electron (BSE), cathodoluminescence (CL), and energy dispersive spectroscopy (EDS) detectors. A total of 774 grey-scale CL, 579 color CL, 782 BSE high-resolution images, and 42 X-ray maps were taken. Trace element concentrations in different generations of quartz were measured in situ by LA-ICP-MS. Overall, 656 analyses for quartz from 16 samples were made. After all analyses, the actual ablation spots were confirmed by new CL imagery.

4.2.1. SEM-CL Microscopy

Greyscale CL imagery for anhydrite and quartz were firstly obtained on a Tescan Vega3 SEM equipped with a Centaurus CL detector and a photomultiplier at the Western Washington University. The accelerating voltage was 15 kV, and the probe current was about 10 nA for both quartz and anhydrite. The photomultiplier had a spectral range from ~300 nm to ~600 nm. A later CL study was carried out at the Institute of Geology and Geophysics, Chinese Academy of Sciences (IGGCAS), with a Nova NanoSEM 450 SEM equipped with a Gatan MonoCL4 panchromatic detector. An acceleration voltage of 15 kV and beam current of 9–12 nA were used.
Color CL images of quartz and anhydrite were collected using a Tescan Vega3 SEM equipped with a Gatan ChromaCL2 multichromatic detector at the GeoRessources Lab, CNRS (UMR7359), Université de Lorraine. An acceleration voltage of 15 kV and beam current of ~10 nA was used. The CL detector records spectra in ranges of red, green, and blue, and produces an RGB image. A dwell time of 300 μs was set for each pixel. During a separate session aiming to test the lifespan of luminescence, images were taken after the samples were exposed to electron beams for a certain amount of time.

4.2.2. In-Situ LA-ICP-MS Trace Elements

Trace elements in quartz were first measured with an Agilent 7500 ce ICP-MS coupled with a NewWave 213 nm Nd:YAG solid state laser ablation system at WWU. A laser fluence of 15 to 20 J/cm2, a repetition rate of 10 Hz, and a spot size of 65 μm were used. Helium was used as a carrier gas and mixed with make-up argon gas before entering the ICP torch. The Octupole Reaction System (ORS) was operated in hydrogen reaction mode (H2 flow rate of 2 mL/min) to increase sensitivity. Oxide production was monitored with 132Th16O/132Th ratios, which were always less than 0.2%. Twenty-two masses were monitored: 7Li, 9Be, 11B, 23Na, 27Al, 29Si, 30Si, 31P, 39K, 43Ca, 49Ti, 55Mn, 56Fe, 63Cu, 71Ga, 74Ge, 75As, 88Sr, 118Sn, 121Sb, 137Ba, and 208Pb. The dwelling time for 49Ti was 0.1 s, and it was 0.01–0.03 s for the other masses. About 30 s of gas blank was collected as the baseline, which was followed by 60 s of data acquisition with laser ablation. Instrument performance was checked by a rough on-the-fly data reduction with the GLITTER program. Data were reduced with care later on using GLITTER. 30Si was used as the internal standard using stoichiometric values. NIST 610 glass was used as an external standard, with reference values from [69]. A natural quartz standard (QZ7 [70]) and a synthetic quartz with a known chemical composition was used as quality controls. Results for QZ7 were within the range of recommended values for all elements except lower Al values. A correction factor was obtained by dividing the recommended value by measured values of Qz7 (ranging from 0.51 to 0.76, Table 4), which was applied to unknowns of the same analytical session. Additional analyses were made with an Agilent 7900 ICP-MS equipped with a MICRO/Las Pro 193 nm ArF excimer laser ablation system at the Institute of Geochemistry of the Chinese Academy of Sciences (IGCAS). A repetition rate of 10 Hz and an energy density of 10 J/cm2 were used. Spot size of the laser beam was 44 μm. NIST 610 glass was used as an external standard and analyzed twice every 10 analyses. An internal standard-independent calibration strategy, implemented in the ICPMSDataCal program, was used for quantification [71]. NIST 612, GSE-1G, and Qz7 were analyzed as quality controls. Analytical uncertainties of most elements for both setups were around 5–10% (1σ).
Although every effort was taken to avoid mineral and fluid inclusions, the influence of sub-microscopic inclusions was inevitable. During data reduction, abnormal spikes and bumps were filtered and excluded from integration. Even so, values of Na, K, Ca, Al, Mn, Fe, Cu, Zn, Sr, As, and Pb were too high to be real. Co-variations in Na-K-Al, Ca-Sr, Fe-Cu, Ca-Pb, K-Ca-Al, Cu-As, and Fe-Mn was interpreted to be the result of feldspar, carbonate, chalcopyrite/pyrite, tennantite, mica, and fluid inclusions, and were used as the basis to discard those values.

4.2.3. Fluid Inclusion Microthermometry

Fluid inclusions were classified as primary, secondary and pseudosecondary, following the principles of [72]. Phase transition temperatures were measured on a Linkam THMS 600 cooling/heating stage at the GeoRessources Lab of the Université de Lorraine. The stage was calibrated against the melting point of solid CO2 (−56.6 °C) and ice (0 °C), and a homogenization temperature (165 °C) of well-characterized natural fluid inclusions. The heating rate varied between 0.2 and 10 °C/min. When fluid inclusions approached the phase transition, the rate was lowered to 0.2–0.5 °C/min. Fluid salinity, density and isochores were calculated using the HokieFlincs_H2O-NaCl program [73].

5. Results

5.1. SEM-CL Imaging

Quartz growth sequencing was based on CL microtextures and vein crosscutting relations. The earliest quartz generation (Qz1, Figure 6a), most common in the A.Vhq, B.Vcpq, and B.Vmacpq veins, was characterized by variable grain sizes and straight grain boundaries. The grains commonly show undulose extinction under polarized light. They exhibit mottled CL with faint zoning, and abundant microfractures that are filled with CL-dark “splatters” and “cobwebs” (Figure 6a).
The second quartz generation of (Qz2), common in A.Vkq, A.Vaq, B.Vcpq, B.Vmacpq, D.Vpq, and D.Vpd comprises anhedral grains with contrast sizes and irregular boundaries filled with CL-dark quartz. Qz2 grains are further divided into larger Qz2a grains that have concentric CL zoning and smaller Qz2b grains that show mottled CL (Figure 6b). The contacts between Qz2a and Qz2b can be both transitional and crosscutting. They form discrete layers in most samples. They also contain “splatters” and “cobwebs”. Under color CL, both grains show long-lived blue, with lower intensity for Qz2b (Figure 6c). Qz2 grains truncate Q1 locally, suggesting a later deposition.
The third generation of quartz (Qz3), common in the A.Vkq, B.Vmacpq, D.Vmpq, D.Vpq, and D.Vpd veins, comprises a CL-dark core (Qz3a) and an overgrowth with oscillatory zoning (Qz3b) (Figure 6d). Some Qz3 grains contain a relict Qz1/Qz2 core overgrown either by Qz3a or Qz3b (Figure 6e). They also show long-lived blue CL (Figure 6f).
The fourth generation of quartz (Qz4), mainly observed in the A.Vaq, B.Vcpq, and B.Vmacpq veins, is low in abundance. The Qz4 grains show dark, red CL and occur as thin rims or aggregates coating earlier quartz (Figure 6e,g,h). Qz4 crosscuts Qz3b grains locally.
The fifth generation of quartz (Qz5) commonly consists of a CL-dark core (Qz5a) and oscillatory overgrowth (Qz5b) (Figure 6i). They are observed in the D.Vmpq, D.Vpq, and D.Vpd veins, and are intimately associated with pyrite. Locally, they occur as dark bands crosscutting or filling the interstitial space of earlier quartz (Figure 6j).
The latest generation of quartz (Qz6) comprises a CL-dark to grey interior (Qz6a) and a very bright-CL exterior (Qz6b) (Figure 6k). They were observed in the A.Vaq, D.Vpq, and D.Vpd. Qz6a exhibited an oscillation of red and blue CL, whereas Qz6b displayed a bright yellowish blue (Figure 6l).
Four generations of anhydrite have been identified. The first generation of anhydrite (Anh1) exhibited bright, homogeneous to patchy CL (Figure 7a). They are subdivided to Anh1a and Anh1b according to CL intensity. Anh1a grains have higher CL intensity and irregular boundaries (Figure 7a) relative to Anh1b grains that are commonly overgrown, recrystallized, or crosscut by later anhydrites.
The second generation (Anh2) shows bright to grey CL with “wavy” oscillatory boundaries (Figure 7a,b), with Anh2a being brighter and Anh2b darker.
The third generation of anhydrite (Anh3) occurred as euhedral crystals overgrowing Anh1 or infilled interstitial spaces of Anh1 and Anh2 (Figure 7a,c). They are subdivided to Anh3a and Anh3b according to CL intensity and zoning patterns (Figure 7c). Anh3a is brighter in CL and shows evident oscillatory zoning in contrast to Anh3b.
The last generation of anhydrite (Anh4) is anhedral and CL-dark (Figure 7d). Anh4 may cement Anh1 and Anh2 fragments (Figure 7e). All anhydrite generations except Anh3 have been found in both A.Vaq and B.Vmacpq.
Mineralogical and textural interpretations suggest a sequential co-precipitation of Qz1 and hematite, Qz2a and Anh1a, Qz2b and Anh1b, Qz3 and Anh2, along with pyrite and rutile, Qz4, and Anh4 along with chalcopyrite, pyrite, rutile, molybdenite, and Qz5 along with pyrite, apatite, rutile, and gypsum (Table 2).

5.2. Fluid Inclusions

Fluid inclusions at Tongchang were named using the nomenclature of [74] based on the relative volume fraction of bubbles and solid species (e.g., B15HS denotes 15% vapor phase, a halite daughter, and an opaque solid). Fluid inclusion assemblages (FIA) and their origin were determined with the aid of CL microtextures. Microthermometric temperatures and estimated salinity, density, and pressure are listed in Table 3.
Due to intense recrystallization, Qz1 grains are devoid of primary FIAs, but flooded with secondary FIAs in healed fractures. Qz2a and Qz2b quartz host primary FIAs of B15HS and B80 inclusions (Figure 8a,b). B15HS inclusions in Qz2a and Qz2b showed different temperatures of halite dissolution and vapor disappearance. In Qz2a grains, B15HS showed halite dissolution at 458–512 °C and vapor disappearance at 370–415 °C, whereas those in Qz2b grains showed lower halite-dissolution temperatures (388–396 °C) and vapor disappearance temperatures (270–280 °C). One B80 inclusion in Qz2b was homogenized at 404 °C via critical mode.
Qz3b contains primary B50 inclusions (Figure 8c). They had ice melting temperatures of −2.7–−4.2 °C and were homogenized at 300–350 °C via critical mode or vapor expansion.
Qz4 commonly contains only B30 inclusions, which are considered primary. They exhibited ice melting at −3.2–−5.6 °C and were homogenized at 250–300 °C. They also occurred as secondary inclusions in Qz2 and Qz3 (Figure 8c). B10 occurred mainly as secondary inclusions in Qz2 and Qz3. It had ice melting temperatures at −2.6–−3.4 °C and was homogenized at 187–208 °C.

5.3. Trace Elements

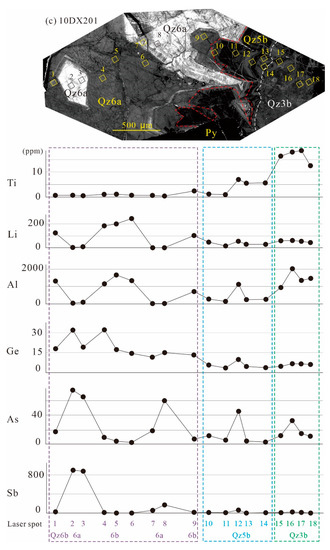

Results are shown and depicted in Figure 9, Table 4, and the Appendix A. In all quartz generations, only Ti, Li, Na, Al, K, and Ge occurred in appreciable concentrations. Arsenic and Sb becomes significant in Qz5 and Qz6.
Titanium contents show characteristic patterns among quartz generations. It increases from 26.8 ± 10.3 ppm (1σ, N = 59) in Qz1 to 127 ± 37 ppm (1σ, N = 42) in Qz2a and then decreases to 53.9 ± 16.1 ppm (1σ, N = 163) in Qz2b, 10.7 ± 4.0 ppm (1σ, N = 21) in Qz3a, 15 ± 7.9 ppm (1σ, N = 131) in Qz3b, 6.74 ± 4.22 ppm (1σ, N = 24) in Qz4, 8.40 ± 0.88 ppm (1σ, N = 4) in Qz5a, 7.66 ± 4.06 ppm (1σ, N = 66) in Qz5b, 2.67 ± 2.19 ppm (1σ, N = 19) in Qz6a, and 0.699 ± 0.454 ppm in Qz6b.
Lithium increases slightly from 11 ppm in Qz1 to av. 19 ppm in Qz3b, then decreases to 8 ppm in Qz4, and increases to 70 ppm in Qz6a which decreases to 29 ppm in Qz6b. Al increases from 172 ppm in Qz1 to 578 ppm in Qz3b, and then decreases to 300 ppm in Qz4, and then increases to 923 ppm in Qz6a which decreases to 718 ppm in Qz6b. Ge increases from 1 ppm in Qz1 to 14 ppm in Qz6b. As increases from 1 ppm in early quartz to 31 ppm in Qz6b, and Sb increases from 0 ppm (below detection limits) in early quartz to 20 ppm in Qz6a and 207 ppm in Qz6b.

5.4. Temperature Estimation

At a chemical equilibrium, the incorporation of Ti in quartz is dependent on pressure and temperature. The dependency has been devised as a geothermometer known as TitaniQ by various experiments [23,26,27,75,76]. Different calibration equations have been derived [77], but one developed by [26], as shown below, was selected in this study based on the arguments presented in [76]. An overview of the arguments is out of the scope of this study; interested readers are referred to the publications mentioned above.
R T l n X T i O 2 q u a r t z = 60952 ± 3122 + 1.52 ± 0.04 × T 1741 ± 63 × P + R T l n a T i O 2
At a given Ti activity ( a T i O 2 ), the mole fraction of Ti in quartz ( X T i O 2 q u a r t z ) increases with T but decreases with P. In a P-T space, equal X T i O 2 q u a r t z (isopleth) defines vertical lines that have increasing slopes (Figure 10). For the Tongchang deposit, a T i O 2 = 1 can be assumed for Qz2-, Qz3- and Qz4- and Qz5-depositing fluids since the rutile was coprecipitated. For Qz1 and Qz6, a T i O 2 = 0.5 and 1, are used to calculate two isopleths for each X T i O 2 q u a r t z .

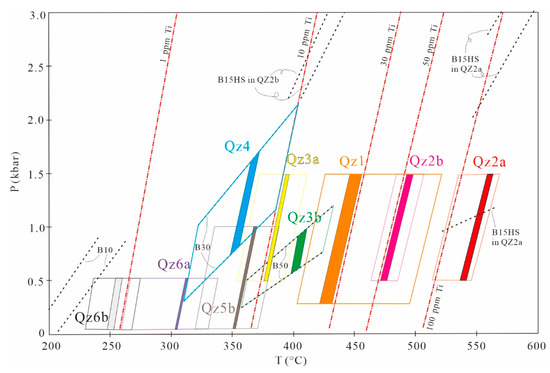

Exact pressures and temperatures can be obtained by combining TitaniQ and other geothermobarometers. Fluid inclusion isochores are an option but, unfortunately, they are only available for Qz3 and Qz4. B15HS inclusions in Qz1 and Qz2 are not used since their origin remains unclear [19] and their isochores intersect with TitaniQ isopleths at unreasonably high pressures (Figure 10). For the remaining quartz generations, a range of geologically reasonable pressures are assumed, i.e., 1500–500 bars for Qz1, Qz2, and Qz3a, 500–100 bars for Qz5, and 500–10 bars for Qz6. The assumption of decreasing pressures is supported by the increasing Al and Li contents consistent with a recent study by [78]. At a constant pressure, temperature is negatively related to a T i O 2 . The minimum temperatures for Qz1 and Qz6 are calculated with a T i O 2 = 1 and minimum pressure, and maximum temperatures are calculated with a T i O 2 = 0.5 and maximum pressure. Accordingly, the following averaged temperature ranges are obtained for different quartz generations (Figure 10; Table 4): Qz1 425–495 °C; Qz2a 529–618 °C; Qz2b 473–551 °C; Qz3a 374–420; Qz3b 350–450 °C; Qz4 310–390 °C; Qz5a 356–385 °C; Qz5b 344–351 °C; Qz6a 287–327 °C; Qz6b 242–276 °C.

6. Discussion

6.1. An Improved Timeline Based on Quartz CL Sequencing

Vein crosscut relations are often used to sort fluid events in the porphyry deposits [8]. However, this technique could be imparted by the existence of reopened veins. In those cases, a detailed look into mineral microtextures could help construct a reliable timeline of superimposed fluid events.
CL microtextures in hydrothermal quartz falls in two general categories: primary crystallization textures and secondary modification textures attributable to quartz deposition, dissolution, and deformation processes [79,80]. Concentric and euhedral oscillatory zoning in the Qz2a, Qz3, Qz5, and Qz6 grains belong to the primary crystallization textures, indicating a direct deposition from hydrothermal fluids. Mottled CL in the Qz1 and Qz2b grains is indicative of fluid-aided dynamic recrystallization. Similar Ti contents in both quartz generations might indicate a common event of recrystallization. The seemingly contradictory coexistence of un-recrystallized Qz2a and recrystallized Qz2b is likely linked to a difference in crystal sizes and shapes and resultant preferential deformation, as proposed for the Butte porphyry Cu-Mo deposit [22]. Qz2b resorbing Qz2a, “splatter” and “cobweb” in the Qz1 and Qz2 grains as well as overgrowth of Qz3 on earlier quartz gains indicate quartz dissolution. Qz3 and Qz4 fragments and fracture-filling Qz5 grains are indicative of brittle fracturing.

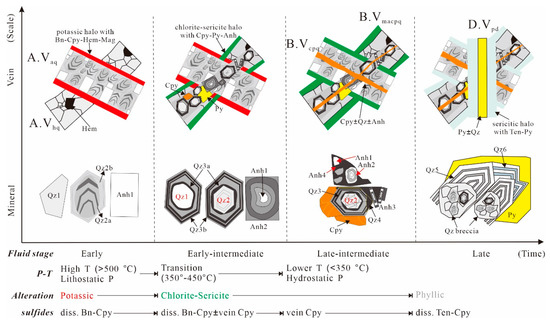

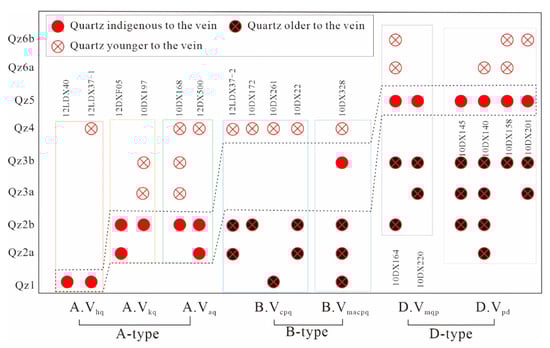

Based on these pieces of textural evidence, a refined timeline of fluid evolution is proposed for the Tongchang deposit. The early stage involved the deposition of the Qz1 precursor, Qz2a, and the Qz2b precursor followed by dynamic recrystallization and a first-time dissolution. The subsequent intermediate stage started with dissolution of earlier quartz grains followed by progressive deposition of Qz3a, Qz3b, and Qz4. The late stage commenced with the fracturing and brecciation of earlier quartz grains followed by the progressive deposition of Qz5 and Qz6.
Petrographic observations suggest that the early Qz1- and Qz2-depositing stage also precipitated hematite and anhydrite (Anh1) in the veins, and bornite, chalcopyrite, and potassic silicates in the alteration halos. The early intermediate stage precipitated pyrite, chalcopyrite, anhydrite (Anh3), chlorite, and sericite, along with Qz3 quartz, as well as chlorite-sericite alteration halos. The late intermediate stage precipitated abundant chalcopyrite, pyrite, anhydrite (Anh4), chlorite, sericite, and calcite in the veins. The late stages generated pyrite and sericite with Qz5 and Qz6 grains.

6.2. Fluid Cooling and Compression during Quartz Deposition, Recrystallization, and Dissolution

6.2.1. Quartz Deposition

TitaniQ thermobarometry has been widely utilized to estimate the P-T conditions of quartz deposition in magmatic [81,82] and hydrothermal environments [22,74,83]. Quartz solubility in various fluid compositions at varied P-T conditions can be used to investigate the fluid processes responsible for quartz deposition and dissolution, and, by inference, vein formation processes [31,32,84].
According to TitaniQ temperatures, early quartz deposition (Qz2a) occurred at around 529–618 °C; early intermediate quartz deposition (Qz3a and Qz3b) occurred at around 350–450 °C; late intermediate quartz deposition (Qz4) occurred at around 310–400 °C; and late quartz deposition (Qz5 and Qz6) occurred at around 240–400 °C. On a P-T phase diagram for H2O-NaCl overlapped with quartz solubility curves (Figure 11), the quartz deposition temperature ranges are located in the single liquid phase region where quartz solubility decreases dramatically with temperature, and much less with pressure. It is inferred that the quartz deposition is mainly the result of fluid cooling. Anhydrite has a similar prograde solubility behavior at temperatures above 350 °C in H2O-10wt.%NaCl solutions, but shows retrograde solubility below that temperature (the grey region in the Figure 11). Increasing salinity tends to decrease the deflection point of the temperature, thus shifting the retrograde region to lower temperatures. H2O-NaCl fluids containing silica and calcium sulfate would precipitate quartz and anhydrite upon cooling to 350 °C. Below 350 °C, quartz would continue to precipitate, whereas anhydrite deposition would cease. This inference is consistent with the coprecipitation of quartz and anhydrite in the early to intermediate stage and the disappearance of anhydrite in the late stage in the Tongchang deposit.

6.2.2. Quartz Recrystallization

Like many other minerals, quartz undergoes dynamic recrystallization during deformation to minimize free strain energy [86]. Three distinctive recrystallization mechanisms have been recognized [87], i.e., bulging recrystallization (BLG), subgrain rotation (SGR), and grain boundary migration (GBM). These mechanisms occur at different temperature regimes and result in characteristic microstructures [22]. BLG occurs at temperatures between 250 °C and 400 °C, resulting in small, recrystallized grains surrounding large, un-recrystallized grains. SGR occurs at temperatures between 400 °C and 500 °C, generating straight and commonly polygonal grain boundaries. GBM occurs at temperatures between 500 °C and 600 °C, producing lobate grain boundaries. TitaniQ applied in a metamorphic environment [88] and experiments [76,89,90] suggests that SGR and GBM could re-equilibrate Ti in quartz, and thus that TitaniQ would record the temperature of recrystallization.
The grain boundaries shown in Qz1 and Qz2b grains are similar to those of SGR (Figure 6a,b). TitaniQ temperatures of 400–550 °C suggest SGR/GBM recrystallization consistent with the microstructures. A noteworthy feature is that less-recrystallized Qz2a grains are commonly rimmed by CL-dark edges. A similar feature in B-type veins of the Butte porphyry deposit was proposed to be a result of mismatch in lattice alignment of adjacent crystals during competitive grain growth [22]. However, we noted that the CL-dark rims in the Qz2a grains are comparable to those quartz experimentally deformed with the presence of fluid [76]. We infer that the CL-dark rims in Qz2 (Figure 6b) may have been a product of fluid-mediated dissolution-reprecipitation during dynamic recrystallization. If this inference is correct, the quartz dissolution event requires an increase in silica solubility, which cannot be explained by a drop in fluid pressure in a deflating magma chamber as proposed by [22]. Conversely, we consider it more likely to reflect an increase in fluid pressure and/or temperature based on a solubility analysis (Figure 11). Fluid compression is a plausible process in that overpressure in the overlying carapace that could be caused by fluid exsolution and accumulation, which is common for the deposition of early quartz veins [91]. In addition, silica solubility can be enhanced by new pulses of mafic recharge, which may introduce hotter fluids. A possible magmatic recharge was suggested by a geochemical study of the mafic enclaves of the Tongchang deposit [20].

6.2.3. Quartz Dissolution and Fracturing

Immediately after the deposition of Qz2b, a quartz- and anhydrite-dissolution took place prior to the deposition of Qz3 and Anh2 at lower temperatures (350–450 °C) and fluctuating pressures. The temperature constraints indicate a transition from lithostatic to hydrostatic regimes (Figure 11). The quartz dissolution was previously attributed to quasi-isobaric cooling through the retrograde quartz solubility region [17,31,92]. However, this explanation is not likely for Tongchang because quasi-isobaric cooling would cause lower Ti contents in later deposited Qz3b, which is inconsistent with higher Ti contents in Qz3b (around 15 ppm) than in Qz3a (around 10 ppm). Another observation not in favor of quasi-isobaric cooling is that anhydrite displays prograde solubility in the quartz retrograde solubility field, which cannot account for the coeval dissolution of anhydrite and quartz (Figure 11). Therefore, it is inferred that fluid pressurization is seemingly the only viable way to elevate the solubility for both minerals.
Quartz and anhydrite show a similar solubility behavior at temperatures between 350 °C and 400 °C and pressures below 2000 bars, corresponding to a hydrostatic regime [92]. Under hydrostatic conditions, quartz and anhydrite deforms in a brittle fashion, which is consistent with early anhydrite breccia cemented by Anh4 (Figure 7h). The quartz micro-breccia enclosed in Qz5 suggests the occurrence of another episode of fluid overpressure. With the space created by brecciation, pressure fluctuated in response to fluid exsolution and mineral precipitation, resulting in the zoning patterns in Qz5b (Figure 11).
Preexisting veins can be reopened during a later fluid event by dissolution, mechanical breaking, brecciation, and recrystallization [17]. At Tongchang, these phenomena are abundant and occurred at different stages. Dissolution and recrystallization occurred in the early to transitional stage when host rock behaved in ductile fashion, whereas breaking and brecciation occurred in the late stage when host rocks behaved in a brittle fashion.

6.3. Vein Growth Via Reopening

Hydrothermal veins in porphyry Cu deposits are commonly grouped into early quartz (A-type), transitional molybdenite quartz (B-type), and late pyrite (D-type) veins [93]. This model was later modified with the addition of several subordinate vein types, including early magnetite (M-type) [94], early biotitic (EB-type) [95], late chalcopyrite-sericite (C-type) [95,96](Dilles et al., 1992, and epithermal (E-type) veins [97]. Although widely used, the model faces challenges with regard to vein overprints [12].
The Tongchang porphyry deposit presents a good example of such challenges. According to their deposition temperatures, Qz1-2, Qz3 and Qz5 can be considered as indigenous quartz of A-, B-, and D-type veins [31]. Three fourths of the examined veins contain quartz that precipitated earlier or later than the vein formation defined by vein classification (Figure 12). Visual estimates suggested that the early A veins, except the A.Vkq vein in 10DX197, contain younger quartz (Qz3 and Qz4) in volumes <50%. The B veins particularly involve the addition of younger Qz4 quartz to older quartz. For instance, the B.Vmacpq vein in 12DX328 comprises a central lining of pyrite, chalcopyrite, Qz4, Anh4 and carbonates, which is sandwiched by Qz1 and Qz2 quartz. Overprints in late veins are dramatic, and are characterized by the presence of earlier relict quartz (Qz1-3) and minor younger Qz6 quartz. Qz4 quartz are typically absent. D.Vmqp is only different from D.Vpd veins in that it has a larger amount of relict quartz.
A striking feature of the studied veins is that they all contain early quartz (Qz1-2), regardless of vein types. If these samples are representative of veining processes at Tongchang, it is plausible to infer that all the vein types are reopening early quartz-dominated veins. The present early veins are the product of slight overprints. The chalcopyrite veins (B.Vcpq and B.Vmacpq) may be produced by the reopening of the earlier quartz veins by Qz4-depositing fluids, which is consistent with the conclusion of [31]. The late pyritic veins (D.Vmqp and D.Vpd) are products of overprints by Qz5-depositing fluids on earlier quartz veins.

6.4. Implications for Cu Sulfide Deposition

In the early fluid stage, hematite and anhydrite with little sulfide were deposited in the A.Vhq veins (Figure 13), attesting to oxidized sulfur species ( S O 2 , S O 4 2 ) at high temperatures [98,99]. In the potassic altered rocks, however, the low-sulfidation assemblage of chalcopyrite, bornite, magnetite and hematite developed [100]. These Fe-Cu sulfides were formed coevally with Qz1 and Qz2 at high temperatures (650 °C to 450 °C) (Figure 13), and the required H 2 S was probably produced through the chemical reduction of sulfate in the fluids by mafic minerals such as biotite and hornblende [101]. It is worth mentioning that potassic ores of Tongchang are much less significant than in usual porphyry deposits [74], likely due to sulfide remobilization [1].
The first overprint is characterized by the deposition of pyrite ± chalcopyrite in the Qz3–Anh2 veins and chlorite–sericite alterations (Figure 13). The disappearance of ferric iron oxides and the appearance of pyrite indicate an increase in the sulfidation state with continuous cooling [100]. The H 2 S required for sulfide deposition is likely derived from the S O 2 disproportionation favored by fluid cooling (350 °C to 450 °C) [98]. The remobilization of early-stage sulfides might not be a significant source of H 2 S because chalcopyrite solubility is significantly impeded during this process [102]. In the alteration halos, the precipitation of anhydrite (Anh2) occurred coevally with sulfide deposition and the hydrolysis of feldspars, indicating a potential chemisorption reaction between S O 2 -bearing fluids and andesine [10].
Cu sulfides of the Tongchang deposit were mainly deposited in the vein assemblage of pyrite—chalcopyrite—Qz4—Anh4 at 300 °C–380 °C (Figure 13). The increased availability of Cu may be a result of the dissociation of C u C l 2 complexes caused by fluid dilution in response to the entrainment of groundwaters and metamorphic fluids [103]. Another contributing factor might be the remobilization of existing sulfides associated with potassic alteration. Inflow of air saturated groundwater may significantly elevate the oxidation state and acidity of the magmatic fluids, which are favorable for chalcopyrite dissolution [102].
Although a large proportion of Cu sulfides are hosted in sericitic alteration zones, petrographic evidence of chalcopyrite inclusions and high-sulfidation assemblage of pyrite and tennantite indicates that they are remobilized from earlier ores (Figure 13). The mineral assemblage in the phyllic altered rocks reflects the stability of muscovite, quartz and pyrite, and the instability of chlorite, feldspars, mafic minerals, and chalcopyrite. This is similar to the Butte porphyry deposit, where the early ores (chalcopyrite-pyrite-magnetite) with potassic–chloritic alterations were remobilized by circulating oxidized groundwaters and re-deposited as chalcocite and covellite [104].

7. Conclusions

The Tongchang porphyry deposit represents a rare case of a porphyry copper deposit resulting from a single magmatic intrusion. It was expected that it would have undergone less fluid overprint compared to multi-intrusion counterparts. However, CL imaging of vein quartz and anhydrite revealed vein overprints as complicated (if not more complicated) as those in multi-intrusion deposits. This observation suggests that vein overprinting is likely an intrinsic property of porphyry deposits, regardless of intrusive history and other geological factors. The failure to recognize such vein overprints may result in erroneous fluid chronology and the incorrect interpretation of geochemical data (e.g., fluid inclusion and isotopes). Therefore, one should be careful when conducting geochemical analysis based on macroscopic features and a conventional vein model. Whenever possible, detailed CL imaging is an imperative.

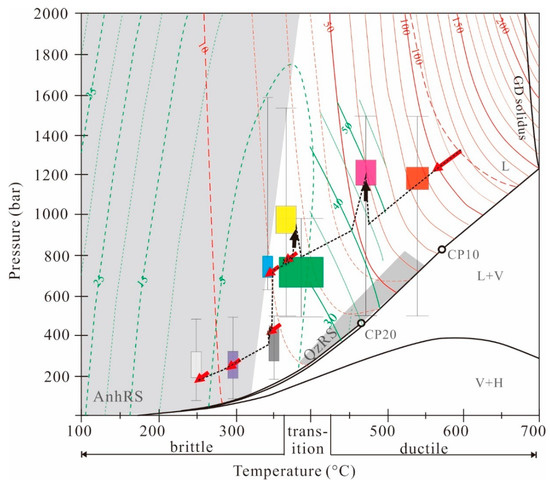

As expected, the P–T history of Tongchang is characterized by an overall cooling and decompression trajectory. However, in contrast to monotonic cooling model, the P–T analysis of Tongchang porphyry deposit uncovered two significant episodes of fluid compression, likely corresponding to two periods of magmatic fluid accumulation under lithostatic and lithostatic to hydrostatic regimes. There might have been an increase in temperature during the second episode of compression. These irregularities in pressure should be considered for fluid models of porphyry deposits.
The Cu deposition process is better elucidated with the aid of CL petrography and integrated geothermometry. It was clearly shown that the high oxidation state of early high temperature fluids precludes Cu sulfide deposition in veins. However, Cu sulfide could be deposited via a chemical reaction with mafic minerals. The Cu sulfide deposition commences at temperatures lower than 450 °C when S O 2 disproportionation starts. Most chalcopyrite was precipitated at lower temperatures of 350 °C to 300 °C.

Author Contributions

X.L. and B.G.R. initiated the idea and work plan; X.L. performed the experiments; X.L., A.R., J.P. and B.G.R. interpreted the data; X.L. prepared the manuscript; A.R., J.P. and B.G.R. edited the manuscript. X.L. and J.P. acquired research funds. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported collectively by the National Natural Science Foundation of China (project N.O. 41402083), the China Scholarship Council (a visiting scholar fellowship granted to X.L.), and the Extra & Co project (Valorisation-Instituts Carnot n°ANR-15-CNRT-003).

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article and Appendix A.

Acknowledgments

Hongrui Fan, Fangfang Hu, Kuifeng Yang and Bojie Wen are acknowledged for their assistance with the fieldwork and sample preparation. Charles Wandler and Andreï Lecomte are thanked for their help during the SEM analyses. Kyle Mikkelsen and Tingguang Lan are acknowledged for their assistance during the LA-ICP-MS analyses. van Hoan Le assisted with the solubility curves construction. Two anonymous reviewers are sincerely thanked for their detailed reviews and comments.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Figure A1. Petrography of studied samples. Selected vein samples and photos of the thick sections. (a) 1- hematite quartz vein; 2- muscovite chlorite chalcopyrite pyrite quartz vein; 3- chunk of chlorite, hematite, sericite and muscovite; 4- large chunk of hematite; 5- feldspar replaced by sericite; 6- residue quartz; 7- groundmass containing disseminated chalcopyrite; 8- groundmass containing abundant hematite and chalcopyrite; 9- green aggregation consisting of chlorite and sericite; (b) 1- K-feldspar partly altered by muscovite and chlorite; 2- sericite - chlorite pseudomorph after plagioclase; 3- chunk of sericite, chlorite, muscovite, chalcopyrite and rutile; 4- chunk of chlorite, chalcopyrite and rutile; 5- chalcopyrite with pyrite inclusions; 6- chunk of rutile, chalcopyrite and muscovite; 7- muscovite - chlorite - rutile - quartz after biotite; 8- chunk of muscovite, chalcopyrite, pyrite and rutile; 9- chlorite (center) - sericite (rim) after feldspar; 10- chunk of chlorite and rutile; 11- chunk of pyrite, chlorite, rutile and epidote; 12- chunk of chlorite, rutile and calcite; (c) 1- altered porphyry by chlorite, sericite, rutile and pyrite; 2- anhydrite, epidote and chlorite; 3- carbonate vein; 4- anhydrite epidote veinlet; 5- chunk of molybdenite; 6- K-feldspar partly altered by sericite, chlorite and epidote; 7- sericite pseudomorph after K-feldspar; 8- pyrite crosscut by chalcopyrite veinlets; 9- dirty quartz with abundant fluid inclusions; 10- clear quartz; 11- anhydrite; (d) 1-fresh biotite; 2- biotite slightly altered by chlorite; 3- biotite slightly altered by quartz, sericite, chlorite, hematite and magnetite; 4- chunks of secondary biotite; 5- plagioclase slightly altered by sericite; 6- residue quartz with overgrowth; 7- sericite pseudomorph after feldspar; 8- groundmass of small quartz, sericite and chlorite; 9- vein quartz and anhydrite; (e) 1- quartz vein; 2- altered porphyry; 3- chlorite hematite calcite vein; 4- chlorite muscovite chalcopyrite pyrite vein; 5- chalcopyrite pyrite chlorite quartz veinlets; 6- biotite replaced by chlorite sericite chalcopyrite and rutile; 7- feldspar completely replaced by sericite and muscovite; (f) 1- slightly altered porphyry; 2- illitic chlorite - sericite altered porphyry; 3- sericite (rim)-chlorite (center) pseudomorph after feldspar; 4- chlorite-chalcopyrite pseudomorph after biotite; 5- sericite-rutile pseudomorph after biotite; 6- chunk of chalcopyrite, muscovite and anhydrite; 7- residue anhydrite; 8- anhydrite chalcopyrite veinlet; 9- anhydrite chalcopyrite pyrite vein; 10- chalcopyrite veinlet; (g) 1- slightly altered porphyry; 2- sericitic altered porphyry; 3- residue quartz; 4- chunk of muscovite and pyrite; 5- pyrite, muscovite and rutile pseudomorph after biotite; 6- muscovite, rutile, quartz and pyrite pseudomorph after biotite; 7- vein pyrite crosscut by carbonate veinlets; 8- quartz, muscovite, molybdenite, rutile layer; 9- fine-grained quartz and large muscovite in equal amount; (h) 1- silicified phyllite with oriented sericite, quartz and rutile; 2- pyrite quartz vein; 3- pyrite dominated vein; 4- aggregation of chlorite; 5- aggregation of quartz. Areas mapped with SEM-CL are also shown.
Figure A1. Petrography of studied samples. Selected vein samples and photos of the thick sections. (a) 1- hematite quartz vein; 2- muscovite chlorite chalcopyrite pyrite quartz vein; 3- chunk of chlorite, hematite, sericite and muscovite; 4- large chunk of hematite; 5- feldspar replaced by sericite; 6- residue quartz; 7- groundmass containing disseminated chalcopyrite; 8- groundmass containing abundant hematite and chalcopyrite; 9- green aggregation consisting of chlorite and sericite; (b) 1- K-feldspar partly altered by muscovite and chlorite; 2- sericite - chlorite pseudomorph after plagioclase; 3- chunk of sericite, chlorite, muscovite, chalcopyrite and rutile; 4- chunk of chlorite, chalcopyrite and rutile; 5- chalcopyrite with pyrite inclusions; 6- chunk of rutile, chalcopyrite and muscovite; 7- muscovite - chlorite - rutile - quartz after biotite; 8- chunk of muscovite, chalcopyrite, pyrite and rutile; 9- chlorite (center) - sericite (rim) after feldspar; 10- chunk of chlorite and rutile; 11- chunk of pyrite, chlorite, rutile and epidote; 12- chunk of chlorite, rutile and calcite; (c) 1- altered porphyry by chlorite, sericite, rutile and pyrite; 2- anhydrite, epidote and chlorite; 3- carbonate vein; 4- anhydrite epidote veinlet; 5- chunk of molybdenite; 6- K-feldspar partly altered by sericite, chlorite and epidote; 7- sericite pseudomorph after K-feldspar; 8- pyrite crosscut by chalcopyrite veinlets; 9- dirty quartz with abundant fluid inclusions; 10- clear quartz; 11- anhydrite; (d) 1-fresh biotite; 2- biotite slightly altered by chlorite; 3- biotite slightly altered by quartz, sericite, chlorite, hematite and magnetite; 4- chunks of secondary biotite; 5- plagioclase slightly altered by sericite; 6- residue quartz with overgrowth; 7- sericite pseudomorph after feldspar; 8- groundmass of small quartz, sericite and chlorite; 9- vein quartz and anhydrite; (e) 1- quartz vein; 2- altered porphyry; 3- chlorite hematite calcite vein; 4- chlorite muscovite chalcopyrite pyrite vein; 5- chalcopyrite pyrite chlorite quartz veinlets; 6- biotite replaced by chlorite sericite chalcopyrite and rutile; 7- feldspar completely replaced by sericite and muscovite; (f) 1- slightly altered porphyry; 2- illitic chlorite - sericite altered porphyry; 3- sericite (rim)-chlorite (center) pseudomorph after feldspar; 4- chlorite-chalcopyrite pseudomorph after biotite; 5- sericite-rutile pseudomorph after biotite; 6- chunk of chalcopyrite, muscovite and anhydrite; 7- residue anhydrite; 8- anhydrite chalcopyrite veinlet; 9- anhydrite chalcopyrite pyrite vein; 10- chalcopyrite veinlet; (g) 1- slightly altered porphyry; 2- sericitic altered porphyry; 3- residue quartz; 4- chunk of muscovite and pyrite; 5- pyrite, muscovite and rutile pseudomorph after biotite; 6- muscovite, rutile, quartz and pyrite pseudomorph after biotite; 7- vein pyrite crosscut by carbonate veinlets; 8- quartz, muscovite, molybdenite, rutile layer; 9- fine-grained quartz and large muscovite in equal amount; (h) 1- silicified phyllite with oriented sericite, quartz and rutile; 2- pyrite quartz vein; 3- pyrite dominated vein; 4- aggregation of chlorite; 5- aggregation of quartz. Areas mapped with SEM-CL are also shown.
Geosciences 13 00107 g0a1

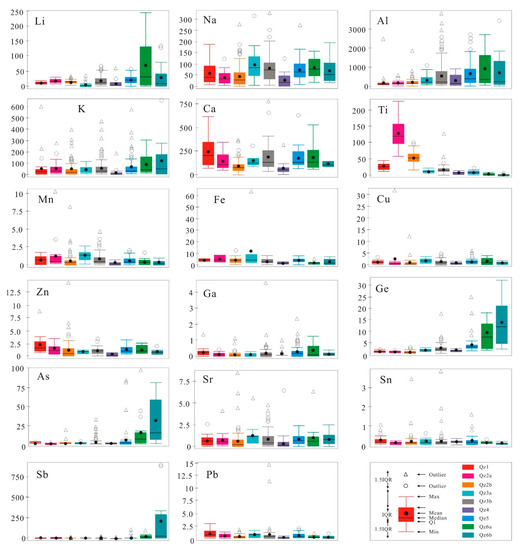

Figure A2. Tukey Boxplot of trace elements in vein quartz of the Tongchang porphyry Cu deposit.
Figure A2. Tukey Boxplot of trace elements in vein quartz of the Tongchang porphyry Cu deposit.
Geosciences 13 00107 g0a2
