# Inferences on Mixed Snow Avalanches from Field Observations

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Summary of Observations

## 3. Inferences on Flow Regimes from Deposit Properties

#### 3.1. Correspondence between Flow Regimes and Deposit Types

#### 3.2. Granulometry and Deposit Density

#### 3.3. Where Do the Snow Clods Originate?

## 4. Dynamical Properties of the Fluidized Flow Regime

#### 4.1. Flow Depth and Density of Fluidized Flow

- We surmise that fluidized flow requires a minimum velocity, or else it reverts to dense flow or stops. This threshold velocity will depend on the slope angle, particle size and presumably the properties of the snow pack as well; we conjecture it to be in the range ${u}_{\mathrm{thr}}=15$–20 m s${}^{-1}$.
- For densities in the range ${\rho}_{f}=20$–100 kg m${}^{-3}$, the (time-averaged) impact pressure on a wide obstacle is ${p}_{\mathrm{imp}}>{\rho}_{f}{u}_{\mathrm{thr}}^{2}=5$–40 kPa.
- If the pressure had exceeded 10–20 kPa near the snow surface or 5–10 kPa more than 2 m above ground, the ski lift shed at Albristhorn or the cabins at Grand Moilles (Scex Rouge) would likely have been structurally damaged to some degree. At those locations, we can infer ${h}_{f}\lesssim 2$ m, ${\rho}_{f}\lesssim 50$ kg m${}^{-3}$ and ${u}_{f}\lesssim 20$ m s${}^{-1}$.
- Let ${l}_{d}$, ${h}_{d}$, and ${\rho}_{d}$ be the length, height, and density, respectively, of the Type 2 deposit, and denote the corresponding quantities of the fluidized flow shortly before deposition by ${l}_{f}$, ${h}_{f}$ and ${\rho}_{f}$. Then, the masses per unit width, ${m}_{d}\equiv {l}_{d}{h}_{d}{\rho}_{d}$ and ${m}_{f}\equiv {l}_{f}{h}_{f}{\rho}_{f}$, should be approximately equal.
- At Albristhorn, we use the following values characterizing the deposit along its centerline: ${\rho}_{d}=400$ kg m${}^{-3}$, ${l}_{d}=250$ m, ${\overline{h}}_{d}=0.2$ m, giving ${m}_{d}\approx 2\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}{10}^{4}$ kg m${}^{-1}$. The corresponding values for the Scex Rouge avalanche are ${\rho}_{d}=500$ kg m${}^{-3}$, ${l}_{d}=300$–500 m, ${\overline{h}}_{d}=0.3$–0.4 m, thus ${m}_{d}\approx (4.5\u201310)\phantom{\rule{-0.166667em}{0ex}}\times \phantom{\rule{-0.166667em}{0ex}}{10}^{4}$ kg m${}^{-1}$.
- We assume ${l}_{f}$ in the range 200–400 m at Albristhorn and 400–800 m at Scex Rouge, using the profiling radar measurements at Vallée de la Sionne [9] and pressure measurements at Ryggfonn [15,37] as reference points. Mass conservation demands ${h}_{f}={m}_{d}/\left({l}_{f}{\rho}_{f}\right)$, and with ${\rho}_{f}=20$–50 kg m${}^{-3}$ we obtain the ranges ${h}_{f}=1$–5 m at Albristhorn and ${h}_{f}=1.25$–12.5 m at Scex Rouge.

#### 4.2. Velocities of the Dense and Fluidized Flows

#### 4.3. Relative Mobility of the Three Flow Regimes

#### 4.4. Density Estimates for the Suspension Layer

#### 4.5. Impact Pressures and Densities

- ${C}_{d}$ decreases significantly with increasing Mach number for $\mathrm{Ma}<1$, but is almost constant for supersonic speeds.
- The drag coefficient increases by about a factor of 2 from $\mathrm{Kn}\ll 1$ to $\mathrm{Kn}=2$ and is about constant for $\mathrm{Kn}>5$.
- ${C}_{d}$ depends only mildly on the restitution and friction coefficients of inter-particle collisions.
- Except at very low Kn, ${C}_{d}$ for a cylinder in dilute granular flows is in the range 1.5–2.5 and thus roughly a factor 2 larger than in turbulent subsonic flows.

## 5. Possible Fluidization Mechanisms

#### 5.1. Aerodynamic Forces in the Head of the Suspension Layer

#### 5.2. Dispersive Pressure Due to Collisions between Snow Clods

#### 5.3. Fluidization by Compression of the Snow Pack?

## 6. Inferences on Entrainment and Mass Balance

#### 6.1. Entrainment by the Dense Flow

#### 6.2. Entrainment by the Fluidized Flow

#### 6.3. Entrainment by the Suspension Flow

## 7. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. Energy Balance of a Suspension Flow on a Counter-Slope

## References

- Schaerer, P.A.; Salway, A.A. Seismic and impact-pressure monitoring of flowing avalanches. J. Glaciol.
**1980**, 26, 179–187. [Google Scholar] [CrossRef] [Green Version] - Shimizu, H.; Huzioka, E.; Akitaya, E.; Narita, H.; Nakagawa, M.; Kawada, K. A study on high-speed avalanches in the Kurobe canyon, Japan. J. Glaciol.
**1980**, 26, 141–151. [Google Scholar] [CrossRef] [Green Version] - McClung, D.M.; Schaerer, P.A. Characteristics of flowing snow and avalanche impact pressures. Ann. Glaciol.
**1985**, 6, 9–14. [Google Scholar] [CrossRef] [Green Version] - Gubler, H.; Hiller, M.; Klausegger, G.; Suter, U. Messungen an Fliesslawinen. Zwischenbericht 1986; Mittlg. No. 41; Institut für Schnee- und Lawinenforschung: Davos, Switzerland, 1986. (In German) [Google Scholar]
- Norem, H. Discussion on the modelling of snow avalanche flow. In Proceedings of the Workshop on Avalanche Dynamics, Davos, Switzerland, 14–18 May 1990; Gubler, H.U., Ed.; Mittlg. No. 48. Institut für Schnee- und Lawinenforschung: Davos, Switzerland, 1991; pp. 57–72. [Google Scholar]
- Hopfinger, E.J. Snow avalanche motion and related phenomena. Annu. Rev. Fluid Mech.
**1983**, 15, 47–76. [Google Scholar] [CrossRef] - Pudasaini, S.P.; Hutter, K. Avalanche Dynamics; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
- Issler, D.; Gauer, P.; Schaer, M.; Keller, S. Staublawinenereignisse im Winter 1995: Seewis (GR), Adelboden (BE) und Col du Pillon (VD); SLF Internal Report 694; Institut für Schnee- und Lawinenforschung: Davos, Switzerland, 1996. (In German) [Google Scholar]
- Schaer, M.; Issler, D. Particle densities, velocities, and size distributions in large avalanches from impact-sensor measurements. Ann. Glaciol.
**2001**, 32, 321–327. [Google Scholar] [CrossRef] [Green Version] - Sovilla, B.; Schaer, M.; Rammer, L. Measurements and analysis of full-scale avalanche impact pressure at the Vallée de la Sionne test site. Cold Reg. Sci. Technol.
**2008**, 51, 122–137. [Google Scholar] [CrossRef] - Sovilla, B.; Schaer, M.; Kern, M.; Bartelt, P. Impact pressures and flow regimes in dense snow avalanches observed at the Valléée de la Sionne test site. J. Geophys. Res.
**2008**, 113, F01010. [Google Scholar] [CrossRef] [Green Version] - Sovilla, B.; McElwaine, J.N.; Louge, M.Y. The structure of powder snow avalanches. C. R. Phys.
**2015**, 16, 97–104. [Google Scholar] [CrossRef] - Köhler, A.; McElwaine, J.N.; Sovilla, B.; Ash, M.; Brennan, P. Surge dynamics of the 3 February 2015 avalanches in Vallée de la Sionne. J. Geophys. Res.
**2016**, F121, 2192–2210. [Google Scholar] [CrossRef] [Green Version] - Köhler, A.; McElwaine, J.N.; Sovilla, B. GEODAR data and the flow regimes of snow avalanches. J. Geophys. Res.
**2018**, F123, 1272–1294. [Google Scholar] [CrossRef] - Gauer, P.; Issler, D.; Lied, K.; Kristensen, K.; Iwe, H.; Lied, E.; Rammer, L.; Schreiber, H. On full-scale avalanche measurements at the Ryggfonn test site, Norway. Cold Reg. Sci. Technol.
**2007**, 49, 39–53. [Google Scholar] [CrossRef] - Gauer, P.; Issler, D.; Lied, K.; Kristensen, K.; Sandersen, F. On snow avalanche flow regimes: Inferences from observations and measurements. In Proceedings of the International Snow Science Workshop ISSW ’08, Whistler, BC, Canada, 21–27 September 2008; pp. 717–723. [Google Scholar]
- Salm, B.; Gubler, H. Measurement and analysis of the motion of dense flow avalanches. Ann. Glaciol.
**1985**, 6, 26–34. [Google Scholar] [CrossRef] [Green Version] - Gubler, H. Comparison of three models of avalanche dynamics. Ann. Glaciol.
**1989**, 13, 82–89. [Google Scholar] [CrossRef] - Norem, H.; Irgens, F.; Schieldrop, B. A continuum model for calculating snow avalanche velocities. In Proceedings of the Davos Symposium, Avalanche Formation, Movement and Effects, Davos Switzerland, 14–19 September 1986; Salm, B., Gubler, H., Eds.; IAHS Press: Wallingford, UK, 1987; Volume 162, pp. 363–380. [Google Scholar]
- Issler, D.; Gauer, P. Exploring the significance of the fluidized flow regime for avalanche hazard mapping. Ann. Glaciol.
**2008**, 49, 193–198. [Google Scholar] [CrossRef] [Green Version] - Issler, D. Modelling of snow entrainment and deposition in powder-snow avalanches. Ann. Glaciol.
**1998**, 26, 253–258. [Google Scholar] [CrossRef] [Green Version] - Sampl, P.; Zwinger, T. Avalanche simulation with SAMOS. Ann. Glaciol.
**2004**, 38, 393–398. [Google Scholar] [CrossRef] [Green Version] - Keshari, A.K.; Satapathy, D.P.; Kumar, A. The influence of vertical density and velocity distributions on snow avalanche runout. Ann. Glaciol.
**2010**, 51, 200–206. [Google Scholar] [CrossRef] [Green Version] - Bartelt, P.; Meier, L.; Buser, O. Snow avalanche flow-regime transitions induced by mass and random kinetic energy fluxes. Ann. Glaciol.
**2011**, 52, 159–164. [Google Scholar] [CrossRef] [Green Version] - Bartelt, P.; Bühler, Y.; Buser, O.; Christen, M.; Meier, L. Modeling mass-dependent flow regime transitions to predict the stopping and depositional behavior of snow avalanches. J. Geophys. Res.
**2012**, 117, F01015. [Google Scholar] [CrossRef] [Green Version] - Issler, D.; Jenkins, J.T.; McElwaine, J.N. Comments on avalanche flow models based on extensions of the concept of random kinetic energy. J. Glaciol.
**2018**, 64, 148–164. [Google Scholar] [CrossRef] [Green Version] - Gruber, U.; Bartelt, P.; Dufour, F.; Sovilla, B.; Kern, M.; Hiller, M.; Zimmerli, M. Zwischenbericht Vallée de la Sionne 1998/1999; SLF Internal Report 702; Swiss Federal Institute for Snow and Avalanche Research: Davos, Switzerland, 2002. [Google Scholar]
- Issler, D.; Errera, A.; Priano, S.; Gubler, H.; Teufen, B.; Krummenacher, B. Inferences on flow mechanisms from snow avalanche deposits. Ann. Glaciol.
**2008**, 49, 187–192. [Google Scholar] [CrossRef] [Green Version] - Issler, D.; Gubler, H. Dorfberg-Lawine (Davos Dorf), 20.03.2005/Dorfberg Avalanche (Davos Dorf), 20 March 2005. Available online: http://snf.ngi.no/dorfberg.050320.html (accessed on 31 October 2019).
- Issler, D.; Gubler, H. Salezertobel-Lawine (Davos Dorf), ca. 10.02.2005 / Salezertobel avalanche (Davos Dorf), around 10 February 2005. Available online: http://snf.ngi.no/salezertobel.050213.html (accessed on 31 October 2019).
- Issler, D.; Gubler, H.; Teufen, B. Trockenschneelawine auf der Inneralp (Monstein), 21.02.2004/Dry-Snow Avalanche at Inneralp (Monstein) on February 21, 2004. Available online: http://snf.ngi.no/inneralp.040224.html (accessed on 31 October 2019).
- Issler, D.; Errera, A. Gotschnawang-Lawine, 2006-03-12/Avalanche at Gotschnawang. 12 March 2006. Available online: http://snf.ngi.no/gotschnawang.060312.html (accessed on 31 October 2019).
- Mellor, M. Engineering properties of snow. J. Glaciol.
**1977**, 19, 15–66. [Google Scholar] [CrossRef] [Green Version] - Steinkogler, W.; Gaume, J.; Löwe, H.; Sovilla, B.; Lehning, M. Granulation of snow: From tumbler experiments to discrete element simulations. J. Geophys. Res.
**2015**, F120, 1107–1126. [Google Scholar] [CrossRef] [Green Version] - Priano, S.; Errera, A.; Issler, D. The Rüchitobel Avalanche (Dischma Valley) of 18 January 2006. Available online: http://snf.ngi.no/reports/report_Ruechitobel_2006-01-18.pdf (accessed on 31 October 2019).
- Fischer, J.T.; Kaitna, R.; Heil, K.; Reiweger, I. The heat of the flow—Thermal equilibrium in gravitational mass flow. Geophys. Res. Lett.
**2018**, 45, 11219–11226. [Google Scholar] [CrossRef] [Green Version] - Gauer, P.; Kristensen, K. Four decades of observations from NGI’s full-scale avalanche test site Ryggfonn—Summary of experimental results. Cold Reg. Sci. Technol.
**2016**, 125, 162–176. [Google Scholar] [CrossRef] [Green Version] - McClung, D.M. Superelevation of flowing avalanches around curved channel bends. J. Geophys. Res.
**2001**, 106, 16489–16498. [Google Scholar] [CrossRef] - Issler, D. Dynamical Aspects of the 2017 Rigopiano Avalanche; NGI Technical Note 20170131-08-TN; Norwegian Geotechnical Institute: Oslo, Norway, 2019. [Google Scholar]
- Gauer, P. Comparison of avalanche front velocity measurements and implications for avalanche models. Cold Reg. Sci. Technol.
**2014**, 97, 132–150. [Google Scholar] [CrossRef] - McClung, D.M.; Gauer, P. Maximum frontal speeds, alpha angles and deposit volumes of flowing snow avalanches. Cold Reg. Sci. Technol.
**2018**, 153, 78–85. [Google Scholar] [CrossRef] - Rammer, L.; Kristensen, K.; Lied, K.; Schreiber, H.; Randeu, W.L. Radar measurements of snow avalanche full scale experiment in Ryggfonn. In 25 Years of Snow Avalanche Research, Voss, 12–16 May 1998; Hestnes, E., Ed.; Norges Geotekniske Institutt: Oslo, Norway, 1998; pp. 215–219. [Google Scholar]
- Gauer, P.; Kern, M.; Kristensen, K.; Lied, K.; Rammer, L.; Schreiber, H. On pulsed Doppler radar measurements of avalanches and their implication to avalanche dynamics. Cold Reg. Sci. Technol.
**2007**, 50, 55–71. [Google Scholar] [CrossRef] - Gubler, H.; Hiller, M. The use of microwave FMCW radar in snow and avalanche research. Cold Reg. Sci. Technol.
**1984**, 9, 109–119. [Google Scholar] [CrossRef] - Issler, D. Experimental information on the dynamics of dry-snow avalanches. In Dynamic Response of Granular and Porous Materials under Large and Catastrophic Deformations; Lecture Notes in Applied and Computational Mechanics; Hutter, K., Kirchner, N., Eds.; Springer: Berlin, Germany, 2003; Volume 11, pp. 109–160. [Google Scholar] [CrossRef]
- Sovilla, B. Field Experiments and Numerical Modelling of Mass Entrainment and Deposition Processes in Snow Avalanches. Ph.D. Thesis, ETH Zürich, Zürich, Switzerland, 2004. [Google Scholar] [CrossRef]
- Lied, K.; Bakkehøi, S. Empirical calculations of snow-avalanche run-out distance based on topographic parameters. J. Glaciol.
**1980**, 26, 165–177. [Google Scholar] [CrossRef] [Green Version] - Lied, K.; Moe, A.; Kristensen, K.; Issler, D. Ryggfonn. Full scale avalanche test site and the effect of the catching dam. Snow and avalanches test sites—Sites expérimentaux dédiés à l’étude de la neige et des avalanches. In Proceedings of the International Seminar on Snow and Avalanches Test Sites in the Memory of Philippe Revol, Grenoble, France, 22–23 November 2001; Naaim, M., Naaim-Bouvet, F., Eds.; Cemagref Editions: Antony, France, 2004; pp. 25–98. [Google Scholar]
- Gauer, P. Estimates on the reach of the powder part of avalanches. In Proceedings of the International Snow Science Workshop, Innsbruck, Austria, 7–12 October 2018; pp. 815–819. Available online: http://arc.lib.montana.edu/snow-science/objects/ISSW2018_P08.23.pdf (accessed on 31 October 2019).
- Beghin, P.; Olagne, X. Experimental and theoretical study of the dynamics of powder snow avalanches. Cold Reg. Sci. Technol.
**1991**, 19, 317–326. [Google Scholar] [CrossRef] - Keller, S. Measurements of powder snow avalanches—Laboratory. Surv. Geophys.
**1995**, 16, 661–670. [Google Scholar] [CrossRef] - Gauer, P.; Lied, K.; Kristensen, K. On avalanche measurements at the Norwegian full-scale test-site Ryggfonn. Cold Reg. Sci. Technol.
**2008**, 51, 138–155. [Google Scholar] [CrossRef] - Sovilla, B.; Kern, M.; Schaer, M. Slow drag in wet-snow avalanche flow. J. Glaciol.
**2010**, 56, 587–592. [Google Scholar] [CrossRef] [Green Version] - Chehata, D.; Zenit, R.; Wassgren, C.R. Dense granular flow around an immersed cylinder. Phys. Fluids
**2003**, 15, 1522–1531. [Google Scholar] [CrossRef] - Jóhannesson, T. Run-up of two avalanches on the deflecting dams at Flateyri, northwest Iceland. Ann. Glaciol.
**2001**, 32, 350–354. [Google Scholar] [CrossRef] [Green Version] - Tai, Y.C.; Gray, J.M.N.T.; Hutter, K.; Noelle, S. Flow of dense avalanches past obstructions. Ann. Glaciol.
**2001**, 32, 281–284. [Google Scholar] [CrossRef] [Green Version] - Hákonardóttir, K.M.; Hogg, A.J. Oblique shocks in rapid granular flows. Phys. Fluids
**2005**, 17, 177101. [Google Scholar] [CrossRef] - Hauksson, S.; Pagliardi, M.; Barbolini, M.; Jóhannesson, T. Laboratory measurements of impact forces of supercritical granular flow against mast-like obstacles. Cold Reg. Sci. Technol.
**2007**, 49, 54–63. [Google Scholar] [CrossRef] - Wassgren, C.R.; Cordova, J.A.; Zenit, R.; Karion, A. Dilute granular flow around an immersed cylinder. Phys. Fluids
**2003**, 15. [Google Scholar] [CrossRef] - Issler, D. Feldarbeiten/Measurement Campaigns 2004–2006. Available online: http://snf.ngi.no/kampagnen.html (accessed on 31 October 2019).
- Förster, M. Ausführliche Dokumentation ausgewählter Staublawinenereignisse und Bestimmung ihrer Eingangsparameter für die Verifikation von Staublawinenmodellen; SLF Internal Report 730; Institut für Schnee- und Lawinenforschung (SLF): Davos, Switzerland, 1999. [Google Scholar]
- Ilstad, T.; Marr, J.G.; Elverhø i, A.; Harbitz, C.B. Laboratory studies of subaqueous debris flows by measurements of pore-fluid pressure and total stress. Mar. Geol.
**2004**, 213, 403–414. [Google Scholar] [CrossRef] - Pouliquen, O. Scaling laws in granular flows down rough inclined planes. Phys. Fluids
**1999**, 11, 542–548. [Google Scholar] [CrossRef] - Forterre, Y.; Pouliquen, O. Granular Flows. Seminaire Poincaré
**2009**, XIII, 69–100. [Google Scholar] - Pouliquen, O. On the shape of granular fronts down rough inclined planes. Phys. Fluids
**1999**, 11, 1956–1958. [Google Scholar] [CrossRef] - Norem, H.; Irgens, F.; Schieldrop, B. Simulation of snow-avalanche flow in run-out zones. Ann. Glaciol.
**1989**, 13, 218–225. [Google Scholar] [CrossRef] [Green Version] - Pasquarell, G.C.; Ackermann, N.L.; Shen, H.H.; Hopkins, M.A. Collisional stress in granular flows: Bagnold revisited. J. Eng. Mech.
**1988**, 114, 59–64. [Google Scholar] [CrossRef] - Campbell, C.S.; Gong, A. The stress-tensor in a two-dimensional granular shear flow. J. Fluid Mech.
**1986**, 164, 107–125. [Google Scholar] [CrossRef] [Green Version] - Jenkins, J.T.; Berzi, D. Dense inclined flows of inelastic spheres: Tests of an extension of kinetic theory. Gran. Matter
**2010**, 12, 151–158. [Google Scholar] [CrossRef] - Jenkins, J.T.; (Cornell University, Ithaca, NY, USA); Berzi, D.; (Politecnico di Milano, Milano, Italy). Personal communication. 2013. [Google Scholar]
- Collins, G.S.; Melosh, H.J. Acoustic fluidization and the extraordinary mobility of sturzstroms. J. Geophys. Res.
**2003**, 108, 2473. [Google Scholar] [CrossRef] [Green Version] - Melosh, H.J. Acoustic fluidization. Am. Sci.
**1983**, 71, 158–165. [Google Scholar] [PubMed] - Davies, T.R.; McSaveney, M.J. The role of rock fragmentation in the motion of large landslides. Eng. Geol.
**2009**, 109, 67–79. [Google Scholar] [CrossRef] - De Blasio, F.V. Production of frictional heat and hot vapour in a model of self-lubricating landslides. Rock Mech. Rock Eng.
**2008**, 41, 219–226. [Google Scholar] [CrossRef] - Sparks, R.S.J. Gas release rates from pyroclastic flows: An assessment of fluidization in their emplacement. Bull. Volcanol.
**1978**, 41, 1–9. [Google Scholar] [CrossRef] - Gueugneau, V.; Kelfoun, K.; Roche, O.; Chupin, L. Effects of pore pressure in pyroclastic flows: Numerical simulation and experimental validation. Geophys. Res. Lett.
**2017**, 44, 2194–2202. [Google Scholar] [CrossRef] [Green Version] - Issler, D. Notes on Fluidization of Snow Avalanches by Air Expulsion From the Snow Cover; NGI Technical Note 20140053-03-TN_rev0; Norwegian Geotechnical Institute: Oslo, Norway, 2017. [Google Scholar]
- Sovilla, B.; Sommavilla, F.; Tomaselli, A. Measurements of mass balance in dense snow avalanche events. Ann. Glaciol.
**2001**, 32, 230–236. [Google Scholar] [CrossRef] [Green Version] - Issler, D.; Teufen, B. Nassschneelawine im Breitzug (Davos Glaris), 13.01.2004/Wet-Snow Avalanche in the Breitzug Gully (Davos Glaris) on 13 January 2004. Available online: http://snf.ngi.no/breitzug.040113.html (accessed on 31 October 2019).
- Gauer, P.; Issler, D. Possible erosion mechanisms in snow avalanches. Ann. Glaciol.
**2004**, 38, 384–392. [Google Scholar] [CrossRef] [Green Version] - Priano, S.; Errera, A.; Issler, D.; Gubler, H. Avalanche in Sertig Valley on February 21, 2006. Available online: http://snf.ngi.no/reports/report_Sertig_2006-02-21.pdf (accessed on 31 October 2019).
- Issler, D.; Jóhannesson, T. Dynamically Consistent Entrainment and Deposition Rates in Depth-Averaged Gravity Mass Flow Models; NGI Technical Note 20110112-01-TN; Norwegian Geotechnical Institute: Oslo, Norway, 2011. [Google Scholar] [CrossRef]
- Issler, D. Dynamically consistent entrainment laws for depth-averaged avalanche models. J. Fluid Mech.
**2014**, 759, 701–738. [Google Scholar] [CrossRef] [Green Version] - Eglit, M.E. Teoreticheskie podkhody k raschetu dvizheniia snezhnyk lavin. (Theoretical approaches to avalanche dynamics). Itogi Nauki. Gidrologiia Sushi. Gliatsiologiia
**1967**, 69–97, (In Russian. English translation in: Soviet Avalanche Research – Avalanche Bibliography Update: 1977–1983. Glaciological Data Report GD–16, pages 63–116. World Data Center A for Glaciology [Snow and Ice], 1984.). [Google Scholar] - Louge, M.Y.; Carroll, C.S.; Turnbull, B. Role of pore pressure gradients in sustaining frontal particle entrainment in eruption currents: The case of powder snow avalanches. J. Geophys. Res.
**2011**, 116, 002065. [Google Scholar] [CrossRef] [Green Version] - Carroll, C.S.; Louge, M.Y.; Turnbull, B. Frontal dynamics of powder snow avalanches. J. Geophys. Res.
**2013**, 118, 913–924. [Google Scholar] [CrossRef] - Takeuchi, M. Vertical profile and horizontal increase of drift-snow transport. J. Glaciol.
**1980**, 26, 481–492. [Google Scholar] [CrossRef] [Green Version] - Sovilla, B.; Burlando, P.; Bartelt, P. Field experiments and numerical modeling of mass entrainment in snow avalanches. J. Geophys. Res.
**2006**, 111, F03007. [Google Scholar] [CrossRef]

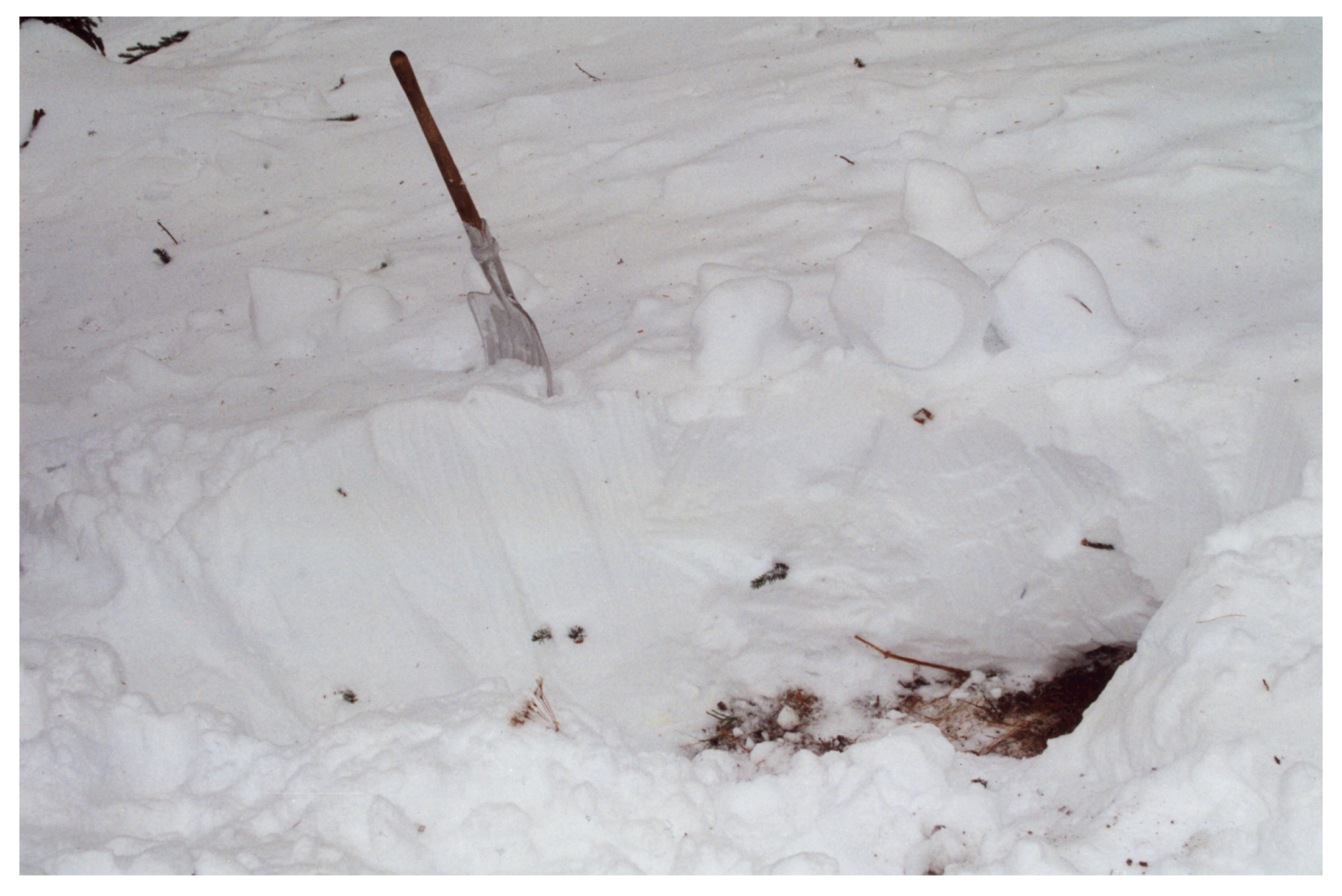

**Figure 1.**Vilan avalanche, snow pit in the Type 2 deposit. The avalanche eroded approximately 1 m of cold dry snow before depositing 40–50 cm of fine-grained, compressed snow with embedded spruce twigs and snow clods. The largest clods are sintered to the surface (at their original location behind the pit).

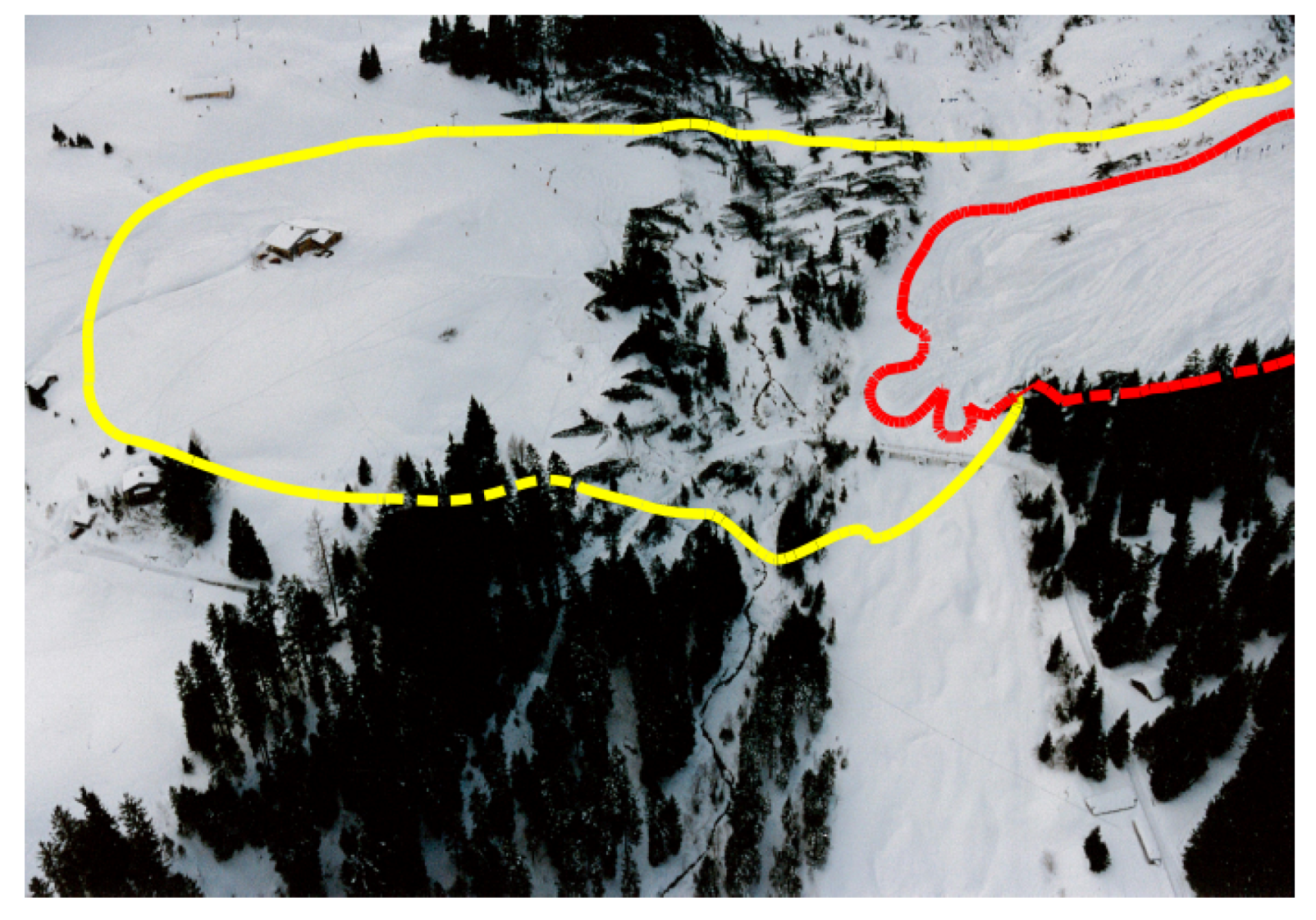

**Figure 2.**Aerial view of the run-out zone of the Albristhorn avalanche. The boundary of the Type 2 deposit (yellow line) is much less certain than that of the Type 1 deposit (red line), particularly in the southern parts (top of photo). The damaged ski lift shed is hidden behind trees in the top center part.

**Figure 3.**Cross-section and detail of a large snow clod in the run-out zone of the 10 February 2005 Salezertobel avalanche, Davos, Switzerland. The texture of the snow is made visible by spraying a mixture of ink and alcohol onto the smoothened surface, warming it carefully with a camping cooker and waiting for the ink to diffuse into the snow by capillary suction. Note the layered core (oblique stripes (

**left**) and the small snow clods sintered onto it (

**right**).

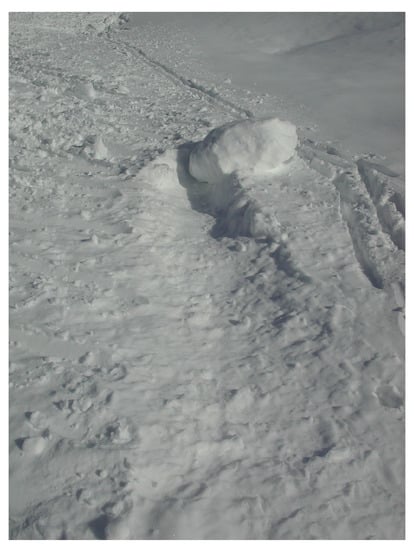

**Figure 4.**Large snow clod near the right edge of the avalanche artificially released from Gotschnawang, Klosters, Switzerland on 12 March 2006. Note that the approximately 10 cm deep furrow carved by the block abruptly swerves to the right at the end.

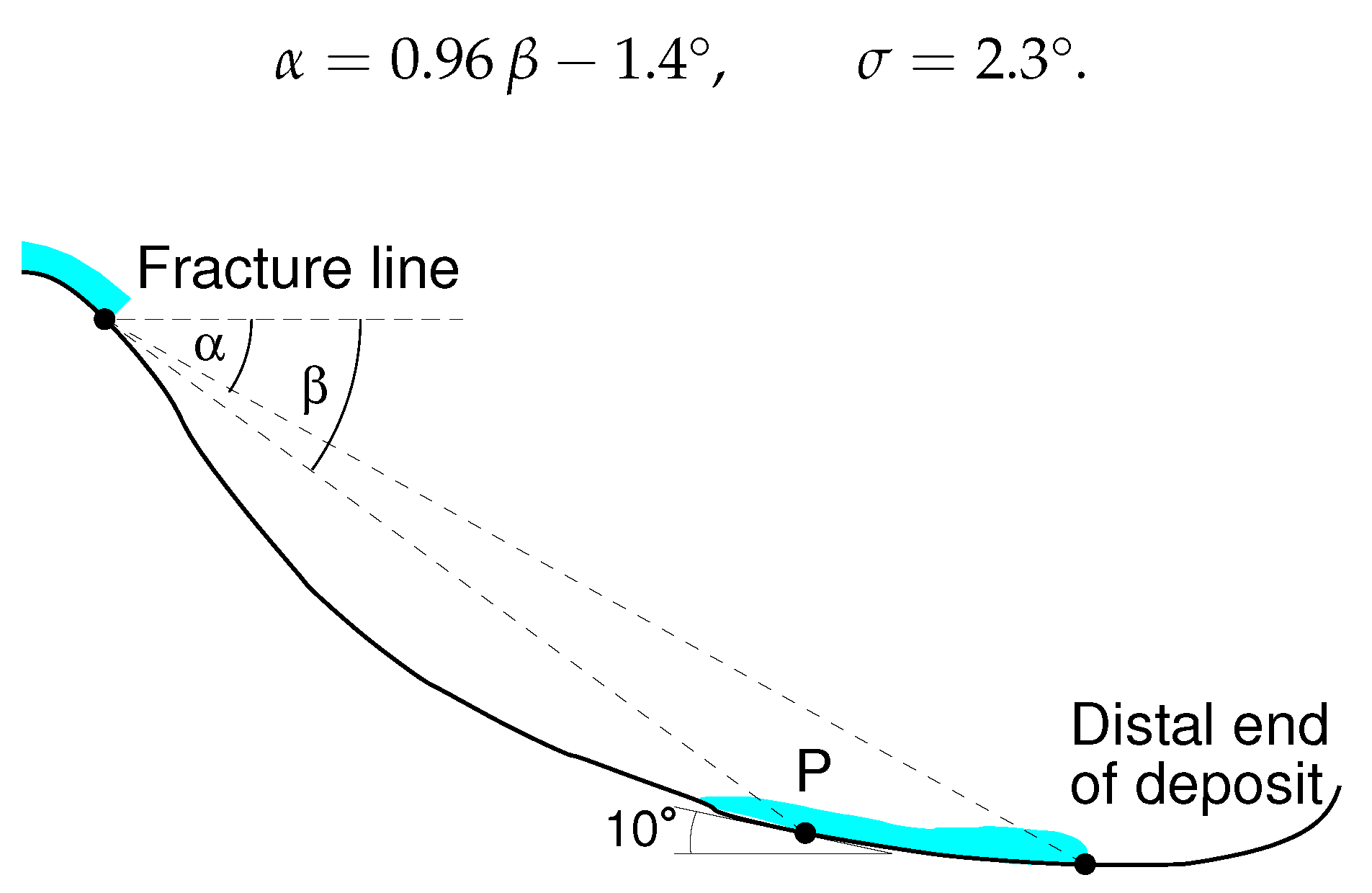

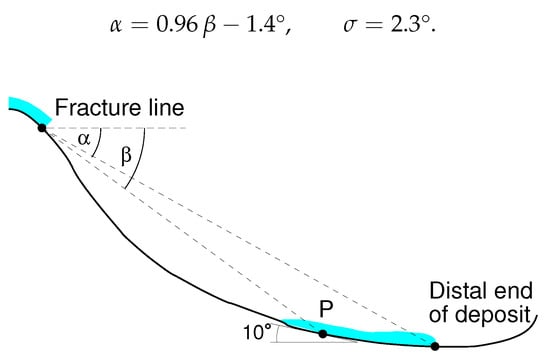

**Figure 5.**Definition sketch of the topographic quantities referred to in the topographical–statistical $\alpha $–$\beta $ model.

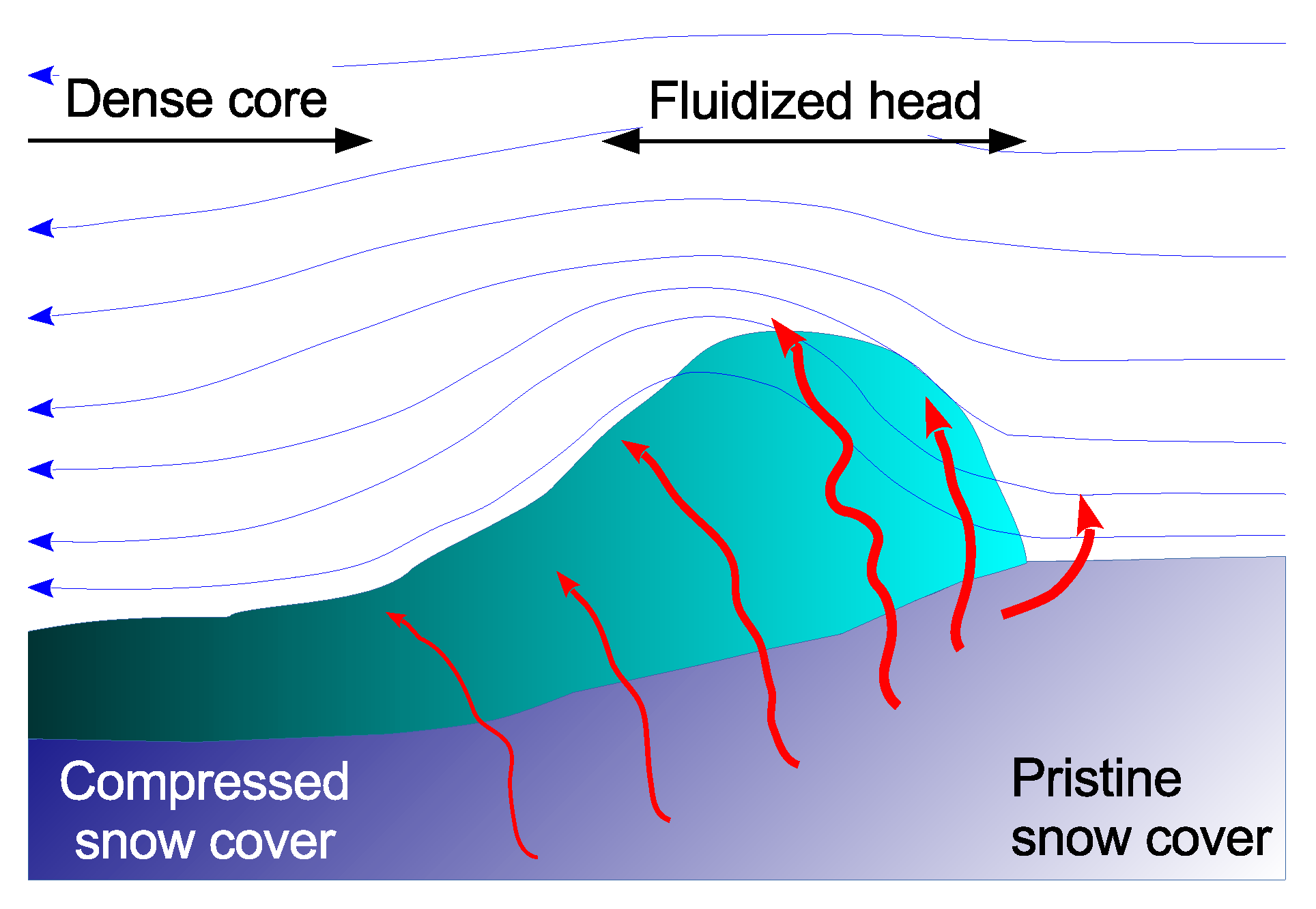

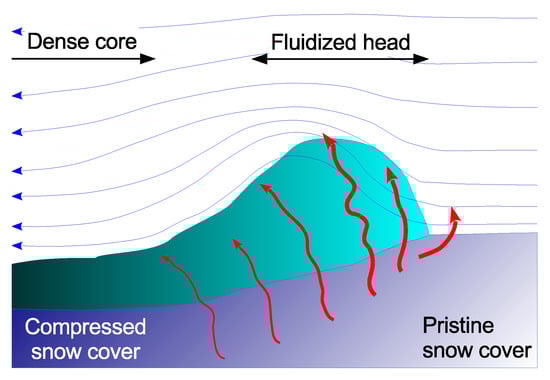

**Figure 6.**Schematic representation of the proposed fluidization mechanism by air escaping from the snow cover under compression. The degree of shading indicates the relative densities. The ambient air flow around and partly through the avalanche head is also schematically indicated.

**Table 1.**Approximate run-out angles ${\alpha}_{d}$, ${\alpha}_{f}$ of the dense (d) and fluidized (f) parts of the Albristhorn and Scex Rouge avalanches and twelve selected events from the experimental site Ryggfonn (western Norway). These values are compared to the predictions of the Norwegian topographical–statistical $\alpha $–$\beta $ model ($\beta $, ${\alpha}_{\mathrm{stat}}$).

Event | $\mathit{\beta}$ | ${\mathit{\alpha}}_{\mathbf{stat}}$ | ${\mathit{\alpha}}_{\mathit{d}}$ | ${\mathit{\alpha}}_{\mathit{f}}$ | ${\mathit{\alpha}}_{\mathit{d}}-{\mathit{\alpha}}_{\mathit{f}}$ |
---|---|---|---|---|---|

Albristhorn 1995 | 29.5° | 26.9° | 25.8° | 23.3° | 2.5° |

Scex Rouge 1995 | 28.1° | 25.6° | 25.5° | 20.9° | 4.6° |

Ryggfonn | |||||

10 January 1983 | 29.8° | 27.2° | 29.3° | 27.3° | 2.0° |

8 March 1983 | 29.3° | 29.3° | 0.0° | ||

13 February 1985 | 29.8° | 28.8° | 0.9° | ||

28 January 1987 | 29.3° | 26.4° | 2.9° | ||

11 April 1988 | 29.3° | 29.1° | 0.2° | ||

23 December 1988 | 29.1° | 29.0° | 0.1° | ||

7 March 1990 | 29.3° | 28.8° | 0.5° | ||

27 March 1993 | 28.8° | 27.3° | 1.5° | ||

24 January 1994 | 29.3° | 29.1° | 0.3° | ||

3 March 1995 | 29.4° | 28.5° | 0.9° | ||

8 February 1997 | 28.4° | 26.9° | 1.5° | ||

17 February 2000 | 27.1° | 23.1° | 4.0° |

**Table 2.**Estimates of volumetric particle concentration $\nu $, Knudsen number, Mach number and drag coefficient ${C}_{d}$ of a tree trunk in fluidized and suspension flow based on numerical results from [59]. For comparison, typical values of ${C}_{d}$ for a turbulent air flow and the experimental results of Hauksson et al. [58] for a free-surface flow with Froude number $\mathrm{Fr}=13$ around a cylinder are also listed (Kn, Ma: our estimates).

Flow Type | $\mathit{\nu}$ | Kn | Ma | ${\mathit{C}}_{\mathit{d}}$ |
---|---|---|---|---|

Fluidized flow, small particles | 0.03 | $<0.1$ | 0.2–0.7 | 1–1.5 |

Fluidized flow, large particles | 0.02 | 3–10 | 0.1–0.5 | 2–2.5 |

Suspension flow | 0.001 | 0.1 | 0.3 | 1–1.5 |

Storm | 0 | ${10}^{-6}$ | 0.1 | $\sim 1$ |

Dense granular flow | 0.55 | $\sim 0.01$ | $>1$ | 0.3–0.5 |

**Table 3.**Assumptions about the properties of the fluidized flows of the Vilan avalanche near the gully bend and the Albristhorn and Scex Rouge avalanches in the run-out zone (counter-slope, ↑) with Type 2 deposit, and the resulting mean erosion rates.

Vilan | Albristhorn | Scex Rouge | ||
---|---|---|---|---|

Location | Track | Run-out | Run-out | |

Slope angle | (°) | 20–25 | 5–30↑ | 0–10↑ |

Snow density | (kg m${}^{-3}$) | 100 | 215 | 200 |

Erosion depth | (m) | 0.6–1 | $<0.1$ | $<0.3$ |

Deposit density | (kg m${}^{-3}$) | 300 (?) | 420 | 520 |

Deposit depth | (m) | 0.2–0.5 | 0.1–0.3 | 0.2–0.5 |

Flow length ${l}_{f}$ | (m) | 30–50 | 100–200 | 200–400 |

Flow speed ${u}_{f}$ | (m s${}^{-1}$) | 15–20 | 20–40 | 20–30 |

Passage time | (s) | 1.5–3 | 2.5–10 | 7–20 |

Erosion rate | (kg m${}^{-2}$ s${}^{-1}$) | 20–70 | $<8$ | $<10$ |
