Review

Quantitative Variables Derived from the Electroencephalographic Signal to Assess Depth of Anaesthesia in Animals: A Narrative Review

by
Susanne Figueroa
1,2,
Olivier L. Levionnois
1,*,† and
Alessandro Mirra
1,3,†
1
Division of Anaesthesiology and Pain Therapy, Vetsuisse Faculty, University of Bern, 3012 Bern, Switzerland
2
Tierarztpraxis mag.med.vet. Daniel Rieder, 7121 Weiden am See, Austria
3
Department of Clinical Sciences, Faculty of Veterinary Medicine, University of Montreal, Saint-Hyacinthe, QC J2S 2M2, Canada
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Animals 2025, 15(15), 2285; https://doi.org/10.3390/ani15152285
Submission received: 18 June 2025 / Revised: 31 July 2025 / Accepted: 1 August 2025 / Published: 5 August 2025
(This article belongs to the Section Companion Animals)

Simple Summary

Assessing anaesthesia depth in animals during medical procedures is important for their safety and welfare. However, current monitoring methods fail to detect subtle changes in brain activity. This review examined published research from the past 35 years to identify and summarise how electrical brain signals, recorded using electroencephalography (EEG), have been used to assess anaesthesia effects in various animal species, excluding laboratory rodents. The review found that most studies focused on measuring specific EEG features, such as the amount of electrical activity at different frequency bands, the proportion of time the brain is very quiet, or combined indices generated by commercial monitors. However, the selection and interpretation of these measurements varied widely across studies and animal species. As no standardised approach currently exists, further research is needed to refine these methods. Combining different EEG measurements may improve accuracy in monitoring anaesthetic depth in animals. Improved EEG-based assessment could support veterinarians in delivering safer and more effective care during surgical and diagnostic procedures.

Abstract

Accurately assessing the depth of anaesthesia in animals remains a challenge, as traditional monitoring methods fail to capture subtle changes in brain activity. This review aimed to systematically map and critically evaluate the range of quantitative variables derived from electroencephalography (EEG) used to monitor sedation or anaesthesia in live animals, excluding laboratory rodents, over the past 35 years. Studies were identified through comprehensive searches in major biomedical databases (PubMed, Embase, CAB Abstract). To be included, studies had to report EEG use in relation to anaesthesia or sedation in living animals. A total of 169 studies were selected after screening and data extraction. Information was charted by animal species and reported EEG-derived variables. The most frequently reported variables were spectral edge frequencies, spectral power metrics, suppression ratio, and proprietary indices, such as the Bispectral Index. Methodological variability was high, and no consensus emerged on optimal EEG measures across species. While EEG-derived quantitative variables provide valuable insights, their interpretation remains highly context-dependent. Further research is necessary to refine these methods, explore variable combinations, and improve their clinical relevance in veterinary medicine.

1. Introduction

Despite significant advances in understanding the neurophysiological mechanisms of anaesthesia, accurately assessing depth of anaesthesia (DoA) remains difficult [1]. Conventional tools—such as clinical scoring systems and autonomic reflex monitoring—typically lack sensitivity to subtle transitions between anaesthetic states [2,3]. DoA is inherently multifaceted. It involves components such as consciousness suppression (hypnosis), muscle relaxation, immobility, suppression of nociceptive responses, and disruption of physiological stability. Among these, evaluating the extent of hypnosis or loss of consciousness is especially relevant when titrating an anaesthetic dose.
Electroencephalography (EEG), which records cortical electrical activity, emerged nearly 90 years ago as a promising method for quantifying DoA in humans [4,5]. However, its application in animal studies remains inconsistent. Differences in methodologies and species-specific features limit its reliability, with no consensus regarding the most reliable metrics for correlating with anaesthetic depth.
In human anaesthesia, integrative EEG indices like the Bispectral Index (BIS) and entropy-based measures have improved real-time DoA monitoring [6]. Recent developments, including spectrogram visualisation [4] and machine learning algorithms [7], offer new opportunities for real-time detection of subtle EEG changes over time (power distribution in the frequency domain). Yet, their adoption in animal research is still emerging.
Given these challenges, a comprehensive overview of the EEG-derived variables investigated in anaesthetised animals is warranted. This review is intended to systematically map the landscape of quantitative EEG variables employed in animals under anaesthesia, highlighting trends in their use and evaluating the strength of evidence supporting their association with DoA. For this purpose, the process of a scoping review was targeted, and the following research question was formulated: Which EEG-derived parameters have been reported in the literature in relation to the evaluation of the depth of anaesthesia in animals? By synthesising data across species and experimental paradigms, we aim to identify the most widely reported metrics and potential methodological inconsistencies. The findings may help researchers select suitable EEG biomarkers and improve anaesthesia monitoring in veterinary contexts.

2. Materials and Methods

This review was conducted in accordance with the PRISMA-ScR (Preferred Reporting Items for Systematic Reviews and Meta-Analyses extension for Scoping Reviews) checklist. The checklist was used to ensure a structured, transparent approach and to systematically evaluate the topic.

2.1. Search Strategy (Stage 1)

A systematic literature search was conducted in April 2023, beginning with pilot searches to refine the keywords. The final search was performed on 12 April using the Ovid search engine to access three databases: PubMed, including MEDLINE records for biomedical literature; Embase (Excerpta Medica Database), which covers biomedical and pharmacological research; and CAB Abstracts, which focusses on animal health and veterinary sciences. The aim was to identify studies investigating the use of EEG as a monitoring tool to assess depth of anaesthesia in animals. To exclude studies using outdated signal acquisition methods, the search was limited to articles published from 1 January 1990, onward. No language restrictions were applied at this stage.
The search terms combined keywords related to EEG, anaesthesia and sedation, and animals. Full search strings are reported in the Supplementary Material (Tables S1–S3). Search results were imported into Mendeley Reference Manager for organisation and management. Duplicates were systematically removed. All references were then transferred to a Microsoft Excel spreadsheet and sorted alphabetically by the first author’s surname. Each reference was identified by the first author’s name, year of publication, ISSN number, and article title to facilitate further screening.

2.2. Screening and Eligibility (Stages 2 and 3)

A data-charting form was jointly developed by the three primary investigators using Microsoft Excel. An initial test phase was carried out to ensure the form was adequate. References obtained from stage 1 were screened for relevance in two subsequent stages. Stage 2 involved screening titles and abstracts, and stage 3 consisted of a full-text review. Articles were assessed using predefined inclusion and exclusion criteria. Each criterion was assigned a status of “yes”, “no”, or “unclear”. If the status was unclear, the article was retained for further review in the next stage.
During stage 2, the following screening criteria were applied:
  • Original Research: Only articles identified as an original research type were included. Articles such as opinion papers and reviews were excluded.
  • Animal: Only articles investigating animals were included. Studies involving human participants or electronic models were excluded.
  • In vivo: Only studies on live animals were included.
  • EEG: Only studies reporting the use of electroencephalography as one of the main outcomes were included.
  • Anaesthetic/sedative drug administered: Only studies reporting the use of an anaesthetic and/or a sedative agent were included.
During stage 3 (full-text screening), the following criteria were added:
  • Publication language: Only main full text available in English were kept included. Others were excluded.
  • Relation between EEG and anaesthesia/nociception: Only studies where the EEG signals (or EEG-derived variables) were collected in relation to anaesthesia, sedation, or (anti-)nociception were kept. Others were excluded.
To ensure consistency during screening, a calibration phase was conducted at the beginning of stage 2. All three investigators independently reviewed the same 100 articles, which allowed refinement of the screening strategy. The remaining screening was primarily performed by one investigator (S.F.). Any uncertain cases were reviewed independently by the other two investigators (O.L.L., A.M.), and final decisions were made through consensus.

2.3. Data Extraction

For each eligible study, all reported EEG-derived quantitative variables were recorded. Additional information was extracted on the research focus (anaesthesia, sedation, or antinociception) and the animal species studied. The EEG variables were then grouped into subcategories to facilitate presentation and discussion.

2.4. Critical Appraisal

Following study selection and data extraction, all investigators conducted a subjective critical appraisal of the findings. Each paper was assigned a level of evidence based on the study design, following the hierarchy of the evidence pyramid [8] (from 1 to 6—1: Case series/Case report, 2: Observational study, 3: Case control study, 4: Cohort study, 5: Randomised controlled trial, 6: Systematic review/Meta-analysis). This evaluation focused on how EEG-derived variables were reported in relation to monitoring DoA or nociception, even if this was not the primary outcome of the study.
In addition, a synthesis of the main findings from the literature is presented in the discussion. The aim of this narrative synthesis was to identify trends in the use of EEG-derived variables across species and experimental contexts. Methodological inconsistencies were also highlighted.

3. Results

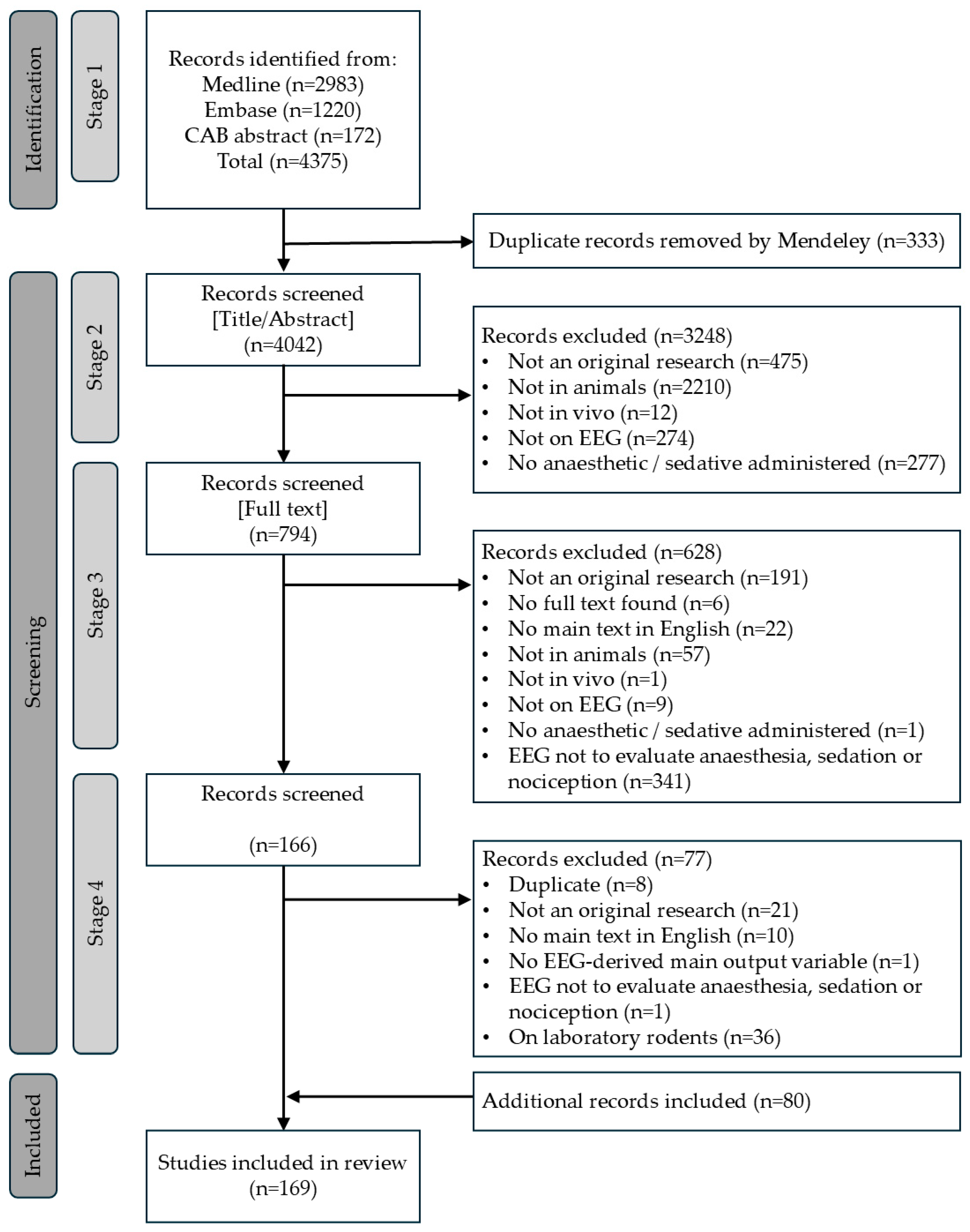

The flow diagram of the selection process is presented in Figure 1.
During stage 1, an initial pool of 4375 references were retrieved through the search strategy. Following duplicates removal, 4042 references remained. At stage 2 (abstract screening), a total of 794 references were retained. Following full-text screening in stage 3, a total of 166 articles met the inclusion criteria and were finally kept.
Subsequent review by all authors revealed inconsistencies, including remaining duplicates and erroneously included references such as conference abstracts or articles in languages other than English. As a result, a fourth screening stage (stage 4) was added. In this stage, 77 references were removed, leaving a final selection of 89 articles. At the same time, additional relevant studies were identified by the authors through domain knowledge, incidental findings, or backward citation searches. These had likely been missed during stage 1 or were wrongly excluded. Repeating the full screening process was deemed too time-consuming. Therefore, the decision was made to include these additional references to the best of our ability. However, this adjustment meant that the systematic nature of the review could no longer be fully preserved, and the study shifted toward a narrative review. Many of the newly identified references involved laboratory rodents (e.g., rats, mice, gerbil). To maintain focus and consistency, all studies involving laboratory rodents were excluded from the final review. Detailed figures are presented in Figure 1 and Table S4.
The final selection comprises 169 references [3,6,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175], as shown in Table S4. Subdivisions according to research topic, animal species, and material reported within the final selection are provided in Table 1.

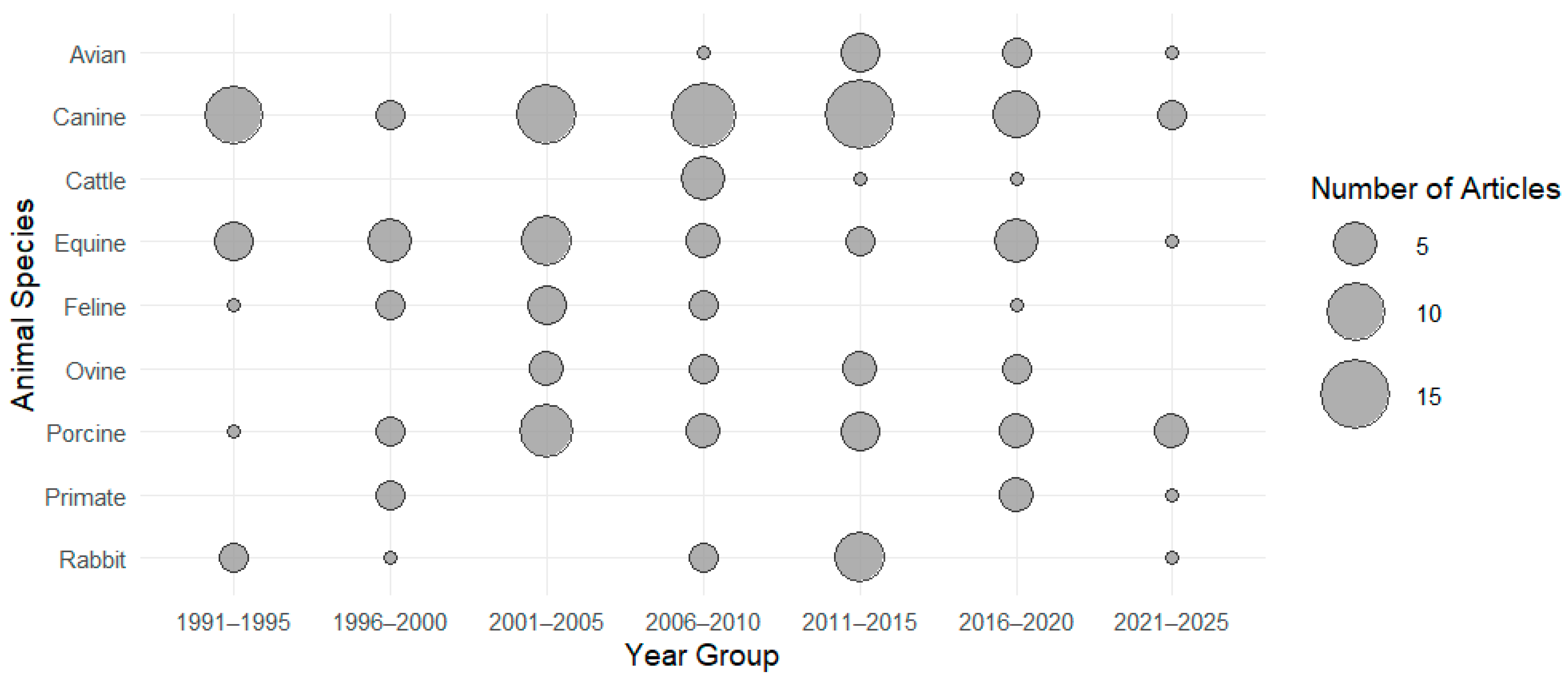

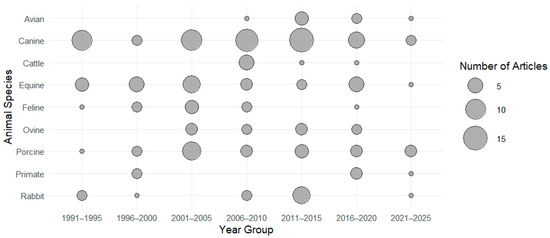

The distribution of animal species investigated over time is shown in Figure 2. The distribution of research articles according to categories of EEG-derived variables (e.g., suppression ratio, power-based variables, frequency-based variables, index, etc.) is presented in Figure 3. (*) One paper reported the use of both porcines and caprines.
The level of evidence for each article is presented in Table S4. A small number of studies reported EEG-derived variables as a secondary aim (n = 16, corresponding to 9%). Most of these were considered observational studies (n = 15), and one was considered a randomised controlled trial. The remaining studies reported EEG-derived variables as the primary aim (n = 153, corresponding to 91%). Among these, the majority were judged observational studies (n = 86, corresponding to 51%), followed by case control studies (n = 58, corresponding to 34%), and a smaller number of randomised controlled trials (n = 9, corresponding to 5%).

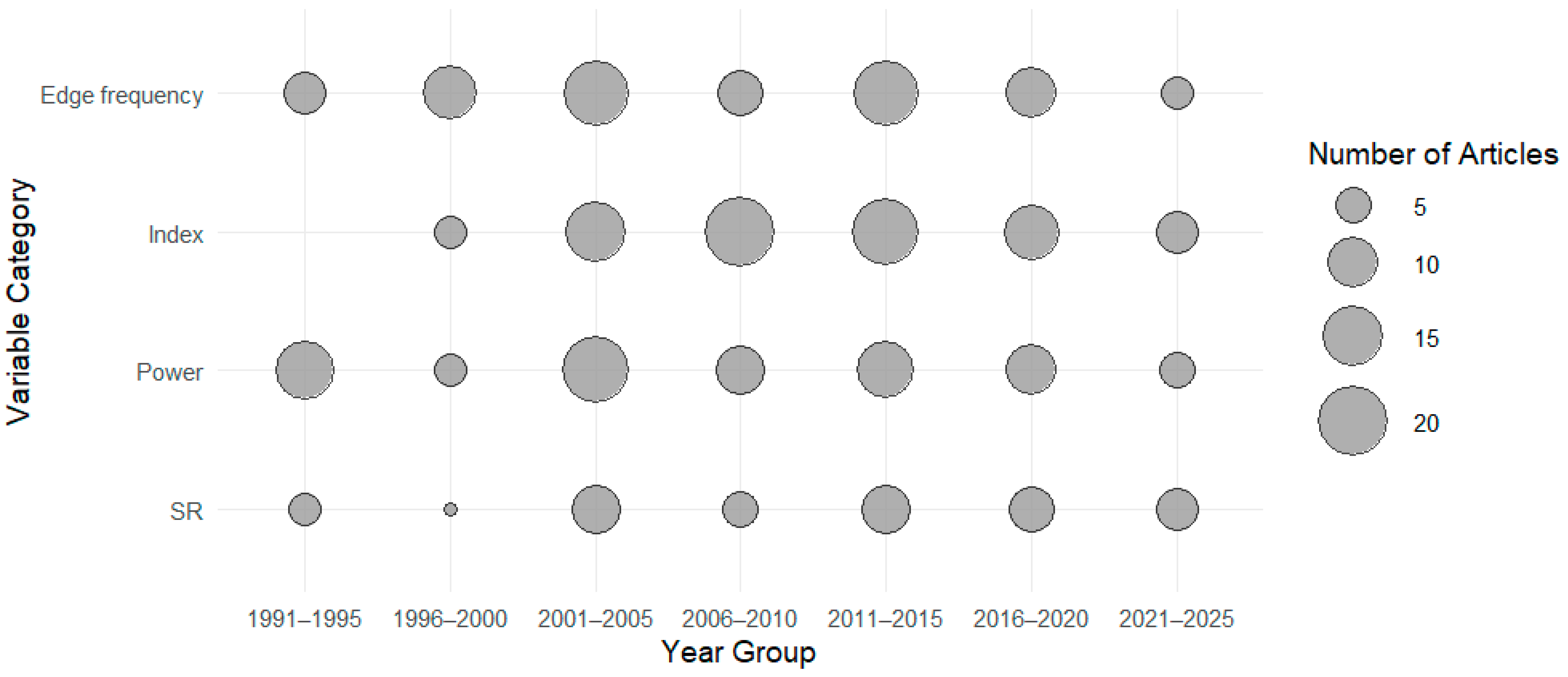

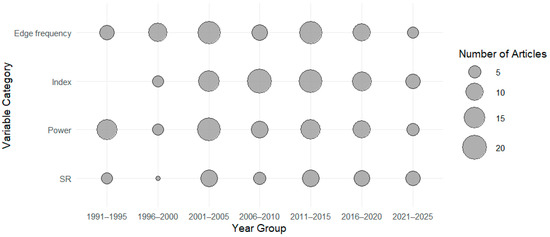

The list of EEG-derived variables investigated included in the review is presented in Table 2.

4. Critical Appraisal and Discussion

Over the last 35 years (1990–2023), at least 169 publications (mean 5 ± 3 per year) were identified that investigated EEG-derived quantitative variables in the evaluation of DoA in animals, excluding laboratory rodents. The most commonly reported EEG-derived variables were spectral edge frequencies (44% of studies), spectral power and related ratios (43%), suppression ratio (26%), Bispectral Index (BIS; 34%), entropy (5%), and Patient State Index (PSI; 4%). The publications were relatively evenly distributed over the years, with no clear trend toward increased research activity during this period.

4.1. Limitations

This review has several limitations. The initial goal was to conduct a systematic scoping review, but this was not possible due to methodological errors encountered during the process. Although it is unlikely that many relevant studies were missing, the exact number of publications to be included cannot be guaranteed. All screened publications meeting the selection criteria were included; no paper was excluded arbitrarily or due to personal preferences.
During the screening process, research articles on EEG in laboratory rodents were excluded. All animal species were considered at first, but studies involving rats and mice accounted for most of the irrelevant results. This was likely due in part to difficulties distinguishing, based solely on abstracts (stage 2), between studies focused on neurological diseases (e.g., epilepsy) and those evaluating depth of anaesthesia. After abstract review (stage 2), the number of publications on laboratory rodents was approximately twice that of studies involving dogs. Including these rodent studies would likely have added more EEG-derived variables, but most of these may have been less relevant to clinical practice.
Another limitation is that only studies published after 1990 were included. This choice was intentional, as studies before this date likely used outdated EEG technology, including older electrodes, amplifiers, data storage methods, and computational techniques.
Critical appraisal of systematic reviews usually involves assessing the certainty of evidence and the level of bias. This helps determine how much confidence can be placed in the results reported by the selected literature [176]. However, the GRADE system was not applicable to the present review because the main goal was not to produce a single quantitative outcome. Quality grading of each article using established tools [177,178], such as the Critical Appraisal Skills Programme (CASP) checklist or the Joanna Briggs Institute (JBI) tool, proved difficult and unreliable. Most of the included papers did not directly test whether a specific EEG-derived variable could distinguish between different DoA or nociceptive states. Instead, they reported a range of variables applied to a variety of conditions. For these reasons, the review took a broad approach, aiming mainly to collect and summarise the EEG-derived variables reported, their methodology, and the contexts of their use. Only cautious conclusions can be drawn. Most studies were observational in design, which indicates a low overall quality of evidence. As a result, the conclusions presented in the following discussion should be interpreted with caution.

4.2. Animal Species

Dogs, horses, and pigs were the most frequently studied animal species. In contrast, studies involving cattle more often focused on the depth of anaesthesia in the context of slaughter procedures. These studies aimed to assess the timing and quality of loss of consciousness when comparing methods of killing.

4.3. Suppression Ratio

The suppression ratio was reported in 26% of the studies, and 75% of these (n = 32) used commercial DoA devices, primarily the BIS monitor. The BIS device calculates the SR as the percentage of the preceding 63 s period during which EEG activity is suppressed, typically defined as an amplitude within ± 5 microvolts for at least 0.5 s [179,180]. The SR is usually updated every 1–2 s. While other commercial monitors likely use similar methods, the precise algorithms remain proprietary and are not publicly disclosed. Several studies used different definitions for suppression. For example, Martoft et al. applied the same threshold as the BIS [51], Rampil et al. used a stricter definition (<5 microvolts peak-to-peak) [12], and McIlhone et al. defined suppression as an EEG amplitude less than 12.5% of baseline [134,156]. Species-specific adjustments have also been proposed. For instance, Koyama et al. found that a threshold of <±2.25 microvolts for at least 0.35 s might be more appropriate in sevoflurane-anaesthetised dogs [158].
Six studies assessed SR qualitatively, using a simple binary classification (active/suppressed) based on direct visual observation of the EEG [66]. This approach tends to yield higher SR values [180] and allows earlier detection of suppression compared to automated algorithms [181]. Although the American Clinical Neurophysiology Society guidelines are recommended for visual analysis [182], quantitative SR assessment by visual inspection has not been reported in anaesthetised animals.
SR is mainly associated with deep levels of anaesthesia, but its numerical value is rarely analysed in detail. Some authors have compared SR values across different anaesthetic planes [34,105,116,173]. Haga et al. investigated the concentration of inhalant anaesthetic required to increase SR above 20%, in relation to the minimum alveolar concentration in pigs and goats [112]. In many studies, SR increased rapidly and discriminated poorly between varying DoA states. A pharmacokinetic model in pigs showed a very steep, sigmoidal relationship between SR and the propofol infusion rate [3]. However, in dogs, SR correlated better with anaesthetic planes than the Cerebral State Index (CSI), although it increased only at deeper levels [126]. Additionally, SR values differed between clinically assessed stages of DoA in horses [171] and chickens [91].
The suppression ratio is often referred to as the burst suppression ratio (BSR). This term likely comes from early descriptions of EEG patterns during deep anaesthesia, where high-voltage spikes alternate with flat, suppressed periods (as seen with agents such as avertin, ether, or barbiturates) [183,184]. Recent studies have focused mainly on measuring the amount of suppressed EEG. In contrast, characteristics of the active EEG segments (bursts), especially how they vary with different species or drugs, are still poorly understood. For example, studies in rabbits have shown that the amplitude and duration of bursts can differ between propofol and isoflurane anaesthesia [25]. The suppression ratio is the most reported time domain EEG variable. It is easy to calculate, and its use has been established for many decades. However, SR remains under-investigated and may not have revealed its full potential for assisting in the evaluation of DoA. In humans, higher SR values have been linked to poor quality of anaesthetic recovery, as well as post-operative delirium [185]. So far, no similar investigations have been conducted in this domain in veterinary species.
In summary, the standard definition of the suppression ratio is a practical tool for detecting deep levels of anaesthesia. However, more quantitative approaches with species-specific adjustments and defined cut-off values are still needed.

4.4. Total Power

The EEG signal recorded in the time domain is highly fluctuating and stochastic [179]. However, it exhibits recognisable patterns in amplitude and frequency across different depths of anaesthesia [4]. To quantify EEG modulation in the frequency domain, a discrete Fast Fourier Transform (FFT) is applied. This method produces a spectrum that represents power (in μV2/Hz or dB) as a function of frequency. The EEG spectrum is typically analysed by frequency bands: delta (0.5–4 Hz), theta (4–8 Hz), alpha (8–12 Hz), and beta (12–30 Hz). There are some variations in these divisions, and additional subdivisions have been reported [186]. Frequencies below 0.5 Hz and above 30–35 Hz (gamma) are generally excluded from standard analysis. Other reviews have described how different anaesthetic drugs affect the EEG spectrum [4,186]. In the present review, total power (over 0.5–30 Hz) was reported in 25% of studies. The total power measures the overall EEG energy and is proportional to the squared amplitude. Although non-specific, total power usually increases when the EGG shifts from high-frequency, low-amplitude patterns (seen in the awake state) to low-frequency, high-amplitude activity seen in sedated or anaesthetised states [14,20,28,109,137,144,151,156,187,188]. As anaesthetic depth increases further, both EEG activity and total power decrease, eventually leading to suppression and, at very deep levels, isoelectricity [14,17,20,96,188]. The exact point at which total power changes from increasing to decreasing is inconsistent across studies. It likely depends on the animal species, the anaesthetic agent used, and the experimental conditions.
Some studies suggest that the transition point—when EEG total power shifts from rising to falling with increasing DoA—may occur before the onset of EEG suppression [17,20,188]. A key limitation of total power is that it cannot detect opposing changes in different frequency bands [187]; as a result, it provides little comparative information between bands, which may differ by orders of magnitude [4]. During low-to-moderate DoA, noxious stimulation typically decreases total power, correlating with arousal responses [61,75,86,95,97,106,140,142,154,155,187,189]. However, at deeper levels of anaesthesia, with already reduced total power, the EEG often shows little or no response to noxious stimuli [44,72,189], even if cardiovascular reactions may still occur [44,72]. For example, one study reported a moderate increase in total power during castration in young pigs under halothane anaesthesia [74], suggesting that the effect of noxious stimulation on EEG total power depends on the level of anaesthesia: arousal may cause a shift from high-to-low amplitude when transitioning from moderate-to-light anaesthesia, or from moderate-to-high amplitude when transitioning from deep-to-moderate anaesthesia. Nevertheless, direct evidence for these shifts is still lacking.
In summary, although total power can be useful for comparing EEG responses to specific events such as noxious stimulation or changes in anaesthetic dose, its pharmacodynamic profile is likely to lack both repeatability and specificity. As a result, total power measurements may not provide clinicians with a clear or reliable interpretative tool.

4.5. Band Power

Some studies (n = 28) reported detailed calculations of absolute power in each frequency band. With increasing DoA, delta and theta power generally rose, while alpha and beta power decreased [14,28,45,53,109]. When the relative power distribution was reported (n = 16), expressed as a percentage of total power, the increase in delta and the decrease in beta were often even more pronounced, while the theta and alpha bands tended to remain more stable [51,53,80,88,109,123]. Several studies tracking spatio-temporal EEG changes as anaesthetic depth increased found that the delta band power rose with DoA, then fell again at the deepest levels (similar to total power changes). The theta and alpha bandwidths followed a similar but less pronounced pattern, while beta power steadily declined from high values in the awake state to marked depression at even moderate anaesthetic depths [14,53,123,188]. Because changes in the delta range are more prominent and consistent, some researchers have used it as a primary variable [43].
To better characterise EEG power variations with anaesthetic state, a few studies (n = 10) calculated power ratios comparing higher frequencies with delta power. The beta/delta ratio typically showed the greatest decrease as anaesthesia deepened [37,53,123] and tended to rise with noxious stimulation, when changes occurred [18,88,123]. Similarly, some authors combined the alpha and theta power together and compared this sum to delta power to enhance sensitivity to anaesthetic changes [62].
During human propofol anaesthesia, there is a clear shift in EEG alpha activity: frontal alpha power increases, a phenomenon known as anteriorisation [186]. This distinct pattern is well described in humans, where the traditionally posterior alpha rhythm during wakefulness is lost and a new, coherent frontal alpha emerges during anaesthesia. Increased frontal alpha power is typically seen at moderate anaesthetic depth, and lower alpha power has been associated with a poorer recovery quality [190]. To date, these specific alpha dynamics have not been reported in animals [188].
One study highlighted that distinct frequency components within standard EEG bands may behave differently [109]: for example, during an alfaxalone bolus in dogs, theta band power (4–7 Hz) overall remained stable, but power actually decreased at 4–5 Hz and increased at 6–7 Hz [109]. This finding suggests that more refined analysis—beyond standard EEG bandwidth divisions—may be warranted.
Additionally, a study introduced a Relative Power Index, calculated as a weighted sum of the relative powers across all five dominant bands, which demonstrated strong predictive performance for anaesthetic depth compared to other variables [132].
Collectively, these findings indicate that, despite decades of investigation, band-specific power dynamics contain further untapped information [191]. More research is needed, as these variables show high potential for quickly and reliably distinguishing among anaesthetic states and could assist clinicians in practice.

4.6. Spectral Edge Frequency

Spectral edge frequency (95%, SEF95) and median frequency (50%, SEF50 or MEF) were the most frequently reported quantitative EEG variables. Edge frequencies represented the second most common category after dedicated DoA indices. An edge frequency refers to the cut-off value (in Hz) below which a specified percentage of the signal’s total power is contained [192]. Notably, these values are strongly influenced by the settings of band-pass filters.
Edge frequencies serve as surrogates for relative power ratios. For example, a delta/theta-dominant EEG exhibits a lower SEF95 than an alpha/beta-dominant EEG during cortical arousal. However, they are not directly affected by changes in total power. Although a single value cannot fully capture the complex, multimodal structure of the EEG spectrum, edge frequencies can reflect broad changes across different anaesthetic states [22,34,50,123,163,192]. Still, several studies report limited sensitivity of spectral edge frequencies in detecting changes in DoA or responses to noxious stimulation [3,44,72,73,157,173].
Because they depend on the frequency band of interest, SEF95 and SEF50 may demonstrate distinct sensitivity. For example, SEF95 outperformed SEF50 in predicting propofol-induced DoA in dogs [132] and showed greater sensitivity to noxious stimulation [94,95,140]. In contrast, SEF50 proved more effective in detecting nociceptive responses and their attenuation by analgesics in other studies [61,106,164,193].
Edge frequency interpretation becomes less reliable during periods of EEG suppression. Unpredictable high-frequency bursts and spikes can artificially elevate values, even as the anaesthetic depth increases [192,194]. To address this, correction formulas have been proposed to account for burst [194] and spike artefacts [195], and preliminary studies suggest improved performance when these are applied [116,117,118]. However, these correction methods remain simplistic and require further refinement.
Edge frequencies should not be viewed as linear indicators of anaesthetic depth but rather as context-dependent measures. Key questions for their interpretation include: Which edge frequency metric is used? What stage of DoA is being analysed? What EEG frequency transitions are likely occurring? Combining edge frequencies with complementary metrics—such as absolute band powers or power ratios—may enhance their utility in anaesthesia monitoring.

4.7. DoA Indices

The most frequently reported category of EEG-derived variables consisted of proprietary DoA indices, primarily developed for use in human patients. Among these, the BIS was the most prominent. These indices rely on combinations of EEG-derived variables—essentially, relative spectral powers and suppression ratio—processed through an algorithm to generate a scaled value, typically ranging from 0 (deep anaesthesia) to 100 (awake state). Although the algorithms behind commercial indices remain partially unpublished, their components and limitations are reported in the literature, including their application in veterinary anaesthesia [196,197].
Most studies demonstrated correlations between BIS values and anaesthetic dose, plasma concentration, clinical DoA assessments, or responses to noxious stimuli. However, notable interstudy variability in BIS measurements has been documented [105,110,111,151]. Moreover, BIS was often a poor predictor of movement responses to noxious stimulation [104,127]. At deeper levels of anaesthesia, BIS values become strongly correlated with SR, especially when SR exceeds 20–40%. This suggests that under such conditions, SR becomes the dominant contributing factor [34,198,199]. The proprietary nature of BIS algorithms poses a major limitation. The lack of transparency reduces interpretability and makes it difficult to identify potential biases in real-time monitoring. Other indices were not reported in enough studies to allow direct comparisons with BIS.
The patient state index was reported in pigs (n = 2) [3,170], horses (n = 2) [162,171], laboratory primates (n = 2) [153,165], and dogs (n = 1) [173]. The cerebral state index was recorded in six studies involving dogs [78,85,92,101,126,128]. The narcotrend index was used in sheep (n = 2) [125,147], cattle (n = 1) [123], horses (n = 1) [150], and cats (n = 1) [167]. Interestingly, one study assessing the patient state index across a wide DoA range (from awake to SR > 80%) reported a double-sigmoid pharmacodynamic relationship [3]. Similar patterns have been reported in humans for BIS and the narcotrend index [200,201,202,203]. This suggests that sensitivity to changes in the anaesthetic level varies across the DoA spectrum. These indices may exhibit a plateau phase, where intermediate changes in anaesthetic depth are no longer reflected in index values—particularly during surgical anaesthesia.
While these indices are among the most convenient variables for clinical use—being integrated into commercial EEG monitoring systems—they lack validation in animals. Their sensitivity across different DoA levels is limited, especially under surgical anaesthesia. Moreover, they fail to provide context-specific information to the clinician. The proprietary nature of their algorithms remains a barrier to advancing scientific understanding.

4.8. Entropy

Although entropy-based indices are seen as a promising alternative in human medicine, they have been reported in only a few animal studies. Response and state entropy indices offer great accessibility, as commercial devices (such as those from GE Healthcare) can easily measure them. In dogs, these entropy indices correlated with sevoflurane concentration and increased when a positive response was elicited by noxious stimulation at 1 MAC [143,160]. However, another study under similar conditions produced less conclusive results [115], highlighting variability in the reliability. In horses, entropy indices also correlated with the isoflurane concentration in a manner similar to BIS [166].
Several algorithms are available to calculate entropy measures from the EEG signal. While several methods are described in humans [204], veterinary studies have primarily utilised measures based on the Shannon entropy principle, which describes the irregularity, complexity, or unpredictability characteristics of the signal. Entropy can be applied to either the time domain EEG (temporal entropy) or the frequency domain spectrum (spectral entropy). State and response entropy are specific applications of the spectral entropy calculated over different frequency ranges, namely, 0.8 to 32 Hz and 0.8 to 47 Hz, respectively, with the latter including active EMG components [205]. In a study comparing several EEG-derived indices in dogs anaesthetised with propofol, temporal entropy demonstrated the best performance among the tested entropy and spectral measures [132]. Approximate entropy, a derivative of Shannon entropy [204], showed poor predictive performance for DoA in rabbits [117,118], and while it was applied in sheep, its effectiveness was not specifically investigated [84,89]. Permutation entropy has also been measured in dogs and rabbits; it quantifies EEG complexity by assessing the diversity of specific ordinal patterns in the EEG time series, with higher values reflecting more irregular, complex neural activity typical of lighter anaesthesia [206]. However, permutation entropy showed poor performance in evaluating DoA in dogs receiving propofol compared to temporal entropy [132].
In rabbits, permutation entropy showed good performance only at low propofol doses. Its predictive value improved markedly when corrections for burst suppression patterns were applied [117,118]. At DoA levels where bursts alternate with suppressed EEG epochs, entropy measurements become more difficult. In such cases, algorithmic adjustments are needed to preserve accuracy and reliability [204].

4.9. Graphical Display

In addition to specific metrics and indices, quantitative EEG-derived variables can be displayed graphically. Monitoring temporal changes in the spectrum across the full range of relevant frequencies requires analysing multiple relative power values and their ratios simultaneously. The compressed spectral array helps visualise these changes by displaying the power–frequency spectrum along the time axis [207]. This approach was used in two studies to compare EEG changes induced by different slaughtering methods in calves under light anaesthesia [95,97]. Although such visual analysis remains subjective, it allows for characterising the timing and duration of EEG pattern changes.
Because interpreting the three-dimensional graphic can be challenging, the density spectral array (DSA) improves readability by replacing the power axis with a colour scale. This method, known for several decades [208], has regained interest due to its ability to track real-time changes in the EEG frequency distribution with more precision and individualisation than commercial DoA indices [4]. Among the reviewed studies, eight used DSA. Six of these employed the Sedline® commercial device to display the real-time DSA in experimental pigs receiving propofol [3,170], in chimpanzees given ketamine [165], and in canine [173] and equine patients [162,171] receiving multimodal anaesthesia. One earlier study in dogs presented post hoc DSA analysis using a custom-made routine coded in MATLAB (version R2022a/b) and raw EEG data from a diagnostic neurological device. It showed frequency-specific EEG changes in response to noxious stimulation during general anaesthesia [23]. Compared to recent developments in human medicine, the use and characterisation of DSA patterns and signatures in animals remain limited. Further investigation is needed across species, patient populations, and anaesthetic agents. Despite the current lack of detailed reference data, DSA offers a significant advantage over commercial indices by enabling more personalised, flexible, and comprehensive interpretation of EEG changes.
One study reported an alternative approach: instead of visualising absolute power, it applied the DSA to changes in power relative to a baseline epoch to better characterise variations induced by a noxious stimulation [172]. Although this is anecdotal, it illustrates how further exploration of DSA settings—such as referencing, filtering, and resolution—could enhance the monitoring of peri-anaesthetic EEG changes. While DSA is primarily a feature of commercial EEG-based DoA monitoring devices, these are constrained by proprietary sensors and software. However, an open-source, purpose-built MATLAB application has been used to generate real-time DSA in anaesthetised pigs, supporting the potential for future developments [209,210].
In conclusion, while displaying individual band power values and their ratios can improve sensitivity, DSA offers a powerful tool for clinicians. It allows simultaneous visualisation of relative changes in EEG frequency dominance, potentially enhancing real-time assessment of anaesthetic depth.

4.10. Other EEG Variables

Other EEG-derived variables were occasionally reported.
Amplitude-integrated EEG compresses the data into a trend display that shows peak-to-peak amplitude over extended periods. In newborn piglets, this method detected EEG depression induced by fentanyl [135] or Xenon [149], but it provided much less informative value than standard spectral metrics.
One study specifically reported power asymmetry, measuring the difference in EEG signals acquired simultaneously from left and right homologous electrode sites in dogs anaesthetised with isoflurane. However, no relevant results were found [10]. The asymmetry of the EEG signal between hemispheres has been poorly investigated during general anaesthesia.
The same study also assessed inter-hemispheric coherence, which measures the extent to which signals share common oscillatory activity and phase relationships at each frequency [10].
Another study plotted the magnitude of the bispectrum to investigate EEG changes associated with DoA and noxious stimulation in dogs [27]. Although bispectral analysis forms part of the widely used BIS index, it is rarely reported as a separate variable. Bispectral analysis is a higher-order frequency domain technique that quantifies both amplitude and phase relationships among different frequency components, allowing detection of nonlinear interactions and phase coupling that are not captured by conventional power spectral analysis [211]. Because bispectral analysis is a complex, three-dimensional process involving phase relationships between frequency bands, a more comprehensive bicoherence index is often calculated [212]. In dogs, the bicoherence index outperformed standard spectral variables for training a neural network to classify responders to noxious stimulation during halothane anaesthesia [27].
A similar approach was used with a neural network based on Lempel–Ziv complexity, which quantifies the degree of chaos in the EEG pattern. This method showed good predictive value in dogs under isoflurane anaesthesia [38]. Lempel–Ziv complexity is simple to compute and allows rapid real-time analysis. Although DoA assessment using this measure performed better than standard spectral metrics and has been occasionally reported in human studies, it was not found in other studies within this review.
In experimental primates, functional connectivity has been reported as a surrogate marker of awareness, distinguishing anaesthetised from awake status [161,213]. Functional connectivity measures the dynamic communication and synchronisation between different brain regions by assessing statistical relationships between their EEG signals. Anaesthesia typically reduces this connectivity, impairing large-scale information integration necessary for consciousness [214]. Although promising, functional connectivity analysis is complex and often requires advanced imaging techniques (e.g., functional magnetic resonance) or invasive acquisition methods, such as the high-definition cortical EEG.
Modulation of evoked EEG potentials by anaesthetic agents has also been used to characterise different anaesthetic states. Seven studies investigated the effect of DoA on the second differential of the middle latency of the auditory evoked potential (DD-MLAEP). This measure showed drug-specific correlations with concentrations of halothane, isoflurane, and methoxyflurane [30]. In horses under halothane anaesthesia, DD-MLAEP was reduced by ketamine infusion [35] and sarmazenil [55], but not by guaifenesin [40], midazolam [55], alfentanil [29], or thiopentone [41]. In young pigs, reversible CO2 anaesthesia significantly reduced the amplitude of the auditory evoked potential [51]. Somatosensory evoked potentials have also been evaluated to compare the effects of propofol and thiopentone [21], as well as Xenon [31], in cats. These methods require dedicated devices for data acquisition and analysis. They have not yet been sufficiently investigated for DoA assessment, but they may offer additional insights into the mechanisms and time course of anaesthesia-induced cerebral and nociceptive modulation.

5. Conclusions

In summary, a wide range of EEG-derived quantitative variables have been investigated for assessing the depth of anaesthesia in animals. The most frequently reported include spectral edge frequencies, spectral power metrics, suppression ratio, and proprietary indices such as BIS. While these measures provide valuable insights, their interpretation remains highly context-dependent. Even simple variables like suppression ratio, power ratios, or entropy require further research and refinement. Finally, although it is widely acknowledged that no single variable can reliably assess the depth of anaesthesia across the diversity of agents, doses, and species, little research has explored the benefits of combining multiple variables for improved accuracy and clinical usefulness.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani15152285/s1, Table S1: Keywords, MeSH terms, and search strings applied for the inclusion phase to extract from the PubMed database references on EEG-derived quantitative variables reported to evaluate depth of anaesthesia in animals (performed on 12 April 2023); Table S2: Keywords, MeSH terms, and search strings applied for the inclusion phase to extract from the Embase database references on EEG-derived quantitative variables reported to evaluate depth of anaesthesia in animals (performed on 12 April 2023); Table S3: Keywords, MeSH terms, and search strings applied for the inclusion phase to extract from the CAB Abstract database references on EEG-derived quantitative variables reported to evaluate depth of anaesthesia in animals (performed on 6 April 2023); Table S4: Final list of the selected references reporting EEG-derived quantitative variables to evaluate depth of anaesthesia in animals: Last name of the first author, Year of publication, Articles added during Stage 4 (Yes/No), Animal species investigated, EEG-derived variables reported, Level of evidence, Reference number in the main review article.

Author Contributions

Conceptualisation, S.F., O.L.L., and A.M.; Methodology, S.F., O.L.L., and A.M.; Article screening stages 1–3, S.F.; Article screening stage 4, O.L.L. and A.M.; Writing—original draft preparation, S.F., O.L.L., and A.M.; Writing—review and editing, S.F., O.L.L., and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Acknowledgments

The generative AI Perplexity application was used to assist in English scientific writing (translation, rephrasing, grammatical check).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
BISBispectral index
DD-MLAEPSecond derivative of the middle latency of the auditory evoked potential
DoADepth of anaesthesia
DSADensity spectral array
EEGElectroencephalography
MACMinimum alveolar concentration
PRISMA-ScRPreferred Reporting Items for Systematic Reviews and Meta-Analyses extension for Scoping Reviews
PSIPatient state index
SEFSpectral edge frequency
SRSuppression ratio
