Comparison of Environmental and Culture-Derived Bacterial Communities through 16S Metabarcoding: A Powerful Tool to Assess Media Selectivity and Detect Rare Taxa

by
Jacques Pédron
1,
Léa Guyon
1,
Amandine Lecomte
1,
Lydie Blottière
1,
Charlotte Chandeysson
2,
Emma Rochelle-Newall
1,
Xavier Raynaud
1,
Odile Berge
2 and
Marie-Anne Barny
1,*
1
INRAE, IRD, Institute of Ecology and Environmental Sciences-Paris, Sorbonne Université, IEES-Paris, F-75231 Paris, France
2
INRAE, Pathologie Végétale, F-84143 Montfavet, France
*
Author to whom correspondence should be addressed.
Microorganisms 2020, 8(8), 1129; https://doi.org/10.3390/microorganisms8081129
Submission received: 25 June 2020 / Revised: 16 July 2020 / Accepted: 23 July 2020 / Published: 27 July 2020
(This article belongs to the Special Issue Dickeya and Pectobacterium: Ecology, Pathology and Plant Protection)
Browse Figures
Versions Notes

Abstract

:
To compare environmental and culture-derived microbial communities, we performed 16S metabarcoding of uncultured samples and their culture-derived bacterial lawns. Microbial communities were obtained from freshwater river samples representative of an anthropization gradient along a river stream. Their culture-derived bacterial lawns were obtained by growing aliquots of the samples on a broad range medium and on two different semi-selective media. The V3–V4 16S rRNA region was amplified and sequenced. The bacterial diversity of water samples decreased from the upper to lower stream sampling sites and, as expected, these differences were mostly suppressed by the culture step. Overall, the diversity of cultured-derived bacterial communities reflected selectivity of each tested medium. Comparison of treatments indicated that the culture selected both detected and rare undetected environmental species. Accurate detection of rare environmental bacteria of the Pectobacterium genus by 16S metabarcoding of the culture lawn was demonstrated. Interestingly, for abundant taxa, such as those of the Pseudomonas genus, the culture/environment ratio varied between sampled sites, indicating the difficulty of comparing cultured-derived taxa abundance between environmental sites. Finally, our study also highlighted media specificity and complementarity: bacterial communities grown on the two selective media, while selecting a small set of specific species, were mostly a subset of the bacterial community observed on the broad range medium.

1. Introduction

Advances in culture independent methodologies have revolutionized our understanding of microbial diversity. The 16S rRNA gene is currently the most commonly used target in the analysis of bacterial diversity [1]. When combined with high throughput sequencing (HTS), the 16S rRNA gene offers the opportunity to easily, rapidly, and efficiently describe a bacterial community in a given environment [2]. The number of bacterial species identified through 16S rRNA gene sequence analysis is far greater than the number of bacterial species identified on a given culture medium. It is estimated that approximately 80% of bacteria detected with molecular tools are uncultured [3]. As a result, a large number of bacterial groups are only known as operational taxonomic units (OTUs), and their ecological role and physiology are difficult to study. However, 16S metabarcoding approaches, while giving a robust and broad view of the bacterial community, are not adapted to dealing with the rare biosphere that represents an enormous complement of abundant taxa, very important for the functioning of ecosystems [4,5,6]. In addition, 16S rRNA-based taxonomy is often not able to discriminate between closely related innocuous and virulent organisms. Furthermore, culturing microorganisms also opens the possibility of studying the ecological role and physiology of cultured bacteria including their potential virulence as suspected pathogens. To complete 16S-driven approaches of microbial diversity, culture-based approaches are thus necessary.
Consequently, while many environmental studies focus on large descriptions of microbial diversity through HTS approaches, other environmental studies rely on culturing approaches to estimate the abundance of a given culturable taxa in the environment. Both approaches are usually performed independently, and this does not allow direct comparison of the benefits and limits of both methods. For example, it remains unclear, when a specific taxon in the environment is detected through the culture-based approach, if this taxon belongs to a rare or an abundant taxon in the environment. In addition, as cultured-based approaches select only a subset of culturable bacteria, it remains unclear to what extent culture driven enrichments could be compared between different environmental samples. Furthermore, as different media have different selectivity, it is also difficult to compare the abundance of different culturable bacteria selected on different media in the same environmental sample.
We present a fast and accurate method, based on direct 16S metabarcoding of a bacterial lawn without isolation of the grown bacterial colonies, to rapidly evaluate and compare culture media selectivity with uncultured environmental samples. The three studied media were TSA 10%, a commonly used, broad range medium [7]; KBC, a semi-selective medium used to detect bacteria of the Pseudomonas syringae group [8,9]; and CVP, a semi-selective medium often used to detect soft rot pectinolytic bacteria (SRP) of the Pectobacterium and Dickeya genera [10]. To test our protocol, river surface water, sampled from different sites along an anthropic gradient in the Durance river stream, was spread on media plates. The diversity of bacterial communities grown on each medium was compared with the diversity observed in the uncultured river water samples as well as with the one measured on the two other tested media. 16S metabarcoding allowed rapid comparison of all the treatments.

2. Materials and Methods

2.1. Sampling, Culture on Selective Media, and DNA Extraction

Sampling of surface water was performed at three sites, along the Durance River in the southeast of France (Figure 1). The Upper Durance sampling site (UD) is located at the bottom of the alpine part of the river. The Middle Durance sampling site (MD) is located in the upper part of agricultural land dominated by apple and pear production. The Lower Durance sampling site (LD) is located in the lower part of agricultural land with intensive production of fruits, cereals, and vegetables. At each site, surface river water was sampled (3 L) on the 13th of May 2016. Sampling sites are described in Figure 1.
In situ temperature and electrical conductivity were measured using a Multi Probe System (YSI 556 MPS) and water turbidity was measured using a EUTECH Instruments turbidity meter (Table 1). Samples were maintained in a cool box before treatment that occurred within 24 h. Samples were split in 3 replicates of 900 mL that were individually filtered through 0.22 µm cellulose acetate filters (Sartorius). Experimental procedures are summarized in Figure 2. The fraction retained on the filter was suspended in 2 mL of sterile distilled water and 1 mL was frozen at −20 °C until DNA extraction was performed (“environmental” sample). The remaining 1 mL was used to inoculate plates (100 µL per plate) of the following media: TSA 10% [7], KBC [8,9], or CVP [10]. The plates were incubated at 28 °C for 2 (CVP and TSA 10%) or 3 days (KBC). Two mL of sterile water was added to the bacterial lawn, and bacteria were scratched out from the lawn and suspended in the water with a spreader. An aliquot of 200 µL of the obtained suspension was used for DNA extraction (“culturable” samples). All DNA extractions were performed using the Wizard® Genomic DNA Purification Kit (Promega, Madison, WI, USA).
To estimate the culturable bacterial population grown on plates, serial dilutions of the sampled river water were performed (from 10−1 to 10−5), plated on each media and incubated at 28 °C. The bacterial counts obtained were used to estimate the number of bacteria grown on the 100 TSA 10%, KBC, and CVP plates used for DNA extraction. To estimate which soft rot Pectobacteriaceae (SRP) were recovered during the experiment, a second 100 CVP plate was used. The pit-forming bacteria on this plate were isolated and the genus of each individual bacterium (Dickeya or Pectobacterium) was determined following amplification and sequencing of the gapA housekeeping gene, as previously described [11]. The number of bacteria from the P. syringae group (as delineated by Mulet et al. [12]) in samples was estimated by plating 10−1 sample dilutions on the KBC medium. Putative P. syringae colonies were enumerated, and their affiliation to the P. syringae group was checked using the specific P. syringae PCR primers for a representative set of 30 isolates/sample. P. syringae abundances were then calculated [13,14].

2.2. Water Chemical Analysis

The filtrate solution of river water samples was used to determine the dissolved organic carbon (DOC) concentration, as described in [15]. Briefly, two 30 mL samples were transferred to pre-cleaned glass vials; the samples were then acidified with 35 µL 85% H3PO4 and sealed with a Teflon lined cap. Samples for measurement of the optical properties of the colored fraction of the bulk DOC pool, colored or chromophoric dissolved organic matter (CDOM), were collected in 90 mL pre-cleaned amber-colored glass bottles and sealed with a Teflon lined cap. Samples were stored frozen until measurement. Absorption was measured with a spectrophotometer (Analytica.Jena Specord 205 UV-VIS) from 200–750 nm using a 1 cm quartz cell and Milli-Q water as the blank [11]. The spectral slope ratio (Sr) was determined from the ratio of the spectral slope of the absorption coefficient over the ranges 275–295 nm and 350–400 nm [16]. Sr is considered to be a proxy for apparent molecular weight, where higher values indicate lower molecular weight dissolved organic matter (DOM), lower aromaticity, and potentially higher DOM bioavailability [17]. Fluorescence was determined with a Turner Trilogy fluorometer with the CDOM insert. Values were expressed as relative fluorescence units (RFU) [11].

2.3. DNA Amplification and Sequencing

The 16S rRNA gene V3–V4 variable region was amplified using PCR primers 341F (CCTACGGGNGGCWGCAG) and 805R (GGACTACHVGGGTWTCTAAT), with a barcode on the forward primer. PCR using the HotStarTaq Plus Master Mix Kit (Qiagen, Hilden, Germany) was performed under the following conditions: 94 °C for 3 min, followed by 28 cycles of 94 °C for 30 s, 53 °C for 40 s, and 72 °C for 1 min, after which a final elongation step at 72 °C for 5 min was performed. Amplified PCR products were checked in 2% agarose gel to determine the success of amplification and the relative intensity of bands. Multiple samples were pooled together in equal proportions based on their molecular weight and DNA concentrations. Pooled samples were purified using calibrated Ampure XP beads and used to prepare the Illumina DNA library.
Sequencing was performed at MR DNA (www.mrdnalab.com, Shallowater, TX, USA) on a MiSeq sequencer following the manufacturer’s guidelines. Sequence data were processed using the MR DNA analysis pipeline (MR DNA, Shallowater, TX, USA). In summary, sequences were joined, depleted of barcodes, and sequences < 150 bp or with ambiguous base calls were removed.

2.4. Clustering, Alignment, and Phylogenetic Analysis of 16S rRNA Gene Fragments

The whole sequence set was analyzed using the Mothur pipeline v.1.39.5, dedicated to the study of microbial communities [18], according to the standard operating procedure (www.mothur.org/wiki/MiSeq_SOP) [19]. Briefly, sequences were aligned to the SILVA SSU non-redundant database (v.123, www.arb-silva.de), and sequences deviating from consensus at the start and end positions and chimera sequences were removed. Sequences were then clustered in OTUs (operational taxonomic units) using a cut-off of 97% identity. OTUs were taxonomically classified at the genera and phylum level with the Ribosomal Database Project (RDP) Bayesian classifier [20].

2.5. Data Analysis

Several ecological indexes were calculated to characterize the bacterial community present following each treatment. To characterize the α-diversity, that is, the diversity present in each sample, we used 3 different indexes. The count of all the different OTUs characterized the richness of the diversity observed in each sample. This index indicates how many different taxa are present in the sample. The Pielou Index compares the abundance level of each taxon present in the sample. It allows deciphering if the taxa are evenly distributed or if some dominate the others. The Shannon Index is a classical ecological index, often referred to as the α-Diversity Index, which takes into account both the diversity and the evenness of the taxa present in the sample. To characterize the dissimilarities between samples (β-diversity), the Bray–Curtis Index was calculated. As this index mixes the differences due to species losses and species turnover, we also partitioned this index to understand both components of dissimilarity.
All analyses were performed after removal of singleton sequences. Normalization of the sample size (number of sequences per sample) was achieved by randomly resampling the same number of reads for each sample based on the smallest sample size (n = 31,087, Table S1). Rarefaction curves, Shannon’s Index (α-diversity), and Pielou’s Index (evenness) were calculated with the PAleontological STatistics (PAST) software v.3.20 [21]. The mean and standard deviation of the 3 replicates were calculated for each sample. Statistical significance was assumed at the 5% level (independent two-sample student t-test, unequal variance, two-sided p-value < 0.05). Tables S2–S4 provide the p-values of all performed statistical tests.
The bacterial community structure was analyzed with the MEGA v.5.11.3 software after normalization (ab.inf.uni-tuebingen.de/software/megan/; Huson et al., 2007). A Bray–Curtis [22] dissimilarity matrix was calculated with the statistical software XLSTAT v.19.6 (Addinsoft, USA, www.xlstat.com) from the genera abundance matrix. The dissimilarity matrix was visualized by a two-dimensional multidimensional scaling (MDS) using XLSTAT. The total β-diversity was partitioned in terms of turnover (genera replacement, βsim) and nestedness (genera loss or gain, βnes) between samples using the betapart R package [23].

3. Results

3.1. Sampling Sites, Water Parameters, and Culture Conditions

Sampling of surface water was performed at three sites along the Durance River chosen for their differential altitudes and surrounding land uses and, respectively, called the UD (Upper Durance), MD (Medium Durance), and LD (Lower Durance) (Figure 1). As expected, the water temperature was higher for the LD sampled water as compared to the UD and MD sampled waters. Similarly, turbidity was higher for the UD sampled water (Table 1). Dissolved organic carbon (DOC) concentrations were comparable at the three sites. However, a strong difference in fluorescence and carbon normalized fluorescence was observed between the three sites, indicating differences in the quality of the carbon present. A similar pattern was observed for carbon derived organic matter (CDOM) absorption at 355 nm and for the spectra slope Sr (Figure S1). These results suggest that DOM in the MD site could be less bioavailable than in the UD and LD sites.
The number of colony-forming units (CFUs) observed on the semi-selective media CVP and KBC were of the same order of magnitude while, as expected, a much larger number of CFUs could be detected on the broad range TSA 10% medium (Table 1). Bacteria belonging to the P. syringae group were estimated on KBC plates, and a net decrease of P. syringae detection was observed from the UD to LD sites (Table 1). The colonies forming pits, a characteristic of SRP bacteria grown on the CVP medium, were also counted. Pits forming bacteria were only visually detected in the LD site (Table 1). Their subsequent isolation and molecular characterization showed that all the pits forming bacteria detected belonged to the Pectobacterium genus.

3.2. General 16S Metabarcoding Data and α-Diversity

A total of 3,116,952 sequences were obtained after Illumina sequencing. The assigned sequenced reads of each sample ranged from 31,087 to 77,427, from which 249 to 4141 OTUs with more than one read were described depending on samples, treatments, or replicates (mean per replicates are given in Table 2). Rarefaction curves (Figure S2) nearly reached a plateau while Good’s coverage estimates (Table 2) showed that less than 1% of reads were from OTUs that appeared only once in the analyzed samples. This indicates that the sample coverage was correct and could be used to describe the diversity.
As expected, direct 16S metabarcoding of environmental samples showed that richness (OTU numbers), α-diversity (Shannon Index), and evenness (Pielou Index) significantly decreased from the upstream to the downstream parts of the river (Table 2 and Table S2). However, these differences between sites almost disappeared when analyzing the culturable samples (Table 2 and Table S2). Indeed, whatever the studied site (UD, MD, or LD), the richness, α-diversity, and evenness indexes were generally not statistically different on a given medium (Table S2). However, a few exceptions were observed: α-diversity and evenness were found to be statistically different between the MD and LD sites on the TSA 10% medium (p-value of 0.008 and 0.01, respectively, Table S2). Similarly, richness on the KBC medium was statistically different between the UD and MD sites and between the MD and LD sites (p-value of 0.015 and 0.025, respectively, Table S2).
Comparison between media indicated that, as expected, richness, α-diversity, and evenness were generally higher on the broad range TSA 10% medium than on the semi-selective KBC or CVP media (Table 1 and Table S3). In contrast, richness, α-diversity, and evenness were mostly comparable between the CVP and KBC media, indicating a comparable selective force of these two media (Table 1 and Table S3).
A qualitative assessment on the recovered community was performed following assignment of the observed OTUs to phyla and genera (Table 2 and Figure 3). Among the three water environmental samples, the OTUs were affiliated to up to 42 phyla, of which six (Proteobacteria, Bacteroidetes, Verrucomicrobia, Cyanobacteria, Actinobacteria, and Firmicutes) dominated the environmental bacterial communities, regardless of the studied site (Figure 3a). Nevertheless, the abundance of these dominating phyla varied between sites. For example, one could observe a large increase of Bacteroidetes at the LD site compared to the UD and MD (Figure 3a). These changes in bacterial composition were also highlighted at the genus level. The numbers of observed genera significantly decreased from the UD to LD sites (Table 2 and Table S2). While many genera were no longer dominant at the LD site, others such as Flavobacterium and Limnohabitans became dominant (Figure 3b).
As expected, a drastic reduction of phyla could be observed following culture step, with each medium selecting a comparable number of phyla (Table 2 and Table S3). The phylum Proteobacteria accounted for more than 50%, 80%, and 99% of the total OTU reads on the TSA 10%, KBC, and CVP media, respectively (Figure 3a). Several phyla initially abundant in river water such as Actinobacteria, Verrucomicrobia, and Cyanobacteria were no longer abundant while Firmicutes and, to a lesser extent, Bacteroidetes phyla were still abundantly detected on the TSA 10% and KBC media but not on the CVP medium (Figure 3a).
Differences between media were even more enhanced at the genera level. More genera were identified on the TSA 10% medium compared to the CVP or KBC media, while no significant differences were observed between the two latter (Table 2 and Table S3). The four major genera observed on the TSA 10% culture were Aeromonas, Acinetobacter, Exiguobacterium, and Pseudomonas, and their relative proportion changed between study site (Figure 3b). Pseudomonas and Aeromonas genera were abundant on the KBC and TSA 10% media, while Flavobacterium and Enteroccocus genera were not selected on the TSA 10% but were found on the KBC medium. Cultures on the CVP medium mostly selected the Pseudomonas genus (Figure 3b).

3.3. Comparison between Environmental and Culture Treatments

To compare the different treatments, we calculated the Bray–Curtis dissimilarities between sites, treatments, and replicates. Visualization of the dissimilarity between sites, treatments, and replicates by two-dimensional multidimensional scaling analysis (MDS) clearly separated the environmental samples (blue), the TSA 10% culturable samples (yellow), and the KBC/CVP culturable samples (green /red), which were grouped together (Figure 4 and Table S4). The three sites, UD (circle), MD (squares), and LD (diamonds), were clearly separated for the three environmental water samples on both dimensions of the MDS projection, and to a lesser extent for the TSA 10% or KBC media. On the other hand, the three sampling sites were mostly regrouped following growth on the CVP medium.
The dissimilarity between sites, which is referred to as β-diversity, could reflect two different ecological situations. First, it could reflect the loss of species from one site compared to the other. In that case, the species present at one site are nested inside a larger set of species present at the other site. Alternatively, each site could be different because they host none of the species present at the other site. In that second case, there is a complete turnover of species between the two sites. In practice, both events occur at the same time and the Bray–Curtis Index takes into account both components of dissimilarity. To understand which type of difference occurred between treatments, we partitioned the Bray–Curtis dissimilarity into its two components: turnover (β-sim), which reflects differences in composition caused by the replacement of some species by others (turnover), and nestedness (β-ness), which accounts for differences in species composition caused by species losses that can be observed when species of one site are a subset of species of another site displaying higher richness [24,25]. Between the environmental and cultured samples, a high dissimilarity was observed, whatever the culture conditions tested, with both turnover and nestedness accounting for the observed dissimilarity (Figure 5). However, the nestedness component was more important for the UD and MD sites, while a larger impact of turnover was observed for the LD site. Comparison between media showed that the dissimilarities between the TSA 10% culture medium and the KBC or CVP culture media were mostly due to nestedness, highlighting that the semi-selective KBC and CVP media mostly selected a subset of species that were also selected on the broad range TSA 10% medium (Figure 5). Finally, the low dissimilarity between the CVP and KBC culture treatments was mostly due to turnover replacement, accounting for the differential selectivity of both media for a small but different set of culturable species (Figure 5).
To confirm and extend the above analysis, we counted the number of OTUs specific for each treatment and the number of OTUs shared between environmental and cultured treatments at each site (Figure 6 and Table S5). The number of OTUs specific to the environmental samples was high, indicating, as expected, that the three studied media selected only a very small part of the diversity observed in the environmental samples. However, culture-specific OTUs not detected in the environmental samples were observed on cultured samples. Environment-specific OTUs decreased from the UD to LD, whereas the total number of OTUs observed on a specific medium was mostly stable between sites, whatever the observed environmental diversity.

3.4. Culture Detection of Abundant Environmental OTUs: Focus on the Pseudomonas Genus

Among the three environmental samples, OTU reads assigned to the Pseudomonas genus accounted for 0.49%, 0.49%, and 0.09% of the normalized OTU reads studied in the UD, MD, and LD sites, respectively (Table 3). All media strongly selected the Pseudomonas genus, and OTUs assigned to this genus accounted for at least 5.39% (TSA 10%—LD site) and at most 84.41% (CVP—UD site) of the total reads per treatment (Table 3). Calculation of the culture enrichment ratio showed that, whatever the tested medium, the culture enrichment ratio media:environment varied between sites. This ratio was larger when the abundance of the Pseudomonas genus in the initial environmental sample tested was lower.

3.5. Culture Detection of Rare OTUs: Focus on the Pectobacterium Genus

In contrast to what was observed with Pseudomonas, no read was assigned to OTUs belonging to the Dickeya or Pectobacterium genera through direct 16S barcoding of the three environmental samples (Table 4), indicating that both Pectobacterium and Dickeya genera belong to the rare biosphere in river water. Consequently, we could not calculate a culture enrichment ratio. However, 51 colonies forming pits were observed on the three CVP plates at the LD site, accounting for 0.48% of the total CFUs counted on these CVP plates (Table 4). Accordingly, a large number of reads (928) corresponding to Pectobacterium OTUs were observed following 16S barcoding of these CVP cultured plates, accounting for 0.99% of the total reads (Table 4). This indicated that 16S barcoding of the culture medium reflected the colonies’ growth, even when only a few colonies of a given genus were growing on the lawn. Interestingly, 16 reads were also observed following 16S barcoding of the CVP cultured plates of water sampled at the UD site, suggesting that a small pit-forming colony was present on one of the three analyzed plates but remained undetected visually (Table 4). Alternatively, this small number of reads could have arose from well-to-well contamination between samples during sample treatments, as already described [26].

4. Discussion

To rapidly compare environmental and culture-derived bacterial communities, we performed 16S metabarcoding of environmental and culture-derived samples. The three environmental studied sampling sites were chosen to harbor variable bacterial communities representative of an agricultural and anthropogenic gradient along the Durance River. As expected, direct 16S metabarcoding analysis of environmental river water samples showed a change in the structuration of bacterial communities, with a decrease of richness, diversity, and evenness from the upstream sampling site to the downstream sampling site. This suggests a shift from a generalist microbial community present in oligotrophic water at the highest sampling point to a more specialized microbial community further down, as previously observed in other river streams [27,28,29]. This change could be due in part to differences we observed in dissolved organic carbon quantity and quality between the three samples, as it has previously been shown that DOC strongly structures bacterial communities in aquatic environments [30,31,32].
16S metabarcoding of culture-grown bacteria, as expected, largely erased the diversity differences observed between the three environmental freshwater samples. However, on the TSA 10% culture medium, the Shannon and Pielou indexes were still found to be significantly different between the MD and LD sites, and richness on the KBC medium was also statistically different between the UD and MD. As well, the sampling site could still be distinguished with both cultured samples though MDS analysis of β-diversity, further indicating that both media still catch some of the differences between sampling sites.
16S barcoding analysis allowed straightforward comparison of environmental and culture-derived samples. β-diversity partitioning between environmental and cultured-derived samples showed that turnover and nestedness accounted almost equally for the total diversity changes between the environmental and cultured-derived samples, indicating that culture-driven enrichment applied to both detected and undetected environmental species. Interestingly, the relative proportion of nestedness and turnover components varied between sites, with a larger impact of turnover observed for the lowest diversity LD site (Figure 5). More importantly, as exemplified with the Pseudomonas genus, the culture enrichment ratio media:environment varied between sites, culture enrichment being larger when Pseudomonas abundance was lower in the initial environmental sample (Table 4). This indicates that the culture step selected culturable species, whatever their abundance in the initial environmental sample. Therefore, the variation in the enrichment ratio made comparison of a given taxa abundance between environmental sites problematic through culture analysis.
The culture step revealed many bacterial OTUs that were not detected through 16S metabarcoding of the environmental water samples (see Table S1 for detail). Since both environmental and culture-derived samples were analyzed through the same 16S-barcoding procedures with the same primers, one could eliminate PCR biases between the analyzed samples and, therefore, these culture-specific OTUs most probably represent genera that were rare in the initial environmental water sample. Interestingly, the coherence between the proportion of Pectobacterium sp. colonies visually detected on the CVP plates and the proportion of 16S reads assigned to OTUs of the Pectobacterium genus indicates that rare bacterial colonies were correctly assessed through 16S metabarcoding of cultured bacterial lawns. Therefore, to identify a rare species of interest, combining a culture step on a semi-selective medium and metabarcoding analysis is powerful and can reduce the costs of detection. 16S metabarcoding appears especially useful if the culture medium does not allow discriminating visually the few rare colonies of interest from other colonies growing on the semi-selective medium as it reduces the labor-intensive characterization of individual colonies. Possibly, for such an analysis, the choice of primers could be adapted to reach the species level depending on the species of interest. For example, primers designed on the gapA housekeeping gene [14] discriminate the various SRP species, while the cts housekeeping gene proved powerful for discriminating the various clades within the P. syringae group [32].
Analysis of cultured samples through 16S metabarcoding allowed to rapidly compare the specificity of each tested medium. The selective force of each medium could be inferred from the calculated richness, diversity, and evenness indexes (Table 2). As expected, the broad range TSA 10% medium had the lowest selective force, while the semi-selective CVP and KBC media appeared to have a comparable selective force. Assessment of media selectivity appears useful if one wants to compare the environmental abundance at a given environmental site of different species that could be isolated on different media. For example, the KBC media is regularly used to detect phytopathogenic bacteria of the P. syringae group [8,9], while CVP detect phytopathogenic bacteria of the genera Dickeya and Pectobacterium [10,33,34]. Since these two media have a comparable selective force, the abundance of P. syringae and Dickeya/Pectobacterium at each site could be compared. This led us to conclude that P. syringae and Pectobacterium/Dickeya populations had a strong differential abundance at the UD and MD sites but were comparable at the LD site (Table 1). Analysis of β-diversity between the culture media also allowed rapid comparison of media specificity. Indeed, the higher the β-diversity turnover between two media, the more each medium selects a different set of species. Therefore, if one wants to cultivate the largest diversity of bacteria from a given environmental sample, it is important to choose a set of media with high β-diversity turnover. This could be rapidly analyzed through 16S metabarcoding of cultured samples.
16S metabarcoding also allowed a rapid qualitative assessment of the bacteria grown on the media. For example, Gram-positive bacteria belonging to the Firmicutes phylum were still abundantly detected on the KBC medium, although cephalexine was used to counter-select Gram-positive bacteria on this medium. In contrast, crystal violet, used for the same purpose in the CVP medium, appeared much more efficient in counter-selecting Gram-positive bacteria since Gram-positive bacteria were not detected. Our analysis also revealed an unexpected feature: the CVP culture medium, set up to isolate the genera Pectobacterium and Dickeya, appeared more selective for the Pseudomonas genus than the KBC culture medium, used to detect bacteria of the P. syringae group that belong to the Pseudomonas genus. This may be due to the presence of boric acid in the KBC medium, toxic for many bacteria including some Pseudomonas species, and to the presence of trisodium citrate in the CVP medium that could be used as a carbon source in addition to the polypectate metabolized by SRP bacteria. Therefore, 16S metabarcoding analysis, by revealing the nature of the selective pressure exerted by a given medium, could in turn help to modify the medium to improve its selectivity. This point is particularly interesting when detection of rare pathogenic bacteria is needed.
In conclusion, 16S metabarcoding analyses proved a powerful tool to analyze and compare culture media selectivity. It is less time consuming than a classical culturomic experiment, where bacteria need to be isolated prior to characterization [3], and it could be directly performed on bacterial lawns where colonies are not well isolated. 16S metabarcoding also allowed a straightforward comparison of culture-grown communities with those from the initial environmental sample and more importantly, it allowed rapid detection of rare culturable species. Therefore, combining 16S metabarcoding analysis of environmental samples and culture-grown samples appeared powerful to accurately describe environmental samples without neglecting rare species of interest.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/8/8/1129/s1, Figure S1: Optical Characteristics of Dissolved Organic Carbon (DOC). Figure S2: Rarefaction curves of the environmental Durance sample (ENV, blue) and cultivable samples (TSA: yellow, CVP: red, KBC: green). Table S1: Number of sequences observed for taxa assignations (line) for each treated sample (columns). Table S2: p-values of the student t-test between stations (Upper Durance, Medium Durance, and Lower Durance) for environmental and cultivable samples. Table S3: p-values of the student t-test between TSA/CVP/KBC cultivable samples at each station. Table S4: p-values of the student t-test between environmental and cultivable samples at each station Table S5: Analysis of specific/shared OTUs between cultured and environmental samples.

Author Contributions

M.-A.B. and J.P. designed the study. M.-A.B. and O.B. collected the samples. M.-A.B., O.B., and C.C. performed the microbial analysis. L.B. and E.R.-N. performed the DOC and CDOM analyses. J.P., X.R., L.G., and A.L. analyzed the sequence data and performed statistical tests. M.-A.B. and J.P. wrote the manuscript with contributions from all co-authors. All authors have approved the manuscript.

Funding

This study was supported by the Ec2co CNRS project CARTOBACTER and the ANR project CE32-2017-SPREE.

Acknowledgments

We thank our colleagues Jean François Humbert, Cindy Morris, and Frédérique Van Gisjegem for their critical reading of the manuscript and for valuable discussions. We also thank Ariane Toussaint and Antoine Pourbaix for hosting us during the sampling procedure.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Data Availability Statement

The datasets generated for this study are available in Table S1. Raw 16S sequence reads are available at the Sequence Read Archive (SRA: https://www.ncbi.nlm.nih.gov/sra) under the BioProject PRJNA645798.

References

  1. Větrovský, T.; Baldrian, P. The variability of the 16S rRNA gene in bacterial genomes and its consequences for bacterial community analyses. PLoS ONE 2013, 8, e57923. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Pollock, J.; Glendinning, L.; Wisedchanwet, T.; Watson, M. The madness of microbiome: Attempting to find consensus “best practice” for 16S microbiome studies. Appl. Environ. Microbiol. 2018, 84, e02627-17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Hugon, P.; Lagier, J.-C.; Colson, P.; Bittar, F.; Raoult, D. Repertoire of human gut microbes. Microb. Pathog. 2017, 106, 103–112. [Google Scholar] [CrossRef] [PubMed]
  4. Lagier, J.-C.; Khelaifia, S.; Alou, M.T.; Ndongo, S.; Dione, N.; Hugon, P.; Caputo, A.; Cadoret, F.; Traore, S.I.; Seck, E.H.; et al. Culture of previously uncultured members of the human gut microbiota by culturomics. Nat. Microbiol. 2016, 1, 16203. [Google Scholar] [CrossRef]
  5. Sogin, M.L.; Morrison, H.G.; Huber, J.A.; Mark Welch, D.; Huse, S.M.; Neal, P.R.; Arrieta, J.M.; Herndl, G.J. Microbial diversity in the deep sea and the underexplored “rare biosphere”. Proc. Natl. Acad. Sci. USA 2006, 103, 12115–12120. [Google Scholar] [CrossRef] [Green Version]
  6. Lynch, M.D.J.; Neufeld, J.D. Ecology and exploration of the rare biosphere. Nat. Rev. Microbiol. 2015, 13, 217–229. [Google Scholar] [CrossRef]
  7. Khammar, N.; Malhautier, L.; Degrange, V.; Lensi, R.; Fanlo, J.-L. Evaluation of dispersion methods for enumeration of microorganisms from peat and activated carbon biofilters treating volatile organic compounds. Chemosphere 2004, 54, 243–254. [Google Scholar] [CrossRef]
  8. King, E.O.; Ward, M.K.; Raney, D.E. Two simple media for the demonstration of pyocyanin and fluorescin. J. Lab. Clin. Med. 1954, 44, 301–307. [Google Scholar]
  9. Schaad, N.W. Serological identification of plant pathogenic bacteria. Ann. Rev. Phytopathol. 1979, 17, 123–147. [Google Scholar] [CrossRef]
  10. Faye, P.; Bertrand, C.; Pédron, J.; Barny, M.-A. Draft genomes of “Pectobacterium peruviense” strains isolated from fresh water in France. Stand. Genom. Sci. 2018, 13. [Google Scholar] [CrossRef]
  11. Cigna, J.; Dewaegeneire, P.; Beury, A.; Gobert, V.; Faure, D. A gapA PCR-sequencing Assay for Identifying the Dickeya and Pectobacterium Potato Pathogens. Plant. Disease 2017, 101, 1278–1282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Mulet, M.; Lalucat, J.; García-Valdés, E. DNA sequence-based analysis of the Pseudomonas species. Environ. Microbiol. 2010, 12, 1513–1530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Borschinger, B.; Bartoli, C.; Chandeysson, C.; Guilbaud, C.; Parisi, L.; Bourgeay, J.F.; Buisson, E.; Morris, C.E. A set of PCRs for rapid identification and characterization of Pseudomonas syringae phylogroups. J. Appl. Microbiol. 2016, 121, 903. [Google Scholar] [CrossRef] [PubMed]
  14. Guilbaud, C.; Morris, C.E.; Barakat, M.; Ortet, P.; Berge, O. Isolation and identification of Pseudomonas syringae facilitated by a PCR targeting the whole P. syringae group. FEMS Microbiol. Ecol. 2016, 92, fiv146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Rochelle-Newall, E.; Hulot, F.D.; Janeau, J.L.; Merroune, A. CDOM fluorescence as a proxy of DOC concentration in natural waters: A comparison of four contrasting tropical systems. Environ. Monit. Assess. 2014, 186, 589–596. [Google Scholar] [CrossRef]
  16. Fasching, C.; Ulseth, A.J.; Schelker, J.; Steniczka, G.; Battin, T.J. Hydrology controls dissolved organic matter export and composition in an Alpine stream and its hyporheic zone. Limnol. Oceanogr. 2016, 61, 558–571. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Fichot, C.G.; Benner, R. The spectral slope coefficient of chromophoric dissolved organic matter (S 275-295) as a tracer of terrigenous dissolved organic carbon in river-influenced ocean margins. Limnol. Oceanogr. 2012, 57, 1453–1466. [Google Scholar] [CrossRef] [Green Version]
  18. Schloss, P.D.; Westcott, S.L.; Ryabin, T.; Hall, J.R.; Hartmann, M.; Hollister, E.B.; Lesniewski, R.A.; Oakley, B.B.; Parks, D.H.; Robinson, C.J.; et al. Introducing mothur: Open-source, platform-independent, community-supported software for describing and comparing microbial communities. Appl. Environ. Microbiol. 2009, 75, 7537–7541. [Google Scholar] [CrossRef] [Green Version]
  19. Kozich, J.J.; Westcott, S.L.; Baxter, N.T.; Highlander, S.K.; Schloss, P.D. Development of a dual-index sequencing strategy and curation pipeline for analyzing amplicon sequence data on the miSeq illumina sequencing platform. Appl. Environ. Microbiol. 2013, 79, 5112–5120. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, Q.; Garrity, G.M.; Tiedje, J.M.; Cole, J.R. Naive bayesian classifier for rapid assignment of rRNA sequences into the new bacterial taxonomy. Appl. Environ. Microbiol. 2007, 73, 5261–5267. [Google Scholar] [CrossRef] [Green Version]
  21. Hammer, Ø.; Harper, D.A.T.; Paul, D.R. Past: Paleontological Statistics Software Package for Education and Data Analysis. Palaeontol. Electron. 2001, 4, 9. [Google Scholar]
  22. Bray, J.R.; Curtis, J.T. An ordination of the upland forest communities of southern wisconsin. Ecol. Monogr. 1957, 27, 325–349. [Google Scholar] [CrossRef]
  23. Baselga, A.; Orme, D.; Villger, S.; Bortoli, J.; Leprieur, F. Partitioning Beta Diversity into Turnover and Nestedness Components. Available online: https://cran.r-project.org/web/packages/betapart/ (accessed on 27 July 2020).
  24. Baselga, A. Partitioning the turnover and nestedness components of beta diversity: Partitioning beta diversity. Glob. Ecol. Biogeogr. 2010, 19, 134–143. [Google Scholar] [CrossRef]
  25. Baselga, A. The relationship between species replacement, dissimilarity derived from nestedness, and nestedness: Species replacement and nestedness. Glob. Ecol. Biogeogr. 2012, 21, 1223–1232. [Google Scholar] [CrossRef]
  26. Minich, J.J.; Sanders, J.G.; Amir, A.; Humphrey, G.; Gilbert, J.A.; Knight, R. Quantifying and understanding well-to-well contamination in microbiome research. mSystems 2019, 4, e00186-19. [Google Scholar] [CrossRef] [Green Version]
  27. Wilhelm, L.; Singer, G.A.; Fasching, C.; Battin, T.J.; Besemer, K. Microbial biodiversity in glacier-fed streams. ISME J. 2013, 7, 1651–1660. [Google Scholar] [CrossRef] [Green Version]
  28. Hassell, N.; Tinker, K.A.; Moore, T.; Ottesen, E.A. Temporal and spatial dynamics in microbial community composition within a temperate stream network: Microbial community assembly in streams. Environ. Microbiol. 2018, 20, 3560–3572. [Google Scholar] [CrossRef]
  29. Le, H.T.; Rochelle-Newall, E.; Auda, Y.; Ribolzi, O.; Sengtaheuanghoung, O.; Thébault, E.; Soulileuth, B.; Pommier, T. Vicinal land use change strongly drives stream bacterial community in a tropical montane catchment. FEMS Microbiol. Ecol. 2018, 94. [Google Scholar] [CrossRef]
  30. Judd, K.E.; Crump, B.C.; Kling, G.W. Variation in dissolved organic matter controls bacterial production and community composition. Ecology 2006, 87, 2068–2079. [Google Scholar] [CrossRef]
  31. Llirós, M.; Inceoğlu, Ö.; García-Armisen, T.; Anzil, A.; Leporcq, B.; Pigneur, L.-M.; Viroux, L.; Darchambeau, F.; Descy, J.-P.; Servais, P. Bacterial community composition in three freshwater reservoirs of different alkalinity and trophic status. PLoS ONE 2014, 9, e116145. [Google Scholar] [CrossRef]
  32. Berge, O.; Monteil, C.L.; Bartoli, C.; Chandeysson, C.; Guilbaud, C.; Sands, D.C.; Morris, C.E. A user’s guide to a data base of the diversity of Pseudomonas syringae and its application to classifying strains in this phylogenetic complex. PLoS ONE 2014, 9, e105547. [Google Scholar] [CrossRef] [PubMed]
  33. Pédron, J.; Bertrand, C.; Taghouti, G.; Portier, P.; Barny, M.-A. Pectobacterium aquaticum sp. nov., isolated from waterways. Int. J. Syst. Evol. Microbiol. 2019, 69, 745–751. [Google Scholar] [CrossRef] [PubMed]
  34. Portier, P.; Pédron, J.; Taghouti, G.; Fischer-Le Saux, M.; Caullireau, E.; Bertrand, C.; Laurent, A.; Chawki, K.; Oulgazi, S.; Moumni, M.; et al. Elevation of Pectobacterium carotovorum subsp. odoriferum to species level as Pectobacterium odoriferum sp. nov., proposal of Pectobacterium brasiliense sp. nov. and Pectobacterium actinidiae sp. nov., emended description of Pectobacterium carotovorum and description of Pectobacterium versatile sp. nov., isolated from streams and symptoms on diverse plants. Int. J. Syst. Evol. Microbiol. 2019, 69, 3207–3216. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 08 01129 g001 550

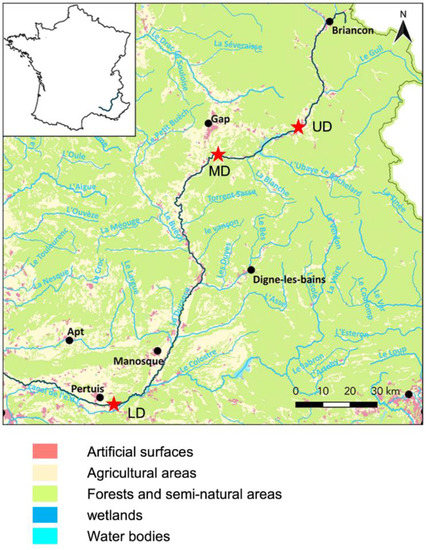

Figure 1. Geographic distribution of sampling sites along the Durance River. The Durance River is located in the southeast of France. The spring is located in a pristine alpine area at an altitude of 2390 m, while the confluence with the Rhône River is located at an altitude of 10 m surrounded by agricultural land. The red stars indicate the location of the three sampling sites. UD: Upper Durance, MD: Middle Durance, LD: Lower Durance.
Figure 1. Geographic distribution of sampling sites along the Durance River. The Durance River is located in the southeast of France. The spring is located in a pristine alpine area at an altitude of 2390 m, while the confluence with the Rhône River is located at an altitude of 10 m surrounded by agricultural land. The red stars indicate the location of the three sampling sites. UD: Upper Durance, MD: Middle Durance, LD: Lower Durance.
Microorganisms 08 01129 g001
Microorganisms 08 01129 g002 550

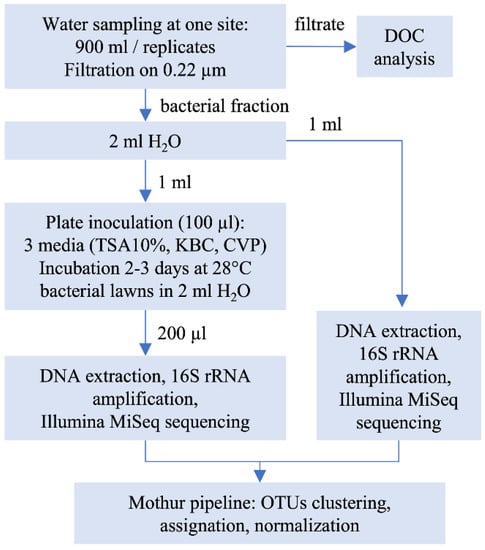

Figure 2. Overview of the experimental procedure.
Figure 2. Overview of the experimental procedure.
Microorganisms 08 01129 g002
Microorganisms 08 01129 g003 550
Figure 3. Bacterial structure communities at the phylum (A) and genus (B) level. ENV: environmental sample, TSA: TSA 10% cultured sample, CVP: CVP cultured sample, KBC: KBC cultured sample, UD: Upper Durance, MD: Middle Durance, LD: Lower Durance. Legends for phyla (A) and genera (B) were restricted to those exceeding 1% of total reads. For each condition, each replicate was normalized (n = 31,087) and the three replicates were averaged.
Figure 3. Bacterial structure communities at the phylum (A) and genus (B) level. ENV: environmental sample, TSA: TSA 10% cultured sample, CVP: CVP cultured sample, KBC: KBC cultured sample, UD: Upper Durance, MD: Middle Durance, LD: Lower Durance. Legends for phyla (A) and genera (B) were restricted to those exceeding 1% of total reads. For each condition, each replicate was normalized (n = 31,087) and the three replicates were averaged.
Microorganisms 08 01129 g003
Microorganisms 08 01129 g004 550
Figure 4. Multidimensional scaling visualization of the Bray–Curtis dissimilarity sample matrix. For each sample, each of the three replicates is plotted. Kruskal stress: 0.037. ENV: direct 16S metabarcoding of sampled water (blue), TSA: TSA 10% cultured samples (yellow), CVP: CVP cultured sample (red), KB: KB cultured sample (green). UD: Upper Durance (circle), MD: Middle Durance (square), LD: Lower Durance (diamond).
Figure 4. Multidimensional scaling visualization of the Bray–Curtis dissimilarity sample matrix. For each sample, each of the three replicates is plotted. Kruskal stress: 0.037. ENV: direct 16S metabarcoding of sampled water (blue), TSA: TSA 10% cultured samples (yellow), CVP: CVP cultured sample (red), KB: KB cultured sample (green). UD: Upper Durance (circle), MD: Middle Durance (square), LD: Lower Durance (diamond).
Microorganisms 08 01129 g004
Microorganisms 08 01129 g005 550

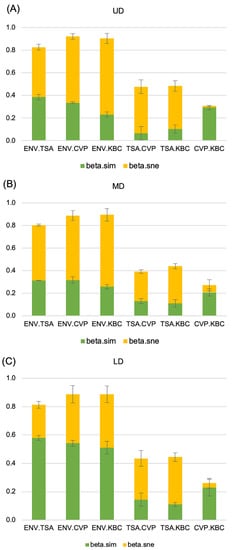

Figure 5. β-diversity partitioning between treatments. Each bar on the histogram represents the β-diversity between two different treatments. The two components of β-diversity, turnover (β.sim) and nestedness (β.sne), are respectively represented in green and yellow. Errors bars represent the standard deviation between the three replicates. ENV: direct 16S metabarcoding of sampled water, TSA 10%, CVP, or KBC: 16S metabarcoding after respective growth on TSA 10%, CVP, or KBC. UD: Upper Durance, MD: Middle Durance, LD: Lower Durance.
Figure 5. β-diversity partitioning between treatments. Each bar on the histogram represents the β-diversity between two different treatments. The two components of β-diversity, turnover (β.sim) and nestedness (β.sne), are respectively represented in green and yellow. Errors bars represent the standard deviation between the three replicates. ENV: direct 16S metabarcoding of sampled water, TSA 10%, CVP, or KBC: 16S metabarcoding after respective growth on TSA 10%, CVP, or KBC. UD: Upper Durance, MD: Middle Durance, LD: Lower Durance.
Microorganisms 08 01129 g005
Microorganisms 08 01129 g006 550
Figure 6. Analysis of specific/shared operational taxonomic units (OTUs) between cultured and environmental samples. For environmental samples, bars represent specific and shared OTUs between environmental and all cultured samples. For cultured samples, bars represent specific and shared OTUs between each cultured medium and environmental samples. Error bars represent the standard deviation between the three replicates.
Figure 6. Analysis of specific/shared operational taxonomic units (OTUs) between cultured and environmental samples. For environmental samples, bars represent specific and shared OTUs between environmental and all cultured samples. For cultured samples, bars represent specific and shared OTUs between each cultured medium and environmental samples. Error bars represent the standard deviation between the three replicates.
Microorganisms 08 01129 g006
Table
Table 1. Average values of physicochemical and biological parameters at the sampling sites.
Table 1. Average values of physicochemical and biological parameters at the sampling sites.
Water CharacterizationEstimated CFUs/Plate
SiteAlt. mTemp. °CConductivity µSDOC mg C/LTurbidity NTUTSA 10% CFUs/PlateKBC CFUs/PlatePCR Estimated Psy/KBC Plate% Estimated Psy/tot CFUs KBCCVP CFUs/PlateVisual Detection of CFUs SRP $/Plate% CFUs SRP $/tot CFUs CVP
UD79010.53540.9385.82.20 × 1059.47 × 1021009.41.38 × 10300
MD62011.46090.673.14.36 × 1058.88 × 102505.81.91 × 10300
LD18815.25111.0331.83.40 × 1055.75 × 103130.23.55 × 103170.48
CFUs: colony-forming units; DOC: dissolved organic carbon; NTU: normalized turbidity unit; TSA 10%, KBC, CVP: culture media; Psy: P.syringae, SRP: soft rot Pectobacteriaceae.
Table
Table 2. Sequencing data, α-diversity, and species evenness.
Table 2. Sequencing data, α-diversity, and species evenness.
Direct 16S Sequencing16S Sequencing after Culture on
Culture Medium-TSA 10%CVPKBC
SiteUDMDLDUDMDLDUDMDLDUDMDLD
Total reads85,599 ± 2938101,035 ± 307584,069 ± 1185490,608 ± 1033378,434 ± 867998,430 ± 1213076,154 ± 747081,785 ± 935872,327 ± 1357299,951 ± 334271,423 ± 563394,730 ± 1673
Assigned reads60,248 ± 351673,796 ± 173554,233 ± 716148,712 ± 271539,252 ± 358452,778 ± 350641,229 ± 636845,519 ± 498142,132 ± 666454,372 ± 135737,808 ± 477250,880 ± 4019
Good’s coverage0.994 ± 2.10−40.996 ± 9.10−40.994 ± 0.000.999 ± 1.10−40.999 ± 1.10−40.999 ± 1.10−40.999 ± 6.10−50.999 ± 1.10−40.999 ± 7.10−50.999 ± 1.10−40.999 ± 7.10−50.999 ± 2.10−4
OTUs3793 ± 3132142 ± 1321269 ± 143736 ± 108699 ± 38640 ± 71392 ± 10333 ± 49349 ± 37444 ± 49281 ± 48407 ± 30
Shannon H Index6.76 ± 0.055.47 ± 0.183.93 ± 0.103.16 ± 0.243.20 ± 0.142.61 ± 0.061.74 ± 0.301.78 ± 0.171.80 ± 0.262.33 ± 0.162.09 ± 0.082.09 ± 0.26
Pielou J Index0.82 ± 0.000.71 ± 0.030.55 ± 0.010.48 ± 0.040.49 ± 0.020.40 ± 0.010.29 ± 0.050.31 ± 0.020.31 ± 0.040.38 ± 0.030.37 ± 0.020.35 ± 0.04
Phyla42 ± 137 ± 129 ± 16 ± 15 ± 05 ± 04 ± 15 ± 05 ± 05 ± 05 ± 15 ± 0
Genera736 ± 13540 ± 26339 ± 10120 ± 390 ± 897 ± 347 ± 248 ± 348 ± 449 ± 241 ± 544 ± 3
Mean and standard deviation (three replicates) are indicated. TSA 10%, KBC, CVP: culture media.
Table
Table 3. Culture detection of abundant environmental OTUs: focus on the Pseudomonas genus.
Table 3. Culture detection of abundant environmental OTUs: focus on the Pseudomonas genus.
SitePseudomonas
Pseudomonas Reads% Total ReadsEnrichment Factor Medium:Environment
ENVUD4610.49NA
MD4540.49NA
LD860.09NA
CVPUD7871984.41171
MD7806183.70172
LD6977274.81811
KBCUD4240645.4792
MD5432158.25119.
LD2783529.85324
TSAUD79198.4917
MD87169.3519
LD50315.3958
Table
Table 4. Culture detection of rare OTUs: focus on the Pectobacterium genus.
Table 4. Culture detection of rare OTUs: focus on the Pectobacterium genus.
SitePectobacterium
CFUs SRP% Total CFUsSRP Reads% Total Reads
ENVUDNANA00
MDNANA00
LDNANA00
CVPUD00160.017
MD0020.002
LD510.489280.995

Share and Cite

MDPI and ACS Style

Pédron, J.; Guyon, L.; Lecomte, A.; Blottière, L.; Chandeysson, C.; Rochelle-Newall, E.; Raynaud, X.; Berge, O.; Barny, M.-A. Comparison of Environmental and Culture-Derived Bacterial Communities through 16S Metabarcoding: A Powerful Tool to Assess Media Selectivity and Detect Rare Taxa. Microorganisms 2020, 8, 1129. https://doi.org/10.3390/microorganisms8081129

AMA Style

Pédron J, Guyon L, Lecomte A, Blottière L, Chandeysson C, Rochelle-Newall E, Raynaud X, Berge O, Barny M-A. Comparison of Environmental and Culture-Derived Bacterial Communities through 16S Metabarcoding: A Powerful Tool to Assess Media Selectivity and Detect Rare Taxa. Microorganisms. 2020; 8(8):1129. https://doi.org/10.3390/microorganisms8081129

Chicago/Turabian Style

Pédron, Jacques, Léa Guyon, Amandine Lecomte, Lydie Blottière, Charlotte Chandeysson, Emma Rochelle-Newall, Xavier Raynaud, Odile Berge, and Marie-Anne Barny. 2020. "Comparison of Environmental and Culture-Derived Bacterial Communities through 16S Metabarcoding: A Powerful Tool to Assess Media Selectivity and Detect Rare Taxa" Microorganisms 8, no. 8: 1129. https://doi.org/10.3390/microorganisms8081129

APA Style

Pédron, J., Guyon, L., Lecomte, A., Blottière, L., Chandeysson, C., Rochelle-Newall, E., Raynaud, X., Berge, O., & Barny, M.-A. (2020). Comparison of Environmental and Culture-Derived Bacterial Communities through 16S Metabarcoding: A Powerful Tool to Assess Media Selectivity and Detect Rare Taxa. Microorganisms, 8(8), 1129. https://doi.org/10.3390/microorganisms8081129

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
