Article

Isolation and Propagation of Laboratory Strains and a Novel Flea-Derived Field Strain of Wolbachia in Tick Cell Lines

1
Tropical Infectious Diseases Research and Education Centre, Level 2, High Impact Research Building, University of Malaya, Kuala Lumpur 50603, Malaysia
2
Department of Entomology, University of Minnesota, 219 Hodson Hall, 1980 Folwell Avenue, Saint Paul, MN 55108, USA
3
Department of Infection Biology and Microbiome, Institute of Infection, Veterinary and Ecological Sciences, University of Liverpool, 146 Brownlow Hill, Liverpool L3 5RF, UK
4
College of Veterinary Medicine, University of Al-Qadisiyah, Qadisiyah 54004, Iraq
5
Departments of Vector Biology and Tropical Disease Biology, Centre for Neglected Tropical Disease, Liverpool School of Tropical Medicine, Pembroke Place, Liverpool L3 5QA, UK
*
Author to whom correspondence should be addressed.
Microorganisms 2020, 8(7), 988; https://doi.org/10.3390/microorganisms8070988
Submission received: 10 June 2020 / Revised: 29 June 2020 / Accepted: 30 June 2020 / Published: 1 July 2020
(This article belongs to the Special Issue Wolbachia and Other Selfish Symbionts of Arthropods)

Abstract

:
Wolbachia are intracellular endosymbionts of several invertebrate taxa, including insects and nematodes. Although Wolbachia DNA has been detected in ticks, its presence is generally associated with parasitism by insects. To determine whether or not Wolbachia can infect and grow in tick cells, cell lines from three tick species, Ixodes scapularis, Ixodes ricinus and Rhipicephalus microplus, were inoculated with Wolbachia strains wStri and wAlbB isolated from mosquito cell lines. Homogenates prepared from fleas collected from cats in Malaysia were inoculated into an I. scapularis cell line. Bacterial growth and identity were monitored by microscopy and PCR amplification and sequencing of fragments of Wolbachia genes. The wStri strain infected Ixodes spp. cells and was maintained through 29 passages. The wAlbB strain successfully infected Ixodes spp. and R. microplus cells and was maintained through 2–5 passages. A novel strain of Wolbachia belonging to the supergroup F, designated wCfeF, was isolated in I. scapularis cells from a pool of Ctenocephalides sp. cat fleas and maintained in vitro through two passages over nine months. This is the first confirmed isolation of a Wolbachia strain from a flea and the first isolation of any Wolbachia strain outside the “pandemic” A and B supergroups. The study demonstrates that tick cells can host multiple Wolbachia strains, and can be added to panels of insect cell lines to improve success rates in isolation of field strains of Wolbachia.

1. Introduction

Wolbachia is a genus of obligate intracellular endosymbiotic gram-negative bacteria of the family Anaplasmataceae in the order Rickettsiales. Wolbachia infect two phyla in the Ecdysozoa: the Arthropoda and the Nematoda, with a much broader range of host species in the former than in the latter. Although only one species, Wolbachia pipientis, has been formally described [1], the genus has been separated by multi-locus sequence typing (MLST) into ~18 clades or “supergroups” [2,3,4]. Core genome alignments for supergroups suggest that they can be considered at least equivalent to species rank, with some containing sufficient diversity for more than one species [5]. Wolbachia is best known for its ability to induce five distinct reproductive manipulations in arthropod hosts (cytoplasmic incompatibility (CI), induction of parthenogenesis, male killing, feminisation and meiotic drive), all of which favour its spread by reducing resource competition from males (a dead-end host) or imposing a fitness cost on uninfected females [6,7,8,9]. However, these parasitic phenotypes appear to be largely confined to the “pandemic” supergroups A and B that infect ~50% of terrestrial arthropod species [10,11]. In other cases, Wolbachia form obligate and putatively beneficial relationships with their hosts, including strains from supergroups C and D in nematodes and E in springtails [12,13].
Wolbachia is found in most of the major groups of haematophagous arthropods, including biting Diptera and Hemiptera, fleas, lice and parasitic mites [14,15,16,17,18,19,20,21,22,23,24,25,26]. The CI phenotype, in which the progeny of crosses between infected males and uninfected females (or females carrying an incompatible Wolbachia strain) die early in development, is common in blood-feeding Diptera [21,25,27]. In contrast, a supergroup F Wolbachia strain in bedbugs is a nutritional mutualist, providing B vitamins for its host that are deficient in the blood meal [18,20]. Wolbachia has long been of applied interest for disease control, as release of Wolbachia-infected male pest insects can suppress natural populations where the females are uninfected or harbour an incompatible strain [28]. In filarial nematodes that cause neglected tropical diseases such as onchocerciasis and lymphatic filariasis, elimination of Wolbachia using antibiotics can safely clear adult worm infections, unlike conventional anthelmintics [29]. Finally, Wolbachia infections can suppress the dissemination and transmission of pathogens in insects, especially when transinfected into a novel host [30]. This phenomenon is the basis for several control programmes releasing Wolbachia-infected Aedes aegypti to reduce the transmission of dengue and other arboviruses [31].
The order Ixodida is the only large group of haematophagous arthropods in which the status of Wolbachia infections still remains ambiguous. While many studies have reported the presence of Wolbachia in ticks using molecular methods [32,33,34,35,36,37,38,39,40,41,42,43,44,45], it is unclear whether ticks are themselves infected with Wolbachia, or if the bacteria are present within cells of species of the parasitic wasp genus Ixodiphagus [46] or other parasites of ticks such as nematodes [39] or mites. Recent studies have yielded strong indications that the latter scenario may be the correct one, as Wolbachia-positive Ixodes ricinus ticks are almost always positive for Ixodiphagus DNA [47,48].
However, the question remains whether or not tick cells are capable of supporting infection and growth of Wolbachia. To answer this, we first tested the ability of cell lines with known broad susceptibility to infection with intracellular bacteria, derived from I. ricinus, Ixodes scapularis and Rhipicephalus microplus, to support the replication of two laboratory strains of Wolbachia derived from different insect hosts. We then applied an I. scapularis cell line in an attempt to isolate Wolbachia or other intracellular bacteria from field-collected fleas in Malaysia.

2. Materials and Methods

2.1. Tick Cell Lines

The I. scapularis cell lines ISE6 [49] and ISE18 [50] and the I. ricinus cell line IRE11 [51] were maintained at 28 °C or 32 °C in L-15C300 medium supplemented with 10% tryptose phosphate broth (TPB), 10% foetal bovine serum (FBS) and 0.1% bovine lipoprotein (MP Biomedicals, Solon, OH, USA) [52]. The I. scapularis cell line IDE8 [50] was maintained in flat-sided culture tubes (Nunc, Thermo Fisher, Loughborough, UK) at 32 °C in L-15B medium [53] supplemented with 10% TPB, 10% FBS, 0.1% bovine lipoprotein, 2 mM L-glutamine and antibiotics (100 units/mL penicillin and 100 µg/mL streptomycin). The R. microplus cell line BME/CTVM23 [54] was maintained in flat-sided culture tubes at 28 °C in L-15 (Leibovitz) medium supplemented with 10% TPB, 20% FBS, 2 mM L-glutamine and antibiotics. All cell lines were maintained with weekly medium change and subculture at 1–3 monthly intervals.

2.2. Wolbachia Strains

For experiments with Ixodes spp. cell lines, the wStri strain, originally isolated from the small brown planthopper Laodelphax striatellus into the Aedes albopictus cell line NIAS-AeAl-2 [55] and kindly provided by H. Noda, National Institute of Agrobiological Sciences, Tsukuba, Japan [56], was propagated in AeAl-2 cells maintained in L-15C300 supplemented as above. The wAlbB strain, originally isolated from the mosquito Ae. albopictus into the Ae. albopictus cell line Aa23 [57] and kindly provided by S.L. Dobson, University of Kentucky, was propagated in Aa23 cells also maintained in supplemented L-15C300 medium. For experiments with the R. microplus cell line BME/CTVM23, the wAlbB strain, originally provided by Scott O’Neill, Yale University School of Medicine, was transferred from Aa23 cells to Ae. albopictus C6/36 cells [58] maintained in a 1:1 mixture of Schneider’s modified Drosophila medium (Merck, Sigma Aldrich, Gillingham, UK) and Mitsuhashi and Maramorosch medium (Geneflow Custom Media, Geneflow, Lichfield, UK) supplemented with 10% FBS and 2 mM L-glutamine. Infected mosquito cell cultures were maintained at 28 °C with weekly medium change and occasional subculture.

2.3. Preparation of Cell-Free Wolbachia Suspensions and Inoculation of Tick Cell Lines

For experiments with wAlbB and wStri in Ixodes spp. cell lines, cell-free Wolbachia were initially used to inoculate tick cell cultures. Wolbachia were released from heavily infected Ae. albopictus cells by forcibly passing infected cell suspensions through a 25 G needle. The resultant suspension was filtered through a 2 µm syringe filter and inoculated into tick cell cultures. To enhance infection rates, filtered Wolbachia were transferred to a 2 mL microfuge tube containing tick cells (1–2 × 106 cells/mL in 1.5 mL) centrifuged at 5000× g for 5 min and allowed to sit at room temperature for 30 min prior to seeding into culture flasks [59]. Cultures were incubated at 28 °C (wAlbB) or 32 °C (wStri). Once established in tick cell lines, Wolbachia were maintained by inoculating uninfected tick cell cultures with a suspension of infected cells at dilutions of 1:5 for wAlbB and 1:10–1:20 for wStri.
For experiments with wAlbB in R. microplus cells, a 1.2 mL aliquot of resuspended infected C6/36 cells was diluted with a further 0.5 mL Schneider’s modified Drosophila medium, passed ten times through a bent 26-gauge needle and centrifuged at 1500× g for 5 min. A 0.3 mL aliquot of the supernate was added to a 2.2 mL culture of BME/CTVM23 cells in a flat-sided culture tube, and to an uninfected culture of C6/36 cells in L-15 (Leibovitz) medium supplemented as above but with 10% FBS, in a flat-sided tube. Cultures were incubated at 28 °C; once established, Wolbachia were subcultured by passaging resuspended infected BME/CTVM23 onto fresh cells at a dilution of ~1:10.

2.4. Preparation of Homogenate from Field-Collected Fleas

Ctenocephalides sp. fleas were collected from domestic cats from a village of indigenous people, also known as the Orang Asli, in Perak, Malaysia (4°18′53″ N, 100°55′49″ E). All field sampling was conducted with the approval of the University of Malaya Institutional Animal Care and Use Committee as well as the Department of Orang Asli Development in Malaysia. Live fleas were immobilised at −80 °C for 15 min and identified to genus level using morphological keys [60], followed by surface decontamination by immersing the fleas into 0.1% benzalkonium chloride solution for 5 min. The fleas were then rinsed with 70% ethanol followed by sterile water and allowed to dry on a piece of sterile filter paper. The flea exoskeleton was cut open with a sterile needle to separate the internal organs from the exoskeleton. Organs from five individual fleas were pooled and transferred into flat-sided culture tubes previously seeded with IDE8 cells in complete L-15B medium containing antibiotics. The combined cell and organ cultures were maintained at 28 °C with weekly medium change (3/4 volume). Once bacterial infection was established, subculture was performed by transferring 0.2 mL of supernate from the infected culture to a fresh tube of IDE8 cells.

2.5. Examination of Wolbachia-infected Cultures by Microscopy

Live infected tick cell cultures were monitored by weekly inverted microscope examination. At intervals of 1–7 weeks post inoculation (p.i.) for cultures inoculated with wAlbB and wStri, and at 8 months p.i. for cultures inoculated with flea organs, tick cells were resuspended by pipetting and cytocentrifuge smears were prepared from small aliquots (~50 µL) of cell suspension, stained with Giemsa and examined at ×500–1000 magnification. Wolbachia-infected BME/CTVM23 cells were prepared for transmission electron microscopy as described previously [61].

2.6. Molecular Confirmation of Wolbachia and Host Cell Identity

At intervals, 200–500 µL samples of whole culture suspension were collected and DNA was extracted using commercial kits (Qiagen, Germantown, MD, USA; Qiagen, Manchester, UK; Macherey-Nagel, Düren, Germany) following the manufacturers’ instructions. Standard PCR amplification of fragments of the pan-bacterial 16S rRNA sequence and Wolbachia wsp, coxA, fbpA, ftsZ, hcpA and gatB genes was carried out according to published protocols [3,33]. All standard PCR amplifications included a negative control (water) and appropriate positive controls: DNA extracted from wStri-infected NIAS-AeAl-2 cells, wAlbB-infected Aa23 or C6/36 cells for Wolbachia-specific PCRs or Rickettsia raoultii-infected BME/CTVM23 cells [62] for the pan-bacterial 16S rRNA PCR. PCR products were visualised by agarose gel electrophoresis, and positive PCR products were purified using commercial kits (Qiagen, Germantown, MD, USA; New England Biolabs, Hitchin, UK; Macherey-Nagel, Düren, Germany) and sequenced from both ends using a Sanger sequencing service. To confirm the identity of the bacteria in wAlbB-infected BME/CTVM23 cells and the absence of contaminating mosquito cells, qPCR amplification of fragments of the Wolbachia 16S rRNA and mosquito 18S rRNA genes was carried out as described previously [63]. Wolbachia counts were normalised against tick cell counts generated by the amplification of fragments of the tick rpl6 gene as described previously [64]. All qPCR assays were run on a CFX Connect Real-Time PCR Detection System (Bio Rad, Watford, UK). A dilution series of synthetic oligonucleotides representing the full-length amplicons were used as standards for quantification by linear regression in CFX Manager software.

2.7. Sequence and Phylogenetic Analyses

Pair-end sequences obtained from PCR amplicons were assembled to produce a corrected consensus using 4Peaks (Nucleobytes B.V., Aalsmeer, The Netherlands) and Clustal Omega [65]. The sequences were then compared with published sequences using BLASTN against the non-redundant database at the National Center for Biotechnology Information (NCBI) GenBank and the Wolbachia MLST database on PubMLST [66]. The sequences were quality-trimmed manually and aligned with voucher sequences using Clustal Omega [65]. The phylogenetic relationship of the novel Wolbachia sp. isolated in this study with other existing Wolbachia sp. was inferred using the Bayesian Markov chain Monte Carlo in MrBayes 3.2 [67], with codon partitions, two runs of 3 million generations, four chains per run, sampling every 1000 trees generated and burn-in of 25% trees for each dataset. The best-fit model of nucleotide substitution was estimated by Akaike information criterion (AIC) as implemented in jModelTest 2.1.7 [68]. The models selected were GTR+G+I for 16S rRNA, GTR+G for concatenated genes of the Wolbachia MLST scheme [3], GTR+I for coxA, HKY+G for fbpA and GTR+G for the remaining genes.

3. Results

3.1. Propagation of Wolbachia Strains wStri and wAlb1 in Ixodes spp. Cell Lines

Cell-free Wolbachia strain wStri bacteria, harvested from heavily-infected AeAl-2 cells (Figure 1a), were initially used to infect ISE6, ISE18 and IRE11 cells. Once infection was established (Figure 1b), wStri grew equally well in all three tick cell lines, and was routinely maintained in ISE6 cells by diluting infected cells with uninfected cells 1:10 or 1:20 every 10 to 20 days through 29 passages over a 14-month period. Cell-free Wolbachia harvested from infected ISE6 cells were pleomorphic, including round, rod- and crescent-shaped bacteria (Figure 1c). There was a pathological effect of wStri on ISE6 cells (Figure 1d) and it was necessary to subculture infected cells onto fresh cell layers. Infected cells were hypertrophied and pyknotic.
Cell-free Wolbachia strain wAlbB bacteria, harvested from heavily-infected Aa23 cells, were initially used to infect ISE6, ISE18 and IRE11 cells. All three cell lines were successfully infected; wAlbB grew more slowly than wStri, without causing any obvious cytopathic effects, and was routinely maintained in ISE6 cells by diluting infected cells with uninfected cells 1:5 every 4 weeks through 5 passages over a 5-month period.

3.2. Propagation of Wolbachia Strain wAlbB in a R. microplus Cell Line

A single BME/CTVM23 culture was inoculated with cell-free wAlbB bacteria harvested from C6/36 cells and incubated at 28 °C. A single C6/36 culture was inoculated at the same time as a positive control. Weekly inverted microscope examination did not reveal any obvious deleterious effects on the tick or mosquito cells. Intracellular bacteria were detected 2 weeks p.i. in both tick and mosquito cells; as expected, the C6/36 cells were heavily infected by week 4, while in BME/CTVM23 cells the bacteria gradually increased in both infection rate (from <1% to 5% cells infected) and infection level (from <10 to >50 bacteria per cell) over the subsequent 4 months. Then, during the following 6 weeks, the bacterial growth rate increased rapidly until around 50% of cells were infected with up to >100 bacteria visible per cell. At this point the first subculture onto fresh BME/CTVM23 cells was carried out; four weeks later this passage 1 culture was heavily infected and was passaged onto fresh BME/CTVM23 cells after a further 7 weeks. The passage 2 culture displayed a heavy infection between 8 and 12 weeks later (Figure 2a,b).
Transmission electron microscope examination of wAlbB-infected BME/CTVM23 cells at passage 1, 10 months after initial infection, revealed putative double membrane-bound bacteria resembling Wolbachia propagated in infected mosquito cell lines [56,69] and observed in the sand flea Tunga penetrans [14], the filarial nematode Brugia malayi [70] and the fruit fly Drosophila melanogaster [71]. Bacteria were seen either within membrane-bound compartments shared with a variety of structures including host-cell components (membranous whorls) and possible vesicles of bacterial origin, as reported previously [70] (Figure 3a–d,f,g), or apparently free in the cytoplasm (Figure 3e,g). These structures were easily distinguished from host cell mitochondria in which cristae were visible (Figure 3b,f,g).
Amplification by Wolbachia 16S rRNA qPCR confirmed the identity of the bacteria in the cultures and revealed a wAlbB infection level in the BME/CTVM23 cells of over 1000 bacteria per haploid host genome-equivalent. The failure to amplify by qPCR any product from the same sample using mosquito 18S rRNA primers confirmed the absence of contaminating C6/36 cells in the infected tick cell culture.

3.3. Isolation and Propagation of a Novel Wolbachia Strain from Malaysian Cat Fleas

Seven pools of flea organs were inoculated into separate IDE8 cell cultures; of these, a single pool of five individual Ctenocephalides sp. female flea organs yielded a Wolbachia 16S rRNA and wsp PCR-positive culture. A fragment of the Wolbachia wsp gene was amplified from DNA extracted from the culture at three months p.i. and was still detectable by PCR at the time of writing (nine months p.i.). The Wolbachia wsp gene was also detectable by PCR in passages 1 and 2 at one month after subculture. The infected cells did not exhibit any cytopathic effects detectable by weekly inverted microscope examination. Intracellular bacteria were observed in Giemsa-stained cytocentrifuge smears prepared from the parent culture at eight months p.i., with approximately 25% of cells infected (Figure 4a,b). To further characterise the bacterium isolated from the Malaysian cat fleas, fragments of the Wolbachia coxA, fbpA, ftsZ, hcpA and gatB genes were also amplified from DNA extracted from the parent infected IDE8 cell culture at 5 months p.i. The resultant sequences from the novel Wolbachia isolate, designated wCfeF, were deposited in the NCBI GenBank database under accession numbers MT584103 (16S rRNA), MT577878 (coxA), MT577879 (fbpA), MT577880 (ftsZ), MT577881 (gatB) and MT577882 (hcpA), and compared with published sequences to determine its relationship with other Wolbachia strains.

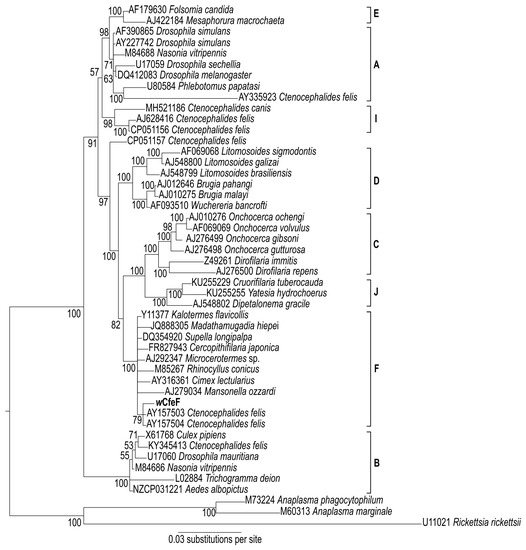

A phylogenetic tree based on partial 16S rRNA sequences (Figure 5) positioned the wCfeF isolate within the clade consisting of arthropod and filarial Wolbachia strains from the F supergroup (posterior probability = 100). These include two Wolbachia strains previously identified in Ctenocephalides felis from Georgia, USA [15]. However, since only a short fragment of the 16S rRNA gene was used for phylogenetic construction, further investigation using additional gene sequences was necessary to determine its phylogenetic position. For this we used the concatenated and individual gene sets from the Wolbachia MLST scheme: fragments of the coxA, fbpA, ftsZ, hcpA and gatB genes [3]. The phylogeny of the concatenated MLST genes showed the clustering of wCfeF with Wolbachia strains from the F clade, including those from insects such as Supella longipalpa (Blattodea), Paratrechina longicornis (Hymenoptera) and Cimex lectularius (Hemiptera) (Figure 6a). Phylogenies based on individual genes showed similar positioning of wCfeF within the F clade (Figure 6b–f). In these phylogenies, the current isolate appeared to be distinct from the other Wolbachia strains from C. felis that fall within other clades [26]. Altogether, the findings here support the placement of the wCfeF isolate within the F supergroup.

4. Discussion

It is clear from our results that Wolbachia can invade and replicate in tick cells, at least in vitro. We demonstrated susceptibility of three cell lines derived from I. scapularis and one each from I. ricinus and R. microplus. Two laboratory-cultured strains and one novel field strain of Wolbachia, originating from diverse insect groups (mosquitoes, leafhoppers and fleas) and belonging to different supergroups (B and F), were able to infect and grow in tick cells. Special procedures, such as the shell vial technique or centrifugation, were not necessary for the initial infection of tick cells with Wolbachia, and infected cultures were maintained for long periods without the need for special incubation conditions. As seen in chronically-infected mosquito cell cultures [69,72], tick cell cultures infected with Wolbachia strains wAlbB and wCfeF did not display any cytopathic effect over prolonged periods in vitro. In contrast, Ixodes spp. cultures heavily infected with the wStri strain displayed cytopathic effects, manifest as hypertrophied or pyknotic cells; the same strain in mosquito cells (AeAl-2) caused heavily infected cells to lose the ability to attach to a surface [56].
Considered together, all the tick cell lines used in the present study have previously been shown to be permissive for a wide range of intracellular bacteria transmitted and/or harboured by invertebrates. These include representatives of the genera Anaplasma [73,74], Cardinium [49,75], Ehrlichia [76,77,78], Neoehrlichia [79,80], Mycobacterium [81], Rickettsia [51,54,62,82,83,84] and Spiroplasma [62,85]. A previous study reported the propagation of a bacterium, then known as Wolbachia persica, in a Dermacentor albipictus tick cell line [86], but this bacterium was later found to belong to the genus Francisella [87]. Although the majority of these bacteria are tick-transmitted, exceptions include the predominantly flea-transmitted Rickettsia felis [83] and Mycobacterium leprae, the causative agent of leprosy, transmission of which may be associated with biting insects and ticks [81,88]. Tick cells similarly support the replication of a wide range of arboviruses transmitted not only by ticks but also by mosquitoes, sand flies and midges [89]. Therefore, it is not surprising that tick cell lines should be susceptible to infection with multiple strains of Wolbachia of insect origin. The ability of the novel Malaysian flea-derived Wolbachia isolate to infect and grow in a tick cell line confirmed the usefulness of tick cell lines in cultivating bacterial species of which ticks are not the natural hosts.
The cell lines used in the present study were also chosen because they belong to species in which Wolbachia has been detected by molecular techniques: I. scapularis [33,44], I. ricinus [34,35,36,38,43] and R. microplus [37,41]. Other tick species reported to harbour Wolbachia DNA include the ixodid ticks Amblyomma americanum [39], Rhipicephalus sanguineus [32], Dermacentor silvarum [45] and Haemaphysalis hystricis [40] and the argasid tick Ornithodoros rietcorreai [42]. None of these studies included a screen for insect DNA; concordance between the presence of Wolbachia and nematodes was not demonstrated [39]. To date, only two studies on I. ricinus [47,48] have attempted to make the connection between Wolbachia and parasitic insects by screening samples for the presence of DNA from both bacteria and the parasitic wasp Ixodiphagus hookeri.
The intracellular morphology of the Wolbachia strains, as revealed in Giemsa-stained smears, was quite similar to that of other members of the Rickettsiales propagated in tick cell lines, such as Anaplasma marginale, Ehrlichia ruminantium, Neoehrlichia mikurensis and Rickettsia raoultii [54,73,77,80]. Purple-staining, pleomorphic bacteria were located singly or in small groups in the cytoplasm; no bacteria were seen in cell nuclei. The ultrastructural morphology of the wAlbB strain in BME/CTVM23 cells was more difficult to interpret. Readily-identifiable bacteria, such as those seen in R. raoultii-infected cells of the same line [54], were not obvious. Where bacteria could be identified, they were generally situated within large, membrane-bound vacuoles also occupied by a variety of structures commonly seen in electron micrographs of tick cells (lipid membrane whorls and vesicles of varying size and shape). The origin of the vesicles is unclear; the presence of secretory vesicles in vacuoles occupied by the wMelPop strain of Wolbachia in D. melanogaster brain cells was reported previously [71], and the authors speculated that these could have originated from the endoplasmic reticulum. However, in a detailed ultrastructural study of Wolbachia in B. malayi nematodes, immunogold labelling was used to show that vesicles found in association with Wolbachia were of bacterial origin [70].
Although over a dozen Wolbachia strains (including wStri, wAlbB and wMelPop) can be propagated continuously within insect cell culture systems, they belong exclusively to the more well-characterised A and B supergroups [69,72,90]. To the best of our knowledge, the new Malaysian Wolbachia strain is the only F supergroup member to be isolated into a cell line to date, the only flea-derived strain to be conclusively isolated and propagated over a prolonged period and the only Wolbachia field strain to be isolated into a tick cell line. A previous study did report the isolation of Wolbachia-like organisms from C. felis alongside Rickettsia felis in ISE6 cells; however, these putative Wolbachia were only identified morphologically and molecular confirmation was not presented [91].
The Wolbachia F supergroup is unique as members have been found in both arthropod and nematode hosts [92,93]. A previous study experimentally demonstrated a nutritional mutualism relationship between an F supergroup Wolbachia (wCle) and its host, the bedbug Cimex lectularius [20]. To the best of our knowledge, the only phenotypic data pertaining to Wolbachia infection in a flea was a comparison between laboratory and wild populations of the gerbil flea, Synosternus cleopatrae, that detected a negative impact of infection on reproductive success in the laboratory colony but not in the wild population [94]. Interestingly, the recent completion of the C. felis genome from a laboratory colony in California led to the generation of two complete Wolbachia genomes, neither of which was placed in supergroup F [26]. One of these genomes, designated wCfeT, contains a complete biotin synthesis operon and may be involved in providing nutrients to the host cell. The second genome, wCfeJ, encodes a toxin-antidote system similar to that responsible for CI in dipteran hosts. However, experimental confirmation of mutualistic or parasitic roles for these Wolbachia in C. felis has not been published. The availability of a Wolbachia isolate from the F supergroup growing in a cell line will allow for further genetic and phenotypic characterisation at the cellular level, which could be useful in elucidating the Wolbachia-host relationship for this particular strain.
Despite the completion of the C. felis genome project and the detection of Wolbachia DNA in Ctenocephalides spp. fleas in several other studies [15,16,22,24,26], actual Wolbachia bacteria had not been visualised or isolated from fleas of this genus prior to the present study, although immunohistochemistry and transmission electron microscopy identified Wolbachia in the sand flea T. penetrans [14]. Sequence and phylogenetic analyses from separate studies suggest Ctenocephalides sp. fleas may not only host a wide range of Wolbachia strains from several distinct supergroups, but may also contain strains from a novel, divergent clade [15,16,22,26,93]. In Malaysia, DNA of Wolbachia from the B and F supergroups was detected in C. felis [22]; however, the sequences are not available in public databases for comparison with the novel wCfeF isolate. The phylogenies of 16S rRNA and the MLST scheme genes provided compelling evidence for the placement of the wCfeF isolate within the F supergroup, similar to the Wolbachia strains previously reported from North American C. felis [15].
Reports of Wolbachia from Malaysia and the wider Southeast Asian region have primarily concerned the A and B supergroup Wolbachia from mosquitoes, owing to national research priorities placed on mosquito-borne diseases [95,96,97]. A number of studies also investigated the presence of Wolbachia in other insects, such as the tephritid fruit flies and the butterfly Hypolimnas bolina, as well as filarial nematodes including Brugia pahangi and Onchocerca borneensis [98,99,100,101]. The present study represents the first isolation and genetic characterisation of a Wolbachia strain from Ctenocephalides sp. fleas in this region.

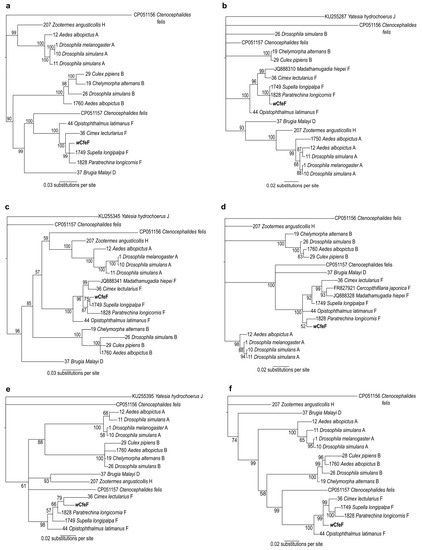

The phylogenies from the concatenated genes and a subset of individual MLST genes (coxA, fbpA and ftsZ) showed that wCfeF appeared to be closely related to Wolbachia strains from the longhorn crazy ant P. longicornis, and the brown-banded cockroach S. longipalpa [102,103]. Results from a recent study suggested the occurrence of horizontal transfer of F group Wolbachia between Myrmecophilus spp. ant crickets and their ant hosts, including P. longicornis [102]. Currently, the infection events contributing to the occurrence of multiple Wolbachia strains in C. felis are still not fully understood, although it has been suggested that the predation of fleas by other insect species could be a possible mode of transmission between distantly-related hosts [20].
It is important to consider the possibility of there being more than one Wolbachia strain within the wCfeF culture since the starting inoculum consisted of organs from five individual fleas. Examination of our sequencing trace files revealed a small number of double peaks at several nucleotide positions in some amplicon sequences, suggesting the possibility of strain variations. However, the phylogenies based on the individual genes indicate that, even if more than one strain was present, they must be closely related as the placement of the novel strain wCfeF within the F clade was consistent across all tested loci. Further studies, including whole genome sequencing, should be carried out to verify the phylogenetic relationship between wCfeF and other Wolbachia strains, to establish the host cell range capable of supporting its in vitro propagation, and to determine its relationship with such host cells. Moreover, the taxonomy and population genetics of Ctenocephalides spp. in South-East Asia is complex, with two “tropical clusters” of C. felis as well as C. orientis (previously C. f. orientis) being found in the region [104]. Due to the emphasis on bacterial isolation from fresh material in the current study, detailed morphometric or molecular characterisation of the fleas was not attempted, but it is important to note that C. orientis has a strong host preference for dogs and, to a lesser extent, small ruminants [104,105]. Therefore, further studies are needed to determine the possible range of flea species and subspecific clades harbouring wCfeF in Malaysia and the wider South-East Asian region.

5. Conclusions

Tick cell lines can now be added to panels of insect, predominantly mosquito, cell lines to enhance the capability to isolate field strains of Wolbachia from naturally-infected arthropods. The ability to propagate Wolbachia continuously in tick cell lines provides a platform to examine how these bacteria might modulate the replication of tick-borne arboviruses, bacteria and protozoa, potentially leading to novel control strategies for tick-borne diseases. In light of our demonstration, that tick cells are capable of supporting long-term infection with Wolbachia, the exact nature of the relationship between the bacterium, ticks and other parasitic arthropods such as Ixodiphagus in the field should be re-examined.
