Entrapped Psychrotolerant Yeast Cells within Pine Sawdust for Low Temperature Wine Making: Impact on Wine Quality

Antonia Terpou
Vassilios Ganatsios
Maria Kanellaki
* and
Athanasios A. Koutinas
Food Biotechnology Group, Section of Analytical Environmental and Applied Chemistry, Department of Chemistry, University of Patras, GR-26500 Patras, Greece
Authors to whom correspondence should be addressed.
Microorganisms 2020, 8(5), 764;
Submission received: 26 April 2020 / Revised: 7 May 2020 / Accepted: 19 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Substrate Tolerant Fermentations)


An alternative methodology is proposed for low temperature winemaking using freeze-dried raw materials. Pine sawdust was delignified and the received porous cellulosic material was applied as immobilization carrier of the psychrotolerant yeast strain Saccharomyces cerevisiae AXAZ-1. The immobilization of yeast cells was examined and verified by scanning electron microscopy (SEM). The immobilized biocatalyst and high-gravity grape must were separately freeze-dried without cryoprotectants and stored at room temperature (20–22 °C) for 3 months. The effect of storage on the fermentation efficiency of the immobilized biocatalyst at low temperatures (1–10 °C), as well as on the aromatic characteristics of the produced wines was evaluated. Storage time had no significant effect on the fermentation efficiency of the biocatalyst resulting in most cases in high ethanol production 13.8–14.8% v/v. The volatile fraction of the produced wines was examined using headspace solid-phase microextraction (HS-SPME) followed by gas chromatography mass spectrometry (GC/MS). GC-MS/SPME analysis along with the organoleptic evaluation revealed in all produced wines a plethora of fresh and fruit aromatic notes. To conclude, fermentation kinetics and aromatic profile evaluation encourages the production of high-quality sweet wines at low temperatures using pine sawdust (Pinus halepensis) entrapped yeast cells as a promoter.

Graphical Abstract

1. Introduction

Archaeometric studies date vine cultivation earlier and in regions of ancient Mesopotamia [1] while cultivation of grapes is known from Ancient Greece dating back at least 6000 years ago [2]. The technologies of viticulture and winemaking were widely developed along the Mediterranean region since grapes are an excellent raw material for winemaking. Nowadays, wine is an important component of the Mediterranean dietary tradition, while recent studies have moderated that its consumption reduces the incidences of coronary heart disease, atherosclerosis and platelet aggregation [3].
Towards a more sustainable processing of foods, the application of dry ingredients allows the industrial-scale production of standardized material and promotes the concept of global sourcing [4]. Drying of foods is a preservation method that aims to prolong the product shelf life and simplify its transport and storage. Freeze drying, or lyophilization, is a preservation process associated with food for minimum travel space, food for backpackers or ‘space food’. Freeze-drying yields a lightweight, high-quality, and easily rehydrated product that retains the original shape and most of the original constituents of the starting material [5]. As it has been demonstrated, bioactive compounds and vitamins, which are part of the grape raw material, remain unstable during storage [6]. On the other hand, the development of modern technologies for the preservation of food raw materials through freeze-drying allows the production of wine by freeze-dried grape must at any time of the year with lower costs [4,7].
Another important factor has been proved in recent years to be the valorization of agro-industrial waste attracting the attention of both industry and scientific research. Valorization of different residues has proved most intriguing exhibiting important results in many fields as is, for example, the valorization of lignocellulosic material which can be collected in large quantities from agricultural and forestry resources provided through upgrading biorefinery technologies fuels and chemicals [8]. Delignified cellulosic residues have also been applied as cell immobilization carriers being a low-cost high-abundant porous material deriving from many different agro-industrial applications [9,10]. For example, oak chips and cellulose powder have been successfully used for yeast immobilization in bottle-fermented sparkling wine [11] while wood sawdust has been successfully applied as a yeast cell immobilization carrier for alcoholic beverages production [12,13,14].
In recent decades new methods have been under study, targeting the improvement of the fermentation performance, aromatic profile and productivity of wines and alcoholic beverages [15,16]. It has been well established that the influence on the must composition and nutrients contained in must are of major importance regarding the evolution of the population of Saccharomyces cerevisiae in wine fermentation [17]. It is also well known that the aromatic profile of wine depends on various factors like grape variety, winemaking procedures and storage, maturation and aging, while the essential part of wine aroma is formed during alcoholic fermentation [18,19]. At the same manner, alcoholic fermentation at low temperature (4–20 °C) is a common practice used in white winemaking aiming to improve aromatic profiles by a high formation and retention of aromas. Furthermore, low temperature can improve the quality of wine in terms of volatiles, flavor, total acidity, pH, and alcohol production [14,20]. Another factor that has been proved to provide unique aromatic characteristics to wines is ageing in wooden barrels. As it is known from the ancient winery, when wood encounters wine valuable aromatic and flavor characteristics can be generated. This effect can be lost over time by the reuse of wooden barrels so alternative processes are currently being utilized by the wine industry such as the addition of wooden chips, sticks and staves [21]. Likewise, pine sawdust which is a cheap and abundant raw material may provide unique aromatic characteristics to wine products compatible to wooden barrel wine ageing [22,23].
The advantages of immobilized cell biocatalysts compared to free cell systems have been extensively revised through various natural supports, such as resins [15], fruits [24], membranes [25], gluten pellets [20,26] and delignified cellulosic residues [27,28,29]. Likewise, in recent years several immobilized yeast cell systems have been successfully proposed for use in alcoholic fermentation as yeast cells can be simply immobilized on a surface via natural adhesion [15,25,30].
Nowadays, making modifications to traditional practices or adopting novel bioprocess technologies has become of great interest in order to fulfill consumers expectations towards food products characterized by convenience, variety, adequate shelf-life, healthy properties, reasonable cost and environmental sustainability [15,31,32]. In this perspective, the role of emerging technologies in sweet winemaking is addressed towards enhanced volatile and flavor characteristics, reduced production time, optimized resources, extraction of high nutritional components provided by low temperature fermentation, high energy efficiency and extended shelf-life. Concerning the above-mentioned data and the need for novel, possible aromatic and cheap carrier systems of cell immobilization, the present work examines the use of S. cerevisiae AXAZ-1 psychrotolerant yeast immobilized on pine sawdust as a ready-to-use freeze-dried biocatalyst for low-temperature fermentation of high-density grape must. The main objective of current the study was to evaluate the efficiency of the produced biocatalyst along with high-density freeze-dried grape-must to perform alcoholic fermentation at low temperatures targeting the production of high-quality wine with enhanced aromatic characteristics.

2. Materials and Methods

2.1. The Psychrotolerant Yeast Strain S. cerevisiae AXAZ-1

The alcohol-resistant, psychrotolerant yeast strain Saccharomyces cerevisiae AXAZ-1 previously isolated from Greek grapes [33] was collected from the private collection of University of Patras. The yeast strain was grown in a synthetic medium consisting of (g L−1) 1 NH4SO4, 1 KH2PO4, 5 MgSO4 and 40 glucose previously sterilized (121 °C, 1–1.5 atm, 15 min). The sterile medium was inoculated with 4 g L−1 of the psychrotolerant yeast and incubated at 30 °C with aeration (500 cm3/min, 7 mbar) for 48 h. The culture was harvested by centrifugation at 5000 rpm for 10 min. For the cell immobilization procedure sterile synthetic media were prepared with the above composition of nutrients but containing enhanced glucose composition of 120 g L−1, pine sawdust and yeast suspension (see Section 2.2).

2.2. Tubular Cellulose as Immobilization Carrier

Pine sawdust was used as an immobilization carrier. Previously, pine sawdust was delignified by alkali treatment targeting increased porosity of the biocatalyst by lignin removal [12]. Delignified pine sawdust consisting mainly of cellulose (or tubular cellulose; abbrev TC) was autoclaved (121 °C, −1.5 atm, 15 min) prior use and used as carrier for the immobilization of the psychrotolerant and alcohol resistant yeast strain S. cerevisiae AXAZ-1.
The immobilization process was performed by suspending 7 g of the harvested wet yeast S. cerevisiae mixed with 20 g of dry tubular cellulose in 500 mL of glucose medium (120 g L−1) and leaving it undistributed at 30 °C for 24–48 h. When sugar content was below 0.1%, the fermented liquid was decanted, and the immobilized biocatalyst was washed twice with 12% (w/v) sterile glucose culture medium for free cells to be washed away. The immobilized cells were then frozen until −45 °C with a cooling rate of 3 °C/min. The frozen samples were freeze-dried under vacuum (5–15 × 10−3 bar) for 48–72 h in a Freeze Dry System, FreeZone 4.5 (Labconco, Kansas City, MO, USA). The condenser temperature was −44 ± 1 °C. The initial moisture content of the immobilized biocatalyst was 85–90% dry weight, and the dried material had a moisture content of approximately 5% dry weight. The immobilized biocatalyst was placed aseptically in air-tight containers with 14 g each and stored at 20–22 °C until use (0, 1, 2, 3 months).

2.3. Scanning Electron Microscopy

Freeze-dried pieces of pine sawdust along with freeze-dried pieces of the immobilized biocatalyst were coated with gold in a Balzers SCD 004 Sputter coater (Bal-Tec, Schalksmühle, Germany) for 2 min. The samples were examined in a JSM-6300 scanning electron microscope (JEOL, Tokyo, Japan), operated at an accelerating voltage of 20 kV. Scanning electron micrographs were obtained of both pine sawdust and the immobilized biocatalyst in order to reinsure yeast cell immobilization.

2.4. Preparation of Fermentation Composite

Grape must with an initial 12 °Be density and total acidity of 6 g tartaric acid/L, was frozen without cryoprotectants, until −45 °C (5 °C/min cooling rate). The frozen samples were freeze-dried under vacuum (5–15 × 10−3 bar) for 3–5 days with a condenser temperature at −45 ± 1 °C in a freeze-drying system as described above (Section 2.2). Finally, identical samples consisting of 68 g of lyophilized high-density grape must were prepared and stored at 20–22 °C to study the effect of storage time (0, 1, 2, 3 months).

2.5. High-Gravity Fermentation by Freeze-Dried Raw Materials

Winemaking with the freeze-dried raw materials included rehydration and mixing of the freeze-dried powders (grape must and immobilized biocatalyst). The freeze-dried immobilized biocatalyst was mixed with freeze-dried grape must and tap water was added to obtain the initial sugar concentrations. The freeze-dried powder mix was rehydrated with water in a ratio of 1:3 (1 kg of dry powder per 3 L of water) to a sugar content of 330 ± 2 g L−1 (glucose and fructose, 1:1). Specifically, 60 mL of tap water was mixed with 34 g of freeze-dried grape must reaching a total volume of 102 mL so that the initial sugar concentration was at the desired levels. The rehydrated grape-must was mixed with 14 g (dry mass) of the immobilized biocatalyst (containing 2.2 g of yeast representing a 11.9% of total volume) and introduced in a glass cylinder. This procedure was performed for all samples stored at various time intervals (30, 60 and 90 days, respectively) as well as for samples applied instantly for fermentation after preparation. Subsequently each mixture (immobilized biocatalyst and grape must) contained in 1 L cylindrical glass was placed for 48 h at 30 °C, and the temperature was gradually decreased to 10 °C within a period of 120 h and remained constant until the end of fermentation. The system was allowed to ferment in all cases without agitation. The fermentation was completed at 4.5–5° Be density as the fermentability of the biocatalyst was exhausted. The biocatalyst was collected using a sterile perforated fabric and the fermented liquid was filtered (1 micron beverage filter, BevBright, CA, USA) and stored at 5 °C [9]. No sulfur dioxide was added at the end of fermentation process.

2.6. Analytical Methods

2.6.1. Sugar Analysis

Residual sugar was determined by high-performance liquid chromatography (HPLC), using Shimadzu chromatograph with a SCR-101N stainless steel column, a LC-9A pump, a CTO-10A oven at 60 °C and a RID-6A refractive index detector. Distilled water (3D) was used as mobile phase with a flow rate of 0.8 mL min−1 and 1-butanol was used as an internal standard. Samples of wine (0.5 mL) containing 2.5 mL of 1-butanol 1% (v/v) solution were diluted to 50 mL and 40 μL of the solution were injected into the column. The residual sugar concentration was calculated using standard curves and expressed as g of residual sugar/L.

2.6.2. Ethanol Determination

Ethanol was determined on a Shimadzu GC-8A system, with a Teknokroma HAYE SEP Q 80/100 column, a C-R6A Chromatopack integrator, He as carrier gas with flow rate 20 mL/min, and a flame ionization detector (FID). The injection port and detector temperature were set at 210 °C. The column temperature was 130 °C. Wine samples of 2 μL were injected directly into the column. Determinations were performed by means of standard curves. Produced ethanol was expressed as % (v/v) of ethanol per total volume of substrate.

2.6.3. Solid Phase Microextraction (SPME) Gas Chromatography/Mass Spectrometry (GC/MS) Analysis

The identification and semi-quantitative analysis of the headspace volatiles was conducted by means of gas chromatography/mass spectrometry (GC/MS) using the solid phase microextraction method (SPME). GC/MS analysis was performed on a Shimadzu GC-17A gas chromatograph coupled to a Shimadzu MS QP5050 mass spectrometer. The conditions of headspace SPME sampling were as follows: 10 mL of wine sample, 2 g of NaCl, and 1.6 mg/L internal standard (4-methyl-2-pentanol) were transferred into a 20 mL headspace vial fitted with a Teflon-lined septum sealed with an aluminum crimp seal. The sealed samples were stirred in a tap bath for 5 min at 60 °C in order to achieve the appropriate temperature, and then the fiber was exposed to the headspace for 30 min. The fiber used was a 2 cm fiber coated with 50/30 mm divinylbenzene/carboxen on poly(dimethylsiloxane) bonded to a flexible fused silica core (Supelco, Bellefonte, PA, USA). Desorption of wine volatiles took place in the injector of the gas chromatograph in the splitless mode, at 240 °C for 3 min. Helium was used as the carrier gas at a flow rate of 1.8 mL min−1. The volatile compounds separation was performed on a capillary column (Supelco CO Wax-10 60 m, 0.32 mm i.d., 0.25 μm film thickness). The oven temperature was programmed at 35 °C for 6 min and then it was raised to 60, 200, and 250 °C with a rate of 2, 5, and 25 °C min−1, respectively. Then the temperature was maintained at 250 °C for 6 min. The injector and interface temperatures were set at 240 °C and 240 °C, respectively. The mass spectrometer was operated in a scan range of 45–400 m/z. Molecular identification of volatile compounds was carried out by comparing the mass spectra obtained from NIST107, NIST21 and SZTERP libraries, and by determining Kovats retention indexes and comparing with those reported in the literature.

2.7. Sensory Evaluation by Principal Component Analysis

Sensory evaluation of sweet wines was determined using a panel of 10 previously trained assessors (5 males and 5 females from 25 to 60 years, median of 36.5 years) who were consumers of red wine and did not have allergies concerning its consumption. The evaluators were selected from the Laboratory of Food Biotechnology Group of Chemistry Department of Patras University as they were wine experts with wide experience in wine production and the capacity to recognize and describe wine aroma. For wine tasting, ISO standard wine glasses of 155 mm height and total volume of 215 mL were used, covered with Petri dish [34] filled with ~20 mL of wine at room temperature (~18 °C). Sensory analysis was carried out in panel booths conforming to international standards (International standard, 2007). Wine samples were presented to the panel in a random order identified by random three-digit codes [35]. The evaluators were asked to taste the samples and score the intensity of the following attributes: fruity, sour, fresh, bitter, alcoholic, sweet, and floral on a 0–10 cm unstructured linear scale (the higher the number the greater the intensity) anchored with the words ‘‘high intensity” and ‘‘absence” on the right and left ends, respectively [35]. Panelists evaluated each attribute using the ten-point scale to compare wines produced by the proposed technology according to storage effects (Section 2.4). Finally, overall acceptability of produced sweet wines was also assessed.

2.8. Statistical Analysis

A three-way repeated measures analysis was applied to the values of each volatile component and the results are presented as mean values ± standard deviation. The significance of differences in the means of various groups was checked by One-way Analysis of Variance (ANOVA) at the 5% level of significance. p-values below 0.05 were considered significant. Fermentations were carried out in duplicate using separately stored substrates. Principal component analysis (PCA) was used for identification of flavor and aroma attributes of produced wines and was computed using PanelCheck V.1.4.2.

3. Results and Discussion

3.1. Pine Sawdust Supported Biocatalyst Applied for Low Temperature Wine Making

Tree species of pine are considered to be the most common in the Mediterranean region. It is know that pine trees cover over 25,000 km2 of the Mediterranean and dominate the forest types in the semi-arid and dry regions [36]. Specifically, Pinus halepensis Miller (Alep’s pine), that was used in the present study, is one of the most important forest species in the Mediterranean region. As a result, pine sawdust is a highly abundant, low-cost material that can easily be prepared and handled.
Tubular cellulose (TC), retrieved from pine sawdust after delignification, is a nano/micro-porous cellulosic material that has been proved to be suitable for use in food processing in support of immobilization [13]. In general, the multiple technological advantages offered by immobilized cells in alcoholic fermentations like improved fermentation productivity, cell stability, enhancement of cell viability and improved final product quality are well established [8,10,12]. In the present study the immobilized cells are attached on TC of delignified pine sawdust through physical adsorption by electrostatic and Van der Waals forces as well as by entrapment into the carrier tubes [12]. Cells adsorption on the support is a natural process archived as rough surfaces allows cell retention into the support’s cavities. The immobilization capacity of the biocatalyst was illustrated by electron microscopy (Figure 1), showing the delignified pine sawdust before and after immobilization, respectively. Likewise, the fermentation capacity of the immobilized biocatalyst is illustrated in Figure 2 showing sugar accumulation along with ethanol production as the biocatalyst was being stored in room temperature up to 90 days.
High gravity fermentations of freeze-dried grape must, which after rehydration obtained a sugar content of 330 g L−1, showed that the immobilized biocatalyst was capable to ferment the invert sugar even after 3 months of storage at room temperature (20 °C) without any significant effects on fermentation time and produced ethanol (Figure 2). Different studies have demonstrated that the osmotic effect caused by high sugar concentration, as provided in the present study (330 g L−1), can partially plasmolyze yeast cells, resulting in slow and/or incomplete fermentation [37,38,39]. Likewise, various others stress parameters which can negatively affect cell viability like metabolic imbalances and primarily resulting from bio-synthesis pathways [40]. On the other hand, as it has been proved by scientific studies that natural immobilization carriers can confer a protective effect to the cells against environment’s rough conditions [13,15,27]. Likewise, in the present study yeast cell immobilization along with an initiation temperature of 30 °C positively affected the fermentation process as the initial sugar content gradually decreased producing high amounts of ethanol (Figure 2). Moreover, as illustrated from fermentation kinetics the immobilized biocatalyst was able to perform high-gravity fermentation verifying previous studies of the multiple technological advantages offered by immobilized cells [8,10,12] as free psychrotolerant yeast strains may achieve alcoholic fermentation at low temperature [30] but they also need to provide good fermentation capacity and high tolerance when applied for wine making. Another important attribute is that TC presence might have increased the sugar uptake rate of the immobilized cells due to the attraction of hydrogen bonding onto the surface of TC [12,13].
In all cases the fermentation temperature gradually decreased from 30 °C down to 10 °C within a period of 120 h and the immobilized biocatalyst maintained its fermentability at low temperature producing sweet wines of high ethanol content. The initial high temperature was used to achieve a fast activation of the yeast starter culture [41] while low temperatures were applied targeting an enhanced aromatic profile of produced wines [42]. Specifically, by applying gradual fermentation temperature from 30 °C down to 10 °C, an alcoholic liquid interlaced with an alcoholic content in the range of 14.8–13.8% v/v and sugar content 78–97 g L−1, respectively (Figure 2). Storage time of the biocatalyst at room temperature significantly affected the ethanol production of the produced wines. Specifically, there was observed significantly lower ethanol production in wines produced by freeze-dried raw material after 90 days of storage compared to wines produced after instant production of freeze-dried raw materials. This result was expected as nutrients contained in grape-must may be altered during storage even within a freeze-dried form and as a result, yeast shows a lower fermentation capacity when important nutrients are lacking from the fermentation medium. Another important factor which can affect the fermentation capacity and ethanol production of the biocatalyst is the viability of yeast cells. During storage, especially at temperatures higher that 4 °C, a significant amount of viable cells may be lost [43]. Nevertheless, in the current study it is highlighted that optimum ethanol rates up to 14% v/v can be achieved by proposed freeze-dried mixture even after to 2 months of storage at room temperature (20–22 °C). For all cases, sweet wine of good quality was retrieved after fermentation of approximately 11 days.
The present procedure was proved to be effective for the preparation of sweet wine, without addition of potable alcohol. The use of immobilized cells on delignified pine cellulose contributes to: (i) successful fermentation at low temperatures (Figure 2) and (ii) extraction of resins aromatic compounds into the fermented wine (Table 1).

3.2. Effect of Storage on Wines Aromatic Characteristics

Semi-quantitative analysis of volatile compounds was performed by SPME GC/MS targeting to evaluate the effect of freeze-dried raw materials storage time (0, 30, 60 and 90 days) on the aromatic characteristics of produced wines (Table 1). The majority of identified compounds were esters that show low thresholds values and are considered to confer a major impact on wine flavour and aroma. In addition, various organic acids, carbonyl compounds, alcohols and terpenoids were also determined in all wine samples.
In general, most compounds that contribute to the aroma of wines are produced during must fermentation while very few of them can be derived from grapes. In our case it is possible that aromatic compounds could also be retrieved from pine sawdust [36]. This factor is assumed since Pinus halepensis trees, where pine sawdust was retrieved, is used to produce the famous Greek wine called “retsina” by addition of the resin in the must during fermentation [44]. Retsina is a white or rose wine known from the ancient times. The resin which is derived from the Pinus halepensis tree has a major aromatic impact on ‘retsina’ wine while it can also act as a preservative [44,45]. Likewise, pine sawdust might include the resins aromatic characteristics which could attribute to the aromatic profile of produced wines (Table 1).
Terpenes are typical varietal aroma compounds present in grapes in free volatile forms and bound with sugar as glycosides. Free terpenes have low aroma thresholds, so they have a high impact on “floral” character of wines. Their concentrations in grapes are influenced by several factors like maturation degree, soil conditions, viticulture practices and grape cultivar [42]. In produced wines terpenes are most likely deriving from the immobilized biocatalyst and specifically the pine sawdust applied as support of immobilization as well as the grape must. Specifically, terpenes contained in grapes can also be synthesized during fermentation after hydrolyzation of glyosidic combinations [54,55] and add a flowery sensory note to wine aroma. Some terpenes (anethol, geranyl acetone, nerolidol, farnesol) were detected in wines produced by freeze-dried raw material applied for fermentation instantly after production while they were not detected in wines prepped with freeze-dried raw material after longer periods of storage. It is most likely that these terpene compounds were affected by storage conditions. Concerning some other terpenes like linalool, α-terpineol and β-citronellol, it was observed that they could provide their floral characteristics equivalently in all produced wines. As a result, storage of the freeze-dried raw material did not have an impact on these aromatic terpenes.
It has been documented that there is a positive correlation of wine quality with esters content (within certain limits) [56]. The majority of esters are produced during fermentation as a result of yeast metabolism [57]. Ethyl esters of fatty acids as well as acetates of higher alcohols are associated with a flowery, fruity aroma in the products and are highly desirable in wines. In most cases, during 90 days of storage, esters concentrations were generally decreased. Additionally, there are other volatile compounds formed during yeast fermentation like higher alcohols, medium chain fatty acids and their corresponding esters, which also play an important role in the overall aroma of the young white wine. All these compounds can be affected by several fermentation factors like storage time and fermentation temperature.
The alcohols detected in wines are mainly aliphatic, amyl or aromatic fusel alcohols. If the concentration of these alcohols is detected in levels below 300 mg/L they intensify floral notes in wines, whereas they are detrimental to wine quality when their concentration surpasses that threshold [58]. Phenyl- ethyl alcohol may provide sweet rose-like flavours that positively contributes to sweet wine aroma even at low concentrations [59,60]. In our case, phenyl-ethyl alcohol was detected in the sample obtained from the 90-days stored raw materials. The number and the concentration of esters was detected higher, compared with the group of alcohols (Table 1).
Concerning acids detected in wine samples, octanoic and n-decanoic acid were observed in all the samples regardless the storage time of the raw freeze-dried materials. Below threshold levels, they contribute to the complexity of the aroma bouquet, but above threshold values they have a negative [61]. Shinohara et al. reported that the presence of C6-C10 acids in wines at 4–10 mg L−1 concentrations provided a pleasant aroma, but at concentrations higher than 20 mg L−1 had a negative effect [62]. The concentrations of those acids in our study were detected low compared to all other aromatic by-products contributing to the high quality of the produced wines.
In general, volatile evaluation highlights the good quality of produced wines indicating the positive influence of the immobilized biocatalyst in the aromatic profile of produced wines.

3.3. Discrimination of Wine Flavor and Aroma Attributes

All wines produced by the proposed technology achieved high scores of acceptability (illustrated by wines’ sensory spider plot; Figure 3) and were characterized by harmonious taste and floral, fresh fruity notes. As highlighted by the aromatic profile evaluation determined by GCMS/SPME in the previous section, the most abundant compounds detected in wines were esters, higher alcohols, and volatile fatty acids. These compounds are considered as important contributors to the fermentation bouquet of wine and are in agreement with results retrieved by sensory evaluation verifying the floral, fruit and fresh character of produced wines (Figure 3). Regarding overall acceptability the evaluation panel showed a higher preference towards wines produced by freeze-dried raw material with no storage (W10) and 1 month of storage (W21), respectively. The fresh attribute of produced wines showed no significant differences resulting to the optimum quality of all produced wines. Meanwhile, some differences were detected regarding the floral attributes of wines with the ones produced by stored freeze-dried raw material testing the lowest scores. This result is in accordance with GCMS analysis showing terpene and ester content in wines produced with freeze-dried raw material stored for a longer period.
The results of principal component analysis concerning flavor and aroma attributes of produced wine samples are summarized in Figure 4. The most important characteristic of wine is aroma [63]. According to the evaluation panel wines W10 and W21, which cluster together, were characterized by fresh and fruity aromatic characteristics. Panelists noted an enhanced bitterness in wine W43, while wine W32 was characterized as sweeter compared to the other samples. This result could be expected in wines W32 and W43 where the final sugar content was higher compared to other wines. Most likely this attribute was not recognized by evaluators in wine sample W43 due to the enhanced bitterness. In general, higher sugar content was retrieved in samples W32 and W43, most likely due to the higher storage time of the immobilized biocatalyst which might have affected its fermentation capacity.

4. Conclusions

Winemaking comprises a diverse set of factors that play a crucial role during the transformation of grapes to wine [19]. The most important factors generally considered by winemakers include vineyard management, grape quality, winemaking practices, and the proper use of commercial selected yeasts. Increasing consumer demand for good quality wine in addition with the emerging demand for highest added value products has led to the manufacture of a novel marketable dried mixture for high-quality wine making at low temperature. A new procedure of freeze-dried raw materials containing immobilized psychrotolerant yeast cells on pine sawdust (low cost cellulosic residues) and high-density grape must for low temperature winemaking has been developed. All produced wines were free of preservatives and the freeze-dried raw materials maintained their fermentability up to 90 days of storage providing high quality aromatic wines at a low temperature of approximately 14% v/v alcohol. Pine sawdust proved suitable as support for yeast cell immobilization, possibly providing in parallel some aromatic characteristics of low threshold value to the produced wines. As a result, this novel procedure has been demonstrated as successful and can be tested in the near future for industrial applications.

Author Contributions

Conceptualization, M.K. and A.A.K.; methodology, V.G.; software, A.T.; validation, M.K., A.T. and V.G.; formal analysis, A.T.; investigation, A.T. and V.G.; resources, M.K. and A.A.K.; data curation, V.G.; writing—original draft preparation, A.T.; writing—review and editing, M.K.; visualization, A.A.K.; supervision, M.K.; project administration, M.K.; funding acquisition, M.K. and A.A.K. All authors have read and agreed to the published version of the manuscript.


This project is implemented under the “ARISTEIA” Action of the “OPERATIONAL PROGRAMME EDUCATION AND LIFELONG LEARNING” and is co-funded by the European Social Fund (ESF) and Greek National Resources.

Conflicts of Interest

The authors declare no conflict of interest.


  1. McGovern, P.; Jalabadze, M.; Batiuk, S.; Callahan, M.P.; Smith, K.E.; Hall, G.R.; Kvavadze, E.; Maghradze, D.; Rusishvili, N.; Bouby, L.; et al. Early Neolithic wine of Georgia in the South Caucasus. Proc. Natl. Acad. Sci. USA 2017, 114, E10309–E10318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Barnard, H.; Dooley, A.N.; Areshian, G.; Gasparyan, B.; Faull, K.F. Chemical evidence for wine production around 4000 BCE in the Late Chalcolithic Near Eastern highlands. J. Archaeol. Sci. 2011, 38, 977–984. [Google Scholar] [CrossRef]
  3. Fragopoulou, E.; Choleva, M.; Antonopoulou, S.; Demopoulos, C.A. Wine and its metabolic effects. A comprehensive review of clinical trials. Metabolism 2018, 83, 102–119. [Google Scholar] [CrossRef] [PubMed]
  4. Prosapio, V.; Norton, I.; De Marco, I. Optimization of freeze-drying using a Life Cycle Assessment approach: Strawberries’ case study. J. Clean. Prod. 2017, 168, 1171–1179. [Google Scholar] [CrossRef]
  5. Berk, Z. Chapter 23-Freeze drying (lyophilization) and freeze concentration. In Food Process Engineering and Technology, 3rd ed.; Academic Press: New York, NY, USA, 2018; pp. 567–581. [Google Scholar] [CrossRef]
  6. Nicolosi, E.; Ferlito, F.; Amenta, M.; Russo, T.; Rapisarda, P. Changes in the quality and antioxidant components of minimally processed table grapes during storage. Sci. Hortic. 2018, 232, 175–183. [Google Scholar] [CrossRef]
  7. de Torres, C.; Schumacher, R.; Alañón, M.E.; Pérez-Coello, M.S.; Díaz-Maroto, M.C. Freeze-dried grape skins by-products to enhance the quality of white wines from neutral grape varieties. Food Res. Int. 2015, 69, 97–105. [Google Scholar] [CrossRef]
  8. Huang, K.; Fasahati, P.; Maravelias, C.T. System-Level Analysis of Lignin Valorization in Lignocellulosic Biorefineries. iScience 2020, 23, 100751. [Google Scholar] [CrossRef] [Green Version]
  9. Agouridis, N.; Kopsahelis, N.; Plessas, S.; Koutinas, A.A.; Kanellaki, M. Oenococcus oeni cells immobilized on delignified cellulosic material for malolactic fermentation of wine. Bioresour. Technol. 2008, 99, 9017–9020. [Google Scholar] [CrossRef]
  10. Golfinopoulos, A.; Soupioni, M.; Kanellaki, M.; Koutinas, A.A. pH Effect on Lactose Uptake Rate by Kefir Cells Immobilized on Delignified Cellulosic Material, Using 14C-Labelled Lactose during Whey Fermentation. J. Biotechnol. 2010, 150, 329. [Google Scholar] [CrossRef]
  11. Berbegal, C.; Polo, L.; García-Esparza, M.J.; Lizama, V.; Ferrer, S.; Pardo, I. Immobilisation of yeasts on oak chips or cellulose powder for use in bottle-fermented sparkling wine. Food Microbiol. 2019, 78, 25–37. [Google Scholar] [CrossRef]
  12. Koutinas, A.A.; Sypsas, V.; Kandylis, P.; Michelis, A.; Bekatorou, A.; Kourkoutas, Y.; Kordulis, C.; Lycourghiotis, A.; Banat, I.M.; Nigam, P.; et al. Nano-tubular cellulose for bioprocess technology development. PLoS ONE 2012, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Gialleli, A.-I.; Ganatsios, V.; Terpou, A.; Kanellaki, M.; Bekatorou, A.; Koutinas, A.A.; Dimitrellou, D. Technological Development of Brewing in Domestic Refrigerator Using Freeze-Dried Raw Materials. Food Technol. Biotechnol. 2017, 55, 325–332. [Google Scholar] [CrossRef] [PubMed]
  14. Ganatsios, V.; Terpou, A.; Gialleli, A.-I.; Kanellaki, M.; Bekatorou, A.; Koutinas, A.A. A ready-to-use freeze-dried juice and immobilized yeast mixture for low temperature sour cherry (Prunus cerasus) wine making. Food Bioprod. Process. 2019, 117, 373–379. [Google Scholar] [CrossRef]
  15. Kallis, M.; Sideris, K.; Kopsahelis, N.; Bosnea, L.; Kourkoutas, Y.; Terpou, A.; Kanellaki, M. Pistacia terebinthus Resin as Yeast Immobilization Support for Alcoholic Fermentation. Foods 2019, 8, 127. [Google Scholar] [CrossRef] [Green Version]
  16. Comitini, F.; Capece, A.; Ciani, M.; Romano, P. New insights on the use of wine yeasts. Curr. Opin. Food Sci. 2017, 13, 44–49. [Google Scholar] [CrossRef]
  17. Amores-Arrocha, A.; Roldán, A.; Jiménez-Cantizano, A.; Caro, I.; Palacios, V. Effect on White Grape Must of Multiflora Bee Pollen Addition during the Alcoholic Fermentation Process. Molecules 2018, 23, 1321. [Google Scholar] [CrossRef] [Green Version]
  18. Cravero, M.C. Organic and biodynamic wines quality and characteristics: A review. Food Chem. 2019, 295, 334–340. [Google Scholar] [CrossRef]
  19. Amores-Arrocha, A.; Roldán, A.; Jiménez-Cantizano, A.; Caro, I.; Palacios, V. Evaluation of the use of multiflora bee pollen on the volatile compounds and sensorial profile of Palomino fino and Riesling white young wines. Food Res. Int. 2018, 105, 197–209. [Google Scholar] [CrossRef]
  20. Bardi, E.P.; Bakoyianis, V.; Koutinas, A.A.; Kanellaki, M. Room temperature and low temperature wine making using yeast immobilized on gluten pellets. Process Biochem. 1996, 31, 425–430. [Google Scholar] [CrossRef]
  21. García-Alcaraz, J.L.; Flor Montalvo, F.J.; Martínez Cámara, E.; Pérez de la Parte, M.M.; Jiménez-Macías, E.; Blanco-Fernández, J. Economic-environmental impact analysis of alternative systems for red wine ageing in re-used barrels. J. Clean. Prod. 2020, 244, 118783. [Google Scholar] [CrossRef]
  22. Martins, N.; Garcia, R.; Mendes, D.; Costa Freitas, A.M.; da Silva, M.G.; Cabrita, M.J. An ancient winemaking technology: Exploring the volatile composition of amphora wines. LWT 2018, 96, 288–295. [Google Scholar] [CrossRef]
  23. Fang, F.; Li, J.-M.; Zhang, P.; Tang, K.; Wang, W.; Pan, Q.-H.; Huang, W.-D. Effects of grape variety, harvest date, fermentation vessel and wine ageing on flavonoid concentration in red wines. Food Res. Int. 2008, 41, 53–60. [Google Scholar] [CrossRef]
  24. Bosnea, L.A.; Kopsahelis, N.; Kokkali, V.; Terpou, A.; Kanellaki, M. Production of a novel probiotic yogurt by incorporation of L. casei enriched fresh apple pieces, dried raisins and wheat grains. Food Bioprod. Process. 2017, 102, 62–71. [Google Scholar] [CrossRef]
  25. Armani, M.; Morozova, K.; Scampicchio, M. Immobilization of Saccharomyces cerevisiae on nylon-6 nanofibrous membranes for grape juice fermentation. LWT 2019, 110, 360–364. [Google Scholar] [CrossRef]
  26. Mallouchos, A.; Komaitis, M.; Koutinas, A.; Kanellaki, M. Wine fermentations by immobilized and free cells at different temperatures. Effect of immobilization and temperature on volatile by-products. Food Chem. 2003, 80, 109–113. [Google Scholar] [CrossRef]
  27. Ganatsios, V.; Koutinas, A.A.; Bekatorou, A.; Panagopoulos, V.; Banat, I.M.; Terpou, A.; Kopsahelis, N. Porous cellulose as promoter of oil production by the oleaginous yeast Lipomyces starkeyi using mixed agroindustrial wastes. Bioresour. Technol. 2017, 244, 629–634. [Google Scholar] [CrossRef]
  28. Kopsahelis, N.; Kanellaki, M.; Bekatorou, A. Low temperature brewing using cells immobilized on brewer’s spent grains. Food Chem. 2007, 104, 480–488. [Google Scholar] [CrossRef]
  29. Terpou, A.; Bekatorou, A.; Kanellaki, M.; Koutinas, A.A.; Nigam, P. Enhanced probiotic viability and aromatic profile of yogurts produced using wheat bran (Triticum aestivum) as cell immobilization carrier. Process Biochem. 2017, 55, 1–10. [Google Scholar] [CrossRef]
  30. Genisheva, Z.; Vilanova, M.; Mussatto, S.I.; Teixeira, J.A.; Oliveira, J.M. Consecutive alcoholic fermentations of white grape musts with yeasts immobilized on grape skins–Effect of biocatalyst storage and SO2 concentration on wine characteristics. LWT Food Sci. Technol. 2014, 59, 1114–1122. [Google Scholar] [CrossRef] [Green Version]
  31. Lappa, I.K.; Papadaki, A.; Kachrimanidou, V.; Terpou, A.; Koulougliotis, D.; Eriotou, E.; Kopsahelis, N. Cheese Whey Processing: Integrated Biorefinery Concepts and Emerging Food Applications. Foods 2019, 8, 347. [Google Scholar] [CrossRef] [Green Version]
  32. Terpou, A.; Papadaki, A.; Lappa, I.K.; Kachrimanidou, V.; Bosnea, L.A.; Kopsahelis, N. Probiotics in Food Systems: Significance and Emerging Strategies towards Improved Viability and Delivery of Enhanced Beneficial Value. Nutrients 2019, 11, 1591. [Google Scholar] [CrossRef] [Green Version]
  33. Argiriou, T.; Kaliafas, A.; Psarianos, K.; Kanellaki, M.; Voliotis, S.; Koutinas, A.A. Psychrotolerant Saccharomyces cerevisiae strains after an adaptation treatment for low temperature wine making. Process Biochem. 1996, 31, 639–643. [Google Scholar] [CrossRef]
  34. Rodrigues, H.; Sáenz-Navajas, M.-P.; Franco-Luesma, E.; Valentin, D.; Fernández-Zurbano, P.; Ferreira, V.; De La Fuente Blanco, A.; Ballester, J. Sensory and chemical drivers of wine minerality aroma: An application to Chablis wines. Food Chem. 2017, 230, 553–562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Schoina, V.; Terpou, A.; Bosnea, L.; Kanellaki, M.; Nigam, P.S. Entrapment of Lactobacillus casei ATCC393 in the viscus matrix of Pistacia terebinthus resin for functional myzithra cheese manufacture. LWT Food Sci. Technol. 2018, 89, 441–448. [Google Scholar] [CrossRef]
  36. Kadri, N.; Khettal, B.; Aid, Y.; Kherfellah, S.; Sobhi, W.; Barragan-Montero, V. Some physicochemical characteristics of pinus (Pinus halepensis Mill., Pinus pinea L., Pinus pinaster and Pinus canariensis) seeds from North Algeria, their lipid profiles and volatile contents. Food Chem. 2015, 188, 184–192. [Google Scholar] [CrossRef] [PubMed]
  37. Jackson, R.S. 7-Fermentation. In Wine Science, 3rd ed.; Academic Press: San Diego, CA, USA, 2008; pp. 332–417. [Google Scholar] [CrossRef]
  38. Galafassi, S.; Toscano, M.; Vigentini, I.; Piškur, J.; Compagno, C. Osmotic stress response in the wine yeast Dekkera bruxellensis. Food Microbiol. 2013, 36, 316–319. [Google Scholar] [CrossRef] [PubMed]
  39. Lei, H.; Xu, H.; Feng, L.; Yu, Z.; Zhao, H.; Zhao, M. Fermentation performance of lager yeast in high gravity beer fermentations with different sugar supplementations. J. Biosci. Bioeng. 2016, 122, 583–588. [Google Scholar] [CrossRef]
  40. Lo, T.-M.; Teo, W.S.; Ling, H.; Chen, B.; Kang, A.; Chang, M.W. Microbial engineering strategies to improve cell viability for biochemical production. Biotechnol. Adv. 2013, 31, 903–914. [Google Scholar] [CrossRef]
  41. Terpou, A.; Dimopoulou, M.; Belka, A.; Kallithraka, S.; Nychas, G.-J.E.; Papanikolaou, S. Effect of Myclobutanil Pesticide on the Physiological Behavior of Two Newly Isolated Saccharomyces cerevisiae Strains during Very-High-Gravity Alcoholic Fermentation. Microorganisms 2019, 7, 666. [Google Scholar] [CrossRef]
  42. Pérez, D.; Assof, M.; Bolcato, E.; Sari, S.; Fanzone, M. Combined effect of temperature and ammonium addition on fermentation profile and volatile aroma composition of Torrontés Riojano wines. LWT Food Sci. Technol. 2018, 87, 488–497. [Google Scholar] [CrossRef]
  43. Sullivan, M.L.; Bradford, B.J. Viable cell yield from active dry yeast products and effects of storage temperature and diluent on yeast cell viability1. J. Dairy Sci. 2011, 94, 526–531. [Google Scholar] [CrossRef] [PubMed]
  44. McKay, M.; Buglass, A.J.; Gook Lee, C. Aromatized Wines. In Handbook of Alcoholic Beverages: Technical, Analytical and Nutritional Aspects; Wiley: New York, NY, USA, 2010; Volume 1, pp. 436–446. [Google Scholar]
  45. Spanos, K.; Gaitanis, D.; Spanos, I. Resin production in natural Aleppo pine stands in northern Evia, Greece. Web Ecol. 2010, 10, 38–43. [Google Scholar] [CrossRef]
  46. Riu-Aumatell, M.; Miró, P.; Serra-Cayuela, A.; Buxaderas, S.; López-Tamames, E. Assessment of the aroma profiles of low-alcohol beers using HS-SPME–GC-MS. Food Res. Int. 2014, 57, 196–202. [Google Scholar] [CrossRef]
  47. Wong, K.C.; Teng, Y.E. Volatile Components of Mimusops elengi L. Flowers. J. Essent. Oil Res. 1994, 6, 453–458. [Google Scholar] [CrossRef]
  48. Kandylis, P.; Vekiari, A.S.; Kanellaki, M.; Grati Kamoun, N.; Msallem, M.; Kourkoutas, Y. Comparative study of extra virgin olive oil flavor profile of Koroneiki variety (Olea europaea var. Microcarpa alba) cultivated in Greece and Tunisia during one period of harvesting. LWT Food Sci. Technol. 2011, 44, 1333–1341. [Google Scholar] [CrossRef]
  49. Kandylis, P.; Mantzari, A.; Koutinas, A.A.; Kookos, I.K. Modelling of low temperature wine-making, using immobilized cells. Food Chem. 2012, 133, 1341–1348. [Google Scholar] [CrossRef]
  50. Terpou, A.; Gialleli, A.I.; Bosnea, L.; Kanellaki, M.; Koutinas, A.A.; Castro, G.R. Novel cheese production by incorporation of sea buckthorn berries (Hippophae rhamnoides L.) supported probiotic cells. LWT Food Sci. Technol. 2017, 79, 616–624. [Google Scholar] [CrossRef]
  51. Riu-Aumatell, M.; Lopez-Tamames, E.; Buxaderas, S. Assessment of the volatile composition of juices of apricot, peach, and pear according to two pectolytic treatments. J. Agric. Food Chem. 2005, 53, 7837–7843. [Google Scholar] [CrossRef] [PubMed]
  52. Kandylis, P.; Manousi, M.E.; Bekatorou, A.; Koutinas, A.A. Freeze-dried wheat supported biocatalyst for low temperature wine making. LWT Food Sci. Technol. 2010, 43, 1485–1493. [Google Scholar] [CrossRef]
  53. Smadja, J.; Rondeau, P.; Sing Alain Shum, C. Volatile constituents of five Citrus Petitgrain essential oils from Reunion. Flavour Fragr. J. 2005, 20, 399–402. [Google Scholar] [CrossRef]
  54. Ratledge, C. 7-Lipids and Fatty Acids A2-ROSE, A.H. In Economic Microbiology: Primary Products of Metabolism; Academic Press: New York, NY, USA, 1978; pp. 263–302. [Google Scholar] [CrossRef]
  55. Schwab, W.; Fischer, T.; Wüst, M. Terpene glucoside production: Improved biocatalytic processes using glycosyltransferases. Eng. Life Sci. 2015, 15, 376–386. [Google Scholar] [CrossRef]
  56. Rothe, M. Volatile Compounds in Foods and Beverages. Herausgegeben von H. Maarse. 764 Seiten, zahlr. Abb. und Table Marcel Dekker, Inc., New York, Basel, Hong Kong 1991. Preis 172.50 $. Food Nahr. 2006, 35, 1080. [Google Scholar] [CrossRef]
  57. Fraile, P.; Garrido, J.; Ancín, C. Influence of a Saccharomyces cerevisiae Selected Strain in the Volatile Composition of Rosé Wines. Evolution during Fermentation. J. Agric. Food Chem. 2000, 48, 1789–1798. [Google Scholar] [CrossRef] [PubMed]
  58. Hirst, M.B.; Richter, C.L. Review of Aroma Formation through Metabolic Pathways of Saccharomyces cerevisiae in Beverage Fermentations. Am. J. Enol. Vitic. 2016, 67, 361–370. [Google Scholar] [CrossRef] [Green Version]
  59. López de Lerma, N.; Peinado, R.A. Use of two osmoethanol tolerant yeast strain to ferment must from Tempranillo dried grapes. Effect on wine composition. Int. J. Food Microbiol. 2011, 145, 342–348. [Google Scholar] [CrossRef] [PubMed]
  60. Genovese, A.; Gambuti, A.; Piombino, P.; Moio, L. Sensory properties and aroma compounds of sweet Fiano wine. Food Chem. 2007, 103, 1228–1236. [Google Scholar] [CrossRef]
  61. Jackson, R.S. Wine Science-Sensory Perception and Wine Assessment. In Wine Science, 4th ed.; Academic Press: San Diego, CA, USA, 2014; pp. 831–888. [Google Scholar] [CrossRef]
  62. Shinohara, T. Gas Chromatographic Analysis of Volatile Fatty Acids in Wines. Agric. Biol. Chem. 1985, 49, 2211–2212. [Google Scholar] [CrossRef]
  63. González-Barreiro, C.; Rial-Otero, R.; Cancho-Grande, B.; Simal-Gándara, J. Wine Aroma Compounds in Grapes: A Critical Review. Crit. Rev. Food Sci. Nutr. 2015, 55, 202–218. [Google Scholar] [CrossRef]
Figure 1. Scanning electron micrograph (×70 μm) of tubular cellulose origin from delignified pine sawdust (a), scanning electron micrograph (×70 μm) of delignified pine sawdust with immobilized S. cerevisiae AXAZ-1 cells (b).
Figure 1. Scanning electron micrograph (×70 μm) of tubular cellulose origin from delignified pine sawdust (a), scanning electron micrograph (×70 μm) of delignified pine sawdust with immobilized S. cerevisiae AXAZ-1 cells (b).
Microorganisms 08 00764 g001

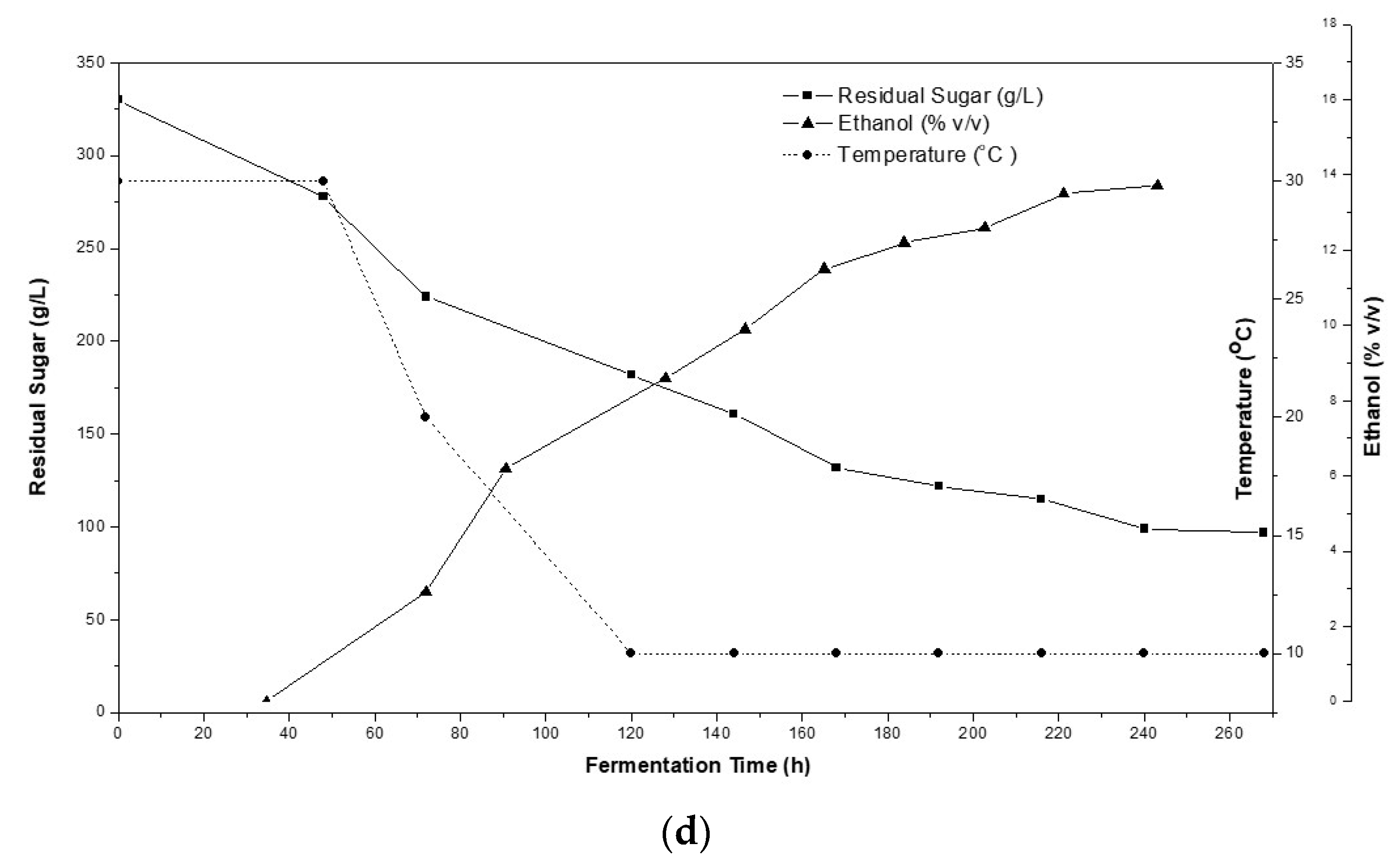

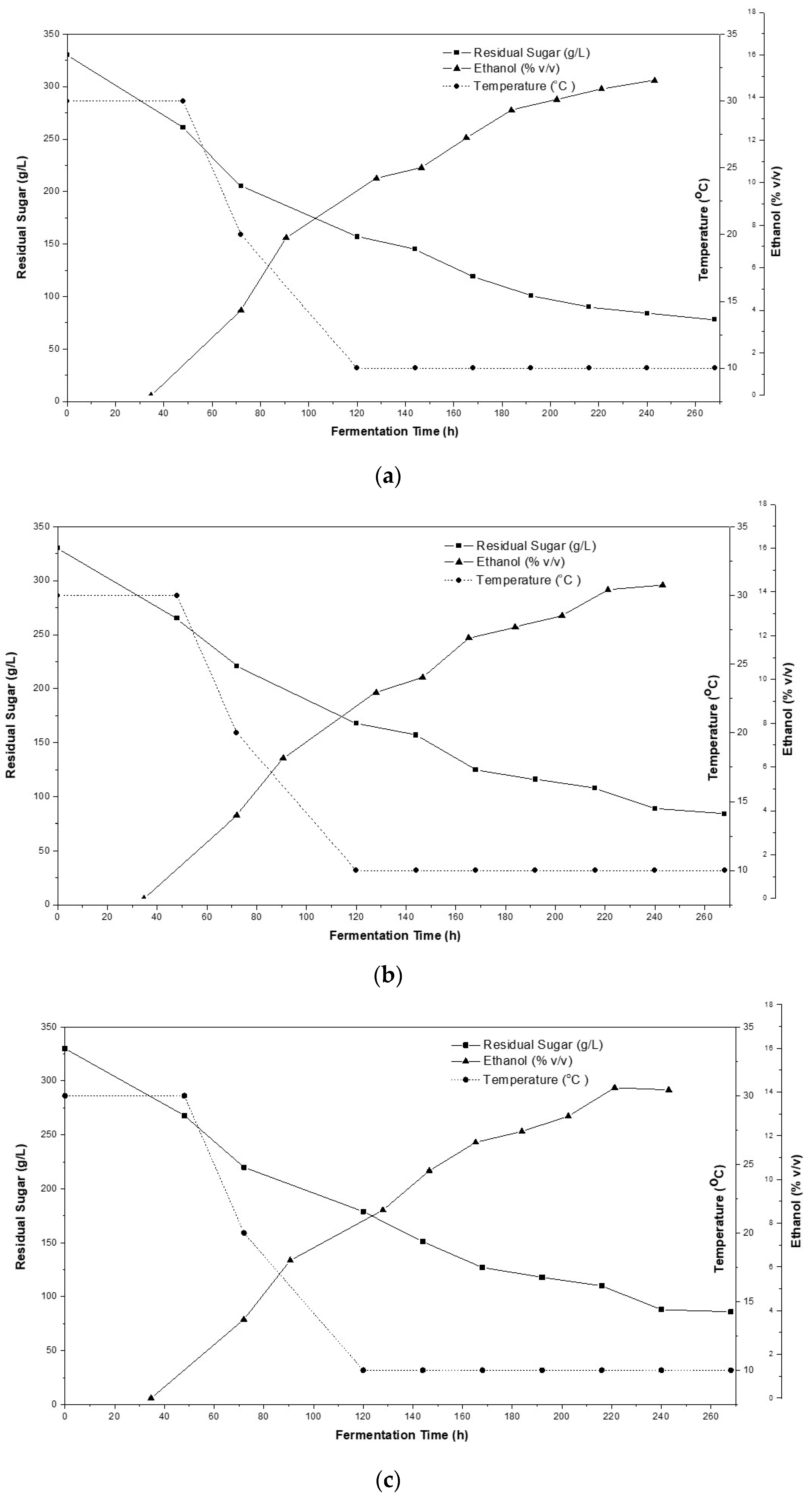

Figure 2. Kinetics of the sweet wine fermentation using freeze-dried raw materials after no storage time (a), storage for 30 days (b), storage for 60 days (c) and storage for 90 days (d) at room temperature (20–22 °C).
Figure 2. Kinetics of the sweet wine fermentation using freeze-dried raw materials after no storage time (a), storage for 30 days (b), storage for 60 days (c) and storage for 90 days (d) at room temperature (20–22 °C).
Microorganisms 08 00764 g002aMicroorganisms 08 00764 g002b

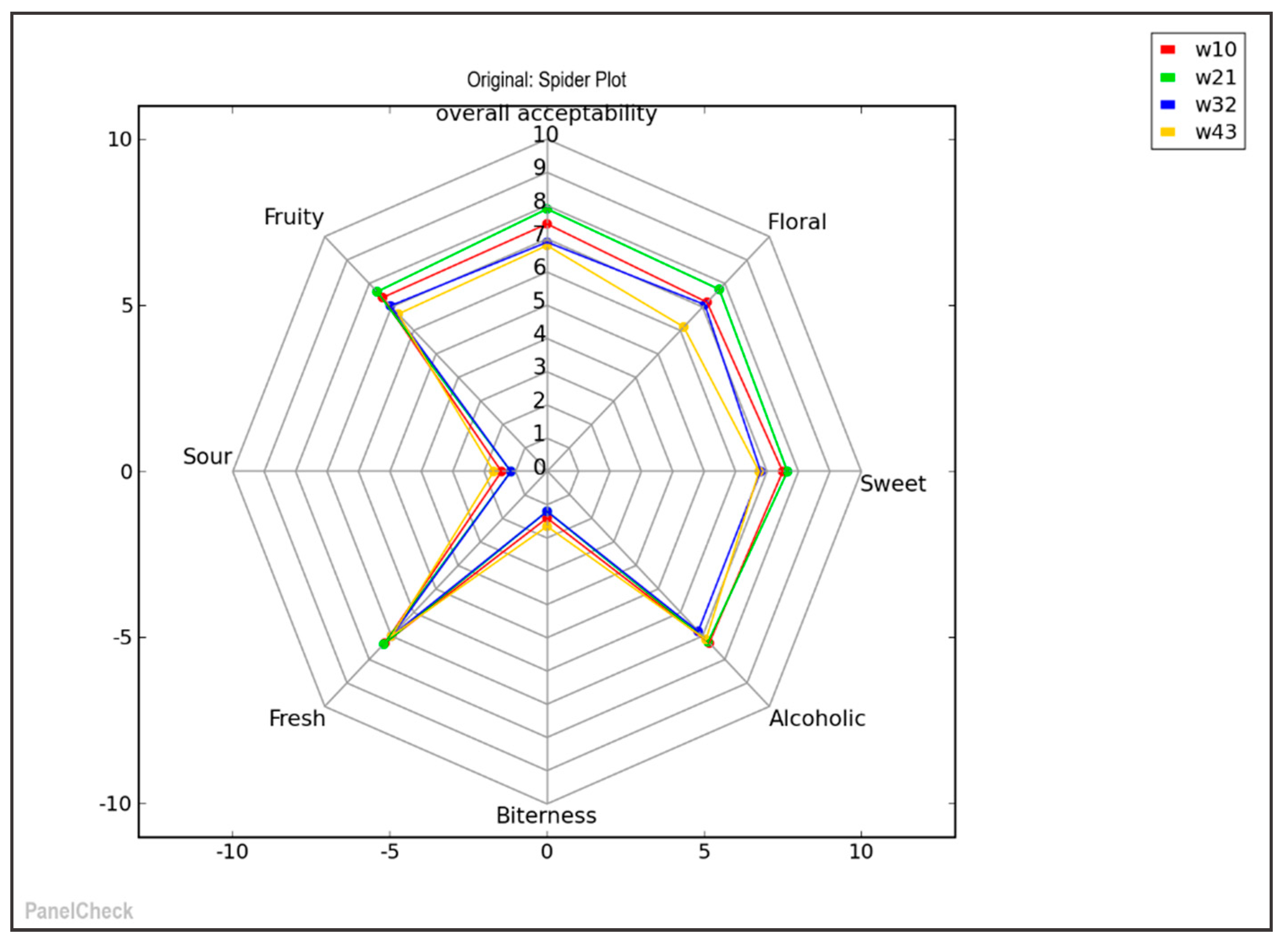

Figure 3. Wines sensory evaluation presented as a spider plot. The research wine samples were prepared by the proposed technology of freeze-dried raw materials without prior storage (W10) and after storage for 30 (W21), 60 (W32) and 90 (W43) days, respectively.
Figure 3. Wines sensory evaluation presented as a spider plot. The research wine samples were prepared by the proposed technology of freeze-dried raw materials without prior storage (W10) and after storage for 30 (W21), 60 (W32) and 90 (W43) days, respectively.
Microorganisms 08 00764 g003

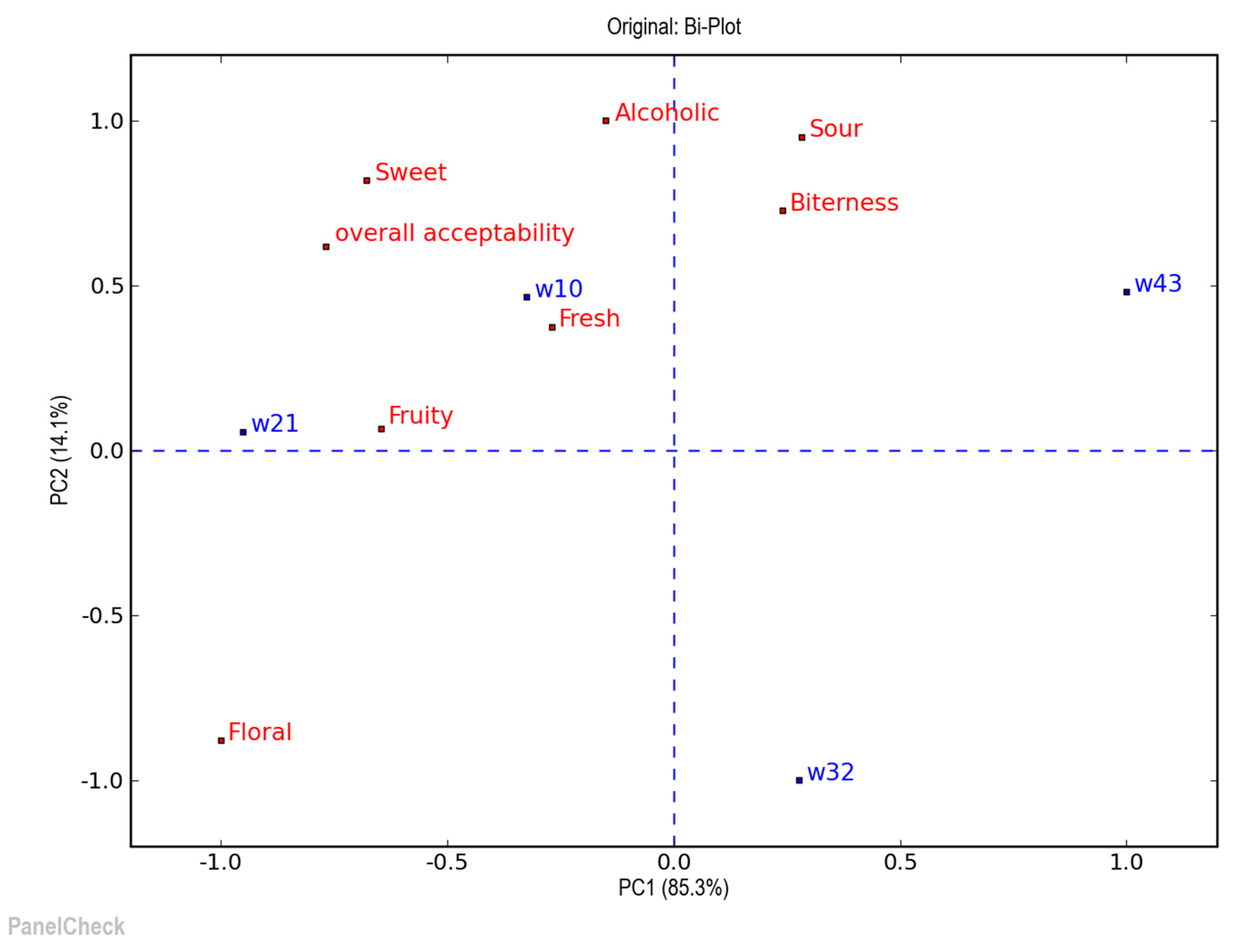

Figure 4. Wine sensory attributes presented by graph of principal component analysis (PCA). The research wine samples were prepared by the proposed technology of freeze-dried raw materials without prior storage (W10) and after storage for 30 (W21), 60 (W32) and 90 (W43) days, respectively.
Figure 4. Wine sensory attributes presented by graph of principal component analysis (PCA). The research wine samples were prepared by the proposed technology of freeze-dried raw materials without prior storage (W10) and after storage for 30 (W21), 60 (W32) and 90 (W43) days, respectively.
Microorganisms 08 00764 g004
Table 1. Volatile compounds (μg/L) identified by solid phase microextraction and gas chromatography/mass spectrometry (SPME GC/MS) technique in wines produced at low temperature using stored (0–90 days) freeze-dried raw materials (grape must and immobilized Saccharomyces cerevisiae AXAZ-1 yeast cells on pine sawdust).
Table 1. Volatile compounds (μg/L) identified by solid phase microextraction and gas chromatography/mass spectrometry (SPME GC/MS) technique in wines produced at low temperature using stored (0–90 days) freeze-dried raw materials (grape must and immobilized Saccharomyces cerevisiae AXAZ-1 yeast cells on pine sawdust).
Identified CompoundID **KI **KIref **Content of Volatile Compounds in Samples (μg/L)
Wine 1 *Wine 2 *Wine 3 *Wine 4 *
Ethyl acetateMS, KI886894 a3692.83934.72389.7940.9
Ethyl butanoateMS, KI10181040 e244.9298.03145.174.7
Ethyl 2-methyl butanoateMS, KI10361063 c234.5180.5200.6190.6
Ethyl pentanoateMS, KI10541148 f110.3125.695.488.5
Isoamyl acetateMS, KI11091123 e654.51566.3390.1745.7
Ethyl hexanoateMS, KI12121250 f2965.74809.69668.79887.1
Hexyl acetateMS, KI12531281 c334.2255.9613.12867.5
Ethyl octanoateMS, KI13861421 f7980.611,359.34626.12257.7
Ethyl decanoateMS, KI15991635 e2696.25248.93417.14138.7
Diethyl succinateMS, KI16391679 h6882.76304.26072.64229.8
Ethyl 9-decenoateMS, KI16591692 h875.6613.11088.51584.2
Ethyl benzeneacetateMS, KI17621809 e87.288.570.673.1
2-Phenylethyl acetateMS, KI17961832 a884.12723.33489.22277.8
Ethyl dodecanoateMS, KI18211850 e133.8102.4164.5197.8
2-Phenylethyl butanoateMS, KI19541930 c304.2337.9287.1231.4
Isopropyl myristateMS, KI20302041 e1204.02613.0735.19441.44
Ethyl tetradecanoateMS, KI20362056 c250.5230.7200.8220.4
4-methyl 1-pentenolMS, KI12531282 e39.540.228.729.4
3-penten-1-olMS, KI13101305 d184.5194.1170.5105.6
1-HexanolMS, KI13311340 b590.01059.81093.4745.5
3-Methyl 1-pentanolMS, KI13531350 e131.5122.5130.5110.4
2-ethyl 1-hexanolMS, KI14451490 d2015.61805.41742.31889.7
1-HeptanolMS, KI14631464 a 112.3144.2115.7110.8
1-OctanolMS, KI15121536 f112.4111.9496.0518.09
1,3- ButanediolMS, KI16161590 e859.5ndndnd
Phenylethyl alcoholMS, KI18961938 a11,487.210,254.33078.21794.7
Hexanoic acidMS, KI18731851 f846ndndnd
Octanoic acidMS, KI20782111 a11,671.1212,877.611257.122704.15
n-Decanoic acidMS, KI22932336 e6125.867235.315323.953199.69
Carbonyl compounds
NonanalMS, KI13491395 f33.5nd35.240.5
FurfuralMS, KI14261475 a350.6360.2343.5393.3
DecanalMS, KI14571507 a190.2ndndnd
Terpenoid compounds
D-LimoneneMS, KI11191189 b241.2180.5155.6124.7
LinaloolMS, KI15001500 i775.92369.21268.6392.9
α-TerpineolMS, KI16651661 n850.5976.5737.2700.6
β-CitronellolMS, KI17331711 h112.3111.3110.3110.5
AnetholeMS, KI18191843 e156.1ndndnd
Geranyl acetoneMS, KI18411853 g663.6ndndnd
NerolidolMS, KI20302053 c316.8ndndnd
FarnesolMS, KI22832343 e5277.64512.64156.34215.2
* Wine 1, 2, 3, 4: wines produced without storage of raw materials and after storage of 0, 30, 60 and 90 days, respectively. ** ID: Method of identification, KI: tentative identification by Kovats retention index, KIref: tentative identification by Kovats retention index in accordance to the literature (a: Riu-Aumatell, et al. [46],b: Schoina, Terpou, Bosnea, Kanellaki and Nigam [35],c: Wong and Teng [47], d: Kandylis, et al. [48], e:Kandylis, et al. [49], f: Terpou, et al. [50], g: Riu-Aumatell, et al. [51], h:Kandylis, et al. [52], i: Smadja, et al. [53]). nd: not detected on this column.

Share and Cite

MDPI and ACS Style

Terpou, A.; Ganatsios, V.; Kanellaki, M.; Koutinas, A.A. Entrapped Psychrotolerant Yeast Cells within Pine Sawdust for Low Temperature Wine Making: Impact on Wine Quality. Microorganisms 2020, 8, 764.

AMA Style

Terpou A, Ganatsios V, Kanellaki M, Koutinas AA. Entrapped Psychrotolerant Yeast Cells within Pine Sawdust for Low Temperature Wine Making: Impact on Wine Quality. Microorganisms. 2020; 8(5):764.

Chicago/Turabian Style

Terpou, Antonia, Vassilios Ganatsios, Maria Kanellaki, and Athanasios A. Koutinas. 2020. "Entrapped Psychrotolerant Yeast Cells within Pine Sawdust for Low Temperature Wine Making: Impact on Wine Quality" Microorganisms 8, no. 5: 764.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
