Article

Rational Design and Biotechnological Production of Novel AfpB-PAF26 Chimeric Antifungal Proteins

by
Marcos Heredero
†,
Sandra Garrigues
†,
Mónica Gandía
,
Jose F. Marcos
* and
Paloma Manzanares
Department of Biotechnology, Instituto de Agroquímica y Tecnología de Alimentos (IATA), Consejo Superior de Investigaciones Científicas (CSIC), Paterna, 46980 Valencia, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work and shall be considered first co-authors.
Microorganisms 2018, 6(4), 106; https://doi.org/10.3390/microorganisms6040106
Submission received: 6 September 2018 / Revised: 4 October 2018 / Accepted: 11 October 2018 / Published: 15 October 2018
(This article belongs to the Special Issue Antimicrobial Proteins in Filamentous Fungi)
Browse Figures
Versions Notes

Abstract

:
Antimicrobial peptides (AMPs) have been proposed as candidates to develop new antimicrobial compounds for medicine, agriculture, and food preservation. PAF26 is a synthetic antifungal hexapeptide obtained from combinatorial approaches with potent fungicidal activity against filamentous fungi. Other interesting AMPs are the antifungal proteins (AFPs) of fungal origin, which are basic cysteine-rich and small proteins that can be biotechnologically produced in high amounts. A promising AFP is the AfpB identified in the phytopathogen Penicillium digitatum. In this work, we aimed to rationally design, biotechnologically produce and test AfpB::PAF26 chimeric proteins to obtain designed AFPs (dAfpBs) with improved properties. The dAfpB6 and dAfpB9 chimeras could be produced using P. digitatum as biofactory and a previously described Penicillium chrysogenum-based expression cassette, but only dAfpB9 could be purified and characterized. Protein dAfpB9 showed subtle and fungus-dependent differences of fungistatic activity against filamentous fungi compared to native AfpB. Significantly, dAfpB9 lost the fungicidal activity of PAF26 and AfpB, thus disconnecting this activity from the fungistatic activity and mapping fungicidal determinants to the exposed loop L3 of AfpB, wherein modifications are located. This study provides information on the design and development of novel chimeric AFPs.

1. Introduction

Fungal infections represent an important risk to human health, food production and safety [1]. In medicine, fungal diseases have increased due to the growing number of immunosuppressive therapies and the appearance of new strains resistant to commonly used antifungal drugs [1,2]. In agriculture, fungi are the main pathogens of crops used for food and feed production. Moreover, mycotoxins produced by some fungi represent a threat for food safety, as they can contaminate food and be dangerous to human health.
Antimicrobial peptides (AMPs) are a broad class of peptides and small proteins that are produced by organisms all along the phylogenetic scale [3,4,5]. AMPs have been proposed as promising candidates for the development of novel antimicrobial compounds. However, despite the great potential of AMPs for multiple applications, some of them present undesired properties that may compromise their real application, such as unspecific toxicity, high susceptibility to degradation, low temperature or pH stability, and low production yields when obtained from their natural sources. One of the attractive attributes of AMPs is their peptidic nature, which would enable their sequence modification by rational design and high-yield production through biotechnology [6,7]. Novel synthetic antifungal peptides with improved properties have been produced through rational design and combinatorial approaches, including fusions of antimicrobial fragments into peptide hybrids, sequence point modifications, de novo rational design based on known AMPs, the identification of minimal motifs that retain full activity, or the incorporation of non-natural amino acids or derivatizations.
Combinatorial peptide chemistry allowed the identification of the antifungal hexapeptide PAF26 (RKKWFW) [8]. PAF26 and PAF26-containing peptides have strong antifungal activity and specifically target and inhibit filamentous fungi including postharvest, plant, and human pathogens in vitro and in vivo [9,10,11,12]. PAF26 is internalized into target fungal cells at sub-inhibitory concentrations in a non-lytic mechanism [13], and has been proposed as a model to investigate the mode of action of cell-penetrating antifungal peptides [14]. Moreover, PAF26 has two functional domains, the N-terminal cationic (RKK) and the C-terminal aromatic (WFW) that allow to differentiate the three steps of its mode of action: (i) interaction with fungal cells; (ii) internalization; and (iii) intracellular killing [15]. Despite these promising properties, the synthetic production of PAF26 for its future application is not affordable, and previous attempts to produce PAF26 biotechnologically have not been successful.
Other AMPs that are of particular interest for their biotechnological applications are the antifungal proteins (AFPs) of fungal origin [16,17]. AFPs can be efficiently produced by biotechnology, which represents a great advantage compared to synthetic peptides in terms of cost and production yields. AFPs are small basic proteins containing multiple cysteine residues that form disulfide bonds and fold into compact structures, conferring a high degree of stability [18,19]. AFPs are translated with a signal peptide (SP) for secretion and a pro-sequence that has been predicted to inactivate the protein until cleavage. Proteins AFP from Aspergillus giganteus and PAF from Penicillium chrysogenum are the first identified and most studied AFPs to date, and both are naturally secreted by their producer fungus in high yields [20,21]. Recent phylogenetic studies proposed a new classification of AFPs in at least three classes (A, B and C) [22], and a fourth potential class of AFPs has also been identified with mainly anti-yeast activity [23]. In their primary sequence, AFPs contain an amino acid conserved motif, Gly-X-Cys-X3-9-Cys, called the γ-core motif [24].
A promising AFP recently described is the class B AFP from P. digitatum (AfpB). AfpB was absent in the culture supernatants of P. digitatum despite the high gene expression of the corresponding gene [22]. The production of AfpB by P. digitatum was finally achieved using a P. chrysogenum-based expression cassette, which uses the promoter and terminator of the paf gene that naturally directs the production of the P. chrysogenum PAF [19,25]. Moreover, the DNA parts of this cassette have been recently adapted to a Golden Gate-based modular cloning platform that allows the straightforward direct cloning of AFP variants [26]. The three-dimensional (3D) structure of AfpB was predicted [27], and shows a similar structural pattern to other experimentally characterized AFPs like PAF [18,28], or PAFB [29] from P. chrysogenum. It consists of five antiparallel β-strands connected with three small loops and a big cationic surface-exposed loop. AfpB showed great antifungal efficiency in vitro against a wide range of fungi, including the parental fungus P. digitatum, and effectively protected against fungal infection in vivo [30,31]. In addition, AfpB showed a great resistance to high temperatures and proteolysis and showed no cytotoxic effect against human erythrocytes [19].
Given the strong antifungal and fungicidal activity of PAF26, the potential of AfpB as an antifungal biomolecule to be produced in high yields, and the absence of cytotoxicity of both peptides, the goal of this study was to rationally design AfpB::PAF26 hybrid proteins (dAfpBs) to obtain novel biomolecules and test their biotechnological production and antimicrobial properties.

2. Materials and Methods

2.1. Strains, Media and Culture Conditions

The isolate P. digitatum CECT 20796 (PHI26) [32] was used as a parental strain. Transformant PDSG420 is a genetically modified producer of AfpB previously reported [26]. These and all P. digitatum transformant strains obtained in this study were cultured on potato dextrose agar (PDA, Difco) plates for 5–7 days at 25 °C. Conidia were collected from plates, dispersed in water, filtered and counted in a hemocytometer. To analyze the growth in solid medium, 5 µL of conidial suspension (5 × 104 conidia/mL) were deposited on the center of PDA plates and the diameter of growth was measured daily from 3 to 10 days. For recombinant protein production, transformant strains were inoculated at 5.5 × 105 conidia/mL in P. digitatum minimal medium (PdMM) [25] with shaking at 25 °C for 10–12 days. For fungal transformation, vectors were propagated in Escherichia coli JM109 grown in Luria Bertani (LB) medium supplemented with either 25 µg/mL chloramphenicol, 50 µg/mL kanamycin or 100 µg/mL spectinomycin at 37 °C depending on the vector. Agrobacterium tumefaciens AGL-1 strain was grown in LB supplemented with 20 µg/mL rifampicin at 28 °C. For antimicrobial assays, P. chrysogenum Q176, Botritys cinerea CECT 2100, Fusarium oxysporum 4287, Penicillium expansum CECT 20906 (CMP-1), Magnaporthe oryzae PR9, Penicillium italicum CECT 20909 (PHI-1), and Aspergillus niger CBS 120.49 were incubated in PDA at 25 °C for 5–10 days depending on the fungus.

2.2. Rational Design of AfpB-Derived Chimeric Proteins (dAfpBs)

The hexapeptide PAF26 (RKKWFW) was inserted inside the AfpB primary amino acid sequence in different positions of the previously predicted AfpB 3D structure [27] in order to generate distinct rationally designed chimeric dAfpBs (see Results for further details). The SWISS-MODEL program [33] was used to predict the 3D structure of dAfpBs, and the models obtained were refined using the ModRefiner software tool [34] and subsequently validated with RAMPAGE [35]. The theoretical molecular mass (MM) and isoelectric point (pI) of dAfpBs were calculated with the ProtParam software of the ExPASy Proteomics Server [36]. All models were visualized with UCSF Chimera [37].

2.3. Construction of Plasmids for Genetic Transformation of P. digitatum

To generate all vector constructions for the recombinant production of dAfpBs in P. digitatum, we used the GoldenBraid-based modular cloning platform FungalBraid (FB) [26,38]. This platform was previously used to obtain the AfpB producer strain PDSG420. In silico designed dAfpB genetic sequences containing 5′/3′ DNA barcodes were provided by an external company (IDT, Integrated DNA Technologies) as synthetic genes (gBlocks). The different FB plasmids used in this work are listed in Table 1. Each genetic element was cloned into the GoldenBraid entry vector pUPD2 through restriction-ligation reactions as previously described [26,38], and constructs were verified by Sanger DNA sequencing using the primers OJM524 (5′-GCTTTCGCTAAGGATGATTTCTGG-3′) and OJM525 (5′-CAGGGTGGTGACACCTTGCC-3′). Gene fragments encoding for each of the four selected dAfpBs cloned into pUPD2 (FB040 to FB043, see Table 1) were assembled into the binary vector pDGB3α1R with FB parts of the paf promoter (FB029) and terminator (FB030), to generate each of the four transcriptional units (FB047 to FB050). Finally, binary assembly was conducted in the binary pDGB3Ω1 plasmid with each of these four transcriptional units with the FB plasmid encoding the hygromycin resistance cassette (hph) as the fungal selection marker (FB003), to obtain the plasmids for genetic transformation (FB053 to FB056) (Table 1). These binary vectors were PCR-confirmed with primers OJM533 (5′-CGAGTGGTGATTTTGTGCCG-3′) and OJM534 (5′-CCCGCCAATATATCCTGTCAG-3’).

2.4. A. tumefaciens Mediated Transformation of P. digitatum

The four binary plasmids (FB053/FB054/FB055/FB056) were introduced into A. tumefaciens AGL-1 strain by electroporation. P. digitatum CECT 20796 was genetically transformed through A. tumefaciens-mediated transformation (ATMT) as described [39] with some modifications [40]. Monosporic hygromycin resistant strains were isolated and maintained. Transformants were confirmed with distinct combinations of PCR reactions following routine procedures [19,22,25,26].

2.5. Production of dAfpBs in P. digitatum Transformants and Purification of the Recombinant Proteins

The recombinant production of each dAfpB was tested in different transformant strains grown in PdMM for up to 10 days at 180 rpm (final concentration 5.5 × 105 conidia/mL). Cell-free supernatants were collected and tenfold concentrated to monitor protein accumulation by SDS-PAGE electrophoresis [41] using SDS-16% polyacrylamide gels calibrated with prestained SeeBlue® protein standard (Invitrogen) and Coomassie stained. Samples were compared with purified AfpB from the PDSG420 strain. The best dAfpB producers were chosen for the bulk production and purification of each dAfpB. The protein dAfpB9 was purified from cell-free supernatants of P. digitatum transformant strains grown in PdMM for 10 days, similarly to previously reported for AfpB [19]. Briefly, clarified supernatants were dialyzed (2 kDa molecular weight cut-off; Sigma-Aldrich) against 10 mM phosphate buffer pH 6.6. Dialyzed solutions were applied to an AKTA Purifier system equipped with a 6 mL RESOURCE S cation exchange chromatography column (GE Healthcare). Protein was eluted with a linear NaCl gradient from 0 to 1 M in the same buffer. Protein containing fractions were pooled and dialyzed against Milli-Q water. Protein concentration was determined spectrophotometrically (A280) considering the molar extinction coefficient (dAfpB9Ɛ280 = 1.66). Homogeneity of the purified protein was checked with SDS-PAGE electrophoresis and Coomassie blue staining.

2.6. Matrix-Assisted Laser Desorption/Ionization–Time-of-Flight Mass Spectrometry (MALDI-TOF MS)

Analyses were performed in the proteomics facility at the SCSIE of the University of Valencia. Proteins were identified and confirmed by peptide mass fingerprinting (PMF). Samples from bands excised from either SDS-PAGE gels or purified proteins were digested with trypsin and the resulting mixtures were analyzed on a 5800 MALDI TOF/TOF (AB Sciex), with a mass accuracy of 50 ppm in positive reflectron mode (3000 shots every position). Five of the most intense precursors (according to the threshold criteria: minimum signal-to-noise: 10, minimum cluster area: 500, maximum precursor gap: 200 ppm, maximum fraction gap: 4) were selected for every position for the MS/MS analysis. MS/MS data was acquired using the default 1 kV MS/MS method. The MS and MS/MS information was sent to MASCOT via the Protein Pilot (AB Sciex).

2.7. Fungal Growth Inhibition Assays

Growth inhibition assays of AfpB and dAfpB9 were conducted in 96-well flat bottom microtiter plates (Nunc) in a total volume of 100 µL. Fifty µL of 2× concentrated conidia (5 × 104 conidia/mL) in 10% potato dextrose broth (PDB) containing 0.02% (w/v) chloramphenicol to avoid bacteria contamination were mixed in each well with 50 µL of 2× concentrated protein from serial twofold dilution (from 1 to 128 µg/mL, final concentration). Samples were prepared in triplicates. Plates were statically incubated for 72–96 h at 25 °C. Growth was determined every 12–24 h by measuring the optical density at 600 nm (OD600) using a Fluostar Omega plate spectrophotometer (BMG Labtech), and the OD600 mean and standard deviation (SD) were calculated. Dose-response curves were generated from measurements after 72 h. The experiments were repeated at least twice. Minimum inhibitory concentration (MIC) is defined as the protein concentration that completely inhibited growth in all the experiments performed. Low magnification images of each well in the 96-well plate were visualized under the microscope (E90i, Nikon Chiyoda, TO, Japan), captured by the NIS-Elements BR v2.3 software (Nikon) and processed by the FIJI software [42]. Experiments were repeated at least twice for each fungus.

2.8. Fungicidal Activity Assays

Fungicidal activity of the synthetic peptide PAF26 and proteins AfpB and dAfpB9 were assessed by incubation of P. digitatum conidia (2.5 × 104 conidia/mL) with two protein/peptide concentrations (MIC and 4× MIC) in sterile Milli-Q water for 24 h at room temperature and 60 rpm. Treatments were prepared in triplicate. After each treatment, samples were serially diluted and spread onto PDA plates that were incubated for 72 h at 25 °C to count colony-forming units (CFU). Data were used to calculate the number of viable conidia after each peptide treatment compared to the untreated control. Experiments were repeated at least twice.

3. Results

3.1. In Silico Design of dAfpBs and Structural Modeling

To obtain chimeric AfpB::PAF26 proteins, we rationally designed and evaluated a number of different models. To design these chimeras, we used the modeled structure of AfpB [27] as well as the amino acid sequence alignment of class B AFP proteins known to date (Supplementary Figure S1). The models evaluated different alternatives such as: (i) insertion or substitution of the PAF26 sequence in the AfpB sequence; (ii) direct or reverse orientation; or (iii) continuous PAF26 sequence or split in two. PAF26 was located in two different regions of AfpB that concentrate most of the protein variability within class B, suggesting that these are more permissive to sequence variation (Supplementary Figure S1). The first region was the γ-core motif present around loop 1 (L1) of the native AfpB. The second corresponds to loop 3 (L3), the most cationic, exposed, and flexible loop of AfpB and in which antifungal activity was previously demonstrated in a synthetic peptide derived from this region [27]. Four different models named dAfpB6, dAfpB7, dAfpB8 and dAfpB9 finally passed the validation pipeline. The 3D structure of these models and their sequence alignments are shown in Figure 1. All models were refined and subsequently evaluated with the RAMPAGE software (see Materials and Methods). This software predicts for each model the amino acids that are located in energetically favored, allowed, and not allowed regions attending to the RAMACHANDRAN Plot (Supplementary Figure S2). The predicted structures of the four models obtained do not vary significantly with respect to the native AfpB structure in regions other than those modified. Results of the evaluation of these models are shown in Table 2. All models showed a high percentage of amino acids in the energetically favored zone (>96%) and none are situated in a not allowed region.
The protein dAfpB6 is an example of the “split and substitution strategy”, the LKH residues in positions 10–12 (L1) in AfpB were substituted for the aromatic domain of PAF26 (WFW), and the KSD residues in positions 37–39 (L3) for the cationic domain (RKK). Although, in this model, the two domains of PAF26 are separated in the AfpB primary sequence, they come close in space in the 3D structure (Figure 1a). The resulting model has a MM of 6.79 kDa, very similar to the native AfpB, and a theoretical pI of 9.42 (Figure 1b). In order to provide antifungal properties to the inactive γ-core motif of AfpB [27], PAF26 was directly inserted in position 11 to obtain dAfpB7, an example of the “forward insertion strategy”. This model has the highest theoretical pI (9.50) and MM (7.50 kDa), since the whole sequence of PAF26 is inserted and no substitutions are taking place. The dAfpB8 resulted from a “reverse insertion strategy”, a partial reverse sequence of PAF26 (WFWK) was inserted in position 33 (L3) of AfpB to reconstitute the PAF26 sequence with the KR at positions 34–35 of AfpB. The pI of dAfpB8 is 9.22 and the MM is 7.22 kDa. Finally, dAfpB9 was the more complex model; positions 30–32 of AfpB were substituted by the amino acids WFW of PAF26, and K was inserted at position 34. As occurs with dAfpB8, the KR at positions 34–35 of AfpB reconstituted the cationic domain of PAF26 in reverse orientation. It has to be noted that the highly conserved amino acid asparagine (N) (Supplementary Figure S1) was maintained at position 33 and separates the PAF26 sequence in the primary structure but allows close proximity of the PAF26 residues in the 3D model. In addition, the glycine (G) residue at position 29 of AfpB was changed for proline (P), which is a residue present in most of the class B proteins at that position (Supplementary Figure S1). This latter substitution resulted in a more energetically favored model, leading to a final model with a theoretical pI of 9.22 and a MM of 7.03 kDa.

3.2. Recombinant Production, Identification, and Purification of dAfpBs in P. digitatum

The recombinant production of the four different dAfpBs was achieved with the adaptation of the P. chrysogenum-based paf expression system [25] to the FungalBraid modular cloning platform [26] (Figure 2a). The universal modular FB parts containing the promoter (FB029) and terminator (FB030) of the paf gene were assembled to FB parts coding for each of the four dAfpBs (FB040 to FB043), and the resulting transcriptional units (FB047 to FB050) to the universal FB003 hph resistant marker. The resulting binary vectors (FB053 to FB056) were directly used for ATMT of P. digitatum.
Genetically transformed hygromycin-resistant P. digitatum strains (between four and six depending on the construct) were tested for dAfpBs production. A representative SDS-PAGE gel of 10× supernatants of P. digitatum transformants is shown in Figure 2b. Three out of the four different dAfpBs could be produced in detectable amounts under our assay conditions. Only one producer clone was identified for dAfpB6 (PDHI623) and dAfpB7 (PDHI744) (Figure 2b. However, the protein band produced by PDHI744 (dAfpB7) showed diffuse staining and could never be detected or purified beyond these pilot experiments, and therefore, we assumed it was degraded during production. None of the six strains transformed with the dAfpB8 gene construct was able to produce any distinctive protein bands of the expected size (7 kDa) in detectable amounts. Finally, three dAfpB9-transformed clones successfully produced dAfpB9 (Figure 2b. To verify the identity of the recombinant dAfpB6 and dAfpB9, PMF analyses of the corresponding trypsin-digested gel bands were carried out, and the identity of both proteins were confirmed (Figure 2c). For dAfpB6, 86% of the sequence was covered by PMF, whereas sequence coverage for dAfpB9 was 94%. Note that the central uncovered regions for both proteins are rich in R and K, which are the target amino acids for trypsin, making it difficult to detect the small resulting digested peptides with PFM. In fact, a control PMF run on AfpB revealed that the CK residues at positions 36–37 are not covered either in the native protein (Figure 2c).
The growth of the transformant strains was indistinguishable from that of the wild type strain CECT 20796 and the previous AfpB producer PDSG420 (Figure 3). The clones PDHI623 and PDHI914 were chosen for dAfpB6 and dAfpB9 production and purification, respectively. Native AfpB was purified as an internal control of the chromatography conditions and for yield comparison. As expected for their physico-chemical properties, both AfpB and dAfpB9 were successfully purified by one-step cation exchange chromatography using the standard 10 mM phosphate buffer pH 6.6 (Figure 4). Protein dAfpB9 was purified with a yield of 3.6 mg/L, whereas the yield of native AfpB was 24 mg/L, similar to that of the previously reported yields for AfpB in other P. digitatum AfpB producer strains [19].
However, the theoretical physico-chemical properties of dAfpB6 (pI = 9.42) did not correlate with the empirical determinations, since dAfpB6 was not retained in the cation exchange chromatography column under the same conditions as AfpB and dAfpB9. Other chromatographic conditions were tested in order to achieve the successful purification of dAfpB6, but all of them were unsatisfactory and the purification of dAfpB6 had to be abandoned.

3.3. Antifungal Activity of dAfpB9 Against Filamentous Fungi

The antifungal activity of dAfpB9 was tested and compared to that of the native AfpB protein against a selection of filamentous fungi. This selection includes: P. digitatum, the fungus in which AfpB was identified, and against which it is highly active [19]; several plant pathogens like the citrus and pome postharvest pathogens P. italicum and P. expansum, the polyphagous B. cinerea, the rice blast fungus M. oryzae, the soilborne plant pathogen F. oxysporum; and industrially relevant GRAS organisms such as P. chrysogenum, and A. niger. Differences in antifungal activity were observed between AfpB and dAfpB9 (Table 3 and Figure 5). In P. digitatum, B. cinerea, P. expansum, M. oryzae and A. niger, dAfpB9 showed antifungal potency similar to that of the native AfpB, and MIC values are maintained (Table 3). Protein dAfpB9 showed a slightly better antifungal activity against P. italicum than that of the native AfpB, with a MIC value of 8 µg/mL compared to 16 µg/mL of AfpB (Table 3). Microscopic observations confirmed this result (Figure 5); the growth of P. italicum was severely affected at 8 µg/mL of AfpB but completely inhibited at the same concentration of dAfpB9. On the contrary, in the case of P. chrysogenum, the new dAfpB9 was less active than the native AfpB, with a twofold reduction of the MIC value to 8 µg/mL, the same value observed for P. italicum (Table 3). Finally, the very limited activity of AfpB towards F. oxysporum disappears in the case of dAfpB9 (Figure 5).

3.4. Fungicidal Activity

The inhibitory activity of the hexapeptide PAF26 was accompanied by fungicidal activity against the quiescent conidia of P. digitatum, which were killed and did not recover after treatment with this peptide [10]. The fungicidal activity of AfpB has not been evaluated to date. In this work, the fungicidal activity of AfpB and dAfpB9 were studied and compared, and PAF26 was added as control. Fungicidal activity assays revealed that AfpB shows killing capability against conidia of P. digitatum similar to that of PAF26 when co-incubated at 4 and 16 µg/mL for 24 h (Figure 6). However, dAfpB9 shows no fungicidal activity despite the insertion of PAF26, since the number of viable conidia after protein treatment is similar to that of the untreated control (Figure 6). This result suggests that determinants of the fungicidal activity of AfpB locate in loop L3, where the modifications of dAfpB9 occur. In addition, it demonstrates that the properties of two different AMPs (PAF26 and AfpB) are not necessarily maintained in a chimeric peptide designed from them.

4. Discussion

In this work, we explored the possible improvement of the P. digitatum AfpB antifungal and/or fungicidal activity by inserting the antifungal peptide PAF26 into the AfpB primary sequence. We rationally designed four different dAfpBs and chose P. digitatum as biofactory for recombinant protein production, since this fungus had been successfully used for the biotechnological production of other AFPs, such as PAF from P. chrysogenum and its own AfpB in high yields (80 and 20 mg/L, respectively) [19,25]. In previous studies, we used synthetic peptides to identify two antifungal motifs within the AfpB primary sequence, which are located at loops L2 and L3 [27]. Loop L3 seems to be relevant for the antifungal activity of AFPs, since a synthetic peptide derived from the L3 of PAF also showed antifungal activity [27], and protein mutations in this loop negatively affected its antifungal properties [18,25]. On the other hand, the γ-core motif from AfpB located at loop L1 did not show antifungal activity [27], analogous to the recently described γ-core from the Neosartoria fischeri NFAP2 [43], and thus was suggested to have a structural function in AfpB [27]. On the contrary, the γ-core motif of PAF has antifungal activity by itself [44]. In plant defensins, which are other cysteine-rich antifungal proteins structurally related to fungal AFPs, some γ-core motifs have been reported to have antifungal activity, as it is the case of MtDef4 from Medicago truncatula [45] and BhDef2 from Brassica hybrid [46], while in other cases a structural role for this γ-core is proposed [45].
The antifungal properties of PAF26 against filamentous fungi were previously well established, with MIC values ranging from 8 µM (8 µg/mL) in the case of P. digitatum, A. niger, or B. cinerea, to 32 µM (32 µg/mL) for P. expansum [19,47]. In the present work, we aimed to provide the AfpB γ-core motif with antifungal activity by incorporating PAF26 into the loop L1, obtaining the models dAfpB6 and dAfpB7; and on the other hand, to increase the antifungal potency of AfpB by adding PAF26 to loop L3 in models dAfpB8 and dAfpB9. In a recent study, a 14 residue cationic peptide that spans the PAF γ-core showed antifungal and fungicidal activity against the yeast Candida comparable to the native PAF [44]. This is in marked contrast with an 11 residue peptide derived from the γ-core of AfpB that is less cationic and did not show antifungal activity against filamentous fungi [27]. Moreover, peptide sequence variants were designed that increased the cationicity and improved the activity of peptides derived from the γ-core of the PAF protein, and when these sequence modifications were incorporated to the native PAF they also resulted in a clear improvement of the PAF variants against Candida albicans, with a MIC reduction from 5 to 1.3 µM [44]. Unfortunately, our designs that aimed at the modification of the AfpB γ-core could not be tested due to failure in their production and/or purification. However, the unique successful insertion of PAF26 in dAfpB9, although it improved the cationicity of the resulting protein, did not substantially improve AfpB antifungal potency. It is obvious that further comparative studies with the same microorganisms and additional protein designs are needed to shed light on these discrepancies between the AfpB and PAF studies. However, it must also be taken into account that AfpB is clearly more active (>10 times) than PAF against most of the filamentous fungi tested in parallel experiments, for instance with a MIC value in µM units of 0.6 (3–4 µg/mL) versus 8.0 (50 µg/mL) against P. digitatum [19]. This is a remarkably high activity for AfpB, which leads to the hypothesis that a threshold or limit of high activity has been reached in AfpB and, therefore, substantial improvements as the ones attempted in our study, might not be successful.
A negative result of our study that, however, leads to very significant conclusions is that the insertion of the fungicidal PAF26 sequence into the fungicidal AfpB protein—as in dAfpB9—caused an unexpected and almost complete loss of fungicidal activity towards P. digitatum conidia while the fungistatic activity remained the same. This fact suggests that the insertion of an antifungal peptide, in this case of PAF26, does not always lead to the improvement of the antifungal properties in the resulting hybrid protein, and indirectly, this result led us to map determinants of AfpB fungicidal motif in loop L3.
The place where PAF26 is inserted in AfpB seems to be determinant for protein stability and accumulation. From the four dAfpBs designed in this work, only dAfpB6 and dAfpB9 could be successfully produced in P. digitatum culture supernatants, while dAfpB7 showed signals of degradation and dAfpB8 was undetectable in the supernatants of all the strains tested (Figure 2). Probably, dAfpB7 and dAfpB8 instability might be due to the increase in the size of the modified γ-core motif in dAfpB7 and to the increase of loop L3 in dAfpB8 when PAF26 is directly inserted in both regions. These insertions generate larger and more prominent surface-exposed loops in the resulting proteins that, although our in silico modeling predicted not detrimental, could be more accessible to proteases in vivo. Something similar was observed with a protein variant of the N. fischeri antifungal protein NFAP. This variant was completely degraded when all the cysteines of the native protein were replaced by tyrosine residues, which resulted in the apparition of a big surface-exposed loop that was more accessible to proteases [48]. On the other hand, dAfpB6, in which PAF26 was divided into its two differentiated domains (the aromatic WFW and the cationic RKK) and were inserted in loops L1 and L3 of AfpB, respectively, could be produced but not successfully purified. In this case, the theoretical physico-chemical properties of dAfpB6 did not correlate with empirical determinations, since this protein was not retained in the chromatography column under the same conditions as AfpB and dAfpB9, with very similar isoelectric points, size and predicted structure. The apparent molecular weight of dAfpB6 in SDS-PAGE gels and the peptide fingerprint results indicate that dAfpB6 is correctly translated (Figure 2b,c). However, the lack of the three first amino acids at the N-terminus that were not detected by PMF (Figure 2c) could also indicate a propensity to degradation.
The dAfpB9 could be successfully purified, although the yield obtained (3.6 mg/L) is six times lower than that of the native AfpB. A lower protein stability or a possible degradation could be the main reason for this low yield obtained for dAfpB9, since the antifungal activity of this protein does not differ much from that of the native AfpB. However, it must positively be taken into account that this yield is yet better than those obtained with other AFPs naturally produced by fungi, as it is the case, for example, of NFAP and NFAP2 from N. fischeri, with yields of 1.25 and 0.368 mg/L, respectively [23,49].
Our overall results demonstrate that dAfpB9 does not improve the MIC values of AfpB against the producer P. digitatum, or other filamentous fungi like B. cinerea, P. expansum, or A. niger. A slight improvement of the antifungal activity of dAfpB9 was only observed for P. italicum (twofold reduction of MIC). This occurs despite the fact that PAF26 is less active against P. italicum than against P. digitatum [47]. On the other hand, dAfpB9 is less active than AfpB towards P. chrysogenum and M. oryzae. Further studies are needed to determine whether these minor changes in activity reflect subtle differences in the mode of action of the AfpB and dAfpB9 towards the different fungi.
In summary, we can conclude that the rational design of AfpB variants based on the unrelated PAF26 hexapeptide did not substantially improve the AfpB antifungal potency. However, we reported the fungicidal activity of AfpB for the first time, and were able to map a fungicidal motif located at loop L3 of AfpB. Our study provides information on the potential improvement of AFPs by rational design, and further studies/combinations might provide new chimeric proteins with improved properties.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/6/4/106/s1, Figure S1: Sequence alignment of class B AFPs and AFP-like proteins of filamentous fungi, Figure S2: Ramachandran Plot of the structural models of dAfpBs.

Author Contributions

M.H. and S.G. designed and cloned the DNA constructions, carried out genetic transformations, and tested the production of the proteins. M.H., S.G., and P.M. performed protein purifications. S.G. and M.G. performed the antifungal and fungicidal assays. M.G. conducted the microscopic experiments. P.M. and J.F.M. conceived and designed the study. S.G. and J.F.M. wrote the first draft of the manuscript. All authors reviewed and approved the manuscript. Authorship is limited to those who have contributed substantially to the work reported.

Funding

This work was funded by grants BIO2015-68790-C2-1-R from the “Ministerio de Economía y Competitividad” (Spain) (MINECO/FEDER Funds) and PROMETEO/2018/066 from “Generalitat Valenciana” (Spain). SG was recipient of a predoctoral scholarship (FPU13/04584) within the FPU program from “Ministerio de Educación, Cultura y Deporte” (MECD, Spain).

Acknowledgments

We thank Tania Campos for her excellent technical assistance, and José M. Coll-Marqués (IATA, Valencia, Spain) for his help with the microscopy experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fisher, M.C.; Henk, D.A.; Briggs, C.J.; Brownstein, J.S.; Madoff, L.C.; McCraw, S.L.; Gurr, S.J. Emerging fungal threats to animal, plant and ecosystem health. Nature 2012, 484, 186–194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Denning, D.W.; Park, S.; Lass-Florl, C.; Fraczek, M.G.; Kirwan, M.; Gore, R.; Smith, J.; Bueid, A.; Moore, C.B.; Bowyer, P.; et al. High-frequency triazole resistance found in nonculturable Aspergillus fumigatus from lungs of patients with chronic fungal disease. Clin. Infect. Dis. 2011, 52, 1123–1129. [Google Scholar] [CrossRef] [PubMed]
  3. Zasloff, M. Antimicrobial peptides of multicellular organisms. Nature 2002, 415, 389–395. [Google Scholar] [CrossRef] [PubMed]
  4. Brogden, K.A. Antimicrobial peptides: Pore formers or metabolic inhibitors in bacteria? Nat. Rev. Microbiol. 2005, 3, 238–250. [Google Scholar] [CrossRef] [PubMed]
  5. Hancock, R.E.; Sahl, H.G. Antimicrobial and host-defense peptides as new anti-infective therapeutic strategies. Nat. Biotechnol. 2006, 24, 1551–1557. [Google Scholar] [CrossRef] [PubMed]
  6. Marcos, J.F.; Muñoz, A.; Pérez-Payá, E.; Misra, S.; López-García, B. Identification and rational design of novel antimicrobial peptides for plant protection. Annu. Rev. Phytopathol. 2008, 46, 273–301. [Google Scholar] [CrossRef] [PubMed]
  7. Fjell, C.D.; Hiss, J.A.; Hancock, R.E.W.; Schneider, G. Designing antimicrobial peptides: Form follows function. Nat. Rev. Drug Discov. 2012, 11, 37–51. [Google Scholar] [CrossRef] [PubMed]
  8. Lopez-García, B.; Pérez-Payá, E.; Marcos, J.F. Identification of novel hexapeptides bioactive against phytopathogenic fungi through screening of a synthetic peptide combinatorial library. Appl. Environ. Microbiol. 2002, 68, 2453–2460. [Google Scholar] [CrossRef] [PubMed]
  9. López-García, B.; Veyrat, A.; Pérez-Payá, E.; González-Candelas, L.; Marcos, J.F. Comparison of the activity of antifungal hexapeptides and the fungicides thiabendazole and imazalil against postharvest fungal pathogens. Int. J. Food Microbiol. 2003, 89, 163–170. [Google Scholar] [CrossRef] [Green Version]
  10. Muñoz, A.; Lopez-García, B.; Pérez-Payá, E.; Marcos, J.F. Antimicrobial properties of derivatives of the cationic tryptophan-rich hexapeptide PAF26. Biochem. Biophys. Res. Commun. 2007, 354, 172–177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. López-García, B.; Harries, E.; Carmona, L.; Campos-Soriano, L.; López, J.; Manzanares, P.; Gandía, M.; Coca, M.; Marcos, J. Concatemerization increases the inhibitory activity of short, cell-penetrating, cationic and tryptophan-rich antifungal peptides. Appl. Microbiol. Biotechnol. 2015, 99, 8011–8021. [Google Scholar] [CrossRef] [PubMed]
  12. Mendive-Tapia, L.; Zhao, C.; Akram, A.R.; Preciado, S.; Albericio, F.; Lee, M.; Serrels, A.; Kielland, N.; Read, N.D.; Lavilla, R.; et al. Spacer-free BODIPY fluorogens in antimicrobial peptides for direct imaging of fungal infection in human tissue. Nat. Commun. 2016, 7, 10940. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Muñoz, A.; López-García, B.; Marcos, J.F. Studies on the mode of action of the antifungal hexapeptide PAF26. Antimicrob. Agents Chemother. 2006, 50, 3847–3855. [Google Scholar] [CrossRef] [PubMed]
  14. Muñoz, A.; Gandía, M.; Harries, E.; Carmona, L.; Read, N.D.; Marcos, J.F. Understanding the mechanism of action of cell-penetrating antifungal peptides using the rationally designed hexapeptide PAF26 as a model. Fungal Biol. Rev. 2013, 26, 146–155. [Google Scholar] [CrossRef]
  15. Muñoz, A.; Harries, E.; Contreras-Valenzuela, A.; Carmona, L.; Read, N.D.; Marcos, J.F. Two functional motifs define the interaction, internalization and toxicity of the cell-penetrating antifungal peptide PAF26 on fungal cells. PLoS ONE 2013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hegedüs, N.; Marx, F. Antifungal proteins: More than antimicrobials? Fungal Biol. Rev. 2013, 26, 132–145. [Google Scholar] [CrossRef] [PubMed]
  17. Meyer, V. A small protein that fights fungi: AFP as a new promising antifungal agent of biotechnological value. Appl. Microbiol. Biotechnol. 2008, 78, 17–28. [Google Scholar] [CrossRef] [PubMed]
  18. Batta, G.; Barna, T.; Gáspári, Z.; Sándor, S.; Kövér, K.E.; Binder, U.; Sarg, B.; Kaiserer, L.; Chhillar, A.K.; Eigentler, A.; et al. Functional aspects of the solution structure and dynamics of PAF—A highly-stable antifungal protein from Penicillium chrysogenum. FEBS J. 2009, 276, 2875–2890. [Google Scholar] [CrossRef] [PubMed]
  19. Garrigues, S.; Gandía, M.; Popa, C.; Borics, A.; Marx, F.; Coca, M.; Marcos, J.F.; Manzanares, P. Efficient production and characterization of the novel and highly active antifungal protein AfpB from Penicillium digitatum. Sci. Rep. 2017, 7, 14663. [Google Scholar] [CrossRef] [PubMed]
  20. Lacadena, J.; del Pozo, A.M.N.; Gasset, M.; Patiño, B.; Campos-Olivas, R.; Vázquez, C.; Martıínez-Ruiz, A.; Mancheño, J.M.; Oñaderra, M.; Gavilanes, J.G. Characterization of the antifungal protein secreted by the mould Aspergillus giganteus. Arch. Biochem. Biophys. 1995, 324, 273–281. [Google Scholar] [CrossRef] [PubMed]
  21. Marx, F.; Haas, H.; Reindl, M.; Stöffler, G.; Lottspeich, F.; Redl, B. Cloning, structural organization and regulation of expression of the Penicillium chrysogenum paf gene encoding an abundantly secreted protein with antifungal activity. Gene 1995, 167, 167–171. [Google Scholar] [CrossRef]
  22. Garrigues, S.; Gandía, M.; Marcos, J.F. Occurrence and function of fungal antifungal proteins: A case study of the citrus postharvest pathogen Penicillium digitatum. Appl. Microbiol. Biotechnol. 2016, 100, 2243–2256. [Google Scholar] [CrossRef] [PubMed]
  23. Tóth, L.; Kele, Z.; Borics, A.; Nagy, L.G.; Váradi, G.; Virágh, M.; Takó, M.; Vágvölgyi, C.; Galgóczy, L. NFAP2, a novel cysteine-rich anti-yeast protein from Neosartorya fischeri NRRL 181: Isolation and characterization. AMB Expr. 2016, 6, 1–13. [Google Scholar] [CrossRef] [PubMed]
  24. Yount, N.Y.; Yeaman, M.R. Multidimensional signatures in antimicrobial peptides. Proc. Natl. Acad. Sci. USA 2004, 101, 7363–7368. [Google Scholar] [CrossRef] [PubMed]
  25. Sonderegger, C.; Galgóczy, L.; Garrigues, S.; Fizil, Á.; Borics, A.; Manzanares, P.; Hegedüs, N.; Huber, A.; Marcos, J.F.; Batta, G.; et al. A Penicillium chrysogenum-based expression system for the production of small, cysteine-rich antifungal proteins for structural and functional analyses. Microb. Cell Fact. 2016, 15, 192. [Google Scholar] [CrossRef] [PubMed]
  26. Hernanz-Koers, M.; Gandía, M.; Garrigues, S.; Manzanares, P.; Yenush, L.; Orzaez, D.; Marcos, J.F. FungalBraid: A GoldenBraid-based modular cloning platform for the assembly and exchange of DNA elements tailored to fungal synthetic biology. Fungal Genet. Biol. 2018, 116, 51–61. [Google Scholar] [CrossRef] [PubMed]
  27. Garrigues, S.; Gandía, M.; Borics, A.; Marx, F.; Manzanares, P.; Marcos, J.F. Mapping and identification of antifungal peptides in the putative antifungal protein AfpB from the filamentous fungus Penicillium digitatum. Front. Microbiol. 2017, 8. [Google Scholar] [CrossRef] [PubMed]
  28. Fizil, Á.; Gáspári, Z.; Barna, T.; Marx, F.; Batta, G. “Invisible” conformers of an antifungal disulfide protein revealed by constrained cold and heat unfolding, CEST-NMR experiments, and molecular dynamics calculations. Chem. Eur. J. 2015, 21, 5136–5144. [Google Scholar] [CrossRef] [PubMed]
  29. Huber, A.; Hajdu, D.; Bratschun-Khan, D.; Gáspári, Z.; Varbanov, M.; Philippot, S.; Fizil, Á.; Czajlik, A.; Kele, Z.; Sonderegger, C.; et al. New antimicrobial potential and structural properties of PAFB: A cationic, cysteine-rich protein from Penicillium chrysogenum Q176. Sci. Rep. 2018, 8, 1751. [Google Scholar] [CrossRef] [PubMed]
  30. Shi, X.; Cordero, T.; Garrigues, S.; Marcos, J.F.; Darós, J.A.; Coca, M. Efficient production of antifungal proteins in plants using a new transient expression vector derived from Tobacco mosaic virus. Plant Biotechnol. J. 2018. under review. [Google Scholar]
  31. Garrigues, S.; Gandía, M.; Castillo, L.; Coca, M.; Marx, F.; Marcos, J.F.; Manzanares, P. Three antifungal proteins from Penicillium expansum: Different patterns of production and antifungal activity. Front. Microbiol. 2018, 9. [Google Scholar] [CrossRef]
  32. Marcet-Houben, M.; Ballester, A.-R.; de la Fuente, B.; Harries, E.; Marcos, J.F.; González-Candelas, L.; Gabaldón, T. Genome sequence of the necrotrophic fungus Penicillium digitatum, the main postharvest pathogen of citrus. BMC Genom. 2012, 13, 646. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Arnold, K.; Bordoli, L.; Kopp, J.; Schwede, T. The SWISS-MODEL workspace: A web-based environment for protein structure homology modelling. Bioinformatics 2006, 22, 195–201. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, D.; Zhang, Y. Improving the physical realism and structural accuracy of protein models by a two-step atomic-level energy minimization. Biophys. J. 2011, 101, 2525–2534. [Google Scholar] [CrossRef] [PubMed]
  35. Lovell, S.C.; Davis, I.W.; Arendall, W.B.; de Bakker, P.I.W.; Word, J.M.; Prisant, M.G.; Richardson, J.S.; Richardson, D.C. Structure validation by Cα geometry: ϕ,ψ and Cβ deviation. Proteins 2003, 50, 437–450. [Google Scholar] [CrossRef] [PubMed]
  36. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.E.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. Protein identification and analysis tools on the ExPASy server. In The Proteomics Protocols Handbook; Walker, J.M., Ed.; Humana Press: Totowa, NJ, USA, 2005; pp. 571–607. [Google Scholar]
  37. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef] [PubMed]
  38. Sarrion-Perdigones, A.; Vazquez-Vilar, M.; Palací, J.; Castelijns, B.; Forment, J.; Ziarsolo, P.; Blanca, J.; Granell, A.; Orzaez, D. GoldenBraid 2.0: A comprehensive DNA assembly framework for plant synthetic biology. Plant Physiol. 2013, 162, 1618–1631. [Google Scholar] [CrossRef] [PubMed]
  39. Khang, C.H.; Park, S.Y.; Rho, H.S.; Lee, Y.H.; Kang, S. Filamentous fungi (Magnaporthe grisea and Fusarium oxysporum). Methods Mol. Biol. 2006, 344, 403–420. [Google Scholar] [PubMed]
  40. Harries, E.; Gandía, M.; Carmona, L.; Marcos, J.F. The Penicillium digitatum protein O-mannosyltransferase Pmt2 is required for cell wall integrity, conidiogenesis, virulence and sensitivity to the antifungal peptide PAF26. Mol. Plant Pathol. 2015, 16, 748–761. [Google Scholar] [CrossRef] [PubMed]
  41. Laemmli, U.K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar] [CrossRef] [PubMed]
  42. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji—An Open Source platform for biological image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [PubMed]
  43. Tóth, L.; Váradi, G.; Borics, A.; Batta, G.; Kele, Z.; Vendrinszky, Á.; Tóth, R.; Ficze, H.; Tóth, G.K.; Vágvölgyi, C.; et al. Anti-candidal activity and functional mapping of recombinant and synthetic Neosartorya fischeri antifungal protein 2 (NFAP2). Front. Microbiol. 2018, 9. [Google Scholar] [CrossRef] [PubMed]
  44. Sonderegger, C.; Váradi, G.; Galgóczy, L.; Kocsubé, S.; Posch, W.; Borics, A.; Dubrac, S.; Tóth, G.K.; Wilflingseder, D.; Marx, F. The evolutionary conserved γ-core motif influences the anti-Candida activity of the Penicillium chrysogenum antifungal protein PAF. Front. Microbiol. 2018, 9. [Google Scholar] [CrossRef] [PubMed]
  45. Sagaram, U.S.; Pandurangi, R.; Kaur, J.; Smith, T.J.; Shah, D.M. Structure-activity determinants in antifungal plant defensins MsDef1 and MtDef4 with different modes of action against Fusarium graminearum. PLoS ONE 2011, 6, e18550. [Google Scholar] [CrossRef] [PubMed]
  46. Kaewklom, S.; Euanorasetr, J.; Intra, B.; Panbangred, W.; Aunpad, R. Antimicrobial activities of novel peptides derived from defensin genes of Brassica hybrid cv Pule. Int. J. Pept. Res. Ther. 2016, 22, 93–100. [Google Scholar] [CrossRef]
  47. López-García, B.; Ubhayasekera, W.; Gallo, R.L.; Marcos, J.F. Parallel evaluation of antimicrobial peptides derived from the synthetic PAF26 and the human LL37. Biochem. Biophys. Res. Commun. 2007, 356, 107–113. [Google Scholar] [CrossRef] [PubMed]
  48. Galgóczy, L.; Borics, A.; Virágh, M.; Ficze, H.; Váradi, G.; Kele, Z.; Marx, F. Structural determinants of Neosartorya fischeri antifungal protein (NFAP) for folding, stability and antifungal activity. Sci. Rep. 2017, 7, 1963. [Google Scholar] [CrossRef] [PubMed]
  49. Galgóczy, L.; Kovács, L.; Karácsony, Z.; Virágh, M.; Hamari, Z.; Vágvölgyi, C. Investigation of the antimicrobial effect of Neosartorya fischeri antifungal protein (NFAP) after heterologous expression in Aspergillus nidulans. Microbiology 2013, 159, 411–419. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 06 00106 g001 550

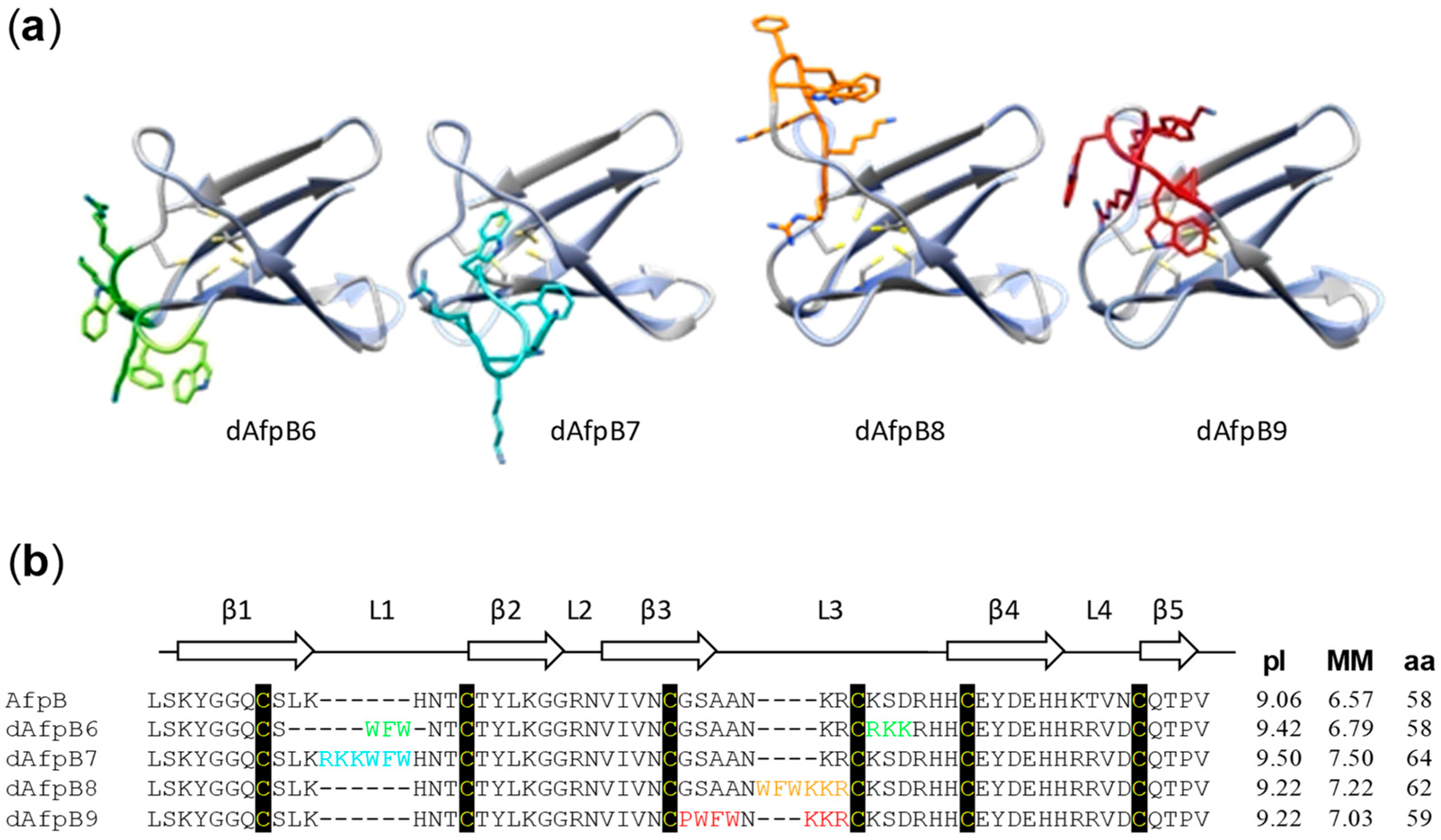

Figure 1. Three-dimensional structures of the four different dAfpBs and their sequence alignment. (a) Graphical representation of dAfpB6, dAfpB7, dAfpB8, and dAfpB9 (grey) overlapped with native AfpB (blue). PAF26 insertions/substitutions are highlighted in a different color for each model (green, blue, orange, and red for dAfpB6, dAfpB7, dAfpB8, and dAfpB9, respectively); (b) sequence alignment, isoelectric point (pI), molecular mass (MM, in kDa), and number of amino acids (aa) of the four different dAfpBs. Insertions and/or substitutions are highlighted following the color code in (a). The conserved cysteine pattern is shadowed in black.
Figure 1. Three-dimensional structures of the four different dAfpBs and their sequence alignment. (a) Graphical representation of dAfpB6, dAfpB7, dAfpB8, and dAfpB9 (grey) overlapped with native AfpB (blue). PAF26 insertions/substitutions are highlighted in a different color for each model (green, blue, orange, and red for dAfpB6, dAfpB7, dAfpB8, and dAfpB9, respectively); (b) sequence alignment, isoelectric point (pI), molecular mass (MM, in kDa), and number of amino acids (aa) of the four different dAfpBs. Insertions and/or substitutions are highlighted following the color code in (a). The conserved cysteine pattern is shadowed in black.
Microorganisms 06 00106 g001
Microorganisms 06 00106 g002 550

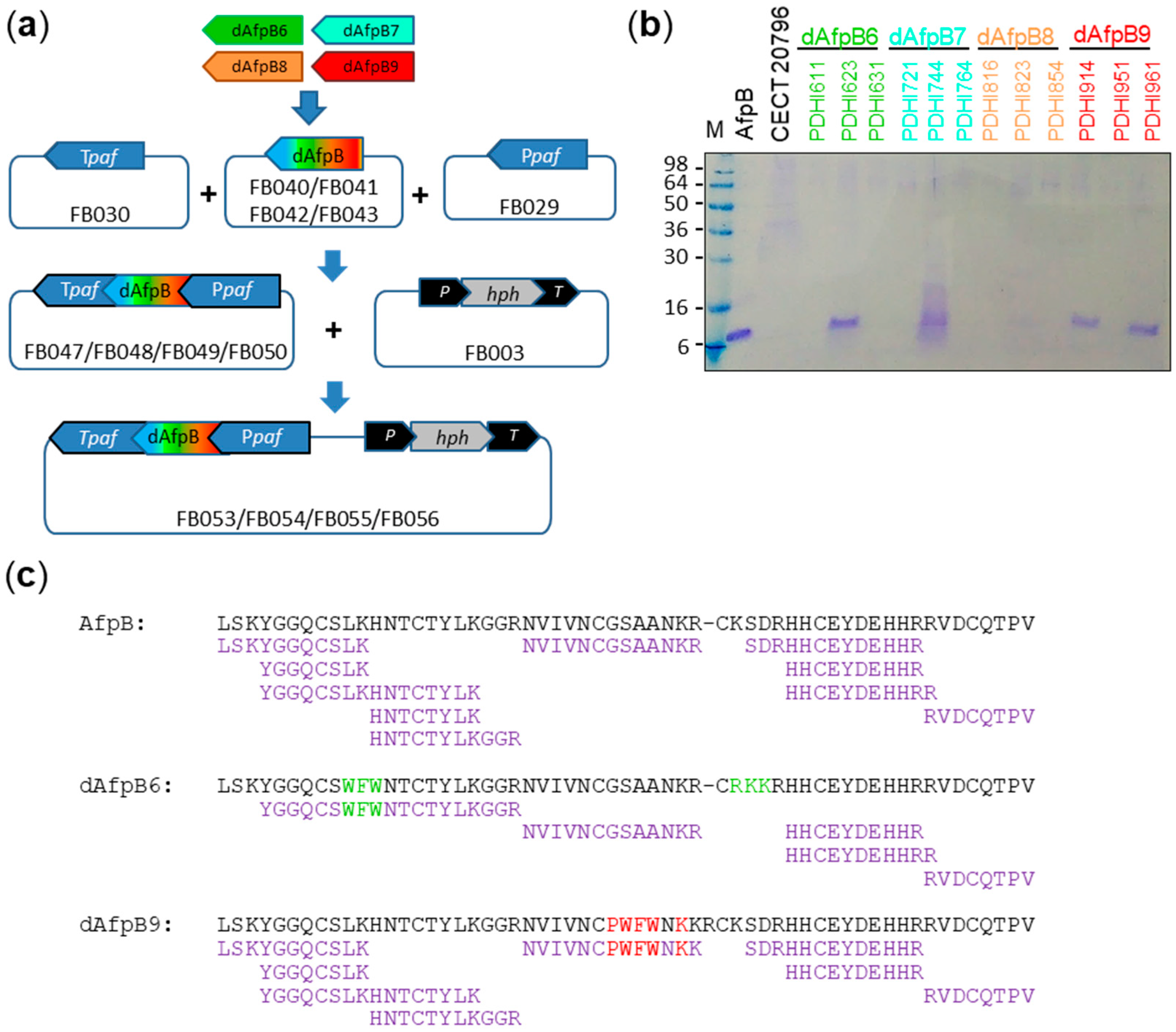

Figure 2. Production and identification of dAfpBs in P. digitatum. (a) Schematic diagram of the modular assembly of each different dAfpB genetic sequence into pUPD2 vectors with FB030 and FB029 (paf promoter and terminator sequences, respectively) to obtain pDGBα plasmids FB047, FB048, FB049, and FB050, and a subsequent binary assembly of these plasmids with FB003 to obtain final pDGBΩ vectors FB053, FB054, FB055, and FB056; (b) representative SDS-PAGE analysis of the production of dAfpBs in 10× culture supernatants of P. digitatum after 9 days of incubation. Two µg of pure AfpB were added as control. M: Seeblue® pre-stained protein standard. (c) Peptide fingerprint of dAfpB6 and dAfpB9 obtained from trypsin-digested gel bands. The peptide fingerprint of native AfpB was added as control. Peptides obtained covered 96%, 86% and 94% of AfpB, dAfpB6 and dAfpB9 primary sequences, respectively.
Figure 2. Production and identification of dAfpBs in P. digitatum. (a) Schematic diagram of the modular assembly of each different dAfpB genetic sequence into pUPD2 vectors with FB030 and FB029 (paf promoter and terminator sequences, respectively) to obtain pDGBα plasmids FB047, FB048, FB049, and FB050, and a subsequent binary assembly of these plasmids with FB003 to obtain final pDGBΩ vectors FB053, FB054, FB055, and FB056; (b) representative SDS-PAGE analysis of the production of dAfpBs in 10× culture supernatants of P. digitatum after 9 days of incubation. Two µg of pure AfpB were added as control. M: Seeblue® pre-stained protein standard. (c) Peptide fingerprint of dAfpB6 and dAfpB9 obtained from trypsin-digested gel bands. The peptide fingerprint of native AfpB was added as control. Peptides obtained covered 96%, 86% and 94% of AfpB, dAfpB6 and dAfpB9 primary sequences, respectively.
Microorganisms 06 00106 g002
Microorganisms 06 00106 g003 550

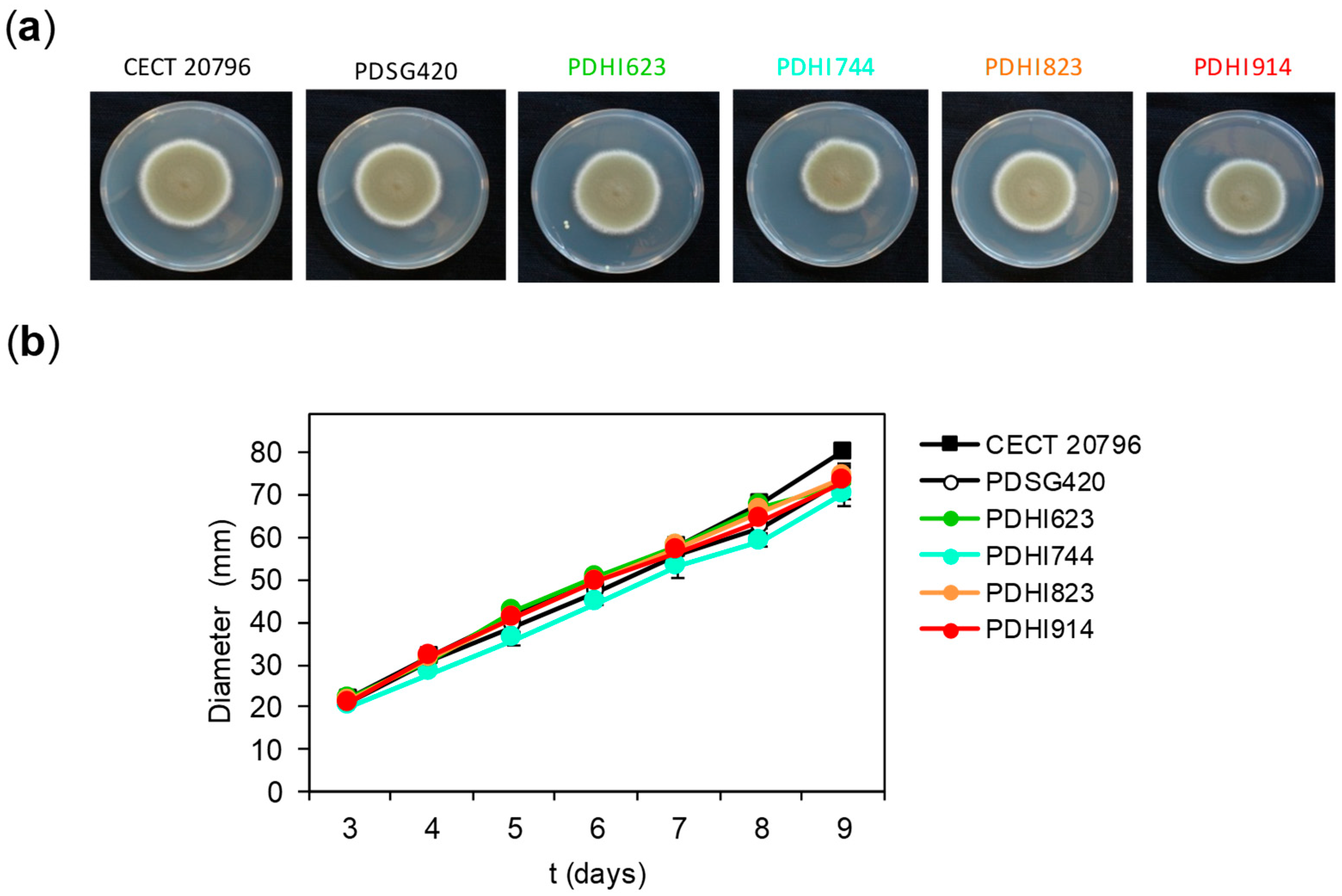

Figure 3. Phenotypical characterization of the P. digitatum dAfpBs transformant strains. Colony morphology (a) and colony diameter measurement (b) on PDA plates of the P. digitatum dAfpBs transformant strains PDHI623 (dAfpB6), PDHI744 (dAfpB7), PDHI823 (dAfpB8), and PDHI914 (dAfpB9). CECT 20796 and PDSG420 strains were added as controls. Plotted data are mean values ± SD of triplicate samples.
Figure 3. Phenotypical characterization of the P. digitatum dAfpBs transformant strains. Colony morphology (a) and colony diameter measurement (b) on PDA plates of the P. digitatum dAfpBs transformant strains PDHI623 (dAfpB6), PDHI744 (dAfpB7), PDHI823 (dAfpB8), and PDHI914 (dAfpB9). CECT 20796 and PDSG420 strains were added as controls. Plotted data are mean values ± SD of triplicate samples.
Microorganisms 06 00106 g003
Microorganisms 06 00106 g004 550
Figure 4. Purification of native AfpB and dAfpB9 by cation exchange chromatography. (a) Chromatograms of native AfpB (dark blue) and dAfpB9 (red) purification. NaCl gradient is represented with a black line. The analyzed fractions are represented between discontinuous lines; (b) SDS-PAGE analyses of chromatographic fractions obtained from AfpB purification (left) and dAfpB9 (right). Two µg of pure AfpB were added as control. Ft: Flow-through. S: Initial sample. M: Seeblue® pre-stained protein standard. (c) SDS-PAGE of 2 µg of pure AfpB and dAfpB9.
Figure 4. Purification of native AfpB and dAfpB9 by cation exchange chromatography. (a) Chromatograms of native AfpB (dark blue) and dAfpB9 (red) purification. NaCl gradient is represented with a black line. The analyzed fractions are represented between discontinuous lines; (b) SDS-PAGE analyses of chromatographic fractions obtained from AfpB purification (left) and dAfpB9 (right). Two µg of pure AfpB were added as control. Ft: Flow-through. S: Initial sample. M: Seeblue® pre-stained protein standard. (c) SDS-PAGE of 2 µg of pure AfpB and dAfpB9.
Microorganisms 06 00106 g004
Microorganisms 06 00106 g005 550
Figure 5. Antifungal activity of dAfpB9 against filamentous fungi. Microscopy images of representative wells for the comparison of the antifungal activity of native AfpB and dAfpB9 against P. digitatum (a), F. oxysporum (b), P. italicum (c), and A. niger (d) after 7 days of growth at the concentrations shown.
Figure 5. Antifungal activity of dAfpB9 against filamentous fungi. Microscopy images of representative wells for the comparison of the antifungal activity of native AfpB and dAfpB9 against P. digitatum (a), F. oxysporum (b), P. italicum (c), and A. niger (d) after 7 days of growth at the concentrations shown.
Microorganisms 06 00106 g005
Microorganisms 06 00106 g006 550

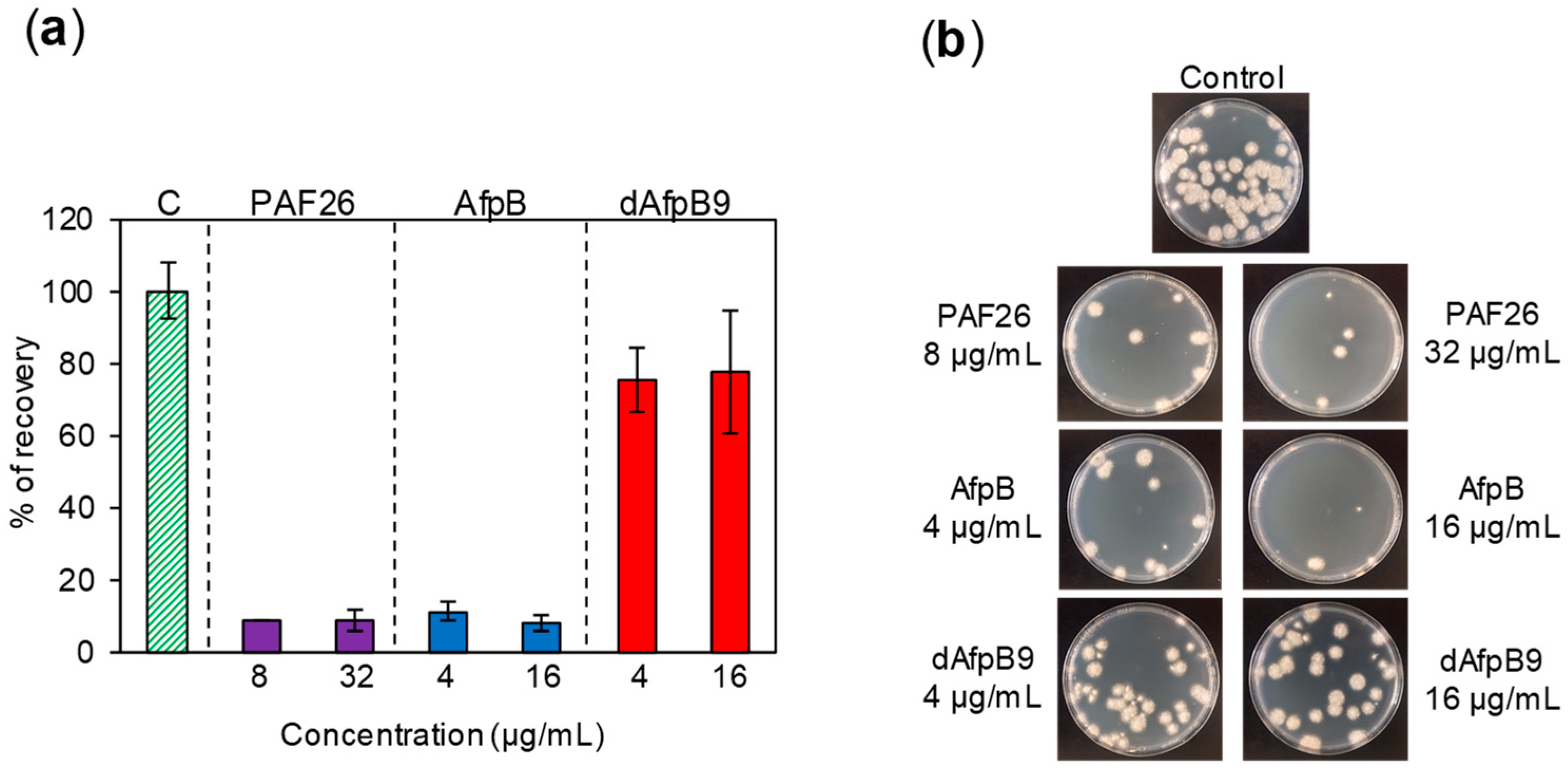

Figure 6. Study of AfpB and dAfpB9 fungicidal activity. (a) Percentage of recovery of viable conidia after 24 h of protein treatment at the concentrations shown (MIC and 4× MIC) and after 72 h of conidia incubation in PDA. PAF26 was added as a positive control for fungicidal activity; (b) representative images of conidia viability after 24 h of protein treatment and 72 h of conidia incubation on PDA plates at 25 °C.
Figure 6. Study of AfpB and dAfpB9 fungicidal activity. (a) Percentage of recovery of viable conidia after 24 h of protein treatment at the concentrations shown (MIC and 4× MIC) and after 72 h of conidia incubation in PDA. PAF26 was added as a positive control for fungicidal activity; (b) representative images of conidia viability after 24 h of protein treatment and 72 h of conidia incubation on PDA plates at 25 °C.
Microorganisms 06 00106 g006
Table
Table 1. Plasmids Used in this Study.
Table 1. Plasmids Used in this Study.
Vector IDGenetic Element/AssemblyPlasmidReference
FB003PtrpC + hph + TtubpDGB3α2[26]
FB029PpafpUPD2[26]
FB030TpafpUPD2[26]
FB040dafpB6pUPD2This work
FB041dafpB7pUPD2This work
FB042dafpB8pUPD2This work
FB043dafpB9pUPD2This work
FB047FB029 + FB040 + FB030pDGB3α1RThis work
FB048FB029 + FB041 + FB030pDGB3α1RThis work
FB049FB029 + FB042 + FB030pDGB3α1RThis work
FB050FB029 + FB043 + FB030pDGB3α1RThis work
FB053FB047 + FB003pDGB3Ω1This work
FB054FB048 + FB003pDGB3Ω1This work
FB055FB049 + FB003pDGB3Ω1This work
FB056FB050 + FB003pDGB3Ω1This work
Table
Table 2. Results of the evaluation (number of amino acids) of each different dAfpB model obtained by rational design.
Table 2. Results of the evaluation (number of amino acids) of each different dAfpB model obtained by rational design.
Model IDFavoredAllowedNot AllowedTotalSource
AfpB571058[27]
dAfpB6571058This work
dAfpB7631064This work
dAfpB8602062This work
dAfpB9581059This work
Table
Table 3. Minimum inhibitory concentration (MIC) (µg/mL) of AfpB and dAfpB9.
Table 3. Minimum inhibitory concentration (MIC) (µg/mL) of AfpB and dAfpB9.
MicroorganismAfpBdAfpB9
P. digitatum44
P. chrysogenum48
B. cinerea1616
P. expansum44
P. italicum168
F. oxysporum>128NI 1
M. oryzae>128>128
A. niger44
1 NI: Not inhibitory at the maximum concentration tested (128 µg/mL).

Share and Cite

MDPI and ACS Style

Heredero, M.; Garrigues, S.; Gandía, M.; Marcos, J.F.; Manzanares, P. Rational Design and Biotechnological Production of Novel AfpB-PAF26 Chimeric Antifungal Proteins. Microorganisms 2018, 6, 106. https://doi.org/10.3390/microorganisms6040106

AMA Style

Heredero M, Garrigues S, Gandía M, Marcos JF, Manzanares P. Rational Design and Biotechnological Production of Novel AfpB-PAF26 Chimeric Antifungal Proteins. Microorganisms. 2018; 6(4):106. https://doi.org/10.3390/microorganisms6040106

Chicago/Turabian Style

Heredero, Marcos, Sandra Garrigues, Mónica Gandía, Jose F. Marcos, and Paloma Manzanares. 2018. "Rational Design and Biotechnological Production of Novel AfpB-PAF26 Chimeric Antifungal Proteins" Microorganisms 6, no. 4: 106. https://doi.org/10.3390/microorganisms6040106

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
