Evaluation of Cellular Responses of Heterotrophic Escherichia coli Cultured with Autotrophic Chlamydomonas reinhardtii as a Nutrient Source by Analyses Based on Microbiology and Transcriptome

Abstract

Heterotrophic microorganism Escherichia coli LS5218 was cultured with flesh green alga Chlamydomonas reinhardtii C-9: NIES-2235 as a nutrient supplier. In order to evaluate the cell response of Escherichia coli with Chlamydomonas reinhardtii, Escherichia coli was evaluated with microbial methods and comprehensive gene transcriptional analyses. Escherichia coli with Chlamydomonas reinhardtii showed a specific growth rate (µ_max) of 1.04 ± 0.27, which was similar to that for cells growing in Luria–Bertani medium (µ_max = 1.20 ± 0.40 h⁻¹). Furthermore, comparing the cellular responses of Escherichia coli in a green-algae-containing medium with those in the Luria–Bertani medium, transcriptomic analysis showed that Escherichia coli upregulated gene transcription levels related to glycolysis, 5-phospho-d-ribosyl-1-diphosphate, and lipid synthesis; on the other hand, it decreased the levels related to lipid degradation. In particular, the transcription levels were increased by 103.7 times on pgm (p * < 0.05 (p = 0.015)) in glycolysis, and decreased by 0.247 times on fadE (p * < 0.05 (p = 0.041)) in lipolysis. These genes are unique and could regulate the direction of metabolism; these responses possibly indicate carbon source assimilation as a cellular response in Escherichia coli. This paper is the first report to clarify that Escherichia coli, a substance-producing strain, directly uses Chlamydomonas reinhardtii as a nutrient supplier by evaluation of the cellular responses analyzed with microbial methods and transcriptome analysis.

1. Introduction

Since ancient times, humans have produced various foods, beverages and pharmaceutical substances with microorganisms, such as sake and bread under alcoholic fermentation by Saccharomyces cerevisiae [1], yogurt under lactic acid fermentation by Lactobacillus delbrueckii and Streptococcus thermophilus [2], pickles under sugar fermentation by Lactobacillus brevis [3], seasonings under amino acid fermentation by Corynebacterium glutamicum [4], and antibiotics due to the antibacterial action of Streptomyces griseus [5]. Particularly, in recent years, Escherichia coli has been widely used among industrial microorganisms with advances in genetic engineering techniques such as genetic recombination [6] and genome editing [7], resulting in the recombinant E. coli producing 30% of therapeutic proteins in the total production [8] and also producing high amounts of specific substances by controlling their metabolism [9]. Therefore, the use of industrial microorganisms in the production of these substances has been gaining momentum. These industrial microorganisms mainly depend on the supply of nutrients from the outside as heterotrophic microorganisms, and in particular, those strains rely on external supplies of carbohydrates such as glucose [10] and alcohols such as glycerol [11] and ethanol [12] as carbon sources, as well as amino acids such as glutamate [13]. The supply of these nutrients generally requires separation and purification, as well as the construction of facilities and operational systems for sufficient management to avoid contamination with other organisms [14], resulting in a great deal of economic costs and human resources. Therefore, the construction of a system in which industrial microorganisms such as E. coli can directly receive nutritional sources such as carbon sources from producers would lead to reducing those costs, which would be of industrial significance.

All organic carbon sources used by industrial microorganisms originate from CO₂ through photosynthesis. CO₂ exists in the atmosphere at around 400 ppm as of 2023 [15] and is also abundantly obtained from industrial facilities such as factories, making it an easily accessible carbon resource. Increment of the concentration of CO₂ in the atmosphere is said to play a role in global warming [15]. Therefore, aiming to easily use a versatile carbon source on earth and avoiding further global warming, the development of effective ways to use CO₂ in the atmosphere is expected. In the biological field, green algae, which include autotrophic microorganisms such as Chlamydomonas reinhardtii and Chlorella vulgaris, have recently attracted attention [16]. Their carbon fixation capacities are 10~50 times higher than common terrestrial plants in photosynthesis [17], and they efficiently convert CO₂ into organic materials such as carbohydrates and oils [18] and vitamins [19]. In fact, in nature, green algae as autotrophic microorganisms supply organic matter to heterotrophic organisms [20]. The construction of the designed system in which heterotrophic industrial microorganisms can directly use the organic matter as nutrient sources produced by green algae as a converter from CO₂ could simplify the cultivation of heterotrophic microorganisms because there is no need to purify the nutrient source, as there is with conventional systems. To date, there have been no detailed reports on biomass production and the cellular responses of heterotrophic industrial microorganisms directly supplying nutrients from green algae, so our demonstration reveals whether green algae could be directly utilized as a nutrient source.

In this study, alive C. reinhardtii cells or cellular extracts from C. reinhardtii could provide organic matter derived from CO₂ to sustain the growth of E. coli. The growth responses in these cultures and the changes in the transcriptome of E. coli were evaluated. The obtained results provide the possibility to produce biomaterials by E. coli using C. reinhardtii as a nutrient producer. Therefore, this report could be valuable for production engineering.

2. Materials and Methods

2.1. Obtainment of Green C. reinhardtii Cells

Chlamydomonas reinhardtii strain C-9: NIES-2235 was purchased from the National Institute for Environmental Studies (NIES) (Tsukuba-shi, Ibaraki, Japan). For harvest of viable green algal cells, the strain was cultured under the photobioreactor (PBR) as below: volume: 100 mL in a glass vessel; light intensity: 130 µmol photons·m⁻²·s⁻¹ with white fluorescent lamps; gas bubbling: 0.8% CO₂ gas at 0.3 vvm; temperature: room temperature (23 °C). The cultivation medium was Modified Bold’s basal medium (MBBM): 1.5 mM NaNO₃, 0.22 mM K₂HPO₄, 0.3 mM MgSO₄·7H₂O, 0.17 mM CaCl₂·2H₂O, 0.43 mM KH₂PO₄, 0.43 mM NaCl and necessary components described in a previous report as a reference [21]. In pre-cultivation, values of optical density (OD) at 750 nm in broth were monitored with a spectro-photometer U-2900 (Hitachi-Ltd., Chiyoda-ku, Tokyo, Japan), and the values were converted to cell density via appropriate calibration curves for OD₇₅₀ versus cell density (cells∙mL⁻¹) and dry cell weight (DCW) (g∙L⁻¹). For obtaining lyophilized cells, C. reinhardtii C-9: NIES-2235 was prepared for the supply of those intracellular contents by Meravi Co., Ltd. (Souka-shi, Saitama, Japan).

2.2. Preparation of Disrupted Cell Extracts from C. reinhardtii Cells

Disrupted cell extracts were harvested by ultrasonic cavitation with an ultrasonic homogenizer Smurt NR-50M operating at 20 kHz with an ultrasonic horn and a 3 mm diameter tip NS-50M-MT3 (Funabashi-shi, Chiba, Japan). In total, 2 g of lyophilized cells was suspended with 20 mL of MBBM in 100 mL of a glass vial on ice, and the suspension was stirred at 300 rotations per minute (rpm) with a magnetic stirring device. In total, 2 cm of the top of the chip was inserted into the stirred cell suspension and then sonication was performed (on: 30 s; off: 30 s, 40 cycles) on ice. The disrupted suspension was collected with 50 mL of polypropylene centrifuge tubes, and then those tubes were centrifuged at 2500× g for 3 min at 23 °C. The supernatants were transferred into other 50 mL of polypropylene centrifuge tubes and similarly centrifuged at 2500× g for 3 min at 23 °C again. The supernatants were collected and filled with MBBM up to 100 mL. After the processes, the supernatants were transferred into other 50 mL of polypropylene centrifuge tubes, and highly treated with centrifugation at 10,000× g for 5 min at 23 °C. The supernatants were stepwisely filtered with filter paper #3 (pore size: 5 µm) (Advantec, Chiyoda-ku, Tokyo, Japan), a stericup quick release HV sterile vacuum filtration system (pore size: 0.45 µm) (Merck Millipore, Danvers, MA, USA) and a stericup quick release HV sterile vacuum filtration system (pore size: 0.22 µm) (Merck Millipore). The filtered solution was used as a 20 g∙L⁻¹ stock solution of disrupted cell extracts.

2.3. Cultivation of E. coli Cells

Escherichia coli LS5218 [22] was cultivated with 160 strokes per minute (spm) at 30 °C in 3 mL of Luria–Bertani (LB) medium as pre-cultivation. The precultured E. coli cells were diluted with saline, and transferred to 10 mL of the main culture media described in the following sentence adjusted to 3.0 × 10⁴ cells·mL⁻¹ as initial cell density; the main culture media were prepared as two types of MBBM containing of the disrupted cell extracts of C. reinhardtii as 0.1~10 g·L⁻¹ or C. reinhardtii cells as 2 g·L⁻¹. In this paper, when E. coli was cultured with C. reinhardtii cells, the cells did not mean lyophilized cells but the cells directly prepared after culturing in MBBM. After the inoculation, E. coli was cultivated with 160 spm at 30 °C as the main cultivation. The cell growth of E. coli was evaluated with a colony-forming unit (cfu) on LB agarose plates as alive cell densities. In detail for analyzing cell viability of E. coli, 1 mL was collected from 10 mL of the broth containing E. coli and stepwisely diluted to 10¹~10⁸ times with saline. The dilutants were spread on LB agarose plates and incubated at 30 °C to pick alive cells up. The cell numbers obtained by counting the colonies on the LB agarose plate were used for quantifying alive cell densities as cell viabilities (cells·mL⁻¹).

2.4. Microscope Observation of E. coli Treated with Gram Staining

Appropriate volumes of broths were collected (normally, 1000 µL at 0 h; 10 µL at 6 h~) and centrifuged at 20,400× g for 5 min at 23 °C. In the case of taking 1000 µL of broth, 990 µL of the supernatant was discarded and the residue was suspended by pipetting. The suspension was transferred on a glass slide, dried out, and treated by flame fixation. Based on the favor-G set-S kit system (Shimadzu Diagnostics Corporation, Taito-ku, Tokyo, Japan), staining solution A was dropped on the flame-fixed cells and kept for 1 min. The stained cells were washed with distilled water and then rewashed with a decoloring solution. Staining solution B was dropped on the washed cells and kept for 1 min, and the stained cells were washed with distilled water. The Gram-stained cells were observed with an optical microscope OLYMPUS BX43 system equipped with an OLYMPUS DP74 (Olympus Corp., Shinjuku-ku, Tokyo, Japan) camera and with cellSens Standard software 3.2 installed.

2.5. Evaluation of Cell-Viability of C. reinhardtii

For analyzing cell viability of C. reinhardtii, 180 µL of the broths was mixed with 20 μL of neutral red (red pigment) (Tokyo Kasei Co., Ltd., Chuo-ku, Tokyo, Japan) for 5 min [23]. The neutral red solution (1.5 mg·mL⁻¹) was prepared as follows: 1.5 mg of neutral red was dissolved in 1 mL of phosphate-buffered saline (PBS) (pH = 7.4); the solution was filtered with a 0.22 μm nylon syringe filter (Membrane-Solutions, LLC, Auburn, WA, USA). After the staining process, the cells were washed with PBS, and the viability was evaluated by observing the stain-treated cells on a cell counter plate (Fukae Kasei Co., Ltd., Kobe-shi, Hyogo, Japan) under an optical microscope. The life/death of the cells was decided with the criterion: staining/not staining with neutral red on hemocytometer of improved Neubauer (Watson Co., Ltd., Arakawa-ku, Tokyo, Japan). The cell growth curve was drawn with plotted values of alive cell densities (cells∙mL⁻¹) obtained by multiplying cell density (cells∙mL⁻¹) by cell survival ratio (%). Cell density was obtained by microscopic observing with a Neubauer-improved hemocytometer (Watson Co., Ltd.). Cell survival ratio was shown with a neutral red method described above.

2.6. Quantification of Carbohydrate, Protein, Lipid and Organic Acid in Broth

In preparation for the quantification of carbohydrates, proteins and lipids, the supernatant from 2 mL of broth was collected by centrifugation (2500× g; 3 min; 23 °C), and the supernatant was treated with 0.22 µL filter as the filtered flowthrough.

Total carbohydrate concentration in a broth was quantified with a colorimetric carbohydrate assay kit (Cell Biolabs, Inc., San Diego, CA, USA) depending on the phenol–sulfuric acid method. The analysis was performed using the filtered flowthrough on a 96-well plate (type no: 1-1601-06) (Violamo-As one, Osaka-shi, Osaka, Japan) as shown below: 30 µL of the filtered flowthrough was mixed with 150 µL of highly concentrated sulfuric acid; the mixture was heated to 90 °C for 15 min and then also put on ice at 2~3 min; the treated mixture was blended well with 30 µL of developing solution containing phenol; the absorbance value at 490 nm of the blended mixture was monitored in each well of a 96-well plate under a strong vibration mode (5 s, strong mixing mode) at 23 °C as room temperature with a 96-well microplate reader SH-1300Lab (Hitachi High-Tech Science Co., Minato-ku, Tokyo, Japan); the absorbance was evaluated as the value reflected the carbohydrate concentration with a glucose-providing standard curve.

Total protein concentration in a broth was quantified with a colorimetric protein assay kit (Bio-Rad Laboratories, Inc., Hercules, CA, USA) based on the Bradford method. The analytical procedure was with the filtered flowthrough on a 96-well plate (type no: 1-1601-06) (Violamo-As one) as follows: 10 µL of the filtered flowthrough was blended with 200 µL of dye reagent prepared by diluting dye reagent concentrate with distilled water as 20%; the mixture was heated to 23 °C for 15 min; the absorbance value at 595 nm of the mixture was collected in each well of a 96-well plate under a strong vibration mode (5 s, strong mixing mode) at 23 °C as room temperature with a 680-model microplate reader (Bio-Rad Laboratories); the absorbance was quantified as the value reflected the protein concentration with an albumin-providing standard curve.

Total lipids in a broth were quantified and qualified by gas chromatography–flame ionization detector method. Total lipids in the filtered flowthrough were methyl esterified with a fatty acid methylation kit (Nacalai Tesque, Kyoto-shi, Kyoto, Japan). The fatty acid methyl esters were identified and quantified with a capillary gas chromatograph GC-2025 (Shimadzu Corp., Kyoto-shi, Kyoto, Japan) equipped with a DB-23 capillary column (60 m, 0.25 mm internal diameter, 0.15 μm film thickness) (Agilent Technologies, Santa Clara, CA, USA). Heptadecanoic acid (Sigma-Aldrich Co., Saint Louis, MO, USA) was used as an internal standard; rapeseed oil (Merck KGaA, Frankfurter Str., Darmstadt, Germany) was used as a quantitative standard. The details regarding the method were described in a previous report [18].

Each organic acid in a broth was quantified and qualified by ion exclusion chromatography and the post-column pH-buffering electric conductivity detection method. In total, 500 µL of the broth was centrifuged at 20,400× g for 1 min at 23 °C, and then the supernatant was collected. The supernatant was percolated with a 0.45 µm filter, and 10 µL of the flowthrough was injected into high-performance liquid chromatography system (guard column: SCR-102H (6.0 mm × 50 mm) (Shimadzu); column: two-tandem Shim-pack SCR-102H (8.0 mm × 300 mm) (Shimadzu); column temperature: 40 °C; mobile phase: mobile phase reagent for organic acid analysis system (Shimadzu); flow rate: 0.8 mL∙min⁻¹; electrical conductivity detector (polarity: +; cell-temperature: 43 °C)) as the Prominence Organic Acid Analysis System (Shimadzu). The obtained data were analyzed with Shimadzu-LabSolutions (Shimadzu) software 3.8 SP3.

2.7. Measurement of Levels of Gene Translation

E. coli was cultivated in C. reinhardtii-MBBM and LB medium, as mentioned above. The material for transcriptomic analysis was C. reinhardtii cells growing in MBBM (C. reinhardtii-MBBM) at a density of 2 g of cells per a litter of culture.

Approximately 5 mg of E. coli cells cultivated in C. reinhardtii-MBBM or LB medium was collected from the broth by centrifugation at 21,500× g for 5 min. The collected cells were mixed with 50 µL of QIAzol Lysis Reagent (QIAGEN, Chuo-ku, Tokyo, Japan) and shaken for 5 min. After keeping the shaken samples at 23℃ for 5 min, 10 µL of chloroform was added and placed on ice for 3 min. The treated samples were centrifuged at 21,500× g for 15 min at 4 °C; the supernatant was shaken with 25 µL of isopropanol; the mixture was placed at 23 °C for 10 min. The supernatant was discarded after centrifugation at 21,500× g for 10 min, and the precipitant was rinsed with 1 mL of 70% ethanol. The rinsed sample was dried with lyophilizer Refrigerated CentriVap Benchtop Vacuum Concentrator (Labconco Corp., Kansas City, MO, USA) and the dried precipitant was dissolved in 10 µL of RNase-free water. The prepared sample as total RNA was used to synthesize complementary DNA (cDNA) using a ReverTra Ace qPCR RT Master Mix with a gDNA Remover (TOYOBO, Osaka-shi, Osaka, Japan). With the cDNA, quantitative PCR (qPCR) was performed with THUNDERBIRD SYBR qPCR Mix (TOYOBO) using Mx qPCR Systems (Agilent Technologies). The average threshold cycle values were evaluated throughout the logarithmic amplification phase and were normalized by the level of rrsA. The qPCR primer pairs (Supplemental Table S1) were designed based on the Primer3Plus algorithm (https://dev.primer3plus.com/index.html accessed on 12 September 2023) using information from each predicted gene sequence obtained via the genome information of NCBI. The figures regarding transcription levels were prepared manually without any software.

3. Results

3.1. Growth of E. coli with Disrupted Cell Extracts from C. reinhardtii

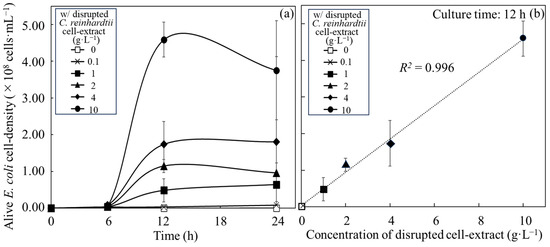

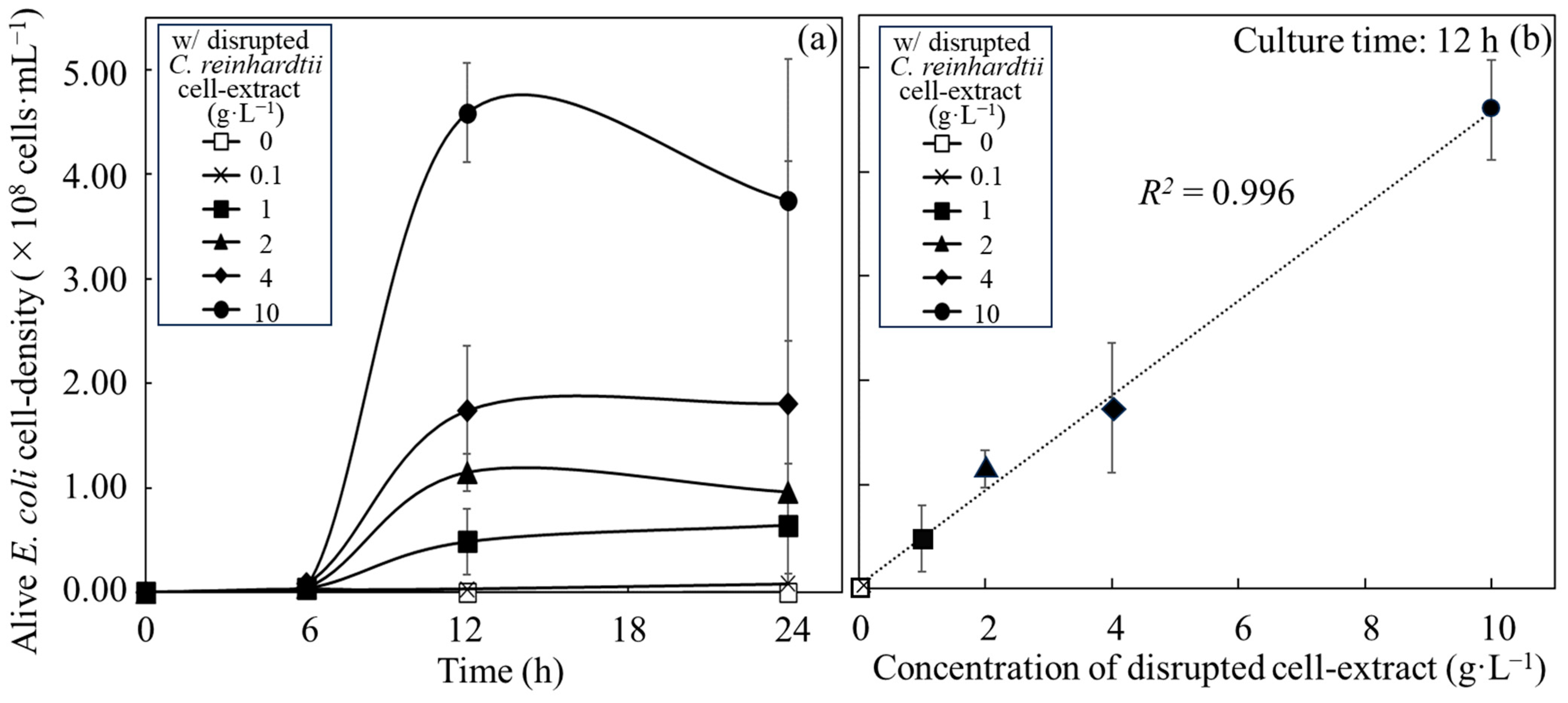

The alive cell density of E. coli in an autotrophic MBBM with disrupted cell extracts from C. reinhardtii was analyzed over time to evaluate whether E. coli could use the nutritional sources of the cell extracts from C. reinhardtii (Figure 1). E. coli was cultivated in MBBM containing disrupted cell extracts adjusted to those concentrations obtained from 0.1–10 g∙L⁻¹ of C. reinhardtii cells, and the viable cell density was monitored to display the growth over time to evaluate whether E. coli can utilize disrupted cell extracts of C. reinhardtii as a nutritional source (Figure 1a and

Table 1. Growth properties of E. coli in each medium.

Added Resource		Maximum Alive Cell Density		Growth Rate
		Time (h)	Alive Cell Density (×108 cells∙mL−1)	Time Range (h)	Specific Growth Rate (µmax, h−1)	Doubling Time (h)	Corresponding Figure
Disrupted cell extracts	0.1 g∙L−1	12	0.03 ± 0.02	6~12	0.27 ± 0.10	2.75 ± 0.84	Figure 1a
				12~24	Growth not shown	Not calculated
	1 g∙L−1	24	0.64 ± 0.59	6~12	0.45 ± 0.34	2.78 ± 2.71	Figure 1a
				12~24	0.03 ± 0.02	38.85 ± 32.51
	2 g∙L−1	12	1.15 ± 0.17	6~12	0.63 ± 0.29	1.26 ± 0.55	Figure 1a
				12~24	Growth not shown	Not calculated
	4 g∙L−1	24	1.80 ± 0.23	6~12	0.50 ± 0.11	1.44 ± 0.35	Figure 1a
				12~24	0.06 ± 0.05	11.76 ± 10.61
	10 g∙L−1	12	4.59 ± 0.48	6~12	0.82 ± 0.27	0.90 ± 0.25	Figure 1a
				12~24	Growth not shown	Not calculated
Green algae	2 g∙L−1	36	34.48 ± 2.44	6~12	1.04 ± 0.27	0.71 ± 0.22	Figure 2a
				12~24	0.12 ± 0.01	5.62 ± 0.61

). In the medium without disrupted cell extracts, the alive cell density of E. coli reached a maximum cell density of (3.0 ± 0.4) × 10⁶ cfu∙mL⁻¹ at 6 h, and the density decreased from 6 h to 12 h. On the other hand, in the medium in which the concentrations of disrupted cell extracts were adjusted to 0.1, 1, 2, 4, and 10 g∙L⁻¹, the cell densities of E. coli showed maximum or almost maximum cell density of (3.2 ± 0.4) × 10⁶ cfu∙mL⁻¹, (4.8 ± 3.2) × 10⁷ cfu∙mL⁻¹, (1.2 ± 0.2) × 10⁸ cfu∙mL⁻¹, (1.7 ± 0.6) × 10⁸ cfu∙mL⁻¹, (4.6 ± 0.5) × 10⁸ cfu∙mL⁻¹ at 12 h, and the alive cell density showed a plateau from 12 h to 24 h since each alive cell density at 12 h to 24 h did not show the significant difference. Furthermore, the correlation between the alive cell densities of E. coli and the concentration of disrupted cell extracts was evaluated at 12 h of culture when the cell densities had already reached plateaus (Figure 1b). As a result, within the concentration range of disrupted cell extracts defined as 0 to 10 g∙L⁻¹, the correlation between the alive cell density of E. coli and disrupted cell extracts was shown with a coefficient of determination (R²) of 0.996, indicating the high correlation.

3.2. Comparison of Growth Activities of E. coli with C. reinhardtii Cells and with Disrupted Cell Extracts from C. reinhardtii

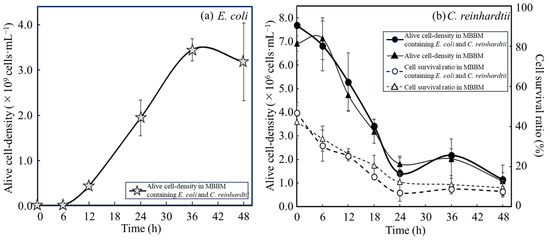

Whether E. coli could use C. reinhardtii cells as a nutritional source supplier without artificial disruption was evaluated by analyzing the changes in the alive cell density of E. coli in MBBM supplied with C. reinhardtii cell (Figure 2a and Table 1). As a result of the analyses, the alive cell density of E. coli was (4.35 ± 0.77) × 10⁸ cfu∙mL⁻¹ in 2 g∙L⁻¹ C. reinhardtii-MBBM at 12 h. The cell densities showed (1.15 ± 0.17) × 10⁸ cfu∙mL⁻¹ and (1.72 ± 0.62) × 10⁸ cfu∙mL⁻¹ in 2 g∙L⁻¹ and 4 g∙L⁻¹ disrupted cell extract-MBBM with significant differences towards that in 2 g∙L⁻¹ C. reinhardtii-MBBM at 12 h; on the other hand, the density displayed (4.59 ± 0.48) × 10⁸ cfu∙mL⁻¹ in 10 g∙L⁻¹ disrupted cell extract-MBBM without a significant difference to that in 2 g∙L⁻¹ C. reinhardtii-MBBM at 12 h. Moreover, the alive cell densities of E. coli in 2 g∙L⁻¹ C. reinhardtii-MBBM at 24 h and 36 h were (19.42 ± 0.39) × 10⁸ cfu∙mL⁻¹ and (34.48 ± 2.44) × 10⁸ cfu∙mL⁻¹, meaning of the significant increments from 12 h to 36 h. Additionally, the alive cell density of E. coli in C. reinhardtii-MBBM at 48 h was (31.80 ± 8.56) × 10⁸ cfu∙mL⁻¹, indicating a stationary phase after 36 h. As shown above, the proliferations of E. coli with either the disrupted cell extracts or the C. reinhardtii cells as nutrient sources were proved. However, the specific growth rates of E. coli with those were unclear so the rates and doubling time were calculated (Table 1). The growth of E. coli in MBBM adjusted to 10 g∙L⁻¹ disrupted cell extracts was the best in the medium group adding disrupted cell extracts, and the specific growth rate and the doubling time of E. coli from 6 h to 12 h were 0.82 ± 0.27 h⁻¹ and 0.90 ± 0.25 h. On the other hand, the specific growth rate and the doubling time of E. coli in C. reinhardtii-MBBM from 6 h to 12 h were 1.04 ± 0.27 h⁻¹ and 0.71 ± 0.22 h, revealing that the growth was higher than that in MBBM adjusted to 10 g∙L⁻¹ disrupted cell extracts. In addition, to clarify the viability and proliferation of C. reinhardtii in the C. reinhardtii-MBBM, the cell survival ratio and the alive cell density of C. reinhardtii were analyzed (Figure 2b). As the result of the analysis, the cell survival ratio and the cell density of C. reinhardtii in MBBM containing/not containing E. coli showed no significant difference, and therefore the alive cell density also displayed no significant difference.

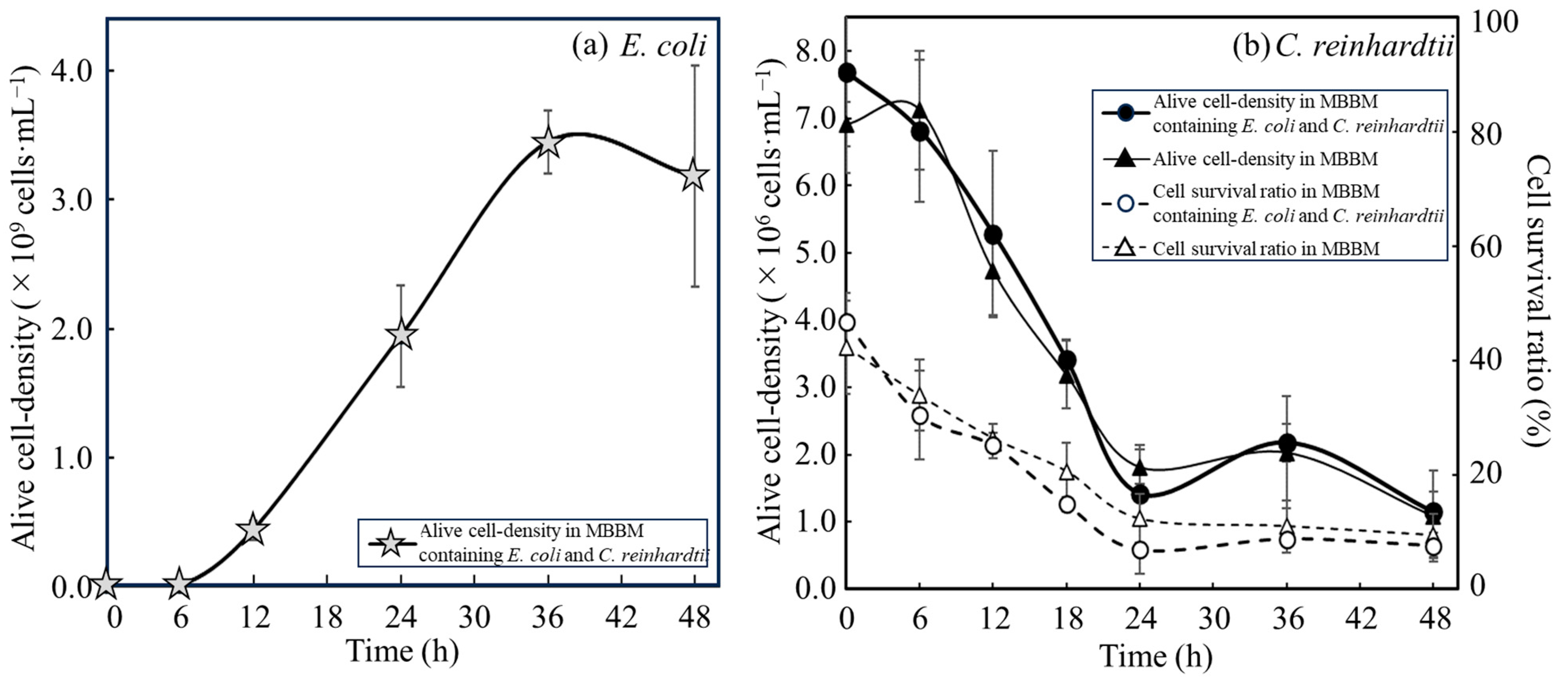

Figure 2. Growth of E. coli and C. reinhardtii in the medium containing of C. reinhardtii cells. Growth of E. coli and C. reinhardtii were shown in MBBM containing C. reinhardtii adjusted to 2 g∙L⁻¹ as initial concentration. (a) Alive cell density of E. coli was displayed as growth. Error bars indicate the SD of three replicate experiments (n = 3). (b) Alive cell density and cell survival ratio of C. reinhardtii were plotted as growth. Closed circle: alive cell density of C. reinhardtii with E. coli in MBBM; closed triangle: alive cell density of C. reinhardtii in MBBM; open circle: cell survival ratio of C. reinhardtii with E. coli in MBBM; open triangle: cell survival ratio of C. reinhardtii in MBBM. Error bars indicate the SD of three replicate experiments (n = 3).

Figure 2. Growth of E. coli and C. reinhardtii in the medium containing of C. reinhardtii cells. Growth of E. coli and C. reinhardtii were shown in MBBM containing C. reinhardtii adjusted to 2 g∙L⁻¹ as initial concentration. (a) Alive cell density of E. coli was displayed as growth. Error bars indicate the SD of three replicate experiments (n = 3). (b) Alive cell density and cell survival ratio of C. reinhardtii were plotted as growth. Closed circle: alive cell density of C. reinhardtii with E. coli in MBBM; closed triangle: alive cell density of C. reinhardtii in MBBM; open circle: cell survival ratio of C. reinhardtii with E. coli in MBBM; open triangle: cell survival ratio of C. reinhardtii in MBBM. Error bars indicate the SD of three replicate experiments (n = 3).

3.3. Evaluation of Nutrients Suplied from C. reinhardtii Consumed by E. coli

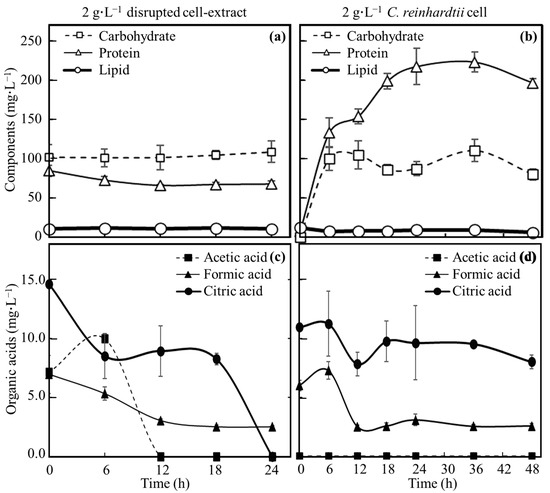

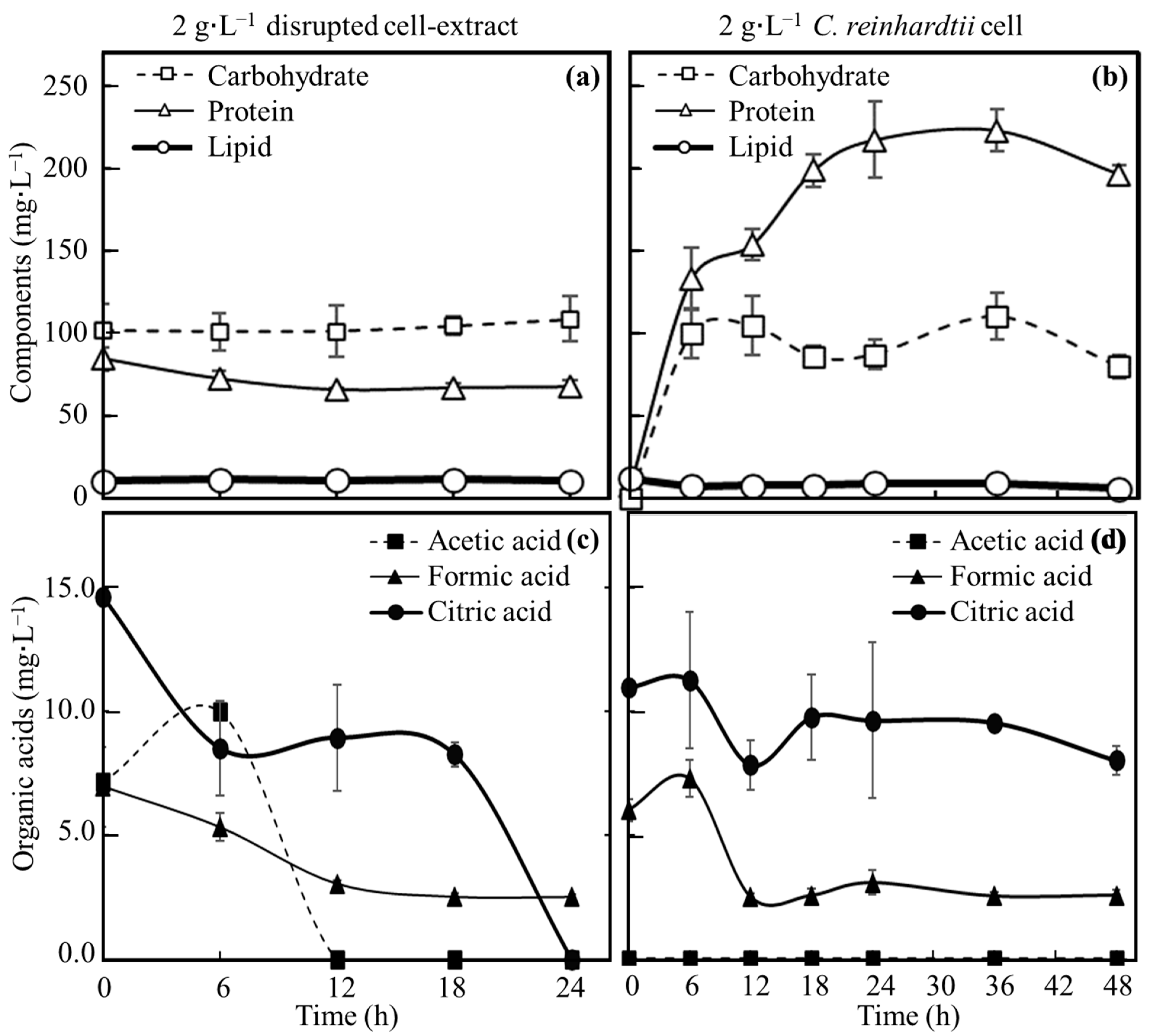

Supernatants of broths derived from 2 g∙L⁻¹ disrupted cell extract-MBBM and 2 g∙L⁻¹ C. reinhardtii-MBBM culturing E. coli were analyzed to evaluate each concentration (Figure 3). In 2 g∙L⁻¹ disrupted cell extract-MBBM, the concentration of protein was 84.9 ± 7.1 mg∙L⁻¹ at 0 h. Thereafter, the concentration of protein decreased to 66.2 ± 1.5 mg∙L⁻¹ with the cell proliferation by 12 h, when proliferation stopped. The protein concentrations showed no significant differences observed in 12 h and 24 h. The concentration of carbohydrates was 84.9 ± 7.1 mg∙L⁻¹ at 0 h. Although E. coli showed growth, the concentration of carbohydrates displayed no significant difference up to 24 h with the growth. Lipid concentrations were 11.1 ± 1.1 mg∙L⁻¹ at 0 h and 10.9 ± 0.1 mg∙L⁻¹ at 24 h, meaning that the concentration was stable without the increment/decrement. The concentration of formic acid was 7.0 ± 1.6 mg∙L⁻¹ at 0 h as the starting point of the culture. The concentration of formic acid decreased to 3.0 ± 0.1 mg∙L⁻¹ by 12 h, and afterward, there were no significant changes in the concentrations from 12 h to 24 h. Acetic acid concentration increased from 7.2 ± 0.1 mg∙L⁻¹ at 0 h to 10.0 ± 0.6 mg∙L⁻¹ at 6 h; however, its presence could no longer be confirmed by 12 h. The concentration of citric acid decreased from 14.6 ± 0.0 mg∙L⁻¹ at 0 h to 8.5 ± 1.9 mg∙L⁻¹ at 6 h, maintained until 18 h, and interestingly decreased to 24 h, at which point, its existence was no longer confirmed.

In 2 g∙L⁻¹ C. reinhardtii-MBBM, the protein was not detected at 0 h; however, the protein concentration gradually increased to 198.8 ± 9.7 mg∙L⁻¹ at 18 h. Carbohydrate concentration was not measured at 0 h, increased to 100.5 ± 15.1 mg∙L⁻¹ in 6 h, and maintained as 80.2 ± 7.3 mg∙L⁻¹ at 48 h. Lipid concentrations were 12.3 ± 0.4 mg∙L⁻¹ at 0 h and 6.2 ± 4.0 mg∙L⁻¹ at 48 h, meaning that the concentration gradually decreased. The formic acid concentration was 6.0 ± 0.5 mg∙L⁻¹ at 0 h as the starting point of the culture, and after decreasing to 2.5 ± 0.1 mg∙L⁻¹ in 12 h, the concentration was not changed until 48 h. The acetic acid could not be confirmed from the start to the end of the culture. The concentration of citric acid was 11.0 ± 0.0 mg∙L⁻¹ at 0 h, and then it decreased to 8.0 ± 0.6 mg∙L⁻¹ at 48 h.

3.4. Aging Variation in Cell Size of E. coli in Broths Containing Disrupted Cell Extracts and C. reinhardtii Cells

The cell sizes of E. coli, which were susceptible to nutrient starvation, were analyzed and evaluated in MBBM containing the disrupted cell extract or the C. reinhardtii cells (Figure 4). The major and minor axes of cells of E. coli cells were 2.6 ± 0.7 µm and 0.8 ± 0.1 µm at 6 h in the logarithmic growth phase in a nutrient-rich LB medium. Furthermore, the sizes of E. coli became slightly smaller, 1.8 ± 0.5 µm and 0.7 ± 0.1 µm as the major and minor axes during the stationary phase at 18 h, than the sizes at 6 h, especially showing that the sizes at 18 h were significantly different than those at 6 h (p *** < 0.001 (p = 1.8 × 10⁻⁷)). In the system of MBBM without the distributed cell extracts (0 g∙L⁻¹) at 12 h, the major and minor axes of E. coli cells were 1.1 ± 0.2 µm and 0.7 ± 0.1 µm, and were not expanded larger during the culture time. In the system of MBBM with the distributed cell extracts (0.1 g∙L⁻¹, 2 g∙L⁻¹ and 10 g∙L⁻¹) at 12 h, those sizes were 0.9 ± 0.2 µm and 0.5 ± 0.1 µm, 0.9 ± 0.2 µm and 0.6 ± 0.1 µm, and 1.3 ± 0.4 µm and 0.7 ± 0.1 µm, respectively. Although the major axes of E. coli cells in 0.1 g∙L⁻¹ distributed cell extract-MBBM did not expand even by increasing the concentration of the distributed cell extract-MBBM to 2 g∙L⁻¹ (p > 0.05 (p = 0.33)), those in 2 g∙L⁻¹ distributed cell extract-MBBM significantly expanded by increasing the concentration of the distributed cell extract-MBBM to 10 g∙L⁻¹ (p *** < 0.001 (p = 2.0 × 10⁻⁷)). Moreover, the major axes of E. coli cells in 10 g∙L⁻¹ distributed cell extract-MBBM did not show a significant difference to those in the LB medium (p > 0.05 (p = 0.10)). Additionally, in the system of MBBM with C. reinhardtii (2 g∙L⁻¹) at 12 h, the major and minor axes of E. coli were 1.2 ± 0.3 µm and 0.7 ± 0.1 µm. At 12 h, the major axes in C. reinhardtii-MBBM were significantly longer than those in 2 g∙L⁻¹ distributed cell extract-MBBM (p *** < 0.001 (p = 3.8 × 10⁻⁵)) and shorter than those in 10 g∙L⁻¹ distributed cell extract-MBBM (p ** < 0.01 (p = 6.8 × 10⁻³)). In both systems of the distributed cell extracts or the C. reinhardtii cells, the cell sizes reached the maximum at 6 h.

3.5. Transcriptomic Analysis for E. coli in C. reinhardtii-Containing MBBM

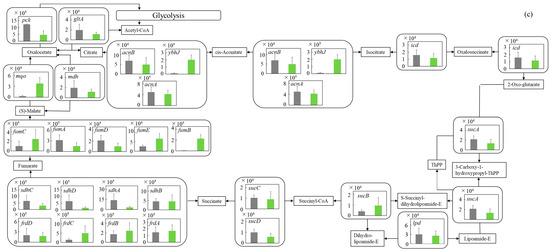

The gene transcription levels of E. coli in 2 g∙L⁻¹ C. reinhardtii-MBBM were comprehensively analyzed compared to those cultured in the LB medium to evaluate the cellular responses of E. coli cultured with C. reinhardtii cells (Figure 5). As a first step, picking housekeeping genes up was attempted in order to evaluate the intracellular gene transcription levels using a relative quantitative method. According to the previous report, 16S ribosomal RNA (rrsA) [24] is known to be constitutively expressed in cells and has actually been used as a normalizer (reference gene) for qPCR. Therefore, the transcription level was evaluated to know the performance as a reference gene on the qPCR in this study. As a result of qPCR, rrsA was stably amplified from a certain amount of cDNA, and rrsA was picked up as a housekeeping gene.

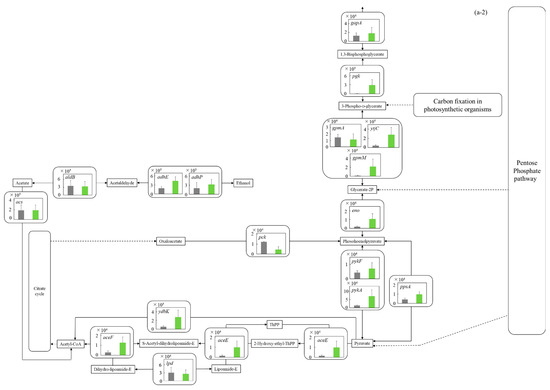

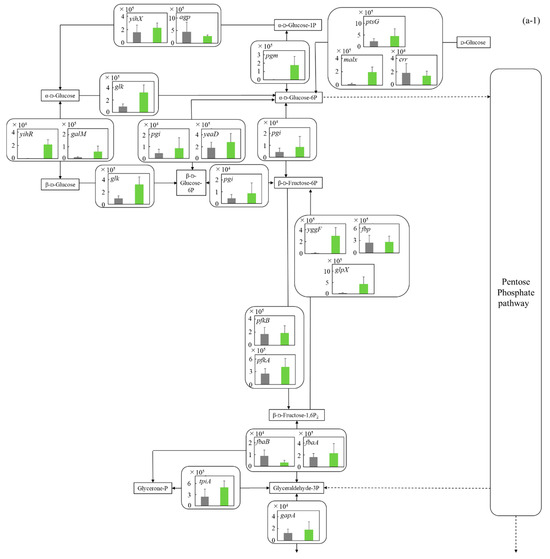

3.5.1. Glycolysis and Ethanol Assimilating Pathway

The central metabolism from glucose to pyruvate is deeply involved in the metabolism (catabolism and assimilation) of carbon sources, and it is known that the metabolic system is activated during glucose catabolism [25] and glycerol assimilation [26]. The gene transcription levels in glycolysis of E. coli were comprehensively evaluated (Figure 5a-1,a-2). On the whole, in the metabolism from around glucose to pyruvate, the gene transcription levels in MBBM with C. reinhardtii were higher than those in the LB medium. In the cells in C. reinhardtii-MBBM compared to those in the LB medium, although the transcription level of malX (p ** < 0.01 (p = 0.002)) as d-glucose phosphorylational enzyme gene was 11.5 times higher with a significant difference, those of ptsG (p > 0.05 (p = 0.089)) and crr (p > 0.05 (p = 0.257)) showed no significant difference. Additionally, in the cells in C. reinhardtii-MBBM compared to those in the LB medium, the transcription level of pgm (p * < 0.05 (p = 0.015)) as the enzyme gene relating to the phosphoryl transfer of α-d-glucose 1P and α- d-glucose 6P was increased 103.7 times. Although the relevant gene transcript levels of E. coli in C. reinhardtii-MBBM did not show a large difference compared to those in the LB medium in the direction from α-d-glucose-6P to 1,3-bisphosphoglycerate, the transcription levels of yggF (p ** < 0.01 (p = 0.003)) and glpX (p ** < 0.01 (p = 0.007)) in C. reinhardtii-MBBM were 30.8 and 9.63 times higher than those in the LB medium in the direction from β-d-fructose-1,6P₂ to β-d-fructose-6P. The transcription level of pgk (p ** < 0.01 (p = 0.003)) as the enzyme gene controlling the reactions of 1,3-bisphosphoglycerate and 3-phospho-d-glycerate was increased 43.1 times in the cells in C. reinhardtii-MBBM compared to those in the LB medium. In cells in C. reinhardtii-MBBM, the transcription levels of aceE (p ** < 0.01 (p = 0.006)) and aceF (p ** < 0.01 (p = 0.003)), as the enzyme genes in the metabolism from pyruvate to acetyl-CoA, were increased 6.40-fold and 4.46-fold compared to those in the LB medium.

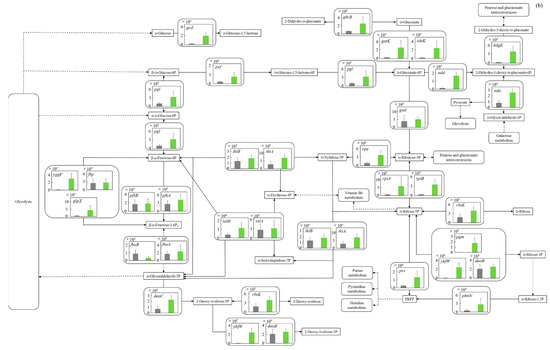

3.5.2. Pentose Phosphate Pathway

In the pentose phosphate pathway, which is an important metabolic pathway for nucleic acid synthesis deeply related to nearby glycolysis, the gene transcription levels were also evaluated (Figure 5b). In C. reinhardtii-MBBM compared to the LB medium, the transcription level of gcd (p ** < 0.01 (p = 0.003)) as the enzyme gene involved in the conversion reaction from d-glucose to d-glucono-1,5-lactone increased 10.1 times. Around d-gluconate-6P, all of the gene transcription levels in C. reinhardtii-MBBM were upregulated compared to those in the LB medium. Specifically, zwf (p > 0.05 (p = 0.068)) and pgl (p * < 0.05 (p = 0.030)) as the enzyme genes controlling the conversion of β-d-Glucose to d-gluconate-6P were upregulated 1.80 and 3.17 times; gntK (p * < 0.05 (p = 0.014)), idnK (p * < 0.05 (p = 0.035)), and ghrB (p * < 0.05 (p = 0.030)) as the enzyme genes regarding converting d-gluconate-6P to 2-dehydro-d-gluconate were 12.9, 15.9 and 3.68 times enhanced; edd (p *** < 0.001 (p = 0.0006)), kdgK (p ** < 0.01 (p = 0.007)) and eda (p *** < 0.001 (p = 0.0006)) as the enzyme genes relating to converting d-gluconate-6P to other pathways via 2-dehydro-d-gluconate were increased by 11.6, 12.6 and 3.28 times. In the pentose phosphate pathway, the transcription levels of enzyme genes relating d-xylulose-5P to d-ribose-1,5P via PRPP (5-phospho-d-ribosyl-1-diphosphate) were involved (rpe (p ** < 0.01 (p = 0.003)), 4.09 times; rpiA (p * < 0.05 (p = 0.038)) and rpiB (p ** < 0.01 (p = 0.006)), 10.2 times and 12.1 times; prs (p ** < 0.01 (p = 0.006)), 5.17 times; phnN (p * < 0.05 (p = 0.022)), 5.27 times) in C. reinhardtii-MBBM comparing to the LB medium. These genes were unique enzyme genes in each reaction pathway.

3.5.3. TCA Cycle

The metabolic reactions in the TCA cycle are extremely important not only to prepare energy production but also to obtain amino acids such as arginine and alanine/aspartate/glutamate from 2-oxoglutarate and oxaloacetate in life. The gene transcription levels relating to tricarboxylic acid (TCA) cycle in E. coli were comprehensively evaluated (Figure 5c). In C. reinhardtii-MBBM, the gene transcription level of the enzyme gene ybhJ (p *** < 0.001 (p = 0.0009)) involved in the reaction between cis-aconitate and isocitrate was significantly upregulated 18.0 times rather than that in the LB medium. Furthermore, in C. reinhardtii-MBBM compared to in the LB medium, the transcription level of fumB (p ** < 0.01 (p = 0.008)), which is involved in the conversion reaction between fumarate and malate, was increased 40.1 times shown as significant difference; the gene transcription level of mqo (p ** < 0.01 (p = 0.003)) in C. reinhardtii-MBBM was significantly upregulated 13.1 times compared to that in the LB medium. However, all of the gene transcription levels did not show huge differences between the culture conditions in C. reinhardtii-MBBM and in the LB medium.

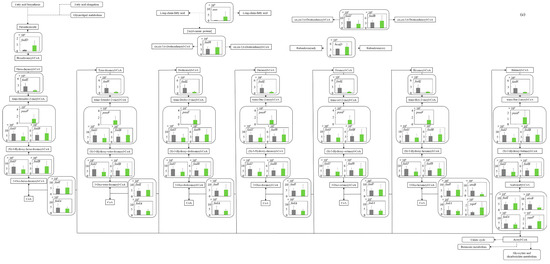

3.5.4. Fatty Acid Synthetic Pathway

In alive organisms, the production of lipids has a very important meaning in the conservation of energy as an anabolic response. Therefore, the evaluation of the gene transcription levels related to the metabolic pathway has sufficient meaning to know the cellular responses to culture medium conversion. The gene transcription levels in fatty acid synthesis in E. coli were also evaluated comprehensively (Figure 5d). As the result shows, all gene transcription levels were increased in C. reinhardtii-MBBM compared to those in the LB medium. In the case of the culture in C. reinhardtii-MBBM towards LB medium, the gene transcription levels of accA (p > 0.05 (p = 0.052)), accB (p * < 0.05 (p = 0.022)), accC (p ** < 0.01 (p = 0.002)), and accD (p ** < 0.01 (p = 0.002)) as the genes of the enzymes converting acetyl-CoA to malonyl-CoA showed the trend to increase 2.34, 2.01, 4.36 and 4.05 times. The transcription levels of the enzyme genes of fabF (p ** < 0.01 (p = 0.006)), the elongation reaction of fatty acids from malonyl [acp], fabG (p * < 0.05 (p = 0.014)), NADPH-dependent reduction in β-keto acyl-acyl carrier protein, and fabA (p ** < 0.01 (p = 0.002)) and enoylation increased 4.58, 2.83 and 46.6 times. On the other hand, no significant difference was displayed in the fabH (p > 0.05 (p = 0.089)) transcription levels in both C. reinhardtii-MBBM and the LB medium.

3.5.5. Fatty Acid Degradation Pathway

In alive organisms, the degradation of lipids has also a very important meaning in the production of energy as a catabolic response. As the cellular responses, whether the cells attempted to synthesize or degrade lipids was evaluated by analyzing the shift in the transcription levels of the genes relating to the lipid degradation compared to those involved in lipid synthesis. The gene transcription levels of fatty acid degradation in E. coli were comprehensively evaluated (Figure 5e). In both C. reinhardtii-MBBM and the LB medium, overall, the gene transcription levels in lipid degradation systems were not significantly different from those in lipid synthesis systems. Moreover, although the transcription level of paaF (p > 0.05 (p = 0.094)) of a gene of the enzyme involved in the intermediate process of lipid degradation increased 128 times, the transcription level of fadE (p * < 0.05 (p = 0.041)) of a gene of the unique enzyme involved in the first oxidation (generating an FADH₂ molecule) in lipid degradation decreased 0.247 times. Furthermore, the transcription level of fadD (p > 0.05 (p = 0.101)) increased 4.65 times in C. reinhardtii-MBBM compared to the LB medium.

3.5.6. Glycerolipid Pathway

Relating to the assimilating metabolic pathway, the gene transcription levels in the pathway converting fatty acid into lipids were also evaluated, comprehensively. The gene transcription levels of glycerolipid metabolism in E. coli were comprehensively evaluated (Figure 5f). In C. reinhardtii-MBBM compared to the LB medium, the transcription levels of glxK (p > 0.05 (p = 0.051)) and garK (p > 0.05 (p = 0.121)) genes, which are enzymes involved in the reaction from d-glycerate to enter the glycolysis, increased 23.4 and 26.0 times. The transcription levels of the genes dhaM (p ** < 0.01 (p = 0.003)), plsB (p ** < 0.01 (p = 0.007)), and plsC (p *** < 0.001 (p = 0.0005)), which are enzymes involved in oil and fat synthesis, in C. reinhardtii-MBBM were higher 13.1, higher 3.32 and 640 times than those in the LB medium.

4. Discussion

As shown in Figure 1a, the results strongly proved that E. coli could utilize the disrupted cell extracts as a nutrient source. In addition, doubling the exposure time of E. coli from 6 to 12 h tended to lessen its dependence on the concentration of disrupted cell extracts, indicating that increasing the disrupted cell extracts could improve the supply of nutrients for the cell growth of E. coli (Table 1). However, the alive cell densities did not increase after 12 h in MBBMs containing the disrupted cell extracts in this study case, meaning that E. coli exhausted the extracts up to 10 g∙L⁻¹ concentration for 12 h. Additionally, the cell density reached a plateau at 12 h, and there seemed to be a correlation between the alive cell densities and the concentrations of disrupted cell extracts. To reveal the degree of the correlation, those values were plotted and the standard curve was analyzed (Figure 1b). The high correlation (R² = 0.996) could indicate that the alive cell densities of E. coli were enhanced, depending on the increased concentrations of the disrupted cell extracts. Normally, when cells are provided with an excess amount of nutrients for growth, they cannot fully utilize the surrounding nutrients, resulting in the cells demonstrating a growth rate lower than the expected growth rate correlating to the excess nutrient concentration as its maximum growth rate. In this study, the viable cell density of E. coli did not decrease even at a concentration of the disrupted cell extracts of 10 g∙L⁻¹ for 12 h. Therefore, the growth rate of E. coli did not reach the maximum concentration because the concentration of the cell extracts as nutrients was insufficient, and the growth rate of the supply of the extracts could be possibly further improved.

At 12 h, the alive cell density of E. coli in C. reinhardtii-MBBM was not significantly different from that in 10 g∙L⁻¹ disrupted cell extract-MBBM (Figure 2a, Table 1, Supplemental Figure S1), meaning that those showed the equivalent growth pattern. Furthermore, from 6 h to 12 h, the specific growth rate and the doubling time of E. coli in C. reinhardtii-MBBM were also no significant difference to those in 10 g∙L⁻¹ disrupted cell extract-MBBM, indicating the same growth pattern of E. coli with C. reinhardtii. Therefore, E. coli in C. reinhardtii-MBBM was supplied with nutrients from C. reinhardtii cells equivalent to 10 g∙L⁻¹ disrupted cell extracts without growth inhibition in the log phase as the active growth phase. Compared to the µ_max (approximately 1.2 ± 0.4 h⁻¹) of E. coli such as MG1655 in the LB medium [27], the µ_max of E. coli obtained the nutrition from C. reinhardtii cells in this study (1.04 ± 0.27 h⁻¹) was typical value in the phase.

The alive cell density of E. coli in C. reinhardtii-MBBM significantly increased after 12 h, indicating that C. reinhardtii possibly continued to supply metabolites as the nutritional sources to E. coli; however, it was unclear whether alive or dead C. reinhardtii continued to supply metabolites. As a result of the analysis, there were no significant differences between the density and the survival ratio, and therefore there was no significant difference in the alive cell density in MBBM whether with or without E. coli, revealing that C. reinhardtii did not grow regardless of the presence or absence of E. coli not in the PBR system (Figure 2b). The above results indicated that C. reinhardtii did not die due to coexistence with E. coli but rather due to the culture environment which lacked light and aeration. In addition, the proliferation of E. coli remained in 2 g∙L⁻¹ C. reinhardtii-MBBM, even after 12 h, while it stopped in 2 g∙L⁻¹ disrupted cell extract-MBBM after 12 h (Figure 1a and Figure 2a; Table 1); therefore, the maximum cell density of E. coli in C. reinhardtii-MBBM was significantly higher than that in the disrupted cell extract-MBBM, indicating that E. coli could be continuously supplied with the nutrient sources directly from C. reinhardtii cells. The decrement in the cell survival ratio of C. reinhardtii was stopped to about 20% until 24 h and maintained after 24 h; however, the increment of alive cell density of E. coli kept until 36 h, strongly suggesting that C. reinhardtii not only provided the nutrient sources to E. coli via the cell rupture caused by death, but also supplied the nutrient source while being alive.

In 2 g∙L⁻¹ disrupted cell extract MBBM, until 12 h, when the growth of E. coli almost stops, although the carbohydrate concentration showed few differences, the concentrations of protein, formic acid, acetic acid, and citric acid displayed a decrement (Figure 3). In fact, E. coli is known to assimilate amino acids [28], formic acid [29], acetic acid [30], and citric acid [31], and the results obtained here indicated the possibility that these nutrients were used for the growth of E. coli. Regarding the citric acid concentration after 18 h, its presence could no longer be confirmed until 24 h. The result may indicate that E. coli maintained its metabolism when using citric acid with few proliferations. Regarding lipids, no increase or decrease was observed while there was no reason for the lipid to actively increase in the culture medium, so it seems that lipid is not actively used by E. coli. In 2 g∙L⁻¹ C. reinhardtii-MBBM, the protein was not detected at 0 h, but the concentration gradually increased up to 18 h. In 2 g∙L⁻¹ disrupted cell extract MBBM, the protein consumption by E. coli was suggested; however, in 2 g∙L⁻¹ C. reinhardtii-MBBM, the protein concentration was guaranteed with continuous protein releasing by C. reinhardtii beyond the consumption of E. coli. At 0 h, while carbohydrate was detected in 2 g∙L⁻¹ disrupted cell extract MBBM, that could not be measured in 2 g∙L⁻¹ C. reinhardtii-MBBM. The results simply indicated that C. reinhardtii cells contained carbohydrates; however, the cells could not release carbohydrates in the begining point of the culture. At 6 h, the carbohydrate concentration at 2 g∙L⁻¹ C. reinhardtii-MBBM almost reached the concentration at 2 g∙L⁻¹ of disrupted cell extract; after 6 h, those concentrations became stable. As a result, the amount of carbohydrate obtained up to 6 h was all that was obtained from C. reinhardtii cells, indicating that the carbohydrates could not have been consumed. On the other hand, interesting points were that formic acid and citric acid were detected in the medium even at 0 h as the starting point of culturing. These organic substances may be easily released to the outside from cells of C. reinhardtii by environmental changes such as altering the culture medium. Formic acid concentration did not shift over 12 h of cultivation; however, the formic acid was consumed during the growth of E. coli in 2 g∙L⁻¹ disrupted cell extract-MBBM, and E. coli continued to proliferate in 2 g∙L⁻¹ C. reinhardtii-MBBM after 12 h of culturing, meaning that the formic acid could be consumed by E. coli while approximately the same amount of formic acid continued to be supplied by C. reinhardtii. In the same way, the citric acid could not only be consumed by E. coli but also be continuously supplied by C. reinhardtii cells because the concentration was maintained in 2 g∙L⁻¹ C. reinhardtii-MBBM under cultivation. In the case of acetic acid, the reason why the existence of acetic acid had not been detected from the beginning of cultivation may be because the acetic acid existed inside C. reinhardtii cells and it is difficult to access the outside. Furthermore, there was a possibility that the quantity could not be detected in the medium since acetic acid could also be consumed by E. coli even though acetic acid was released from C. reinhardtii cells into the culture medium. The concentration of lipids in the medium decreases slightly, meaning that lipid scould not be actively used by E. coli.

The sizes of the E. coli changes depend on the nutritional conditions and decrease with starvation [32]. The sizes of E. coli in the logarithmic growth phase and the stationary phase shown in the LB medium fall within the generally reported sizes of E. coli (maximum axis approximately 2.5~6.0 µm; minimum axis approximately 0.8~1.2 µm) [33]; these E. coli cells maintained their cell size for 18 h and could be used as a control for the comparison under a non-nutrient starvation condition in this study (Figure 4). On the other hand, the sizes of E. coli without the distributed cell extracts (0 g∙L⁻¹) decreased by 12 h and did not increase thereafter, and could be used as a control for the comparison under the nutrient starvation conditions. In the systems supplemented with the distributed cell extracts, the sizes of E. coli cells were larger, as the concentration increased at 12 h when proliferations were about to stop, indicating that the nutritional conditions of E. coli cells were improved by increasing the concentrations of the distributed cell extracts. In a system of adjusted 10 g∙L⁻¹ of distributed cell extracts, the major axes of E. coli cells at 12 h size did not display significant differences towards those in the LB medium, meaning that the nutritional status in the system under 10 g∙L⁻¹ of distributed cell extracts was sufficient enough to not show the size difference. Although the cell sizes in 2 g∙L⁻¹ C. reinhardtii-MBBM at 12 h were significantly inferior to those in the LB medium and in 10 g∙L⁻¹ of distributed cell extracts MBBM at 12 h, the cell sizes in 2 g∙L⁻¹ C. reinhardtii-MBBM were significantly prior to those in 2 g∙L⁻¹ distributed cell extracts MBBM. Thus, the evaluation strongly suggested that E. coli continuously obtained nutrients from C. reinhardtii. The reason why the cell sizes reached the maximum after 6 h in each system of MBBM with the distributed cell extracts or C. reinhardtii cells, respectively, might be that the cells were still in a healthy state containing nutrients in the cells from the LB medium as the pre-culture.

To date, several reports attempted to reveal the cellular responses and how the microbial cells tried to control those metabolisms in detail with the comprehensive analysis of gene transcription levels [34]. In this study, the comprehensive gene transcription levels were also analyzed in order to evaluate the details of cellular responses in the culture environment and to infer metabolic control (Figure 5).

C. reinhardtii-MBBM should contain carbon sources of intermediate metabolites that E. coli can use as nutrients derived from C. reinhardtii cells with high possibility [35]; on the other hand, the LB medium generally consists of 1% tryptone, 0.5% yeast extract and 1% NaCl, and the yeast extract contains carbon sources such as inosinic acid and guanylic acid at 7–13 wt%, resulting in the LB medium showing 0.035~0.065 wt% carbohydrate sources [36]. Evaluating the metabolic system by analyzing the comprehensive gene transcription levels of E. coli, all those in C. reinhardtii-MBBM were higher than those in the LB medium (Figure 5a-1,a-2). These results could mean that C. reinhardtii-MBBM could contain more carbon sources relating to central metabolism than LB medium; therefore, E. coli possibly responded by trying to utilize the carbon sources derived from C. reinhardtii cells in central metabolism. The fact that the transcript level of malX as the enzyme gene controlling the d-glucose phosphorylation was significantly higher in C. reinhardtii-MBBM could also indicate that the system attempts to take in and utilize carbohydrate sources. Furthermore, pgk-disrupted strains of E. coli cannot grow on sugars or gluconeogenic substrates [37], and pgk was exhibited to be induced over 10-fold during the transition from exponential to stationary growth phase [37], meaning that pgk is an essential gene for sugar metabolism in E. coli. In this study, the transcription level of pgk was upregulated in C. reinhardtii-MBBM compared to that in the LB medium, so there was a possibility that E. coli showed a cellular response to utilize the carbohydrate source in C. reinhardtii-MBBM. E. coli accumulates glycogen within its cells to conserve energy, and activated pgm is an enzyme gene that produces α-d-glucose 1P from α-d-glucose 6P in order to supply the raw material ADP-glucose [38]. The transcription level of pgm was significantly improved in C. reinhardtii-MBBM compared to the LB medium in this study, indicating the possibility that E. coli is trying to store the carbohydrate sources in cells as an energy source. Furthermore, it is known that the metabolism of β-d-fructose-1,6P₂ to β-d-fructose-6P is activated rather β-d-fructose-6P to β-d-fructose-1,6P₂ when E. coli assimilates carbohydrate sources [39]. With the analysis in this study, while the gene transcription levels of pfkA and pfkB showed no increment in C. reinhardtii-MBBM compared to the LB medium, those of yggF and glpX were enhanced, reinforcing the possibility that E. coli was trying to store the carbon sources as an energy source. In the case that E. coli cannot use the carbon sources like glucose as a catabolite, there might be the possibility of running out of nitrogen sources supported by a report that glucose becomes one of the worst carbon sources for E. coli on poor nitrogen sources due to suboptimal levels of cAMP [40]. In the catabolic reactions of E. coli, the metabolic reactions that transfer carbon sources from glycolysis to the TCA cycle are important regarding energy production [41] and raw material production of useful substances such as amino acids [42]. In C. reinhardtii-MBBM compared to the LB medium, the transcription levels of aceE and aceF were increased, showing the possibility that cellular response promotes the production of energy and substances derived from carbohydrate sources from glycolysis. Assimilation of ethanol requires that ethanol be incorporated into acetyl CoA via acetate. According to the previous literature reports, E. coli can assimilate ethanol as a carbon source [43], and the E. coli strain in this study might also attempt to assimilate ethanol in C. reinhardtii-MBBM. However, Cao et al. found that BL21(DE3), DH5α, Top10, and JM109 derived all from E. coli K-12 were unable to assimilate ethanol, and E. coli strain can finally assimilate ethanol with overexpression of E. coli adhE and E. coli aldA by genetic engineering [12].

Metabolic pathways surrounding ribonucleotide synthesis in C. reinhardtii-MBBM could be activated rather than those in the LB medium due to the increased transcription levels of unique enzyme genes (rpe; rpiA and rpiB; prs; phnN) (Figure 5b). In particular, NAD biosynthesis in E. coli usually proceeds with consumption of PRPP [44] so the enhancement of PRPP pathway is possibly advantageous for regulating the intracellular redox balance. Lyngstadaas et al. reported that the rpe-disrupted strain of E. coli was unable to use single pentose, and that rpe could play a central role in pentose utilization [45], and the increased gene transcription level of that in C. reinhardtii-MBBM might indicate the assimilation of pentose from C. reinhardtii. Moreover, although rpiA and rpiB have different sequences, they were shown to have the same activities in the cells [46]. Therefore, the similar increase in the transcription levels of both genes in this study could mean that E. coli attempted to use pentose-like substances derived from C. reinhardtii. According to what Hove-Jensen et al. reported, phnN has activity in phosphonate degradation and NAD biosynthesis pathways in E. coli [44]. In this study, the gene transcription levels surrounding phnN were upregulated in C. reinhardtii-MBBM compared to the LB medium, and the facts could indicate the activation in a metabolic pathway surrounding ribonucleotides as metabolites. In addition, the gene transcription levels of enzyme-promoting carbon source leakage from the pentose phosphate pathway to other pathways including d-glucono-1,5-lactone were increased in C. reinhardtii-MBBM compared to the LB medium. Overall, as shown in Figure 5a-1,a-2, the increments of the gene transcription levels of enzymes relating to saccharide metabolism in the pentose phosphate pathway were also revealed, suggesting that E. coli co-cultured with C. reinhardtii might have activated sugar metabolism.

In both C. reinhardtii-MBBM and the LB medium, although the gene transcription levels of ybhJ and fumB were increased, they were not unique enzyme genes because of existing complement genes that could not specifically control the reaction (Figure 5c). In the same way, the gene transcription level of mqo as a non-unique enzyme gene was enhanced, implying that it was difficult for only mqo specifically to control the related reaction by supporting the complement enzyme mdh. Therefore, overall, the gene transcription levels in the TCA cycle showed fewer differences than those in glycolysis. However, the previous study reported that mqo activity was the highest in exponential growth and decreased sensitivity after the onset of the stationary phase [47], indicating that the increased mqo transcription level in our study could mean an active trial to proliferate the cells. As described above, by using C. reinhardtii-MBBM as opposed to the LB medium, major changes caused by the unique enzymes controlling each reaction did not appear in the TCA cycle. Therefore, there was the possibility that E. coli was not trying to cause major changes in metabolic activity regarding energy and amino acid production as the cellular response.

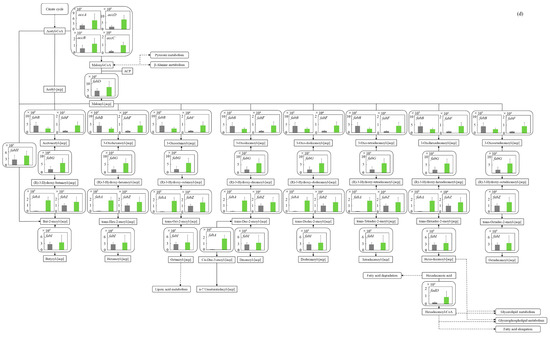

What was noteworthy was that the overall gene transcription levels in C. reinhardtii-MBBM were increased compared to those in the LB medium (Figure 5d). Especially, the transcription levels of enzymes involved in the reactions from acetyl-CoA to malonyl-CoA (accA, accB, accC, and accD) and those involved in fatty acid elongation (fabF, fabG, and fabA) showed the trend to enhance, suggested that lipid production could be promoted. Furthermore, Yao et al. reported that fabH disruption in E. coli promoted dwarfing of cell size [30], and few differences in the fabH transcription levels between C. reinhardtii-MBBM and LB medium without significance in this study could mean that the cell sizes of E. coli were not significantly reduced even in C. reinhardtii-MBBM.

Although overall the transcription levels in the lipid degradation pathway in C. reinhardtii-MBBM showed fewer differences than those in the LB medium and in the lipid synthesis pathway (Figure 5e), fadE as a unique gene of an enzyme relating to the first oxidation with the generation of FADH₂ in lipid degradation pathway significantly decreased. As the results shown in Figure 5d,e, there was a possibility that E. coli in C. reinhardtii-MBBM could respond to synthesizing lipids as the carbon assimilation as a priority rather than degrading them. In addition, the experimental strain E. coli LS5218, which was selected as a strain that metabolizes octanoate, actively metabolizes the reaction with fadD. fadD, connecting substrates such as octanoate and hexadecanoate to CoA, is a very important enzyme, and the ΔfadD strain is lethal [48]. The transcription level of fadD in C. reinhardtii-MBBM tended to be higher than that in the LB medium, and the culture condition using C. reinhardtii as a nutrient source could be an effective medium condition for the metabolism relating to lipids.

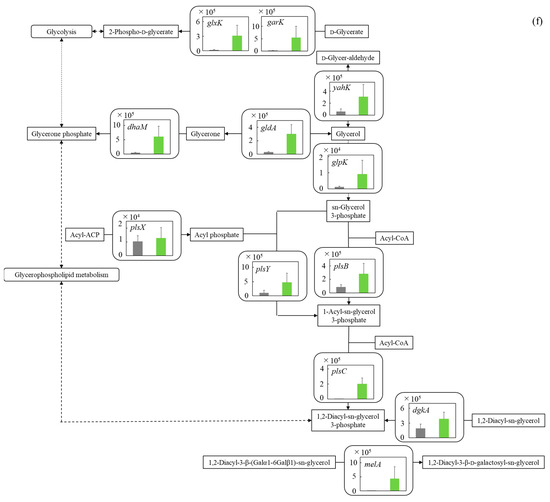

In C. reinhardtii-MBBM, the transcription levels of genes related to lipid synthesis were more dominant than those of lipid degradation. Both glxK and garK catalyze the phosphorylation of d-glycerate [49], and their activation promotes the production of 2-phospho-d-glycerate, which is a necessary substrate for lipid synthesis (Figure 5f). In this study, the increased transcription levels of glxK and garK in C. reinhardtii-MBBM could also be important in terms of increasing the lipid substrate. In addition, the transcription levels of dhaM, plsB, and plsC increased in C. reinhardtii-MBBM compared to the LB medium, suggesting that glycerolipid metabolism could be activated relating to the lipid synthesis as a cellular response. This could be because dhaM is a phosphotransferase system-like protein and component of dihydroxy acetone kinase [50], and plsB is the membrane-bound enzyme that catalyzes substrates in the first step of phospholipid synthesis, which synthesizes lysophosphatidic acid (LPA) from long-chain ACP and sn-glycerol-3 phosphate (G3P) [51]. Therefore, the enhancement of those gene transcription levels showed the possibility that E. coli prepared the lipid synthesis. Additionally, plsC catalyzes the second step in phospholipid biosynthesis, and is thought to function in close proximity to the first step catalyzed by sn-glycerol-3-phosphate acyltransferase [52], strongly suggesting that plcC took over the activation of dhaM and PlsB to promotes cellular lipid synthesis as a cellular response. From the above, E. coli could perform the cellular responses to reinforce the metabolic system that promotes lipid production in C. reinhardtii-MBBM rather than the LB medium.

5. Conclusions

This study evaluated whether the heterotrophic microorganism E. coli, which is beneficial for material production, could use the metabolites as the nutrients from autotrophic microorganism C. reinhardtii. The growth of E. coli in an autotrophic medium containing C. reinhardtii cells was evaluated, resulting in the specific growth rate being similar to that in the LB medium. The results proved that E. coli could efficiently use metabolites derived from C. reinhardtii. In addition, the comprehensive gene transcription levels of E. coli in an autotrophic medium supplemented with C. reinhardtii were also assessed by transcriptome analysis. As the results showed, the gene transcription levels related to glycolysis, PRPP and lipid synthesis were upregulated; those in the TCA cycle had no specific upregulation in the TCA cycle, but those in the process of lipid degradation were decreased. In particular, the increase in the transcription level of pgm in glycolysis and the decrease in that of fadE in lipid degradation indicated the carbon source assimilation as a cellular response of E. coli in cultivation with C. reinhardtii since these unique genes could regulate the metabolic direction. This was the first report to clarify the cellular response of E. coli supplied with nutrients from living C. reinhardtii from the point of view of cell proliferation, morphology and transcriptomics.
