Article

Design, Control, and Testing of a Multifunctional Soft Robotic Gripper

by
Ana Correia
1,
Tiago Charters
1,
Afonso Leite
1,2,
Francisco Campos
1,3,
Nuno Monge
4,
André Rocha
4 and
Mário J. G. C. Mendes
1,2,5,*
1
ISEL—Instituto Superior de Engenharia de Lisboa, Instituto Politécnico de Lisboa, 1959-007 Lisbon, Portugal
2
CIMOSM—Centro de Investigação em Modelação e Optimização de Sistemas Multifuncionais, ISEL—Instituto Superior de Engenharia de Lisboa, Instituto Politécnico de Lisboa, 1959-007 Lisbon, Portugal
3
UnIRE—Unit for Innovation and Research in Engineering, ISEL—Instituto Superior de Engenharia de Lisboa, Instituto Politécnico de Lisboa, 1959-007 Lisbon, Portugal
4
ESELx—Escola Superior de Educação de Lisboa, Instituto Politécnico de Lisboa, 1549-003 Lisbon, Portugal
5
CENTEC—Centre for Marine Technology and Ocean Engineering, Instituto Superior Técnico, Universidade de Lisboa, 1049-001 Lisbon, Portugal
*
Author to whom correspondence should be addressed.
Actuators 2024, 13(12), 476; https://doi.org/10.3390/act13120476
Submission received: 30 September 2024 / Revised: 11 November 2024 / Accepted: 18 November 2024 / Published: 25 November 2024
(This article belongs to the Special Issue Soft Actuators and Robotics—2nd Edition)

Abstract

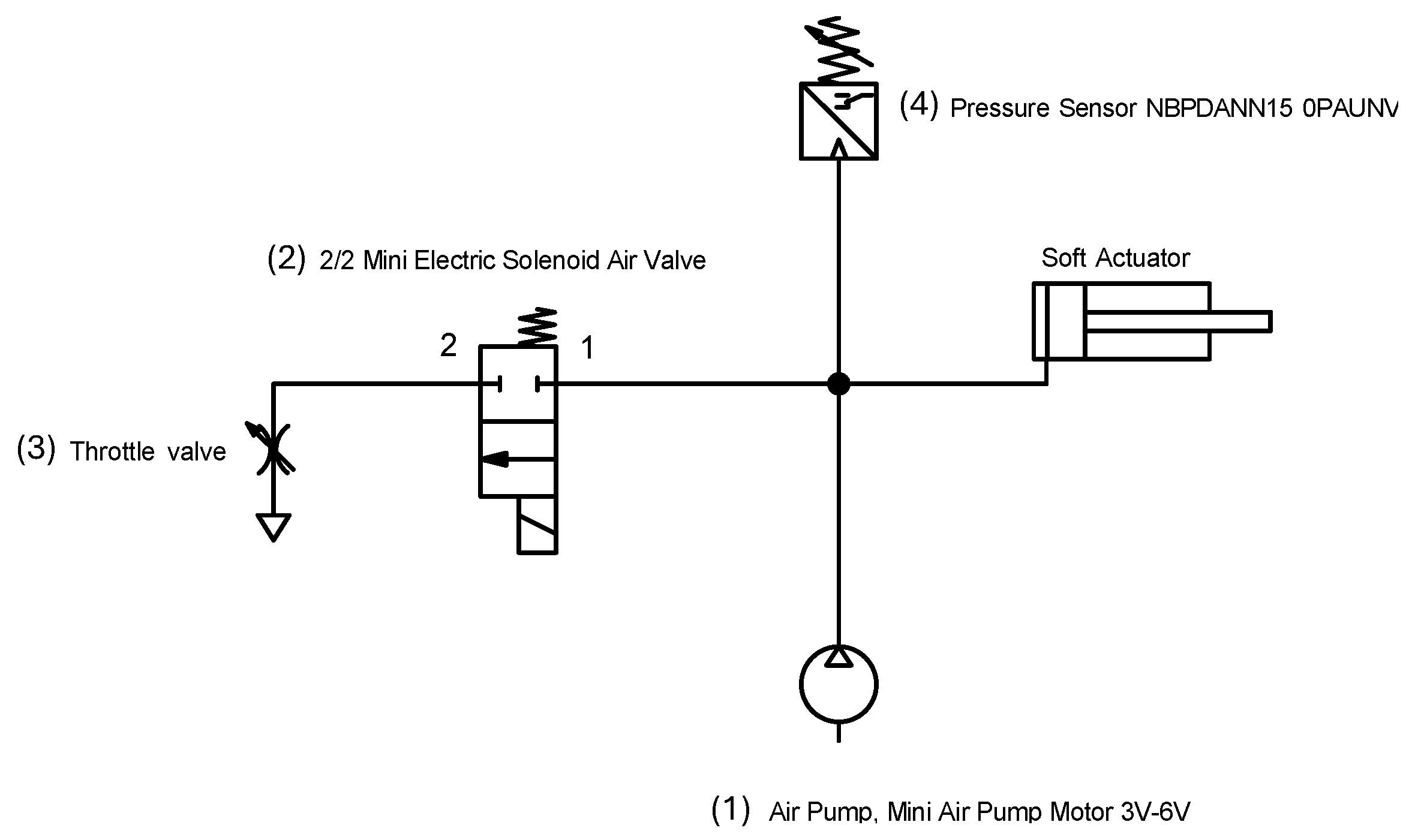

This paper proposes a multifunctional soft robotic gripper for a Dobot robot to handle sensitive products. The gripper is based on pneumatic network (PneuNet) bending actuators. In this study, two different models of PneuNet actuators have been studied, designed, simulated, experimentally tested, and validated using two different techniques (3D printing and molding) and three different materials: FilaFlex 60A (3D-printed), Elastosil M4601, and Dragonskin Fast 10 silicones (with molds). A new soft gripper design for the Dobot robot is presented, and a new design/production approach with molds is proposed to obtain the gripper’s PneuNet multifunctional actuators. It also describes a new control approach that is used to control the PneuNet actuators and gripper function, using compressed air generated by a small compressor/air pump, a pressure sensor, a mini valve, etc., and executing on a low-cost controller board—Arduino UNO. This paper presents the main simulation and experimental results of this research study.
Keywords: soft robotics; multifunctional soft PneuNet actuators; soft robotic gripper; hyperelastic models; Dobot robot soft robotics; multifunctional soft PneuNet actuators; soft robotic gripper; hyperelastic models; Dobot robot
