Control Methodologies for Robotic Grippers: A Review

Simone Cortinovis
Giuseppe Vitrani
Marco Maggiali
Rocco Antonio Romeo
Istituto Italiano di Tecnologia, Via San Quirico 19d, 16163 Genoa, Italy
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Actuators 2023, 12(8), 332;
Submission received: 12 July 2023 / Revised: 7 August 2023 / Accepted: 14 August 2023 / Published: 17 August 2023
(This article belongs to the Special Issue Advancement in the Design and Control of Robotic Grippers)


As automation is spreading in all the industry domains, the presence of robots is becoming unavoidable inside factories, warehouses and manufacturing facilities. Although a great number of companies and research institutions have concentrated their efforts on developing new robotic systems and advanced algorithms, much work is necessary to provide robotic grippers, especially industrial ones, with reliable, powerful control strategies. Therefore, this article aims at delivering an up-to-date point of view on the state of the art of robotic gripper control. The principal control methodologies employed so far, as well as a thorough selection of the existing contributions to the field, will be reported and discussed. Finally, the authors’ opinion about future directions will be expressed.

1. Introduction

Grasping is one of the most widespread robot-associated tasks, both in industrial and nonindustrial environments. From a general perspective, robotic grasping depends on the means by which robots touch the physical objects around them. Such means are commonly defined as end-effectors, and do commonly feature two or more fingers.
Robotic grasping has great utility whenever repetitive and sometimes dangerous duties are involved. Examples of applications can be found in several fields, such as food and agriculture [1,2,3], marine robotics [4], etc. To successfully achieve object grasping, specific end-effectors, namely grippers, might be employed.
Nowadays, a wide variety of robotic grippers are available on the market; they differ in terms of size, fingers, maximum stroke, maximum gripping force, actuation technology, etc. A comprehensive overview on the trends for industrial grippers is provided by [5]. The majority of these devices work as simple, fully open or fully closed mechanisms. Their actuation is often pneumatic, achieving, on one hand, smaller size and power consumption with respect to, e.g., the electric ones, but complicating, on the other hand, the control of the fingers’ position and of the grasping force. Despite its widespread diffusion, robotic grasping is still characterized by rather basic performance, and does not yet match the outstanding progress of robotics. This particularly applies to the industrial environment, where grippers have commonly no more than two fingers and execute simple pick-and-place tasks [6].

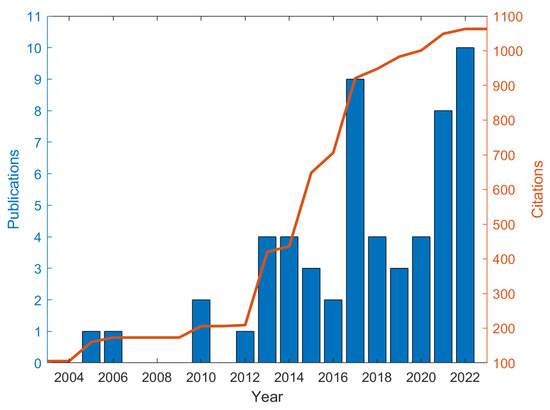

In contrast with the past few decades, the last 10 years saw considerable progress in the development of robotic grippers. This trend can be inferred from the published articles and cumulative citations shown in Figure 1.
In all of these works, the used control approach was addressed, though it did not always represent the principal theme. Before 2013, few articles mentioned closed-loop controllers for robotic grippers; the absence of references before the new century is almost total. Accurate and effective control architectures, in terms of, e.g., gripping force and finger positioning, might lead to enhanced performance of robotic grippers, allowing for more advanced manipulation. Scientific research on this topic, i.e., the control of robotic grippers, is variegated, due to the wide range of control applications and technologies that can be used to design these mechanisms. As a matter of fact, the majority of control algorithms available in literature remain in the laboratories, finding scarce application in real industry and complicating the enhancement of the robotic grippers’ performance.


In light of the above considerations, the present article aims at providing a thorough overview of the control strategies for robotic grippers. To the best of the authors’ knowledge, no other review specifically addressed such a topic. Previous reviews did concentrate on robotic grippers for specific domains of application. For instance, authors in [1] focused on agricultural robots, which are called upon to perform delicate grasping actions, especially when interacting with fruits and vegetables. Moreover, in [2,3] were reviewed soft grippers for crop harvesting and handling, suggesting a major interest towards automation in the food industry. In [4] were considered only grippers operating underwater, while other reviews tackled aspects like finger design criteria [7] or statistics concerning the industrial market [5].
With respect to the sole piezoelectrically actuated microgrippers, ref. [8] recently highlighted their main control strategies.
Instead, the present article provides a systematic collection of the main contributions to the control of robotic grippers. Namely, force and position controls were gathered, with no focus on other variables such as slip and of relevant compensation techniques (on this subject, see [9]), which go beyond the scope of the review. The cited works will be grouped and briefly discussed with respect to the employed control approach. A discussion on the main control approaches and on their usage will be presented as well, to help the reader achieve a complete view of the field. Articles from the same authors, presenting similar strategies, will be discarded, and only the most relevant (e.g., journal publications) will be mentioned. Note also that schemes and graphs from cited works will not be reported; it is preferred to let the reader consult each of such works in order to retrieve content of interest.
The remainder of this article is organized as follows: Section 2 summarizes the actuation principles and sensors used on robotic grippers, Section 3 covers the main control strategies and relevant works, Section 4 contains considerations and comprehensive statistics and finally Section 5 highlights the conclusions. Please note that only articles that provide experimental results are included in this review, discarding reports in which only theory and simulations are illustrated.

2. Actuation Types and Sensors for Robotic Grippers

In this section, the main macrocategories of robotic grippers, as well as the most common actuation principles and sensors for these devices, will be summarized in order to provide the reader with an initial overview of the topic.

2.1. Gripper Types

A possible categorization for robotic grippers may be proposed on the basis of the type:
  • Rigid grippers, which rely on rigid mechanical components for the movement of their fingers (e.g., rack-and-pinion mechanisms). These are usually associated with higher gripping forces and lower grasp adaptability. As a consequence, they do not represent the best option to grasp delicate objects with variable shapes.
  • Soft grippers, which employ compliant and flexible materials and can better adapt to any shape. These grippers are also more indicated for delicate grasping tasks, as they usually exert smaller forces when compared to rigid grippers.
  • Microgrippers, which are useful for the manipulation of very small objects, ranging from tens of micrometers to few millimeters. The actuation of these grippers often rely on particular high-tech materials, e.g., piezoelectric, shape memory alloy (SMA) [10] or else compliant shapes featuring both flexible elements and more rigid ones [11].
Rigid grippers were (and are) traditionally employed in industry, while soft grippers are drawing attention from researchers who look at such devices with the aim of augmenting flexibility and adaptability with different objects and tasks. Finally, microgrippers form a self-consistent category as they might mix elements of both the above gripper types and have much smaller size.
From the above categorization, vacuum grippers were excluded in favor of devices performing an actual gripping action, rather than sucking the workpiece. Hence, such grippers will not be addressed in this review.

2.2. Actuation Principles

Another categorization may be performed on the basis of the gripper actuation technology. In this regard, the most common solutions are the following:
  • Pneumatically actuated: The most widespread grippers in industry. These grippers are known to be difficult to control due to the well-known challenges of pneumatic control [12]. Usually, these devices feature two air chambers, one for opening the jaws and one for closing them. Mechanically, they are quite simple, and do include only pistons and levers.
  • Electrically actuated: These grippers can be controlled more easily than pneumatic ones, at least in terms of jaws position or velocity. They are normally composed of a brushless motor mechanically interfaced to a brake component, and to one or more reduction stages necessary to increase the motor torque. Although more controllable, these devices are bulkier than pneumatic ones and have higher cost.
  • Hydraulically actuated: This actuation type works similarly to the pneumatic one, employing hydraulic fluids in place of the compressed air. However, hydraulic grippers are more expensive, require more maintenance and are problematic in case of oil leakage. Such grippers are useful when very heavy objects have to be lifted. With the spread of collaborative robots, characterized by moderate payloads, they became less common.
  • Piezoelectrically actuated: A solution mainly used for microgrippers since similar actuators are suited for small and precise displacements, maintaining small sizes and low energy consumption. However, piezoelectric-based actuation may still induce hysteretic behavior and other sources of nonlinearities [13].
Other actuation principles are available specifically for microgrippers, such as electromagnetic, electrostatic or thermal. In this respect, SMA materials can be varied in shape controlling their temperature. To obtain more insight on such principles, the reader is invited to consult [10].

2.3. Sensors

The use of sensors is crucial for the closed-loop control of grippers, though industrial grippers still resort to basic control strategies. Regardless the sensor technology, which goes beyond the scope of the present review, the most frequently used sensors on robotic grippers can be grouped as detailed below:
  • Force sensors, typically positioned on the surface of one or more fingers, which are important to provide the sensory feedback for the closed-loop control of the grasping force. However, these are rarely present on industrial grippers.
  • Torque sensors, measuring the applied torque during the grasp. These are more common on electric grippers. More often, one has actual force/torque (F/T) sensors that are either mounted on the gripper fingers or on the wrist of the robotic arm (preferred choice).
  • Current sensors, particularly employed on electric grippers to implement current controllers, as the current delivered by the gripper motor directly relates to the applied torque.
  • Pressure sensors, mainly used to sense the pressure in the air chambers of pneumatic grippers. Such sensors are fundamental for closing the force loop, as it requires the pressure information in both chambers.
  • Position sensors, which serve to quantify the movement of the gripper jaws so as to implement position and/or velocity controllers. These sensors may be employed to measure linear or angular displacement, depending on the implemented controller.
Note that tactile sensors are not mentioned in the list above, as their utilization on robotic grippers is still dramatically uncommon outside the research environment. Nevertheless, similar sensors seem promising for the enhancement of grasping capability [14] and the probability to use them on real grippers is constantly growing as research proceeds.

3. Control Strategies

This section will address the main strategies used to control robotic grippers. A brief overview of the working principles will be provided, highlighting advantages and drawbacks for the specific application. It is worth noticing that some of the cited works propose a control approach where more techniques are involved. Therefore, hybrid control structures will be grouped based on which one may be considered the core of the gripper control, according to the authors’ opinion and regardless of the gripper type or actuation.

3.1. Proportional Integrative Derivative

The well-known proportional, integrative, derivative controller (PID) is widely used in modern industry due to its effectiveness and ease of implementation [15,16]. In its simplest form, it consists of a feedback control architecture based on three separate actions associated with as many parameters, i.e., gains: proportional K p , integral K i and derivative K d . These gains multiply, respectively, the error e ( t ) between the setpoint and the measured value, the integral and derivative function of such an error. The summation of the so-obtained contributions becomes the controller output u ( t ) . In the time domain, the PID can be described as
u ( t ) = K p e ( t ) + K i e ( t ) + K d d e ( t ) d t .
The proportional action accounts for the current value of e(t); the integral action accounts for the accumulated e(t) over time; the derivative action accounts for the rate of change of the error e(t). Configurations where only one or two of these actions exist are possible (i.e., P, PI or PD). Several methods for tuning K p , K i and K d are available [17]. However, in the case of robotic grippers, manual and semiempirical trial-and-error tuning might be effective. In fact, multiple experimental trials are rapidly executable on these devices with low risk of damage. Although a certain debate still exists about the PID tuning and related methods [18], such a control technique remains among the most preferred ones.
In [19], an early implementation of a PI force controller for a rigid, two-fingered pneumatic gripper might be found. The gripper was equipped with a simple force sensor placed on the fingertip. A PID-based master–slave finger architecture was shown in [20]. Here, each finger was equipped with its own DC motor and could be force- or position-controlled. In particular, the master finger was controlled in position through a PID. Instead, the slave finger used a PI for force control fed by a force sensor, whose output was employed in the master finger PID.
The idea to adopt tactile sensors was conceived towards the creation of efficient force controllers, and therefore of enhanced grasping capabilities. In this direction, a three-fingered gripper employed in [21] had all the fingertips equipped with tactile force sensors. A cascade-loop PI configuration was used: the first PI acted directly on the force compensation while the second one was used for the inner current control loop of the DC motor. In [22], a custom-made force sensor composed of a resistive element incorporated into a deformable membrane allowed for the closure of the PI force loop of a pneumatic gripper. The servo-actuated gripper in [23] made use of a force sensor placed on one finger to provide feedback for a PID controller, and more recently, a PID was integrated in a closed-loop force control relying on tactile sensors, which were mounted on each of the two gripper fingers and capable of measuring the grip force [24].
Differently, in [25], a PID position control with angular feedback for an hydraulic gripper was employed. The angle sensors were placed at the base of the fingers. Two PID architectures were used for an underactuated gripper in [26], one for controlling the DC motors producing the fingers actuation; the remaining one for actuating some belts mounted on the fingers to augment the grasping capabilities. Moreover, commercial electric grippers, such as the one adopted in [27], are generally controlled with standard PIDs as regards both the fingers position and the motor current.
Other applications [28,29] showed how to set up separate PIDs dedicated to the actuation control of multiple fingers. In [28], DC motors provided with encoders were used to drive each of the three fingers of a commercial gripper, which were in turn equipped with as many tactile force sensors. Each finger was position-controlled with a PID, whereas a simple proportional force control component was added for each of them. Instead, in [29], six DC motors, i.e., two per finger, were controlled by means of a single PID to manage the position of the fingers.
PIDs were also used for soft gripper control. Recent applications are seen in [30,31,32]. In [30] a PID position control for pneumatic soft actuators was developed. A three-fingered soft gripper was constructed using as many soft actuators, resulting in a device capable of delicate grasping. A flex sensor provided the angular displacement of the finger and the chambers of the soft actuators were driven by three-way solenoid valves. Another PID was used for the bending angle control of the fingers of a soft gripper in [31]. In this case, the bending sensors were calibrated by means of a laser sensor, which provided the bending distance, while the bending angle was calculated analytically based on such a distance. In [32] was presented a PID pressure/force control of a pneumatically actuated soft gripper featuring pneumatic touch sensing chambers, which could grasp objects of different shapes and rigidity with constant PID gains.
Furthermore, a peculiar, uncommon implementation was presented in [33], where images from a camera are used as bending deformation feedback for a PID controller. In this manner, it was possible to manage the bending angle of a soft finger mounted on an SMA-based planar gripper.
Microgripper control benefits from the PID scheme as well. Constant fingertip displacements were achieved with a model-free PID of an ionic polymer metal composite-actuated microgripper [34]. PIDs were used for piezoelectric microgrippers in [35,36], proving their ability to effectively compensate for hysteretic behaviors.
In [37], an electric gripper mechanism for delta robots was proposed. The implemented controller included a set value generator that interpolated a position set point to generate smooth trajectory with trapezoidal ramp profiles, and a three-level cascade rotation controller, i.e., P-P-PI, for current, velocity and position, respectively. Further, an additional current controller including a PI and two feedforward channels (motor current and desired force), was set to adjust the grasping force.
To conclude this subsection, another interesting option regarding the PID implementation is so-called gain scheduling. Different sets of K p , K i and K d might be defined in accordance with the gripper operational regions. In fact, a unique ensemble of gains may be insufficient for the controller to achieve a decent error under all the operative conditions. For instance, a gain scheduler was programmed in [34] to perform position control of a microgripper consisting of two fingers made of ionic polymer metal composite. Another example of gain scheduling, applied on a magnetic series elastic actuator for robotic grippers, might be viewed in [38]. In this case, the objective was to better tune the microgripper torque control.
Finally, it is worth observing that PIDs are frequently employed as part of more complex control strategies, as will be evidenced in the following subsections.

3.2. Optimization Based Control

Optimization-based controllers offer the possibility to define and manage a set of constraints, resulting in minimized (or maximized) control output without exploiting heuristics procedures. Nonetheless, literature concerning robotic grippers provides few examples of such controllers; most of them are centered on the quadratic programming (QP) formulation. A similar formulation implies the minimization of a quadratic function, which is subject to linear constraints. Mathematically, assuming a variable x to be minimized, the QP problem has the general form below:
m i n f ( x ) = x T q + 1 2 x T Q x A x = a B x b l b x u b
In (2), Q is the positive, semidefinite Hessian matrix and q is the gradient vector. The equation A x = a contains the linear equality constraint while B x b are the linear inequality constraint. l b and u b are the lower- and upper-bound constraint vectors. Apart from achieving a minimized control output, the QP permits to develop a control action that takes into account the saturation limits of the actuators. For instance, in the case of a pneumatic gripper, the bound constraints might coincide with the maximum and minimum output voltage of the pressure regulator, whereas the variable x might be a vector containing the desired pressures in the gripper chambers. For a more in-depth dissertation on the solution of QP problems, please refer to [39].
A force controller for a pneumatic gripper, based on a QP function, was developed in [40]. A similar approach, again based on a QP function, was used in [41], where a more sophisticated control algorithm was proposed, including an extended Kalman filter and a second-order model of the external pressure regulators that drive the pneumatic gripper. Another QP-based algorithm was used in [42], employing a two-level nested controller with as many PIDs and gain schedulers for closed-loop control of the gripping force and air pressure of a pneumatic gripper, while also compensating for internal friction effects. The control objective in all three above mentioned articles was to calculate the two desired optimized, i.e., minimized, pressures to be sent to the gripper chambers. To close the loop on the grasping force, in the first two works a force sensor was mounted between the gripper fingers, whereas in the third work, a load cell was integrated in one of the gripper fingers. Moreover, a QP-based control architecture involving more detailed friction analysis was employed in [43] to accurately control the position of the gripper fingers. The QP implementation resorted in this case to pressure and position measurements.
Finally, when the optimization problem is solved involving a certain number of future time instants, the model predictive control (MPC) formulation is achieved. For instance, in [44], such a formulation was combined with vision feedback to ameliorate the manipulation performed by a robotic gripper. This approach proved to be robust, yet the presence of a camera at 18.5 cm from the manipulated object surface complicated the setup.

3.3. Fuzzy

A fuzzy controller is a nonlinear, static, multi-input–multi-output controller. Such a controller may be built upon the experience of a human operator. It provides a formal methodology for representing the human heuristic knowledge of a specific process or system.

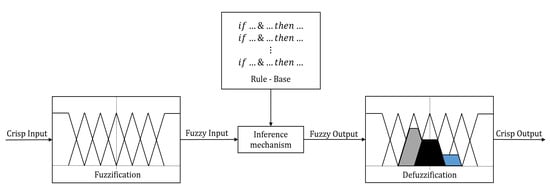

The fuzzy controller consists of four elements, as represented in the scheme of Figure 2:
  • A rule-based set of if–then rules, which contains the expert’s knowledge on how to control the system.
  • An inference mechanism, which interprets and applies the rule-base knowledge to control the system. It has three stages: matching, selection of rules and conclusion.
  • A fuzzification interface, which converts controller crisp inputs, i.e., a precise value of a measurable quantity, to fuzzy sets that heuristically quantify the meaning of linguistic variables.
  • A defuzzification interface, which converts the conclusions of the inference mechanism into actual inputs for the process.
For further explanation on the fuzzy control strategy, please see [45].
In the control of robotic grippers (but not only), fuzzy control is often used in combination with other control strategies. Consider, e.g., [46], where the gains of the PID controller, managing the fingers’ position of a flexible gripper, were tuned through fuzzy logic. Further, in [47] a similar logic was adopted to control the force produced by an SMA-wire-actuated gripper, using a load cell to measure the grip force.
Authors in [48] employed an adaptive fuzzy PID position control with a modified Smith predictor to eliminate the hysteresis delay, improving the performance of a microgripper actuated by a piezoelectric cantilever. The control system obtained object position and end-effector position by means of image processing.
A combined approach was developed in [49] where the control architecture for a robotic gripper included impedance, fuzzy logic and iterative learning. The impedance control allowed the robot interaction with the environment to be adjusted, employing both position and force information. The iterative learning process was used to optimize the rules of the fuzzy controller. The resulting fuzzy impedance controller was designed to estimate the best impedance parameters in real time when gripping unknown objects.
An adaptive inverse dead-zone control method is proposed in [50]. Such a method leverages a Takagi–Sugeno fuzzy model to improve the performance of an heavy duty gripper driven by hydraulic motors. The Takagi–Sugeno fuzzy interface handles the defuzzification computations through a simpler algorithm, namely weighted average, when compared to standard fuzzy interface. The latter makes use of geometrical calculations instead. Consequently, the Takagi–Sugeno method is more computationally efficient, and high precision in the gripper angular displacement was achieved.
By means of fuzzy schemes, the controller might handle nonmodeled parameters. In [51], fuzzy logic was implemented to allow a gripper to apply proper force in order to grasp unknown objects with different masses, dimensions, and coefficients of friction.
Agricultural robotics may also benefit from the introduction of fuzzy controllers. In [52], a fuzzy control scheme for an electric gripper deputed to harvest strawberries was presented. The controller was used to regulate the desired equivalent force, calculated from the weighted average of the total force applied on each finger.
In [53], fuzzy logic was implemented to control the variation of the actuator torque in order to adjust contact force of underactuated fingers using tactile and position sensors. Both the error between desired and sensed force and between desired and measured force derivative were used as input to the fuzzy controller.
Finally, recalling that fuzzy logic is often combined with other control modes, in [54], a fuzzy sliding mode control was utilized to control a microgripper. The microgripper was driven by two independent microfiber-composite actuators; the right actuator was used to position the micro-object and the left one to control the force. The fuzzy sliding mode control, with a nonlinear adaptive law, was employed to control the microgripper fingers position. In fact, fuzzy logic was useful to adaptively vary the switching gain of the sliding mode controller, increasing its robustness towards system uncertainties. Moreover, a PI controller was used to control the force, estimated with a force observer. Two laser sensors were used to measure the output displacement of the fingers.
The next section presents the aforementioned sliding mode control in more detail, as well as additional studies based on joint use of such a control mode with fuzzy logic.

3.4. Sliding Mode Control

The sliding mode control (SMC) is a nonlinear control technique.The main idea underlying SMC is to force (reaching phase) and keep (sliding phase) the system state towards a chosen surface, i.e., the sliding surface. This is carried out by means of a discontinuous control action; therefore, SMC is defined as a variable structure control.

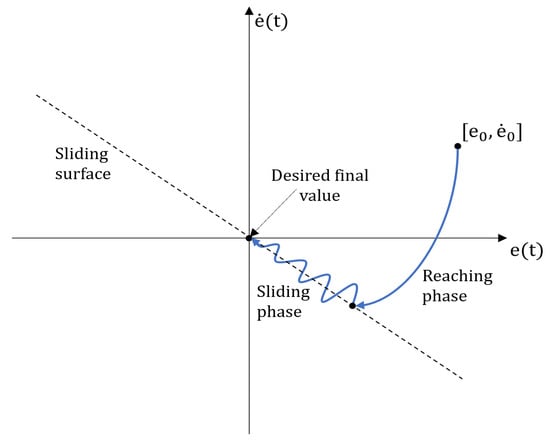

To briefly introduce the basics of SMC design, let us consider a standard control tracking problem: the output variable y must follow as closely as possible the desired setpoint y s e t . Hence, an error e = y y s e t is to be defined. The development of a standard SMC passes through two main steps:
  • Design of the sliding surface.
  • Design of the control input.
A generic sliding manifold σ = σ ( e , d e d t , d 2 e d t 2 , . . . , d k e d t k ) can be written as follows:
σ = d k e d t k + j = 0 k 1 c j d j e d t j ;
where c j are positive parameters. In many applications, a common choice for Equation (3) is:
σ = d e d t + c 0 e ,
in which only a single time derivative of the error is included. However, the derivative degree to include is k = r 1 , where r is the relative degree of the input–output dynamics: this is equal to the number of times the output should be derived to explicitly observe the input, when the system is in state-space representation. If σ is correctly designed, the solutions of the resulting differential equation when σ = 0 is expected to have e tending to zero. This condition can be reached with a proper control signal u that might be simply modeled as:
u = U s g n ( σ ) ,
with U being a positive constant that must be selected to keep σ as close as possible to zero. Ideally, u should be characterized by infinite frequency to avoid chattering problems in proximity of the sliding surface. In practice, this is not possible and represents the main downside of SMC, since chattering problems cause unwanted vibration and may induce hardware damage and low steady-state accuracy. A representation of the SMC is depicted in Figure 3. More complex formulations, e.g., higher-order SMC, are useful to reduce chattering. An example of second-order SMC [55] is the so-called super twisting SMC (STSMC) that introduces a control law continuous in time, unlike the discontinuous one, the first-order SMC defined by Equation (5). The SMC theory and its more complex formulations can be retrieved from the relevant literature, such as [56,57].
SMC has found broad application in microgrippers: such grippers are usually driven by piezoelectric actuators, which are known for their microscale operations and compact sizes. These kinds of actuators are prone to hysteresis; hence, SMC-based strategies were successfully used to contrast this source of nonlinearity. For example, in [58], a discrete SMC was implemented for closed-loop control of nanoscale displacements; the hysteretic behavior was handled without any chattering, and the displacements were read by ad hoc sensors embedded in the used amplifier. In [59] was proposed a discrete SMC for impedance control based on a second-order dynamic system model, able to achieve both position and force control; the first was measured by a laser displacement sensor, whereas the latter was estimated by a force observer. Moreover, this controller did not resort to creep or hysteresis models. A position/force control for a compliant microgripper structure was shown in [60]; it was proven how a discrete SMC for the gripper position could work efficiently alongside a PID-based force control, providing a smooth control switch. Furthermore, in [61], the same author made use of a system model built only on input–output data for a digital SMC implementation to control a piezo-driven micropositioning system. Again, the hysteresis model was not envisaged. In [62] was presented a constant-force microgripper: the constant force was achieved by means of an ad hoc designed compliant mechanism, while a discrete-time SMC was again implemented to control the gripper displacement.Position control of a microgripper was achieved in [63] with an adaptive version of SMC, an online model parameter estimation and a Kalman-filtered position, sensed by a laser sensor. Finally, an adaptive version of backstepping SMC was employed in [64] for position tracking of a compliant microgripper and chattering countering. In principle, the backstepping approach uses a recursive method to simplify a high-order system into a less complex and lower-order series of systems to be controlled. An inverse hysteresis model compensator for the piezoelectric actuator of the microgripper was also employed. Two laser sensors where used to capture the jaws’ displacement.
The greater performance of an STSMC over a first-order SMC in managing the chattering phenomenon was shown on force control of a gripper actuated by a servomotor [65]. In this case, the right fingertip was equipped with a force sensor, while the left fingertip was equipped with a slip sensor. Interestingly, the authors found that the chattering for the first-order SMC increased when grasping stiffer objects: in this respect, STSMC had more reliable performance.
In [66] was presented an example of the combined use of a fuzzy controller and an SMC (FSMC) for the force control of a DC-motor-driven gripper. This had the advantage of being a model-free approach, since the calculated sliding variable became the input for a fuzzy logic controller.Moreover, the FSMC was also used for the end-effector positioning.
In [67] was shown an SMC force control for a flexible gripper; this was actuated by a piezoceramic actuator, and the state variables of the system were estimated through force sensor readings.
A control architecture based on a SMC with a fuzzy sliding surface and a disturbance observer was proposed in [68]. By using this approach, the authors intended to propose a controller capable of working with a wide range of grippers. In fact, the integration of fuzzy logic in SMC served to enhance the controller performance with respect to grasp uncertainties. However, preliminary tests performed on a real setup showed behavior degradation due to unmodeled nonlinearities, introducing chattering.
Finally, a few examples of SMC used for SMA-actuated grippers might be found. In [69], the fingertip position of an SMA-wire-actuated gripper was controlled using SMC. The controller relied on a second-order polynomial fit in order to relate the finger displacement with the change in the SMA electrical resistance. Hence, this implementation did not require any external sensor. Finally, in [70], another fuzzy SMC was employed for the force control of an SMA-actuated gripper, equipped with a force sensor. Here, the sliding variable provided the input to the fuzzy logic which featured eleven Gaussian membership functions, allowing for defuzzification and featuring smooth and concise notation [71].

3.5. Machine Learning Techniques

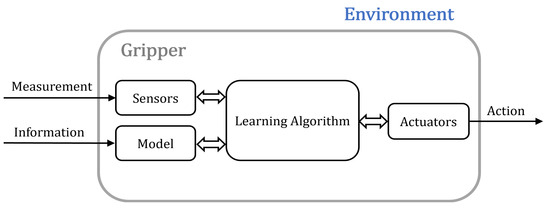

Machine learning (ML)-based architectures were extensively used for robotic grasping within the last years. ML applications can be regarded as a sort of optimization problems. The main difference with the optimization approaches used in control theory and, more specifically, discussed in Section 3.2, is the fact that ML relies mostly on data. The vast majority of ML applications aim to determine object localization, pose estimation and grasp estimation for manipulation [72], often employing vision-based algorithms [73]. Although interesting, these studies fall outside the scope of the present review, since they do not strictly concern the control of the grippers themselves. Below is provided a generic ML scheme (Figure 4) as well as a concise selection of articles where ML was at least involved in the estimation of parameters useful for the gripper controller.
Multiple ML algorithms were tested on a flexible compliant gripper, actuated by a stepper motor, to estimate and predict its optimal finger displacement [74]. Here, some embedded sensors in the flexible structure of the gripper were used to distinguish the concave or convex shape of the items; such information was useful for defining the grasping action. For this application, an extreme learning machine (ELM) proved better prediction performance with respect to several ML methods such as the two support vector regressors (with different kernel functions), artificial neural networks (ANN), neurofuzzy, etc. In [75], a simple control policy was built upon ML-based contact force estimation; the used algorithms were shallow NN (i.e., few hidden layers) and locally weighted projection regression. All of them outperformed the proposed analytical force estimation, with a three-layer NN being the best among the others. In [76], a framework combining deep ANNs and logistic regressions was proposed to respectively learn the physical properties of the grasped object (e.g., mass, stiffness, surface roughness, etc.) and to predict the grip status. This information was then used to compute an optimal grip position command. The objective was to apply the minimal grasping force required in order to hold an item. Furthermore, it was shown how reinforcement learning (RL) could be used to compute the optimum gripping position of objects with variable size. The RL framework made use of simulations to speed up the learning process, whereas the real gripper was a two-finger electric one. Another RL structure was implemented in [77] for a stepper-motor-driven gripper equipped with eight commercial force sensors. A stable grasp was first defined for a certain object and it was set as the objective state of the grasping adaptation procedure. Then, the online RL made use of a learning algorithm, namely Q-learning, to learn such an objective grasping condition. However, the proposed procedure took about 5 min to complete the learning process, given a certain object to grasp.
Finally, for the SMA-actuated gripper presented in [78], ML models permitted one to successfully predict displacement and force through regression. Moreover, the stiffness of the grasped object was estimated through regression and classification. A backpropagation NN (BPNN) and long-short term memory (LSTM) were used. Specifically, BPNN refers to an NN using backpropagation for training. Instead, LSTM is generally used whenever temporal information needs to be memorized by the network. Such an ability of LSTM was useful to cope with the hysteretic behavior of the SMA, leading LSTM to better predict in terms of accuracy and robustness. For regression and classification purposes, voltage and resistance of the SMA were used as inputs to the models.

3.6. Other Control Architectures

The literature contains documents describing control architectures that are hardly classifiable among the previous categories. This descends from the very specific tasks upon which such architectures were developed.
For instance, impedance control was occasionally mentioned in the previous sections when discussing fuzzy or SMC control strategies. However, impedance control is broadly used in robotics and some implementations were attempted within the considered domain, i.e., robotic gripper control. The same applies for adaptive control. In this section, a number of these implementations will be listed.
An early impedance control example might be found in [79] for an electric gripper driven by two DC servomotors, one for each finger. The position, velocity and acceleration feedbacks were used to handle mechanical compliance, damping and inertial behavior, respectively. Both velocity and acceleration were obtained by differentiating the position. In particular, the acceleration feedback was utilized to reduce the impact forces of the fingers closing on an object.
In [80,81], peculiar applications were presented. The authors of [80] proposed an adaptive version of the impedance control, which enhanced its ability to to better cope with stiffness uncertainties during apple grasping. This was performed by introducing a small position correction on the fingers, which, in turn, adjusted the grasping force measured through force sensors mounted on the fingers. Instead, in [81], an underwater grasping task was presented. Such a task was performed by means of a gripper equipped with a force sensor and an encoder. It was shown how environmental uncertainties could be processed online through a recursive least-squares algorithm with a forgetting factor, and thus compensated through impedance control.
A particular design was proposed in [82] for a pneumatic soft gripper. The soft structure of the fingers was precharged through a one-way valve, while the fingers’ velocity and bending angle were controlled by pulling or releasing nylon tendons, actuated by two servomotors. The use of tendons facilitates the control, since the fingers’ bending angle and velocity linearly related with the motor position and velocity. This soft prototype had a force sensor and a proximity sensor, installed on one of the two fingers. The proximity sensor was used to reach a preset safety region where the approaching speed of the finger was drastically reduced to avoid damaging the object, instead the force sensor was used to reach a predefined gripping force. After the desired force was reached, the closing speed was set to zero.
In [83], an adaptive control structure made use of gripper force feedback statistics, sensed by two F/T sensors mounted on the fingers, to better adapt to varying contact interaction impedance. Specifically, the controller compensation made use of a real-time calculated probability of grip failure, given a certain critical force of failure, which was assumed constant. Moreover, it was also shown how Kalman filtering could be implemented to estimate the object impedance for enhanced adaptability of the controller. Another adaptive control structure for minimal grasping force was developed in [84], based on object slip velocity and force feedback respectively sensed by a slip sensor and a force sensor. The former was placed on one finger, whereas the latter was placed on the remaining finger. A force-dependent friction disturbance rejection and backlash compensation was presented in [85] for a DC-motor-driven gripper. Finally, in [86], the position control of the three fingers of a pneumatic gripper is tackled by means of a fractional order PID (FOPID) coupled with a finite-time prescribed performance control (FT-PPC). The FOPID formulation, when compared to the classical PID, adds two more parameters acting on the integral and derivative component for enhanced versatility at the cost of a more challenging tuning procedure. The FOPID was integrated with a FT-PPC, whose main idea is to add output or error constraints and force them into a prescribed area. This is accomplished by means of a prescribed performance function, which acts on both the transient and period.

4. Discussion

Robotic grippers can be designed and built with diverse actuation principles, sensors, materials, fingers etc. (see Section 2.1). Regardless the constructive features, critical control problems to be solved still regard the development of reliable links between actuation and output force, which has to be exerted on the grasped object. Indeed, fine control of grasping force is not straightforward due to several factors, including frictional effects and nonlinearity sources, such as the air flow inside the chambers of pneumatic grippers.
Instead, the control of the fingers’ position reached an acceptable level for industrial applications, especially for what concerns electric grippers. Pneumatic ones still suffer from low controllability, both in terms of force and position, and often behave in fully open and fully closed fashion [43].
Notwithstanding the remarkable, constant enhancement of robotic technologies, the advancement of grippers is experiencing a slower growth. Considering the sole references cited in this review, which, to the best of the authors’ knowledge, offer a complete overview of the field, some interesting statistics can be extracted. The pie chart in Figure 5 is divided according to the control modes percentage.

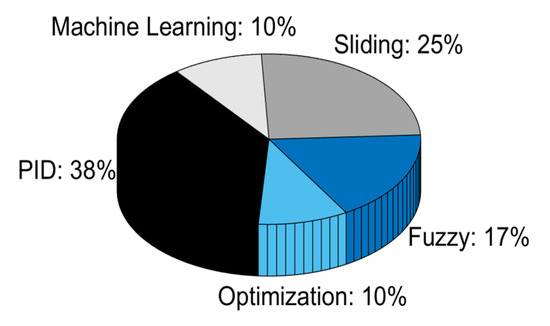

As is evident, traditional control methods such as PID and SMC represent the most common choices when carrying out research in laboratories. This also derives from the large employment occurred in the past decades, especially for what concerns the PID. It is interesting to note that, while PIDs are used mostly to control rigid grippers, SMC is instead preferred for the control of microgrippers. This is probably related with the fact that piezoelectric actuation, mostly employed in microgripper design, normally works at high frequencies up to about 600 kHz [87]. This is an ideal condition for SMC applications, where operational frequency is critical for implementation. Furthermore, it must be noted that fuzzy controllers did not find implementation in the soft grippers, at least as far as concerns the cited articles. This may derive from the nature of fuzzy logic, which does not seem to fit the functioning of soft grippers due to its incapability to capture nonlinear behaviors and other uncertainties typical of such grippers. Based on purely heuristic rules, mainly defined through human observation, this type of control logic is probably not yet deemed mature enough to deal with actuators embedded in soft grippers. All these aspects are detailed in the three charts of Figure 6.

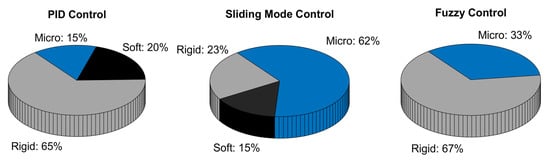

In general, the PID architecture found application in many grasping scenarios due to its easy implementation, and was successfully implemented as a standalone controller or else in combination with other control modes. Modern engineering software allows for automatic procedures of gain tuning on the basis of selected bandwidth, phase margin and plant transfer function (when available). Even if PID does not always guarantee optimal control and often requires a certain system linearity to perform well, it is often the first choice for grippers’ closed-loop control regardless of the type of actuation. Moreover, some of its limitations may be overcome through techniques such as gain scheduling, which allows for the definition of a map of gains for different working regions and, if required, for different input signals. Nonetheless, this complicates the gain tuning, and frequently, PID gains are not robust to even small changes in the experimental setup, necessitating further transfer functions designed ad hoc to reject disturbances.
SMC-based strategies may be applied to robotic grippers, especially when there is the need to compensate for hysteretic effects (e.g., in piezoelectrically actuated grippers). However, chattering problems are difficult to solve completely even with more complex formulations of SMC, such as STSMC, or even predictive SMC (SMPC), which combines SMC and MPC [88]. As a consequence, SMC may represent a good choice whenever a certain amount of chattering can be tolerated. Further, the definition of the sliding surface, in particular the number of error derivatives to include in its formulation, might be challenging. Moreover, the coefficients are not straightforward to select, even though their choice is often arbitrary.
Fuzzy logic, which began to significantly spread in the last decade, is also investigated by researchers in the control of robotic grippers. Fuzzy control privileges the use of heuristic information over complex mathematics, allowing one to build nonlinear controllers in the absence of detailed models. Nonetheless, as the heuristic information comes from human operators, who have to carefully observe the system behavior, the consequent definition of the fuzzy rules might not adequately take into account unforeseen events as well as disturbances. Due to the paramount role of heuristics carried by fuzzy logic, its usage in industrial grippers is still scarce. It is worth noticing that, as already evidenced in Section 3.3, fuzzy logic often acts as a tool to enhance other control architectures, such as PIDs. Nevertheless, in the authors’ opinion, no clear advantage seems to emerge from the incorporation of fuzzy logic to enhance the robustness of PIDs in the control of robotic grippers. For instance, when using PIDs, a well-designed gain scheduling is to be preferred. In general, conducting a comprehensive study of uncertainties affecting the gripper behavior represents a more reliable approach to the gripper control. By contrast, fuzzy logic introduces an often unnecessary level of complexity stemming from the subjective nature of its human-based heuristic rules.
On the other hand, optimization-based controllers started being employed in the last 5 years on robotic grippers. Optimization requires a model of the gripper physics, particularly of the jaw–finger subsystem. The controller performance depends on the accuracy and on the detail contained in such a model; yet, it may be difficult to formulate, especially in the case of soft or compliant mechanisms. Moreover, the execution time of the selected optimization solver must be kept in consideration. Generally, QP permits fast computation cycles (<1 ms), though it may not be sufficient when high (>1 kHz) sampling frequency is required. As a general trend, MPC and QP are preferred on moving robotic systems rather than on grippers, when sophisticated trajectories need to be planned and followed.
The use of ML for control of robotic grippers appears less common than the abovementioned classical approaches, such as PID and SMC. This may descend from the poor instrumentation of industrial gripping devices, which implies reduced quantities (or even complete absence) of data available to build reliable ML frameworks. Despite the progress in the construction of ML architectures, which has led to simpler implementation and faster training, it remains complicated to deliver to industrial customers similar solutions for the control of robotic grippers. Algorithms involving the use of cameras are already on duty in industrial environments, though they serve more to identify objects and contours rather than to control the gripper itself. Table 1 provides an overview of the advantages and disadvantages of each controller type for robotic grippers. Despite the promises, none of the presented controllers, except the PID ones, are currently employed in real applications. Regrettably, the range of control methods in industrial grippers is drastically limited. For instance, as described earlier in this review, experimental works proved the optimization algorithms ability to confer force and position control on pneumatic grippers, which usually do not resort on such controls. Nonetheless, before a real acceptance might occur in the industrial robotics community, a large time span is easy to envisage. The same applies to SMC algorithms, even though high potentiality when applied to microgrippers was shown.
Notwithstanding the effort spent in the conception and implementation of control approaches, robotic grippers remain still far from being able to perform complex manipulation tasks that would allow them to operate in fully unstructured environments. The role of robotic grippers, deemed as “pivotal” in the advancement of modern automation processes [5], seems not to receive satisfactory attention by researchers. As a matter of fact, soft robotics have concentrated much of the effort in the last years, leading to a certain progress in the development of soft grippers that are almost never suitable for heavy industrial tasks, and rather suit fragile objects [32]. Hence, industrial scenarios feature robotic grasping tasks that are frequently tailored to items with specific, a priori known characteristics; such items are often prepositioned in the robot working area so that the gripper is eventually required to perform minimal or no intelligent action in order to accomplish the grasping task. Even when provided with force or position feedback, the grasping ability of robotic grippers, in particular industrial ones, rarely involves properties such as weight, shape and roughness of the object to be grasped. A crucial part of the gripper, i.e., the finger, seldom comes to be instrumented with sensors that could enhance the performance of the gripper itself. One may think about the cost and technological effort required by the miniaturization and integration of F/T sensors in gripper fingers: another aspect that, notwithstanding the considerable impact it would produce, draws poor attention [89].
A significant step forward, in this direction, may be the integration of tactile sensing technologies in grippers fingers. Indeed, despite the promising forecasts of 2–3 decades ago, such sensors are totally unemployed outside research laboratories. Tactile sensing may also provide knowledge on the type of touched material, its shape, roughness, temperature, etc., allowing one to create advanced control algorithms that account for all this information. They may also represent a richer yet cost-effective alternative to the expensive, hard-to-integrate force/torque sensors occasionally embedded in the fingers of robotic grippers.

5. Conclusions

In this article, an overview of the main techniques employed in the control of robotic grippers was presented. The most common gripper actuation principles and sensors were summarized as well. The control strategies were briefly described and a number of applications were provided per each of such strategies. Moreover, examples of control architectures that are not part of the principal categories identified were included too. Meaningful statistics were given in order to deliver a quantitative point of view of the relevant state of the art. Additionally, advantages and drawbacks were highlighted for the various control strategies, and some considerations on the current and future development of robotic grasping were given.
Robotic grippers are rapidly evolving within the last few years, although much more work needs to be performed to allow for reliable, robust and flexible grasping tasks. Experimenting with new gripper concepts involves specific layout designs (e.g., compliant mechanisms, number and disposition of fingers, etc.), topological optimizations, clever choice of materials and actuation. It is the authors’ opinion that all these aspects have to be coupled with the conception of effective control strategies in order to boost the working of robotic grippers, therefore matching with the impressive advancement of robotics.

Author Contributions

Conceptualization, S.C., G.V., M.M. and R.A.R.; formal analysis, M.M. and R.A.R.; investigation, S.C., G.V. and R.A.R.; writing—original draft preparation, S.C., G.V. and R.A.R.; writing—review and editing, M.M. and R.A.R. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used in this work are available upon request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhang, B.; Xie, Y.; Zhou, J.; Wang, K.; Zhang, Z. State-of-the-art robotic grippers, grasping and control strategies, as well as their applications in agricultural robots: A review. Comput. Electron. Agric. 2020, 177, 105694. [Google Scholar] [CrossRef]
  2. Navas, E.; Fernández, R.; Sepúlveda, D.; Armada, M.; Gonzalez-de Santos, P. Soft grippers for automatic crop harvesting: A review. Sensors 2021, 21, 2689. [Google Scholar] [CrossRef] [PubMed]
  3. Elfferich, J.F.; Dodou, D.; Della Santina, C. Soft robotic grippers for crop handling or harvesting: A review. IEEE Access 2022, 10, 75428–75443. [Google Scholar] [CrossRef]
  4. Mazzeo, A.; Aguzzi, J.; Calisti, M.; Canese, S.; Vecchi, F.; Stefanni, S.; Controzzi, M. Marine Robotics for Deep-Sea Specimen Collection: A Systematic Review of Underwater Grippers. Sensors 2022, 22, 648. [Google Scholar] [CrossRef] [PubMed]
  5. Birglen, L.; Schlicht, T. A statistical review of industrial robotic grippers. Robot.-Comput.-Integr. Manuf. 2018, 49, 88–97. [Google Scholar] [CrossRef]
  6. Sun, Y.; Falco, J.; Roa, M.A.; Calli, B. Research challenges and progress in robotic grasping and manipulation competitions. IEEE Robot. Autom. Lett. 2021, 7, 874–881. [Google Scholar] [CrossRef]
  7. Honarpardaz, M.; Tarkian, M.; Ölvander, J.; Feng, X. Finger design automation for industrial robot grippers: A review. Robot. Auton. Syst. 2017, 87, 104–119. [Google Scholar] [CrossRef]
  8. Lyu, Z.; Xu, Q. Recent design and development of piezoelectric-actuated compliant microgrippers: A review. Sens. Actuators A Phys. 2021, 331, 113002. [Google Scholar] [CrossRef]
  9. Romeo, R.A.; Zollo, L. Methods and Sensors for Slip Detection in Robotics: A Survey. IEEE Access 2020, 8, 73027–73050. [Google Scholar] [CrossRef]
  10. Dochshanov, A.; Verotti, M.; Belfiore, N.P. A comprehensive survey on microgrippers design: Operational strategy. J. Mech. Des. 2017, 139, 070801. [Google Scholar] [CrossRef]
  11. Verotti, M.; Dochshanov, A.; Belfiore, N.P. A comprehensive survey on microgrippers design: Mechanical structure. J. Mech. Des. 2017, 139, 060801. [Google Scholar] [CrossRef]
  12. Saravanakumar, D.; Mohan, B.; Muthuramalingam, T. A review on recent research trends in servo pneumatic positioning systems. Precis. Eng. 2017, 49, 481–492. [Google Scholar] [CrossRef]
  13. Mohith, S.; Upadhya, A.R.; Navin, K.P.; Kulkarni, S.; Rao, M. Recent trends in piezoelectric actuators for precision motion and their applications: A review. Smart Mater. Struct. 2020, 30, 013002. [Google Scholar] [CrossRef]
  14. Chen, W.; Khamis, H.; Birznieks, I.; Lepora, N.F.; Redmond, S.J. Tactile sensors for friction estimation and incipient slip detection—Toward dexterous robotic manipulation: A review. IEEE Sens. J. 2018, 18, 9049–9064. [Google Scholar] [CrossRef]
  15. Visioli, A. Practical PID Control; Springer Science & Business Media: London, UK, 2006. [Google Scholar]
  16. Ho, M.T.; Lin, C.Y. PID controller design for robust performance. IEEE Trans. Autom. Control 2003, 48, 1404–1409. [Google Scholar]
  17. Borase, R.P.; Maghade, D.; Sondkar, S.; Pawar, S. A review of PID control, tuning methods and applications. Int. J. Dyn. Control 2021, 9, 818–827. [Google Scholar] [CrossRef]
  18. Somefun, O.A.; Akingbade, K.; Dahunsi, F. The dilemma of PID tuning. Annu. Rev. Control 2021, 52, 65–74. [Google Scholar] [CrossRef]
  19. Ottaviano, E.; Toti, M.; Ceccarelli, M. Grasp force control in two-finger grippers with pneumatic actuation. In Proceedings of the Proceedings 2000 ICRA, Millennium Conference, IEEE International Conference on Robotics and Automation, Symposia Proceedings (Cat. No. 00CH37065), San Francisco, CA, USA, 24–28 April 2000; Volume 2, pp. 1976–1981. [Google Scholar]
  20. Wang, X.; Xiao, Y.; Fan, X.; Zhao, Y. Design and grip force control of dual-motor drive electric gripper with parallel fingers. In Proceedings of the 2016 IEEE Information Technology, Networking, Electronic and Automation Control Conference, Chongqing, China, 20–22 May 2016; pp. 696–700. [Google Scholar]
  21. Matos, A.; Caballa, S.; Zegarra, D.; Guzman, M.A.A.; Lizano, D.; Encinas, D.F.G.; Oscanoa, H.; Arce, D. Three-Fingered Gripper for Multiform Object Grasping with Force Feedback Sensing Control. In Proceedings of the 2020 IEEE ANDESCON, Quito, Ecuador, 13–16 October 2020; pp. 1–5. [Google Scholar]
  22. Saadatzi, M.N.; Das, S.K.; Wijayasinghe, I.B.; Popa, D.O.; Baptist, J.R. Precision grasp control with a pneumatic gripper and a novel fingertip force sensor. In Proceedings of the 2018 IEEE 14th International Conference on Automation Science and Engineering (CASE), Munich, Germany, 20–24 August 2018; pp. 1454–1459. [Google Scholar]
  23. Shaw, J.S.; Dubey, V. Design of servo actuated robotic gripper using force control for range of objects. In Proceedings of the 2016 International Conference on Advanced Robotics and Intelligent Systems (ARIS), Taipei, Taiwan, 31 August–2 September 2016; pp. 1–6. [Google Scholar]
  24. Khamis, H.; Xia, B.; Redmond, S.J. Real-time Friction Estimation for Grip Force Control. In Proceedings of the 2021 IEEE International Conference on Robotics and Automation (ICRA), Xi’an, China, 30 May–5 June 2021; pp. 1608–1614. [Google Scholar]
  25. Qi, J.; Li, X.; Tao, Z.; Feng, H.; Fu, Y. Design and Control of a Hydraulic Driven Robotic Gripper. In Proceedings of the 2021 IEEE International Conference on Robotics and Biomimetics (ROBIO), Sanya, China, 27–31 December 2021; pp. 398–404. [Google Scholar]
  26. Tincani, V.; Grioli, G.; Catalano, M.G.; Garabini, M.; Grechi, S.; Fantoni, G.; Bicchi, A. Implementation and control of the velvet fingers: A dexterous gripper with active surfaces. In Proceedings of the 2013 IEEE International Conference on Robotics and Automation, Karlsruhe, Germany, 6–10 May 2013; pp. 2744–2750. [Google Scholar]
  27. Kim, G.; Hwang, D. BaroTac: Barometric Three-Axis Tactile Sensor with Slip Detection Capability. Sensors 2023, 23, 428. [Google Scholar] [CrossRef]
  28. Sadun, A.S.; Jalani, J.; Sukor, J.A.; Jamil, F. Force control for a 3-Finger Adaptive Robot Gripper by using PID controller. In Proceedings of the 2016 2nd IEEE International Symposium on Robotics and Manufacturing Automation (ROMA), Ipoh, Malaysia, 25–27 September 2016; pp. 1–6. [Google Scholar]
  29. Shauri, R.; Salleh, N.; Hadi, A. PID position control of 7-DOF three-fingered robotic hand for grasping task. In Proceedings of the 2014 IEEE International Conference on Control System, Computing and Engineering (ICCSCE 2014), Penang, Malaysia, 28–30 November 2014; pp. 70–74. [Google Scholar]
  30. Kladovasilakis, N.; Sideridis, P.; Tzetzis, D.; Piliounis, K.; Kostavelis, I.; Tzovaras, D. Design and Development of a Multi-Functional Bioinspired Soft Robotic Actuator via Additive Manufacturing. Biomimetics 2022, 7, 105. [Google Scholar] [CrossRef]
  31. Gai, L.J.; Zong, X.; Huang, J. A global, continuous calibration curvature strategy for bending sensors of soft fingers. Ind. Robot. Int. J. Robot. Res. Appl. 2022, 50, 562–570. [Google Scholar] [CrossRef]
  32. Tawk, C.; Sariyildiz, E.; Alici, G. Force control of a 3D printed soft gripper with built-in pneumatic touch sensing chambers. Soft Robot. 2022, 9, 970–980. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, W.; Tang, Y.; Li, C. Controlling bending deformation of a shape memory alloy-based soft planar gripper to grip deformable objects. Int. J. Mech. Sci. 2021, 193, 106181. [Google Scholar] [CrossRef]
  34. Gonzalez, C.; Lumia, R. An IPMC microgripper with integrated actuator and sensing for constant finger-tip displacement. Smart Mater. Struct. 2015, 24, 055011. [Google Scholar] [CrossRef]
  35. Zhao, Y.; Huang, X.; Liu, Y.; Wang, G.; Hong, K. Design and control of a piezoelectric-driven microgripper perceiving displacement and gripping force. Micromachines 2020, 11, 121. [Google Scholar] [CrossRef] [PubMed]
  36. Lyu, Z.; Xu, Q. Novel design of a piezoelectrically actuated compliant microgripper with high area-usage efficiency. Precis. Eng. 2022, 76, 1–11. [Google Scholar] [CrossRef]
  37. Romanov, A.M.; Gyrichidi, N.; Romanov, M.P. A Novel Gripper with Integrated Rotary Unit and Force Control for Pick and Place Applications. Robotics 2022, 11, 155. [Google Scholar] [CrossRef]
  38. Rafeedi, F.A.; Yoon, J.H.; Hong, D. Design and Control of a Novel Compact Nonlinear Rotary Magnetic SEA (MSEA) for Practical Robotic Gripper Implementation. IEEE Robot. Autom. Lett. 2021, 6, 7643–7650. [Google Scholar] [CrossRef]
  39. Best, M.J. An algorithm for the solution of the parametric quadratic programming problem. In Applied mathematics and parallel computing; Springer: Berlin/Heidelberg, Germany, 1996; pp. 57–76. [Google Scholar]
  40. Romeo, R.A.; Fiorio, L.; Avila-Mireles, E.J.; Cannella, F.; Metta, G.; Pucci, D. Closed-loop force control of a pneumatic gripper actuated by two pressure regulators. In Proceedings of the 2019 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Macau, China, 3–8 November 2019; pp. 7157–7162. [Google Scholar]
  41. Romeo, R.A.; Fiorio, L.; L’Erario, G.; Maggiali, M.; Metta, G.; Pucci, D. Dynamic control of a rigid pneumatic gripper. IEEE Robot. Autom. Lett. 2020, 5, 2793–2800. [Google Scholar] [CrossRef]
  42. Romeo, R.A.; Zocco, A.; Fiorio, L.; Pucci, D.; Maggiali, M. Force Control With Friction Compensation In A Pneumatic Gripper. In Proceedings of the 2021 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Prague, Czech Republic, 27 September–1 October2021; pp. 7231–7237. [Google Scholar]
  43. Romeo, R.A.; Zocco, A.; Fiorio, L.; Maggiali, M. A Quadratic-Programming Approach for the Real-Time Control of the Fingers Position in Industrial Pneumatic Grippers. IEEE Control Syst. Lett. 2022, 7, 859–864. [Google Scholar] [CrossRef]
  44. Calli, B.; Dollar, A.M. Vision-based model predictive control for within-hand precision manipulation with underactuated grippers. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May–3 June 2017; pp. 2839–2845. [Google Scholar]
  45. Passino, K.M.; Yurkovich, S.; Reinfrank, M. Fuzzy Control; Addison-wesley Reading: Boston, MA, USA, 1998; Volume 42. [Google Scholar]
  46. Sadeghian, R.; Sedigh, P.; Azizinezhad, P.; Shahin, S.; Masouleh, M.T. Design, development and control of a three flexible-fingers gripper based on hand gesture. In Proceedings of the 2018 6th RSI International Conference on Robotics and Mechatronics (IcRoM), Tehran, Iran, 23–25 October 2018; pp. 359–363. [Google Scholar]
  47. Rezaeian, A.; Yousefi-Koma, A. Accurate Force Control in a Miniature Gripper with a Single SMA Wire. In Proceedings of the ASME International Mechanical Engineering Congress and Exposition, Montreal, QC, Canada, 14–24 November 2014; American Society of Mechanical Engineers: New York, NY, USA, 2014; Volume 46483, p. V04BT04A067. [Google Scholar]
  48. Xiangjin, Z.; Jimin, W.; Pengpeng, S.; HUANG, S. A Novel Piezoelectric Micro-gripper’s Control Based on Modified Smith Predictor. In Proceedings of the 2017 International Conference on Electronic Industry and Automation (EIA 2017), Suzhou, China, 23–25 June 2017; Atlantis Press: Amsterdam, The Netherlands, 2017; pp. 277–281. [Google Scholar]
  49. Huynh, B.P.; Kuo, Y.L. Optimal fuzzy impedance control for a robot gripper using gradient descent iterative learning control in fuzzy rule base design. Appl. Sci. 2020, 10, 3821. [Google Scholar] [CrossRef]
  50. Deng, H.; Luo, J.; Duan, X.; Zhong, G. Adaptive inverse control for gripper rotating system in heavy-duty manipulators with unknown dead zones. IEEE Trans. Ind. Electron. 2017, 64, 7952–7961. [Google Scholar] [CrossRef]
  51. Zaki, A.; Soliman, A.; Mahgoub, O.; El-Shafei, A. Design and implementation of efficient intelligent robotic gripper. In Proceedings of the Proceedings of the 2010 International Conference on Modelling, Identification and Control, Okayama, Japan, 17–19 July 2010; pp. 710–716.
  52. Dimeas, F.; Sako, D.V.; Moulianitis, V.C.; Aspragathos, N.A. Design and fuzzy control of a robotic gripper for efficient strawberry harvesting. Robotica 2015, 33, 1085–1098. [Google Scholar] [CrossRef]
  53. Birglen, L.; Gosselin, C.M. Fuzzy enhanced control of an underactuated finger using tactile and position sensors. In Proceedings of the Proceedings of the 2005 IEEE International Conference on Robotics and Automation, Barcelona, Spain, 18–22 April 2005; pp. 2320–2325.
  54. Zhang, J.; Yang, Y.; Lou, J.; Wei, Y.; Fu, L. Development and hybrid position/force control of a dual-drive macro-fiber-composite microgripper. Sensors 2018, 18, 1301. [Google Scholar] [CrossRef] [PubMed]
  55. Bartolini, G.; Ferrara, A.; Levant, A.; Usai, E. On second order sliding mode controllers. In Variable Structure Systems, Sliding Mode and Nonlinear Control; Springer: Berlin, Germany, 1999; pp. 329–350. [Google Scholar]
  56. Shtessel, Y.; Edwards, C.; Fridman, L.; Levant, A. Sliding Mode Control and Observation; Springer: New York, NY, USA, 2014; Volume 10. [Google Scholar]
  57. Young, K.D.; Utkin, V.I.; Ozguner, U. A control engineer’s guide to sliding mode control. IEEE Trans. Control Syst. Technol. 1999, 7, 328–342. [Google Scholar] [CrossRef]
  58. Khan, S.; Elitas, M.; Kunt, E.D.; Sabanovic, A. Discrete sliding mode control of piezo actuator in nano-scale range. In Proceedings of the 2006 IEEE International Conference on Industrial Technology, Mumbai, India, 15–17 December 2006; pp. 1454–1459. [Google Scholar]
  59. Xu, Q. Adaptive discrete-time sliding mode impedance control of a piezoelectric microgripper. IEEE Trans. Robot. 2013, 29, 663–673. [Google Scholar] [CrossRef]
  60. Xu, Q. Design and smooth position/force switching control of a miniature gripper for automated microhandling. IEEE Trans. Ind. Inform. 2013, 10, 1023–1032. [Google Scholar]
  61. Xu, Q. Digital sliding-mode control of piezoelectric micropositioning system based on input–output model. IEEE Trans. Ind. Electron. 2013, 61, 5517–5526. [Google Scholar]
  62. Liu, Y.; Zhang, Y.; Xu, Q. Design and control of a novel compliant constant-force gripper based on buckled fixed-guided beams. IEEE/ASME Trans. Mechatronics 2016, 22, 476–486. [Google Scholar] [CrossRef]
  63. Zhang, Y.; Xu, Q. Adaptive sliding mode control with parameter estimation and Kalman filter for precision motion control of a piezo-driven microgripper. IEEE Trans. Control Syst. Technol. 2016, 25, 728–735. [Google Scholar] [CrossRef]
  64. Wu, Z.; Li, Y. Design and control of a novel micro-gripper using adaptive backstepping slide mode control method. Microsyst. Technol. 2021, 27, 4227–4239. [Google Scholar] [CrossRef]
  65. Heydarabad, S.M.; Milella, F.; Davis, S.; Nefiti-Meziani, S. High-performing adaptive grasp for a robotic gripper using super twisting sliding mode control. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May–3 June 2017; pp. 5852–5857. [Google Scholar]
  66. Huang, S.J.; Chang, W.H.; Su, J.Y. Intelligent robotic gripper with adaptive grasping force. Int. J. Control Autom. Syst. 2017, 15, 2272–2282. [Google Scholar] [CrossRef]
  67. Choi, S.B.; Lee, C.H. Force tracking control of a flexible gripper driven by piezoceramic actuators. J. Dyn. Sys. Meas. Control. 1997, 119, 439–446. [Google Scholar] [CrossRef]
  68. O’Toole, M.; Bouazza-Marouf, K.; Kerr, D.; Vloeberghs, M. Robust contact force controller for slip prevention in a robotic gripper. Proc. Inst. Mech. Eng. Part J. Syst. Control Eng. 2010, 224, 275–288. [Google Scholar] [CrossRef]
  69. Dhanalakshmi, K. Demonstration of self-sensing in shape memory alloy actuated gripper. In Proceedings of the 2013 IEEE International Symposium on Intelligent Control (ISIC), Hyderabad, India, 28–30 August 2013; pp. 218–222. [Google Scholar]
  70. Shaw, J.S.; Lee, J.L. Force control of a robot gripper featuring shape memory alloy actuators. In Proceedings of the 2014 International Conference on Advanced Robotics and Intelligent Systems (ARIS), Taipei, Taiwan, 6–8 June 2014; pp. 23–28. [Google Scholar]
  71. Sadollah, A. Fuzzy Logic Based in Optimization Methods and Control Systems and Its Applications; BoD–Books on Demand: Norderstedt, Germany, 2018. [Google Scholar]
  72. Du, G.; Wang, K.; Lian, S.; Zhao, K. Vision-based robotic grasping from object localization, object pose estimation to grasp estimation for parallel grippers: A review. Artif. Intell. Rev. 2021, 54, 1677–1734. [Google Scholar] [CrossRef]
  73. Kleeberger, K.; Bormann, R.; Kraus, W.; Huber, M.F. A survey on learning-based robotic grasping. Curr. Robot. Rep. 2020, 1, 239–249. [Google Scholar] [CrossRef]
  74. Petković, D.; Danesh, A.S.; Dadkhah, M.; Misaghian, N.; Shamshirband, S.; Zalnezhad, E.; Pavlović, N.D. Adaptive control algorithm of flexible robotic gripper by extreme learning machine. Robot.-Comput.-Integr. Manuf. 2016, 37, 170–178. [Google Scholar] [CrossRef]
  75. Su, Z.; Hausman, K.; Chebotar, Y.; Molchanov, A.; Loeb, G.E.; Sukhatme, G.S.; Schaal, S. Force estimation and slip detection/classification for grip control using a biomimetic tactile sensor. In Proceedings of the 2015 IEEE-RAS 15th International Conference on Humanoid Robots (Humanoids), Seoul, Republic of Korea, 3–5 November 2015; pp. 297–303. [Google Scholar]
  76. Thompson, J.; Murakami, T. Cognitive Grasping and Manipulation of Unknown Object with Control Grip Force using Cyber Physical System Approach. IEEJ J. Ind. Appl. 2022, 11, 744–751. [Google Scholar] [CrossRef]
  77. Koh, K.H.; Farhan, M.; Liu, Y.F.; Chan, F.H.L.; Lai, K.W.C. Learning to Grasp Unknown Objects using Force Feedback. In Proceedings of the 2017 IEEE 7th Annual International Conference on CYBER Technology in Automation, Control, and Intelligent Systems (CYBER), Honolulu, HI, USA, 31 July–4 August 2017; pp. 472–477. [Google Scholar]
  78. Pei, Y.C.; Wang, B.H.; Wu, J.T.; Wang, C.; Guan, J.H.; Lu, H. A Machine Learning Empowered Shape Memory Alloy Gripper with Displacement-Force-Stiffness Self-sensing. IEEE Trans. Ind. Electron. 2022, 70, 10385–10395. [Google Scholar] [CrossRef]
  79. Brown, M.K. A controlled impedance robot gripper. AT&T Tech. J. 1985, 64, 937–969. [Google Scholar]
  80. Ji, W.; Zhang, J.; Xu, B.; Tang, C.; Zhao, D. Grasping mode analysis and adaptive impedance control for apple harvesting robotic grippers. Comput. Electron. Agric. 2021, 186, 106210. [Google Scholar] [CrossRef]
  81. Lu, L.; Liu, Q.; Liang, C.; Tang, X.; Xu, D.; Yang, X.; Han, B. Impedance Control for Underwater Gripper Compliant Grasping in Unstructured Environment. In Intelligent Robotics and Applications: 14th International Conference, ICIRA 2021, Yantai, China, 22–25 October 2021; Springer: Cham, Switzerland, 2021; pp. 279–289. [Google Scholar]
  82. Li, Y.; Chen, Y.; Li, Y. Pre-charged pneumatic soft gripper with closed-loop control. IEEE Robot. Autom. Lett. 2019, 4, 1402–1408. [Google Scholar] [CrossRef]
  83. Jiang, A.; Bimbo, J.; Goulder, S.; Liu, H.; Song, X.; Dasgupta, P.; Althoefer, K.; Nanayakkara, T. Adaptive grip control on an uncertain object. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012; pp. 1161–1166. [Google Scholar]
  84. Al-Mohammed, M.; Ding, Z.; Liu, P.; Behal, A. An adaptive control based approach for gripping novel objects with minimal grasping force. In Proceedings of the 2018 IEEE 14th International Conference on Control and Automation (ICCA), Anchorage, AK, USA, 12–15 June 2018; pp. 1040–1045. [Google Scholar]
  85. Zuo, W.; Song, G.; Chen, Z. Grasping Force Control of Robotic Gripper With High Stiffness. IEEE/ASME Trans. Mechatronics 2021, 27, 1105–1116. [Google Scholar] [CrossRef]
  86. Azahar, M.I.P.; Irawan, A.; Ramli, M.S. Transient Control Improvement on Pneumatic Servoing in Robot System using Fractional-Order PID with Finite-time Prescribed Performance Control. In Proceedings of the 2022 IEEE 12th Symposium on Computer Applications & Industrial Electronics (ISCAIE), Penang, Malaysia, 21–22 May 2022; pp. 206–210. [Google Scholar]
  87. Jin, H.; Gao, X.; Ren, K.; Liu, J.; Qiao, L.; Liu, M.; Chen, W.; He, Y.; Dong, S.; Xu, Z.; et al. Review on piezoelectric actuators based on high performance piezoelectric materials. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2022, 69, 3057–3069. [Google Scholar] [CrossRef]
  88. Xiao, H.; Zhao, D.; Gao, S.; Spurgeon, S.K. Sliding mode predictive control: A survey. Annu. Rev. Control 2022, 54, 148–166. [Google Scholar] [CrossRef]
  89. Romeo, R.A.; Zocco, A.; Parmiggiani, A.; Mura, A.; Gesino, M.; Accame, M.; Maggiali, M.; Fiorio, L. Instrumenting a Robotic Finger to Augment the Capabilities of Robotic Grippers. IEEE Trans. Instrum. Meas. 2023, 72, 1–11. [Google Scholar] [CrossRef]
Figure 1. Number of articles per year and cumulative citations from 2004 to 2022 where the topic “gripper control” is addressed. These statistics relate only to the works cited in the present review. Source: Scopus Elsevier.
Figure 1. Number of articles per year and cumulative citations from 2004 to 2022 where the topic “gripper control” is addressed. These statistics relate only to the works cited in the present review. Source: Scopus Elsevier.
Actuators 12 00332 g001
Figure 2. A generic fuzzy controller scheme applicable to robotic grippers.
Figure 2. A generic fuzzy controller scheme applicable to robotic grippers.
Actuators 12 00332 g002
Figure 3. Graphical representation of the SMC principle in case of Equation (4).
Figure 3. Graphical representation of the SMC principle in case of Equation (4).
Actuators 12 00332 g003
Figure 4. Generic ML scheme.
Figure 4. Generic ML scheme.
Actuators 12 00332 g004
Figure 5. Control strategies overview, regardless of the gripper type.
Figure 5. Control strategies overview, regardless of the gripper type.
Actuators 12 00332 g005
Figure 6. PID, SMC and fuzzy comparison.
Figure 6. PID, SMC and fuzzy comparison.
Actuators 12 00332 g006
Table 1. Overview of control techniques for robotic grippers.
Table 1. Overview of control techniques for robotic grippers.
PID [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37]- Simple design and implementation
- Can be model-free
- Manual parameter tuning fast
on grippers
- Easily integrated into other control
architectures (e.g., QP or fuzzy)
- Nonlinearities difficult
to handle (e.g., chamber air
flow or friction between
jaws and mechanical guides)
- Often suboptimal solution
SMC [58,59,60,61,62,63,64,65,66,67,68,69,70]- Robust to system nonlinearities
when high control frequencies,
up to 600 kHz, are available
(e.g., hysteresis for piezoelectric
- Chattering
- Sliding surface may be
difficult to design
- Very high operational
frequencies are not common
in gripper actuation
Fuzzy [45,46,47,48,49,50,51,52,53]- Practical way to implement
human heuristic knowledge
- Model-free implementation
- Human-like reasoning
implementation is
often insufficient for grippers
- Unnecessary complexity
Based [39,40,41,42]
- Constraints quick and intuitive
to implement
- Suitable to save energy
- Precise modeling required
(difficult for soft or
compliant grippers)
- Computation times may be
too high
Machine Learning
- Great potential on systems
difficult to model (e.g., soft
or compliant grippers) with
complex dynamics
- Large amounts of data for
training and maintenance
- Data scarcity due to
poor instrumentation,
especially in industrial field
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cortinovis, S.; Vitrani, G.; Maggiali, M.; Romeo, R.A. Control Methodologies for Robotic Grippers: A Review. Actuators 2023, 12, 332.

AMA Style

Cortinovis S, Vitrani G, Maggiali M, Romeo RA. Control Methodologies for Robotic Grippers: A Review. Actuators. 2023; 12(8):332.

Chicago/Turabian Style

Cortinovis, Simone, Giuseppe Vitrani, Marco Maggiali, and Rocco Antonio Romeo. 2023. "Control Methodologies for Robotic Grippers: A Review" Actuators 12, no. 8: 332.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
