# Modeling and Experiments of an Annular Multi-Channel Magnetorheological Valve

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Design of Annular Multi-Channel MR Valve

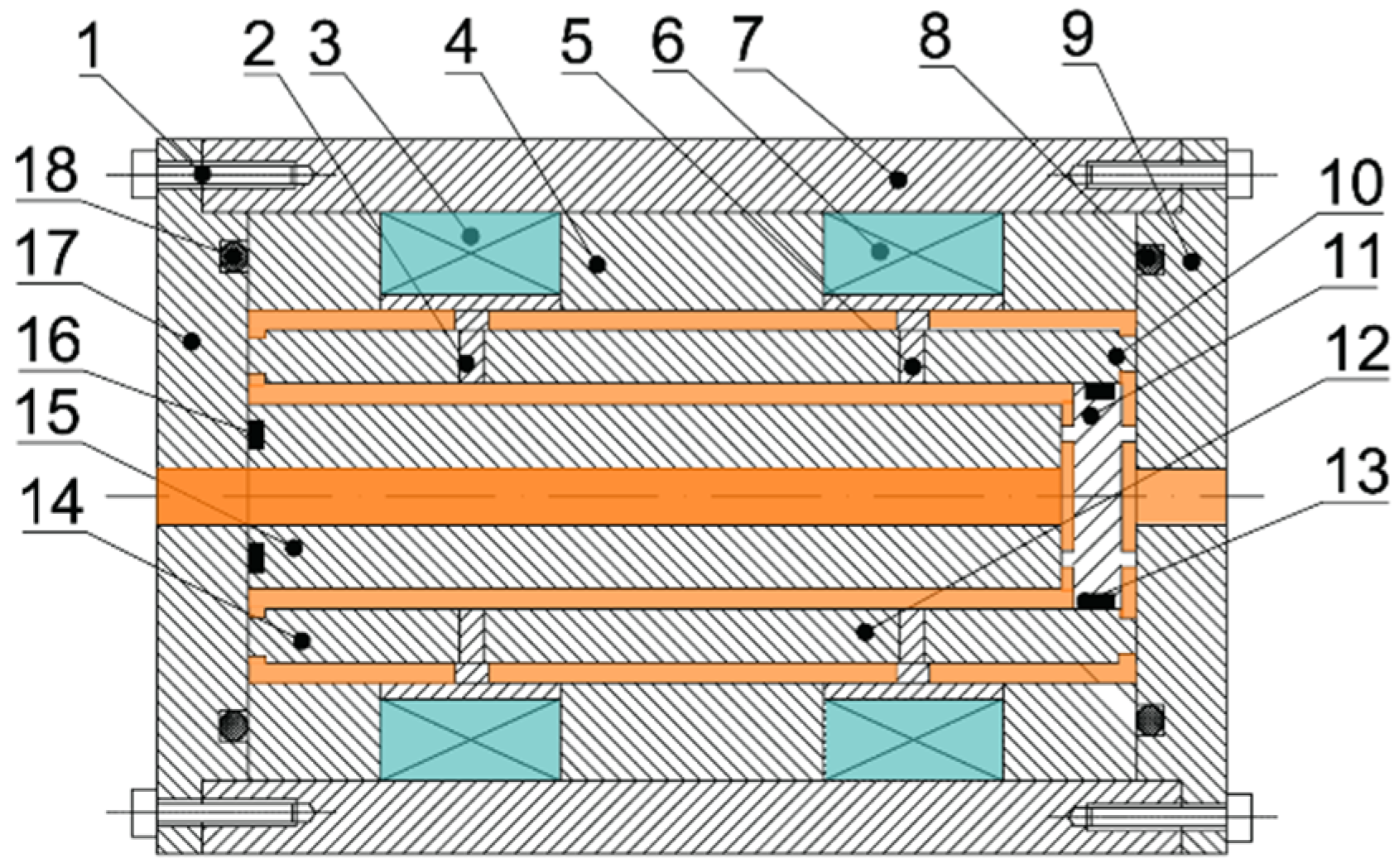

#### 2.1. Working Principle and Structure

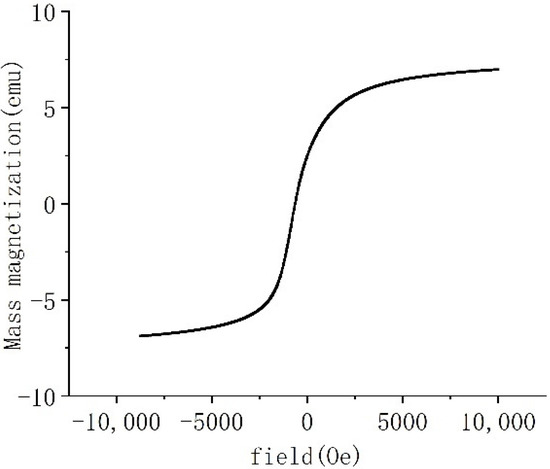

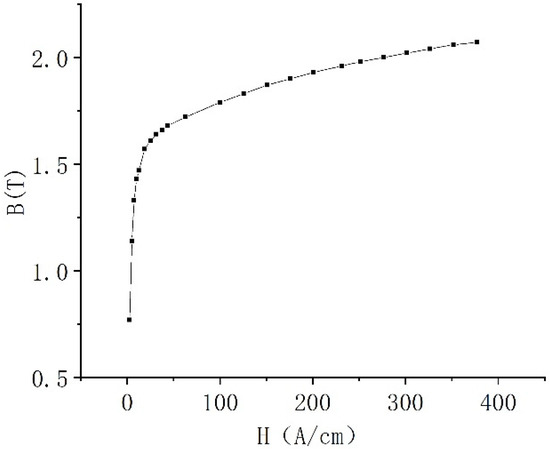

#### 2.2. Magnetic Circuit Design

#### 2.3. Pressure Drop Analysis of Annular Multi-Channel MR Valve

## 3. Numerical Analysis Results and Discussion

#### 3.1. Influence of Current on Pressure Drop Performance of Annular Multi-Channel MR Valve

#### 3.2. Influence of Damping Gap Width on Pressure Drop Performance of Annular Multi-Channel MR Valve

#### 3.3. Influence of Coil Turns on Pressure Drop Performance of Annular Multi-Channel MR Valve

## 4. Experimental Study on Annular Multi-Channel MR Valve

## 5. Analysis and Discussion of Experimental Results

#### 5.1. Influence of Different Loads on Pressure Drop Performance of Annular Multi-Channel MR Valve

#### 5.2. Comparison of Annular Multi-Channel MR Valve and Common MR Valve

#### 5.3. The Simulation Results Are Compared with the Experimental Results

## 6. Conclusions

- (1)
- Display of magnetic circuit design results: The number of turns required by a single excitation coil is greater than 321.
- (2)
- Electromagnetic field finite element analysis results: The pressure drop performance of annular multi-channel MR valve increases with the increase of current and coil turns and decreases with the increase of spool thickness and damping clearance. Compared with the common MR valve, the pressure drop performance of the annular multi-channel MR valve is 5.6 times better than that of the common MR valve. This is because the effective flow length of the annular multi-channel MR valve is 3.2 times that of the ordinary magnetorheological valve, and the magnetic flux density that passes through the damping gap vertically is the same. Therefore, the longer the effective flow length, the better the pressure drop performance of the magnetorheological valve. Second, when MRF flows in a small gap, it is forced to change the flow direction at the shoulder of the shaft, which will consume part of the energy. Therefore, the performance of the annular multi-channel MR valve far exceeds the pressure drop performance of the ordinary MR valve.
- (3)
- Experimental results show that the pressure drop performance curves of the annular multi-channel MR valve coincide under different loads, so the load has little influence on the pressure drop performance of the annular multi-channel MR valve. Compared with the common type, the pressure drop performance of the annular multi-channel MR valve is improved 2–3.7 times, which is basically consistent with the simulation results.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## References

- Idris, M.H.; Imaduddin, F.; Mazlan, S.A.; Choi, S.B. A concentric design of a bypass magnetorheological fluid damper with a serpentine flux valve. Actuators
**2020**, 9, 16. [Google Scholar] [CrossRef] [Green Version] - Chen, P.; Qian, L.J.; Bai, X.X.; Choi, S.B. Velocity-dependent characteristics of magnetorheological fluids in squeeze mode considering the hydrodynamic and the magnetic field interactions. J. Rheol.
**2017**, 61, 455–465. [Google Scholar] [CrossRef] - Ruan, X.H.; Wang, Y.; Xuan, S.H.; Gong, X. Magnetic field dependent electric conductivity of the magnetorheological fluids: The influence of oscillatory shear. Smart Mater. Struct.
**2017**, 26, 35067. [Google Scholar] [CrossRef] - Versaci, M.; Cutrupi, A.; Palumbo, A. A Magneto-Thermo-Static Study of a Magneto-Rheological Fluid Damper: A Finite Element Analysis. IEEE Trans. Magn.
**2020**, 57, 1–10. [Google Scholar] [CrossRef] - Nguyen, Q.H.; Choi, S.B.; Lee, Y.S.; Han, M.S. Optimal design of high damping force engine mount featuring MR valve structure with both annular and radial flow paths. Smart Mater. Struct.
**2013**, 22, 5024. [Google Scholar] [CrossRef] - Abd Fatah, A.Y.; Mazlan, S.A.; Koga, T.; Zamzuri, H. Increasing Effective Region in Magnetorheological Valve using Serpentine Flux Path Method. In Proceedings of the 2013 World Congress on Advances in Structural Engineering and Mechanics, Jeju, Korea, 8–12 September 2013; pp. 2916–2929. [Google Scholar]
- Hu, G.; Liao, M.; Li, W. Analysis of a compact annular-radial-orifice flow magnetorheological valve and evaluation of its performance. J. Intell. Mater. Syst. Struct.
**2017**, 28, 1321333. [Google Scholar] [CrossRef] [Green Version] - Abd Fatah, A.Y.; Mazlan, S.A.; Koga, T.; Zamzuri, H.; Zeinali, M.; Imaduddin, F. A review of design and modeling of magnetorheological valve. Int. J. Mod. Phys. B
**2015**, 29, 1530004. [Google Scholar] [CrossRef] [Green Version] - Hai, X.; Wang, D.H.; Liao, W.H. Design and modeling of a magnetorheological valve with both annular and radial flow. J. Intell. Mater. Syst. Struct.
**2006**, 17, 327–334. [Google Scholar] [CrossRef] - Imaduddin, F.; Mazlan, S.A.; Rahman, M.A.A.; Zamzuri, H.; Ichwan, B. A high performance magnetorheological valve with a meandering flow path. Smart Mater. Struct.
**2014**, 23, 065017. [Google Scholar] [CrossRef] - Imaduddin, F.; Mazlan, S.A.; Zamzuri, H.; Yazid II, M. Design and performance analysis of a compact magnetorheological valve with multiple annular and radial gaps. J. Intell. Mater. Syst. Struct.
**2015**, 26, 1038–1049. [Google Scholar] [CrossRef] - Hu, G.; Zhou, F.; Yu, L. Optimal Design and Performance Analysis of Radial MR Valve with Single Excitation Coil. Actuators
**2021**, 10, 34. [Google Scholar] [CrossRef] - Hu, G.; Zhang, J.; Zhong, F.; Yu, L. Performance evaluation of an improved radial magnetorheological valve and its application in the valve controlled cylinder system. Smart Mater. Struct.
**2019**, 28, 047003. [Google Scholar] [CrossRef] - Sahin, H. Theoretical and Experimental Studies of Magnetorheological (MR) Fluids and MR Greases/Gels from Rheology to System Application. Ph.D. Thesis, University of Nevada, Reno, NV, USA, 2008. [Google Scholar]
- Sahin, H.; Gordaninejad, F.; Wang, X.; Liu, Y. Response time of magnetorheological fluids and magnetorheological valves under various flow conditions. J. Intell. Mater. Syst. Struct.
**2012**, 23, 949–957. [Google Scholar] [CrossRef] - Hu, G.L.; Zhang, J.W.; Liao, M.K.; Ding, R.Q. The effect of radial resistance gap on the pressure drop of a compact annular-radial-orifice flow magnetorheological valve. J. Beijing Inst. Technol.
**2018**, 27, 535–546. [Google Scholar]

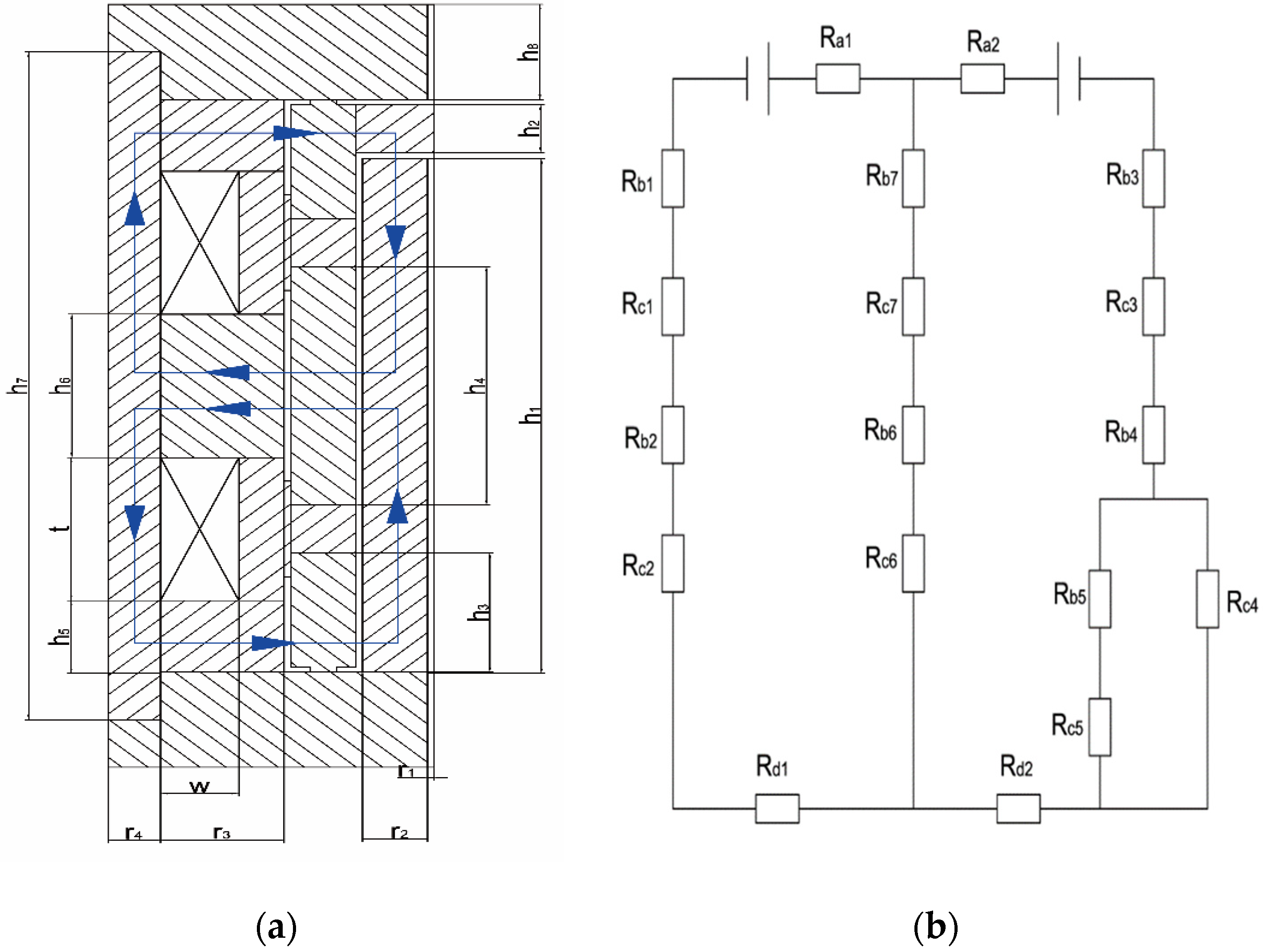

**Figure 4.**Magnetic circuit of annular multi-channel MR valve: (

**a**) magnetic circuit diagram and (

**b**) equivalent magnetic circuit diagram.

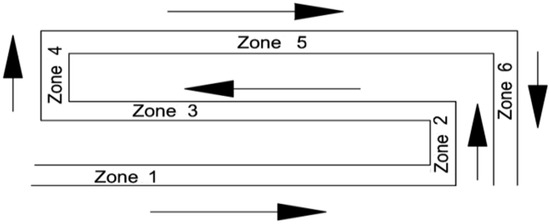

**Figure 5.**Division of damping channels and flow direction diagram of annular multi-channel MR valve.

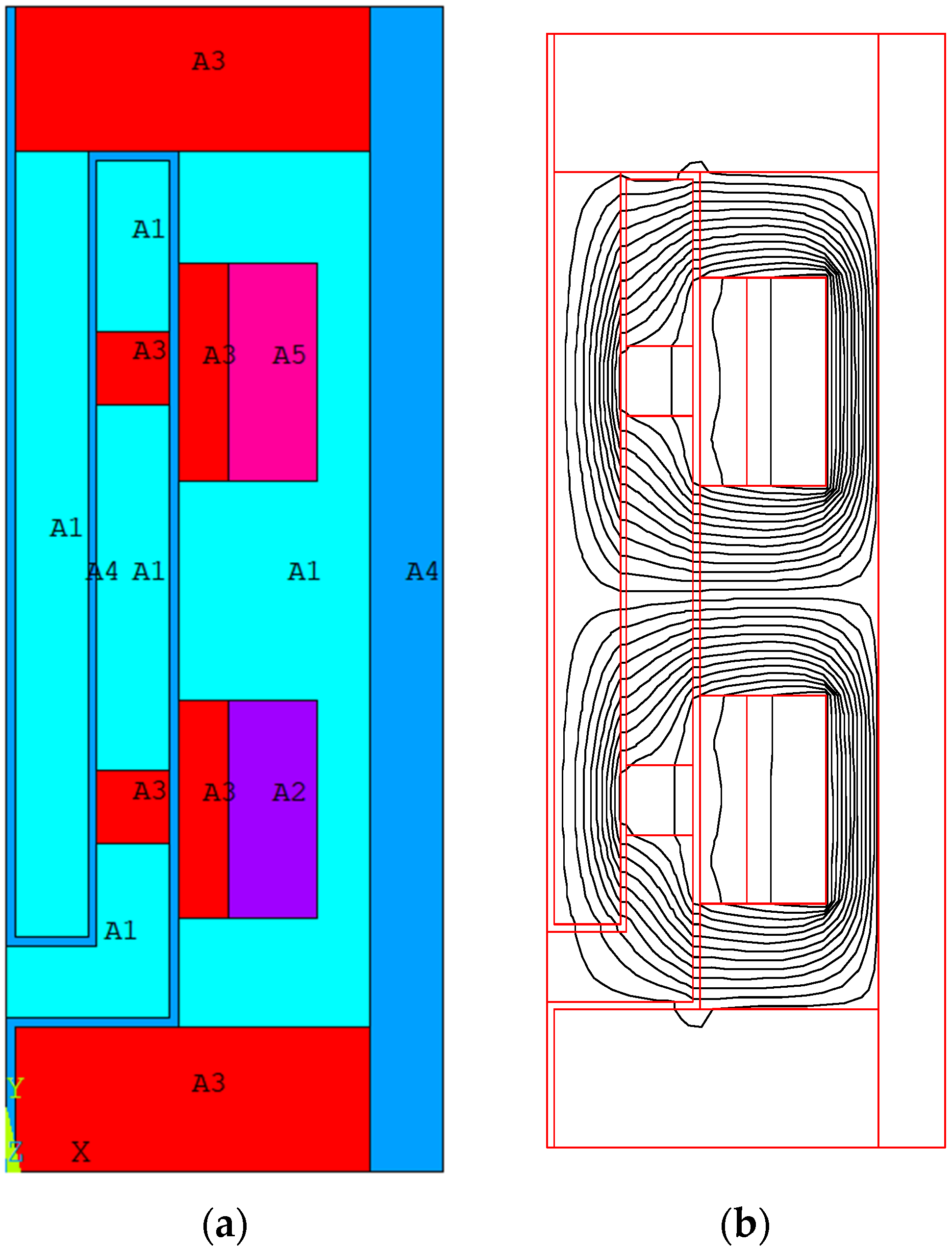

**Figure 6.**(

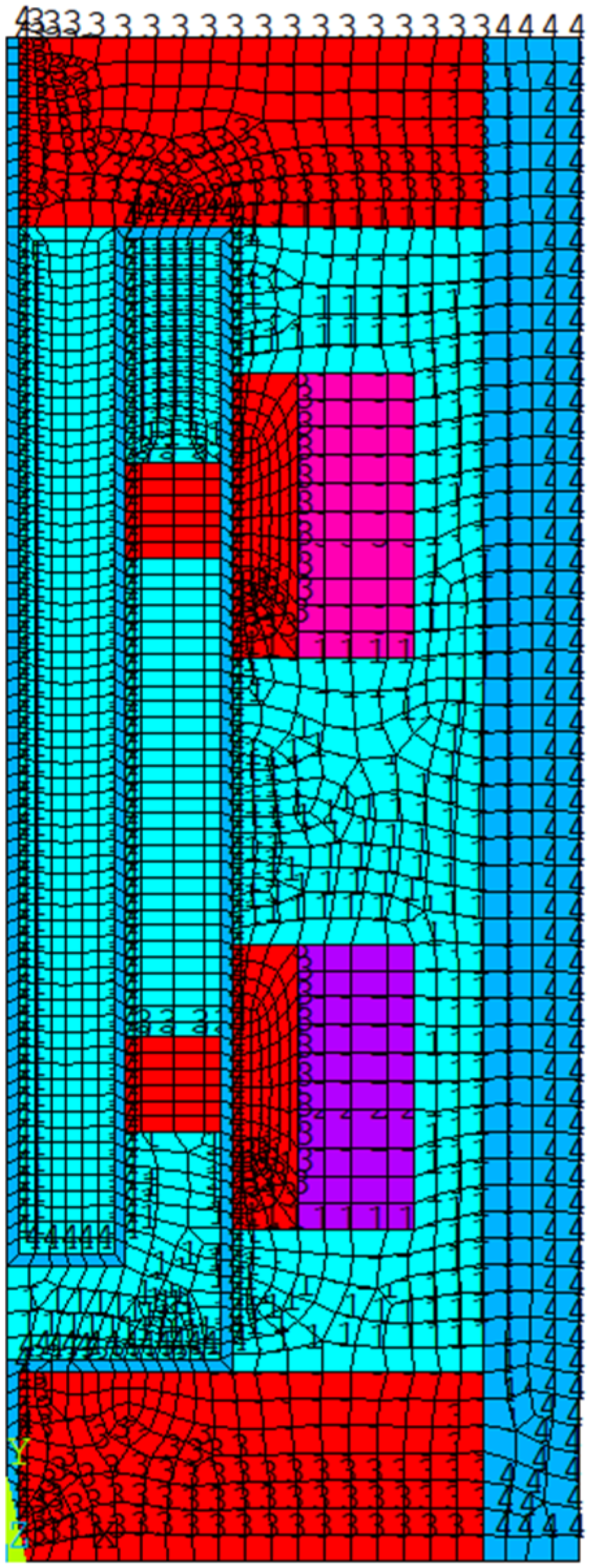

**a**) simulation model diagram of the annular multi-channel MR valve; (

**b**) shows the magnetic field line distribution of the annular multi-channel MR valve.

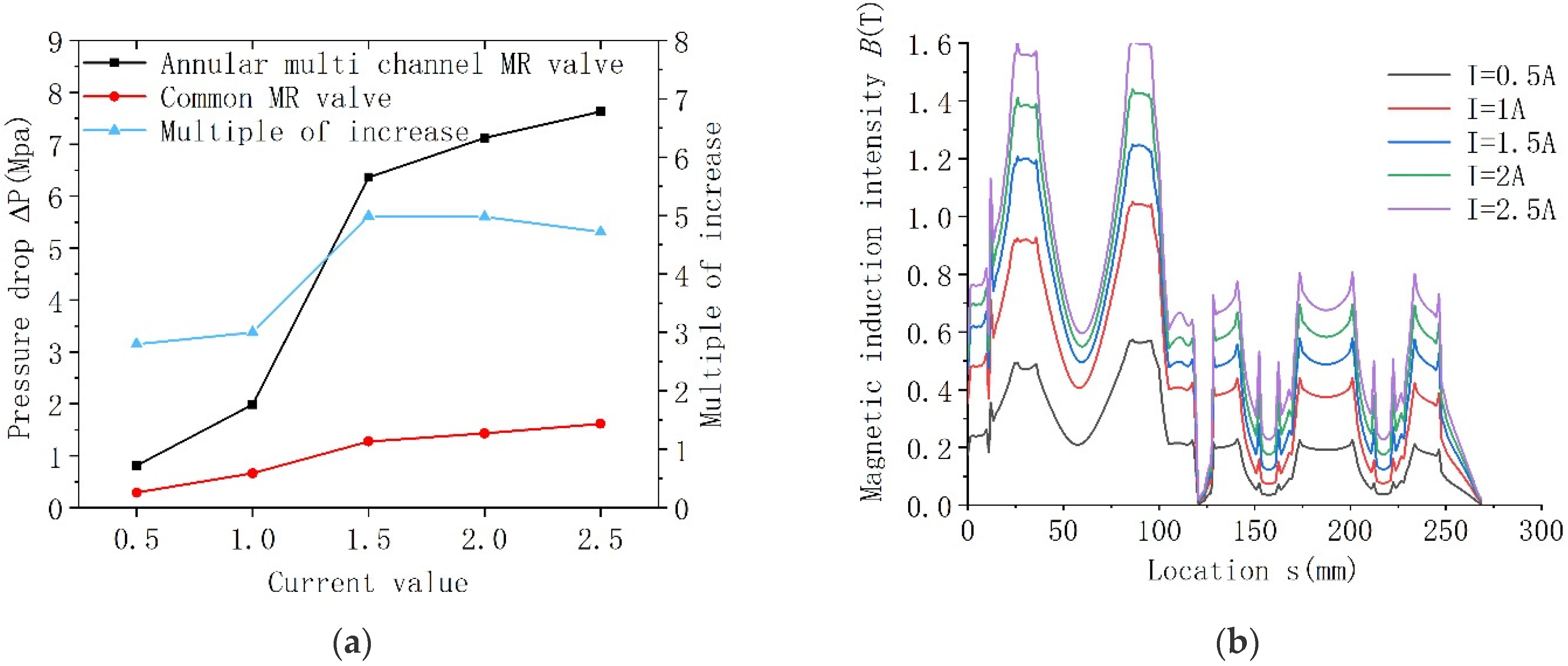

**Figure 8.**(

**a**) Influence of current size on magnetic flux density of the valve; (

**b**) influence of current size on valve pressure drop performance.

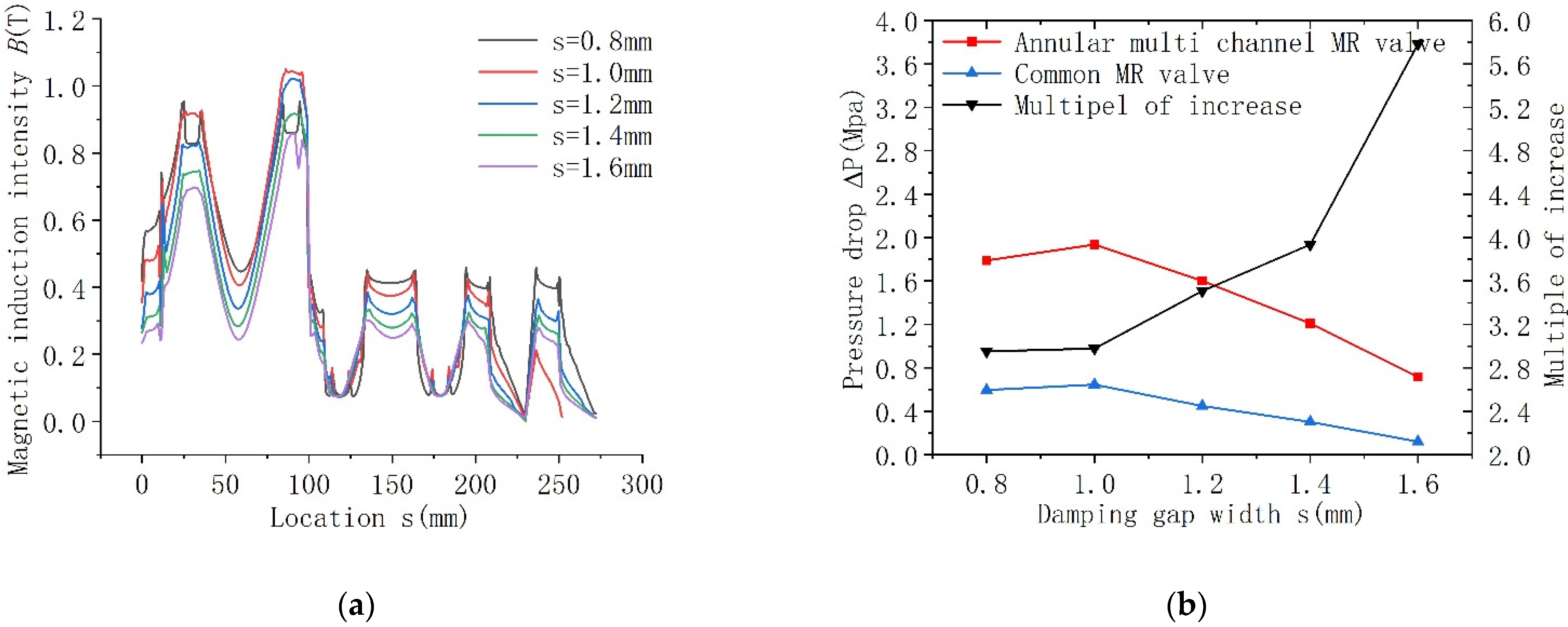

**Figure 9.**(

**a**) Influence of damping clearance on magnetic flux density of annular multi-channel type; (

**b**) influence of damping clearance on annular multi-channel pressure drop performance.

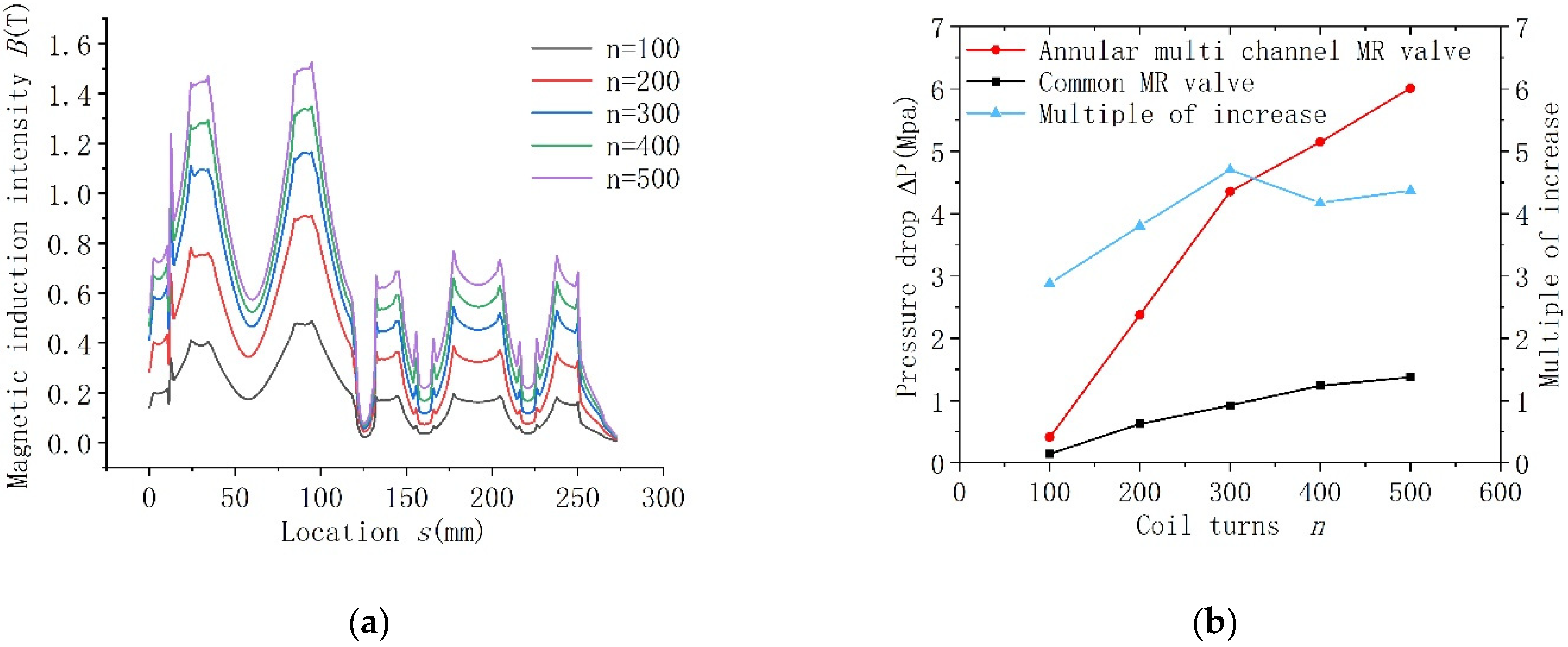

**Figure 10.**(

**a**) Influence of coil turns on magnetic flux density of valve; (

**b**) influence of coil turns on valve pressure drop performance.

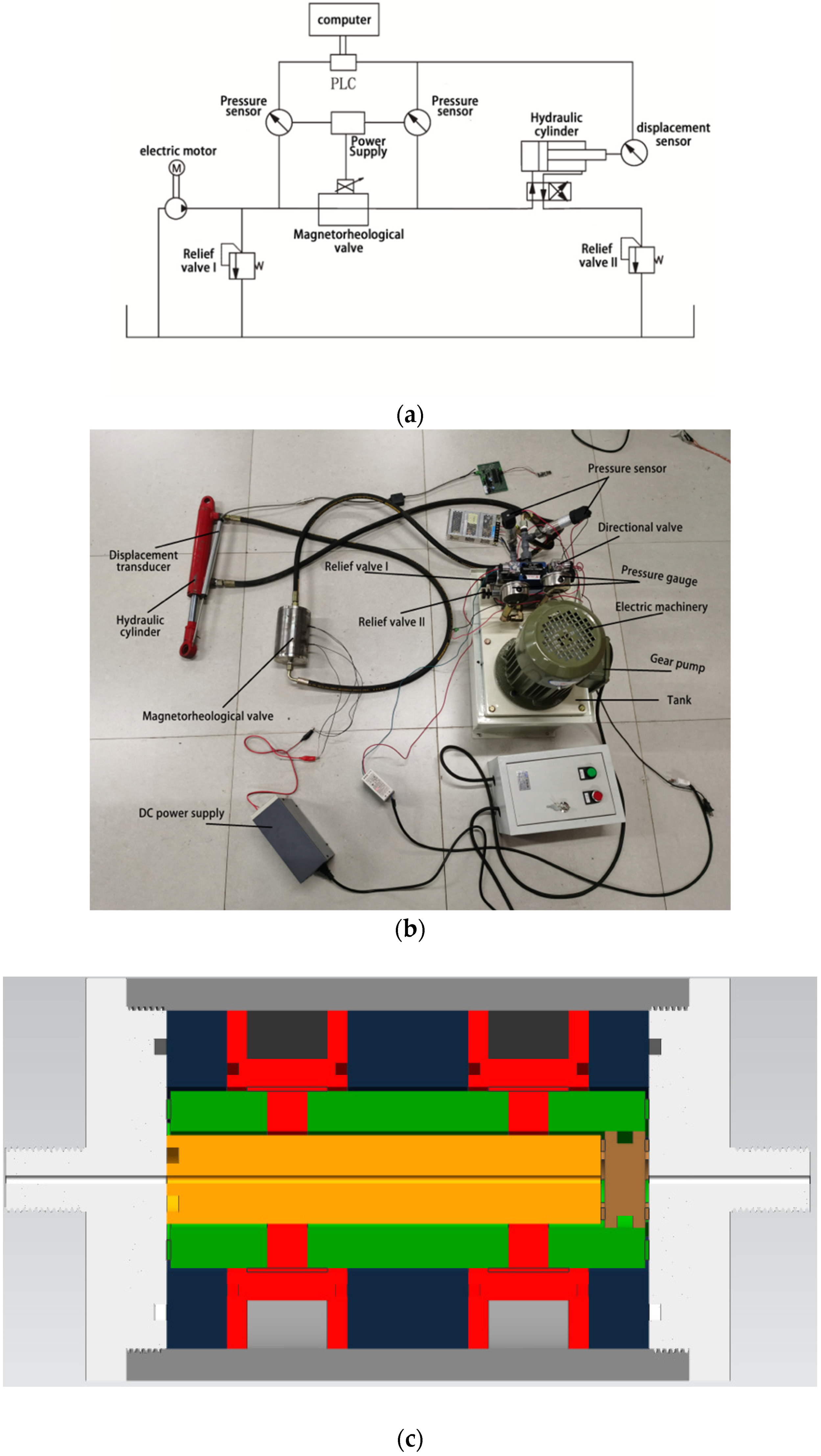

**Figure 11.**(

**a**) Schematic diagram of the experimental system; (

**b**) test rig picture; (

**c**) three-dimensional assembly drawing of annular multi-channel MR valve.

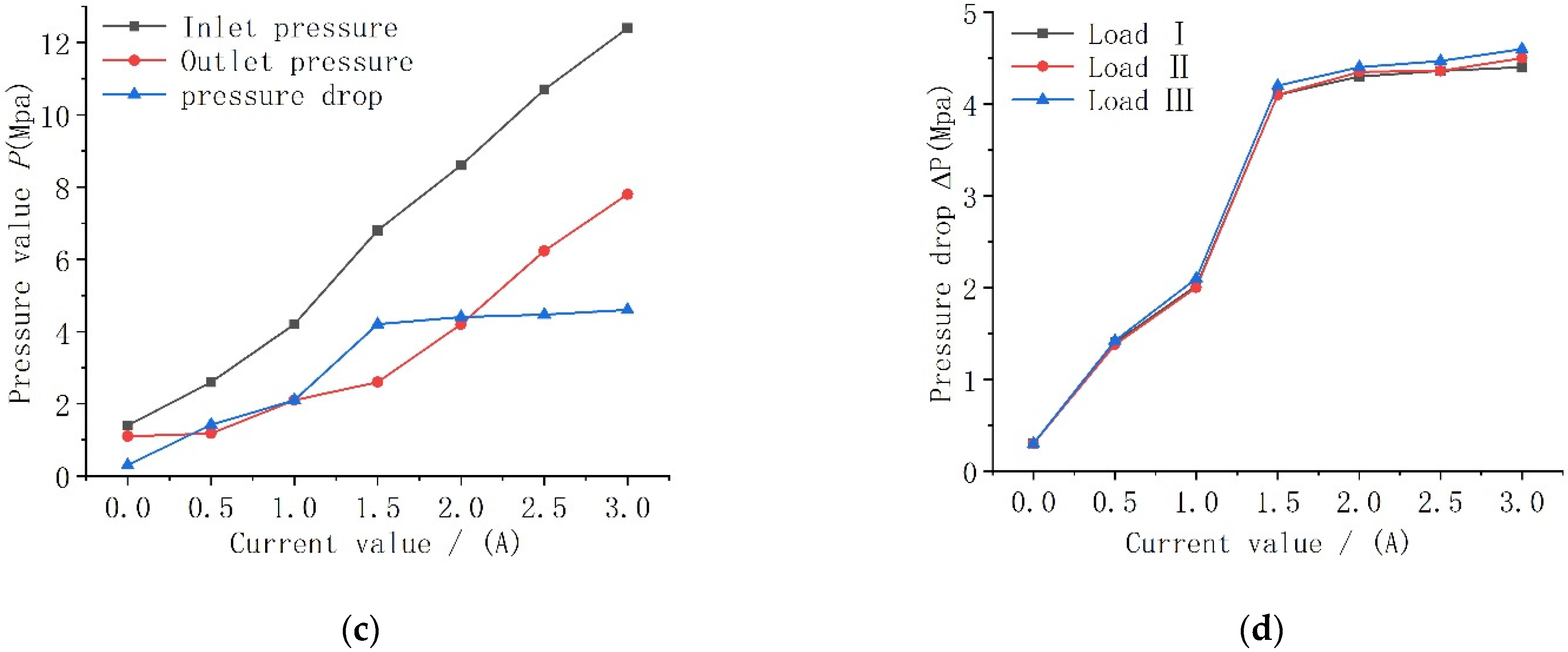

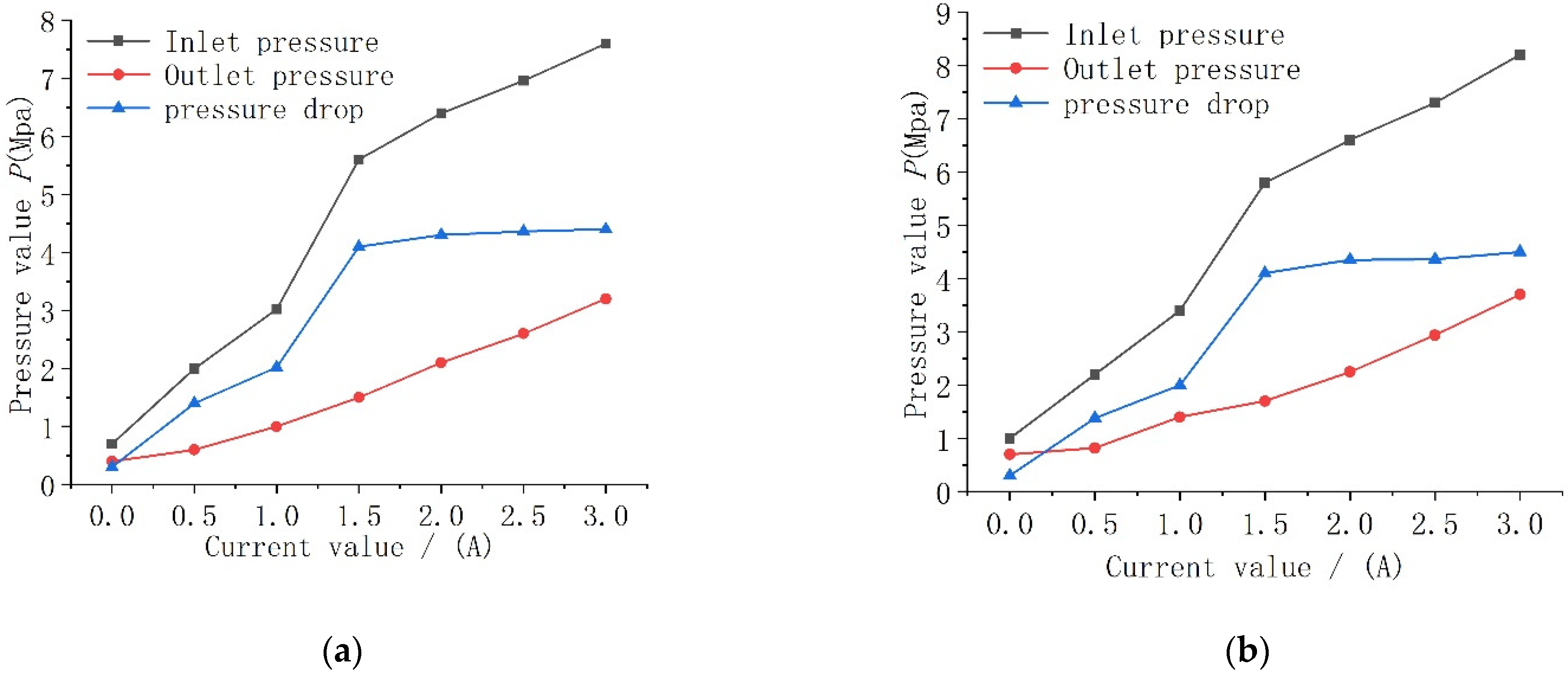

**Figure 12.**(

**a**) Pressure variation diagram of load 1. (

**b**) Pressure change diagram of load 2. (

**c**) Pressure change diagram of load 3. (

**d**) Influence of different loads on the performance of annular multi-channel MR valve.

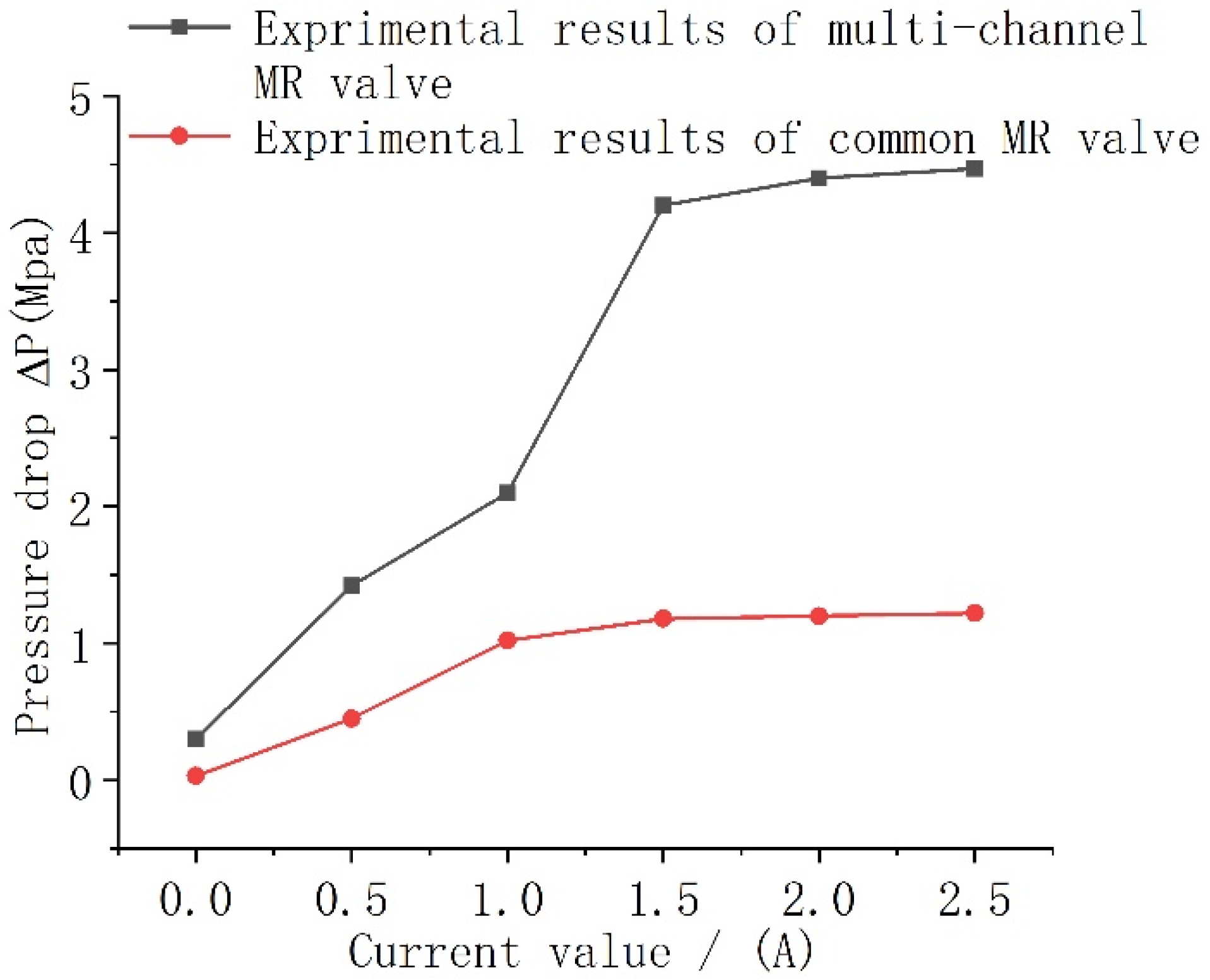

**Figure 13.**Comparison of pressure drop between annular multi-channel MR valve and ordinary MR valve.

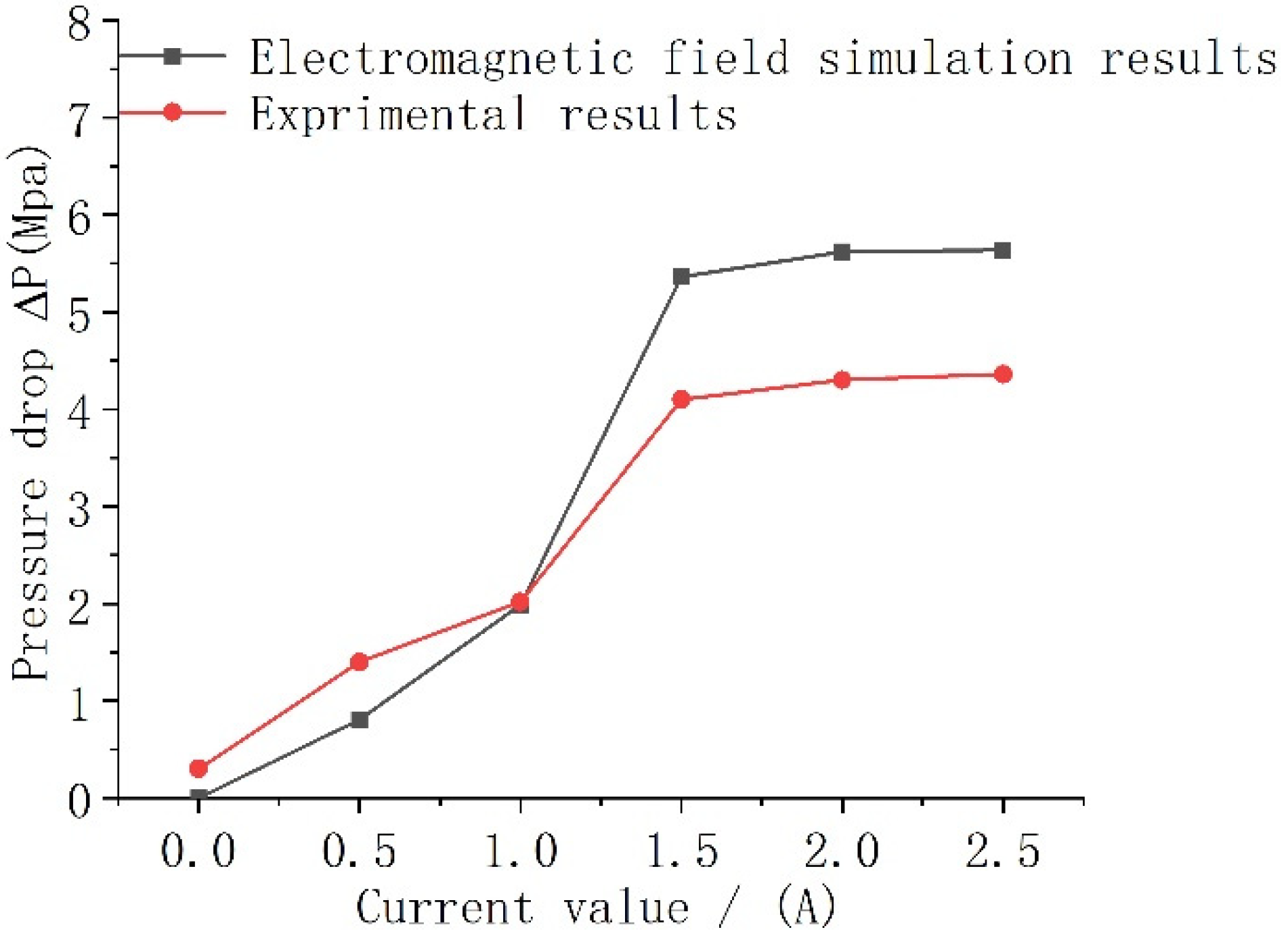

**Figure 14.**Comparison between experimental results and simulation results of annular multi-channel MR valve.
