Pathogens 2019, 8(3), 117; https://doi.org/10.3390/pathogens8030117

Review
Babesia microtiBorrelia burgdorferi Coinfection
Rutgers New Jersey Medical School, Department of Microbiology, Biochemistry and Molecular Genetics, Newark, NJ 07103, USA
*
Authors to whom correspondence should be addressed.
Received: 15 May 2019 / Accepted: 26 July 2019 / Published: 31 July 2019

Abstract

:
The incidence and geographic distribution of human babesiosis is growing in the U.S. Its major causative agent is the protozoan parasite, Babesia microti. B. microti is transmitted to humans primarily through the bite of Ixodes scapularis ticks, which are vectors for a number of other pathogens. Other routes of B. microti transmission are blood transfusion and in rare cases of mother-to-foetus transmission, through the placenta. This review discusses the current literature on mammalian coinfection with B. microti and Borrelia burgdorferi, the causative agent Lyme disease.
Keywords:
Babesia; Borrelia; Babesiosis; Lyme disease; coinfection; tick-borne pathogens

1. Babesiosis is an Important Tick-Borne Disease

The major cause of human babesiosis in the U.S. is the tick-borne protozoan parasite, Babesia microti. B. microti sporozoites are transmitted to mammalian hosts through the bite of Ixodes scapularis ticks. Sporozoites invade erythrocytes and within them develop into trophozoites and merozoites. Once released, merozoites infect more erythrocytes. The repeated rounds of erythrocytic invasion cause symptoms ranging from a mild flu-like fever to severe anemia, multiorgan failure, and death [1]. Immunocompetent individuals are generally asymptomatic but immunodeficiencies resulting from asplenia, B-cell lymphomas, organ transplants, HIV/AIDS, or treatment with immunosuppressive drugs, such as Rituximab, heighten the risk of babesiosis [1].
Babesiosis is endemic in the northeastern and upper midwestern U.S. [2], and has been spreading to new regions as the geographic range of Ixodes ticks expands [3,4,5,6,7]. Since being added to the list of nationally notifiable diseases in 2011, the number of babesiosis cases reported to the Centers for Disease Control and Prevention (CDC) has more than doubled, from 1124 in 2011 to over 2300 in 2017, and the number of states reporting babesiosis has increased from 18 to 31 [8] (Centers for Disease Control and Prevention, National Notifiable Diseases Surveillance System, 2017 Annual Tables of Infectious Disease Data). The number of cases is likely an underestimate since diagnosing babesiosis can be challenging: Early clinical manifestations are non-specific and require a high index of suspicion.

2. B. microti is the Most Common Transfusion-Transmitted Pathogen in the U.S.A.

While human babesiosis is primarily a zoonotic disease, human-to-human transmission can occur through transfusion of contaminated blood products [9]. Transfusion-transmitted babesiosis has a mortality rate of 20% [10]. This poses a major hazard to the supply of safe blood/blood products because infected, asymptomatic blood donors are unaware of their status at the time of donation. In rare cases, B. microti can also be transmitted vertically [11,12,13,14] and through organ transplants in humans [15]. Although rare in humans, transplacental transmission of B. microti occurs at high frequencies in its natural enzootic and reservoir hosts [16,17].
Treatment regimens for babesiosis are limited by the emergence of drug-resistant parasites, toxicity, and failure of drugs [4,18,19]. The confluence of rising disease incidence, expanding vector range, difficulty in early diagnosis, lack of mandatory donor screening, and drawbacks of current therapies make babesiosis an important emerging threat to human health.

3. B. microtiBorrelia burgdorferi Co-Infection is Common in Vector and Host

The tick vector for B. microti, Ixodes scapularis, also carries a number of other human pathogens: Borrelia burgdorferi (henceforth Bo. burgdorferi, the causative agent of Lyme disease), Anaplasma phagocytophilum (the causative agent of anaplasmosis), Borrelia miyamotoi (the causative agent of B. miyamotoi disease), and Powassan virus (the causative agent of deer tick encephalitis) [20]. Of these, Bo. burgdorferi causes significant public health concern due to the high disease burden. Bo. burgdorferi is a spirochete that remains extracellular in the mammalian host. Its ability to disseminate from the site of bite in the skin to peripheral organs is strain-dependent. Virulent strains cause symptoms ranging from arthritis and carditis to neurological manifestations [21]. Depending on the collection site and the life-stage of the tick, the percentage of ticks coinfected with B. microti and Bo. burgdorferi ranges from 0%–13% [22,23,24,25]. Coinfections in the natural and reservoir hosts are also prevalent [26]. Simultaneous infections can occur through transmission of multiple pathogens by the same tick [27] or temporally independent transmission of different pathogens by different ticks. Disease manifestations may be unaffected, potentiated or attenuated by coinfections.
Serological studies indicate that coinfection with B. microti and Bo. burgdorferi is common in humans [28]. In endemic regions, almost 20% of Lyme disease patients reported concurrent babesiosis while up to 25% of babesiosis patients also had Lyme disease [22]. A large percentage of patients with chronic/post-treatment Lyme disease syndrome (52%) show evidence of past or active Babesia coinfection [29]. Since antibiotics used to treat Bo. burgdorferi infection are ineffective against B. microti and diagnosis can be challenging, human coinfection with B. microti and Bo. burgdorferi is of significant clinical concern.
While this review focuses on coinfection with B. microti and Bo. burgdorferi, there is some evidence that coinfections with a different Babesia species, B. duncani, and Bo. Burgdorferi may be more common than previously suspected. B. duncani was thought to be restricted to the west coast of the U.S. but recent reports find evidence of potential B. duncani infections in the northeastern U.S. [29]. Since B. duncani is widespread in Canada [30], its southern spread into northeastern U.S., an area already endemic for Lyme disease, makes coinfections with B. duncani and Bo. burgdorferi a possibility that needs to be carefully investigated. Antibiotics used against B. microti are less effective against B. duncani [31], making treatment of B. duncani potentially more challenging.
The effect of coinfection by the two pathogens on the host is debated. Some human patient data suggest that coinfection or exposure to both pathogens could lead to complicated outcomes. Of the two studies that have examined the effect of B. microtiBo. burgdorferi coinfection on humans, one found worse symptoms in patients infected with B. microti alone compared to patients with exposure to both pathogens [32]. However, the second study reported no difference in the number or duration of babesiosis symptoms between the two groups [33]. In both studies, coinfected patients reported symptoms of greater variety and longer duration compared to patients infected with Bo. burgdorferi alone [32,33]. The long-term clinical outcomes of the two groups were similar. A major challenge of human studies is that it is often not possible to determine if patients were infected concomitantly or serially with the two pathogens. It can also be difficult to distinguish active infection from past exposure based exclusively on serological testing.
Timing of infection can be controlled in animal studies. Experimental coinfections in rodents can provide insights into pathophysiologial processes that are useful for understanding human disease. A few investigations have examined the reciprocal interaction between B. microti and Bo. burgdorferi using laboratory mouse strains [34,35,36]. One study examined B. microti’s effect on carditis and arthritis induced by Bo. burgdorferi. It found that arthritis severity, as measured by histopathological examination, was enhanced in coinfected Balb/c mice compared to mice infected with Bo. burgdorferi alone, while carditis severity was similar in both groups [36]. Similar results were obtained in C3H/HeJ mice by our group [34,37].
A second study examined the effect both of B. microti on Bo. burgdorferi-associated symptoms and of Bo. burgdorferi on B. microti-associated pathology [35]. This study examined the effect of coinfection in asplenic, young and old mice since the asplenia and old age are risk factors for human babesiosis. It found B. microti peak parasitemia trended higher in young C3H/HeN mice infected with B. microti alone compared to the coinfected cohort, but the difference did not reach statistical significance. Histopathological scores for arthritis trended higher in coinfected mice, compared to Bo. burgdorferi-infected mice as well, but did not reach statistical significance. Interestingly, inflammation scores for carditis were lower in coinfected mice compared to mice infected with Bo. burgdorgferi alone but again, the difference was not statistically significant. For this reason, the study concluded that the two diseases follow independent courses in a mouse model of coinfection [35]. Our recent work suggests that there may be interaction between the two infections. We found that peak B. microti parasitemia was consistently and significantly lower in young, coinfected C3H/HeJ mice compared to parasitemia in mice infected solely with B. microti [37]. In addition, arthritis severity was significantly higher in coinfected mice than in mice infected solely with Bo. burgdorferi [37]. On balance, existing data suggests exacerbation of Lyme arthritis by B. microti and attenuation of B. microti parasitemia by Bo. burgdorferi, at least in coinfected C3H mice.
The interaction between B. microti and Bo. burgdorferi in their natural rodent host, Peromycus leucopus, is of great importance to the ecological epidemiology of human babesiosis since it could impact the geographic spread of the two pathogens. A pioneering study investigated transmission of B. microti and Bo. burgdorferi to ticks and also examined the effect of Bo. burgdorferi coinfection on B. microti parasitemia in laboratory-bred P. leucopus that were infected by tick bite [38]. It found higher parasitemia in coinfected mice compared to P. leucopus infected with B. microti alone. These results are in contrast to ones obtained from infections of laboratory mouse strains where coinfection had either a neutral or a depressive effect on B. microti parasitemia. There are several explanations for these seemingly contradictory results. First, this study used a strain of Bo. burgdorferi that, in mice, is slow to disseminate from the site of infection [39]. Non-invasive strains of Bo. burgdorferi elicit a different set of host responses, which might impact B. microti differently, from ones elicited by invasive strains of Bo. burgdorferi used in previous murine coinfection studies [40,41]. Second, this study infected P. leucopus through tick bite. While tick bite has the notable advantage of being the natural route of transmission for both pathogens, it introduces the confounding variable of unequal inoculum dose. In experimental infections, I. dammini (renamed I. scapuralis in 1996 [42]) nymphs infected with B. microti-infected blood, as larvae, infected only 50% of hamsters over the course of 54 h [43]. Similarly, infection studies of Plasmodium berghei, a vector-borne protozoan parasite related to B. microti, have demonstrated a wide variance in the number of organisms transmitted through vector bite: Approximately 10%–20% of feeding mosquitoes, despite being infected, did not inject any P. berghei into the mouse host [44,45]. The inoculum size is an important consideration since P. berghei sporozoites in the skin trigger a dermal immune response that has long-lasting impact on the subsequent infection by sporozoites of hepatocytes [46]. By analogy to the above-mentioned transmission dynamics of P. berghei through mosquito bites, infection of B. microti and Bo. burdorferi through tick bites could introduce different numbers of pathogens into the two cohorts of mice. Potential differences in inoculum make it difficult to directly compare parasitemias between different groups of bite-infected mice. Transmission through tick-bite also introduces tick salivary gland factors that serve multiple functions that assist in pathogen transmission, including vasodilation, anti-coagulation, and fibrolysis (for a recent review refer to [47]). If there are salivary gland proteins specifically associated with B. microti and/or Bo. burgdorferi during transmission, then a local host immune response induced by them could impact early steps of infection by both pathogens. There is a gap in our understanding of the effects of saliva on B. microti transmission in the presence and absence of Bo. burgdorferi and other pathogens. Third, as a consequence of transmission through tick bite, B. microti infection in this study was initiated by sporozoites (the stages introduced by tick bite) rather than infected erythrocytes, as done in previous studies. Early immune responses elicited during a sporozoite-initiated infection could have kinetics and cellular characteristics that are different from that elicited by intravenous or intraperitoneal injections of B. microti-infected erythrocytes. B. microti sporozoites and erythrocytic stages are highly likely to be immunologically and biologically distinct. Finally, interaction between B. microti and Bo. burgdorferi may be different in P. leucopus and Mus muculus (C3H) mice. Clearly, additional studies are needed to test the interplay of host species with (1) B. microti and Bo. burgdorferi genotypes, (2) B. microti sporozoite-initiated and infected red blood cell (RBC)-initiated infections, (3) transmission through injection versus tick-bite.
A corollary to higher B. microti parasitemia in coinfected P. leucopus mice was the suggestion that Bo. burgdorferi facilitates the geographic spread of B. microti [38], which is otherwise acquired by ticks less efficiently compared to Bo. burgdorferi [48]. This model was proposed prior to the discovery of B. microti’s highly efficient transplacental transmission in P. leucopus [18]. B. microti’s vertical transmission is likely to be an important vector-independent contributor to the geographic expansion of B. microti. This mode of transmission will be promoted by warmer winters brought about by global climate change and could be an additional explanation for the expansion in range by B. microti.

4. Model for B. microti’s Effect on Bo. burgdorferi in C3H Mice

We suggest that in C3H mice, B. microti coinfection exacerbates symptoms of arthritis caused by Bo. burgdorferi because B. microti causes splenic dysfunction that reduces B- and T-cell function and the production of antibodies required to control Bo. burgdorferi infection (Figure 1) [37]. The resulting increased survival of Bo. burgdorferi in coinfected mice, compared to mice infected with Borrelia alone, enhances inflammatory Lyme arthritis in coinfected mice. Reciprocally, Bo. burgdorferi infection triggers TLR2-based signaling (mainly due to its lipoproteins) that increases pro-inflammatory cytokines, and activates macrophages and polymononuclear neutrophils. These innate immune responses diminish B. microti parasitemia in coinfected mice compared to mice infected only with B. microti.
The inconsistent outcomes of different human and animal studies point to the need for further investigations. A murine model of human coinfection enables control of inoculum timing and size, larger sample sizes, and mechanistic studies. Drawbacks are that a mouse model does not recreate all aspects of human disease, for example, while advanced age is a risk factor for human babesiosis, in mice it confers resistance to B. microti infection [34,49]. Nonetheless, judicious use of animal models to define specific pathophysiological processes of human diseases can complement studies of human patients. Murine studies may need to employ large sample sizes to ensure adequate power to reveal small but biologically meaningful differences between coinfected and single-infected animals. These studies need to determine if the reciprocal interaction between the two pathogens is affected by the invasiveness of the B. microti and Bo. burgdorferi strains, different mouse species (Mus musculus versus P. leucopus), the route of transmission (intradermal, intravenous, and tick bite), infection by B. microti sporozoites or infected RBCs, and the relative timing of infection (concomitant versus sequential). Finally, host sex has to be considered as a biological variable. Two studies found that male mice were more susceptible to infection with B. microti [50,51] and one study found female mice were more susceptible to infection with B. duncani (WA-1). A clarification of the role of host sex in Babesia infections will shed light on whether the higher prevalence of human babesiosis amongst men (Surveillance for Babesiosis—United States, 2014 Annual Summary. Atlanta, Georgia: U.S. Department of Health and Human Services, CDC, 2016) is a result of higher environmental exposure and/or increased susceptibility of males to B. microti.

Funding

This research was funded by the National Institutes of Health, grant number R01AI08992 to NP.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krause, P.J. Human babesiosis. Int. J. Parasitol. 2019, 49, 165–174. [Google Scholar] [CrossRef] [PubMed]
  2. Vannier, E.; Krause, P.J. Human babesiosis. N. Engl. J. Med. 2012, 366, 2397–2407. [Google Scholar] [CrossRef] [PubMed]
  3. Persing, D.H.; Herwaldt, B.L.; Glaser, C.; Lane, R.S.; Thomford, J.W.; Mathiesen, D.; Krause, P.J.; Phillip, D.F.; Conrad, P.A. Infection with a babesia-like organism in northern California. N. Engl. J. Med. 1995, 332, 298–303. [Google Scholar] [CrossRef] [PubMed]
  4. Genda, J.; Negron, E.A.; Lotfipour, M.; Balabhadra, S.; Desai, D.S.; Craft, D.W.; Katzman, M. Severe Babesia microti Infection in an Immunocompetent Host in Pennsylvania. J Investig. Med. High Impact Case Rep. 2016, 4, 2324709616663774. [Google Scholar] [CrossRef] [PubMed]
  5. Menis, M.; Forshee, R.A.; Kumar, S.; McKean, S.; Warnock, R.; Izurieta, H.S.; Gondalia, R.; Johnson, C.; Mintz, P.D.; Walderhaug, M.O.; et al. Babesiosis Occurrence among the Elderly in the United States, as Recorded in Large Medicare Databases during 2006–2013. PLoS ONE 2015, 10, e0140332. [Google Scholar] [CrossRef] [PubMed]
  6. Stramer, S.L. The potential threat to blood transfusion safety of emerging infectious disease agents. Clin. Adv. Hematol. Oncol. 2015, 13, 420–422. [Google Scholar]
  7. Acosta, M.E.; Ender, P.T.; Smith, E.M.; Jahre, J.A. Babesia microti infection, eastern Pennsylvania, USA. Emerg Infect Dis. 2013, 19, 1105–1107. [Google Scholar] [CrossRef]
  8. Centers for Disease Control and Prevention. Babesiosis Surveillance—18 States, 2011. Morb. Mortal. Wkly. Rep. 2012, 61, 505–509. [Google Scholar]
  9. Herwaldt, B.L.; Linden, J.V.; Bosserman, E.; Young, C.; Olkowska, D.; Wilson, M. Transfusion-associated babesiosis in the United States: A description of cases. Ann. Intern. Med. 2011, 155, 509–519. [Google Scholar] [CrossRef]
  10. Levin, A.E.; Krause, P.J. Transfusion-transmitted babesiosis: Is it time to screen the blood supply? Curr. Opin. Hematol. 2016, 23, 573–580. [Google Scholar] [CrossRef]
  11. Saetre, K.; Godhwani, N.; Maria, M.; Patel, D.; Wang, G.; Li, K.; Wormser, G.P.; Nolan, S.M. Congenital Babesiosis After Maternal Infection With Borrelia burgdorferi and Babesia microti. J. Pediatric Infect. Dis. Soc. 2018, 7, e1–e5. [Google Scholar] [CrossRef] [PubMed]
  12. Esernio-Jenssen, D.; Scimeca, P.G.; Benach, J.L.; Tenenbaum, M.J. Transplacental/perinatal babesiosis. J. Pediatric 1987, 110, 570–572. [Google Scholar] [CrossRef]
  13. Joseph, J.T.; Purtill, K.; Wong, S.J.; Munoz, J.; Teal, A.; Madison-Antenucci, S.; Horowitz, H.W.; Aguero-Rosenfeld, M.E.; Moore, J.M.; Abramowsky, C.; et al. Vertical transmission of Babesia microti, United States. Emerg. Infect. Dis. 2012, 18, 1318–1321. [Google Scholar] [CrossRef] [PubMed]
  14. New, D.L.; Quinn, J.B.; Qureshi, M.Z.; Sigler, S.J. Vertically transmitted babesiosis. J. Pediatric 1997, 131 Pt 1, 163–164. [Google Scholar] [CrossRef]
  15. Ather, I.; Pourafshar, N.; Schain, D.; Gupte, A.; Casey, M.J. Babesiosis: An unusual cause of sepsis after kidney transplantation and review of the literature. Transpl. Infect. Dis. 2017, 19. [Google Scholar] [CrossRef]
  16. Tufts, D.M.; Diuk-Wasser, M.A. Transplacental transmission of tick-borne Babesia microti in its natural host Peromyscus leucopus. Parasites Vectors. 2018, 11, 286. [Google Scholar] [CrossRef]
  17. Tolkacz, K.; Bednarska, M.; Alsarraf, M.; Dwuznik, D.; Grzybek, M.; Welc-Faleciak, R.; Behnke, J.M.; Bajer, A. Prevalence, genetic identity and vertical transmission of Babesia microti in three naturally infected species of vole, Microtus spp. (Cricetidae). Parasites Vectors 2017, 10, 66. [Google Scholar] [CrossRef]
  18. Krause, P.J.; Lepore, T.; Sikand, V.K.; Gadbaw, J., Jr.; Burke, G.; Telford, S.R., 3rd; Brassard, P.; Pearl, D.; Azlanzadeh, J.; Christianson, D.; et al. Atovaquone and azithromycin for the treatment of babesiosis. N. Engl. J. Med. 2000, 343, 1454–1458. [Google Scholar] [CrossRef]
  19. Lawres, L.A.; Garg, A.; Kumar, V.; Bruzual, I.; Forquer, I.P.; Renard, I.; Virji, A.Z.; Boulard, P.; Rodriguez, E.X.; Allen, A.J.; et al. Radical cure of experimental babesiosis in immunodeficient mice using a combination of an endochin-like quinolone and atovaquone. J. Exp. Med. 2016, 213, 1307–1318. [Google Scholar] [CrossRef]
  20. Nelder, M.P.; Russell, C.B.; Sheehan, N.J.; Sander, B.; Moore, S.; Li, Y.; Johnson, S.; Patel, S.N.; Sider, D. Human pathogens associated with the blacklegged tick Ixodes scapularis: A systematic review. Parasites Vectors 2016, 9, 265. [Google Scholar] [CrossRef]
  21. Wormser, G.P.; Dattwyler, R.J.; Shapiro, E.D.; Halperin, J.J.; Steere, A.C.; Klempner, M.S.; Krause, P.J.; Bakken, J.S.; Strle, F.; Stanek, G.; et al. The clinical assessment, treatment, and prevention of lyme disease, human granulocytic anaplasmosis, and babesiosis: Clinical practice guidelines by the Infectious Diseases Society of America. Clin. Infect. Dis. 2006, 43, 1089–1134. [Google Scholar] [CrossRef] [PubMed]
  22. Diuk-Wasser, M.A.; Vannier, E.; Krause, P.J. Coinfection by Ixodes Tick-Borne Pathogens: Ecological, Epidemiological, and Clinical Consequences. Trends Parasitol. 2016, 32, 30–42. [Google Scholar] [CrossRef] [PubMed]
  23. Johnson, T.L.; Graham, C.B.; Boegler, K.A.; Cherry, C.C.; Maes, S.E.; Pilgard, M.A.; Hojgaard, A.; Buttke, D.E.; Eisen, R.J. Prevalence and Diversity of Tick-Borne Pathogens in Nymphal Ixodes scapularis (Acari: Ixodidae) in Eastern National Parks. J. Med. Entomol. 2017, 54, 742–751. [Google Scholar] [CrossRef] [PubMed]
  24. Rollend, L.; Bent, S.J.; Krause, P.J.; Usmani-Brown, S.; Steeves, T.K.; States, S.L.; Lepore, T.; Ryan, R.; Dias, F.; Ben Mamoun, C.; et al. Quantitative PCR for detection of Babesia microti in Ixodes scapularis ticks and in human blood. Vector Borne Zoonotic Dis. 2013, 13, 784–790. [Google Scholar] [CrossRef] [PubMed]
  25. Hersh, M.H.; Ostfeld, R.S.; McHenry, D.J.; Tibbetts, M.; Brunner, J.L.; Killilea, M.E.; LoGiudice, K.; Schmidt, K.A.; Keesing, F. Co-infection of blacklegged ticks with Babesia microti and Borrelia burgdorferi is higher than expected and acquired from small mammal hosts. PLoS ONE 2014, 9, e99348. [Google Scholar] [CrossRef] [PubMed]
  26. Anderson, J.F.; Johnson, R.C.; Magnarelli, L.A.; Hyde, F.W.; Myers, J.E. Peromyscus leucopus and Microtus pennsylvanicus simultaneously infected with Borrelia burgdorferi and Babesia microti. J. Clin. Microbiol. 1986, 23, 135–137. [Google Scholar] [PubMed]
  27. Piesman, J.; Hicks, T.C.; Sinsky, R.J.; Obiri, G. Simultaneous transmission of Borrelia burgdorferi and Babesia microti by individual nymphal Ixodes dammini ticks. J. Clin. Microbiol. 1987, 25, 2012–2013. [Google Scholar] [PubMed]
  28. Curcio, S.R.; Tria, L.P.; Gucwa, A.L. Seroprevalence of Babesia microti in Individuals with Lyme Disease. Vector Borne Zoonotic Dis. 2016, 16, 737–743. [Google Scholar] [CrossRef] [PubMed]
  29. Horowitz, R.I.; Freeman, P.R. Precision medicine: Retrospective chart review and data analysis of 200 patients on dapsone combination therapy for chronic Lyme disease/post-treatment Lyme disease syndrome: Part 1. Int. J. Gen. Med. 2019, 12, 101–119. [Google Scholar] [CrossRef] [PubMed]
  30. Scott, J.D.; Scott, C.M. Human Babesiosis Caused by Babesia duncani Has Widespread Distribution across Canada. Healthcare (Basel) 2018, 6. [Google Scholar] [CrossRef] [PubMed]
  31. Abraham, A.; Brasov, I.; Thekkiniath, J.; Kilian, N.; Lawres, L.; Gao, R.; DeBus, K.; He, L.; Yu, X.; Zhu, G.; et al. Establishment of a continuous in vitro culture of Babesia duncani in human erythrocytes reveals unusually high tolerance to recommended therapies. J. Biol. Chem. 2018, 293, 19974–19981. [Google Scholar] [CrossRef] [PubMed]
  32. Krause, P.J.; McKay, K.; Thompson, C.A.; Sikand, V.K.; Lentz, R.; Lepore, T.; Closter, L.; Christianson, D.; Telford, S.R.; Persing, D.; et al. Deer-Associated Infection Study G. Disease-specific diagnosis of coinfecting tickborne zoonoses: Babesiosis, human granulocytic ehrlichiosis, and Lyme disease. Clin. Infect. Dis. 2002, 34, 1184–1191. [Google Scholar] [CrossRef] [PubMed]
  33. Krause, P.J.; Telford, S.R., 3rd; Spielman, A.; Sikand, V.; Ryan, R.; Christianson, D.; Burke, G.; Brassard, P.; Pollack, R.; Peck, J.; et al. Concurrent Lyme disease and babesiosis. Evid. Increased Sev. Durat. Illn. JAMA 1996, 275, 1657–1660. [Google Scholar] [CrossRef]
  34. Djokic, V.; Primus, S.; Akoolo, L.; Chakraborti, M.; Parveen, N. Age-Related Differential Stimulation of Immune Response by Babesia microti and Borrelia burgdorferi During Acute Phase of Infection Affects Disease Severity. Front. Immunol. 2018, 9, 2891. [Google Scholar] [CrossRef] [PubMed]
  35. Coleman, J.L.; LeVine, D.; Thill, C.; Kuhlow, C.; Benach, J.L. Babesia microti and Borrelia burgdorferi follow independent courses of infection in mice. J. Infect. Dis. 2005, 192, 1634–1641. [Google Scholar] [CrossRef] [PubMed]
  36. Moro, M.H.; Zegarra-Moro, O.L.; Bjornsson, J.; Hofmeister, E.K.; Bruinsma, E.; Germer, J.J.; Persing, D.H. Increased arthritis severity in mice coinfected with Borrelia burgdorferi and Babesia microti. J. Infect. Dis. 2002, 186, 428–431. [Google Scholar] [CrossRef]
  37. Djokic, V.; Akoolo, L.; Primus, S.; Schlachter, S.; Kelly, K.; Bhanot, P.; Parveen, N. Protozoan Parasite Babesia microti Subverts Adaptive Immunity and Enhances Lyme Disease Severity. Front. Microbiol. 2019, 10, 1596. [Google Scholar] [CrossRef] [PubMed]
  38. Dunn, J.M.; Krause, P.J.; Davis, S.; Vannier, E.G.; Fitzpatrick, M.C.; Rollend, L.; Belperron, A.A.; States, S.L.; Stacey, A.; Bockenstedt, L.K.; et al. Borrelia burgdorferi promotes the establishment of Babesia microti in the northeastern United States. PLoS ONE 2014, 9, e115494. [Google Scholar] [CrossRef]
  39. Hanincova, K.; Ogden, N.H.; Diuk-Wasser, M.; Pappas, C.J.; Iyer, R.; Fish, D.; Schwartz, I.; Kurtenbach, K. Fitness variation of Borrelia burgdorferi sensu stricto strains in mice. Appl. Environ. Microbiol. 2008, 74, 153–157. [Google Scholar] [CrossRef]
  40. Seinost, G.; Dykhuizen, D.E.; Dattwyler, R.J.; Golde, W.T.; Dunn, J.J.; Wang, I.N.; Wormser, G.P.; Schriefer, M.E.; Luft, B.J. Four clones of Borrelia burgdorferi sensu stricto cause invasive infection in humans. Infect. Immun. 1999, 67, 3518–3524. [Google Scholar]
  41. Cerar, T.; Strle, F.; Stupica, D.; Ruzic-Sabljic, E.; McHugh, G.; Steere, A.C.; Strle, K. Differences in Genotype, Clinical Features, and Inflammatory Potential of Borrelia burgdorferi sensu stricto Strains from Europe and the United States. Emerg. Infect. Dis. 2016, 22, 818–827. [Google Scholar] [CrossRef] [PubMed]
  42. Keirans, J.E.; Hutcheson, H.J.; Durden, L.A.; Klompen, J.S. Ixodes (Ixodes) scapularis (Acari:Ixodidae): Redescription of all active stages, distribution, hosts, geographical variation, and medical and veterinary importance. J. Med. Entomol. 1996, 33, 297–318. [Google Scholar] [CrossRef] [PubMed]
  43. Piesman, J.; Spielman, A. Human babesiosis on Nantucket Island: Prevalence of Babesia microti in ticks. Am. J. Trop. Med. Hyg. 1980, 29, 742–746. [Google Scholar] [CrossRef] [PubMed]
  44. Medica, D.L.; Sinnis, P. Quantitative dynamics of Plasmodium yoelii sporozoite transmission by infected anopheline mosquitoes. Infect. Immun. 2005, 73, 4363–4369. [Google Scholar] [CrossRef] [PubMed]
  45. Jin, Y.; Kebaier, C.; Vanderberg, J. Direct microscopic quantification of dynamics of Plasmodium berghei sporozoite transmission from mosquitoes to mice. Infect. Immun. 2007, 75, 5532–5539. [Google Scholar] [CrossRef] [PubMed]
  46. Sinnis, P.; Zavala, F. The skin: Where malaria infection and the host immune response begin. Semin. Immunopathol. 2012, 34, 787–792. [Google Scholar] [CrossRef] [PubMed]
  47. Simo, L.; Kazimirova, M.; Richardson, J.; Bonnet, S.I. The Essential Role of Tick Salivary Glands and Saliva in Tick Feeding and Pathogen Transmission. Front. Cell. Infect. Microbiol. 2017, 7, 281. [Google Scholar] [CrossRef] [PubMed]
  48. Mather, T.N.; Telford, S.R., 3rd; Moore, S.I.; Spielman, A. Borrelia burgdorferi and Babesia microti: Efficiency of transmission from reservoirs to vector ticks (Ixodes dammini). Exp. Parasitol. 1990, 70, 55–61. [Google Scholar] [CrossRef]
  49. Vannier, E.; Borggraefe, I.; Telford, S.R., 3rd; Menon, S.; Brauns, T.; Spielman, A.; Gelfand, J.A.; Wortis, H.H. Age-associated decline in resistance to Babesia microti is genetically determined. J. Infect. Dis. 2004, 189, 1721–1728. [Google Scholar] [CrossRef]
  50. Sasaki, M.; Fujii, Y.; Iwamoto, M.; Ikadai, H. Effect of sex steroids on Babesia microti infection in mice. Am. J. Trop. Med. Hyg. 2013, 88, 367–375. [Google Scholar] [CrossRef]
  51. Hughes, V.L.; Randolph, S.E. Testosterone increases the transmission potential of tick-borne parasites. Parasitology 2001, 123 Pt 4, 365–371. [Google Scholar] [CrossRef]

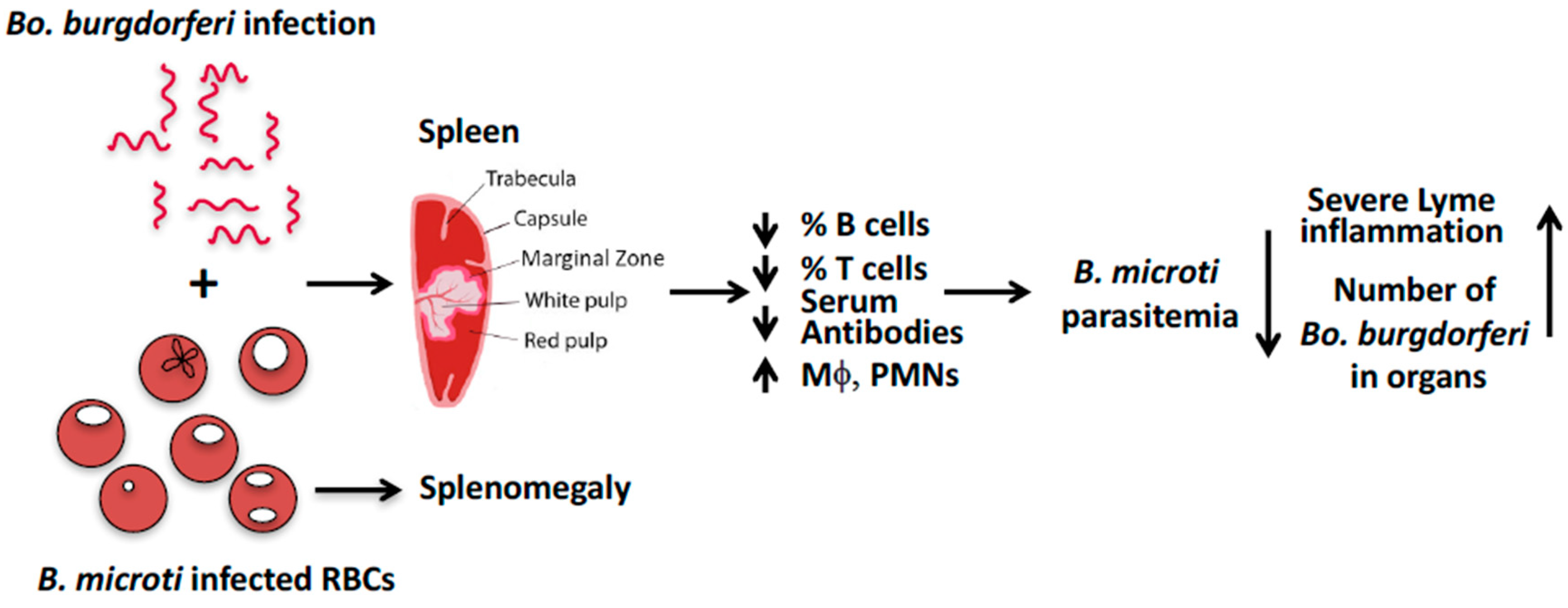

Figure 1. A model to explain the effect of B. microti and Bo. burgdorferi coinfection in M. musculus.
Figure 1. A model to explain the effect of B. microti and Bo. burgdorferi coinfection in M. musculus.
Pathogens 08 00117 g001
