Integrative Morphometric and Molecular Approach to Update the Impact and Distribution of Potato Cyst Nematodes Globodera rostochiensis and Globodera pallida (Tylenchida: Heteroderidae) in Algeria
by
, , and
Aouicha Djebroune
1,
Gahdab Chakali
2,
Eugénia de Andrade
3,4,
Maria João Camacho
3,
Leidy Rusinque
3 and
Maria L. Inácio
3,4,*
1
Département des Sciences Agronomiques, Faculté des Sciences de la Nature et de la Vie et des Sciences de la Terre, Université Djilali Bounaama Khemis Miliana, Route de Theniet El Had, 44225 Ain Defla, Algeria
2
Département de Zoologie Agricole et Forestière, Ecole Nationale Supérieure Agronomique, El-Harrach, 16200 Algiers, Algeria
3
Instituto Nacional de Investigação Agrária e Veterinária (INIAV, I.P.), Quinta do Marquês, 2780-159 Oeiras, Portugal
4
GREEN-IT Bioresources for Sustainability, ITQB NOVA, Av. da República, 2780-157 Oeiras, Portugal
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(2), 216; https://doi.org/10.3390/pathogens10020216
Submission received: 16 January 2021
/
Revised: 26 January 2021
/
Accepted: 30 January 2021
/
Published: 16 February 2021
Abstract
:Morphological and molecular studies were conducted to characterize the specific identity of 36 isolates of potato cyst nematodes (PCNs) recovered from soil samples collected in several potato producing areas of Algeria. Morphometric data revealed that 44% of isolates contained Globodera pallida alone, 28% contained Globodera rostochiensis alone and 28% mixtures of the two species. Morphometric values of cysts and second-stage juveniles were generally distributed with slight differences in the expected ranges for both Globodera species. Inter- and intraspecific morphometric variability in nematode isolates was noted. Molecular analysis using conventional multiplex PCR with species-specific primers and TaqMan real-time PCR confirmed the morphological identification. In addition, the distribution of both potato cyst nematode species throughout various parts of the country was investigated. In the central areas, the isolates of G. pallida alone dominate, whereas isolates of G. rostochiensis alone are more frequent in the southern areas. In the eastern regions, mixed isolates are more representative. Most isolates examined in the western areas are mixtures of the two species or G. rostochiensis alone. Comparatively, G. pallida remains the most widely distributed species in its geographic range. This study confirms the presence of two PCN species, G. pallida and G. rostochiensis, in Algeria and provides additional information on their biogeographic distribution.
1. Introduction
Potato cyst nematodes (PCNs), Globodera rostochiensis [1,2] and Globodera pallida [3], are damaging to potato (Solanum tuberosum L.) in various countries [4]. These parasites constitute the second group of the 10 main plant-parasitic nematodes of scientific and economic importance [5], causing annual losses estimated at 9% of world potato production [6]. Due to their harmful potential, both species are classified as quarantine organisms and were added to the European and Mediterranean Plant Protection Organization (EPPO) A2 list in 1975 [7]. These nematode species originated in the Andean region of South America [8] and from there they have spread to different parts of the world, mainly by soils adhering to potato tubers from infested fields. PCN have been reported throughout Europe, South America and parts of Asia, North America, Oceania and Africa where potatoes are grown [7]. However, new detections of Globodera sp. continue to be reported [9,10,11,12,13,14,15].
The emergence of potato cyst nematodes in Algeria was noted in 1953 at a few fields in the Algiers region. Their introduction dates back to the 1940s with potato seed imported from England [16], soon after the II World War. Since then, these parasitic nematodes have taken a large extension in the national territory [17]. Recent data on the evolution of these parasites in some regions of the centre and south of the country confirmed the presence of the two Globodera species [18,19]. However, in what concerns their pest status categorization, both species are considered present in the country but with restricted distribution [20].
Currently, potato cultivation has a larger extension in various areas of Algeria where El-Oued, Ain-Defla, Mostaganem, Mascara and Bouira hold the largest production areas [21]. Three annual types of production are conducted: the seasonal crop (planting January–March) which is practiced in all regions of the country, the last-season crop (planting July–August) which occupies second place and is limited to irrigable areas in summer and the early crop (planting October–November) which occupies a limited place on the coast at mild temperatures [22]. Data of 2017 revealed an area of 148,822 hectares of potato cultivated to ensure a production of 4.606 million tonnes [21]. This enables us to classify Algeria at the first rank in potato production in Africa [23].
Given the considerable economic losses caused by these nematodes, the characterization and evolution of the two PCN species in their respective biotopes has become fundamental. In this regard, the morphometric criteria applicable to the perineal region of cysts and second-stage juveniles (J2) are considered to be essential elements for differential diagnosis of the two species of PCN [15,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39]. However, the great morphological and morphometric similarities and the overlap of various diagnostic characters between these two species often lead to confusion [35,40]. Molecular analyses based on DNA examination prove essential for more reliable differentiation between PCN species. Various tests are successfully developed and applied, of which the polymerase chain reaction (PCR) is the method of choice. Several PCR-based strategies were found to be useful to differentiate G. pallida from G. rostochiensis, including conventional PCR with species-specific primers used in single or multiplex reactions [28,41,42,43] and real-time PCR using double-strand binding dyes such as SYBRGreen or hybridization probes such as TaqMan [33,44,45,46].
In this study, a characterization of PCN isolates was conducted in their biotope throughout the potato producing areas of Algeria. A morphometric analysis validated by both molecular approaches, conventional multiplex PCR with species-specific primers and real-time PCR with TaqMan probes, were conducted for a specific identification. The biogeography of the two nematode species is essential information to best manage the alternatives to undertake as part of the protection of the potato crop.
2. Results
2.1. Morphological and Morphometric Analysis
2.1.1. Descriptive Characters
Specimens of Algerian isolates of potato cyst nematodes are described below:
Cysts: Cysts were rounded to globular in shape with a protruding neck and light brown to dark brown in colour (Figure 1A). By its shape, the neck facilitated the attachment of cysts to the root of its host (Figure 1B). The perineal regions had two spaced openings of different size; the larger one represented the vulva fenestrate and the second the reduced anus with a V-shaped mark. Characteristic circular ridges were located between the fenestra and the anus (Figure 1C).
Second-stage juveniles (J2): They were vermiform, and tap at the tail with a hyaline part; ventro-lateral overlapping of esophageal glands over intestine (Figure 1D). The head was rounded and slightly offset with prominent cephalic sclerotization. The mouth had an apparent stylet developed with pointed basal knobs in Globodera pallida (Figure 1E) and rounded in G. rostochiensis (Figure 1F).
2.1.2. Morphometric Data
Morphometric investigation of cysts and J2s allowed a first specific identification of the different isolates of potato cyst nematodes. Globodera pallida and G. rostochiensis species were present separately or as a mixture in the various fields prospected.
Globodera pallida
Globodera pallida species was noted in 16 fields represented by 9 to 22, 26 and 29 isolates (Table 1 and Table 2). The morphometric of the specimens analyzed was comparable overall to that of G. pallida mentioned by [40,47]. The measurements and the mean values calculated were distributed with slight variations in the ranges proposed for this species. The majority of isolates showed a greater upper limit of the fenestra–anus distance than that defined for G. pallida (67 μm). The average values of the vulva diameter of the samples except for 9, 11 and 20 isolates were superior to the maximum value of G. pallida (21 µm). Most of the extreme values of the vulva diameter lay outside the measurement range for G. pallida (18–21 µm). The maximum stylet lengths for 9 and 17 isolates were respectively 27.2 and 27.6 μm, slightly exceeding the values reported for G. pallida (26 μm).
Globodera rostochiensis
A total of 10 G. rostochiensis isolates (3, 7, 23, 24, 25, 27, 28, 30, 32 and 34) (Table 1 and Table 2) were identified. The morphometric features of the cysts and juveniles studied correspond to those proposed for G. rostochiensis by [40,47]. Measurements and calculated averages lay with some slight differences in the ranges of G. rostochiensis. The mean values of the vulva-anus distance and vulva diameter of isolates 27, 28 and 30 from the Saharan region (El Oued) exceed the maximum values reported for G. rostochiensis. Likewise, the upper limits values of the vulva-anus distance of all isolates, except for 25 and 32 isolates, are higher than those expected for G. rostochiensis (77 µm). The upper limit of the vulva diameter of all isolates was above 20 µm, which was not very typical for the species. The maximum stylet length for 24, 27, 28 and 30 isolates slightly exceeded that reported for G. rostochiensis (23 µm).
Mixture of Globodera pallida and G. rostochiensis
The two Globodera species were present sympatrially in 10 fields represented by 1, 2, 4, 5, 6, 8, 31, 33, 35 and 36 isolates (Table 3 and Table 4). In each of the isolates, some specimens show the morphometric characteristics of G. pallida and others of G. rostochiensis. The measurements and average values were within the ranges of these both nematode species. However, the mean and extreme values of the vulva diameter of some isolates lay outside the ranges of PCN species. Similarly, the averages and maximum values of the vulva–anus distance of some isolates exceeded those proposed for G. pallida and G. rostochiensis.
In addition, isolates 2, 6 and 31 showed a dominance of G. pallida, while G. rostochiensis was frequent in isolates 1, 4, 5, 8, 33, 35 and 36. The ascending hierarchical classification carried out on 17 morphometric characters of cysts and second stage juveniles (Figure 2) allowed separating the studied nematode isolates into five groups with different constitutive status, which further confirmed the morphometric variability of these isolates. The first two groups were respectively represented by isolates 1, 15, 5, 21, 32, 12, 17, 14, 27, 36, 2, 6, 33, 4, 26, 8, 11, 3, 31, 13 and 30 and isolates 10, 34, 20, 23, 35, 18, 19, 16, 22, 24, 25 and 29, belonging to various geographical origins and containing a single Globodera species or both species. This means that the morphometric similarity of the isolates of these nematodes was not related to the geographic origin of the isolate and the species it represented. The isolates 7, 9 and 28 were distributed distinctly between the third and fifth group.
The morphometric studies of specimens of the considered nematode isolates showed that among the cysts analyzed, 203 cysts were identified as G. pallida and 157 cysts represented G. rostochiensis. In the case of juveniles, a total of 207 individuals were found belonging to G. pallida and 153 individuals to G. rostochiensis. Average morphometric values of the cysts and J2s of each Globodera species are regrouped in Table 5.
The morphometric values obtained on all the characters overlapped between the two PCN species. Analysis of the average values showed a difference between these both nematode species. For the perineal regions of cysts, a substantial variation was recorded for fenestra to anus distance (56.45 ± 12.17 and 73.83 ± 21.29 μm for G. pallida and G. rostochiensis, respectively). Likewise, a difference was noted between the number of cuticular ridges between fenestra and anus (12.43 ± 3.04 μm for G. pallida and 18.33 ± 4.21 μm for G. rostochiensis), the vulva diameter (18.90 ± 3.89μm for G. rostochiensis and 21.82 ± 4.76 μm for G. pallida) and the Granek’s ratio (2.62 ± 0.48 and 4.00 ± 1.12 μm for G. pallida and G. rostochiensis, respectively). Regarding second stage juveniles, the results indicated that G. rostochiensis had a smaller body (432.99 ± 46.52 μm) than G. pallida (440.68 ± 28.71 μm). Additionally, the stylet showed a length of 24.07 ± 1.08 μm, with pointed basal knobs in G. pallida and a length of 22.20 ± 0.88 μm, with rounded basal knobs in G. rostochiensis. The tail was relatively short in G. rostochiensis (45.63 ± 4.78 μm) compared to G. pallida (47.46 ± 4.19 μm). Moreover, the comparison of the mean morphometric values revealed a significant difference (p < 0.05) between the isolates of both potato cyst nematode species for all characters considered on the biological material examined.
Variability between the mean morphometric values was also recorded between the isolates of each Globodera species. For G. pallida isolates, a significant difference (p < 0.05) was noted for all the characters except for vulva-anus distance (p = 0.0956), the vulva diameter (p = 0.0692) and juvenile body width in the middle (p = 0.5656). For G. rostochiensis isolates, all characters showed significance except for the Granek’s ratio (p = 0.1413). These results showed great inter- and intra-specific morphometric variability.
2.2. Molecular Identification
2.2.1. Conventional Multiplex PCR
All DNA extracts from the Algeria nematode samples produced fragments of the same size as those obtained from the G. pallida and G. rostochiensis positive controls, which confirmed that the multiplex PCR reactions proceeded correctly and allowed DNA amplification (Figure 3). A total of 16 samples (9 to 22, 26 and 29) yielded a single fragment of 265 bp, specific for G. pallida. Ten other samples (3, 7, 23, 24, 25, 27, 28, 30, 32 and 34) produced a single fragment of 434 bp, specific for G. rostochiensis. These two fragments occurred in the various samples (1, 2, 4, 5, 6, 8, 31, 33, 35 and 36) showing that these samples contained a mixture of both Globodera species. Therefore, multiplex PCR with species-specific primers confirmed the morphological identification of all tested PCN isolates.
No PCR product was obtained in the negative controls without DNA template, which means the absence of contamination during the PCR reaction preparation.
2.2.2. TaqMan Real-Time PCR
The fluorescence of FAM (Flurescein amidites) and TET (Tetrachlorofluorescein) was obtained in the nematode DNA samples during TaqMan real-time PCR assay (Table 6). A total of 16 samples (9 to 22, 26 and 29) emitted only the fluorescence of FAM which corresponded to Globodera pallida and 10 samples yielded only the fluorescence of TET which corresponded to G. rostochiensis. Both types of fluorescence were noted in 10 samples (1, 2, 4, 5, 6, 8, 31, 33, 35 and 36), which indicated that these isolates contained the two PCN species. No fluorescence was observed in the negative controls. Therefore, the TaqMan real-time PCR results further confirmed the specific identity of the considered nematode isolates.
The mean threshold cycle (Ct) values highlighted a difference between DNA samples. For the detection of G. pallida, average Ct values varied from 14.25 to 29.19 which corresponded to DNA isolated from 17 and 29 isolates, respectively. Regarding the detection of G. rostochiensis, the mean Ct values were between 16.55 and 24.09 recorded respectively in the DNA extracted from 6 and 28 isolates.
Regarding the amplification curves in function of cycle numbers, all DNA samples showed typical amplification curves corresponding to a sigmoid shape (Figure 4).
2.3. Distribution of Potato Cyst Nematodes Species
The nematode species Globodera pallida and G. rostochiensis had a wide spread in the potato producing regions of Algeria (Figure 5). Great variability in their distribution throughout the prospected range was noted. In central regions, G. pallida alone isolates dominated, while G. rostochiensis alone isolates were more frequent in southern regions. In the eastern areas, mixed isolates were more present. The majority of studied isolates in the western regions represented a mixture of the two species or G. rostochiensis alone isolates.
Some areas were infested by a single Globodera species and others by both species either separately or mixed in a population. All combinations were present.
In addition, the comparison of the species distribution showed that G. pallida had a more significant extension, as it was found in 13 regions out of the 17 prospected, while G. rostochiensis was present in only 10 regions.
3. Discussion
The morphological and morphometric data acquired on Algerian isolates of potato cyst nematodes are comparable to those provided by [40,47]. However, some slight differences are noted in the value amplitudes and the calculated means. This dissimilarity is due to the intra-specific variability for certain extreme values and remains very comparable with those reported by different authors in various geographic areas [26,31,33,34,35]. In various cases, obtained morphometric data has not been very conclusive in the differentiation between the nematode species G. pallida and G. rostochiensis and it is in this context that molecular analysis has been conducted for confirmation.
Conventional multiplex PCR assays with species-specific primers (ITS5/PITSp4 + PITSr3) and TaqMan real-time PCR produced consistent results and confirmation of the identity of the cyst nematode isolates associated with potato. Despite the consideration of the molecular tool for species characterization, the morphological approach remains basic in taxonomy.
The two Globodera species identified are found separately or mixed in the various fields surveyed. Examples of cases have been reported in the Ain Defla area by [18]. In this regard, only G. pallida or G. rostochiensis alone isolates in different regions (Algiers, Boumerdes, Blida, Tipaza, Béchar and El Oued) were identified by [19]. Similar investigations carried out in various other countries have shown the presence of alone isolates and mixed isolates of the PCN species [13,48,49,50,51,52], which corroborates with these results. In addition, according to [48], G. pallida and G. rostochiensis rarely occurred as separate species, but more often as a mixture species in the same field.
Globodera pallida alone isolates are present in 44% of the fields prospected, while G. rostochiensis alone isolates and mixed isolates are present in the rest of the fields with equal proportions (28%), showing the dominance of the G. pallida species in potato fields. This may result from the control of populations of G. rostochiensis through the intensive cultivation of resistant potato cultivars as is occurring in other countries like the Netherlands [53], United Kingdom [54,55,56] and Portugal [52] since almost all current potato cultivars are resistant or tolerant to this species [34], unlike with G. pallida species where the number of resistant varieties is limited [26,34,57,58].
The presence of mixed populations in fields represents a more worrying threat than pure populations for potato cultivation, not only because of yield losses, but also because of their extremely difficult management, especially when using resistant potato varieties as an alternative control method, since no cultivar is resistant to both Globodera species [59]. Repeated use of cultivars resistant to G. rostochiensis may favour the multiplication of G. pallida in mixed populations, which is the case in Ile de Ré [60] and in The Netherlands [61]. The consequence of the fusion is the possible reinforcement of a cross hybridization between these two nematode species that might result in a generation with new genotypes [34]. However, the crossing between these two species probably results in non-fertile hybrids [62].
Analysis of the data shows a wide geographical distribution of Globodera species in the regions prospected and with certain dominance. The majority of the isolates present in the central regions belong to the G. pallida species, while G. rostochiensis isolates are more frequent in the southern areas. In eastern regions, the two PCN species are often present in mixed isolates. Most of the samples identified in the western regions are mixed or G. rostochiensis alone. On this subject, it was reported by [19] that G. pallida mainly occupies northern Algeria, while G. rostochiensis occurs mainly in southern regions. The study conducted by [63] on the distribution of potato cyst nematode species in South America showed that north of 15.6° S, only the G. pallida species is noted, but south of this latitude, most of the examined populations belong to the species G. rostochiensis or to both common species. Based on these data, the distribution of both PCN species is related to latitude, especially the influence of day length. The predominance of G. rostochiensis in some regions in Tunisia is determined by temperature [27]. In this regard, according to [64] G. rostochiensis is more competitive than G. pallida at an average temperature of 24 °C and conversely at an average temperature of 9.5 °C. Recently, it was shown by [65,66] that the optimum temperature for reproduction of G. rostochiensis is higher than that of G. pallida. The distribution of Globodera species depends on a set of environmental variables that govern the nematode populations in their range.
The widespread distribution of nematodes of the genus Globodera in the potato-producing regions may be due to the environmental conditions favorable to the development of these pests. Various reports have shown that temperature is a factor limiting the development of these nematode species. In addition, the type of soil plays a considerable role in the development of these nematodes. It was noted that light and porous soils favor nematodes [67]. Added to this are the invoices linked to the host plant, particularly the varieties of potato cultivated (Table 7); Spunta and Desiree, which are preferential hosts for G. pallida and G. rostochiensis, are indicate by various authors [68,69,70,71,72,73]. In addition, human activities allow more ground movement and are a factor favouring the spread of nematode cysts.
Further PCN surveys should cover other areas with attention to the seed multiplication plots. In addition to the essential species identification, investigations into the detection of pathotypes within each species deserve to be conducted. Faced with the lack of information on varietal resistance, tests of susceptibility to nematodes must be carried out for a better knowledge of resistant varieties in order to better manage these harmful pests.
The control of PCN should be based on a combination of practices, such as the use of natural crop production methods like the resistant cultivars, rotations, and biological control agents. The starting point to guide decisions is to know about the presence and spread of both Globodera species. Thus, this study is a valuable contribution to have a more complete and updated picture of the distribution of PCN in Algeria.
4. Materials and Methods
4.1. Globodera spp. Collection and Isolation
Soil sampling was conducted between 2014 and 2018 in potato fields from 17 potato growing areas of Algeria. After the potato harvest, a 1-hectare sampling was considered in each field, where 60 subsamples were taken at a depth of 10–30 cm along both diagonals. The soil cores were mixed in a plastic bag to form a representative composite sample. In the laboratory, the soil was mixed and air dried, then 1 kg was retained for the extraction of cysts using the Fenwick method [74]. The cysts retrieved from each soil sample were collected separately in Eppendorf tubes and stored at room temperature. A total of 36 isolates of Globodera spp. were selected for analysis (Table 7).
4.2. Morphological and Morphometric Characterization
Morphometric analysis was carried out on 10 cysts and 10 juveniles J2 taken from each isolate collected. Each batch of juveniles J2 analyzed was extracted from these same cysts. The perineal region of the cysts was carefully cut under a stereoscope LEICA MZ6 with an ophthalmic scalpel. Subsequently, the perineal regions and the juveniles were mounted separately in distilled water on glass slides and examined using an Olympus BX-41 light microscope. The ProgResSpeed XT core 5—Jenoptik image software was used for the measurements and taking the pictures. A total of 13 morphometric criteria were measured (Table 1, Table 2, Table 3 and Table 4). Nematological indexes; a (body length/body width in the middle), c (body length/tail length) and c′ (tail length/body width at anus level) were calculated. Morphological identification of PCN species was carried out by combining the cysts and juveniles characters (fenestra diameter, fenestra to anus distance, number of cuticular ridges between fenestra and anus, Granek’s ratio: fenestra-anus distance divided by fenestra diameter; stylet length and stylet knobs shape) according to the identification keys proposed by [40,47]. In addition to the morphometric characters, the shape and colour of the cysts and the morphology of J2 were noted in order to further characterize the isolates analyzed.
4.3. Molecular Characterization
4.3.1. DNA Extraction
Total DNA was extracted from 20 cysts of each isolate according to the method described by [41]. Cysts were crushed in a 1.5 mL microtube using a sterile plastic micro-pestle with 200 μL of extraction buffer containing 5 M guanidine isothiocyanate, 10 mM EDTA, 50 mM Tris-HCl (pH 7.5) supplemented with 8% of mercaptoethanol which was added after the crushing. The mixture was incubated at room temperature for 1 h without shaking. Equal volumes (200 μL) of phenol and chloroform:isoamyl alcohol (24:1) were added, and phases were separated by centrifugation at 13,000 rpm for 10 min. The supernatant was transferred to a new tube and DNA was cleaned up again by adding an equal volume of chloroform:isoamyl alcohol (24:1) followed by a centrifugation step at 13,000 rpm for 10 min. The DNA contained in the supernatant was precipitated by adding 200 µL of 0.3 M sodium acetate and 2 volumes of ethanol and centrifuged at 13,000 rpm for 10 min. The obtained DNA was air dried and dissolved in 100 μL of TE buffer. Finally, the DNA was evaluated quantitatively and qualitatively using a thermo-NANODROPP 2000 and stored at −20 °C until processing.
4.3.2. Conventional Multiplex PCR with Specific Primers
The detection of both species of Globodera was performed by duplex conventional PCR. The internal transcribed spacer (ITS) region of the nematode ribosomal DNA (rDNA) was amplified using species-specific primers: PITSr3 (5′-AGCGCAGACATGCCGCAA-3′) for G. rostochiensis and PITSp4 (5′-ACAACAGCAATCGTCGAG-3′) for G. pallida in combination with common primer ITS5 (5′-GGAAGTAAAAGTCGTAACAAGG-3′) [41]. Multiplex PCR reactions were performed in a 25 μL total volume containing 5 μL template DNA (10 ng/µL), 5 μL 5X Green GoTaq Flexi buffer, 2 µM MgCl2 (25 mM), 0.40 µL each dNTP (10 mM), 0.63 µL each primer (10 µM), 0.5 µL GoTaq G2 Flexi DNA polymerase (5 U/µL) (Promega, Madison, CT, USA) and 10.23 μL of molecular grade water (MGW). The amplification was carried out in a thermocycler according to the procedure: an initial denaturation step of 94 °C for 2 min; followed by 35 cycles of 94 °C for 30 s, 55 °C for 30 s and 72 °C for 30 s and a final extension cycle of 72 °C for 7 min [47]. Positive controls for both Globodera species were taken into account in the amplifications for comparative and also two negative controls (blanks) with distilled water and molecular grade water (without DNA) to ensure that no environmental contamination occurred.
Amplified PCR products (5 µL of each reaction) were separated by electrophoresis on 1.5% agarose gel in 1× tris-acetate-EDTA (TAE) buffer. The gel was stained with GelRed Nucleic Acid Gel Stain (Biotium, Fremont, CA, USA) (150 μL of GelRed, 50 mL of NaCl 1M, 450 mL of H20) for 10 min, then visualized and photographed under ultraviolet light. The expected size of amplicons is 265 base pair (bp) and 434 bp for G. pallida and G. rostochiensis, respectively.
4.3.3. TaqMan Real-Time PCR
The detection of both pathogens was also performed by duplex qPCR. This test was carried out according to the protocol proposed by [47], aimed at amplifying the internal transcribed spacer 1 (ITS-1) region of rDNA. Two primers were considered: forward primer Glob 531F (5′-TGT-AGG-CTG-CTA-YTC-CAT-GTY-GT-3′) and reverse primer Glob 601R (5′-CCA-CGG-ACG-TAG-CACACA-AG-3′); and the two probes, one for G. pallida GP LNA (5′-TGCCGT-ACC-(C)(A)G-CGG-CAT-3′) labelled with the reporter dye FAM and the quencher BHQ-1 and the second for G. rostochiensis GR LNA (5′-GCC-GTA-CC(T)-(T)GC-GGC-AT-3′) labelled with the reporter dye TET and the quencher BHQ-1. The qPCR reactions were done in a final reaction volume of 20 μL composed of 3 μL nematode DNA extract (10 ng/µL), 10 μL of Maxima SYBR Green/ROX qPCR Master Mix (2×) (ThermoFisher Scientific, Waltham, MA, USA), 0.38 μL each primer (10 µM), 0.5 μL probe GP LNA (10 µM) and 1 μL probe GR LNA (10 µM). The remaining volume was filled with 4.75 μL of molecular grade water. The amplifications were carried out using a real-time PCR thermocycler (BioRad Laboratories, Hercules, CA, USA) in a plate covered with an adhesive film “Microseal”. The thermal cycling profile consisted of a uracil-DNA glycosylase (UDG) treatment for 2 min at 50 °C. This was followed by denaturation and polymerase activation at 95 °C for 10 min and 40 cycles of denaturation at 95 °C for 15 s and annealing-extension at 60 °C for 1 minute. All samples were analysed in two replicates. Negative controls (blanks) containing distilled water and molecular grade water (no DNA template) were included in the reaction.
The fluorescence emitted by the hydrolysis probes was measured after extension in all cycles. The analysis was performed by the Sequence Detection Software (Applied Biosystems, Foster City, CA, USA). Threshold value was set manually and baseline was set in an automatic mode.
Positive samples were those with an amplification curve for the corresponding fluorophore with a sigmoid shape. In the same way, negative samples were those lacking amplification with the specific fluorophores or with an atypical amplification curve.
4.3.4. Data Analysis
An ascending hierarchical classification using the method of minimum skipping of the morphometric criteria of cysts and J2 was carried out to highlight the probable characteristics of the Globodera isolates collected in the areas prospected. Likewise, these morphometric characters underwent an analysis of variance (ANOVA) to test the significance of the mean values between the isolates of each Globodera species and of both species (p < 0.05). All data analyses were performed using STATISTICA (version 6.0).
Author Contributions
Conceptualization, A.D., G.C., E.d.A. and M.L.I.; methodology, A.D., G.C., E.d.A. and M.L.I.; software, E.d.A., L.R. and M.L.I.; validation, A.D., G.C., E.d.A. and M.L.I.; formal analysis, G.C., M.L.I. and E.d.A.; investigation, A.D., E.d.A and M.L.I.; resources, E.d.A., M.J.C., L.R. and M.L.I.; data curation, A.D., E.d.A. and M.L.I.; writing—original draft preparation, A.D.; writing—review and editing, G.C., M.J.C., L.R., E.d.A. and M.L.I.; visualization, A.D., E.d.A., M.J.C., L.R. and M.L.I.; supervision, G.C., E.d.A. and M.L.I.; project administration, G.C., E.d.A. and M.L.I.; funding acquisition, G.C., E.d.A. and M.L.I. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by National Funds through FCT—Foundation for Science and Technology through the R&D Unit, UIDB/04551/2020 (GREEN-IT—Bioresources for Sustainability).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Acknowledgments
This work was conducted in collaboration with Instituto Nacional de Investigação Agrária e Veterinária (INIAV, I.P.), Quinta do Marquês, 2780-159 Oeiras, Portugal. Many thanks to all those involved in the institute for the fruitful help, particularly in the morphological and molecular identification of the biological material analyzed. May Clara FERNANDES from the GMO and Molecular Biology laboratory be thanked for the perfect technical assistance in the molecular characterization. Sincere thanks to Margarida FONTES, Helena VICENTE and Marina CARDOSO (Nematology laboratory) for their help and encouragement in carrying out this research project. Our gratitude and appreciation to the farmers in Algeria, who facilitated the conduction of the work in the field.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
References
- Wollenweber, H.W. Krankheiten und BeschSdigungen der Kartoffel. Arb. Forsch. Inst. Kartoff. 1923, 7, 1–56. [Google Scholar]
- Skarbilovich, T.S. On the structure and systematics of the nematode order Tylenchida Thorne, 1949. Acta Pol. 1959, 7, 117–132. [Google Scholar]
- Stone, A. Heterodera pallida n.sp. (Nematoda: Heteroderidae), a second species of potato cyst nematode. Nematologica 1973, 18, 591. [Google Scholar] [CrossRef]
- Turner, S.J.; Evans, K. The origin, global distribution and biology of potato cyst nematodes (Globodera rostochiensis Woll. and Globodera pallida Stone). In Potato Cyst Nematodes: Biology, Distribution and Control; Marks, R.J., Brodie, B.B., Eds.; CAB International: Wallingford, UK, 1998; pp. 7–26. [Google Scholar]
- Grenier, E.; Mimee, B. Les nématodes à kystes de la pomme de terre dans le monde: Tout ce que vous avez toujours voulu savoir sur leur répartition et leur évolution. Bull. Alliance Globodera 2017, 4, 6. [Google Scholar]
- Turner, S.J.; Subbotin, S.A. Cyst nematodes. In Plant Nematology, 2nd ed.; Perry, R.N., Moens, M., Eds.; CAB International: Wallingford, UK, 2013; pp. 109–143. [Google Scholar]
- EPPO Global Database. Globodera rostochiensis. Categorization. 2020. Available online: https://gd.eppo.int/taxon/HETDRO/categorization (accessed on 13 October 2020).
- Evans, K.; Stone, A.R. A review of the distribution and biology of the potato cyst nematodes Globodera rostochiensis and G. pallida. Int. J. Pest Manag. 1977, 23, 178–189. [Google Scholar] [CrossRef]
- Hafez, S.L.; Sundararaj, P.; Handoo, Z.A.; Skantar, A.M.; Carta, L.K.; Chitwood, D.J. First report of the pale cyst nematode, Globodera pallida, in the United States. Plant Dis. 2007, 91, 325. [Google Scholar] [CrossRef] [PubMed]
- Ostojić, I.; Grubišić, D.; Zovko, M.; Miličević, T.; Gotlin Čuljak, T. First report of the golden potato cyst nematode, Globodera rostochiensis, in Bosnia and Herzegovina. Plant Dis. 2011, 95, 883. [Google Scholar] [CrossRef]
- Mwangi, J.M.; Kariuki, G.M.; Waceke, J.W.; Grundler, F.M. First report of Globodera rostochiensis infesting potatoes in Kenya. New Dis. Rep. 2015, 31, 18. [Google Scholar] [CrossRef] [Green Version]
- Mburu, H.; Cortada, L.; Mwangi, G.; Gitau, K.; Kiriga, A.; Kinyua, Z.; Ngundo, G.; Ronno, W.; Coyne, D.; Holgado, R.; et al. First report of potato cyst nematode Globodera pallida infecting potato (Solanum tuberosum) in Kenya. Plant Dis. 2018, 12, 1671. [Google Scholar] [CrossRef]
- Mburu, H.; Cortada, L.; Haukeland, S.; Ronno, W.; Nyongesa, M.; Kinyua, Z.; Bargul Joel, L.; Coyne, D. Potato cyst nematodes: A new threat to potato production in East Africa. Front. Plant Sci. 2020, 11, 670. [Google Scholar] [CrossRef]
- Niragire, I.; Couvreur, M.; Karssen, G.; Uwumukiza, B.; Bert, W. First report of potato cyst nematode (Globodera rostochiensis) infecting potato (Solanum tuberosum L.) in Rwanda. Plant Dis. 2019, 104, 293. [Google Scholar] [CrossRef]
- Inácio, M.L.; Camacho, M.J.; Serra, C.; Cordevile, C.; Cordeiro, L.; Andrade, E. First report of the potato cyst nematode, Globodera rostochiensis on potato in the Azores, Portugal. Plant Dis. 2020, 104, 1874. [Google Scholar] [CrossRef]
- Frézal, P. Importance et répercussions de la contamination de l’Algérie par le nématode doré Heterodera rostochiensis Wooll. J. C. R. Séanc. Acad. Agric. France 1954, 40, 71–74. [Google Scholar]
- INPV. Xylella fastidiosa, surveillance et vigilance pour préserver le patrimoine végétal national. Bull. Infos. Phyto. 2017, 45, 4. [Google Scholar]
- Tirchi, N.; Troccoli, A.; Fanelli, E.; Mokabli, A.; Mouhouche, F.; De Luca, F. Morphological and molecular identification of potato and cereal cyst nematode isolates from Algeria and their phylogenetic relationships with other populations from distant their geographical areas. Eur. J. Plant Pathol. 2016, 146, 861–880. [Google Scholar] [CrossRef]
- Mezerket, A.; Hammache, M.; Cantalapiedra-Navarrete, C.; Castillo, P.; Palomares-Rius, J.E. Prevalence, identification, and molecular variability of potato cyst nematodes in Algeria. J. Agric. Sci. Technol. 2018, 20, 1293–1305. [Google Scholar]
- EPPO Global Database. Survey on Globodera pallida and G. rostochiensis in Algeria. EPPO Reporting Service no. 09. 2019. Num. article: 2019/186. 2019. Available online: https://gd.eppo.int/reporting/article-6616 (accessed on 13 October 2020).
- MADR. Ministère de L’agriculture et du Développement Rural. Direction des Statistiques Agricoles et des Systèmes Informatiques; MADR: Alger, Algérie, 2019. [Google Scholar]
- Chehat, F. La filière pomme de terre Algérienne: Une situation précaire. In Journée D’étude sur la Filière Pomme de Terre: Situation Actuelle et Perspectives; INA El-Harrach: Alger, Algerie, 2008; pp. 1–13. [Google Scholar]
- FAOSTAT. Food and Agricultural Organization of the United Nations. 2019. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 4 December 2019).
- Krnjaić, D.; Lamberti, F.; Krnjaić, S.; Bačić, J.; Ćalić, R. First record of the potato cyst nematode (Globodera rostochiensis) in Yugoslavia. Nematol. Mediterr. 2002, 30, 11–12. [Google Scholar]
- Urek, G.; Širca, S.; Meglič, V. Morphological characteristics and distribution of Globodera species in Slovenia. Plant Protect. Sci. 2002, 38, 354–357. [Google Scholar] [CrossRef]
- Skantar, A.M.; Handoo, Z.A.; Carta, L.K.; Chitwood, D.J. Morphological and molecular identification of Globodera pallida associated with potato in Idaho. J. Nematol. 2007, 39, 133–144. [Google Scholar]
- Hlaoua, W.; Horrigue-Raouani, N.; Fouville, D.; Mugniéry, D. Morphological and molecular characterisation of potato cyst nematode populations from Tunisia and survey of their probable geographical origine. Biotechnology 2008, 7, 651–659. [Google Scholar] [CrossRef] [Green Version]
- García, D.; García, C.; Montero, Z.; Salazar, L.; Brenes, A.; Gómez-Alpízar, L. Morphological and molecular identification of potato cyst-forming nematode Globodera pallida in soil samples from Costa Rica. Rev. Latinoam. Papa. 2009, 15, 38–45. [Google Scholar] [CrossRef]
- Oro, V.; Ivanović, Ž.; Nikolić, B.; Barszi, L.; Radivojević, M.; Jovčić, B. Morphological and molecular identification of potato cyst nematode populations in Serbia. Arch. Biol. Sci. 2010, 62, 747–754. [Google Scholar] [CrossRef]
- Širca, S.; Geric Stare, B.; Strajnar, P.; Urek, G. PCR-RFLP diagnostic method for identifying Globodera species in Slovenia. Phytopathol. Mediterr. 2010, 49, 361–369. [Google Scholar]
- Yu, Q.; Ye, W.; Sun, F.; Miller, S. Characterization of Globodera rostochiensis (Tylenchida: Heteroderidae) associated with potato in Quebec, Canada. Can. J. Plant Pathol. 2010, 32, 264–271. [Google Scholar] [CrossRef]
- Karnkowski, W.; Kaczmarek, A.; Dobosz, R.; Wieczorek, P.; Obrępalska-Stęplowska, A. Occurrence of the white potato nematode Globodera pallida (Stone, 1973) Behrens, 1975 (Nematoda: Heteroderidae) on the territory of Poland. Prog. Plant Prot. Post. Ochr. Roślin 2012, 52, 1087–1092. [Google Scholar]
- Bačić, J.; Gerič Stare, B.; Širca, S.; Urek, G. Morphometric and molecular analysis of potato cyst nematodes from Serbia. Arch. Biol. Sci. 2013, 11, 369–372. [Google Scholar]
- Douda, O.; Zouhar, M.; Renčo, M.; Marek, M. Molecular and morphological exploration of a mixed population of two potato-parasiting nematode species, Globodera rostochiensis and G. pallida. Helminthologia 2014, 51, 3–6. [Google Scholar] [CrossRef] [Green Version]
- Camacho, M.J.; Nóbrega, F.; Lima, A.; Mota, M.; Inácio, M.L. Morphological and molecular identification of the potato cyst nematodes Globodera rostochiensis and G. pallida in Portuguese potato fields. Nematology 2017, 19, 883–889. [Google Scholar] [CrossRef]
- Nugrahana, H.C.; Indarti, S.; Martono, E. Potato cyst nematode in East Java: Newly infected areas and identification. J. Perlindungan Tanam. Indones. 2017, 21, 87–95. [Google Scholar] [CrossRef] [Green Version]
- Gorgadze, O.; Gaganidze, D.; Nazarashvili, N.; Abashidze, E.; Aznarashvili, M.; Gvritishvili, E. Identification of potato cyst nematodes (Globodera rostochiensis, Globodera pallida) spread in samtskhe - javakheti and samegrelo-zemo svaneti regions of Georgia. Int. J. Dev. Res. 2019, 9, 27669–27673. [Google Scholar]
- Demirbaş Pehlivan, H.; Kaşkavalci, G.; Kasapoğlu Uludamar, E.B.; Toktay, H.; Elekcioğlu, H. Identification and prevalence of potato cyst nematodes and root-knot nematodes in the potato production areas of İzmir province, Turkey. Türk. Entomol. Derg. 2020, 2, 259–272. [Google Scholar] [CrossRef]
- Handayani, N.D.; Esquibet, M.; Montarry, J.; Lestari, P.; Couvreur, M.; Dikin, A.; Helder, J.; Grenier, E.; Bert, W. Distribution, DNA barcoding and genetic diversity of potato cyst nematodes in Indonesia. Eur. J. Plant Pathol. 2020, 158, 363–380. [Google Scholar] [CrossRef]
- Fleming, C.C.; Powers, T.O. Potato cyst nematode diagnostics: Morphology, differential hosts and biochemical techniques. In Potato Cyst Nematodes: Biology, Distribution and Control; Marks, R.J., Brodie, B.B., Eds.; CAB International: Wallingford, UK, 1998; pp. 91–114. [Google Scholar]
- Bulman, S.; Marshall, J. Differentiation of Australasian potato cyst nematode (PCN) populations using the polymerase chain reaction (PCR). N. Z. J. Crop Hortic. Sci. 1997, 25, 123–129. [Google Scholar] [CrossRef]
- Blok, V.C.; Malloch, G.; Harrower, B.; Phillips, M.S.; Vrain, T.C. Intraspecific variation in ribosomal DNA in populations of the potato cyst nematode Globodera Pallida. J. Nematol. 1998, 30, 262–274. [Google Scholar]
- Vejl, P.; Skupinová, S.; Sedlák, P.; Domkářová, J. Identification of PCN species (Globodera rostochiensis, G. pallida) by using of ITS-1 region’s polymorphism. Rostl. Vyrob. 2002, 48, 486–489. [Google Scholar]
- Madani, M.; Ward, L.J.; De Boer, S.H. Multiplex real-time polymerase chain reaction for identifying potato cyst nematodes, Globodera pallida and Globodera rostochiensis, and the tobacco cyst nematode, Globodera tabacum. Can. J. Plant Pathol. 2008, 30, 554–564. [Google Scholar] [CrossRef]
- Nakhla, M.K.; Owens, K.J.; Li, W.; Wei, G. Multiplex real-time PCR assays for the identification of the potato cyst and tobacco cyst nematodes. Plant Dis. 2010, 94, 959–965. [Google Scholar] [CrossRef]
- Reid, A.; Kenyon, D.M.; Evans, F.F.; Mulholland, V.; Pickup, J.; Blok, V.C.; Paterson, A.; Phillips, M.S. Development of a high-throughput method for the detection and species determination of PCN. Asp. Appl. Biol. 2010, 103, 13–16. [Google Scholar]
- European and Mediterranean Plant Protection Organization (EPPO). Globodera rostochiensis and Globodera pallida PM 7/40 (4). EPPO Bull. 2017, 47, 174–197. [Google Scholar] [CrossRef] [Green Version]
- Ibrahim, S.K.; Minnis, S.T.; Barker, A.D.P.; Russell, M.D.; Haydock, P.P.J.; Evans, K.; Grove, I.G.; Woods, S.R.; Wilcox, A. Evaluation of PCR, IEF and ELISA techniques for the detection and identification of potato cyst nematodes from field soil samples in England and Wales. Pest Manag. Sci. 2001, 57, 1068–1074. [Google Scholar] [CrossRef]
- Cunha, M.; Conceição, I.; Abrantes, I.; Evans, K.; Santos, S. Characterisation of potato cyst nematode populations from Portugal. Nematology 2004, 6, 55–58. [Google Scholar] [CrossRef]
- Grubišić, D.; Oštrec, L.J.; Gotlin Čuljak, T.; Blümel, S. The occurrence and distribution of potato cyst nematodes in Croatia. J. Pest Sci. 2007, 80, 21–27. [Google Scholar] [CrossRef]
- Bairwa, A.; Venkatasalam, E.P.; Jeevalatha, A.; Priyank, H.M.; Buckseth, T.; Jenifer, A.; Sharma, S.; Singh, R.K.; Chakrabarti, S.K. Morphological and molecular characterization of potato cyst nematode populations from the Nilgiris. Indian J. Agric. Sci. 2020, 90, 273–278. [Google Scholar] [CrossRef]
- Camacho, M.J.; Andrade, E.; Mota, M.; Nóbrega, F.; Vicente, C.; Rusinque, L.; Inácio, M.L. Potato cyst nematodes: Geographical distribution, phylogenetic relationships and integrated pest management outcomes in Portugal. Front. Plant Sci. 2020, 11, 606178. [Google Scholar] [CrossRef]
- Den Nijs, L.J. Interaction between Globodera rostochiensis and G. pallida in simultaneous infections on potatoes with different resistance properties. Fundam. Appl. Nematol. 1992, 15, 173–178. [Google Scholar]
- Minnis, S.T.; Haydock, P.P.J.; Ibrahim, S.K.; Grove, I.G.; Evans, K.; Russell, M.D. Potato cyst nematodes in England and Wales-occurrence and distribution. Ann. Appl. Biol. 2002, 140, 187–195. [Google Scholar] [CrossRef]
- Eves-van den Akker, S.; Lilley, C.J.; Reid, A.; Pickup, J.; Anderson, E.; Cock, P.J.A.; Blaxter, M.; Urwin, P.E.; Jones, J.T.; Blok, V.C. A metagenetic approach to determine the diversity and distribution of cyst nematodes at the level of the country, the field and the individual. Mol. Ecol. 2015, 24, 5842–5851. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Varypatakis, K.; Blok, V.; Cock, P.; Jones, J. Identification of avirulence genes in Globodera pallida as tools for assessing durability of resistance. In 32nd ESN Symposium Abstract Book; Universidade do Minho: Braga, Portugal, 2016; p. 365. [Google Scholar]
- Chauvin, L.; Caromel, B.; Kerlan, M.C.; Rulliat, E.; Fournet, S.; Chauvin, J.E.; Grenier, E.; Ellissèche, D.; Mugniéry, D. La lutte contre les nématodes à kyste de la pomme de terre Globodera rostochiensis et Globodera pallida. Cah. Agric. 2008, 17, 368–374. [Google Scholar] [CrossRef]
- Pickup, J.; Davie, K.; Block, V.; Kuhfuss, L.; Kettle, H.; Ewing, D.; Roberts, A.; Kleczkowski, A. Potato cyst nematodes in Scotland–Where are we now and where are we heading. Asp. Appl. Biol. 2019, 142, 11–17. [Google Scholar]
- Dias, M.C.; Perpétuo, L.S.; Cabral, A.T.; Guilherme, R.; da Cunha, M.J.M.; Melo, F.; Machado, Ó.C.; Conceição, I.L. Effects of Solanum sisymbriifolium on potato cyst nematode populations in Portugal. Plant Soil 2017, 421, 439–452. [Google Scholar] [CrossRef]
- Mugniéry, D.; Oger, M. Diversités régionales d’application de lutte intégrée en culture de pomme de terre en fonction de la variabilité des populations de nématodes à kystes. Agronomie 1982, 2, 629–640. [Google Scholar] [CrossRef]
- Blanchard, A. Identification, Polymorphisme Et Evolution Moléculaire de Gènes du Pouvoir Pathogène Chez le Nématode à Kyste de la Pomme de Terre Globodera pallida. Ph.D. Thesis, Rennes University, Rennes, France, 2006. [Google Scholar]
- Thevenoux, R.; Folcher, L.; Esquibet, M.; Fouville, D.; Montarry, J.; Grenier, E. The hidden diversity of the potato cyst nematode Globodera pallida in the south of Peru. Evol. Appl. 2019, 13, 727–737. [Google Scholar] [CrossRef] [Green Version]
- Evans, K.; Franco, J.; De Scurrah, M.M. Distribution of species of potato cyst-nematodes in South America. Nematologica 1975, 21, 365–369. [Google Scholar]
- Mugniéry, D. Vitesse de développement, en fonction de la température, de Globodera rostochiensis et G. pallida (Nernatoda: Heteroderidae). Rev. Nématol. 1978, 1, 3–12. [Google Scholar]
- Kaczmarek, A.; MacKenzie, K.; Kettle, H.; Blok, V.C. Influence of soil temperature on Globodera rostochiensis and Globodera pallida. Phytopathol. Mediterr. 2014, 53, 396–405. [Google Scholar]
- Jones, L.M.; Koehler, A.K.; Trnka, M.; Balek, J.; Challinor, A.J.; Atkinson, H.J.; Urwin, P.E. Climate change is predicted to alter the current pest status of Globodera pallida and G. rostochiensis in the United Kingdom. Glob. Chang. Biol. 2017, 23, 4497–4507. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Schneider, J.; Mugniéry, D. Les nématodes parasites de la pomme de terre. In Les Nématodes des Cultures. Journées D’études et D’information; Ritter, M., Ed.; ACTA-FNGPC: Paris, France, 1971; pp. 327–348. [Google Scholar]
- Greco, N.; Frusciante, L.; Carputo, D.; Della Rocca, F.; Brandonisio, A. Resistance to the potato cyst nematode (Globodera rostochiensis) of tetraploid potato clones with different genetic backgrounds. Nematol. Mediterr. 2002, 30, 111–114. [Google Scholar]
- Urek, G.; Širca, S.; Geric Stare, B.; Dolničar, P.; Strajnar, P. The influence of potato cyst nematode G. rostochiensis infestation on different potato cultivars. J. Cent. Eur. Agric. 2008, 9, 71–76. [Google Scholar]
- Da Cunha, M.J.M.; Da Conceição, I.L.P.; de O. Abrantes, I.M.; de A. Santos, M.S.N. Virulence assessment of Portuguese isolates of potato cyst nematodes (Globodera spp.). Phytopathol. Mediterr. 2012, 51, 51–68. [Google Scholar]
- Hajihassani, A.; Ebrahimian, E.; Hajihasani, M. Estimation of yield damage in potato caused by Iranian population of Globodera rostochiensis with and without aldicarb under greenhouse conditions. Int. J. Agric. Biol. 2013, 15, 352–356. [Google Scholar]
- Hajji-Hedfi, L.; Hloua, W.; Gamaoun, W.; Chihani, N.; Regaieg, H.; Horrigue-Raouani, N. Management of potato cyst nematode (Globodera rostochiensis) with Oxamyl. J. New Sci. Agric. Biotechnol. 2017, CSIEA, 2591–2596. [Google Scholar]
- Djebroune, A.; Mokabli, A.; Hammache, M.; Chakali, G. Effects of potato cyst nematodes on three potato varieties in Algeria. Pakistan J. Zool. 2020, 52, 1341–1346. [Google Scholar] [CrossRef]
- Fenwick, D.W. Methods for the recovery and counting of cysts of Heterodera schachtii from soil. J. Helminthol. 1940, 18, 155–172. [Google Scholar] [CrossRef]
Figure 1.
Cyst nematodes associated with potato: (A), cysts; (B), cyst attached to the root; (C), perineal region of Globodera pallida; (D), juvenile J2; (E), pointed basal knobs of G. pallida; (F), rounded basal knobs of G. rostochiensis.
Figure 1.
Cyst nematodes associated with potato: (A), cysts; (B), cyst attached to the root; (C), perineal region of Globodera pallida; (D), juvenile J2; (E), pointed basal knobs of G. pallida; (F), rounded basal knobs of G. rostochiensis.
Figure 2.
Hierarchical classification of the 36 Algerian isolates of potato cyst nematodes Globodera spp.
Figure 2.
Hierarchical classification of the 36 Algerian isolates of potato cyst nematodes Globodera spp.

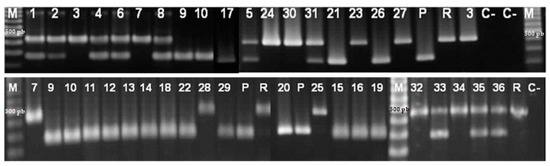

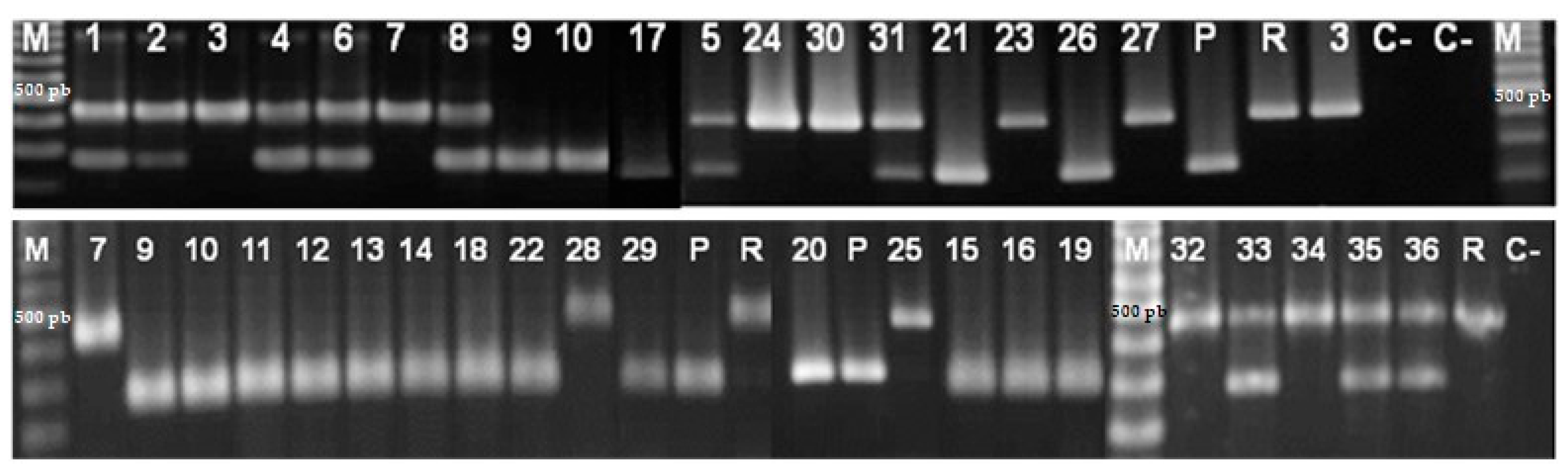

Figure 3.
DNA amplification product (multiplex PCR) of potato cyst nematode isolates; 1–36: Algerian Globodera spp., M: DNA marker of size 100 bp., C-: molecular grade water negative control or distilled water negative control, p: Globodera pallida positive control, R: G. rostochiensis positive control.
Figure 3.
DNA amplification product (multiplex PCR) of potato cyst nematode isolates; 1–36: Algerian Globodera spp., M: DNA marker of size 100 bp., C-: molecular grade water negative control or distilled water negative control, p: Globodera pallida positive control, R: G. rostochiensis positive control.

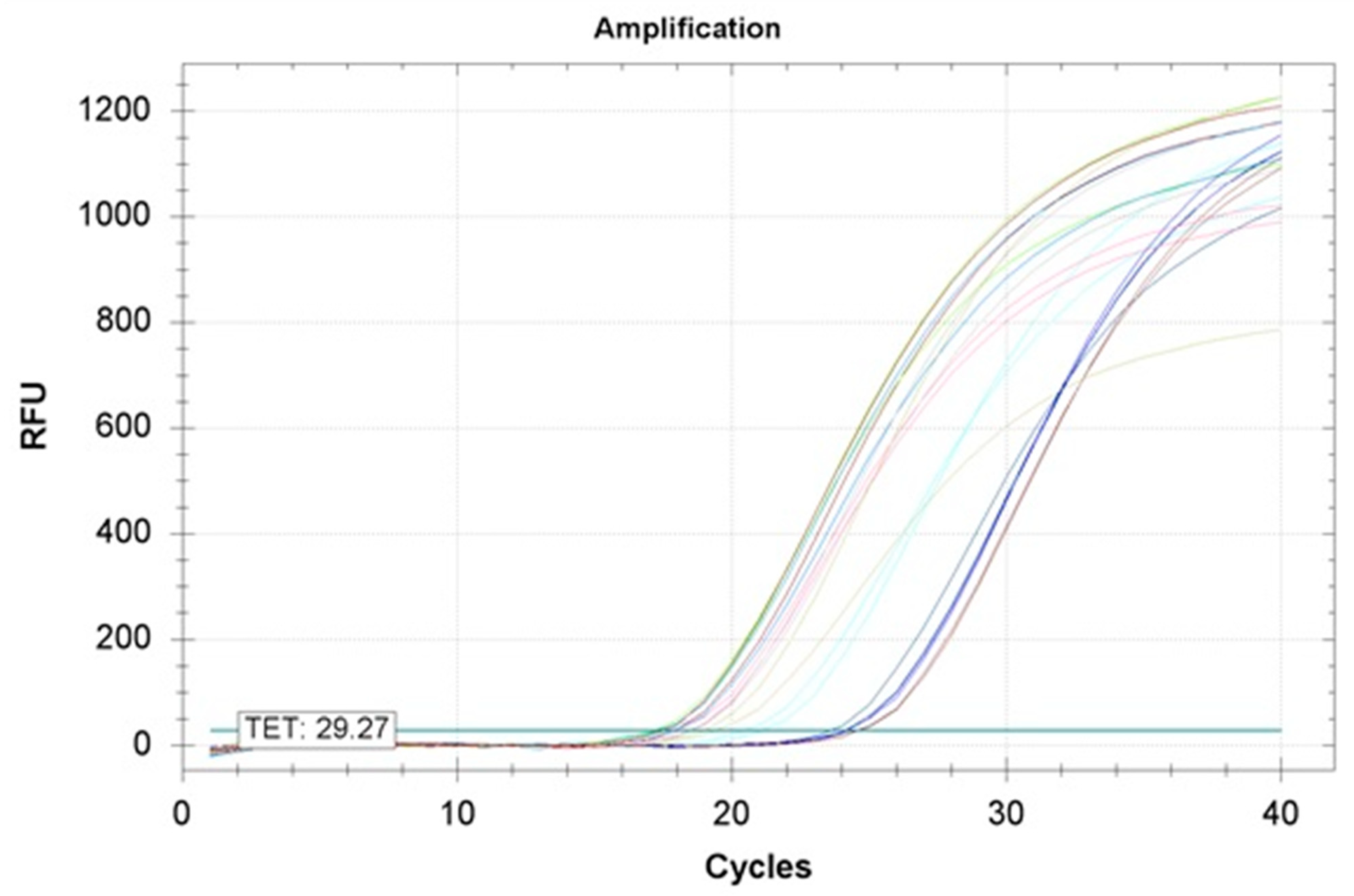

Figure 4.
Some amplification curves of the ITS1 regions of rDNA from Algerian potato cyst nematode samples by TaqMan real-time PCR determining the amount of fluorescence as a function of the cycle numbers. (RFU: fluorescence. Two replicates of the same sample are represented by the same color).
Figure 4.
Some amplification curves of the ITS1 regions of rDNA from Algerian potato cyst nematode samples by TaqMan real-time PCR determining the amount of fluorescence as a function of the cycle numbers. (RFU: fluorescence. Two replicates of the same sample are represented by the same color).

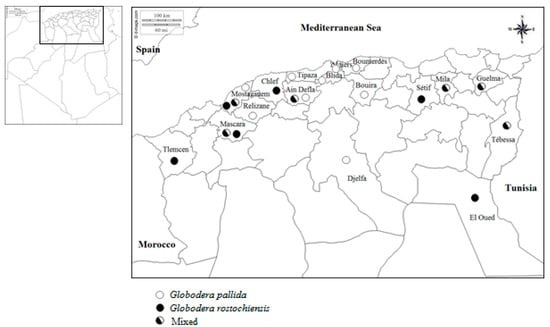

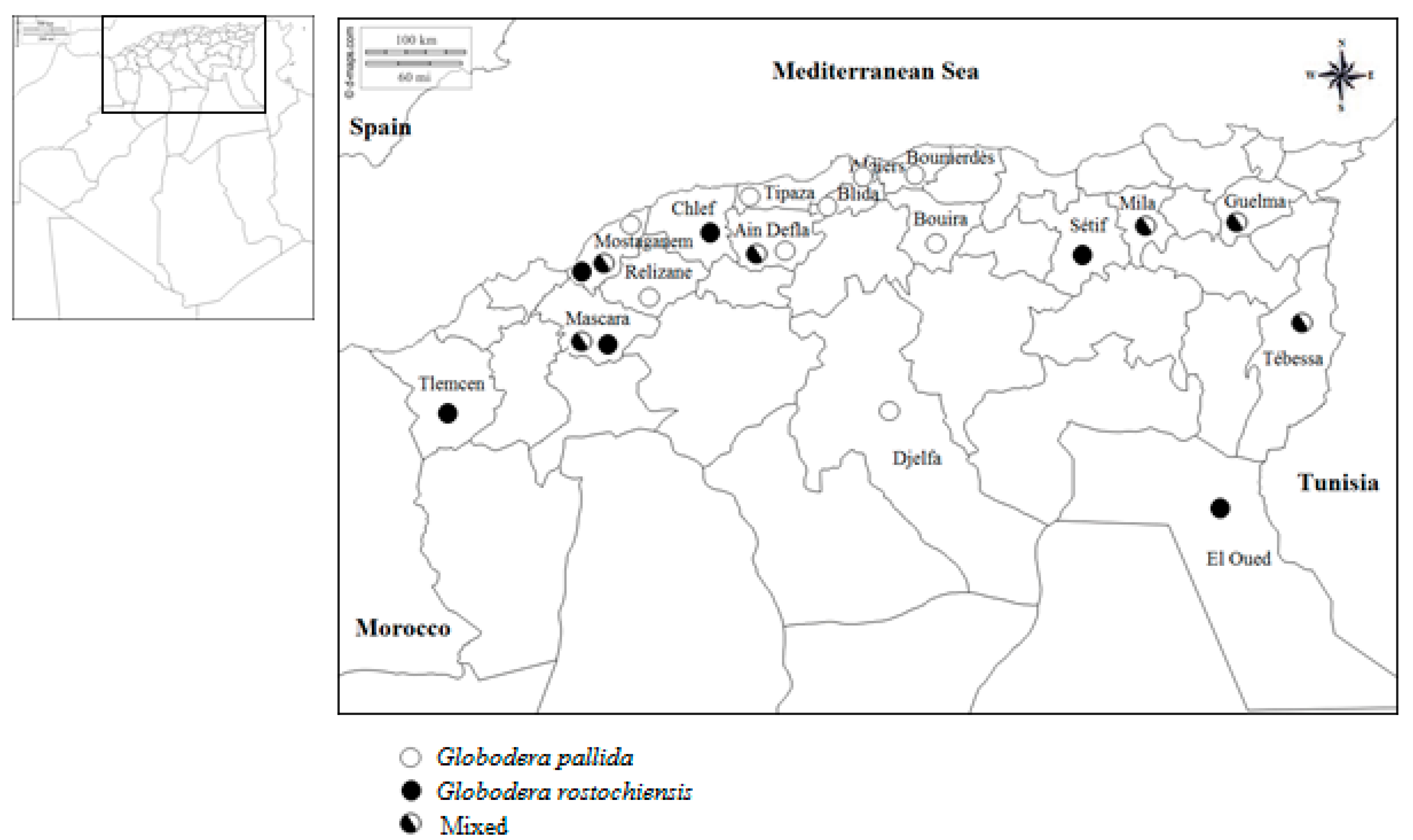

Figure 5.
Biogeographic distribution of potato cyst nematodes Globodera pallida and G. rostochiensis in Algeria.
Figure 5.
Biogeographic distribution of potato cyst nematodes Globodera pallida and G. rostochiensis in Algeria.
Table 1.
Morphometric characteristics of cysts of Globodera pallida and G. rostochiensis alone isolates from Algeria (n = 10 cysts). Measurements in μm and in the form: mean ± standard deviation (range).
Table 1.
Morphometric characteristics of cysts of Globodera pallida and G. rostochiensis alone isolates from Algeria (n = 10 cysts). Measurements in μm and in the form: mean ± standard deviation (range).
| Isolate Code | Body Length (L) | Body Width (W) | L/W Ratio | Neck Length | Number of Ridges | Distance Fenestra to Anus | Fenestra Diameter | Granek’s Ratio |
|---|---|---|---|---|---|---|---|---|
| Algerian isolates | ||||||||
| Globodera pallida | ||||||||
| 9 | 508.0 ± 54.4 (422.7–588.2) | 406.6 ± 57.8 (336.0–496.0) | 1.24 ± 0.07 (1.15–1.38) | 113.0 ± 33.9 (71.1–190.0) | 12.6 ± 3.0 (8–18) | 53.2 ± 7.8 (38.5–63.7) | 19.7 ± 4.2 (14.1–26.8) | 2.7 ± 0.4 (2.3–3.2) |
| 10 | 502.5 ± 110.7 (346.3–727.0) | 474.3 ± 86.6 (337.7–631.7) | 1.05 ± 0.08 (0.91–1.17) | 100.5 ± 53.2 (35.5–197.6) | 14.0 ± 4.3 (8–19) | 63.4 ± 20.0 (38.2–91.1) | 23.2 ± 5.3 (17.1–30.1) | 2.7 ± 0.6 (1.4–3.4) |
| 11 | 570.0 ± 45.7 (499.2–632.4) | 547.5 ± 61.6 (454.0–633.1) | 1.04 ± 0.05 (0.97–1.15) | 108.9 ± 41.2 (60.2–169.0) | 12.3 ± 3.0 (8–18) | 57.1 ± 15.0 (38.4–89.4) | 21.0 ± 4.1 (16.0–27.9) | 2.7 ± 0.4 (1.9–3.3) |
| 12 | 539.7 ± 61.8 (468.1–671.5) | 516.8 ± 64.4 (443.8–654.4) | 1.04 ± 0.08 (0.93–1.22) | 86.1 ± 29.1 (45.3–150.3) | 13.6 ± 3.3 (9–18) | 59.7 ± 14.0 (39.3–85.1) | 23.5 ± 6.0 (16.4–33.4) | 2.5 ± 0.3 (2.0–3.2) |
| 13 | 543.8 ± 67.6 (477.5–627.7) | 542.0 ± 74.1 (442.2–624.7) | 1.00 ± 0.04 (0.94–1.07) | 77.6 ± 25.9 (48.8–130.6) | 14.0 ± 3.1 (8–18) | 63.2 ± 13.6 (47.3–85.7) | 23.2 ± 4.6 (18.0–30.5) | 2.7 ± 0.2 (2.4–3.2) |
| 14 | 570.8 ± 77.6 (375.4–638.7) | 522.5 ± 80.0 (356.7–613.0) | 1.09 ± 0.07 (1.00–1.26) | 90.8 ± 46.7 (40.0–182.5) | 13.0 ± 3.6 (9–19) | 55.2 ± 12.0 (40.1–77.3) | 23.0 ± 5.2 (18.0–34.8) | 2.4 ± 0.3 (1.9–3.1) |
| 15 | 550.8 ± 79.3 (473.6–704.5) | 497.9 ± 65.6 (399.3–604.7) | 1.10 ± 0.06 (0.99–1.21) | 76.1 ± 23.1 (51.8–122.8) | 12.2 ± 1.9 (10–16) | 52.6 ± 7.4 (40.4–62.1) | 21.3 ± 3.4 (15.7–25.9) | 2.4 ± 0.3 (1.9–3.0) |
| 16 | 489.5 ± 56.6 (405.2–566.9) | 469.7 ± 66.8 (365.4–548.3) | 1.04 ± 0.05 (0.91–1.10) | 78.5 ± 30.9 (42.2–130.5) | 13.6 ± 2.1 (11–17) | 56.5 ± 9.1 (42.7–68.7) | 23.3 ± 6.3 (14.4–32.9) | 2.5 ± 0.4 (1.8–3.2) |
| 17 | 550.4 ± 72.7 (436.2–638.8) | 522.4 ± 65.3 (395.0–588.7) | 1.05 ± 0.06 (0.92–1.14) | 83.1 ± 21.1 (63.0–133.6) | 12.0 ± 3.2 (8–18) | 56.1 ± 8.1 (44.5–69.4) | 23.4 ± 5.0 (16.8–30.3) | 2.4 ± 0.5 (2.0–3.5) |
| 18 | 484.9 ± 80.7 (364.2–609.5) | 467.2 ± 82.3 (336.5–580.7) | 1.03 ± 0.08 (0.92–1.19) | 71.1 ± 26.6 (32.9–98.1) | 12.5 ± 2.5 (9–17) | 58.9 ± 10.1 (45.3–73.0) | 22.1 ± 4.8 (15.0–31.6) | 2.7 ± 0.5 (1.9–3.4) |
| 19 | 479.0 ± 47.6 (414.6–560.1) | 472.6 ± 58.1 (365.3–560.0) | 1.01 ± 0.05 (0.95–1.13) | 67.6 ± 34.0 (27.2–114.6) | 11.9 ± 3.1 (8–16) | 55.8 ± 15.2 (36.4–84.4) | 23.2 ± 6.9 (13.9–31.2) | 2.4 ± 0.5 (1.9–3.5) |
| 20 | 496.9 ± 81.8 (348.6–599.2) | 450.0 ± 88.7 (311.4–601.2) | 1.10 ± 0.08 (0.99–1.29) | 84.9 ± 33.3 (44.8–160.8) | 14.0 ± 2.5 (11–18) | 61.6 ± 9.6 (44.0–76.9) | 20.7 ± 3.4 (14.6–27.4) | 2.9 ± 0.4 (2.4–3.5) |
| 21 | 526.5 ± 109.3 (327.0–676.9) | 499.3 ± 101.6 (314.1–621.9) | 1.05 ± 0.04 (1.00–1.14) | 75.7 ± 19.5 (44.3–99.3) | 11.7 ± 2.5 (8–15) | 59.0 ± 11.7 (38.1–75.8) | 22.7 ± 3.5 (16.0–28.2) | 2.6 ± 0.4 (1.7–3.1) |
| 22 | 476.2 ± 69.3 (380.0–558.8) | 448.9 ± 64.6 (389.4–519.5) | 1.06 ± 0.08 (0.92–1.21) | 104.7 ± 45.0 (49.2–178.8) | 13.4 ± 2.7 (9–18) | 63.5 ± 11.2 (48.9–87.9) | 23.4 ± 4.5 (16.8–30.4) | 2.7 ± 0.3 (2.2–3.3) |
| 26 | 560.1 ± 58.2 (478.6–668.8) | 523.0 ± 53.4 (452.2–639.8) | 1.06 ± 0.05 (1.00–1.14) | 118.9 ± 25.8 (71.3–150.2) | 12.0 ± 3.1 (9–18) | 54.2 ± 15.0 (37.2–78.8) | 23.9 ± 4.6 (17.1–31.0) | 2.2 ± 0.3 (1.8–3.0) |
| 29 | 457.0 ± 54.0 (392.9–547.9) | 418.4 ± 63.2 (316.4–509.3) | 1.07 ± 0.08 (0.96–1.22) | 106.3 ± 36.4 (71.4–195.2) | 12.1 ± 1.9 (9–15) | 52.4 ± 10.0 (39.3–70.6) | 21.3 ± 4.3 (15.0–28.4) | 2.5 ± 0.6 (1.6–3.4) |
| Globodera rostochiensis | ||||||||
| 3 | 596.8 ± 65.2 (520.9–703.2) | 560.7 ± 64.2 (481.5–568.2) | 1.06 ± 0.04 (0.96–1.14) | 107.2 ± 39.0 (55.6–159.9) | 18.0 ± 2.8 (16–24) | 64.1 ± 12.1 (50.6–90.1) | 19.3 ± 3.8 (13.2–24.4) | 3.4 ± 1.0 (2.2–5.9) |
| 7 | 505.0 ± 85.5 (341.7–587.1) | 458.5 ± 80.8 (312.4–568.1) | 1.09 ± 0.06 (1.03–1.21) | 135.5 ± 39.3 (83.5–177.8) | 19.0 ± 4.4 (13–25) | 71.9 ± 17.3 (45.3–93.8) | 17.5 ± 3.9 (13.6–26.7) | 4.1 ± 1.0 (2.5–5.5) |
| 23 | 492.0 ± 55.6 (399.1–566.8) | 462.5 ± 79.9 (318.8–588.0) | 1.07 ± 0.08 (0.96–1.25) | 89.7 ± 26.9 (57.8–127.0) | 18.5 ± 2.6 (15–23) | 62.8 ± 11.1 (44.8–87.7) | 18.2 ± 4.1 (14.0–25.0) | 3.6 ± 1.0 (2.1–5.2) |
| 24 | 466.0 ± 119.4 (302.4–617.1) | 457.4 ± 115.8 (301.5–607.7) | 1.01 ± 0.06 (0.91–1.11) | 89.7 ± 26.9 (45.0–150.6) | 20.0 ± 4.4 (13–26) | 75.1 ± 20.4 (51.6–18.4) | 19.7 ± 4.7 (14.0–28.5) | 4.0 ± 1.4 (3.0–6.7) |
| 25 | 463.8 ± 59.5 (346.1–570.8) | 430.8 ± 62.8 (367.9–594.1) | 1.01 ± 0.04 (0.96–1.07) | 76.9 ± 26.0 (27.2–105.1) | 18.3 ± 2.8 (12–21) | 60.3 ± 5.9 (46.9–68.0) | 17.1 ± 3.3 (13.6–23.1) | 3.6 ± 0.8 (2.4–4.7) |
| 27 | 528.3 ± 80.2 (366.7–654.1) | 514.7 ± 88.7 (344.0–635.5) | 1.02 ± 0.05 (0.93–1.12) | 96.2 ± 40.0 (43.6–150.4) | 22.0 ± 3.3 (17–28) | 92.6 ± 27.2 (60.1–53.6) | 22.0 ± 4.0 (17.3–27.9) | 4.2 ± 1.2 (2.9–6.2) |
| 28 | 563.8 ± 57.3 (493.6–660.9) | 561.7 ± 43.3 (474.5–614.5) | 1.00 ± 0.08 (0.92–1.15) | 76.5 ± 23.0 (46.1–114.4) | 22.2 ± 4.2 (16–28) | 99.9 ± 28.1 (65.0–45.3) | 22.3 ± 3.9 (15.9–27.9) | 4.5 ± 1.1 (3.3–6.7) |
| 30 | 537.2 ± 88.9 (373.5–669.4) | 497.1 ± 77.1 (357.9–599.6) | 1.07 ± 0.06 (0.95–1.17) | 60.8 ± 19.2 (40.6–97.3) | 21.7 ± 3.7 (16–27) | 90.1 ± 23.7 (57.9–40.4) | 22.1 ± 3.5 (16.7–27.6) | 4.2 ± 1.5 (2.4–6.7) |
| 32 | 527.9 ± 49.0 (458.0–621.3) | 509.6 ± 50.7 (441.6–599.0) | 1.03 ± 0.02 (1.00–1.08) | 78.8 ± 23.0 (47.4–127.1) | 17.7 ± 4.2 (12–23) | 59.6 ± 8.7 (48.5–75.7) | 19.8 ± 3.5 (14.3–24.8) | 3.1 ± 0.9 (2.4–5.2) |
| 34 | 496.4 ± 72.4 (394.0–634.7) | 469.8 ± 72.2 (368.8–632.7) | 1.05 ± 0.05 (1.00–1.16) | 84.4 ± 19.7 (65.7–122.4) | 17.0 ± 4.0 (12–24) | 60.6 ± 13.8 (40.9–80.7) | 17.0 ± 2.7 (13.6–22.4) | 3.5 ± 0.5 (2.9–4.6) |
| Reference measurements | ||||||||
| Globodera pallida | ||||||||
| [40] | * | * | * | * | 8–20 (<14) | 22–67 (<50) | 18–21 (>19) | 1.2–3.5 (<3) |
| [47] | * | * | * | * | 8–20 (<14) | * | * | 1.2–3.5 (<3) |
| Composite | * | * | * | * | 8–20 | 22–67 | 18–21 | 1.2–3.5 |
| Globodera rostochiensis | ||||||||
| [40] | * | * | * | * | 12–31 (>14) | 37–77 (>55) | 8–20 (<19) | 1.3–9.5 (>3) |
| [47] | * | * | * | * | 16–31 (>14) | * | * | 1.3–9.5 (>3) |
| Composite | * | * | * | * | 12–31 | 37–77 | 8–20 | 1.3–9.5 |
* no data.
Table 2.
Morphometric characteristics of second-stage juveniles of Globodera pallida and G. rostochiensis alone isolates from Algeria (n = 10 J2s). Measurements in μm and in the form: mean ± SD (range).
Table 2.
Morphometric characteristics of second-stage juveniles of Globodera pallida and G. rostochiensis alone isolates from Algeria (n = 10 J2s). Measurements in μm and in the form: mean ± SD (range).
| Isolate Code | Stylet Length | Stylet Knobs Shape a | Body Length | Body Width in the Middle | Body Width at the Anus | Tail Length | Hyaline Part of Tail Length | a | c | c′ |
|---|---|---|---|---|---|---|---|---|---|---|
| Algerian isolates | ||||||||||
| Globodera pallida | ||||||||||
| 9 | 24.3 ± 1.2 (23.0–27.2) | 1 | 435.3 ± 25.4 (401.0–489.6) | 19.7 ± 1.0 (18.4–21.5) | 11.9 ± 0.4 (11.4–12.5) | 47.0 ± 2.3 (43.4–49.7) | 26.2 ± 1.7 (22.8–29.4) | 22.0 ± 1.2 (19.1–23.3) | 9.1 ± 0.6 (8.1–9.9) | 3.9 ± 0.2 (3.4–4.2) |
| 10 | 23.8 ± 1.1 (22.0–25.3) | 1 | 422.2 ± 17.7 (388.9–444.9) | 19.0 ± 1.1 (17.1–20.6) | 11.5 ± 0.5 (10.8–12.1) | 47.1 ± 2.1 (42.2–49.2) | 24.3 ± 1.9 (21.1–27.5) | 22.2 ± 1.1 (20.1–23.8) | 8.9 ± 0.3 (8.5–9.5) | 4.0 ± 0.1 (3.8–4.4) |
| 11 | 24.4 ± 0.8 (23.1–25.6) | 1 | 434.0 ± 18.7 (405.8–463.9) | 19.5 ± 1.1 (17.3–21.6) | 11.9 ± 0.5 (10.6–12.7) | 49.7 ± 4.1 (44.0–54.6) | 27.9 ± 2.7 (22.5–31.1) | 22.2 ± 1.1 (20.8–23.7) | 8.7 ± 0.7 (8.0–0.2) | 4.1 ± 0.4 (3.4–4.6) |
| 12 | 24.3 ± 1.0 (23.0–26.0) | 1 | 457.7 ± 18.0 (413.8–487.1) | 19.7 ± 0.8 (18.5–21.1) | 12.0 ± 0.4 (11.1–12.4) | 47.5 ± 2.7 (43.8–52.4) | 26.4 ± 2.0 (23.0–29.9) | 23.2 ± 1.3 (21.4–25.4) | 9.8 ± 0.6 (8.3–0.9) | 3.9 ± 0.2 (3.6–4.3) |
| 13 | 23.4 ± 0.8 (22.0–24.6) | 1 | 432.9 ± 36.5 (382.0–499.2) | 19.0 ± 1.2 (17.2–21.0) | 11.4 ± 0.5 (10.6–12.3) | 45.0 ± 5.0 (38.3–52.8) | 25.4 ± 3.3 (21.3–29.6) | 22.6 ± 1.0 (21.0–23.8) | 9.6 ± 1.0 (8.4–0.8) | 3.9 ± 0.4 (3.3–4.7) |
| 14 | 24.3 ± 1.1 (22.3–25.9) | 1 | 457.1 ± 34.8 (417.1–514.3) | 20.1 ± 1.3 (17.4–21.6) | 12.3 ± 0.5 (11.2–12.8) | 48.0 ± 5.0 (38.2–54.8) | 27.8 ± 2.2 (23.2–31.2) | 22.6 ± 1.5 (20.4–25.7) | 9.5 ± 0.9 (8.7–1.7) | 3.8 ± 0.3 (3.4–4.2) |
| 15 | 24.1 ± 1.2 (22.1–26.0) | 1 | 453.1 ± 25.4 (414.0–490.2) | 20.0 ± 1.2 (18.2–21.5) | 12.1 ± 0.4 (11.5–12.8) | 50.2 ± 2.4 (46.5–54.8) | 29.1 ± 2.1 (26.1–31.2) | 22.5 ± 0.5 (21.7–23.5) | 9.0 ± 0.5 (8.4–9.8) | 4.1 ± 0.2 (3.8–4.3) |
| 16 | 24.1 ± 1.4 (21.7–26.1) | 1 | 461.9 ± 33.5 (398.2–509.4) | 20.0 ± 1.2 (18.2–21.5) | 12.2 ± 0.2 (11.8–12.6) | 50.6 ± 4.3 (44.1–57.5) | 29.0 ± 2.0 (25.4–31.2) | 23.0 ± 1.3 (21.0–24.6) | 9.1 ± 0.7 (8.2–0.6) | 4.1 ± 0.3 (3.6–4.7) |
| 17 | 24.5 ± 1.3 (23.1–27.6) | 1 | 458.9 ± 23.1 (418.0–492.7) | 19.9 ± 1.1 (18.1–21.6) | 12.1 ± 0.3 (11.6–12.5) | 50.8 ± 4.5 (41.7–57.1) | 26.7 ± 2.5 (24.3–31.7) | 23.0 ± 1.3 (21.4–25.1) | 9.0 ± 0.7 (7.6–0.6) | 4.2 ± 0.3 (3.4–4.6) |
| 18 | 24.4 ± 0.6 (23.3–25.4) | 1 | 435.3 ± 38.9 (391.1–504.1) | 19.5 ± 1.6 (17.1–21.4) | 11.8 ± 0.5 (10.7–12.5) | 48.7 ± 2.7 (45.7–53.7) | 27.4 ± 1.8 (25.0–30.3) | 22.3 ± 1.1 (19.8–23.8) | 8.9 ± 0.8 (7.8–0.3) | 4.1 ± 0.2 (3.6–4.6) |
| 19 | 24.4 ± 0.8 (22.6–25.2) | 1 | 440.5 ± 13.1 (421.0–461.0) | 19.4 ± 0.9 (18.0–20.9) | 11.8 ± 0.5 (11.1–12.7) | 47.4 ± 3.4 (43.9–54.8) | 27.6 ± 2.3 (24.6–31.1) | 22.7 ± 1.0 (20.4–24.2) | 9.3 ± 0.5 (7.9–9.7) | 3.9 ± 0.3 (3.5–4.7) |
| 20 | 23.7 ± 0.8 (21.7–24.4) | 1 | 444.5 ± 20.5 (400.6–471.0) | 19.5 ± 1.0 (17.9–21.4) | 11.9 ± 0.3 (11.2–12.4) | 45.6 ± 1.7 (43.4–48.2) | 23.9 ± 2.6 (21.1–28.7) | 22.7 ± 0.7 (21.7–23.9) | 9.7 ± 0.5 (9.0–0.7) | 3.8 ± 0.1 (3.5–4.2) |
| 21 | 24.3 ± 1.0 (23.3–26.6) | 1 | 451.3 ± 25.5 (423.2–496.1) | 20.1 ± 1.0 (18.2–21.5) | 12.1 ± 0.3 (11.6–12.6) | 50.7 ± 3.1 (45.0–52.7) | 27.8 ± 2.5 (24.1–31.8) | 22.4 ± 1.1 (20.6–24.4) | 8.9 ± 0.5 (8.2–9.9) | 4.1 ± 0.2 (3.5–4.5) |
| 22 | 23.9 ± 0.7 (22.4–25.1) | 1 | 448.5 ± 35.7 (401.7–514.2) | 20.0 ± 1.1 (18.2–21.4) | 11.9 ± 0.4 (11.1–12.5) | 45.5 ± 4.9 (35.8–51.8) | 25.0 ± 2.9 (21.2–30.4) | 22.3 ± 1.1 (19.5–24.0) | 9.9 ± 0.9 (8.4–1.9) | 3.8 ± 0.4 (3.0–4.3) |
| 26 | 23.7 ± 1.1 (22.0–25.4) | 1 | 450.9 ± 37.4 (392.3–497.6) | 19.7 ± 1.1 (17.5–21.2) | 11.9 ± 0.3 (11.2–12.3) | 45.5 ± 3.1 (40.2–50.0) | 26.5 ± 2.6 (23.1–30.5) | 22.8 ± 1.2 (21.1–24.7) | 9.9 ± 1.0 (8.1–1.3) | 3.8 ± 0.2 (3.5–4.1) |
| 29 | 24.0 ± 0.8 (22.3–24.9) | 1 | 425.0 ± 28.3 (394.0–471.8) | 19.1 ± 1.2 (17.7–21.6) | 11.4 ± 0.4 (11.0–12.4) | 45.4 ± 1.8 (42.0–47.7) | 25.2 ± 2.5 (20.4–29.0) | 22.1 ± 0.7 (21.1–23.5) | 9.3 ± 0.7 (8.6–0.8) | 3.9 ± 0.2 (3.4–4.3) |
| Globodera rostochiensis | ||||||||||
| 3 | 22.0 ± 0.4 (21.1–22.7) | 2 | 445.3 ± 27.5 (397.1–492.4) | 19.4 ± 1.4 (17.2–21.6) | 12.0 ± 0.5 (10.8–12.6) | 48.1 ± 4.5 (40.6–54.0) | 25.8 ± 2.6 (23.1–30.9) | 22.9 ± 1.0 (20.3–24.2) | 9.2 ± 0.5 (8.5–0.2) | 4.0 ± 0.2 (3.5–4.3) |
| 7 | 21.8 ± 0.7 (20.9–22.9) | 2 | 439.8 ± 31.5 (393.8–488.6) | 19.6 ± 0.9 (18.4–21.1) | 11.8 ± 0.3 (11.4–12.4) | 47.1 ± 4.5 (37.5–52.3) | 26.5 ± 2.6 (22.0–30.4) | 22.4 ± 1.3 (19.3–24.5) | 9.3 ± 1.0 (8.2–1.1) | 3.9 ± 0.4 (3.2–4.5) |
| 23 | 21.9 ± 0.7 (20.8–23.1) | 2 | 442.2 ± 34.3 (391.3–485.0 | 18.9 ± 1.0 (17.5–20.5) | 11.7 ± 0.5 (11.0–12.4) | 44.7 ± 4.1 (37.5–49.4) | 23.9 ± 2.0 (21.2–27.0) | 23.1 ± 1.4 (20.0–25.0) | 9.9 ± 0.3 (9.2–0.4) | 3.8 ± 0.2 (3.4–4.3) |
| 24 | 21.9 ± 0.7 (21.1–23.3) | 2 | 434.9 ± 29.4 (382.7–477.7) | 18.7 ± 1.0 (17.4–20.8) | 11.5 ± 0.5 (10.6–12.1) | 44.7 ± 6.0 (35.8–53.6) | 24.3 ± 3.7 (20.4–31.0) | 23.2 ± 1.2 (21.9–24.3) | 9.8 ± 0.8 (8.5–0.7) | 3.8 ± 0.5 (3.3–4.6) |
| 25 | 22.2 ± 0.6 (21.1–23.1) | 2 | 443.5 ± 43.3 (379.1–508.6) | 19.5 ± 1.5 (16.9–21.5) | 11.7 ± 0.6 (10.4–12.5) | 46.6 ± 2.2 (43.5–50.5) | 25.8 ± 2.4 (22.8–30.1) | 22.7 ± 1.0 (20.8–24.6) | 9.5 ± 1.0 (8.0–1.4) | 3.9 ± 0.2 (3.6–4.4) |
| 27 | 23.0 ± 0.4 (22.3–23.5) | 2 | 442.9 ± 27.2 (400.5–487.3) | 19.4 ± 1.0 (18.1–20.8) | 11.6 ± 0.3 (11.1–12.0) | 45.3 ± 3.8 (40.7–51.2) | 26.4 ± 2.1 (24.2–30.7) | 22.8 ± 0.6 (21.8–23.5) | 9.7 ± 0.5 (8.5–0.6) | 3.8 ± 0.2 (3.5–4.2) |
| 28 | 23.0 ± 0.5 (22.0–23.5) | 2 | 464.9 ± 34.3 (393.5–500.0) | 20.2 ± 1.2 (18.5–21.6) | 12.4 ± 0.5 (11.1–12.9) | 50.6 ± 3.2 (44.8–53.7) | 29.4 ± 2.1 (25.1–32.1) | 22.9 ± 0.7 (21.1–23.8) | 9.1 ± 0.5 (8.4–0.0) | 4.0 ± 0.1 (3.7–4.3) |
| 30 | 23.0 ± 0.5 (21.7–23.5) | 2 | 456.0 ± 20.6 (419.4–482.6) | 20.0 ± 1.0 (18.1–21.2) | 12.3 ± 0.4 (11.2–12.8) | 50.4 ± 3.4 (44.4–55.7) | 27.6 ± 2.7 (23.9–31.4) | 22.8 ± 0.73 (21.7–24.4) | 9.0 ± 0.7 (8.0–0.1) | 4.1 ± 0.3 (3.4–4.6) |
| 32 | 21.3 ± 0.8 (20.1–22.9) | 2 | 440.6 ± 34.0 (390.7–503.1) | 19.0 ± 0.6 (17.6–20.7) | 11.8 ± 0.7 (10.4–12.5) | 43.2 ± 4.0 (37.2–51.0) | 23.6 ± 2.4 (20.8–28.8) | 22.8 ± 1.1 (20.8–24.2) | 10.2 ± 0.5 (8.9–0.8) | 3.6 ± 0.4 (3.1–4.8) |
| 34 | 21.9 ± 0.7 (20.0–22.7) | 2 | 413.4 ± 7.8 (404.7–424.8 | 18.6 ± 0.5 (17.4–19.3) | 11.3 ± 0.4 (10.8–12.0) | 42.1 ± 4.4 (37.3–50.9) | 23.4 ± 2.3 (20.9–28.5) | 22.2 ± 0.6 (21.3–23.2) | 9.9 ± 1.0 (8.3–1.2) | 3.6 ± 0.3 (3.2–4.2) |
| Reference measurements | ||||||||||
| Globodera pallida | ||||||||||
| [40] | 21–26 (>23) | 1 | * | * | * | * | * | * | * | * |
| [47] | 23.8 (22–24) | 1 | 484 (440–525) | * | * | * | * | * | * | * |
| Composite | 21–26 | 1 | 440–525 | * | * | * | * | * | * | * |
| Globodera rostochiensis | ||||||||||
| [40] | 21–23 (22) | 2 | * | * | * | * | * | * | * | * |
| [47] | 21.8 (19–23) | 2 | 468 (425–505) | * | * | * | * | * | * | * |
| Composite | 19–23 | 2 | 425–505 | * | * | * | * | * | * | * |
a: 1, pointed knobs correspond to Globodera pallida; 2, rounded knobs correspond to G. rostochiensis. *: no data. a (body length/body width in the middle), c (body length/tail length) and c′ (tail length/body width at anus level).
Table 3.
Morphometric characteristics of cysts of Globodera pallida and G. rostochiensis mixed isolates from Algeria (n = 10 cysts). Measurements in μm and in the form: mean ± SD (range).
Table 3.
Morphometric characteristics of cysts of Globodera pallida and G. rostochiensis mixed isolates from Algeria (n = 10 cysts). Measurements in μm and in the form: mean ± SD (range).
| Isolate Code | Body Length (L) | Body Width (W) | L/W Ratio | Neck Length | Number of Ridges | Distance Fenestra to Anus | Fenestra Diameter | Granek’s Ratio | Morphological Identification | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | n = 4 | 546.6 ± 67.9 (452.9–613.3) | 463.1 ± 36.7 (408.5–487.8) | 1.12 ± 0.04 (1.07–1.18) | 76.4 ± 19.7 (48.6–95.2) | 11.5 ± 2.3 (9–14) | 53.2 ± 8.4 (41.6–60.6) | 20.5 ± 4.3 (16.6–24.4) | 2.6 ± 0.6 (2.1–3.5) | G. pallida |
| n = 6 | 561.5 ± 48.3 (489.4–614.2) | 543.2 ± 70.6 (421.0–611.3) | 1.06 ± 0.08 (0.97–1.16) | 70.8 ± 23.8 (48.8–13.1) | 16.3 ± 3.7 (12–23) | 77.1 ± 18.7 (59.8–12.6) | 20.5 ± 2.5 (18.2–24.4) | 3.8 ± 1.3 (2.4 ± 6.1) | G. rostochiensis | |
| 2 | n = 6 | 555.3 ± 78.8 (425.2–638.2) | 509.9 ± 79.4 (384.3–575.6) | 1.09 ± 0.08 (1.01–1.25) | 93.6 ± 40.8 (37.1–27.0) | 11.0 ± 1.2 (10–13) | 50.3 ± 5.9 (43.5–58.6) | 16.7 ± 3.0 (13.5–20.3) | 3.0 ± 0.4 (2.1–3.4) | G. pallida |
| n = 4 | 530.7 ± 98.9 (421.8–649.1) | 507.4 ± 80.5 (395.5–587.3) | 1.04 ± 0.07 (0.93–1.10) | 100.7 ± 62.7 (43.5–82.8) | 15.0 ± 1.4 (14–17) | 56.0 ± 8.9 (49.0–68.6) | 15.3 ± 1.2 (15.0–16.7) | 3.6 ± 0.3 (3.2 ± 4.1) | G. rostochiensis | |
| 4 | n = 3 | 514.3 ± 24.5 (491.4–540.3) | 477.5 ± 33.2 (446.0–512.2) | 1.07 ± 0.02 (1.05–1.10) | 101.2 ± 22.2 (75.6–15.7) | 13.3 ± 4.1 (10–18) | 58.9 ± 17.6 (43.0–77.9) | 23.0 ± 2.2 (20.5–24.9) | 2.5 ± 0.5 (2.0–3.1) | G. pallida |
| n = 7 | 555.2 ± 80.4 (431.9–650.3) | 493.8 ± 81.0 (391.2–587.7) | 1.12 ± 0.07 (1.05–1.26) | 102.8 ± 34.7 (64.0–54.7) | 17.7 ± 4.3 (12–21) | 70.8 ± 12.3 (63.2–90.2) | 15.8 ± 2.5 (13.4–19.6) | 4.5 ± 0.9 (3.3–6.4) | G. rostochiensis | |
| 5 | n = 3 | 518.0 ± 43.2 (468.6–549.1) | 472.5 ± 38.6 (449.4–517.1) | 1.09 ± 0.07 (1.04–1.18) | 94.3 ± 29.8 (73.6–28.6) | 14.3 ± 3.0 (11–17) | 59.7 ± 12.3 (45.7–68.9) | 20.2 ± 2.0 (18.7–22.5) | 3.0 ± 0.8 (2.0–3.5) | G. pallida |
| n = 7 | 528.6 ± 44.6 (465.4–587.5) | 524.9 ± 66.2 (431.8–618.0) | 1.00 ± 0.04 (0.95–1.07) | 87.6 ± 49.4 (40.9–90.1) | 15.8 ± 3.9 (12–22) | 78.8 ± 13.2 (65.6–00.5) | 15.9 ± 2.1 (13.6–18.3) | 4.9 ± 0.8 (3.6–6.1) | G. rostochiensis | |
| 6 | n = 6 | 578.5 ± 47.2 (518.0–638.1) | 482.5 ± 111.6 (309.4–609.0) | 1.08 ± 0.02 (1.04–1.11) | 89.6 ± 46.9 (42.0–59.3) | 10.3 ± 1.5 (8–12) | 51.5 ± 1.3 (49.4–53.3) | 17.1 ± 3.5 (13.9–23.2) | 3.0 ± 0.5 (2.1–3.5) | G. pallida |
| n = 4 | 516.1 ± 62.6 (458.9–603.9) | 456.4 ± 85.8 (333.3–523.3) | 1.06 ± 0.05 (1.01–1.15) | 76.0 ± 17.8 (51.9–94.9) | 15.7 ± 2.2 (13–18) | 77.5 ± 11.7 (62.8–90.3) | 17.3 ± 4.3 (13.1–22.0) | 4.6 ± 0.9 (3.7–5.8) | G. rostochiensis | |
| 8 | n = 4 | 636.2 ± 115.4 (468.4–732.2) | 550.6 ± 82.5 (460.6–622.8) | 1,16 ± 0,01 (1,14–1,17) | 131.5 ± 30.6 (91.8–66.6) | 10.2 ± 1.2 (9–12) | 53.1 ± 2.3 (51.0–56.4) | 21.5 ± 2.7 (19.2–25.3) | 2.4 ± 0.3 (2.1–2.9) | G. pallida |
| n = 6 | 556.7 ± 102.9 (418.0–75.10) | 526.5 ± 87.0 (396.8–621.4) | 1.05 ± 0.03 (0.99–1.09) | 95.4 ± 61.1 (41.1–91.7) | 19.1 ± 3.3 (15–24) | 82.2 ± 14.7 (63.8–02.3) | 19.2 ± 3.1 (14.4–22.2) | 4.2 ± 0.3 (3.5–4.5) | G. rostochiensis | |
| 31 | n = 6 | 590.9 ± 47.0 (536.5–653.3) | 574.0 ± 55.2 (500.0–635.5) | 1.02 ± 0.04 (0.99–1.08) | 109.9 ± 35.6 (71.6–53.2) | 13.0 ± 4.3 (8–20) | 59.9 ± 16.4 (40.2–79.0) | 21.8 ± 3.4 (17.1–25.6) | 2.7 ± 0.5 (2.1–3.2) | G. pallida |
| n = 4 | 611.3 ± 53.9 (548.8–674.5) | 589.8 ± 44.0 540.9–640.3) | 1.03 ± 0.05 (0.96–1.09) | 95.0 ± 29.2 (55.3–23.5) | 16.7 ± 4.5 (12–22) | 74.9 ± 21.0 (48.1–96.2) | 20.2 ± 2.9 (16.0–23.0) | 4.1 ± 1.2 (3.0–5.9) | G. rostochiensis | |
| 33 | n = 4 | 536.4 ± 47.6 (468.7–572.5) | 495.5 ± 45.6 (444.6–551.2) | 1.08 ± 0.08 (1.02–1.20) | 90.8 ± 15.0 (71.0–07.5) | 8.5 ± 0.5 (8–9) | 40.5 ± 2.0 (38.2–42.3) | 17.1 ± 2.2 (15.0–19.9) | 2.3 ± 0.3 (2.1–2.7) | G. pallida |
| n = 6 | 585.4 ± 74.1 (497.4–674.0) | 543.8 ± 60.9 (453.1–614.3) | 1.07 ± 0.08 (1.01–1.23) | 105.8 ± 35.2 (65.5–65.1) | 15.5 ± 4.4 (12–23) | 67.4 ± 22.5 (42.0–03.2) | 18.0 ± 3.8 (13.4–24.4) | 3.7 ± 1.2 (2.4–5.7) | G. rostochiensis | |
| 35 | n = 4 | 469.0 ± 20.5 (439.0–483.2) | 433.8 ± 33.2 (400.4–479.1) | 1.09 ± 0.03 (1.07–1.14) | 83.1 ± 23.6 (55.0–12.4) | 9.0 ± 1.4 (8–11) | 46.1 ± 4.8 (40.6–51.8) | 21.3 ± 2.4 (17.7–23.3) | 2.1 ± 0.1 (2.0–2.2) | G. pallida |
| n = 6 | 537.8 ± 43.3 (473.7–595.2) | 483.7 ± 40.1 (446.1–546.6) | 1.09 ± 0.05 (1.00–1.15) | 92.2 ± 26.8 (58.5–29.0) | 14.8 ± 5.1 (12–25) | 69.4 ± 26.9 (49.9–22.0) | 17.5 ± 3.6 (13.2–21.3) | 3.9 ± 0.9 (3.0–5.7) | G. rostochiensis | |
| 36 | n = 3 | 589.6 ± 34.3 (566.0–629.1) | 576.8 ± 38.2 (546.4–619.7) | 1.01 ± 0.01 (1.01–1.03) | 82.8 ± 15.3 (68.3–98.9) | 9.0 ± 1.0 (8–10) | 42.5 ± 9.1 (32.1–49.2) | 15.6 ± 0.4 (15.1–16.0) | 2.7 ± 0.6 (2.0–3.1) | G. pallida |
| n = 7 | 522.2 ± 82.0 (443.8–667.4) | 459.6 ± 77.3 (366.1–583.7) | 1.13 ± 0.07 (1.06–1.25) | 110.9 ± 20.7 (82.8–37.7) | 16.2 ± 4.4 (12–24) | 79.0 ± 28.1 (52.5–30.6) | 18.0 ± 2.2 (15.2–20.7) | 4.3 ± 1.4 (2.8–6.5) | G. rostochiensis | |
Table 4.
Morphometric characteristics of second-stage juveniles of Globodera pallida and G. rostochiensis mixed isolates from Algeria (n = 10 J2s). Measurements in μm and in the form: mean ± SD (range).
Table 4.
Morphometric characteristics of second-stage juveniles of Globodera pallida and G. rostochiensis mixed isolates from Algeria (n = 10 J2s). Measurements in μm and in the form: mean ± SD (range).
| Isolates Code | Stylet Length | Stylet Knobs Shape a | Body Length | Body Width in the Middle | Body Width at the Anus | Tail Length | Hyaline Part of Tail Length | a | c | c′ | Morphological Identification | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | n = 4 | 24.6 ± 1.0 (23.2–25.8) | 1 | 427.3 ± 40.2 (391.8–473.9) | 19.6 ± 0.9 (18.3–20.5) | 12.1 ± 0.3 (11.9–12.6) | 46.2 ± 2.9 (42.5–48.8) | 23.3 ± 1.0 (22.2–24.4) | 21.6 ± 1.3 (19.9–23.0) | 9.2 ± 0.4 (8.6–9.7) | 3.8 ± 0.2 (3.5–4.0) | G. pallida |
| n = 6 | 21.9 ± 0.8 (20.3–22.9) | 2 | 452.7 ± 28.4 (420.7–494.2) | 19.3 ± 1.2 (18.2–21.0) | 11.6 ± 0.7 (11.0–12.6) | 50.3 ± 2.8 (46.6–54.5) | 26.3 ± 2.2 (23.2–29.3) | 23.3 ± 0.4 (22.8–24.0) | 9.0 ± 0.8 (8.3–0.5) | 4.3 ± 0.3 (3.7–4.7) | G. rostochiensis | |
| 2 | n = 7 | 23.1 ± 0.6 (22.2–23.8) | 1 | 419.1 ± 14.3 (390.8–433.1) | 19.4 ± 0.7 (18.7–20.7) | 11.9 ± 0.2 (11.5–12.3) | 43.4 ± 4.1 (37.7–46.9) | 23.5 ± 2.3 (20.8–27.9) | 21.5 ± 1.3 (19.4–22.7) | 9.7 ± 0.9 (8.8–0.7) | 3.6 ± 0.3 (3.2–3.9) | G. pallida |
| n = 3 | 22.3–1.5 (20.5–23.4) | 2 | 422.7 ± 31.1 (401.6–458.5) | 19.3 ± 1.2 (18.0–20.3) | 12.0 ± 0.3 (11.7–12.4) | 43.7 ± 4.6 (39.0–48.2) | 25.2 ± 1.2 (23.9–26.4) | 21.8 ± 1.3 (20.2–22.6) | 9.7 ± 1.2 (8.3–0.4) | 3.6 ± 0.2 (3.3–3.8) | G. rostochiensis | |
| 4 | n = 4 | 24.1 ± 0.6 (23.4–24.7) | 1 | 403.0 ± 8.7 (397.0–415.9) | 19.2 ± 0.6 (18.7–20.1) | 11.5 ± 0.2 (11.3–11.9) | 42.3 ± 2.7 (39.4–45.9) | 22.8 ± 2.8 (20.1–26.0) | 20.9 ± 1.0 (19.7–22.2) | 9.5 ± 0.7 (8.6–0.5) | 3.6 ± 0.2 (3.3–3.9) | G. pallida |
| n = 6 | 22.2 ± 0.7 (20.8–22.9) | 2 | 404.2 ± 13.2 (381.1–420.3) | 18.5 ± 1.0 (16.9–19.6) | 11.5 ± 0.8 (10.3–12.4) | 41.9 ± 2.4 (39.1–44.9) | 23.9 ± 2.3 (20.1–27.1) | 21.8 ± 1.0 (20.2–22.8) | 9.6 ± 0.6 (8.8–0.4) | 3.6 ± 0.3 (3.1–3.9) | G. rostochiensis | |
| 5 | n = 4 | 22.9 ± 0.5 (22.2–23.5) | 1 | 437.5 ± 4.7 (431.3–441.6) | 20.3 ± 0.3 (19.8–20.7) | 12.0 ± 0.5 11.4–12.7) | 49.2 ± 4.4 (45.1–54.1) | 26.0 ± 2.1 (22.8–27.6) | 21.5 ± 0.3 (21.2–21.9) | 8.9 ± 0.8 (8.1–9.6) | 4.0 ± 0.4 (3.5–4.5) | G. pallida |
| n = 6 | 21.5 ± 0.5 (20.7–22.2) | 2 | 427.3 ± 25.8 (389.5–459.3) | 19.4 ± 0.6 (18.3–19.9) | 11.5 ± 0.3 (11.1–12.0) | 42.3 ± 3.1 (38.7–47.0) | 22.8 ± 3.1 (20.6–27.3) | 21.9 ± 1.1 (20.3–23.7) | 10.1 ± 0.7 (9.0–0.9) | 3.6 ± 0.2 (3.3–4.0) | G. rostochiensis | |
| 6 | n = 7 | 24.6 ± 0.7 (23.7–26.0) | 1 | 420.4 ± 11.8 (403.5–440.6) | 19.1 ± 1.2 (17.7–20.7) | 11.5 ± 0.3 (11.1–11.9) | 46.3 ± 1.8 (43.9–49.2) | 25.7 ± 1.9 (23.4–29.2) | 21.9 ± 1.1 (20.1–23.4) | 9.0 ± 0.5 (8.1–0.0) | 3.9 ± 0.2 (3.6–4.3) | G. pallida |
| n = 3 | 22.4 ± 1.4 (20.8–23.3) | 2 | 401.9 ± 14.9 (385.5–414.6) | 18.3 ± 1.5 (16.9–19.9) | 11.3 ± 0.7 (10.4–11.9) | 46.4 ± 3.6 (43.0–50.2) | 24.3 ± 1.7 (22.5–26.0) | 21.9 ± 1.4 (20.3–22.7) | 8.6 ± 0.6 (8.2–9.4) | 4.1 ± 0.4 (3.6–4.4) | G. rostochiensis | |
| 8 | n = 4 | 25.3 ± 1.1 (24.6–27.0) | 1 | 434.2 ± 13.4 (414.4–444.7) | 20.2 ± 0.5 (19.6–21.0) | 12.3 ± 0.3 (11.9–12.7) | 47.5 ± 0.4 (47.1–48.1) | 23.8 ± 2.8 (21.3–27.6) | 21.4 ± 0.9 (20.4–22.3) | 9.1 ± 0.3 (8.6–9.4) | 3.8 ± 0.1 (3.7–3.9) | G. pallida |
| n = 6 | 22.7 ± 0.8 (21.2 ± 23.5) | 2 | 416.0 ± 24.3 (393.1–452.6) | 19.5 ± 0.9 (18.4–21.0) | 11.9 ± 0.5 (11.2–12.7) | 44.7 ± 3.9 (37.4–48.5) | 24.0 ± 2.1 (20.9–26.6) | 21.2 ± 0.9 (19.9–22.3) | 9.3 ± 0.7 (8.7–0.7) | 3.7 ± 0.3 (3.1–3.9) | G. rostochiensis | |
| 31 | n = 6 | 22.6 ± 0.8 (22.0–24.2) | 1 | 429.3 ± 13.8 (409.1–444.2) | 19.5 ± 1.0 (18.0–21.2) | 11.8 ± 0.6 (11.1–12.6) | 49.3 ± 5.9 (40.9–55.3) | 27.0 ± 2.7 (22.7–30.6) | 21.9 ± 0.9 (20.6–23.3) | 8.7 ± 1.0 (7.6–0.2) | 4.1 ± 0.5 (3.4–4.8) | G. pallida |
| n = 4 | 22.2 ± 0.5 (21.5–22.7) | 2 | 398.6 ± 5.3 (394.4–406.4) | 19.3 ± 1.1 (18.1–20.4) | 11.7 ± 0.4 (11.1–12.2) | 41.2 ± 2.7 (38.8–45.2) | 22.7 ± 2.2 (20.6–25.2) | 20.6 ± 1.0 (19.7–21.8) | 9.6 ± 0.6 (8.7–0.2) | 3.5 ± 0.2 (3.2–3.8) | G. rostochiensis | |
| 33 | n = 4 | 23.1 ± 0.3 (22.9–23.6) | 1 | 417.9 ± 29.5 (390.9–458.4) | 18.9 ± 0.8 (18.3–20.0) | 11.9 ± 0.5 (11.2–12.4) | 41.6 ± 2.9 (39.1–45.6) | 24.6 ± 2.1 (22.9–27.7) | 22.0 ± 0.9 (21.1–22.9) | 10.0 ± 0.4 (9.3–0.5) | 3.4 ± 0.3 (3.2–3.7) | G. pallida |
| n = 6 | 21.5 ± 0.8 (20.2–22.8) | 2 | 408.3 ± 28.8 (379.2–456.2) | 18.1 ± 1.1 (17.0–20.2) | 11.3 ± 0.4 (10.7–12.0) | 42.3 ± 2.0 (39.1–44.2) | 23.7 ± 2.1 (20.6–25.9) | 22.4 ± 0.3 (21.9–23.0) | 9.6 ± 0.4 (9.1–0.3) | 3.7 ± 0.1 (3.5–3.9) | G. rostochiensis | |
| 35 | n = 3 | 24.9 ± 1.3 (23.9–26.5) | 1 | 453.4 ± 19.8 (435.2–474.5) | 19.1 ± 0.6 (18.3–19.5) | 11.8 ± 0.7 (11.0–12.4) | 50.6 ± 6.3 (43.3–54.7) | 29.5 ± 2.6 (30.3–31.7) | 23.7 ± 1.1 (22.4–24.5) | 9.0 ± 0.8 (8.3–0.0) | 4.2 ± 0.6 (3.6–4.8) | G. pallida |
| n = 7 | 21.7 ± 0.8 (20.4–23.0) | 2 | 429.9 ± 37.3 (372.2–466.7) | 19.5 ± 1.5 (16.9–21.1) | 11.9 ± 0.7 (10.6–12.6) | 44.3 ± 5.4 (35.7–52.9) | 22.7 ± 1.9 (20.1–25.5) | 22.0 ± 1.0 (20.1–23.2) | 9.7 ± 0.8 (8.5–1.1) | 3.6 ± 0.4 (3.2–4.4) | G. rostochiensis | |
| 36 | n = 4 | 23.5 ± 0.1 (23.4–23.7) | 1 | 457.1 ± 11.8 (439.5–464.8) | 19.5 ± 1.1 (18.5–20.8) | 11.8 ± 0.4 (11.2–12.4) | 46.7 ± 7.2 (38.3–55.3) | 25.7 ± 1.4 (23.6–26.8) | 23.3 ± 1.2 (22.1–24.9) | 9.9 ± 1.3 (8.3–1.4) | 3.9 ± 0.7 (3.2–4.9) | G. pallida |
| n = 6 | 22.8 ± 0.7 (21.7–23.4) | 2 | 446.8 ± 16.7 (423.7–463.2) | 20.0 ± 1.2 (18.6–21.6) | 12.3 ± 0.3 (11.9–12.8) | 45.5 ± 6.2 (38.9–54.7) | 23.4 ± 3.3 (20.1–26.8) | 22.3 ± 1.3 (20.2–23.9) | 9.9 ± 1.0 (8.4–1.0) | 3.6 ± 0.4 (3.1–4.5) | G. rostochiensis | |
a: 1, pointed knobs correspond to Globodera pallida; 2, rounded knobs correspond to G. rostochiensis. a (body length/body width in the middle), c (body length/tail length) and c′ (tail length/body width at anus level).
Table 5.
Morphometric features (in μm) of cysts and second-stage juveniles of Globodera pallida and G. rostochiensis samples from Algeria and comparison of mean values between isolates of each Globodera species and of both species.
Table 5.
Morphometric features (in μm) of cysts and second-stage juveniles of Globodera pallida and G. rostochiensis samples from Algeria and comparison of mean values between isolates of each Globodera species and of both species.
| Character | Globodera pallida | Globodera rostochiensis | G. pallida and G. rostochiensis | ||
|---|---|---|---|---|---|
| Mean ± SD (Range) | p Value | Mean ± SD (Range) | p Value | p Value | |
| Cyst | n = 203 | n = 157 | |||
| Body length (L) | 527.28 ± 77.78 (346.30–732.20) | 0.0001 *** | 527.59 ± 81.34 (302.40–703.20) | 0.0007 *** | 0.0001 *** |
| Body width (W) | 492.31 ± 78.17 (311.40–654.40) | 0.0001 *** | 499.87 ± 79.62 (301.50–640.30) | 0.0015 ** | 0.0001 *** |
| L/W ratio | 1.07 ± 0.08 (0.91–1.38) | 0.0001 *** | 1.05 ± 0.06 (0.91–1.26) | 0.0002 *** | 0.0001 *** |
| Neck length | 91.46 ± 35.43 (27.25–197.60) | 0.0218 * | 91.77 ± 35.65 (27.25–191.70) | 0.0042 ** | 0.0008 *** |
| Number of ridges | 12.43 ± 3.04 (8–19) | 0.0185 * | 18.33 ± 4.21 (12–28) | 0.0004 *** | 0.0001 *** |
| Distance fenestra to anus | 56.45 ± 12.17 (32.19–91.10) | 0.0956 | 73.83 ± 21.29 (40.94–153.60) | 0.0001 *** | 0.0001 *** |
| Fenestra diameter | 21.82 ± 4.76 (13.54–34.85) | 0.0692 | 18.90 ± 3.89 (13.13–28.54) | 0.0003 *** | 0.0001 *** |
| Granek’s ratio | 2.62 ± 0.48 (1.40–3.59) | 0.0457 * | 4.00 ± 1.12 (2.12–6.76) | 0.1413 | 0.0001 *** |
| Second stage juvenile | n = 207 | n = 153 | |||
| Stylet length | 24.07 ± 1.08 (21.72–27.63) | 0.0020 ** | 22.20 ± 0.88 (20.02–23.58) | 0.0001 *** | 0.0001 *** |
| Stylet knobs shape a | 1 | 2 | |||
| Body length | 440.68 ± 28.71 (382.05–514.30) | 0.0004 *** | 432.99 ± 46.52 (372.21–508.68) | 0.0048 ** | 0.0001 *** |
| Body width in the middle | 19.64 ± 1.12 (17.10–21.68) | 0.5656 | 19.31 ± 1.16 (16.90–21.66) | 0.0295 * | 0.0426 * |
| Body width at the anus | 11.91 ± 0.49 (10.65–12.81) | 0.0003 *** | 11.82 ± 0.59 (10.37–12.97) | 0.0014 ** | 0.0001 *** |
| Tail length | 47.46 ± 4.19 35.85–57.57 | 0.0001 *** | 45.63 ± 4.78 (35.71–55.74) | 0.0001 *** | 0.0001 *** |
| Hyaline part of tail length | 26.33 ± 2.83 (20.19–31.87) | 0.0001 *** | 25.07 ± 2.99 (20.14–32.11) | 0.0001 *** | 0.0001 *** |
| a | 22.44 ± 1.18 (19.17–25.78) | 0.0217 * | 22.54 ± 1.13 (19.37–25.08) | 0.0007 *** | 0.0002 *** |
| c | 9.32 ± 0.81 (7.62–11.93) | 0.0047 ** | 9.60 ± 0.80 (8.04–11.43) | 0.0305 * | 0.0001 *** |
| c′ | 3.98 ± 0.35 3.00–4.91 | 0.0022 ** | 3.85 ± 0.37 (3.12–4.91) | 0.0034 ** | 0.0001 *** |
p: probability. *, significant difference (p < 0.05); **, highly significant difference (p < 0.01); ***, very highly significant difference (p < 0.001), and other differences are not significant (p > 0.05). a: 1, pointed knobs correspond to Globodera pallida; 2, rounded knobs correspond to G. rostochiensis. a (body length/body width in the middle), c (body length/tail length) and c′ (tail length/body width at anus level).
Table 6.
Cycle threshold (Ct) values for fluorescence of FAM and TET obtained in the DNA samples of Algeria potato cyst nematodes during the TaqMan real-time PCR test.
Table 6.
Cycle threshold (Ct) values for fluorescence of FAM and TET obtained in the DNA samples of Algeria potato cyst nematodes during the TaqMan real-time PCR test.
| Isolate Code | Replicate | FAM | TET | Globodera spp. Identity | ||
|---|---|---|---|---|---|---|
| Ct Value | Mean | Ct Value | Mean | |||
| 1 | 1 | 15.64 | 16.15 | 17.09 | 17.72 | G. pallida G. rostochiensis |
| 2 | 16.66 | 18.35 | ||||
| 2 | 1 | 19.62 | 19.77 | 17.82 | 17.98 | G. pallida G. rostochiensis |
| 2 | 19.93 | 18.13 | ||||
| 3 | 1 | — | — | 18.25 | 18.29 | G. rostochiensis |
| 2 | — | 18.33 | ||||
| 4 | 1 | 17.94 | 18.39 | 19.86 | 20.49 | G. pallida G. rostochiensis |
| 2 | 18.85 | 21.11 | ||||
| 5 | 1 | 24.35 | 24.52 | 22.33 | 22.43 | G. pallida G. rostochiensis |
| 2 | 24.69 | 22.52 | ||||
| 6 | 1 | 14.52 | 14.81 | 16.28 | 16.55 | G. pallida G. rostochiensis |
| 2 | 15.10 | 16.83 | ||||
| 7 | 1 | — | — | 18.98 | 19.12 | G. rostochiensis |
| 2 | — | 19.26 | ||||
| 8 | 1 | 15.14 | 15.06 | 16.27 | 16.64 | G. pallida G. rostochiensis |
| 2 | 14.98 | 17.00 | ||||
| 9 | 1 | 19.05 | 19.04 | — | — | G. pallida |
| 2 | 19.03 | — | ||||
| 10 | 1 | 15.73 | 15.83 | — | — | G. pallida |
| 2 | 15.92 | — | ||||
| 11 | 1 | 18.79 | 18.91 | — | — | G. pallida |
| 2 | 19.03 | — | ||||
| 12 | 1 | 18.04 | 18.03 | — | — | G. pallida |
| 2 | 18.03 | — | ||||
| 13 | 1 | 17.62 | 17.73 | — | — | G. pallida |
| 2 | 17.83 | — | ||||
| 14 | 1 | 20.76 | 20.90 | — | — | G. pallida |
| 2 | 21.05 | — | ||||
| 15 | 1 | 15.91 | 15.81 | — | — | G. pallida |
| 2 | 15.72 | — | ||||
| 16 | 1 | 15.24 | 15.31 | — | — | G. pallida |
| 2 | 15.37 | — | ||||
| 17 | 1 | 14,15 | 14.25 | — | — | G. pallida |
| 2 | 14.35 | — | ||||
| 18 | 1 | 16.09 | 16.01 | — | — | G. pallida |
| 2 | 15.94 | — | ||||
| 19 | 1 | 16.14 | 16.24 | — | — | G. pallida |
| 2 | 16.35 | — | ||||
| 20 | 1 | 17.18 | 17.07 | — | — | G. pallida |
| 2 | 16.96 | — | ||||
| 21 | 1 | 22.32 | 22.56 | — | — | G. pallida |
| 2 | 22.80 | — | ||||
| 22 | 1 | 21.87 | 21.92 | — | — | G. pallida |
| 2 | 21.98 | — | ||||
| 23 | 1 | — | — | 23.48 | 23.61 | G. rostochiensis |
| 2 | — | 23.74 | ||||
| 24 | 1 | — | — | 18.30 | 18.49 | G. rostochiensis |
| 2 | — | 18.68 | ||||
| 25 | 1 | — | — | 20.18 | 20.47 | G. rostochiensis |
| 2 | — | 20.77 | ||||
| 26 | 1 | 20.91 | 20.90 | — | — | G. pallida |
| 2 | 20.89 | — | ||||
| 27 | 1 | — | — | 22.43 | 22.75 | G. rostochiensis |
| 2 | — | 23.07 | ||||
| 28 | 1 | — | — | 24.09 | 24.09 | G. rostochiensis |
| 2 | — | 24.08 | ||||
| 29 | 1 | 28.50 | 29.19 | — | — | G. pallida |
| 2 | 29.87 | — | ||||
| 30 | 1 | — | — | 18.32 | 18.62 | G. rostochiensis |
| 2 | — | 18.91 | ||||
| 31 | 1 | 21.10 | 21.00 | 22.18 | 22.05 | G. pallida G. rostochiensis |
| 2 | 20.89 | 21.92 | ||||
| 32 | 1 | — | — | 19.44 | 19.41 | G. rostochiensis |
| 2 | — | 19.37 | ||||
| 33 | 1 | 18.80 | 18.92 | 19.88 | 20.02 | G. pallida G. rostochiensis |
| 2 | 19.04 | 20.17 | ||||
| 34 | 1 | — | — | 18.56 | 18.87 | G. rostochiensis |
| 2 | — | 19.18 | ||||
| 35 | 1 | 18.28 | 18.63 | 18.96 | 19.38 | G. pallida G. rostochiensis |
| 2 | 18.97 | 19.80 | ||||
| 36 | 1 | 20.31 | 20.55 | 20.45 | 20.72 | G. pallida G. rostochiensis |
| 2 | 20.80 | 20.98 | ||||
—: No fluorescence was observed.
Table 7.
Characteristics of the sites prospected in potato producing areas of Algeria.
| Position | Area | Locality | Latitude | Longitude | Altitude (m) | Variety | Isolate Code |
|---|---|---|---|---|---|---|---|
| Centre | Tipaza | Aïn Tagourait | 36°36′13″ N | 2°36′34″ E | 19 | Spunta | 10 |
| Tipaza | 36°35′31″ N | 2°26′58″ E | 12 | Spunta | 11 | ||
| Algiers | Zeralda - Field 1 | 36°43′5″ N | 2°51′1″ E | 38 | Spunta | 12 | |
| Zeralda - Field 2 | Spunta | 13 | |||||
| Staoueli | 36°45′21″ N | 2°53′25″ E | 36 | Spunta | 14 | ||
| Boumerdès | Khemis El Khechna | 36°38′56″ N | 3°19′44″ E | 77 | Spunta | 15 | |
| Blida | Meftah - Field 1 | 36°37′0″ N | 3°13′60″ E | 180 | Spunta | 16 | |
| Meftah - Field 2 | Spunta | 17 | |||||
| Meftah - Field 3 | Spunta | 18 | |||||
| Meftah - Field 4 | Spunta | 19 | |||||
| Bouira | Aïn Bessem | 36°17′48″ N | 3°40′12″ E | 675 | Spunta | 20 | |
| Ain Defla | El Abadia | 36°16′9″ N | 1°41′4″ E | 176 | Spunta | 21 | |
| Ain Defla | 36°15′55″ N | 1°58′13″ E | 273 | Spunta | 22 | ||
| Bourached | 36°10′9″ N | 1°55′45″ E | 417 | Spunta | 31 | ||
| West | Mostaganem | Sirat - Field 1 | 35°46′48″ N | 0°11′31″ E | 47 | Spunta | 2 |
| Sirat - Field 2 | Spunta | 3 | |||||
| Fornaka | 35°45′9″ N | 0°1′1″ O | 14 | Spunta | 4 | ||
| Aïn Nouissy | 35°48′0″ N | 0°3′0″ E | 69 | Desiree | 5 | ||
| Hassi Mameche - Field 1 | 35°51′37″ N | 0°4′23″ E | 133 | Spunta | 6 | ||
| Hassi Mameche - Field 2 | Spunta | 9 | |||||
| Mesra | 35°50′14″ N | 0°10′11″ E | 79 | Desiree | 7 | ||
| Bouguirat | 35°45′5″ N | 0°15′12″ E | 66 | Spunta | 8 | ||
| Chlef | Ouled Fares | 36°13′58″ N | 1°14′25″ E | 136 | Desiree | 23 | |
| Chlef | 36°10′26″ N | 1°20′12″ E | 86 | Desiree | 24 | ||
| Mascara | Ghriss - Field 1 | 35°14′53″ N | 0°9′41″ E | 495 | Desiree | 25 | |
| Ghriss - Field 2 | Desiree | 1 | |||||
| Relizane | El Hamadna | 35°54′0″ N | 0°45′0″ E | 79 | Desiree | 26 | |
| East | Tlemcen | Maghnia | 34°51′42″ N | 1°43′50″ O | 495 | Desiree | 32 |
| Tébessa | Cheria | 35°16′13″ N | 7°45′7″ E | 1090 | Desiree | 33 | |
| Sétif | Guellal | 36°2′42″ N | 5°19′41″ E | 911 | Spunta | 34 | |
| Mila | Chelghoum Laid | 36°10′0″ N | 6°10′0″ E | 922 | Spunta | 35 | |
| Guelma | Bouchegouf | 36°28′18″ N | 7°43′47″ E | 155 | Spunta | 36 | |
| South | El Oued | Hassi Khalifa - Field 1 | 33°36′4″ N | 7°1′44″ E | 35 | Spunta | 27 |
| Hassi Khalifa - Field 2 | Spunta | 30 | |||||
| Trifaoui | 33°25′24″ N | 6°56′9″ E | 68 | Spunta | 28 | ||
| Djelfa | Aïn El Ibel | 34°21′17″ N | 3°13′22″ E | 1036 | Spunta | 29 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Djebroune, A.; Chakali, G.; de Andrade, E.; Camacho, M.J.; Rusinque, L.; Inácio, M.L. Integrative Morphometric and Molecular Approach to Update the Impact and Distribution of Potato Cyst Nematodes Globodera rostochiensis and Globodera pallida (Tylenchida: Heteroderidae) in Algeria. Pathogens 2021, 10, 216. https://doi.org/10.3390/pathogens10020216
AMA Style
Djebroune A, Chakali G, de Andrade E, Camacho MJ, Rusinque L, Inácio ML. Integrative Morphometric and Molecular Approach to Update the Impact and Distribution of Potato Cyst Nematodes Globodera rostochiensis and Globodera pallida (Tylenchida: Heteroderidae) in Algeria. Pathogens. 2021; 10(2):216. https://doi.org/10.3390/pathogens10020216
Chicago/Turabian StyleDjebroune, Aouicha, Gahdab Chakali, Eugénia de Andrade, Maria João Camacho, Leidy Rusinque, and Maria L. Inácio. 2021. "Integrative Morphometric and Molecular Approach to Update the Impact and Distribution of Potato Cyst Nematodes Globodera rostochiensis and Globodera pallida (Tylenchida: Heteroderidae) in Algeria" Pathogens 10, no. 2: 216. https://doi.org/10.3390/pathogens10020216
APA StyleDjebroune, A., Chakali, G., de Andrade, E., Camacho, M. J., Rusinque, L., & Inácio, M. L. (2021). Integrative Morphometric and Molecular Approach to Update the Impact and Distribution of Potato Cyst Nematodes Globodera rostochiensis and Globodera pallida (Tylenchida: Heteroderidae) in Algeria. Pathogens, 10(2), 216. https://doi.org/10.3390/pathogens10020216
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
