Effect of Impinging Jet Ventilation System Geometry and Location on Thermal Comfort Achievements and Flow Characteristics

Abstract

Impinging jet ventilation (IJV) systems have attracted significant attention due to their potential to augment indoor thermal comfort and airflow distribution. Previous studies have primarily investigated corner and mid-wall IJV installations; however, comparative analyses focusing on different diffuser geometries remain limited. Accordingly, this study examines the combined effects of IJV diffuser geometry and installation location on thermal comfort indices and airflow characteristics. A full three-dimensional computational fluid dynamics (CFD) model, without the use of symmetry, is developed to simulate a realistic office environment (3 × 3 × 2.9 m³), operating in cooling mode under hot summer climatic conditions. Three IJV diffuser cross-section geometries—triangular, square, and circular—are evaluated at four installation locations (two corners and two mid-wall positions), assuming a fixed occupant location. A combined return and exhaust outlet configuration is adopted. The results indicate that the IJV location influences airflow and temperature distributions more strongly than the diffuser geometry. Nevertheless, the circular diffuser exhibits superior performance compared to the triangular and square geometries. The mid-wall location placed behind the occupant and away from the hot exterior wall demonstrates reduced thermal stratification, improved airflow characteristics, and weaker vortex formation, making it the most favorable configuration. From an architectural perspective, these findings highlight the importance of early coordination between ventilation design and office spatial planning, as diffuser placement directly influences occupant comfort zones and furniture layout. Moreover, the preference for mid-wall installations supports a more flexible façade design and allows for greater freedom in organizing workspaces without compromising thermal performance.

1. Introduction

People spend a considerable proportion of their time indoors; therefore, indoor air quality (IAQ) is a key factor influencing occupants’ health, comfort, and productivity. Ventilation system design plays a decisive role in determining IAQ performance. Ventilation strategies are commonly classified by researchers and practitioners, according to their operational characteristics and application domains. However, achieving both energy-efficient operation and a healthy indoor environment remains a major challenge in ventilation system design. To address these requirements, Karimipanah and Awbi [1] recommended impinging jet ventilation (IJV) as a novel ventilation strategy that is suitable for offices, classrooms, and industrial buildings. The fundamental behavior of IJV systems was subsequently investigated by Awbi [2], Rohdin and Moshfegh [3], Varodompun [4], and Chen et al. [5].

In an IJV system, a high-momentum air jet is supplied at a specific altitude, impinges on the floor, and spreads radially, forming a thin airflow layer that distributes fresh air across the occupied zone. This concept retains the advantages of displacement ventilation (DV), also known as sidewall ventilation, while overcoming its primary limitation: low supply momentum. DV systems are well known for their high ventilation effectiveness, based on thermal stratification principles [6,7]. In contrast, the higher momentum of the impinging jet enables the supplied air to overcome buoyancy forces generated by internal heat sources, thereby improving air distribution within the working zone.

Chen et al. [8] investigated the influence of supply diffuser geometry on IJV performance at a discharge height of 0.6 m under isothermal conditions and demonstrated that diffuser configuration significantly affects near-floor airflow patterns. Varodompun and Navvab [9] further examined the effects of heat load and supply outlet area. Prior studies by Karimipanah and Awbi [1] and Chen et al. [8] reported that jet decline and temperature distribution are moderately influenced by discharge height; however, the impact on IAQ and thermal comfort was found to be more substantial. Consequently, discharge heights of approximately 0.4 m above the floor have been widely recommended [10,11].

The airflow and thermal behavior of office spaces equipped with IJV under different heat loads were studied by Chen et al. [12]. Their work also evaluated the combined use of IJV and chilled ceiling systems, showing that enhanced entrainment reduces temperature stratification. Similarly, Cehlin et al. [13] assessed airflow effectiveness in offices using IJV with cooled ceilings, under cooling conditions. Staveckis and Borodinecs [10] analyzed IJV performance under various climatic conditions, occupant postures, and diffuser geometries, concluding that IJV is suitable for both cooling and heating and provides advanced ventilation efficiency compared to mixing ventilation. More recently, Zhang et al. [14] proposed the application of IJV in automotive cabins and demonstrated a significant reduction in suspended coughing droplets, using a physiological thermal comfort model. Duan et al. [15] introduced sinusoidal impinging jet ventilation (SIJV), reporting improved thermal comfort and energy efficiency, with energy savings of approximately 7% compared to steady airflow and 52.8% compared to intermittent airflow.

Numerous CFD studies have investigated the selection of turbulence models for IJV simulations. Commonly used models comprise the standard k–ε, RNG k–ε, realizable k–ε, and SST k–ω models [8,12,16,17,18,19], all of which have shown a reasonable predictive capability for impinging jet flow and thermal fields. Based on recent comprehensive reviews by Ameen et al. [20,21] and Yang et al. [22], the RNG k–ε model has been recommended as the most appropriate option due to its superior agreement with the experimental data.

Most existing IJV studies have focused on centrally located wall-mounted supply terminals, while corner-mounted configurations have also been widely investigated [20,21,23]. However, detailed investigations addressing the influence of IJV installation location on thermal comfort and IAQ remain limited. Yamasawa et al. [24] compared center- and corner-mounted IJV configurations, reporting improved cooling and ventilation performance for mid-wall installations, although with limited detail. Almohammadi et al. [25] recently examined the effect of different IJV locations on energy performance and thermal comfort in office buildings; however, their analysis was restricted to circular diffuser geometries. Their results indicated that mid-wall IJV placement behind the seated occupant and away from the external hot wall minimizes vortex formation in the occupied zone and offers improved comfort and energy-saving potential.

Based on the reviewed literature and to the best of the authors’ knowledge, few studies have systematically examined the combined effects of IJV diffuser geometry and installation location on airflow characteristics, thermal comfort, and IAQ. Therefore, the present study aims to investigate different IJV cross-section geometries installed at representative corner and mid-wall locations, using a combined return and exhaust outlet. The outcomes of this work are presumed to provide useful guidance for HVAC designers and contribute to the optimization of IJV applications in office environments. To further strengthen the originality and novelty of the present work,

Table 1. Literature summary and present work novelty.

Ref.	Type of Investigation	IJV Location/Geometry	Return/Exhaust Combination	Studying Influence on
				Thermal Indices	Flow Characteristics	IAQ
Yamasawa et al. [24]	CFD/Exp.	Corners–Mid-walls/Circular	Combined	Yes	No	Yes
Ameen et al. [20]	CFD/Exp.	Corners/Triangle–Square–Quadrant	Combined	No	Yes	No
Ameen et al. [21]	CFD/Exp.	Corners/Triangle	Combined	Yes	No	Yes
Almohammadi et al. [25]	CFD/Exp. validation	Corners–Mid-walls/Circular	Separated	Yes	Yes	Yes
Present study	CFD/Exp. validation	Corners–Mid-walls/Circular–Triangle–Square	Combined	Yes	Yes	Yes

Exp.: Experimental and IAQ: indoor air quality.

demonstrates the novelty of the present study with comparison to the most related works from the literature. From an architectural perspective, the findings also support informed integration of ventilation components into office layouts, enabling flexible spatial planning without compromising indoor environmental quality.

2. Methods and Setup

2.1. Physical Model

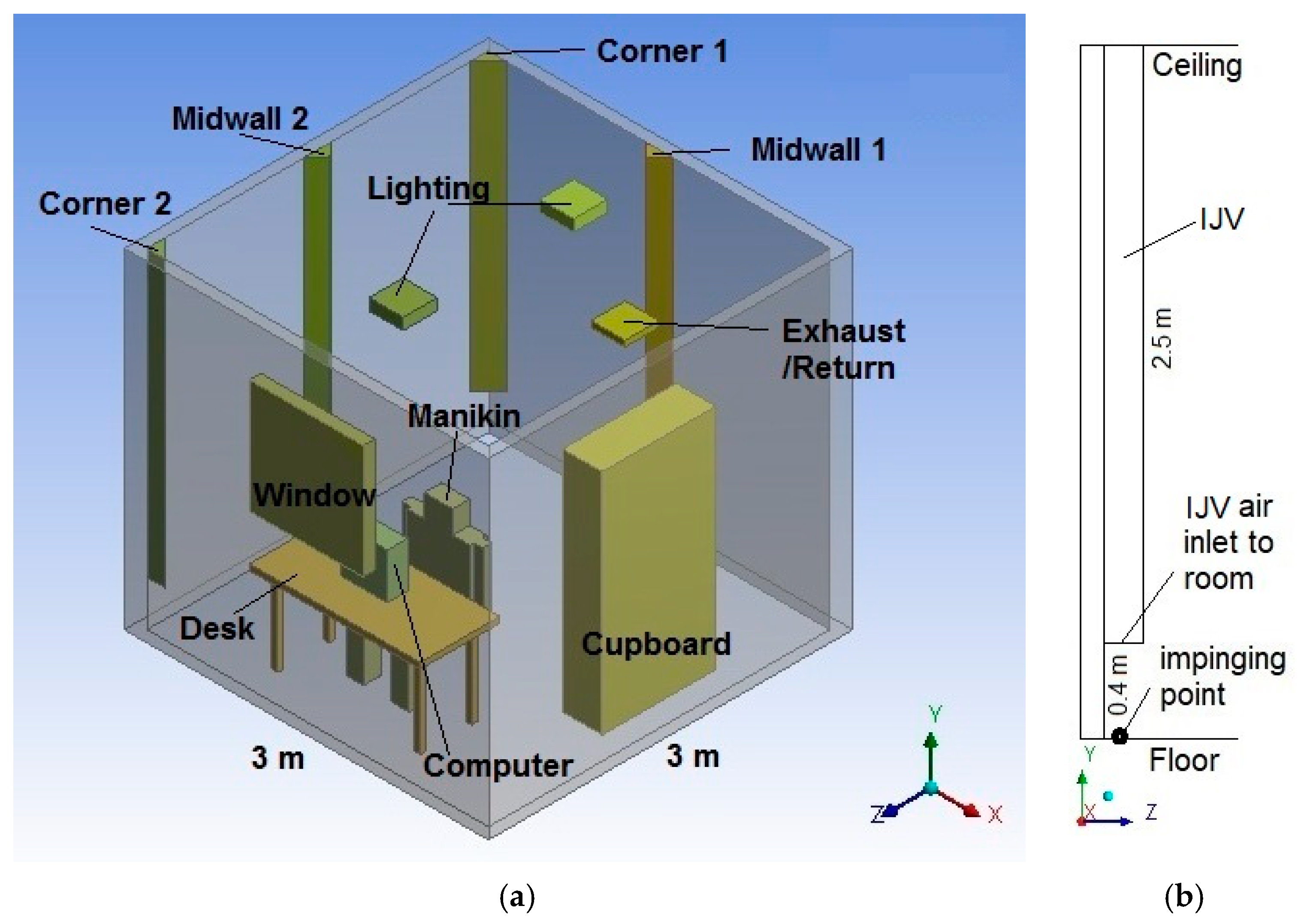

The CFD simulations were conducted for a compact office room with a floor dimension of 3 m × 3 m and a total height of 2.9 m, as shown in Figure 1a,b. The computational domain represents a realistic office environment, containing a single workstation occupied by a seated thermal manikin and equipped with typical furnishings, including a chair, desk, personal computer, and cupboard. Two ceiling-mounted light fixtures were incorporated into the model. One exterior wall includes a glazed window with an area of 1 m² and an assumed transmittance coefficient of 0.5, while the remaining internal surfaces, comprising the floor, ceiling, and other walls, are adjacent to conditioned spaces and were therefore assumed to be maintained at steady thermal conditions. All walls were modeled as brick structures with a uniform thickness of 10 cm.

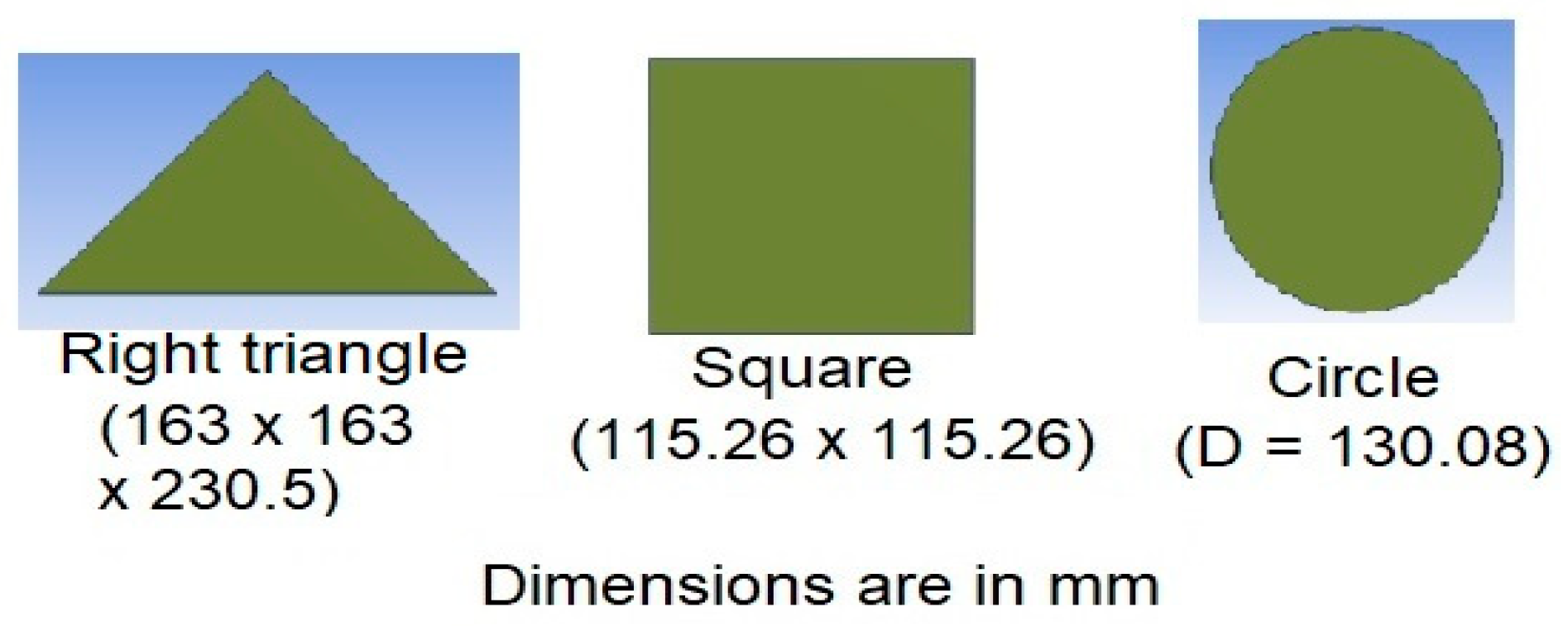

The IJV air supply terminal was positioned at a height of 0.4 m above the floor, in accordance with the recommendations reported in the literature [10,11]. Four IJV installation locations were considered, taking into account both functional performance and interior layout considerations: two corner positions and two mid-wall positions, relative to a fixed occupant location. These configurations included corner 1 (behind the manikin), corner 2 (in front of the manikin), mid-wall 1 (behind the manikin), and mid-wall 2 (to the right of the manikin). Three diffuser cross-sectional geometries with identical flow areas were evaluated, as depicted in Figure 2: a right triangular section (163 × 163 × 230.5 mm³), a square section (115 × 115 mm²), and a circular section with a diameter of 130.08 mm. For the triangular diffuser installed at the mid-wall position, the geometry was oriented such that its hypotenuse faced the room wall to maintain a visually acceptable interior appearance.

The exhaust and return air grilles were combined into a single outlet, located at the center of the ceiling, near the opposite wall, following the configuration reported in [26]. The primary objective of the present CFD investigation was to evaluate the combined influence of IJV installation location and diffuser cross-sectional geometry on airflow behavior and indoor thermal comfort performance. In total, twelve simulation cases were defined and analyzed, with detailed operating conditions briefed in

Table 2. Simulation specifications.

Simulation No.	IJV Specifications (Location/Shape)	Simulation No.	IJV Specifications (Location/Shape)
1	Corner 1/Triangle	7	Mid-Wall 1/Triangle
2	Corner 1/Square	8	Mid-Wall 1/Square
3	Corner 1/Circle	9	Mid-Wall 1/Circle
4	Corner 2/Triangle	10	Mid-Wall 2/Triangle
5	Corner 2/Square	11	Mid-Wall 2/Square
6	Corner 2/Circle	12	Mid-Wall 2/Circle

.

2.2. Boundary Conditions

The previously investigated office space was evaluated under summer operating conditions that were representative of hot outdoor climates. The external environment was defined by a dry-bulb temperature of 38 °C and a solar heat flux of 700 W/m² incident on the exterior façade. Under these conditions, mechanical cooling was required to maintain acceptable indoor thermal comfort. The supply air delivered by the IJV system was kept at a constant dry-bulb temperature of 20 °C, with a volumetric flow rate of 75 m³/h. At the same time, different diffuser locations and cross-sectional geometries were examined, as summarized previously in Table 2.

The selected supply air temperature was determined through a series of preliminary trials based on the specified outdoor conditions and internal heat gains, to achieve an appropriate average operative temperature while minimizing the cooling energy demand. In this study, the target indoor operative temperature was maintained within the range of 24–26 °C at a relative humidity of 50%, in accordance with ASHRAE Standard 55 [27]. The air supply flow rate is set at 75 m³/h. It is worth confirming that the selected air supply temperature and flow rate typically align with practice in reality for the studied room size and conditions in hot climates. A comprehensive overview of the operating conditions used in the simulations is presented in

Table 3. Room conditions.

Parameter	Values
Air supply temperature	20 °C (dry bulb)
Air supply flow rate	75 m3/h
Operative temperature	24–26 °C
Relative humidity	50%
Outdoor ambient temperature	38 °C (dry bulb)
Solar heat flux intensity	700 W/m2

. The exterior surface of the wall containing the window was supposed to be maintained at a constant temperature that was representative of outdoor conditions, while the other five internal boundaries, comprising the floor and ceiling, were treated as adiabatic, with no heat transfer to adjacent spaces. Air removal from the room was modeled using a pressure outlet boundary condition set to zero-gauge pressure. The internal heat gains, summarized in

Table 4. Room internal heat loads.

Source of Heat	Heat Load in W
Manikin	125
Lighting	2 × 50
Computer	60
Net	285

, included contributions from the thermal manikin (125 W), two lighting fixtures (100 W), and a personal computer (60 W), yielding a total internal heat load of 285 W.

2.3. Selection of Turbulence Model and Governing Equations

Guided by recommendations from the reviewed literature on turbulence model selection, this study adopts the Reynolds-averaged Navier–Stokes (RANS) framework, combined with the RNG k–ε two-equation turbulence model. All numerical simulations were carried out using the ANSYS CFX R18.0 solver [28], in which the conservation equations of mass, momentum, and energy were solved to predict the airflow and temperature distributions within the computational domain. Buoyancy effects were accounted for in the momentum equations through the Boussinesq approximation.

The simulations were performed under the assumption of three-dimensional, steady-state, incompressible, and turbulent flow conditions. Detailed formulations of the governing equations and the turbulence modeling approach are available in Karali et al. [29], the ANSYS CFX R18.0 documentation [28], and Ameen et al. [20,30]. Radiative heat transfer was modeled using the discrete transfer radiation model, while pressure–velocity coupling was achieved using the SIMPLE algorithm. Second-order upwind discretization schemes were applied to the pressure, momentum, turbulent kinetic energy, and dissipation of turbulence equations.

Solution convergence was monitored using root-mean-square (RMS) residuals, with convergence thresholds set to ${10}^{-4}$ for the energy equation and ${10}^{-6}$ for all other variables. To accurately represent the full-scale office environment, all simulations were conducted without imposing symmetry boundary conditions.

2.4. Grid Generation and Independence Validation

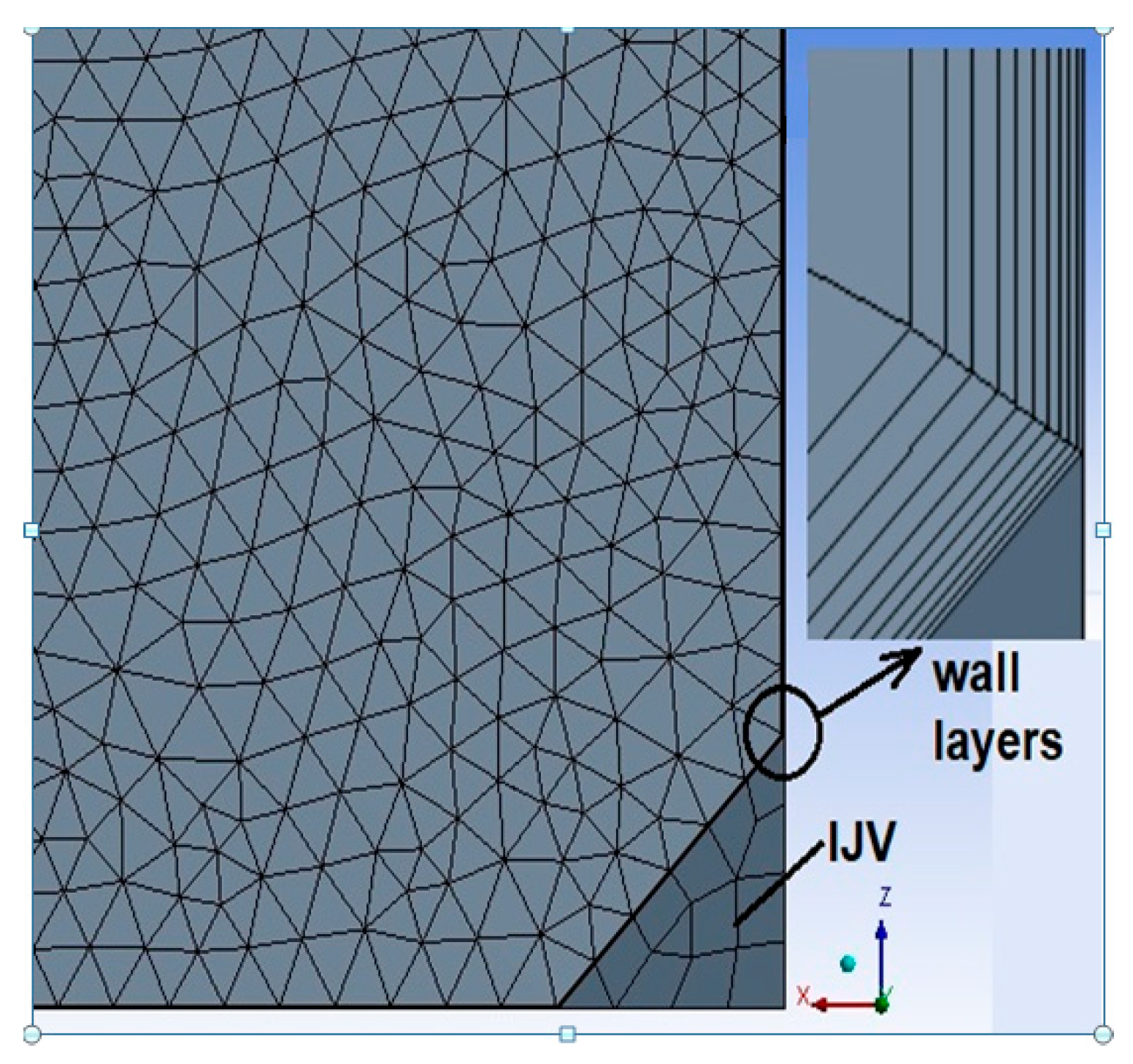

In this CFD investigation, a non-uniform mesh distribution was generated using ANSYS ICEM CFD R18.0 [28]. Local mesh refinement was applied in regions of high flow gradients, particularly near the air supply inlet, room boundaries, and internal objects. Inflation layers were introduced along solid surfaces to accurately capture near-wall flow behavior, utilizing ten prism layers with an initial layer thickness of 0.08 mm and a growth rate of 1.2. The overall mesh structure of the computational domain is illustrated in Figure 3, including detailed views of the corner IJV region and the near-wall boundary layers.

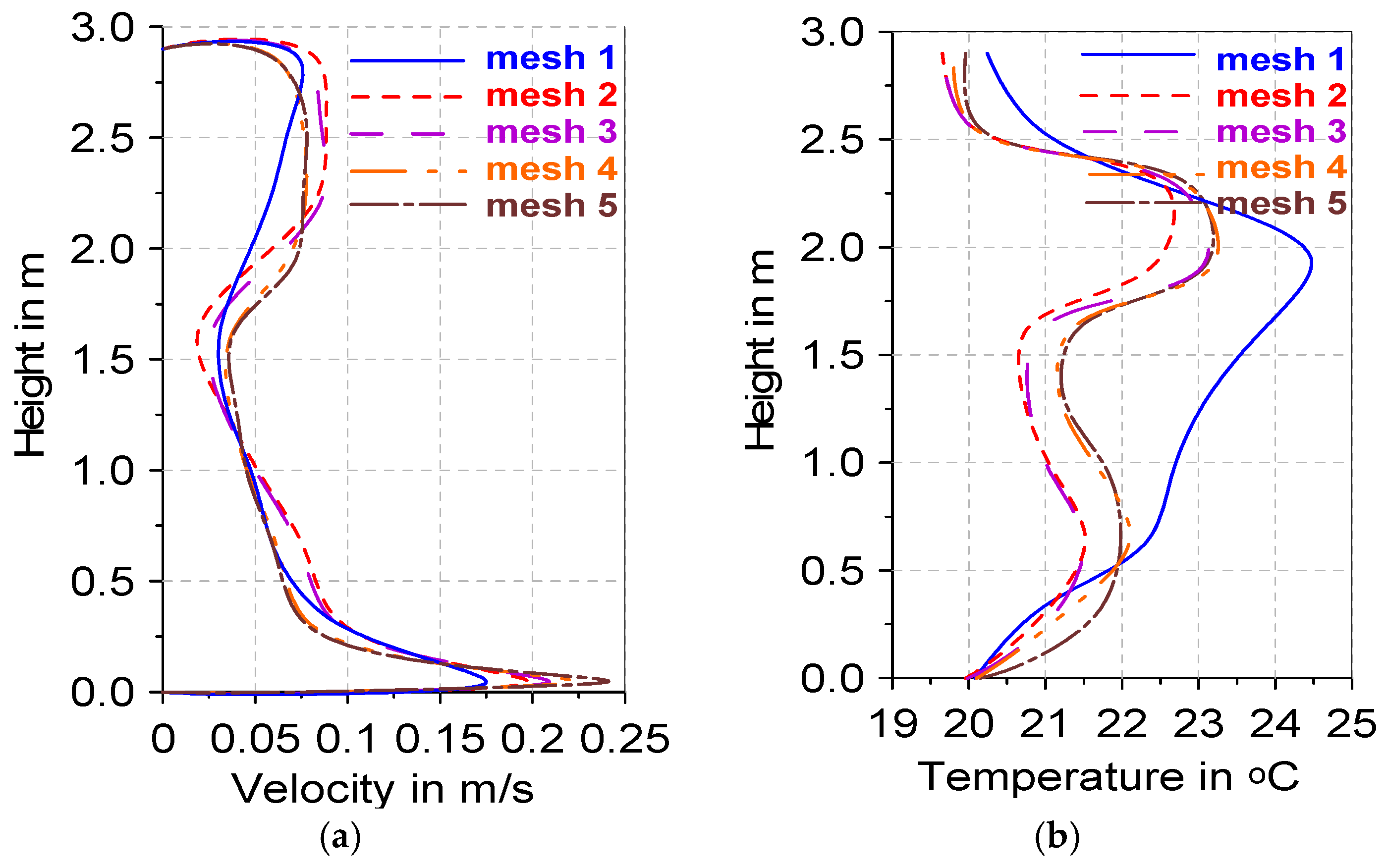

A grid independence analysis was conducted to verify an appropriate mesh resolution. Five different mesh densities were generated and evaluated, consisting of 329,316; 1,218,816; 2,042,846; 3,860,062; and 8,814,368 elements. The assessment criterion was based on comparing airflow velocity and temperature profiles measured along a vertical centerline from floor to ceiling within the room. The resulting velocity and temperature distributions for the tested meshes are presented in Figure 4. Among the evaluated cases, mesh 4 exhibited the smallest deviation relative to finer meshes, while maintaining reasonable computational cost. Consequently, mesh 4, comprising approximately 3.86 million elements, was selected for all subsequent simulations.

2.5. Model Validation with Experiments

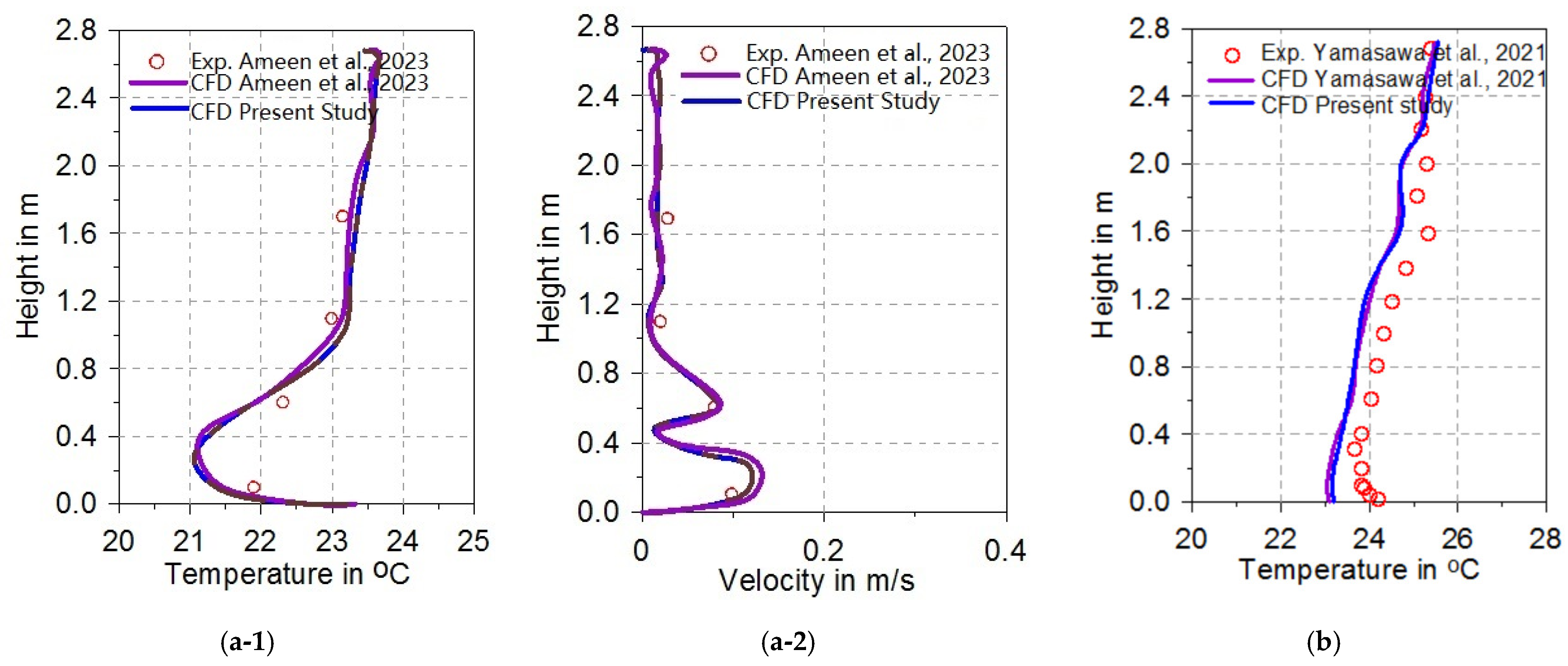

The numerical model developed in the present study was first validated against available experimental data reported by Ameen et al. [21]. In their experimental investigation, two triangular IJV supply ducts were installed at the room corner, each having an inlet cross-sectional area of 0.0133 m² and dimensions of 163 mm × 163 mm × 231 mm. The supplied air temperature was maintained at 17 °C, with an airflow rate of 10 L/s per inlet, resulting in a total supply rate of 20 L/s. The experimental setup assumed an outdoor ambient temperature of 20 °C, while all interior walls were treated as adiabatic. The exhaust outlet was placed at the ceiling near the wall opposite the supply inlets. Thermal manikins representing seated occupants were employed in the experiment, each having a surface area equivalent to that of a human body and generating a metabolic heat output of 100 W. In addition, two enclosures containing halogen lamps were used to simulate internal heat gains, with each lamp producing 75 W, and were placed adjacent to the desks. Model validation was achieved by handling the RNG k–ε turbulence model, and comparisons were conducted at the room centerline, where experimental measurements were available.

However, for further generalization and reliability from the developed CFD model, it is secondly validated with the experimental findings by Yamasawa et al. [24]. As Yamasawa et al. [24] worked on different IJV cross-section geometries and locations from those used by Ameen et al. [21]. In Yamasawa et al. [24], two circular IJV supply ducts were installed at two mid-wall locations with a diameter of 0.15 m. The supplied air temperature was maintained at 17.5 °C, and the total supply air flow rate was 240 m³/h, which was assumed to be 100% fresh. The exhaust opening was in the middle of the ceiling. Model validation was performed using the RNG k–ε model, and comparisons were conducted at the room centerline, where experimental measurements were available (point B in Figure 1 [24]). Figure 5(a-1,a-2),b presents a comparison between the experimental data registered by Ameen et al. [21] and Yamasawa et al. [24], respectively, and the numerical predictions obtained from the present CFD model. The results demonstrate good agreement between the simulated and determined temperature and velocity profiles that are available, confirming the consistency of the adopted modeling approach.

3. Quantification of Thermal Comfort Indices

Thermal comfort performance in the present study was quantified using a set of established comfort-related indices, which are described in the following sections. The assessment was concentrated on the local occupied zone, defined as a 1 m² area surrounding the seated thermal manikin, representing the primary working region of the occupant. To capture the vertical variations in airflow and temperature within this zone, eleven horizontal sampling planes were defined at heights of 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, and 1.1 m above the floor. For each plane, spatially average air temperature and velocity values were extracted from the CFD results. These average quantities were then used as representative inputs for calculating all subsequent thermal comfort indices. This approach enabled a detailed evaluation of the vertical distribution of thermal conditions within the occupied zone, ensuring that the computed comfort metrics accurately reflected the thermal environment experienced by the occupant during seated activity.

3.1. Vertical Temperature Difference

The vertical temperature gradient between the head and ankle regions is a significant factor in assessing local thermal comfort. Per ASHRAE Standard 55-2020 [27], the air temperature differential between the ankle level of a seated individual (0.1 m above the floor) and the head level (1.1 m above the floor) must not surpass 3 °C. The vertical temperature gradient is determined using the following equation:

$$\Delta T_{Head-Ankel}=T_{1.1}-T_{0.1}$$

(1)

Assessment of this parameter is particularly important due to the natural tendency of air stratification to be associated with impinging jet ventilation systems. In contrast to mixed ventilation systems, which typically produce more uniform temperature distributions, especially during cooling operation, IJV systems often generate more pronounced vertical thermal gradients within the occupied zone [31].

3.2. Draught Rate (DR)

The draught rate (DR) is another important index used to quantify the level of discomfort experienced by occupants due to unintended local cooling effects. This index estimates the percentage of occupants who are likely to feel dissatisfied due to air drafts. The DR depends on local air velocity, air temperature, and turbulence intensity. Its formulation is provided in ISO 7730-2025 [32] and is also reported in ref. [12].

$$\begin{array}{l}DR=(34-T)\cdot {(u-0.05)}^{0.62}\cdot (3.14+0.37\cdot u\cdot I_l)\\ For u<0.05 \mathrm{m}/\mathrm{s} use u=0.05 \mathrm{m}/\mathrm{s}\\ For DR>100\% take DR=100\%\end{array}$$

(2)

where T represents the local air temperature, u denotes the mean air velocity, and I—the local turbulence intensity, which can be expressed as follows [12]:

$$I_l={\displaystyle \frac{100{(2 k)}^{0.5}}{u}}$$

(3)

$k$ is turbulent kinetic energy (TKE).

ISO 7730-2025 [32] organizes indoor environments, based on DR, into three quality categories. Category A corresponds to DR < 10%, category B to DR < 20%, and category C to DR < 30%. In the present study, the draught rate was evaluated at the ankle level (0.1 m above the floor), where occupants are most sensitive to airflow-induced discomfort.

3.3. PMV and PPD

The predicted mean vote (PMV) index is a commonly used indicator for assessing the overall thermal comfort in indoor environments. The PMV model combines several environmental and personal parameters, including air temperature, mean radiant temperature, air velocity, relative humidity, metabolic rate, and clothing insulation, to estimate the thermal sensation perceived by occupants. According to ASHRAE Standard 55-2020 [27], PMV is defined on a numerical scale from −3 (cold) to +3 (hot), where a value of zero represents thermal neutrality, and acceptable thermal comfort is achieved when PMV values are close to zero. For seated occupants, PMV is typically evaluated at a height of 1.1 m above the floor, corresponding to head level. In the present study, PMV calculations were conducted, assuming a metabolic rate of 1.0 MET, which is representative of sedentary office work, and a clothing insulation level of 0.5 CLO, while the relative humidity was maintained at 50% for all simulated cases. In addition, the predicted percentage of dissatisfied (PPD) index was used to estimate the proportion of occupants who were likely to experience thermal discomfort due to deviations from neutral conditions. A PPD value of 5% corresponds to optimal comfort conditions (PMV = 0), while higher PPD values indicate increasing levels of thermal dissatisfaction. The PPD is calculated as a function of PMV, using the following expression [26]:

$$PPD=100-95\cdot Exp-\left(0.03353\cdot PM{V}^4+0.2179\cdot PM{V}^2\right) in \%$$

(4)

Following the extraction of required inputs, including mean radiant temperature [21], horizontally averaged air temperature and velocity, and the prescribed MET and CLO values, the PMV and PPD values were determined. PMV was computed using the online thermal comfort calculator (Quadco Engineering PV [33]), while PPD was calculated directly, using Equation (4).

3.4. Mean Age of Air and Air Change Effectiveness

The air quality in an IJV is essentially assessed by calculating the average age of the air and measuring the efficacy of air changes (ACE). The local average age of air refers to the typical duration it takes for air to travel from the entrance of the supply inlet to a particular position inside the ventilated area. The following is the equation utilized to calculate the average age of air [34,35].

$${\displaystyle \frac{\partial }{\partial x_i}} \left(\rho u_i\tau \right)={\displaystyle \frac{\partial }{\partial x_i}}\cdot \left[\left(2.88 \rho \cdot {10}^{-5}+{\displaystyle \frac{{\mu }_{eff}}{S{c}_{\tau }}}\right)\cdot {\displaystyle \frac{\partial \tau }{\partial x_i}}\right]+S_{\tau }$$

(5)

where μ_eff denotes the effective turbulent viscosity of air, τ represents the local age of air, and Sc_τ is the turbulent Schmidt number for the age of air, assumed to be 0.7. The source term S_τ was assigned a constant value of 1.0. The air change effectiveness (ACE) was utilized to evaluate the efficiency of fresh air distribution within the occupied zone. ACE is defined as the ratio of the nominal air exchange time to the mean age of air in the working zone [36]:

$$ACE={\displaystyle \frac{{\tau }_n}{\tau }}$$

(6)

where τ and τ_n are expressed in seconds. The nominal time constant τ_n is given by the following:

$${\tau }_n={\displaystyle \frac{V_{room}}{q_i}}$$

(7)

where V_room is the volume of the room (m³) and q_i represents the supply airflow rate (m³/s). An ACE value of 1.0 indicates perfectly mixed indoor air conditioning. According to ASHRAE (1997) [37] and Fan et al. [36], a minimum ACE value of 0.95 is recommended to ensure acceptable indoor air quality. Higher ACE values indicate more effective ventilation performance and improved IAQ within the occupied zone.

4. Results and Discussions

This section presents and discusses the results acquired from the CFD simulations conducted in the present study, covering all investigated cases summarized in Table 2. The discussion is structured into two main parts to facilitate a comprehensive evaluation of the system performance. The first part focuses on analyzing thermal comfort indices to identify the IJV configurations that best comply with the recommended comfort criteria and relevant standards. These indices are used to assess the suitability of each configuration in providing acceptable thermal conditions within the occupied zone.

The second part examines the airflow behavior and thermal distribution within the room, emphasizing key flow characteristics such as vorticity isosurfaces, airflow streamlines, and temperature contour plots. These visual and quantitative analyses provide deeper insight into the underlying flow mechanisms associated with different IJV geometries and installation locations. Together, the combined assessment of thermal comfort performance and flow characteristics supports the final selection of the most effective IJV diffuser geometry and placement for office applications.

4.1. Thermal Comfort Indices and Draft Sensation

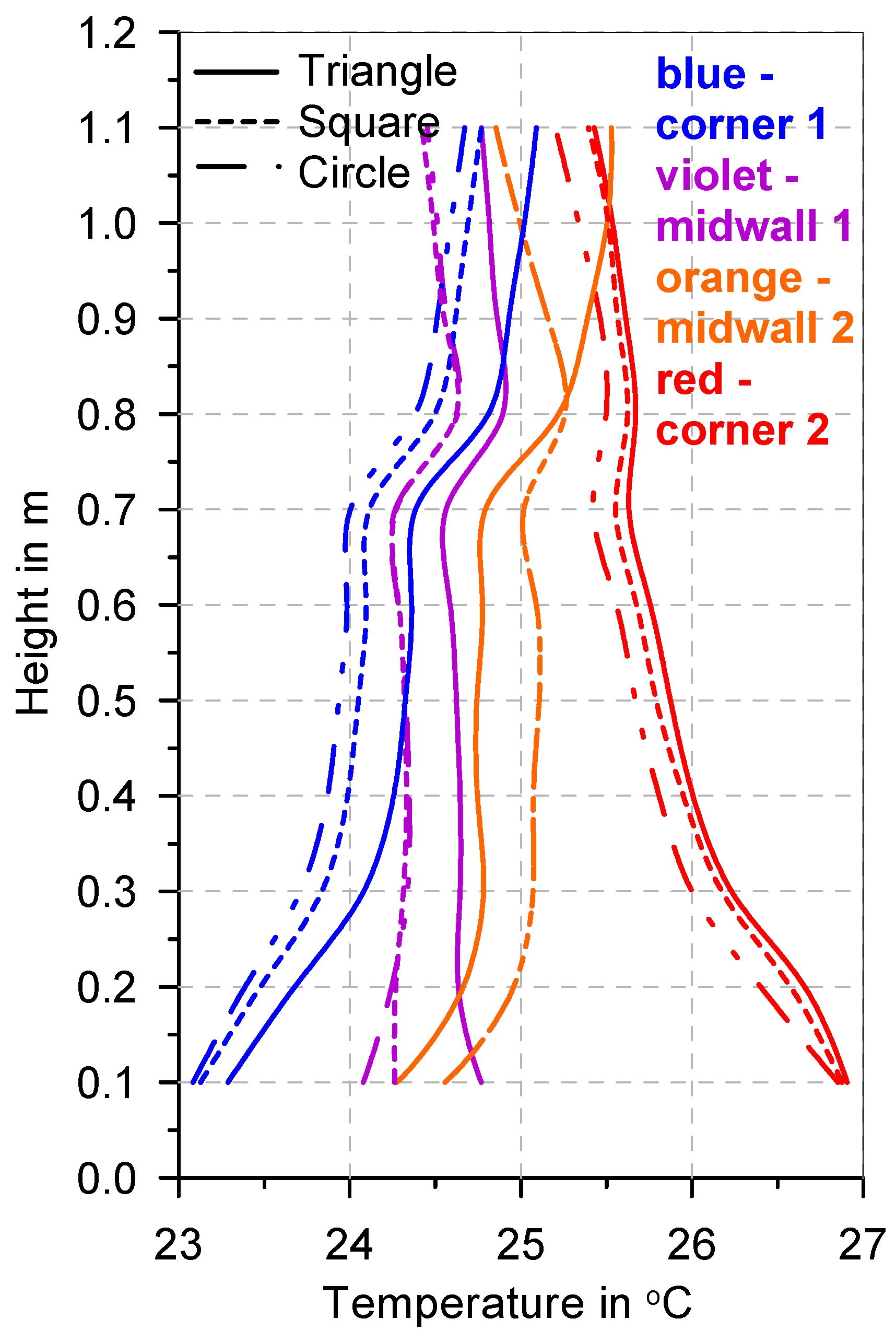

Figure 6 presents the vertically averaged air temperatures extracted from horizontal planes located between 0.1 m and 1.1 m above the floor within the local occupied zone for all simulated cases. As observed in Figure 6, the corner 1, mid-wall 1, and mid-wall 2 configurations exhibit a clear increase in air temperature with height, indicating the presence of vertical thermal stratification. However, the magnitude of this temperature rise progressively decreases as one moves from the corner 1 configuration to the mid-wall 1 case and further to the mid-wall 2 configuration, suggesting a gradual reduction in stratification intensity among these setups. This shift in temperature levels continues until an inverted trend is observed for the cases of corner 2. This implies that, under the prescribed conditions, the IJV location within the hot wall can invert the typically known thermal stratification for the cooling mode. This means sensing heat at the ankle level more intensely than at the head level. Hence, such behavior can be the first justification for rejecting such IJV locations in practice. The second observation from Figure 6 is that the circular cross-section of the IJV yields the lowest temperature measurements compared to the other geometrical shapes used: namely, the square and the triangle. It could be noticed from Figure 6 that the temperature increases from a height of 0.1 m to 1.1 m for the case of corner 1–square (simulation 2) from 23.2 °C to 24.7 °C. But for the case of corner 2–square (simulation 5), the temperature decreases from 26.8 °C to 25.5 °C, while very low differences are noticed for most cases of mid-wall 1 and mid-wall 2.

The degree of vertical thermal stratification can be further evaluated by calculating the absolute temperature difference between the head and ankle levels (1.1 m and 0.1 m above the floor), as illustrated in Figure 7. The figure also indicates the maximum allowable temperature difference of 3 °C, specified by ASHRAE Standard 55 [27]. The results show that, for all investigated cases, the observed temperature differences remain well below the prescribed limit, with values on the order of approximately 1 °C. These results are consistent with the previously reported findings on temperature stratification that are associated with impinging jet ventilation operating in cooling mode [12,31].

The evaluation of the draught rate (DR: Equation (2)) level at ankle level (H = 0.1 m) is illustrated in Figure 8. The results show that the DR levels for all studied cases were below the ISO 7730-2025 [32] limits for category A: that is, 10%. The results for corner 1 cases (simulations 1 to 3) showed the highest level of DR, with an average value of 9% (corner 1–square). As expected, the lowest DR at the ankle level is recorded for the cases of corner 2 (simulations 4–6), with an average value of 5.7% (corner 2–square). This is due to the relatively hot temperatures found at the ankle level in these cases, which decreases the dissatisfaction caused by cooling.

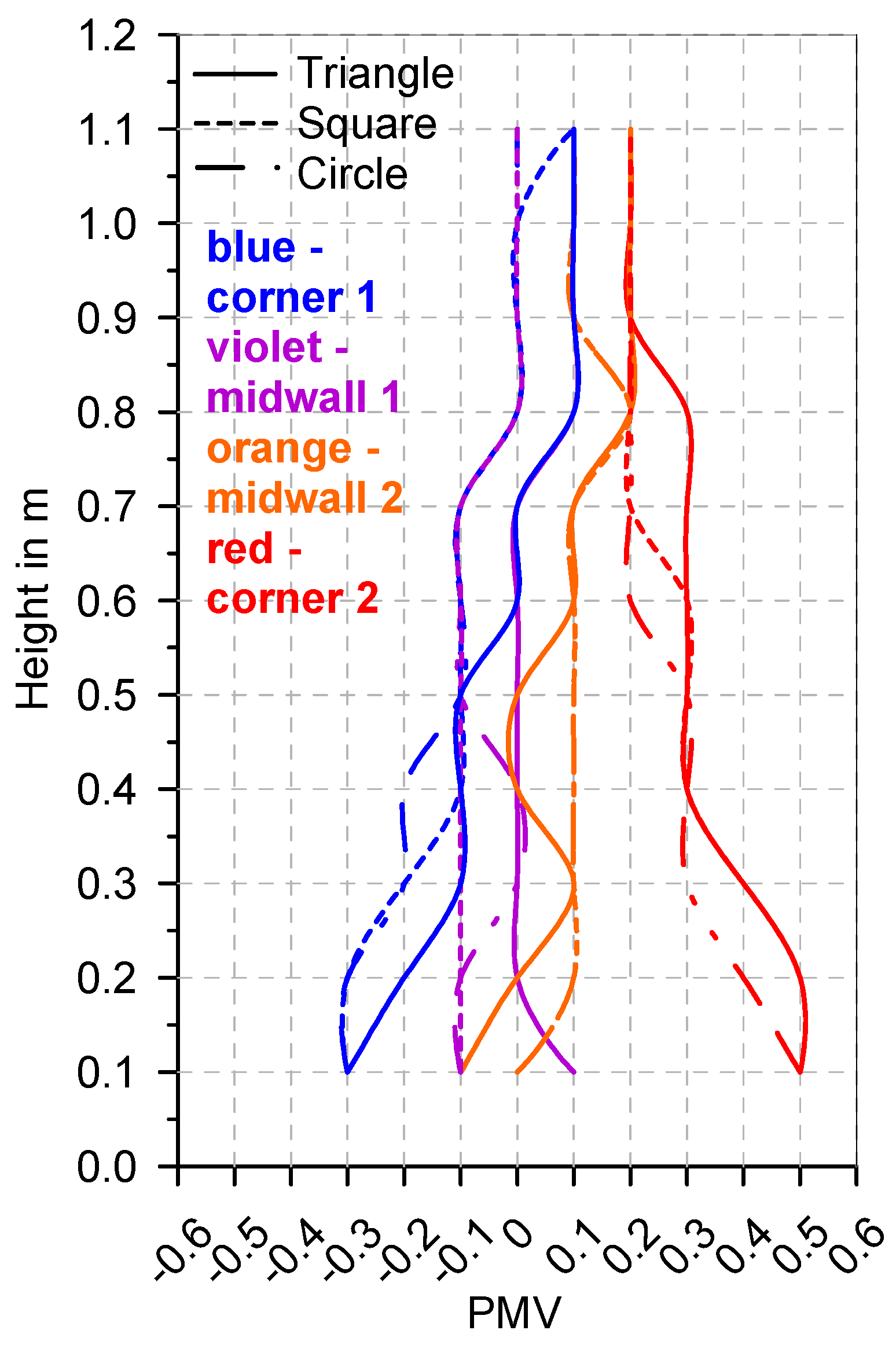

Figure 9 illustrates the variation in the predicted mean vote (PMV) along the vertical direction, from 0.1 m to 1.1 m above the floor, for all investigated cases. As shown in the figure, PMV values across all configurations fall within a range of approximately −0.32 to 0.53. According to ASHRAE Standard 55 [27], acceptable thermal comfort conditions are defined by a PMV interval of −0.5 to +0.5, indicating that nearly all simulated cases satisfy the recommended comfort criteria. The vertical PMV profiles perfectly reflect the influence of temperature stratification within the occupied zone, which is consistent with the temperature distributions presented earlier in Figure 6. At lower heights near the ankle level (H = 0.1 m), PMV values tend to be negative, indicating a slightly cool thermal sensation caused by the supply of cooler air near the floor: a characteristic behavior of impinging jet ventilation systems operating in cooling mode. An exception to this trend is observed for the corner 2 configuration, where higher PMV values are recorded near the floor, which is likely due to localized airflow interaction and reduced cooling effectiveness in that region. As the height increases, PMV values gradually rise and become positive, reflecting warmer thermal sensations near the upper occupied zone due to vertical thermal gradients. For more specific discussions, it is worth noting that, for all studied cases of corner 1 (colored by blue lines), the PMV reported values range from −0.32 to 0.1. As for the same location of corner 1, the circular geometry recorded the lowest value at the lower height levels (−0.32), while both circular and triangular geometries are competitive for the highest PMV value (+0.1) at higher height levels. Considering all cases of mid-wall 1 (colored by violet lines), the PMV reported values range from −0.12 to +0.1. As for the same location of mid-wall 1, the circular geometry recorded the lowest value at the lower height levels (−0.12), while the triangular geometry achieved the highest PMV value (+0.1) at higher height levels. The cases of mid-wall 2 (colored by orange lines) report PMV values between −0.1 and +0.2. As for the same location of mid-wall 2, the triangular geometry recorded the lowest value at the lower height levels (−0.1), while both the triangular and square geometries achieved the highest PMV value (+0.2) at higher height levels. The last cases of corner 2 (colored by red lines) report PMV values between +0.2 and +0.52, with the characterized inverted trend as described previously, which justified the possibility of its rejection among other studied locations. Generally, for the same location of corner 2, it can be observed that at lower height levels, the circular geometry yields lower PMV values compared to the other studied geometries, while all geometries exhibit nearly the same PMV value at higher height levels.

Based on the preceding detailed discussions on PMV trends, it could be deduced that, among all configurations, the mid-wall 1 location consistently exhibits the PMV values closest to thermal neutrality (PMV ≈ 0) across most heights. This behavior indicates a more balanced thermal environment and reduced vertical discomfort, making this configuration more favorable compared to corners and other mid-wall placements. The improved PMV distribution at this location can be attributed to more uniform airflow spreading and weaker stratification within the occupied zone.

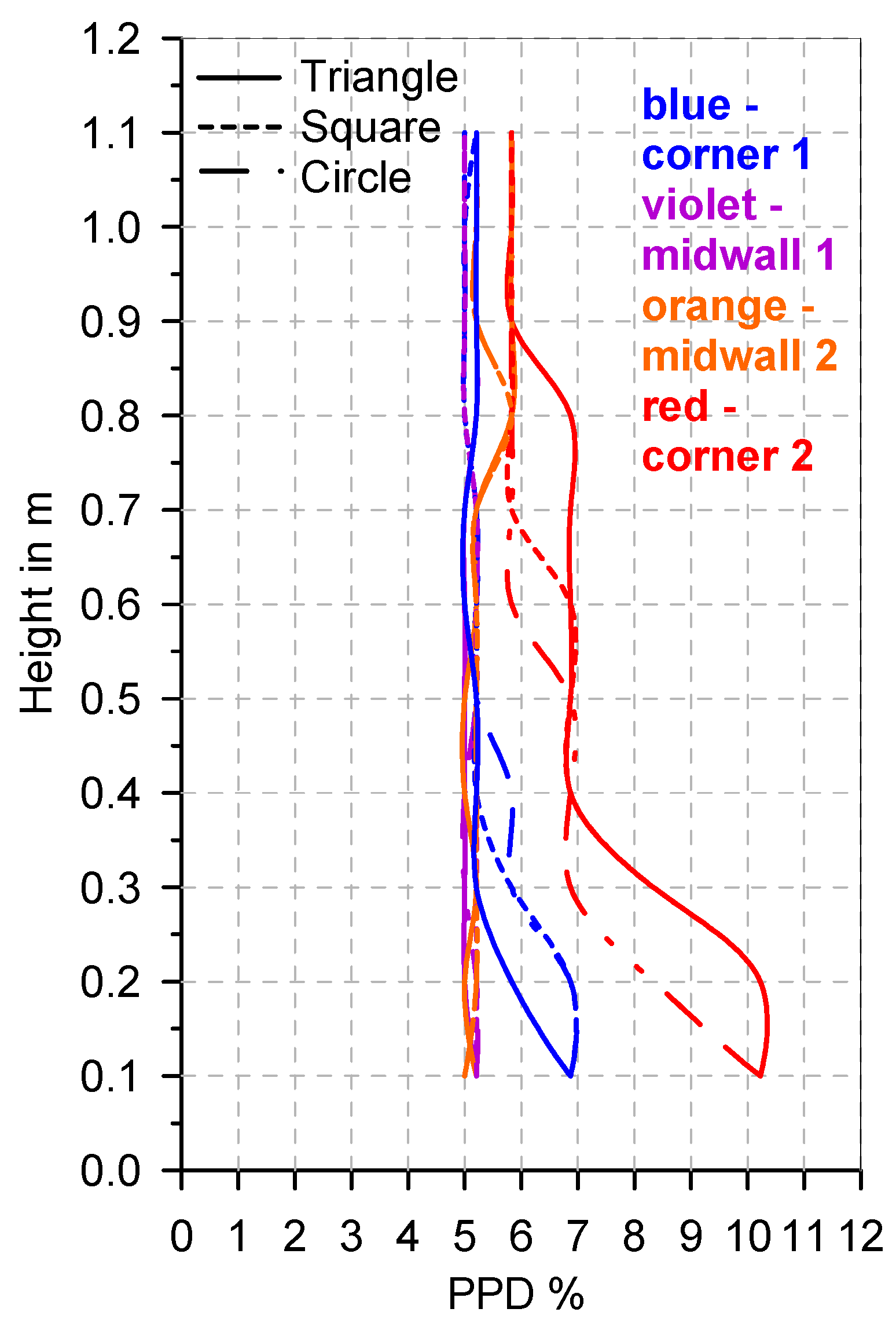

Figure 10 presents the predicted percentage of dissatisfied (PPD) profiles corresponding to the PMV results. The majority of the evaluated cases demonstrate PPD values below 10%, which complies with the ASHRAE-recommended threshold for acceptable thermal comfort [37]. Such values indicate that a high proportion of occupants would experience satisfactory thermal conditions under the investigated scenarios. However, an increase in PPD is observed at lower heights (H ≤ 0.4 m) in several cases, corresponding to higher air velocities and cooler temperatures near the floor. This localized increase in dissatisfaction highlights the sensitivity of occupants to airflow conditions in the lower part of the occupied zone, particularly in displacement- and impingement-based ventilation strategies.

Overall, the combined PMV and PPD analyses confirm that impinging jet ventilation can provide acceptable thermal comfort within office environments, while also emphasizing the importance of diffuser placement and airflow distribution in minimizing local discomfort and enhancing occupant satisfaction.

4.2. Indoor Air Quality Based on Air Change Effectiveness

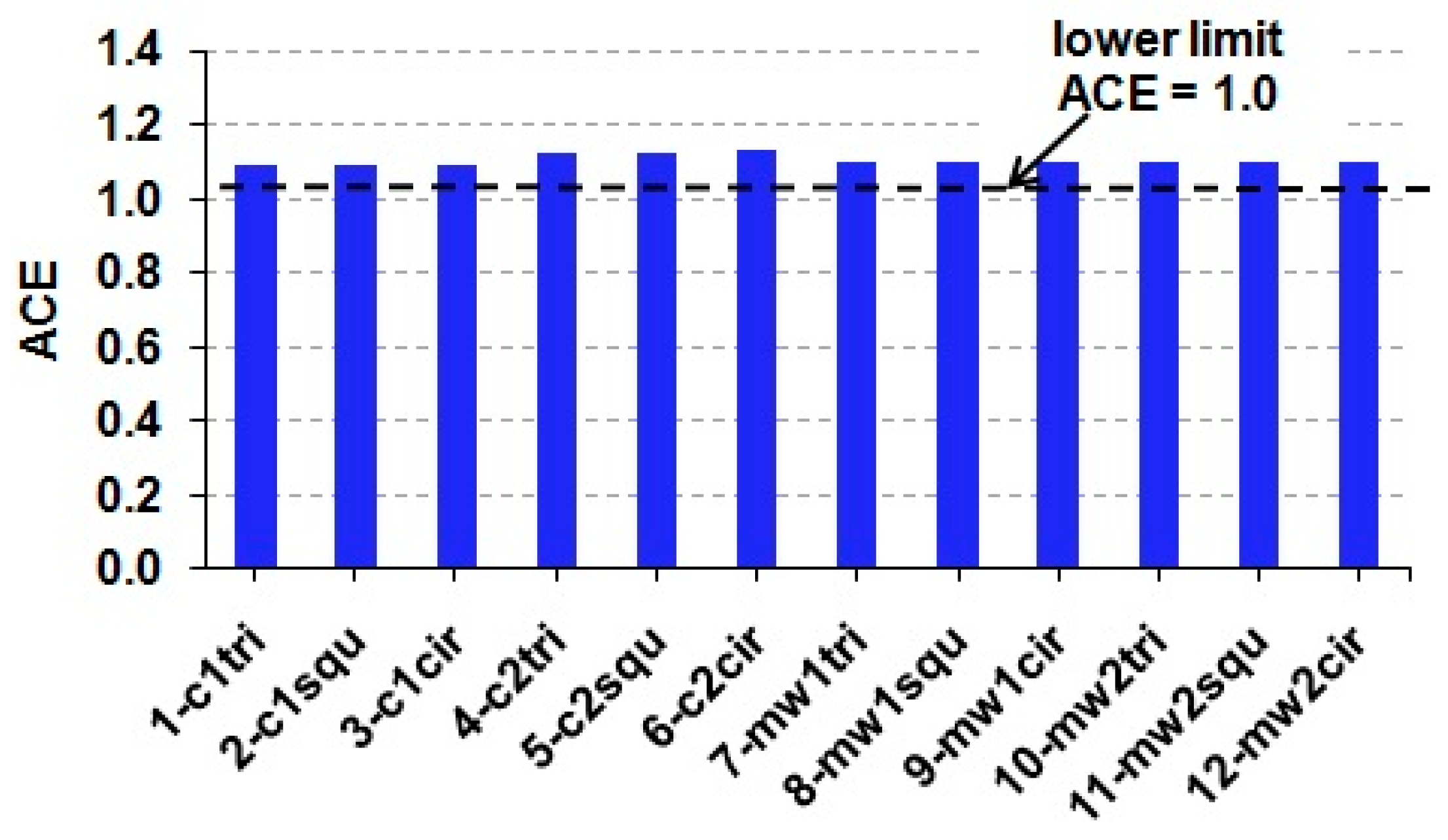

The air change effectiveness (ACE—Equation (6)) value at the head level (H = 1.1 m) for all instances examined is depicted in Figure 11. The ACE value findings are frequently found to be above the threshold of 1.0. This demonstrates the high efficiency of the IJV system in removing pollutants and providing fresh air at the head level. It is worth noting that studying the influence on other indoor air quality indices, such as contaminant transport, is an interesting area for future studies.

At the conclusion of this subsection, it can be noted that although all four investigated IJV installation locations and diffuser cross-sectional geometries demonstrate acceptable thermal performance within the occupied zone, their influence on overall thermal comfort indices remains relatively limited, as all cases fall within the recommended comfort thresholds. Nevertheless, noticeable differences are observed in the vertical temperature stratification profiles, particularly among the various IJV locations. These variations in stratification behavior provide a key basis for discriminating between the tested configurations.

Specifically, the corner 2 configuration, located adjacent to the exterior hot wall, exhibits less favorable thermal characteristics and is therefore not recommended for practical application. In contrast, the mid-wall 1 configuration consistently yields lower PMV values and reduced vertical thermal gradients, indicating a more uniform and comfortable thermal environment within the working zone. Additionally, the results suggest that the circular diffuser cross-section offers improved thermal performance compared to the triangular and square geometries. Further insights into the suitability of each configuration are gained through a detailed analysis of airflow patterns and flow structures, which are discussed in the following section to inform the final selection of the optimal IJV location and geometry.

4.3. Flow Characteristics, Streamlines, and Temperature Contours

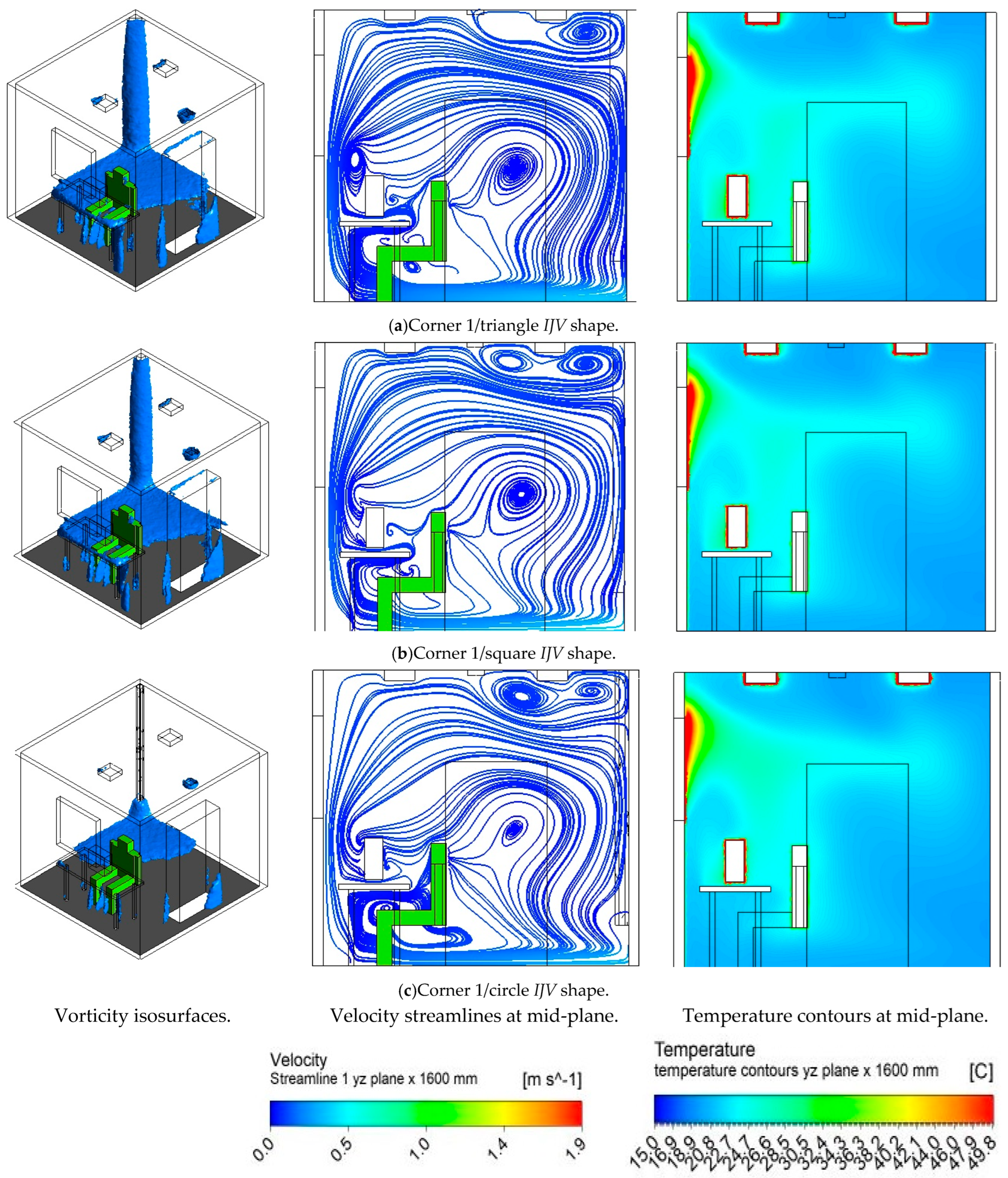

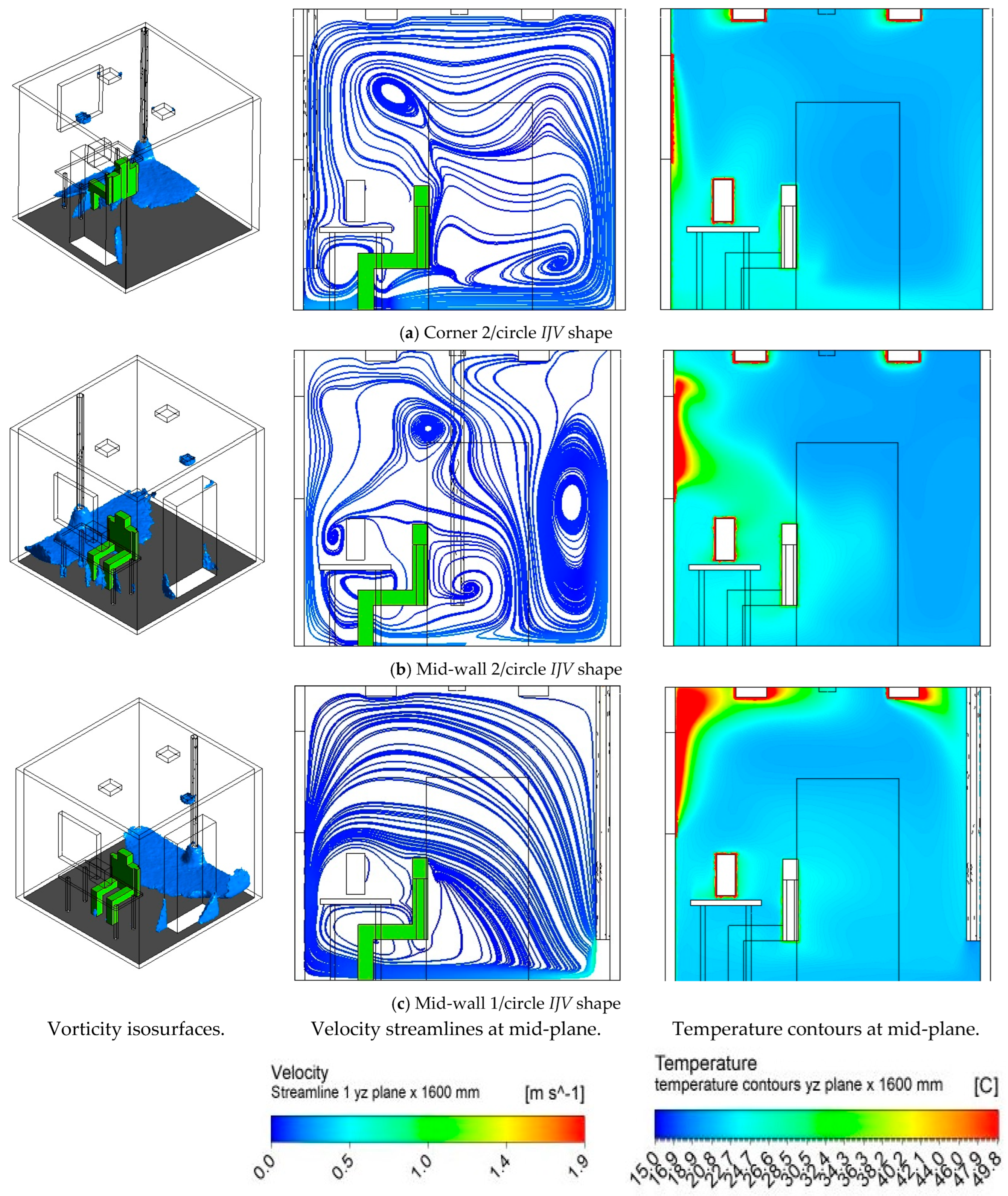

To study and compare the flow and temperature characteristics for different IJV cross-section geometrical shapes at the same IJV location, the three cases—triangle, square, and circle of corner 1 location as an example (simulations 1 to 3)—are selected here for presentation. Figure 12 shows the flow and temperature characteristics for the different geometries studied at the corner 1 location: (a) triangle, (b) square, and (c) circle, from left to right. On the left are isosurfaces of instantaneous vorticity (±0.07), colored by velocity magnitude; in the middle are streamlines at the room YZ midplane; and on the right are temperature contours at the room YZ midplane. The isosurfaces of instantaneous vorticity (±0.07) colored by velocity magnitude comparisons show comparable flow characteristics for the triangle and square cross sections. In contrast, limited enhanced flow characteristics are reported for the case of using the circular cross-section. This is also proven by comparing the streamlined photos at the room YZ midplane, where lower vortex intensity is observed for the use of a circle. At the same time, the temperature contours are found to be nearly identical for all cross sections used, as shown in the photos, confirming that the IJV cross-section shape has a lesser effect on the thermal stratifications. A similar conclusion is also found in previous research (Staveckis and Borodinecs [10]).

To study and compare the flow and temperature characteristics of different IJV locations—namely corner 1, corner 2, mid-wall 1, and mid-wall 2—the best cross-section geometry, which is the round one, is selected for presentation here. Figure 13 shows flow and temperature characteristics for only the circle cross-section geometry of different IJV locations—(a) corner 2, (b) mid-wall 2, and (c) mid-wall 1—while corner 1 can be observed from Figure 12c. From left to right: on the left are isosurfaces of instantaneous vorticity (±0.07), colored by velocity magnitude; in the middle are streamlines at the room YZ mid-plane; and on the right are temperature contours at the room YZ mid-plane. The results indicated the formation of a large vortex region behind the seated person for the case of the mid-wall 2 location (IJV, located in the mid-wall, right to the seated person). That can negatively affect the person’s comfort inside the room. In contrast, the mid-wall location (IJV in the mid-wall behind the person and far from the hot exterior wall) reports significantly enhanced flow characteristics. The same conclusion for enhanced temperature stratification inside the local working zone is noted for the case of the mid-wall 1 location when comparing the temperature contour photos, while much higher temperatures are found at the ankle level inside the working zone for the case of the corner 2 location. This confirms the odd trend of temperature stratification, as observed previously in Figure 6. Similar trends are also found in a few works available in the literature, although with limited information [24]. Further supporting the aforementioned deduced information and discussion from Figure 12 and Figure 13,

Table 5. Maximum vorticity swirl strength and averaged temperature inside the working zone for circular IJV cases.

Location	Max. Vorticity Swirl Strength (s−1)	Deviation (%)	Avg. Temperature (°C)	Deviation (%)
Mid-wall 2	0.471722	---	22.495	---
Corner 1	0.429991	−8.8465	22.774	1.2403
Mid-wall 1	0.309228	−34.447	21.814	−3.0273

is presented to list the maximum vorticity swirl strength and averaged temperature values inside the working zone for all circular IJV cases, while the corner 2 location is excluded due to its rejection, as previously discussed. It can be found from Table 5 that the lowest vorticity swirl strength (0.09228 s⁻¹) was reported by the mid-wall 1 location compared to both locations of corner 1 and mid-wall 2 with the highest swirl value of 0.471722 s⁻¹. Also, it is clearly shown that the mid-wall 1 location verifies the lowest average temperature inside the working zone within acceptable comfort levels (21.81 °C) compared to the other locations of corner 1 and mid-wall 2. As a result, it is strongly suggested that the mid-wall 1 location is the best choice among other studied locations.

5. Conclusions

In this work, comprehensive CFD simulations were conducted to investigate the impact of IJV diffuser geometry and installation location on airflow characteristics and thermal comfort performance. The simulations were carried out under cooling-mode conditions that were representative of a typical office environment in hot summer climates. The modeled space featured a seated thermal manikin and standard office furnishings, including a chair, desk, personal computer, and cupboard, with two ceiling-mounted lighting fixtures. The office contained one exterior wall with a 1 m² glazed window exposed to outdoor conditions of 38 °C and a solar radiation intensity of 700 W/m², while the remaining interior surfaces, including the floor and ceiling, were assumed to be adiabatic. The IJV air supply was installed at a height of 0.4 m, with constant inlet conditions of 20 °C supply air temperature, a flow rate of 75 m³/h, and a relative humidity of 50%. A fully three-dimensional CFD model without symmetry assumptions was adopted, employing the RNG k–ε turbulence model with enhanced wall treatment. Four IJV installation positions were investigated to account for both functional performance and interior layout considerations: two corner locations and two mid-wall locations, relative to a fixed occupant position, namely corner 1 (behind the manikin), corner 2 (in front of the manikin), mid-wall 1 (behind the manikin), and mid-wall 2 (to the right of the manikin). A combined return and exhaust outlet was located at the center of the ceiling, near the opposite wall. Additionally, three diffuser cross-sectional geometries with identical areas were analyzed, including a right triangular section (163 × 163 × 230.5 mm³), a square section (115 × 115 mm²), and a circular section (130.08 mm in diameter).

The results demonstrate that airflow patterns and temperature distributions are predominantly governed by the IJV installation location, rather than diffuser cross-section geometry. Among the tested geometries, the circular diffuser consistently exhibited improved airflow and thermal performance. Although all examined configurations met acceptable thermal comfort criteria, the mid-wall 1 position, located behind the occupant and away from the heated exterior wall, provided superior airflow distribution, reduced vortex formation, and lower temperature stratification within the occupied zone. It yielded the lowest vorticity swirl strength, with a deviation of about 34.5% lower than the highest value that was reported for the mid-wall 2 location. It also verified the lowest average temperature inside the working zone (21.8 °C), with a deviation of about 3% lower than the highest value that was reported for the mid-wall 2 location. Consequently, this configuration is recommended for similar office applications. These findings align well with the limited studies that are available in the literature and offer valuable insights for HVAC system designers.

Upcoming studies may extend this analysis to different room dimensions and occupant activity levels, investigating the influence on contaminant transport. From an architectural perspective, the superior performance of the mid-wall IJV configuration highlights the importance of incorporating ventilation strategies at the early stages of office design to support adaptable spatial layouts while maintaining thermal comfort.
