Vertical Bearing Behavior of Reinforced Composite Piles in Dense Sandy Soils

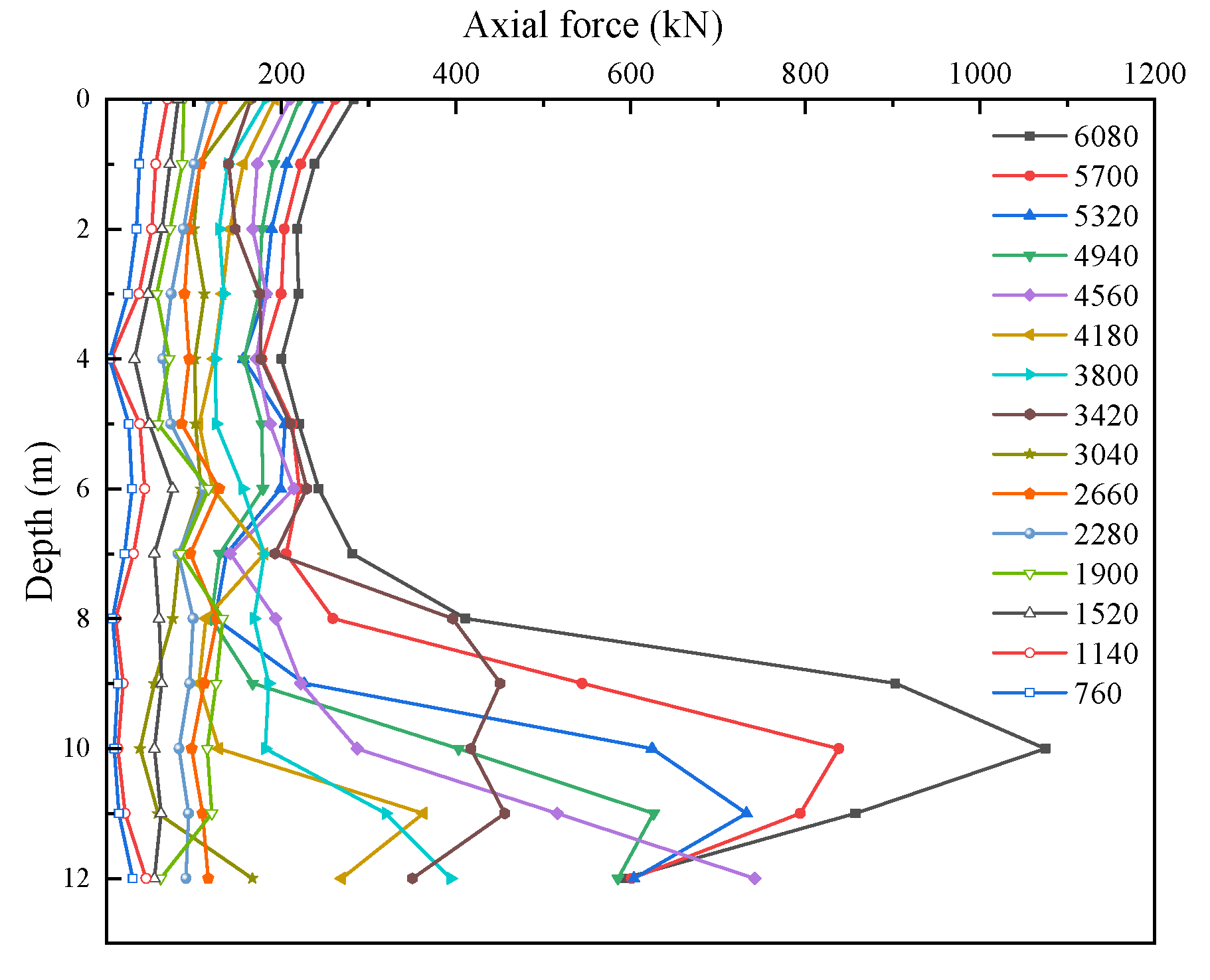

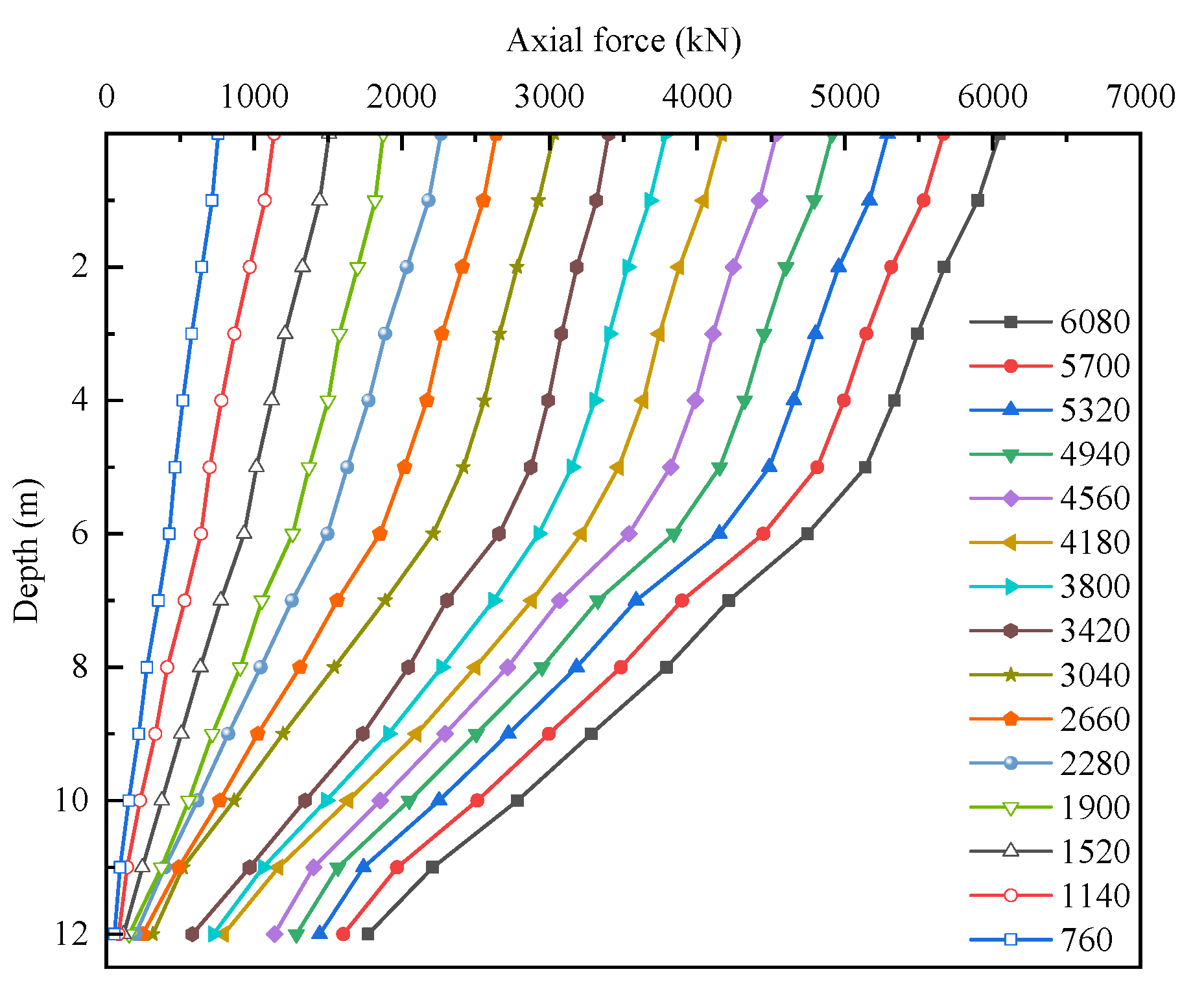

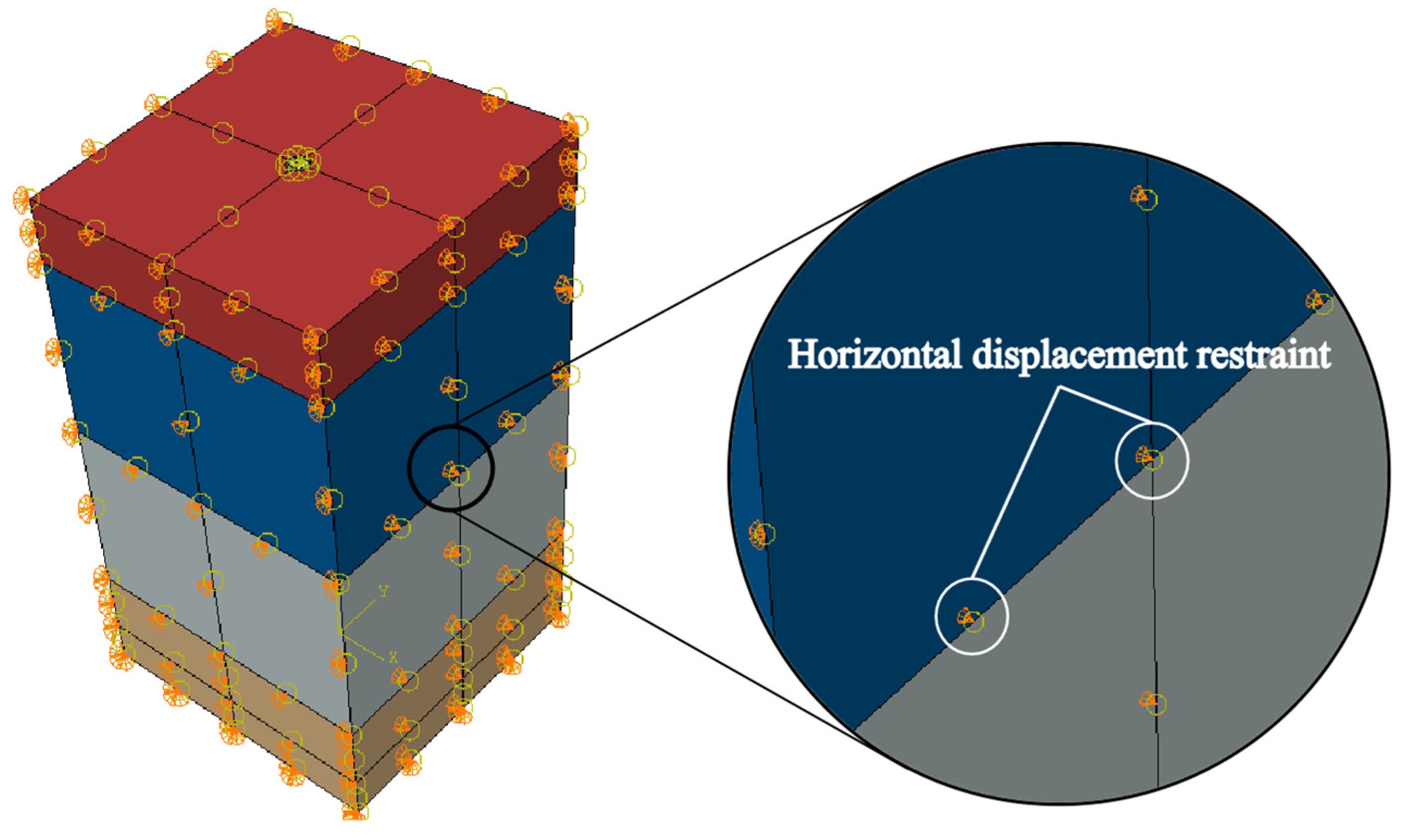

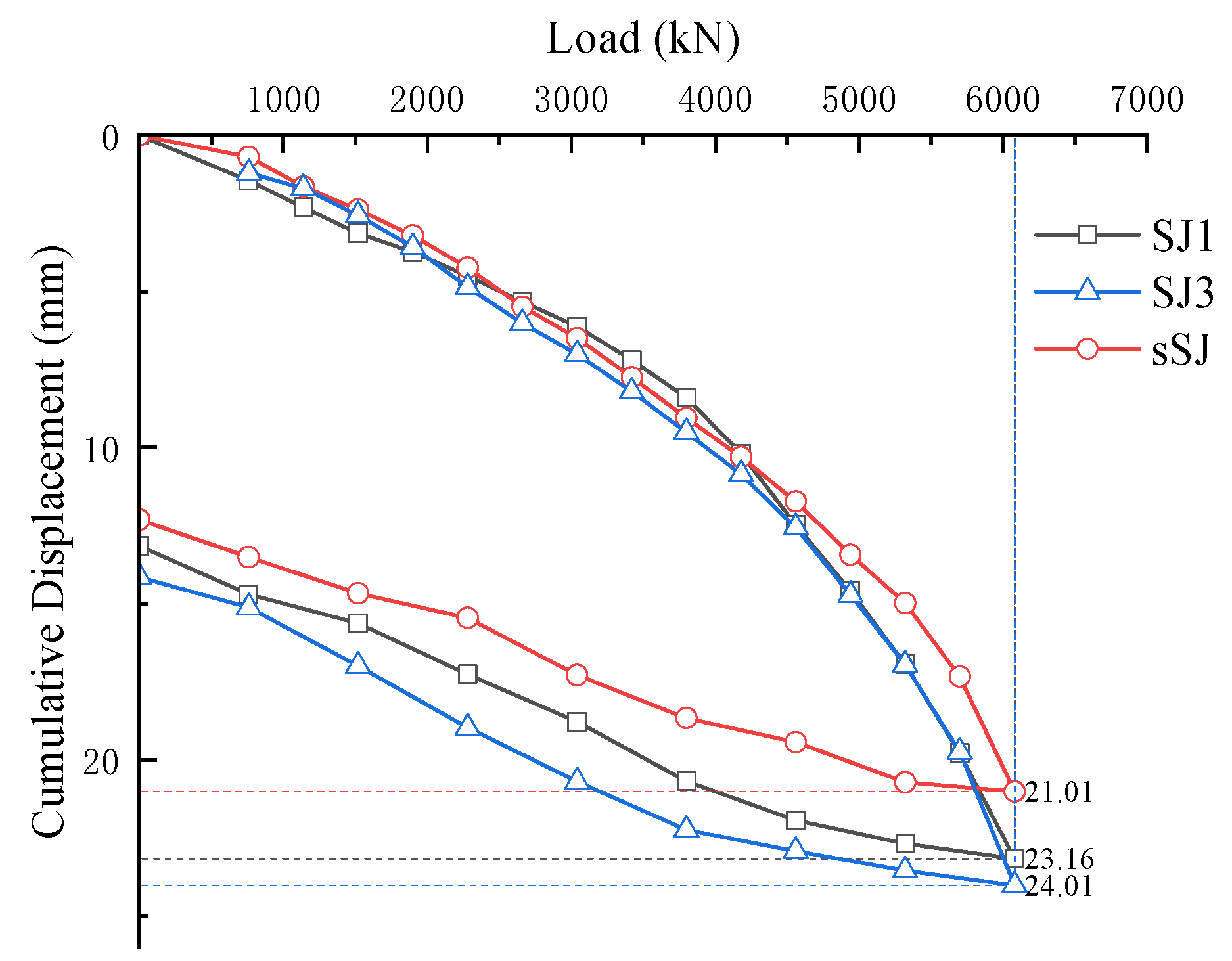

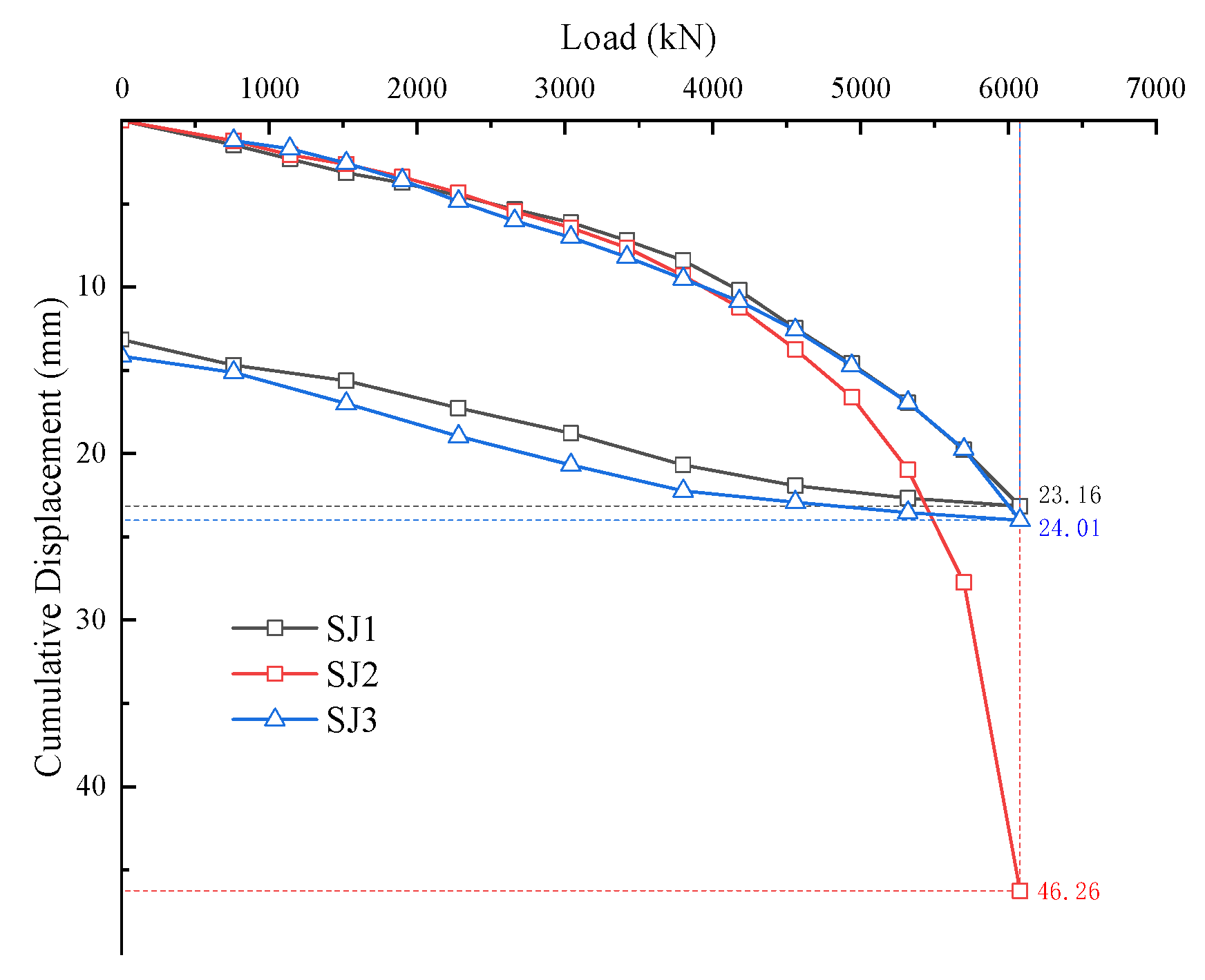

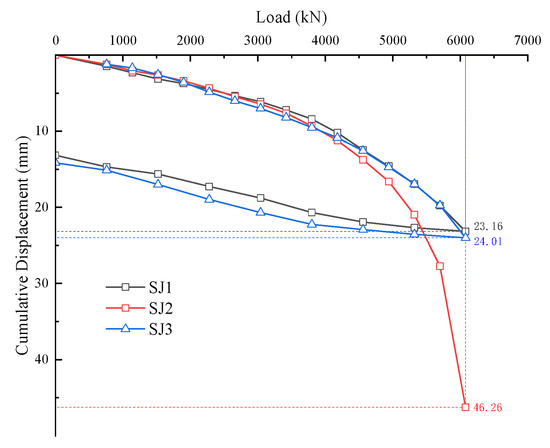

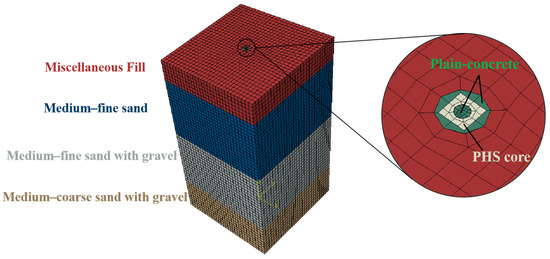

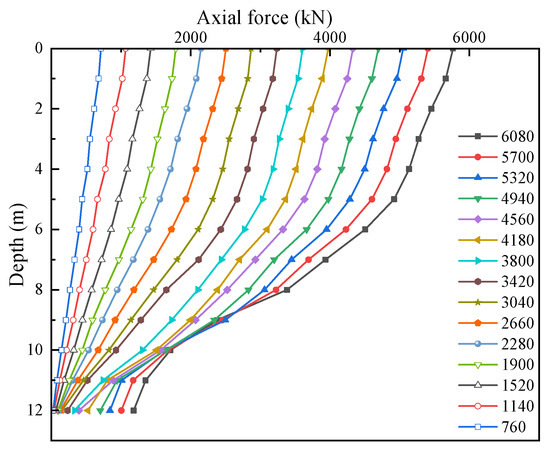

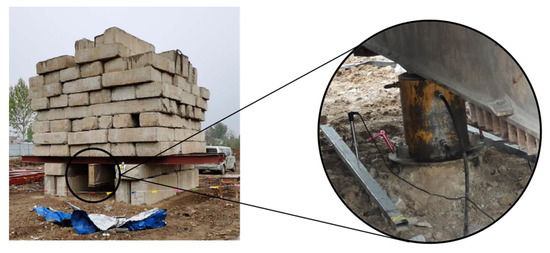

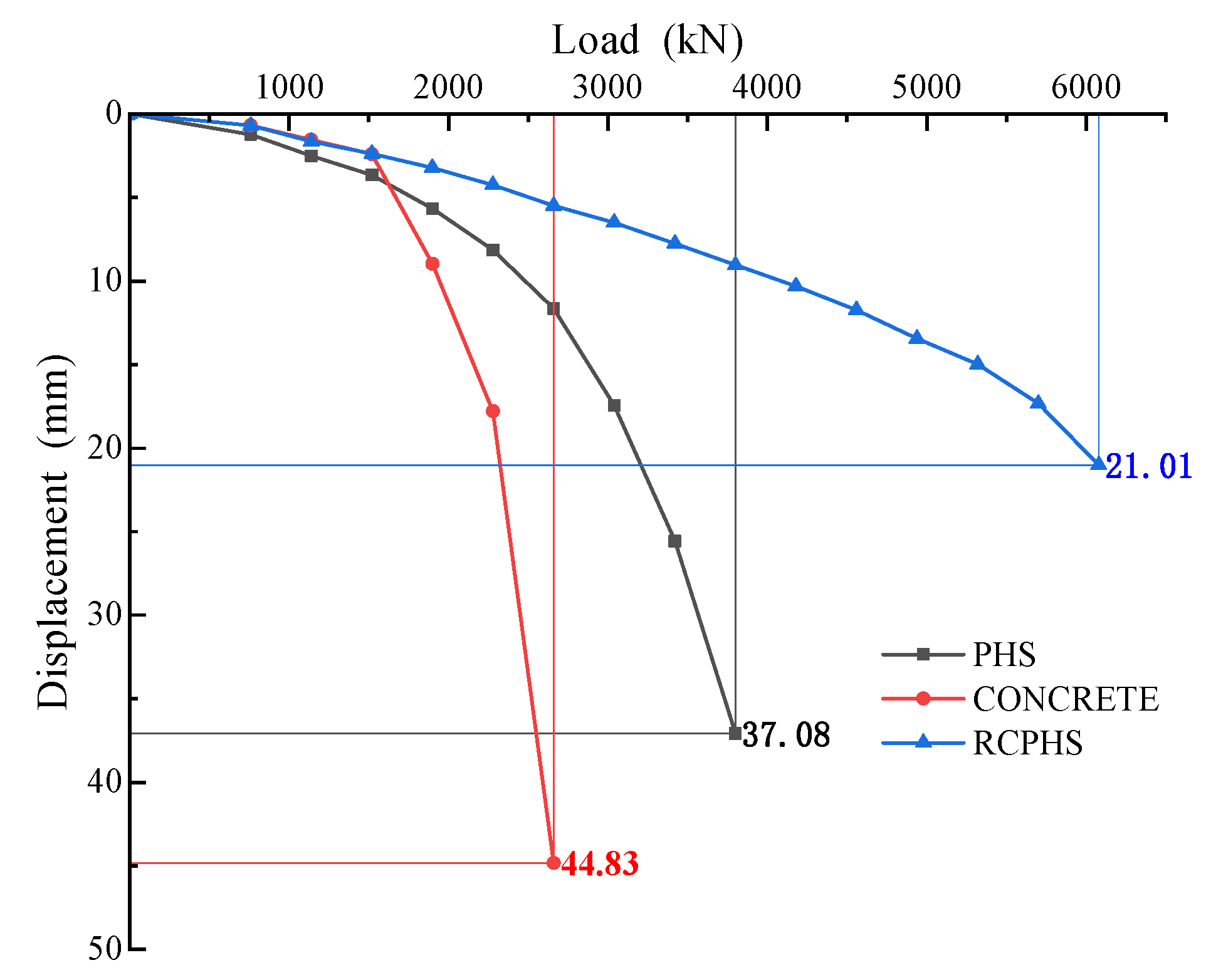

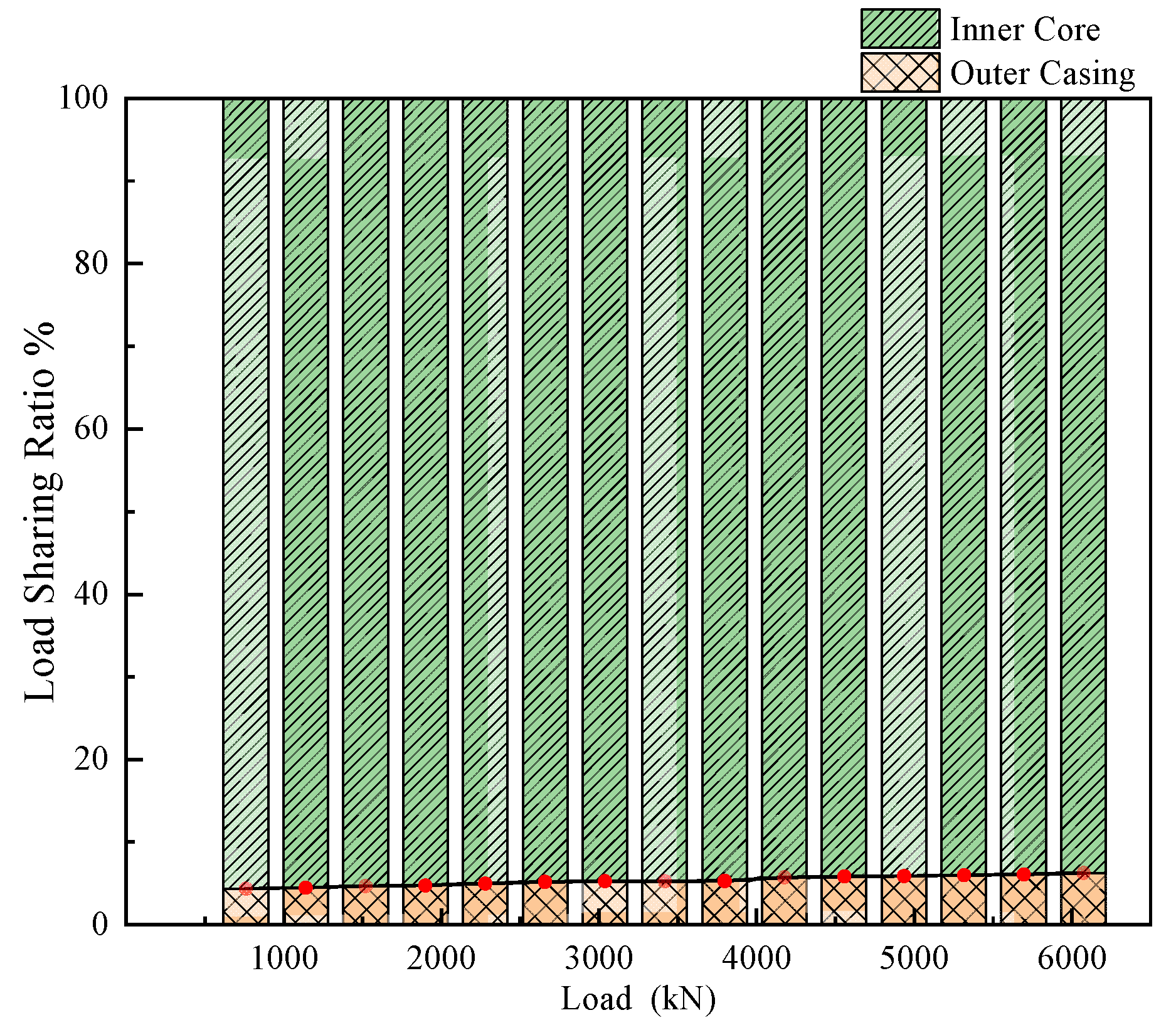

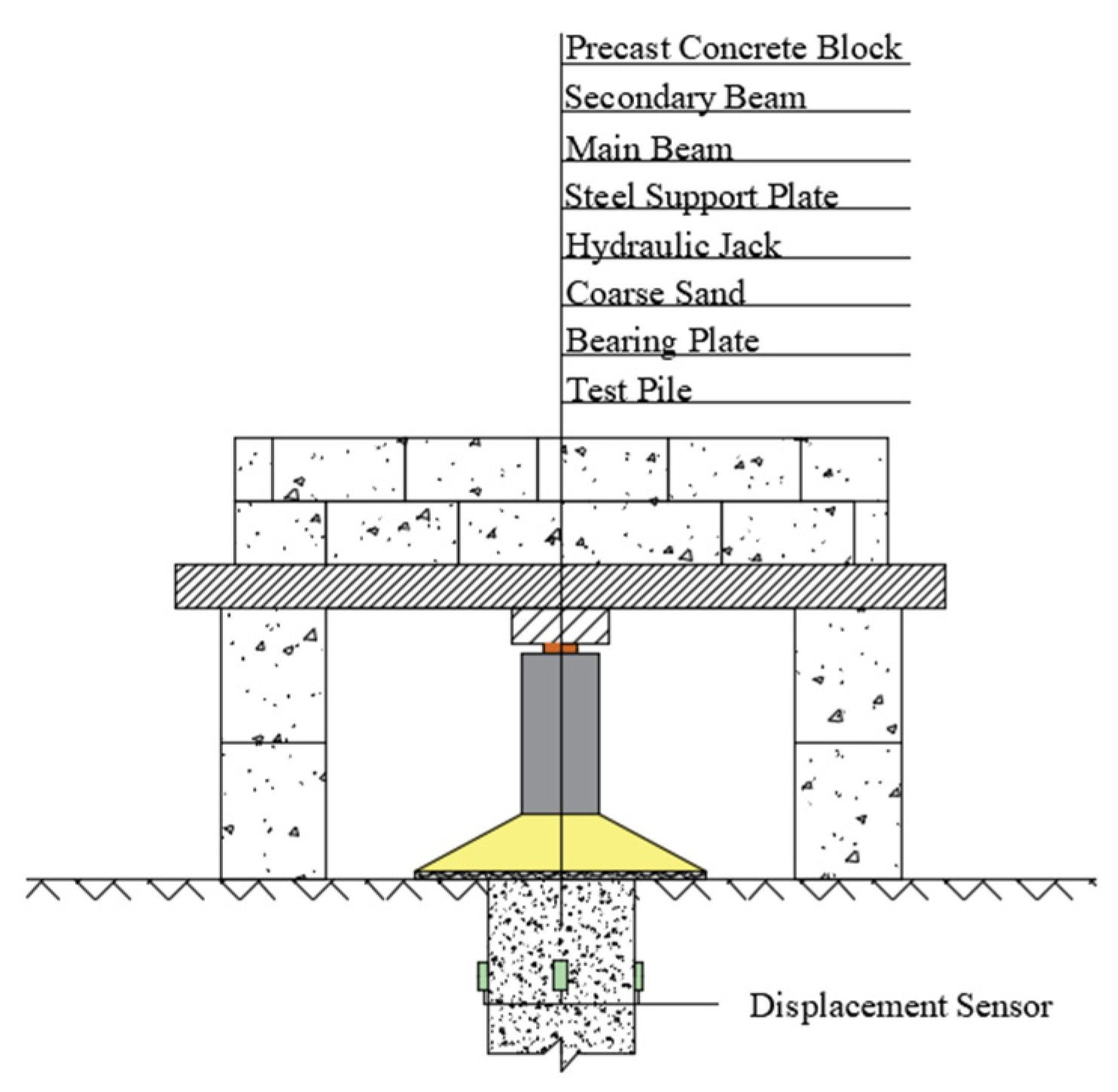

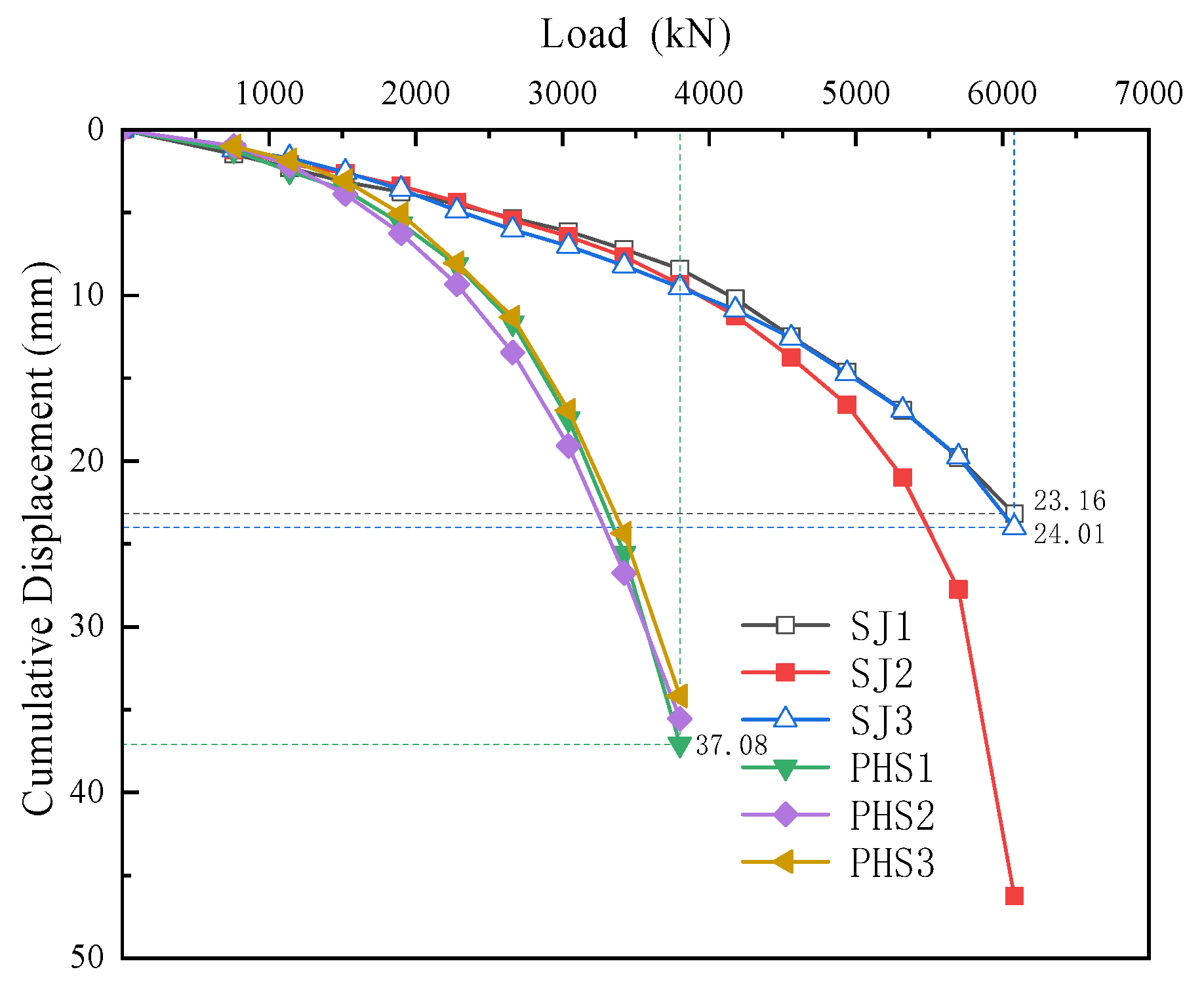

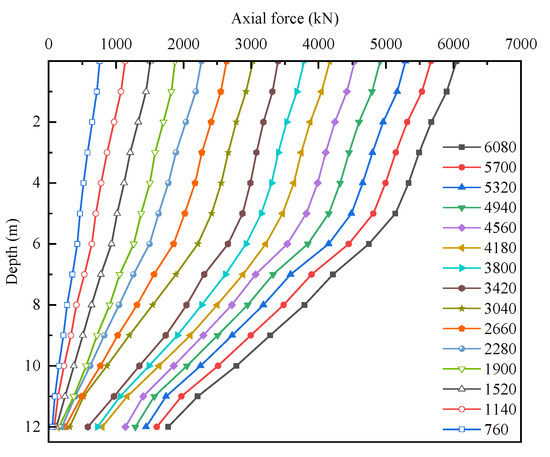

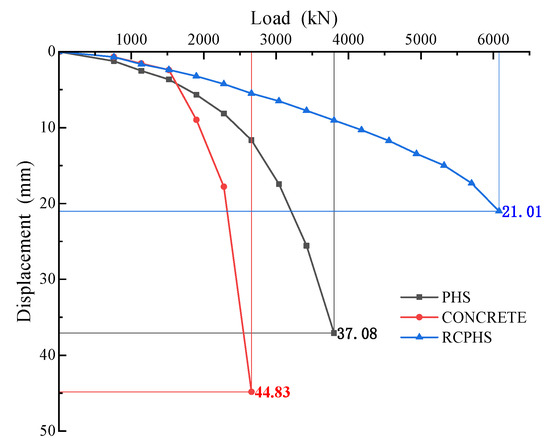

Reinforced composite prestressed concrete hollow square (RCPHS) piles, installed through pre-drilling, grouting, and static jacking, integrate the large lateral contact area of cement–soil casings with the high strength and stiffness of prestressed concrete cores. This study combines full-scale vertical static load tests and finite-element (FE) simulations to explore the interaction among the core pile, plain-concrete casing, and surrounding soil. Results show that, at 3600 kN, RCPHS piles exhibit 76% less pile-head settlement compared to PHS piles, and a 36.5% reduction in pile-material expenditure is achieved using the RCPHS scheme. At the same settlement of 23 mm, RCPHS piles carry 87% more load than PHS piles. A 3D FE model developed in ABAQUS reveals that the core pile carries approximately 94% of the applied load. When the load exceeds 4180 kN, the axial force in the casing sharply increases at depths of 7–10 m. The simulated P–s curves align well with field measurements, confirming model accuracy. The superior performance of RCPHS piles is attributed to the graded elastic modulus and coordinated stress distribution of the core–casing–soil system, which enhances interface friction and overall load capacity. These findings provide a foundation for the design optimization of RCPHS piles in dense sandy foundations.
